Deister Electronic TPU4030 RFID Transponder User Manual m en tpu 4030 pcb pro v111115 de bf
Deister Electronic GmbH RFID Transponder m en tpu 4030 pcb pro v111115 de bf
User Manual
![](/img.php?id=1617647&img=bg1.png)
Art. #TBA m_en_tpu-4030-pcb_pro_v111115_de_bf
TPU 4030 PCB
User Manual
![](/img.php?id=1617647&img=bg2.png)
Content
1. Technical Data............................................................5
2. Mechanical Dimensions..............................................6
3. General Information...................................................6
4. Activating the Transponder........................................7
5. Acoustic Signal............................................................7
6. Battery Monitoring......................................................7
2m_en_tpu-4030-pcb_pro_v111115_de_bf
![](/img.php?id=1617647&img=bg3.png)
Regulatory Notices
Europe
Hereby, deister electronic GmbH declares that this equipment - if used according to the
instructions - is in compliance with the essential requirements and other relevant provisions
of the RTTE Directive 1999/5/EC.
A full declaration of conformity can be requested at:
info@deister-gmbh.de
Approved for use in all European countries.
FCC Warning
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate this equipment.
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device. Le présent appareil est
conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Note:
When installing the board into other devices, under no circumstances
should an electrical connection be established.
m_en_tpu-4030-pcb_pro_v111115_de_bf 3
![](/img.php?id=1617647&img=bg4.png)
© Copyright 2011 by deister electronic GmbH
Disclaimer
deister electronic GmbH is not able to supervise the observance of the instructions given in this
manual as well as the conditions and methods used during installation, operation and
maintenance of the electronic devices and components respectively. Therefore we disclaim
liability and reject responsibility for any losses, damages or costs that are caused by
misapplication, installation, handling errors or faulty operation or related to the above in any
other way. All our products are subject to current advancement, therefore we reserve the right for
modifications without prior notice.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without prior written permission of deister electronic GmbH.
deister electronic GmbH reserves the right to make changes to any and all parts of this
documentation without obligation to notify any person or entity of such changes.
deister electronic GmbH
Hermann-Bahlsen Str. 11
30890 Barsinghausen
Germany
Phone: +49 (0) 51 05 - 51 61 11
Fax: +49 (0) 51 05 - 51 62 17
E-Mail: info.de@deister.com
Web: www.deister.com
4m_en_tpu-4030-pcb_pro_v111115_de_bf
![](/img.php?id=1617647&img=bg5.png)
1. Technical Data
Dimensions:
mm (inch) W x H x D 31.8 x 54.4 x 10 (1.25 x 2.14 x 0.41)
Operating Temperature:
°C (°F) 5 ... 50 (41 ... 122)
Relative Humidity: 5 %...95 %, non-condensing
Power Requirement: 1x CR 2450
Frequency: 8 kHz, 125 kHz, 433 MHz
Reading Distance:
in m (ft.) up to 10 (32.8)
OTP: (e.g. Formats up to 64 Bit)
Fixcode: (e.g. 32 Bit)
Conformity: EN 50364
EN 301489
Air interface (EU) EN 300330
Air interface (US) FCC Part 15
m_en_tpu-4030-pcb_pro_v111115_de_bf 5
![](/img.php?id=1617647&img=bg6.png)

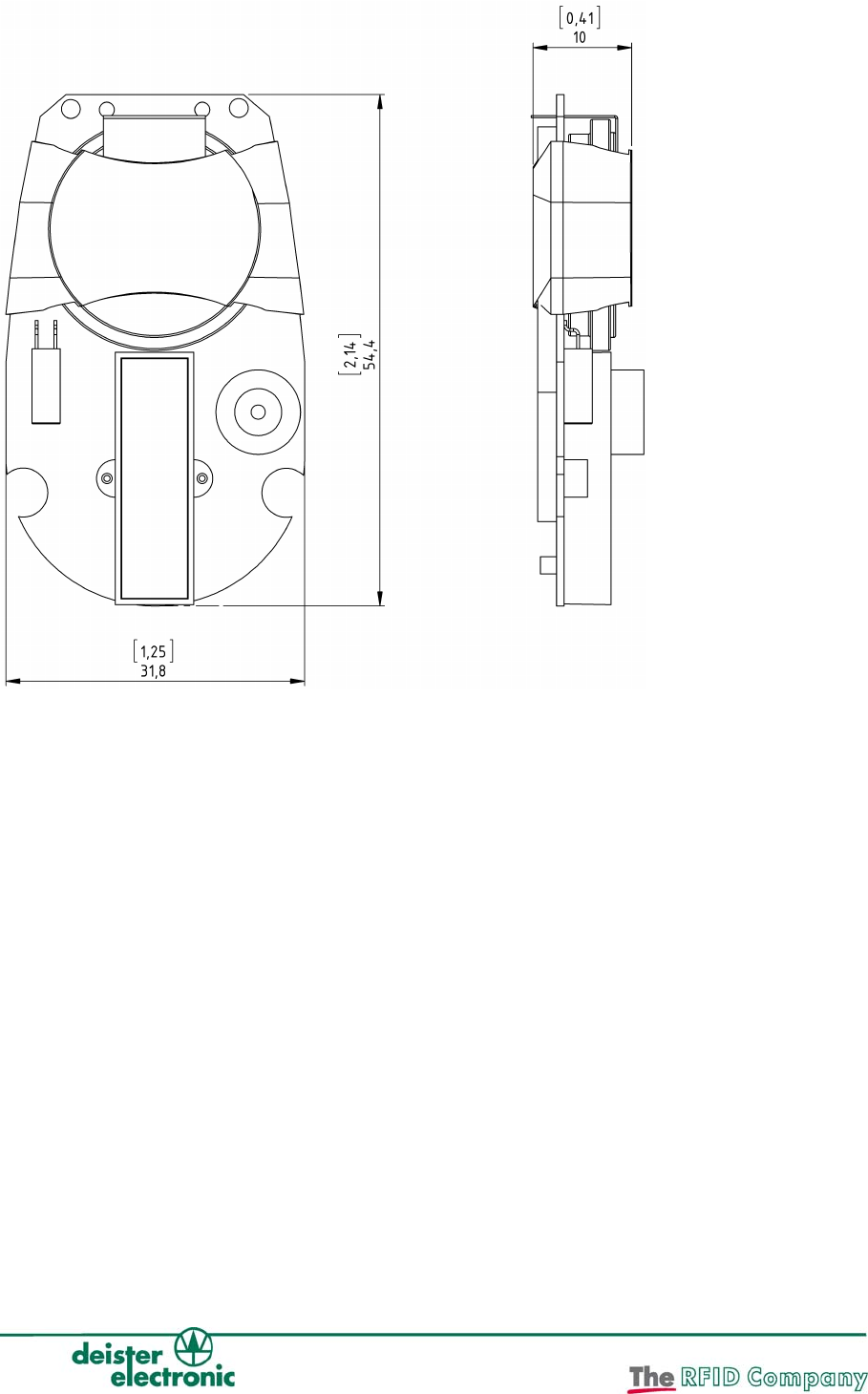

2. Mechanical Dimensions
All dimensions in mm [inch].
3. General Information
TPU 4030 is an active transponder, which was developed to be used in combination with
Amantag Compact and / or PRX5 reader or ADA (Amantag deactivator).
The transponder has three interfaces for communication with readers.
•Receiving via 8,1 kHz
•Sending via 433 MHz
•Sending and receiving via125 kHz (passive modulation)
Amantag Compact readers are using 8.1 kHz and 433 MHz frequencies. These low-
frequency fields are generated by the reader and serve to activate the transponder and to
communicate with the transponder. Messages from the transponder to the reader are
transmitted via 433 MHz. Once a transponder is brought into the sphere of the low
frequecy field, it is activated and gets recorded by the reader. Reader and transponder will
remain in a constant communication with each other until the transponder leaves the field.
The transponder can also send out an acoustic signal when it is detected by the reader.
An 125 kHz interface is used for data exchange with PRX 5 reader or ADA. After activation, the
transponder sends data to the reader for about 3 seconds. To activate the transponder again, it
must first be removed from the reader field and then brought in again.
6m_en_tpu-4030-pcb_pro_v111115_de_bf
![](/img.php?id=1617647&img=bg7.png)
4. Activating the Transponder
For transportation, the transponders are set to transport mode. Before use. they must be

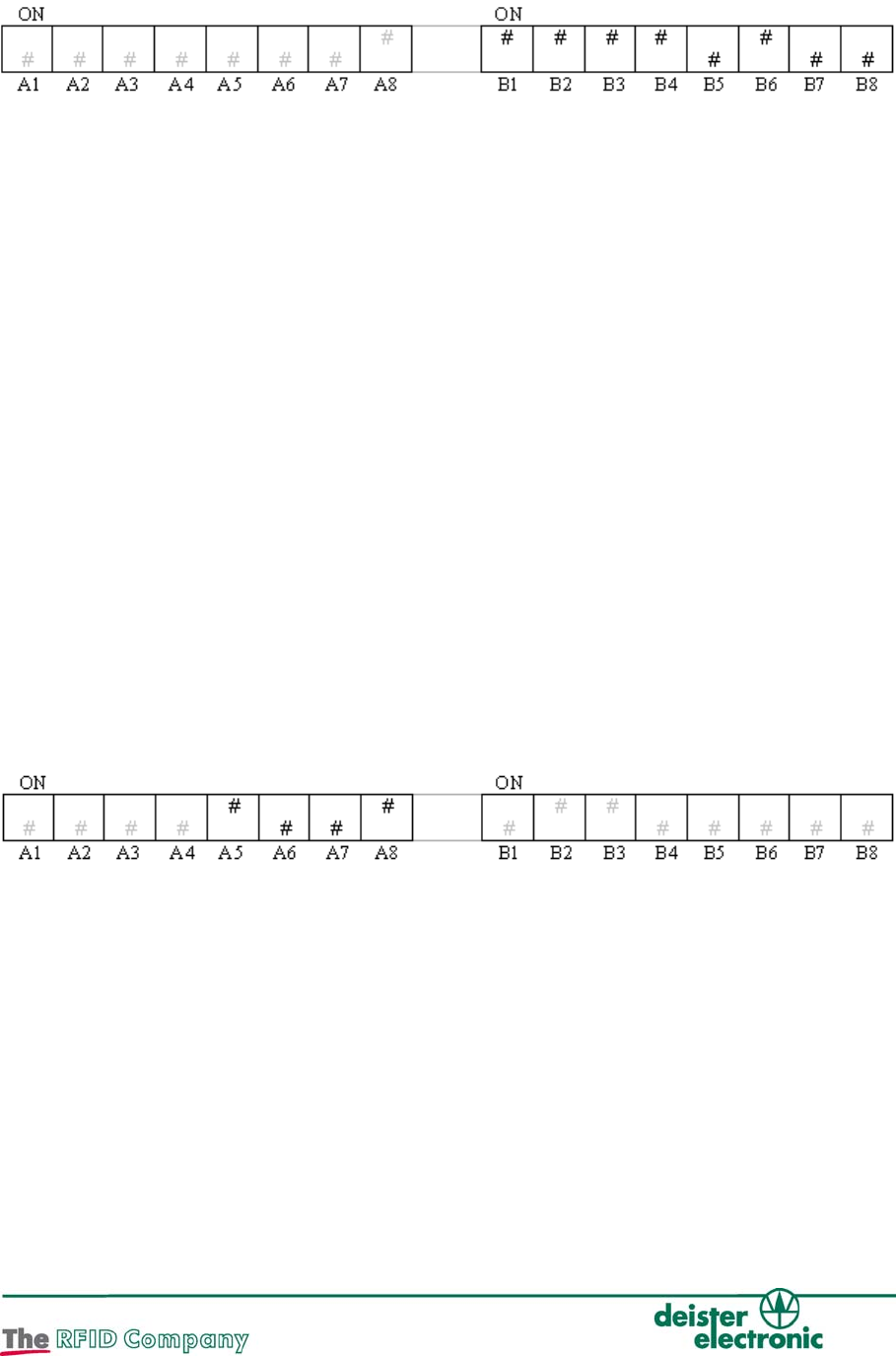

activated. The activation is done by an Amantag compact reader. The DIP switch B6 needs
to be set to ON position.
Attention!
Possibly, the field strength must be increased. Therefore, set DIP switch B1 to B4 to “ON”
position. After configuration, the transponder should be placed close to the reader (it
requires high power to wake up the transponder from transport mode).
As long as the switch B6 is in ON position, there is no reaction from the reader to the
transponder. Whether a transponder is active can only be revealed when the switch B6 is
in OFF position.
This way, several transponders are activated simultaneously. After activation, the switches
must all be brought back into starting position.
Attention!
Once activated, transponders can not be switched into transport mode again.
5. Acoustic Signal
The TPU 4030 has a built-in beeper, which can be activated by an Amantag compact
reader. The acoustic signal is triggered by an Amantag compact reader whenever its door
number is greater than seven.
The picture below shows the switches A5 - A8 set to door number 9.
Attention!
Once activated, the alarm can only be disabled by an ADA unit (article number:
0723.000). Otherwise, the transponder will beep, until the battery is empty.
6. Battery Monitoring
The battery status of the PrisonTag can be monitored. An ADA unit (article number:
0723.000) can read and display the current battery status. For more information, please
refer to the description of the ADA unit.
m_en_tpu-4030-pcb_pro_v111115_de_bf 7
