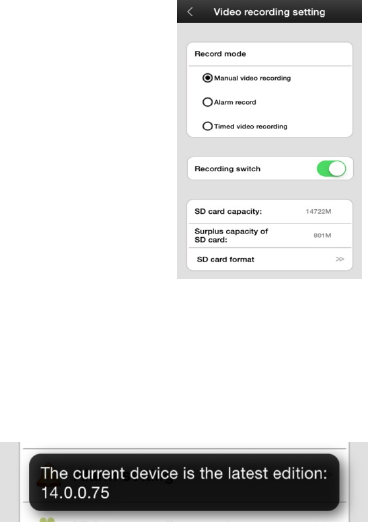

Section 8 Recording Settings..........................................31
Section 9 Dfense Zone settings.........................................34
Section 10 Storage Settings...............................................35
Section 11 Device Updates Checking...............................35
Chapter 5 Yoosee APP System Setting Features..................35

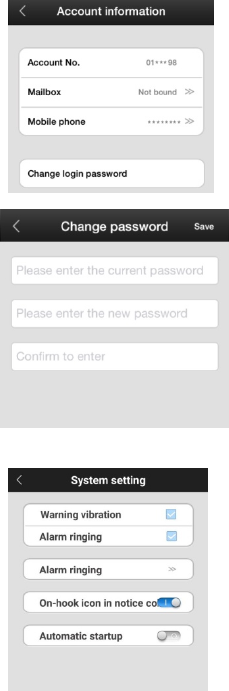

Section 1 ID Imforation...................................................36
Section 2 System Setting.................................................36
Section 3 Version update....................................................37
Section 4 System Notification.........................................37
Section 5 About.................................................................37
3
Section 7 Quited...............................................................38
Chapter6 FAQ..............................................................................38
1
Chapter 1 Product Description
Section 1 Packing List:
Device *1
Instructions*1
adapter*1
Stent and install Accessories bag*1
Section 2 Product Appearance Introduction

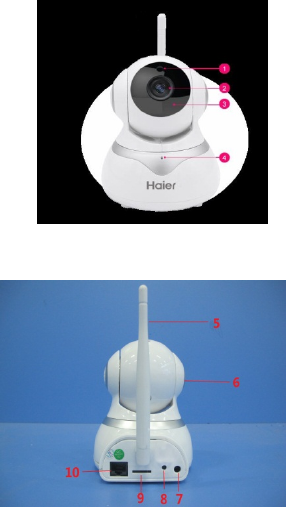

1：High - sensitivity resistor
2：HD Camera Shot；
3：Infrared night vision lights；
4：microphone（Built-in）；
5：WIFI Aerial；
6：speaker（Built-in）；
7：Power port；
8：Reset；

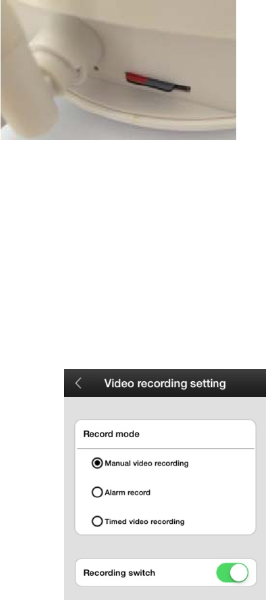

9：TFcard slot：
10：Network port
2
Section 3 speaker (bee buzzer) sound
camera speaker(bee buzzer)sound stutas definition:
1. waiting to connect when device works(network not
connect)
2. Voice promptsthat connecting and waiting (nework
connecting successfully )
3. Voice prompts:connecting successfully(WIFI
connection successfully)
4. Voice prompts:reset successfully(reset successfully)
5. sirens (motion detection alarm )
6. Voice prompts: set defense successfully(defense
setting)
7. Voice prompts: Withdraw defence
successfully(withdraw defence)
3
Section 4 Productparamete
Picture Sensor
Type 1/4" Color CMOS Sensor
Tesolution
Primary:
720P/960P/1080P;
Minor: 640 x 360 (12fps);
Focal F: 3.6MM
LENS
Lens Type GLASS
Perspective 65 Degrees
Audio
Input Bulit-in microphone
Output Bulit-in speaker
Audio codec
format g.711alaw
Video
Compressed
image format H.264
esolution
Primary:720P/960P/1080P
Minor: VGA
( 640 x 480, 12FPS )
Image Flip Auto
4
Storage Sport (Max Micro SDcard
32GB)
Communication
Supported
Protocols
TCP/IP,DHCP,DDNS,PPP
OE,UPNP,RTSP,ONVIF
WIFI IEEE 802.11b/g/n
WIFIF
Distance 50M (Open Area)
Wireless
Security
Protocol
WEP & WPA WPA2
Encryption
Others
Cradle head
Level：355
Degreesvertical：120
Degrees
LED Light LEDInfrared Light, Night
Vision Function :10M
Alarm Output Push Notifications、Alarm
Video、Sending email
Consumption Power DC 5V/2A
Implementation of standards：GB8898-2011
Ch
a
Yoo
S
Met
h
APP:
“
If
A
Plea
s
a
pter 2 Th
S
ee APP Do
w
h
od 1：Scan t
h
“
YOOSEE APP”I
A
ndroid system
m
s
e download and
5
e Product I
w
nload Instal
l
h
e QR code on
fiphone（Apple，
m
obile，please
s
install the“Y00
S
nstallation
l
ation
the retail box
iOS）mobile ，pl
e
s
can：
S
EE”APP
to install
e
ase scan：
6
follow the prompts, and your mobile desktop will show
“YOOSEE”APP, pease check :icon on right
Method 2：Hit the link and install “Y00SEE”APP：
www.yoosee.com
please choose the right software version follow your
mobile system ,and open the link to download the
app then finish installing,your mobile will show
“YOOSEE”APP,pease check: icon on right
Section 2 YooSee APP ID Registered（Initial Use）
Must register the ID if first time to use "YOOSEe", also please
pass the register process if finished
registering and login the Yoosee
APPSpecific steps of register (For
example: android system，the same as ：
1. Hit the APP icon（YOOSEE）
3.Choose the item of Newly created through login interface
7

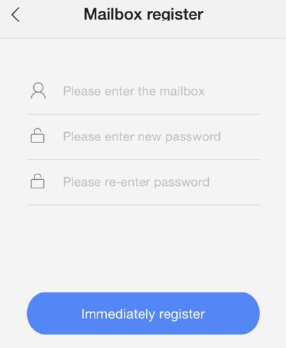

2. Register by the email or mobile number and set the
password
8
1. Import the right email or mobile number message on the
Registration
a.mobile registered ：Enter the Verification Code from the
mobile that registered and also enter the default password
b. email registered：Enter the email address and the default
password
9
3. Default Login as
finished registering and turn into
Yoosee App，Like This
Note： Please remember ID
and password well
Section 3 YooSee APP Log In
（Finished Registering）
1. Hit the mobile App Icon(YOOSEE）

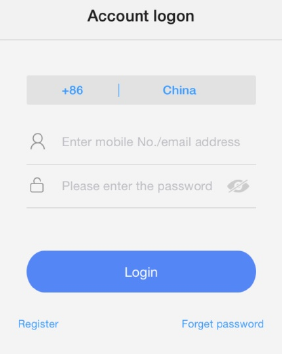

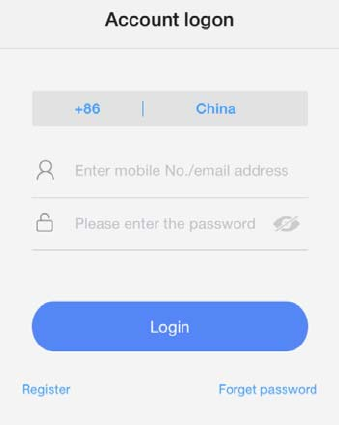

2. Enter the login interface ,Enter the ID and password and
log in
3. Login successfully
10
11
Section 4 Proudcts Launch

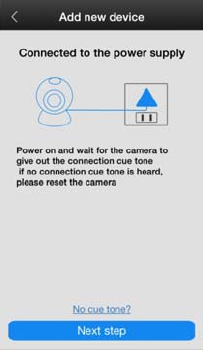

1. Contact with camera. Confirm the wifi
signal of mobile well ,then contact the
camera with power

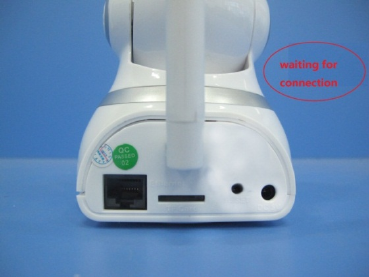

2. waiting the Motor of camera self-test (the camera
lens will rotate) until head the sound:waiting to
connect
Section 5 How To contact Products of First Time
To Use Or Reset With YooSee App
12
Please Control bellow if finished setting the network contacting
step:
products and the Yoose APP connection Precautions:
the moibile and the camera need contact with the
same WIFI setting
Wifi router must not be set the security strategy that
limited the drive to visit
WIFI name must be not the Special characters
WIfi password must not be the Special characters
Step 1、items contact with wireless network

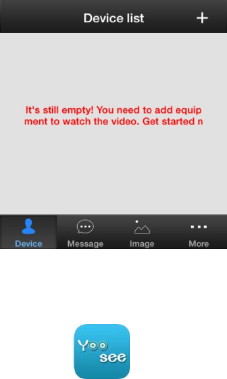

Hit Icon“YOOSEE”on the Mobile desktop, and turn
to device list interface automatically
items contact with
wireless network
Way 1：Intelligent connection
13

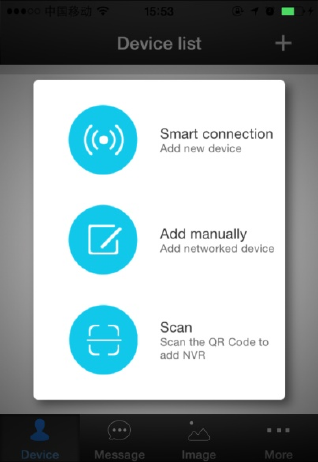

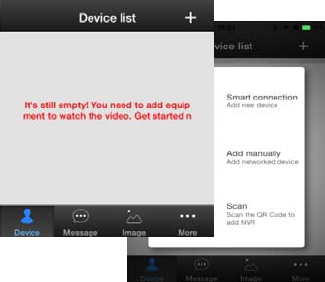

1. Hit“+“and choose intelligent connection
2. According
toprompt，add the new
device.hit next step
14

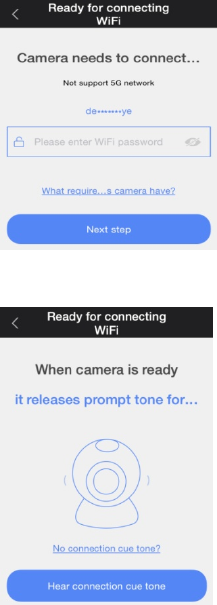

3. now the interface
poping up the wifi that need to
contact with camera on the
mobile ,and enter the wifi
password
4. hit next step ,and
waitingto connectnetwork
5. when you head that:"
itis connecting now ,please
waiting " in 3 second , it will pop
up the ID interface and
connection succeeded
15
Way 2：Contact the network by cable and turn to WIFI
1. please contact the camera with the router(not model) by
network cable and open the Monitoring software :YOOSEE ,
then hit " Manually add" Upper right corner after WIFI contacted
with mobile well
2.
(Note
3.
s
Enter ID , devic
e
:devicename:an
y
as finished last
s
icon)"-hit"Netwo
r
List show"- hit"c
o
until connection
s
how " "), the
n
16
e
name and pas
s
y
name you like ,
s
tep ,hit "device
s
r
k settings"- hit"
y
o
nfirm "or"chang
succeeded (wai
t
n
you could pull
o
s
word ,then hit s
a
original passwo
s
ettings(Gear
y
our wifi name a
s
e"-enter passw
o
t
ing for 1-3 minu
t
o
ut the network
c
a
ve
rd:123)
s
the WIFI
o
rd ,wait
t
es .it will
c
able and
17
install the camera where you want to install (note: dont out
of range of wifi )
4.
Special declaration: thers must not be any special
character on the WIFI , and it must be not out of MAC
address limited in router
18
Step 2 setting
password in the
device
It will pop up the
interface that enter
the original
password:"123",and
set the new
password after login
in successfully
through above 2
ways
Please enter
password that you
like and save in
the password box of
the interface
created
(note:remember
the password well)
19
it will turn to interface of device list automatically as finished
setting
Note:
must head the sound:"waiting to connect" from camera
before want to connect with network
Please reset if wrong password or contection

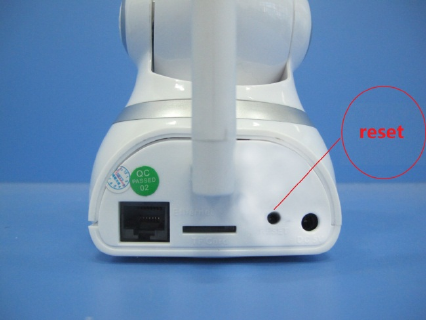

unsuccessful. Way: hit the reset key behind the camera
for 5 seconds by the Sharp objects until hear the
sound:"reset successfully", and connect with the network
again
20
Section 6 How To Product Of Contact Password
Set With YooSee APP

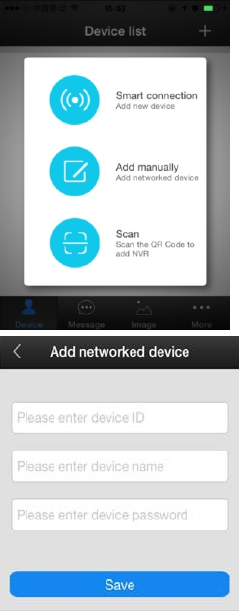

1. Hit“+“and choose "
Manually add"

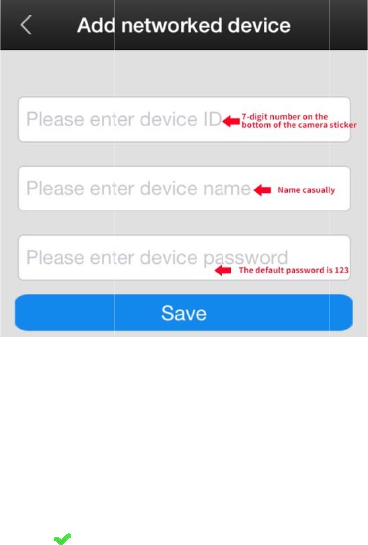

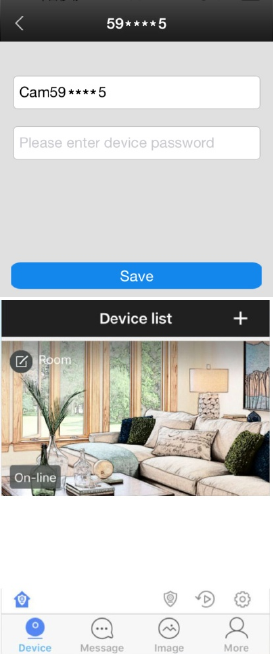

2. Enter the contacted device
name,ID and password ,then
save.
21
Chapter 3 Product Features
below is :Specific operations and Function Description
Section 1 YooSee APP Main Interface Button
it will show interface below as hit device name:
22

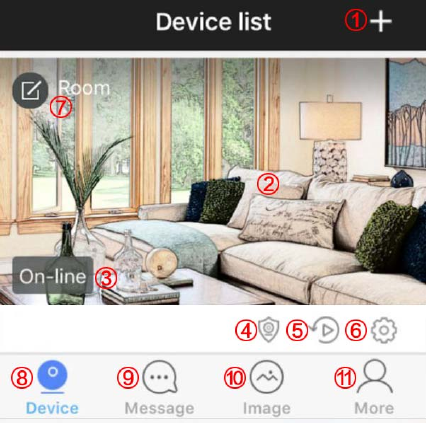

1. Add button :add camera
2. Remote monitoring:join Remote monitoring when hit
3. Device status:prompt be online or not
4. Defencestatus:Only receiving the alarm report if set
up defences.Alarm if lock , cancel alarm if
unlock ,please check :Section 6 Security Settings
5. Replay button:reply video features
6. Setting button:set the device menu
7. Edit button:edit camera name and password
8. device button: to view the device list,it will show all
the camera contected
9. Report button: view all the alarm report
10. video button: view all the Screenshots of camera
recorded

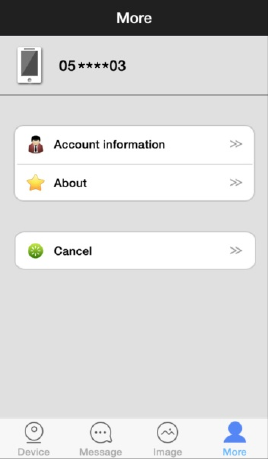

11. More button: view Yoosee APP system features and
Exit interface
23

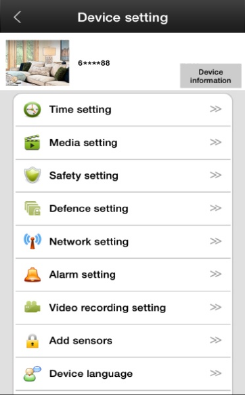

Section 2 Camera setting Main Interface Button
Introduction

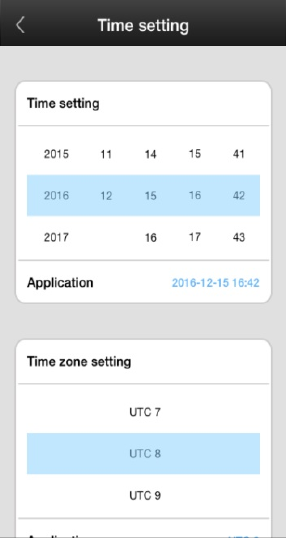

1.time settings : set time

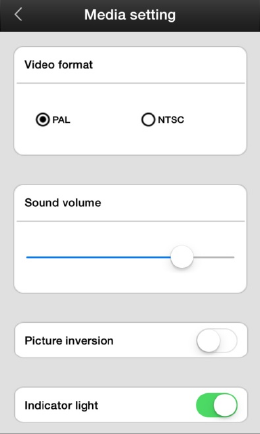

2. Media settings: change
Video mode, change sound
volume ,and set image
reversing

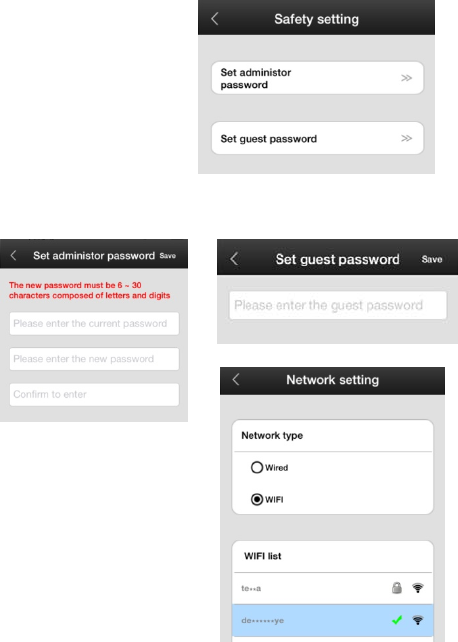

3. Security Settings:set the
device admin password and
guest password

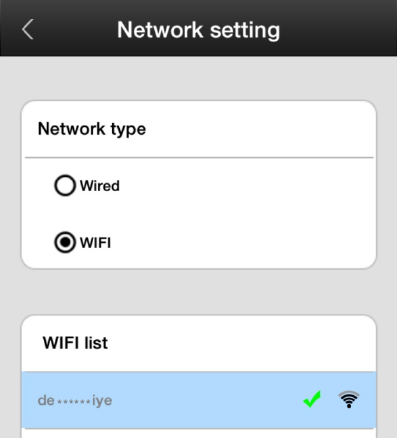

4. Network settings:view all
the network message of all
the camera connected
5. Alarm setting:set if receive
alarm report or not
6. Video setting:set video
switch and the video models
7. Zone setting: can not support
8. Storage settings:view TF card status and capacity message
9. Device update:hit the current newest version check, and
update
24
Section 3 Camera Real-time ViewingInterface
Instructions

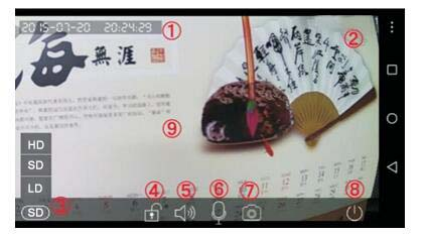

1：Show the device time message
2：Show quantity of viewing people
3：Resolution switching button(HD/SD/Smooth)
4：Defense button
5：Monitor function button
6：Intercom function (only intercom if Press and hold ;gun
type camera can not support)
7 :Photograph function button
8：Close button and exit interface
9：Slide the screen up and down, and could control the
camera to rotate UDLR position
25
Section 4 Yoosee APP System Settings Interface
Instructions
1. Account information:
check Yoosee APP
software account
number and login
account message
2. System stettings: set
the scene models
3. Version update:check
the current newest
software version
4. system notice:about
the Yoosee software
notice
5. about: the Introduction
of Yoosee software
6. scan QR code and add
device
7. Alarm
management:shield the device of alarm report received
and interval alarm time
8. Logout:log out current account number
9. Quit:quit out Yoosee
26
Chapter 4 Camera Basic Features
Section 1 Real-Time Viewing Monitoring
hit "Remote monitoring"button of camera show being online in
device main interface, then could view the real-time image
NOTE: if want to check the same device Viewing Monitoring
use 2 mobiles, these 2 mobiles must use different Yoose ID to
login
Section 2 Device Information
show the current device
version message
27
Section 3 Time Settings
1. change device
time, hit below
"apply"and ok !
and it will show the
time upper left
corner when view
the real-Time
Viewing
Monitoring after
finished time
setting
2. change the device
Time zone, please
choose the local
time zone ,and hit
"apply"
Note: must
Synchronize the
network time,orcan
not record video successfully
28
Section 4 Media Settings
3. change video
models:PAL model
and NTSC model
4. change the sound
volume
5. image reversed: hit
the image reversed
switch to ensure
view image normal
normal by mobiles
29
Section 5 Security
Settings
change the admin password
and guest password
1. Admin password: all
the permissions
2. Guest
password:Real-time viewing permissions
Section 6 Network
Settings
1. network models:wire
model and wireless model
2. wire model: plus and
connect with the network
30
cable and ok
3. wireless network list:showwifi message Nearby
Section 7 Alarm Settings

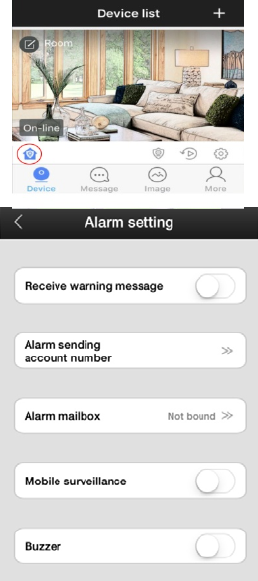

1. Alarm report received:hit the
switch button ,and open if show
blue ,default closed
2. The account number that
alarm report push :view Yoosee
APP account number that alarm
report push (note: not login
account number); delete
account number that alarm
report push, it will close the
alarm report switch when
delete the Yoose App ccount
number
3. The Email that alarm report
pushed :add the email to
received alarm report email
can received the Screenshots
of Alert Motion Detection when
open the alarm report received
31
successfully.
4. Motion Detection：hit the switch button，and open if show
blue ,default closed， the camera can capture moving objects
when open status
5. Bee buzzer(Speaker)： the device can not support bee
buzzer。
note：Just received alarm report only open the motion detection
and the switch of alarm report received at the same time and the
defences key is locked
Section 8 Recording Settings
1、 ready for the recording
1) need to ready one piece micro sd card , and put it into
micro sd card (TF card)slot behind of the camera,please
follow the picture below:
2) the micro sd card effect that put in the micro sd card
32
slot in the camera ,please check the picture:
NOTE:
Need format the card if first time to use. make sure the TF
card is Fat 32 format system,allocation unit:16KB
Supoort max capacity is 32GB , it will store 200MB/hours
when device works, the video on the tf card will be
covered cyclically if the TF store in full capacity and not
copied out
The video can be player by Gplayer(dedicated player)
2、 Recording stype settings
1) Manual recording
a、 hit"Manual recording"
button
b、 hit the "Manual
recording" sbutton ,and
open if show blue ,default
closed.it will work if hit
the button, and will be
end to work if hit it again
33
2) Alarm recording
when set the alarm
recording status, need to
ensure the the moving port is
on the status of alarm report
received :open the motion
detection and the switch of
alarm report received at the
same time and the defences
key is locked

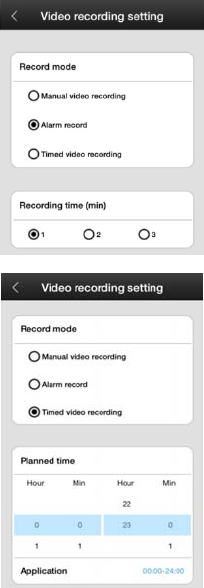

a、 recording models:hit
alarm recording , and it
start record,the camera
just work only received
the alarm report
b、 recording time:set the
time that record the video
each time
3) Timed recording
a、 hit "Timed recording"
b、 time Planning
schedules:please setting the
recording Start time(left) and
end time(right) in the time Planning schedules
34
c、 hit the "apply" in the interface ,and cotrol successfully
3、 video viewing
hit"review"button on the yoose app
main interface ,and can check video
message and the view the video
Section 9 Dfense Zone settings
Defense Zone settings
Defense Zone setting could connect with other Smart home
accessories,forexample:doormagnet,Human body infrared
sensor ,Smoke detector etc
but this model of Haier camera can not support the
function,please waiting for the new models that support these
functions
35
Section 10 Storage Settings
view mini sd card (TF)card capacity,
and the Remaining capacity,also can
format TF card
Note: need format the card if first time
to use. make sure the TF card is Fat 32
format system,allocation unit:16KB

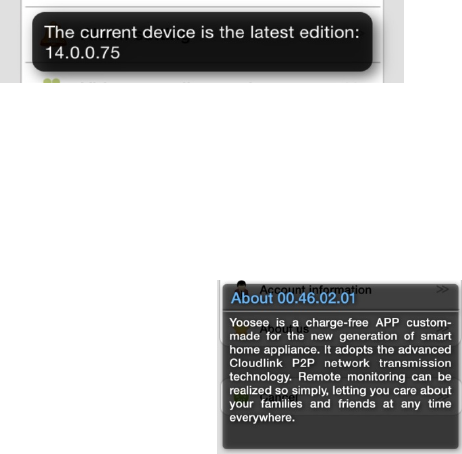

Section 11 Device Updates Checking
hit device checking update,view the current software version
and update
in time
Chapter 5Yoosee APP System Setting Features
hit<more> button Yoosee app interface on the Yoosee App ,and
36
enter system setting function interface
Section 1 IDImforation
1. account number: including
Yoosee app software
account number that
registered and the mobile
number or email that you
registered
2. change the
password :enter the new
password and old
password, also can change
the login password that setted before
Section 2 System Setting
Yoosee software system default
settings including alarm setting
37
and ring setting etc
Section 3 Version update
hit "version update checking",view the Yoosee current version
and update the newest version
Section 4 System Notification
the items is the Yoosee APP System Notification
Section 5 About
hit "about"button to view
description about Yoose
app
38
Section 6 Log Out
hit"logout"button to quite
currentloginedyooseeacc
oun umber. you could login
or enter the registered acc
ount number and password
to login again
Section 7 Quited
hit"quite"button and exit YooseeAPP,and also can hit Yoosee
APP icon then log in again
Chapter6 FAQ
1.why is the network can notcontect
unsuccessfully?
Answer:：please check the network status if connect well , the
network settings correct,wifi name if include Special
characters,wifi password if include Special characters,the device
39
if energize,also try to check by other different ways
2.device is off line or network anomaly?
Answer :Reflashrefresh,app will reload when slide from up to
down by hand, it is broken network, Power outage,camera
Crash if still off line, and need to check the Circuit: pull out and
plug in the plower plus! if can not restore network, please pull
out the sd card after Power outage,andconntect the power
well again ,if also can not r
torenetwork,need to connetct the router trough the network
cable, please check P14 (wire connection change to wireless
connection)to control
3.can not hear the alarm sound？
Answer: check the switch of received alarm report if on，the
Motion Detection if on，arming key if on，make sure all the switch
and key on all the time，and open the Bee buzzer ，and you can
hear the alarm sound
4.Can not record the video？
Answer：check if intall TF card， and if keep recording video
open，also check the TF if broken.Need format the card if first
time to use. make sure the TF card is Fat 32 format
system,allocation unit:16KB
40
5.how to do if forget the password？
Answer：suggest to hit the reset key to reset factory settings，
and connect network and set the password again
Chapter7 More 36
please update system software in time， it can check and update
automatically
41
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
42
This equipment complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Radiation Exposure Statement:
The equipment complies with FCC Radiation exposure limits set forth for
uncontrolled enviroment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
