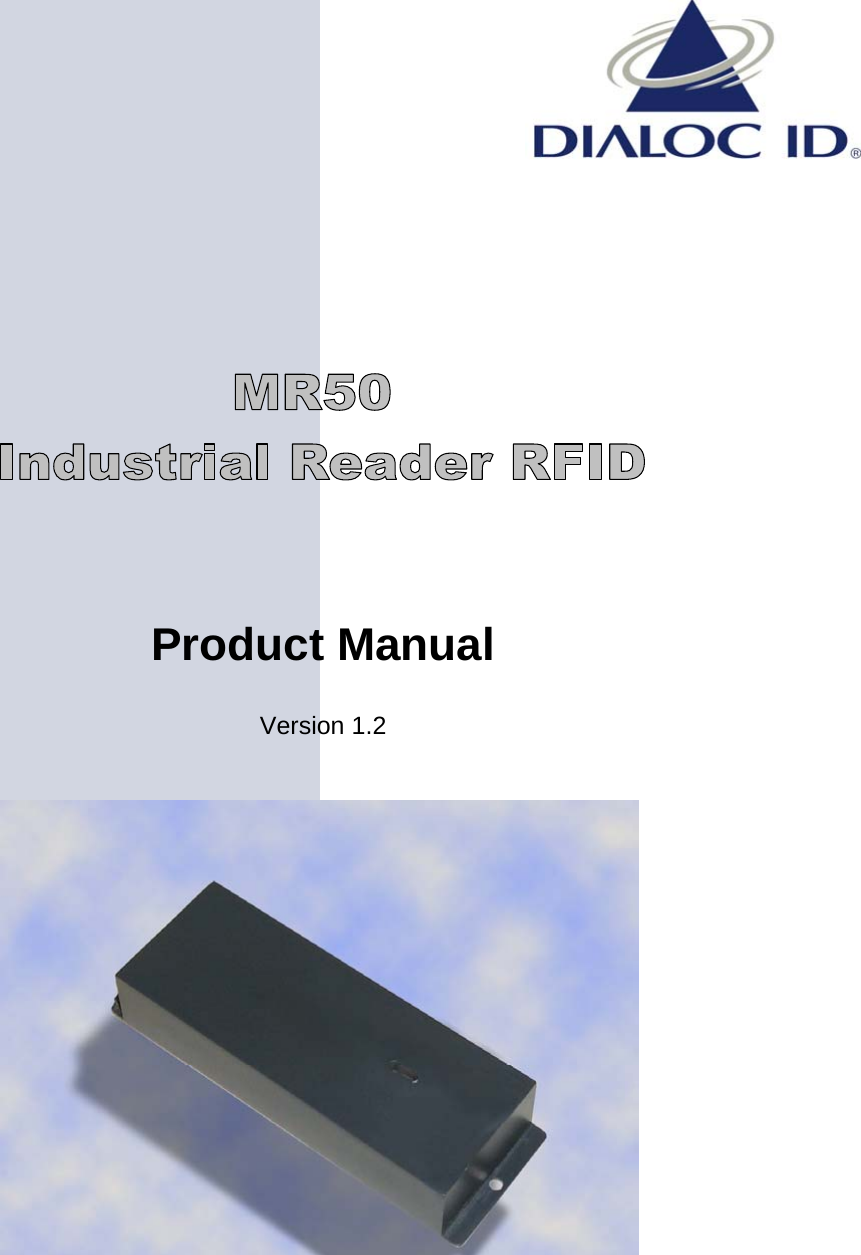

                Product Manual  Version 1.2

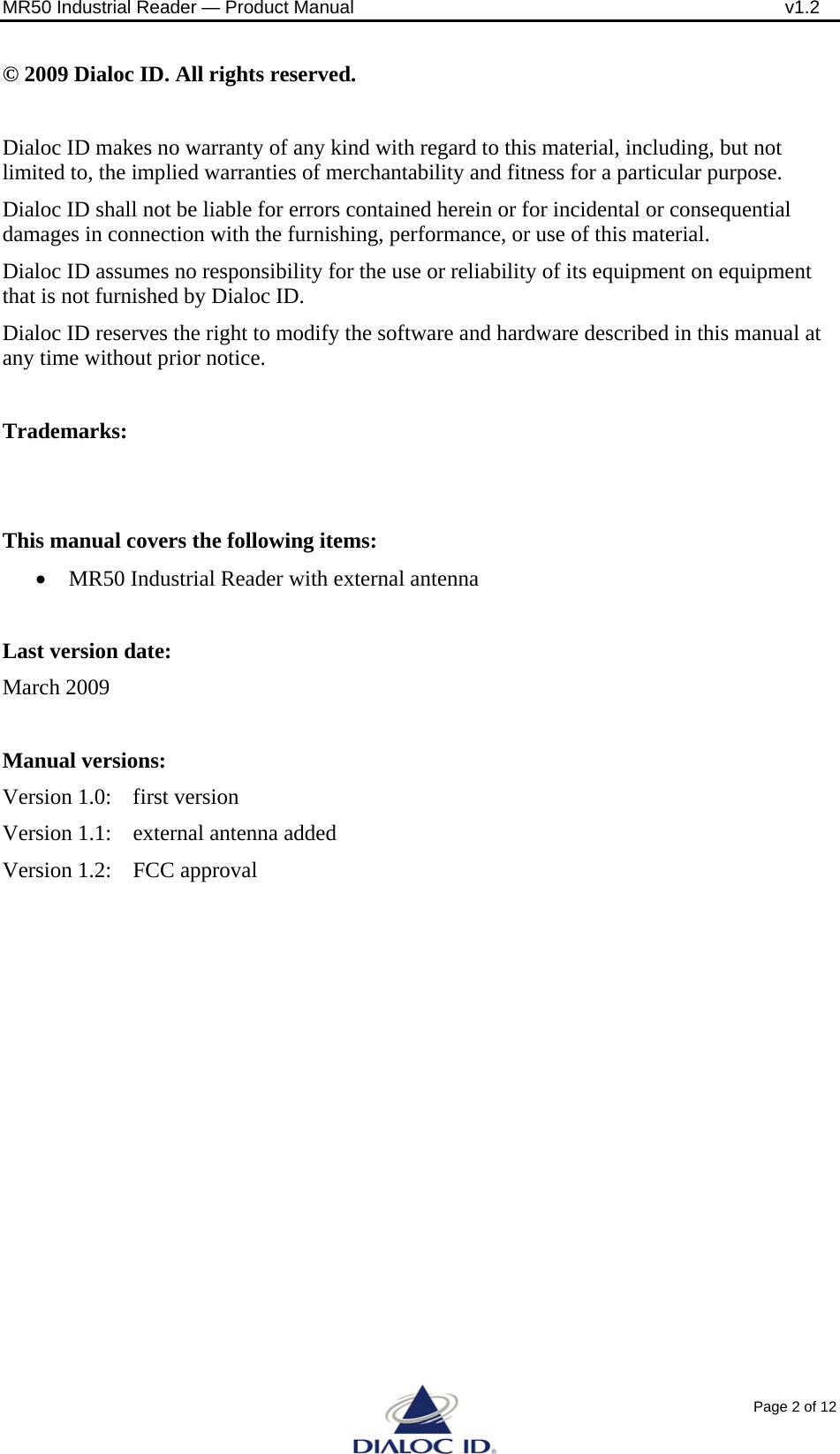

MR50 Industrial Reader — Product Manual              v1.2 Page 2 of 12 © 2009 Dialoc ID. All rights reserved.  Dialoc ID makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Dialoc ID shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Dialoc ID assumes no responsibility for the use or reliability of its equipment on equipment that is not furnished by Dialoc ID. Dialoc ID reserves the right to modify the software and hardware described in this manual at any time without prior notice.  Trademarks:   This manual covers the following items: • MR50 Industrial Reader with external antenna  Last version date:  March 2009  Manual versions: Version 1.0:  first version Version 1.1:  external antenna added Version 1.2:  FCC approval

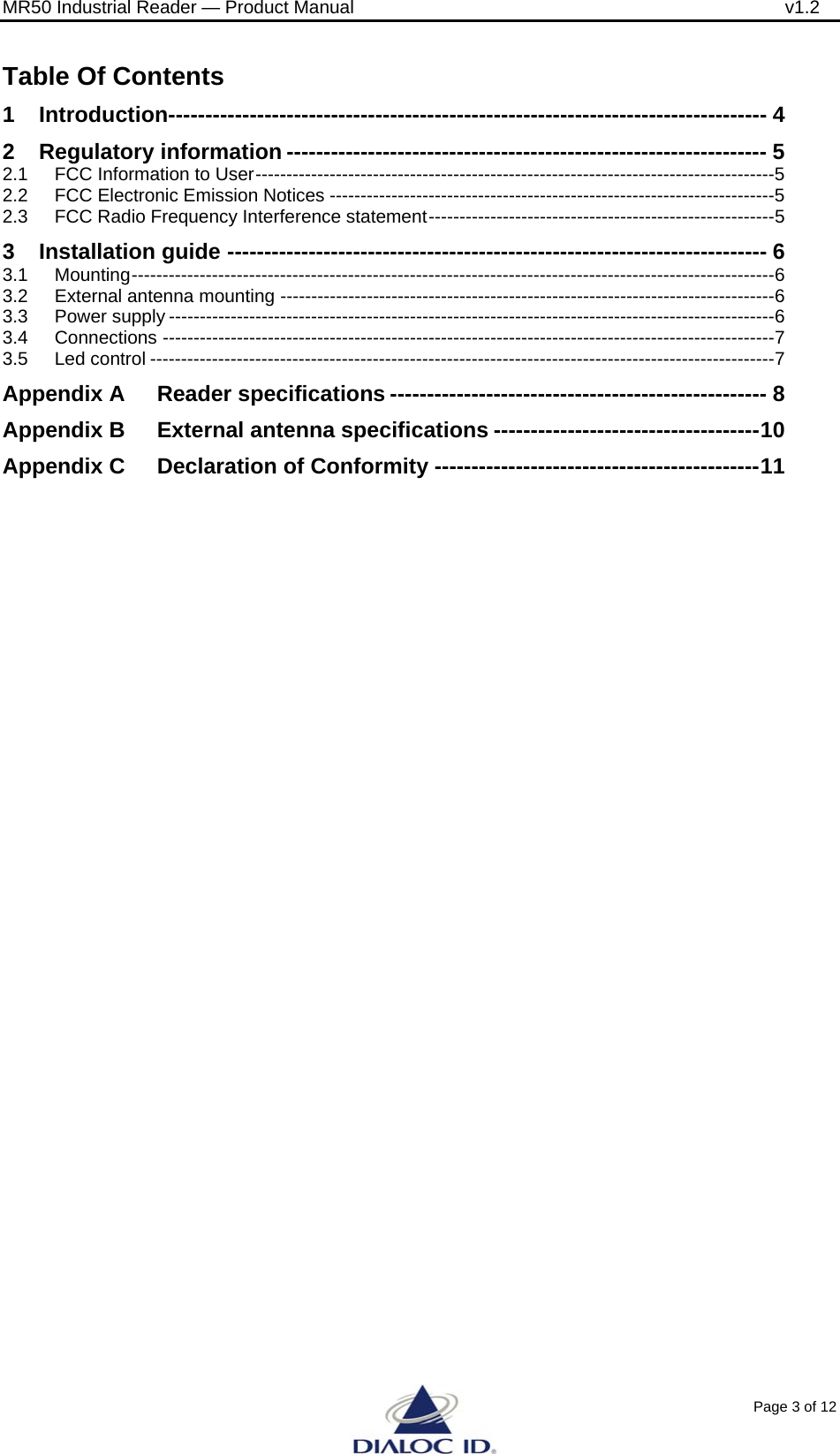

MR50 Industrial Reader — Product Manual              v1.2 Page 3 of 12 Table Of Contents 1 Introduction--------------------------------------------------------------------------------- 4 2 Regulatory information ----------------------------------------------------------------- 5 2.1 FCC Information to User------------------------------------------------------------------------------------5 2.2 FCC Electronic Emission Notices ------------------------------------------------------------------------5 2.3 FCC Radio Frequency Interference statement--------------------------------------------------------5 3 Installation guide ------------------------------------------------------------------------- 6 3.1 Mounting--------------------------------------------------------------------------------------------------------6 3.2 External antenna mounting --------------------------------------------------------------------------------6 3.3 Power supply --------------------------------------------------------------------------------------------------6 3.4 Connections ---------------------------------------------------------------------------------------------------7 3.5 Led control -----------------------------------------------------------------------------------------------------7 Appendix A Reader specifications --------------------------------------------------- 8 Appendix B External antenna specifications ------------------------------------10 Appendix C Declaration of Conformity --------------------------------------------11
MR50 Industrial Reader — Product Manual              v1.2 Page 4 of 12 1 Introduction The MR50 Industrial Reader is a general purpose 13.56 MHz RFID reader. The MR50 Industrial Reader is fully sealed in epoxy to protect the electronics from a harsh environment. There are no user serviceable parts inside the reader.  The MR50 Industrial Reader communicates via the RS232/EIA-232 interface. The use of this standard communication interface makes it easy to connect the MR50 Industrial Reader to a host system. The MR50 Industrial Reader also contains a bi-color LED which can be hardware-controlled by means of two inputs. Controlling the MR50 Industrial Reader is done by the T=0 protocol which is not a part of this manual. For more information about the T=0 protocol we refer to the Inside Contactless manual M220H. Remark: the T=0 protocol is a worldwide standardized protocol. Although, it is possible that Inside Contactless also integrated custom made commands into this T=0 protocol. When T=0 protocol is written in this manual, the Inside Contactless T=0 protocol is meant. See also: http://www.insidecontactless.com  Attention This manual describes the MR50 Industrial Reader with external reader.  The MR51 Industrial Reader has the same functionality and specification but comes with an internal antenna. Ask your dealer for more information.
MR50 Industrial Reader — Product Manual              v1.2 Page 5 of 12 2 Regulatory information 2.1  FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2  FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. 2.3  FCC Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help
MR50 Industrial Reader — Product Manual              v1.2 Page 6 of 12 3 Installation guide 3.1 Mounting  The MR50 Industrial Reader can be mounted on a flat surface with two 4 mm screws. Metal constructions close to the reader-antenna can absorb energy from the reader excite field and can detune the antenna. The read range of the internal antenna will therefore be reduced if the reader-antenna is located on metal surfaces or in close vicinity of metal objects. The amount of reduction will be a factor of the amount of metal and the distance the reader-antenna is from the metal. Please check carefully if metal constructions in your operational environment allow for enough margin to guarantee proper operation of the reader. 3.2  External antenna mounting The external antenna can be mounted on a flat surface with five 3 mm screws and five 3 mm nylon spacers (not supplied). Do not over tighten the screws!  As mentioned in chapter 3.1, the read range of the internal antenna will therefore be reduced if the reader-antenna is located on metal surfaces or in close vicinity of metal objects. Note The trimmer (C5) on the external antenna is factory adjusted; please do not touch this trimmer.  If the operational situation requires large metal constructions close to the antenna, part of the detuning can be compensated for by readjusting C5. In that case please contact Dialoc ID for more instructions. 3.3 Power supply The recommended power supply for the MR50 Industrial Reader is 13,8Vdc up to 24Vdc. The maximum power consumption at 13,8Vdc is 120mA.

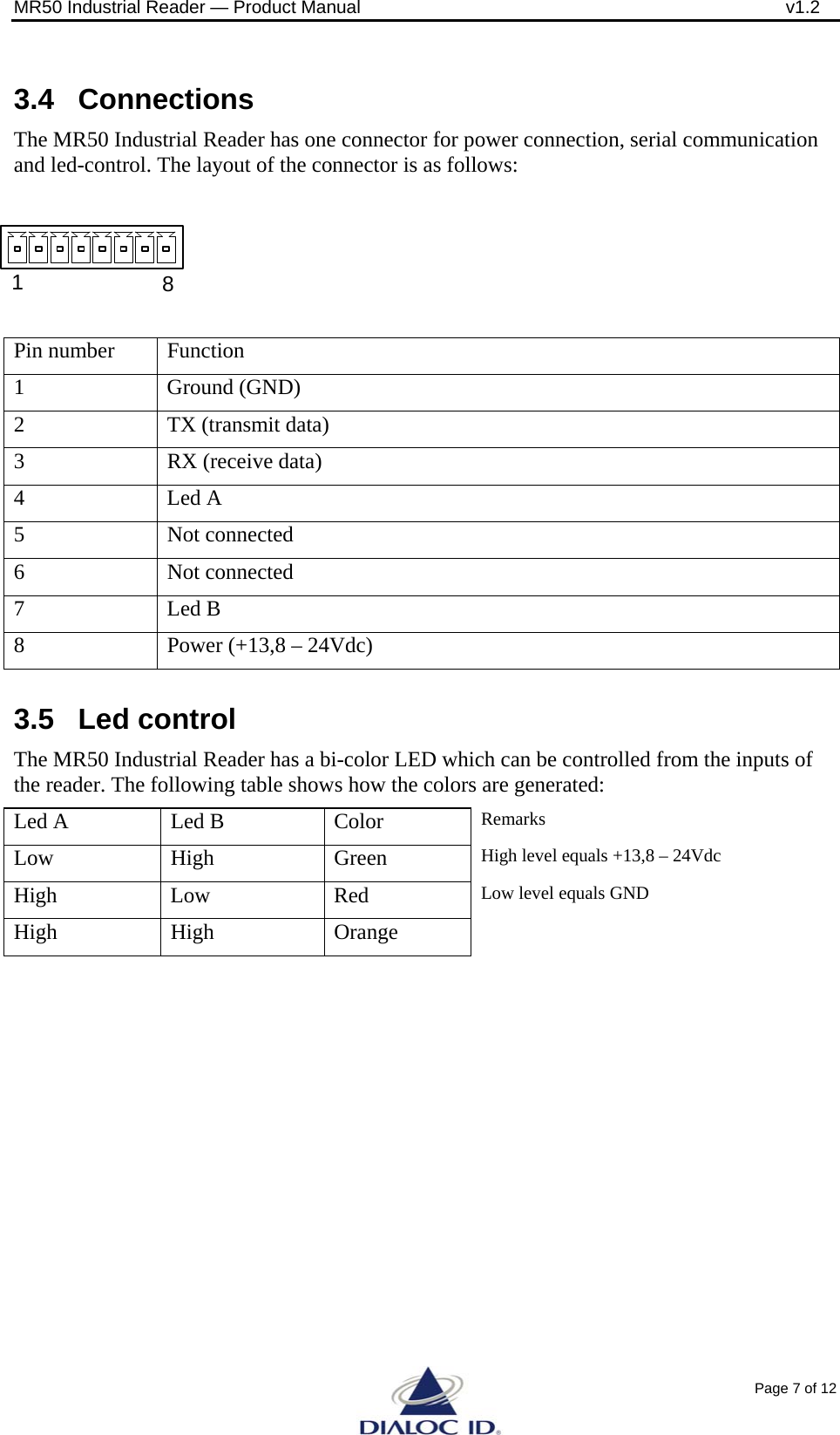

MR50 Industrial Reader — Product Manual              v1.2 Page 7 of 12 183.4 Connections The MR50 Industrial Reader has one connector for power connection, serial communication and led-control. The layout of the connector is as follows:     3.5 Led control The MR50 Industrial Reader has a bi-color LED which can be controlled from the inputs of the reader. The following table shows how the colors are generated: Led A  Led B  Color  Remarks Low High  Green High level equals +13,8 – 24Vdc High   Low  Red  Low level equals GND High High  Orange  Pin number  Function 1 Ground (GND) 2  TX (transmit data) 3 RX (receive data) 4 Led A 5 Not connected 6 Not connected 7 Led B 8  Power (+13,8 – 24Vdc)
MR50 Industrial Reader — Product Manual              v1.2 Page 8 of 12 Appendix A  Reader specifications A.1 Power Input voltage      13,8 - 24Vdc +/-5% Current consumption   max. 120 mA @ 13,8V dc Power down option     Coupler power down (via software)  Overvoltage protection   No  Polarity protection     Yes  A.2 Connection Connector type     8 way Wieland PCB connector  Contra part       Supplied Antenna connection    400 mm lead with a MCX connector A.3 Hardware Read distance      Up to 15 cm (depending on the type of tag) Labels       See the Inside Contactless manual M220H for more details Operating temperature   -20 / +50° C A.4 In/outputs Led A and B input voltage  13,8 - 24V dc (current consumption max. 25 mA @ 24V dc)  A.5  Communication interface / protocol ISO standards      14443 A/B, 15693, FeliCa™  Interface       RS232 / EIA-232  Baud rate      Default 9600 bps (up to 115.2 kbps) Coupler       M220-G2 of Inside Contactless Protocol       T=0 of Inside Contactless A.6 Housing Type, color      PVC casing, light gray Waterproof     Front side IP67, back side open connector Dimensions     see below
MR50 Industrial Reader — Product Manual              v1.2 Page 9 of 12 Front view Back view90mm110mm127mm48mm50mm25mmSide view38mm2mm8mm4mm8mm4mm18MCX connector4 mm mounting holes (2x)Bi-color LED400 mm lead to antenna(MR50 Industrial Reader only)

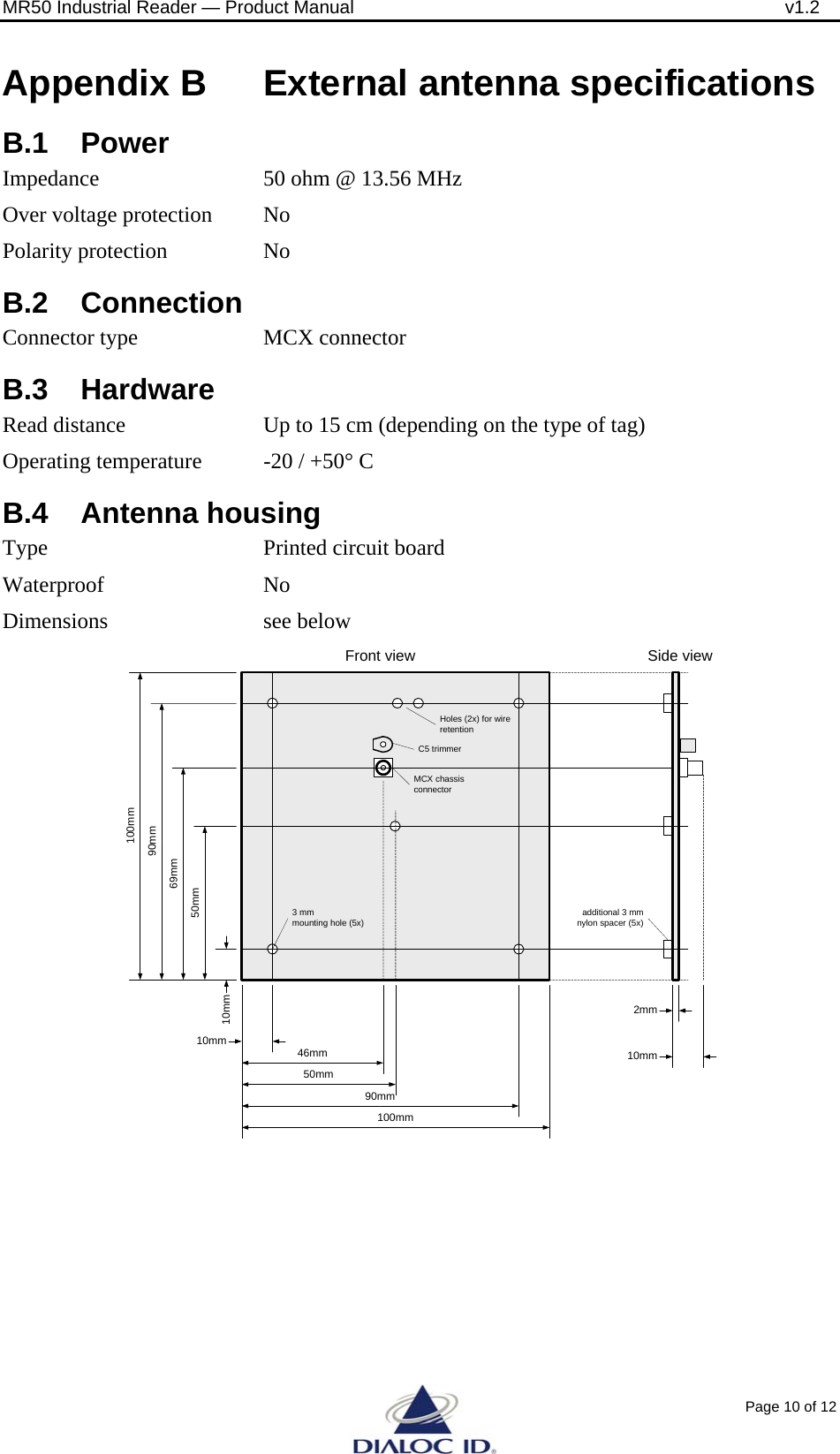

MR50 Industrial Reader — Product Manual              v1.2 Page 10 of 12 Appendix B  External antenna specifications B.1 Power Impedance      50 ohm @ 13.56 MHz Over voltage protection   No Polarity protection     No B.2 Connection Connector type     MCX connector B.3 Hardware Read distance      Up to 15 cm (depending on the type of tag) Operating temperature   -20 / +50° C B.4 Antenna housing Type         Printed circuit board Waterproof     No Dimensions     see below 46mm50mm90mm10mm50mm69mm90mm10mmFront view Side view10mm2mm100mm100mm3 mm mounting hole (5x)MCX chassis connectoradditional 3 mm nylon spacer (5x)Holes (2x) for wire retentionC5 trimmer
MR50 Industrial Reader — Product Manual              v1.2 Page 11 of 12 Appendix C  Declaration of Conformity
MR50 Industrial Reader — Product Manual              v1.2 Page 12 of 12 NOTES                        DIALOC ID DALTONSTRAAT 42-44 3846 BX  HARDERWIJK TEL  +31 (0) 341 42 09 40 FAX  +31 (0) 341 42 50 33 www.dialocid.com  support-rfid@dialocid.com
