Product Manual
Version 1.2
MR50 Industrial Reader — Product Manual v1.2
Page 2 of 12
© 2009 Dialoc ID. All rights reserved.
Dialoc ID makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose.
Dialoc ID shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Dialoc ID assumes no responsibility for the use or reliability of its equipment on equipment
that is not furnished by Dialoc ID.
Dialoc ID reserves the right to modify the software and hardware described in this manual at
any time without prior notice.
Trademarks:
This manual covers the following items:
• MR50 Industrial Reader with external antenna
Last version date:
March 2009
Manual versions:
Version 1.0: first version
Version 1.1: external antenna added
Version 1.2: FCC approval
MR50 Industrial Reader — Product Manual v1.2
Page 3 of 12
Table Of Contents
1 Introduction--------------------------------------------------------------------------------- 4
2 Regulatory information ----------------------------------------------------------------- 5
2.1 FCC Information to User------------------------------------------------------------------------------------5
2.2 FCC Electronic Emission Notices ------------------------------------------------------------------------5
2.3 FCC Radio Frequency Interference statement--------------------------------------------------------5
3 Installation guide ------------------------------------------------------------------------- 6
3.1 Mounting--------------------------------------------------------------------------------------------------------6
3.2 External antenna mounting --------------------------------------------------------------------------------6
3.3 Power supply --------------------------------------------------------------------------------------------------6
3.4 Connections ---------------------------------------------------------------------------------------------------7
3.5 Led control -----------------------------------------------------------------------------------------------------7
Appendix A Reader specifications --------------------------------------------------- 8
Appendix B External antenna specifications ------------------------------------10
Appendix C Declaration of Conformity --------------------------------------------11
MR50 Industrial Reader — Product Manual v1.2
Page 4 of 12
1 Introduction
The MR50 Industrial Reader is a general purpose 13.56 MHz RFID reader. The MR50
Industrial Reader is fully sealed in epoxy to protect the electronics from a harsh environment.
There are no user serviceable parts inside the reader.
The MR50 Industrial Reader communicates via the RS232/EIA-232 interface. The use of this
standard communication interface makes it easy to connect the MR50 Industrial Reader to a
host system. The MR50 Industrial Reader also contains a bi-color LED which can be
hardware-controlled by means of two inputs.
Controlling the MR50 Industrial Reader is done by the T=0 protocol which is not a part of
this manual. For more information about the T=0 protocol we refer to the Inside Contactless
manual M220H.
Remark: the T=0 protocol is a worldwide standardized protocol. Although, it is possible that
Inside Contactless also integrated custom made commands into this T=0 protocol. When T=0
protocol is written in this manual, the Inside Contactless T=0 protocol is meant.
See also: http://www.insidecontactless.com
Attention
This manual describes the MR50 Industrial Reader with external reader.
The MR51 Industrial Reader has the same functionality and specification but comes with an
internal antenna. Ask your dealer for more information.
MR50 Industrial Reader — Product Manual v1.2
Page 5 of 12
2 Regulatory information
2.1 FCC Information to User
This product does not contain any user serviceable components and is to be used with
approved antennas only. Any product changes or modifications will invalidate all applicable
regulatory certifications and approvals
2.2 FCC Electronic Emission Notices
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause
undesired operation.
2.3 FCC Radio Frequency Interference statement
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
Operation of this equipment in a residential area may cause harmful interference, in which
case the user will be required to correct the interference at his own expense.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
MR50 Industrial Reader — Product Manual v1.2
Page 6 of 12
3 Installation guide
3.1 Mounting
The MR50 Industrial Reader can be mounted on a flat surface with two 4 mm screws.
Metal constructions close to the reader-antenna can absorb energy from the reader excite field
and can detune the antenna. The read range of the internal antenna will therefore be reduced if
the reader-antenna is located on metal surfaces or in close vicinity of metal objects. The
amount of reduction will be a factor of the amount of metal and the distance the reader-
antenna is from the metal. Please check carefully if metal constructions in your operational
environment allow for enough margin to guarantee proper operation of the reader.
3.2 External antenna mounting
The external antenna can be mounted on a flat surface with five 3 mm screws and five 3 mm
nylon spacers (not supplied). Do not over tighten the screws!
As mentioned in chapter 3.1, the read range of the internal antenna will therefore be reduced
if the reader-antenna is located on metal surfaces or in close vicinity of metal objects.
Note
The trimmer (C5) on the external antenna is factory adjusted; please do not touch this
trimmer.
If the operational situation requires large metal constructions close to the antenna, part of the
detuning can be compensated for by readjusting C5. In that case please contact Dialoc ID for
more instructions.
3.3 Power supply
The recommended power supply for the MR50 Industrial Reader is 13,8Vdc up to 24Vdc.
The maximum power consumption at 13,8Vdc is 120mA.
MR50 Industrial Reader — Product Manual v1.2
Page 7 of 12
18
3.4 Connections
The MR50 Industrial Reader has one connector for power connection, serial communication
and led-control. The layout of the connector is as follows:
3.5 Led control
The MR50 Industrial Reader has a bi-color LED which can be controlled from the inputs of
the reader. The following table shows how the colors are generated:
Led A Led B Color Remarks
Low High Green
High level equals +13,8 – 24Vdc
High Low Red Low level equals GND
High High Orange
Pin number Function
1 Ground (GND)
2 TX (transmit data)
3 RX (receive data)
4 Led A
5 Not connected
6 Not connected
7 Led B
8 Power (+13,8 – 24Vdc)
MR50 Industrial Reader — Product Manual v1.2
Page 8 of 12
Appendix A Reader specifications
A.1 Power
Input voltage 13,8 - 24Vdc +/-5%
Current consumption max. 120 mA @ 13,8V dc
Power down option Coupler power down (via software)
Overvoltage protection No
Polarity protection Yes
A.2 Connection
Connector type 8 way Wieland PCB connector
Contra part Supplied
Antenna connection 400 mm lead with a MCX connector
A.3 Hardware
Read distance Up to 15 cm (depending on the type of tag)
Labels See the Inside Contactless manual M220H for more details
Operating temperature -20 / +50° C
A.4 In/outputs
Led A and B input voltage 13,8 - 24V dc (current consumption max. 25 mA @ 24V dc)
A.5 Communication interface / protocol
ISO standards 14443 A/B, 15693, FeliCa™
Interface RS232 / EIA-232
Baud rate Default 9600 bps (up to 115.2 kbps)
Coupler M220-G2 of Inside Contactless
Protocol T=0 of Inside Contactless
A.6 Housing
Type, color PVC casing, light gray
Waterproof Front side IP67, back side open connector

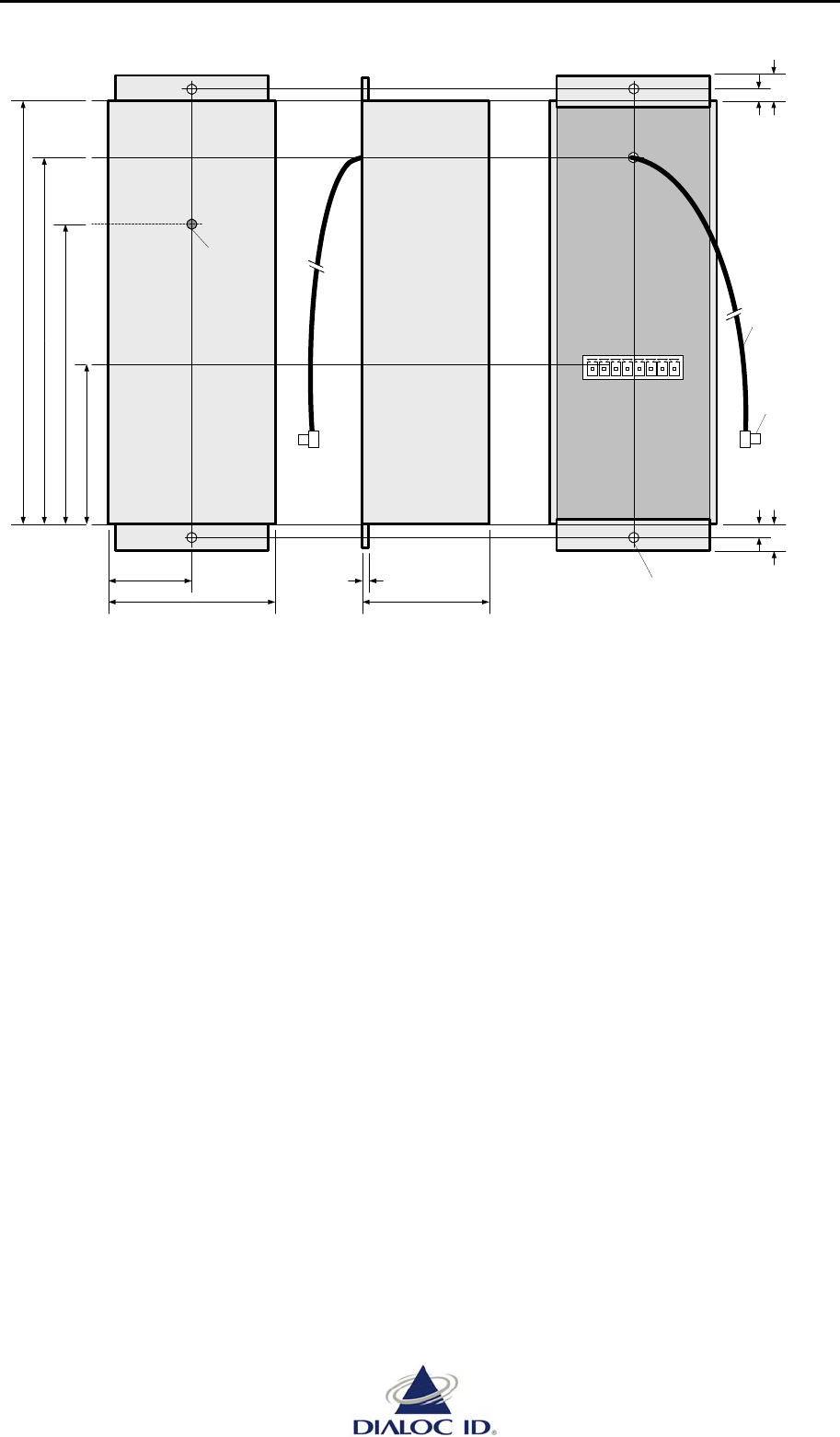

Dimensions see below
MR50 Industrial Reader — Product Manual v1.2
Page 9 of 12
Front view Back view
90mm
110mm
127mm
48mm
50mm
25mm
Side view
38mm
2mm
8mm
4mm
8mm
4mm
18
MCX connector
4 mm mounting holes
(2x)
Bi-color LED
400 mm lead to
antenna
(MR50 Industrial
Reader only)
MR50 Industrial Reader — Product Manual v1.2
Page 10 of 12
Appendix B External antenna specifications
B.1 Power
Impedance 50 ohm @ 13.56 MHz
Over voltage protection No
Polarity protection No
B.2 Connection
Connector type MCX connector
B.3 Hardware
Read distance Up to 15 cm (depending on the type of tag)
Operating temperature -20 / +50° C
B.4 Antenna housing
Type Printed circuit board
Waterproof No

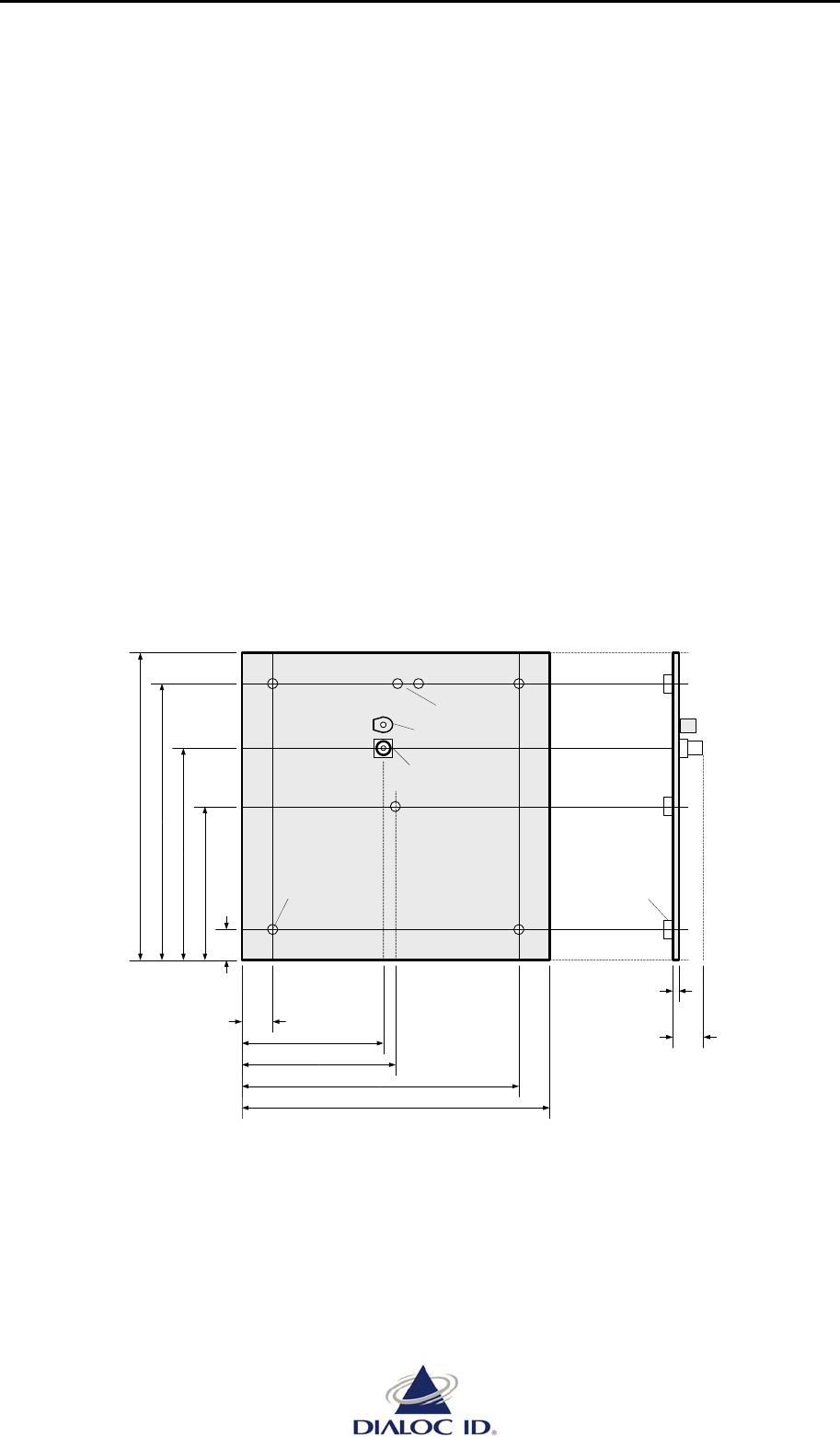

Dimensions see below
46mm
50mm
90mm
10mm
50mm
69mm
90mm
10mm
Front view Side view
10mm
2mm
100mm
100mm
3 mm
mounting hole (5x)
MCX chassis
connector
additional 3 mm
nylon spacer (5x)
Holes (2x) for wire
retention
C5 trimmer
MR50 Industrial Reader — Product Manual v1.2
Page 11 of 12

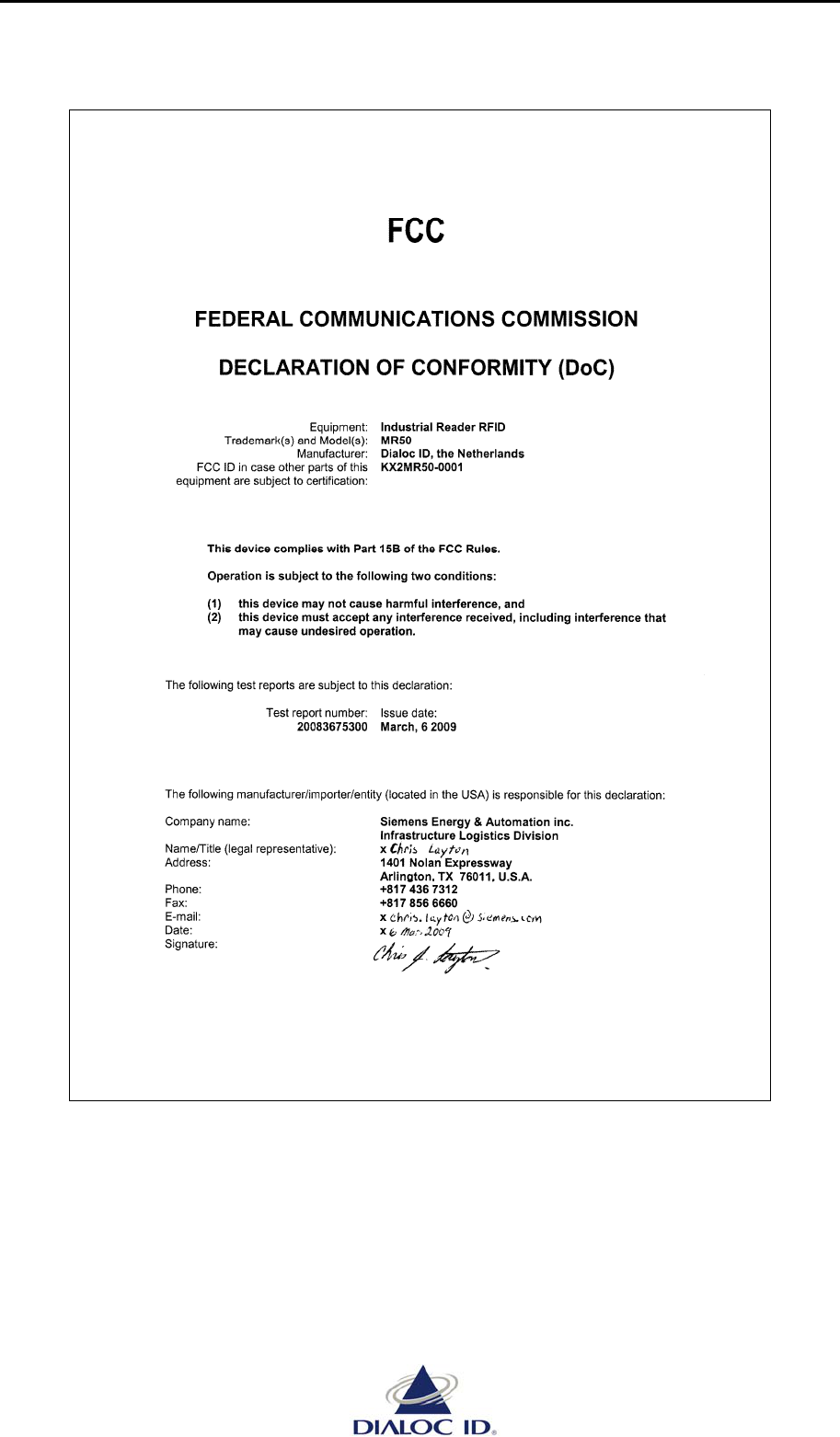

Appendix C Declaration of Conformity
MR50 Industrial Reader — Product Manual v1.2
Page 12 of 12
