Bitron Video begins its industrial venture with the

purpose of designing, manufacturing and distributing

video doorphone devices and systems, a great idea and

a challenging innovation that dates as far back as 1967.

The clear knowledge of the market readiness to accept

innovative propositions - for systems of greater

performance in all operational conditions - prompted

Bitron Video to develop and propose a new approach to

comfort and security. The immediate success among the

public soon brought the Company to the attention of

business operators in the electric market, both

domestically and internationally.

With relentless research, Bitron Video eliminated the

need of coaxial cables for video doorphone installations,

and introduced the thin, flat-screen monitors as early as

the 80’s. Not even a decade thereafter, in the 90’s,

Bitron Video hits another ‘first’ with the introduction of

colour monitors using LCD screens with active crystals.

Thanks to its consolidated know-how, Bitron Video is –

since a long time - a renowned and well-respected

Italian market leader enjoying excellent reputation

world-wide.

The Products Line

Between Comprehensiveness

and Quality

Doorphones and Video doorphones

Bitron Video’s vast and exhaustive line of advanced

products offers professional solutions for all needs, from

reliable kits to the most complex installations of

sophisticated performance.

CCTV

Since the early times of its activity, Bitron Video has

played an important role for professional CCTV installers

in the domestic market. Strengthened by many years of

specific experience, Bitron Video is now stepping out

and offering a comprehensive range of professional

CCTV products to its International Clientele.

Professional Tutoring

Since its very origins, Bitron Video has lived to its belief

that all professional customers – the Installers – must

be constantly updated on the latest technologies and

market trends. To achieve such a vital goal, a team of

professional trainers offers educational seminars at

various levels to meet the needs of sales managers,

installation engineers, repair and maintenance

personnel alike. All courses are supported with audio-

visual materials and practical sessions, as needed.

Bitron Video’s 35-year history of experience and

technical excellency are made available to all

Professionals to heighten their skill and to support their

growth and success. Your success is our success!

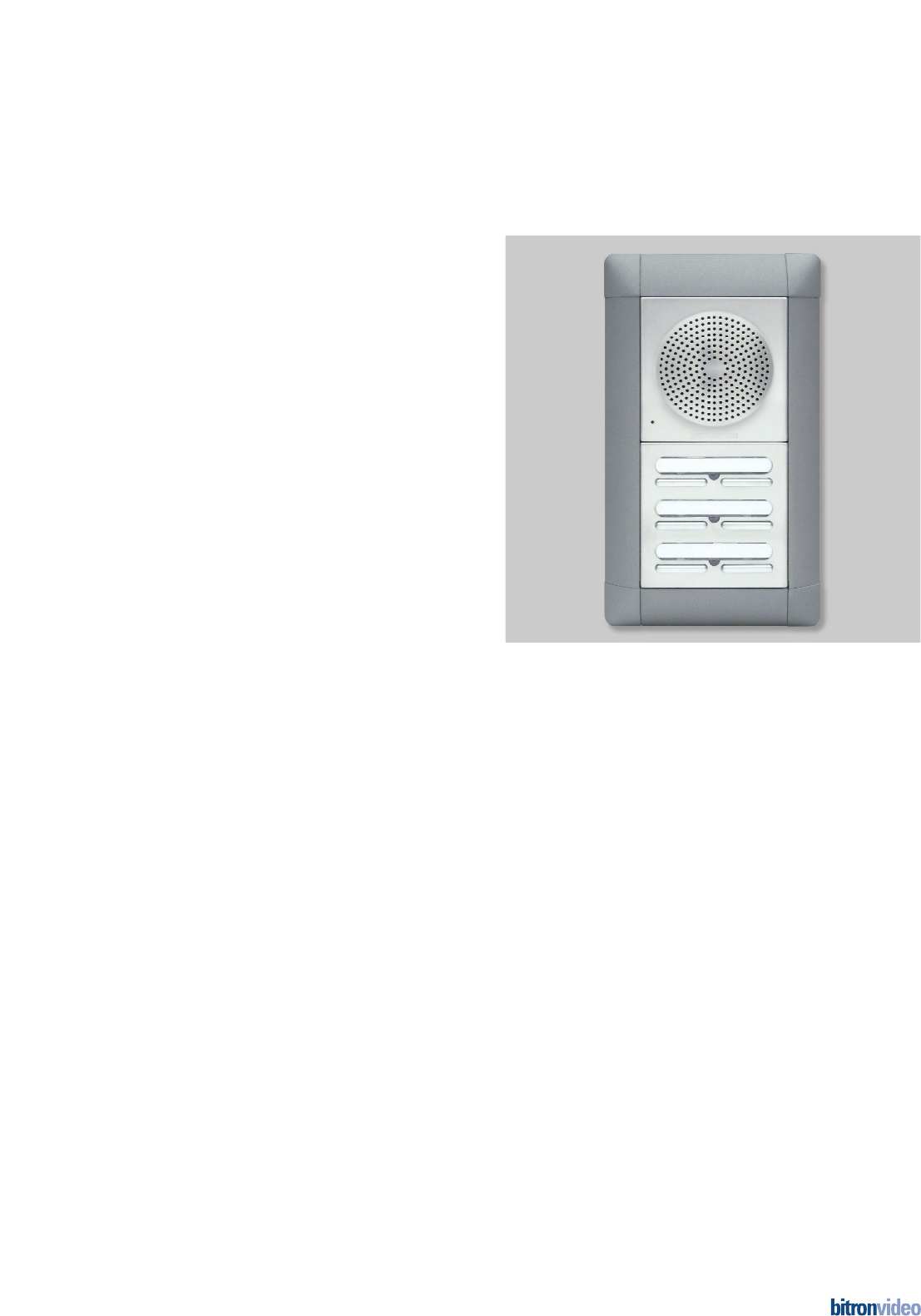

DOMULAR 3000

This catalogue refers to DOMULAR 3000 visitor panels

only. For all other system components to complete audio

and video doorphone installations, please refer to specific

Bitron Video documentation.

Embedding Boxes (SI3000)................................................4

Wall-mount Supports (BM3000)........................................5

Frames for Embedded Version (KCI3000)..........................6

Frames for Wall-Mount Version (KCA3000)......................7

Call-Button Modules (PSM3000).......................................8

Speech Modules (GCM3000) ............................................9

Video Modules (GVM3000) .............................................10

Custom Series..................................................................11

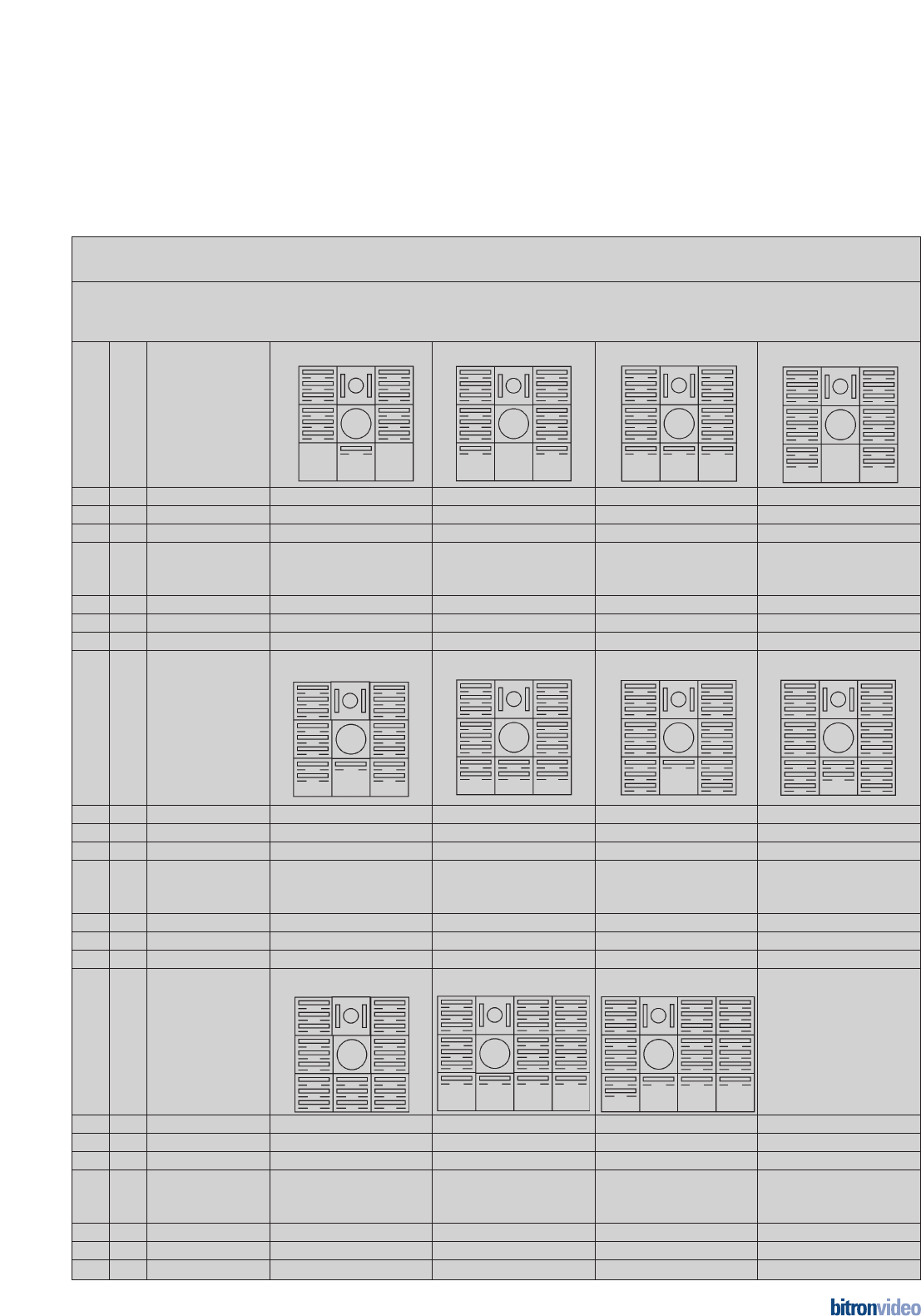

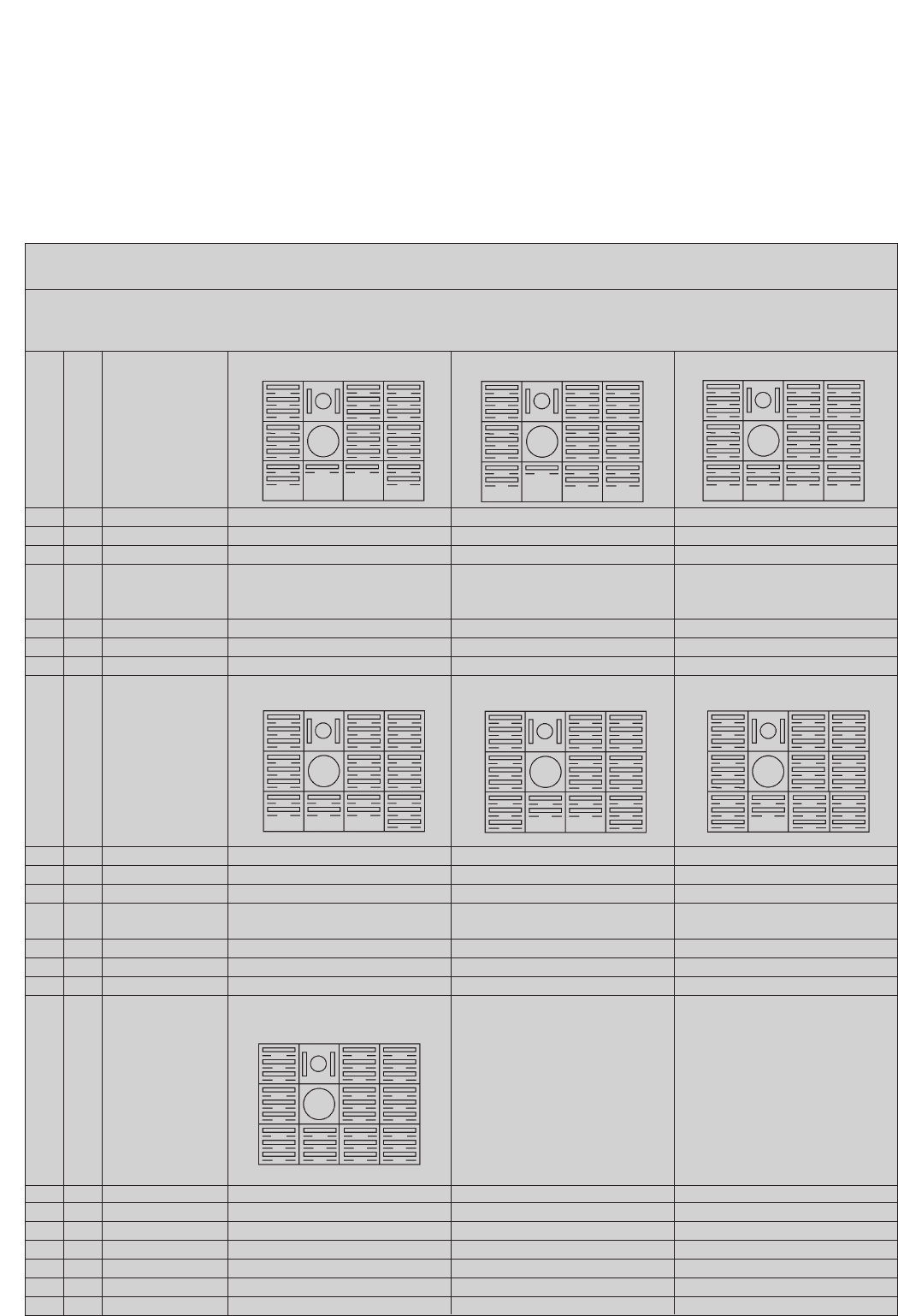

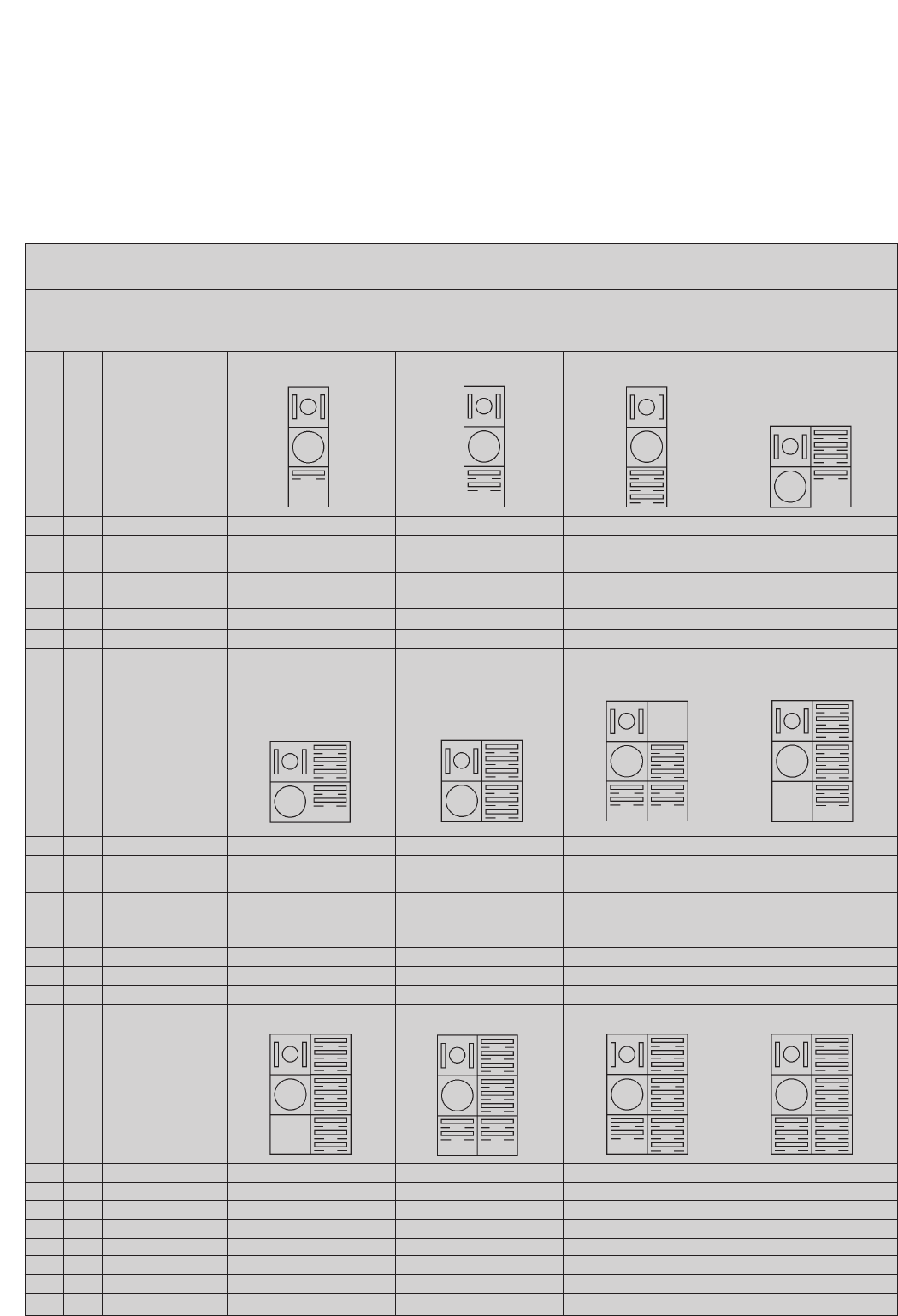

Examples of Common Panel Compositions.....................14

Conditions of Sale and Warranty Policy .........................21

Contents

AV0003/12

AV0003/13

AV0003/22

AV0003/23

AV0003/42

AV0003/43

AV0003/32

AV0003/33

For each panel configuration there

is a specific embedding box model

Embedded boxes are supplied

without wall-mount supports.

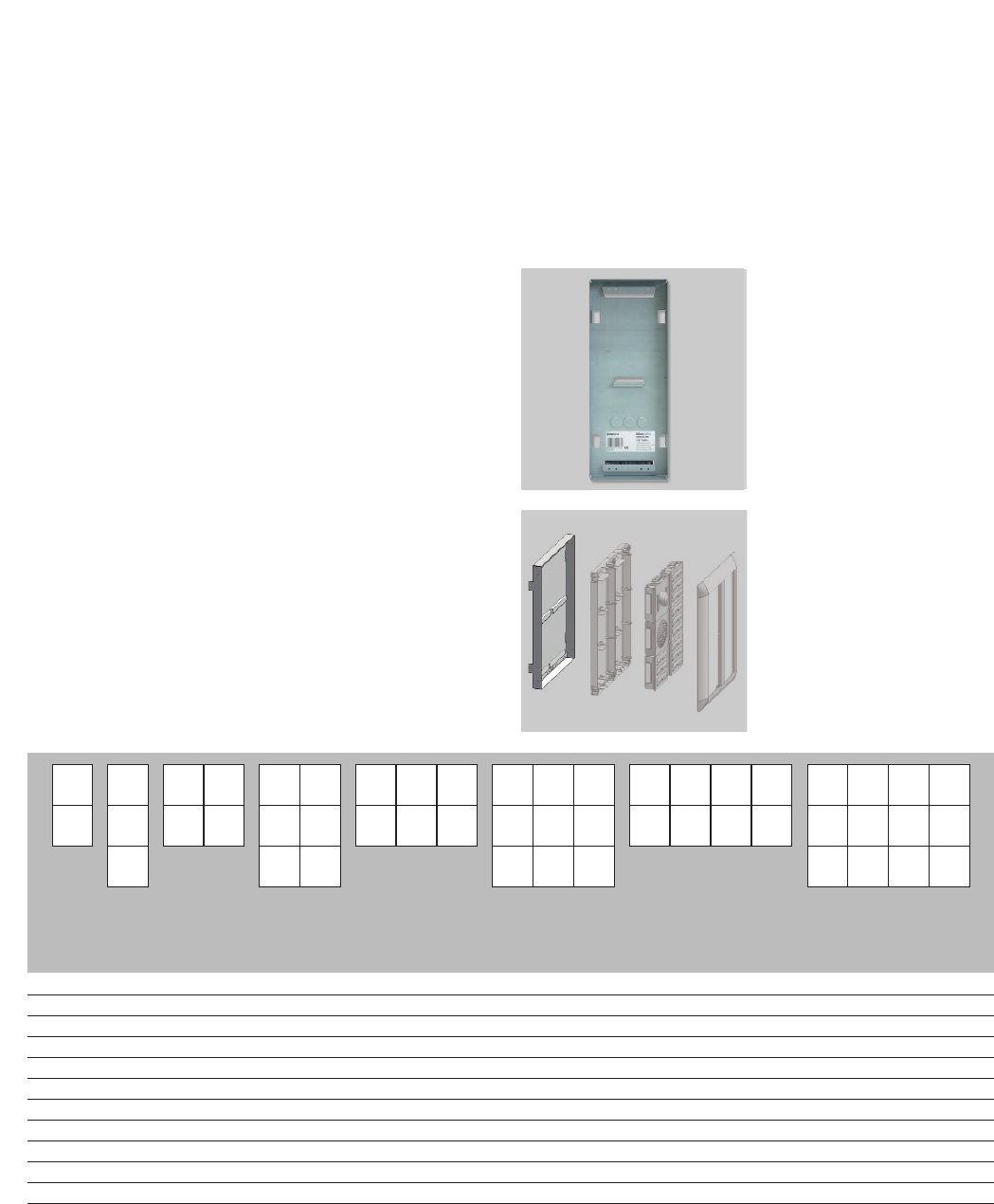

Standard Systems

Embedding Boxes

Created to facilitate the installation work,

the push button panel DOMULAR 3000 does not need

any protection or hood cover against rain, because it

is equipped with sophisticated systems of weather

stripping that guarantee a good shelter from bad

weather. Thanks to its only 35mm in thickness,

DOMULAR 3000 is ideal for wall support application

solutions simplifying the setting operations and button

panel installation a lot. However, the great versatility

of this product permits also to make embedded

installations by using specific embedding boxes.

Code Description Dimensions (mm)

HLP

AV0003/12 1-line, 2-module SI3000/12 264 148 25

AV0003/13 1-line, 3-module SI3000/13 364 148 25

AV0003/22 2-line, 2-module SI3000/22 264 273 25

AV0003/23 2-line, 3-module SI3000/23 364 273 25

AV0003/32 3-line, 2-module SI3000/32 264 398 25

AV0003/33 3-line, 3-module SI3000/33 364 398 25

AV0003/42 4-line, 2-module SI3000/42 264 522 25

AV0003/43 4-line, 3-module SI3000/43 364 522 25

Wall-mount supports are available

in 2- and 3- module versions; equal

versions can be matched to obtain

the number of lines required.

All mounting accessories

are included.

Wall-mount supports are the

mounting structure of the panels;

they must always be used for both

embedded and surface-mounted

installations.

Wall-mount supports come with a

set of spacers. They may be

necessary with surface-mounted

panels to compensate wall

unevenness, or with embedded

installations to correct possible

box setting errors.

Standard Systems

Wall-Mount Supports

Wall-mount supports are the “framework”

supporting the entire visitor panel, be it embedded

or surface-mounted. They have a modular design so

they can be matched in multiple-line compositions.

Code Description

AV0011/02 2-module wall-mount support BM3000/02

AV0011/03 3-module wall-mount support BM3000/03

There is a specific frame model

for each panel configuration.

All assembling accessories

are supplied with the kit.

Important note

The frame kits come with a

jumper-cable set for

interconnecting modules of two

different lines, thus reducing

installation time a lot and

eliminating probable errors.

Frames for embedded panels are

made of painted aluminium;

they are supplied in kit-form,

to be assembled.

The module-holding frames differ according to whether

the push-button panels are surface-mounted or

embedded. In fact, their profiles protrude differently

(35mm for surface mounting and only 20mm for

embedded panels), and - with embedded versions - they

cover possible masonry imperfections.

Code Description Dimensions (mm)

HLP

AV0037/12 1-line, 2-module frame KCI3000/12 272 171 20

AV0037/13 1-line, 3-module frame KCI3000/13 372 171 20

AV0037/22 2-line, 2-module frame KCI3000/22 272 296 20

AV0037/23 2-line, 3-module frame KCI3000/23 372 296 20

AV0037/32 3-line, 2-module frame KCI3000/32 272 420 20

AV0037/33 3-line, 3-module frame KCI3000/33 372 420 20

AV0037/42 4-line, 2-module frame KCI3000/42 272 545 20

AV0037/43 4-line, 3-module frame KCI3000/43 372 545 20

Standard Systems

Frames for Embedded Panels

AV0037/12

AV0037/13

AV0037/22

AV0037/23

AV0037/42

AV0037/43

AV0037/32

AV0037/33

There is a specific frame model for

each panel configuration.

All assembling accessories are

supplied with the kit.

Important note

The frame kits come with a jumper-

cable set for interconnecting

modules of two different lines, thus

reducing installation time a lot and

eliminating probable errors.

Frames for surface-mount panels

are made of painted aluminium;

they are supplied in kit-form,

to be assembled.

The module-holding frames differ according to whether

the push-button panels are surface-mounted or

embedded. In fact, their profiles protrude differently

(35mm for surface mounting and only 20mm for

embedded panels), and those for surface-mounted

installation confer the panels the solid appearance

which is typical of embedded solutions.

Code Description Dimensions (mm)

HLP

AV0029/12 1-line, 2-module frame KCA3000/12 264 152 35

AV0029/13 1-line, 3-module frame KCA 3000/13 364 152 35

AV0029/22 2-line, 2-module frame KCA3000/22 264 276 35

AV0029/23 2-line, 3-module frame KCA3000/23 364 276 35

AV0029/32 3-line, 2-module frame KCA3000/32 264 400 35

AV0029/33 3-line, 3-module frame KCA3000/33 364 400 35

AV0029/42 4-line, 2-module frame KCA3000/42 264 525 35

AV0029/43 4-line, 3-module frame KCA3000/43 364 525 35

Standard Systems

Frames for Surface-Mount

Panels

AV0029/12

AV0029/13

AV0029/22

AV0029/23

AV0029/42

AV0029/43

AV0029/32

AV0029/33

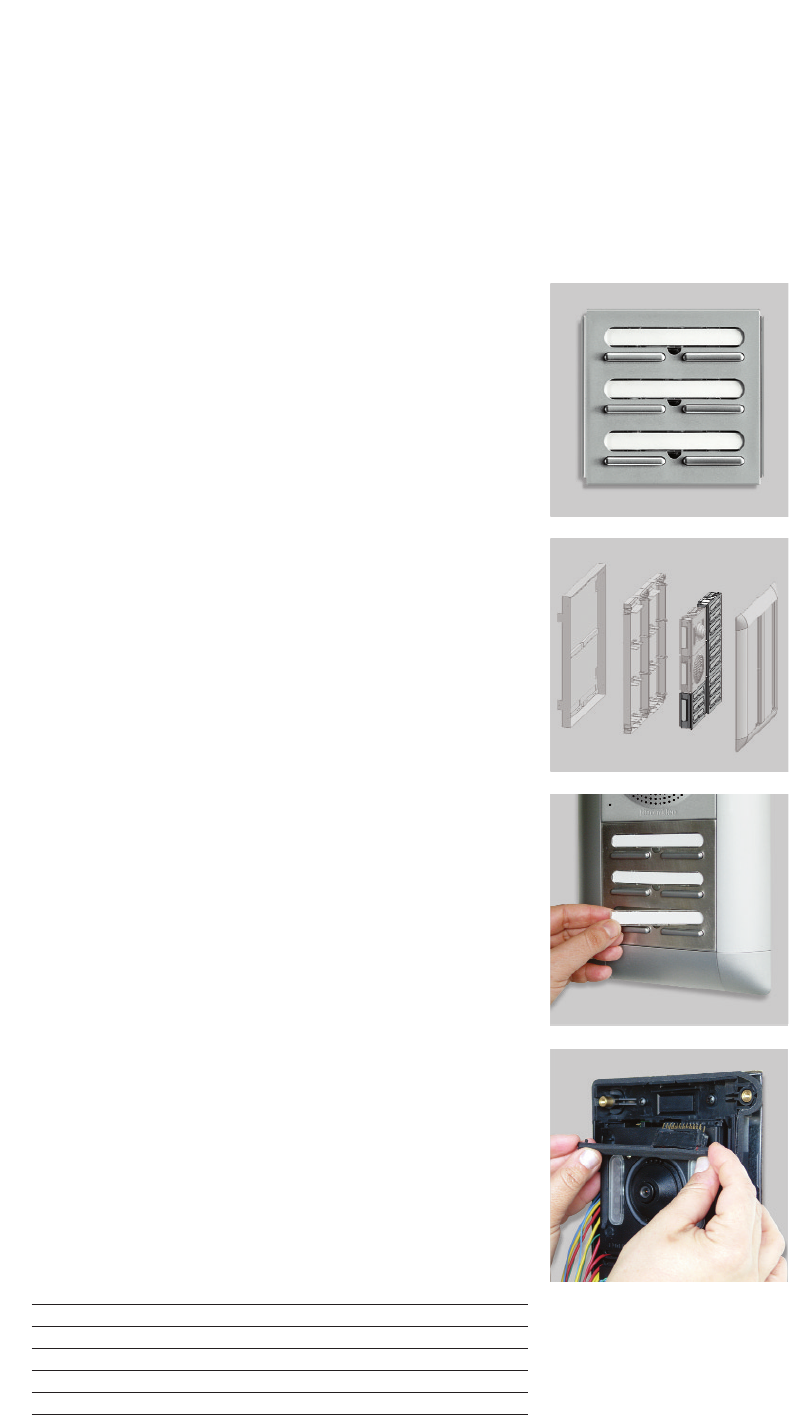

Call-button modules are available

in several models:

·0 button (blind module)

·2 buttons

·4 buttons

·6 buttons

For installation convenience, call-

button modules are already fitted

with the diodes requested for the

correct operation of “1+n” and

video systems. Hence they need

not be added separately.

Nametag holders can be

substituted without opening the

panel, by following an easy but

secure procedure.

All DOMULAR 3000 panels have

been designed to speed up

installing operations.

A clear example is its wiring

structure made of practical

connectors that reduce installation

time a lot while minimising

the risk of errors.

The call-button modules - as well as all other

DOMULAR 3000 functional modules - have been

designed to facilitate the installation work and the

connection of both system wires and of all other

modules forming the panels.

Their main characteristics are:

·Metal buttons

·Metal front plate

·Built-in diodes plate for video and “1+n” audio systems

·“Hinged” mounting on wall-mount support

·Modules tilting possibility to facilitate

cables connection

·Rising-clamp terminal block

·Nametags back-lighting by ever-lasting green LED’s

·Nametag substitution without opening the panel

·Nametag holder with gasket protection against

humidity (IP35)

·Connectors for the fast connection of

the panel’s common wires.

Code Description

AV0045/00 Blind module PSM3000/00

AV0045/02 2-button module PSM3000/02

AV0045/04 4-button module PSM3000/04

AV0045/06 6-button module PSM3000/06

Standard Systems

Call-button Modules

Audio modules are available in two

different modules:

· AV0052/05 for “4 +n” systems

· AV0052/02 for “1 +n” systems

A Mylar loudspeaker and an

electronic microphone (with

possibility of relocation) equipping

the audio modules assure superior

speech quality and a high

protection from bad weather.

All the modules of DOMULAR 3000

panels can be “turned” as a book

page to facilitate the insertion of

wires into the terminal block.

Speech volumes adjustments are

frontally accessible, without having

to turn the call panel upside down.

The audio modules - as well as all other DOMULAR 3000

functional modules - have been designed to facilitate the

installation work and the connection of both system

wires and of all other modules forming the panels. A

weather-resistant Mylar loudspeaker and a high-

efficiency Electrete microphone, are part of the two-way

audio amplifier of the system.

The range is composed of two different models:

AV0052/05 (GCM3000/5) “4+n” Audio Module

·Separate speech volumes adjustment

·Generation of electronic call tone

·Acoustic confirmation of the delivered call (excludible)

·Possibility of tilting the module to facilitate

wires connection

·System speech disconnector for privacy of conversation

·Rising-clamp terminal block

·Used for standard “4+n” doorphone systems

AV0052/02 (GCM3000/2) “1+n” Audio Module

·Separate speech volumes adjustment

·Generation of electronic call tone

·Acoustic confirmation of the delivered call (excludible)

·Possibility of tilting the module to facilitate

wires connection

·System speech disconnector for privacy

of conversation

·Rising-clamp terminal block

·Possibility of microphone relocation to avoid

the Larsen effect

·Timed door opening command (3 or 30 secs.)

·Used together with AV 0060 (GVM 3000) module

in video doorphone panels, or in “1+n” doorphone

systems

Code Description

AV0052/02 GCM3000/2 “1+n” audio module

AV0052/05 GCM3000/5 “1+n” audio module

Standard Systems

Audio Modules

Video modules are available in two

models:

· AV0060 with monochrome camera

· AV0078 with COLOUR camera

The video modules have provisions

for hosting the audio group

microphone, so as to minimise

the Larsen effect while allowing

an increase of speech volumes

in noisy areas.

The transparent poly-carbonate

camera cupola can bear easily

heavier stress than 50Kg*

*Force to be applied

perpendicularly to dome only

At the time of installation, the

camera can be manually oriented

12° in all directions so as to

compensate small errors of panel

positioning.

The video modules - as well as all other DOMULAR 3000

functional modules - have been designed to facilitate the

installation work and the connection of both system

wires and of all other modules forming the panels.

To build a complete video doorphone system it is

necessary to combine one video module to one

AV0052/02 (GCM3000/2) “1+n” audio module.

Video modules are available in two different models,

one with monochrome camera and one with a COLOUR

camera of “DAY&NIGHT” technology.

The main features are:

·5-wire functioning, without coaxial cable

·Built-in infrared LED illuminator for b/w modules.

·High-intensity white light LED illuminator for COLOUR

camera modules; no additional light module required,

nor available

·“DAY&NIGHT” camera for COLOUR video modules,

with the capability of automatic switching to

monochrome operation when the scene light conditions

are not adequate for good-quality colour pictures

·Camera orientation adjustment of 12° in all directions

·Anti-mist heater

·Unbreakable poly-carbonate camera dome

·Rotation possibility of the module to

facilitate cables connection

·Rising-clamp terminal block

·To be used together with “1+n” audio module

Code Description

AV0060 GVM3000 monochrome video module

AV0078 GVCM3000 COLOUR video module

with “DAY&NIGHT” camera technology

Standard Systems

Video Modules

The elegant design of the new DOMULAR 3000 panels

can be further enhanced and customised by choosing the

individual modules within two special-edition ranges,

and combining them together according to personal

taste or to the requirements dictated by the architecture

of the buildings.

Standard Systems

Special Edition Series

The distinctive feature of this prestigious edition is the

“ANTIQUE GOLD” colour of frames and module front

panels, which underline the importance of the building

with a note of exclusive elegance. To achieve such a

special result, frames and front panels are subject to a

careful painting process with metallic paint.

Instead, the call buttons receive a superb gilded finish

by way of a dipping process in actual gold bath.

For ordering special edition items, add the /GD suffix to

the code of the corresponding standard components

(e.g. AV 0060/GD, AV 0045/02GD). Then check the

current price list for the relevant price.

All “GOLDEN” Series articles are always supplied

complete with their electronics; module front panels

only: not available.

Standard Systems

DOMULAR 3000

“GOLDEN” Series

Audio Panel - Golden Series

Audio Panel with INOX front and

micaceous silver-grey frame

The “INOX” range includes all DOMULAR 3000

standard modules but with their front panels made of

sturdy stainless steel. Vandal-resistant sturdiness is

the factor characterising this edition, together with

a look of distinctive appeal.

For ordering special edition items, add the /IX suffix to

the code of the corresponding standard components (e.g.

AV 0060/IX, AV 0045/02IX). Then check the current

price list for the relevant price.

All “INOX” Series articles are always supplied complete

with their electronics; module front panels only: are not

available.

KCA and KCI Panel Frames

AV 0029 (KCA 3000) frames for surface-mount panels

and AV 0037 (KCI 3000) for embedded panels can be

requested in either “GOLDEN” version – specified by the

/GD suffix – or with a silver-grey micaceous paint finish

which is identified by a /MS suffix.

Aesthetic solutions possible by combining panels and

frames of different series are left to personal preference

and in accordance to buildings styles.

NOTE:

For correct pricing, please refer to individual items

and versions in the current price list.

Standard Systems

DOMULAR 3000

“INOX” Series

The following pages serve as a convenient summary of

all the necessary articles for different visitor panel

configurations of both audio and video doorphone

systems. Obviously, it is always possible to obtain

panels for the same number of users also with

different combinations.

Standard Systems

Examples of most common

panel compositions

Standard Systems

Examples of most common

panel compositions

DOORPHONE

1/2 Users Audio System 2/4 Users Audio System 3/6 Users Audio System 4/8 Users Audio System

5/10 Users Audio System 6/12 Users Audio System 14 Users Audio System 16 Users Audio System

18 Users Audio System 20 Users Audio System 22 Users Audio System 24 Users Audio System

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

Wall-Mount Support AV0011/02 ...................1 AV0011/02...................1 AV0011/02 ...................1 AV0011/03.................. 1

Call-Button Modules AV0045/02 ...................1 AV0045/04...................1 AV0045/06 ...................1 AV0045/06 ...................1

AV0045/02 ...................1

Surface-mount frame AV0029/12 ...................1 AV0029/12...................1 AV0029/12 ...................1 AV0029/13 ...................1

Embedd.panels frame AV0037/12 ...................1 AV0037/12...................1 AV0037/12 ...................1 AV0037/13 ...................1

Embedding Box AV0003/12 ...................1 AV0003/12...................1 AV0003/12 ...................1 AV0003/13 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

Wall-Mount Support AV0011/03 ...................1 AV0011/03...................1 AV0011/02 ...................2 AV0011/02 ...................2

Call-Button Modules AV0045/06 ...................1 AV0045/06...................2 AV0045/06 ...................1 AV0045/06 ...................2

AV0045/04 ...................1 AV0045/04 ...................2 AV0045/04 ...................1

Surface-mount frame AV0029/13 ...................1 AV0029/13...................1 AV0029/22 ...................1 AV0029/22 ...................1

Embedd.panels frame AV0037/13 ...................1 AV0037/13...................1 AV0037/22 ...................1 AV0037/22 ...................1

Embedding Box AV0003/13 ...................1 AV0003/13...................1 AV0003/22 ...................1 AV0003/22 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

Wall-Mount Support AV0011/02 ...................2 AV0011/03...................2 AV0011/03 ...................2 AV0011/03 ...................2

Call-Button Modules AV0045/06 ...................3 AV0045/06...................2 AV0045/06 ...................3 AV0045/06 ...................3

AV0045/04...................2 AV0045/02 ...................2 AV0045/04 ...................1

AV0045/00...................1 AV0045/02 ...................1

Surface-mount frame AV0029/22 ...................1 AV0029/23...................1 AV0029/23 ...................1 AV0029/23 ...................1

Embedd.panels frame AV0037/22 ...................1 AV0037/23...................1 AV0037/23 ...................1 AV0037/23 ...................1

Embedding Box AV0003/22 ...................1 AV0003/23...................1 AV0003/23 ...................1 AV0003/23 ...................1

IMPORTANT: The corresponding “4+n” versions can be readily obtained simply by replacing the AV 0052/02 module

with one AV 0052/05 audio module in each composition below.

“1+n” Doorphone Panels

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

Standard Systems

Examples of most common

panel compositions

DOORPHONE

26 Users Audio System 28 Users Audio System 30 Users Audio System 32 Users Audio System

34 Users Audio System 36 Users Audio System 38 Users Audio System 40 Users Audio System

42 Users Audio System 44 Users Audio System 46 Users Audio System 48 Users Audio System

IMPORTANT: The corresponding “4+n” versions can be readily obtained simply by replacing the AV 0052/02 module

with one AV 0052/05 audio module in each composition below.

“1+n” Doorphone Panels (continues)

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

Wall-Mount Support AV0011/03 ...................2 AV0011/03...................2 AV0011/03 ...................2 AV0011/03 ...................3

Call-Button Modules AV0045/06 ...................3 AV0045/06...................4 AV0045/06 ...................5 AV0045/06 ...................5

AV0045/04 ...................2 AV0045/04...................1 AV0045/02 ...................1

AV0045/00 ...................2

Surface-mount frame AV0029/23 ...................1 AV0029/23...................1 AV0029/23 ...................1 AV0029/33 ...................1

Embedd.panels frame AV0037/23 ...................1 AV0037/23...................1 AV0037/23 ...................1 AV0037/33 ...................1

Embedding Box AV0003/23 ...................1 AV0003/23...................1 AV0003/23 ...................1 AV0003/33 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

Wall-Mount Support AV0011/03 ...................3 AV0011/03...................3 AV0011/03 ...................3 AV0011/03 ...................3

Call-Button Modules AV0045/06 ...................5 AV0045/06...................6 AV0045/06 ...................5 AV0045/06 ...................5

AV0045/02 ...................2 AV0045/00...................2 AV0045/04 ...................2 AV0045/04 ...................2

AV0045/00 ...................1 AV0045/00 ...................1 AV0045/02 ...................1

Surface-mount frame AV0029/33 ...................1 AV0029/33...................1 AV0029/33 ...................1 AV0029/33 ...................1

Embedd.panels frame AV0037/33 ...................1 AV0037/33...................1 AV0037/33 ...................1 AV0037/33 ...................1

Embedding Box AV0003/33 ...................1 AV0003/33...................1 AV0003/33 ...................1 AV0003/33 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

Wall-Mount Support AV0011/03 ...................3 AV0011/03...................3 AV0011/03 ...................3 AV0011/03 ...................3

Call-Button Modules AV0045/06 ...................5 AV0045/06...................7 AV0045/06 ...................7 AV0045/06 ...................8

AV0045/04 ...................3 AV0045/02...................1 AV0045/04 ...................1

Surface-mount frame AV0029/33 ...................1 AV0029/33...................1 AV0029/33 ...................1 AV0029/33 ...................1

Embedd.panels frame AV0037/33 ...................1 AV0037/33...................1 AV0037/33 ...................1 AV0037/33 ...................1

Embedding Box AV0003/33 ...................1 AV0003/33...................1 AV0003/33 ...................1 AV0003/33 ...................1

Standard Systems

Examples of most common

panel compositions

DOORPHONE

50 Users Audio System 52 Users Audio System 54 Users Audio System

56 Users Audio System 58 Users Audio System 60 Users Audio System

62 Users Audio System 64 Users Audio System 66 Users Audio System

“1+n” Audio Module AV0052/02 “1+n” .........................1 AV0052/02 “1+n” .........................1 AV0052/02 “1+n”..........................1

Wall-Mount Support AV0011/03....................................4 AV0011/03....................................4 AV0011/03 ....................................4

Call-Button Modules AV0045/06....................................7 AV0045/06....................................7 AV0045/06 ....................................7

AV0045/02 ....................................4 AV0045/04....................................1 AV0045/04 ....................................2

AV0045/02....................................3 AV0045/02 ....................................2

Surface-mount frame AV0029/43....................................1 AV0029/43....................................1 AV0029/43 ....................................1

Embedd.panels frame AV0037/43....................................1 AV0037/43....................................1 AV0037/43 ....................................1

Embedding Box AV0003/43....................................1 AV0003/43....................................1 AV0003/43 ....................................1

“1+n” Audio Module AV0052/02 “1+n” .........................1 AV0052/02 “1+n” .........................1 AV0052/02 “1+n”..........................1

Wall-Mount Support AV0011/03....................................4 AV0011/03....................................4 AV0011/03 ....................................4

Call-Button Modules AV0045/06....................................7 AV0045/06....................................7 AV0045/06 ....................................9

AV0045/04 ....................................3 AV0045/04....................................4 AV0045/04 ....................................1

AV0045/02 ....................................1 AV0045/02 ....................................1

Surface-mount frame AV0029/43....................................1 AV0029/43....................................1 AV0029/43 ....................................1

Embedd.panels frame AV0037/43....................................1 AV0037/43....................................1 AV0037/43 ....................................1

Embedding Box AV0003/43....................................1 AV0003/43....................................1 AV0003/43 ....................................1

“1+n” Audio Module AV0052/02 “1+n” .........................1 AV0052/02 “1+n” .........................1 AV0052/02 “1+n”..........................1

Wall-Mount Support AV0011/03....................................4 AV0011/03....................................4 AV0011/03 ....................................4

Call-Button Modules AV0045/06....................................9 AV0045/06..................................10 AV0045/06 ..................................11

AV0045/04 ....................................2 AV0045/04....................................1

Surface-mount frame AV0029/43....................................1 AV0029/43....................................1 AV0029/43 ....................................1

Embedd.panels frame AV0037/43....................................1 AV0037/43....................................1 AV0037/43 ....................................1

Embedding Box AV0003/43....................................1 AV0003/43....................................1 AV0003/43 ....................................1

IMPORTANT: The corresponding “4+n” versions can be readily obtained simply by replacing the AV 0052/02 module

with one AV 0052/05 audio module in each composition below.

“1+n” Doorphone Panels (continues)

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

Standard Systems

Examples of most common

panel compositions

VIDEO DOORPHONE

1/2 Users Video System 2/4 Users Video System 3/6 Users Video System 4/8 Users Video Syste

5/10 Users Video System 6/12 Users Video System 14 Users Video System 16 Users Video System

18 Users Video System 20 Users Video System 22 Users Video System 24 Users Video System

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

B/W Video Module AV0060.........................1 AV0060 ........................1 AV0060.........................1 AV0060 ........................1

Wall-Mount Support AV0011/03 ...................1 AV0011/03...................1 AV0011/03 ...................1 AV0011/02 ...................2

Call-Button Modules AV0045/02 ...................1 AV0045/04...................1 AV0045/06 ...................1 AV0045/06 ...................1

AV0045/02 ...................1

Surface-mount frame AV0029/13 ...................1 AV0029/13...................1 AV0029/13 ...................1 AV0029/2 .....................1

Embedd.panels frame AV0037/13 ...................1 AV0037/13...................1 AV0037/13 ...................1 AV0037/22 ...................1

Embedding Box AV0003/13 ...................1 AV0003/13...................1 AV0003/13 ...................1 AV0003/22 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

B/W Video Module AV0060.........................1 AV0060 ........................1 AV0060.........................1 AV0060 ........................1

Wall-Mount Support AV0011/02 ...................2 AV0011/02...................2 AV0011/03 ...................2 AV0011/03 ...................2

Call-Button Modules AV0045/06 ...................1 AV0045/06...................2 AV0045/06 ...................1 AV0045/06 ...................2

AV0045/04 ...................1 AV0045/04 ...................2 AV0045/04 ...................1

AV0045/00 ...................1

Surface-mount frame AV0029/22 ...................1 AV0029/22...................1 AV0029/23 ...................1 AV0029/23 ...................1

Embedd.panels frame AV0037/22 ...................1 AV0037/22...................1 AV0037/23 ...................1 AV0037/23 ...................1

Embedding Box AV0003/22 ...................1 AV0003/22...................1 AV0003/23 ...................1 AV0003/23 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

B/W Video Module AV0060.........................1 AV0060 ........................1 AV0060.........................1 AV0060 ........................1

Wall-Mount Support AV0011/03 ...................2 AV0011/03...................2 AV0011/03 ...................2 AV0011/03 ...................2

Call-Button Modules AV0045/06 ...................3 AV0045/06...................2 AV0045/06 ...................3 AV0045/06 ...................4

AV0045/04...................2 AV0045/04 ...................1

Surface-mount frame AV0029/23 ...................1 AV0029/23...................1 AV0029/23 ...................1 AV0029/23 ...................1

Embedd.panels frame AV0037/23 ...................1 AV0037/23...................1 AV0037/23 ...................1 AV0037/23 ...................1

Embedding Box AV0003/23 ...................1 AV0003/23...................1 AV0003/23 ...................1 AV0003/23 ...................1

IMPORTANT: COLOUR solutions can be readily obtained simply by using the AV 0078 colour camera module

instead of the AV0060 listed in the chart.

Monochrome Video Doorphone Panels

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

Standard Systems

Examples of most common

panel compositions

VIDEO DOORPHONE

26 Users Video System 28 Users Video System 30 Users Video System 32 Users Video System

34 Users Video System 36 Users Video System 38 Users Video System 40 Users Video System

42 Users Video System 44 Users Video System 46 Users Video System

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

B/W Video Module AV0060.........................1 AV0060 ........................1 AV0060.........................1 AV0060 ........................1

Wall-Mount Support AV0011/03 ...................3 AV0011/03...................3 AV0011/03 ...................3 AV0011/03 ...................3

Call-Button Modules AV0045/06 ...................4 AV0045/06...................4 AV0045/06 ...................4 AV0045/06 ...................4

AV0045/02 ...................1 AV0045/02...................2 AV0045/02 ...................3 AV0045/04 ...................2

AV0045/00 ...................2 AV0045/00...................1 AV0045/00 ...................1

Surface-mount frame AV0029/33 ...................1 AV0029/33...................1 AV0029/33 ...................1 AV0029/33 ...................1

Embedd.panels frame AV0037/33 ...................1 AV0037/33...................1 AV0037/33 ...................1 AV0037/33 ...................1

Embedding Box AV0003/33 ...................1 AV0003/33...................1 AV0003/33 ...................1 AV0003/33 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1

B/W Video Module AV0060.........................1 AV0060 ........................1 AV0060.........................1 AV0060 ........................1

Wall-Mount Support AV0011/03 ...................3 AV0011/03...................3 AV0011/03 ...................3 AV0011/03 ...................3

Call-Button Modules AV0045/06 ...................4 AV0045/06...................4 AV0045/06 ...................6 AV0045/06 ...................6

AV0045/04 ...................2 AV0045/04...................3 AV0045/02 ...................1 AV0045/04 ...................1

AV0045/02 ...................1

Surface-mount frame AV0029/33 ...................1 AV0029/33...................1 AV0029/33 ...................1 AV0029/33 ...................1

Embedd.panels frame AV0037/33 ...................1 AV0037/33...................1 AV0037/33 ...................1 AV0037/33 ...................1

Embedding Box AV0003/33 ...................1 AV0003/33...................1 AV0003/33 ...................1 AV0003/33 ...................1

“1+n” Audio Module AV0052/02 “1+n”.........1 AV0052/02 “1+n” ........1 AV0052/02 “1+n”.........1

B/W Video Module AV0060.........................1 AV0060 ........................1 AV0060.........................1

Wall-Mount Support AV0011/03 ...................3 AV0011/03...................4 AV0011/03 ...................4

Call-Button Modules AV0045/06 ...................7 AV0045/06...................6 AV0045/06 ...................6

AV0045/02...................4 AV0045/04 ...................1

AV0045/02 ...................3

Surface-mount frame AV0029/33 ...................1 AV0029/43...................1 AV0029/43 ...................1

Embedd.panels frame AV0037/33 ...................1 AV0037/43...................1 AV0037/43 ...................1

Embedding Box AV0003/33 ...................1 AV0003/43...................1 AV0003/43 ...................1

IMPORTANT: COLOUR solutions can be readily obtained simply by using the AV 0078 colour camera module

instead of the AV0060 listed in the chart.

Monochrome Video Doorphone Panels (continues)

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

Standard Systems

Examples of most common

panel compositions

VIDEO DOORPHONE

48 Users Video System 50 Users Video System 52 Users Video System

54 Users Video System 56 Users Video System 58 Users Video System

60 Users Video System

IMPORTANT: COLOUR solutions can be readily obtained simply by using the AV 0078 colour camera module

instead of the AV0060 listed in the chart.

Monochrome Video Doorphone Panels (continues)

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

SURFACE-MOUNTED

EMBEDDED

“1+n” Audio Module AV0052/02 “1+n” .........................1 AV0052/02 “1+n” .........................1 AV0052/02 “1+n”..........................1

B/W Video Module AV0060.........................................1 AV0060 .........................................1 AV0060..........................................1

Wall-Mount Support AV0011/03....................................4 AV0011/03....................................4 AV0011/03 ....................................4

Call-Button Modules AV0045/06....................................6 AV0045/06....................................6 AV0045/06 ....................................6

AV0045/04....................................2 AV0045/04....................................3 AV0045/04 ....................................4

AV0045/02....................................2 AV0045/02....................................1

Surface-mount frame AV0029/43....................................1 AV0029/43....................................1 AV0029/43 ....................................1

Embedd.panels frame AV0037/43....................................1 AV0037/43....................................1 AV0037/43 ....................................1

Embedding Box AV0003/43....................................1 AV0003/43....................................1 AV0003/43 ....................................1

“1+n” Audio Module AV0052/02 “1+n” .........................1 AV0052/02 “1+n” .........................1 AV0052/02 “1+n”..........................1

B/W Video Module AV0060.........................................1 AV0060 .........................................1 AV0060..........................................1

Wall-Mount Support AV0011/03....................................4 AV0011/03....................................4 AV0011/03 ....................................4

Call-Button Modules AV0045/06....................................7 AV0045/06....................................8 AV0045/06 ....................................9

AV0045/04....................................3 AV0045/04....................................2 AV0045/04 ....................................1

Surface-mount frame AV0029/43....................................1 AV0029/43....................................1 AV0029/43 ....................................1

Embedd.panels frame AV0037/43....................................1 AV0037/43....................................1 AV0037/43 ....................................1

Embedding Box AV0003/43....................................1 AV0003/43....................................1 AV0003/43 ....................................1

“1+n” Audio Module AV0052/02 “1+n” .........................1

B/W Video Module AV0060.........................................1

Wall-Mount Support AV0011/03....................................4

Call-Button Modules AV0045/06..................................10

Surface-mount frame AV0029/43....................................1

Embedd.panels frame AV0037/43....................................1

Embedding Box AV0003/43....................................1

Terms and Conditions of Sales

General Clause

1. No contract may be deemed concluded with us other than on the basis of these General conditions of Sale and Delivery, any other term or condition being

void unless specifically agreed in writing. This applies also in case of deliveries made without separate provision or expressed reserves from our side.

Terms and Conditions of the Buyer apply only in as far as they have been expressly agreed by us, for which the Buyer is responsible for providing evidence.

2. Our General Conditions of Sale and Delivery apply also to future transactions with the Buyer, even where no specific reference is made by us as to the

applicability of our General Conditions of Sale and Delivery.

II: Prices

1. All prices are net ex-works for standard products and packaging. They specifically exclude special packaging requirements, VAT and all other applicable

taxes, certification charges and any other additional expense, unless otherwise agreed in writing.

2. Our prices for custom-made items are not binding. Should material costs, labour or overheads increase within two months between conclusion of the

contract and delivery, Bitron Video shall be entitled to increase the price accordingly.

Payment terms

1. Our invoices are payable in strict compliance with the terms specified therein.

2. The Buyer is not entitled to withhold payments except where a cleanly justified formal complaint comes into existence before the due date of the relevant

invoice. Payment offsetting by the Buyer is admissible only in the event of counterclaims which are undisputed or established by way of a legal process.

3. We are entitled to demand advance payment or the provision of a security where circumstances come to our knowledge which place the creditworthiness

of the Buyer (or of his Country) in doubt, excepting cases where such circumstances were recognisable at the time of conclusion of the contract.

Should the Buyer fail to honour any payment obligation despite the granting of a reasonable period of grace, we are entitled to withdraw from the contract

and to withhold future deliveries.

Delivery

1. Partial deliveries are admissible, provided they do not constitute an reasonable inconvenience to the Buyer.

2. The place of fulfilment is Pianezza (TO). Risk passes – also in the event of deliveries free of freight charges – on to the Buyer on dispatch or collection

of the goods. On request and at Buyer’s cost, we will insure deliveries against the normal transport risks. Should dispatch or collection be delayed for

reasons for which the Buyer is responsible, or should the Buyer delay goods acceptance for any other reason, all ensuing risks and relevant expenses

shall be to the Buyer’s account.

Export sales

1. As we supply technically sophisticated goods which rely upon adequate explanation and support, the Buyer is obliged to sell the goods exclusively to

specialised outlets and installers.

2. Our products are sold world-wide through a sales network of authorised, independent distributors at national level. The Buyer is generally prohibited

from promoting sales outside his assigned territory and to other Countries without our express permission in writing.

3. Every case of deliberate infringement of the restrictions outlined under points 1 and 2 above shall entitle us to demand indemnity, compensation or

penalty – depending on circumstances - to be offset against any claims for damages filed by any rightful third party.

Delivery term, delays

1. The delivery period for our standard products is six weeks. For custom-made articles delivery dates shall be stated on the relevant order confirmation.

In the event of force majeur, e.g. wars, industrial disputes, transportation breakdowns or sub-suppliers’ delays or other disruptions for which we are not

responsible, we are entitled – even in the event of a firmly agreed delivery deadline – to delay delivery by a reasonable period of time until the disturbance

is resolved. Should the Buyer be in a position to prove unreasonable hardship as a result of our inability to perform, the Buyer is entitled to serve

extraordinary notice of termination or withdrawal by registered mail. Further-reaching claims on the part of the Buyer, such as claims for damages or

procurement of a replacement, are excluded in cased of force majeur. Should a disruption for which we are not responsible last longer than eight weeks,

we shall be released from our obligation to perform without any obligation to compensate the Buyer.

2. In case of delay in the acceptance of ordered standard goods, we are entitled to invoice the Buyer warehousing costs of 0.5% of the purchase price for

each started month, but of no more than 5% overall, without prejudice to the right of either party to provide evidence of higher or lower warehousing

cost. With reference to goods of custom design, demurrage costs shall be defined each time in accordance to specific situation and circumstances.

Terms and Conditions of Sales

Warranty

1. Bitron Video’s warranty policy conforms to the Directive 1999/44/EC of the European Parliament and of the Council of 25 May 1999

Official Journal L 171 , 07/07/1999 P. 0012 – 0016.

2. No warranty cover shall be afforded for insignificant defects. Unauthorised modifications, repairs, unskilled installation, or the consequences of such

actions by the Buyer or by any third party shall not be covered by the warranty.

3. The Buyer shall provide written notice of any evident damage immediately, but within 14 days at the latest. Hidden damage shall be reported in writing

within 14 days of its discovery, at the latest.

4. Claims on the part of the Buyer for expenses incurred in remedying a defect – namely transportation, travelling and material costs - are excluded in the

event they are increased due to the transfer of the delivered object to a location other than the Buyer’s place of business.

5. Any modifications or repairs performed unlawfully by the Buyer or by any third party without our prior permission shall void any liability on our part for

consequential damages.

Acceptance of return deliveries

1. No return is accepted without our prior written agreement at our discretion and only in view of exceptional and well-documented circumstances.

2. For goods duly returned with our agreement, credit notes are issued with a deduction of 20% of the relevant net invoiced amount to cover administration

inspection and repackaging costs. No credit notes shall be issued for damaged or otherwise not-resaleable goods. No return deliveries can be accepted

of custom-made items nor of standard products which are no longer in regular production.

3. Likewise, should an order of customised items be cancelled, the Buyer shall be liable for payment of the full agreed amount less any expenses saved by

us as a result of such order cancellation.

Reservation of title

1. The supplied goods shall remain our property until all our claims arising from the business association with the Buyer have been met in full. The Buyer

is entitled to sell or process/integrate the reserved goods in the regular course of business. In the event of a deterioration in the financial circumstances

of the Buyer, we shall be entitled to prohibit the sale/processing or integration of the reserved goods. Resale of such goods is possible only provided the

reseller either receives full payment from his customers or the same title reservation provisions are imposed by the reseller to his customer.

2. The Buyer shall inform us without delay in the event of a discontinuation of payments, material deterioration in his financial circumstances or the

attachment of property.

3. The Buyer shall hold the reserved goods in safekeeping on our behalf at no charge. He shall provide adequate insurance cover the reserved goods against

customary risks such as fire, theft, water and transportation damage. He assigns any claims for insured or third party damages to us to the full extent of

the invoice value of the goods.

Disputes and applicable law

1. The legal venue for all direct or indirect disputes arising from the contractual relationship shall be Torino, Italy. However, we reserve the right to bring a

legal action also to Buyer’s place of business.

2. All contractual relationship is subject to the Italian law.

Esec. CAT.DOMULAR 3000 UK

Navigation menu

Versions of this User Manual:

Views

Navigation
