1 Introduce
ThisArticle

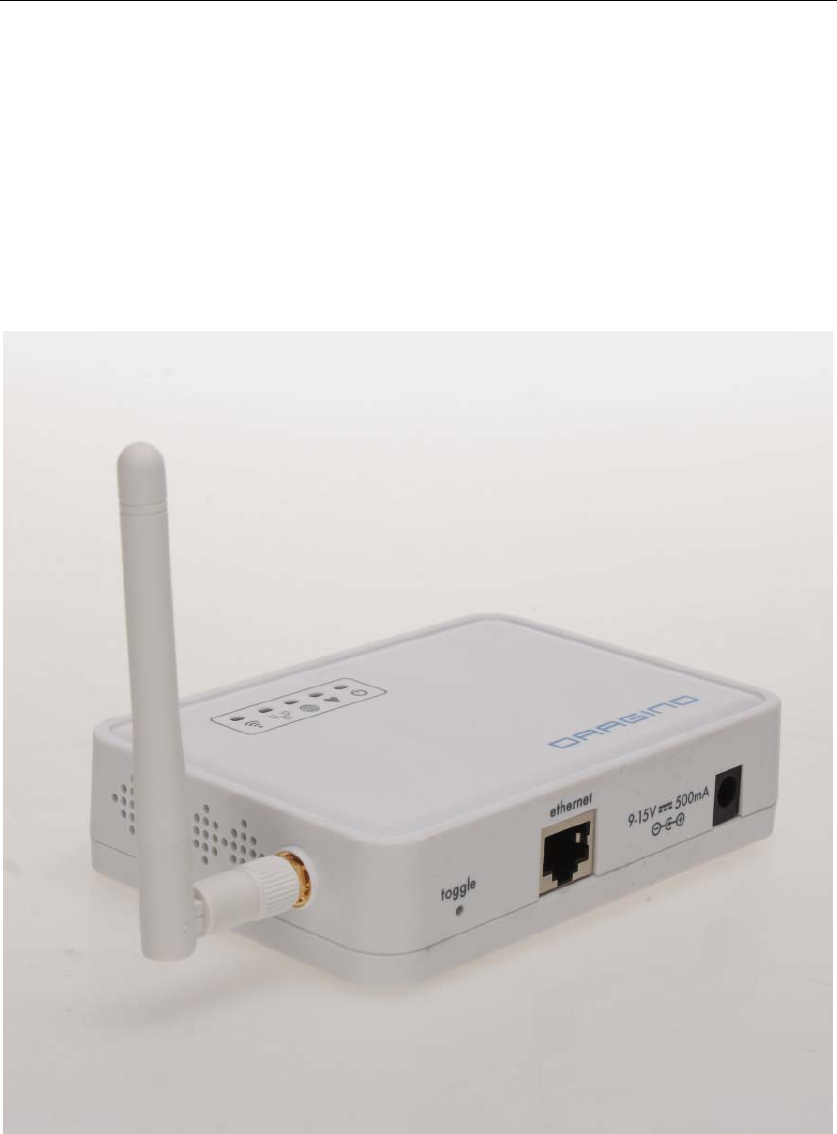

ThisarticleistheusermanualfortheMS12wirelesssensornode.Thisarticledescribeshow
toconfiguretheMS12touseindifferentwirelessmodeandhowtouseMS12asawireless
powermeter.
www.dragino.cn
4/
2 ConfigurethedeviceviaGUI
2.1 AccesstheGUI
TheMS12GUIisamodifiedGUIversionfromLUCI,youcanaccess its GUI very easy from
yourPC.ConnectyourPCtoitsLANportandsetyourPCtoDHCP.Itwillautomaticallyget
theipaddresswhichshouldbeinthe192.168.255.1/24network.
TheninyourPC,useyourbrowsertoaccesstheIP192.168.255.1andyouwillberedirected
totheGUIofMS12
2.2 ConfigureWifiparameters

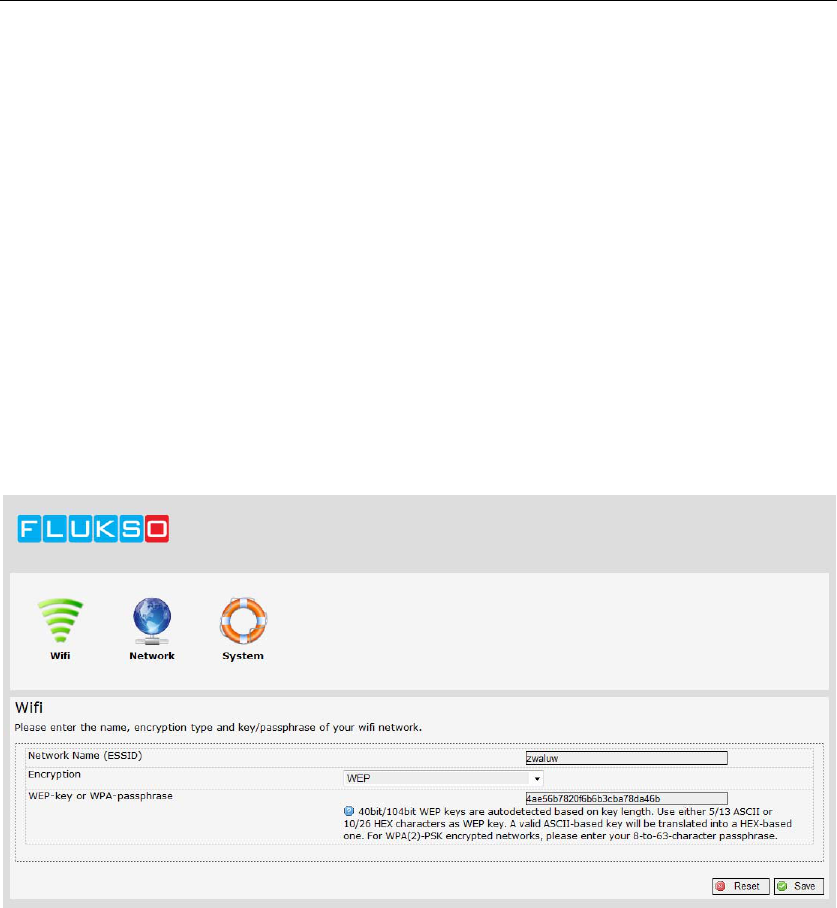

In the wifi setting page, you can configure the device to connect to your AP via Wifi.
The setting includes:
ESSID: The SSID refers to a wireless network name and is contained in a field in certain wireless
management frames. SSID is sometime called ESSID (Extend Service Set IDentifier). Put your
ESSID here. You can get the ESSID info from your AP.
Encryption: choose the encryption method of your AP. Option include: no encryption, WEP,
WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK mixed mode.
Web-key or WPA passphrase: the encryption key of your AP.
Input the correct ESSID and encryption detail then your MS12 should be able to connect to your
AP.
www.dragino.cn
5/

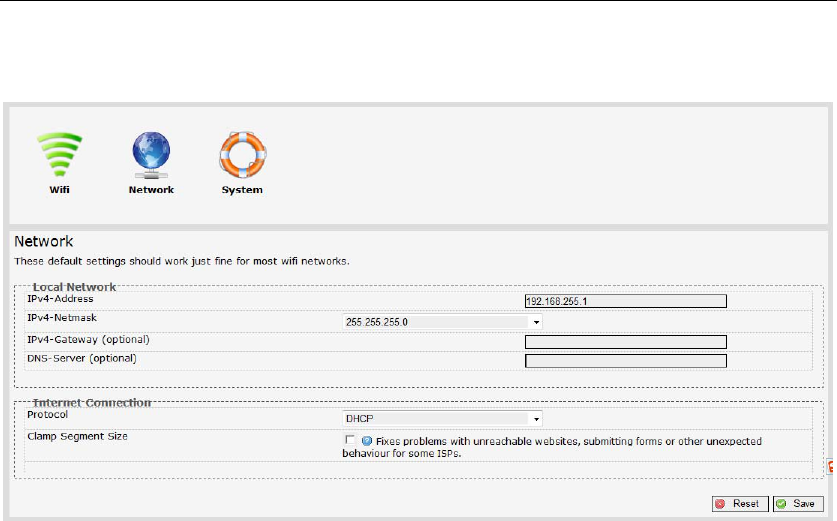

2.3 Networksetting
The network page include the network setting for the LAN interface and wifi interface.
Local Network setting:
IPv4-Address: ip address of the LAN port
IPv4-Address: Netmask of the LAN port
IPv4-Gateway (optional): configure the default gateway of LAN port
DNS-Server (optional): Configure DNS server of LAN port
Internet Connection:
Protocol: for the wifi interface, you can choose DHCP, PPPoE, manual(static IP), or
PPTP
www.dragino.cn
6/

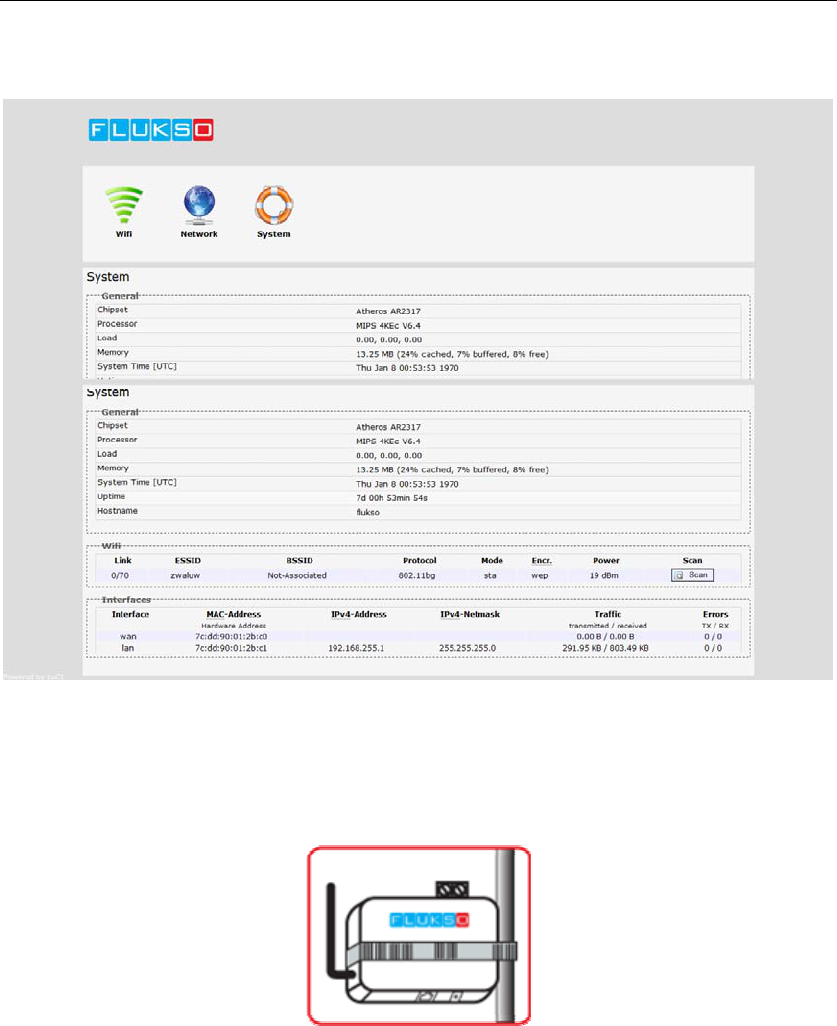

2.4 SystemStatus:
The system status page shows the system status of MS12.
3 SecuringtheMS12

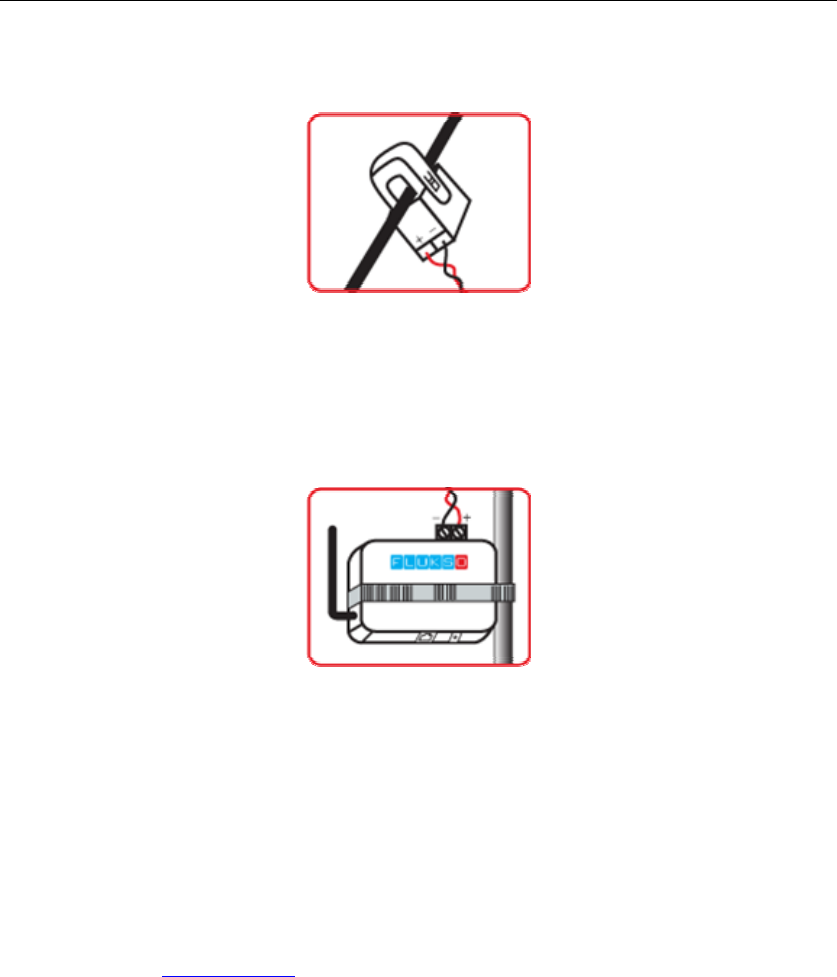

Disconnect all cables from the Fluksometer. Find a suitable location near the fuse box to install the
Fluksometer. Secure the Fluksometer with the plastic cable tie.
www.dragino.cn
7/
4 Attachingthecurrentclamp
For safety reasons, switch off the main electricity supply. For a single phase supply, attach the
current clamp to one of the two cables running from the electricity meter to the fuse box. Close the
clamp firmly.
5 Connectingtheclampsensorcable
Connect the cable from the current clamp to the MS12's input port. Take care of connecting the
black and red cable as shown in the drawing on the left. Only apply gentle force when fastening
the two screws.
6 PoweringUp
Switch the main electricity supply back on. Activate the MS12 by connecting the power plug.
Welcome, you are now part of Flukso community; you should be able to check your power status
in Flukso website: www.flukso.net.
