Users Manual
Copyright ⓒ 2014 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this
document in part or as a whole for any purposes other than those for which this document is disclosed. This document
is copyrighted and contains confidential information and other intellectual property rights of DUALi Inc. An
y
unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property rights.
DUALi Inc.
Document Number: EP01-14-004
Document Version: 1.0
Last Revised Date: 11th Dec. 2014
ITOUCH_POP2
Specification
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
FCC ID: SWUITOUCHPOPV2
WARNING! Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
RF EXPOSURE WARNING! This equipment must be installed and operated in
accordance with provided instructions and the antenna(s) used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
DUALi Inc. reserves the right to make changes to its applications or services or to discontinue any
application or service at any time without notice. DUALi provides customer assistance in various
technical areas, but does not have full access to data concerning the use and applications of
customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or software
design or performance relating to systems or applications incorporating DUALi products. In addition,
DUALi assumes no liability and is not responsible for infringement of patents and/or any other
intellectual or industrial property rights of third parties, which may result from assistance provided by
DUALi.
Composition of the information in this manual has been done to the best of our knowledge. DUALi
does not guarantee the correctness and completeness of the details given in this manual and may not
be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our
efforts, errors may not be completely avoided, we are always grateful for your useful tips.
We have our development center in South Korea to provide technical support. For any technical
assistance can contact our technical support team as below;
Tel: +82 31 213 0074
e-mail : lab@duali.com
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
3
Revision History
2014.12.11 (Ver. 1.0) : Release
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
4
Contents
1 Introduction ............................................................................................................................... 5
2 Components Confirmation ......................................................................................................... 6
2.1 Product Components ....................................................................................................... 6
2.2 Block Diagram ................................................................................................................ 7
2.3 Block Diagram specification ............................................................................................. 8
2.4 Exterior ........................................................................................................................... 9
2.5 PCB .............................................................................................................................. 1 0
2.6 Product Size ................................................................................................................. 11
3 Power & Interface Specification ............................................................................................... 12
3.1 Power Specification ....................................................................................................... 12
3.2 Electric Current Specification ......................................................................................... 12
3.3 RS-232 Interface Specification ....................................................................................... 12
3.4 USB Interface Specification ........................................................................................... 12
3.5 TCP/IP Interface Specification ....................................................................................... 12
3.6 WI-FI Interface Specification .......................................................................................... 12
4 Configuration for Door Lock Control
.........................................................................................
13
4.1 POP + LOCK ................................................................................................................ 13
4.2 POP + PDU + Deadbolt Lock ......................................................................................... 14
4.3 POP(RS-485) + PDU + Deadbolt Lock ........................................................................... 14
5 Connector Specification .......................................................................................................... 15
5.1 J6 (MINI USB) – USB_OTG (Outside) ............................................................................ 15
5.2 J17 (USB A TYPE) – USB_HOST (Outside) ................................................................... 15
5.3 J8 (2mm ,3-PIN DIP TYPE, RIGHT Angle) – UART ........................................................ 15
5.4 J7 (1.25mm, 4-PIN SMD TYPE, RIGHT Angle) - DEBUG UART ..................................... 15
5.5 J9 (2mm ,4-PIN DIP TYPE, RIGHT Angle) - RS-485 (Outside) ........................................ 16
5.6 J11 (2mm, 7-PIN DIP TYPE, RIGHT Angle) - DOOR (Outside) ....................................... 16
5.7 J12 (2mm, 7-PIN DIP TYPE, RIGHT Angle) - WD_DATA (Outside) ................................. 16
5.8 J4 (2.5mm 2PIN DIP, RIGHT Angle) - POWER (Outside) ............................................... 16
6 Usage Environment ................................................................................................................ 17
6.1 Recommendable Operating Environment ....................................................................... 17
6.2 Recommendable Storage Environment .......................................................................... 17
7 Warning and Notice ................................................................................................................
17
8 Certification ............................................................................................................................ 17
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
5
1 Introduction
iTOUCH pop2 is designed as a wall-mounted smartcard reader suitable for time-attendance, access
control, ID check, self-check-in, self-payment system based on Android O/S.
iTOUCH pop2 communicates with PC or controller via USB ,TCP/IP, WiFi(wireless LAN) or
Bluetooth(option). User can develop their own program by using Android Jellybean
CPU 32bit ARM-CORTEX A5 RISC processor
Operating frequency Normal. 625MHz Up to 833MHz
Working Memory DDR3 (4Gbit x 2)
Program Memory Nand flash (4Gbyte)
OS Linux3.0.31 or better, Android 4.2.2 Jellybean
Network 10/100M Ethernet POE Option
Display 480*272 RGB (16.7M colors)
with 4.3inch touch panel 480*3(RGB)*272
Camera I/F 1/4-inch 5Mp SOC Digital image sensor
5M Pixels,Auto Focus Option
SAM I/F 1 SAMs supported ISO-7816
Sound Stereo Audio Codec
Speaker Stereo Output with 1Watts 1ea
Serial Comm.
RS232 1ch with 5V power (Control outdoor
sound)
RS232 1ch, RS485 1ch
3ch.
Wiegand D0, D1, LED(in) OUTPUT
SD/MMC Card Slot Micro SD memory card 1Slot
USB OTG USB 2.0 OTG 1ch.
USB Host USB 2.0 Host 1ch.
RF PN512 with AMP
Button 4 Keys
Door control I/F
Door status check sensor, Open Switch
Relay(NO, NC, COM), Secure Lock(RS485),
Output(PDU)
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
6
WIFI Wireless LAN Module
IEEE 802.11n/e/i standards up to 150Mbps Option
Operating Powers Min 9V, Max 28V (12V DC adaptor)
2 Components Confirmation

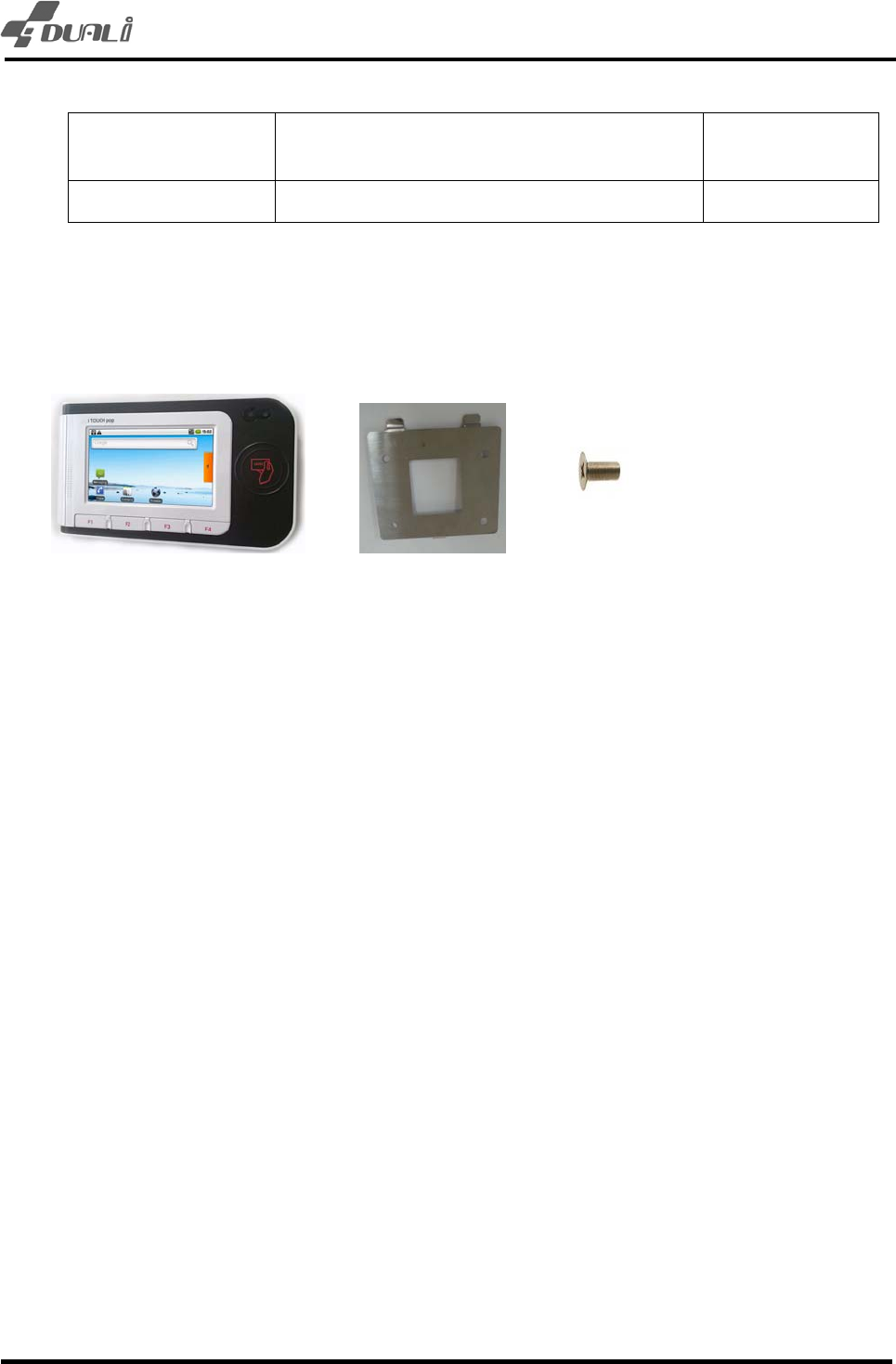

2.1 Product Components
① ② ③
① Reader unit
② WALL Fixer Bracket
③ Screw (2.5*4 / 4 EA)
④ Cable (Provide as your favor)
1) Door cable
2) Wiegand cable
3) PWR cable
4) RS-232 cable
5) RS-485 cable
⑤ 12V DC adaptor
Please use the approved adapter that satisfies the LPS
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
7

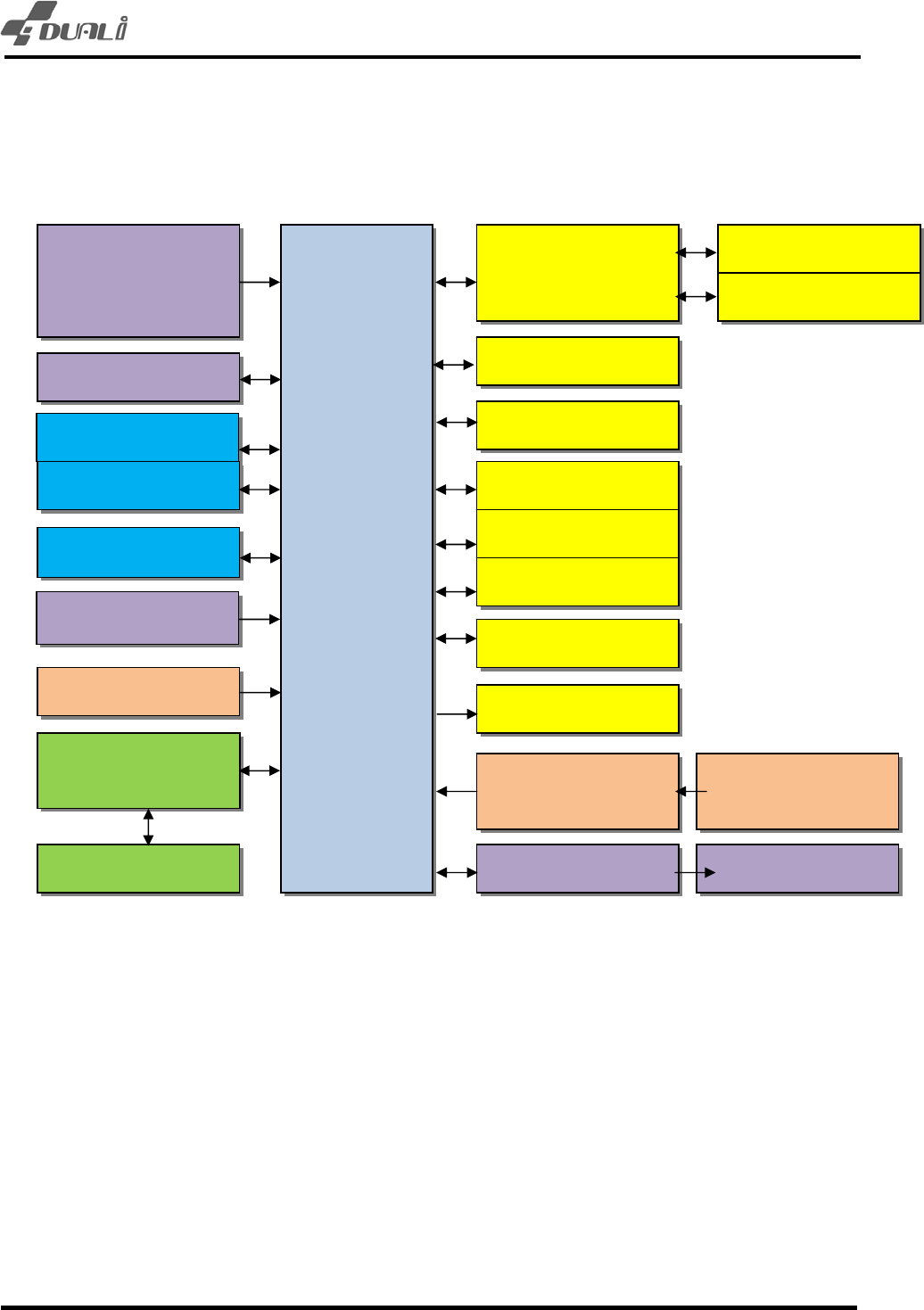

2.2 Block Diagram
TFT LCD(4.3”)
1677 Color
Touch pad
DC/DC
CONVERTER
CAMERA Module
KEYPAD (4ea)
Ethernet
Micro SD CARD
DOOR I/F
RS-485
DC INPUT
(9V~28V)
RF/SAM Module
PN512
Speaker
USB HUB
SAM Card *1
RS-232
RS-232
32bit ARM
Cortex-A5
RISC
Processor
DDR3 (1GByte)
Battery
Nand Flash (4GByte)
Wiegand
USB OTG
Sound Codecs
WIFI
USB Host
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
8
2.3 Block Diagram specification
CPU: ARM CORTEX 32-bit A5 RISC processor TCC8925
Program & Data Memory: NAND Flash 4Gbyte for program running & file system.
Operation Memory: 1Gbyte DDR3 SDRAM for rapid operating process
LCD: Wide 4.3-inch (16.7M Color TFT LCD) with Touch panel.
Camera: Includes Auto Focus and LED for light
Speaker: 1W / 8ohm speaker is embedded.
RF Module: Using PN512 (Serial Interface on board) and supporting R/W ISO-14443
A/B cards, Mifare, Felica, NFC.
SAM Card: It has 1 SAM card slot supporting ISO 7816 and it’s controlled by RF Module
part.
DC INPUT: 9V~24V, Power consumption is 10W. Required to use 9V-2A, 12V-1.5A,
24V-700mA adaptor or SMPS.
SD CARD Slot: It has 1 Micro SD Card Slot for Memory extension.
Ethernet: Supports up to 100Mbps.
Serial Interface: 1 RS-485, 2 RS-232 port communication interfaces.
USB OTG : 1 USB OTG
USB HOST: 1 USB Host. These can be sued for extending optional functions such as
memory, RF reader.
Door Interface: There are RELAY control part for door control, Door open & close status
control Input and Exit switch status control Input part. For Secure locking, iTOUCH pop2
must be connected to IO Controller via RS-485. In case of using PDU, 24V LOCK is
possible.
Wi-Fi: Optional
Battery: Use recharge/discharge-able battery to keep RTC.
Discharge after 200 hours (8days).
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
9

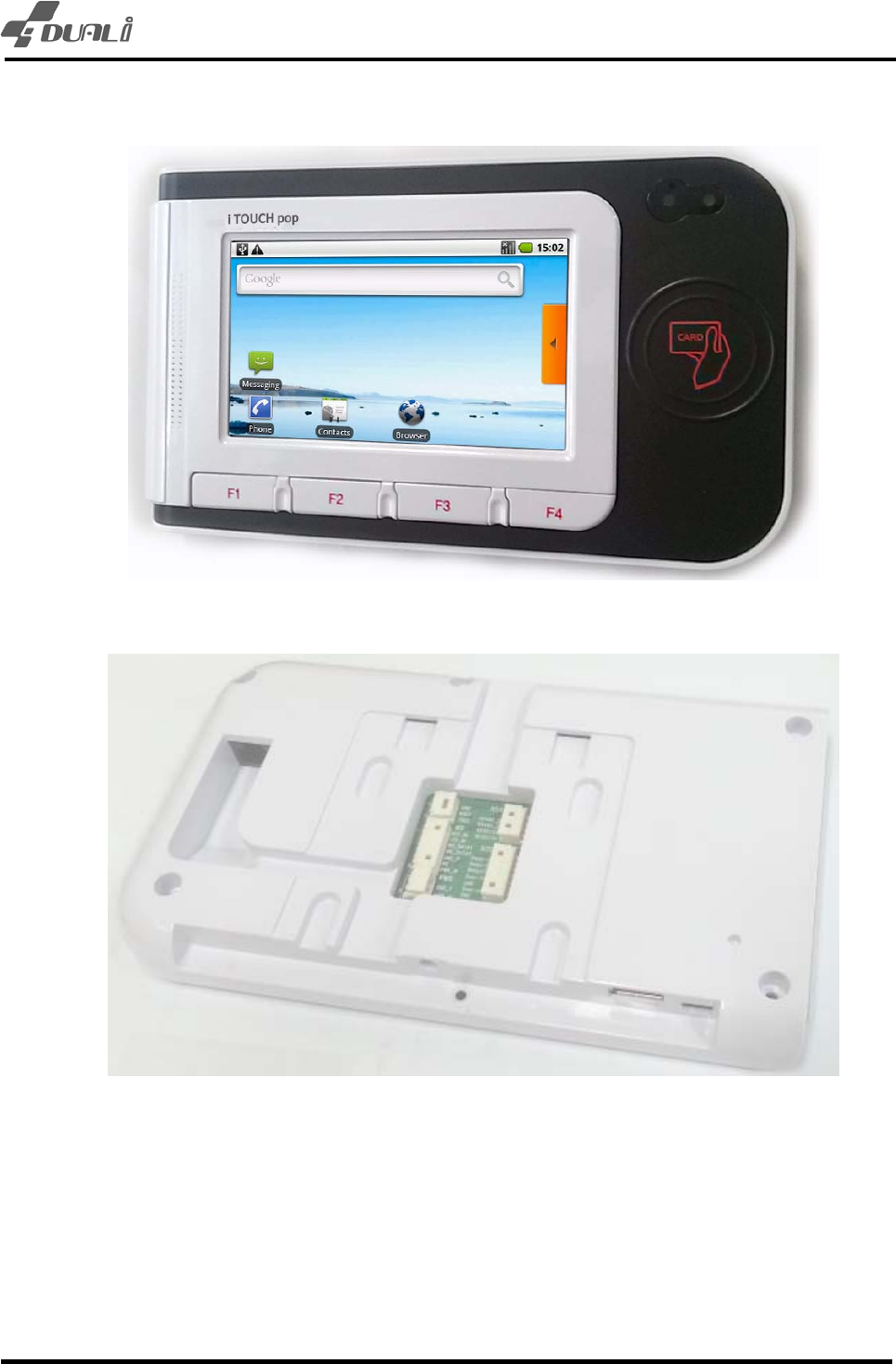

2.4 Exterior
< Front >
< Rear >
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
10

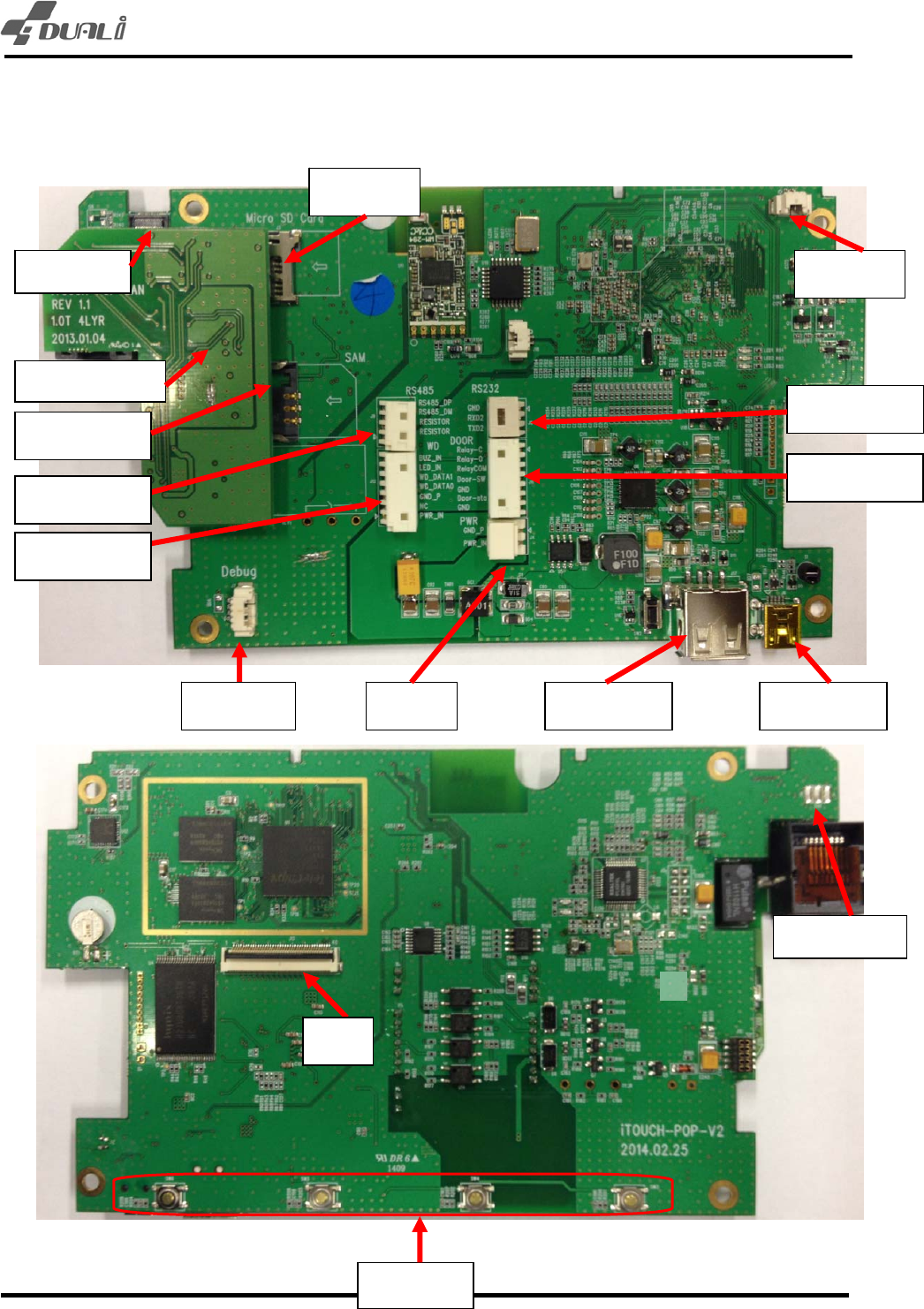

2.5 PCB
- MAIN Board
DC 12V
Wiegand
Debug
Ethernet Board
RS-232
SAM
USB Slave USB Host
SD Card
Speaker
Door Control
RS-485
CAMERA
FLASH LED
KEY 4EA
LCD
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
11

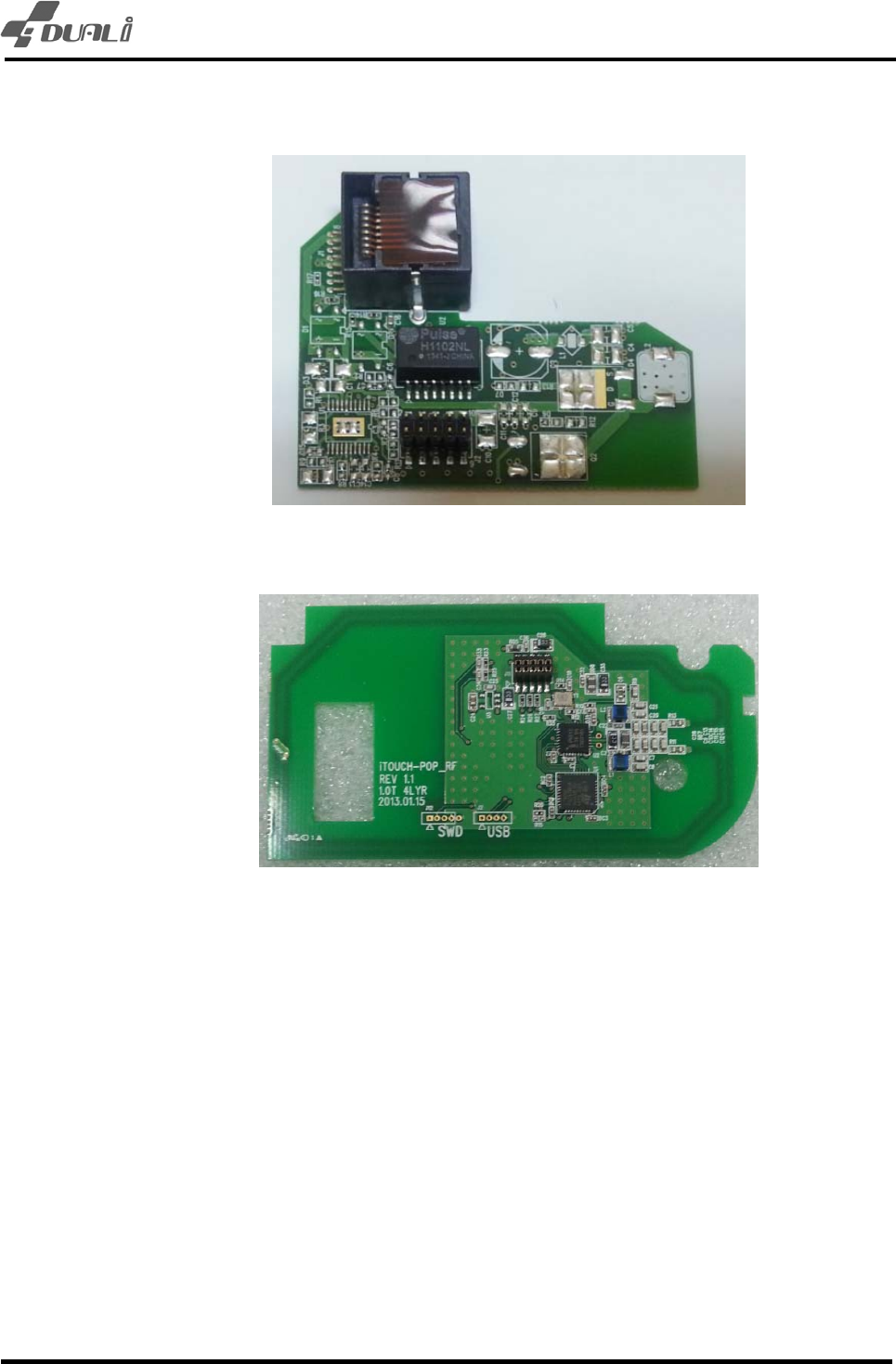

- LAN Board
- RF Board
2.6 Product Size
- ITOUCH_POP2 (mm) : 185(W) *108(H) * 20.5(D)
- Thickness (PCB)
MAIN Board : 1.0T
RF Board : 1.0T
LAN Board : 1.0T
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
12
3 Power & Interface Specification
3.1 Power Specification
- 12V : 1.5A or above
- 24V : 700mA or above
3.2 Electric Current Specification
- 12V : average 400mA
- 12V : Max 550mA
3.3 RS-232 Interface Specification
- 8 Data, 1 Stop, No Parity
- Communication speed: Start with 115200 bps
3.4 USB Interface Specification
- USB 1.1 Full Speed(12Mbps)
3.5 TCP/IP Interface Specification
- 10B / 100B both supported
3.6 WI-FI Interface Specification
- IEEE 802.11n/e/i standards.
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
13
4 Configuration for Door Lock Control

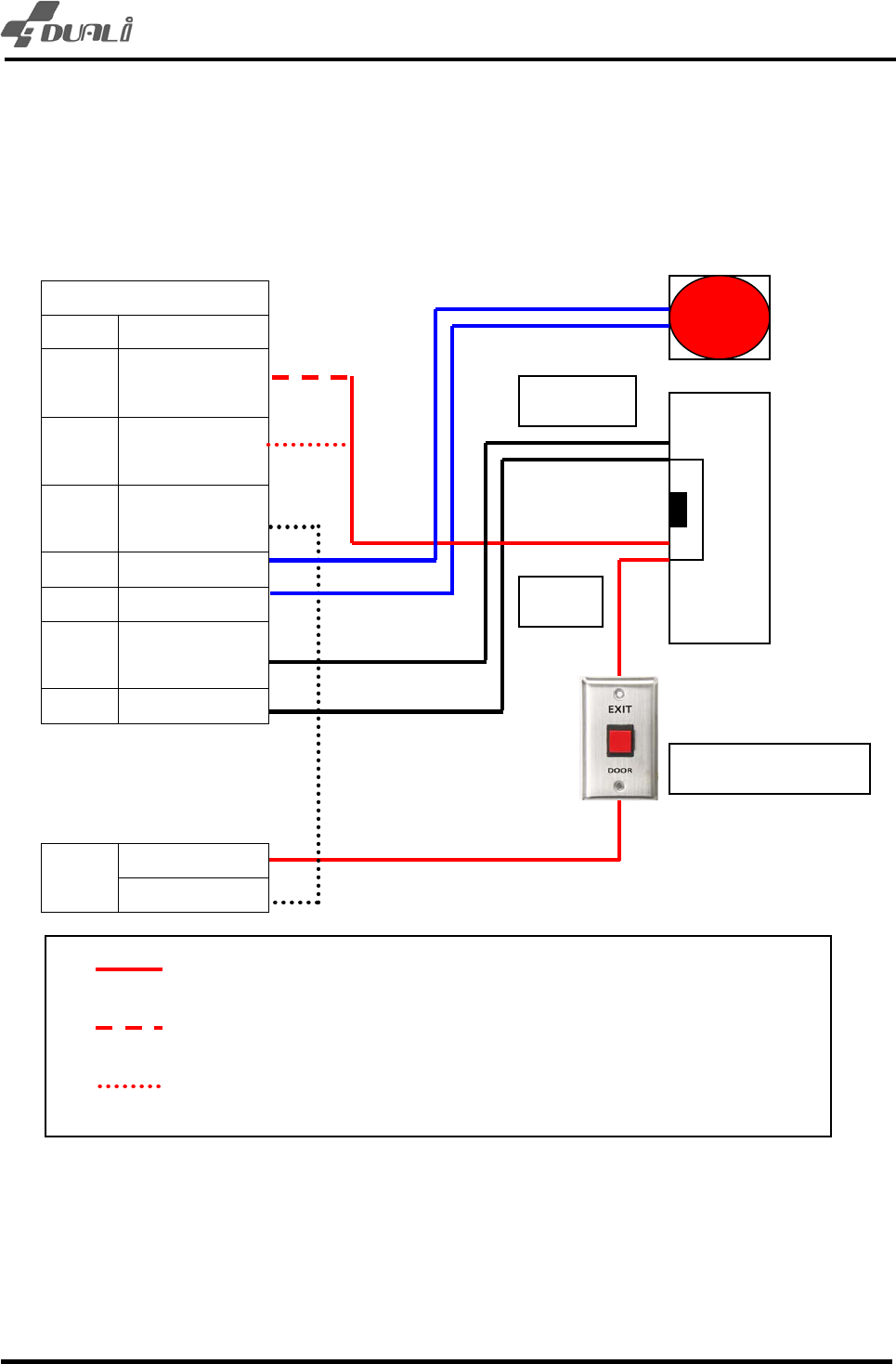

4.1 POP + LOCK
J9 – DOOR
PIN Specification
1 RELAY
Normal Close
2 RELAY
Normal Open
3 RELAY
COMMOM
4 Door SW
5 GND
6 DOOR
STATUS
7 GND
LOCK
PWR
DC+ (12V or 24V)
GND
LOCK COMMON CONNECTION
NORMAL OPEN LOCK(Secure, open when powered)
NORMAL CLOSE LOCK(Safe, close when powered)
EXIT
SENSOR
LOCK
Normal Close Type
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
14

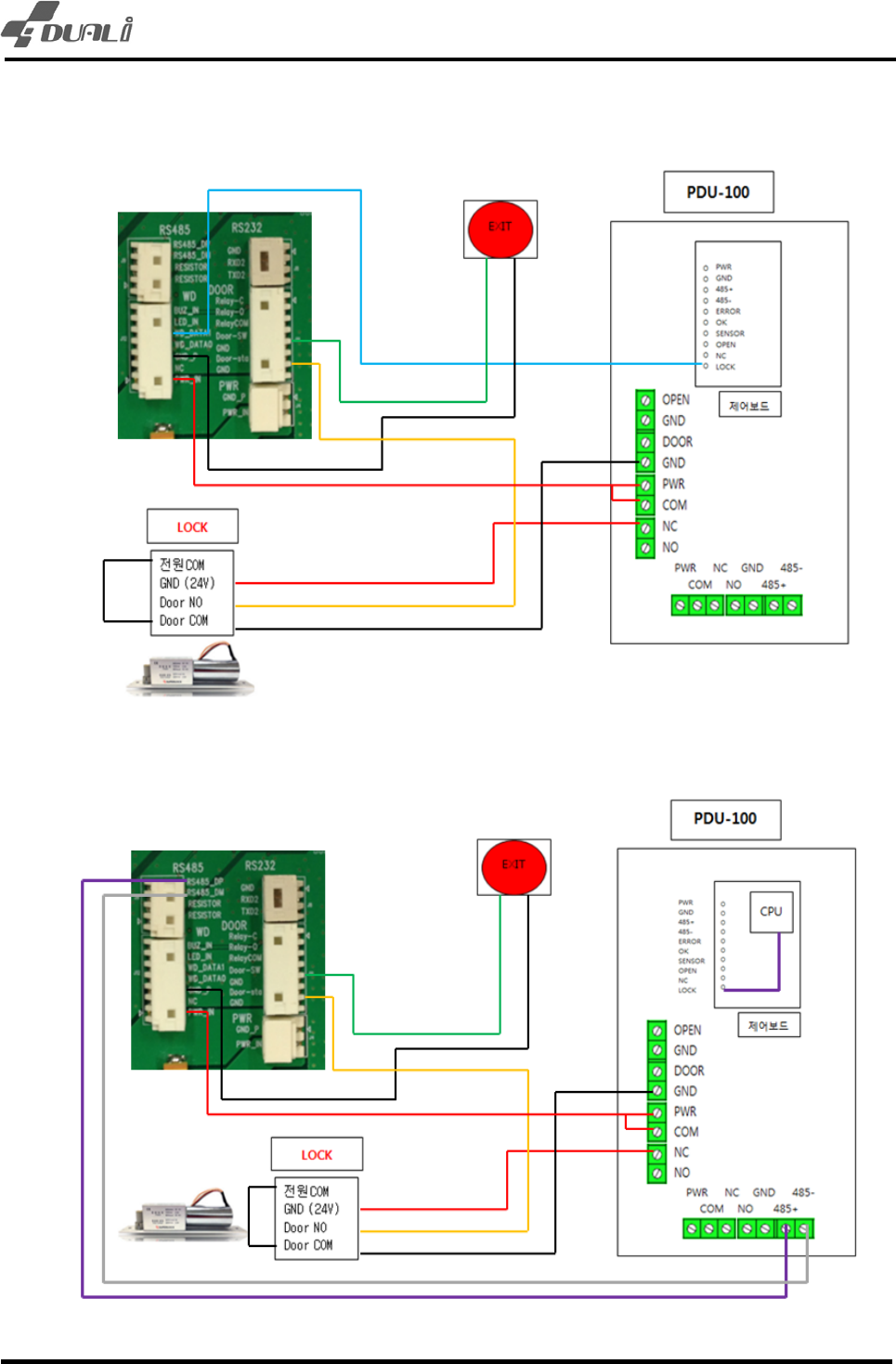

4.2 POP + PDU + Deadbolt Lock
4.3 POP(RS-485) + PDU + Deadbolt Lock
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
15
5 Connector Specification
5.1 J6 (MINI USB) – USB_OTG (Outside)
PIN Specification Description
1 USB 5.0V 5V not available
2 USB D-
3 USB D+
4 ID
5 GND
5.2 J17 (USB A TYPE) – USB_HOST (Outside)
PIN Specification Description
1 VDD 5.0V
2 USB D-
3 USB D+
4 GND
5.3 J8 (2mm ,3-PIN DIP TYPE, RIGHT Angle) – UART
- 20017WR-03 (YEONHO)
PIN Specification Description
1 RS-232 TXD
2 RS-232 RXD
3 GND
5.4 J7 (1.25mm, 4-PIN SMD TYPE, RIGHT Angle) - DEBUG UART
- 12505WR-04 (YEONHO)
PIN Specification Description
1 NC
2 RS-232 TXD
3 RS-232 RXD
4 GND
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
16
5.5 J9 (2mm ,4-PIN DIP TYPE, RIGHT Angle) - RS-485 (Outside)
- 20017WR-04 (YEONHO)
PIN Specification Description
1 RS-485 +
2 RS-485 -
3 Terminating resisters Resistor
4 Terminating resisters Resistor
5.6 J11 (2mm, 7-PIN DIP TYPE, RIGHT Angle) - DOOR (Outside)
- 20017WR-07 (YEONHO)
PIN Specification Description
1 Relay C
2 Relay O
3 Relay COM
4 Door_sw
5 GND
6 Door_sta
7 GND
5.7 J12 (2mm, 7-PIN DIP TYPE, RIGHT Angle) - WD_DATA (Outside)
- 20017WR-07 (YEONHO)
PIN Specification Description
1 PWR_IN
2 NC
3 GND_POWER
4 WD_DATA0 OUTPUT
5 WD_DATA1 OUTPUT
6 LED_IN INPUT
7 BUZ_IN INPUT
5.8 J4 (2.5mm 2PIN DIP, RIGHT Angle) - POWER (Outside)
- YMAW025-02 (YEONHO)
PIN Specification Description
1 PWR_IN
2 GND_POWER
iTOUCH_POP2 Product Specification
`
Version. 1.0 DUALi Inc.
(http://www.duali.com)
17
6 Usage Environment
6.1 Recommendable Operating Environment
- Temperature: -10 ~ 60 ℃
- Humidity: 30 ~ 90 %
6.2 Recommendable Storage Environment
- Temperature: -20 ~ 80 ℃
- Humidity: 30 ~ 90 %
7 Warning and Notice
- Indoor use only (Avoid direct sunlight)
- Recommended to use 12V, 700mA or above
- Avoid an element like metal or magnetism within 7cm
- Do not open the product or adjust the antenna part
8 Certification
- KCC, CE, FCC

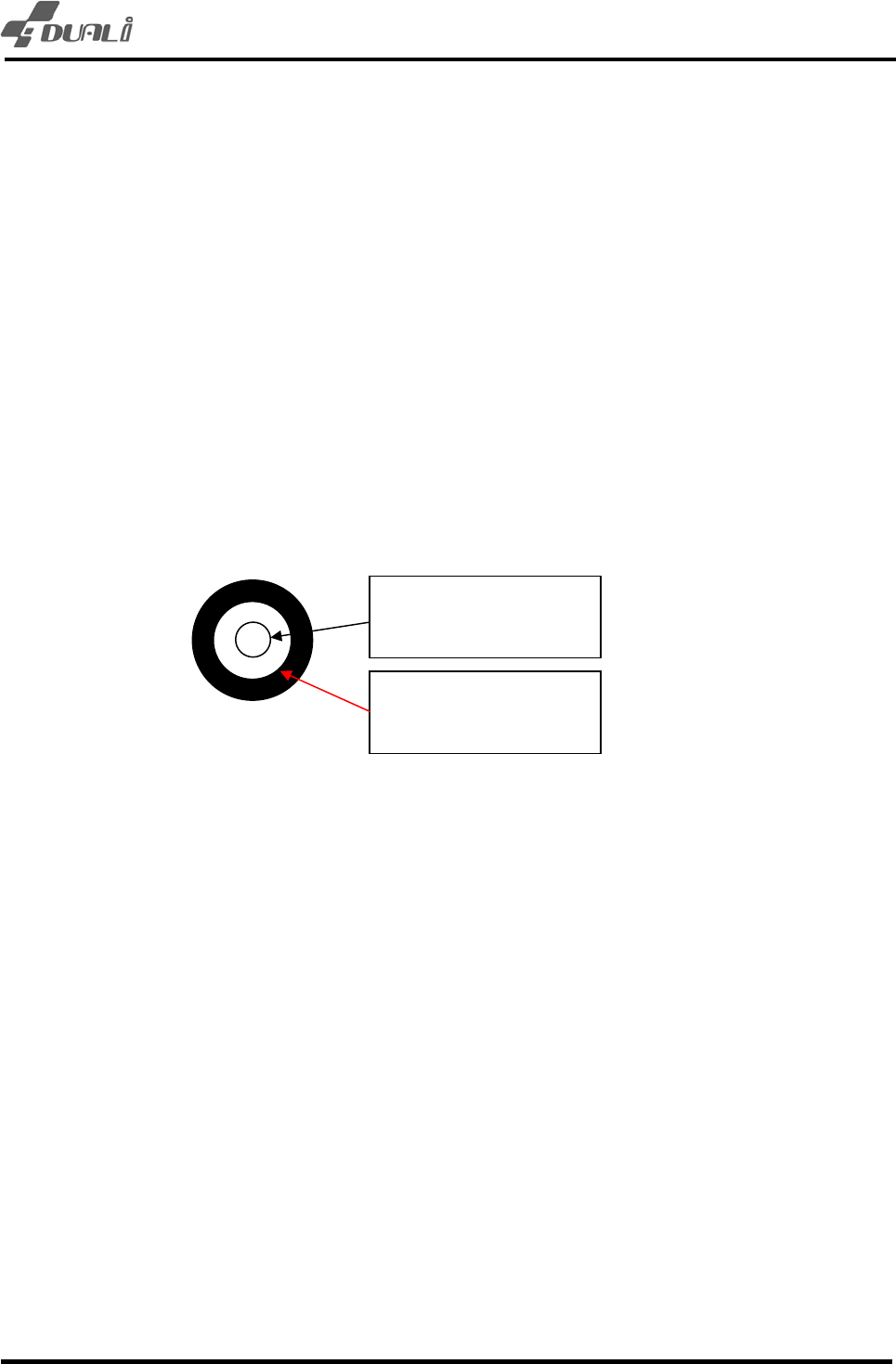

Diameter = 2mm
DC +
Diameter = 6.5mm
DC – (GROUND)
