Contents
CRN 29045 Tablet User Manual
TOSHIBA Portégé M200
Portable Personal Computer
User’s Manual
Copyright
© 2003 by TOSHIBA Corporation. All rights reserved. Under the copyright laws,
this manual cannot be reproduced in any form without the prior written permission
of TOSHIBA. No patent liability is assumed, with respect to the use of the informa-
tion contained herein.
TOSHIBA Portégé M200 Portable Personal Computer User’s Manual
First edition November 2003
Disclaimer
This manual has been validated and reviewed for accuracy. The instructions and
descriptions it contains are accurate for the TOSHIBA Portégé M200 Portable
Personal Computer at the time of this manual’s production. However, succeeding
computers and manuals are subject to change without notice. TOSHIBA assumes
no liability for damages incurred directly or indirectly from errors, omissions or
discrepancies between the computer and the manual.
Trademarks
IBM is a registered trademark of International Business Machines Corporation.
Intel, Pentium and Centrino are registered trademarks and SpeedStep is a trademark
of Intel Corporation.
Windows and Microsoft are registered trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its proprietor and used by TOSHIBA under
licence.
Other trademarks and registered trademarks not listed above may be used in this
manual.
FCC information
Product Name :
Portégé
M200
Model number :
PPM20
FCC notice "Declaration of Conformity
Information"
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
❑Reorient or relocate the receiving antenna.
❑Increase the separation between the equipment and receiver.
❑Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
❑Consult the dealer or an experienced radio/TV technician for help.
WARNING: Only peripherals complying with the FCC class B limits may
be attached to this equipment. Operation with non-compliant peripher-
als or peripherals not recommended by TOSHIBA is likely to result in
interference to radio and TV reception. Shielded cables must be used
between the external devices and the computer’s external monitor port,
USB port and microphone jack. Changes or modifications made to this
equipment, not expressly approved by TOSHIBA or parties authorized by
TOSHIBA could void the user’s authority to operate the equipment. The
modular cable that comes with the computer must be used to connect a
modem.
![](/img.php?id=551600&img=bg4.png)
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
Contact
Address: TOSHIBA America Information Systems, Inc.
9740 Irvine Boulevard
Irvine, California 92618-1697
Telephone: (949) 583-3000
EU Declaration of Conformity
TOSHIBA declares, that the product: PPM20* conforms to the following Standards:
Supplementary Information: “The product complies with the requirements of
the Low Voltage Directive 73/23/EEC, the EMC
Directive 89/336/EEC and/or the R&TTE Directive
1999/05/EEC.”
This product is carrying the CE-Mark in accordance with the related European
Directives. Responsible for CE-Marking is TOSHIBA Europe, Hammfelddamm 8,
41460 Neuss, Germany.
VCCI Class B Information
Modem warning notice
Conformity Statement
The equipment has been approved to [Commission Decision “CTR21”] for pan-
European single terminal connection to the Public Switched Telephone Network
(PSTN).
However, due to differences between the individual PSTNs provided in different
countries/regions the approval does not, of itself, give an unconditional assurance
of successful operation on every PSTN network termination point.
In the event of problems, you should contact your equipment supplier in the first
instance.
Network Compatibility Statement
This product is designed to work with, and is compatible with the following
networks. It has been tested to and found to conform with the additional require-
ments conditional in EG 201 121.
Germany ATAAB AN005,AN006,AN007,AN009,AN010 and
DE03,04,05,08,09,12,14,17
Greece ATAAB AN005,AN006 and GR01,02,03,04
Portugal ATAAB AN001,005,006,007,011 and P03,04,08,10
Spain ATAAB AN005,007,012, and ES01
Switzerland ATAAB AN002
All other countries/regions ATAAB AN003,004
Specific switch settings or software setup are required for each network, please refer
to the relevant sections of the user guide for more details.
The hookflash (timed break register recall) function is subject to separate national
type approvals. It has not been tested for conformity to national type regulations,
and no guarantee of successful operation of that specific function on specific
national networks can be given.
![](/img.php?id=551600&img=bg6.png)
Japan regulations
Region selection
If you are using the computer in Japan, technical regulations described in the
Telecommunications Business Law require that you select the Japan region mode. It
is illegal to use the modem in Japan with any other selection.
Redial
Up to two redial attempts can be made. If more than two redial attempts are made,
the modem will return Black Listed. If you are experiencing problems with the
Black Listed code, set the interval between redials at one minute or longer.
Japan’s Telecommunications Business Law permits up to two redials on analogue
telephones, but the redials must be made within a total of three minutes.
The internal modem is approved by Japan Approvals Institute for Telecommunica-
tions Equipment.
A02-0604JP
Pursuant to FCC CFR 47, Part 68:
When you are ready to install or use the modem, call your local telephone company
and give them the following information:
❑The telephone number of the line to which you will connect the modem
❑The registration number that is located on the device

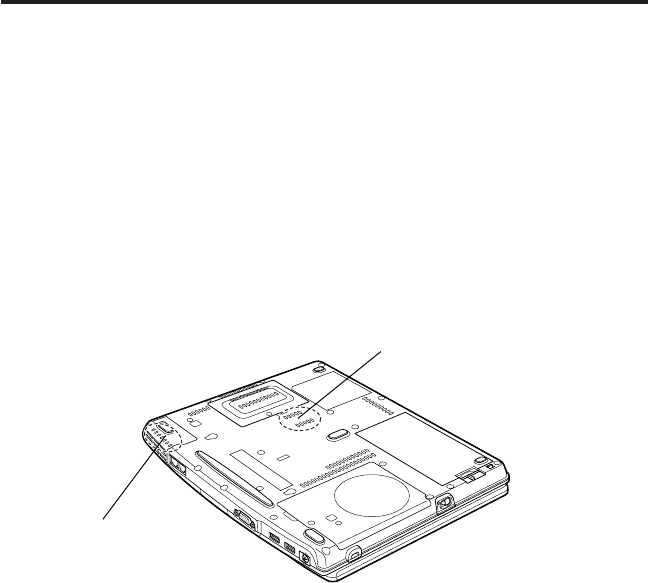

The FCC registration number of the modem will be found on either the device which
is to be installed, or, if already installed, on the bottom of the computer outside of
the main system label.
❑The Ringer Equivalence Number (REN) of the modem, which can vary. For the
REN of your modem, refer to your modem’s label.

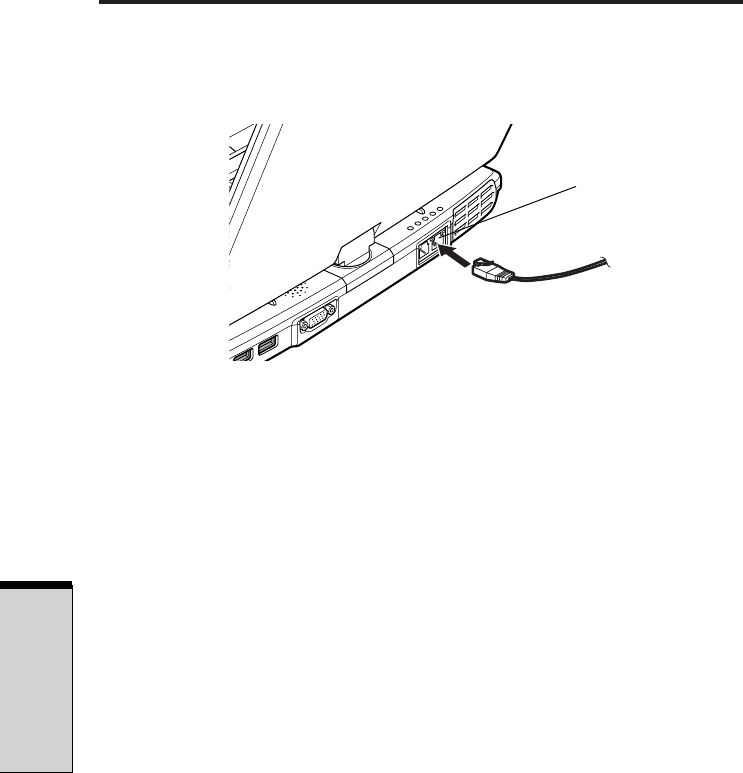

The modem connects to the telephone line by means of a standard jack called the
USOC RJ11C.
Type of service
Your modem is designed to be used on standard-device telephone lines. Connec-
tion to telephone company-provided coin service (central office implemented
systems) is prohibited. Connection to party lines service is subject to state tariffs. If
you have any questions about your telephone line, such as how many pieces of
equipment you can connect to it, the telephone company will provide this informa-
tion upon request.
Telephone company procedures
The goal of the telephone company is to provide you with the best service it can. In
order to do this, it may occasionally be necessary for them to make changes in their
equipment, operations, or procedures. If these changes might affect your service or
the operation of your equipment, the telephone company will give you notice in
writing to allow you to make any changes necessary to maintain uninterrupted
service.
If problems arise
If any of your telephone equipment is not operating properly, you should immedi-
ately remove it from your telephone line, as it may cause harm to the telephone
network. If the telephone company notes a problem, they may temporarily discon-
tinue service. When practical, they will notify you in advance of this disconnection.
If advance notice is not feasible, you will be notified as soon as possible. When
you are notified, you will be given the opportunity to correct the problem and
informed of your right to file a complaint with the FCC. In the event repairs are ever
needed on your modem, they should be performed by TOSHIBA Corporation or an
authorized representative of TOSHIBA Corporation.
Disconnection
If you should ever decide to permanently disconnect your modem from its present
line, please call the telephone company and let them know of this change.
Fax branding
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person
to use a computer or other electronic device to send any message via a telephone
fax machine unless such message clearly contains in a margin at the top or bottom
of each transmitted page or on the first page of the transmission, the date and time it
is sent and an identification of the business, other entity or individual sending the
message and the telephone number of the sending machine or such business, other
entity or individual. In order to program this information into your fax modem, you
should complete the setup of your fax software before sending messages.
Instructions for IC CS-03 certified equipment
1 The Industry Canada label identifies certified equipment. This certification
means that the equipment meets certain telecommunications network protective,
operational and safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The Department does not
guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection.
The customer should be aware that compliance with the above conditions may
not prevent degradation of service in some situations. Repairs to certified
equipment should be coordinated by a representative designated by the
supplier. Any repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications company cause to
request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connec-
tions of the power utility, telephone lines and internal metallic water pipe system,
if present, are connected together. This precaution may be particularly important
in rural areas.
CAUTION: Users should not attempt to make such connections them-
selves, but should contact the appropriate electric inspection authority,
or electrician, as appropriate.
2 The user manual of analog equipment must contain the equipment’s Ringer
Equivalence Number (REN) and an explanation notice similar to the following:
The Ringer Equivalence Number (REN) of the modem, which can vary. For the
REN of your modem, refer to your modem’s label.
NOTICE: The Ringer Equivalence Number (REN) assigned to each
terminal device provides an indication of the maximum number of
terminals allowed to be connected to a telephone interface. The termina-
tion on an interface may consist of any combination of devices subject
only to the requirement that the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.
3The standard connecting arrangement (telephone jack type) for this equipment is
jack type(s): USOC RJ11C.
The IC registration number of the modem is shown below.
Canada: 1353A-L4AINT
Notes for Users in Australia and New Zealand
Modem warning notice for Australia
Modems connected to the Australian telecoms network must have a valid Austel
permit. This modem has been designed to specifically configure to ensure compli-
ance with Austel standards when the country/region selection is set to Australia.
The use of other country/region setting while the modem is attached to the
Australian PSTN would result in you modem being operated in a non-compliant
manner. To verify that the country/region is correctly set, enter the command ATI
which displays the currently active setting.
To set the country/region permanently to Australia, enter the following command
sequence:
AT%TE=1
ATS133=1
AT&F
AT&W
AT%TE=0
ATZ
Failure to set the modem to the Australia country/region setting as shown above
will result in the modem being operated in a non-compliant manner. Consequently,
there would be no permit in force for this equipment and the Telecoms Act 1991
prescribes a penalty of $12,000 for the connection of non-permitted equipment.
Notes for use of this device in New Zealand
❑The grant of a Telepermit for a device in no way indicates Telecom acceptance
of responsibility for the correct operation of that device under all operating
conditions. In particular the higher speeds at which this modem is capable of
operating depend on a specific network implementation which is only one of
many ways of delivering high quality voice telephony to customers. Failure to
operate should not be reported as a fault to Telecom.
❑In addition to satisfactory line conditions a modem can only work properly if:
a/ it is compatible with the modem at the other end of the call and
b/ the application using the modem is compatible with the application at the
other end of the call - e.g., accessing the Internet requires suitable
software in addition to a modem.
❑This equipment shall not be used in any manner which could constitute a
nuisance to other Telecom customers.
❑Some parameters required for compliance with Telecom’s PTC Specifications
are dependent on the equipment (PC) associated with this modem. The
associated equipment shall be set to operate within the following limits for
compliance with Telecom Specifications:
a/ There shall be no more than 10 call attempts to the same number within
any 30 minute period for any single manual call initiation, and
b/ The equipment shall go on-hook for a period of not less than 30 seconds
between the end of one attempt and the beginning of the next.
c/ Automatic calls to different numbers shall be not less than 5 seconds
apart.
❑Immediately disconnect this equipment should it become physically damaged,
and arrange for its disposal or repair.
❑The correct settings for use with this modem in New Zealand are as follows:
ATB0 (CCITT operation)
AT&G2 (1800 Hz guard tone)
AT&P1 (Decadic dialing make-break ratio =33%/67%)
ATS0=0 (not auto answer)
ATS6=4 (Blind dial deplay)
ATS7=less than 90 (Time to wait to carrier after dialing)
ATS10=less than 150 (loss of carrier to hang up delay, factory default of 15
recommended)
ATS11=90 (DTMF dialing on/off duration=90 ms)
ATX2 (Dial tone detect, but not (U.S.A.) call progress detect)
❑When used in the Auto Answer mode, the S0 register must be set with a value
of 3 or 4. This ensures:
(a) a person calling your modem will hear a short burst of ringing before the
modem answers. This confirms that the call has been successfully
switched through the network.
(b) caller identification information (which occurs between the first and
second ring cadences) is not destroyed.
❑The preferred method of dialing is to use DTMF tones (ATDT...) as this is
faster and more reliable than pulse (decadic) dialing. If for some reason you
must use decadic dialing, your communications program must be set up to
record numbers using the following translation table as this modem does not
implement the New Zealand “Reverse Dialing” standard.
Number to be dialed: 0 1 2 3 4 5 6 7 8 9
Number to program into computer: 0 9 8 7 6 5 4 3 2 1
Note that where DTMF dialing is used, the numbers should be entered
normally.
❑The transmit level from this device is set at a fixed level and because of this
there may be circumstances where the performance is less than optimal. Before
reporting such occurrences as faults, please check the line with a standard
Telepermitted telephone, and only report a fault if the phone performance is
impaired.
❑It is recommended that this equipment be disconnected from the Telecom line
during electrical storms.
❑When relocating the equipment, always disconnect the Telecom line connec-
tion before the power connection, and reconnect the power first.
❑This equipment may not be compatible with Telecom Distinctive Alert ca-
dences and services such as Fax Ability.
NOTE THAT FAULT CALLOUTS CAUSED BY ANY OF THE ABOVE
CAUSES MAY INCUR A CHARGE FROM TELECOM
General conditions
As required by PTC 100, please ensure that this office is advised of any changes to
the specifications of these products which might affect compliance with the relevant
PTC Specifications.
The grant of this Telepermit is specific to the above products with the marketing
description as stated on the Telepermit label artwork. The Telepermit may not be
assigned to other parties or other products without Telecom approval.
A Telepermit artwork for each device is included from which you may prepare any
number of Telepermit labels subject to the general instructions on format, size and
colour on the attached sheet.
The Telepermit label must be displayed on the product at all times as proof to
purchasers and service personnel that the product is able to be legitimately
connected to the Telecom network.
The Telepermit label may also be shown on the packaging of the product and in the
sales literature, as required in PTC 100.
The charge for a Telepermit assessment is $337.50. An additional charge of $337.50
is payable where an assessment is based on reports against non-Telecom New
Zealand Specifications. $112.50 is charged for each variation when submitted at the
same time as the original.
An invoice for $NZ1237.50 will be sent under separate cover.
![](/img.php?id=551600&img=bgd.png)
xiii
Table of Contents
Preface
Manual contents .................................................................................xix
Conventions .........................................................................................xx
Abbreviations ........................................................................................ xx
Icons .................................................................................................... xx
Keys .................................................................................................... xx
Key operation ...................................................................................... xxi
Display ................................................................................................ xxi
Messages ........................................................................................... xxi
General Precautions
Stress injury ..................................................................................... xxiii
Heat injury .........................................................................................xxiii
Pressure or impact damage...............................................................xxiii
PC card overheating .......................................................................... xxiv
Mobile phone ..................................................................................... xxiv
Central Processing Unit ("CPU") Performance Disclaimer .................. xxiv
Cooling fan .........................................................................................xxv
Chapter 1 Introduction
Equipment checklist .......................................................................... 1-1
Hardware ............................................................................................ 1-1
Software ............................................................................................. 1-1
Features ............................................................................................. 1-2
Special features................................................................................. 1-7
Utilities................................................................................................ 1-9
Options ............................................................................................. 1-11
Chapter 2 The Grand Tour

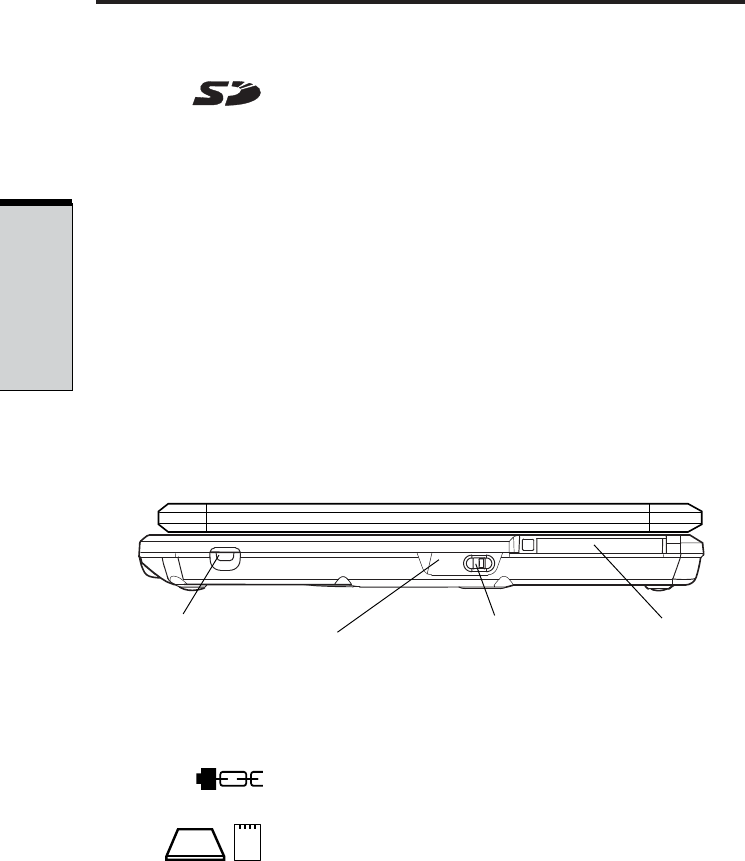

Front with the display closed ........................................................... 2-1
Left side.............................................................................................. 2-2
Right side ........................................................................................... 2-3

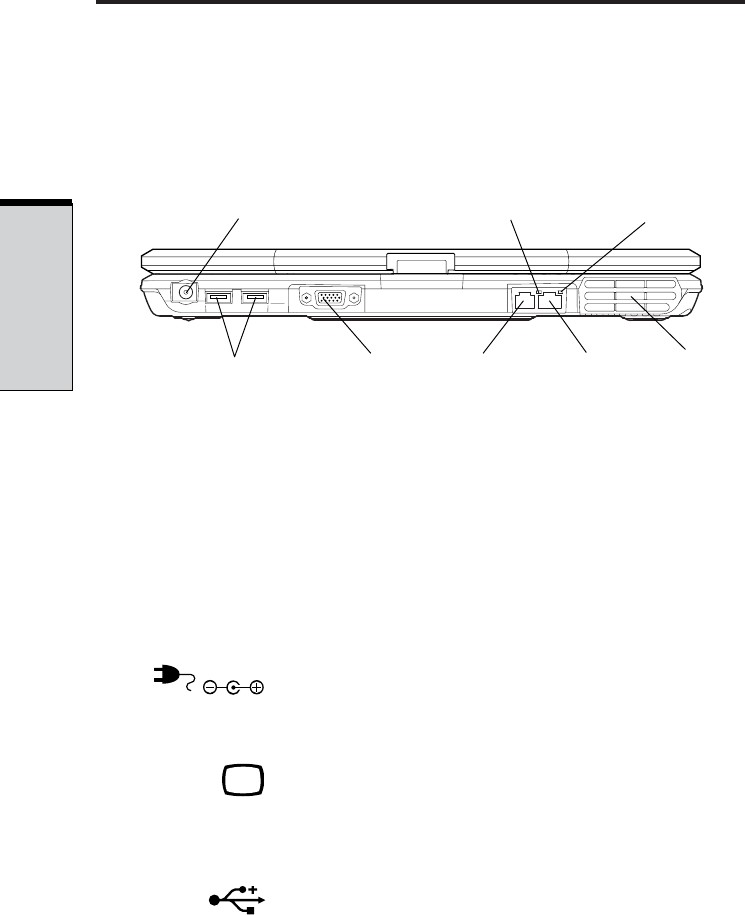

Back side ............................................................................................ 2-4
Underside ........................................................................................... 2-5
xiv

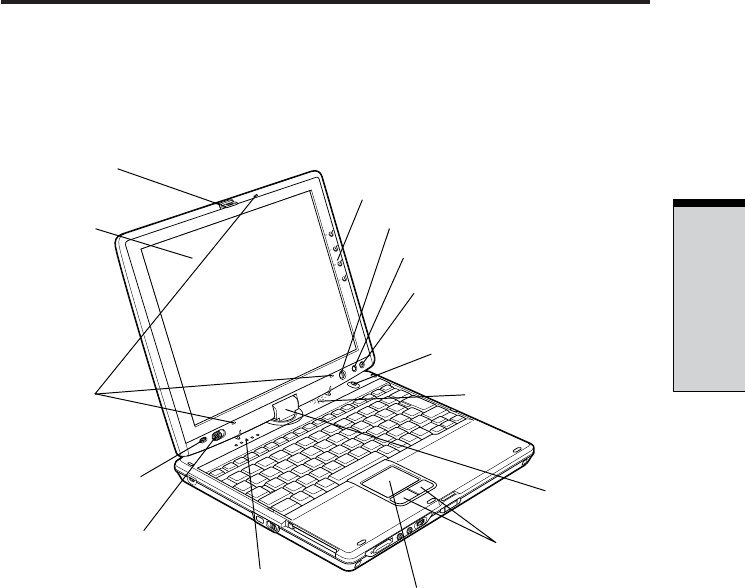

Front with the display open .............................................................. 2-7

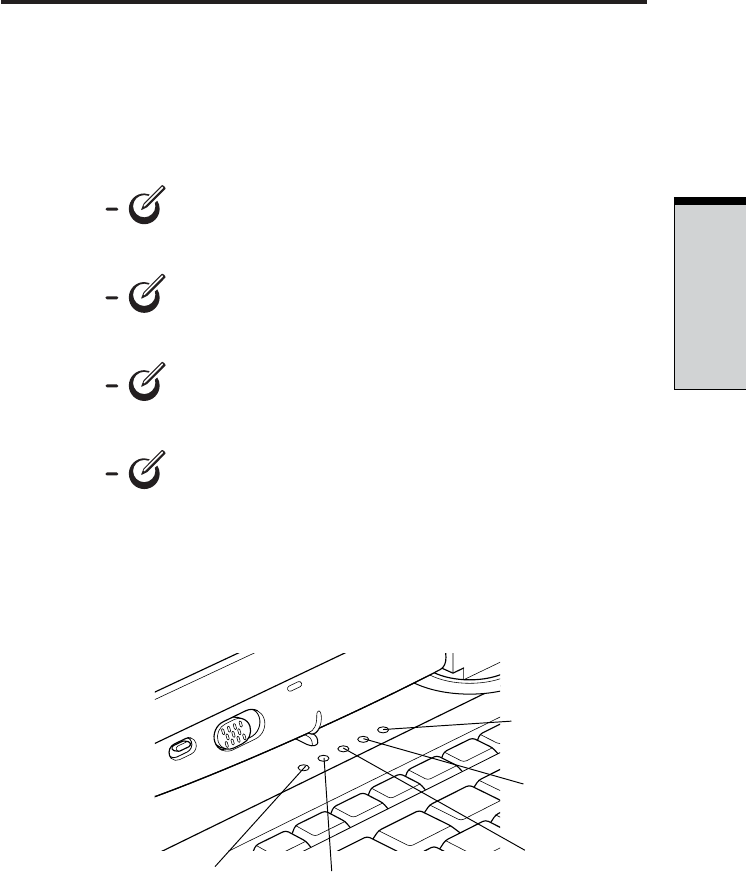

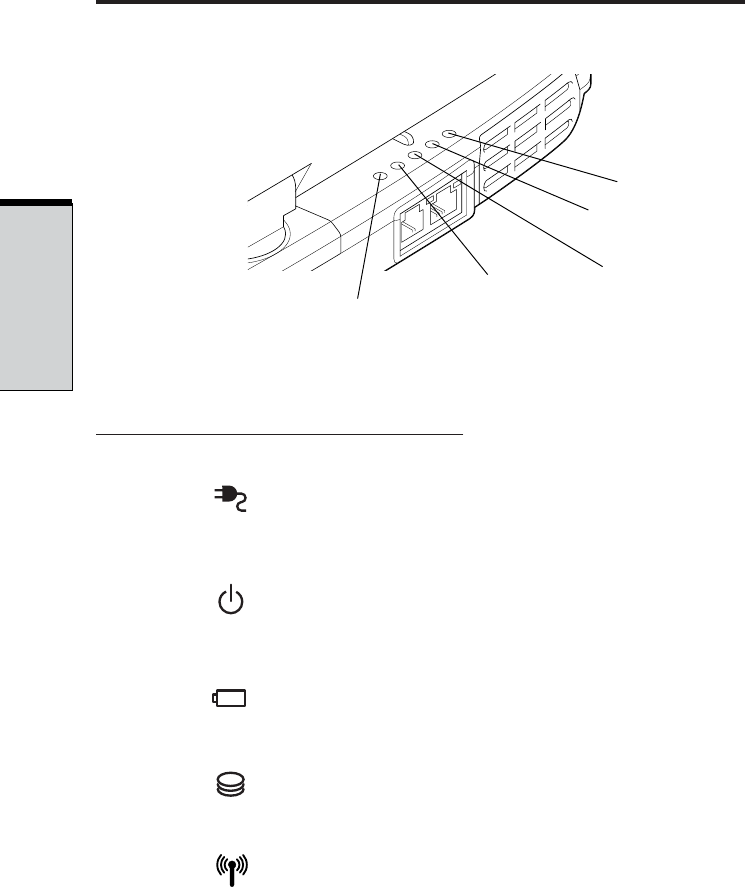

Indicators............................................................................................ 2-9
AC adaptor ....................................................................................... 2-12
Chapter 3 Getting Started
Setting up your work space .............................................................. 3-2
General conditions .............................................................................. 3-2
Placement of computer....................................................................... 3-3

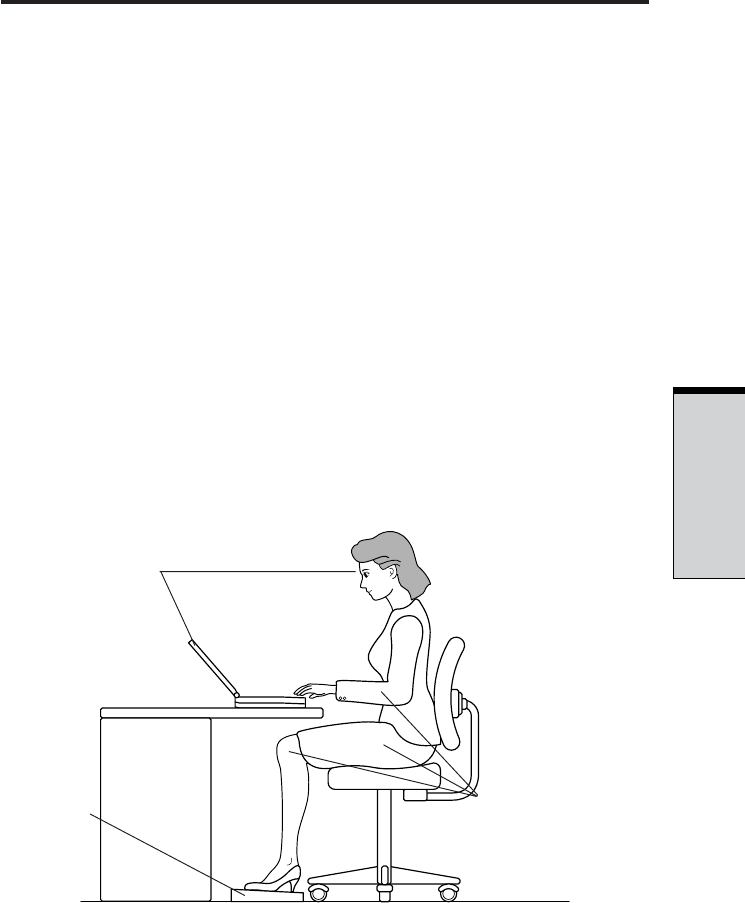

Seating and posture ........................................................................... 3-3
Lighting .............................................................................................. 3-4
Work habits ........................................................................................ 3-4
Operating the computer in tablet mode .......................................... 3-5

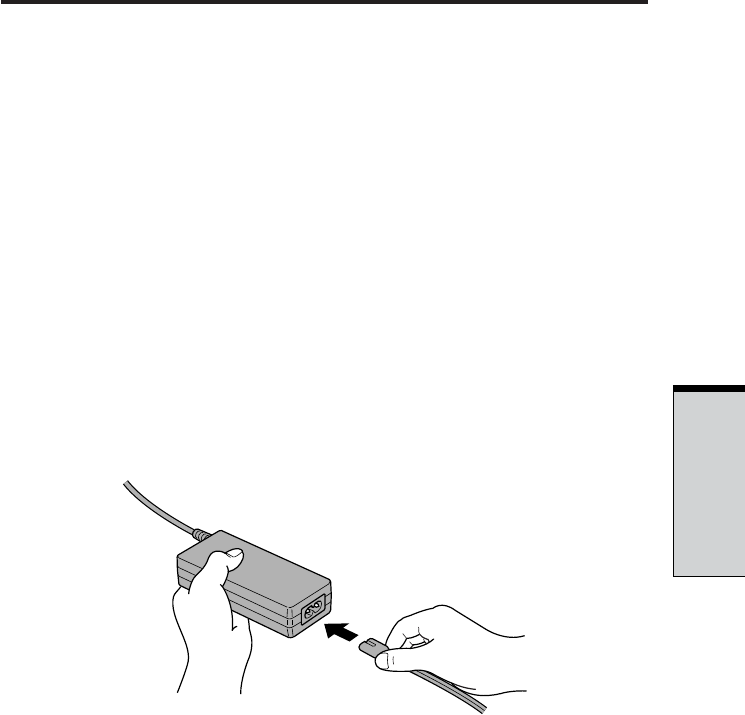

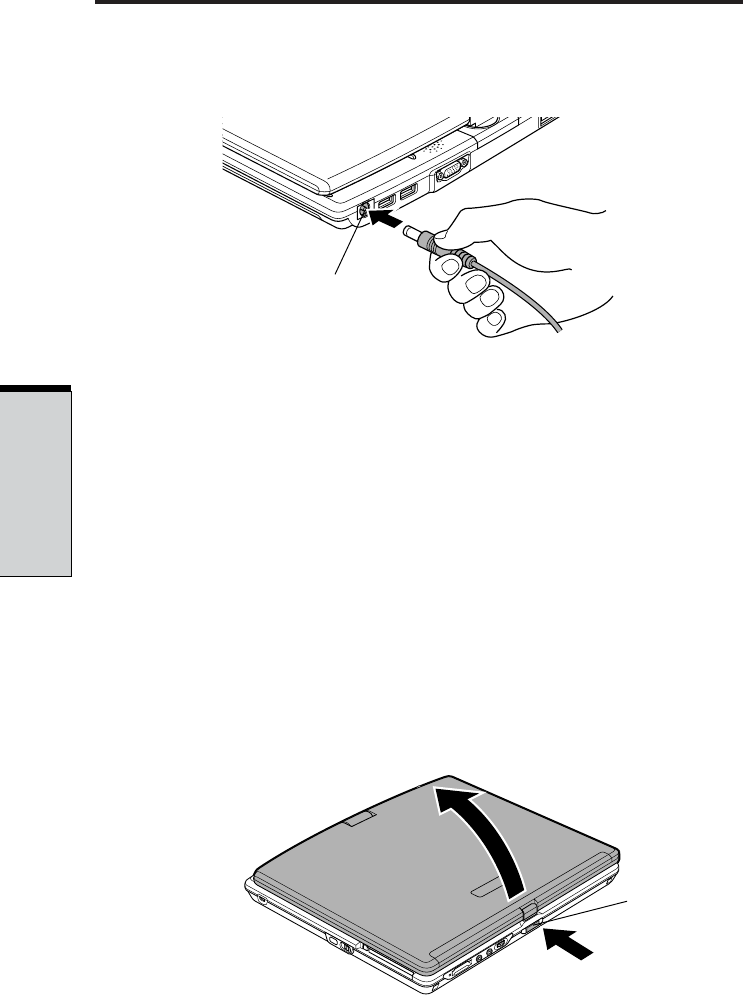

Connecting the AC adaptor .............................................................. 3-6
Opening the display .......................................................................... 3-8
Turning on the power ....................................................................... 3-9
Starting up for the first time............................................................ 3-10
Turning off the power ..................................................................... 3-10
Shut Down mode (Boot mode) .......................................................... 3-10
Hibernation mode ............................................................................. 3-11
Standby mode .................................................................................. 3-13
Restarting the computer ................................................................. 3-15
Restoring the preinstalled software from
the Product Recovery CD-ROM....................................................... 3-15
Chapter 4 Operating Basics

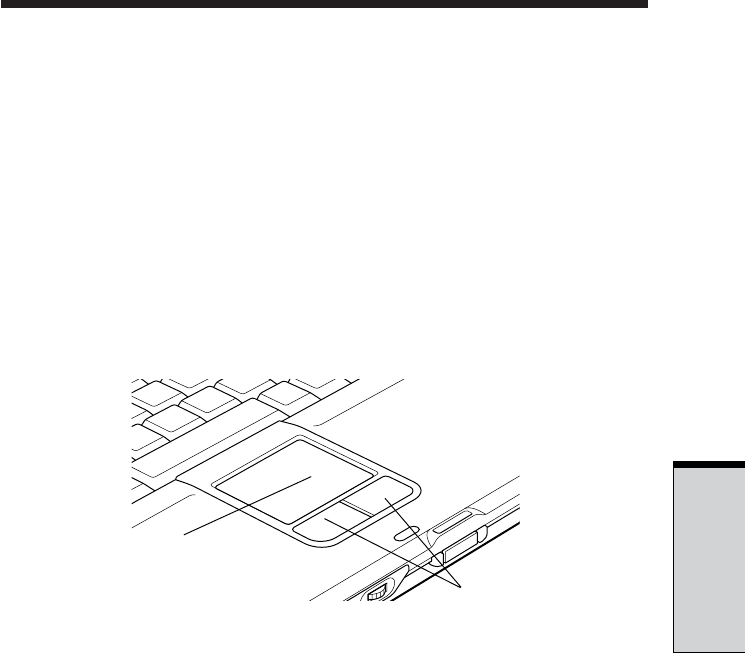

Using the Touch Pad ......................................................................... 4-1

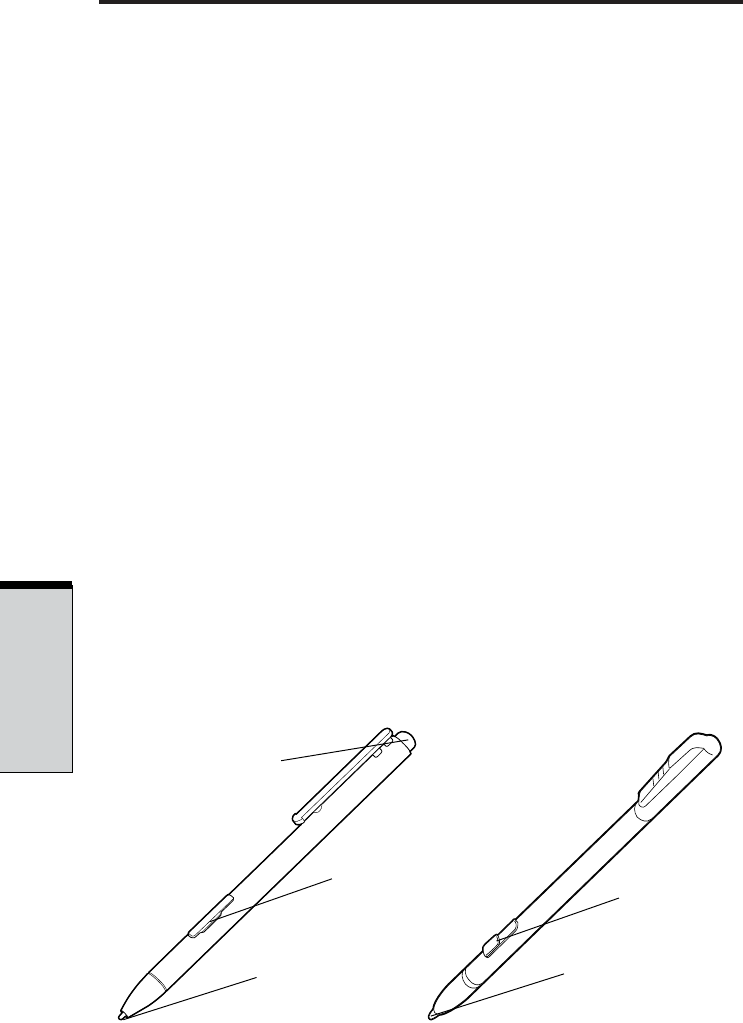

Using the Tablet PC Pen and Reserve Pen ..................................... 4-2
Inserting the Tablet PC Pen ................................................................ 4-4
Removing the Tablet PC Pen .............................................................. 4-5
Pen actions ........................................................................................ 4-5
Single tap ........................................................................................... 4-5
Double tap .......................................................................................... 4-5
Press and hold ................................................................................... 4-5
Drag ................................................................................................... 4-6
Drag and drop ..................................................................................... 4-6

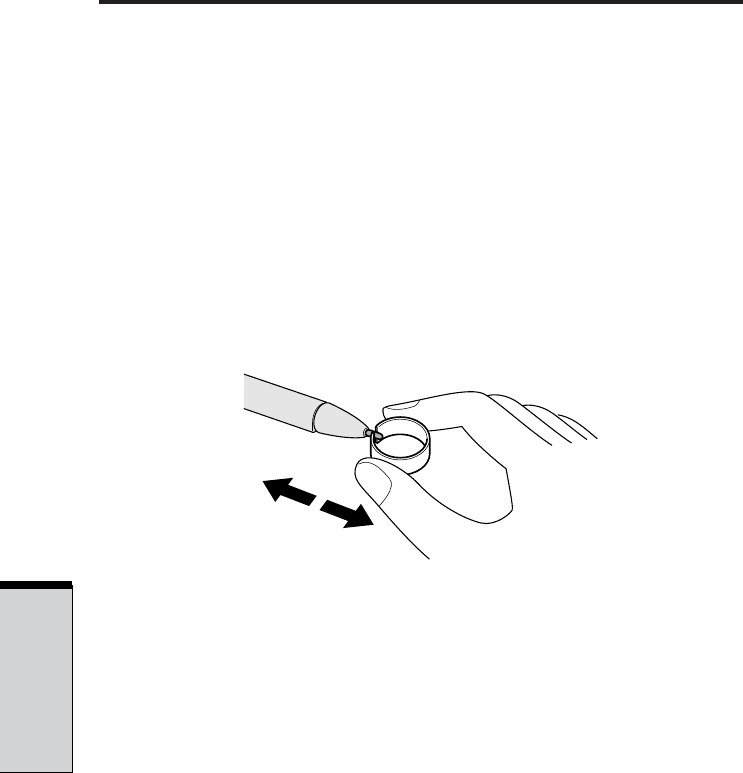

Replacing the pen tip .......................................................................... 4-6

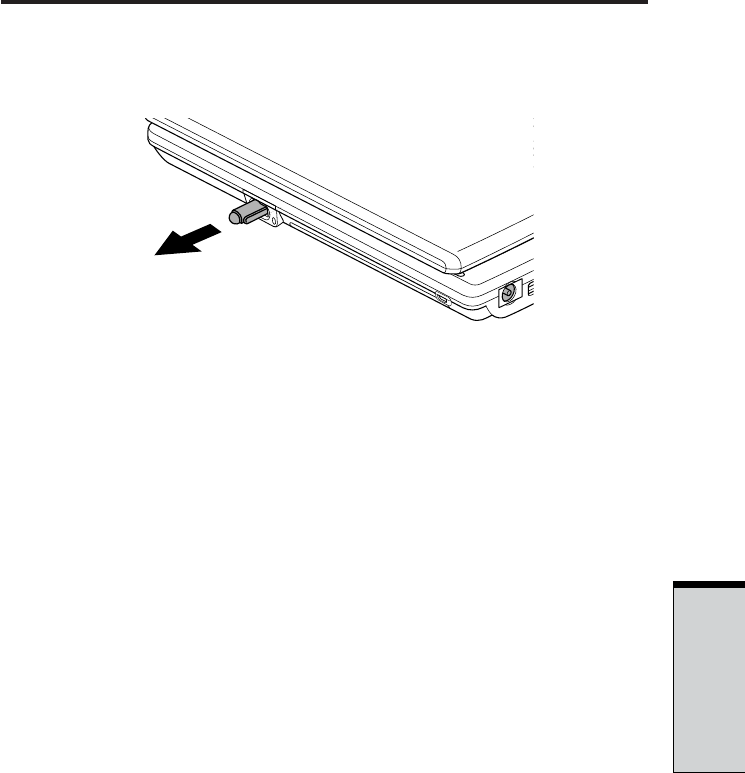

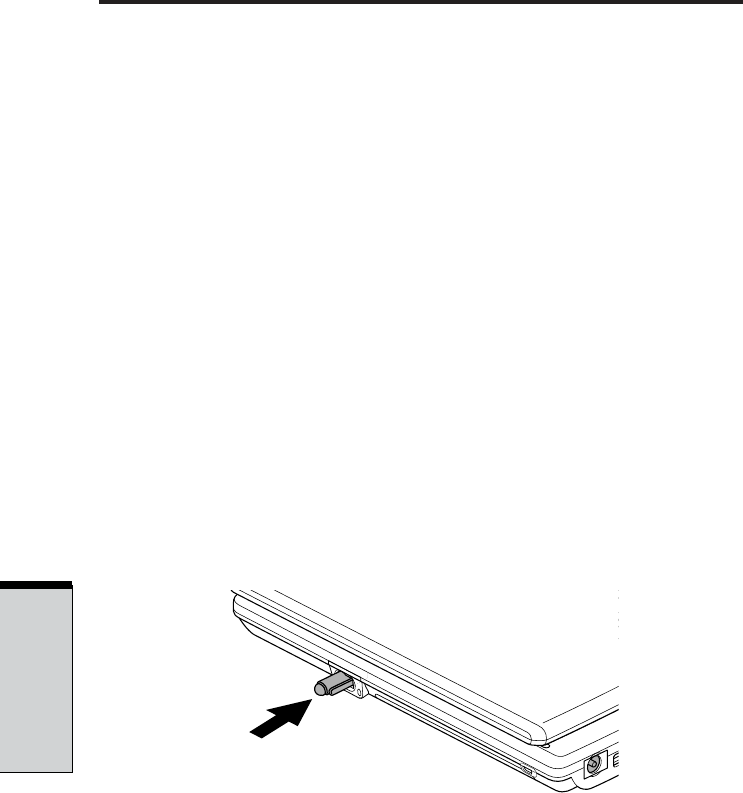

Inserting the Reserve Pen ................................................................... 4-7
Removing the Reserve Pen ................................................................. 4-7

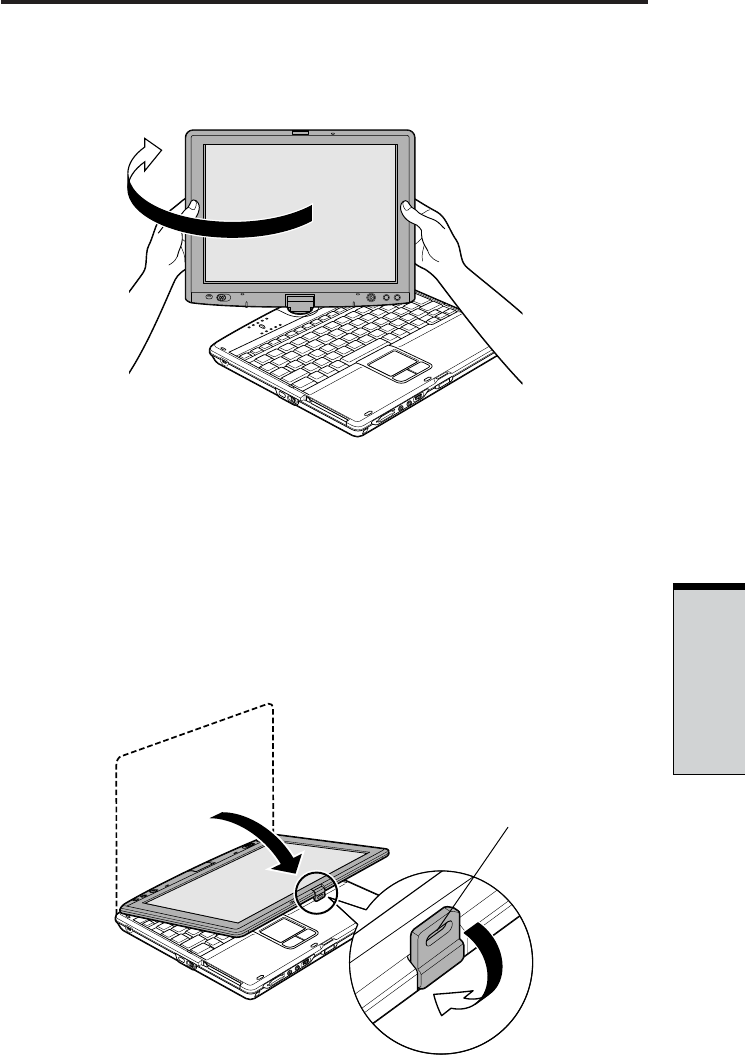

Changing to the Tablet mode........................................................... 4-8

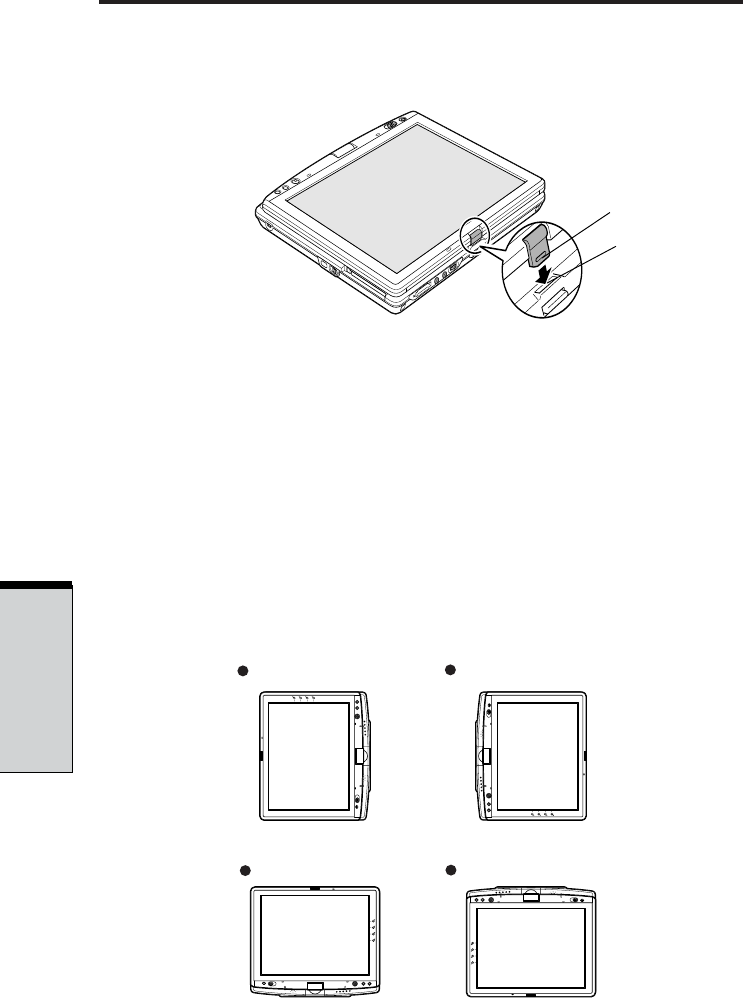

Changing the screen orientation ................................................... 4-10
xv
Method 1: Changing the screen orientation
using TOSHIBA Accelerometer Utilities ............................................ 4-11
Method 2: Changing the screen orientation
using Enter/Menu Button .................................................................. 4-12
Method 3: Changing the screen orientation
using Task Bar ................................................................................. 4-12
Changing to the laptop mode......................................................... 4-13

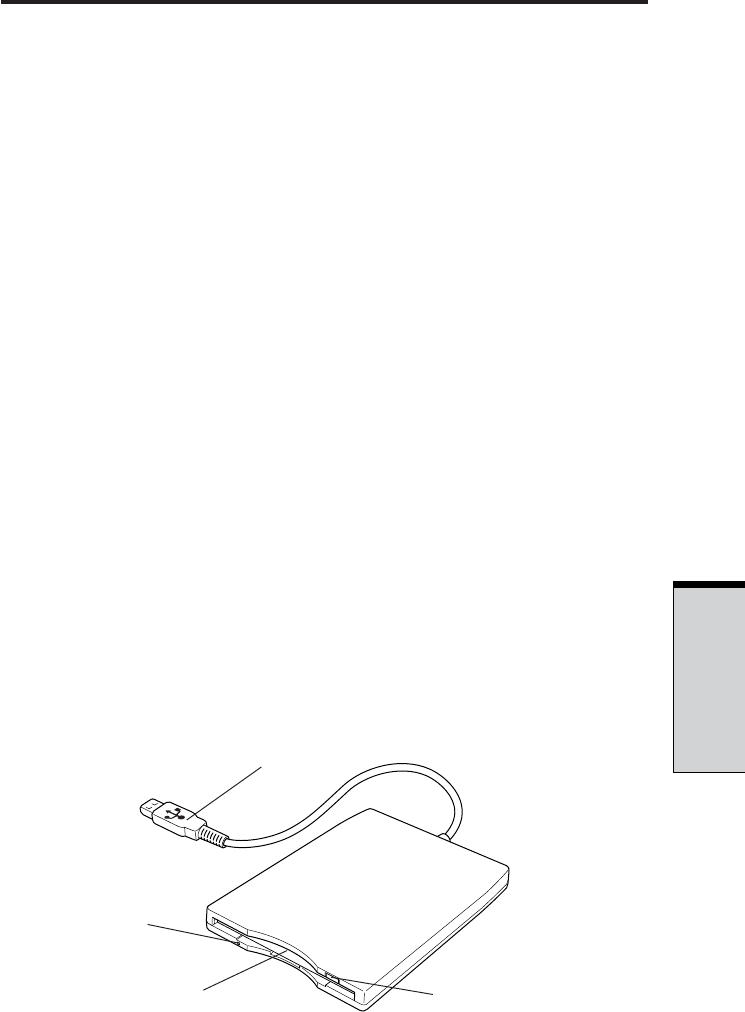

Using the USB FDD Kit .................................................................... 4-13

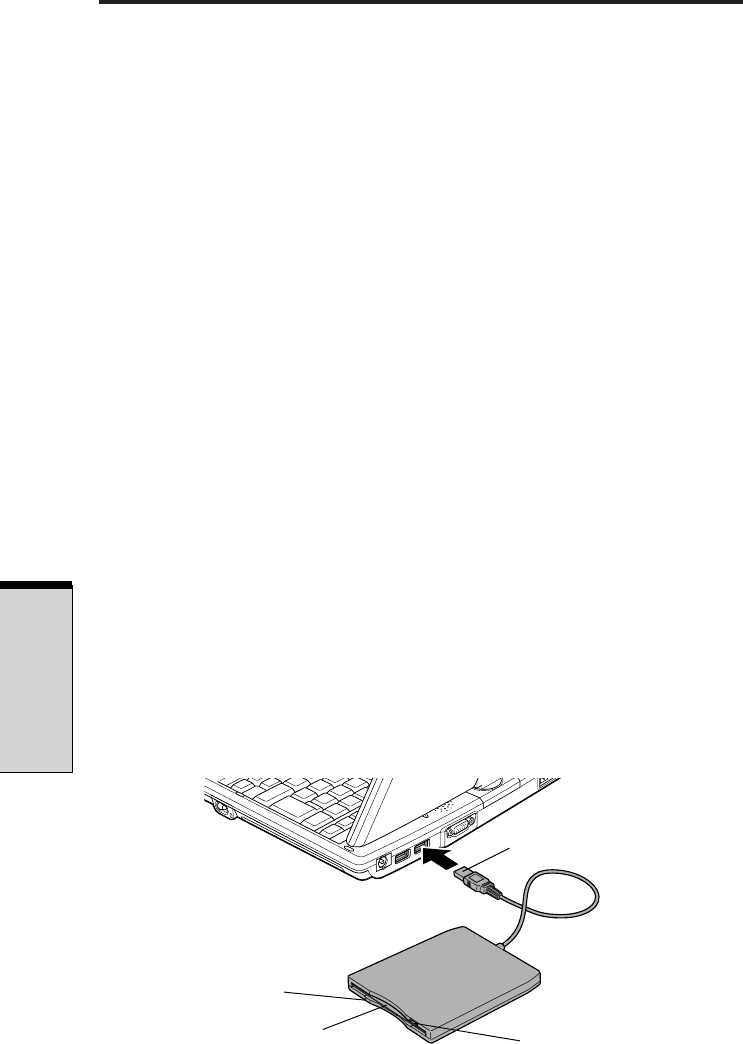

Connecting the USB diskette drive ................................................... 4-14
Disconnecting the USB diskette drive ............................................... 4-15
Diskette care .................................................................................... 4-15
Wireless communications ............................................................... 4-16
Wireless LAN ................................................................................... 4-16
Bluetooth wireless technology .......................................................... 4-17

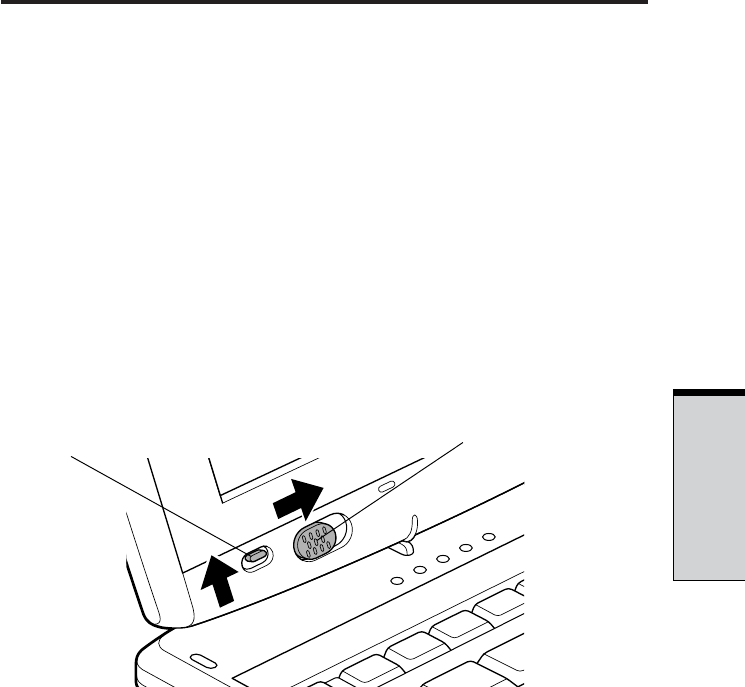

Wireless communication switch ....................................................... 4-18
Wireless communication Indicator .................................................... 4-18
LAN ................................................................................................... 4-19
LAN cable types ............................................................................... 4-19
Connecting LAN cable ...................................................................... 4-19
Disconnecting LAN cable ................................................................. 4-20
Using the microphones ................................................................... 4-21
Audio ................................................................................................ 4-21
Using the internal modem .............................................................. 4-24
Region selection ............................................................................... 4-25
Properties menu ............................................................................... 4-25
Connecting ....................................................................................... 4-26
Disconnecting................................................................................... 4-27
Cleaning the computer ................................................................... 4-27
Moving the computer ...................................................................... 4-28
Heat dispersal .................................................................................. 4-28
Chapter 5 The Keyboard
Typewriter keys ................................................................................. 5-1
F1 … F12 function keys ..................................................................... 5-2
Soft keys: Fn key combinations........................................................ 5-2
Emulating keys on enhanced keyboard .............................................. 5-2
Hotkeys.............................................................................................. 5-4
Fn Sticky key ..................................................................................... 5-7
Windows special keys ....................................................................... 5-7

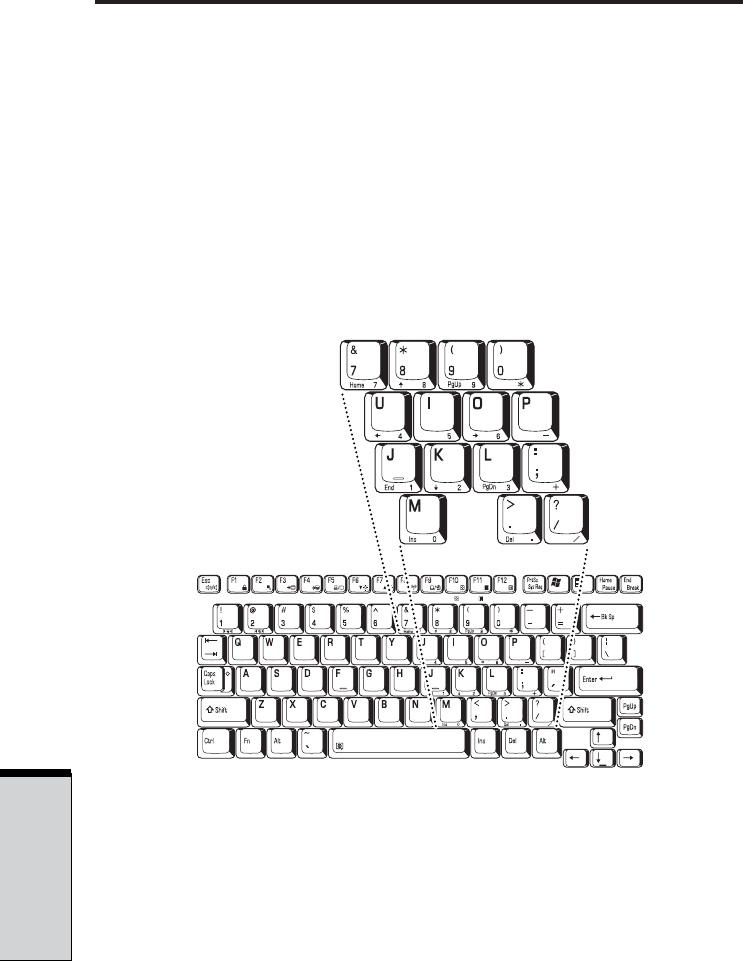

Keypad overlay.................................................................................. 5-7
Turning on the overlays ....................................................................... 5-7
xvi
Temporarily using normal keyboard (overlay on).................................. 5-8
Temporarily using overlay (overlay off) ................................................. 5-9
Temporarily changing modes .............................................................. 5-9
Generating ASCII characters ............................................................ 5-9
Chapter 6 Power and Power-Up Modes
Power conditions............................................................................... 6-1
Power indicators ............................................................................... 6-3
Battery indicators ............................................................................... 6-3
DC IN 15V indicator ............................................................................ 6-3
Power indicator ................................................................................... 6-4
Battery types ...................................................................................... 6-4
Battery Pack ...................................................................................... 6-4
Real time clock battery....................................................................... 6-5
Care and use of the Battery Pack .................................................... 6-5
Safety precautions .............................................................................. 6-6
Charging the batteries ........................................................................ 6-9
Monitoring battery capacity .............................................................. 6-10
Maximizing battery operating time .................................................... 6-11
Retaining data with power off ............................................................ 6-12
Extending battery life ........................................................................ 6-12

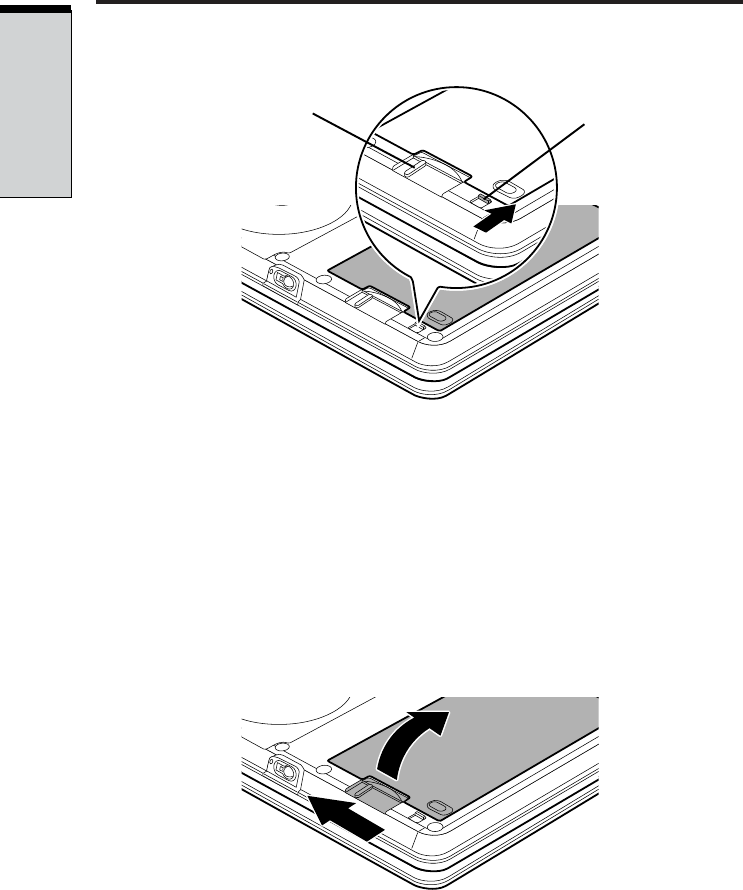

Replacing the Battery Pack ............................................................ 6-13
Removing the Battery Pack .............................................................. 6-13
Installing the Battery Pack................................................................ 6-15
TOSHIBA Password Utility .............................................................. 6-16
User password ................................................................................. 6-16
Supervisor password ......................................................................... 6-17
Starting the computer by password .................................................. 6-18
Tablet mode..................................................................................... 6-18
Power-up modes ............................................................................. 6-19
Windows utilities .............................................................................. 6-19
Hotkeys............................................................................................ 6-19
Panel power off ............................................................................... 6-19
System Auto Off ............................................................................... 6-20
Chapter 7 HW Setup
HW Setup ........................................................................................... 7-1
Accessing HW Setup ......................................................................... 7-1
HW Setup window .............................................................................. 7-1
xvii
Chapter 8 Optional Devices
PC cards ............................................................................................. 8-2

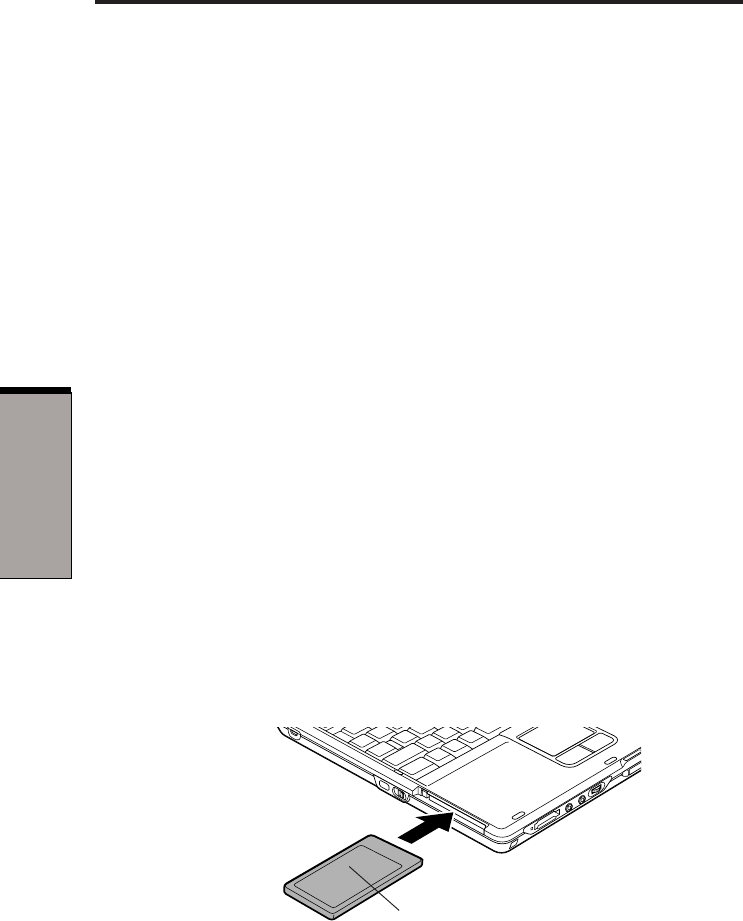

Inserting a PC card ............................................................................. 8-2
Removing a PC card ........................................................................... 8-3
SD cards ............................................................................................. 8-3
Inserting an SD card ........................................................................... 8-4
Removing an SD card ......................................................................... 8-4
Memory expansion ............................................................................ 8-6
Installing memory module ................................................................... 8-7
Removing memory module .................................................................. 8-9
Battery Pack..................................................................................... 8-10
Universal AC Adaptor ...................................................................... 8-10
Battery Charger ............................................................................... 8-11
USB diskette Kit ............................................................................... 8-11
Tablet Multi Dock............................................................................. 8-11
External monitor .............................................................................. 8-12
Tablet PC Pen set ............................................................................ 8-12
Reserve pen ..................................................................................... 8-12

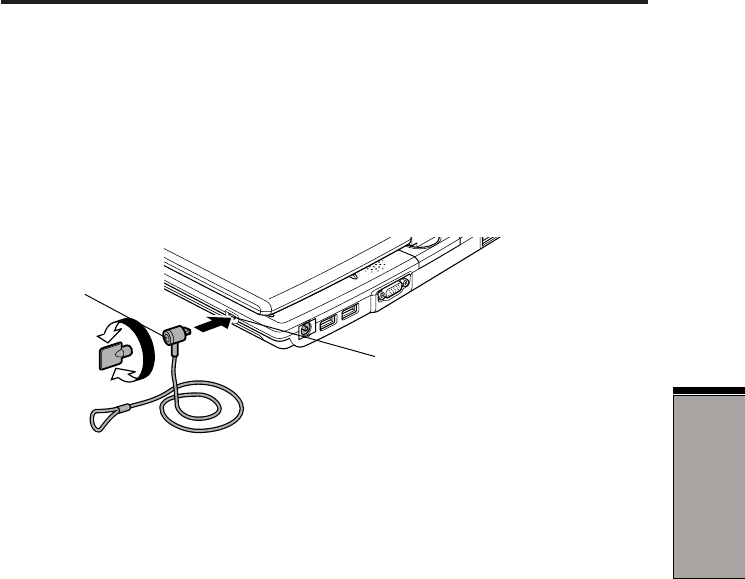

Security lock .................................................................................... 8-13
Chapter 9 Troubleshooting
Problem solving process ................................................................... 9-1
Preliminary checklist .......................................................................... 9-1
Analyzing the problem ........................................................................ 9-2
Hardware and system checklist........................................................ 9-3
System start-up.................................................................................. 9-3
Self test.............................................................................................. 9-4
Power ................................................................................................. 9-4
Password ........................................................................................... 9-7
Keyboard ............................................................................................ 9-8
LCD panel .......................................................................................... 9-8
Hard disk drive .................................................................................... 9-9
Diskette drive ...................................................................................... 9-9
Infrared port ...................................................................................... 9-10
Pointing device ................................................................................. 9-10
PC card ............................................................................................ 9-13
SD card ............................................................................................ 9-14
Monitor ............................................................................................. 9-14
Sound system .................................................................................. 9-15
USB ................................................................................................. 9-15
Memory expansion ........................................................................... 9-16
xviii
Standby/Hibernation ......................................................................... 9-17
Modem ............................................................................................. 9-17
LAN .................................................................................................. 9-19
Wireless LAN ................................................................................... 9-19
Bluetooth .......................................................................................... 9-20
Real Time Clock ............................................................................... 9-20
TOSHIBA support ............................................................................. 9-21
Before you call ................................................................................. 9-21
Where to write .................................................................................. 9-21
Appendixes
Appendix A
Specifications .....................................................................................A-1
Appendix B
Display Controller and Modes ...........................................................B-1
Appendix C
AT Commands ....................................................................................C-1
Appendix D
S-registers ...........................................................................................D-1
Appendix E
V.90 ...................................................................................................... E-1
Appendix F
Wireless LAN....................................................................................... F-1
Appendix G

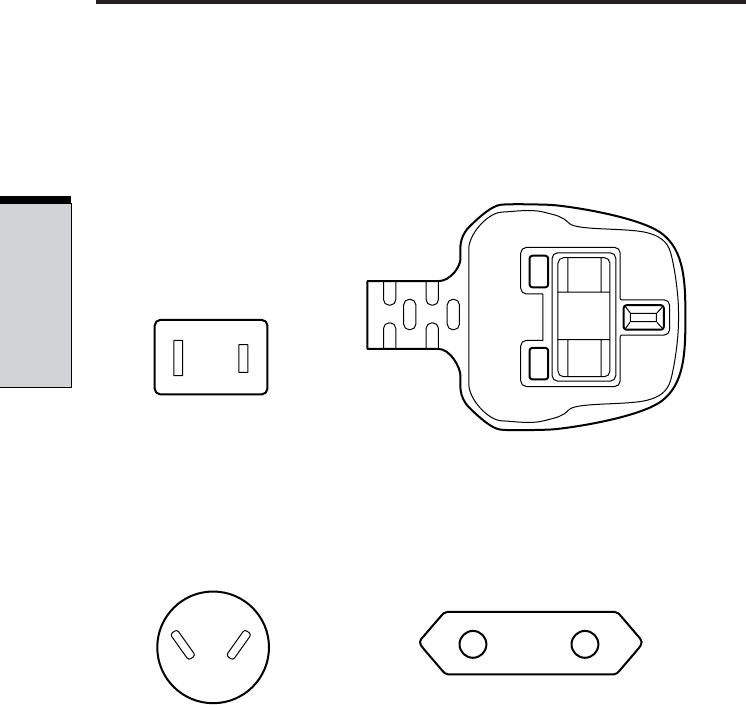

AC Power Cord and Connectors....................................................... G-1
Appendix H
Internal Modem Guide .......................................................................H-1
Appendix I

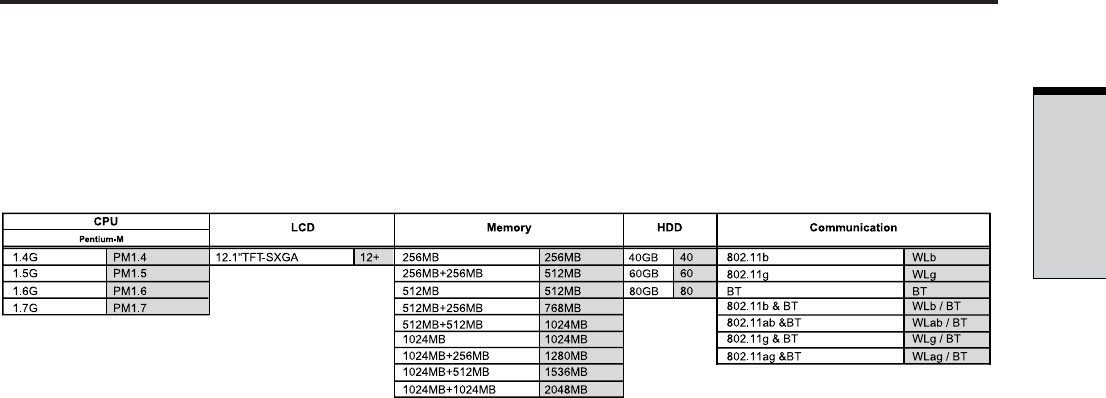

Parts Numbers ..................................................................................... I-1
Glossary
Index
![](/img.php?id=551600&img=bg13.png)
xix
Preface
Congratulations on your purchase of the TOSHIBA Portégé M200 computer. This
powerful, lightweight notebook computer is designed to provide years of reliable,
high-performance computing.
This manual tells how to set up and begin using your TOSHIBA Portégé M200
computer. It also provides detailed information on configuring your computer, basic
operations and care, using optional devices and troubleshooting.
If you are a new user of computers or if you’re new to portable computing, first read
over the Introduction and The Grand Tour chapters to familiarize yourself with the
computer’s features, components and accessory devices. Then read Getting Started
for step-by-step instructions on setting up your computer.
If you are an experienced computer user, please continue reading the preface to
learn how this manual is organized, then become acquainted with this manual by
browsing through its pages. Be sure to look over the Special features section of the
Introduction, to learn about features that are uncommon or unique to the computers
and carefully read HW Setup. If you are going to install PC cards or connect external
devices such as a monitor, be sure to read Chapter 8, Optional Devices.
Manual contents
This manual is composed of nine chapters, nine appendixes, a glossary, and an
index.
Chapter 1, Introduction, is an overview of the computer’s features, capabilities, and
options.
Chapter 2, The Grand Tour, identifies the components of the computer and briefly
explains how they function.
Chapter 3, Getting Started, provides a quick overview of how to begin operating
your computer in laptop mode and tablet mode and gives tips on safety and
designing your work area.
Chapter 4, Operating Basics, includes tips on care of the computer and on using the
Touch Pad ,Tablet PC Pen, external diskette drive, Wireless LAN, Bluetooth, LAN,
microphone and internal modem.
![](/img.php?id=551600&img=bg14.png)
xx
User's Manual
Chapter 5, The Keyboard, describes special keyboard functions including the
keypad overlay and hotkeys.
Chapter 6, Power and Power-Up Modes, gives details on the computer’s power
resources and battery save modes and how to set a password.
Chapter 7, HW Setup, explains how to configure the computer using the HW Setup
program.
Chapter 8, Optional Devices, describes the optional hardware available.
Chapter 9, Troubleshooting, provides helpful information on how to perform some
diagnostic tests, and suggests courses of action if the computer doesn’t seem to be
working properly.
The Appendixes provide technical information about your computer.
The Glossary defines general computer terminology and includes a list of acronyms
used in the text.
The Index quickly directs you to the information contained in this manual.
Conventions
This manual uses the following formats to describe, identify, and highlight terms
and operating procedures.
Abbreviations
On first appearance, and whenever necessary for clarity, abbreviations are enclosed
in parentheses following their definition. For example: Read Only Memory
(ROM). Acronyms are also defined in the Glossary.
Icons

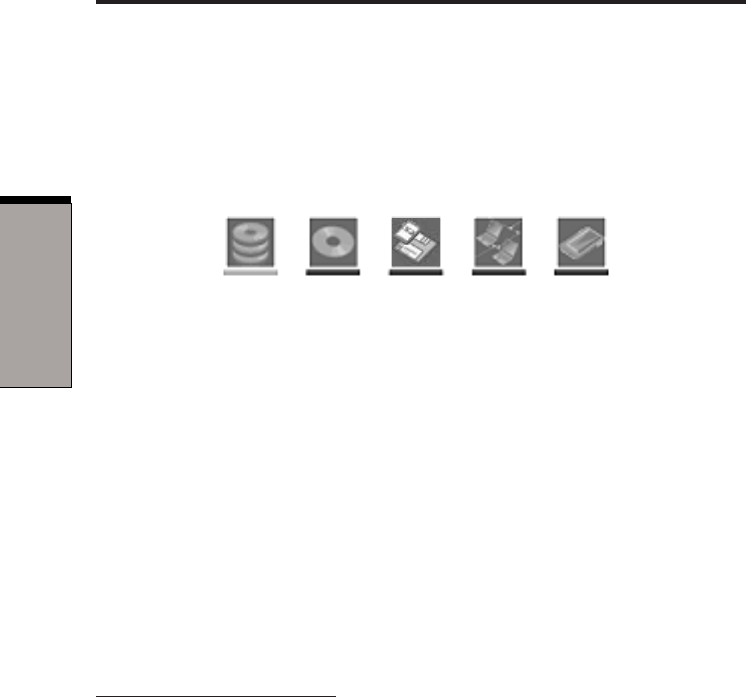

Icons identify ports, dials, and other parts of your computer. The indicator panel
also uses icons to identify the components it is providing information on.
Keys
The keyboard keys are used in the text to describe many computer operations. A
distinctive typeface identifies the key top symbols as they appear on the keyboard.
For example, Enter identifies the Enter key.
![](/img.php?id=551600&img=bg15.png)
xxi
Key operation

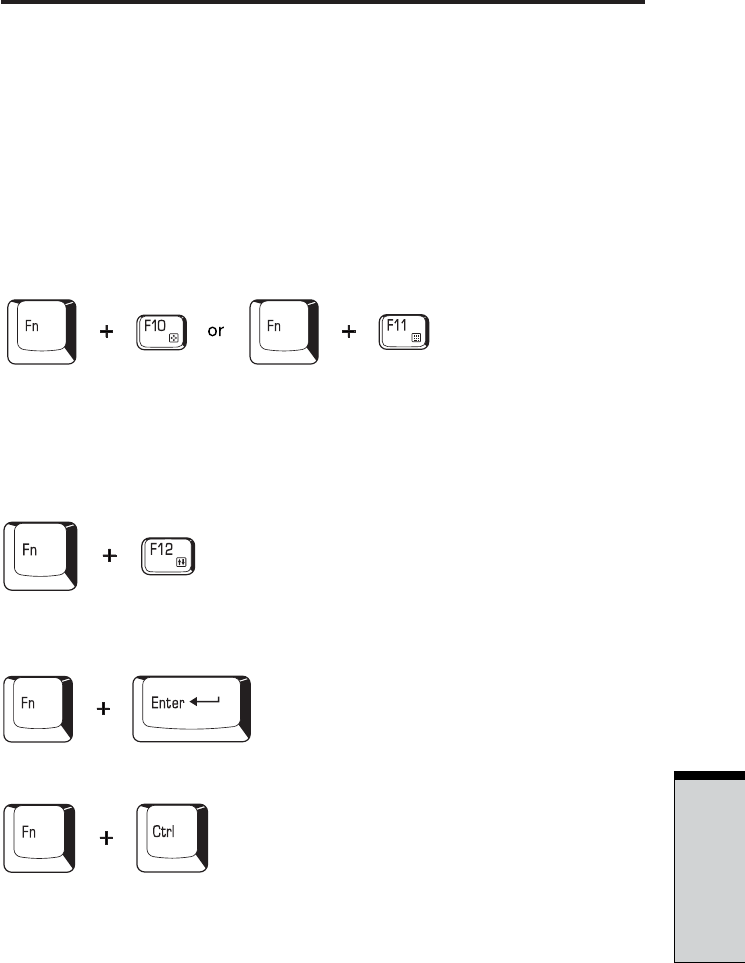

Some operations require you to simultaneously use two or more keys. We identify
such operations by the key top symbols separated by a plus sign (+). For example,
Ctrl + C means you must hold down Ctrl and at the same time press C. If three
keys are used, hold down the first two and at the same time press the third.
ABC When procedures require an action such as clicking an icon or entering
text, the icon’s name or the text you are to type in is represented in the
type face you see to the left.
Display
ABC Names of Windows® or icons or text generated by the computer that
appears on its display screen is presented in the type face you see to the
left.
Messages
Messages are used in this manual to bring important information to your attention.
Each type of message is identified as shown below.
CAUTION: Pay attention! A caution informs you that improper use of
equipment or failure to follow instructions may cause data loss or
damage your equipment.
NOTE: Please read. A note is a hint or advice that helps you make best
use of your equipment.
Conventions
![](/img.php?id=551600&img=bg16.png)
xxii
User's Manual
![](/img.php?id=551600&img=bg17.png)
xxiii
General Precautions
TOSHIBA computers are designed to optimize safety, minimize strain and withstand
the rigors of portability. However, certain precautions should be observed to further
reduce the risk of personal injury or damage to the computer.
Be certain to read the general precautions below and to note the cautions included
in the text of the manual.
Stress injury
Carefully read the Instruction Manual for Safety & Comfort. It contains information
on prevention of stress injuries to your hands and wrists than can be caused by
extensive keyboard use. Chapter 3, Getting Started, also includes information on
workspace design, posture and lighting that can help reduce physical stress.
Heat injury
❑Avoid prolonged physical contact with the computer. If the computer is used
for long periods, its surface can become very warm. While the temperature will
not feel hot to the touch, if you maintain physical contact with the computer for
a long time (if you rest the computer on your lap, or if you keep your hands on
the palm rest, for example) your skin might suffer low-heat injury.
❑If the computer has been used for a long time, avoid direct contact with the
metal plate supporting the I/O ports. It can become hot.
❑The surface of the AC adaptor can become hot when in use. This condition
does not indicate a malfunction. If you need to transport the AC adaptor,
disconnect it and let it cool before moving it.
❑Do not lay the AC adaptor on a material that is sensitive to heat. The material
could be damaged.
Pressure or impact damage
Do not apply heavy pressure to the computer or subject it to strong impact.
Excessive pressure or impact can cause damage to computer components or
otherwise cause malfunctions.
![](/img.php?id=551600&img=bg18.png)
User's Manual
xxiv

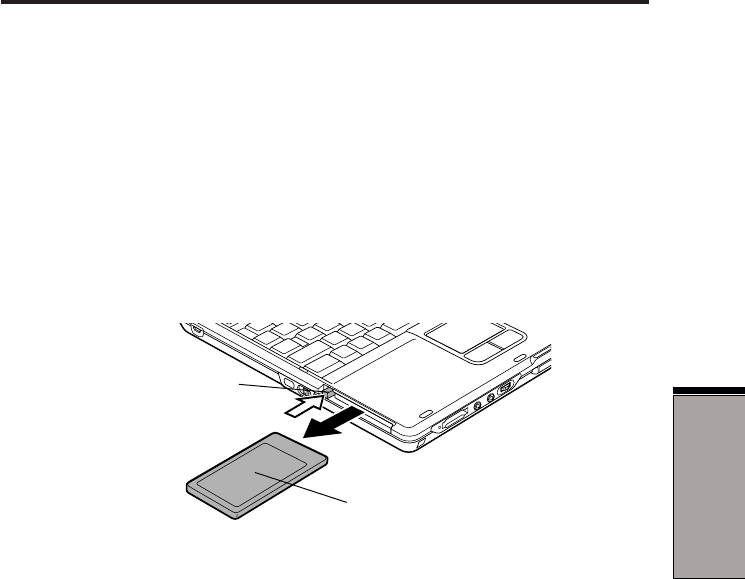

PC card overheating
Some PC cards can become hot with prolonged use. Overheating of a PC card can
result in errors or instability in the PC card operation. Also be careful when you
remove a PC card that has been used for a long time.
Mobile phone
Use of mobile phones can interfere with the audio system. Computer operation is
not impaired but is recommended that a distance of 30 cm be maintained between
the computer and a mobile phone in use.
Central Processing Unit ("CPU") Performance
Disclaimer
CPU Performance in your computer product may vary from specifications under the
following conditions:
1. use of certain peripheral products
2. use of battery power instead of AC power
3. use of certain multimedia games or videos with special effects
4. use of standard telephone lines or low speed network connections
5. use of complex modeling software, such as high end computer aided design
application
6. use of computer in areas with low air pressure (high altitude >1,000 meters or
>3,280 feet above sea level)
7. use of computer at temperatures outside the range of 5°C to 35°C (41°F to
95°F) or >25°C (77°F) at high altitude (all temperature reference are
approximate).
CPU Performance may also vary from specifications due to design configuration.
Under some conditions, your computer product may automatically shut-down. This
is a normal protective feature designed to reduce the risk of lost data or damage to
the product when used outside recommended conditions. To avoid risk of lost data,
always make back-up copies of data by periodically storing it on an external storage
medium. For optimum performance, use your computer product only under
recommended conditions Read additional restrictions under “Environmental
Conditions” in your product Resource Guide. Contact TOSHIBA Service and
Support for more information.
![](/img.php?id=551600&img=bg19.png)
xxv
Cooling fan
This product is equipped with a CPU cooling fan, VGA cooling fan and vent holes.
Please make sure to follow the cautions below to avoid overheat.
❑Clean any dust or dirt that has accumulated on the CPU cooling fan, VGA
cooling fan or vent holes.
❑Do not block the CPU cooling fan, VGA cooling fan or vent holes.
❑Use, place and carry the computer in the recommended manner.
NOTE: Do not block the vents during use. Cooling fans draw in outside air.
CPU cooling fan, VGA cooling fan and vents
Stress injury
CPU COOLING FAN VENT
VGA COOLING FAN VENT
![](/img.php?id=551600&img=bg1a.png)
User's Manual
xxvi
![](/img.php?id=551600&img=bg1b.png)
I
NTRODUCTION
Chapter 1
Introduction
Equipment checklist .......................................................................... 1-1
Hardware ............................................................................................ 1-1
Software ............................................................................................. 1-1
Features ............................................................................................. 1-2
Special features................................................................................. 1-7
Utilities................................................................................................ 1-9
Options ............................................................................................. 1-11
![](/img.php?id=551600&img=bg1c.png)
INTRODUCTION
![](/img.php?id=551600&img=bg1d.png)
1-1
I
NTRODUCTION
Chapter 1
Introduction
This chapter provides an equipment checklist, and it identifies the computer’s
features, options and accessories.
CAUTION: Some of the features described in this manual may not
function properly if you use an operating system that was not prein-
stalled by TOSHIBA.
Equipment checklist
Hardware
Carefully unpack your computer. Save the box and packing materials for future use.
Check to make sure you have all the following items:
❑Portégé M200 Portable Personal Computer
❑Universal AC adaptor and power cord
❑Modular cable
❑Tablet PC Pen
NOTE: Tablet PC Pen is included in the carton of pen set with the
product when purchased. Spare pen tip and draw-out tool are also
included in the carton.
Software
❑The following software is preinstalled:
•Microsoft® Windows XP Tablet PC Edition
• TOSHIBA Modem driver
• TOSHIBA Display driver
• TOSHIBA Touch Pad driver
• TOSHIBA Sound driver
![](/img.php?id=551600&img=bg1e.png)
1-2
User's Manual
INTRODUCTION
• TOSHIBA Bluetooth drivers (Can be used only in Bluetooth models)
• TOSHIBA Wireless LAN Driver
• TOSHIBA Mobile Extension3
• TOSHIBA Utilities
• TOSHIBA Hotkey Utility for Display Devices
• TOSHIBA Tablet Access code Logon Utility
• TOSHIBA Zooming Utility
• TOSHIBA Rotation Utility
• TOSHIBA Accelerometer Utilities
•TOSHIBA Power Saver
•TOSHIBA Common Modules
• TOSHIBA Console
• TOSHIBA Config Free
• TOSHIBA SD Memory Boot Utility
• TOSHIBA Skins for Windows Media Player
• SD card Driver Set
•PC Diagnosis Tool
•Online manual
•Sensiva Symbol Commander
❑Documentation:
•Portégé M200 Portable Personal Computer User’s Manual
•Microsoft Windows XP Tablet PC Edition manual package
•Instruction Manual for Safety & Comfort
•End User License Agreement
•International Limited Warranty (ILW) Instruction
(This instruction is included only with computers sold in ILW supported
areas.)
❑Product Recovery CD-ROM (contains TOSHIBA Management Console, which
is not preinstalled)
Features
The computer uses TOSHIBA’s advanced Large Scale Integration (LSI),
Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to
provide compact size, minimum weight, low power usage, and high reliability. This
computer incorporates the following features and benefits:
![](/img.php?id=551600&img=bg1f.png)
1-3
I
NTRODUCTION
Processor
Built-in The computer is equipped with an Intel®, which
incorporates a math co-processor, a 32 KB level 1 cache
memory and a 1MB level 2 cache memory. It also supports
Enhanced Intel® SpeedStep™ technology.
Intel® Pentium® M processor 1.4 GHz
Intel® Pentium® M processor 1.5 GHz
Intel® Pentium® M processor 1.6 GHz
Intel® Pentium® M processor 1.7 GHz
NOTE: Some models of the computers carry Intel® Centrino™
technology, which is based on three separate technologies of
Intel® Pentium® M, Intel® PRO/Wireless Network Connection, and
Intel® 855 Chipset Family.
Memory
Slot The slot accepts a 128, 256, 512 or 1,024 MB memory
module can be installed in the two memory slots for a
maximum of 2GB system memory.
Level 2 cache 1 MB level 2 cache is provided to maximize performance.
Video RAM 32MB of RAM is provided for Video display
Disks
Built-in Hard disk
• 40 billion bytes (37.26 GB)
• 60 billion bytes (55.87 GB)
• 80 billion bytes (74.53 GB)
Display
The computer’s LCD panel supports high-resolution video graphics. The screen
can be set at a wide range of viewing angles for maximum comfort and readability.
Built-in 12.1" SXGA+-TFT, 1400 horizontal × 1050 vertical pixels,
up to 16 M colors
Graphics controller Graphics controller maximizes display performance. Refer
to Appendix B for more information.
Features
![](/img.php?id=551600&img=bg20.png)
1-4
User's Manual
INTRODUCTION
Keyboard
Built-in 84 keys or 85 keys, compatible with IBM ® enhanced
keyboard, embedded numeric overlay, dedicated cursor
control, and keys. See Chapter5, The Keyboard,
for details.
Touch pad
Built-in A touch pad and control buttons in the palm rest enable
control of the on-screen pointer and scrolling of windows.
Tablet PC Pen
Supplied A pen enables data entry directly through the display
screen.
Reserve pen A pen enables data entry directly through the display
screen. Supplied pen uses a pen instead of Supplied pen
at the time of loss or breakage.
Power
Battery pack The computer is powered by one rechargeable lithium-ion
battery pack.
RTC battery The internal RTC battery backs up the Real Time Clock
(RTC) and calendar.
AC adaptor The universal AC adaptor provides power to the system
and recharges the batteries when they are low. It comes
with a detachable power cord. Because it is universal, it
can receive a range of AC voltage between 100 and 240
volts.

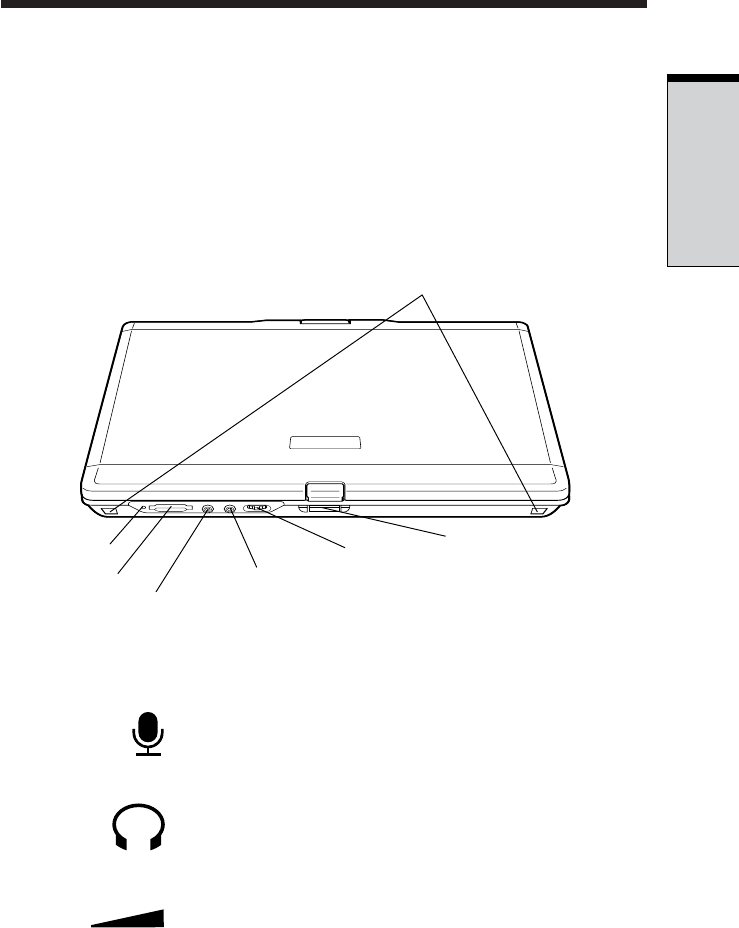

Ports
Headphone Enables connection of a stereo headphone
Microphone Enables connection of a monaural microphone
Infrared The serial infrared port is compatible with Infrared Data
Association (IrDA 1.1) standards. It enables cableless 4
Mbps, 1.152 Mbps, 115.2 kbps, 57.6 kbps, 38.4 kbps, 19.2
kbps or 9.6 kbps data transfer with IrDA 1.1 compatible
external devices.
![](/img.php?id=551600&img=bg21.png)
1-5
I
NTRODUCTION
External monitor 15-pin, analog VGA port supports VESA DDC2B compat-
ible functions.
Docking Special port for connecting an Tablet Multi Dock.
Universal Serial Bus The computer has two Universal Serial Bus ports that
(USB 2.0) comply with the USB 2.0 standard, which enables data
transfer speeds 40 times faster than the USB 1.1 standard.
(The ports also support USB 1.1.)
Slots
PC card A PC card slot accommodates one 5mm Type II card.

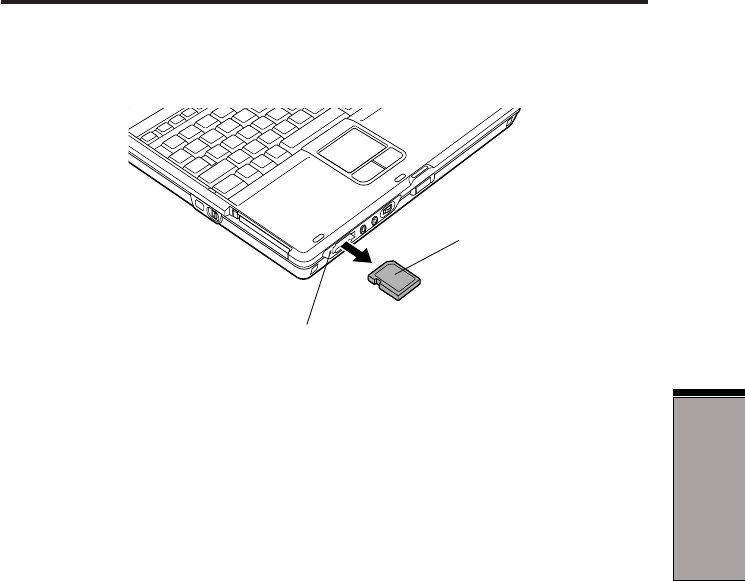

SD card This slot lets you easily transfer data from devices, such
as digital cameras and Personal Digital Assistants, that use
SD card flash-memory.
You can use memory module in this slot.
Multimedia
Sound System Windows Sound System compatible sound system
provides internal speaker as well as jacks for an external
microphone and headphone.
Communications
Modem An internal modem provides capability for data and fax
communication. It supports V.90 (V.92). Refer to Appendix
E. The speed of data transfer and fax depends on analog
telephone line conditions. It has a modem jack for connect-
ing to a telephone line. It is preinstalled as a standard
device in some markets. Both of V.90 and V.92 are
supported only in USA, Canada and Australia. Only V.90
is available in other regions.
LAN The computer is equipped with a LAN card that supports
Ethernet LAN (10 Mbit/s, 10BASE-T) and Fast Ethernet
LAN (100 Mbit/s, 100BASE-TX). It is preinstalled as a
standard device in some markets.
Features
![](/img.php?id=551600&img=bg22.png)
1-6
User's Manual
INTRODUCTION
Wireless LAN Some computers in this series are equipped with a wireless
LAN mini-PCI card that is compatible with other LAN
systems based on Direct Sequence Spread Spectrum/
Orthogonal Frequency Division Multiplexing radio
technology that complies with the IEEE802.11 Standard.
The configuration of the built-in Wireless LAN depends
on the model you purchased.(Revision B or G)
Revision G support a data transfer rate up to 54 Mbit/s.
Revision B support a data transfer rate up to 11 Mbit/s.
Turbo Mode support a data transfer rate up to 108 Mbit/s.
Wireless This switch turns the Wireless LAN and Bluetooth
communication switch communication switchfunctions on and off.
Bluetooth Some computers in this series are equipped with Bluetooth
functions. Bluetooth wireless technology eliminates the
need for cables between electronic devices such as
computers and printers. Bluetooth provides fast, reliable,
and secure wireless communication in a small space.
Security
Security lock slot Connects an optional security lock to anchor the computer
to a desk or other large object.
Software
Operating System One of the following operating systems are Windows XP
Tablet PC Edition. Refer to the preinstalled software
section at the front of this chapter.
TOSHIBA Utilities A number of utilities and drivers are preinstalled to make
your computer more convenient to use. Refer to the
Utilities section in this chapter.
Plug and Play When you connect an external device to the computer or
when you install a component, Plug and Play capability
enables the system to recognize the connection and make
the necessary configurations automatically.
![](/img.php?id=551600&img=bg23.png)
1-7
I
NTRODUCTION
Special features
The following features are either unique to TOSHIBA computers or are advanced
features, which make the computer more convenient to use.

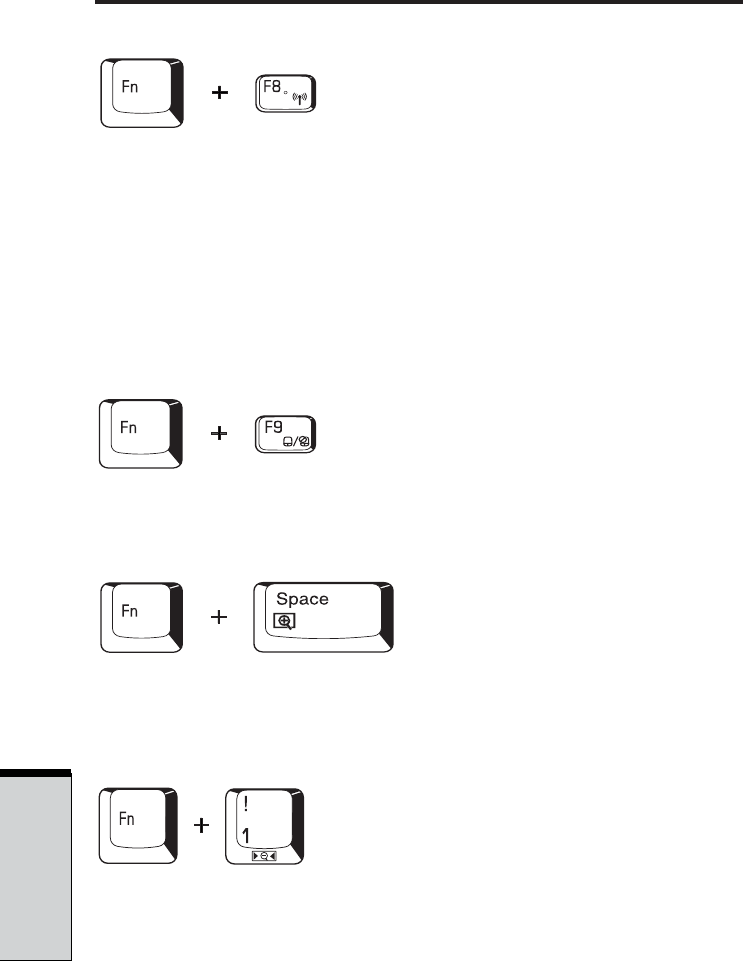

Hot keys Key combinations let you quickly modify the system
configuration directly from the keyboard without running a
system configuration program.

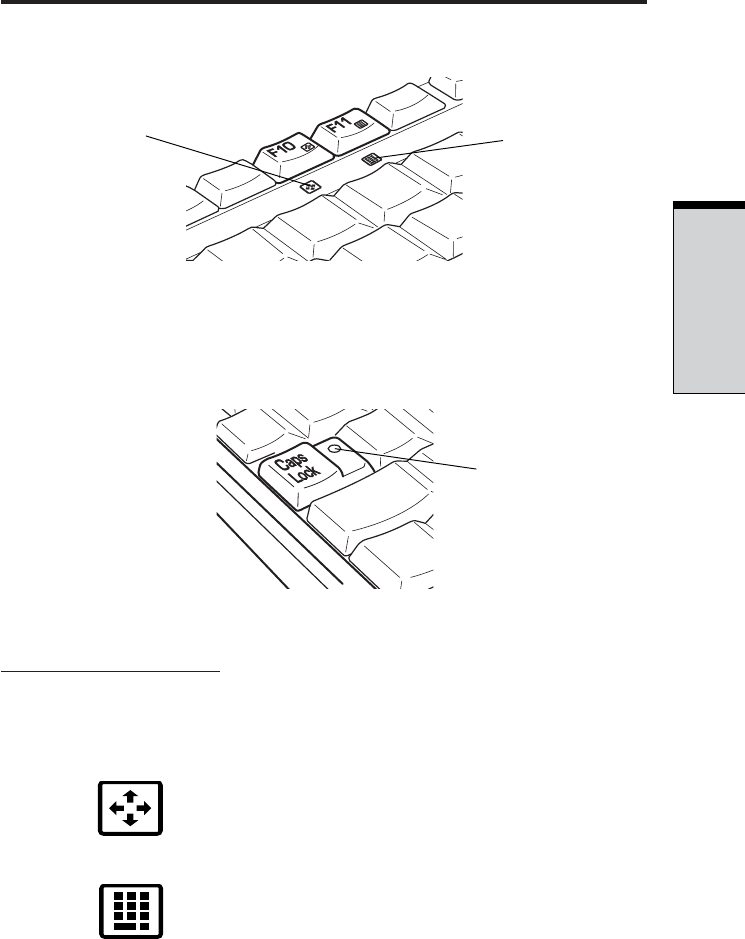

Keypad overlay Gray keys with gray lettering make up the keypad overlay,
which lets you use the keyboard for ten-key operations or
cursor control.
Display automatic This feature automatically cuts off power to the internal
power off display when there is no keyboard input for a time
specified. Power is restored when any key is pressed. You
can specify the time in the Turn off monitor item of the
Power Save Mode window in TOSHIBA Power Saver.
HDD automatic This feature automatically cuts off power to the hard disk
power off drive when it is not accessed for a time specified. Power is
restored when the hard disk is accessed. You can specify
the time in the Turn off hard disks item of the Power Save
Mode window in TOSHIBA Power Saver.
System automatic This feature automatically turns off power to the system
power off when there is no input for a time specified. You can specify
the time in the System standby or System hibernate item of
the System Power Mode window in TOSHIBA Power
Saver.
Battery save mode This feature lets you save battery power. You can specify
the Power Save Mode in the Running on batteries item of
the Power Save Modes window in TOSHIBA Power Saver.
Power on password Two levels of password security are available: supervisor
and user. This feature prevents unauthorized access to
your computer.
Instant security A hot key function blanks the screen and disables the
computer providing quick and easy data security.
Special features
![](/img.php?id=551600&img=bg24.png)
1-8
User's Manual
INTRODUCTION
Advanced Instant This function is a utility (one of the acceleration sensor
Security utilities) with the following functions.
❑It performs from CrossMenu and PC is changed into a
WorkStation lock state.
❑If PC is moved in the state of a WorkStation lock, beep
sound will sound. Cancel a WorkStation lock, in order
to stop beep sound.
❑ If a WorkStation lock is canceled, a program will be
ended automatically.
Panel power on/off This feature turns power to the computer off when the
display panel is closed and turns it back on when the panel
is opened. You can specify the setting in the When I close
the lid item of the System Power Mode window in
TOSHIBA Power Saver.
Auto power on This feature lets you set a time and date for the computer
to turn on automatically. The feature is useful for receiving
remote communications while you are asleep or away. You
can specify the setting in Scheduled Tasks.
Standby If you have to interrupt your work, you can turn off the
power without exiting from your software. Data is main-
tained in the computer’s main memory. When you turn on
the power again, you can continue working right where
you left off.
Hibernation This feature lets you turn off the power without exiting
from your software. The contents of main memory are
saved to the hard disk, when you turn on the power again,
you can continue working right where you left off.
Heat dispersal To protect from overheating, the CPU has an internal
temperature sensor. If the computer’s internal temperature
rises to a certain level, the cooling fan is turned on or the
processing speed is lowered. Use the Fan item of the
Power Save Modes window in TOSHIBA Power Saver.
Maximum Turns on fan first, then if necessary
Performance lowers CPU processing speed.
Performance Uses a combination of fan and
lowering the CPU processing speed.
Battery optimized Lowers the CPU processing speed
first, then if necessary turns on the
fan.
![](/img.php?id=551600&img=bg25.png)
1-9
I
NTRODUCTION
TOSHIBA When TOSHIBA Accelerometer Utilities is enabled, you
Accelerometer can invoke the Start menu, switch active windows or
Utilities launch predefined applications by shaking the computer
vertically or horizontally, or tilting it.
You can boot TOSHIBA Accelerometer Utilities from the
menu bar as follows.
[Start]-[All Programs]- [TOSHIBA]-[Tablet PC]-[Setting of
TOSHIBA Accelerometer Utilities]
The Setting of TOSHIBA Accelerometer Utilities screen
appears.
Utilities
This section describes preinstalled utilities and tells how to start them. For details
on operations, refer to each utility’s online manual, help files or readme.txt files.
TOSHIBA Power Saver To access this power savings management program, open
the Control Panel, click Performance and Maintenance and
click the TOSHIBA Power Saver icon.
HW Setup This program lets you customize your hardware settings
according to the way you work with your computer and
the peripherals you use. To start the utility, open the
Control Panel, click Printers and Other Hardware and click
the TOSHIBA HW Setup icon.
Fn-esse This Windows program lets you define your own “short-
cut” keys to quickly launch applications and speed your
work in Windows. To start the utility, click the Windows
Start button, point to All Programs, point to TOSHIBA,
point to Utilities and click Fn-esse.
TOSHIBA Password The TOSHIBA Password Utility provides two levels of
Utility password security: User and Supervisor.
Display Driver The display driver enables simultaneous display on the
for Windows internal LCD, and on an external computer monitor. To
enable this function, use the Display Properties dialogue
box.
Symbol Commander This software enables the user to run an application or to
show home page by drawing a simple mark on the display
with the Tablet PC Pen. You can customize the action to
boot the computer and to run the application.
Utilities
![](/img.php?id=551600&img=bg26.png)
1-10
User's Manual
INTRODUCTION

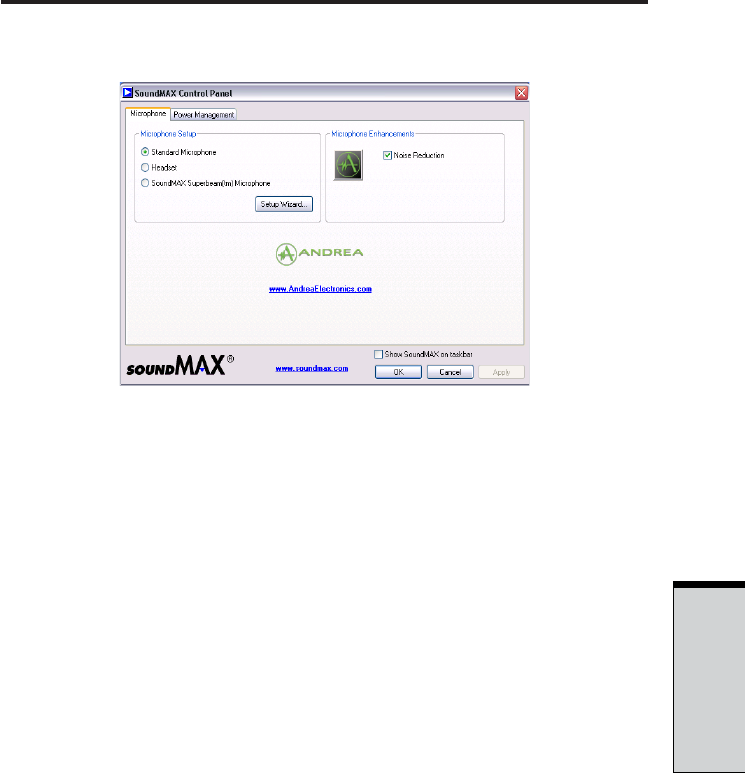

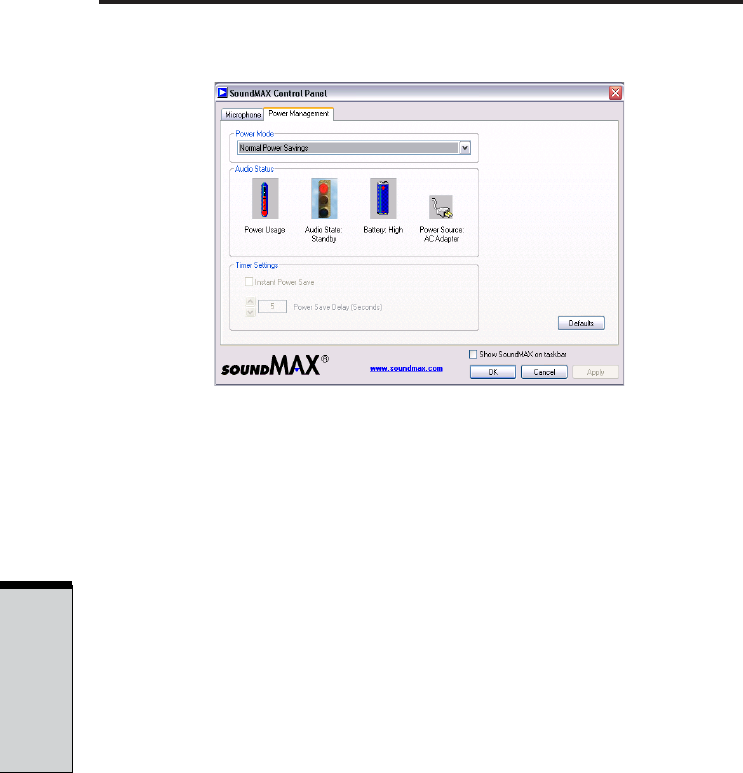

Sound drivers A broad range of audio controls are available through the
ADI sound driver, including Software Synthesize, Mic
Volume, Noise Resudction and Audio Power Management.
Click Control Panel and click SoundMAX icon to change
the Mic Noise Reduction settings and the Power
Management settings.
For other sound settings, use the Windows Device
Manager, Multimedia Panel or Volume Dial.
TOSHIBA This utility lets you make the Fn key sticky, that is, you
Accessibility can press it once, release it, and they press an “F number”
key. The Fn key remains active until another key is
pressed.
TOSHIBA Mobile This utility allows you to dock with or undock from a
Extension3 docker or port replicator, while your system is powered on,
or while in Stand-by or Hibernation. Settings can be
modified from the "TOSHIBA Mobile Extension3" icon in
the TOSHIBA Console.
Hot key utility This utility lets you display or hide a confirmation message
when you press Fn + F3 or Fn + F4.
TOSHIBA Tablet This utility allows you to logon to the system.
Access Code If a password has been set, a dialog box with a prompt
Logon Utility (e.g. Password=) appears when you turn the power on.

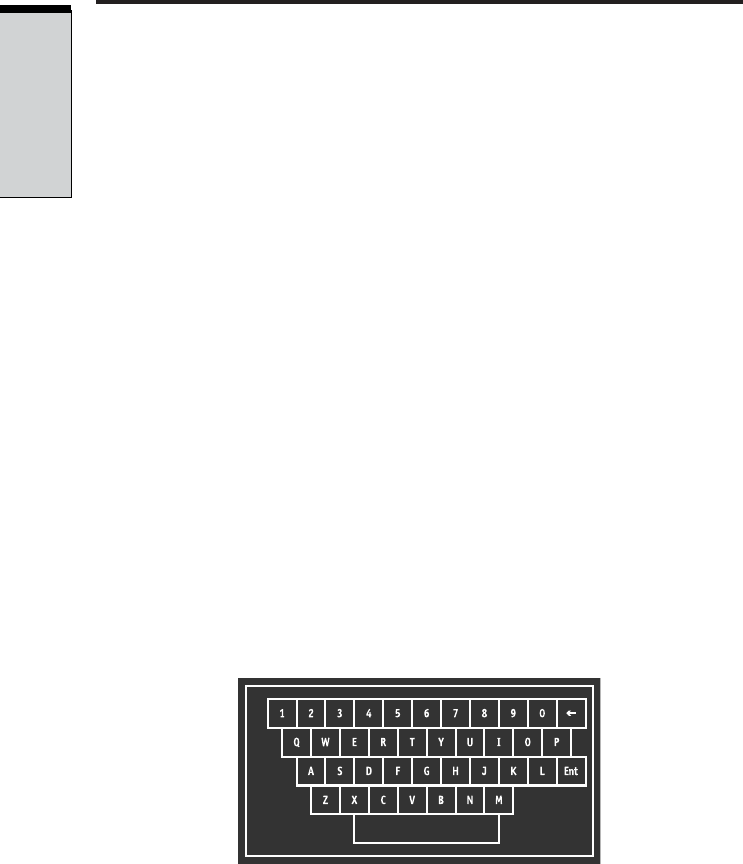

If the system is in tablet mode, you can enter a password
by clicking on keys of the soft keyboard with the Tablet
PC Pen.
TOSHIBA Zooming This utility allows you to enlarge or reduce the text size
Utility on the Internet Explorer window and the icon size on
the desktop.
TOSHIBA Console TOSHIBA Console is a graphical user interface that
provides easy access to help and services. It is the default
function launched by the TOSHIBA Console button.
PC Diagnosis TOSHIBA PC Diagnostic Tool displays the basic in
Tool formation on PC, and the test of built-in devices can also
be performed.You can boot TOSHIBA PC Diagnostic Tool
form the menu bar as follows.
[Start]-[All Programs]-[TOSHIBA]-[Utilities]-[PC Diagnos-
tic Tool]
![](/img.php?id=551600&img=bg27.png)
1-11
I
NTRODUCTION
Bluetooth TOSHIBA This software enables communication between remote
Stack Bluetooth devices. Refer to the Quick Start Guide.
NOTE: Bluetooth cannot be used in models that do not have a Bluetooth
module installed.
TOSHIBAConfigFree TOSHIBA ConfigFree is a suite of utilities to allow easy
control of communication device and network connec-
tions. TOSHIBA ConfigFree also allows you to find
communication problems and create profiles for easy
switching between location and communication networks.
You can boot TOSHIBA ConfigFree from the menu bar as
follows.
[Start] - [All Programs] - [TOSHIBA] - [Netnor king] -
[ConfigFree]
TOSHIBA SD The TOSHIBA SD memory boot utility is a utility which
Memory Boot Utility can create SD memory card to a boot disk. You can boot
TOSHIBA SD Memory Boot Utility from the menu bar as
follows.
[Start] - [All Programs] - [TOSHIBA] - [Utility] - [SD
Memory Boot Utility]
Dragon Drop The setup image for Drag'n Drop CD+DVD is located
CD+DVD in C:\TOSHIBA.Before using it, please execute the "Setup.exe"
for installation.However, you can only use Drag'n Drop
CD+DVD with the following drives:
• The CD/DVD recordable drives which can connect to the
slim select bay of Tablet Multi Dock
• External CD-RW/DVD-ROM Drive (PA3352x)
Options
You can add a number of options to make your computer even more powerful
and convenient to use. The following options are available:
Memory expansion A 128, 256, 512 or 1,024 MB memory module (PC2700 DDR)
can easily be installed in the computer.
Battery Pack An addition Battery Pack can be purchased from your
TOSHIBA dealer. The Battery Pack is identical to the one
that came with your computer. Use it as a spare or replace-
ment.
Options
![](/img.php?id=551600&img=bg28.png)
1-12
User's Manual
INTRODUCTION
Universal AC Adaptor If you use your computer at more than one site, it may be
convenient to purchase an additional Universal AC
Adaptor (PA3282,PA3283) for each site so you will not
have to carry the adaptor with you.
USB FDD Kit A 3 1/2" diskette drive accommodates 1.44-megabyte or
720-kilobyte diskettes. It connects to a USB port. (You
cannot format 720-kilobyte diskettes on Windows XP, but
you can use previously formatted disks.)
Battery Charger The Battery Charger lets you charge extra batteries outside
the computer.
Security locks The slots are available to attach a security cable to the
computer to deter theft.
Tablet Multi The Tablet Multi Dock provides the ports available
Dock on the computer in addition to separate lineout jack,
External monitor port, Universal Serial Bus port × 3, LAN
jack and Slim Select Bay module.
Wireless LAN Kit This option enables Wireless LAN functions in computer
that does not have preinstalled Wireless LAN. It is
installed by dealers only.
Bluetooth Kit This option enables Bluetooth wireless communications in
computer that does not have preinstalled Bluetooth. It is
installed by dealers only.
Tablet PC Pen Tablet PC Pen can be purchased from your TOSHIBA
dealer. Use it as a spare to your computer.
Spare pen tip and draw-out tool are included.
Reserve pen Tablet PC Pen can be purchased from your TOSHIBA
dealer. Supplied pen uses a pen instead of Supplied pen at
the time of loss or breakage. The pen is set inside the
computer, which connects a battery pack.
DVD-ROM Drive DVD-ROM Drive is available as an optional external
optical disk drive. You can buy the drive from TOSHIBA
dealer.
External CD-RW/ External CD-RW/DVD-RW is an optional accessory
DVD-RW compatible with USB 2.0 port on this computer. You can
buy the drive from TOSHIBA dealer.
Bluetooth SD card2 Bluetooth SD card is an optional accessory compatible
with the SD Card slot of this computer. You can buy the
drive from TOSHIBA dealer.
![](/img.php?id=551600&img=bg29.png)
T
HE
G
RAND
T
OUR
Chapter 2
The Grand Tour
Front with the display closed ........................................................... 2-1
Left side.............................................................................................. 2-2
Right side ........................................................................................... 2-3
Back side ............................................................................................ 2-4
Underside ........................................................................................... 2-5
Front with the display open .............................................................. 2-7
Indicators............................................................................................ 2-9
AC adaptor ....................................................................................... 2-12
![](/img.php?id=551600&img=bg2a.png)
THE GRAND TOUR
![](/img.php?id=551600&img=bg2b.png)
2-1
T
HE
G
RAND
T
OUR
Chapter 2
The Grand Tour
This chapter identifies the various components of your computer. Become familiar
with each component before you operate the computer.
Front with the display closed
Figure 2-1 shows the computer’s front with its display panel in the closed position.
Figure 2-1 Front of the computer with the display closed
Microphone jack A standard 3.5 mm mini microphone jack enables connec-
tion of a monaural microphone or other device for audio
input.
Headphone jack A standard 3.5 mm mini headphone jack enables connec-
tion of a stereo headphones (16 ohm minimum) or other
device for audio output. When you connect headphones,
the internal speaker is automatically disabled.
Volume control Use this dial to adjust the volume of the speaker.
MICROPHONE JACK
HEADPHONE JACK
VOLUME CONTROL DISPLAY LATCH
BUTTON
SD CARD SLOT
SD CARD INDICATOR
DOCKNG HOLES
![](/img.php?id=551600&img=bg2c.png)
User's Manual
2-2
THE GRAND TOUR
SD card slot This slot lets you transfer data from the device to your
computer.
CAUTION: Keep foreign objects out of the SD card slot. A pin or similar
object can damage the computer’s circuitry.
SD card indicator This indicator glows green when the computer is
accessing the SD card slot.
Display latch The latch mechanism secures the LCD panel in its closed
button position. Push the Display latch button to release the latch
to open the display.
Docking holes These holes ensure a proper connection between the
computer and an option Dock.
Left side
Figure 2-2 shows the computer’s left side.
Figure 2-2 The left side of the computer
Security lock A security cable is attached to this slot. The optional
slot security cable anchors your computer to a desk or other
large object to deter theft.
PC card slot A PC card slot can accommodate one 5 mm PC card (Type
II). The slot supports 16-bit PC cards and CardBus PC
cards.
CAUTION: Keep foreign objects out of the PC card slot. A pin or similar
object can damage the computer’s circuitry.
CB
PC CARD SLOT
WIRELESS
COMMUNICATION SWITCH
SECURITY LOCK SLOT INFRARED PORT
![](/img.php?id=551600&img=bg2d.png)
2-3
T
HE
G
RAND
T
OUR
Right side
Wireless Slide this switch to the left to turn on Bluetooth and
communication Wireless LAN. Slide it to the right to turn off the functions.
switch
CAUTION: Set the switch to off in airplanes and hospitals. Check the
wireless communication indicator. It will stop glowing when the wireless
communication function is off.
Infrared port This infrared port is compatible with Infrared Data Asso-
ciation (IrDA 1.1) standards. It enables cable less 4 Mbps,
1.152 Mbps, 115.2 kbps, 57.6 kbps, 38.4 kbps, 19.2 kbps or
9.6 kbps data transfer with IrDA 1.1 compatible external
devices.
Right side

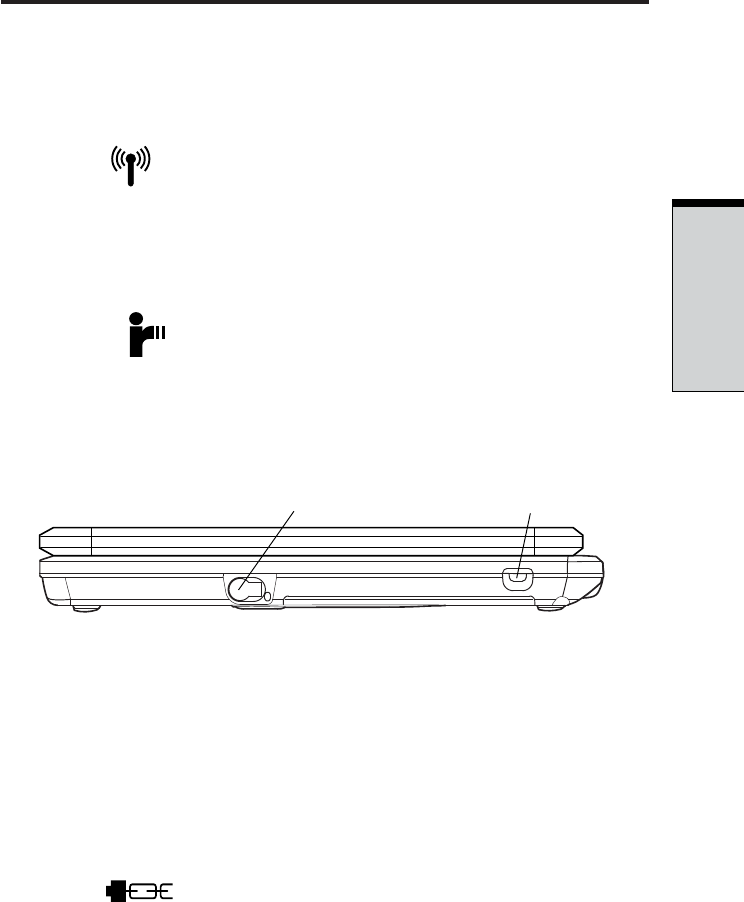

Figure 2-3 shows the computer’s right side.
Figure 2-3 The right side of the computer
Tablet PC Pen Pen is contained in the right hand side.
A pen enables data entry directly through display screen.
Refer to the Using the Tablet PC Pen section Chapter 4,
Operating Basics.
Tablet PC Pen slot This Tablet PC pen slot is contained of a Tablet PC pen.
Security lock A security cable is attached to this slot. The optional
slot security cable anchors your computer to a desk or other
large object to deter theft.
On Off
SECURITY LOCK SLOTTABLET PC PEN SLOT
![](/img.php?id=551600&img=bg2e.png)
User's Manual
2-4
THE GRAND TOUR
Back side
Figure 2-4 shows the computer’s back side.
Figure 2-4 The computer’s back side
VGA cooling This cooling fan in takes air to cool VGA.
fan vent
CAUTION: Be careful not to block the fan vent. Also be careful to keep
foreign objects out of the vent. A pin or similar object can damage the
computer’s circuitry.
DC IN 15V The AC adaptor is connected to this socket. Use only the
model of AC adaptor that comes with the computer. Using
the wrong adaptor can damage your computer.
External monitor This 15-pin port lets you connect an external monitor.
port
Universal Two Universal Serial Bus ports are on the back side. The
Serial Bus ports comply with the USB 2.0 standard, which enables
(USB 2.0) port data transfer speeds 40 times faster than the USB 1.1
standard. (The ports also support USB 1.1.)
CAUTION: Keep foreign objects out of the USB connectors. A pin or
similar object can damage the computer's circuitry.
DC IN 15V
MODEM JACK VGA COOLING
FAN VENT
DC IN 15V
EXTERNAL
MONITOR PORT
LAN ACTIVE
INDICATOR(ORANGE)LINK INDICATOR
(GREEN)
USB PORTS LAN JACK
![](/img.php?id=551600&img=bg2f.png)
2-5
T
HE
G
RAND
T
OUR
Underside
LAN jack This jack lets you connect to a LAN. The adaptor has
built-in support for Ethernet LAN (10 megabits per second,
10BASE-T) and Fast Ethernet LAN (100 megabits per
second, 100BASE-Tx).
LAN active This indicator glows in yellow when data is being
indicator (orange) exchanged between the computer and the LAN.
Link indicator This indicator glows in green when the computer is
(green) connected to a LAN and the LAN is functioning properly.
Modem jack In areas where an internal modem is installed as standard
equipment, there is a modem jack that lets you use a
modular cable to connect the modem directly to a tele-
phone line. The modem is not supported in some marketing
regions.
CAUTIONS: 1. In case of a lightning storm, unplug the modem cable
from the telephone jack.
2. Do not connect the modem to a digital telephone line.
A digital line will damage the modem.
Underside
Figure 2-5 shows the underside of the computer. Make sure the display is closed
before turning over your computer.

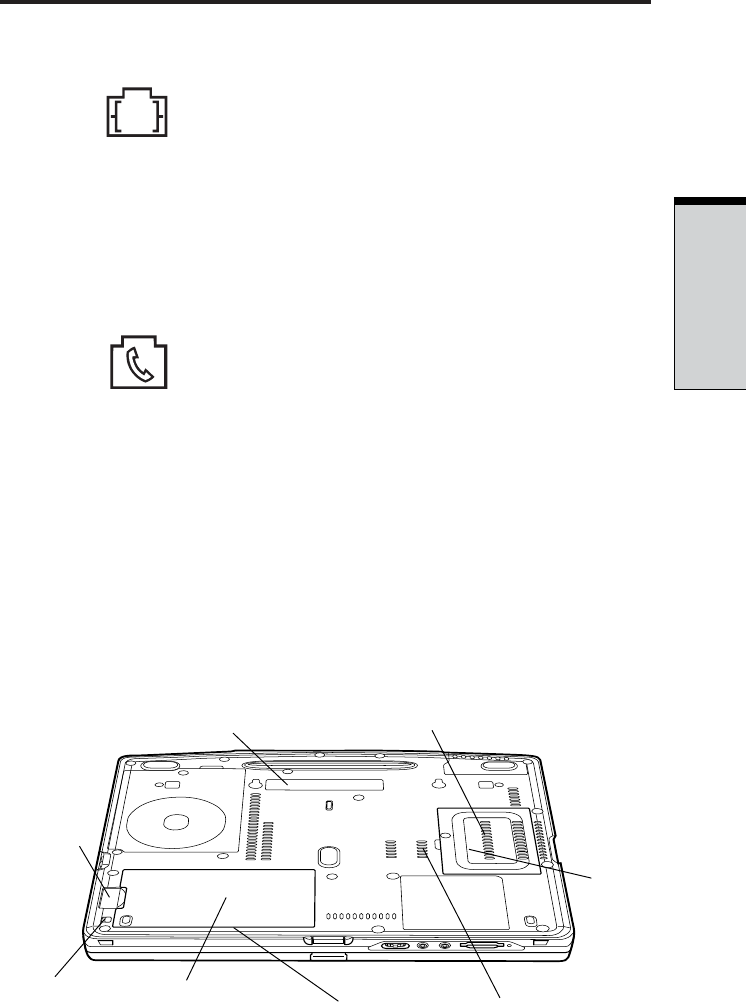

Figure 2-5 The underside of the computer
Ether
BATTERY PACK
MEMORY MODULE COVER
BATTERY LOCK
BATTERY
RELEASE LATCH
RESERVE PEN
(NOT SHOWN)
TABLET MULTI DOCK
EXPANSION
MEMORY
SOCKET
CPU COOLING FAN
VENT
![](/img.php?id=551600&img=bg30.png)
User's Manual
2-6
THE GRAND TOUR
Tablet Multi Dock Use this port to connect an optional Tablet Multi Dock.
CAUTION: Keep foreign objects out of the docking port. A pin or similar
object can damage the computer’s circuitry.
Expansion The computer is equipped with two expansion memory
memory socket slots (sockets). Use these slots (sockets) to install memory
module to increase your computer’s memory. Refer to the

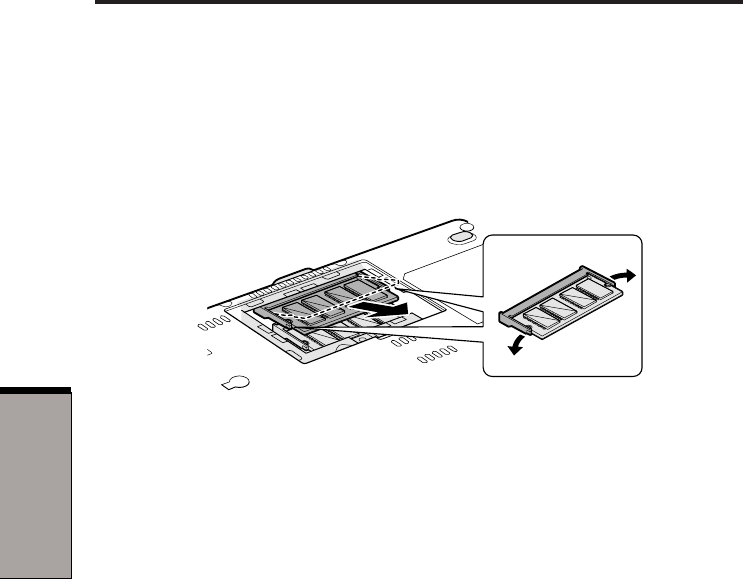

Memory expansion section in Chapter 8, Optional Devices
for the detail.

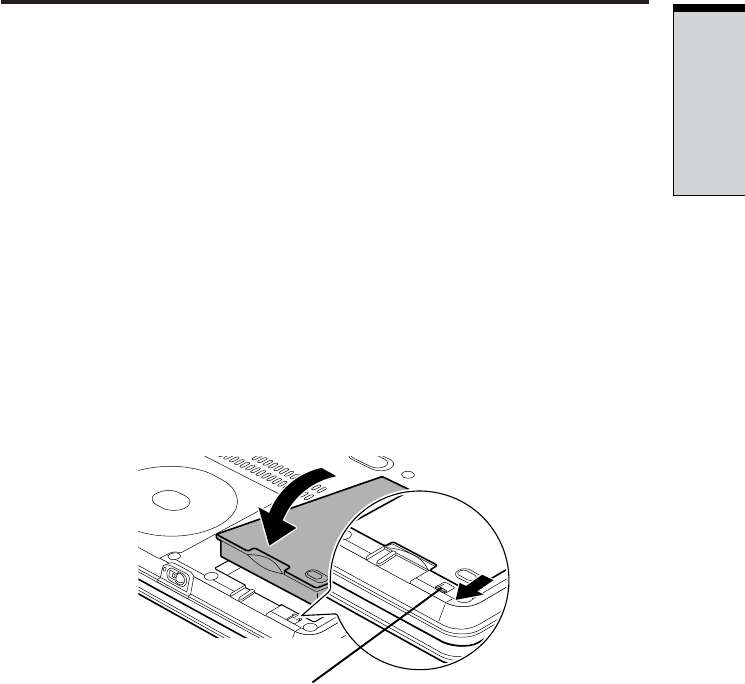

Battery Pack The Battery Pack powers the computer when the AC
adaptor is not connected. The Battery types section in
Chapter 6, Power and Power-Up Modes, describes how to
access the Battery Pack. Battery Packs can be purchased
from your TOSHIBA dealer to extend the computer’s
battery operating time.
Battery lock The battery lock prevents inadvertent release of the Battery
Pack.
Battery release Releasing the battery lock and sliding the Battery release
latch latch to the outside of the computer enables to remove the
battery from the computer.
Reserve pen Pen is contained in the battery pack of Underside. A pen
enables data entry directly through display screen. Refer to
the Using the Tablet PC Pen section in Chapter4, Operat-
ing Basics.
CPU cooling This cooling fan in takes air to cool CPU.
fan vent
![](/img.php?id=551600&img=bg31.png)
2-7
T
HE
G
RAND
T
OUR
Front with the display open
Front with the display open
Figure 2-6 The front with the display open
Display latch The Display latch secures the Display screen in its
closed position. The latch can be rotated to lock the
Display screen in the tablet mode.
Display screen The full-color LCD displays high-contrast text and
graphics and is compatible with the industry standard
Video Graphics Array (VGA). The LCD consists of up to
SXGA 1400 × 1050 pixels or dots. The computer has a
Thin-Film Transistor (TFT) display. Refer to Appendix
B.
When the computer operates on power through the AC
adaptor, the display screen’s image will be somewhat
brighter than when it operates on battery power. The lower
brightness level is intended to save battery power.
MICROPHONES
POWER BUTTON
LOCK
POWER BUTTON
SENSOR SWITCH
DISPLAY LATCH
DISPLAY SCREEN
DISPLAY HINGE
TOUCH PAD
TOUCH PAD
CONTROL BUTTONS
SPEAKER
CROSS FUNCTION BUTTON
ESC/ ROTATION BUTTON
WINDOWS SECURITY
TABLET BUTTON
POWER SOURCE/
SYSTEM INDICATORS
PEN ICONS
![](/img.php?id=551600&img=bg32.png)
User's Manual
2-8
THE GRAND TOUR
Display hinge The display hinge holds the display screen at easy-to-view
angles.
Microphones A built-in microphones can be used to record stereo
sounds into your application.
Power button Slide the power button to turn the computer’s power on
and off.
Power button Set this lock to the locked position to prevent inadvertent
lock power on or off.
Power source/ LEDs let you monitor the status of various computer
system indicators functions. Details are given in the Indicators section.
Sensor switch This switch shuts down the computer when you close the
cover in laptop mode and the panel power on/off feature is
enabled. This switch does not shut down the computer
when operating in tablet mode.
Touch pad A Touch pad located in the center of the palm rest is used
to control the on-screen pointer. Refer to the Using the
Touch pad section in Chapter 4, Operating Basics.
Touch pad Control buttons close to the Touch pad let you select
control buttons menu items or manipulate text and graphics designated by
the on-screen pointer.
Windows Security This button functions as the same to Ctrl + Alt + Del
tablet button keys to show Windows Task Manager.
Cross Function This button functions as the same to Enter key when
button tapped, or shows the menu screen when pressed for
more than a second.
Speaker The speaker emits sound generated by your software as
well as audio alarms, such as low battery condition,
generated by the system.
ESC/Rotation Press this button more than one second to change the
button orientation of the screen. This button also functions as
ESC. When Rotation Utility is running, the top and
bottom of the screen are automatically recognized to
change the orientation by pressing this button.
![](/img.php?id=551600&img=bg33.png)
2-9
T
HE
G
RAND
T
OUR
Indicators
Pen Icons The four icons on the right of the display allow you to run
an application or perform other operations such as holding
down the Shift key or the Ctrl key by tapping an icon with
the pen.
Pen Button 1 Tapping this icon will run Office OneNote. If Office
OneNote is already running, tapping this icon is equivalent
to pressing Ctrl + C (copy).
Pen Button 2 Tapping this icon will change the system into Multi
Monitor mode that is useful for presentation. If Office
OneNote is already running, tapping this icon is equivalent
to pressing Ctrl + X (cut).
Pen Button 3 Tapping this icon is equivalent to holding down the Shift
key. If Office OneNote is already running, tapping this icon
is equivalent to pressing Ctrl + V (paste).
Pen Button 4 Tapping this icon is equivalent to holding down the Ctrl
key. If Office OneNote is already running, pressing this
icon is equivalent to pressing Ctrl + Z (undo).
Indicators
Figure 2-7 shows the indicators, which light when various computer operations are
in progress.
Figure 2-7 The power source/system indicators(laptop mode)
WIRELESS
COMMUNICATION
DISK
BATTERY
POWER
DC IN 15V
![](/img.php?id=551600&img=bg34.png)
User's Manual
2-10
THE GRAND TOUR
Figure 2-8 The power source/system indicators (tablet mode)
Power source/system indicators
DC IN 15V The DC IN 15V indicator glows green when DC power is
supplied from the AC power adaptor. If the adaptor’s
output voltage is abnormal or if the power supply malfunc-
tions, this indicator flashes in orange.
Power The Power indicator glows green when the computer is
on. If you turn off the computer in Resume mode, this
indicator blinks orange (one second on, two seconds off)
while the computer shuts down.
Battery The Battery indicator shows the condition of the charge.
Green means fully charged and orange means being
charged. Refer to Chapter 6, Power and Power-Up Modes.
Disk The Disk indicator glows in green when the computer is
accessing a disk drive.
Wireless The Wireless communication indicator lights when
communication the Bluetooth and Wireless LAN functions are turned on.
The figures below show the positions of the keypad overlay indicators and the
CapsLock indicator.
When the F10 key indicator glows, the keypad overlay lets you control the cursor.
When the F11 key indicator glows, the keypad overlay lets you enter numbers.
WIRELESS
COMMUNICATION
DISK BATTERY
POWER
DC IN 15V
![](/img.php?id=551600&img=bg35.png)
2-11
T
HE
G
RAND
T
OUR
Indicators
Figure 2-9 Keypad overlay indicators
When the CapsLock indicator glows, the keyboard is in all-caps mode.
Figure 2-10 CapsLock indicator
Keyboard indicator
Caps Lock This indicator glows green when the alphabet keys are
locked in uppercase.
Arrow mode When the Arrow mode indicator lights green, you can
use the keypad overlay (white labeled keys) as cursor
keys. Refer to the Keypad overlay section in Chapter 5,
The Keyboard.
Numeric mode You can use the keypad overlay (white labeled keys) for
numeric input when the Numeric mode indicator lights
green. Refer to the Keypad overlay section in Chapter 5,
The Keyboard.
ARROW MODE NUMRIC MODE
CAPS LOCK
![](/img.php?id=551600&img=bg36.png)
User's Manual
2-12
THE GRAND TOUR
AC adaptor
The AC adaptor converts AC power to DC power and reduces the voltage supplied
to the computer. It can automatically adjust to any voltage from 100 to 240 volts and
to a frequency of either 50 or 60 hertz, enabling you to use the computer in almost
any region.
To recharge the battery, simply connect the AC adaptor to a power source and the
computer. See Chapter 6 Power and Power-Up Modes for details.

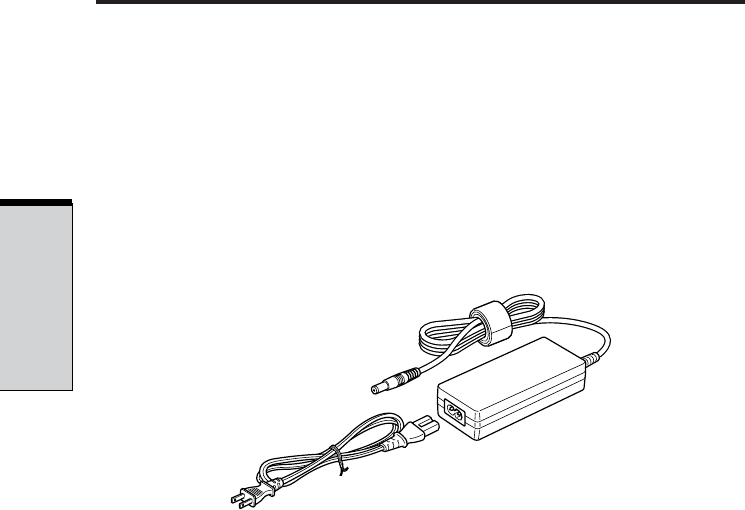

Figure 2-11 The AC adaptor
CAUTION: Use only the AC adaptor that came with the computer or an
equivalent optional adaptor. Use of the wrong adaptor could damage
your computer. TOSHIBA assumes no liability for any damage in such
case.
![](/img.php?id=551600&img=bg37.png)
G
ETTING
S
TARTED
Chapter 3
Getting Started
Setting up your work space .............................................................. 3-2
General conditions .............................................................................. 3-2
Placement of computer....................................................................... 3-3
Seating and posture ........................................................................... 3-3
Lighting .............................................................................................. 3-4
Work habits ........................................................................................ 3-4
Operating the computer in tablet mode .......................................... 3-5
Connecting the AC adaptor .............................................................. 3-6
Opening the display .......................................................................... 3-8
Turning on the power ....................................................................... 3-9
Starting up for the first time............................................................ 3-10
Turning off the power ..................................................................... 3-10
Shut Down mode (Boot mode) .......................................................... 3-10
Hibernation mode ............................................................................. 3-11
Standby mode .................................................................................. 3-13
Restarting the computer ................................................................. 3-15
Restoring the preinstalled software from
the Product Recovery CD-ROM....................................................... 3-15
![](/img.php?id=551600&img=bg38.png)
GETTING S TARTED
![](/img.php?id=551600&img=bg39.png)
G
ETTING
S
TARTED
3-1
Chapter 3
Getting Started
This chapter provides basic information to get you started using your computer. It
covers the following topics:
❑Setting up your work space — for your health and safety
NOTE: Be sure also to read Instruction Manual for Safety & Comfort. This
guide, which is included with the computer, explains product liability.
❑Opening the computer in tablet mode
❑Connecting the AC adaptor
❑Opening the display
❑Turning on the power
❑Starting up for the first time
❑Turning off the power
❑Restarting the computer
❑Restoring the preinstalled software from the product recovery CD-ROM
NOTE: All users should be sure to carefully read the sections turning on
the power.
![](/img.php?id=551600&img=bg3a.png)
3-2
User’s Manual
GETTING S TARTED
Setting up your work space
Establishing a comfortable work site is important for you and your computer. A
poor work environment or stressful work habits can result in discomfort or serious
injury from repetitive strain to your hands, wrists or other joints. Proper ambient
conditions should also be maintained for the computer’s operation. This section
discusses the following topics:
❑General conditions
❑Placement of the computer and peripheral devices
❑Seating and posture
❑Lighting
❑Work habits
General conditions
In general, if you are comfortable, so is your computer, but read the following to
make sure your work site provides a proper environment.
❑Make sure there is adequate space around the computer for proper ventilation.
❑Make sure the AC power cord connects to an outlet that is close to the
computer and easily accessible.
❑The temperature should be 5 to 35 degrees Centigrade (41 to 95 degrees
Fahrenheit) and the relative humidity should be 20 to 80 percent.
❑Avoid areas where rapid or extreme changes in temperature or humidity may
occur.
❑Keep the computer free of dust, moisture, and exposure to direct sunlight.
❑Keep the computer away from heat sources, such as electric heaters.
❑Do not use the computer near liquids or corrosive chemicals.
❑Do not place the computer near objects that create strong magnetic fields (e.g.,
stereo speaker).
❑Do not operate the computer in close proximity to a mobile phone.
❑Leave ample ventilation room for the fan. Do not block the vents.
![](/img.php?id=551600&img=bg3b.png)
G
ETTING
S
TARTED
3-3
Setting up your work space
Placement of computer
Position the computer and peripheral devices to provide comfort and safety.
❑Set the computer on a flat surface at a comfortable height and distance. The
display should be no higher than eye level to avoid eye strain.
❑Place the computer so that it is directly in front of you when you work and
make sure you have adequate space to easily operate other devices.
❑Allow adequate space behind the computer to let you freely adjust the display.
The display should be angled to reduce glare and maximize visibility.
❑If you use a paper holder, set it at about the same height and distance as the
computer.
Seating and posture
The height of your chair in relation to the computer and keyboard as well as the
support it gives your body are primary factors in reducing work strain. Refer to the
following tips and to figure 3-1.
Figure 3-1 Posture and positioning of the computer
❑Place your chair so that the keyboard is at or slightly below the level of your
elbow. You should be able to type comfortably with your shoulders relaxed.
BELOW EYE LEVEL
90O ANGLES
FOOT REST
![](/img.php?id=551600&img=bg3c.png)
3-4
User’s Manual
GETTING S TARTED
❑Your knees should be slightly higher than your hips. If necessary, use a foot
rest to raise the level of your knees to ease pressure on the back of your thighs.
❑Adjust the back of your chair so it supports the lower curve of your spine.
❑Sit straight so that your knees, hips and elbows form approximately 90 degree
angles when you work. Do not slump forward or lean back too far.
Lighting
Proper lighting can improve legibility of the display and reduce eye strain.
❑Position the computer so that sunlight or bright indoor lighting does not reflect
off the screen. Use tinted windows, shades or other screen to eliminate sun
glare.
❑Avoid placing the computer in front of bright light that could shine directly in
your eyes.
❑If possible, use soft, indirect lighting in your computer work area. Use a lamp to
illuminate your documents or desk, but be sure to position the lamp so that it
does not reflect off the display or shine in your eyes.
Work habits
A key to avoiding discomfort or injury from repetitive strain is to vary your activi-
ties. If possible, schedule a variety of tasks into your work day. If you must spend
long periods at the computer, finding ways to break up the routine can reduce
stress and improve your efficiency.
❑Sit in a relaxed posture. Good positioning of your chair and equipment as
described earlier can reduce tension in your shoulders or neck and ease back
strain.
❑Vary your posture frequently.
❑Occasionally stand up and stretch or exercise briefly.
❑Exercise and stretch your wrists and hands a number of times during the day.
❑Frequently, look away from the computer and focus your eyes on a distant
object for several seconds, for example 30 seconds every 15 minutes.
❑Take frequent short breaks instead of one or two long breaks, for example, two
or three minutes every half hour.
❑Have your eyes examined regularly and visit a doctor promptly, if you suspect
you might be suffering from a repetitive strain injury.
![](/img.php?id=551600&img=bg3d.png)
G
ETTING
S
TARTED
3-5
A number of books are available on ergonomics and repetitive strain injury or
repetitive stress syndrome. For more information on these topics or for pointers on
exercises for such stress points as hands and wrists, please check with your library
or book vendor. Also refer to the computer’s Instruction Manual for Safety &
Comfort.
Operating the computer in tablet
mode
NOTE: TOSHIBA Portégé M200 computer can be used in two ways;
ordinary laptop PC and tablet PC. You can use the computer as tablet
PC that is operated with attached Tablet PC Pen by turning LCD panel
in 180 degrees and closing it. This manual calls the use as an ordinary
laptop PC as laptop mode, and the use as tablet PC as tablet mode. Refer
to Changing to the Tablet mode section in Chapter 4, Operating Basic for
the changing of the mode.
When operating the computer in tablet mode, follow the instructions below.

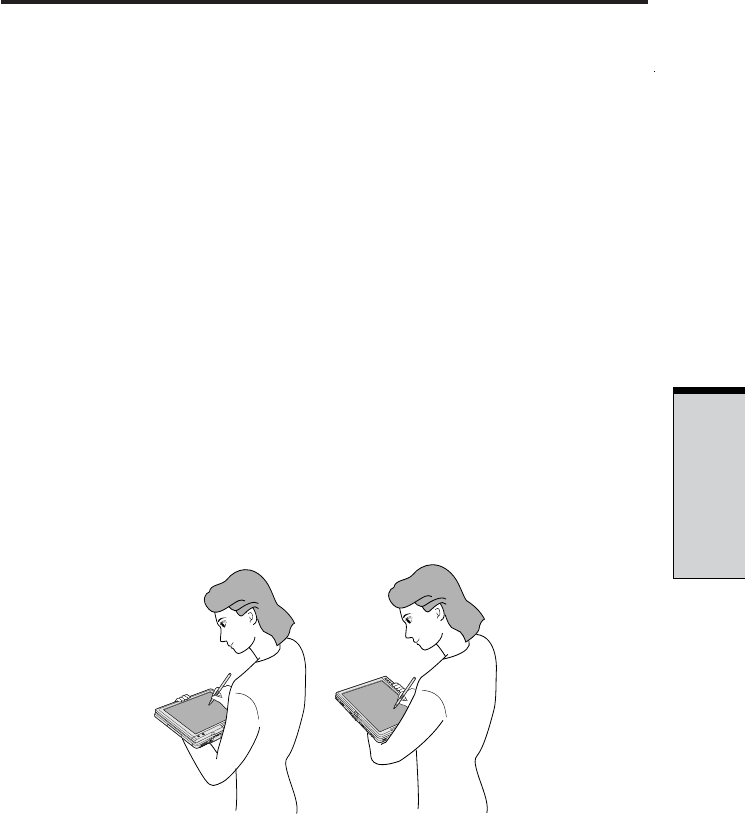

Figure 3-2 Operating the computer in tablet mode
❑Hold the computer firmly on your forearm. Do not block the vent.
❑Remove the connector of AC adapter from the computer when using the
computer in tablet mode held in your forearm.
❑Do not use the computer while walking or driving a car.
Operating the computer in tablet mode
![](/img.php?id=551600&img=bg3e.png)
3-6
User’s Manual
GETTING S TARTED
❑Change to laptop mode and turn off the computer before carrying. Do not carry
the computer with power on or in stand by state. Do not carry the computer
while DISK LED is glowing.
❑Do not expose the computer with rapid temperature change (such as the case
to bring the PC from cold outside into warm room).
When rapid temperature change is unavoidable, turn on the computer after a
couple of hours. Avoid dew condensation.
❑Remove all external peripheral devices and their connection cables from the
computer before carrying.
❑Do not drop the computer nor apply excessive impact on the computer. Do not
leave the computer in an automobile where the computer is exposed to direct
sunbeam.
❑Do not put the computer in tablet mode in a bag.
CAUTION: Do not block the vent of the computer when holding it in
your forearm to use in tablet mode. If you maintain to expose your skin to
the hot air released from the vent for a long time, your skin might suffer
low temperature injury.
Connecting the AC adaptor
Attach the AC adaptor when you need to charge the battery or you want to operate
from AC power. It is also the fastest way to get started, because the Battery Pack
will need to be charged before you can operate from battery power.
The AC adaptor can be connected to any power source supplying from 100 to 240
volts and 50 or 60 hertz. For details on using the AC adaptor to charge the Battery
Pack, refer to Chapter 6, Power and Power-Up Modes.
WARNING: Use only the AC adaptor supplied as an accessory. Other
AC adaptors have different voltage and terminal polarities and use of
them may produce heat and smoke or even result in fine or rupture.
![](/img.php?id=551600&img=bg3f.png)
G
ETTING
S
TARTED
3-7
Connecting the AC adaptor
CAUTIONS: 1. Use only the AC adaptor supplied with your
computer or an equivalent adaptor that is
compatible. Use of any incompatible adaptor
could damage your computer. TOSHIBA assumes
no liability for any damage caused by use of an
incompatible adaptor.
2. When you connect the AC adaptor to
the computer, always follow the steps in the exact
order as described in the User’s Manual.
Connecting the power cable to a live electrical
outlet should be the last step otherwise the
adaptor DC output plug could hold an electrical
change and cause an electrical shock or minor
bodily injury when touched. As a general safety
precaution, avoid touching any metal parts.
1. Connect the power cord to the AC adaptor.
Figure 3-3 Connecting the power cord to the AC adaptor
![](/img.php?id=551600&img=bg40.png)
3-8
User’s Manual
GETTING S TARTED
2. Connect the AC adaptor’s DC output plug to the DC IN 15V port on the back
of the computer.
Figure 3-4 Connecting the adaptor to the computer
3. Plug the power cord into a live wall outlet. The Battery and DC IN 15V
indicator on the front of the computer should glow.
Opening the display
The display panel can be rotated in a wide range of angles for optimal viewing.
1. Push down the display latch on the front of the computer to unlatch the
display panel.
2. Lift the panel up and adjust it to the best viewing angle for you.
CAUTION: User reasonable care when opening and closing the display
panel. Opening it vigorously or slamming it shut could damage the
computer.
Figure 3-5 Opening the display panel
DC IN 15V PORT
DISPLAY LATCH
![](/img.php?id=551600&img=bg41.png)
G
ETTING
S
TARTED
3-9
Turning on the power
Turning on the power
This section describes how to turn on the power.
NOTE: After you turn on the power for the first time, do not turn it off
until you have set up the operating system. Refer to the section Starting
up for the first time in this chapter.
1. If the external diskette drive is connected, make sure it is empty. If a diskette is
in the drive, press the eject button and remove the diskette.
2. Open the display panel.
3. Slide the power button lock toward the up of the computer to unlock the
button, then slide the button toward the right.
Figure 3-6 Turning on the power
POWER BUTTONPOWER BUTTON LOCK
![](/img.php?id=551600&img=bg42.png)
3-10
User’s Manual
GETTING S TARTED
Starting up for the first time
When you first turn on the power, the computer's initial screen is the Microsoft
Windows XP Tablet PC Edition Startup Screen Logo. Follow the on-screen
directions for each screen. During setup, you can click the Back button to return to
the previous screen.
Be sure to read the Windows End User License Agreement display
carefully.
NOTES: 1. You cannot use the Tablet PC Pen when Windows is in
Setup. Use keyboard or touch pad while Windows is setting
up.
2. Be sure to read the License Agreement carefully.
Turning off the power
The power can be turned off in one of the following modes: Shut down (Boot),
Hibernation or Standby mode.
Shut Down mode (Boot mode)
When you turn off the power in Shut Down mode, no data is saved and the
computer will boot to the operating system’s main screen.
1. If you have entered data, save it to the hard disk or to a diskette.
2. Make sure all disk activity has stopped, then remove any CD/DVD-ROMs or
diskette.
CAUTION: Make sure the Disk indicators is off. If you turn off the power
while a disk is being accessed, you can lose data or damage the disk.
3. Click start then click Turn off computer. From the Turn off com-
puter menu select, click Turn off .
4. Turn off the power to any peripheral devices.
CAUTION: Do not turn the computer or devices back on immediately.
Wait a moment to let all capacitors fully discharge.
![](/img.php?id=551600&img=bg43.png)
G
ETTING
S
TARTED
3-11
Hibernation mode
The hibernation feature saves the contents of memory to the hard disk when the
computer is turned off. The next time the computer is turned on, the previous state
is restored. The hibernation feature does not save the status of peripheral devices.
CAUTIONS: 1. Save your data. While entering hibernation mode, the
computer saves the contents of memory to the HDD.
However, for safety sake, it is best to save your data
manually.
2. Data will be lost if you remove the battery or disconnect
the AC adaptor before the save is completed. Wait for the
Disk indicator to go out.
3. Do not install or remove a memory module while the
computer is in hibernation mode. Data will be lost.
Benefits of hibernation
The hibernation feature provides the following benefits:
❑Saves data to the hard disk when the computer automatically shuts down
because of a low battery.
NOTE: For the computer to shut down in hibernation mode, the hiberna-
tion feature must be enabled in two places in TOSHIBA Power Saver: the
Hibernate window and the Battery Alarm item of the Alarm window.
Otherwise, the computer will shut down in Standby mode. If battery power
becomes depleted, data saved in Standby mode will be lost.
❑You can return to your previous working environment immediately when you
turn on the computer.
❑Saves power by shutting down the system when the computer receives no
input or hardware access for the duration set by the system hibernate feature.
❑You can use the panel power off feature.
Turning off the power
![](/img.php?id=551600&img=bg44.png)
3-12
User’s Manual
GETTING S TARTED
Starting Hibernation
NOTE: You can also enable Hibernation by pressing Fn + F4. See Chapter
5, The Keyboard for details.
To enter Hibernation mode, follow the steps below.
1. Click start.
2. Select Turn Off Computer.
3. Open the Turn Off Computer dialog box. Hibernate is not displayed.
4. Press the Shift key. The Standby item will change to Hibernate.
5. Select Hibernate.
Automatic Hibernation
The computer will enter Hibernate mode automatically when you slide the power
button or close the lid. First, however, make the appropriate settings according to
the steps below.
1. Open the Control Panel.
2. Open Performance and Maintenance and open Power Options.
3. Select the Hibernate window in the Power Options Properties,
select the Enable hibernation check box and click the Apply button.
4. Open TOSHIBA Power Saver.
5. Select the Setup Action window.
6. Enable the desired Hibernation settings for When I slide the power
button and When I close the lid.
7. Click the OK button.
Data save in hibernation mode
When you turn off the power in hibernation mode, the computer takes a moment to
save current memory data to the hard disk. During this time, the Disk indicator will
light.
After you turn off the computer and memory is saved to the hard disk, turn off the
power to any peripheral devices.
CAUTION: Do not turn the computer or devices back on immediately.
Wait a moment to let all capacitors fully discharge.
![](/img.php?id=551600&img=bg45.png)
G
ETTING
S
TARTED
3-13
Turning off the power
Standby mode
If you have to interrupt your work, you can turn off the power without exiting from
your software. Data is maintained in the computer’s main memory. When you turn
on the power again, you can continue working right where you left off.
NOTES: 1. When the AC adaptor is connected, the computer will go
into Standby mode according to the settings in the
TOSHIBA Power Saver utility.
2. To restore operation from Standby mode, slide the power
button or press any key. The latter action works only if
Wake-up on Keyboard is enabled in HW Setup.
3. If the computer automatically enters Standby mode while a
network application is active, the application might not be
restored when the computer wakes up from Standby.
4. To prevent the computer from automatically entering
Standby mode, disable Standby in TOSHIBA Power Saver.
That action, however, will nullify the computer’s Energy
Star compliance.
CAUTIONS: 1. Before entering Standby mode, be sure to save your
data.
2. Do not install or remove a memory module while the
computer is in standby mode. The computer or the
module could be damaged.
3. Do not remove the battery pack while the computer is in
standby mode (unless the computer is connected to an
AC power source). Data in memory will be lost.
4. If you carry the computer on board an aircraft or into a
hospital, be sure to shut down the computer in
hibernation mode or in shutdown mode to avoid radio
signal interference.
![](/img.php?id=551600&img=bg46.png)
3-14
User’s Manual
GETTING S TARTED
Benefits of standby
The standby feature provides the following benefits:
❑Restores the previous working environment more rapidly than does hiberna-
tion.
❑Saves power by shutting down the system when the computer receives no
input or hardware access for the duration set by the System Standby feature.
❑You can use the panel power off feature.
Executing standby
NOTE: You can also enable Standby by pressing Fn + F3. See Chapter 5,
The Keyboard, for details.
You can enter standby mode in one of three ways:
1. Click Start, click Turn Off Computer and click Stand by.
2. Close the display panel. This feature must be enabled. Refer to the System
Power Mode item in TOSHIBA Power Saver Utility described in the Control
Panel.
Open Performance and Maintenance and open TOSHIBA Power
Saver.
3. Slide the power button. This feature must be enabled. Refer to the System
Power Mode item in TOSHIBA Power Saver Utility described in the Control
Panel.
When you turn the power back on, you can continue from where you left when you
shut down the computer.
NOTES: 1. When the computer is shut down in standby mode, the
power indicator flashes in orange.
2. If you are operating the computer on battery power, you
can lengthen the operating time by shutting down in
hibernation mode. Standby mode consumes more power.
![](/img.php?id=551600&img=bg47.png)
G
ETTING
S
TARTED
3-15
Restarting the computer
Standby limitations
Standby will not function under the following conditions:
❑Power is turned back on immediately after shutting down.
❑Memory circuits are exposed to static electricity or electrical noise.
Restarting the computer
Certain conditions require that you reset the system. For example, if:
❑You change certain computer settings.
❑An error occurs and the computer does not respond to your keyboard
commands.
There are three ways to restart the computer system:
1. Press Ctrl + Alt + Del or Windows Security tablet button to display the
Windows Task Manager, then select Shutdown and Restart.
2. Select Restart from the Turn Off Computer window in the start menu.
3. Slide the power button and hold it down for five seconds. Wait 10 to 15
seconds, then turn the power on again by sliding the power button.
Restoring the preinstalled software
from the Product Recovery CD-ROM
If preinstalled files are damaged, use the Product Recovery CD-ROM to restore
them. To restore the operating system and all preinstalled software, follow the steps
below.
CAUTION: When you reinstall the Windows operating system, the hard
disk will be reformatted and all data will be lost.
1. Load the Product Recovery CD-ROM in the external optional optical disk drive
and turn off the computer’s power.
2. Hold down the F12 key and turn on the power. When In Touch with
Tomorrow TOSHIBA appears, release the F12 key.
3. Use the left or right cursor key to select the CD-ROM icon in the display
menu. For details, refer to the Boot priority section in Chapter 7, HW Setup.
4. Follow the on-screen instructions.
![](/img.php?id=551600&img=bg48.png)
3-16
User’s Manual
GETTING S TARTED
![](/img.php?id=551600&img=bg49.png)
O
PERATING
B
ASICS
Chapter 4
Operating Basics
Using the Touch Pad ......................................................................... 4-1
Using the Tablet PC Pen and Reserve Pen ..................................... 4-2
Inserting the Tablet PC Pen ................................................................ 4-4
Removing the Tablet PC Pen .............................................................. 4-5
Pen actions ........................................................................................ 4-5
Single tap ........................................................................................... 4-5
Double tap .......................................................................................... 4-5
Press and hold ................................................................................... 4-5
Drag ................................................................................................... 4-6
Drag and drop ..................................................................................... 4-6
Replacing the pen tip .......................................................................... 4-6
Inserting the Reserve Pen ................................................................... 4-7
Removing the Reserve Pen ................................................................. 4-7
Changing to the Tablet mode........................................................... 4-8
Changing the screen orientation ................................................... 4-10
Method 1: Changing the screen orientation
using TOSHIBA Accelerometer Utilities ............................................ 4-11
Method 2: Changing the screen orientation
using Enter/Menu Button .................................................................. 4-12
Method 3: Changing the screen orientation
using Task Bar ................................................................................. 4-12
Changing to the laptop mode......................................................... 4-13
Using the USB FDD Kit .................................................................... 4-13
Connecting the USB diskette drive ................................................... 4-14
Disconnecting the USB diskette drive ............................................... 4-15
Diskette care .................................................................................... 4-15
Wireless communications ............................................................... 4-16
Wireless LAN ................................................................................... 4-16
Bluetooth wireless technology .......................................................... 4-17
Wireless communication switch ....................................................... 4-18
Wireless communication Indicator .................................................... 4-18
LAN ................................................................................................... 4-19
LAN cable types ............................................................................... 4-19
Connecting LAN cable ...................................................................... 4-19
Disconnecting LAN cable ................................................................. 4-20
![](/img.php?id=551600&img=bg4a.png)
OPERATING BASICS
Using the microphones ................................................................... 4-21
Audio ................................................................................................ 4-21
Using the internal modem .............................................................. 4-24
Region selection ............................................................................... 4-25
Properties menu ............................................................................... 4-25
Connecting ....................................................................................... 4-26
Disconnecting................................................................................... 4-27
Cleaning the computer ................................................................... 4-27
Moving the computer ...................................................................... 4-28
Heat dispersal .................................................................................. 4-28
![](/img.php?id=551600&img=bg4b.png)
4-1
O
PERATING
B
ASICS
Chapter 4
Operating Basics
This chapter gives information on basic operations including using the Touch Pad,
the Tablet PC Pen, the external diskette drive, the wireless communication, LAN and
the internal modem. It also provides tips on caring for your computer and on heat
dispersal.
Using the Touch Pad
To use the Touch Pad, simply press and move your finger tip across it in the
direction you want the on-screen pointer to go.
Figure 4-1 Touch Pad and Touch Pad control buttons
Two Touch Pad control buttons are used like the buttons on a mouse pointer. Press
the left button to select a menu item or to manipulate text or graphics designated by
the pointer. Press the right button to display a menu or other function depending on
the software you are using.
CAUTION: Do not press the touch pad too hard nor press it with a sharp
object such as a ball point pen against the touch pad. The touch pad
could be damaged.
TOUCH PAD
TOUCH PAD
CONTROL BUTTONS
![](/img.php?id=551600&img=bg4c.png)
User's Manual
4-2
OPERATING BASICS
For some functions, you can tap the touch pad instead of pressing a control button.
Click Tap the touch pad once.
Double-click Tap the touch pad twice.
Drag and drop 1. Select the material you want to move.
2. Leave your finger on the Touch Pad after selecting the
material and move it.
3. Lift your finger to drop the item at a place where you
want it.
Scroll Vertical: Move your finger to and fro the right edge of the
touch pad.
Horizontal: Move your finger left or right along the bottom
edge of the touch pad.
Using the Tablet PC Pen and Reserve
Pen
Eraser button You can use this button as an eraser when using the
application software for graphics. The application software
for texts enables you to select and delete characters with
one-touch action.
Pen button Acts as the clicking of the right touch pad control button.
Pen point Acts as the clicking of the left touch pad control button.
Figure 4-2 The Tablet PC Pen and Reserve Pen
ERASER BUTTON
PEN BUTTON
PEN POINT
PEN BUTTON
PEN POINT
![](/img.php?id=551600&img=bg4d.png)
4-3
O
PERATING
B
ASICS
You can use the Tablet PC Pen to execute actions and enter data. Hold the Tablet
PC Pen in a natural position and tap, press or trace on the screen lightly. Before you
begin using the TOSHIBA Portégé M200 for the first time, you will need to calibrate
the Tablet PC Pen. Refer to the Pointing device section in Chapter9, Trouble
shooting.
Some computers in the series are equipped with a Reserve Pen
CAUTIONS: Observe the following precautions on the handling of the
Tablet PC Pen.
1. Do not tap or press the Tablet PC Pen forcefully against
the Display screen. It could damage the Tablet PC Pen
and Display screen.
2. Avoid using or keeping the Tablet PC Pen in the place
of rapid temperature change or in a car where the
Tablet PC Pen is exposed to direct sunbeam.
Keep the Tablet PC Pen without pressure constantly
applied to the switch of the Tablet PC Pen. Constant
pressure to the button causes a malfunction or charac-
teristic deterioration.
3. The Tablet PC Pen is composed of precision parts. Do
not drop the Tablet PC Pen. Strong impact causes a
malfunction or characteristic deterioration.
4. Do not apply excessive force to the Tablet PC Pen point
and the side switch. Excessive force applied to these
parts causes short life or characteristic deterioration.
(Allowable force to pen point, Eraser button, Pen
button: less than 1 kg, for less than 30 seconds)
5. Avoid water to enter in the Tablet PC Pen or dew
condensation. Intrusion of water or dew condensation
causes malfunction.
6. Do not disassemble the Tablet PC Pen. It causes
maladjustment or short life.
7. Do not stain the Tablet PC Pen with cosmetics or
chemicals. It causes deterioration of appearance.
Use a glass wiping cloth or dry cloth to clean the Tablet
PC Pen when cleaning. Do not use volatile liquid such
as alcohol, thinner or petroleum benzine.
Using the Tablet PC Pen and Reserve Pen
![](/img.php?id=551600&img=bg4e.png)
User's Manual
4-4
OPERATING BASICS
8. Do not apply excessive force to the Tablet PC Pen point.
Crooked or deformed pen point due to excessive force
causes malfunction.
9. Keep the small parts of the Tablet PC Pen such as the
pen point or the knob of the side switch away from
infant to prevent them to swallow.
10. Do not use a ball point pen instead of the Tablet PC
Pen delivered with the product.
11. Do not use a broken pen tip.
12. The lead cannot be replaced if it is worn.(Reserve
Pen only)
NOTE: TOSHIBA is not liable to the quality problem of the products due
to the use of the Tablet PC Pen in an environment where above condi-
tions are not satisfied because of the use by unspecified number of users.
Inserting the Tablet PC Pen
Figure 4-3 Inserting the Tablet PC Pen
The Tablet PC Pen is included in the product when purchased. Take out the Tablet
PC Pen from the carton and install it to the computer as the following.
1. Insert the Tablet PC Pen into the pen holder until it clicks.
NOTE: The Tablet PC Pen and the emergency Tablet PC Pen are
different in shape. Do not insert the Reserve Pen into the pen holder.
![](/img.php?id=551600&img=bg4f.png)
4-5
O
PERATING
B
ASICS
Using the Tablet PC Pen and Reserve Pen
Removing the Tablet PC Pen
Figure 4-4 Removing the Tablet PC Pen
1. Gently push the Tablet PC Pen down. The pen rises up slightly.
2. Pull the Tablet PC Pen to remove it from the holder.
Pen actions
You can use the Tablet PC Pen to enter data, start programs, move objects and
execute other actions.
Single tap
Lightly tap the tip of the Tablet PC Pen on an object and lift it immediately to
execute an action. A single tap is similar to clicking the left touch pad control
button.
Double tap
Lightly tap the tip of the Tablet PC Pen twice on an object and lift it immediately to
execute an action. A double-tap is similar to double-clicking the left touch pad
control button.
Press and hold
Touch the tip of the Tablet PC Pen to the display screen and hold it there to display
a pop-up menu or other action. Press and hold is similar to clicking the right touch
pad control button.
![](/img.php?id=551600&img=bg50.png)
User's Manual
4-6
OPERATING BASICS
Drag
Touch the Tablet PC Pen to the screen. Without lifting the Tablet PC Pen, drag it
across the screen to select text or objects.
Drag and drop
Touch the Tablet PC Pen to the screen to select an object. Without lifting the Tablet
PC Pen, drag it across the screen. Lift the Tablet PC Pen to drop the object to a new
location.
Replacing the pen tip
Figure 4-5 Replacing the pen tip
1. To replace the pen tip, pinch the tip with a draw-out tool and pull it out.
2. Insert a new tip into the Tablet PC Pen at the flat end of the tip and press it to
seat securely.
NOTES: 1. Short and worn pen point is difficult to pull out. Replace
the pen point with refill before it becomes too short.
2. TOSHIBA recommends the customer to keep another pen
set as a spare. You can buy the pen set from TOSHIBA
dealer.
CAUTION: Do not use the broken pen tip. When it breaks, replace it
with a refill delivered with the Tablet PC Pen. Use of the broken pen tip
causes to make scratches on the display panel. When the reserve refills
have run out, purchase a new pen set from a TOSHIBA dealer.
![](/img.php?id=551600&img=bg51.png)
4-7
O
PERATING
B
ASICS
Using the Tablet PC Pen and Reserve Pen
Inserting the Reserve Pen
1. Remove the Battery Pack.
2. Gently push the Reserve Pen into the pen holder to insert it.
3. Reinstall the Battery Pack.
NOTE: Refer to the Replacing the Battery Pack section in Chapter 6,
Power and Power-Up Modes for more information on how to remove and
reinstall the Battery Pack.

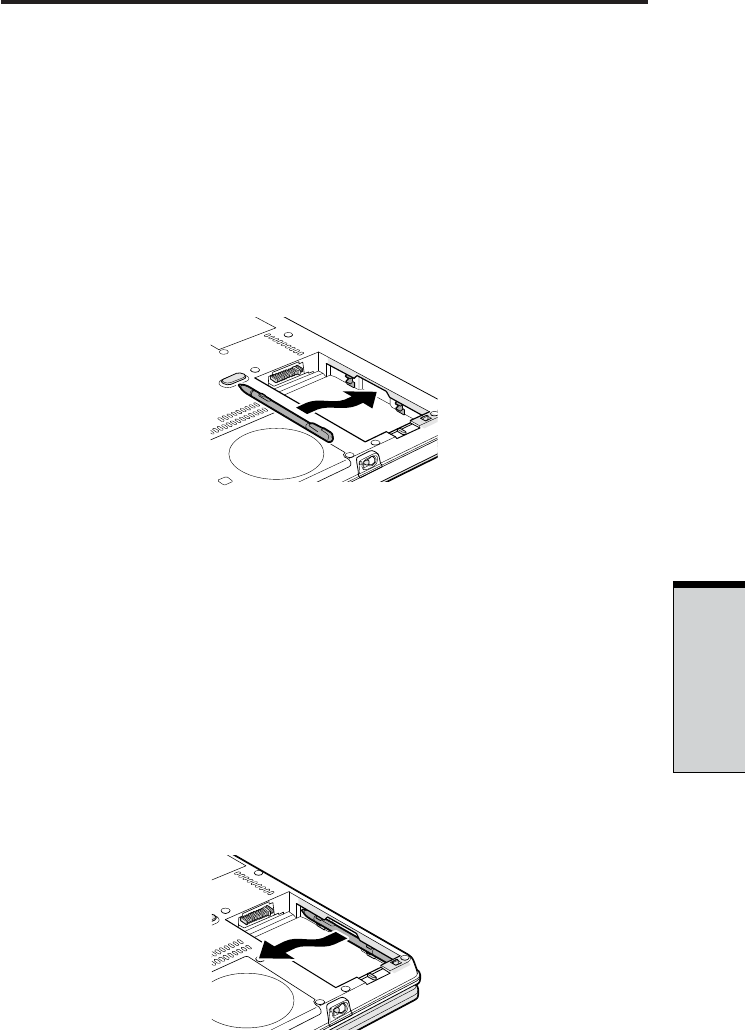

Figure 4-6 Inserting the Reserve Pen
Removing the Reserve Pen
1. Remove the Battery Pack.
2. Remove the Reserve Pen from the holder.
3. Reinstall the Battery Pack.
NOTE: Refer to the Replacing the Battery Pack section in Chapter 6,
Power and Power-Up Modes formation on how to remove and reinstall
the Battery Pack.
Figure 4-7 Removing the Reserve Pen
![](/img.php?id=551600&img=bg52.png)
User's Manual
4-8
OPERATING BASICS
Changing to the Tablet mode
To change the laptop mode to the tablet mode, follow the instructions below.

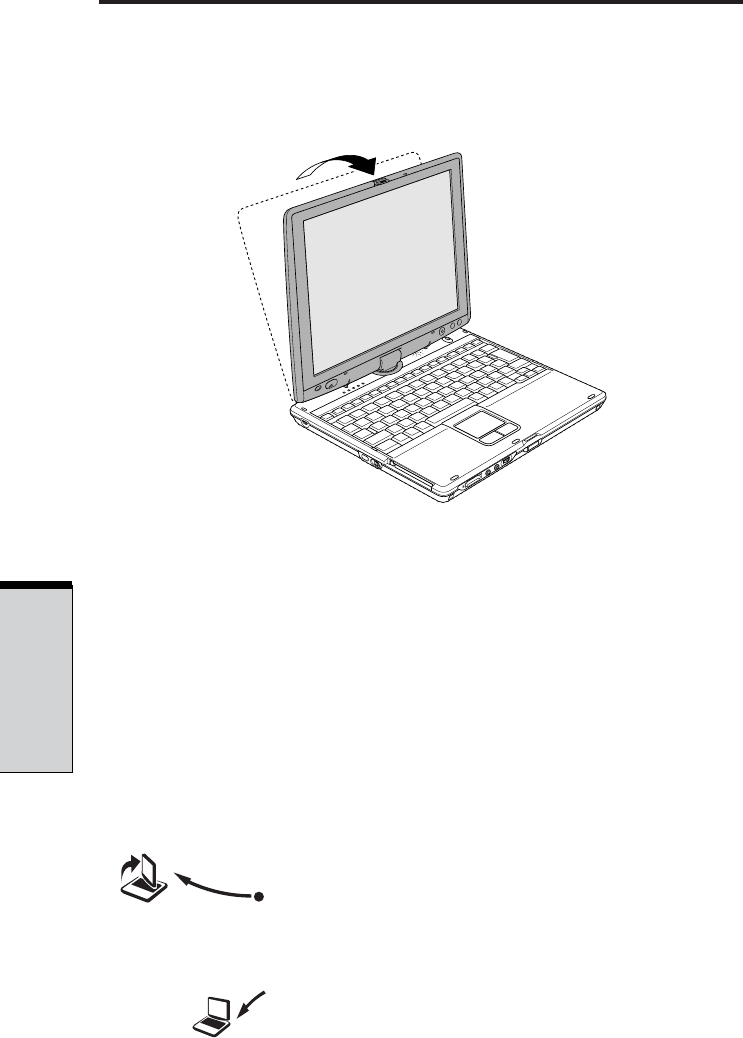

Figure 4-8 Changing to the Tablet mode (1)
CAUTION: Place the computer on a stable, flat place such as a desktop
and rotate the display panel slowly, holding the panel at its lower part.
The display panel is designed not to rotate more than 180 degrees.
Rotating the display panel more than 180 degrees with an excessive
force causes to damage the panel.
The rotating direction to change the mode is the following:
From laptop mode to Tablet mode: clockwise 180 degrees
Tablet Turn the display panel to the direction indicated by the
mode icon Tablet mode icon .
From Tablet mode to laptop mode: counter-clockwise 180 degrees
Laptop mode icon Turn the display panel to the direction indicated by
the laptop mode icon.
![](/img.php?id=551600&img=bg53.png)
4-9
O
PERATING
B
ASICS
Changing to the Tablet mode
1. Open the display panel to the upright position.
Figure 4-9 Changing to the Tablet mode (2)
2. Rotate the display panel clockwise slowly.
NOTE: Do not apply excessive rotating force to the display panel. It
causes damage of the display panel.
3. Turn the Display latch in 180 degrees to the down side.
Figure 4-10 Changing to the Tablet mode (3)
DISPLAY LATCH
![](/img.php?id=551600&img=bg54.png)
User's Manual
4-10
OPERATING BASICS
4. Close the display panel slowly with LCD surface outside.
Figure 4-11 Changing to the Tablet mode (4)
5. Turn the Display latch downward.
6. Insert the Display latch in the slit.
7. Press the display panel downward softly.
Changing the screen orientation
The orientation of desktop screen can be changed to one of the following four
display modes:
DISPLAY LATCH
SLIT
Primary landscape Secondary landscape
Primary portrait Secondary portrait
![](/img.php?id=551600&img=bg55.png)
4-11
O
PERATING
B
ASICS
Changing the screen orientation
NOTES:
1. Execute the following applications on Primary landscape:
• 3D game software
• 3D screen saver
• Playback of motion picture, such as a case of DVD-Video playback
on the computer connecting an external DVD-ROM Drive.
CAUTION: Do not play 3D game software or replay DVD-Video on the
screen other than Primary landscape. An abnormality will appear on the
Windows screen display when you replay a DVD-Video on the screen
other than Primary landscape because DVD playback software can boot
only in the Primary landscape.
2. The screen cannot rotate in one of the following cases. Quit the
running application and then rotate the screen:
• Running of the application that changes the screen resolution
dynamically (such as a game that is execute on full-screen mode)
• DOS prompt in full-screen mode
• Running of 3D screen saver
CAUTION: An abnormality will appear a part of the Windows screen
display when you change the PC from Tablet mode to laptop mode while
3D screen saver is running. In such a case, press any key in the laptop
mode to cancel 3D screen saver.
Method 1: Changing the screen orientation
using TOSHIBA Accelerometer Utilities
When TOSHIBA Accelerometer Utilities is enabled, you can invoke the Start menu,
switch active windows or launch predefined applications by shaking the computer
vertically or horizontally, or tilting it.
CAUTION: When you shake the computer:
❑Do not shake the computer too strongly.
If so, the computer may drop from your hands or hit persons or things around.
❑Avoid using the computer in crowded places. (e.g. in commuter trains or in
busy streets)
This may cause injury to a child or adult, and damage to the computer.
![](/img.php?id=551600&img=bg56.png)
User's Manual
4-12
OPERATING BASICS
It is safe that you hold the computer with both hands horizontally as shown in the
example.

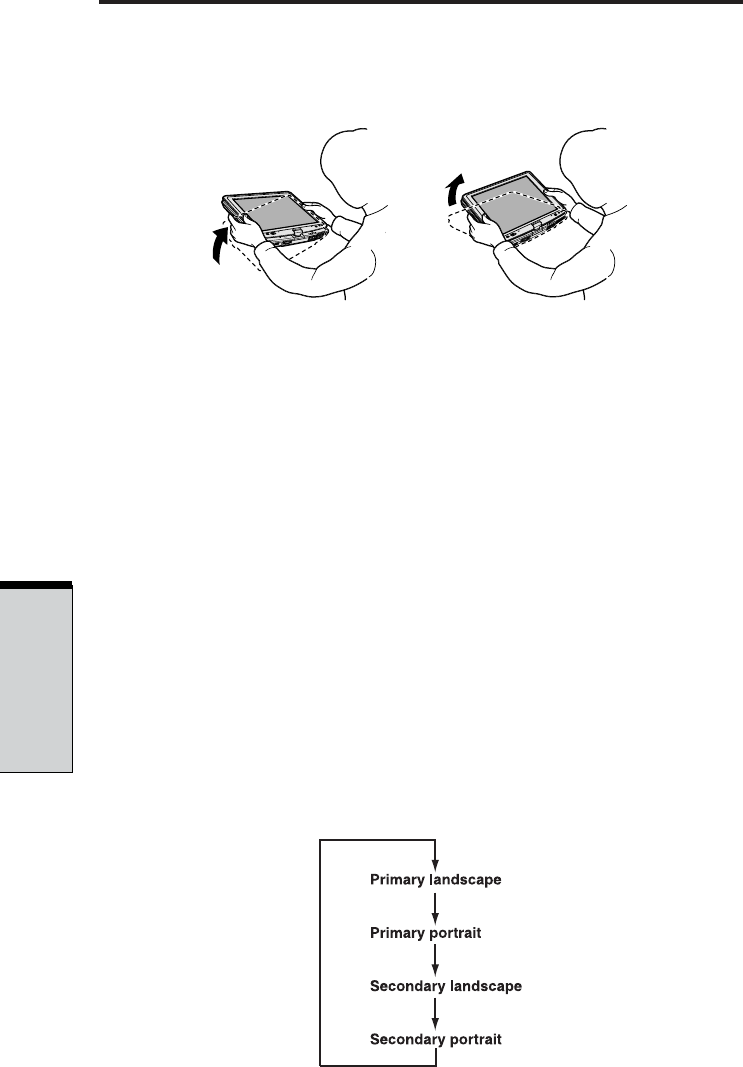

Figure 4-12 Shake the computer
Method 2: Changing the screen orientation
using Enter/Menu Button
1. Press Enter/Menu Button for more than one second. TOSHIBA Table Menu
will appear.
2. Point the cursor at Screen Rotation using Arrow Button (1) or (2) and press
Enter/Menu Button.
3. Select the rotation angle using Arrow Button (1) or (2) and press Enter/Menu
Button.
Method 3: Changing the screen orientation
using Task Bar
1. Right click "Change tablet and pen settings" icon in the Task Bar. Click
"Change screen orientation" from the menu.
The screen orientation is set to change in the following order when purchased.
![](/img.php?id=551600&img=bg57.png)
4-13
O
PERATING
B
ASICS
Changing to the laptop mode
You can change the above sequence in the following procedure:
(1) Double click Change tablet and pen settings icon in the Task Bar.
(2) Click Change button in Display tab.
(3) Change the sequence in Orientation Sequence Settings screen. Click
OK button.
NOTE: You can set the orientation of the desktop screen just after
rotating the display from
Start
−> −>
−> −>
−>
All Programs
−> −>
−> −>
−>
Tablet PC
−> −>
−> −>
−>
TOSHIBA
Rotation Utility
Changing to the laptop mode
To change the Tablet mode to the laptop mode, follow the instructions below.
1. Press the Display latch and raise the display to the upright position carefully.
2. Rotate the display counter-clockwise slowly.
3. Turn the display latch toward you for the next closing of the display.
Using the USB FDD Kit
A 3 1/2" diskette drive connects to the computer’s USB port. It accommodates 1.44-
megabyte or 720-kilobyte diskettes. Refer to the Options section in Chapter 1,
Introduction, for more information.
NOTE: The USB FDD Kit is an option with some models.
Figure 4-13 The 3 1/2" USB FDD Kit
DISK-IN-USE
INDICATOR
DISKETTE SLOT EJECT BUTTON
USB CONNECTOR
![](/img.php?id=551600&img=bg58.png)
User's Manual
4-14
OPERATING BASICS
Eject button When a diskette is fully seated in the drive, the eject
button pops out. To remove a diskette, push in the eject
button and the diskette pops out partially for easy removal.
Diskette slot Insert diskettes in this slot.
Disk-In-Use This indicator lights when the diskette is being
Indicator accessed.
CAUTION: Check the Disk-In-Use indicator when you use the diskette
drive. Do not press the eject button, disconnect a drive cable or turn off
the computer while the light is glowing. Doing so could destroy data and
damage the diskette or the drive.
NOTES: 1. The external diskette drive should be placed on a flat,
horizontal surface when in use. Do not set the drive on an
incline greater than 20o while it is operating.
2. Do not set anything on top of the diskette drive.
3. If you need to boot the computer from the diskette drive or
if you use an OS that does not support USB, you must set
the USB-FDD Legacy Emulation feature in HW Setup to
Enabled. Refer to the USB section in Chapter 7, HW SetUP.
Connecting the USB diskette drive
To connect the drive, plug the diskette drive connector into a USB port. Refer to
Figure 4-13.
NOTE: Make sure the connector is right side up and properly aligned
with the socket. Do not try to force the connection, doing so can damage
the connecting pins.
Figure 4-14 Connecting the diskette drive to the computer
USB CONNECTOR
DISC-IN-USE INDICATOR
DISKETTE SLOT EJECT BUTTON
![](/img.php?id=551600&img=bg59.png)
4-15
O
PERATING
B
ASICS
NOTE: If you connect the diskette drive after turning on the computer, it
will take about 10 seconds for the computer to recognize the drive. Do
not disconnect and reconnect before 10 seconds has elapsed.
Disconnecting the USB diskette drive
When you have finished using the diskette drive, follow the procedures below to
disconnect it:
1. Wait for the indicator light to go out to make sure all diskette activity has
stopped.
CAUTION: If you disconnect the diskette drive or turn off the power
while the computer is accessing the drive you may lose data or damage
the diskette or the drive.
2. Pull the diskette drive connector out of the USB port.
Diskette care
Handle your diskettes with care. The following simple precautions will increase the
lifetime of your diskettes and protect the data you store on them:
1. Store your diskettes in the container they came in to protect them and keep
them clean. If a diskette is dirty, do not use cleaning fluid. Clean it with a soft
damp cloth.
2. Do not slide back the diskette’s protective metal covering or touch the
diskette’s magnetic surface. Fingerprints may prevent the diskette drive from
reading data from the diskette.
3. Data may be lost if the diskette is twisted; bent; or exposed to direct sunlight
or extreme heat or cold.
4. Do not place heavy objects on your diskettes.
5. Do not eat, smoke, or use erasers near your diskettes. Foreign particles inside
the diskette’s jacket can damage the magnetic surface.
6. Magnetic energy can destroy the data on your diskettes. Keep your diskettes
away from speaker, radios, television sets and other sources of magnetic
fields.
Using the USB FDD Kit
![](/img.php?id=551600&img=bg5a.png)
User's Manual
4-16
OPERATING BASICS
Wireless communications
The computer’s wireless communication function supports both Wireless LAN and
Bluetooth devices.
In this chapter, the descriptions on Wireless LAN or Bluetooth are applicable to the
model equipped with Wireless LAN or Bluetooth function respectively.
Carefully check that the computer is available for Wireless LAN communication in
Tablet mode for Wireless LAN and Bluetooth.
Laptop mode gives the highest reception sensitivity of wireless communication.
Change the operation mode of the computer to the laptop mode when you cannot
use the wireless communication in the Tablet mode.
Also try to use the computer in the laptop mode with the LCD panel open when you
cannot use the wireless communication even if in the laptop mode with the LCD
closed.
The reception sensitivity of wireless communication becomes lower in the operation
mode described below.
Laptop mode (with LCD panel open) > Laptop mode (with LCD panel closed) > Tablet
mode
Wireless LAN
The Wireless LAN is compatible with other LAN systems based on Direct
Sequence Spread Spectrum/Orthogonal Frequency Division Multiplexing radio
technology that complies with IEEE802.11 Wireless LAN standard.(Revision B or G)
The configuration of the built-in Wireless LAN depends on the model you
purchased.
Supported features
It supports the following features:
❑Automatic Transmit Rate Select mechanism in the transmit range of 54, 48, 36,
24, 18, 12, 9 and 6 Mbit/s. (Revision G, A/B, B/G, combo type)
❑Automatic Transmit Rate Select mechanism in the transmit range of 11, 5.5, 2
and 1 Mbit/s. (Revision B)
❑Frequency Channel Selection Revision B/G: 2.4GHz)
❑Roaming over multiple channels
❑Card Power Management
❑Wired Equivalent Privacy (WEP) data encryption, based on the 152 bit
encryption algorithm. (Revision B/G, combo type)
![](/img.php?id=551600&img=bg5b.png)
4-17
O
PERATING
B
ASICS
❑Advanced Encryption Standard (AES) data encryption, based on 256 bit
encryption algorithm. (Revision B/G combo type)
NOTE: Wake-up on LAN does not function on a Wireless LAN.
Security
Be sure to enable WEP (encryption) function. Otherwise your computer will allow
the illegal access by outsider through Wireless LAN to cause illegal intrusion,
eavesdropping, and loss or destruction of stored data. TOSHIBA strongly recom-
mend the customer to enable the WEP function.
Bluetooth wireless technology
BluetoothTM wireless technology eliminates the need for cables between electronic
devices such as desktop computers, printers and mobile phones.
You cannot use the built-in Bluetooth functions and an optional Bluetooth PC card
simultaneously.
Bluetooth wireless technology has the following features:
Worldwide operation
The Bluetooth radio transmitter and receiver operates in the 2.45 GHz band, which is
license-free and compatible with radio systems in most countries in the world.
Radio links
You can easily establish links between two or more devices. The link is maintained
even if the devices are not within line of sight.
Security
Two advanced security mechanisms ensure a high level of security:
❑Authentication prevents access to critical data and makes it impossible to
falsify the origin of a message.
❑Encryption prevents eavesdropping and maintains link privacy.
Wireless communications
![](/img.php?id=551600&img=bg5c.png)
User's Manual
4-18
OPERATING BASICS
Wireless communication switch
You can enable or disable Wireless LAN and Bluetooth function, with the on/off
switch. No transmissions are sent or received when the switch is off. Slide the
switch toward the back of the computer to turn it on and toward the front of the
computer to turn it off.
CAUTION: Set the switch to off in airplanes and hospitals. Check the indicator.
It will stop glowing when the wireless communication function is off.
Wireless communication Indicator
The wireless communication indicator indicates the status of the wireless communi-
cation functions.
Indicator status Indication
Indicator off Wireless communication switch is set to off.
Automatic power down because of overheating.
Power malfunction.
Indicator glows Wireless communication switch is on.
Wireless LAN or Bluetooth is turned on by an
application.
If you used the Task Bar to disable W-LAN, restart the computer or follow the
procedures below to enable the system to recognize W-LAN. Open or click the
following: start, Control Panel, System, Hardware Device Manager,
Network adapters, Atheros AR5001X+ Wireless Network Adapter and
enable.
NOTE: Indication of Wireless Communication Standards (Wireless LAN
and Bluetooth) The indication of Wireless LAN and Bluetooth is de-
scribed on the sticker affixed to the computer. The sticker can be seen by
removing a battery pack from the computer.
![](/img.php?id=551600&img=bg5d.png)
4-19
O
PERATING
B
ASICS
LAN
The computer has built-in support for Ethernet LAN (10 megabits per second,
10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-Tx). This
section describes how to connect/disconnect to a LAN.
CAUTION: Do not install or remove an optional memory module while
Wake-up on LAN is enabled.
NOTE: Wake-up on LAN does not work without the AC adaptor. Leave it
connected, if you are using this feature.
LAN cable types
CAUTION: The computer must be configured properly before connecting
to a LAN. Logging onto a LAN using the computer’s default settings
could cause a malfunction in LAN operation. Check with your LAN
administrator regarding set-up procedures.
If you are using Fast Ethernet LAN (100 megabits per second, 100BASE-TX), be
sure to connect with a CAT5 cable. You cannot use a CAT3 cable.
If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you can
connect with either a CAT5 or a CAT3.
Connecting LAN cable
To connect the LAN cable, follow the steps below.
CAUTION: Connect the AC adaptor before connecting the LAN cable. The AC
adaptor must remain connected during LAN use. If you disconnect the AC
Adaptor while the computer is accessing a LAN, the system may hang up.
1. Turn off the power to the computer and to all external devices connected to
the computer.
LAN
![](/img.php?id=551600&img=bg5e.png)
User's Manual
4-20
OPERATING BASICS
2. Plug one end of the cable into the LAN’s jack. Press gently until you hear the
latch click into place.
Figure 4-15 Connecting the LAN cable
3. Plug the other end of the cable into a LAN hub connector. Check with your
LAN administrator before connecting to a hub.
NOTE: When the computer is exchanging data with the LAN, the LAN
Active indicator glow in orange. When the computer is connected to a
LAN hub but is not exchanging data, the Link indicator glows in green.
Disconnecting LAN cable
To disconnect the LAN cable, follow the steps below.
CAUTION: Make sure the LAN Active indicator (orange LED) is out
before you disconnect the computer from the LAN.
1. Pinch the lever on the connector in the computer and pull out the connector.
2. Disconnect the cable from the LAN hub in the same manner. Check with your
LAN administrator before disconnecting from the hub.
LAN JACK
![](/img.php?id=551600&img=bg5f.png)
4-21
O
PERATING
B
ASICS
Using the microphones
Your computer has a built-in microphones that can be used to record stereo sounds
into your applications. It can also be used to issue voice commands to applications
that support such functions.
Since your computer has a built-in microphones and speaker, "howling" may be
heard under certain conditions. Howling occurs when sound from the speaker is
picked up in the microphones and amplified back to the speaker, which amplifies it
again to the microphones.
This howling occurs repeatedly and causes a very loud, high-pitched noise. It is a
common phenomenon that occurs in any sound system when the microphones
input is output to the speaker (throughput) and the speaker volume is too loud or
too close to the microphones. You can control throughput by adjusting the volume
of your speaker or through the Mute function.
To adjust the volume or activate Mute, click start, point to All Programs, point to
Accessories, point to Entertainment and click Volume Control. In the
Master Volume panel, you can use the slide bars to adjust the volume level or
click Mute at the bottom of the panel.
Audio
This section describes audio controls including sound levels and power
management.
Volume control
The Volume Control utility lets you control the audio volume in Windows for both
playback and recording.
❑To launch Volume Control for playback, click Start, point to All Programs,
point to Accessories, point to Entertainment and click Volume Control.
❑To launch Recording Control, click Options, point to Properties, choose
Recording and click OK.
❑To view details of the Volume Control, click Help on the Volume Control.
Microphone level
The change the microphone gain, follow the steps below.
1. Click Start, point to All Programs, point to Accessories, point to Enter-
tainment and click Volume Control.
Using the microphones
![](/img.php?id=551600&img=bg60.png)
User's Manual
4-22
OPERATING BASICS
2. Click Options and select Advanced Controls.
3. Click Advanced.
4. Check the MIC Boost checkbox.
SoundMAX Control Panel
The SoundMAX control panel lets you control additional functions for the
Microphone Enhancement and Audio Power Management. To launch the
SoundMAX Control Panel, follow the steps below.
1. Click Start and click Control Panel.
NOTE: If you are viewing the Control Panel in Category View, click on
Switch to Classic View.
2. Double-click the SoundMAX icon.
Microphone Enhancements
The Microphone Setup allows you to optimize the microphone input settings for
your particular configuration. Choose Standard Microphone if you have an
ordinary desktop microphone. Choose Headset if you have a wearable micro-
phone that is positioned directly in front of your mouth.
NOTE: SoundMAX Superbeam™ Microphone is for an optional
microphone which is sold by Andrea Electronics. You can get informa-
tion about the microphone at the web site of Andrea Electronics.
You can launch the Setup Wizard from the Control Panel to help you to automati-
cally set proper microphone input volumes and ensure that your voice input(s) are
working correctly. As you speak into the microphone, the Sound Meter indicates
the audio signal that your PC is receiving.
The Noise Reduction enhancement helps to eliminate ambient noise from the
voice input signal to provide a clean and clear signal to applications. This feature
can be used with any microphone.
NOTE: If the Noise Reduction check box is selected, a monaural
sound is recorded when recording by a stereo microphone. You need to
disable this check box if you would like to record a stereo sound by a
stereo microphone.
![](/img.php?id=551600&img=bg61.png)
4-23
O
PERATING
B
ASICS
Figure 4-16 Microphone window
Power management
The audio controller can be powered down when the audio function is idle. To
enable the Audio Power Management, follow the steps below.
1. Clicked the Power Management tab.
2. Select the Normal Power Savings in the Power Mode pull-down list.
NOTE: If the No Power Savings
is selected, the audio controller
always runs.
If you want to a more effect for the power management, you can select another
mode, the High Power Savings which can save the power than the Normal
Power Savings. To select it, follow the steps below.
1. Clicked the Power Management tab.
2. Select the High Power Savings in the Power Mode pull-down list.
3. Input a time in Power Save Delay (Seconds).
NOTE: If the High Power Saving is selected, you need to play an
audio file once before you use a microphone or play an audio CD by the
analog CD audio.
Using the microphones
![](/img.php?id=551600&img=bg62.png)
User's Manual
4-24
OPERATING BASICS
Figure 4-17 Power Management window
Trademarks:
SoundMAX® and the SoundMAX logo are registered trademarks of Analog
Devices, Inc. PureAudio®, DSDA®, and Superbeam® are trademarks of Andrea
Electronics. The Sensaura logo, Virtual Theater and Virtual Ear are trademarks and/
or registered trademarks of Sensaura Limited. Yamaha XGlite is a trademark of
Yamaha Corporation. All other trademarks are the property of their respective
owners. All specifications subject to change without notice. © 2003 Analog
Devices, Inc. All Rights Reserved.
Using the internal modem
If you purchased a computer model with a preinstalled internal modem, read this
section for directions on connecting the modem. Refer to the online help files for the
internal modem and for details on operation of your modem and modem software.
NOTE: The internal modem does not support the voice functions.
All data and fax functions are supported.
CAUTIONS: 1. In case of a lightning storm, unplug the modem cable
from the telephone jack.
2. Do not connect the modem to a digital telephone line.
A digital line will damage the modem.
![](/img.php?id=551600&img=bg63.png)
4-25
O
PERATING
B
ASICS
Using the internal modem
Region selection
Telecommunication regulations vary from one region to another, so you will need to
make sure the internal modem’s settings are correct for the region in which it will be
used.
1. Click start, point to All Programs, point to TOSHIBA, point to Network-
ing and click Modem Region Select.
NOTE: Do not use the Country/Region Select function in the Modem
setup utility in the Control Panel if the function is available. If you
change the Country/Region in the Control Panel, the change may not
take effect.
2. The Region Selection icon will appear in the Windows Task Bar.
3. Click the icon with the primary mouse button to display a list of regions that
the modem supports. A sub menu for telephony location information will also
be displayed. A check will appear next to the currently selected region and
telephony location.
4. Select a region from the region menu or a telephony location from the sub-
menu.
• When you click a region it becomes the modem’s region selection, and the
New Location for telephony will be set automatically.
• When you select a telephony location, the corresponding region is automati-
cally selected and it becomes the modem’s current region setting.
Properties menu
Click the icon with the secondary mouse button to display the following menu.
Setting
You can enable or disable the following settings:
AutoRun Mode
Region Select Utility starts automatically when you start up the operating
system.
![](/img.php?id=551600&img=bg64.png)
User's Manual
4-26
OPERATING BASICS
Open the Dialing Properties dialog box after selecting region.
The dialing properties dialog box will be displayed automatically after you
select the region.
Location list for region selection.
A submenu appears displaying location information for telephony.
Open dialog box, if the modem and Telephony Current
Location region code do not match.
A warning dialog box is displayed if current settings for region code and
telephony location are incorrect.
Modem Selection
If the computer cannot recognize the internal modem, a dialog box is displayed.
Select the COM port for your modem to use.
Dialing Properties
Select this item to display the dialing properties.
CAUTION: If you are using the computer in Japan, technical regulations
described in the Telecommunications Business Law require that you
select Japan region mode. It is illegal to use the modem in Japan with
any other selection.
Connecting
To connect the internal modem cable, follow the steps below.
WARNING: The modular cable that comes with the computer must be
used to connect a modem. Connect the end of the modular cable with the
core to the computer.
CAUTIONS: 1. In case of a lightning storm, unplug the modem cable
from the telephone jack.
2. Do not connect the modem to a digital telephone line.
A digital line will damage the modem.
1. Plug one end of the modular cable into the modem jack.
![](/img.php?id=551600&img=bg65.png)
4-27
O
PERATING
B
ASICS
2. Plug the other end of the modular cable into a telephone jack.

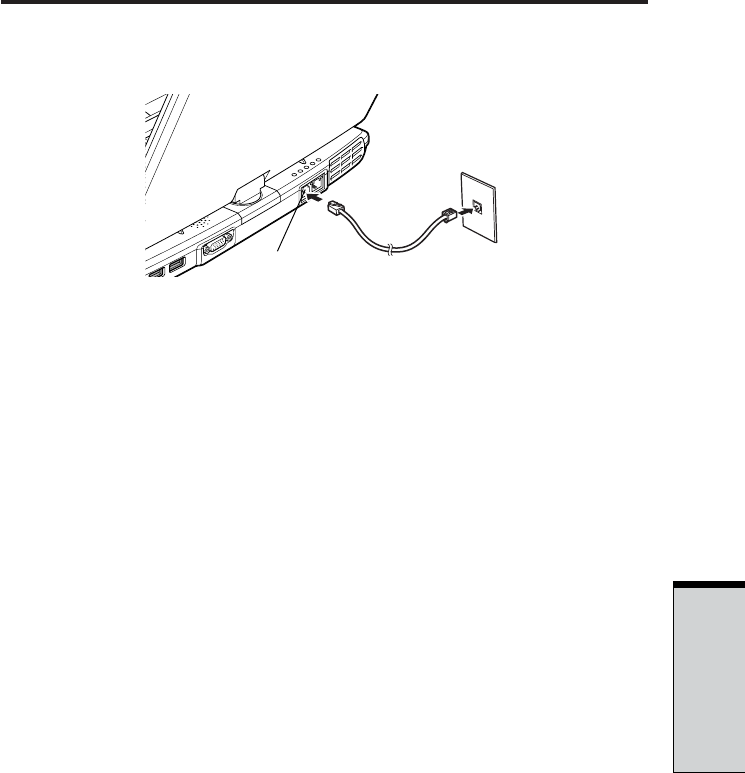

Figure 4-18 Connecting the internal modem
CAUTION: Do not pull on the cable or move the computer while the
cable is connected.
NOTE: If you use a storage device such as a CD-ROM drive or HDD
connected to a 16-bit PC card, you might experience the following
modem problems:
1. Modem speed is slow or communication is interrupted.
2. Skip may occur in sound.
Disconnecting
To disconnect the internal modem cable, follow the steps below:
1. Pinch the lever on the connector in the telephone jack and pull out the
connector.
2. Disconnect the cable from the computer in the same manner.
Cleaning the computer
To help ensure long, trouble-free operation, keep the computer free of dust and use
care with liquids around the computer.
❑Be careful not to spill liquids into the computer. If the computer does get wet,
turn the power off immediately and let the computer dry completely before you
turn it on again.
Cleaning the computer
MODEM JACK
![](/img.php?id=551600&img=bg66.png)
User's Manual
4-28
OPERATING BASICS
❑Clean the computer using a slightly damp (with water) cloth. You can use glass
cleaner on the display. Spray a small amount of cleaner on a soft, clean cloth
and wipe the screen gently with the cloth.
CAUTION: Never spray cleaner directly onto the computer or let liquid
run into any part of it. Never use harsh or caustic chemical products to
clean the computer.
Moving the computer
The computer is designed for rugged durability. However, a few simple precautions
taken when moving the computer will help insure trouble-free operation.
❑Turn off the computer. Do not carry the computer with power on or in stand by
state. Do not carry the computer while DISK indicator is glowing.
❑Do not expose the computer with rapid temperature change (such as the case to
bring the PC from cold outside into warm room).
When rapid temperature change is unavoidable, turn on the computer after a
couple of hours.
❑Remove all external peripheral devices and their connection cables from the
computer before carrying. If an optical disk is inserted in an optical disk drive,
eject it.
❑Do not drop the computer nor apply excessive impact on the computer. Do not
leave the computer in an automobile where the computer is exposed to direct
sunbeam.
❑Close the display panel when carrying.
❑Do not put the computer in Tablet mode in a bag.
Heat dispersal
To protect from overheating, the CPU has an internal temperature sensor. If the
computer’s internal temperature rises to a certain level, the cooling fan is turned on
or the processing speed is lowered. You can select whether to control the CPU
temperature by turning on the fan first, then if necessary, lowering the CPU speed.
Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the
Cooling Method item of the Power Save Mode window in TOSHIBA Power Saver.
![](/img.php?id=551600&img=bg67.png)
4-29
O
PERATING
B
ASICS
Maximum Turn on the fan first, then if necessary, lower the CPU
performance processing speed.
Performance Use a combination of the fan and lowering the CPU
processing speed.
Battery optimized Lower the CPU processing speed first, then if necessary
turn on the fan.
When the CPU temperature falls to a normal range, the fan is turned off and the CPU
operation returns to standard speed.
NOTE: If the CPU temperature reaches an unacceptably high level with
either setting, the system automatically shuts down to prevent damage.
Data in memory will be lost.
Heat dispersal
![](/img.php?id=551600&img=bg68.png)
User's Manual
4-30
OPERATING BASICS
![](/img.php?id=551600&img=bg69.png)
T
HE
K
EYBOARD
Chapter 5
The Keyboard
Typewriter keys ................................................................................. 5-1
F1 … F12 function keys ..................................................................... 5-2
Soft keys: Fn key combinations........................................................ 5-2
Emulating keys on enhanced keyboard .............................................. 5-2
Hotkeys.............................................................................................. 5-4
Fn Sticky key ..................................................................................... 5-7
Windows special keys ....................................................................... 5-7
Keypad overlay.................................................................................. 5-7
Turning on the overlays ....................................................................... 5-7
Temporarily using normal keyboard (overlay on) .................................. 5-8
Temporarily using overlay (overlay off) ................................................. 5-9
Temporarily changing modes .............................................................. 5-9
Generating ASCII characters ............................................................ 5-9
![](/img.php?id=551600&img=bg6a.png)
THE KEYBOARD
![](/img.php?id=551600&img=bg6b.png)
5-1
T
HE
K
EYBOARD
Chapter 5
The Keyboard
The computer’s keyboard layouts are compatible with a 101/102-key enhanced
keyboard. By pressing some keys in combination, all the 101/102-key keyboard
functions can be executed on the computer.
The number of keys on your keyboard depends on which country/region’s
keyboard layout your computer is configured with. Keyboards for numerous
languages are available.
There are five types of keys: typewriter keys, keypad overlay, function keys, soft
keys and cursor control keys.
Typewriter keys
The typewriter keys, produce the upper- and lowercase letters, numbers, punctua-
tion marks, and special symbols that appear on the screen.
There are some differences, however, between using a typewriter and using a
computer keyboard:
❑Letters and numbers produced in computer text vary in width. Spaces, which
are created by a “space character,” may also vary depending on line justifica-
tion and other factors.
❑The lowercase l (el) and the number 1 (one) are not interchangeable on
computers as they are on a typewriter.
❑The uppercase O (oh) and the 0 (zero) are not interchangeable.
❑The Caps Lock function key locks only the alphabetic characters in upper-
case while the shift lock on a typewriter places all keys in the shifted position.
❑The Shift keys, the Tab key, and the BkSp (backspace) key perform the
same function as their typewriter counterparts but also have special computer
functions.
![](/img.php?id=551600&img=bg6c.png)
User's Manual
5-2
THE KEYBOARD
F1 … F12 function keys
The function keys, not to be confused with Fn, are the 12 keys at the top of your
keyboard. These keys are dark gray, but function differently from the other dark
gray keys.
F1 through F12 are called function keys because they execute programmed
functions when pressed. Used in combination with the Fn key, keys marked with
icons execute specific functions on the computer. See the section, Soft keys: Fn key
combinations, in this chapter. The function executed by individual keys depends
on the software you are using.
Soft keys: Fn key combinations
The Fn (function) is unique to TOSHIBA computers and is used in combination
with other keys to form soft keys. Soft keys are key combinations that enable,
disable or configure specific features.
NOTE: Some software may disable or interfere with soft-key operations.
Soft-key settings are not restored by the Resume feature.
Emulating keys on enhanced keyboard
Esc
#
3Home PgUp
Bk Sp
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
!
12
$
4
%
568
(
9
)
0
&
7
_
+
=
PgDn
End
Shift
Del
Ins
CapsLock
Shift
Enter
QW RTYU I OP
{
[
}
]
E
~
`
ASDFGHJ KL:
;
@
?
/
>
.
<
,
MN
V
CXZB
\
^*
+
-
Tab
Alt
Alt
Enter
7
Home
8 9
PgUp
654
1
End
2 3
PgDn
0
Ins
Num
Lock
.
Del
PrtSc
Scroll
lock
Pause
Break
Ctrl
Ctrl
SysReg
/*
.
,,
,
Figure 5-1 A 101-key enhanced keyboard layout
![](/img.php?id=551600&img=bg6d.png)
5-3
T
HE
K
EYBOARD
Soft keys: Fn key combinations
The keyboard is designed to provide all the features of the 101-key enhanced
keyboard, shown in figure 5-1. The 101/102-key enhanced keyboard has a numeric
keypad and scroll lock key. It also has additional Enter and Ctrl keys to the right of
the main keyboard. Since the keyboard is smaller and has fewer keys, some of the
enhanced keyboard functions must be simulated using two keys instead of one on
the larger keyboard.
Your software may require you to use keys that the keyboard does not have.
Pressing the Fn key and one of the following keys simulates the enhanced
keyboard’s functions.
Press Fn + F10 or Fn + F11 to access the integrated keypad. When activated, the
keys with gray markings on the side face become numeric keypad keys (Fn + F11)
or cursor control keys (Fn + F10). Refer to the Keypad overlay section in this
chapter for more information on how to operate these keys. The power on default
for both settings is off.
Press Fn + F12 (ScrLock) to lock the cursor on a specific line. The power on
default is off.
Press Fn + Enter to simulate Enter on the enhanced keyboard’s numeric keypad.
Press Fn + Ctrl to simulate the enhanced keyboard’s right Ctrl key.
![](/img.php?id=551600&img=bg6e.png)
User's Manual
5-4
THE KEYBOARD

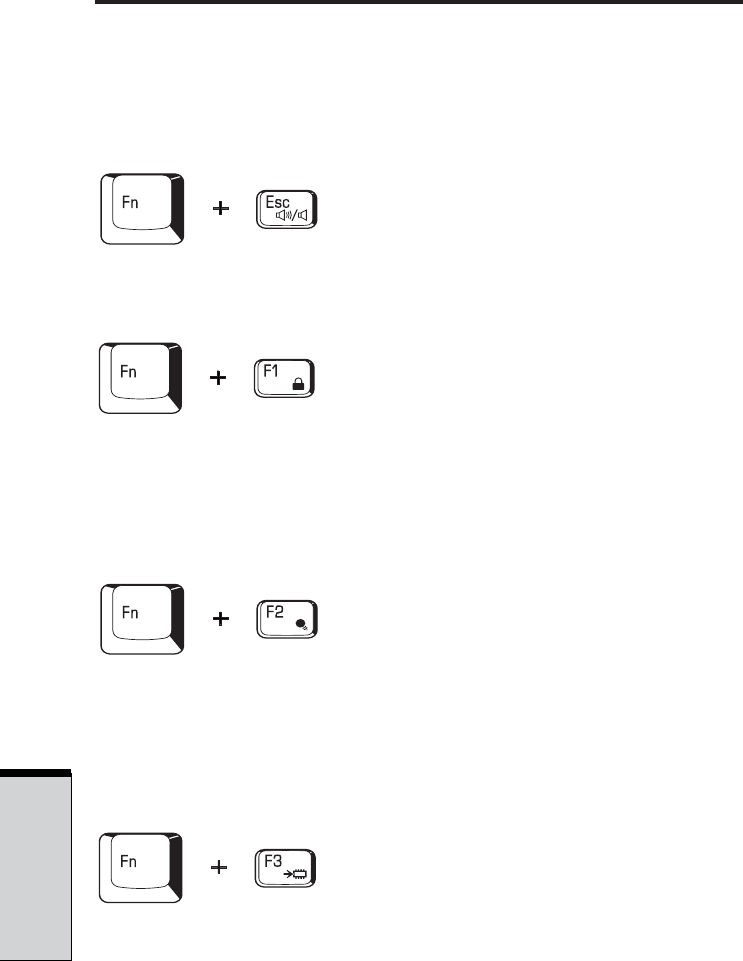

Hotkeys
Hotkeys (Fn + another key) let you enable or disable certain features of the
computers.
Sound mute: Pressing Fn + Esc in a Windows environment turns sound on or
off. When you press these hotkeys, the current setting will be displayed as an icon.
Instant security: Press Fn + F1 to blank the screen to prevent others from
accessing your data. To restore the screen and original settings, press any key or
press the Touch Pad. If a screensaver password is registered, a dialog box will
appear. Enter the screensaver password and click OK. If no password is set, the
screen will be restored when you press any key or press the Touch Pad.
Power save mode: Pressing Fn + F2 changes the power save mode.
If you press Fn + F2, the Power Save Mode is displayed in a dialog box. Continue
holding down Fn and press F2 again to change the setting. You can also change
this setting through the Plugged in or Running on batteries item of the Power
Saver Properties window in Power Saver.
Standby: When you press Fn + F3, the computer can enter Standby. To avoid
entering Standby unexpectedly, a dialog box appears for verification. However, if
you check the checkbox in the dialog box, it will not appear from the next time.
![](/img.php?id=551600&img=bg6f.png)
5-5
T
HE
K
EYBOARD
Soft keys: Fn key combinations
Hibernation: When you press Fn + F4, the computer can enter Hibernation. To
avoid entering Hibernation unexpectedly, a dialog box appears for verification.
However, if you check the checkbox in the dialog box, it will not appear from the
next time.
Display selection: Press Fn + F5 to change the active display device. When
you press these hot keys a dialog box appears. Only selectable devices will be
displayed. Hold down Fn and press F5 again to change the device. When you
release Fn and F5, the selected device will change. If you hold down the keys for
three seconds the selection will return to LCD.
LCD Display Brightness: Pressing Fn + F6 decreases the LCD display bright-
ness in decrements. When you press these hotkeys, the current setting will be
displayed for two seconds by a pop-up icon. You can also change this setting
through the Monitor brightness item of the Power Save Mode window in Power
Saver.
LCD Display Brightness: Pressing Fn + F7 increases the LCD display bright-
ness in decrements. When you press these hotkeys, the current setting will be
displayed for two seconds by a pop-up icon. You can also change this setting
through the Monitor brightness item of the Power Save Mode window in Power
Saver.
NOTE: You cannot change the display brightness for about 18 seconds
after the LCD turns on. To protect display quality, the brightness level is
set at the maximum value.
![](/img.php?id=551600&img=bg70.png)
User's Manual
5-6
THE KEYBOARD
Wireless setting: If your computer has both Bluetooth and wireless LAN
functions, you can press Fn + F8 to select which type of wireless communication
you want to use. When you press these hotkeys, a dialog box will appear. Continue
holding down Fn and press F8 to change the setting. If wireless communication is
turned off, Disabled Wireless Communication Switch will be
displayed.
NOTE: If no wireless communication device is installed, no dialog box
will appear.
Touch Pad: Pressing Fn + F9 enables or disables the Touch Pad function. When
you press those hotkeys, the current setting will change and be displayed as an
icon.
Display resolution selection: Press Fn + space keys to change the display
resolution. Each time when you press these hot keys, the display resolution
changes as follows: From the current resolution (the original resolution) to
1024×768, from 1024×768 to 800×600, from 800×600 to the original resolution.
Smooth View (reduce): To reduce the icon size on the desktop or the size of an
application window, press the 1 key while holding down the Fn key.
![](/img.php?id=551600&img=bg71.png)
5-7
T
HE
K
EYBOARD
Windows special keys
Smooth View (enlarge): To enlarge the icon size on the desktop or the size of
an application window, press the 2 key while holding down the Fn key.
Fn Sticky key
You can use the TOSHIBA Accessibility Utility to make the Fn key sticky, that is,
you can press it once, release it, and they press an “F number” key.
Windows special keys
The keyboard provides two keys that have special functions in Windows : one
activates the Start menu and the other has the same function as the secondary
mouse button.
This key activates the Windows Start menu.
This key has the same function as the secondary mouse button.
Keypad overlay
Your computer’s keyboard does not have an independent numeric keypad, but its
numeric keypad overlay functions like one.
The keys in the center of the keyboard with white letters make up the numeric
keypad overlay. The overlay provides the same functions as the numeric keypad on
the 101/102-key enhanced keyboard in figure 5-2.
Turning on the overlays
The numeric keypad overlay can be used for numeric data input or cursor and page
control.
![](/img.php?id=551600&img=bg72.png)
User's Manual
5-8
THE KEYBOARD
Arrow mode
To turn on the Arrow mode, press Fn + F10. The Arrow mode indicator lights.
Now try cursor and page control using the keys shown in figure 5-2. Press Fn +
F10 again to turn off the overlay.
Numeric mode
To turn on the Numeric mode, press Fn + F11. The Numeric mode indicator lights.
Now try numeric data entry using the keys in figure 5-2. Press Fn + F11 again to
turn off the overlay.
Figure 5-2 The numeric keypad overlay
Temporarily using normal keyboard (overlay on)
While using the overlay, you can temporarily access the normal keyboard without
turning off the overlay:
1. Hold Fn and press any other key. All keys will operate as if the overlay were
off.
![](/img.php?id=551600&img=bg73.png)
5-9
T
HE
K
EYBOARD
Generating ASCII characters
2. Type uppercase characters by holding Fn + Shift and pressing a character
key.
3. Release Fn to continue using the overlay.
Temporarily using overlay (overlay off)
While using the normal keyboard, you can temporarily use the keypad overlay
without turning it on:
1. Press and hold down Fn.
2. Check the keyboard indicators. Pressing Fn turns on the most recently used
overlay. If the Numeric mode indicator lights, you can use the overlay for
numeric entry. If the Arrow mode indicator lights, you can use the overlay for
cursor and page control.
3. Release Fn to return to normal keyboard operation.
Temporarily changing modes
If the computer is in Numeric mode, you can switch temporarily to Arrow
mode by pressing a shift key.
If the computer is in Arrow mode, you can switch temporarily to Numeric
mode by pressing a shift key.
Generating ASCII characters
Not all ASCII characters can be generated using normal keyboard operation. But,
you can generate these characters using their ASCII codes.
With the overlay on:
1. Hold down Alt.
2. Using the overlay keys, type the ASCII code.
3. Release Alt, and the ASCII character appears on the display screen.
With the overlay off:
1. Hold Alt + Fn.
2. Using the overlay keys, type the ASCII code.
3. Release Alt + Fn, and the ASCII character appears on the display screen.
![](/img.php?id=551600&img=bg74.png)
User's Manual
5-10
THE KEYBOARD
![](/img.php?id=551600&img=bg75.png)
P
OWER
AND
P
OWER
-U
P
M
ODES
Chapter 6
Power and Power-Up Modes
Power conditions............................................................................... 6-1
Power indicators ............................................................................... 6-3
Battery indicators ............................................................................... 6-3
DC IN 15V indicator ............................................................................ 6-3
Power indicator ................................................................................... 6-4
Battery types ...................................................................................... 6-4
Battery Pack ...................................................................................... 6-4
Real time clock battery....................................................................... 6-5
Care and use of the Battery Pack .................................................... 6-5
Safety precautions .............................................................................. 6-6
Charging the batteries ........................................................................ 6-9
Monitoring battery capacity .............................................................. 6-10
Maximizing battery operating time .................................................... 6-11
Retaining data with power off ............................................................ 6-12
Extending battery life ........................................................................ 6-12
Replacing the Battery Pack ............................................................ 6-13
Removing the Battery Pack .............................................................. 6-13
Installing the Battery Pack................................................................ 6-15
TOSHIBA Password Utility .............................................................. 6-16
User password ................................................................................. 6-16
Supervisor password ......................................................................... 6-17
Starting the computer by password .................................................. 6-18
Tablet mode..................................................................................... 6-18
Power-up modes ............................................................................. 6-19
Windows utilities .............................................................................. 6-19
Hotkeys............................................................................................ 6-19
Panel power off ............................................................................... 6-19
System Auto Off ............................................................................... 6-20
![](/img.php?id=551600&img=bg76.png)
POWER AND
POWER-UP MODES
![](/img.php?id=551600&img=bg77.png)
6-1
P
OWER
AND
P
OWER
-U
P
M
ODES
Chapter 6
Power and Power-Up Modes
The computer’s power resources include the AC adaptor and internal batteries. This
chapter gives details on making the most effective use of these resources including
charging and changing batteries, tips for saving battery power, and power up
modes.
Power conditions
The computer’s operating capability and battery charge status are affected by the
power conditions: whether an AC adaptor is connected, whether a battery is
installed and what the charge level is for the battery.
Table 6-1 Power conditions
Power on Power off (no operation)
AC Battery • Operates • LED: Battery green
adaptor fully • LED: Battery green DC IN 15V green
connected charged DC IN 15V green
Battery • Operates • Quick charge
partially • Quick charge • LED: Battery orange
charged • LED: Battery orange DC IN 15V green
or no charge DC IN 15V green
No • Operates • No charge
battery • No charge • LED: Battery off
installed • LED: Battery off DC IN 15V green
DC IN 15V green
![](/img.php?id=551600&img=bg78.png)
6-2
User's Manual
POWER AND
POWER-UP MODES
Table 6-1 Power conditions continued
Power on Power off (no operation)
AC Battery • Operates
adaptor charge is • LED: Battery off
not above low DC IN 15V off
connected battery
trigger point
Battery • Operates
charge is • LED: Battery
below low flashes in orange
battery DC IN 15V off
trigger point
Battery Computer goes
charge is into resume mode
exhausted and shuts down
No • Cannot operate
battery • LED: Battery off
installed DC IN 15V off
![](/img.php?id=551600&img=bg79.png)
6-3
P
OWER
AND
P
OWER
-U
P
M
ODES
Power indicators
The Battery, DC IN 15V and Power indicators on the system indicator panel
alert you to the computer’s operating capability and battery charge status.
Battery indicators
Check the Battery indicator to determine the status of the battery. The following
indicator lights indicate the battery status:
Flashing in orange The battery charge is low. The AC adaptor must be
connected to recharge the battery.
Orange Indicates the AC adaptor is connected and charging the
battery.
Green Indicates the AC adaptor is connected and the battery is
fully charged.
No light Under any other conditions, the indicator does not light.
NOTE: If the battery becomes too hot while it is being charged, the
charge will stop and the battery indicator will go out. When the battery’s
temperature falls to a normal range, charging will resume. This event
occurs regardless of whether the power to the computer is on or off.
DC IN 15V indicator
Check the DC IN 15V indicator to determine the power status with the AC adaptor
connected:
Green Indicates the AC adaptor is connected and supplying
proper power to the computer.
Flashing in orange Indicates a problem with the power supply. Plug the AC
adaptor into another outlet. If it still does not operate
properly, contact TOSHIBA dealer. Refer to Chapter 9,
Troubleshooting.
No light Under any other conditions, the indicator does not light.
Power indicators
![](/img.php?id=551600&img=bg7a.png)
6-4
User's Manual
POWER AND
POWER-UP MODES
Power indicator
Check the Power indicator to determine the power status.
Green Indicates power is being supplied to the computer and the
computer is turned on.
Blinking in orange Indicates the power was turned off while the computer was
in Resume mode. The indicator turns on for one second
and turns off for two seconds.
No light Under any other conditions, the indicator does not light.
Battery types
The computer has two types of batteries:
❑Battery Pack
❑Real Time Clock (RTC) battery
Battery Pack
When the AC power cord is not connected, the computer’s main power source is a
removable lithium-ion Battery Pack, also referred to in this manual as the main
battery. You can purchase Battery Packs for extended use of the computer away
from an AC power source.
CAUTIONS: 1. The battery pack is a lithium-ion battery, which can
explode if not properly replaced, used, handled or
disposed of. Dispose of the battery as required by local
ordinances or regulations. Use only battery recom-
mended by TOSHIBA as replacements.
2. Do not remove the battery pack while the computer is in
Standby mode. Data is stored in RAMs, so if the com-
puter loses power it will be lost. When the computer is
powered off in Standby mode, and the AC adaptor is not
connected, the battery pack supplies power to maintain
data and program in memory. If the battery pack is
completely discharged, Standby mode does not function
and the computer loses all data in memory.
![](/img.php?id=551600&img=bg7b.png)
6-5
P
OWER
AND
P
OWER
-U
P
M
ODES
To ensure that the Battery Pack maintains its maximum capacity, operate the
computer on battery power at least once a month until the Battery Pack is fully
discharged. Refer to Extending battery life in this chapter for procedures. If the
computer is continuously operated on AC power, through an AC adaptor for an
extended period, more than a month, the battery may fail to retain a charge. It may
not function efficiently over the expected life of the battery and the Battery LED
may not indicate a low-battery condition.
Real time clock battery
The Real Time Clock (RTC) battery provides power for the internal real time clock
and calendar. It also maintains the system configuration.
The RTC battery is charged when the power of the computer is on.
If the RTC battery becomes completely discharged, the system loses this data and
the real time clock and calendar stop working. The following message appears when
you turn on the power:
*** Bad RTC battery ***
Check system. Then press [F1] key . . . . . .
CAUTION: The computer’s RTC battery is a lithium ion battery and
should be replaced only by your dealer or by a TOSHIBA service
representative. The battery can explode if not properly replaced, used,
handled or disposed of. Dispose of the battery as required by local
ordinances or regulations.
NOTE: You can change the setting of RTC by pressing F1 key. Refer to
Chapter 9, Troubleshooting for the detail.
Care and use of the Battery Pack
The Battery Pack is a vital component of portable computing. Taking proper care of
it will help ensure longer operating time on battery power as well as a longer life for
your Battery Pack. Follow the instructions in this section carefully to ensure safe
operation and maximum performance.
Care and use of the Battery Pack
![](/img.php?id=551600&img=bg7c.png)
6-6
User's Manual
POWER AND
POWER-UP MODES
Safety precautions
Mishandling of batteries can cause death, serious injury or property damage.
Carefully observe the following advisories:
Danger: Indicates an imminently hazardous situation, which could result in death
or serious injury, if you do not follow instructions.
Warning: Indicates a potentially hazardous situation, which could result it death or
serious injury, if you do not follow instructions.
Caution: Indicates a potentially hazardous situation, which if not avoided, may
result in moderate or minor injury of property damage.
Note: Provides important information.
Danger
1. Never try to dispose of the battery pack by burning or expose it to a heating
device such as a microwave oven. The battery pack could explode and cause
bodily injury.
2. Never try to disassemble, repair or otherwise tamper with a battery pack. The
battery pack will overheat and ignite. Leakage of caustic alkaline solution or
other electrolytic substances will cause fire or injury, possibly resulting in
death or serious injury.
3. Never short-circuit the battery pack by contacting the terminals with a metal
object. A short-circuit can cause fire or otherwise damage the battery pack and
possibly cause injury. To avoid accidental short-circuit, always wrap the
battery pack in plastic and cover the terminals with electrical tape when storing
or disposing of the battery pack.
4. Never puncture the battery pack with a nail or other sharp object. Never strike
it with a hammer or other object. Never step on it.
5. Never try to charge the battery pack in any manner other than that described
in the user's manual. Never connect the battery pack to a plug socket or to a
automobile's cigarette lighter socket. It may rupture or ignite.
6. Use only the battery pack supplied with the computer or other device or a
battery pack approved by the computer or device's manufacture. Battery packs
have different voltages and terminal polarities. Use of an improper battery
could cause smoke, fire or rupture of the battery pack.
![](/img.php?id=551600&img=bg7d.png)
6-7
P
OWER
AND
P
OWER
-U
P
M
ODES
Care and use of the Battery Pack
7. Never subject a battery pack to heat, such as storage near a heat source.
Exposure to heat can cause the battery pack to ignite, explode or leak caustic
liquid and cause death or serious injury. It could also fail or malfunction
causing data loss.
8. Never expose the battery pack to abnormal shock, vibration or pressure. The
battery pack's internal protective device will fail, causing it to overheat,
explode, ignite or leak caustic liquids possibly resulting in death or serious
injury.
9. Never let a battery pack become wet. A wet battery pack will overheat, ignite or
rupture possibly resulting in death or serious injury.
Warning
1. Never allow caustic electrolyte fluid leaked from a battery pack to contact your
eyes, skin or clothing. If caustic electrolyte fluid should contact your eyes,
immediately wash your eyes with large amounts of running water and seek
medical attention, to help prevent eye damage. It electrolyte fluid should
contact your skin immediately wash it under running water to prevent rash. If it
contacts your clothes, promptly remove them to prevent the fluid from
contacting your skin or eyes.
2. Immediately turn off the power, disconnect the AC adapter and remove the
battery if any of the following events are observed in the battery pack:
offensive or unusual odor, excessive heat, discoloration or deformation. Never
use the computer again until it has been checked by a TOSHIBA service
provider. It might generate smoke or fire, or the battery pack might rupture.
3. Make sure the battery is securely installed in the computer before attempting
to charge the battery pack. Improper installation could generate smoke or fire,
or cause the battery pack to rupture.
4. Keep the battery pack out of reach of infants and children. It can cause injury.
![](/img.php?id=551600&img=bg7e.png)
6-8
User's Manual
POWER AND
POWER-UP MODES
Caution
1. Never continue to use a battery pack after its recharging capacity has become
impaired, or after the display of a warning message indicating that the battery
pack's power is exhausted. Continued use of an exhausted or impaired battery
pack could cause the loss of data.
2. Never dispose of battery packs with normal trash. Bring them to your
TOSHIBA dealer or to another recycling center to save resources and prevent
environmental damage. Cover the terminals with electrical tape to prevent
short-circuits, which could cause the battery pack to ignite or rupture
3. Use only battery pack recommended by TOSHIBA as replacements.
4. Always make sure the battery pack is installed correctly and securely.
Otherwise, a battery pack could fall out and possibly cause injury.
5. Charge the battery pack only in an ambient temperature between 5 and 35
degrees Celsius. Otherwise, the electrolyte solution might leak, battery pack
performance might deteriorate and the battery life might be shortened.
6. Be sure to monitor the remaining battery power. If the battery pack and real
time clock battery discharge completely, Standby and Suspend will not
function and data in memory will be lost. Also, the computer might register an
incorrect time and date. In this case, connect the AC adaptor to recharge the
batteries
7. Never install or remove the battery pack without first turning off the power
and disconnecting the AC adaptor. Never remove the battery pack while the
computer is in Suspend of Standby mode. Data will be lost.
Note
1. Never remove the battery pack while the Wake-up on LAN function is
enabled. Data will be lost. Before you remove a battery pack, disable the
Wake-up on LAN function.
2. To ensure the battery pack maintains maximum capacity, operate the computer
on battery power once a week until the battery pack is fully discharged. Refer
to the section Extending battery life in this chapter for procedures. If the
computer is continuously operated on AC power for an extended period, more
than a week, the battery might fail to retain a charge. It might not function
efficiently over the expected life of the battery pack and the Battery indicator
might not indicate a low-battery condition.
3. After the battery pack is charged, avoid leaving the AC adaptor connected
and the computer turned off for more than a few hours at a time. Continuing to
charge a fully-charged battery pack can damage the battery.
![](/img.php?id=551600&img=bg7f.png)
6-9
P
OWER
AND
P
OWER
-U
P
M
ODES
Charging the batteries
When the power in the Battery Pack becomes low, the Battery indicator flashes in
orange indicating that only a few minutes of battery power remain. If you continue
to use the computer while the Battery indicator flashes, the computer enables
Resume mode (so you do not lose data) and automatically turns off.
NOTE: The computer enters Hibernation mode only if Hibernation is
enabled in two places in TOSHIBA Power Saver: the Hibernate window
and the Battery Alarm item of the Alarm window.
You must recharge a Battery Pack when it becomes discharged.
Procedures
To recharge a Battery Pack while it is installed in the computer, connect the AC
adaptor to the DC IN 15V socket and plug the other end into a working outlet.
The Battery indicator glows in orange when the battery is being charged.
CAUTION: Use only the computer connected to an AC power source or
the optional TOSHIBA Battery charger to charge the Battery Pack. Do
not attempt to charge the Battery Pack with any other charger.
Time
The following table shows the approximate time required to fully charge a dis-
charged battery.
Charging time (hours)
Battery type Power on Power off
Battery Pack 8.5 (approx.) 2.5 (approx.)
RTC battery 8.0 Doesn’t charge
NOTE: The charging time when the computer is on is affected by ambient
temperature, the temperature of the computer and how you use the
computer. If you make heavy use of external devices, for example, the
battery might scarcely charge at all during operation. Refer also to the
section Maximizing battery operating time.
Care and use of the Battery Pack
![](/img.php?id=551600&img=bg80.png)
6-10
User's Manual
POWER AND
POWER-UP MODES
Battery charging notice
The battery may not charge right away under the following conditions:
❑The battery is extremely hot or cold. If the battery is extremely hot, it might not
charge at all. Also, to ensure the battery charges to its full capacity, charge the
battery at room temperature of 10° to 30°C (50° to 86°F).
❑The battery is nearly completely discharged. Leave the AC adaptor connected
for a few minutes and the battery should begin charging.
The Battery indicator may show a rapid decrease in battery operating time when
you try to charge a battery under the following conditions:
❑The battery has not been used for a long time.
❑The battery has completely discharged and been left in the computer for a long
time.
❑A cool battery is installed in a warm computer.
In such case, follow the steps below.
1. Fully discharge the battery by leaving it in the computer with the power on
until the power automatically shuts off.
2. Plug in the AC adaptor.
3. Charge the battery until the Battery indicator glows green.
Repeat the steps two or three times until the battery recovers normal capacity.
NOTE: Leaving the AC adaptor connected will shorten battery life.
At least once a month, run the computer on battery power until the
battery is fully discharged, then recharge the battery.
Monitoring battery capacity
Remaining battery power can be monitored in the Power Save Modes window in
Power Saver of Windows.
NOTES: 1. Wait at least 16 seconds after turning on the computer before
trying to monitor the remaining operating time. The com-
puter needs this time to check the battery’s remaining
capacity and to calculate the remaining operating time,
based on the current power consumption rate and remaining
battery capacity. The actual remaining operating time may
differ slightly from the calculated time.
![](/img.php?id=551600&img=bg81.png)
6-11
P
OWER
AND
P
OWER
-U
P
M
ODES
Care and use of the Battery Pack
2. With repeated discharges and recharges, the battery’s
capacity will gradually decrease. Therefore, an often
used, older battery will not operate for as long as a new
battery even when both are fully charged. In this case,
TOSHIBA Power Saver will indicate a 100% charge for
both the old and new battery, but the displayed estimated
time remaining will be shorter for the older battery.
Maximizing battery operating time
A battery’s usefulness depends on how long it can supply power on a single
charge.
How long the charge lasts in a battery depends on:
❑How you configure the computer, for example, whether you enable
battery power saving options. The computer provides a battery save mode to
conserve battery power. This mode has the following options:
• Processing speed
• Display auto off
• HDD auto off
• System auto off
• LCD Brightness
❑How often and how long you use the hard disk and the diskette drive.
❑How much charge the battery contained to begin with.
❑How you use optional devices, such as a PC card, to which the battery
supplies power.
❑Enabling Resume mode conserves battery power if you are frequently turning
the computer off and on.
❑Where you store your programs and data.
❑Closing the display when you are not using the keyboard saves power.
❑Operating time decreases at low temperatures.
❑The condition of the battery terminals. Make sure the battery terminals stay
clean by wiping them with a clean dry cloth before installing the Battery Pack.
![](/img.php?id=551600&img=bg82.png)
6-12
User's Manual
POWER AND
POWER-UP MODES
Retaining data with power off
When you turn off your computer with fully charged batteries, the batteries retain
data for the following approximate time periods:
Battery pack (4400 mAh) 5 days (approx. in Resume mode)
60 days (approx. in Boot mode)
RTC battery 1 month
Extending battery life
To maximize the life of your Battery Pack:
❑At least once a month, disconnect the computer from a power source and
operate it on battery power until the Battery Pack fully discharges. Before
doing so, follow the steps below.
1. Turn off the computer’s power.
2. Disconnect the AC adaptor and turn on the computer’s power. If it does not
turn on go to step 4.
3. Operate the computer on battery power for five minutes. If the Battery Pack
has at least five minutes of operating time, continue operating until the
Battery Pack is fully discharged. If the Battery indicator flashes or there is
some other warning to indicate a low battery, go to step 4.
4. Connect the AC adaptor to the computer and the power cord to a power
outlet. The DC IN 15V indicator should glow in green, and the Battery
should glow in orange to indicate that the Battery Pack is being charged. If
the DC IN 15V indicator does not glow, power is not being supplied. Check
the connections for the AC adaptor and power cord.
5. Charge the Battery Pack until the Battery indicator glows in green.
❑If you have spare Battery Packs, rotate their use.
❑If you will not be using the system for an extended period, more than one
month, remove the Battery Pack.
❑Disconnect the AC adaptor when the battery is fully charged. Overcharging
makes the battery hot and shortens life.
❑If you are not going to use the computer for more than eight hours, disconnect
the AC adaptor.
❑Store spare Battery Packs in a cool dry place out of direct sunlight.
![](/img.php?id=551600&img=bg83.png)
6-13
P
OWER
AND
P
OWER
-U
P
M
ODES
Replacing the Battery Pack
When the Battery Pack reaches the end of its operating life you will need to install a
new one. The life of the Battery Pack is generally about 500 recharges. If the
Battery indicator flashes in orange shortly after fully recharging the battery, the
Battery Pack needs to be replaced.
You might also replace a discharged Battery Pack with a charged spare when you
are operating your computer away from an AC power source. This section explains
how to remove and install Battery Packs.
NOTE: Place a mat beneath the computer to prevent making a scratch
on the lid when replacing the Battery pack. Avoid the mat that generates
static electricity.
Removing the Battery Pack
To replace a discharged Battery Pack, follow the steps below.
CAUTIONS: 1. When handling battery packs, be careful not to short
circuit the terminals. Also do not drop, hit or otherwise
apply impact; do not scratch or break the casing and do
not twist or bend the battery pack
2. Do not remove the battery pack while the computer is in
Standby mode. Data is stored in RAM, so if the computer
loses power it will be lost.
3. In Hibernation mode, data will be lost if you remove the
battery or disconnect the AC adaptor before the save is
completed. Wait for the Disk indicator to go out.
1. Save your work.
2. Turn the computer’s power off. Make sure the Power indicator is off.
3. Remove all cables connected to the computer.
4. Turn the computer upside down with the front side of the computer facing to
you.
5. Release the battery lock.
6. Slide the battery release latch to free the battery pack for removal.
Replacing the Battery Pack
![](/img.php?id=551600&img=bg84.png)
6-14
User's Manual
POWER AND
POWER-UP MODES
Figure 6-1 Removing the Battery Pack (1)
7. The battery pack is removed the whole battery cover, applying a finger to a
hollow, sliding the battery release latch.
CAUTION: For environmental reasons, do not throw away a spent
Battery Pack. Please return spent Battery Packs to your TOSHIBA
dealer.
Figure 6-2 Removing the Battery Pack (2)
BATTERY LOCK
BATTERY RELEASE LATCH
![](/img.php?id=551600&img=bg85.png)
6-15
P
OWER
AND
P
OWER
-U
P
M
ODES
Installing the Battery Pack
To install a Battery Pack, follow the steps below.
CAUTION: The Battery Pack is a lithium-ion battery, which can explode
if not properly replaced, used, handled or disposed of. Dispose of the
battery as required by local ordinances or regulations. Use only battery
recommended by TOSHIBA as replacements.
1. Be sure the computer’s power is off and all cables are disconnected.
2. Inserts calmly until the battery pack in the connector aslant and there until it
clicks.
3. Secure the battery lock.
Figure 6-3 Installing the Battery Pack
Replacing the Battery Pack
BATTERY LOCK
![](/img.php?id=551600&img=bg86.png)
6-16
User's Manual
POWER AND
POWER-UP MODES
TOSHIBA Password Utility
The TOSHIBA Password Utility provides two levels of password security: User and
Supervisor.
NOTE: Passwords set in TOSHIBA Password Utility are different from
the Windows password.
User password
To start the utility, point to or click the following items:
Start -> All Programs -> TOSHIBA Utilities ->
TOSHIBA Password Utility
The user password dialog box contains two main fields: User Password
and User Token.
User Password field
❑Set (button)
Click this button to register a password of up to 50 characters. After a pass-
word is set, you will be prompted to enter it when you start the computer.
NOTE: After you set the password, a dialog box will be displayed asking
whether you want to save it to a diskette or other media. If you forget the
password, you can open the password file on another computer. Be sure
to keep the media in a safe place.
❑Delete (button)
Click this button to delete a registered password. Before you can delete a
password, you must first enter the current password correctly or insert a proper
token.
❑Change (button)
Click this button to change a registered password. Before you can change a
password, you must first enter the current password correctly or insert a proper
token.
❑Owner String (text box)
You can use this box to associate text with the password. After you enter text,
click Apply or OK. The text will be displayed when you are prompted to enter a
password.
![](/img.php?id=551600&img=bg87.png)
6-17
P
OWER
AND
P
OWER
-U
P
M
ODES
User Token field
❑Create (button)
You can use an SD card token, instead of entering the password. After you
have registered a password, insert an SD card and click Create. You can use
an SD card of any capacity, but it must be formatted correctly.
If an unformatted card or one with an incompatible format is inserted, you will
be prompted to format it with a tool named TOSHIBA SD Memory Card Format.
To start the format tool, point to or click the following items:
Start -> All Programs -> TOSHIBA SD Card
Utilities -> TOSHIBA SD Memory Card Format
CAUTION: When you format an SD Memory card, all data will be
deleted. Be sure to save data on the card to other media before you
format the card.
❑Disable (button)
Click this button to invalidate the token. You cannot revalidate old tokens, but
you can use the same SD cards to create new tokens.
Supervisor password
If you set a supervisor password, some functions might be restricted when a user
logs on with the user password. To set a supervisor password, execute the file
TOSUP.EXE. The file is located at:
C:\Program Files\Toshiba\Windows
Utilities\SVPWTool\TOSUP.EXE
This utility lets you do the following:
❑Register, delete or change the supervisor password.
❑Create or invalidate a supervisor token
NOTE: This function in the TOSHIBA password utility lets you invali-
date only supervisor tokens or all tokens, including user and supervisor
tokens.
❑Specify restrictions for general users.
TOSHIBA Password Utility
![](/img.php?id=551600&img=bg88.png)
6-18
User's Manual
POWER AND
POWER-UP MODES
Starting the computer by password
If you registered a password, there are two ways to start the computer:
❑Insert a password token before you turn on the computer. The computer will
start normally, without displaying a password prompt.
❑Enter the password manually.
NOTE: The password is necessary only if the computer was shut down in
boot mode. It is not needed in Hibernation or Standby mode.
To enter a password manually, follow these steps:
1. Turn on the power as described in Chapter 3, Getting Started. The following
message will appear in the LCD:
Password=
2. Enter the Password.
3. Press Enter.
NOTE: If you enter the password incorrectly three times in a row, the
computer shuts off. In this case, you must turn the computer back on to
retry password entry.
Tablet mode
Enter your password by tapping the on-screen keyboard using the tablet pen.
Figure 6-4 On-screen keyboard
![](/img.php?id=551600&img=bg89.png)
6-19
P
OWER
AND
P
OWER
-U
P
M
ODES
❑The beep sounds when tapping the on-screen keyboard with the tablet pen.
An * (asterisk) is displayed after "Password =" and one character is input for
every tapping.
NOTE: Register your password to the computer in the laptop mode using
the standard keyboard. Refer to Chapter 7, HW Setup for the detail.
Power-up modes
The computer has the following power-up modes:
❑Boot: Computer shuts down without saving data. Always save your work
before you turn the computer off in boot mode.
❑Hibernation: Data in memory is saved to the hard disk.
❑Standby: Data is maintained in the computer's main memory.
NOTE: Refer also to the sections Turning on the power and Turning off
the power in Chapter 3, Getting Started.
Windows utilities
You can specify the setting in TOSHIBA Power Saver.
Hotkeys
You can use hotkeys Fn + F3 to enter Standby mode and Fn + F4 to enter Hiberna-
tion. See Chapter 5, The Keyboard for details.
Panel power off
You can set up your computer so that power turns off automatically when you close
the display panel. When you open the panel, power turns on in Standby or
Hibernation mode but not in boot mode.
However, when the system is running in the tablet mode, it does not shut down
even if the display panel is closed.
NOTE: If the panel power off function is enabled and you use Shut down
Windows, do not close the display until the shut down function is
completed.
Power-up modes
![](/img.php?id=551600&img=bg8a.png)
6-20
User's Manual
POWER AND
POWER-UP MODES
System Auto Off
This feature turns the system off automatically if the computer is not used for a set
duration. The system shuts down in Standby mode or Hibernation mode in Windows.
However, when the system is running in the tablet mode, it does not shut down
even if the display panel is closed.
![](/img.php?id=551600&img=bg8b.png)
HW S
ETUP
Chapter 7
HW Setup
HW Setup ........................................................................................... 7-1
Accessing HW Setup ......................................................................... 7-1
HW Setup window .............................................................................. 7-1
![](/img.php?id=551600&img=bg8c.png)
HW SETUP
![](/img.php?id=551600&img=bg8d.png)
7-1
HW S
ETUP
Chapter 7
HW Setup
This chapter explains how to use TOSHIBA HW Setup program to configure your
computer. TOSHIBA HW Setup lets you configure settings for display, CPU, boot
priority, Keyboard, USB, LAN, general and device configuration.
Accessing HW Setup
To run HW Setup, click start, click Control Panel, click Printers and Other
Hardware and select TOSHIBA HW Setup.
HW Setup window
The HW Setup window contains the following tabs: Display, CPU, Boot Priority,
Keyboard, USB, LAN, General, Device Config.
General
This window displays the BIOS version and contains two buttons: Default and
About.
Default Return all HW Setup values to the factory settings.
About Display the HW Setup version.
Setup
This field displays BIOS Version and date.
![](/img.php?id=551600&img=bg8e.png)
User's Manual
7-2
HW SETUP
Device Config
Device Configuration
This option lets you set the device configuration.
All Devices BIOS sets all devices.
Setup by OS Operating system sets devices that it can control. (Default)
Display
This tab lets you customize your computer’s display settings for either the internal
LCD screen or for an external monitor.
Power On Display
Lets you set the display to be used when the computer is booted.
Auto-Selected Selects an external monitor if one is connected. Other-
wise, it selects the internal LCD. (Default)
LCD+Analog RGB Selects both the internal LCD and external monitor for
simultaneous display.
System LCD Only Selects the internal LCD even if the external monitor is
connected.
CPU
Dynamic CPU Frequency Mode
This option lets you choose from the following settings:
Dynamically Switchable CPU power consumption and clock speed
automatic switching function is enabled.
When the computer is in use, CPU operation
is automatically switched when necessary.
(Default)
Always High CPU power consumption and clock speed
automatic switching function is disabled. The
CPU always runs at its fastest speed.
Always Low CPU power consumption and clock speed
automatic switching function is disabled. The
CPU always runs at low power consumption
and low speed.
![](/img.php?id=551600&img=bg8f.png)
7-3
HW S
ETUP
Boot Priority
Boot Priority Options
This option sets the priority for booting the computer. Select from the following
settings:
HDD −> −>
−> −>
−> FDD −> −>
−> −>
−> CD-ROM −> −>
−> −>
−> LAN The computer looks for bootable files in
the following order: HDD, diskette drive*1,
CD-ROM*2 and LAN. (Default)
FDD −> −>
−> −>
−> HDD −> −>
−> −>
−> CD-ROM −> −>
−> −>
−> LAN The computer looks for bootable files in
the following order: diskette drive*1, HDD,
CD-ROM*2 and LAN.
HDD −> −>
−> −>
−> CD-ROM −> −>
−> −>
−> LAN −> −>
−> −>
−> FDD The computer looks for bootable files in
the following order: HDD, CD-ROM*2 ,
LAN and diskette drive*1.
FDD −> −>
−> −>
−> CD-ROM −> −>
−> −>
−> LAN −> −>
−> −>
−> HDD The computer looks for bootable files in
the following order: diskette drive*1, CD-
ROM*2 , LAN and HDD.
CD-ROM −> −>
−> −>
−> LAN −> −>
−> −>
−> HDD −> −>
−> −>
−> FDD The computer looks for bootable files in
the following order: CD-ROM*2 , LAN,
HDD, diskette drive*1.
CD-ROM −> −>
−> −>
−> LAN −> −>
−> −>
−> FDD −> −>
−> −>
−> HDD The computer looks for bootable files in
the following order: CD-ROM*2 , LAN,
diskette drive*1 and HDD.
*1 FDD is looked for when the boot disk is contained in external FDD. When SD
card is set as the boot disk, external FDD is looked for first. Next, SD card is
looked for.
*2 The CD-ROM is available only with the optional optical disk drive.
You can override the settings and manually select a boot device in one of the
following two ways.
❑Press one of the following keys while the computer is booted:
USelects the USB diskette drive.
NSelects the Network.
1Selects the primary HDD.
PSelects the PC card HDD.
CSelects the CD-ROM*1.
HW Setup
![](/img.php?id=551600&img=bg90.png)
User's Manual
7-4
HW SETUP
This procedure does not affect the settings.
❑Use hot keys.
1. Hold down F12 and boot the computer.
2. The following menu will be displayed with the following icons: Built-in HDD,
CD-ROM, FDD, and SD, Network (LAN), PCA (ATA) card boot.
NOTE: A bar will appear only under the selected device.
3. Use the left/right cursor keys to highlight the boot device you want and press
Enter.
NOTES: 1. If a supervisor password is set, the menu above does not
appear when you use the user password to start the
computer.
2. The selection method above does not change the boot
priority settings in HW Setup.
3. If you press a key other than one of those above or if the
selected device is not installed, the system will boot according
to the current setting in HW Setup.
HDD Priority Options
This option sets the priority for booting the computer from the HDD. Select from the
following settings:
Built-in HDD −> −>
−> −>
−> PC Card (Default)
The computer will look for the Built-in HDD first, next the
the PC Card (Default).
PC Card −> −>
−> −>
−> Built-in HDD
The computer will look for the PC Card first, next the Built-
in HDD.
NOTE: If a boot command is not found on the first detected HDD, the
system will not boot from the other HDD. It will search the next device in
the boot priority for a boot command.
![](/img.php?id=551600&img=bg91.png)
7-5
HW S
ETUP
HW Setup
Network Boot Protocol
This feature sets the protocol to remotely boot from the network.
[PXE] Sets PXE as the protocol. (Default)
[RPL] Sets RPL as the protocol.
NOTES: 1. PC card HDD boot is supported only by the PC card slot
on the computer. Support is guaranteed only for TOSHIBA
PC card HDDs.
2. When you assign a PC card HDD top priority, “PC” is not
displayed. However, the PC card HDD takes the position of
HDD in the Boot Priority Options list above.
Keyboard
Wake-up on Keyboard
When this feature is enabled and the computer is in Standby mode, you can turn on
the computer by pressing any key. It is effective only for the internal keyboard and
only when the computer is in Standby mode.
Enabled Enables the Wake-up on Keyboard.
Disabled Disables the Wake-up on Keyboard. (Default)
USB
USB KB/Mouse Legacy Emulation
Use this option to enable or disable USB KB/Mouse Legacy Emulation. If your
operating system does not support USB, you can still use a USB mouse and
keyboard by setting the USB KB/Mouse Legacy Emulation item to
Enabled.
Enabled Enables the USB KB/Mouse Legacy Emulation. (Default)
Disabled Disables the USB KB/Mouse Legacy Emulation.
![](/img.php?id=551600&img=bg92.png)
User's Manual
7-6
HW SETUP
USB-FDD Legacy Emulation
Use this option to enable or disable USB-FDD Legacy Emulation.
Enabled Enables the USB-FDD Legacy Emulation. (Default)
Disabled Disables the USB-FDD Legacy Emulation.
LAN
Wake-up on LAN
This features lets the computer’s power be turned on when it receives a wake-up
signal from the LAN.
Enabled Enables Wake-up on LAN.
Disabled Disables Wake-up on LAN. (Default)
CAUTION: Do not install or remove an optional memory module while
Wake-up on LAN is enabled.
NOTE: Wake-up on LAN does not work without the AC adaptor. Leave it
connected, if you are using this feature.
Built-in LAN
Enabled Enables built-in LAN functions. (Default)
Disabled Disables built-in LAN functions.
![](/img.php?id=551600&img=bg93.png)
O
PTIONAL
D
EVICES
Chapter 8
Optional Devices
PC cards ............................................................................................. 8-2
Inserting a PC card ............................................................................. 8-2
Removing a PC card ........................................................................... 8-3
SD cards ............................................................................................. 8-3
Inserting an SD card ........................................................................... 8-4
Removing an SD card ......................................................................... 8-4
Memory expansion ............................................................................ 8-6
Installing memory module ................................................................... 8-7
Removing memory module .................................................................. 8-9
Battery Pack..................................................................................... 8-10
Universal AC Adaptor ...................................................................... 8-10
Battery Charger ............................................................................... 8-11
USB diskette Kit ............................................................................... 8-11
Tablet Multi Dock............................................................................. 8-11
External monitor .............................................................................. 8-12
Tablet PC Pen set ............................................................................ 8-12
Reserve pen ..................................................................................... 8-12
Security lock .................................................................................... 8-13
![](/img.php?id=551600&img=bg94.png)
OPTIONAL D EVICES
![](/img.php?id=551600&img=bg95.png)
8-1
O
PTIONAL
D
EVICES
Chapter 8
Optional Devices
Optional devices can expand the computer’s capabilities and its versatility. The
following optional devices are available from your TOSHIBA dealer:
Cards/memory
❑PC cards
❑SD cards
❑Memory module
Power devices
❑Battery Pack
❑Universal AC Adaptor
❑Battery Charger
Peripheral devices
❑Hard disk drive pack
❑USB diskette Kit
❑Tablet Multi Dock
❑External monitor
❑Tablet PC Pen set
❑Reserve Pen
Other
❑Security lock
![](/img.php?id=551600&img=bg96.png)
8-2
User's Manual
OPTIONAL DEVICES
PC cards
The computer is equipped with a PC card expansion slot that can accommodate one
5 mm Type II card. Any PC card that meets industry standards (manufactured by
TOSHIBA or other vendor) can be installed. The slots support 16-bit PC cards,
including PC card 16’s multifunction card and Card Bus PC cards.
Card Bus supports the new standard of 32-bit PC cards. The bus provides superior
performance for the greater demands of multimedia data transmission.
Inserting a PC card
The PC card connector is located on the left side of the computer.
Windows’ not-installed feature lets you insert PC cards while the computer’s power
is on.
NOTES: 1. Do not insert a PC card while the computer is in standby
or hibernation mode. Some cards might not work properly.
2. An HDD or CD-ROM connected to a 16-bit PC card, might
affect the performance of the computer’s sound system and
data transmission, including slower transmission speeds
and dialing errors.
To insert a PC card, follow the steps below:
1. Insert the PC card.
2. Press gently to ensure a firm connection.
Figure 8-1 Inserting the PC card
After inserting the card, refer to the card’s manual and check the configuration in
Windows to make sure it is appropriate for your card.
PC CARD
![](/img.php?id=551600&img=bg97.png)
8-3
O
PTIONAL
D
EVICES
SD cards
Removing a PC card
To remove the PC card, follow the steps below:
1. Click the Safety Remove Hardware icon on the Task Bar.
2. Click PC card.
3. Press the PC card eject button to extend it.
4. Press the extended eject button to pop the card out slightly.
5. Pinch the PC card and draw it out.
Figure 8-2 Removing the PC card
SD cards
The computer is equipped with an SD card slot that can accommodate Secure
Digital flash memory cards with various capacities SD cards let you easily transfer
data from devices, such as digital cameras and Personal Digital Assistants, that use
SD card flash-memory. The cards have a high level of security and copy protection
features.
You can use an SD card of memory module.
The slot cannot accommodate Multi Media cards.
CAUTIONS: 1. Keep foreign objects out of the SD card slot. A pin or
similar object can damage the computer’s circuitry.
2. Do not format an SD memory card in Windows, My
Computer screen. It might cause that the SD memory card
cannot be used by a digital camera or an audio player.
EJECT BUTTON
PC CARD
![](/img.php?id=551600&img=bg98.png)
8-4
User's Manual
OPTIONAL DEVICES
NOTE: SD memory cards comply with SDMI (Secure Digital Music Initia-
tive), which is a technology adapted to prevent unlawful copy of playback
of digital music. For this reason, you cannot copy or playback protected
material an another computer or other device. You may not use the repro-
duction of any copyrighted material except for your personal enjoyment.
Inserting an SD card
To insert an SD card, follow the steps below.
1. Insert the SD card.
2. Press gently to ensure a firm connection.

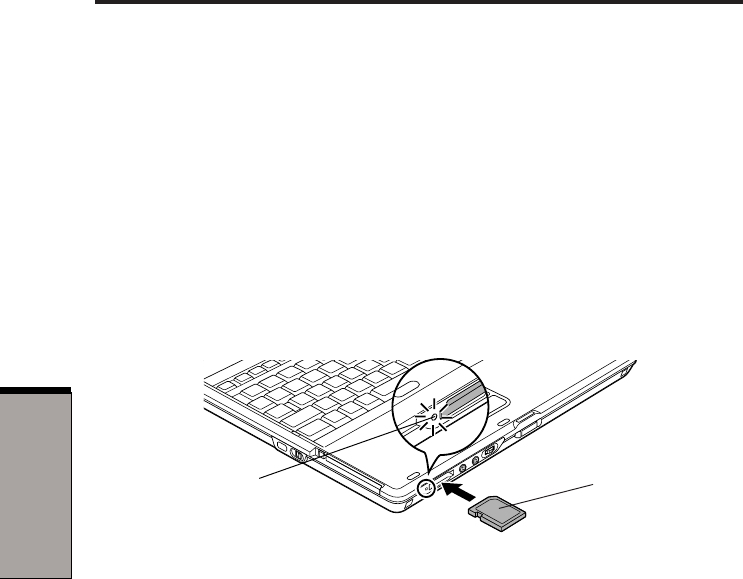

Figure 8-3 Inserting an SD card
CAUTION: Make sure the SD card is oriented properly before you insert it.
Removing an SD card
To remove an SD card, follow the steps below:
1. Click the Safety Remove Hardware icon on the Task Bar.
2. Point to SD card and click.
3. Push in the card and release it to pop the card out slightly.
SD CARD
SD CARD INDICATOR
![](/img.php?id=551600&img=bg99.png)
8-5
O
PTIONAL
D
EVICES
SD cards
4. Pinch the SD card and draw it out.
Figure 8-4 Removing an SD card
CAUTION: Make sure the SD card indicator is out before you remove
the card or turn off the computer’s power. If you remove the card or turn
off the power while the computer is accessing the card you may lose data
or damage the card.
SD card care
CAUTION: Set the write-protect switch to the lock position, if you do not
want to record data.
1. Do not write in an SD card if the battery power is low. Low power could affect
writing accuracy.
2. Do not remove an AD card while read/write is in progress.
3. The SD card is designed so that it can be installed only one way. Do not try to
force the card into the slot.
4. Do not leave an SD card partially inserted in the slot. Press the SD card until
you hear it click into place.
5. Do not twist or bend SD cards.
6. Do not expose SD cards to liquids or store in humid areas or lay media close to
containers of liquid
7. After using an SD card, return it to its case.
8. Do not touch the metal part or expose it to liquids or let it get dirty.
SD CARD
SD CARD INDICATOR
![](/img.php?id=551600&img=bg9a.png)
8-6
User's Manual
OPTIONAL DEVICES
Formatted SD cards
Usually new SD cards are pre-formatted before shipping.
When you reformat the formatted SD cards, select the Toshiba SD card format as a
format type. Formatted SD cards can also be reformatted with devices that use this
type of memory card (digital cameras and audio players).
Refer to the manual or help provided with devices you are using for instructions to
format SD cards on these devices.
NOTES:1. Do not format SD cards on Windows (My Computer screen).
In some cases, these cards cannot be used on other devices
including digital cameras and audio players.
2. Reformatting will delete any information on the SD card. Be
careful when you reformat SD cards that contain
information.
Memory expansion
This computer is equipped with two memory module sockets; Slot A beneath the
keyboard and Slot B in the backside of the computer. You can increase the amount
of RAM to 1024MB by installing an additional memory or replacing default memo-
ries with additional memories.
NOTES: 1. Observe the following instructions according to the model
you purchased.
a. Install an additional memory module to Slot B for the
computer with vacant Slot B.
b. You can increase the memory amount by replacing the
memory module in Slot A and/or B with a memory
module of larger memory amount when both Slot A and
Slot B are occupied. However, replacing of memory
module in Slot B is recommended because it is easier to
replace the memory module in Slot B than A.
c. It is strongly recommended to leave the replacing of
memory module preinstalled in Slot A to TOSHIBA
dealer because the installing or replacing of memory
module in Slot A needs skill.
![](/img.php?id=551600&img=bg9b.png)
8-7
O
PTIONAL
D
EVICES
Memory expansion
2. Place a mat beneath the computer to prevent making a
scratch on the lid when replacing the memory module. Avoid
the mat that generates static electricity.
CAUTIONS: 1. Use only memory modules approved by TOSHIBA.
2. Do not try to install or remove a memory module under
the following conditions. You can damage the
computer and the module. Also, data will be lost.
a. The computer is turned on.
b. The computer was shut down using the Standby
mode or Hibernation mode.
c. Wake-up on LAN is enabled.
If you install a memory module that is not compatible with the computer, beep will
sound when you turn on the power. If the module is installed in slot A, there will be
a long beep (1 second) followed by two short beeps (0.5 second each). If the
memory module is in slot B, there will be a long beep followed by four short beeps.
If the both memory modules in slot A and slot B are incompatible, there will be a
long beep followed by two short beeps and after a pause (1 second) a long beep
followed by four short beeps. In this case, shut down the power and remove the
incompatible module(s).
CAUTION: Be sure to install memory module to Slot A. The computer
does not boot when Slot A is vacant.
NOTE: Use a 1-bit, Phillips screwdriver to remove and fasten screws. Use
of an incorrect screwdriver can damage the screw heads.
Installing memory module
Follow the steps below to install a memory module.
1. Save data, shutdown Windows and turn the power off.
2. Remove the AC adapter cable and other cables from the computer.
![](/img.php?id=551600&img=bg9c.png)
8-8
User's Manual
OPTIONAL DEVICES
3. Close the display panel and turn the computer over. Remove the Battery Pack.
4. Remove a screw on the cover of the memory module slot.
NOTE: Be careful that the removed screw will not be fallen into the
memory module slot.
Figure 8-5 Removing the memory module cover
5. Insert the memory module obliquely against the connector of the memory
module slot. Gently push the memory module until it is secured in place.
NOTES: 1. The memory module slot consists of two sub slots
(connectors): Slot A (lower slot) and Slot B (upper slot).
2. Align the grooves of the memory module with the locking
tabs of the connector and insert the module into the
connector firmly. If you find it difficult to install the memory
module, try to adjust the tabs of the connector with a pen tip
or other tools. Make sure to hold the memory module with
your fingers on the side edges (sides with grooves).
Figure 8-6 Inserting a module (1)
SLOT A
SLOT B
![](/img.php?id=551600&img=bg9d.png)
8-9
O
PTIONAL
D
EVICES
Memory expansion
6. Reinstall the cover of the memory module slot. Fasten the screw you removed
in Step 4.
NOTE: Be sure that the cover is closed firmly.

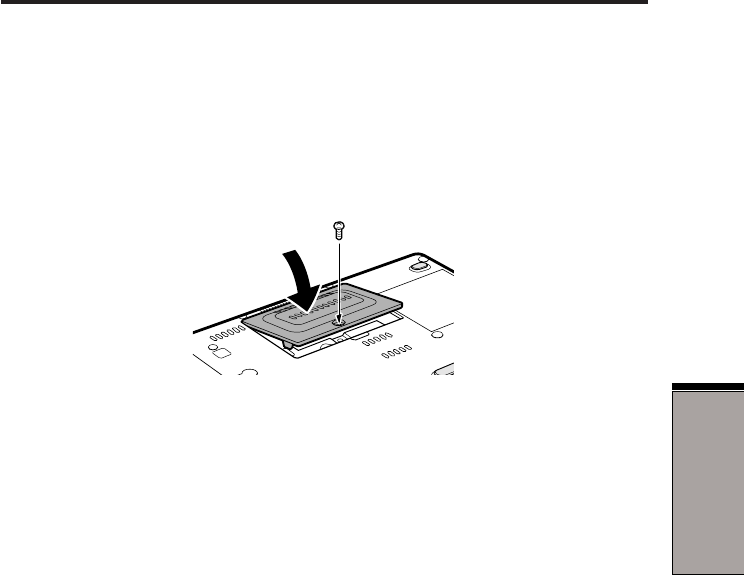

Figure 8-7 Seating the memory module cover
7. Reinstall the Battery Pack.
NOTE: After installing a memory module, turn the power of the computer
on to see a total memory size. The system will calculate the total memory
size.
Removing memory module
To remove the memory module, make sure the computer is in boot mode then:
1. Save data, shutdown Windows and turn the power off.
2. Remove the AC adapter cable and other cables from the computer.
3. Close the display panel and turn the computer over. Remove the Battery Pack.
4. Remove a screw on the cover of the memory module slot.
NOTE: Be careful that the removed screw will not be fallen into the
memory module slot.
![](/img.php?id=551600&img=bg9e.png)
8-10
User's Manual
OPTIONAL DEVICES
5. Push slightly outwards the latch tabs on both sides that secure the memory
module with a pen tip or other tools, and remove the memory module.
NOTE: When the memory module rises obliquely, you can remove it from
the slot.
Figure 8-8 Removing the memory module
6. Reinstall the cover of the memory module slot. Fasten the screw you removed
in Step 4.
7. Reinstall the Battery Pack.
NOTE: After installing a memory module, turn the power of the computer
on to see a total memory size. The system will calculate the total memory
size.
Battery Pack
You can increase the portability of the computer with Battery Packs. If you’re away
from an AC power source, you can replace a low battery with a fully charged one.
See Chapter 6, Power and Power-Up Modes.
Universal AC Adaptor
If you frequently transport the computer between different sites such as your home
and office, purchasing an AC adaptor (PA3282 or PA3283) for each location will
reduce the weight and bulk of your carrying load. The AC adaptor (PA3282) is
included in the product when purchased.
![](/img.php?id=551600&img=bg9f.png)
8-11
O
PTIONAL
D
EVICES
Battery Charger
Battery Charger
The battery charger (PA3091U) provides a convenient way to charge battery packs
without requiring the use your computer. The battery charger holds up to two
Lithium-ion battery packs.
USB diskette Kit
The 3 1/2" external diskette drive module can be connected to the USB port. For
details on connecting the 3 1/2" external diskette drive module, refer to Chapter 4,
Operating Basics.
Tablet Multi Dock
In addition to the ports available on the computer, the Tablet Multi Dock provides,
audio line-out jack.
The Tablet Multi Dock connects directly to the docking interface on the bottom of
the computer. The AC adaptor connects the Tablet Multi Dock to a power source.
CAUTION: The computer must be configured properly before
connecting to a LAN. Logging onto a LAN using the computer's default
settings could cause a malfunction in LAN operation. Check with your
LAN administrator regarding set-up procedures.
NOTE: You must connect the AC adaptor before you connect to a Tablet
Multi Dock.
The following ports and accessories are available on the Tablet Multi Dock.
❑One RJ45 LAN jack
❑External monitor port
❑DC IN 15V socket
❑Security lock slot
❑Audio line-out jacks
❑Universal Serial Bus (three) ports
❑Slim Select Bay Slot
NOTE: When a Tablet Multi Dock is connected to the computer, remove
all cables connected to the computer.
![](/img.php?id=551600&img=bga0.png)
8-12
User's Manual
OPTIONAL DEVICES
External monitor
An external analog monitor can be connected to the external monitor port on the
computer. The computer supports VGA and Super VGA video modes. To connect a
monitor, follow the steps below.
1. Turn the computer off.
2. Connect the monitor to the external monitor port.
3. Turn the monitor’s power on.
4. Turn the computer on.
When you turn on the power, the computer automatically recognizes the monitor
and determines whether it is color or monochrome.
To change the display settings, press Fn + F5. If you disconnect the monitor
before you turn the computer off, be sure to press Fn + F5 to switch to the internal
display. Refer to Chapter 5, The Keyboard, for details on using hot keys to change
the display setting.
Tablet PC Pen set
Use it as a spare to your computer. Spare pen tip and draw-out tool are included.
Refer to Chapter 6, Power and Power-Up Modes, for the detailed usage.
Reserve pen
Supplied pen uses a pen instead of Supplied pen at the time of loss or breakage.
The pen is set inside the computer, which connects a battery pack. Refer to Chapter
6, Power and Power-Up Modes, for the detailed usage.
![](/img.php?id=551600&img=bga1.png)
8-13
O
PTIONAL
D
EVICES
Security lock
A security lock enables you to anchor your computer to a desk or other heavy
object to help prevent unauthorized removal of the computer.
Attach one end of a cable to the desk and the other end to the security lock slot on
the left side or right side of the computer.
Figure 8-9 Security lock
Security lock
SECURITY LOCK
KEY
![](/img.php?id=551600&img=bga2.png)
8-14
User's Manual
OPTIONAL DEVICES
![](/img.php?id=551600&img=bga3.png)
T
ROUBLESHOOTING
Chapter 9
Troubleshooting
Problem solving process ................................................................... 9-1
Preliminary checklist .......................................................................... 9-1
Analyzing the problem ........................................................................ 9-2
Hardware and system checklist........................................................ 9-3
System start-up.................................................................................. 9-3
Self test.............................................................................................. 9-4
Power ................................................................................................. 9-4
Password ........................................................................................... 9-7
Keyboard ............................................................................................ 9-8
LCD panel .......................................................................................... 9-8
Hard disk drive .................................................................................... 9-9
Diskette drive ...................................................................................... 9-9
Infrared port ...................................................................................... 9-10
Pointing device ................................................................................. 9-10
PC card ............................................................................................ 9-13
SD card ............................................................................................ 9-14
Monitor ............................................................................................. 9-14
Sound system .................................................................................. 9-15
USB ................................................................................................. 9-15
Memory expansion ........................................................................... 9-16
Standby/Hibernation ......................................................................... 9-17
Modem ............................................................................................. 9-17
LAN .................................................................................................. 9-19
Wireless LAN ................................................................................... 9-19
Bluetooth .......................................................................................... 9-20
Real Time Clock ............................................................................... 9-20
TOSHIBA support ............................................................................. 9-21
Before you call ................................................................................. 9-21
Where to write .................................................................................. 9-21
![](/img.php?id=551600&img=bga4.png)
TROUBLESHOOTING
![](/img.php?id=551600&img=bga5.png)
9-1
T
ROUBLESHOOTING
Chapter 9
Troubleshooting
TOSHIBA designed the computer for durability. However, should problems occur,
following the procedures in this chapter can help to determine the cause.
All readers should become familiar with this chapter. Knowing what might go wrong
can help prevent problems from occurring.
Problem solving process
Resolving problems will be much easier if you observe the following guidelines:
❑Stop immediately when you recognize a problem exists. Further action may
result in data loss or damage. You may destroy valuable problem-related
information that can help solve the problem.
❑Observe what is happening. Write down what the system is doing and what
actions you performed immediately before the problem occurred. If you have a
printer attached, print a copy of the screen using PrtSc.
The questions and procedures offered in this chapter are meant as a guide, they are
not definitive problem solving techniques. Many problems can be solved simply,
but a few may require help from your dealer. If you find you need to consult your
dealer or others, be prepared to describe the problem in as much detail as possible.
Preliminary checklist
Consider the simplest solution first. The items in this checklist are easy to fix and
yet can cause what appears to be a serious problem.
❑Make sure you turn on all peripheral devices before you turn on the computer.
This includes your printer and any other external device you are using.
❑Before you attach an external device, turn the computer off. When you turn the
computer back on it recognizes the new device.
❑Make sure all options are set properly in the setup program.
❑Check all cables. Are they correctly and firmly attached? Loose cables can
cause signal errors.
❑Inspect all connecting cables for loose wires and all connectors for loose pins.
![](/img.php?id=551600&img=bga6.png)
User's Manual
9-2
TROUBLESHOOTING
❑Check that your diskette is correctly inserted and that the diskette’s write
protect tab is correctly set.
Make notes of your observations and keep them in a permanent error log. This will
help you describe your problems to your dealer. If a problem recurs, the log will help
you identify the problem faster.
Analyzing the problem
Sometimes the system gives clues that can help you identify why it is malfunction-
ing. Keep the following questions in mind:
❑Which part of the system is not operating properly: keyboard, diskette drives,
hard disk drive, printer, display. Each device produces different symptoms.
❑Is the operating system configuration set properly? Check the configuration
options.
❑What appears on the display screen? Does it display any messages or random
characters? Print a copy of the screen if you have a printer attached. Look up
the messages in the software and operating system documentation. Check that
all connecting cables are correctly and firmly attached. Loose cables can cause
erroneous or intermittent signals.
❑Do any icons light? Which ones? What color are they? Do they stay on or
blink? Write down what you see.
❑Do you hear any beeps? How many? Are they long or short? Are they high
pitched or low? Is the computer making any unusual noises? Write down what
you hear.
Record your observations so you can describe them to your dealer.
Software The problems may be caused by your software or diskette.
If you cannot load a software package, the media (usually
a diskette) may be damaged or the program might be
corrupted. Try loading another copy of the software.
If an error message appears while you are using a software
package, check the software documentation. These
documents usually include a problem solving section or a
summary of error messages.
Next, check any error messages in the OS documentation.
Hardware If you cannot find a software problem, check your
hardware. First run through the items in the preliminary
checklist above. If you still cannot correct the problem, try
to identify the source. The next section provides checklists
for individual components and peripherals.
![](/img.php?id=551600&img=bga7.png)
9-3
T
ROUBLESHOOTING
Hardware and system checklist
Hardware and system checklist
This section discusses problems caused by your computer’s hardware or attached
peripherals. Basic problems may occur in the following areas:
❑System start-up ❑SD card
❑Self test ❑Monitor
❑Power ❑Sound system
❑Password ❑USB
❑Keyboard ❑Memory expansion
❑LCD panel ❑Modem
❑Hard disk drive ❑Stand by / Hibernation
❑Diskette drive ❑LAN
❑Infrared port ❑Wireless LAN
❑Pointing device ❑Bluetooth
❑PC card ❑Real Time Clock (RTC)
System start-up
When the computer does not start properly, check the following items:
❑Self Test
❑Power Sources
❑Power-on Password
![](/img.php?id=551600&img=bga8.png)
User's Manual
9-4
TROUBLESHOOTING
Self test
When the computer starts up, the self-test will be run automatically, and the
following will be displayed:
In Touch with Tomorrow
TOSHIBA
This message remains on the screen for a few seconds.
If the self test is successful, the computer tries to load the operating system,
depending on how the Boot Priority is set in the HW Setup program.
If any of the following conditions are present, the self test failed:
❑The computer stops and does not proceed to display information or messages.
❑Random characters appear on the screen, and the system does not function
normally.
❑The screen displays an error message.
Turn off the computer and check all cable connections. If the test fails again,
contact your dealer.
Power
When the computer is not plugged into an AC adaptor, the Battery Pack is the
primary power source. However, your computer has a number of other power
resources, including intelligent power supply and Real Time Clock battery. These
resources are interrelated and any one could affect apparent power problems. This
section provides check lists for AC adaptor and the main battery. If you cannot
resolve a problem after following them, the cause could lie with another power
resource. In such case, contact your dealer.
![](/img.php?id=551600&img=bga9.png)
9-5
T
ROUBLESHOOTING
Hardware and system checklist
Overheating power down
If the computer’s internal temperature becomes too high, the computer will auto-
matically enter Hibernation or Resume mode and shut down.
Problem Procedure
Computer shuts down Leave the computer off until the DC IN 15V and
DC IN 15V indicator indicator stops blinking.
blinks orange
NOTE: It is recommended to leave the computer
off until the its interior reaches room temperature
even though the
DC IN 15V
indicator stops
blinking.
If the computer has reached room temperature
and still does not start, or if it starts but shuts
down quickly contact your dealer.
Computer shuts down Indicates a problem with the heat dispersal
and its DC IN 15V system. Please contact your dealer.
indicator
is flashing in green
AC power
If you have trouble turning on the computer with the AC adaptor connected, check
the DC IN 15V indicator. Refer to Chapter 6, Power and Power-Up Modes for more
information.
Problem Procedure
AC adaptor doesn’t Check the connections. Make sure the cord is
power the computer firmly connected to the computer and a power
(DC IN 15V indicator does
outlet.
not glow green)
![](/img.php?id=551600&img=bgaa.png)
User's Manual
9-6
TROUBLESHOOTING
Check the condition of the cord and terminals. If
the cord is frayed or damaged, replace it. If the
terminals are soiled, wipe them with cotton or a
clean cloth.
If the AC adaptor still does not power the com-
puter, contact your dealer.
Battery
If you suspect a problem with the battery, check the DC IN 15V indicator as well as
the Battery indicator. For information on indicators and battery operation see
Chapter 6, Power and Power-Up Modes.
Problem Procedure
Battery doesn’t The battery may be discharged. Connect the AC
power the computer adaptor to charge the battery.
Battery doesn’t If the battery is completely discharged, it will not
charge when the AC begin charging immediately. Wait a few minutes.
adaptor is attached
(Battery indicator If the battery still does not charge, make sure
does not glow in the outlet of the AC adaptor is supplying power.
orange.) Test it by plugging in an appliance.
Check whether the battery is hot or cold to the
touch. If the battery is too hot or too cold, it will
not charge properly. Let it reach room tempera-
ture.
Unplug the AC adaptor and remove the battery to
make sure the terminals are clean. If necessary
wipe them with a soft dry cloth dipped in alcohol.
Connect the AC adaptor and replace the battery.
Make sure it is securely seated.
![](/img.php?id=551600&img=bgab.png)
9-7
T
ROUBLESHOOTING
Hardware and system checklist
Check the Battery indicator. If it does not glow,
let the computer charge the battery for at least 20
minutes. If the Battery indicator glows after 20
minutes, let the battery continue to charge at
least another 20 minutes before turning on the
computer.
If the indicator still does not glow, the battery
may be at the end of its operating life. Replace it.
If you do not think the battery is at the end of its
operating life, see your dealer.
Battery doesn’t If you frequently recharge a partially charged
power the computer battery, the battery might not charge to its full
as long as expected potential. Fully discharge the battery, then try to
charge it again.
Check the power consumption settings in Power
Saver utility. Consider using a power saving
mode.
Password
Problem Procedure
Cannot enter Refer to the
Password
section in
password Chapter 6,
Power and Power-Up Modes
.
![](/img.php?id=551600&img=bgac.png)
User's Manual
9-8
TROUBLESHOOTING
Keyboard
Keyboard problems can be caused by your setup configuration. For more informa-
tion refer to Chapter 5, The Keyboard.
Problem Procedure
Some letter keys Check that the numeric keypad overlay is not
produce numbers selected. Press Fn + F10 and try typing again.
Output to screen Make sure the software you are using is not
is garbled remapping the keyboard. Remapping involves
reassigning the meaning of each key. See your
software’s documentation.
If you are still unable to use the keyboard,
consult your dealer.
LCD panel
Apparent LCD problems may be related to the computer’s setup. Refer to Chapter 7,
HW Setup, for more information.
Problem Procedure
No display Press hotkeys Fn + F5 to change the display
priority, to make sure it is not set for an external
monitor.
Problems above Refer to your software’s documentation to
remain unresolved determine if the software is causing the
or other problems difficulty.
occur
Run the diagnostic test.
Contact your dealer if the problems continue.
![](/img.php?id=551600&img=bgad.png)
9-9
T
ROUBLESHOOTING
Hardware and system checklist
Hard disk drive
Problem Procedure
Computer does not Check if a diskette is in the diskette drive. If a
boot from hard disk diskette is inserted, remove it and reboot.
drive
There may be a problem with your operating
system files. Refer to your OS documentation.
Slow performance Your files may be fragmented. Run SCANDISK
and defragmenter to check the condition of your
files and disk. Refer to your OS documentation
or online HELP for information on running
SCANDISK and the defragmenter.
As a last resort, reformat the hard disk. Then,
reload the operating system and other files.
If problems persist, contact your dealer.
Diskette drive
For more information, refer to Chapter 4, Operating Basics.
Problem Procedure
Drive does not There may be a faulty cable connection. Check
operate the connection to the computer and to the drive.
Some programs run The software or hardware configuration may be
correctly but others causing a problem. Make sure the hardware
do not configuration matches your software needs.
![](/img.php?id=551600&img=bgae.png)
User's Manual
9-10
TROUBLESHOOTING
You cannot access Try another diskette. If you can access the
the external diskette, the original diskette (not the drive) is
3 1/2" diskette drive probably causing the problem.
If problems persist, contact your dealer.
Infrared port
Refer also to the documentation for your IrDA compatible device and related
software.
Problem Procedure
Infrared devices do Check that the device is connected to an
not work as expected electric outlet. Make sure the outlet is supplying
power by plugging in an appliance.
Make sure there is no obstruction blocking
communication between the computer and the
target device.
If problems persist, contact your dealer.
Pointing device
If you are using a USB mouse, also refer to the USB section in this chapter and to
your mouse documentation.
TOSHIBA Tablet PC Pen
Problem Procedure
On-screen pointer The system might be busy. If the pointer is
does not respond to shaped as an hourglass, wait for it to resume
tablet pen operation its normal shape and try again to move it.
![](/img.php?id=551600&img=bgaf.png)
9-11
T
ROUBLESHOOTING
Hardware and system checklist
The tablet Pen might be set unable to use.
Press Fn + F9 keys to change Pen setting to
enabled.
Tablet pen and Adjust the coordinate axis in the following
on-screen pointer do procedure.
not move in the same
manner 1. Open the Control Panel and click Printer
and other Hardware.
2. Click the Tablet and Pen setting.
3. Select screen orientation with "Calibrate" in
"Setting" tab.
4. Click "Calibrate" button.
5. Click the cross in "Calibrate the screen"
and click "OK".
Unable input from Adjust the setting in the following procedure.
tablet pen
1. Open the Control Panel and click Printer
and other Hardware.
2. Click the Tablet and Pen setting.
3. Adjust setting of each item of "Pen options"
tab and click "OK".
Touch Pad
Problem Procedure
On-screen pointer The system might be busy. If the pointer is
does not respond to shaped as an hourglass, wait for it to resume
Pad operation its normal shape and try again to move it.
![](/img.php?id=551600&img=bgb0.png)
User's Manual
9-12
TROUBLESHOOTING
Double-tapping Try changing the double-click speed setting in
does not work the mouse control utility.
1. Open the Control Panel, select the Mouse
icon and press Enter.
2. Click the Buttons tab.
3. Set the double-click speed as instructed and
click OK.
The mouse pointer Try changing the speed setting in the mouse
moves too fast or control utility.
too slow
1. Open the Control Panel, select the Mouse
icon and press Enter.
2. Click the Pointer Options tab.
3. Set the speed as instructed and click OK.
If problems persist, contact your dealer.
USB mouse
Problem Procedure
On-screen pointer The system might be busy. If the pointer is
does not respond to shaped as an hourglass, wait for it to resume
mouse operation its normal shape and try again to move it.
Make sure the mouse is properly connected to
the USB port.
Double-clicking Try changing the double-click speed setting in
does not work the mouse control utility.
![](/img.php?id=551600&img=bgb1.png)
9-13
T
ROUBLESHOOTING
Hardware and system checklist
1. Open the Control Panel, select the Mouse
icon and press Enter.
2. Click the Buttons tab.
3. Set the double-click speed as instructed and
click OK.
The mouse pointer Try changing the speed setting in the mouse
moves too fast or control utility.
too slow
1. Open the Control Panel, select the Mouse
icon and press Enter.
2. Click the Pointer Options tab.
3. Set the speed as instructed and click OK.
The mouse pointer The mouse might be dirty. Refer to your mouse
moves erroneously documentations for instructions on cleaning.
If problems persist, contact your dealer.
PC card
Refer also to Chapter 8, Optional Devices.
Problem Procedure
PC card Reseat the PC card to make sure it is firmly
error occurs connected.
Make sure the connection between the external
device and the card is firm.
Check the card’s documentation.
If problems persist, contact your dealer.
![](/img.php?id=551600&img=bgb2.png)
User's Manual
9-14
TROUBLESHOOTING
SD card
Refer also to Chapter 8, Optional Devices.
Problem Procedure
SD card Reseat the SD card to make sure it is firmly
error occurs connected.
Check the card’s documentation.
You cannot write Make sure the card is not write protected.
in an SD card
You cannot read Make sure the target file is on the SD Card
a file inserted in the slot.
If problems persist, contact your dealer.
SD card cannot be Create a startup disk using the Toshiba SD memory
started boot utility.
Monitor
Refer also to Chapter 8, Optional Devices, and to your monitor’s documentation.
Problem Procedure
Monitor does not Make sure that the external monitor’s power
turn on switch is on. Confirm that the external monitor’s
power cable is plugged into a working power
outlet.
No display Try adjusting the contrast and brightness controls
on the external monitor.
Press hotkeys Fn + F5 to change the display
priority and make sure it is not set for the internal
display.
![](/img.php?id=551600&img=bgb3.png)
9-15
T
ROUBLESHOOTING
Hardware and system checklist
Display error occurs Check that the cable connecting the external
monitor to the computer is attached firmly.
If problems persist, contact your dealer.
Sound system
Refer also to documentation for your audio devices.
Problem Procedure
No sound is heard Adjust the volume control dial.
Check the software volume settings.
Make sure the headphone connection is secure.
If problems persist, contact your dealer.
USB
Refer also to your USB device’s documentation.
Problem Procedure
USB device does Check for a firm cable connection between the
not work USB ports on the computer and the USB device.
Make sure the USB device drivers are properly
installed. Refer to your Windows documentation
for information on checking the drivers.
![](/img.php?id=551600&img=bgb4.png)
User's Manual
9-16
TROUBLESHOOTING
If you are using an operating system that does
not support USB, you can still use a USB mouse
and/or USB keyboard. If these devices do not
work, make sure the USB KB/Mouse Legacy
Emulation item in HW Setup is set to Enabled.
If problems persist, contact your dealer.
Memory expansion
Refer also to Chapter 8, Optional Devices, for information on installing memory
modules.
Problem Procedure
Beep sounds. Make sure the memory module installed in
(If memory is in slot A, the expansion slot is compatible with the computer.
a long beep (1 second) If an incompatible module has been installed,
followed by two short follow the steps below.
beeps (0.5 second
each). 1. Turn off the power.
If in slot B, 2. Disconnect the AC adaptor and all peripheral
a long beep followed devices.
by four short beeps. 3. Remove the battery pack.
If both in slot A and 4. Remove the memory module.
slot B, a long beep 5. Install the memory module compatible with
followed by two short the computer.
beeps and after a 6. Install the battery pack and/or connect
pause (1 second) the AC adaptor.
a long beep followed 7. Turn on the power.
by four short beeps.)
![](/img.php?id=551600&img=bgb5.png)
9-17
T
ROUBLESHOOTING
Hardware and system checklist
Standby/Hibernation
Problem Procedure
The system will Is Windows Media™ Player open? The system
not enter might not enter Standby/Hibernation, if Windows
Standby/Hibernation Media Player is either playing a selection or
finished playing a selection. Close Windows
Media Player before you select Standby/Hiberna-
tion.
If problems persist, contact your dealer.
Modem
Refer to the online help files for Appendix C and D.
Problem Procedure
Communication Make sure the computer’s internal modem
software can’t settings are correct. Refer to
Modem
initialize modem Properties in the Control Panel.
You can hear a dial If the call is going through a PBX machine, make
tone but can’t make sure the communication application’s tone dial
a call detection feature is disabled.
You can also use the ATX command. Refer to
Appendix C,
AT Commands
.
You place a call, Make sure the settings are correct in your
but a connection communications application.
can’t be made
![](/img.php?id=551600&img=bgb6.png)
User's Manual
9-18
TROUBLESHOOTING
After making a call Make sure the tone or pulse selection in your
you can’t hear a ring communications application is set correctly.
You can also use the ATD command. Refer to
Appendix C,
AT Commands
.
Communication is The computer will automatically cut off
cut off unexpectedly communication when connection with the carrier
is not successful for a set time interval. Try
lengthening this time interval.
A CONNECT display Check the error control setting in your
is quickly replaced by communications application.
NO CARRIER
You can also use the AT\N command. Refer to
Appendix C,
AT Commands
.
Character display In data transmission, make sure the parity bit
becomes garbled and stop bit settings correspond with those
during a of the remote computer.
communication
Check the flow control and communication
protocol.
You cannot receive Check the rings before auto answer setting in
an incoming call your communications application.
You can also use the ATS0 command. Refer to
Appendix D,
S-registers
.
If problems persist, contact your dealer.
![](/img.php?id=551600&img=bgb7.png)
9-19
T
ROUBLESHOOTING
Hardware and system checklist
LAN
Problem Procedure
Cannot access LAN Check for a firm cable connection between the
LAN jack and the LAN HUB.
If problems persist, consult your LAN administra-
tor.
Wake-up on LAN Make sure the AC adaptor is connected. The
does not work Wake-up on LAN function consumes power even
when the system is off.
If problems persist, consult your LAN administra-
tor.
Wireless LAN
If the following procedures do not restore LAN access, consult your LAN adminis-
trator. For more information on wireless communication, refer to Chapter 4, Operat-
ing Basics.
Problem Procedure
Cannot access Make sure the computer’s wireless
Wireless LAN communication switch is set to on.
If problems persist, consult your LAN administra-
tor.
![](/img.php?id=551600&img=bgb8.png)
User's Manual
9-20
TROUBLESHOOTING
Bluetooth
For more information on wireless communication, refer to Chapter 4, Operating
Basics.
Problem Procedure
Cannot access Make sure the computer’s wireless
Bluetooth device communication switch is set to on.
Make sure the Bluetooth Manager is running and
the power to the Bluetooth device is turned on.
Make sure no optional Bluetooth PC card is
installed in the computer. The built-in Bluetooth
function and an optional Bluetooth PC card
cannot operate simultaneously.
If problems persist, contact your dealer.
Real Time Clock
Problem Procedure
The following message The battery for RTC is wearing. Set the date and
is displayed on the LCD: time in BIOS setup with the following steps:
RTC battery is low or 1. Press [F1] key. BIOS setup will boot up.
CMOS checksum is 2. Set the date in [System Date].
inconsistent. Press 3. Set the time in [System Time].
[F1] key to set 4. Press [End] key.
Date/Time. Confirmation message will appear.
5. Press [Y] key. BIOS setup will terminate and
the computer will be rebooted.
![](/img.php?id=551600&img=bgb9.png)
9-21
T
ROUBLESHOOTING
TOSHIBA support
TOSHIBA support
If you require any additional help using your computer or if you are having
problems operating the computer, you may need to contact TOSHIBA for additional
technical assistance.
Before you call
Some problems you experience may be related to software or the operating system.
It is important to investigate other sources of assistance first. Before contacting
TOSHIBA, try the following:
❑Review troubleshooting sections in the documentation for software and
peripheral devices.
❑If a problem occurs when you are running software applications, consult the
software documentation for troubleshooting suggestions. Call the software
company’s technical support for assistance.
❑Consult the dealer you purchased your computer and/or software from. They
are your best sources for current information and support.
Where to write
If you are still unable to solve the problem and suspect that it is hardware related,
write to TOSHIBA at the nearest location listed on the below.
Outside of Europe
Australia
TOSHIBA Australia Pty. Ltd.
Information Systems Division
84-92 Talavera Road
North Ryde N.S.W. 2113
Sydney
Canada
TOSHIBA of Canada Ltd.
191 McNabb Street,
Markham, Ontario
L3R 8H2
China
TOSHIBA Computer Systems
(Shanghai) Co., Ltd.Bldg.33, No.35,
Jinzang Road,
Pudong New Area,
Shanghai,
P.R. China 201206
Singapore
TOSHIBA Singapore Pte. Ltd.
438B Alexandra Road #06-01
Alexandra Technopark
Singapore 119968
![](/img.php?id=551600&img=bgba.png)
User's Manual
9-22
TROUBLESHOOTING
United States of America
TOSHIBA America Information
Systems, Inc.
9740 Irvine Boulevard
Irvine, California 92618
USA
In Europe
Germany & Austria
TOSHIBA Europe (I.E.) GmbH
Geschäftsbereich,
Deutschland-Österreich
Hammfelddamm 8,
D-41460 Neuss, Germany
France
TOSHIBA Systèms France S.A.
7, Rue Ampère B.P. 131,
92804 Puteaux Cedex
Netherlands
TOSHIBA Information Systems,
Benelux B.V.
Rivium Boulevard
41 2909 LK Capelle a/d IJssel
Spain
TOSHIBA Information Systems,
ESPAÑA
Parque Empresarial San Fernando
Edificio Europa, la Planta,
Escalera A 28830 Madrid
United Kingdom
TOSHIBA Information Systems (U.K.)
Ltd.
TOSHIBA Court
Weybridge Business Park
Addlestone Road
Weybridge, Surrey KT15 2UL
The Rest of Europe
TOSHIBA Europe (I.E.) GmbH
Geschäftsbereich,
Deutschland-Österreich
Hammfelddamm 8,
D-41460 Neuss, Germany
![](/img.php?id=551600&img=bgbb.png)
A
PPENDIXES
Appendixes
Appendix A
Specifications ........................................................................... A-1
Appendix B
Display Controller and Modes .............................................. B-1
Appendix C
AT Commands ............................................................................. C-1
Appendix D
S-registers .................................................................................... D-1
Appendix E
V.90 ............................................................................................... E-1
Appendix F
Wireless LAN ................................................................................ F-1
Appendix G
AC Power Cord and Connectors ................................................. G-1
Appendix H
Internal Modem Guide ................................................................. H-1
Appendix I
Parts Numbers .............................................................................. I-1
![](/img.php?id=551600&img=bgbc.png)
APPENDIXES
![](/img.php?id=551600&img=bgbd.png)
A-1
A
PPENDIX
A
Appendix A
Specifications
This appendix summarizes the computer’s technical specifications.
Physical Dimensions
Size
With TFT display 295 (w) × 239 (d) × 36.9 (h) millimeters
Weight
Hard disk Memory Display Kilograms
40 GB 256 MB 12" SXGA+-TFT 2.0 kg typical*
* Weight will vary depending on whether the computer has Wireless LAN
capability.
Environmental Requirements
Ambient Relative
Conditions temperature humidity
Operating 5°C (41°F) to 35°C (95°F) 20% to 80%
Non operating -20°C (-4°F) to 65°C (149°F) 10% to 90%
Thermal Gradient 20°C per hour maximum
Wet-bulb temperature 26°C maximum
Conditions Altitude (from sea level)
Operating -60 to 3,000 meters
Non operating -60 to 10,000 meters maximum
![](/img.php?id=551600&img=bgbe.png)
A-2
APPENDIX A
User's Manual
Power Requirements
AC adaptor 100- 240 volts AC
50 or 60 hertz (cycles per second)
Computer 15 VDC
3.0 amperes
Built-in Modem
Network control unit (NCU)
Type of NCU AA
Type of line Telephone line (analog only)
Type of dialing Pulse
Tone
Control command AT commands
EIA-578 commands
Monitor function Computer’s speaker
Communication specifications
Communication Data: Full duplex
system Fax: Half duplex
Communication Data
protocol ITU-T-Rec V.21/V.22/V.22bis/V.32
(Former CCITT) /V.32bis/V.34/V.90
Bell 103/212A
Fax
ITU-T-Rec V.17/V.29/V.27ter
(Former CCITT) /V.21 ch2
Communication Data transmission and reception
speed 300/1200/2400/4800/7200/9600/12000/14400/
16800/19200/21600/24000/26400/28800/31200/
33600 bps
Data reception only with V.90
28000/29333/30666/32000/33333/34666/36000/37333/
38666/40000/41333/42666/44000/45333/46666/48000/
49333/50666/52000/53333/54666/56000 bps
Fax2400/4800/7200/9600/12000/14400 bps
![](/img.php?id=551600&img=bgbf.png)
A-3
A
PPENDIX
A
Error correcting MNP class 4 and ITU-T V.42
Data compression MNP class 5 and ITU-T V.42bis
Transmitting level-10 dBm
Receiving level -10 to -40 dBm
Input/output 600 ohms ±30%
impedance
Power supply+3.3V (supplied by computer)
Appendix A
![](/img.php?id=551600&img=bgc0.png)
A-4
APPENDIX A
User's Manual
![](/img.php?id=551600&img=bgc1.png)
B-1
A
PPENDIX
B
Appendix B
Display Controller and
Modes
Display controller
The display controller interprets software commands into hardware commands that
turn particular pels on or off.
The controller is an advanced Video Graphics Array (VGA) that provides Super
VGA (SVGA) and Extended Graphics Array (XGA) support for the internal LCD and
external monitors. The displays up to 1400 × 1050 (SXGA+). The controller also
supports simultaneous display on the internal LCD and on an external monitor.
A high-resolution external monitor connected to the computer can display up to
1600 horizontal and 1536 vertical pixels and up to 64K colors.
The display controller also controls the video mode, which uses industry standard
rules to govern the screen resolution and the maximum number of colors that can be
displayed on screen.
Software written for a given video mode will run on any computer that supports the
mode.
The computer’s display controller supports all VGA and SVGA modes, the most
widely used industry standards.
![](/img.php?id=551600&img=bgc2.png)
User's Manual
B-2
APPENDIX B
Video modes
The computer supports video modes defined in the table below. If your application
offers a selection of mode numbers that do not match the numbers on the table,
select a mode based on mode type, resolution, character matrix, number of colors
and refresh rates. Also, consider the following points:
❑If your software supports both graphics and text modes, the screen display
may appear to operate faster using a text mode.
❑The LCD’s highest graphics resolution is 1400 horizontal × 1050 vertical lines.
Table 1 Video modes (Landscape)
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
0, 1 VGA 40 × 25 8 × 8 16 of 256K 16 of 256K 70Hz
Text Characters
2, 3 VGA 80 × 25 8 × 8 16 of 256K 16 of 256K 70Hz
Text Characters
0*, 1* VGA 40 × 25 8 × 14 16 of 256K 16 of 256K 70Hz
Text Characters
2*, 3* VGA 80 × 25 8 × 14 16 of 256K 16 of 256K 70Hz
Text Characters
0+, 1+ VGA 40 × 25 8(9) × 16 16 of 256K 16 of 256K 70Hz
Text Characters
2+, 3+ VGA 80 × 25 8(9) × 16 16 of 256K 16 of 256K 70Hz
Text Characters
4, 5 VGA 320 × 200 8 × 8 4 of 256K 4 of 256K 70Hz
Grph Pels
6 VGA 640 × 200 8 × 8 2 of 256K 2 of 256K 70Hz
Grph Pels
7 VGA 80 × 25 8(9) × 14 Mono Mono 70Hz
Text Characters
7+VGA 80 × 25 8(9) × 16 Mono Mono 70Hz
Text Characters
![](/img.php?id=551600&img=bgc3.png)
B-3
A
PPENDIX
B
Table 1 Video modes (Landscape) continued
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
D VGA 320 × 200 8 × 8 16 of 256K 16 of 256K 70Hz
Grph Pels
E VGA 640 × 200 8 × 8 16 of 256K 16 of 256K 70Hz
Grph Pels
F VGA 640 × 350 8 × 14 Mono Mono 70Hz
Grph Pels
10 VGA 640 × 350 8 × 14 16 of 256K 16 of 256K 70Hz
Grph Pels
11 VGA 640 × 480 8 × 16 16 of 256K 16 of 256K 60Hz
Grph Pels
12 VGA 640 × 480 8 × 16 16 of 256K 16 of 256K 60Hz
Grph Pels
13 VGA 320 × 200 8 × 8 256 of 256K 256 of 256K 70Hz
Grph Pels
SVGA 640 × 480 256 of 256K 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 800 × 600 256 of 256K 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1024 × 768 256 of 256K 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1280 × 1024 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
Appendix B
![](/img.php?id=551600&img=bgc4.png)
User's Manual
B-4
APPENDIX B
Table 1 Video modes (Landscape) continued
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
SVGA 1600 × 1200 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1920 × 1400 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
SVGA 2048 × 1536 256 of 256K 60Hz
Grph Pels 75Hz
SVGA 640 × 480 64K of 64K 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 800 × 600 64K of 64K 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1024 × 768 64K of 64K 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1280 × 1024 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1600 × 1200 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1920 × 1440 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
![](/img.php?id=551600&img=bgc5.png)
B-5
A
PPENDIX
B
Table 1 Video modes (Landscape) continued
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
SVGA 2048 × 1536 64K of 64K 60Hz
Grph Pels 75Hz
SVGA 640 × 480 16M of 16M 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 800 × 600 16M of 16M 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1024 × 768 16M of 16M 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1280 × 1024 64M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1600 × 1200 64M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1920 × 1440 64M of 16M 60Hz
Grph Pels 75Hz
SVGA 2048 × 1536 64M of 16M 60Hz
Grph Pels 75Hz
Appendix B
![](/img.php?id=551600&img=bgc6.png)
User's Manual
B-6
APPENDIX B
Table 2 Video modes (Portrait)
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
SVGA 480 × 640 256 of 256K 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 600 × 800 256 of 256K 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 768 × 1024 256 of 256K 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1024 × 1280 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1200 × 1600 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1440 × 1920 256 of 256K 60Hz
Grph Pels 75Hz
85Hz
SVGA 1536 × 2048 256 of 256K 60Hz
Grph Pels 75Hz
SVGA 480 × 640 64K of 64K 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
![](/img.php?id=551600&img=bgc7.png)
B-7
A
PPENDIX
B
Table Video modes (Portrait) continued
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
SVGA 600 × 800 64K of 64K 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 768 × 1024 64K of 64K 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1024 × 1280 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1200 × 1600 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1440 × 1920 64K of 64K 60Hz
Grph Pels 75Hz
85Hz
SVGA 1536 ×2048 264K of 64K 60Hz
Grph Pels 75Hz
SVGA 480 × 640 16M of 16M 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 600 × 800 16M of 16M 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
Appendix B
![](/img.php?id=551600&img=bgc8.png)
User's Manual
B-8
APPENDIX B
Table 2 Video modes (Portrait) continued
Video Type Resolution Character LCD CRT Scanning
mode matrix colors colors frequency
(pels) Vertical
SVGA 768 × 1024 16M of 16M 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1024 × 1280 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1200 × 1600 16M of 16M 60Hz
Grph Pels 75Hz
85Hz
100Hz
SVGA 1440 × 1920 16M of 16M 60Hz
Grph Pels 75Hz
SVGA 1536 × 2048 16M of 16M 60Hz
Grph Pels 75Hz
![](/img.php?id=551600&img=bgc9.png)
C-1
A
PPENDIX
C
Appendix C
AT Commands
In most cases, you will not need to type AT commands manually. However,
there might be some occasions when you will need to do so.
This chapter describes AT commands for data mode. Fax and voice commands
are taken care of by application software.
The format for entering AT commands is:
ATXn
where X is the AT command, and n is the specific value for that command. After
you type in the command press Enter.
Any command issued is acknowledged with a response in either text or numeric
values known as result codes.
All commands and command-values accepted by the modem are described in
this section; any entry other than those listed results in an error.
+++ Escape sequence
The escape sequence allows the modem to exit data mode and enter
on-line command mode. While in on-line command mode, you can
communicate directly to your modem using AT commands. Once you
finish, you can return to data mode using the ATO command.
A pause, the length of which is set by Escape Guard Time (S12), must
be completed after an escape sequence is entered, This pause prevents
the modem from interpreting the escape sequence as data.
The value of the escape sequence character may be changed using
register S2.
A/ Repeat last command
This command repeats the last command string entered. Do not
precede this command with an AT prefix or conclude it by pressing
Enter.
![](/img.php?id=551600&img=bgca.png)
User's Manual
C-2
APPENDIX C
A Answer command
This command instructs the modem to go off-hook and answer an
incoming call.
Bn Communication standard setting
This command determines the communication standard CCITT or Bell.
B0 Selects CCITT V.22 mode when the modem is at 1200 bps.
B1 Selects Bell 212A when the modem is at 1200 bps (default).
B15 Selects V.21 when the modem is at 300 bps.
B16 Selects Bell 103J when the modem is at 300 bps (default).
Result Codes:
OK n=0,1,15,16
ERROR Otherwise
Dn Dial
This command instructs the modem to dial a telephone number. Enter n
(the telephone number and any modifiers) after the ATD command.
Any digit or symbol (0-9, *, #, A, B, C, D) may be dialed as touch-tone
digits. Characters such as spaces, hyphens, and parentheses do not
count. They are ignored by the modem, but you may want to include
them to make the number and modifiers easier to read.
The following may be used as phone number modifiers:
PPulse dialing.
TTouch-tone dialing (default).
,Pause during dialing. Pause for time specified in Register S8
before processing the next character in the dial string.
WWait for dial tone. Modem waits for a second dial tone before
processing the dial string.
@Wait for quiet answer. Wait for five seconds of silence after
dialing the number. If silence is not detected, the modem
sends a NO ANSWER result code back to the caller.
!Hook flash. Causes the modem to go on-hook for 0.5 seconds
and then return to off-hook.
![](/img.php?id=551600&img=bgcb.png)
C-3
A
PPENDIX
C
;Return to command mode. Causes the modem to return to
command mode after dialing a number, without disconnecting
the call.
S=n Dial a telephone number previously stored using the &Zn=X
command (See &Zn=X command for more information). The
range is 0-3.
En Echo command
This command controls whether or not the characters entered from
your computer keyboard are displayed on your monitor (echoed) while
the modem is in command mode.
E0 Disables echo to the computer.
E1 Enables echo to the computer (default).
Result Codes:
OK n=0,1
ERROR Otherwise
Hn Hook control
This command instructs the modem to go on-hook to disconnect a call,
or off-hook to make the phone line busy.
H0 Modem goes on-hook (default).
H1 Modem goes off-hook.
Result Codes:
OK n=0,1
ERROR Otherwise
In Request ID information
This command displays product information about the modem.
I0 Returns modem identity string and driver version number.
I3 Same as I0.
I9 Returns region ID in English.
Result Codes:
OK n=0,3,9
ERROR Otherwise
Appendix C
![](/img.php?id=551600&img=bgcc.png)
User's Manual
C-4
APPENDIX C
Ln Monitor speakers volume
This command sets speakers volume to low, medium, or high.
L0 Low volume.
L1 Low volume. (Same as L0)
L2 Medium volume (default).
L3 High volume.
Result Codes:
OK n=0,1,2,3
ERROR Otherwise
Mn Monitor speakers mode
This command turns the speakers on or off.
M0 The speakers are off.
M1 The speakers are on until the modem detects the carrier signal
(default).
M2 The speakers are always on when modem is off-hook.
M3 Speakers are on until the carrier is detected, except when
dialing.
Result Codes:
OK n=0,1,2,3
ERROR Otherwise
Nn Modulation handshake
This command controls whether or not the local modem performs a
negotiated handshake at connection time with the remote modem when
the communication speed of the two modems is different.
N0 When originating or answering, this is for handshake only at
the communication standard specified by S37 and the ATB
command.
N1 When originating or answering, begin the handshake at the
communication standard specified by S37 and the ATB
command (default).
During handshake, a lower transmission speed may be
selected.
![](/img.php?id=551600&img=bgcd.png)
C-5
A
PPENDIX
C
Result Codes:
OK n=0,1
ERROR Otherwise
On Return on-line to data mode
O0 Instructs the modem to exit on-line command mode and return
to data mode (see AT escape sequence, +++).
O1 This command issues a retrain before returning to on-line data
mode.
O3 This command issues a rate renegotiation before returning to
on-line data mode.
Result Codes:
OK n=0,1,3
ERROR Otherwise
P Select pulse dialing
This command configures the modem for pulse (non touch-tone)
dialing. Dialed digits are pulsed until a T command or dial modifier is
received. Tone dial is the default setting.
Qn Result code control
Result codes are informational messages sent from the modem and
displayed on your monitor. Basic result codes are OK, CONNECT,
RING, NO CARRIER, and ERROR. The ATQ command allows the
user to turn result codes on or off.
Q0 Enables modem to send result codes to the computer (de-
fault).
Q1 Disables modem from sending result codes to the computer.
Result Codes:
OK n=0,1
ERROR Otherwise
Appendix C
![](/img.php?id=551600&img=bgce.png)
User's Manual
C-6
APPENDIX C
T Select tone dialing
This command instructs the modem to send DTMF tones while dialing.
Dialed digits are tone dialed until a P command or dial modifier is
received. This is the default setting.
Vn DCE response format
This command controls whether result codes (including call progress
and negotiation progress messages) are displayed as words or their
numeric equivalents.
V0 Displays result codes as digits.
V1 Displays result codes as text (default).
Result Codes:
OK n=0,1
ERROR Otherwise
Xn Result code selection, call progress monitoring
This command selects which result codes will be used by the modem.
Command Dial tone Busy signal Supported Result
detect detect Code
X0 Disable Disable OK, CONNECT, RING, NO CARRIER,
ERROR
X1 Disable Disable OK, RING, NO CARRIER, ERROR,
CONNECT <RATE>
X2 Enable Disable OK, RING, NO CARRIER, ERROR,
NODIALTONE, CONNECT <RATE>
X3 Disable Enable OK, RING, NO CARRIER, ERROR,
BUSY, CONNECT <RATE>,
BLACKLISTED
X4 (default) Enable Enable OK, RING, NO CARRIER, ERROR,
NODIALTONE, BUSY, CONNECT
<RATE>, DELAYED, BLACKLISTED,
REORDER, WARBLE, CALL WAITING
DETECTED
![](/img.php?id=551600&img=bgcf.png)
C-7
A
PPENDIX
C
X5 Enable Enable OK, RING, NO CARRIER, ERROR,
NODIALTONE, BUSY, CONNECT
<RATE>, RRING, NO BONGTONE,
DELAYED, BLACKLISTED, REORDER,
WARBLE, CALL WAITING DETECTED
Dial tone detect
Disabled: The modem dials a call regardless of whether it detects a
dial tone.
Enabled: The modem dials only upon detection of a dial tone, and
disconnects the call if the dial tone is not detected within
10 seconds.
Busy tone detect
Disabled: The modem ignores any busy tones it receives.
Enabled: The modem monitors for busy tones.
Result Codes:
OK n=0,1,2,3,4,5
ERROR Otherwise
Zn Recall stored profile
The modem performs a soft reset and restores (recalls) the configura-
tion profile according to the parameter supplied. If no parameter is
specified, zero is assumed. Either Z0 or Z1 restores the profile.
Result Codes:
OK n=0,1
ERROR Otherwise
&Cn Data Carrier Detect (DCD) control
Data Carrier Detect is a signal from the modem to the computer
indicating that a carrier signal is being received from a remote modem.
DCD normally turns off when the modem no longer detects the carrier
signal.
Appendix C
![](/img.php?id=551600&img=bgd0.png)
User's Manual
C-8
APPENDIX C
&C0 The state of the carrier from the remote modem is ignored.
DCD circuit is always on.
&C1 DCD turns on when the remote modem’s carrier signal is
detected, and off when the carrier signal is not detected
(default).
Result Codes:
OK n=0,1
ERROR Otherwise
&Dn DTR control
This command interprets how the modem responds to the state of the
DTR signal and changes to the DTR signal.
&D0 Ignore. The modem ignores the true status of DTR and treats
it as always on. This should only be used if your communica-
tion software does not provide DTR to the modem.
&D1 If the DTR signal is not detected while in on-line data mode,
the modem enters command mode, issues an OK result code,
and remains connected.
&D2 If the DTR signal is not detected while in on-line data mode,
the modem disconnects (default).
&D3 Reset on the on-to-off DTR transition.
Result Codes:
OK n=0,1,2,3
ERROR Otherwise
&F Load factory settings
This command loads the configuration stored and programmed at the
factory. This operation replaces all of the command options and the S-
register settings in the active configuration with factory values.
&F Recall factory setting as active configuration.
![](/img.php?id=551600&img=bgd1.png)
C-9
A
PPENDIX
C
&Gn V.22bis guard tone control
This command determines which guard tone, if any, to transmit while
transmitting in the high band (answer mode). This command is only
used in V.22 and V.22bis mode. This option is not used in North
America and is for international use only.
&G0 Guard tone disabled (default).
&G1 Sets guard tone to 550 Hz.
&G2 Sets guard tone to 1800 Hz.
Result Codes:
OK n=0,1,2
ERROR Otherwise
&Kn Local flow control selection
&K0 Disable flow control.
&K3 Enable CTS/RTS flow control (default).
&K4 Enable XON/XOFF flow control.
Result Codes:
OK n=0,3,4
ERROR Otherwise
&Pn Select Pulse Dial Make/Break Ratio (WW)
&P0 Selects 39% - 61% make/break ratio at 10 pulses per second.
&P1 Selects 33% - 67% make/break ratio at 10 pulses per second.
&P2 Selects 33% - 67% make/break ratio at 20 pulses per second.
Result Codes:
OK n=0,1,2
ERROR Otherwise
&Tn Self-test commands
These tests can help to isolate problems if you experience periodic
data loss or random errors.
Appendix C
![](/img.php?id=551600&img=bgd2.png)
User's Manual
C-10
APPENDIX C
&T0 Abort. Stops any test in progress.
&T1 Local analog loop. This test verifies modem operation, as well
as the connection between the modem and computer. Any
data entered at the local DTE is modulated, then demodulated,
and returned to the local DTE. To work properly, the modem
must be off-line.
Result Codes:
OK n=0
CONNECT n=1
ERROR Otherwise
&V Display Current Configuration
This command displays the current configuration of the modem. If
nonvolatile memory is supported the stored profiles are displayed
as well.
&V View profiles.
&W Store current configuration
Saves the current (active) configuration (profile), including S-Regis-
ters.
The current configuration comprises a list of storable parameters
illustrated in the &V command. These settings are restored to the
active configuration upon receiving a Zn command or at power up.
Refer to the &V command.
&W Stores the current configuration.
&Zn=x Store telephone number
This command is used to store up to four dialing strings in the
modem’s nonvolatile memory for later dialing. The format for the
command is &Zn=“stored number” where n is the location 0-3 to which
the number should be written. The dial string may contain up to 34
characters. The ATDS=n command dials using the string stored in
location n.
Result codes:
OK n=0, 1, 2, 3
ERROR Otherwise
![](/img.php?id=551600&img=bgd3.png)
C-11
A
PPENDIX
C
\Nn Error control mode selection
This command determines the type of error control used by the modem
when sending or receiving data.
\N0 Buffer mode. No error control.
\N1 Direct mode.
\N2 MNP or disconnect mode. The modem attempts to connect
using MNP2-4 error control procedures. If this fails, the
modem disconnects.
This is also known as MNP reliable mode.
\N3 V.42, MNP, or buffered (default).
The modem attempts to connect in V.42 error control mode. If
this fails, it attempts to connect in MNP mode. If this fails, it
connects in buffer mode and continues operation. This is also
known as V.42/MNP auto reliable mode (same as &Q5).
\N4 V.42 or disconnect. The modem attempts to connect in V.42
error control mode. If this fails, the modem disconnects.
\N5 V.42. MNP or buffered (same as \N3).
\N7 V.42. MNP or buffered (same as \N3).
Result Codes:
OK n=0,1,2,3,4,5,7
ERROR Otherwise
\Qn Local flow control selection
\Q0 Disable flow control.
\Q1 XON/XOFF software flow control.
\Q3 CTS/RTS to DTE (default).
Result Codes:
OK n=0,1,3
ERROR Otherwise
Appendix C
![](/img.php?id=551600&img=bgd4.png)
User's Manual
C-12
APPENDIX C
\Vn Protocol result code
\V0 Disable protocol result code appended to DCE speed.
\V1 Enable protocol result code appended to DCE speed (default).
Result Codes:
OK n=0,1
ERROR Otherwise
%B View numbers in blacklist
If blacklisting is in effect, this command displays the numbers for
which the last call attempted in the past two hours failed. The ERROR
result code appears in regions that do not require blacklisting.
%Cn Data compression control
This command determines the operation of V.42bis and MNP class 5
data compression. On-line changes do not take effect until a discon-
nect occurs first.
%C0 V.42bis/MNP 5 disabled. No data compression.
%C3 V.42bis/MNP 5 enabled. Data compression enabled (default).
Result Codes:
OK n=0,3
ERROR Otherwise
![](/img.php?id=551600&img=bgd5.png)
D-1
A
PPENDIX
D
Appendix D
S-registers
S-registers contain the settings that determine how a number of functions of the
internal modem operate. For example, how many times to let the telephone ring
before the modem answers and how long to wait before it hangs up if a connec-
tion fails. You can also customize certain AT commands such as the escape
sequence and command line termination.
The contents of the registers are changed automatically when you modify
corresponding settings in your communication software. If you choose,
however, you can display and edit the contents of the registers manually when
the modem is in command mode. If the value is out of the acceptable range, then
an error is generated.
This chapter describes the settings for each S-register.
S-register values
The format for displaying the value of an S-register is:
ATSn?
where n is the register number. After you type in the register press Enter.
The format for modifying the value of an S-register is:
ATSn=r
where n is the register number, and r is the new register value. After you type in
the register and its new value press Enter.
NOTE: Some registers vary from one country/region to another.
![](/img.php?id=551600&img=bgd6.png)
User's Manual
D-2
APPENDIX D
S0 Auto answer ring number
This register determines the number of rings the modem will count
before automatically answering a call. Enter 0 (zero) if you do not want
the modem to automatically answer at all. When disabled, the modem
can only answer with an ATA command.
Range: 0-255
Default: 0
Units: rings
S1 Ring counter
This register is read only. The value of S1 is incremented with each
ring. If no ring occurs over a six-second interval, this register is
cleared.
Range: 0-225
Default: 0
Units: rings
S2 AT escape character (user defined)
This register determines the ASCII values used for an escape se-
quence. The default is the + character. The escape sequence allows the
modem to exit data mode and enter command mode when on-line.
Values greater than 127 disable the escape sequence.
Range: 0-255, ASCII decimal
Default: 43
Units: ASCII
S3 Command line termination character
(user defined)
This register determines the ASCII values as the carriage return
character. This character is used to end command lines and result
codes.
Range: 0-127, ASCII decimal
Default: 13 (carriage return)
Units: ASCII
![](/img.php?id=551600&img=bgd7.png)
D-3
A
PPENDIX
D
S4 Response formatting character (user defined)
This register determines the ASCII value used as the line feed charac-
ter. The modem uses a line feed character in command mode when it
responds to the computer.
Range: 0-127, ASCII decimal
Default: 10 (line feed)
Units: ASCII
S5 Command line editing character (user defined)
This register sets the character recognized as a backspace and pertains
to asynchronous only. The modem will not recognize the backspace
character if it is set to a value that is greater than 32 ASCII. This
character can be used to edit a command line. When the echo com-
mand is enabled, the modem echoes back to the local DTE the back-
space character, an ASCII space character, and a second backspace
character. This means a total of three characters are transmitted each
time the modem processes the backspace character.
Range: 0-127, ASCII decimal
Default: 8 (backspace)
Units: ASCII
S6 Wait before dialing
This register sets the length of time, in seconds, that the modem must
wait (pause) after going off-hook before dialing the first digit of the
telephone number. The modem always pauses for a minimum of two
seconds, even if the value of S6 is less that two seconds. The wait for
dial tone call progress feature (W dial modifier in the dial string) will
override the value in register S6. This operation, however, may be
affected by some ATX options according to country/region restric-
tions. In some countries/regions, S6 will set dial tone detect time.
Range: 3-255
Default: 3
Units: seconds
Appendix D
![](/img.php?id=551600&img=bgd8.png)
User's Manual
D-4
APPENDIX D
S7 Connection completion time-out
This register sets the time, in seconds, that the modem must wait
before hanging up because carrier is not detected. The timer is started
when the modem finishes dialing (originate), or goes off-hook (an-
swer). In originate mode, the timer is reset upon detection of an answer
tone if allowed by county restriction. The timer also specifies the wait
for silence time for the @ dial modifier in seconds. S7 is not associated
with the W dial modifier.
Range: 1-255
Default: 50
Units: seconds
S8 Comma pause time
This register sets the time, in seconds, that the modem must pause
when it encounters a comma (,) in the dial command string. In some
countries/regions, S8 will set both wait before dialing and comma
pause time.
Range: 0-255
Default: 2
Units: seconds
S11 DTMF dialing speed
This register determines the dialing speed which is prefixed for each
country/region.
Range: 50-255
Default: 95
Units: .001 seconds
S12 Escape guard time
This register sets the value (in 20 millisecond increments) for the
required pause after the escape sequence.
Range: 0-255
Default: 50
Units: .02 seconds
![](/img.php?id=551600&img=bgd9.png)
D-5
A
PPENDIX
D
S37 Dial line rate
S37 = 0 (default) maximum modem speed
S37 = 1 reserved
S37 = 2 1200/75 bps
S37 = 3 300 bps
S37 = 4 reserved
S37 = 5 1200 bps
S37 = 6 2400 bps
S37 = 7 4800 bps
S37 = 8 7200 bps
S37 = 9 9600 bps
S37 = 10 12000 bps
S37 = 11 14400 bps
S37 = 12 16800 bps
S37 = 13 19200 bps
S37 = 14 21600 bps
S37 = 15 24000 bps
S37 = 16 26400 bps
S37 = 17 28800 bps
S37 = 18 31200 bps
S37 = 19 33600 bps
Appendix D
![](/img.php?id=551600&img=bgda.png)
User's Manual
D-6
APPENDIX D
AT command set result codes
The following table shows the result codes.
The result code summary
Result Code Numeric Description
OK 0 Command executed
CONNECT 1 Modem connected to line
RING 2 A ring signal has been detected
NO CARRIER 3 Modem lost carrier signal, or does
not detect carrier signal, or does
not detect answer tone
ERROR 4 Invalid command
CONNECT 1200 EC*15 Connection at 1200 bps
NO DIAL TONE 6 No dial tone detected
BUSY 7 Busy signal detected
NO ANSWER 8 No quiet answer
CONNECT 2400 EC*110 Connection at 2400 bps
CONNECT 4800 EC*111 Connection at 4800 bps
CONNECT 9600 EC*112 Connection at 9600 bps
CONNECT 14400 EC*113 Connection at 14400 bps
CONNECT 19200 EC*114 Connection at 19200 bps
CONNECT 7200 EC*124 Connection at 7200 bps
CONNECT 12000 EC*125 Connection at 12000 bps
CONNECT 16800 EC*186 Connection at 16800 bps
CONNECT 300 EC*140 Connection at 300 bps
CONNECT 21600 EC*155 Connection at 21600 bps
CONNECT 24000 EC*156 Connection at 24000 bps
CONNECT 26400 EC*157 Connection at 26400 bps
CONNECT 28800 EC*158 Connection at 28800 bps
CONNECT 31200 EC*159 Connection at 31200 bps
CONNECT 33600 EC*160 Connection at 33600 bps
![](/img.php?id=551600&img=bgdb.png)
D-7
A
PPENDIX
D
Result Code Numeric Description
DELAYED*288 Delay is in effect for the dialed
number
BLACKLISTED*289 Dialed number is blacklisted
BLACKLIST FULL*290 Blacklist is full
*1: EC only appears when the Extended Result Codes configuration option is
enabled. EC is replaced by one of the following symbols, depending upon
the error control method used:
V.42bis - V.42 error control and V.42bis data compression.
V.42 - V.42 error control only.
MNP 5 - MNP class 4 error control and MNP class 5 data compression.
MNP 4 - MNP class 4 error control only.
NoEC - No error control protocol.
*2: In some countries/regions, these result codes may not appear.
Appendix D
![](/img.php?id=551600&img=bgdc.png)
User's Manual
D-8
APPENDIX D
![](/img.php?id=551600&img=bgdd.png)
E-1
A
PPENDIX
E
Appendix E
V.90
The TOSHIBA internal modem uses V.90 technology. The modem is capable of
downstream speeds of 56Kbps (kilobits per second) when connected to an Internet
service provider that supports V.90. As with any modem, the actual throughput
(speed of data transfer) depends on analog telephone line conditions, which can
vary considerably. Therefore, many users will experience throughput in the range of
32-44Kbps under normal telephone line conditions. Upstream data flows at the V.34
rate.
NOTE: V.90 rates can be achieved only when one V.90 capable modem
is connected to another. The TOSHIBA Internal modem will select
automatically V.34 if the remote modem lacks V.90 capability or if a
combination of network and/or phone line conditions prevent V.90
connection.
V.90 mode
Function Transmission speed
Data V.90 From 56K (maximum) to 28Kbps (minimum)
Reception only
![](/img.php?id=551600&img=bgde.png)
User's Manual
E-2
APPENDIX E
Table E-1 Result codes for a V.90 connection
No. Result code Description
70 CONNECT 32000 EC* Connection at 32000 bits/s
72 CONNECT 36000 EC* Connection at 36000 bits/s
74 CONNECT 40000 EC* Connection at 40000 bits/s
76 CONNECT 44000 EC* Connection at 44000 bits/s
78 CONNECT 48000 EC* Connection at 48000 bits/s
80 CONNECT 52000 EC* Connection at 52000 bits/s
82 CONNECT 56000 EC* Connection at 56000 bits/s
100 CONNECT 28000 EC* Connection at 28000 bits/s
101 CONNECT 29333 EC* Connection at 29333 bits/s
102 CONNECT 30666 EC* Connection at 30666 bits/s
103 CONNECT 33333 EC* Connection at 33333 bits/s
104 CONNECT 34666 EC* Connection at 34666 bits/s
105 CONNECT 37333 EC* Connection at 37333 bits/s
106 CONNECT 38666 EC* Connection at 38666 bits/s
107 CONNECT 41333 EC* Connection at 41333 bits/s
108 CONNECT 42666 EC* Connection at 42666 bits/s
109 CONNECT 45333 EC* Connection at 45333 bits/s
110 CONNECT 46666 EC* Connection at 46666 bits/s
111 CONNECT 49333 EC* Connection at 49333 bits/s
112 CONNECT 50666 EC* Connection at 50666 bits/s
113 CONNECT 53333 EC* Connection at 53333 bits/s
114 CONNECT 54666 EC* Connection at 54666 bits/s
*EC stands for the Error Control method, which appears only when the extended
result codes configuration option is enabled. EC is replaced by one of the
following symbols, depending on the error control method used.
V42bis V.42 error control and V.42bis data compression
V42 V.42 error control only
NoEC No error control protocol
![](/img.php?id=551600&img=bgdf.png)
E-3
A
PPENDIX
E
AT Command
-V90=* V.90 Dial Line Rate
-V90 sets the maximum V.90 downstream that the modem attempts to
connect.
-V90=0 V.90 disabled
-V90=1 V.90 enabled: automatic speed selection - maximum modem speed
(default)
Appendix E
![](/img.php?id=551600&img=bge0.png)
User's Manual
E-4
APPENDIX E
![](/img.php?id=551600&img=bge1.png)
F-1
A
PPENDIX
F
Appendix F
Wireless LAN
This appendix is intended to help you get your Wireless LAN network up and
running, with a minimum of parameters.
Card specifications
Form Factor Mini PCI TypeIII
Capability Wi-Fi (Wireless Fidelity) certified by the Wi-Fi
Alliance. The "Wi-Fi CERTIFIED" logo is a
certification mark of the Wi-Fi Alliance.
Network Microsoft Windows® Networking
Operating
System
Media Access CSMA/CA (Collision Avoidance) with
Protocol Acknowledgment (ACK)
Data Rate 54/48/36/24/18/12/ 9/6 Mb/s (Revision G)
11/5.5/2/1 Mb/s (Revision B)
Radio characteristics
Radio characteristics of Wireless LAN cards may vary according to:
Country/region where the product was purchased
Type of product
Wireless communication is often subject to local radio regulations. Although
Wireless LAN wireless networking products have been designed for operation in
the license-free 2.4 GHz band, local radio regulations may impose a number of
limitations to the use of wireless communication equipment.
NOTE: Refer to the sheet Information to the User for regulatory informa-
tion that may apply in your country/region.
![](/img.php?id=551600&img=bge2.png)
F-2
User's Manual
APPENDIX F
R-FFrequency Band 2.4 GHz (2400-2483.5 MHz) (Revision
B and G)
Modulation Technique N DSSS-CCK, DSSS-DQPSK, DSSSDBPSK
(Revision B)
OFDM-BPSK, OFDM-QPSK, OFDM-
16QAM, OFDM-64QAM (Revision G)
The range of the wireless signal is related to the transmit rate of the wireless
communication. Communications at lower transmit range may travel larger dis-
tances.
The range of your wireless devices can be affected when the antennas are
placed near metal surfaces and solid high-density materials.
Range is also affected by "obstacles" in the signal path of the radio signals
that may either absorb or reflect the radio signal.
Supported frequency sub-bands
Subject to the radio regulations that apply in your country/region, your Wireless
LAN card may support a different set of 2.4 GHz channels.
Consult your Authorized Wireless LAN or TOSHIBA Sales office for information
about the radio regulations that apply in your country/region.
Wireless IEEE 802.11 Channels Sets (Revision B and G)
Frequency Range Channel ID 2400-2472 MHz
1 2412
2 2417
3 2422
4 2427
5 2432
6 2437
7 2442
8 2447
9 2452
10 2457*1
11 2462
12 2467 *2
13 2472 *2
![](/img.php?id=551600&img=bge3.png)
F-3
A
PPENDIX
F
*1 Factory-set default channels
*2 Refer to the sheet Approved Countries/Regions for use for the
countries/regions that in which these channels can be used.
When installing Wireless LAN cards, the channel configuration is managed as
follows:
For wireless clients that operate in a Wireless LAN Infrastructure, the Wireless
LAN card will automatically start operation at the channel identified by the
Wireless LAN Access Point. When roaming between different access points
the station can dynamically switch to another channel if required.
For Wireless LAN cards installed in wireless clients operating in a peer-to-peer
mode, the card will use the default channel 10.
In a Wireless LAN Access Point, the Wireless LAN card will use the factory-
set default channel (printed in bold), unless the LAN Administrator selected a
different channel when configuring the Wireless LAN Access Point device.
Appendix F
![](/img.php?id=551600&img=bge4.png)
F-4
User's Manual
APPENDIX F
![](/img.php?id=551600&img=bge5.png)
G-1
A
PPENDIX
G
Appendix G
AC Power Cord and
Connectors
The power cord’s AC input plug must be compatible with the various international
AC power outlets and the cord must meet the standards for the country/region in
which it is used. All cords must meet the following specifications:
Length: Minimum 2 meters
Wire size: Minimum 0.75 mm2
Current rating: Minimum 2.5 amperes
Voltage rating: 125 or 250 VAC
(depending on country/region’s power standards)
Certification agencies
U.S. and Canada: UL listed and CSA certified
No. 18 AWG, Type SVT or SPT-2 two conductor
Europe:
Austria: OVE Italy: IMQ
Belgium: CEBEC The Netherlands: KEMA
Denmark: DEMKO Norway: NEMKO
Finland: SETI Sweden: SEMKO
France: UTE Switzerland: SEV
Germany: VDE United Kingdom: BSI
Australia: AS
Japan: DENANHO
In Europe, power cords must be VDE type, H05VVH2-F and two conductor.
For the United States and Canada, plug configuration must be a 2-15P (250 V) or 1-
15P (125 V) as designated in the U.S. National Electrical code handbook and the
Canadian Electrical Code Part II.
![](/img.php?id=551600&img=bge6.png)
G-2
User's Manual
APPENDIX G
The following illustrations show the plug shapes for the U.S.A. and Canada, the
United Kingdom, Australia and Europe.
USA and Canada United Kingdom
Australia Europe
UL approved
CSA approved BS approved
Approved by the
appropriate agency
AS approved
![](/img.php?id=551600&img=bge7.png)
H-1
A
PPENDIX
H
Appendix H
Internal Modem Guide
This appendix describes how to install and the remove the internal modem.
CAUTIONS: 1. Do not remove the base cover except to remove or
install the internal modem or to check the PTT label.
2. Do not disassemble the computer beyond the steps
described in this instruction or touch any components
not specifically described.
3. Always remove the Battery Pack and disconnect the AC
Adaptor before removing the base cover.
4. Be careful not to drop any screws or other foreign
matter into the computer. Metal or other foreign matter
can damage the computer.
Installing the internal modem
NOTE: The internal modem is preinstalled. The following is for informa-
tion only.
To install the modem board, follow the steps below.
1. Save your data, quit Windows and turn off the power.
2. Disconnect the AC Adaptor and any other peripheral devices.
3. Close the display panel and turn the computer over. Remove the Battery Pack.
4. Remove one screw under the battery pack slot.
5. Remove the memory slot cover and remove the fan cable.
6. Remove the cover of a hard disk drive slot.
7. Remove nine screws of the base cover of the computer, and remove the base
cover.
8. Connect the modem cable to the modem board.
9. Secure the modem board with the two screws.
![](/img.php?id=551600&img=bge8.png)
H-2
User’s Manual
APPENDIX H
10. Seat the base cover and secure it with nine screws.
11. Seat the cover of a hard disk drive slot.
12. Connect the fan cable in a memory slot cover, and seat the memory slot cover.
13. Screw under the battery pack slot with the one screw.
14. Install the battery pack.
Removing the internal modem
To remove the internal modem.
1. Save your data, quit Windows and turn off the power.
2. Disconnect the AC Adaptor and any other peripheral devices.
3. Close the display panel and turn the computer over. Remove the Battery Pack.
4. Remove one screw under the battery pack slot.
5. Remove the memory slot cover and remove the fan cable.
6. Remove the cover of a hard disk drive slot.
7. Remove nine screws of the base cover of the computer, and remove the base
cover.
NOTE: The standard (PTT) label can be checked.
8. Remove the two screws which are fixing the modem.
9. Disconnect the modem cable from the modem board.
10. Seat the base cover and secure it with nine screws.
11. Seat the cover of a hard disk drive slot.
12. Connect the fan cable in a memory slot cover, and seat the memory slot cover.
13. Screw under the battery pack slot with the one screw.
14. Install the battery pack.
The internal modem is approved by Japan Approvals Institute for Telecommuni-
cations Equipment.
A00-0940JP
![](/img.php?id=551600&img=bge9.png)
A
PPENDIX
I
I-1
Appendix I
Parts Numbers
The computer configuration and parts numbers, printed on a label on the bottom of
the computer, indicate the CPU, LCD, memory, HDD and communication devices.
![](/img.php?id=551600&img=bgea.png)
I-2
APPENDIX I
Configurations
The following table shows the computer configuration indicated on a label. Shaded areas indicate abbreviations used on the label.
The explanations are to the left of the shading. Abbreviations are not limited to those in this chart. They may change without
notice.
* Figures indicate the CPU operating speed in megahertz. For example, PM1.7 means Mobile Intel® Pentium® -M processor
1.7 GHz-M.
User's Manual
![](/img.php?id=551600&img=bgeb.png)
G
LOSSARY
Glossary-1
Glossary
The terms in this glossary cover the topics discussed in this manual. Alternate
naming is included for reference.
Abbreviations
AC: alternating current
ANSI: American National Standards
Institute
APM: advanced power manager
ASCII: American Standard Code for
Information Interchange
BIOS: basic input output system
CMOS: complementary metal-oxide
semiconductor
CPU: central processing unit
CRT: cathode ray tube
DAA: Data Access Arrangement
DC: direct current
DDC: display data channel
DMA: direct memory access
DOS: disk operating system
DVI: Digital Visual Interface
ECP: extended capabilities port
EGA: enhanced graphics adaptor
FDD: floppy disk drive
FIR: fast infrared
HDD: hard disk drive
IDE: integrated drive electronics
I/O: input/output
IrDA: Infrared Data Association
IRQ: interrupt request
KB: kilobyte
LCD: liquid crystal display
LED: light emitting diode
LSI: large scale integration
MDA: monochrome display adaptor
MS-DOS: Microsoft Disk Operating
System
OCR: optical character recognition
(reader)
PCB: printed circuit board
PCI: peripheral component intercon-
nect
RAM: random access memory
RGB: red, green, and blue
ROM: read only memory
RTC: real time clock.
SCSI: small computer system
interface
SIO: serial input/output
SVGA: super video graphics adaptor
TFT: thin-film transistor
UART: universal asynchronous
receiver/transmitter
USB: Universal Serial Bus
![](/img.php?id=551600&img=bgec.png)
GLOSSARY
Glossary-2
ANSI: American National Standards
Institute. An organization established
to adopt and define standards for a
variety of technical disciplines. For
example, ANSI defined the ASCII
standard and other information
processing requirements.
antistatic: A material used to prevent
the buildup of static electricity.
application: A group of programs
that together are used for a specific
task such as accounting, financial
planning, spreadsheets, word process-
ing, and games, etc.
ASCII: American Standard Code for
Information Interchange. ASCII code
is a set of 256 binary codes that
represent the most commonly used
letters, numbers, and symbols.
async: Short for asynchronous.
asynchronous: Lacking regular time
relationship. As applied to computer
communications, asynchronous refers
to the method of transmitting data that
does not require a steady stream of bits
to be transmitted at regular time
intervals.
AUTOEXEC.BAT: A batch file that
executes a series of MS-DOS com-
mands and programs each time you
start the computer.
(Abbreviations continued)
VESA: Video Electronic Standards
Association
VGA: video graphics array
VRT: voltage reduction technology
A
adaptor: A device that provides an
interface between two dissimilar
electronic devices. For example, the
AC adaptor modifies the power from a
wall outlet for use by the computer.
This term also refers to the add-in
circuit cards that control external
devices, such as video monitors and
magnetic tape devices.
allocate: To assign a space or
function for a specific task.
alphanumeric: Keyboard characters
including letters, numbers and other
symbols, such as punctuation marks or
mathematical symbols.
alternating current (AC): Electric
current that reverses its direction of
flow at regular intervals.
analog signal: A signal whose
characteristics such as amplitude and
frequency vary in proportion to (are
an analog of) the value to be transmit-
ted. Voice communications are analog
signals.
adaptor
![](/img.php?id=551600&img=bged.png)
G
LOSSARY
Glossary-3
B
backup: A duplicate copy of files kept
as a spare in case the original is
destroyed.
batch file: A file that can be executed
from the system prompt containing a
sequence of operating system com-
mands or executable files. See also
AUTOEXEC.BAT.
binary: The base two number system
composed of zeros and ones (off or
on), used by most digital computers.
The right most digit of a binary
number has a value of 1, the next a
value of 2, then 4, 8, 16, and so on.
For example, the binary number 101
has a value of 5. See also ASCII.
BIOS: Basic Input Output System.
The firmware that controls data flow
within the computer. See also firm-
ware.
bit: Derived from “binary digit,” the
basic unit of information used by the
computer. It is either zero or one.
Eight bits is one byte. See also byte.
Bluetooth: A short-range radio
technology designed to simplify
wireless communication among
computers, communication devices
and the Internet.
board: A circuit board. An internal
card containing electronic components,
called chips, which perform a specific
function or increase the capabilities of
the system.
boot: Short for bootstrap. A program
that starts or restarts the computer.
The program reads instructions from a
storage device into the computer’s
memory.
bps: Bits per second. Typically used
to describe the data transmission
speed of a modem.
buffer: The portion of the computer’s
memory where data is temporarily
stored. Buffers often compensate for
differences in the rate of flow from
one device to another.
bus: An interface for transmission of
signals, data or electric power.
byte: The representation of a single
character. A sequence of eight bits
treated as a single unit; also the
smallest addressable unit within the
system.
C
cache memory: High speed memory
which stores data that increases
processor speed and data transfer rate.
When the CPU reads data from main
memory, it stores a copy of this data in
cache memory. The next time the CPU
needs that same data, it looks for it in
the cache memory rather than the main
memory, which saves time. The
computer has two cache levels. Level
one is incorporated into the processor
and level two resides in external
memory.
cache memory
![](/img.php?id=551600&img=bgee.png)
GLOSSARY
Glossary-4
capacity: The amount of data that can
be stored on a magnetic storage
device such as a diskette (floppy
disk) or hard disk. It is usually
described in terms of kilobytes (KB),
where one KB = 1024 bytes and
megabytes (MB), where one MB =
1024 KB.
card: Synonym for board. See board.
CardBus: An industry standard bus
for 32-bit PC Cards.
CD-ROM: A Compact Disk-Read
Only Memory is a high capacity disk
that can be read from but not written
to. The CD-ROM drive uses a laser,
rather than magnetic heads, to read
data from the disk.
character: Any letter, number,
punctuation mark, or symbol used by
the computer. Also synonymous with
byte.
chassis: The frame containing the
computer.
chip: A small semiconductor contain-
ing computer logic and circuitry for
processing, memory, input/output
functions and controlling other chips.
CMOS: Complementary Metal-Oxide
Semiconductor. An electronic circuit
fabricated on a silicon wafer that
requires very little power. Integrated
circuits implemented in CMOS
technology can be tightly packaged
and are highly reliable.
cold start: Starting a computer that is
currently off (turning on the power).
commands: Instructions you enter at
the terminal keyboard that direct the
actions of the computer or its periph-
eral devices.
communications: The means by
which a computer transmits and
receives data to and from another
computer or device.
Compact Flash: A small removable
mass storage device, designed with
flash technology, a non-volatile
storage solution that does not require
a battery to retain data indefinitely.
compatibility: 1) The ability of one
computer to accept and process data in
the same manner as another computer
without modifying the data or the
media upon which it is being trans-
ferred. 2) the ability of one device to
connect to or communicate with
another system or component.
components: Elements or parts (of a
system) which make up the whole
(system).
computer program: A set of instruc-
tions written for a computer that
enable it to achieve a desired result.
computer system: A combination of
hardware, software, firmware, and
peripheral components assembled to
process data into useful information.
configuration: The specific compo-
nents in your system (such as the
terminal, printer, and disk drives) and
the settings that define how your
capacity
![](/img.php?id=551600&img=bgef.png)
G
LOSSARY
Glossary-5
system works. You use the HW Setup
program to control your system
configuration.
control keys: A key or sequence of
keys you enter from the keyboard to
initiate a particular function within a
program.
controller: Built-in hardware and
software that controls the functions of
a specific internal or peripheral device
(e.g. keyboard controller).
co-processor: A circuit built into the
processor that is dedicated to intensive
math calculations.
CPS: Characters per second. Typi-
cally used to indicate the transmission
speed of a printer.
CPU: Central processing unit. The
portion of the computer that interprets
and executes instructions.
CRT: Cathode Ray Tube. A vacuum
tube in which beams projected on a
fluorescent screen-producing luminous
spots. An example is the television
set.
cursor: A small, blinking rectangle or
line that indicates the current position
on the display screen.
D
data: Information that is factual,
measurable or statistical that a
computer can process, store, or
retrieve.
data access arrangement: Circuitry
that isolates a modem or other device
from telephone lines.
data bits: A data communications
parameter controlling the number of
bits (binary digits) used to make up a
byte. If data bits = 7 the computer can
generate 128 unique characters. If
data bits = 8 the computer can
generate 256 unique characters.
DC: Direct Current. Electric current
that flows in one direction. This type
of power is usually supplied by
batteries.
default: The parameter value
automatically selected by the system
when you or the program do not
provide instructions. Also called a
preset value.
delete: To remove data from a disk
or other data storage device. Synony-
mous with erase.
device driver: A program that
controls communication between a
specific peripheral device and the
computer. The CONFIG.SYS file
contains device drivers that MS-DOS
loads when you turn the computer on.
dialog box: A window that accepts
user input to make system settings or
record other information.
disk drive: The device that randomly
accesses information on a disk and
copies it to the computer’s memory. It
also writes data from memory to the
disk. To accomplish these tasks, the
disk drive
![](/img.php?id=551600&img=bgf0.png)
GLOSSARY
Glossary-6
unit physically rotates the disk at high
speed past a read-write head.
disk storage: Storing data on magnetic
disk. Data is arranged on concentric
tracks much like a phonograph record.
diskette: A removable disk that stores
magnetically encoded data used on a
microcomputer. Also called floppy
disk.
display: A CRT, plasma screen, LCD,
or other image producing device used
to view computer output.
documentation: The set of manual
and/or other instructions written for the
users of a computer system or applica-
tion. Computer system documentation
typically includes procedural and
tutorial information as well as system
functions.
DOS: Disk operating system. See
operating system.
driver: A software program, generally
part of the operating system, that
controls a specific piece of hardware
(frequently a peripheral device such as
a printer or mouse).
E
echo: To send back a reflection of the
transmitted data to the sending device.
You can display the information on the
screen, or output it to the printer, or
both. When a computer receives back
data it transmitted to a CRT (or other
peripheral device) and then retrans-
mits the data to printer, the printer is
said to echo the CRT.
erase: See delete.
escape: 1) A code ( ASCII code 27),
signaling the computer that what
follows are commands; used with
peripheral devices such as printers and
modems. 2) A means of aborting the
task currently in progress.
escape guard time: A time before and
after an escape code is sent to the
modem which distinguishes between
escapes that are part of the transmit-
ted data, and escapes that are in-
tended as a command to the modem.
execute: To interpret and execute an
instruction.
Extended Capability Port: An industry
standard that provides a data buffer,
switchable forward and reverse data
transmission, and run length encoding
(RLE) support.
F
fast infrared: An industry standard
that enables cableless infrared serial
data transfer at speeds of up to 4
Mbps.
file: A collection of related informa-
tion; a file can contain data, programs,
or both.
firmware: A set of instructions built
into the hardware which controls and
disk storage
![](/img.php?id=551600&img=bgf1.png)
G
LOSSARY
Glossary-7
directs a microprocessor’s activities.
fixed disk: See hard disk.
floppy disk: See diskette.
floppy disk drive (FDD): An electrome-
chanical device that reads and writes to
floppy disks. See also diskette.
Fn-esse: A TOSHIBA utility that lets
you assign functions to hotkeys.
folder: An icon in Windows used to
store documents or other folders.
format: The process of readying a
blank disk for its first use. Formatting
establishes the structure of the disk
that the operating system expects
before it writes files or programs onto
the disk.
function keys: The keys labeled F1
through F12 that tell the computer to
perform certain functions.
G
gigabyte (GB): A unit of data
storage equal to 1024 megabytes.
See also megabyte.
GND: Ground. An RS-232C signal
used in the exchange of data between a
computer and serial device.
graphics: The use of drawings,
pictures, or other images, such as
charts or graphs, to present informa-
tion.
H
hard disk: A non-removable disk
usually referred to as drive C. The
factory installs this disk and only a
trained engineer can remove it for
servicing. Also called fixed disk.
hard disk drive (HDD): An electro-
mechanical device that reads and
writes a hard disk. See also hard disk.
hardware: The physical electronic
and mechanical components of a
computer system: typically, the
computer itself, external disk drives,
etc. See also software and firmware.
hertz: A unit of wave frequency that
equals one cycle per second.
hexadecimal: The base 16 numbering
system composed of the digits 0
through 9 and the letters A, B, C, D, E,
and F.
host computer: The computer that
controls, regulates, and transmits
information to a device or another
computer.
hot dock/undock: Connecting or
disconnecting a device to or from the
computer while the computer’s power
is turned on.
hotkey: The computer’s feature in
which certain keys in combination
with the extended function key, Fn,
can be used to set system parameters,
such as speaker volume.
hotkey
![](/img.php?id=551600&img=bgf2.png)
GLOSSARY
Glossary-8
HW Setup: A TOSHIBA utility that
lets you set the parameters for various
hardware components.
I
icon: A small graphic image displayed
on the screen or in the indicator panel.
In Windows, an icon represents an
object that the user can manipulate.
infrared port: A cableless communi-
cations capable of using infrared
signals to send serial data.
input: The data or instructions you
provide to a computer, communication
device or other peripheral device from
the keyboard or external or internal
storage devices. The data sent (or
output) by the sending computer is
input for the receiving computer.
instruction: Statements or commands
that specify how to perform a particu-
lar task.
interface: 1) Hardware and/or
software components of a system
used specifically to connect one
system or device to another. 2) To
physically connect one system or
device to another to exchange
information. 3) The point of contact
between user, the computer, and the
program, for example, the keyboard or
a menu.
interrupt request: A signal that gives
a component access to the processor.
I/O: Input/output. Refers to accep-
tance and transfer of data to and from
a computer.
I/O devices: Equipment used to
communicate with the computer and
transfer data to and from it.
J
jumper: A small clip or wire that
allows you to change the hardware
characteristics by electrically connect-
ing two points of a circuit.
K
K: Taken from the Greek word kilo,
meaning 1000; often used as equiva-
lent to 1024, or 2 raised to the 10th
power. See also byte and kilobyte.
KB: See kilobyte.
keyboard: An input device containing
switches that are activated by manu-
ally pressing marked keys. Each
keystroke activates a switch that
transmits a specific code to the
computer. For each key, the transmit-
ted code is, in turn, representative of
the (ASCII) character marked on the
key.
kilobyte (KB): A unit of data storage
equal to 1024 bytes. See also byte and
megabyte.
HW Setup
![](/img.php?id=551600&img=bgf3.png)
G
LOSSARY
Glossary-9
.
menu: A software interface that
displays a list of options on the
screen. Also called a screen.
microprocessor: A hardware compo-
nent contained in a single integrated
circuit that carries out instructions.
Also called the central processing unit
(CPU), one of the main parts of the
computer.
mode: A method of operation, for
example, the boot mode or the resume
mode.
modem: Derived from modulator/
demodulator, a device that converts
(modulates) digital data for transmis-
sion over telephone lines and then
converts modulated data (demodu-
lates) to digital format where received.
monitor: A device that uses rows and
columns of pixels to display alphanu-
meric characters or graphic images.
See CRT.
motherboard: A name sometimes
used to refer to the main printed circuit
board in processing equipment. It
usually contains integrated circuits
that perform the processor’s basic
functions and provides connectors for
adding other boards that perform
special functions. Sometimes called a
main board.
motherboard
L
level 2 cache: See cache.
Light Emitting Diode (LED): A
semiconductor device that emits light
when a current is applied.
Liquid Crystal Display (LCD): Liquid
crystal sealed between two sheets of
glass coated with transparent con-
ducting material. The viewing-side
coating is etched into character
forming segments with leads that
extend to the edge of the glass.
Applying a voltage between the glass
sheets darkens the liquid crystal to
provide contrast to lighted portions of
the display.
LSI: Large Scale Integration. 1) A
technology that allows the inclusion of
up to 100,000 simple logic gates on a
single chip. 2) An integrated circuit
that uses the large scale integration.
M
main board: See motherboard.
megabyte (MB): A unit of data
storage equal to 1024 kilobytes. See
also kilobyte.
megahertz: A unit of wave frequency
that equals 1 million cycles per
second. See also hertz.
![](/img.php?id=551600&img=bgf4.png)
GLOSSARY
Glossary-10
N
non-system disk: A formatted diskette
(floppy disk) you can use to store
programs and data but you cannot use
to start the computer. See system disk.
nonvolatile memory: Memory, usually
read-only (ROM), that is capable of
permanently storing information.
Turning the computer’s power off
does not alter data stored in nonvola-
tile memory.
numeric keypad overlay: A feature
that allows you to use certain keys on
the keyboard to perform numeric
entry, or to control cursor and page
movement.
O
OCR: Optical Character Recognition
(reader). A technique or device that
uses laser or visible light to identify
characters and input them into a
storage device.
OCR wand: A device that reads, using
an optical device, hand written or
machine printed symbols into a
computer. See also OCR.
online state: A functional state of a
peripheral device when it is ready to
receive or transmit data.
operating system: A group of
programs that controls the basic
operation of a computer. Operating
system functions include interpreting
programs, creating data files, and
controlling the transmission and
receipt (input/output) of data to and
from memory and peripheral devices.
output: The results of a computer
operation. Output commonly indicates
data 1) printed on paper, 2) displayed
at a terminal, 3) sent through the serial
port of internal modem, or 4) stored on
some magnetic media.
P
parity: 1) The symmetrical relationship
between two parameter values
(integers) both of which are either on
or off; odd or even; 0 or 1. 2) In serial
communications, an error detection bit
that is added to a group of data bits
making the sum of the bits even or
odd. Parity can be set to none, odd, or
even.
password: A unique string of charac-
ters used to identify a specific user.
The computer provides various levels
of password protection such as user,
supervisor and eject.
pel: The smallest area of the display
that can be addressed by software.
Equal in size to a pixel or group of
pixels. See pixel.
peripheral component interconnect:
An industry standard 32-bit bus.
non-system disk
![](/img.php?id=551600&img=bgf5.png)
G
LOSSARY
Glossary-11
peripheral device: An I/O device that
is external to the central processor and/
or main memory such as a printer or a
mouse.
pixel: A picture element. The smallest
dot that can be made on a display or
printer. Also called a pel.
plug and play: A capability with
Windows that enables the system to
automatically recognize connections of
external devices and make the neces-
sary configurations in the computer.
port: The electrical connection
through which the computer sends and
receives data to and from devices or
other computers.
printed circuit board (PCB): A
hardware component of a processor to
which integrated circuits and other
components are attached. The board
itself is typically flat and rectangular,
and constructed of fiberglass, to form
the attachment surface.
program: A set of instructions a
computer can execute that enables it to
achieve a desired result. See also
application.
prompt: A message the computer
provides indicating it is ready for or
requires information or an action from
you.
R
Radio frequency interference (RFI)
shield: A metal shield enclosing the
printed circuit boards of the printer or
computer to prevent radio and TV
interference. All computer equipment
generates radio frequency signals.
The FCC regulates the amount of
signals a computing device can allow
past its shielding. A Class A device is
sufficient for office use. Class B
provides a more stringent classifica-
tion for home equipment use.
TOSHIBA portable computers comply
with Class B computing device
regulations.
Random Access Memory (RAM):
High speed memory within the
computer circuitry that can be read or
written to.
restart: Resetting a computer without
turning it off (also called ‘warm boot’
or ‘soft reset’). To restart the com-
puter, press Ctrl + Alt + Del while the
computer is on. See also boot.
RGB: Red, green, and blue. A device
that uses three input signals, each
activating an electron gun for a
primary additive color (red, green, and
blue) or port for using such a device.
See also CRT.
RJ11: A modular telephone jack.
RJ11
![](/img.php?id=551600&img=bgf6.png)
GLOSSARY
Glossary-12
subpixel: Three elements, one red,
one green and blue (RGB), that make
up a pixel on the color LCD. The
computer sets subpixels indepen-
dently, each may emit a different
degree of brightness. See also pixel.
synchronous: Having a constant time
interval between successive bits,
characters or events.
system disk: A disk that has been
formatted with an operating system.
For MS-DOS the operating system is
contained in two hidden files and the
COMMAND.COM file. You can boot
a computer using a system disk. Also
called an operating system disk.
T
Tablet PC: A fully functional com-
puter that runs Microsoft Windows
XP Tablet PC Edition. With a Tablet
PC, you can write directly on the
screen by using a tablet pen and use
the pen to perform mouse functions.
terminal: A typewriter-like keyboard
and CRT display screen connected to
the computer for data input/output.
TFT: A color LCD technology that
applies individual transistors to each
pixel enabling fine display control and
excellent screen legibility.
TOSHIBA Power Saver: A TOSHIBA
utility that lets you set the parameters
for various power-saving functions.
ROM
ROM: Read Only Memory: A
nonvolatile memory chip manufac-
tured to contain information that
controls the computer’s basic opera-
tion. You cannot access or change
information stored in ROM.
S
SCSI: Small Computer System
Interface is an industry standard
interface for connection of a variety of
peripheral devices.
SD card: SD (Secure Digital) card was
developed as a non-volatile memory
card with a postage stamp size
(24X32X2.1 mm). SD card is featuring
the function of copyright protection.
SIO: Serial Input/Output. The
electronic methodology used in serial
data transmission.
soft key: Key combinations that
emulate keys on the IBM keyboard,
change some configuration options,
stop program execution, and access
the numeric keypad overlay.
software: The set of programs,
procedures and related documentation
associated with a computer system.
Specifically refers to computer programs
that direct and control the computer
system’s activities. See also hardware.
stop bit: One or more bits of a byte
that follow the transmitted character or
group codes in asynchronous serial
communications.
![](/img.php?id=551600&img=bgf7.png)
G
LOSSARY
Glossary-13
TOSHIBA tablet pen: An input device
for Tablet PC. User can write the
character on a display screen with a
digitizing function or tap to select the
item appearing on the screen using the
tablet pen.
Touch pad: A pointing device inte-
grated into the TOSHIBA computer
palm rest.
TTL: Transistor-transistor logic. A
logic circuit design that uses switching
transistors for gates and storage.
U
Universal Serial Bus: This serial
interface lets you communicate with
several devices connected in a chain to
a single port on the computer.
V
VGA: Video graphics array is an
industry standard video adaptor that
lets you run any popular software.
volatile memory: Random access
memory (RAM) that stores information
as long as the computer is connected
to a power source.
write protection
W
Warm dock/undock: Connecting or
disconnecting a device to or from the
computer while the computer is
suspended.
warm start: Restarting or resetting a
computer without turning it off.
window: A portion of the screen that
can display its own application or
document. Often used to mean a
Microsoft Windows window.
Wireless LAN: A short-range radio
technology designed to simplify
wireless communication with other
LAN systems based on Direct
Sequence Spread Spectrum radio
technology that complies with the
IEEE 802.11 Standard (Revision B).
write protection: A method for
protecting a diskette (floppy disk)
from accidental erasure.
![](/img.php?id=551600&img=bgf8.png)
GLOSSARY
Glossary-14
![](/img.php?id=551600&img=bgf9.png)
Index-1
I
NDEX
Index
A
AC adaptor 1-4, 2-12
DC IN 15V port 2-4
connecting 3-6
universal 1-12, 8-10
ASCII characters 5-9
Auto power on, See Power
B
Battery, See also Battery Pack
charging 6-9
extending life 6-12
indicator 2-9, 6-3
lock 2-6, 6-14
monitoring capacity 6-10
real time clock 1-4, 6-5
safety precautions 6-6
save mode 1-7
types 6-4
Battery Charger 1-12, 8-11
Battery Pack 1-4, 1-11, 6-5
location 2-5
replacing 6-13
Bluetooth 1-6, 4-17
Boot priority 7-3
C
Cache memory
Level 2 cache 1-3
Charger, See Battery Charger
Cleaning the computer 4-27
Cooling, See Heat dispersal
D
DC IN 15V indicator 2-10, 6-3
Disk indicator 2-9
Diskette care 4-15
Display 1-3, 2-7, See also Video
modes and Monitor external
automatic power off 1-7
controller 1-3, Appendix B
driver 1-9
hinge 2-7
opening 3-8
selection, See Hot keys
Documentation list 1-2
E
Environment, See Work space
Equipment checklist 1-1
Equipment setup
general conditions 3-2
placement 3-3
Ergonomics
lighting 3-4
seating and posture 3-3
work habits 3-4
Expansion memory, See Memory
expansion
F
Fn + Ctrl (enhanced keyboard simula-
tion) 5-3
Fn + Enter 5-3
Fn + Esc (sound mute) 5-4
Fn-esse 1-9
Fn + F1 (instant security) 5-4
Fn + F2 (power save mode) 5-4
![](/img.php?id=551600&img=bgfa.png)
Index-2
User's Manual
INDEX
Fn + F3 (standby) 5-4
Fn + F4 (hibernation) 5-5
Fn + F5 (display selection) 5-5
Fn + F6 (display brightness) 5-5
Fn + F7 (display brightness) 5-5
Fn + F8 (wireless setting) 5-6
Fn + F9 (touch pad) 5-6
Fn + F10 (arrow mode) 5-3, 5-8
Fn + F11 (numeric mode) 5-3, 5-8
Fn + F12 (ScrLock) 5-3
Fn Sticky key 5-7
Function Keys 5-2
H
Hard disk drive 1-3
automatic power off 1-7
problems 9-9
Heat dispersal 1-8
Hibernation 1-8, 5-5
Hotkeys 1-7, 5-4
display brightness 5-5
display selection 5-5
hibernation 5-5
instant security 5-4
power save mode 5-4
standby 5-4
sticky key utility 5-7
HW Setup 1-9
accessing 7-1
Boot Priority 7-3
CPU 7-2
Device Config 7-2
Display 7-2
General 7-1
Keyboard 7-5
LAN 7-6
USB 7-5
window 7-1
I
Indicators 2-9, 6-3
Infrared port, See also Ports
problems 9-10
Instant security, See Hot keys
Interfaces, See Ports
K
Keyboard 1-4, 5-1
emulating enhanced keyboard 5-2
F1 . . . F12 function keys 5-2
problems 9-8
Typewriter keys 5-1
Keypad overlay 1-7, 5-7
arrow mode 5-8
numeric mode 5-8
temporarily changing modes 5-9
temporarily using normal keyboard
(overlay on) 5-8
temporarily using overlay (overlay
off) 5-9
turning on 5-7
Windows special keys 5-7
L
LAN, See also Wireless LAN 1-6
active indicator 2-5
cable types 4-19
connecting 4-19
disconnecting 4-20
jack location 2-4
problems 9-19
using 4-19
Laptop mode 3-5
LCD, See Display, Video modes and
Monitor external
Level 2 cache, See Cache memory
Lock, security, See Security lock
M
Memory 1-3
expansion 1-11, 8-6
installing 8-7
![](/img.php?id=551600&img=bgfb.png)
Index-3
I
NDEX
removing 8-9
slots 1-3
Microphone, See sound system,
microphone
Microprocessor, See Processor
Modem 1-5, 4-24
connecting 4-26
disconnecting 4-27
jack location 2-4
problems 9-17
properties menu 4-25
region selection 4-25
Monitor external 8-12, See also
Video modes and Ports
problems 9-14
Moving the computer 4-28
N
Numeric keypad, See Keypad overlay
O
Operating system, See Windows
Overlay, See Keypad overlay
P
Panel power on/off, See Power
Password
power on 1-7
starting the computer with 6-18
supervisor 1-9, 6-17
user 6-16
PC card 1-5
inserting 8-2
location of slots 2-2
problems 9-13
removing 8-4
Ports
DC IN 15V 2-4
external monitor 1-5, 2-4
headphone, See Sound system
infrared 1-4, 2-1
LAN 2-5
microphone, See Sound system
modem 2-5
USB 1-5, 2-4
Power
auto power on 1-8
button location 2-7
indicator 2-9, 6-4
panel power on/off 1-8
restarting 3-15
turning off 3-10
turning on 3-9
system auto off 1-7
Power cord 1-4, 2-11, Appendix G
Problems
AC power 9-5
analyzing symptoms 9-2
battery 9-6
Bluetooth 9-20
diskette drive 9-9
hard disk drive 9-8
hardware and system checklist 9-3
infrared port 9-10
keyboard 9-8
LAN 9-19
LCD panel 9-8
memory expansion 9-16
modem 9-17
monitor, external 9-14
password 9-7
PC card 9-13
pointing device 9-10
power 9-4
preliminary checklist 9-1
SD card 9-14
self test 9-4
sound system 9-15
support from TOSHIBA 9-21
system start-up 9-3
TOSHIBA Tablet PC Pen 9-10
Touch Pad 9-11
USB 9-15
