Dynabook UPP350BT Notebook PC with Bluetooth. Portégé 3500 User Manual BT
Toshiba Corporation Notebook PC with Bluetooth. Portégé 3500 BT
Dynabook >
Contents
- 1. Notebook user manual
- 2. Bluetooth portion of user manual with RF exposure information
Bluetooth portion of user manual with RF exposure information
![](/img.php?id=301520&img=bg1.png)
- 1 -
Information sheet
Bluetooth wireless technology Interoperability
Bluetooth™ Cards from TOSHIBA are designed to be interoperable with any product with Bluetooth wireless technology that is based on
Frequency Hopping Spread Spectrum (FHSS) radio technology, and is compliant to:
Bluetooth Specification Ver.1.1, as defined and approved by The Bluetooth Special Interest Group.
Logo certification with Bluetooth wireless technology as defined by The Bluetooth Special interest Group.
CAUTIONS: 1. Bluetooth wireless technology is a new innovative technology, and TOSHIBA has not confirmed compatibility of its
Bluetooth™ products with all PCs and/or equipment using Bluetooth wireless technology other than TOSHIBA
portable computers.
Always use Bluetooth™ cards from TOSHIBA in order to enable wireless networks over two or more (up to a total
of seven) TOSHIBA portable computers using these cards. Please contact TOSHIBA PC product support on Web
site
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or
http://www.pc.support.global.toshiba.com in the United States for more information.
2. When you use Bluetooth™ cards from TOSHIBA close to 2.4 GHz Wireless LAN devices, Bluetooth transmissions
might slow down or cause errors. If you detect certain interference while you use Bluetooth™ cards from
TOSHIBA, always change the frequency, move your PC to the area outside of the interference range of 2.4 GHz
Wireless LAN devices (40 meters/43.74 yards or more) or stop transmitting from your PC. Please contact
TOSHIBA PC product support on Web site
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or
http://www.pc.support.global.toshiba.com in the United States for more information.
3. Bluetooth™ and WirelessLAN devices operate within the same radio
frequency range and may interfere with one another. If you use Bluetooth™ and
WirelessLAN devices simultaneously, you may occasionally experience a less
than optimal network performance or even lose your network connection.
If you should experience any such problem, immediately turn off either one of your
Bluetooth™ or WirelessLAN.
Please contact Toshiba PC product support on web site
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or
http://www.pc.support.global.toshiba.com in the United States for more information.
Bluetooth wireless technology and your Health
The products with Bluetooth wireless technology, like other radio devices, emit radio frequency electromagnetic energy. The level of energy
emitted by devices with Bluetooth wireless technology however is far much less than the electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because products with Bluetooth wireless technology operate within the guidelines found in radio frequency safety standards and
recommendations, TOSHIBA believes Bluetooth wireless technology is safe for use by consumers. These standards and recommendations reflect
the consensus of the scientific community and result from deliberations of panels
- 2 -
and committees of scientists who continually review and interpret the extensive research literature.
In some situations or environments, the use of Bluetooth wireless technology may be restricted by the proprietor of the building or responsible
representatives of the organization. These situations may for example include:
Using the equipment with Bluetooth wireless technology on board of airplanes, or
In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are
encouraged to ask for authorization to use the device with Bluetooth wireless technology prior to turning on the equipment.
Regulatory statements
General
This product complies with any mandatory product specification in any country/ region where the product is sold. In addition, the product
complies with the following.
European Union (EU) and EFTA
This equipment complies with the R&TTE directive 1999/5/EC and has been provided with the CE mark accordingly.
CanadaIndustry Canada(IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of this device.”
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du
dispositif doit étre prét à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du
dispositif.
The term "IC" before the equipment certification number only signifies that the Industry Canada
chnical specifications were met.
IC : 248H-DPA350S
Caution: FCC Interference Statement
This device complies with part15 of the FCC rules. Operation is subject to the following two conditions:
This device ma y not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
Note that any changes or modifications to this equipment not expressly approved by the manufacturer may void the authorization to operate this
equipment.
- 3 -
Caution: Exposure to Radio Frequency Radiation
The radiated output power of the Bluetooth™ Cards from TOSHIBA is far below the FCC radio frequency exposure limits. Nevertheless, the
Bluetooth™ Cards from TOSHIBA shall be used in such a manner that the potential for human contact during normal operation is minimized.
This device has been tested with Wireless LAN ( FCC ID:CJ6PA3171WL) for co-location requirements. This device and its antenna(s) must not
be co-located or operating in conjunction with any other antenna or transmitter.
NOTE : Changes or modifications made to this equipment not expressly approved by TOSHIBA or parties authorized by
TOSHIBA could void the user’s authority to operate the equipment.
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
TOSHIBA is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this
Bluetooth™ Cards from TOSHIBA, or the substitution or attachment of connecting cables and equipment other than specified by TOSHIBA .
The correction of interference caused by such unauthorized modification, substitution or attachment will be the res ponsibility of the user.
Taiwan
Article 14 Unless approved, for any model accredited low power radio frequency electric machinery, any company, trader or user shall not
change the frequency, increase the power or change the features and functions of the original design.
Article 17 Any use of low power radio frequency electric machinery shall not affect the aviation safety and interfere with legal communications.
In event that any interference is found, the use of such electric machinery shall be stopped immediately, and reusing of such products
can be resumed until no interference occurs after improvement.
The legal communications mentioned in the above item refer to radio communications operated in accordance
with telecommunication laws and regulations.
Low power radio frequency electric machinery shall resist against interference from legal communications or from industrial,
scientific and medical radio emission electric machinery.
![](/img.php?id=301520&img=bg4.png)
- 4 -
Using Bluetooth™ Card from TOSHIBA equipment in Japan
In Japan, the frequency bandwidth of 2,400~2,483.5MHz for second generation low-power data communication systems such as this equipment
overlaps that of mobile object identification systems (premises radio station and specified low-power radio station).
1.Sticker
Please put the following sticker on PC incorporating this product.
2. Indication
The indication shown below appears on this equipment.
2.4FH1
(1) 2.4 : This equipment uses a frequency of 2.4GHz.
(2) FH : This equipment uses FH-SS modulation.
(3) 1: The interference range of this equipment is less than 10m.
(4) This equipment uses a frequency bandwidth from 2,400MHz to 2,483.5MHz.
It is impossible to avoid the band of mobile object identification systems.
3. TOSHIBA Direct PC
Monday - Friday : 10:00-17:00
Toll Free Tel : 0120-13-1100
Direct Dial : 03-3457-5916
FAX : 03-5444-9450
Device Authorization
This device obtains the Technical Regulation Conformity Certification, and it belongs to the device class of radio
equipment of low-power data communication system radio station stipulated in the Radio Law of Japan.
The Name of the radio equipment: EYXF2CS
TELECOM ENGINEERING CENTER
Approval Number : 01NYDA1305
The following restrictions apply:
Do not disassemble or modify the device.
Do not install the embedded wireless module into other device.
Trademark
Bluetooth is a trademark owned by its proprietor and used by TOSHIBA under license.
In the fr
equency bandwidth of this equipment, industrial device, scientific device,
medical device like microwave oven, licensed premises radio station and
non -licensed specified low-
power radio station for mobile object identification
system (RF-ID) that is used i
n product line of factories,(Other Radio Stations)are
used.
1 Please make sure before using this equipment that no Other Radio Stations are
used in the neighborhood.
2 In case that RF interference occurs to Other Radio Stations from this equipment,
please
change promptly the frequency for use, place to use, or stop emitting
Radio.
3 Please contact TOSHIBA Direct PC if you have a problem, such as interference
from this equipment to Other Radio Stations.
(4)
(1) (2) (3)
![](/img.php?id=301520&img=bg5.png)

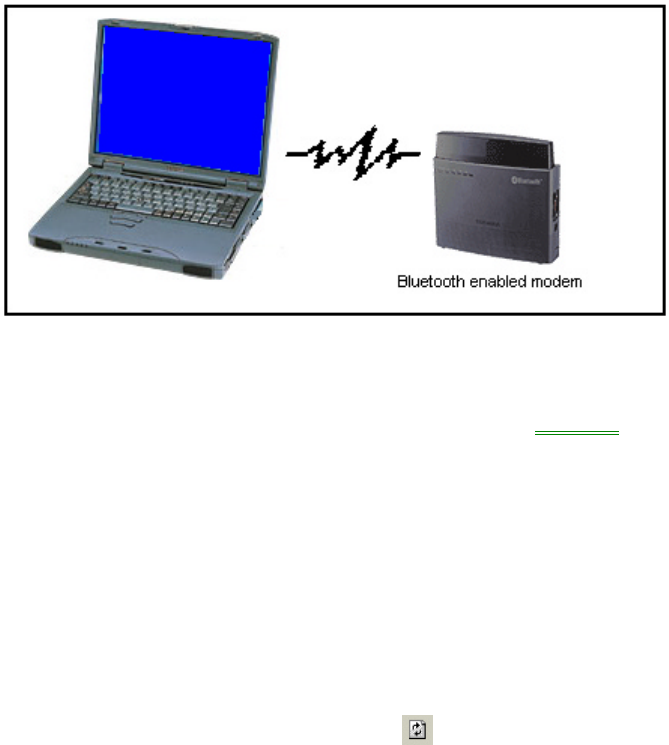

Connecting to the Internet
By using Bluetooth enabled modem, you can connect to the Internet wirelessly.
Perform the following steps.

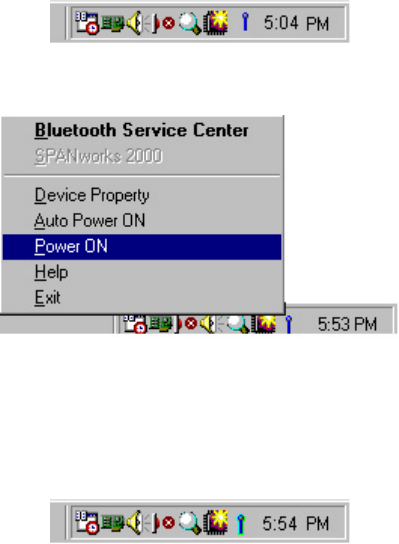

1. Start Bluetooth
Execute Device Discovery to detect the remote device. If you need, click here to refer to the
section of “Start Bluetooth”.
Regarding the remote device to connect, the following information is required in advance.
• • Device Name: e.g. Toshiba Bluetooth Modem
• • Device Address: e.g. 00:50:11:22:33:44
• • Passkey (Password): in case of a passkey is set up by the modem side

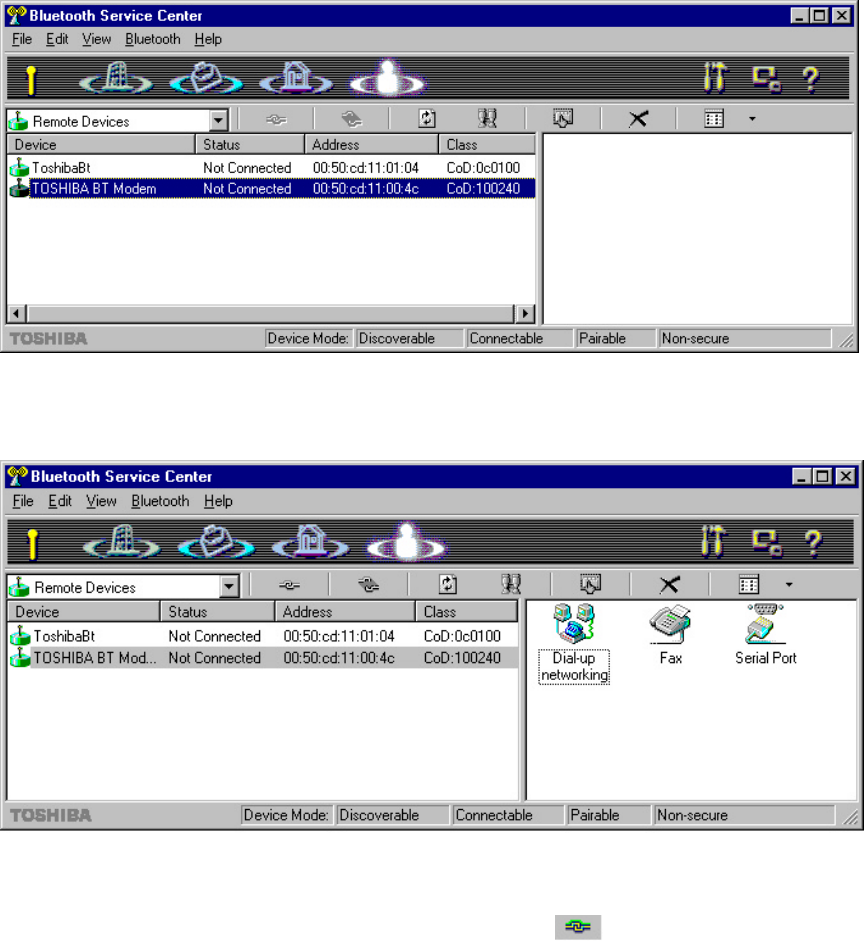

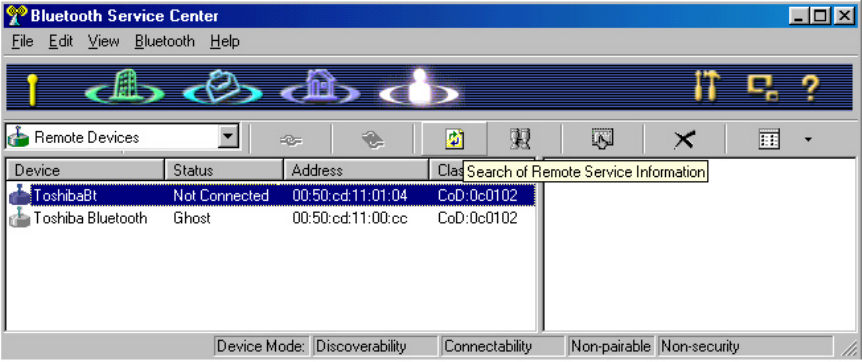

2. Service Search for the remote device
After performed device discovery, discovered devices are listed in the device list view. Highlight
the discovered wireless modem to connect and click [Refresh] icon. Service Search is
started. Service Search is investigating what service a remote machine owns.
![](/img.php?id=301520&img=bg6.png)

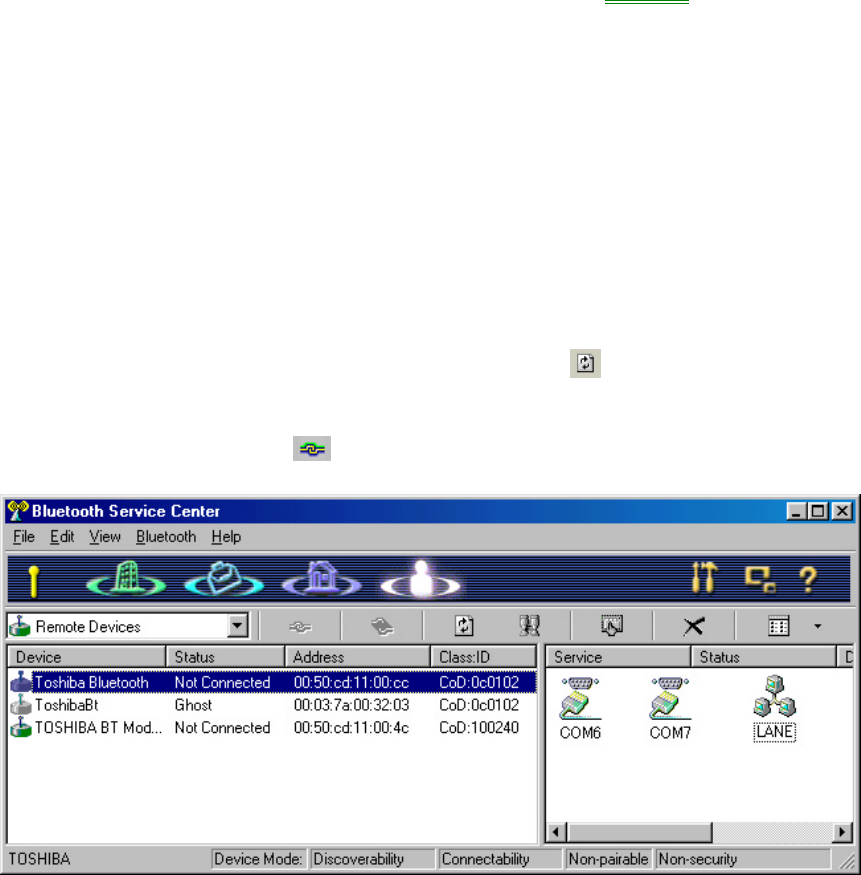

After performed Service Search, service that the wireless modem owns is displayed on the
service list view. The following example shows the services, which the wireless modem has.
3. Connection with Bluetooth wireless modem

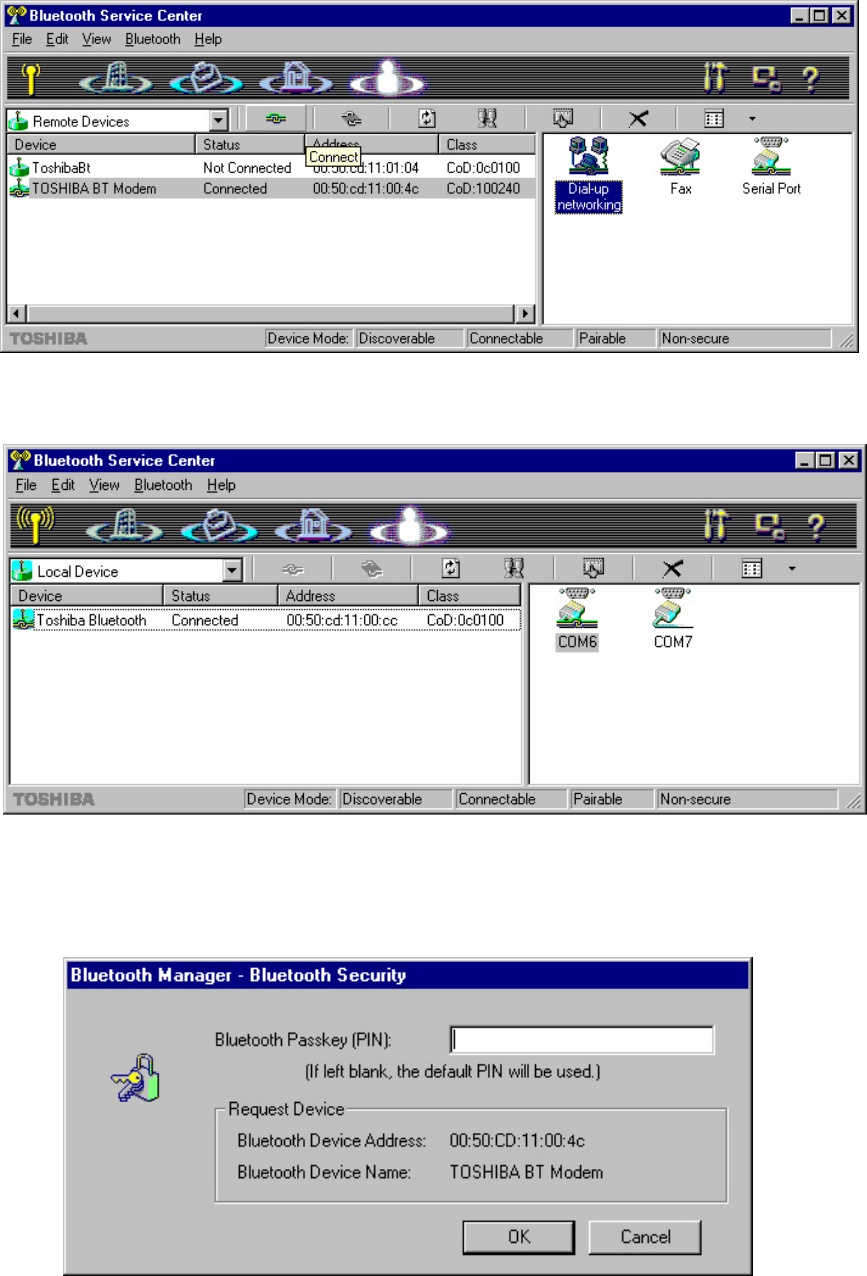

Tick “Dial-up networking” icon in the services list view and click [connect] icon.
The following figure shows the connection established between the PC and the modem.
![](/img.php?id=301520&img=bg7.png)

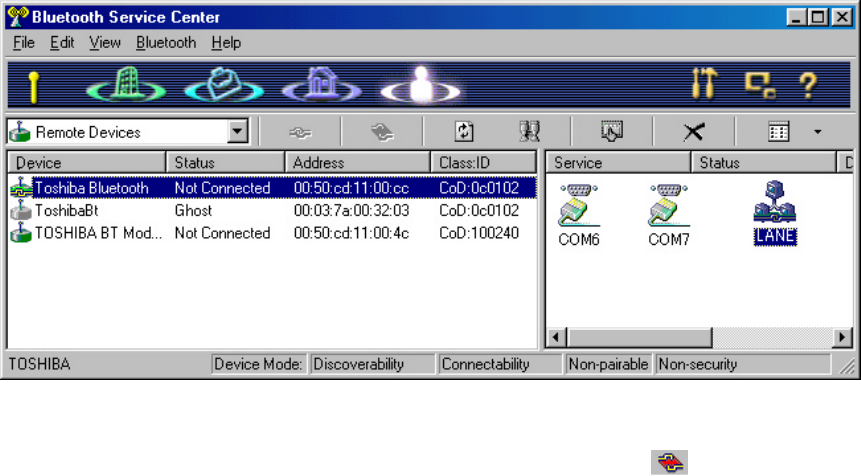

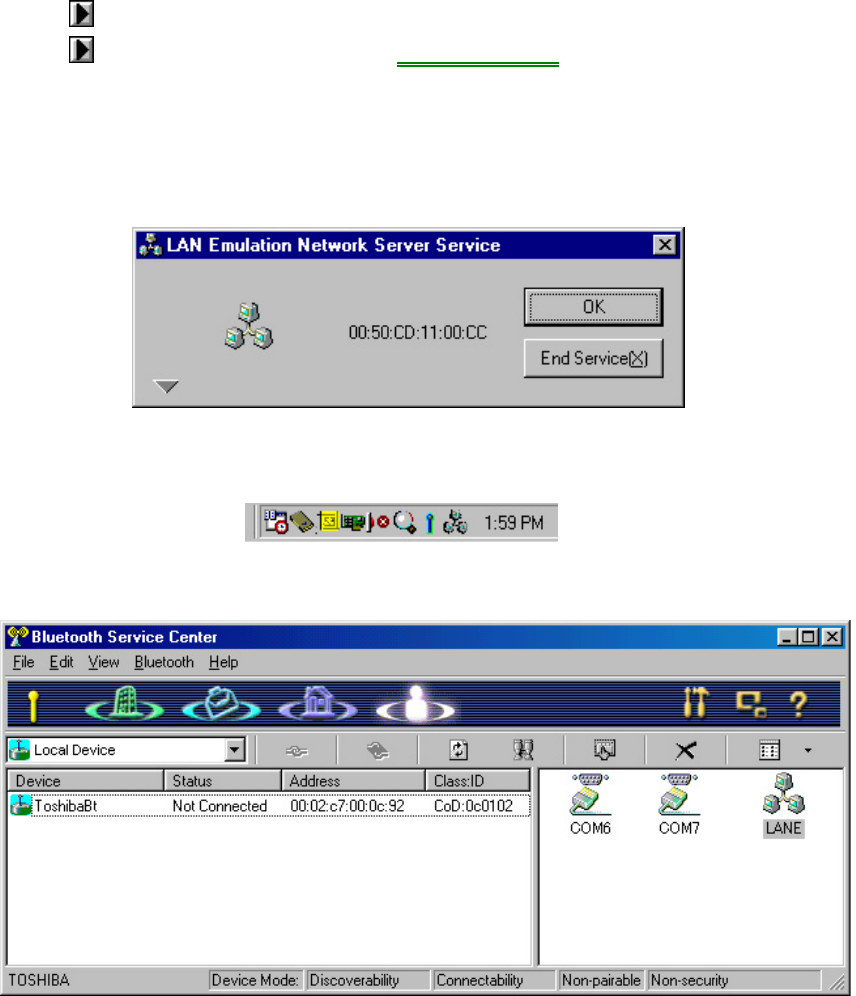

To check which virtual COM port your machine is using, select “Local Device” in the tool button
bar. The following example shows that Local COM6 port is connecting with a wireless modem.
Note:
If the wireless modem that you intend to connect sets up a passkey (password), the dialog that
asks a passkey (password) as shown in the following figure is displayed. In this case, please use
the password beforehand set up by the modem side.
![](/img.php?id=301520&img=bg8.png)
Only the first once, input the password.
4. Access to an Internet Service Provider
Finally, set up configurations for the wireless modem and a browser to access to an Internet
Service Provider.
Note:
If a Bluetooth enabled modem's driver isn't installed in your PC, please install the drivers for
wireless modem according to an attached procedure.

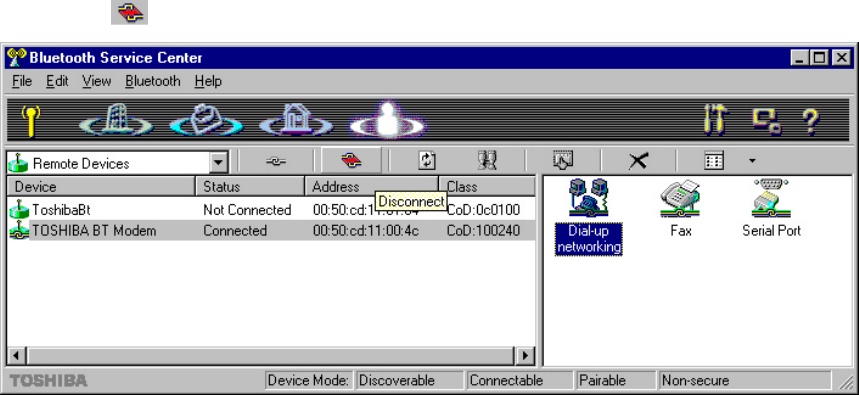

5. Disconnecting a Virtual COM Connection
To disconnect a link established to a remote device, tick “Dial-up networking” icon on the service
list view and [Disconnect] icon on the tool bar.
![](/img.php?id=301520&img=bg9.png)
Communicating with other computers
You can communicate with the other Bluetooth enabled computers wirelessly by using Bluetooth
Network Service.

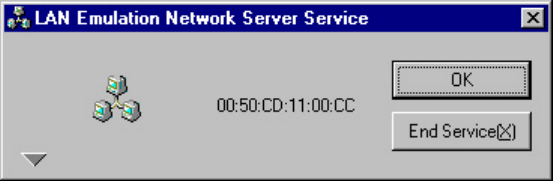

The example of using Bluetooth Network Service.
n Sharing file/folder with the other machine.
n NetMeeting within a Bluetooth network service.

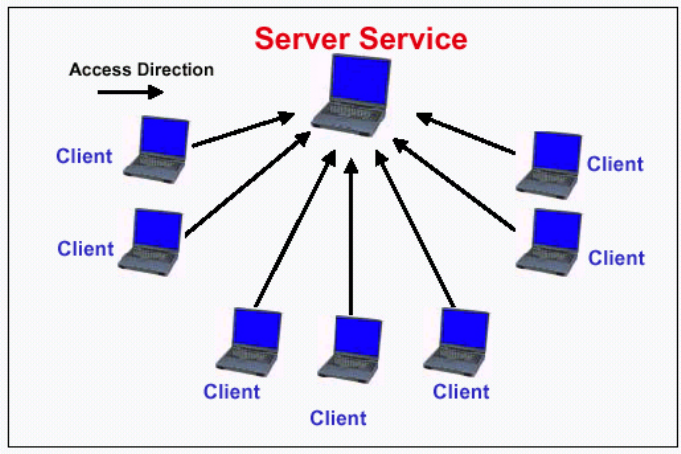

At next, it explains Bluetooth Network Service.
![](/img.php?id=301520&img=bga.png)
Sharing file/folder with the other machine
Please perform the following setup by all the machines in a network group before starting Network
Service.
1. Start Bluetooth Manager

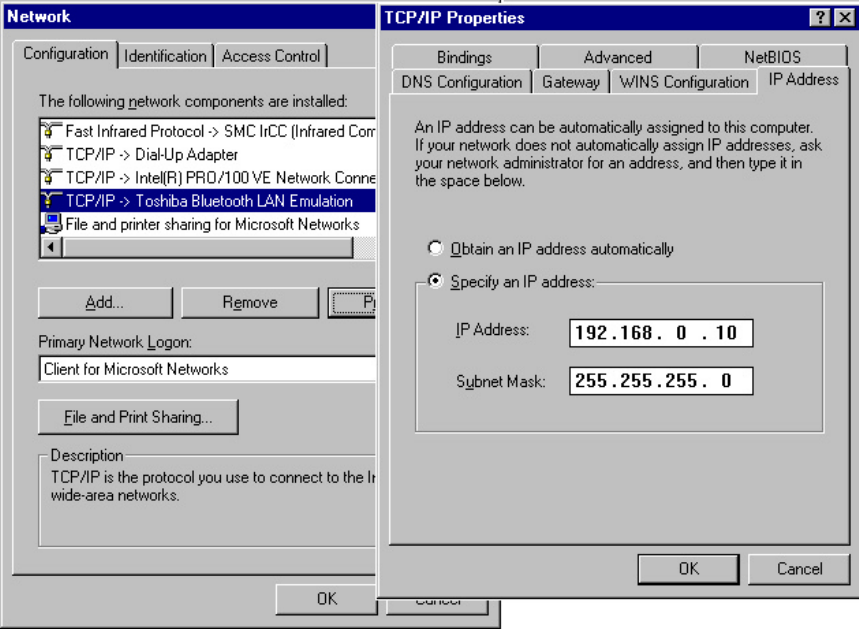

2. Configure IP address
Go to [Control Panel]-[Network]. Open [Configuration] tab. Tick “TCP/IP->Toshiba Bluetooth LAN
Emulation” and press [Properties] button.
Open [IP address] tab and click ”Specify an IP address”. Input the same IP address within a
Network as the below figure. But assign a different address in the 4th column for each machine.
Click [OK] to close the dialog.

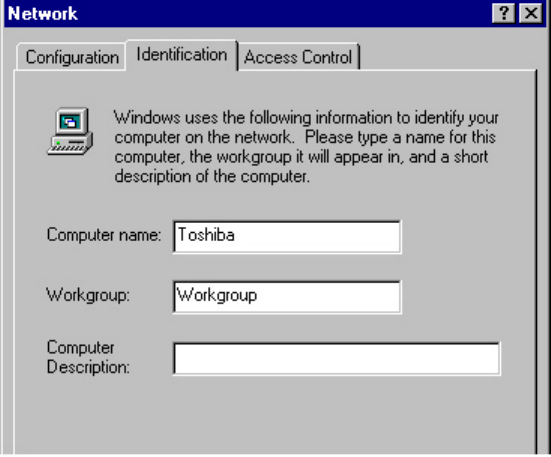

3. Input Identification
Open [Identification] tab. Input your computer and workgroup name, which identifies your
computer to other people on the network. But use the same workgroup name within wireless
network service. If necessary, input the “Computer Description”.
![](/img.php?id=301520&img=bgb.png)
4. Start Bluetooth Network Service
The Server starts Network Server Service and the Client starts the connection with the Server.
Double-click [Network] icon on the Desktop and double-click [Entire Network] for exploring the
Network neighborhood.
NetMeeting within a Bluetooth Network Service
Using Bluetooth Network Service, it enables to perform Windows NetMeeting by wireless.
NetMeeting realizes the meeting on a network, and a share of application. For details information
of NetMeeting, please refer to Windows Help.
![](/img.php?id=301520&img=bgd.png)
Appendix
A. Security Mode
As for the setup of security, the template is beforehand set as the Office/Mobile/Home/Others
button of Service Center as shown in the below figure. It is possible to change a security setup
easily. However, this setup is very important, so please be careful of handling.
A default security mode is configured as “Others” with “Non-security”.
If you need to change it, please refer to the “Bluetooth Utility User's Guide”.
B. Add Local COM Port
At default setting, local COM Port already creates as like COM6. However, when a port is being
used by other application, Local COM is not created.
If you need to create a new local COM Port, open [Start]-[Setting]-[Control Panel]-[LocalCOM]
and add a new COM Client Port. For more details information, please refer to the “Bluetooth Utility
User's Guide”.
C. Bluetooth Network Service
![](/img.php?id=301520&img=bge.png)
By using Bluetooth network service, wireless network environment is realizable in a maximum of
8 sets of PCs. Bluetooth wireless network consists of Server and Client as like a general wired
LAN.
Image Figure of Bluetooth Network Service
![](/img.php?id=301520&img=bgf.png)
About Quick Start Guide
This Quick Start Guide is the first step guide for basic Bluetooth Utility operation.
Also, it consists of the following items.
Start Bluetooth
Connecting to the Internet
Communicating with other computers
Appendix
Bluetooth Brand
For more detailed information, please refer to the "Bluetooth Utility User's Guide".
Bluetooth Brand
As for the standard of BluetoothTM, research development and decision of a standard is performed by
the BluetoothTM SIG (Special Interest Group).
BluetoothTM SIG is the joint achievements of nine leading companies, Toshiba , Ericsson, Nokia, Intel,
IBM, 3Com, Lucent Technologies, Microsoft, Motorola. More than 1300 other manufacturers, from all
parts of the world and various field of business, have now also joined the BluetoothTM family. Toshiba
Personal Computer that integrates Bluetooth device passed BluetoothTM Qualification Program and it
is accepted to use the Bluetooth trademark.
For more information on BluetoothTM SIG, please refer to the BluetoothTM Official site.
(http://www.bluetooth.com/)
Bluetooth Technical Facts
A tiny BluetoothTM microchip, incorporating a radio transceiver, is built into digital devices. The
BluetoothTM technology makes all connections instantly and without an inch of cable. It facilitates fast
and secure transmissions of both voice and data, even when the devices are not within line-of-sight.
The radio operates in a globally available frequency band, ensuring compatibility worldwide.
Also, the radio operates in the 2.45GHz band, which is license-free and available to any radio system
in the world. A Bluetooth radio link has a maximum data transfer rate of 724kbit/s. The normal range of
the Bluetooth radio is either 10 meters or 100 meters, depending on your Bluetooth equipment.
![](/img.php?id=301520&img=bg11.png)
Start Bluetooth
Wireless Communication Switch On
First of all, turn on the wireless communication the personal computer.
Note:
For the details about the wireless communication switch, please refer to the user's manual that
came with the personal computer.
1. Start Bluetooth Manager
Go to [Start]-[Program]-[Toshiba Bluetooth Software]-[Bluetooth Manager].
After Bluetooth Manager has started, it resides permanently on a task bar as the following figure
shows and the icon image changes according to the situation of operation.
To power on the power supply of Bluetooth module, right-click [Bluetooth Manager] icon on the
task bar, and select “Power on”.
Note:
In case of selecting “Auto Power ON”, the power supply of Bluetooth module is automatically
powered on after the Bluetooth Manager start at the next time.
Bluetooth Manager icon on the task bar shows that the Bluetooth module is now available to
connect.
2. Start Bluetooth Service Center
Start the Bluetooth Service Center by selecting: [Start]-[Program]-[Toshiba Bluetooth
Stack]-[Bluetooth Service Center].
The first view of Bluetooth Service Center is shown below. The service list view of the right pane
shows the profile service that your PC has. In this case, the PC has COM6 and COM7 as a
default virtual COM Ports.
Note: Default COM port number depends on the configuration of your PC.
![](/img.php?id=301520&img=bg12.png)
3. Start Device Discovery
The Device Discovery function detects the Bluetooth devices within range. Click [Bluetooth] on
the menu bar in Bluetooth Service Center. Select [Device Discovery] in the pull-down menu. It can
also be performed by clicking [Device Discovery] icon on the tool bar.
Regarding the remote device to connect, the following information is required in advance.
• Device Name: e.g. Toshiba Bluetooth
• Device Address: e.g. 00:50:11:22:33:44
• Passkey (Password): in case of a passkey is set up by the remote side
5. Service Search for the Remote Device
After performed device discovery, discovered devices are listed in the device list view. Highlight
the discovered device to connect and click [Refresh] icon. Service Search is started. Service
Search is investigating what service a remote machine owns.
![](/img.php?id=301520&img=bg13.png)
![](/img.php?id=301520&img=bg14.png)
Network Server Service
In Bluetooth network service, the machine, which plays a role of a server, must start network
service at first. The other machine will be a Client.
If your machine is a server's role, read this section.
If your machine is a client's role, go to next section.
Start Network Server Service
In Bluetooth network service, the machine, which plays a role of a server, must start network
service at first. Go to [Bluetooth] of menu bar, select [Start Network Server Service].
The following dialog displays and click [OK] to store this dialog into the task bar.
After LANE Server Service started, service icon placed in the Task bar. It can be checked a
service and a connection state as Server.
Also, you can find that LAN service started by appearing LAN service icon on the service list view
in “Local Device”.
![](/img.php?id=301520&img=bg15.png)
Connect/Disconnect Network
1. Start Bluetooth
Execute Device Discovery to detect the Server machine. If you need, click here to refer to the
section of “Start Bluetooth”.
Regarding the remote device to connect, the following information is required in advance.
• Device Name: e.g. Toshiba Bluetooth Server
• Device Address: e.g. 00:50:11:22:33:44
• Passkey (Password): in case of a passkey is set up by the remote machine
2. Connect Network
Caution! The machine used as a client must not start “Start LAN Emulation Service”.
At client side, perform Device Discovery to detect a server machine and perform the following
steps.
Tick the detected server machine in the device list view, and click [Refresh] icon to do a
service search. After that, you will be able to seen “LANE” icon in the service list view as the
following figure.
Then, tick “LANE” icon, and click [connect] icon. The Client Service starts to access to the
Server machine.
The following figure shows the connection established between the Server and the Client
machine.
![](/img.php?id=301520&img=bg16.png)
3. Disconnecting a Network
To disconnect Network Client, tick [LANE] in the service list view and click [disconnect] icon
on the tool bar.
![](/img.php?id=301520&img=bg17.png)
End of Network Server Service
To end Network Service in a network group, on the server service machine, click [Network Server
Service] icon on the task bar. The following dialog is displayed and then, click [End Service(X)]
button.
