manual part 2
51
As forward biasing current increases, the impedance decreases to a low level. Therefore, the RF
level of the signal applied to Q6 increases as the bias current from the power control circuit
increases.
5.2.2.2 PA RF DEVICE (Q6)
Impedance matching for Q6 is provided by several capacitors, inductors, and sections of
microstrip. Q6 is an N-channel enhancement mode lateral MOSFET. The bias voltage (which is
required for the device to turn on) is controlled by the transmit signal. It is applied to the gate and
controlled by the logic through shift register U1. Therefore, this device is turned off in the receive
mode which improves isolation. Several capacitors, inductors, and resistors isolate this supply
from RF. Likewise, the 13-volt RAW BAT supply applied to the drain is isolated by similar
components.
From the output of the variable attenuator, the signal is fed to Q6. Q6 operates as a single-ended
device. It produces an output power of up to 35 watts.
5.2.2.3 FORWARD POWER DETECTOR, ANTENNA SWITCH,
LOW-PASS FILTER
The power control circuit senses Q6 output power to control the power output. A directional
coupler senses the forward power signal. This signal is then rectified by CR8 and applied to the
power control circuit. This signal is a DC voltage that increases in proportion to the level of
forward power. Refer to Section 5.2.2.4 for more information on power control.
PIN diodes CR9, CR11, CR12, and CR15 form an antenna switch that switches the antenna to the
transmitter in the transmit mode and the receiver in the receive mode. As stated in Section
5.2.2.1, PIN diodes have very high impedance when in the off mode and very low impedance
when forward biased. Transistors Q7 and Q9 are on in the transmit mode and off in the receive
mode.
In the transmit mode all four diodes are forward biased. The transmit signal then has a low
impedance path through CR9 to the low-pass filter and is blocked from the receiver by a
grounded quarter-wave line formed by C64, L15, and C66. A grounded quarter-wave lines
presents very high impedance at the non-grounded end. PIN diodes CR11 and CR15 and a second
quarter-wave line formed by C76, C77, and L17 provide additional isolation.
In the receive mode, all four diodes are in the off mode. Therefore, the receive signal from the
antenna is blocked from the power amplifier by CR9 and has a low impedance path through L15,
C74, L17, and C67 to the receiver in the RF module.
From the antenna switch the RF signal is applied to a low-pass filter formed by L11-L13 and
several capacitors and sections of microstrip. This filter attenuates harmonic frequencies above
the transmit band that could cause adjacent channel interference. R53 dissipates static buildup in
the antenna.
5.2.2.4 POWER CONTROL
Introduction
52
The power control circuit maintains a constant power output as changes occur in power amplifier
temperature and voltage. It does this by sensing forward power and then varying the drive to Q6
to maintain a constant output power. The drive to Q6 is controlled by varying the voltage applied
to the variable attenuator circuit described in Section 5.2.2.1. In addition, the current applied to
final amplifier Q6 is sensed, and if it becomes excessive, power is cut back to a low level.
The power output level is set in 127 steps by a Digital-to-Analog (D/A) converter formed by shift
register U1 and several resistors. This converter is controlled by the microcontroller to provide
the following functions:
• It allows the RF power output level to be adjusted using the PCTune™ software.
• It allows the microcontroller to cut back power if the power amplifier temperature sensed by
thermistor TR1 becomes excessive.
• It allows high and low power levels to be selected by the user or to be fixed by programming
using the PCConfigure™ software.
Forward Power Sense
The forward power signal from the directional coupler is applied to pin 2 of amplifier U2-A. This
is a DC signal that increases proportionally to forward power. The other input to U2-A on pin 3 is
a DC reference voltage from the D/A converter. This signal sets the power output of the
transmitter.
U2-A is a difference amplifier which amplifies the difference between the reference voltage on
pin 3 and the forward power signal on pin 2. The turn-on time of U2-A is controlled by the time
constant of C17 and R28, and negative AC feedback to prevent oscillation is also provided by
C17.
This circuit operates as follows: Assume the output power attempts to increase. The DC voltage
applied to U2-A, pin 2 then increases which causes the output voltage on pin 1 to decrease.
Transistors Q1 and Q2 then turn off slightly which decreases the supply voltage to the variable
attenuator circuit. The input power to Q6 then decreases. The Q10 output power then decreases to
maintain a constant power output. R26 and R24 limit the voltage gain of Q2 and Q1 to
approximately two volts.
Delayed PTT
Transistor Q3 is used to delay power output for a short time after the transmitter is keyed. This
allows the synthesizer and exciter to stabilize so that the transmitter does not transmit off
frequency. The signal which controls Q3 is from microcontroller on the logic board. In the
receive mode this output is low, so Q3 is off. Pin 2 of U2-A is then pulled high by the 8-volt
supply applied through R29 and CR1. This causes the output on pin 1 of U2-A to go low which
shuts off Q2 and Q1. Then when the transmitter is keyed, after a short delay Q3 then turns on and
diode CR1 is reverse-biased. Only the forward power signal is then applied to pin 2 of U2-A.
Over-Current Shutdown
Current to Q6 is monitored by sensing the voltage drop across R33. Pins 3 and 6 of U3 are
connected across this resistor. As current increases, the output voltage on U3 pin 8 increases. This
voltage is applied to Schmitt trigger U2-B. When the voltage on pin 6 rises above the reference
on pin 5, the output on pin 7 goes low. This lowers the voltage applied to U2-A, pin 3 which
53
lowers the power control voltage to the variable attenuator. This results in lowering the power
output to approximately 25% of full power.
54
SECTION 6 ALIGNMENT PROCEDURE
6.1 GENERAL
6.1.1 INTRODUCTION
The following alignment procedure should be performed if repairs are made that could affect the
factory alignment or if adjustments may have changed for some other reason. To verify radio
operation, the performance tests in Sections 6.5 and 6.6 can be run. To perform transceiver
alignment, the following are required:
• PC-compatible computer
• Remote Programming Interface (RPI), Part No. 023-5300-000.
• PCTune software, Part No. 023-9998-499.
All adjustments are set digitally using the computer. Therefore, there is no need to disassemble
the transceiver to access adjustment points. In addition, audio test signals are generated internally,
so an audio generator is not required. The required test equipment is shown in Figure 6-1.
6.1.2 TUNE SOFTWARE
General
The PCTune software is a Windows® program. Minimum software and hardware requirements
are as follows:
55
• Windows® 95/98/NT/2000 (3.1 cannot be used)
• Pentium® processor or equivalent
• 16 MB of RAM
• A hard disk drive with at least 3 MB of free space
• A CD-ROM drive
• An available serial port
Software Installation
Proceed as follows to install this software:
1. Close all applications that are currently running (other than Windows).
2. Insert the CD-ROM containing the PCTune software into the drive.
3. From the Windows taskbar, choose RUN and open SETUP.EXE on the drive being used.
Alternatively, use File Explorer and double click SETUP.EXE.
4. Follow the instructions on the screen. The program is automatically loaded on the hard drive
and startup shortcuts or groups are created.
Starting PCTune
Select Start in the taskbar, then Programs > PCTune > PCTune.
Exiting PCTune
Select File > Exit or click the button.
Online Help
Online help is not available.
6.1.3 PCTUNE VERSION REQUIRED
PCTune, Version 2.0.0 or later is required to tune the RF board. The version number can be
displayed by selecting the Help > About menu.
6.2 MAIN SCREEN

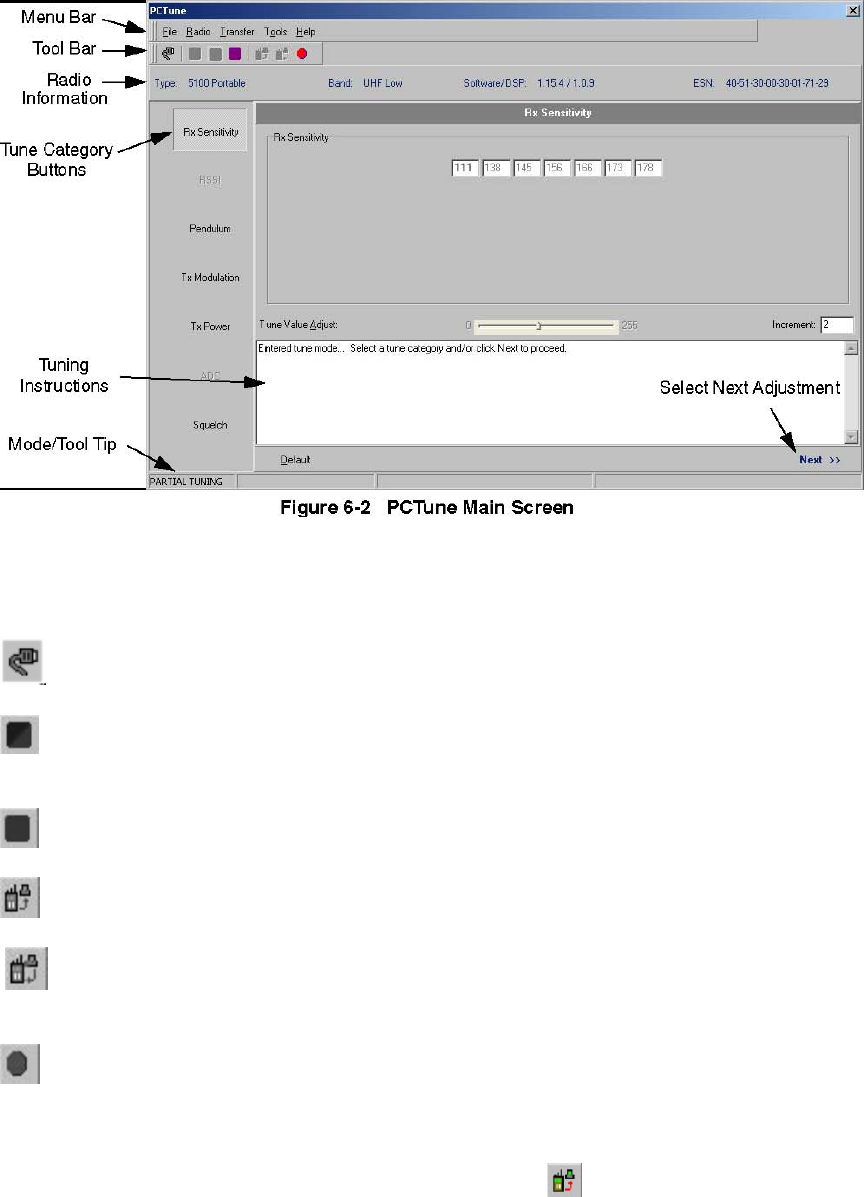

The main PCTune screen is shown in Figure 6-2. Information on the various parts of this screen
follows:
56
Menu Bar - Used to select the menus described in Sections 6.3.1-6.3.5.
Tool Bar - These buttons are used to quickly select functions as follows:
- Displays the screen used to set serial port parameters (see Section 6.3.3).
- Selects the Partial Tune mode the same as the Transfer > Tune Partial menu (see Section
6.3.3) This mode allows manual selection of the desired Tune Category and then automatically
steps through the various settings for that adjustment.
- Selects the Edit Mode which allows parameters in the selected screen to be changed without
stepping through each adjustment.
- Reads and displays the current parameters programmed in the radio the same as the Radio >
Read Tune Parameters menu (see Section 6.3.3).
- Writes the current tune parameters to the radio the same as the Transfer > Write Tune
Parameters menu (see Section 6.3.3). This occurs automatically when a Partial Tune adjustment is
completed.
- Exits the current Tune Category without writing parameters to the radio.
Radio Information
When tuning parameters are read from a radio by clicking the button or selecting the Transfer
> Read Parameters menu, the following information is displayed in the top part of the screen:
Type - The Radio Series selected by the Radio menu (see Section 6.3.2). The correct series must
57
be selected for communication with the radio to occur.
Band - The radio frequency band of the radio displayed after information is read from radio. Do
not select the band using Tools > Set Band (Section 6.3.4) because this may make the radio
nonfunctional.
Software DSP - The first number is the version number of the radio firmware (Flash/operating
code), and the second number is the version number of the DSP software.
ESN - The Electronic Serial Number electronically stored in the radio.
Tuning Categories
These buttons select the tuning adjustment to be performed. Different functions are
displayed for the 51xx and 53xx. If the Partial tune mode is selected, these buttons select the
particular adjustment that is performed.
Mode/Tool Tip
Information on the bottom line of the screen indicates the current tune mode and information
on the selected button on other information.
6.3 MENU BAR DESCRIPTION
6.3.1 FILE MENU
Selecting File > Exit closes the PCTune program.
6.3.2 RADIO MENU
[Insert 4300 radio menu]
The Radio menu shown above selects the radio type. [Insert correct selections for 4300] The
correct radio type must be selected for communication with the radio to occur.
6.3.3 TRANSFER MENU

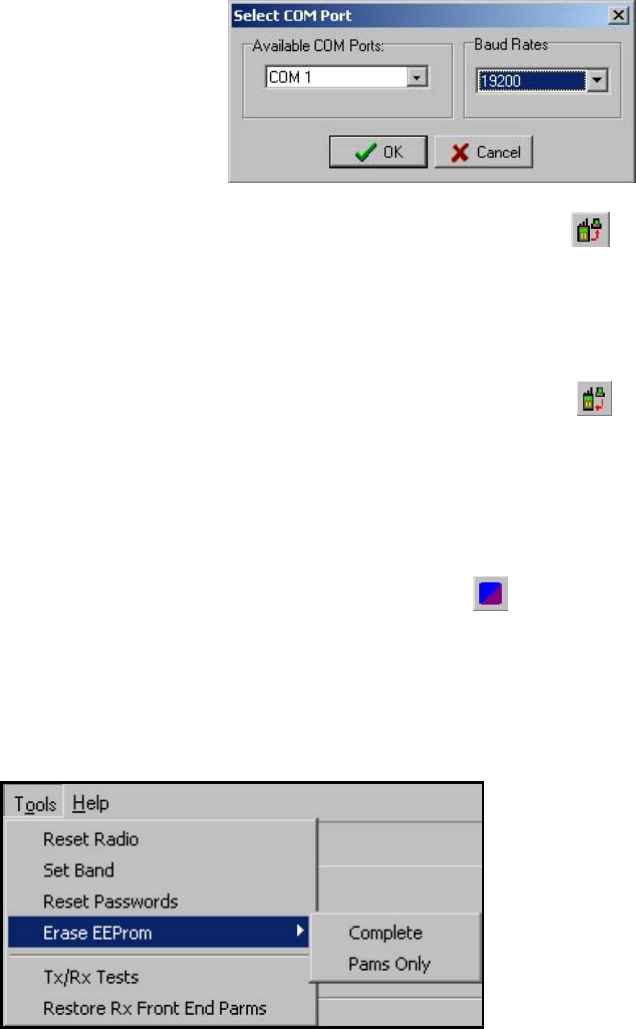

COM Ports - Displays the following screen which selects the serial port (1-12) and baud rate
58
(9600/ 19200) used for communication with the radio. Select the computer port to which the test
cable is connected (see Section 6.4.1), and 19200 baud is normally selected. These parameters
default to the last selected condition the next time the program is started.
Read Tune Parameters - Selecting this function or clicking the button reads the tune
parameters currently programmed in the transceiver and displays them in the various screens.
NOTE: Values in the various screens are for reference only and adjustments should be done only
by using the Partial Tune function.
Write Tune Parameters - Selecting this function or clicking the button writes the current
tune parameters to the radio. This occurs automatically when a Partial Tune adjustment is
completed.
Tune Complete – Not available. This function automatically steps through all the tests required
to tune the radio.
Tune Partial - Selecting this function or clicking the button selects the Partial Tune mode.
This mode automatically steps through all the adjustments of the currently selected Tune
Category.
6.3.4 TOOLS MENU
Reset Radio - Resets the radio control logic similar to cycling power. This can be used, for
example, to change the radio series or band or exit an adjustment before it is complete.
Set Band - Selects the operating band of the radio. All tuning values are reset to the factory
defaults.
59
CAUTION: Do not select this function because it can make the radio non-functional.
Reset Passwords - Erases all password information contained in the radio. This function can be
used, for example, to allow reprogramming of passwords if they are lost. NOTE: Radio
personality information is not erased by this function.
Erase EEPROM
CAUTION: This function erases important radio programming information as described
below.
Complete -Erases all EEPROM information, including factory programmed parameters.
CAUTION: Do not select this function because the radio must be returned to the factory to
make it operational again.
Parms Only - Erases all personality information.
NOTE: The radio must be reprogrammed after this function is selected.

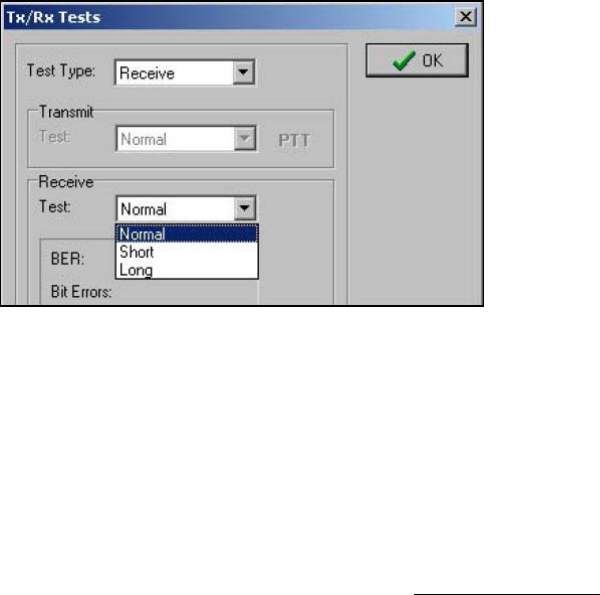

Tx/Rx Tests - Selects a screen which is used to check digital (Project 25) receive and transmit
performance. Refer to Section 6.5 for more information.
Restore Rx Front End Parameters - Programs the radio with default receive front end tune
parameters. Other parameters remain unchanged.
6.3.5 HELP MENU
Displays the version number of the PCTune software and other information.
6.4 TUNING PROCEDURE

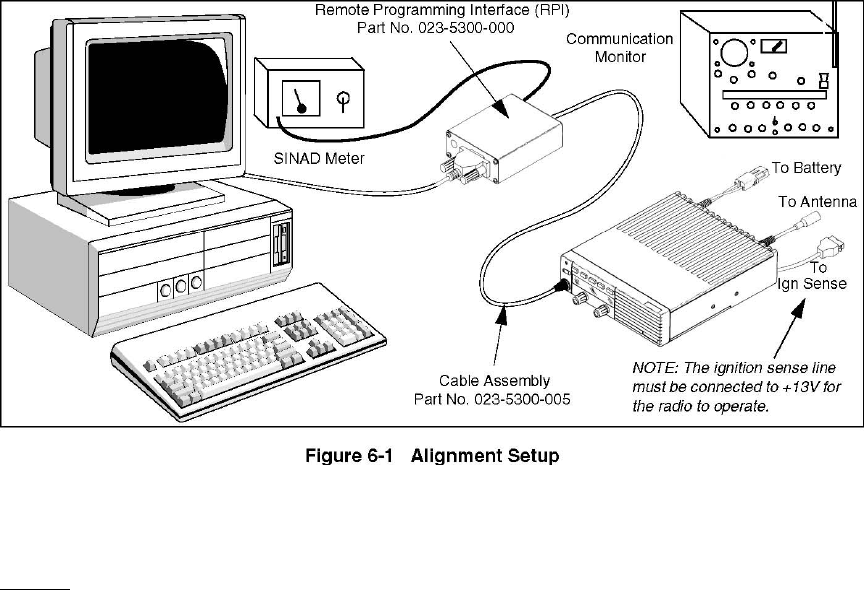

6.4.1 CONNECTING TEST SETUP
1. With transceiver power turned off, connect the RPI to an unused serial port of the
computer using a suitable cable (see Section 4.1.3).
2. Connect the RPI to the microphone jack of the transceiver using programming cable, Part
No. 023-5300-005 (see Figure 6-1).
3. If the receiver squelch adjustment will be made, connect a SINAD meter to the Speaker
Audio Out jack on the RPI (see Figure 6-3). This is a low level fixed audio output, and a 2.6 mm
(3/32”) phone jack is used.
60

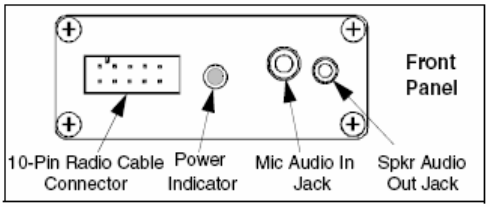

Figure 6-3 RPI Front Panel
4. Connect a wattmeter and a suitable load to the antenna jack of the transceiver for the
transmitter tests. For the receiver tests, connect the signal generator to the antenna jack through a
6 dB or greater isolation pad.
6.4.2 STARTING AND CONFIGURING PCTUNE
1. Start the program as described in Section 6.1.2 and turn transceiver power on. Select
Transfer > COM Port and make sure that the correct serial port and the 19200 baud rate are
selected (see Section 6.3.3).
2. Select the Radio menu and make sure the correct radio series (43xx) is selected [What is
the correct menu selection?] (see Section 6.3.2).
3. Select Transfer > Partial Tune and click the button for the desired Test Category.
4. Follow the instructions displayed on the screen to complete the various adjustments
required for a particular setting. Then repeat for other applicable Test Categories.
6.5 DIGITAL PERFORMANCE TESTS
6.5.1 GENERAL
This section describes how to check the performance of the radio on digital Project 25
channels. The PCTune software includes a Tools > Tx/Rx Tests menu that displays the screen
used for these tests.
• To perform these tests, a Digital Communication Analyzer such as Motorola R2670 or
IFR 2975 is required.
• These tests follow the TIA-102-CAAA-A “Digital C4FM/CQPSK Transceiver
Measurement Methods” specification. Refer to that document for more information.
• A P25 conventional channel preprogrammed by the PCConfigure software is used for
testing. The PCTune software does not select a specific test channel. The test channel
must be programmed with the following options:
61
NAC - 293 (hex)
TGID (Talk Group ID) -1
Frequency - Any frequency in radio operating band
6.5.2 RECEIVE TEST SETUP
1. Connect the test setup and start and configure the PCTune software as described in Section 6.4.
Select the Tools > Tx/Rx Tests menu to display the Tx/Rx Tests screen. Then in the Test Type
drop-down list select Receive to display the following screen.
2. Connect the Digital Communication Monitor to the antenna jack using a 6 dB or greater
isolation pad. Set the Monitor output for the “1011” test pattern.
6.5.3 RECEIVE SENSITIVITY TEST
1. A tone should be heard from the radio speaker if the analyzer is set properly. Select the
“Short” or “Long” test in the Test drop down list and the radio should mute.
2. Set the analyzer output level for 0.35 µV (–116 dBm) at the receiver antenna jack. The
Bit Error Rate (BER) should be 5% or less. (This is a ratio of the receive bit errors to the total
number of bits transmitted.)
3. Increase the analyzer output level to 1000 µV (–47 dBm). The BER rate should be less
than 0.01%. This is the BER Rate Floor.
6.5.4 TRANSMITTER TESTS
1. If applicable select the Tools > Tx/Rx Tests menu to display the Tx/Rx Tests screen.
Then in the Test Type drop-down list select Transmit to display the following screen. Connect a
dummy load to the radio antenna jack. Monitor the transmit signal with the Digital
Communication Monitor.
62
2. Select the Low Deviation test and set the analyzer as required to measure transmitter
deviation. This test generates continuous repetitions of bits 10100000. Deviation should be 848-
1037 Hz.
3. Click the “PTT” button to transmit the tone. When finished, click that button again to
turn the transmitter off.
4. Select the “High Deviation” test which transmits a standard transmitter test pattern.
Deviation should be 2544-3111 Hz.
5. The “1011 Hz” test transmits a standard 1011 Hz tone similar to that used for the receiver
test. This tone can be used to check the operation of other radios.
6. The “Silence” test transmits a standard silence test pattern which produces no receive
audio output by the receiving radio. This tone can also be used to test other radios.
7. Select “Normal” to transmit a standard voice signal by speaking into the radio
microphone.
6.6 ANALOG PERFORMANCE TESTS
6.6.1 GENERAL
The PCTune software is not used for analog channel performance testing. Simply program
the desired channels using the PCConfigure software as described in Section 4. The RPI is still
required to monitor the audio output signal from the radio.
Depending on the application, 12.5 kHz and 25 kHz test channels may need to be
programmed. Also, test channels programmed with or without Call Guard® (CTCSS/DCS)
squelch control may be required.
6.6.2 RECEIVER PERFORMANCE TESTS
1. Connect a signal generator to the antenna jack using a 6 dB or greater pad. Set the output
for the channel frequency, modulated with 1 kHz at the following deviation:
12.5 kHz Channels - 1.5 kHz
25 kHz Channels - 3.0 kHz
2. Connect a SINAD meter to the receive audio jack of the RPI (see Figure 6-3) This is a
low level fixed audio output.
SINAD Sensitivity
63
3. Set the signal generator output level for 1000 µV (–47 dBm) at the antenna jack.
4. Decrease the signal generator output to obtain 12 dB SINAD. The signal generator output
should be 0.35 µV (–116 dBm) or less for 25 kHz channels, or 0.50 µV (–113 dBm) or
less for 12.5 kHz channels.
Audio Power Output and Distortion
5. Connect a distortion meter across the speaker load. Return the generator output to 1000
µV. Distortion should be 3% or less.
Squelch Sensitivity
6. Increase the signal generator output from zero and note the SINAD when unsquelching
occurs. It should be approximately 8 dB.
6.6.3 TRANSMITTER PERFORMANCE TESTS
1. Connect a wattmeter and dummy load to the antenna jack. Monitor the transmit signal
with a communication monitor.
Transmit Frequency
2. Monitor the transmit frequency and at room temperature it should ±100 Hz. At other
temperatures [–22° to +140° F (–30° to +60° C)], it must be within 2.5 PPM. This also
checks the receive frequency.
Transmit Power
3. Transmit power should be in the following ranges. High and low levels can be preset
anywhere in this range by PCTune. The factory default for high power is the maximum
shown below, and low power is half that value.
Standard Models -10-50 Watts
Transmit Modulation
4. Monitor the transmit modulation with a modulation meter. Speak into the microphone
with a normal voice. Modulation should be approximately as follows with no
CTCSS/DCS signaling present:
12.5 kHz Channels - 1.4 kHz
25 kHz Channels - 3.4 kHz
64
5. Select a channel programmed with Call Guard (CTCSS/DCS) signaling. Maximum total
Call Guard and voice modulation should be approximately as follows:
12.5 kHz Channels - 2.3 kHz
25 kHz Channels - 4.7 kHz
65
SECTION 7 PARTS LIST
66
SECTION 7 PARTS LIST
Ref No. Description Part No.
CHASSIS, HARDWARE,
AND MISCELLANEOUS
A 200 Interface board assembly
(see separate listing which
follows)
023-5500-200
A 300 Receiver/exciter assembly
(VHF)
(see separate listing on
pageTBD)
023-5517-212
Receiver/exciter assembly
(UHF)
(see separate listing on page
TBD)
023-5567-212
A 301 Accessory pigtail cable
(internal)
597-2002-230
A 302 Remote/acc pigtail cable
(internal)
597-2002-249
A 303 Remote pigtail cable (internal
for second control unit)
597-2002-251
A 400 Logic board assembly
(see separate listing on page
TBD)
023-5500-600
A 500 VHF 50W PA bd assy 50W
mod.
(see separate listing on page
7-Error! Reference source
not found.)
023-5315-531
UHF 40W PA bd assembly
(see separate listing on page
7-Error! Reference source
not found.)
023-5365-501
A 810 Front panel assembly (frt mt)
(see separate listing on page
7-)
023-5300-810
CH 101 Chassis, std VHF models 015-0970-001
Chassis, std UHF models 015-0970-002
EP 001 No. 6 terminal lug 586-0005-106
EP 002 Ferrite bead, .375 x .375 517-2002-003
EP 003 Ferrite block (for J200) 517-2002-020
EP 920 Snubber, bot shield for 018-1134-136
encryp mod
HW
001
Captive screw, cover 537-9007-045
HW
002
Screw, 6-32 x 5/16 Torx 575-0006-010
HW
003
Plug, option (in unused chass
hole)
032-0792-075
HW
004
Audio amp U1 clip 017-9700-001
HW
005
O-ring, 1/8 x 1/4 cover screw 574-2002-001
HW
006
Nylon washer, cover screw 596-4408-015
HW
007
Split rubber grommet 1/8ID 574-0002-015
HW
009
Flat washer, cover screw 596-9408-009
HW
010
Screw, 4-40 x 5/16 phil pan
hd
575-0604-010
HW
011
Washer, No 4 split lock 596-1304-008
HW
012
Washer, No. 4 split lock 596-1304-008
HW
020
1/4 x 1.20 x 1.90 urethane
pad
018-1007-250
HW
150
Screw, 4-40 x 5/16 phil pan
hd
575-0604-010
HW
151
Screw, 6-32 x 3/8 phil flat hd 575-8206-012
HW
152
Screw, 8-32 x 3/8 hex socket
hd
575-9076-012
HW
202
Screw, 4-40 x 1-1/8 mach
pan hd
575-1604-036
J 002 RF – PA board connector 515-9006-110
J 200 Connector, 28-pin inline
header
515-7181-038
MP 002 Cover, top black 015-0970-007
MP 003 Cover, bottom black 015-0970-009
67
MP 004 Gasket, blank front panel
(remote)
032-0792-068
MP 005 Front panel, blank (remote) 032-0792-005
MP 156 Gasket, top cover 018-1136-136
MP 157 Gasket, bottom cover 018-1136-134
MP 300 Foam tape, dbl side 574-3002-013
MP 505 Grounding clip (rx/ex assy) 017-9700-003
MP 601 Shield, low-pass filter wrap
around
017-9700-010
MP 602 Cover, low-pass filter cover 017-9700-011
NP 001 Label, RS 5300 559-5300-100
NP 002 Label, EFJohnson 559-9001-310
W 103 Cable assy, display - logic bd 023-5300-025
W 110 Interface pigtail, motorcycle F
DB25
597-2002-280
W 501 Pwr pigtail cable assembly,
std PA
597-2002-235
W 502 RF pigtail cable assembly,
std PA
597-2002-240
INTERFACE BOARD
Part No. 023-5500-200
C 002 470 µF 25V electrolytic 510-4064-471
C 003 100 µF 25V electrolytic 510-4425-101
C 004 1.0 µF 10V tantalum smd 510-2624-109
C 005 .1 µF ±5% X7R 50V cer smd 510-3609-104
C 006 .1 µF ±5% X7R 50V cer smd 510-3609-104
C 007 .1 µF ±5% X7R 50V cer smd 510-3609-104
C 009 470 pF ±5% NPO cer smd 510-3602-471
C 010 .1 µF ±10% X7R 50V cer
smd
510-3606-104
C 011 .1 µF ±10% X7R 50V cer
smd
510-3606-104
C 012 .1 µF ±10% X7R 50V cer
smd
510-3606-104
C 013 4.7 µF 10V tantalum smd 510-2624-479
C 014 4.7 µF 10V tantalum smd 510-2624-479
C 015 .01 µF ±5% X7R 50V cer
smd
510-3609-103
C 028 .1 µF ±5% X7R 50V cer smd 510-3609-104
C 029 470 pF ±10% 25V cer smd 510-3681-471
CR 001 10V zener SOT-23 523-2016-100
CR 002 Switching diode SOT-23 523-1504-002
J 201 Connector, 20-pin 515-7111-230
J 202 Connector, 30-pin 515-7106-430
L 001 270 nH smd inductor 542-9017-274
L 002 270 nH smd inductor 542-9017-274
L 003 270 nH smd inductor 542-9017-274
P 100 Header, 2-pin friction lock 515-9031-201
P 101 Header, 3-pin friction lock 515-9031-202
P 102 Header, 3-pin friction lock 515-9031-202
PC 001 PC board, interface revision
2
035-5500-200 2
Q 001 NPN general purpose 576-0003-658
Q 002 NPN general purpose 576-0003-658
Q 003 NPN general purpose 576-0003-658
Q 004 NPN general purpose 576-0003-658
R 002 2.2 ohm ±5% 1W smd 569-0175-229
R 003 10k ohm ±5% 1/8W smd 569-0105-103
R 004 47k ohm ±5% 1/8W smd 569-0105-473
R 005 10k ohm ±5% 1/8W smd 569-0105-103
R 006 7.5k ohm ±5% 1/8W smd 569-0105-752
R 008 1k ohm ±5% 1/8W smd 569-0115-102
R 009 1k ohm ±5% 1/8W smd 569-0115-102
R 010 1k ohm ±5% 1/8W smd 569-0115-102
R 011 39k ohm ±5% 1/8W smd 569-0155-393
R 012 12k ohm ±5% 1/8W smd 569-0155-123
R 013 10k ohm ±5% 1/8W smd 569-0115-103
R 014 10k ohm ±5% 1/8W smd 569-0115-103
R 015 Zero ohm jumper 569-0115-001
R 016 10k ohm ±5% 1/8W smd 569-0115-103
R 017 3k ohm ±5% 1/8W smd 569-0115-302
68
R 018 10k ohm ±5% 1/8W smd 569-0115-103
R 019 Zero ohm jumper 569-0115-001
R 020 10k ohm ±5% 1/8W smd 569-0115-103
R 021 10k ohm ±5% 1/8W smd 569-0115-103
R 022 10k ohm ±5% 1/8W smd 569-0105-103
R 023 12k ohm ±5% 1/8W smd 569-0115-123
R 024 12k ohm ±5% 1/8W smd 569-0155-123
R 025 20k ohm ±5% 1/8W smd 569-0155-203
R 026 13k ohm ±5% 1/8W smd 569-0155-133
R 027 10k ohm ±5% 1/8W smd 569-0115-103
R 028 100k ohm ±5% 1/8W smd 569-0115-104
R 029 100k ohm ±5% 1/8W smd 569-0115-104
R 030 100k ohm ±5% 1/8W smd 569-0115-104
R 031 10k ohm ±5% 1/8W smd 569-0115-103
R 032 10k ohm ±5% 1/8W smd 569-0115-103
R 033 10k ohm ±5% 1/8W smd 569-0115-103
R 034 10k ohm ±5% 1/8W smd 569-0115-103
R 035 10k ohm ±5% 1/8W smd 569-0115-103
R 036 10k ohm ±5% 1/8W smd 569-0115-103
R 037 39k ohm ±5% 1/8W smd 569-0155-393
R 038 470 ohm ±5% 1/8W smd 569-0155-471
R 039 10k ohm ±5% 1/8W smd 569-0155-103
R 040 470 ohm ±5% 1/8W smd 569-0155-471
R 041 10k ohm ±5% 1/8W smd 569-0155-103
U 001 Audio amp, 22W TDA1519 544-2004-003
U 002 Voltage regulator, adj
REG103UA
544-2603-057
U 003 Op amp, dual LM2904 544-2019-004
U 004 Dig potentiometer, 2-ch
AD8402
544-0004-213
U 006 Voltage regulator, adj
REG103UA
544-2603-057
U 007 Multiplexer, triple 4053 544-1014-053
U 008 Voltage regulator, adj
REG103UA
544-2603-057
U 009 CPLD prog logic device
XC2C64
544-5001-420
U 010 Op amp, dual LM2904 544-2019-004
VHF RECEIVER/EXCITER
ASSEMBLY
Part No. 023-5517-212
A 001 Interconnect board assembly
(see separate listing which
follows)
023-5500-050
A 100 RF board assembly, VHF 585-5500-100
HW
001
Screw, 2-56 x 3/16 pan hd 575-1602-006
HW
002
Screw, 4-40 x 1/4 pan hd 575-1604-008
HW
003
Lockwasher, internal 596-2102-006
HW
004
Washer, split lock #4 ZPS 596-1304-008
MP 002 Metal RF board housing 015-0970-014
MP 003 Cover for housing MP2 015-0970-015
MP 004 Grounding clip 537-5001-005
W 001 Coax assy, right angle 597-3008-001
INTERCONNECT BOARD ASSEMBLY
Part No. 023-5500-050
C 001 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 002 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 005 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 007 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 008 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 009 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 011 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 012 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 014 39 pF ±5% NPO 50V cer 510-3674-390
69
smd
C 016 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 017 .1 µF X7R ±10% 50V cer
smd
510-3675-104
C 018 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 019 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 020 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 021 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 022 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 024 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 025 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 026 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 027 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 028 39 pF ±5% NPO 50V cer
smd
510-3674-390
C 029 39 pF ±5% NPO 50V cer
smd
510-3674-390
EP 001 Ferrite bead smd 517-2503-002
EP 002 Ferrite bead smd 517-2503-002
J 001 Connector, 26-pin ZIF
(revised bd)
515-7111-526
J 002 Connector, 30-pin 515-7111-430
PC 001 PC board, interconnect 035-5500-050
R 005 0 ohm jumper 569-0165-001
R 007 0 ohm jumper 569-0165-001
R 008 0 ohm jumper 569-0165-001
VHF 15W PA BOARD
ASSEMBLY
Part No. nr3-4315-513
C 001 .01 µF X7R ±10% chp 510-3605-103
C 002 .1 µF X7R ±10% chip 510-3606-104
C 003 .018 µF X7R ±10% chp 510-3605-183
C 004 330 pF NPO ±5% chp 510-3601-331
C 005 .01 µF X7R ±10% chp 510-3605-103
C 006 330 pF NPO ±5% chp 510-3601-331
C 007 330 pF NPO ±5% chp 510-3601-331
C 008 330 pF NPO ±5% chp 510-3601-331
C 009 330 pF NPO ±5% chp 510-3601-331
C 010 330 pF NPO ±5% chp 510-3601-331
C 011 330 pF NPO ±5% chp 510-3601-331
C 012 330 pF NPO ±5% chp 510-3601-331
C 013 330 pF NPO ±5% chp 510-3601-331
C 014 330 pF NPO ±5% chp 510-3601-331
C 015 Capacitor, 10 pF, 1%, high
Q, 0805
510-3661-100
C 016 .01 µF X7R ±10% chp 510-3605-103
C 017 .01 µF X7R ±10% chp 510-3605-103
C 018 330 pF NPO ±5% chp 510-3601-331
C 019 330 pF NPO ±5% chp 510-3601-331
C 020 330 pF NPO ±5% chp 510-3601-331
C 021 330 pF NPO ±5% chp 510-3601-331
C 022 330 pF NPO ±5% chp 510-3601-331
C 023 470 µF 16V LOW ESR 100
kHZ
510-4056-471
C 024 330 pF NPO ±5% chp 510-3601-331
C 025 .018 µF X7R ±10% chp 510-3605-183
C 026 .018 µF X7R ±10% chp 510-3605-183
C 027 330 pF NPO ±5% chp 510-3601-331
C 028 330 pF NPO ±5% chp 510-3601-331
C 029 .0047 µF X7R ±10% chip 510-3606-472
C 030 6.8 µF 35V SMD TANT 510-2635-689
C 031 330 pF NPO ±5% chp 510-3601-331
C 032 330 pF NPO ±5% chp 510-3601-331
C 033 .018 µF X7R ±10% chp 510-3605-183
70
C 034 6.8 µF 35V SMD tant 510-2635-689
C 035 .001 µF ±5% chip 510-3602-102
C 036 330 pF NPO ±5% chp 510-3601-331
C 037 .018 µF X7R ±10% chp 510-3605-183
C 038 6.8 µF 35V SMD tant 510-2635-689
C 039 330 pF NPO ±5% chp 510-3601-331
C 040 100 pF NPO ±5% chp 510-3601-101
C 041 330 pF NPO ±5% chp 510-3601-331
C 042 330 pF NPO ±5% chp 510-3601-331
C 044 Capacitor, 6.8 pF, 1%, high
Q
510-3661-689
C 045 Capacitor, 150 pF, 1%, high
Q
510-3661-151
C 046 Capacitor, 43 pF, 1%, high Q 510-3661-430
C 048 Capacitor, 10 pF, 1%, high Q 510-3661-100
C 049 Capacitor, 39 pF, 1%, high
Q,
510-3661-390
C 050 Capacitor, 240 pF, 1%, high
Q
510-3661-241
C 051 Capacitor, 240 pF, 1%, high
Q
510-3661-241
C 054 330 pF NPO ±5% chp 510-3601-331
C 055 Capacitor, 22 pF, 1%, high Q
SMD
510-3666-220
C 056 Capacitor, 15 pF, 1%, high Q
SMD
510-3666-150
C 057 Capacitor, 22 pF, 1%, high
Q SMD
510-3666-220
C 058 Capacitor, 240 pF, 1%, high
Q
510-3661-241
C 059 330 pF NPO ±5% chp 510-3601-331
C 060 Capacitor, 10 pF, 1%, high Q
SMD
510-3666-100
C 061 Capacitor, 10 pF, 1%, high Q
SMD
510-3666-100
C 062 Capacitor, 330 pF, 1%, high
Q SMD
510-3666-331
C 063 Capacitor, 12 pF, 1%, high Q
SMD
510-3666-120
C 064 Capacitor, 22 pF, 1%, high
Q,
510-3661-220
C 065 330 pF NPO ±5% chp 510-3601-331
C 066 Capacitor, 18 pF, 1%, high 510-3661-180
Q,
C 067 330 pF NPO ±5% chp 510-3601-331
C 069 330 pF NPO ±5% chp 510-3601-331
C 070 100 pF NPO ±5% chp 510-3601-101
C 071 330 pF NPO ±5% chp 510-3601-331
C 072 .018 µF X7R ±10% chp 510-3605-183
C 073 330 pF NPO ±5% chp 510-3601-331
C 074 330 pF NPO ±5% chp 510-3601-331
C 075 Capacitor, 33 pF, 1%, high Q 510-3661-330
C 076 Capacitor, 18 pF, 1%, high Q 510-3661-180
C 077 Capacitor, 18 pF, 1%, high Q 510-3661-180
C 078 Capacitor, 180 pF, 1%, high
Q
510-3661-181
C 079 1500 µF 25V low ESR 100
kHZ
510-4055-152
C 082 1 µf 16V chip cap 510-3606-105
C 083 10 µF 25V SMD TANT 510-2627-100
C 084 1 µf 16V chip cap 510-3606-105
C 085 .1 µF X7R ±10% chip 510-3606-104
C 086 470 µF 16V low ESR 100
kHZ
510-4056-471
C 087 .018 µF X7R ±10% chp 510-3605-183
C 088 330 pF NPO ±5% chp 510-3601-331
C 089 1 µf 16V chip cap 510-3606-105
C 090 470 µF 16V low ESR 100
kHZ
510-4056-471
C 091 1 µf 16V chip cap 510-3606-105
C 092 330 pF NPO ±5% chp 510-3601-331
C 093 330 pF NPO ±5% chp 510-3601-331
C 095 1 µf 16V chip cap 510-3606-105
C 096 Capacitor, 10 pF, 1%, HIGH
Q, 0805
510-3661-100
C 097 Capacitor, 10 pF, 1%, HIGH
Q, 0805
510-3661-100
C 098 Capacitor, 4.7 pF, 1%, HIGH
Q, 0805
510-3661-479
C 099 Capacitor, 15 pF, 1%, HIGH
Q, 0805
510-3661-150
C 100 Capacitor, 13 pF, 1%, HIGH
Q SURFACE MOUNT
510-3666-130
C 230 .1 µF X7R ±10% chip 510-3606-104
71
C 560 1 µf 16V chip cap 510-3606-105
CR 001 Switching diode SOT-23 523-1504-002
CR 002 Switching diode SOT-23 523-1504-002
CR 003 Switching diode SOT-23 523-1504-002
CR 004 Diode, HIPAX PIN 523-1504-036
CR 005 Diode, HIPAX PIN 523-1504-036
CR 006 Diode, HIPAX PIN 523-1504-036
CR 007 Diode, HIPAX PIN 523-1504-036
CR 008 HC diode SOT-23 523-1504-016
CR 009 Diode, HIPAX PIN 523-1504-036
CR 010 Diode, 1 amp SMD fast
recovery
523-1600-001
CR 011 Diode, SOT PIN SW 523-1504-001
CR 012 Diode, HIPAX PIN 523-1504-036
CR 014 Zener overvoltage transient
suppressor
523-2907-016
CR 015 Diode, SOT PIN SW 523-1504-001
D 001 Diode, 5 amp SMD fast
recovery
523-1601-550
J 001 Conn 2O POS bot entry
SFMT
515-7111-230
J 002 SMT Receptacle MMS 515-7111-470
J 003 SMT Receptacle MMS 515-7111-470
L 001 330 nH 0805 SMD 10%
inductor
542-9003-338
L 002 10 nH 0805 SMD 10%
inductor
542-9003-107
L 003 330 nH 0805 SMD 10%
inductor
542-9003-338
L 004 10 nH 0805 SMD 10%
inductor
542-9003-107
L 005 Ferrite bead SMD 517-2503-010
L 006 Ferrite bead SMD 517-2503-010
L 007 8T .120-in id air die SMD
inductor
542-0020-058
L 008 33 nH SMD 10% inductor 542-9003-337
L 009 330 nH SMD 10% inductor 542-9003-338
L 010 330 nH 0805 SMD 10%
inductor
542-9003-338
L 011 2T .230” ID air die SMD
inductor
016-0020-082
L 012 2T .230” ID air die SMD
inductor
016-0020-082
L 013 2T .230” ID air die SMD
inductor
016-0020-082
L 016 9700 DC line filter, field-
installed
542-5010-003
L 018 330 nH 0805 SMD 10%
inductor
542-9003-338
L 019 220 nH 0805 SMD 10%
inductor
542-9003-228
L 020 39 nH 0805 SMD 10%
inductor
542-9003-397
L 021 3T .080-in ID air die SMD
inductor 18 AWG
542-0020-033
L 022 3T .080-in ID air die SMD
inductor 18 AWG
542-0020-033
L 080 330 nH 0805 SMD 10%
inductor
542-9003-338
Q 001 XSTR, switching PNP 576-0003-612
Q 002 XSTR,3904,SI,NPN SOT-
23(T&R)
576-0003-658
Q 003 XSTRSI, NPN SOT-23 576-0003-658
Q 004 XSTR, switching PNP 576-0003-612
Q 005 XSTR, SI, NPN SOT-23 576-0003-658
Q 006 LDMOS 35-W VHF/UHF
12.5-V FET
576-0006-453
Q 007 XSTR, SI, NPN SOT-23 576-0003-658
Q 008 PNP power Darlington
XSTR TO-220
576-0007-013
Q 009 XSTR, SI, NPN SOT-23 576-0003-658
Q 010 XSTR, switching PNP 576-0003-612
R 001 20k ohm ±5% chip 569-0105-203
R 002 20k ohm ±5% chip 569-0105-203
R 003 10k ohm ±5% chip 569-0105-103
R 004 20k ohm ±5% chip 569-0105-203
R 005 10k ohm ±5% chip 569-0105-103
R 006 20k ohm ±5% chip 569-0105-203
72
R 007 10k ohm ±5% chip 569-0105-103
R 008 4.3k ohm ±5% chip 569-0105-432
R 009 20k ohm ±5% chip 569-0105-203
R 010 10k ohm ±5% chip 569-0105-103
R 011 100K ohm 1% SMD resistor 569-0101-501
R 012 20k ohm ±5% chip 569-0105-203
R 013 10k ohm ±5% chip 569-0105-103
R 015 10k ohm ±5% chip 569-0105-103
R 016 20k ohm ±5% chip 569-0105-203
R 017 10k ohm ±5% chip 569-0105-103
R 018 20k ohm ±5% chip 569-0105-203
R 019 Zero ohm ±5% SMD 569-0115-001
R 020 100k ohm ±5% chip 569-0105-104
R 021 47k ohm ±5% chip 569-0105-473
R 022 2.2k ohm ±5% chip 569-0105-222
R 024 1.8k ohm ±5% chip 569-0105-182
R 025 120 ohm ±5% chip 569-0105-121
R 026 1.0k ohm ±5% chip 569-0105-102
R 027 7.5k ohm ±5% chip 569-0105-752
R 028 10k ohm ±5% chip 569-0105-103
R 029 10k ohm ±5% chip 569-0105-103
R 031 1.8k ohm ±5% chip 569-0105-182
R 032 51 ohm ±5% SMD 569-0175-510
R 033 .015 ohm 2W 5% 569-2019-157
R 034 47k ohm ±5% chip 569-0105-473
R 035 510 ohm ±5% chip 569-0105-511
R 036 47k ohm ±5% chip 569-0105-473
R 037 4.3k ohm ±5% chip 569-0105-432
R 038 51 ohm ±5% smd 569-0175-510
R 039 620 ohm ±5% chip 569-0105-621
R 040 47k ohm ±5% chip 569-0105-473
R 042 47k ohm ±5% chip 569-0105-473
R 043 220 ohm ±5% chip 569-0105-221
R 044 1.2k ohm ±5% chip 569-0105-122
R 045 100 ohm ±5% chip 569-0105-101
R 046 100 ohm ±5% chip 569-0105-101
R 047 100 ohm ±5% chip 569-0105-101
R 048 100 ohm ±5% chip 569-0105-101
R 049 100 ohm ±5% chip 569-0105-101
R 050 100 ohm ±5% chip 569-0105-101
R 051 1.0k ohm ±5% chip 569-0105-102
R 052 200 ohm ±5% chip 569-0105-201
R 053 220k ohm ±5% chip 569-0105-224
R 054 220k ohm ±5% chip 569-0105-224
R 055 100k ohm ±5% chip 569-0105-104
R 056 100 ohm ±5% chip 569-0105-101
R 057 100 ohm ±5% 0.75-W SMD 569-0135-101
R 058 220k ohm ±5% chip 569-0105-224
R 059 510 ohm ±5% chip 569-0105-511
R 060 510 ohm ±5% chip 569-0105-511
R 061 220k ohm ±5% chip 569-0105-224
R 062 51 ohm ±5% 1-W SMD 569-0175-510
R 063 68k ohm ±5% chip 569-0105-683
R 064 47k ohm ±5% chip 569-0105-473
R 065 47k ohm ±5% chip 569-0105-473
R 066 100k ohm ±5% chip 569-0105-104
R 067 560 ohm ±5% chip 569-0105-561
R 068 47k ohm ±5% chip 569-0105-473
R 069 100 ohm ±5% chip 569-0105-101
R 070 1.2k ohm ±5% smd 569-0115-122
R 071 1.2k ohm ±5% smd 569-0115-122
R 072 1.2k ohm ±5% smd 569-0115-122
R 073 560 ohm ±5% chip 569-0105-561
R 074 510 ohm ±5% chip 569-0105-511
R 270 220k ohm ±5% chip 569-0105-224
R 370 5.1k ohm ±5% chip 569-0105-512
TR 001 Chip therm 10k ohm ±5% 569-3013-007
U 001 Shift reg. 8-STG SOIC 544-3016-094
U 002 Dual op amp SO-8 544-2019-004
U 003 AMP, HI-side current sense,
SO-8
544-2039-002
U 004 Regulator, adjustable, 5 amp 544-2500-001
73
LOGIC BOARD ASSEMBLY
Part No. 023-5500-600
A 001 SEM encryption module 023-5000-980
C 001 .01 µF ±10% X7R 25V cer
smd
510-3675-103
C 013 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 014 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 052 33pF ±10% 10V cer smd 510-3681-330
C 053 33pF ±10% 10V cer smd 510-3681-330
C 054 33pF ±10% 10V cer smd 510-3681-330
C 055 33pF ±10% 10V cer smd 510-3681-330
C 056 33pF ±10% 10V cer smd 510-3681-330
C 057 33pF ±10% 10V cer smd 510-3681-330
C 058 0.01 µF ±10% 10V cer smd 510-3681-103
C 064 0.1 µF +80-20% Z5U 25V
cer smd
510-3680-104
C 065 0.01 ±10% 10V cer smd 510-3681-103
C 066 2.2 µF 16V ceramic smd 510-3925-225
C 069 0.1 µF+80-20% Z5U 25V
cer smd
510-3680-104
C 070 0.01 µF ±10% 10V cer smd 510-3681-103
C 071 2.2 µF 16V ceramic smd 510-3925-225
C 078 2.2 µF 16V ceramic smd 510-3925-225
C 079 1 µF +80-20% Z5U 25V cer
smd
510-3631-105
C 080 .01 µF ±10% 10V cer smd 510-3681-103
C 081 1.5F electrolytic 510-9510-057
C 125 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 126 .01 µF ±10% 10V cer smd 510-3681-103
C 127 .01 µF ±10% 10V cer smd 510-3681-103
C 128 .01 µF ±10% 10V cer smd 510-3681-103
C 129 .01 µF ±10% 10V cer smd 510-3681-103
C 130 .01 µF ±10% 10V cer smd 510-3681-103
C 131 .01 µF ±10% 10V cer smd 510-3681-103
C 183 .01 µF ±10% 10V cer smd 510-3681-103
C 184 .01 µF ±10% 10V cer smd 510-3681-103
C 185 .01 µF ±10% 10V cer smd 510-3681-103
C 186 .01 µF ±10% 10V cer smd 510-3681-103
C 190 .01 µF ±10% 10V cer smd 510-3681-103
C 191 .01 µF ±10% 10V cer smd 510-3681-103
C 192 .01 µF ±10% 10V cer smd 510-3681-103
C 196 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 197 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 198 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 199 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 200 .01 µF ±10% X7R 25V cer
smd
510-3675-104
C 201 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 202 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 203 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 204 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 205 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 206 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 207 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 208 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 209 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 210 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 211 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 212 .01 µF ±10% 10V cer smd 510-3681-103
C 213 .01 µF ±10% 10V cer smd 510-3681-103
C 214 .01 µF ±10% 10V cer smd 510-3681-103
C 215 .01 µF ±10% 10V cer smd 510-3681-103
C 216 .01 µF ±10% 10V cer smd 510-3681-103
74
C 217 .01 µF ±10% 10V cer smd 510-3681-103
C 218 .01 µF ±10% 10V cer smd 510-3681-103
C 219 .01 µF ±10% 10V cer smd 510-3681-103
C 220 .01 µF ±10% 10V cer smd 510-3681-103
C 221 .01 µF ±10% 10V cer smd 510-3681-103
C 222 .01 µF ±10% 10V cer smd 510-3681-103
C 223 .01 µF ±10% 10V cer smd 510-3681-103
C 224 .01 µF ±10% 10V cer smd 510-3681-103
C 225 .01 µF ±10% 10V cer smd 510-3681-103
C 226 10 µF 10V cer smd 510-3755-106
C 227 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 228 3300 pF ±10% 10V cer smd 510-3681-332
C 229 56 pF ±5% 50V cer smd 510-3684-560
C 230 47 pF ±10% cer smd 510-3681-470
C 231 1 µF ±20% Z5U 25V cer
smd
510-3636-105
C 232 1 µF ±20% Z5U 25V cer
smd
510-3636-105
C 233 220 pF ±5% NPO 25V cer
smd
510-3674-221
C 234 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 235 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 236 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 237 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 238 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 239 1 µF ±20% Z5U 25V cer
smd
510-3636-105
C 240 1 µF ±20% Z5U 25V cer
smd
510-3636-105
C 241 220 pF ±5% NPO 25V cer
smd
510-3674-221
C 242 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 243 100 pF ±5% NPO 25V cer
smd
510-3674-101
C 245 1 µF ±20% Z5U 25V cer
smd
510-3636-105
C 246 1 µF ±20% Z5U 25V cer
smd
510-3636-105
C 247 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 248 4700 pF 10% X7R 25V cer
smd
510-3675-472
C 249 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 250 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 251 220 pF ±5% NPO 25V cer
smd
510-3674-221
C 252 220 pF ±5% NPO 25V cer
smd
510-3674-221
C 253 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 254 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 255 10 µF 10V tantalum smd 510-2624-100
C 257 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 258 10 µF 10V tantalum smd 510-2624-100
C 261 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 262 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 263 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 263 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 264 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 265 .1 µF +80-20% Z5U 25V cer
smd
510-3680-104
C 266 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 267 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 268 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 269 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 270 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 271 470 pF ±5% NPO 25V cer 510-3674-471
75
smd
C 272 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 273 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 274 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 275 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 276 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 277 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 278 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 279 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 281 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 282 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 283 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 284 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 285 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 286 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 287 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 288 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 289 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 290 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 291 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 292 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 293 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 294 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 295 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 296 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 299 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 302 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 303 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 304 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 305 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 306 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 308 0.01 µF ±10% X7R 25V cer
smd
510-3675-103
C 309 470 pF ±5% NPO 25V cer
smd
510-3674-471
C 312 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 313 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 314 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 315 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 316 10 µF 10V cer smd 510-3755-106
C 317 8.2pF +/-.1pF NPO cer smd 510-3673-829
C 318 22 µF ±10% 16V X5R smd 510-3607-226
C 319 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 320 10 µF 10V cer smd 510-3755-106
C 321 10 pF ±.1 pF NPO cer smd 510-3673-100
C 322 10 pF ±.1 pF NPO cer smd 510-3673-100
C 323 22 µF ±10% 16V X5R smd 510-3607-226
C 324 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 325 4.7 µF 20V tantalum smd 510-2626-479
C 326 0.01 µF ±10% X7R 25V cer
smd
510-3675-103
C 327 0.01 µF ±10% X7R 25V cer
smd
510-3675-103
76
C 328 .01 µF ±10% 10V cer smd 510-3681-103
C 329 .01 µF ±10% 10V cer smd 510-3681-103
C330 .01 µF ±10% 10V cer smd 510-3681-103
C331 .01 µF ±10% 10V cer smd 510-3681-103
C332 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C333 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C334 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C335 .01 µF ±10% 10V cer smd 510-3681-103
C336 .01 µF ±10% 10V cer smd 510-3681-103
C337 .01 µF ±10% 10V cer smd 510-3681-103
C338 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C339 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 340 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 341 100 pF ±10% 25V cer smd 510-3681-101
C 342 100 pF ±10% 25V cer smd 510-3681-101
C 343 .01 µF ±10% 10V cer smd 510-3681-103
C 344 .01 µF ±10% 10V cer smd 510-3681-103
C 345 .01 µF ±10% 10V cer smd 510-3681-103
C 346 .01 µF ±10% 10V cer smd 510-3681-103
C 347 .01 µF ±10% 10V cer smd 510-3681-103
C 348 .01 µF ±10% 10V cer smd 510-3681-103
C 349 0.01 µF ±10% X7R 25V cer
smd
510-3675-103
C 350 .01 µF ±10% 10V cer smd 510-3681-103
C 351 2.2 µF 16V cer smd 510-3925-225
C 352 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 353 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 354 .1 µF ±10% X7R 25V cer
smd
510-3675-104
C 355 .1 µF ±10% X7R 25V cer
smd
510-3675-104
CR 001 Silicon switching diode 523-1004-021
CR 002 Silicon switching diode 523-1004-021
CR 003 Silicon switching diode 523-1004-021
CR 004 Zener diode, 5.6V 523-2016-569
CR 005 Zener diode, 18V 523-2601-180
CR 006 Zener diode, 5.1V 523-2601-519
CR 010 Zener diode, 3.6V 523-2016-369
CR 011 Zener diode, 3.6V 523-2016-369
CR 012 Silicon switching diode 523-1004-021
CR 013 LED, green 549-4003-011
CR 014 LED, green 549-4003-011
CR 015 LED, green 549-4003-011
D 002 Dual switching diode, com
cath
523-1504-022
D 003 Dual switching diode, com
cath
523-1504-022
D 004 Dual switching diode, com
cath
523-1504-022
D 005 Dual switching diode, com
cath
523-1504-022
D 006 Dual switching diode, com
cath
523-1504-022
F 001 Fuse, 0.5A smd 534-5002-009
J 001 Connector, 16-pin 515-7000-668
J 002 Connector, 25-pin 515-7113-071
J 005 Connector, 13-pin 515-7111-262
J 006 Connector, 13-pin 515-7111-262
J 007 Connector, 5-pin 515-7111-254
J 008 Connector, 12-pin 515-7111-261
J 009 Connector, 2 14-pin 515-9500-045
J 011 Connector, 5-pin 515-7111-254
J 012 Connector, 13-pin 515-7111-262
J 016 Connector, 25-pin 515-7113-071
J 018 Connector, 25-pin 515-7113-071
L 015 - Inductor, ferrite smd 542-9230-023
L 053
L 054 8.2 µH ±5% smd 542-9000-829
77
L 055 Bead, ferrite smd 542-9230-005
L 056 Bead, ferrite smd 542-9230-005
L 057 Inductor, ferrite smd 542-9230-021
L 058 Inductor, ferrite smd 542-9230-021
L 059 Inductor, ferrite smd 542-9230-021
L 060 Inductor, ferrite smd 542-9230-021
L 061 Inductor, ferrite smd 542-9230-021
L 062 Inductor, ferrite smd 542-9230-021
L 063 Bead, ferrite smd 542-9230-005
L 064 10 µH power inductor 542-9009-100
L 065 10 µH power inductor 542-9009-100
PC 001 PC board, 5500 logic rev 1 035-5500-600
1
Q 005 N-chan MOSFET 60V 1A 576-0003-725
Q 006 NPN general purpose 576-0003-658
Q 009 NPN general purpose 576-0003-658
Q 010 NPN general purpose 576-0003-658
Q 011 NPN general purpose 576-0003-658
Q 012 NPN general purpose 576-0003-658
Q 013 NPN general purpose 576-0003-658
Q 014 NPN general purpose 576-0003-658
Q 015 NPN general purpose 576-0003-658
Q 017 NPN general purpose 576-0003-658
Q 018 NPN general purpose 576-0003-658
Q 020 NPN general purpose 576-0003-658
Q 021 NPN general purpose 576-0003-658
Q 022 NPN general purpose 576-0003-658
Q 023 NPN general purpose 576-0003-658
Q 024 NPN general purpose 576-0003-658
Q 025 NPN general purpose 576-0003-658
Q 026 NPN general purpose 576-0003-658
Q 027 NPN general purpose 576-0003-658
Q 028 NPN general purpose 576-0003-658
Q 029 NPN general purpose 576-0003-658
R 001 10k ohm ±5% 1/16W smd 569-0165-103
R 002 51k ohm ±5% 1/16W smd 569-0165-513
R 003 51k ohm ±5% 1/16W smd 569-0165-513
R 004 51k ohm ±5% 1/16W smd 569-0165-513
R 006 4.7k ohm ±5% 1/16W smd 569-0165-472
R 007 4.7k ohm ±5% 1/16W smd 569-0165-472
R 008 4.7k ohm ±5% 1/16W smd 569-0165-472
R 009 4.7k ohm ±5% 1/16W smd 569-0165-472
R 010 4.7k ohm ±5% 1/16W smd 569-0165-472
R 011 4.7k ohm ±5% 1/16W smd 569-0165-472
R 012 4.7k ohm ±5% 1/16W smd 569-0165-472
R 013 4.7k ohm ±5% 1/16W smd 569-0165-472
R 014 4.7k ohm ±5% 1/16W smd 569-0165-472
R 015 4.7k ohm ±5% 1/16W smd 569-0165-472
R 016 4.7k ohm ±5% 1/16W smd 569-0165-472
R 017 4.7k ohm ±5% 1/16W smd 569-0165-472
R 018 100k ohm ±5% 1/16W smd 569-0165-104
R 019 4.7k ohm ±5% 1/16W smd 569-0165-472
R 020 4.7k ohm ±5% 1/16W smd 569-0165-472
R 021 4.7k ohm ±5% 1/16W smd 569-0165-472
R 022 4.7k ohm ±5% 1/16W smd 569-0165-472
R 023 4.7k ohm ±5% 1/16W smd 569-0165-472
R 024 4.7k ohm ±5% 1/16W smd 569-0165-472
R 025 4.7k ohm ±5% 1/16W smd 569-0165-472
R 029 51k ohm ±5% 1/16W smd 569-0165-513
R 030 51k ohm ±5% 1/16W smd 569-0165-513
R 031 51k ohm ±5% 1/16W smd 569-0165-513
R 038 47k ohm ±5% 1/16W smd 569-0155-473
R 039 47k ohm ±5% 1/16W smd 569-0155-473
R 040 620 ohm ±5% smd 569-0105-621
R 041 620 ohm ±5% smd 569-0105-621
R 076 100 ohm ±5% 1/16W smd 569-0165-101
R 078 10 ohm ±5% 1/16W smd 569-0165-100
R 080 1k ohm ±5% 1/16W smd 569-0155-102
R 095 220k ohm ±5% 1/16W smd 569-0155-224
R 098 10k ohm ±5% 1/16W smd 569-0155-103
R 099 10k ohm ±5% 1/16W smd 569-0155-103
R 100 10k ohm ±5% 1/16W smd 569-0155-103
R 101 4.7k ohm ±5% 1/16W smd 569-0165-472
78
R 102 4.7k ohm ±5% 1/16W smd 569-0165-472
R 103 100k ohm ±5% 1/16W smd 569-0165-104
R 104 100k ohm ±5% 1/16W smd 569-0165-104
R 105 220k ohm ±5% 1/16W smd 569-0165-224
R 106 220k ohm ±5% 1/16W smd 569-0165-224
R 107 1k ohm ±5% 1/16W smd 569-0165-102
R 108 220k ohm ±5% 1/16W smd 569-0165-224
R 109 2k ohm ±5% 1/16W smd 569-0165-202
R 110 4.7k ohm ±5% 1/16W smd 569-0165-472
R 111 2k ohm ±5% 1/16W smd 569-0165-202
R 112 2k ohm ±5% 1/16W smd 569-0165-202
R 113 220k ohm ±5% 1/16W smd 569-0165-224
R 114 4.7k ohm ±5% 1/16W smd 569-0165-472
R 115 220k ohm ±5% 1/16W smd 569-0165-224
R 117 220k ohm ±5% 1/16W smd 569-0165-224
R 118 220k ohm ±5% 1/16W smd 569-0165-224
R 119 220k ohm ±5% 1/16W smd 569-0165-224
R 120 220k ohm ±5% 1/16W smd 569-0165-224
R 121 220k ohm ±5% 1/16W smd 569-0165-224
R 122 220k ohm ±5% 1/16W smd 569-0165-224
R 123 220k ohm ±5% 1/16W smd 569-0165-224
R 124 220k ohm ±5% 1/16W smd 569-0165-224
R 125 220k ohm ±5% 1/16W smd 569-0165-224
R 126 220k ohm ±5% 1/16W smd 569-0165-224
R 127 220k ohm ±5% 1/16W smd 569-0165-224
R 128 220k ohm ±5% 1/16W smd 569-0165-224
R 129 220k ohm ±5% 1/16W smd 569-0165-224
R 130 220k ohm ±5% 1/16W smd 569-0165-224
R 131 220k ohm ±5% 1/16W smd 569-0165-224
R 132 4.7k ohm ±5% 1/16W smd 569-0165-472
R 141 47k ohm ±5% 1/16W smd 569-0155-473
R 224 10k ohm ±5% 1/16W smd 569-0165-103
R 225 10k ohm ±5% 1/16W smd 569-0165-103
R 226 10k ohm ±5% 1/16W smd 569-0165-103
R 249 10k ohm ±5% 1/16W smd 569-0155-103
R 251 10k ohm ±5% 1/16W smd 569-0155-103
R 252 10 ohm ±5% 1/16W smd 569-0165-100
R 253 10 ohm ±5% 1/16W smd 569-0165-100
R 255 10 ohm ±5% 1/16W smd 569-0165-100
R 256 10 ohm ±5% 1/16W smd 569-0165-100
R 257 1k ohm ±5% 1/16W smd 569-0165-102
R 258 2k ohm ±5% 1/16W smd 569-0155-202
R 259 10M ohm ±5% 1/16W smd 569-0165-106
R 260 2k ohm ±5% 1/16W smd 569-0155-202
R 261 220k ohm ±5% 1/16W smd 569-0165-224
R 262 330 ohm ±5% 1/16W smd 569-0155-331
R 263 100k ohm ±5% 1/16W smd 569-0165-104
R 264 100k ohm ±5% 1/16W smd 569-0165-104
R 265 100k ohm ±5% 1/16W smd 569-0165-104
R 266 6.8k ohm ±5% 1/16W smd 569-0155-682
R 267 330 ohm ±5% 1/16W smd 569-0155-331
R 268 100k ohm ±5% 1/16W smd 569-0165-104
R 269 220k ohm ±5% 1/16W smd 569-0165-224
R 270 62k ohm ±5% 1/16W smd 569-0155-623
R 271 150k ohm ±5% 1/16W smd 569-0155-154
R 272 6.8k ohm ±5% 1/16W smd 569-0155-682
R 273 6.8k ohm ±5% 1/16W smd 569-0155-682
R 274 220k ohm ±5% 1/16W smd 569-0165-224
R 275 330 ohm ±5% 1/16W smd 569-0155-331
R 276 6.8k ohm ±5% 1/16W smd 569-0155-682
R 277 100k ohm ±5% 1/16W smd 569-0165-104
R 278 100k ohm ±5% 1/16W smd 569-0165-104
R 279 100k ohm ±5% 1/16W smd 569-0165-104
R 280 330 ohm ±5% 1/16W smd 569-0155-331
R 281 220k ohm ±5% 1/16W smd 569-0165-224
R 282 0 ohm jumper 569-0155-001
R 283 100k ohm ±5% 1/16W smd 569-0165-104
R 284 100k ohm ±5% 1/16W smd 569-0155-104
R 285 10k ohm ±5% 1/16W smd 569-0155-103
R 286 100k ohm ±5% 1/16W smd 569-0165-104
R 287 20k ohm ±5% 1/16W smd 569-0155-203
R 288 56k ohm ±5% 1/16W smd 569-0155-563
R 289 390k ohm ±5% 1/16W smd 569-0155-394
R 290 6.8k ohm ±5% 1/16W smd 569-0155-682
R 291 47k ohm ±5% 1/16W smd 569-0155-473
R 292 47k ohm ±5% 1/16W smd 569-0155-473
79
R 293 6.8k ohm ±5% 1/16W smd 569-0155-682
R 294 100k ohm ±5% 1/16W smd 569-0155-104
R 295 150 ohm ±5% 1/16W smd 569-0155-151
R 296 6.8k ohm ±5% 1/16W smd 569-0155-682
R 297 100k ohm ±5% 1/16W smd 569-0155-104
R 298 150 ohm ±5% 1/16W smd 569-0155-151
R 299 6.8k ohm ±5% 1/16W smd 569-0155-682
R 300 100k ohm ±5% 1/16W smd 569-0155-104
R 301 100k ohm ±5% 1/16W smd 569-0155-104
R 302 100k ohm ±5% 1/16W smd 569-0155-104
R 303 6.8k ohm ±5% 1/16W smd 569-0155-682
R 304 68k ohm ±5% 1/16W smd 569-0165-683
R 305 0 ohm jumper 569-0155-001
R 307 100k ohm ±5% 1/16W smd 569-0155-104
R 308 0 ohm jumper 569-0155-001
R 309 100k ohm ±5% 1/16W smd 569-0155-104
R 310 6.8k ohm ±5% 1/16W smd 569-0155-682
R 311 100k ohm ±5% 1/16W smd 569-0155-104
R 312 100k ohm ±5% 1/16W smd 569-0155-104
R 313 100k ohm ±5% 1/16W smd 569-0155-104
R 315 10k ohm ±5% 1/16W smd 569-0155-103
R 316 47k ohm ±5% 1/16W smd 569-0155-473
R 318 10k ohm ±5% 1/16W smd 569-0155-103
R 319 47k ohm ±5% 1/16W smd 569-0155-473
R 320 10k ohm ±5% 1/16W smd 569-0155-103
R 321 10k ohm ±5% 1/16W smd 569-0155-103
R 322 10k ohm ±5% 1/16W smd 569-0155-103
R 323 1k ohm ±5% 1/16W smd 569-0155-102
R 324 10k ohm ±5% 1/16W smd 569-0155-103
R 325 10k ohm ±5% 1/16W smd 569-0155-103
R 326 10k ohm ±5% 1/16W smd 569-0155-103
R 327 10k ohm ±5% 1/16W smd 569-0155-103
R 328 10k ohm ±5% 1/16W smd 569-0155-103
R 329 100 ohm ±5% 1/16W smd 569-0155-101
R330 10k ohm ±5% 1/16W smd 569-0155-103
R331 10k ohm ±5% 1/16W smd 569-0155-103
R332 470 ohm ±5% 1/16W smd 569-0155-471
R333 10k ohm ±5% 1/16W smd 569-0155-103
R334 47k ohm ±5% 1/16W smd 569-0155-473
R336 100 ohm ±5% 1/16W smd 569-0155-101
R338 10k ohm ±5% 1/16W smd 569-0155-103
R339 10k ohm ±5% 1/16W smd 569-0155-103
R 340 47k ohm ±5% 1/16W smd 569-0155-473
R 344 10k ohm ±5% 1/16W smd 569-0155-103
R 345 470 ohm ±5% 1/16W smd 569-0155-471
R 346 10k ohm ±5% 1/16W smd 569-0155-103
R 348 10k ohm ±5% 1/16W smd 569-0155-103
R 350 10k ohm ±5% 1/16W smd 569-0155-103
R 351 47k ohm ±5% 1/16W smd 569-0155-473
R 353 10k ohm ±5% 1/16W smd 569-0155-103
R 355 47k ohm ±5% 1/16W smd 569-0155-473
R 356 10k ohm ±5% 1/16W smd 569-0155-103
R 357 100 ohm ±5% 1/16W smd 569-0155-101
R 358 100 ohm ±5% 1/16W smd 569-0155-101
R 360 10 ohm ±5% 1/16W smd 569-0155-100
R 361 47k ohm ±5% 1/16W smd 569-0155-473
R 362 4.7k ohm ±5% 1/16W smd 569-0155-472
R 364 10k ohm ±5% 1/16W smd 569-0155-103
R 365 10k ohm ±5% 1/16W smd 569-0155-103
R 366 100k ohm ±5% 1/16W smd 569-0155-104
R 367 47k ohm ±5% 1/16W smd 569-0155-473
R 368 10k ohm ±5% 1/16W smd 569-0155-103
R 369 10k ohm ±5% 1/16W smd 569-0155-103
R 370 1k ohm ±5% 1/16W smd 569-0155-102
R 371 10k ohm ±5% 1/16W smd 569-0155-103
R 372 100k ohm ±5% 1/16W smd 569-0155-104
R 373 33.2k ohm ±1% 0.1W smd 569-0151-451
R 374 10k ohm ±5% 1/16W smd 569-0155-103
R 377 10k ohm ±5% 1/16W smd 569-0155-103
R 378 10k ohm ±5% 1/16W smd 569-0155-103
R 379 10k ohm ±5% 1/16W smd 569-0155-103
R 392 10k ohm ±5% 1/16W smd 569-0155-103
R 393 10k ohm ±5% 1/16W smd 569-0155-103
R 394 10k ohm ±5% 1/16W smd 569-0155-103
R 395 10k ohm ±5% 1/16W smd 569-0155-103
R 396 10k ohm ±5% 1/16W smd 569-0155-103
80
R 399 100k ohm ±5% 1/16W smd 569-0165-104
R 400 634k ohm ±1% 0.1W smd 569-0151-578
R 401 100k ohm ±1% 0.1W smd 569-0151-501
R 402 100k ohm ±5% 1/16W smd 569-0165-104
R 403 255k ohm ±1% 0.1W smd 569-0151-551
R 404 100k ohm ±1% 0.1W smd 569-0151-501
R 405 10k ohm ±5% 1/16W smd 569-0155-103
R 406 10k ohm ±5% 1/16W smd 569-0155-103
R 407 10k ohm ±5% 1/16W smd 569-0155-103
R 408 10k ohm ±5% 1/16W smd 569-0155-103
R 409 10k ohm ±5% 1/16W smd 569-0155-103
R 410 10k ohm ±5% 1/16W smd 569-0155-103
R 412 100k ohm ±5% 1/16W smd 569-0165-104
R 413 100k ohm ±5% 1/16W smd 569-0165-104
R 683 68k ohm ±5% 1/16W smd 569-0155-683
R 685 27k ohm ±5% 1/16W smd 569-0155-273
R 686 100k ohm ±5% 1/16W smd 569-0165-104
R 687 100k ohm ±5% 1/16W smd 569-0165-104
R 688 51k ohm ±5% 1/16W smd 569-0165-513
R 689 100k ohm ±5% 1/16W smd 569-0165-104
R 690 100k ohm ±5% 1/16W smd 569-0165-104
R 691 100k ohm ±5% 1/16W smd 569-0165-104
R 692 4.7k ohm ±5% 1/16W smd 569-0165-472
R 693 4.7k ohm ±5% 1/16W smd 569-0165-472
R 694 10k ohm ±5% 1/16W smd 569-0165-103
R 695 10k ohm ±5% 1/16W smd 569-0165-103
R 696 10k ohm ±5% 1/16W smd 569-0165-103
R 697 10k ohm ±5% 1/16W smd 569-0165-103
R 698 4.7k ohm ±5% 1/16W smd 569-0165-472
R 699 10k ohm ±5% 1/16W smd 569-0165-103
R 700 10k ohm ±5% 1/16W smd 569-0165-103
R 701 15k ohm ±5% 1/16W smd 569-0165-153
R 702 20k ohm ±5% 1/16W smd 569-0165-203
R 703 30k ohm ±5% 1/16W smd 569-0155-303
R 704 10k ohm ±5% 1/16W smd 569-0165-103
R 705 15k ohm ±5% 1/16W smd 569-0165-153
R 706 20k ohm ±5% 1/16W smd 569-0165-203
R 707 30k ohm ±5% 1/16W smd 569-0155-303
R 709 1k ohm ±5% 1/16W smd 569-0165-102
R 710 1k ohm ±5% 1/16W smd 569-0165-102
R 711 1k ohm ±5% 1/16W smd 569-0165-102
R 712 1k ohm ±5% 1/16W smd 569-0165-102
R 713 10k ohm ±5% 1/16W smd 569-0165-103
R 714 10k ohm ±5% 1/16W smd 569-0165-103
R 715 10k ohm ±5% 1/16W smd 569-0165-103
R 716 1k ohm ±5% 1/16W smd 569-0165-102
R 717 1k ohm ±5% 1/16W smd 569-0165-102
R 718 1k ohm ±5% 1/16W smd 569-0165-102
R 719 1k ohm ±5% 1/16W smd 569-0165-102
R 720 1k ohm ±5% 1/16W smd 569-0165-102
R 721 1k ohm ±5% 1/16W smd 569-0165-102
R 722 4.7k ohm ±5% 1/16W smd 569-0165-472
R 723 4.7k ohm ±5% 1/16W smd 569-0165-472
R 724 15k ohm ±5% 1/16W smd 569-0165-153
R 725 18k ohm ±5% 1/16W smd 569-0165-183
R 726 180 ohm ±5% 1/16W smd 569-0165-181
R 727 180 ohm ±5% 1/16W smd 569-0165-181
R 728 180 ohm ±5% 1/16W smd 569-0165-181
R 729 10k ohm ±5% 1/16W smd 569-0165-103
R 730 24 ohm ±5% 1/16W smd 569-0165-240
R 731 24 ohm ±5% 1/16W smd 569-0165-240
R 732 100k ohm ±5% 1/16W smd 569-0165-104
R 733 7.5k ohm ±1% 1/8W smd 569-0111-385
R 734 7.5k ohm ±1% 1/8W smd 569-0111-385
R 735 10k ohm ±5% 1/16W smd 569-0165-103
R 736 10k ohm ±5% 1/16W smd 569-0165-103
R 737 10k ohm ±5% 1/16W smd 569-0165-103
R 738 51 ohm ±5% 1/16W smd 569-0155-510
R 739 51 ohm ±5% 1/16W smd 569-0155-510
R 740 10k ohm ±5% 1/16W smd 569-0155-103
R 741 100k ohm ±5% 1/16W smd 569-0165-104
R 742 100k ohm ±5% 1/16W smd 569-0165-104
R 744 0 ohm jumper 569-0165-001
R 745 0 ohm jumper 569-0165-001
R 746 0 ohm jumper 569-0165-001
R 747 0 ohm jumper 569-0165-001
81
R 748 10 ohm ±5% 1/16W smd 569-0165-100
R 749 10 ohm ±5% 1/16W smd 569-0165-100
R 752 10k ohm ±5% 1/16W smd 569-0165-103
R 753 10k ohm ±5% 1/16W smd 569-0165-103
S 001 Switch, momentary norm
open
583-9512-002
T 001 Isolation transformer
10BASE-T
592-9017-003
U 001 DSP
TMS3205510AGGWA1
544-5003-133
U 002 CODEC, dual
TLV320AIC211
544-3016-057
U 003 Schmitt trig, inv TC7S14F-
TE85L
544-3123-014
U 004 Op Amp OPA340NA 544-2020-023
U 011 Regulator, 5V 400mA
REG113EA-5
544-2603-055
U 013 Regulator, 5V 400mA
REG113EA-5
544-2603-055
U 015 Regulator, 3.8V, 50 mA
LP2982
544-5001-335
U 020 SRAM 256k x 16
CY62146V
544-5001-213
U 021 Flash, 8M X 8 bit
AM29DL640G90
544-5001-255
U 022 Buffer, quad 74LCX125 544-3776-127
U 023 SRAM 512k x 16
CY62157CV30
544-5001-215
U 024 Tri state buffer, 3.3V
NC7SZ125P5
544-3914-125
U 025 Buffer, quad 74LCX125 544-3776-127
U 026 3-state buffer, quad
74ACT125
544-3776-117
U 027 Schmitt trig, inv TC7S14F-
TE85L
544-3123-014
U 042 Triple supply monitor
LT1727
544-5001-341
U 045 RS-232 bus xcvr
MAX3221EAE
544-2023-036
U 046 RS-485 bus transceiver
ADM483
544-2023-073
U 048 Bus xcvr, octal
74LVCC3245
544-1010-250
U 049 Op am, quad MC3303 544-2020-008
U 056 Multiplexer triple 4053 544-1014-053
U 057 Microcontroller PowerPC
MPC850
544-5003-127
U 058 EEPROM 32k x 8 M24256 544-1019-376
U 059 Multiplexer triple 4053 544-1014-053
U 060 Op am, quad MC3303 544-2020-008
U 061 Op am, quad MC3303 544-2020-008
U 063 Flip flop octal 74HC574 544-3764-576
U 064 Flip flop octal 74HC574 544-3764-576
U 065 Flip flop octal 74HC574 544-3764-576
U 066 Multiplexer triple 4053 544-1014-053
U 067 Converter, A/D 8-bit ser
TLC5481
544-1010-548
U 069 RS-232 bus xcvr
MAX3221EAE
544-2023-036
U 070 Analog switch, SPDT
NLAS4599
544-4002-007
U 071 SRAM 512k x 16
CY62157CV30
544-5001-215
U 072 SRAM 512k x 16
CY62157CV30
544-5001-215
U 073 Tri state buffer, 3.3V
NC7SZ125P5
544-3914-125
U 074 DC-DC converter TPS6200 544-4006-011
U 075 DC-DC converter TPS6200 544-4006-011
U 079 Tri state buffer, 3.3V
NC7SZ125P5
544-3914-125
U 080 Regulator 5V LT1121IST-5 544-1011-121
U 081 Buffer, quad 74LCX125 544-3776-127
U 082 Programmable logic 544-5001-419
U 083 Op amp, quad OPA4340EA 544-2020-013
U 084 Op amp, quad OPA4340EA 544-2020-013
U 085 Transceiver, 10BASE-T 3V 544-2023-050
U 086 Reg, 3.3V 400 mA
REG113EA-3.3
544-2603-056
U 087 Op amp, quad OPA4340EA 544-2020-013
Y 002 Crystal, 4.9152 MHz smd 521-3060-022
82
Y 003 TCXO, 12.288 MHz smd 518-7012-200
Y 004 Oscillator, 20.000 MHz smd 561-9004-200
FRONT PANEL ASSEMBLY
Part No. 023-5300-810
A 151 Plastic front panel assembly 587-9650-002
A 815 Display controller board 023-5300-813
(see separate listings)
C 750 4.7 µF 10V tantalum smd 510-2624-479
C 754 1.0 µF 35V tantalum smd 510-2628-109
C 755 4.7 µF 10V tantalum smd 510-2624-479
DS 700 Dual color, red/grn LED 549-4001-215
DS
701-
DS706
LED, green smd 549-4001-145
DS
707-
DS726
LED, green smd 549-4003-011
DS 727 LCD assembly 549-4501-010
EP 101 Key cap kit (see Section 2.8) 587-5300-001
HW
010
Washer, .438 x .274 x .030 596-9410-010
HW
011
Nut, spanner 3/8 x 7mm 013-1313-018
HW
012
Screw, 2-56 x 1/4 575-1602-008
HW
013
Lockwasher, internal No. 2 596-2102-006
J 703 Connector, 13-pin circular
recept
515-1009-025
J 705 Connector, 31-pin 515-7109-129
LS 001 Speaker, 2 x 3 in 16-ohm 589-1015-006
MP 101 Display bezel 017-2226-046
MP 102 Display gasket 018-1136-120
MP 103 Light pipe 032-0792-032
MP 108 Support-keypad 017-2226-090
MP 151 Gasket, front lens 018-1136-130
MP 152 Control knob 032-0792-010
MP 153 Control knob 032-0792-010
MP 154 Speaker membrane 018-1136-138
MP 155 Spacer, display board 018-1136-140
MP 158 Front panel lens 032-0792-034
MP 160 Spacer (between boards) 013-1188-053
MP 161 Keypad, standard 032-0792-031
MP 162 Speaker retainer 016-2187-250
MP 163 Speaker gasket, silicone 018-1136-128
MP 990 Gasket, microphone jack
silicone
018-1136-132
NP 001 Johnson label raised 559-9001-310
NP 002 Label, RS 5300 559-5300-100
PC 010 Flex circuit, std push on-off 035-5300-010
Flex circuit, motorcycle rot
on-off
035-5300-015
PC 815 PC board, display 035-5300-815
Q 710 PNP general purpose 576-0003-650
Q 711 NPN general purpose 576-0003-658
Q 712 NPN general purpose 576-0003-658
R 800 180k ohm ±5% 1/8W smd 569-0105-184
R 801 100k ohm ±5% 1/8W smd 569-0105-104
R 802 100k ohm ±5% 1/8W smd 569-0105-104
R 803 62 ohm ±5% 2010 .75W smd 569-0135-620
R 804 62 ohm ±5% 2010 .75W smd 569-0135-620
R 805 62 ohm ±5% 2010 .75W smd 569-0135-620
R 806 62 ohm ±5% 2010 .75W smd 569-0135-620
R 807 510 ohm ±5% 1/8W smd 569-0105-511
R 808 62 ohm ±5% 2010 .75W smd 569-0135-620
R 809 62 ohm ±5% 2010 .75W smd 569-0135-620
R 810 510 ohm ±5% 1/8W smd 569-0105-511
R 811 10k ohm ±5% 1/8W smd 569-0105-103
R 812 10k ohm ±5% 1/8W smd 569-0105-103
83
S 001 DIP switch, 10-position 583-5100-210
S 154 On-off/Vol push on w/50k
pot std
562-0018-075
On-off/Vol rot on-off ,
motorcycle
562-0018-077
S 155 Switch rotary and push 583-2042-001
U 710 LCD driver, PCF8576TD 544-2027-010
U 711 LCD driver, PCF8576TD 544-2027-010
U 712 Regulator, 8V 0.5A 78M08 544-2003-081
W 103 Cable assy, display - logic bd 023-5300-025
DISPLAY CONTROLLER BOARD
C 001 4.7 µF 25V tantalum smd 510-2627-479
C 002 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 003 10 µF 25V tantalum smd 510-2627-100
C 004 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 005 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 006 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 007 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 009 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 010 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 011 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 012 4.7 µF 25V tantalum smd 510-2627-479
C 013 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 016 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 017 4.7 µF 25V tantalum smd 510-2627-479
C 018 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 020 .01µF ±10% X7R cer smd 510-3675-103
C 021 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 022 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 023 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 024 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 029 1.0 µF 10V tantalum smd 510-2624-109
C 030 10 µF 25V tantalum smd 510-2627-100
C 031 4.7 µF 25V tantalum smd 510-2627-479
C 032 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 126 .01 µF ±10% X7R cer smd 510-3675-103
C 127 1.0 µF 10V tantalum smd 510-2624-109
C 128 1.0 µF 10V tantalum smd 510-2624-109
C 129 .1 µF ±10% X7R 50V cer
smd
510-3675-104
C 130 .047 µF ±10% X7R cer smd 510-3605-473
CR 001 5.6V zener SOT-23 523-2016-569
CR 002 5.6V zener SOT-23 523-2016-569
CR 003 5.6V zener SOT-23 523-2016-569
CR 004 5.6V zener SOT-23 523-2016-569
CR 005 5.6V zener SOT-23 523-2016-569
CR 006 5.6V zener SOT-23 523-2016-569
CR 007 5.6V zener SOT-23 523-2016-569
CR 008 5.6V zener SOT-23 523-2016-569
CR 009 5.6V zener SOT-23 523-2016-569
CR 010 5.6V zener SOT-23 523-2016-569
CR 011 5.6V zener SOT-23 523-2016-569
CR 012 PIN switching diode 523-1504-001
CR 013 5.6V zener SOT-23 523-2016-569
CR 014 PIN switching diode 523-1504-001
DS 727 LCD assembly 549-4501-010
F 001 Fuse 2.0 A smd 534-5001-009
J 700 Connector, 16-pin 515-7000-668
84
J 701 Connector, micro-miniature 515-7113-073
J 702 Connector, 9-pin ZIF flex 515-7111-321
J 704 Connector, 5-pin (PA bd
cable)
515-7111-254
PC 001 PC board, display controller
rev. 5
035-5300-810 5
Q 002 NPN general purpose 576-0003-658
Q 004 NPN digital w/resistors 576-0003-616
Q 005 NPN digital w/resistors 576-0003-616
Q 006 NPN digital w/resistors 576-0003-616
R 002 330k ohm ±5% 1/16W smd 569-0155-334
R 003 10k ohm ±5% 1/16W smd 569-0155-103
R 005 100k ohm ±5% 1/16W smd 569-0155-104
R 006 10k ohm ±5% 1/16W smd 569-0155-103
R 007 10k ohm ±5% 1/16W smd 569-0155-103
R 008 10k ohm ±5% 1/16W smd 569-0155-103
R 009 10k ohm ±5% 1/16W smd 569-0155-103
R 010 10k ohm ±5% 1/16W smd 569-0155-103
R 011 47k ohm ±5% 1/16W smd 569-0155-473
R 012 47k ohm ±5% 1/16W smd 569-0155-473
R 013 47k ohm ±5% 1/16W smd 569-0155-473
R 014 47k ohm ±5% 1/16W smd 569-0155-473
R 015 200k ohm ±5% 1/16W smd 569-0155-204
R 016 200k ohm ±5% 1/16W smd 569-0155-204
R 017 47k ohm ±5% 1/16W smd 569-0155-473
R 018 47k ohm ±5% 1/16W smd 569-0155-473
R 019 300 ohm ±5% 1/8W smd 569-0105-301
R 020 47k ohm ±5% 1/16W smd 569-0155-473
R 021 100k ohm ±5% 1/16W smd 569-0155-104
R 022 300 ohm ±5% 1/8W smd 569-0105-301
R 023 10k ohm ±5% 1/16W smd 569-0155-103
R 024 10k ohm ±5% 1/16W smd 569-0155-103
R 025 10k ohm ±5% 1/16W smd 569-0155-103
R 026 10k ohm ±5% 1/16W smd 569-0155-103
R 027 51 ohm ±5% 1/8W smd 569-0105-510
R 028 100k ohm ±5% 1/16W smd 569-0155-104
R 029 100k ohm ±5% 1/16W smd 569-0155-104
R 030 10k ohm ±5% 1/16W smd 569-0155-103
R 031 300ohm ±5% 1/16W smd 569-0155-301
R 032 47k ohm ±5% 1/16W smd 569-0155-473
R 033 47k ohm ±5% 1/16W smd 569-0155-473
R 035 47k ohm ±5% 1/16W smd 569-0155-473
R 036 620 ohm ±5% 1/8W smd 569-0105-621
R 037 620 ohm ±5% 1/8W smd 569-0105-621
R 038 47k ohm ±5% 1/16W smd 569-0155-473
R 039 300ohm ±5% 1/16W smd 569-0155-301
R 040 10k ohm ±5% 1/16W smd 569-0155-103
R 041 3.3k ohm ±5% 1/16W smd 569-0155-332
R 042 10k ohm ±5% 1/16W smd 569-0155-103
R 043 4.7k ohm ±5% 1/16W smd 569-0155-472
R 044 10k ohm ±5% 1/16W smd 569-0155-103
R 045 10k ohm ±5% 1/16W smd 569-0155-103
R 046 47k ohm ±5% 1/16W smd 569-0155-473
R 047 10k ohm ±5% 1/16W smd 569-0155-103
R 048 47k ohm ±5% 1/16W smd 569-0155-473
R 049 47k ohm ±5% 1/16W smd 569-0155-473
R 050 47k ohm ±5% 1/16W smd 569-0155-473
R 051 47k ohm ±5% 1/16W smd 569-0155-473
R 052 47k ohm ±5% 1/16W smd 569-0155-473
R 054 10k ohm ±5% 1/16W smd 569-0155-103
R 055 4.7k ohm ±5% 1/16W smd 569-0155-472
R 056 10k ohm ±5% 1/16W smd 569-0155-103
R 057 4.7k ohm ±5% 1/16W smd 569-0155-472
R 058 10k ohm ±5% 1/16W smd 569-0155-103
R 059 47k ohm ±5% 1/16W smd 569-0155-473
R 060 47k ohm ±5% 1/16W smd 569-0155-473
R 061 47k ohm ±5% 1/16W smd 569-0155-473
R 062 10k ohm ±5% 1/16W smd 569-0155-103
R 063 10k ohm ±5% 1/16W smd 569-0155-103
R 064 10k ohm ±5% 1/16W smd 569-0155-103
R 065 10k ohm ±5% 1/16W smd 569-0155-103
R 066 3.3k ohm ±5% 1/16W smd 569-0155-332
R 067 47k ohm ±5% 1/16W smd 569-0155-473
85
R 068 10k ohm ±5% 1/16W smd 569-0155-103
R 069 10k ohm ±5% 1/16W smd 569-0155-103
R 070 10k ohm ±5% 1/16W smd 569-0155-103
R 071 47k ohm ±5% 1/16W smd 569-0155-473
R 072 10k ohm ±5% 1/16W smd 569-0155-103
R 073 10k ohm ±5% 1/16W smd 569-0155-103
R 074 10k ohm ±5% 1/16W smd 569-0155-103
R 075 10k ohm ±5% 1/16W smd 569-0155-103
R 076 10k ohm ±5% 1/16W smd 569-0155-103
R 077 10k ohm ±5% 1/16W smd 569-0155-103
R 078 10k ohm ±5% 1/16W smd 569-0155-103
R 079 5.1kohm ±5% 1/16W smd 569-0155-512
R 080 300ohm ±5% 1/16W smd 569-0155-301
R 082 47k ohm ±5% 1/16W smd 569-0155-473
R 083 3.3k ohm ±5% 1/16W smd 569-0155-332
R 084 10k ohm ±5% 1/16W smd 569-0155-103
R 085 100k ohm ±5% 1/16W smd 569-0155-104
R 087 10k ohm ±5% 1/16W smd 569-0155-103
R 089 1k ohm ±5% 1/16W smd 569-0155-102
R 090 10k ohm ±5% 1/16W smd 569-0155-103
R 091 10k ohm ±5% 1/16W smd 569-0155-103
R 092 10k ohm ±5% 1/16W smd 569-0155-103
R 093 10k ohm ±5% 1/16W smd 569-0155-103
R 094 10k ohm ±5% 1/16W smd 569-0155-103
R 095 10k ohm ±5% 1/16W smd 569-0155-103
R 096 10k ohm ±5% 1/16W smd 569-0155-103
R 097 10k ohm ±5% 1/16W smd 569-0155-103
R 098 10k ohm ±5% 1/16W smd 569-0155-103
R 099 10k ohm ±5% 1/16W smd 569-0155-103
R 100 10k ohm ±5% 1/16W smd 569-0155-103
R 101 10k ohm ±5% 1/16W smd 569-0155-103
R 102 10k ohm ±5% 1/16W smd 569-0155-103
R 103 1.2M ohm ±5% 1/16W smd 569-0155-125
R 104 200k ohm ±5% 1/16W smd 569-0155-204
R 105 240k ohm ±5% 1/16W smd 569-0155-244
R 107 82k ohm ±5% 1/16W smd 569-0155-823
R 108 160k ohm ±5% 1/16W smd 569-0155-164
R 109 1k ohm ±5% 1/16W smd 569-0155-102
R 110 10k ohm ±5% 1/16W smd 569-0155-103
R 111 47k ohm ±5% 1/16W smd 569-0155-473
R 112 100k ohm ±5% 1/16W smd 569-0155-104
R 113 100k ohm ±5% 1/16W smd 569-0155-104
R 114 100k ohm ±5% 1/16W smd 569-0155-104
R 115 1k ohm ±5% 1/16W smd 569-0155-102
R 116 47k ohm ±5% 1/16W smd 569-0155-473
U 002 Op am, quad MC3303 544-2020-008
U 003 RS-485 driver SN65176 544-2023-027
U 009 Microcontroller
MC68HC908
544-9100-007
U 012 5V regulator, 300 mA
ADP3367
544-2032-009
U 045 3-state noninv amp
TC74VHC125
544-3991-125
U 047 5V regulator, 300 mA
ADP3367
544-2032-009
U 054 Schmitt trigger, hex 74HC14 544-3991-014
U 055 Flip-flop, dual 74HC74 544-3991-074
U 056 Buffer, open drain hex
MM74C906
544-3716-906
Y 002 4.9152 MHz crystal 521-3060-024
REMOTE CONTROL UNIT
UNIQUE PARTS
A 001 Remote audio amp bd assy
(rev)
023-5300-751
Remote audio amp bd assy
(unrev)
023-5300-750
(see separate listing which
follows)
A 002 Front panel assembly 023-5300-810
(see preceding listing)
A 755 Audio PA board cable 023-5300-755
HW
001
Washer, poly 0.937 diameter 596-6400-015
HW
002
Washer, SS spring 3/4 OD 596-9260-001
HW Screw, captive pan head .75 575-9606-018
86
003
MP 001 Knob, remote control unit 032-0792-015
MP 002 Mounting bracket, rem ctrl
unit
017-2226-050
MP 003 Gasket 032-0792-066
MP 005 Housing, remote control unit 032-0792-130
MP 006 Rear cover, remote control
unit
032-0792-135
NP 002 Johnson label 559-9001-310
W 003 Control cable, 17-ft 597-2002-262
Control cable, 8-ft
motorcycle
597-2002-259
Control cable, 50-ft 597-2002-263
W 104 Control unit pigtail cable, std 597-2002-264
Ctrl unit pigtail cable,
motorcycle
597-2002-274
AUDIO AMP BOARD (REVISED)
Part No. 023-5300-751
C 001 15 µF 20V tantalum smd 510-2626-150
C 002 15 µF 20V tantalum smd 510-2626-150
C 003 0.1 µF X7R ±10% 50V cer
smd
510-3606-104
C 004 1 µF 35V tantalum smd 510-2628-109
C 005 0.1 µF X7R ±10% 50V cer
smd
510-3606-104
J 001 Header, 2-pin right angle 515-7100-602
J 002 Connector, 5-pin 515-7111-254
PC 001 PC board, audio amp revised 035-5300-7500
2
Q 001 NPN general purpose smd 576-0003-616
R 001 7.5k ohm ±5% 1/8W smd 569-0155-752
R 003 10k ohm ±5% 1/8W smd 569-0155-103
U 001 Audio amp, 3W TDA7056A 544-2006-025
Std. DC Power Cable Assembly
Part No. 023-9750-010
A 001 Fused DC power cable 023-9650-008
(see separate listing)
A 002 Mic clip ground wire 023-7171-911
EP 002 Ring terminal, 3/4 10-12
AWG
586-0001-036
EP 003 Ring terminal, 3/8 10-12
AWG
586-0001-019
F 101 Fuse, 15 amp 32V 534-0003-038
HW
000
Key extraction tool 017-2226-000
HW
002
Screw, 4-40 x 3/8 pan head
(1)
575-0604-012
HW
003
Screw, 4-24 x 1/4 phil (3) 575-3604-008
HW
004
Screw, 4-20 x 5/8 phil (3) 575-5604-020
MP 001 Heavy-duty mic clip 023-3514-001
Fused DC Power Cable
Part No. 023-9650-008
EP 101 Female crimp pin 515-9032-540
FH 001 Fuse holder in-line includes:
Contact 534-1004-037
Body 534-1004-031
Knob 534-1004-032
Spring 534-1004-035
HW
101
Wire seal 574-9025-035
ML 001 Negative ground warning tag 559-4014-001
ML 002 Jump start warning label 559-4057-010
P 101 2-pin female power
connector
515-9032-535
W 101 Wire, 12 AWG stranded blue 597-7021-206
W 102 Wire, 12 AWG stranded red 597-7021-202
Accessory Wire Harness Kit
Part No. 023-9750-011
Fuseholder components:
EP 001 Contact 586-9004-001
F 001 Fuse, 1A 250V FB AGC 534-0003-02
0
MP001 Fuseholder body 534-1004-031
MP002 Fuseholder knob 534-1004-03
2
MP003 Fuseholder spring 534-1004-035
HW
001
Pin contact, crimp type 515-1501-055
P 101 8-pin receptacle housing 515-1501-050
87
Front Mounting Bracket
Assembly
Part No. 023-9750-012
HW
001
Self-drilling screw 1/4 (4) 575-9077-565
HW
002
Self-drilling screw #10 (4) 575-9077-545
MP 101 Knob 10-32 1/2 547-0016-007
MP 201 Transceiver mounting
bracket
017-2226-034
Amplified Dynamic Microphone
Part No. 250-0740-310
C 001 3.3 µF 16V tantalum chip 510-2625-339
C 002 220 pF ±5% NPO 50V cer
chip
510-3602-221
EP001 Contact .038" diameter 586-9008-100
EP002 Mic cord w/Hirose connector 597-2002-255
EP004 Terminal (on hanger) 022-0069-011
HW001 Screw 4-20 x 3/8 575-5604-012
HW004 Screw 2-56 x 3/8 575-1602-012
MK001 Dynamic mic cartridge 589-1011-003
MP001 Case front black 032-0426-100
MP002 Case back black 032-0427-100
MP003 Actuator black 032-0428-050
MP004 Cartridge gasket 032-0429-075
MP005 Blast filter 018-1033-002
MP006 Switch bracket 017-1885-030
MP007 Hanger button 013-1216-005
MP008 Crimp retainer 017-2222-006
MP009 Rubber bumper 018-0798-009
MP010 Backing plate 015-0876-026
MP011 Strain relief, mic cord 032-0429-086
MP012 Shim support, rubber bumper 017-2222-007
MP020 Foam support 018-0798-012
NP001 Nameplate 559-0039-026
PC001 PC board, amplifier 035-0441-020
Q 001 NPN amplifier SOT-23 576-0003-658
R 001 51k ohm ±5% 1/8W chip 569-0115-513
R 002 18 ohm ±5% 1/8W chip 569-0115-180
S 001 Leaf switch SPST 583-1004-031
15 Watt, 4.0-Ohm Speaker
(Black)
Part No. 250-0151-006
HW001 Strain relief (in case back) 574-0003-008
HW002 Screw, self drilling 574-9077-543
HW003 Screw, 4-20 x 1/2 pan head 575-5604-016
HW005 Foam gasket 018-1126-001
HW006 Urethane foam, 1/16 thick 042-0361-318
HW008 Screw, 6-19 x 1/4 pan hd
phillips
575-5606-008
HW009 Terminal lug 586-0005-106
LS001 Speaker, 5'' 15W 4.0 ohm 589-1016-003
MP001 Case front (black) 032-0758-004
MP002 Case back (black) 032-0759-004
MP003 Mounting bracket (black) 032-0760-004
MP004 Tri knob 10-32 547-0016-004
NP001 Overlay, speaker front 559-0072-010
P 001 Crimp wire contact 515-5010-055
W 001 Speaker wire, 22 AWG (6 ft
used)
597-2006-002
15W 4.0-Ohm Motorcycle
Speaker
Part No. 250-0151-015
HW001 Strain relief (in case back) 574-0003-008
Rubber switch boot 574-3500-153
HW002 Screw, self drilling 574-9077-543
HW003 Screw, 4-20 x 1/2 pan head 575-5604-016
HW005 Foam gasket 018-1126-001
HW006 Urethane foam, 1/16 thick 042-0361-318
HW008 Screw, 6-19 x 1/4 pan hd
phillips
575-5606-008
HW009 Terminal lug 586-0005-106
LS001 Speaker, 5'' 15W 4.0 ohm 589-1016-003
MP001 Case front (black) 032-0758-004
MP002 Case back, motorcycle
(black)
032-0759-006
MP003 Mounting bracket (black) 032-0760-004
88
MP004 Tri knob 10-32 547-0016-004
NP001 Overlay, speaker front 559-0072-010
S 001 Switch, SPST toggle 583-0006-061
W 001 Speaker wire, motorcycle 023-0151-011
89
Ref No. Description Part No.
HANDHELD CONTROL UNIT
Part No. 250-5300-101
A 001 Main board assembly 023-5300-705
A 002 Keypad board assembly 023-5300-707
A 130 Junction box assembly 023-5300-130
(see separate listing)
C 001 4.7 µF 25V tantalum smd 510-2627-479
C 002 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 003 10 µF 25V tantalum smd 510-2627-100
C 005 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 007 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 008 33 pF ±5% NPO 25V cer
smd
510-3674-330
C 009 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 010 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 011 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 013 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 014 0.01 µF ±10% X7R 25V
cer smd
510-3675-103
C 015 0.01 µF ±10% X7R 25V
cer smd
510-3675-103
C 016 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 017 4.7 µF 25V tantalum smd 510-2627-479
C 018 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 019 390 pF ±5% NPO 25V cer
smd
510-3674-391
C 020 0.01 µF ±10% X7R 25V
cer smd
510-3675-103
C 021 0.1 µF ±10% X7R 25V cer 510-3675-104
smd
C 022 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 023 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 025 180 pF ±5% NPO 25V cer
smd
510-3674-181
C 029 1.0 µF 10V tantalum smd 510-2624-109
C 030 10 µF 25V tantalum smd 510-2627-100
C 031 4.7 µF 20V tantalum smd 510-2626-479
C 032 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 126 0.01 µF ±10% X7R 25V
cer smd
510-3675-103
C 127 1.0 µF 10V tantalum smd 510-2624-109
C 128 1.0 µF 10V tantalum smd 510-2624-109
C 129 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 130 4.7 µF 25V tantalum smd 510-2627-479
C 131 10 µF 25V tantalum smd 510-2627-100
C 132 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 133 10 µF 25V tantalum smd 510-2627-100
C 134 10 µF 25V tantalum smd 510-2627-100
C 135 4.7 µF tantalum smd 510-2622-479
C 136 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 137 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 138 1.0 µF 35V tantalum smd 510-2628-109
C 139 0.22 F 5.5V electrolytic 510-9510-055
C 140 10 µF 25V tantalum smd 510-2627-100
C 141 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 142 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 143 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 144 0.047 µF X7R ±10% cer
smd
510-3605-473
C 145 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
90
C 146 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
CR 004- 5.6V zener 523-2016-569
CR 11
CR 012 Pin switching diode 523-1504-001
CR 013 5.6V zener 523-2016-569
CR 020 5.6V zener 523-2016-569
CR 021 5.6V zener 523-2016-569
CR 023 5.6V zener 523-2016-569
CR 024 Dual color LED, red/grn 549-4001-215
CR 025- 5.6V zener 523-2016-569
CR 29
CR 030 Dual diodes, com anodes 523-1504-024
CR 031 Dual diodes, com anodes 523-1504-024
CR 033 Dual diodes, com anodes 523-1504-024
CR 034 Dual diodes, com anodes 523-1504-024
DS 001 LCD, glass 549-4501-011
DS 002 Fiber optics, backing 549-4501-032
DS 024 LED, green 549-4003-011
DS27-35 LED, green 549-4003-011
EP 001 Spade terminal #6 586-0003-034
HW 01a Screw, 6-32 x 5/16 575-1606-010
HW 01b Spacer, keypad board 013-1188-055
HW 01c Screw, 4-40 x 1/4 575-1604-008
HW 02a Screw, 2-56 x 5/8 Torx
black
575-8002-020
HW 02b Washer, split lock #4 596-1304-008
HW 003 Lockwasher, internal #6 596-1106-009
J 003 Connector, 12-pin socket
.100
515-5300-001
MK 001 Microphone cartridge 589-0301-003
MP 01a Mic hanger button 013-1216-007
MP 01b Display bezel 017-2226-048 3
MP 01c Mic element isolator 032-0757-834
MP 02a Back housing 032-0792-056
MP 02b Backplate, fiber optic 032-0792-054
backlighting
MP 03a Keypad, rubber revised 032-0792-059 2
MP 03b Elastomeric connector 515-9900-010
MP 004 Fiber sheet 12 x 21 058-0021-002
MP 005 Fiber sheet 12 x 21 058-0021-002
MP 006 Gasket seal assembly 587-0792-048
MP 008 Front housing assembly 587-0792-058
MP 009 Water barrier, microphone 574-5300-001
MP 010 Lens, front housing 032-0792-052
MP 011 Lens gasket, front housing 574-3500-080
MP 012 Lens PSA, front housing 574-3500-082
NP 001 Label, EFJ logo front 559-5000-550
P 001 Connector, 11-pin single
row
515-9036-021
P 003 Connector, 12-pin single
row
515-5300-003
PC 001 Main PC board, rev 3 035-5300-700 3
PC 001 Keypad board, rev 0 035-5300-707
Q 002 NPN general purpose 576-0003-658
Q 004 NPN digital w/resistors 576-0003-616
Q 005 NPN digital w/resistors 576-0003-616
Q 006 NPN digital w/resistors 576-0003-616
Q 007 NPN general purpose 576-0003-658
Q 008 NPN general purpose 576-0003-658
Q 009 NPN general purpose 576-0003-658
Q 010 PNP general purpose 576-0003-650
Q 012 Power MOSFET 20 volt 576-0006-243
Q 013 Power MOSFET 20 volt 576-0006-243
R 002 330k ohm ±5% 1/16W sm
d
569-0155-334
R 003 10k ohm ±5% 1/16W smd 569-0155-103
R 005 100k ohm ±5% 1/16W sm
d
569-0155-104
R 006 47k ohm ±5% 1/16W smd 569-0155-473
91
R 007 47k ohm ±5% 1/16W smd 569-0155-473
R 008 47k ohm ±5% 1/16W smd 569-0155-473
R 009 47k ohm ±5% 1/16W smd 569-0155-473
R 010 47k ohm ±5% 1/16W smd 569-0155-473
R 011 2.2k ohm ±5% 1/16W smd 569-0155-222
R 012 2.2k ohm ±5% 1/16W smd 569-0155-222
R 013 2.2k ohm ±5% 1/16W smd 569-0155-222
R 015 200k ohm ±5% 1/16W sm
d
569-0155-204
R 016 200k ohm ±5% 1/16W sm
d
569-0155-204
R 017 2.2k ohm ±5% 1/16W smd 569-0155-222
R 018 2.2k ohm ±5% 1/16W smd 569-0155-222
R 019 300 ohm ±5% 1/8W smd 569-0105-301
R 021 100k ohm ±5% 1/16W sm
d
569-0155-104
R 022 300 ohm ±5% 1/8W smd 569-0105-301
R 028 100k ohm ±5% 1/16W sm
d
569-0155-104
R 029 100k ohm ±5% 1/16W sm
d
569-0155-104
R 034 2.2k ohm ±5% 1/16W smd 569-0155-222
R 040 10k ohm ±5% 1/16W smd 569-0155-103
R 042 10k ohm ±5% 1/16W smd 569-0155-103
R 043 4.7kohm ±5% 1/16W smd 569-0155-472
R 044 10k ohm ±5% 1/16W smd 569-0155-103
R 045 10k ohm ±5% 1/16W smd 569-0155-103
R 046 47k ohm ±5% 1/16W smd 569-0155-473
R 047 10k ohm ±5% 1/16W smd 569-0155-103
R 051 47k ohm ±5% 1/16W smd 569-0155-473
R 052 47k ohm ±5% 1/16W smd 569-0155-473
R 053 33k ohm ±5% 1/16W smd 569-0155-333
R 054 10k ohm ±5% 1/16W smd 569-0155-103
R 055 4.7k ohm ±5% 1/16W smd 569-0155-472
R 056 10k ohm ±5% 1/16W smd 569-0155-103
R 057 4.7k ohm ±5% 1/16W smd 569-0155-472
R 058 10k ohm ±5% 1/16W smd 569-0155-103
R 059 2.2k ohm ±5% 1/16W smd 569-0155-222
R 060 2.2k ohm ±5% 1/16W smd 569-0155-222
R 061 2.2k ohm ±5% 1/16W smd 569-0155-222
R 062 10k ohm ±5% 1/16W smd 569-0155-103
R 063 10k ohm ±5% 1/16W smd 569-0155-103
R 064 10k ohm ±5% 1/16W smd 569-0155-103
R 065 10k ohm ±5% 1/16W smd 569-0155-103
R 066 3.3k ohm ±5% 1/16W smd 569-0155-332
R 067 2.2k ohm ±5% 1/16W smd 569-0155-222
R 068 10k ohm ±5% 1/16W smd 569-0155-103
R 069 10k ohm ±5% 1/16W smd 569-0155-103
R 070 10k ohm ±5% 1/16W smd 569-0155-103
R 071 2.2k ohm ±5% 1/16W smd 569-0155-222
R 072 47k ohm ±5% 1/16W smd 569-0155-473
R 073 47k ohm ±5% 1/16W smd 569-0155-473
R 074 47k ohm ±5% 1/16W smd 569-0155-473
R 075 47k ohm ±5% 1/16W smd 569-0155-473
R 076 47k ohm ±5% 1/16W smd 569-0155-473
R 077 10k ohm ±5% 1/16W smd 569-0155-103
R 078 10k ohm ±5% 1/16W smd 569-0155-103
R 079 5.1k ohm ±5% 1/16W smd 569-0155-512
R 080 300 ohm ±5% 1/16W smd 569-0155-301
R 082 47k ohm ±5% 1/16W smd 569-0155-473
R 083 3.3k ohm ±5% 1/16W smd 569-0155-332
R 084 10k ohm ±5% 1/16W smd 569-0155-103
R 087 10k ohm ±5% 1/16W smd 569-0155-103
R 090 10k ohm ±5% 1/16W smd 569-0155-103
R 093 10k ohm ±5% 1/16W smd 569-0155-103
R 095 10k ohm ±5% 1/16W smd 569-0155-103
R 096 10k ohm ±5% 1/16W smd 569-0155-103
R 097 10k ohm ±5% 1/16W smd 569-0155-103
R 098 10k ohm ±5% 1/16W smd 569-0155-103
R 099 10k ohm ±5% 1/16W smd 569-0155-103
R 100 10k ohm ±5% 1/16W smd 569-0155-103
R 101 10k ohm ±5% 1/16W smd 569-0155-103
R 102 10k ohm ±5% 1/16W smd 569-0155-103
R 103 1.2M ohm ±5% 1/16W
smd
569-0155-125
R 104 200k ohm ±5% 1/16W sm
d
569-0155-204
R 105 240k ohm ±5% 1/16W sm
d
569-0155-244
R 106 47k ohm ±5% 1/16W smd 569-0155-473
R 107 82k ohm ±5% 1/16W smd 569-0155-823
R 108 160k ohm ±5% 1/16W sm
d
569-0155-164
R 109 1k ohm ±5% 1/16W smd 569-0155-102
92
R 110 10k ohm ±5% 1/16W smd 569-0155-103
R 111 47k ohm ±5% 1/16W smd 569-0155-473
R 112 100k ohm ±5% 1/16W sm
d
569-0155-104
R 113 100k ohm ±5% 1/16W sm
d
569-0155-104
R 114 100k ohm ±5% 1/16W sm
d
569-0155-104
R 115 1k ohm ±5% 1/16W smd 569-0155-102
R 116 47k ohm ±5% 1/16W smd 569-0155-473
R 118 10k ohm ±5% 1/16W smd 569-0155-103
R 119 2.2k ohm ±5% 1/16W smd 569-0155-222
R 120 2.2k ohm ±5% 1/16W smd 569-0155-222
R 121 10k ohm ±5% 1/16W smd 569-0155-103
R 122 47k ohm ±5% 1/16W smd 569-0155-473
R 123 47k ohm ±5% 1/16W smd 569-0155-473
R 124 10k ohm ±5% 1/16W smd 569-0155-103
R 125 2.2k ohm ±5% 1/16W smd 569-0155-222
R 126 510 ohm ±5% 1/8W smd 569-0115-511
R 127 10k ohm ±5% 1/16W smd 569-0155-103
R 128 510 ohm ±5% 1/8W smd 569-0115-511
R 129 100k ohm ±5% 1/16W sm
d
569-0155-104
R 130 150 ohm ±5% 3/4W smd 569-0135-151
R 131 150 ohm ±5% 3/4W smd 569-0135-151
R 134 100 ohm ±5% 3/4W smd 569-0135-101
R 135 100 ohm ±5% 3/4W smd 569-0135-101
R 136 100 ohm ±5% 3/4W smd 569-0135-101
R 137 100 ohm ±5% 3/4W smd 569-0135-101
R 138 4.7k ohm ±5% 1/16W smd 569-0155-472
R 139 4.7k ohm ±5% 1/16W smd 569-0155-472
R 140 100k ohm ±5% 1/16W sm
d
569-0155-104
R 141 100k ohm ±5% 1/16W sm
d
569-0155-104
R 142 100k ohm ±5% 1/16W sm
d
569-0155-104
R 143 100k ohm ±5% 1/16W sm
d
569-0155-104
R 144 100k ohm ±5% 1/16W sm
d
569-0155-104
R 145 180k ohm ±5% 1/16W sm
d
569-0155-184
R 146 100k ohm ±5% 1/16W sm
d
569-0155-104
R 147 100k ohm ±5% 1/16W sm
d
569-0155-104
R 150 10k ohm ±5% 1/16W smd 569-0155-103
R 151 10k ohm ±5% 1/16W smd 569-0155-103
R 152 10k ohm ±5% 1/16W smd 569-0155-103
R 153 1k ohm ±5% 1/8W smd 569-0115-102
R 154 1k ohm ±5% 1/8W smd 569-0115-102
R 155 1k ohm ±5% 1/8W smd 569-0115-102
R 156 1k ohm ±5% 1/8W smd 569-0115-102
S 001 10 Pos DIP switch 583-5100-210
S 022 Light touch switch 583-4020-015
S 027 Light touch switch 583-4020-015
S 029 Light touch switch 583-4020-015
S 030 KT series switch, right
angle
583-9228-003
U 002 Op amp, quad MC3303 544-2020-008
U 003 RS-485 bus transceiver
ADM483
544-2023-073
U 009 Microcontroller
MC68HC908
544-9100-007
U 012 Regulator, 5V 300mA
ADP3367
544-2032-009
U 045 Non-inverting buffer, quad
TC74VHC125
544-3991-125
U 047 Regulator, 5V 300mA
ADP3367
544-2032-009
U 054 Schmitt trigger, hex 74C14 544-3991-014
U 056 Open drain buffer, hex
74C906
544-3716-906
U 057 Regulator, 5V 300mA
ADP3367
544-2032-009
U 058 Regulator, 8V 0.5A 78M08 544-2003-081
U 059 Univ LCD driver PCF8576 544-2027-010
U 060 Univ LCD driver PCF8576 544-2027-010
U 061 Voltage reference, 2.5V
LM4120
544-2032-008
U 062 D flip-flop TC7W74FU 544-1010-014
U 063 D flip-flop TC7W74FU 544-1010-014
W 001 Coil cord assembly 597-2002-272
W 503 Control cable, 17 ft. junc -
xcvr
597-2002-267
Y 002 Crystal, 4.9152 MHz smd 521-3060-024
93
HHC Junction Box Assembly
Part No. 023-5300-130
C 001 2.2 uF 20V tantalum smd 510-2626-229
C 002 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 003 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 004 2.2 uF 20V tantalum smd 510-2626-229
C 005 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 006 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 008 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 009 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 010 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 011 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 012 1µF X7R ±10% 16V cer
smd
510-3606-105
C 013 1µF X7R ±10% 16V cer
smd
510-3606-105
C 014 1µF X7R ±10% 16V cer
smd
510-3606-105
C 015 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 016 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 018 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 019 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 020 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 021 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 022 1µF X7R ±10% 16V cer
smd
510-3606-105
C 023 2.2 uF 35V tantalum smd 510-2628-338
C 024 10 uF 25V tantalum smd 510-2627-100
C 025 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 026 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 027 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 028 1µF X7R ±10% 16V cer
smd
510-3606-105
C 029 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
C 030 0.1 µF ±10% X7R 25V cer
smd
510-3675-104
F 001 Fuse 2.0 A smd 534-5001-009
HW 001 Spacer, 4-40 Hex male/fem 013-1160-103
HW 002 Screw, 4-40 x .25 575-0604-008
HW 003 Screw, 8-18 hex hd sht mtl 575-3908-016
HW 004 Polarizing key box cnt 515-7109-010
J 001 Connector, 10-pin 515-7104-005
J 002 Connector, 15-pin PC mt
female
515-0506-115
J 003 Connector, 15-pin 515-0506-119
J 005 3.6 mm (1/8) jack enclosed 515-2001-011
J 006 3.6 mm (1/8) jack enclosed 515-2001-011
J 007 2.5 mm (3/32) audio jack,
stereo
515-2002-040
MP 002 Extrusion 014-0777-023
MP 003 Front Panel 017-5300-001
MP 004 Back Panel, revision 2 017-5300-003 2
MP 005 Mounting bracket, junction
box
017-5300-005
MP 130 Fiber sheet, 12 x 21 058-0021-002
NP 001 Label, HHC junction box 559-5000-501
PC 001 PC board, junction box rev
2
035-5300-130 2
Q 001 NPN general purpose 576-0003-658
Q 002 NPN general purpose 576-0003-658
R 001 30k ohm ±5% 1/16W smd 569-0155-303
R 002 20k ohm ±5% 1/16W smd 569-0155-203
R 003 220k ohm ±5% 1/16W sm
d
569-0155-224
94
R 004 39k ohm ±5% 1/16W smd 569-0155-393
R 005 62k ohm ±5% 1/16W smd 569-0155-623
R 006 62k ohm ±5% 1/16W smd 569-0155-623
R 007 10k ohm ±5% 1/16W smd 569-0155-103
R 008 1k ohm ±5% 1/16W smd 569-0155-102
R 009 2.7k ohm ±5% 1/16W smd 569-0155-272
R 010 8.2k ohm ±5% 1/16W smd 569-0155-822
R 012 20k ohm ±5% 1/16W smd 569-0155-203
R 013 30k ohm ±5% 1/16W smd 569-0155-303
R 014 20k ohm ±5% 1/16W smd 569-0155-203
R 015 20k ohm ±5% 1/16W smd 569-0155-203
R 016 20k ohm ±5% 1/16W smd 569-0155-203
R 017 220k ohm ±5% 1/16W sm
d
569-0155-224
R 018 20k ohm ±5% 1/16W smd 569-0155-203
R 019 39k ohm ±5% 1/16W smd 569-0155-393
R 020 62k ohm ±5% 1/16W smd 569-0155-623
R 021 20k ohm ±5% 1/16W smd 569-0155-203
R 022 62k ohm ±5% 1/16W smd 569-0155-623
R 023 20k ohm ±5% 1/16W smd 569-0155-203
R 024 20k ohm ±5% 1/16W smd 569-0155-203
R 025 20k ohm ±5% 1/16W smd 569-0155-203
R 026 200k ohm ±5% 1/16W sm
d
569-0155-204
R 027 20k ohm ±5% 1/16W smd 569-0155-203
R 028 20k ohm ±5% 1/16W smd 569-0155-203
R 029 20k ohm ±5% 1/16W smd 569-0155-203
R 030 20k ohm ±5% 1/16W smd 569-0155-203
R 031 20k ohm ±5% 1/16W smd 569-0155-203
R 032 300 ohm ±5% 1/16W smd 569-0155-301
R 033 300 ohm ±5% 1/16W smd 569-0155-301
R 034 20k ohm ±5% 1/16W smd 569-0155-203
R 035 20k ohm ±5% 1/16W smd 569-0155-203
R 036 20k ohm ±5% 1/16W smd 569-0155-203
R 037 100k ohm ±5% 1/16W sm
d
569-0155-104
R 038 20k ohm ±5% 1/16W smd 569-0155-203
R 039 20k ohm ±5% 1/16W smd 569-0155-203
R 040 20k ohm ±5% 1/16W smd 569-0155-203
R 041 100k ohm ±5% 1/16W sm
d
569-0155-104
R 042 20k ohm ±5% 1/16W smd 569-0155-203
R 043 20k ohm ±5% 1/16W smd 569-0155-203
R 044 20k ohm ±5% 1/16W smd 569-0155-203
R 045 100k ohm ±5% 1/16W sm
d
569-0155-104
R 046 20k ohm ±5% 1/16W smd 569-0155-203
R 047 100k ohm ±5% 1/16W sm
d
569-0155-104
R 049 150 ohm ±5% 1/16W smd 569-0115-151
R 050 10k ohm ±5% 1/16W smd 569-0155-103
R 051 10k ohm ±5% 1/16W smd 569-0155-103
S 001 Relay, photo MOS 1.3A
100V
544-1020-035
S 002 Relay, photo MOS 1.3A
100V
544-1020-035
U 001 Op amp, quad MC3303 544-2020-008
U 003 Op amp, quad MC3303 544-2020-008
U 004 Audio amp, stereo 150
mW TPA122
544-2006-030
U 005 Switch, bilateral
MC14066B
544-3016-066
U 006 Op amp, quad MC3303 544-2020-008
U 007 Comparator, dual LM2903 544-2025-009
U 009 Regulator, 5V 0.5A 78M05 544-2003-079
SIREN CONTROLLER KIT
Part No. 250-5300-101
A 001 Siren wire kit 023-5300-101
(see separate listing)
A 015 Siren system, w/ctrlr, amp,
cable
585-5300-015
Siren Wire Kit
Part No. 023-5300-101
F 001 Fuse, 15A 32V 534-0332-015 FH001 Fuseholder, in-line 534-1100-003
95
HW001 Ring terminal, 1/4 12-16
AWG
586-0001-150
HW002 Solder splice terminator
.100-.175
586-0007-085
W 001 Wire, zip cord 14 AWG 597-2006-004
W 002 Wire, 14 AWG black
stranded
597-7021-400
W 003 Wire, 14 AWG red strande
d
597-7021-402
REMOTE PROG. INTERFACE
(RPI)
Part No. 023-5300-000
C 003 .1 µF ±10% X7R 50V smd 510-3606-104
C 004 .1 µF ±10% X7R 50V smd 510-3606-104
C 005 .1 µF ±10% X7R 50V smd 510-3606-104
C 010 10 µF 25V tantalum smd 510-2627-100
C 011 10 µF 25V tantalum smd 510-2627-100
C 014 4.7 µF 10V tantalum smd 510-2624-479
C 015 4.7 µF 10V tantalum smd 510-2624-479
C 016 10 µF 16V tantalum smd 510-2625-100
C 017 10 µF 16V tantalum smd 510-2625-100
C 018 10 µF 25V tantalum smd 510-2627-100
CR 001 Schottky diode, 1A/100V 523-0519-031
CR 002 Schottky diode, 1A/100V 523-0519-031
CR 003 Schottky diode, 1A/100V 523-0519-031
CR 004 Schottky diode, 1A/100V 523-0519-031
CR 006 Switching diode SOT-23 523-1504-002
CR 007 Switching diode SOT-23 523-1504-002
CR 008 5.6V zener SOT-23 523-2016-569
DS 001 Red/grn LED rt angle 549-4006-001
HW 006 Screw, TT 4-40 x .25 pan
hd
575-0604-008
HW 012 Polarizing key 515-7109-010
J 001 Jack, 3.6 mm enclosed 515-2001-011
J 002 Jack, 9-pos PC mt 515-0506-043
J 003 Jack, power PC mt 515-2007-010
J 004 Header, 10-pin shrouded 515-7104-005
J 007 Jack, 2-pin sgl in-line hdr 515-7100-002
J 008 Jack, mini enclosed 515-2002-011
MP 001 Extruded metal enclosure 014-0777-021
MP 002 Back panel (DB9 end) 017-2206-017
MP 003 Front panel (LED end) 017-2206-016
MP 007 Spacer, 4-40 hex
male/female
013-1160-103
NP 001 ID/nameplate 559-5000-500
PC 001 PC board 035-5300-030
Q 001 NPN general purpose SOT-
23
576-0003-658
Q 005 NPN general purpose SOT-
23
576-0003-658
R 009 1k ohm ±5% 1/8w SMD 569-0115-102
R 010 200 ohm ±5% 1/8W smd 569-0115-201
R 012 10k ohm ±5% 1/8W smd 569-0105-103
R 013 10k ohm ±5% 1/8W smd 569-0105-103
R 020 10k ohm ±5% 1/8W smd 569-0105-103
R 024 10k ohm ±5% 1/8W smd 569-0115-103
R 025 3k ohm ±5% 1/8W smd 569-0115-302
R 028 3k ohm ±5% 1/8W smd 569-0115-302
R 029 3k ohm ±5% 1/8W smd 569-0115-302
R 032 10k ohm ±5% 1/8W smd 569-0115-103
R 035 300 ohm ±5% 1/8W smd 569-0115-301
R 036 3k ohm ±5% 1/8W smd 569-0115-302
R 037 Zero ohm ±5% 1/8W smd 569-0115-001
R 038 10k ohm ±5% 1/8W smd 569-0105-103
R 039 10k ohm ±5% 1/8W smd 569-0115-103
R 040 10k ohm ±5% 1/8W smd 569-0115-103
R 041 100k ohm ±5% 1/8W smd 569-0115-104
S 009 DIP switch, 8-pos SPST 583-5100-108
U 001 Regulator, 5V 0.5A 78M05 544-2003-079
96
U 004 RS-232 rx/tx, dual
MAX232
544-2023-019
U 005 RS-485 bus xcvr SN65176 544-2023-027
U 006 Schmitt trigger 74HC14 544-3766-014
Ref No. Description Part No.
VHF RF BOARD
B11 PCA, VHF, RF, TRANSCEIVER, EFJ
E3,E4,J3,L5,L9,L12,L16,L26,L49,L82,P1,P2,P3,R7,R18,R19,
R21,R22,R28,R29,R30,R40,R82,R85,R106,R107
NOT PLACED NP
C1,C10,C13,C21,C26,C36,C37,C45,C229,C232,C242,C318 NOT PLACED NP
J2 PCB, FLEX, EFJ 0P795/D
PCB, VHF, RF TRANSCEIVER, EFJ 0P811/B
CP1,CP2,CP3,CP4 CAP, 4 UP, 47 PF, ±10%, 50V, NPO,
1206
1C424-470
C2,C6,C42,C43,C44,C47,C96,C97,C99,C109,C120,C121,C141,
C164,C182,C192,C195,C285,C288,C291,C304
CAP, CER, 0.1 UF, ±10%,10V, X7R,
0603
1C455-104
C3,C19,C55,C126,C135,C136,C142,C143,C181,C193,C194,
C287,C292,C305
CAP, CER, 100 PF, ±5%, NPO, 0603 1C113-101
C4,C20,C29,C69,C101,C102,C106,C110,C111,C114,C127,C128,
C129,C130,C131,C134,C137,C140,C145,C150,C151,C152,C153,
C163,C169,C176,C189,C199,C200
CAP, CER, 0.01 UF, ±10%, X7R, 0603 1C148-103
C5 CAP, PPS FILM, .0047 UF, ±5%, 16V,
LOW ESR, 0805
1C478-472
C7,C9 CAP, CER, 180 PF, NPO, 0603 1C113-181
C8,C274,C303 CAP, CER, 10 PF, ±5%, NPO, 0603 1C113-100
C11,C14,C17,C23,C24,C25,C33,C34,C46,C48,C49,C50,C61,C62,
C63,C65,C67,C70,C95,C107,C113,C118,C122,C148,C149,C155,
C156,C157,C159,C162,C165,C166,C167,C205,C206,C222,C223,
C224,C225,C226,C240,C276,C295,C296,C297,C299,C300,C301,
C307
CAP, CER 1000 PF, ±5%, NPO, 0603 1C113-102
C12 CAP, PPS FILM, 0.018 UF. ±5%, 16V,
3216
1C733-B183
C15,C298 CAP, CER, 47 PF, ±5%, NPO, 0603 1C113-470
C16 CAP, PPS FILM, .015 UF, ±5%, 16V,
3216
1C478-153
C18,C230,C234,C235,C277 CAP, CER, 39 PF, ±2%, NPO, 0603 1C731-390
C22 CAP, PPS FILM, 0.68 UF, ±10%, 16V,
LOW ESR, 3216
1C478-684
C27,C272,C273,C312,C313 CAP, CER, 3.3 PF, ±0.25 PF, 0603 1C450-3R3
C28 CAP, FILM, 0.15 UF, ±20%, 16V, 3216 1C353-J154
97
C30,C293 CAP, PPS FILM, 0.22 UF, ±10%, 25V,
LOW ESR, 3216
1C478-224
C31,C139 CAP, CER, 200 PF, ±5%, NPO, 0603 1C113-201
C32 CAP, TANT, 4.7 UF, ±20%, 16V, B
CASE
1C166-475
C35,C125,C132,C133,C168,C171,C174,C175,C202,C203,C286,
C289,C290,C302
CAP, TANT, 4.7 UF, ±20%, 16V, A
CASE
1C573-A475
C38,C115 CAP, CER, 33 PF, ±5%, NPO, 0603 1C113-330
C39 CAP, CER, 8.2 PF, ±0.25 PF, 0603 1C450-8R2
C40 CAP, CER, 1.0 PF, ±0.1 PF, NPO, 0603 1C731-1R0
C41,C90,C294 CAP, CER, 470 PF, ±5%, NPO, 0603 1C113-471
C51,C72 CAP, CER, 22 PF, ±5%, LOW E, NPO,
0603
1C731-220
C56 CAP, CHIP, 1.0 UF, ±20%, 10V, X7R,
0603 PKG
73550
C60 CAP, CER, 18 PF, ±5%, NPO, 0603 1C113-180
C64 CAP, CER, 15 PF, ±2%, LOW ESR,
HIGH-Q, 0603
1C731-150
C68,C241 CAP, CER, 12 PF, ±5%, NPO, 0603 PK
G
1C113-120
C89 CAP, CER, 5.6 PF, ±0.25 PF, 0603 1C450-5R6
C98,C123,C154,C284 CAP, TANT, 10 UF, ±20%, 10V, A
CASE
1C117-106
C100,C108,C112,C116,C117 CAP, CER, 56 PF, ±5%, NPO, 0603 1C113-560
C103 CAP, CER, 0.012 UF, ±5%, 50V, X7R,
0805
1C399-123
C104,C160,C311 CAP, CER, 4700 PF, ±10%, X7R, 0603 1C148-472
C105,C146,C147,C161,C172,C177,C196,C310 CAP, TANT, 1.0 UF, ±20%, 16V, A
CASE
1C118-105
C119,C236,C237 CAP, CER, 82 PF, ±2%, LOW ESR, HI-
Q, 0603
1C731-820
C138 CAP, CER, 0.022 UF, ±10%, 50V, X7R,
0805
1C143-223
C144 CAP, CER, 2200 PF, ±10%, X7R, 0603 1C148-222
C158 CAP, CER, 120 PF, ±5%, NPO, 0603 1C113-121
C210 CAP, CER, 82000 PF, ±10%, X7R, 0603 1C148-823
C231,C233,C238,C239 CAP, CER, 6.2 PF, ±0.1 PF, LOW ESR,
HI-Q, 0603
1C731-6R2
C270 CAP, CER, 2.7 PF, ±0.25 PF, NPO, 0603 1C113-2R7
C271 CAP, CER, 6.8 PF, ±0.1 PF, LOW ESR,
HI-Q, 0603
1C731-6R8
98
C306 CAP, FILM CHIP, 1200 PF, ±5%, 16V,
0805
73697
C308 CAP, FILM CHIP, 4700 PF, ±5%, 16V,
0805
73699
C309 CAP, FILM CHIP, 3300 PF, ±5%, 16V,
0805
73698
D4,D10 TRANS, MOSFET, P-CH, SOT23 1T158-
SI2323
D9 DIODE, SILICON, TUNING, SOT23,
MV2105
72672
D12,D13 DIODE, PIN, HIGH AVG POWER
SMQ, MELF
72663
EC1 SHIELD,COVER, IF LARGE 3M797-2
EC2 SHIELD, COVER, IF SMALL 3M809-2
EC5 SHIELD, COVER, PLL 3M813-2
EC7 SHIELD, POWER AMPLIFIER 3M800
EC9 CLIP, GROUND, 3638001000 72673
EC10 CLIP, SPRINGS, 97-251-02 72674
E1 SHIELD, FENCE, IF LARGE 3M797-1
E2 SHIELD, FENCE, IF SMALL 3M809-1
E5 SHIELD, FENCE, PLL 3M813-1
FB1,FB2,FB3 INDUCTOR, FERRITE LEAD, SMT,
0121
1L137-
1210S0
FB4,FB5,FB6,FB7,FB8,FB9,FB10 INDUCTOR, FERRITE BEAD, SMT,
0805
1L137-3
F1 FUSE, FAST-ACTING, 2A, SMT, 0603 1X619-2R0
J1 CONN, COAX PLUG, SMT 1J607-2
L1,L2,L7 INDUCTOR, 270 NH, ±2%, SMT, 1008 1L498-271
L3 INDUCTOR, 68 NH, ±10%, SMT, 1008 1L190-680
L4 INDUCTOR, 390 NH, ±5%, SMT, 0603 1L177-391
L6,L8 INDTR, 12 NH, ±2%, SMT, 0603 1L177-120G
L10,L33 INDTR, 120 NH, ±2%, SMT, 0603 1L177-121G
L11,L21,L22 INDTR, CHIP, 51 NH, ±2%, HIGH-Q,
0805
78261
L19,L32,L36 INDTR, 180 NH, ±2%, SMT, 0603 1L177-181G
L27 INDTR, CHIP, 180 NH, ±2%, 1008 PKG 78126
L28 INDUCTOR, 150 UH, ±10%, 1210 1L514-154
L29,L30 INDUCTOR, WIREWOUND, 10 UH,
1206
1L575-102
L31 INDUCTOR, 220 NH, ±10%, SMT, 1008 1L190-221
99
L35 INDUCTOR, 39 NH, ±5%, SMT, 0603 1L177-390
L40 INDUCTOR, 100 NH, ±5%, SMT, 0603 1L177-101
L44 INDUCTOR, 82 NH, ±5%, SMT, 0603 1L177-820
L46,L47,L48 INDTR, CHIP, 470 NH, 5%, 0603LS 1L835-471
L50,L51,L53,L54 INDTR, 150 NH, ±2%, SMT, 1008
(REFERENCE 78127)
1L498-151
L77,L78 INDTR, 72 NH, ±2%, SMT, 0603 1L177-720G
L81 INDUCTOR, 330 NH, ±5%, SMT, 0603 1L177-331
MX1 MIXER, 100-500 MHZ, 7 DB CL, 5
DBM LO
72668
P4,P5,P6,P7,P8 SPRING CONTACT,ELECTRICAL 3C799
Q1,Q2 TRANSISTOR, SMT, NPN, SS RF,
SOT-2
1T153-941
Q3,Q4,Q5,Q6,Q7 TRANSISTOR, MOSFET, RDSO, SOT-
23
1T159-
7002CT
RP1 RES, ARRAY, 1K X 4, SMT 1R230-102
R1 RES, 18K, ±5%, SMT, 0603 1R105-183
R2,R6 RES, 560 OHM, ±5%, SMT, 0603 1R105-561
R3 RES, 12K OHM, ±5%, SMT, 0603 1R105-123
R4,R62,R64 RES, 120 OHM, ±5%, SMT, 0603 1R105-121
R5,R8,R109 RES, 620 OHM, ±5%, SMT, 0603 1R105-621
R9 RES, CHIP, 390K OHM, ±5%, 0603
PKG
75886
R10,R113 RES, 240 OHM, ±5%, SMT, 0603 1R105-241
R11,R15,R43,R52,R59,R98 RES, 1.0K OHM, ±5%, SMT, 0603 1R105-102
R12,R14,R32,R42,R58,R69,R76,R102,R103 RES, 10K OHM, ±5%, SMT, 0603 1R105-103
R13 RES, 30 OHM, ±5%, SMT, 0603 1R105-300
R16 RES, CHIP, 12 OHM, ±5%, 0603 PKG 75476
R17 RES, 200 OHM, ±5%, SMT, 0603 1R105-201
R20,R45,R57,R60,R79,R83,R84,R86,R87,R88,R108,R124,R125,
R126,R130
RES, 0 OHM, ±5%, SMT, 0603 1R105-0R0
R23,R48,R70,R116 RES, 51 OHM, ±5%, SMT, 0603 1R105-510
R24,R33,R34,R35,R73,R74,R77,R78,R81,R111,R112,R114,R115 RES, 330 OHM, ±5%, SMT, 0603 1R105-331
R25,R27 RES, 470 OHM, ±5%, SMT, 0603 1R105-471
R26 RES, 10 OHM, ±5%, SMT, 0603 1R105-100
R31 RES, 160 OHM, ±5%, SMT, 0603 1R105-161
R36,R117 RES, 2.7K, ±5%, SMT, 0603 1R105-272
R37 RES, 22K OHM, ±5%, SMT, 0603 1R105-223
100
R38 RES, 6.2K, ±5%, SMT, 0603 1R105-622
R39 RES, 36K, ±5%, SMT, 0603 1R105-363
R41 RES, 15K, ±5%, SMT, 0603 1R105-153
R44 RES, 3K OHM, ±5%, SMT, 0603 1R105-302
R46,R54 RES, 220 OHM, ±5%, SMT, 0603 1R105-221
R47,R49,R71,R119 RES, 100 OHM, ±5%, SMT, 0603 1R105-101
R50 RES, 24 OHM, ±5%, SMT, 0603 1R105-240
R51 RES, 3.9K OHM, ±5%, SMT, 0603 1R105-392
R53 RES, 4K OHM, ±5%, SMT, 0603 1R105-473
R55,R61 RES, 100K OHM, ±5%, SMT, 0603 1R105-104
R56 RES, 1.0M OHM, ±5%, SMT, 0603 1R105-105
R63,R65,R66,R67 RES, 75 OHM, ±5%, SMT, 0603 1R105-750
R68 RES, 9.1 OHM, ±5%, SMT, 1206 1R103-9R1
R72 RES, 62 OHM, ±5%, SMT, 0603 1R105-620
R80 RES, 18 OHM, ±5%, SMT, 0603 1R105-180
R99,R100,R101 RES, 390 OHM, ±5%, SMT, 0603 1R105-391
R104,R105 RES, 4.7K OHM, ±5%, SMT, 0603 1R105-472
R110 RES, 270K OHM, ±5%, SMT, 0603 1R105-274
R118 RES, CHIP, 82 OHM, 5%, 0603 75449
R121,R122 RES, CHIP, 1.6K OHM, ±1%, 0603 75885
R123 RES, 2.0K OHM, ±5%, SMT, 0603 1R105-202
U1 VCO, 200-239 MHZ, UMZ-1154-D16 4V510-11
U2,U25 CRYSTAL, 64.455 MHZ, SMT 1Y496-4
U3 MODULE RF AMP, 135-175MHZ,
6.5W
1Q129-
RA07M
U6 IC, RF AMP, 150-2500 MHZ, GAAS
HBT
1Q129-
RF2361
U7 SWITCH, PHEMT, SPDT, DC-2.5 GHZ,
AS169-73
71728
U9 IC, TEMP SENSOR, -40 TO +125, SOT 1Q126-
LM50B1Z
U10,U27,U34 IC, REG, LOW DROP OUT, 5.0V, SMT,
SO
1Q127-7081
-
50
U11 IC, IF DIGITIZING SUB-SYSTEM, SM 1Q130-9864
U12,U13 IC, REG, LOW DROP OUT, 3.3V, SMT,
SO
1Q127-7081
-
33
U14,U15 IC, CMOS, SCHMMIT INVERTER,
SINGLE
1Q128-
74V1G14S
