TRANSCEIVER PROGRAMMING

3-18 September 2001

Part No. 001-5100-001

Figure 3-4 Conventional Project 25 Digital Channel Screen

3.5.7 CONVENTIONAL PROJECT 25 (DIGITAL)

CHANNEL SCREEN PARAMETERS

The following parameters are programmed in the

conventional Project 25 digital channel screen shown

in Figure 3-4. Refer to Section 2.6.16 for more infor-

mation on Project 25 operation.

The Selected Channel, Channel Type, Transmit

Power, and Transmit Time-Out Parameters are

programmed the same as with analog channels

described in preceding section.

Talk Groups

This selects the Project 25 talk group that is

assigned to the channel. The talk group programs the

talk group ID, strapping mode, and encryption key

address. Talk groups for Project 25 channels are

programmed in the Conventional System Talk Group

screen described in Section 3.5.4.

Strapped to Selected Group - If this parameter is

selected, the talk group on that channel is always the

selected talk group and cannot be changed.

Radio List Selectable - If this parameter is selected,

the talk group may be changed by the radio operator

using the (Digital) Talk Group Select option switch.

Busy Channel Lockout

Off = disabled, Noise = transmit disallowed if

carrier is detected, NAC = transmit allowed only if

correct NAC is detected (Section 2.6.5).

Access Codes

Programs the transmit and receive NAC

(Network Access Code). These codes can be 0-4095.

Refer to Section 2.6.16 for more information.

Mixed Mode

A mixed mode that allows both analog and

Project 25 operation to be programmed on a channel

can be enabled on the Project 25 channel screen (see

Figure 3-4). This mode is programmed as follows:

Enable - Checking this box selects mixed

analog/Project 25 operation on the channel.

Tx Analog - Checking this box selects Transmit =

analog/Receive = Project 25. If it is not checked,

the opposite is selected.

When the mixed mode is selected, the channel

modulation, coded squelch, and ANI signaling param-

eters for the analog channel must then be programmed.

TRANSCEIVER PROGRAMMING

3-19 September 2001

Part No. 001-5100-001

These parameters are programmed the same as

described in Section 3.5.6.

3.6 PROGRAMMING SMARTNET/SMARTZONE

SYSTEMS AND CHANNELS

3.6.1 INTRODUCTION

To program SMARTNET and SmartZone

systems and channels, proceed as follows:

1. Program the SMARTNET/SmartZone radio-wide

information as described in Section 3.4.

2. To create a new SMARTNET/SmartZone system,

select the Systems > Add Systems in the menu bar

(see Section 3.1.11). Up to sixteen systems of any

type can be programmed as described in Section

1.2.5.

3. Program the SMARTNET/SmartZone system infor-

mation as described starting in the next section.

Make sure the desired SMARTNET or SmartZone

system is displayed by clicking it in the left pane or

selecting it in the Window menu in the menu bar

(see Section 3.1.9). Then program the channels as

described starting in Section 3.6.8.

3.6.2 SMARTNET/SMARTZONE SYSTEM

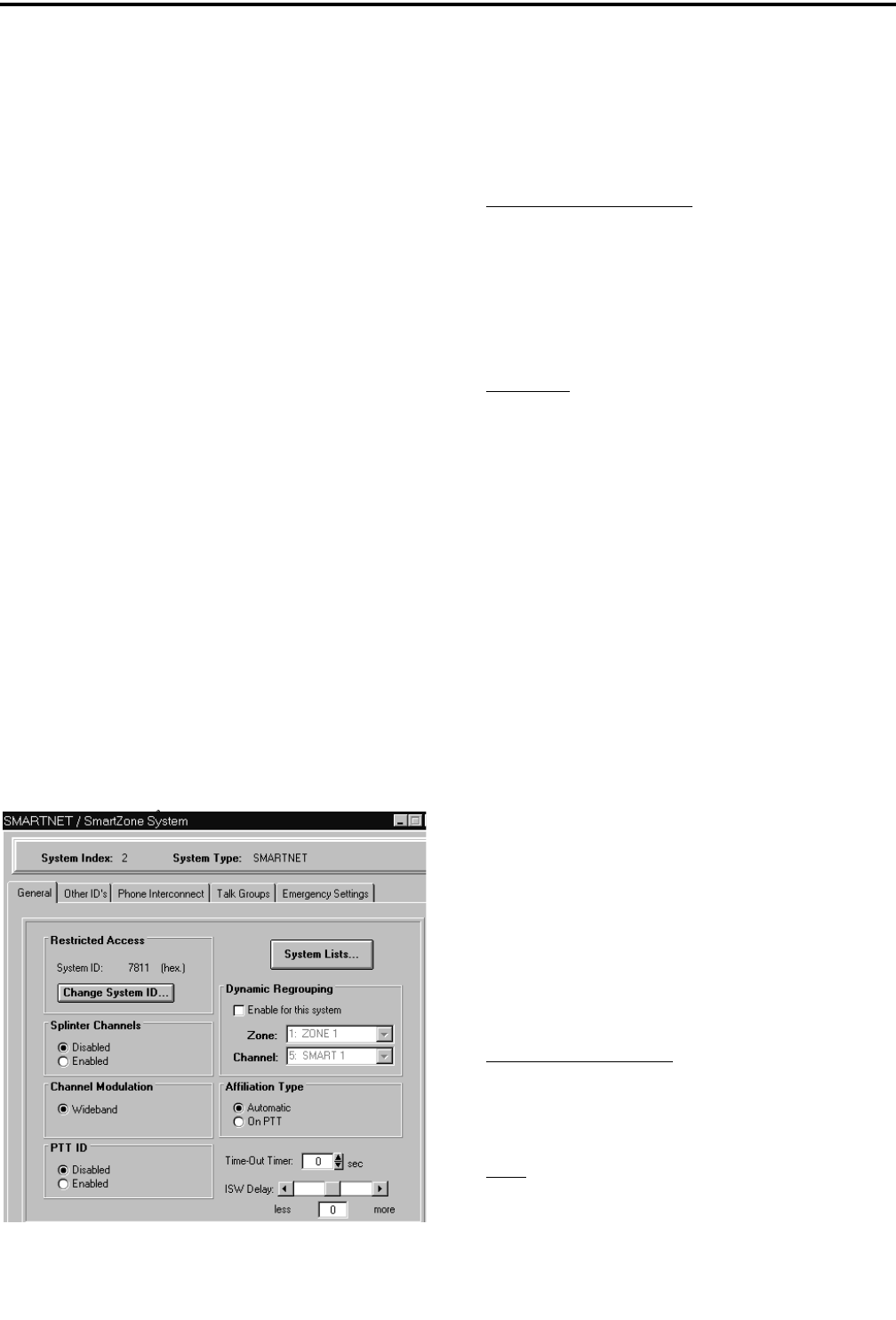

GENERAL SCREEN

The preceding SMARTNET/SmartZone System

General screen programs the following parameters:

Restricted Access

Change System ID Button - Displays the Change

System ID screen which is used to enter the system

ID of the system. This ID is entered as a hexadecimal

number from 0-9 and A-F. Valid numbers are from

0001-FFFF. The system ID corresponding to the

desired ID must also be located in the “key” subdi-

rectory of the program file.

System ID - Read-only field which shows the ID of

the system currently being edited.

Splinter Channels

When splinter channels are enabled, the receive

and transmit frequencies are 12.5 kHz lower than the

normal frequencies. Splinter channels are used only as

required in the Mexico and Canada border areas for

frequencies between 806 and 820.975 MHz.

Channel Modulation

When “Wideband” is enabled, the radio operates

with a 4 kHz maximum deviation between 821.000

and 824.975 MHz and 5 kHz maximum deviation for

all other frequencies. When it is disabled, deviation is

5 kHz with all frequencies.

System Lists Button

This button displays the screens used to program

the various per system lists. Refer to Section 3.6.7 for

more information on these lists.

Dynamic Regrouping

Enable For This System - When this box is checked,

a dynamic regrouping channel is enabled. This is a

SMARTNET channel which has the corresponding

talk group dynamically set by the dispatcher.

Zone - The physical zone containing the dynamic

regrouping channel. The value is selected on the

Channel Parameters screen.

TRANSCEIVER PROGRAMMING

3-20 September 2001

Part No. 001-5100-001

Channel - The physical channel used for dynamic

regrouping. The value is selected on the Channel

Parameters screen.

Affiliation Type

Automatic - The radio immediately affiliates with the

central controller as soon as it is turned on and auto-

matically re-affiliates each time the talk group is

changed.

On PTT - The radio affiliates with the central control-

ler only when the PTT switch is pressed.

Time-Out Timer

This programs the time-out timer setting for the

system. It can be programmed for 0 min, 15 sec up to

3 min, 45 sec or it can be disabled (see Section 2.4.10).

ISW Delay

Increasing or decreasing this value changes the

transmission timing of ISWs relative to the reception

of OSWs.

3.6.3 SMARTNET/SMARTZONE SYSTEM

OTHER ID’S SCREEN

The SMARTNET/SmartZone Other ID’s screen

is shown above, and it programs the following

parameters.

Individual ID - Uniquely identifies the radio on a par-

ticular system. Each radio must have a different Unit

ID. Valid Unit IDs are from 1-63535.

Connect Tone - The tone expected by the controller

on the traffic channel to verify that a subscriber trans-

mission is occurring. This tone should be set the

same as it is in the controller.

Encryption Key IDs

Programs SecureNet Encryption ID selection that

is used in all except group calls.

System Wide - Key used for system-wide calls

(typically originated by the dispatcher).

Failsoft - Key used in failsoft conditions (see Section

2.7.11).

Patch Key Select - Key used in patch calls.

Unit To Unit - Key used for unit-to-unit (private)

calls.

Interconnect - Key used for telephone interconnect

calls.

Dynamic Talk Group - Key used for the dynamic

regrouping talk group when it is a standard talk

group.

Dynamic Ann. Group - Key used for the dynamic

regrouping talk group when it is an announcement

group.

3.6.4 SMARTNET/SMARTZONE SYSTEM

PHONE INTERCONNECT SCREEN

The SMARTNET/SmartZone Phone Intercon-

nect screen follows on the next page, and it programs

the following parameters.

Phone Interconnect

Refer to Section 2.7.6 for more information on

telephone calls.

Disabled - Telephone calls cannot be placed or

received.

TRANSCEIVER PROGRAMMING

3-21 September 2001

Part No. 001-5100-001

Answer Only - Telephone calls can be received but

not placed.

List Only - Telephone calls can be placed and

received, and numbers can be recalled from memory

only.

Unlimited - Telephone calls can be placed and

received, and numbers can be recalled from memory

or dialed using a microphone keypad.

SMARTNET/SmartZone Phone Interconnect

Screen

Private Call

This is the same as above, except for private

(unit-to-unit) calls. Refer to Section 2.7.4 for more

information.

Private Call II

This programs either standard or enhanced

private calls as follows:

Standard - The user does not receive any feedback

when the called radio is not active in the system.

Only a “No Answer” is received if the called radio

does not answer.

Enhanced - When a call is placed, the system tells the

user if the called radio is currently active in the sys-

tem and within range. The calling radio displays “No

Ack” if the called radio is not active in the system

and “No Answer” if it is active but does not answer.

Phone DTMF Timing

Initial Delay - Delay from 50-500 milliseconds from

when a traffic channel is granted for phone intercon-

nect to the start of the dialing out of the phone

number.

Digit Duration - Duration from 50-500 milliseconds

of each phone number digit.

Inter-Digit Delay - Delay from 50-500 milliseconds

between each digit of a phone number. start here

3.6.5 SMARTNET/SMARTZONE SYSTEM

TALK GROUPS SCREEN

The SMARTNET/SmartZone Talk Groups screen

shown above is used to set up SMARTNET/

SmartZone talk groups and program unique talk group

information. The parameters programmed in this

screen are as follows:

Talk Group - Selects the talk group to program. This

is the actual ID of the talk group. Talk groups are

added or deleted by clicking the Add TG or Delete

TG button (see following). Talk groups are assigned

to channels on the channel screen (see Section 3.6.9).

- Clicking this button displays a dialog

box that adds a new talk group. The alias (alpha tag)

of up to ten characters is entered, and the new group

is then added after the others that are already set up.

TRANSCEIVER PROGRAMMING

3-22 September 2001

Part No. 001-5100-001

Each SMARTNET/SmartZone system can be pro-

grammed with up to 256 talk groups.

- Clicking this button deletes the cur-

rently selected talk group (the one displayed in the

“Talk Group” box).

Failsoft Channel

Enable - Enables a failsoft channel on the talk group

if a controller failure occurs (see Section 2.7.11).

Disable - The failsoft mode is not entered if the con-

troller fails.

Tx/Rx Frequency - Programs the failsoft channel

frequency if “Enabled” is checked.

Analog/Project 25

This selects the type of SMARTNET/SmartZone

channel as analog or Project 25 (digital).

Strapping Parameters

The Strapping Parameters program the channel

type (analog or Project 25 digital) and encryption on

the talk group as follows:

Clear Mode - All transmissions on the talk group

occur in the clear (unscrambled) mode.

Coded Mode - All transmissions on the talk group

occur in the secure (scrambled) mode selected as

follows.

Switched Mode - The clear or secure status of the

talk group is selected by the Clear/Secure option

switch.

NOTE: Refer to Section 2.7.15 for more

SMARTNET/SmartZone encryption information.

460 Scrambling/SecureNet Mode - These options

select either the Transcrypt 460 or DES type of

secure communication when either the coded or

switched strapping mode is selected.

Tx DES/DES-XL - Selects either DES or DES-XL

encryption protocol.

Rx Secure Autodetect - With the SecureNet protocol,

selecting “Secure” enables automatic detection of

encrypted receive signals. This may increase the

response time of the radio to an incoming signal.

Selecting “Proper Key” causes the radio to search the

available SecureNet keys until it finds a match for the

current transmission.

Encryption Key - Selects the encryption key used on

the talk group. This is a number from 0-15 that refers

to a hardware location in the radio that contains the

real key.

3.6.6 SMARTNET/SMARTZONE SYSTEM

EMERGENCY SETTINGS SCREEN

The SMARTNET/SmartZone Emergency

Settings screen and the parameters programmed in this

screen are as follows:

Emergency Call

Enable - When the Emergency option switch and

then the PTT switch are pressed, an emergency group

call is transmitted.

Disable - An emergency group call is not authorized.

Emergency Hot Mic

Enable - When an emergency alarm is generated and

the emergency alarm acknowledgment received, the

emergency mode is automatically entered and trans-

mitting begins for the time specified by the Tx Period

parameter (see following).

Disable - Automatic transmissions do not occur.

TRANSCEIVER PROGRAMMING

3-23 September 2001

Part No. 001-5100-001

Tx Period - Defines the period during which trans-

missions occur with the microphone audio unmuted

(without user intervention). Times of 10-120 seconds

in 10-second steps can be selected.

Emergency Alarm

Disabled - No emergency signal is sent when the user

presses the Emergency option switch.

Normal - When the user presses the Emergency

option switch, an emergency signal is sent to the dis-

patcher. Audio and visual feedback is provided by

the radio.

Silent - Same as “Normal” except no audio or visual

feedback is provided.

Retry Counter - When “Unlimited” is selected, an

emergency call is repeated until acknowledged or

canceled. When “Limited” is checked, calls are

attempted only the specified number of times.

3.6.7 SMARTNET/SMARTZONE SYSTEM LISTS

SCREENS

Clicking System Lists in the left pane under

SMARNET > General or the button in the

General screen described in Section 3.6.2 displays the

screens used to program the various lists that are

unique for each SMARTNET/SmartZone system.

These screens are as follows:

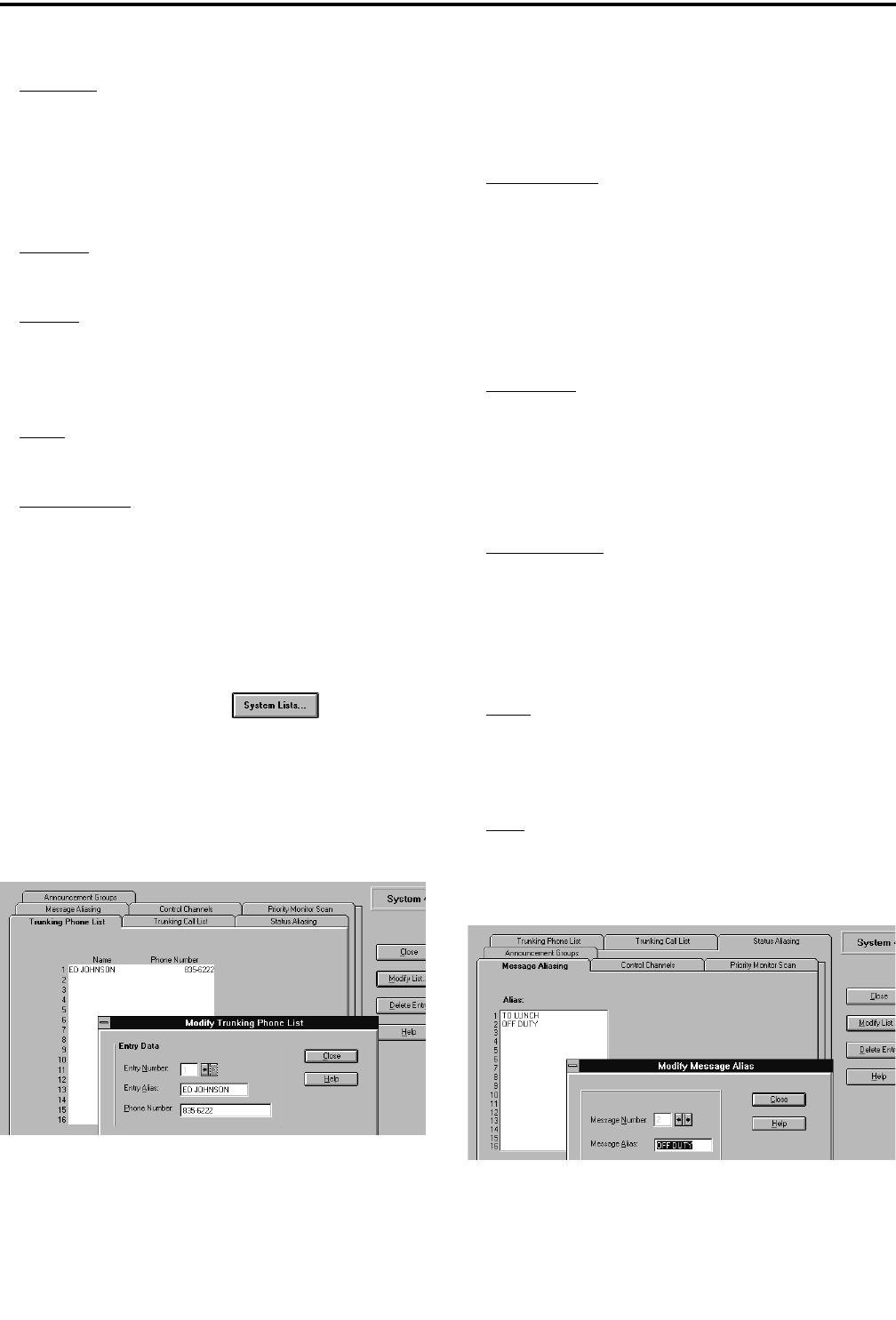

Trunking Phone List Screen

This screen programs the phone number list if

used (see Section 2.7.6). To edit this list, click the

Trunking Phone List tab and then the “Modify List”

button on the right side of the screen. The following

information is then programmed in the dialog box that

is displayed:

Entry Number - This box selects the entry to be

edited. The scroll bars to the right of this box select

the desired entry. A phone list can contain up to 16

entries. Selecting a new entry number automatically

validates and stores the current entry. If the current

entry contains an invalid field (for example, too

many digits in the phone number), the entry number

does not change and the invalid field is highlighted.

Entry Alias - Up to ten characters can be entered to

identify the phone number. This identification is dis-

played when phone numbers are selected by the user

from the list. Only uppercase letters can be entered,

so lowercase letters are automatically converted to

uppercase by the program.

Phone Number - This is the number dialed when the

location is selected. Characters that can be entered

include 0-9, #, (,), and P (a “P” programs a pause).

The maximum number of digits excluding (,) and

spaces is 16, and the maximum including (,) and

spaces is 24.

Close - Clicking this button verifies the current entry,

stores it, and then closes the dialog box. If the current

entry contains an invalid field, the dialog box does

not close and the invalid field is highlighted.

Help - Accesses the Help screen. Help can also be

selected at any time by pressing the F1 key.

Message Aliasing Screen

This screen associates an alias (name) with each

message number (see Section 2.7.8). To edit this list,

TRANSCEIVER PROGRAMMING

3-24 September 2001

Part No. 001-5100-001

click the Message Aliasing tab and then the “Modify

List” button on the right side. The following informa-

tion is then programmed in the dialog box that is

displayed:

Message Number - This box selects the message to

be edited. The scroll bars to the right of this box

select the desired message number.

Message Alias - Programs the alias which can be up

to any ten alphanumeric characters.

Close Button - Validates the entry and closes the dia-

log box. The entry is also validated when another

message number is selected.

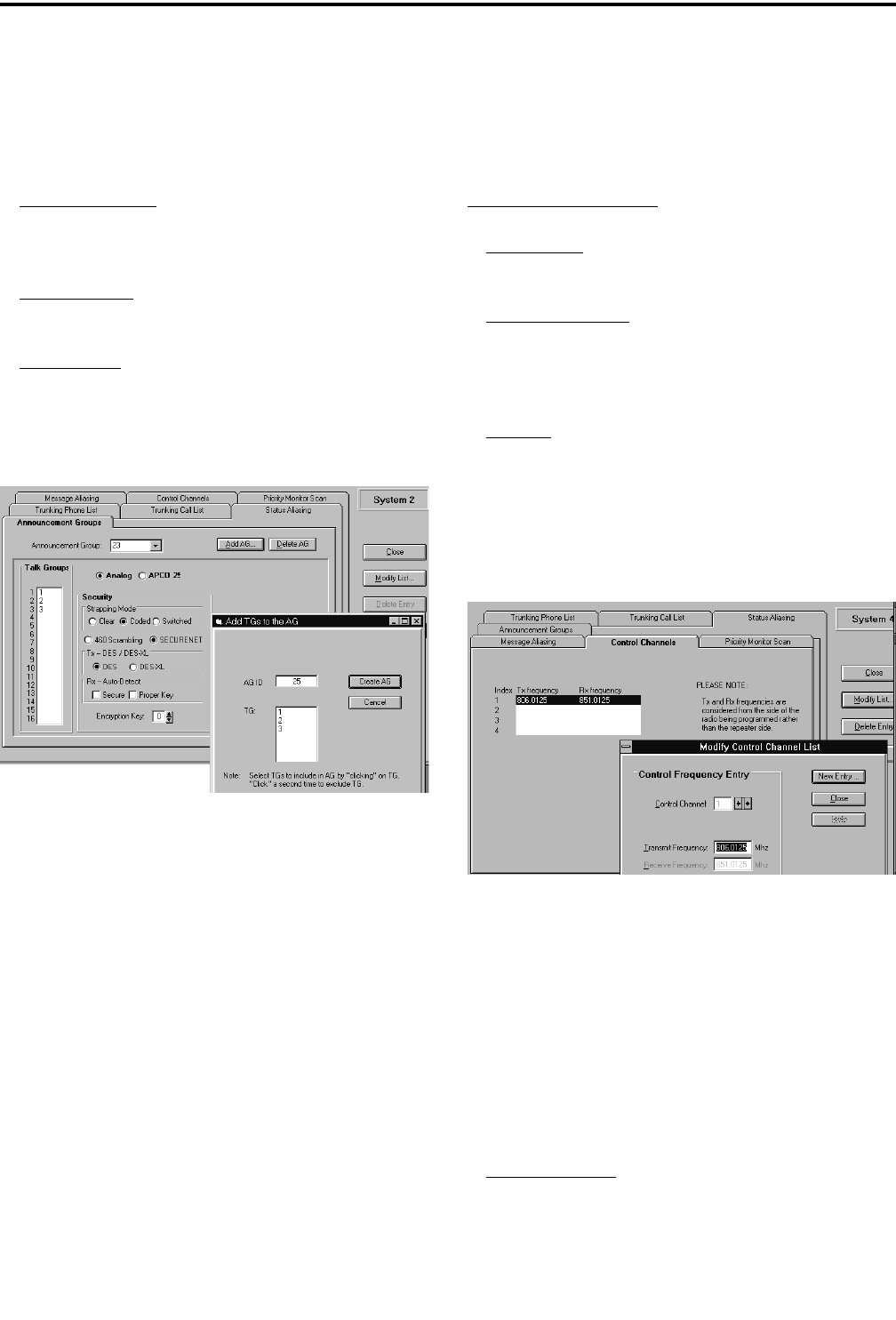

Announcement Groups Screen

This screen programs the announcement groups

that are used to communicate with several talk groups

simultaneously. There can be up to 3 announcement

groups per system, and each announcement group can

have up to 15 talk groups.

To create an announcement group, click the “Add

AG” button and the “Add TGs to the AG” screen also

shown above is displayed. Enter the announcement

group ID, click the talk groups to select/deselect those

that are to be included, and then create the announce-

ment group by clicking the “Create AG” button. To

delete the current announcement group, click the

“Delete AG” button.

To edit an announcement group, click the

“Modify List” button and select the announcement

group to be edited from the “AG” pull-down menu.

Then click the talk groups to select/de-select them and

then click the “Update List” button to make the

changes.

Main Screen Parameters

Talk Groups - This is a read-only list of all talk

groups currently in the announcement group.

Analog/Project 25 - Programs the type of communi-

cation associated with the announcement group.

Either analog or digital (Project 25) communication

can be selected.

Security - Defines the type of secure communication

used, if any, for the announcement group. These

parameters are programmed similar to those on the

Talk Group screen described in Section 3.6.5.

Control Channels Screen

This screen allows the system manager to view

and edit the control channels. Each SMARTNET

system can have up to four control channels, and each

SmartZone system can have up to 32 control channels.

Only one control channel is active at a time.

To edit this list, click the Control Channels tab

and then the “Modify List” button on the right side.

The following information is then programmed in the

dialog box that is displayed:

Control Channel - Selects the control channel to be

edited. To add a new channel, click the “New Entry”

button.

TRANSCEIVER PROGRAMMING

3-25 September 2001

Part No. 001-5100-001

Frequency - The transmit and receive frequency of

the control channel. These are the mobile frequen-

cies, not the repeater frequencies. Only multiples of

5 kHz and 6.25 kHz are valid. With 800 MHz fre-

quencies, a receive frequency 45 MHz above the

transmit frequency is automatically entered.

New Entry Button - Click this button to display the

dialog box used to add another control channel.

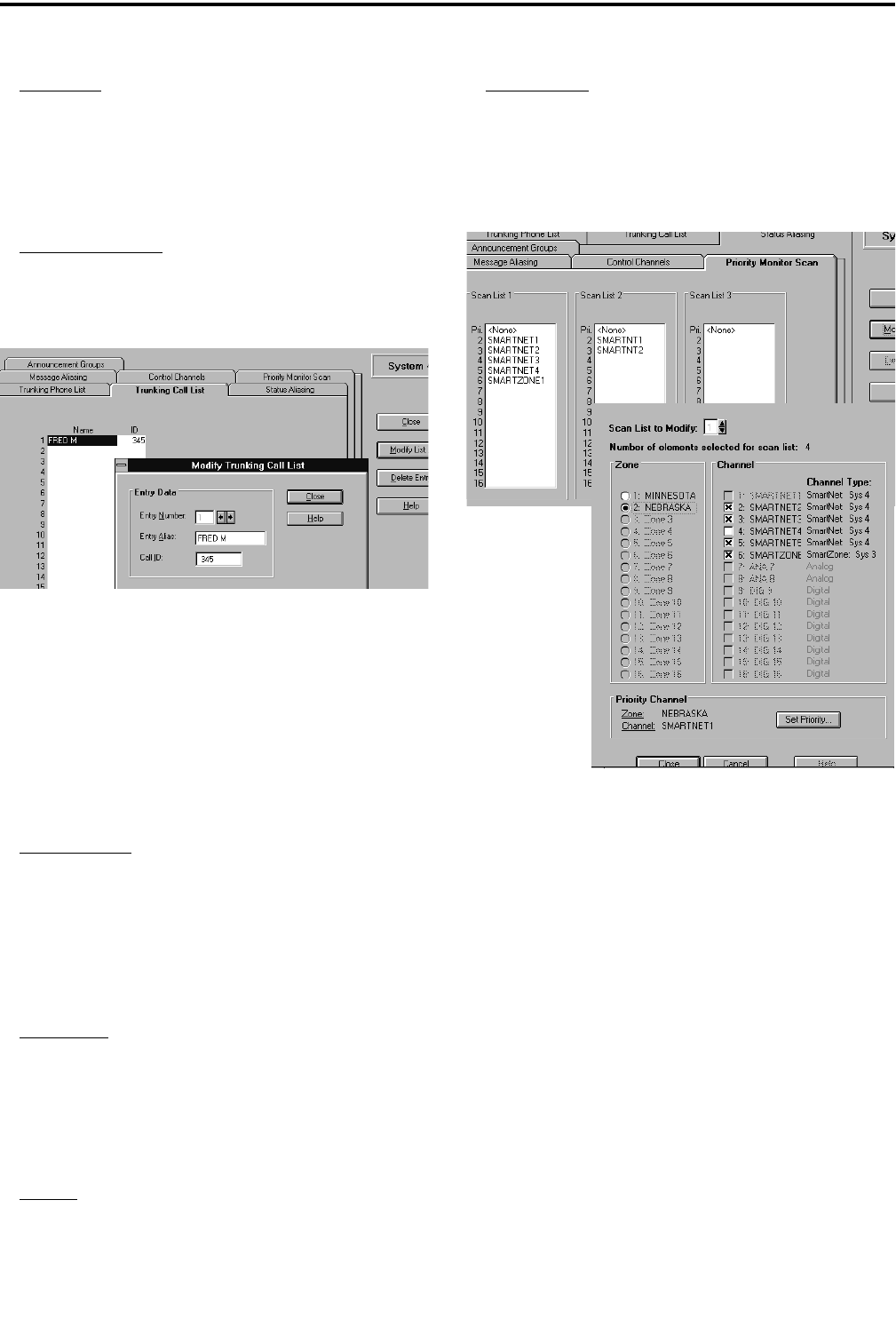

Trunking Call List Screen

This screen is shown above, and it allows the list

of IDs used for private calls to be programmed. A

maximum of 16 IDs can be programmed (see Section

2.7.4).

To edit this list, click the Trunking Call List tab

and then the “Modify List” button on the right side.

This following information is then programmed in the

dialog box that is displayed:

Entry Number - This box selects the entry to be

edited. The scroll bars to the right of this box select

the desired entry. A phone list can contain up to 16

entries. Selecting a new entry number automatically

validates and stores the current entry. If the current

entry contains an invalid field, the entry number does

not change and the invalid field is highlighted.

Entry Alias - Up to ten characters can be entered to

identify the user being called. This identification is

displayed when the mobile to be called is selected by

the user from the list. Only uppercase letters can be

entered, so lowercase letters are automatically con-

verted to uppercase by the program.

Call ID - This is the ID of the radio being called.

Valid entries are 1-49152. A “0” is detected as no

entry.

Close Button - Verifies the current entry, stores it,

and then closes the dialog box. If the current entry

contains an invalid field, the dialog box does not

close and the invalid field is highlighted.

Priority Monitor Scan Screen

This screen is shown above, and it programs up to

three Priority Monitor scan lists that are allowed. Each

scan list can contain up to 15 channels plus a priority

channel (see Section 2.7.12). These channels must be

from the same SMARTNET/SmartZone system. Chan-

nels set up for other systems are not allowed.

To edit a list, click the Priority Monitor Scan tab

and then click the “Modify List” button on the right

side. A screen similar to the top screen shown above is

then displayed to select the channels to be included in

that scan list. Select channels as follows:

1. Select the scan list to be edited using the scroll bars

next to the “Scan List To Modify” box.

2. Select the first zone with channels to be included

and select the desired channels. Repeat for the other

zones.

TRANSCEIVER PROGRAMMING

3-26 September 2001

Part No. 001-5100-001

3. To select the priority channel, click the Set Priority

button. Then select the desired Zone/Channel or

“None” if no priority channel is to be scanned.

4. Repeat the preceding steps for the other scan lists if

applicable.

Status Aliasing Screen

This screen is shown above, and it programs the

alias for each of up to eight status conditions that can

be sent. The meaning of each status number is defined

by the system manager. Refer to Section 2.7.9 for

more information.

To edit this list, click the Status Aliasing tab and

then the “Modify List” button on the right side. The

following information is then programmed in the

dialog box that is displayed:

Status Number - The scroll bars to the right of this

box select the status number that is to be edited.

Status Alias - Programs up to 10 characters that iden-

tify the status. This identification is displayed when

the user selects a status condition.

Other Band Trunking Screen

The Other Band Trunking screen follows, and it

is displayed only when programming channels in the

VHF and UHF frequency bands. It is used to define

the relationship between the transmit and receive

channel frequencies in these bands. With 800 MHz

systems, this is not required because the difference

between the transmit and receive frequency is always

45 MHz.

Other Band Trunking Screen

This screen organizes the available frequency

band into three sub-bands, called splits. Each split is

defined by a start frequency, stop frequency, and

channel spacing as follows. Frequencies outside the

defined split cannot be accessed by the radio. These

frequency splits must be defined the same way they

are defined for the trunking controller.

Tx and Rx Spacing - Spacing in kHz between each

potential transmit and receive frequency.

Tx and Rx Start Frequency - Start in MHz of the band

split for transmit and receive frequencies.

Tx and Rx Stop Frequency - Stop in MHz of the band

split for transmit and receive frequencies.

3.6.8 SETTING UP SMARTNET/SMARTZONE

CHANNELS

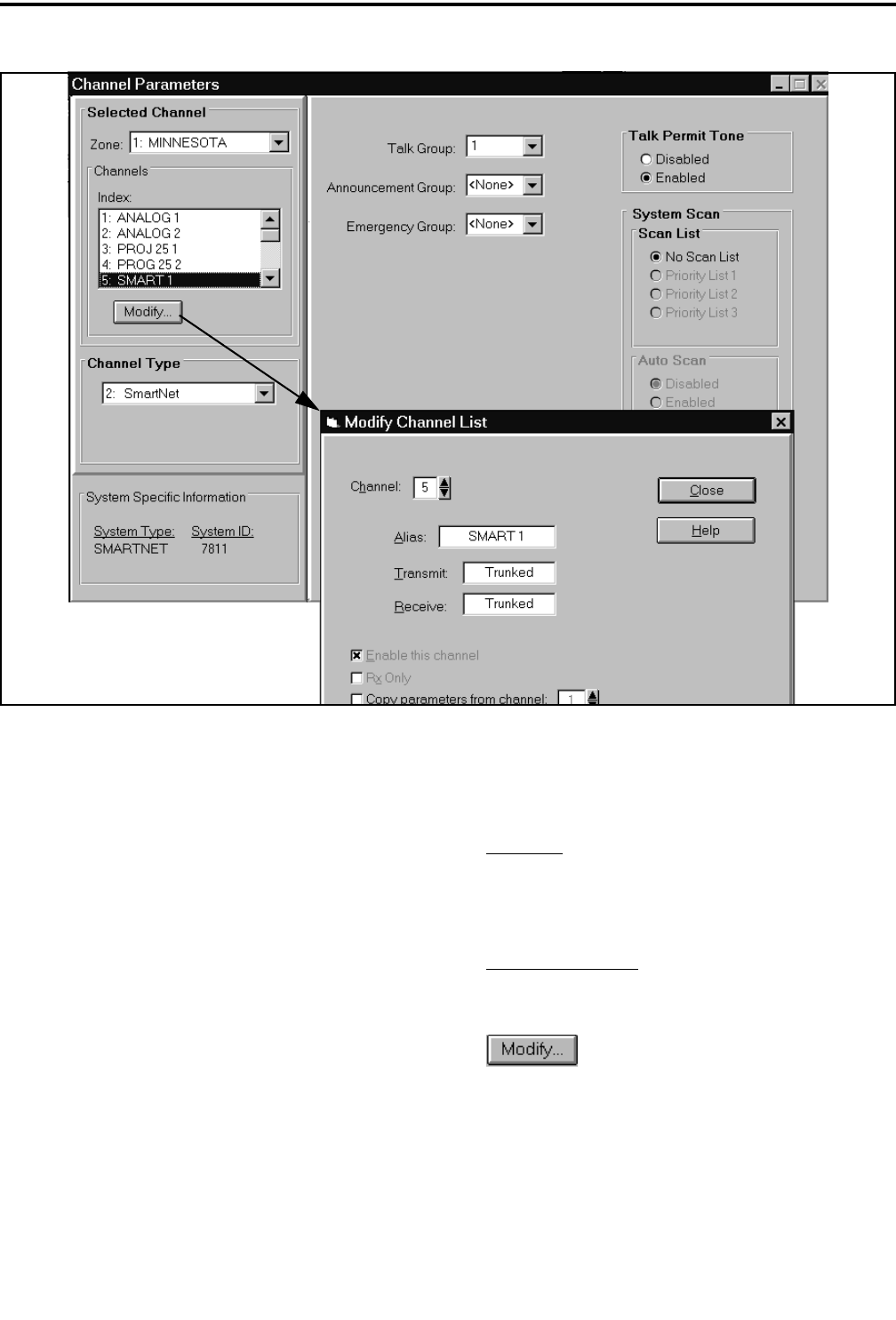

The SMARTNET/SmartZone Channel screen

shown in Figure 3-5 is displayed when the

SMARTNET or SmartZone channel type is selected.

The channel screen programs unique channel parame-

ters and also assigns channels to the selectable zones

displayed by the transceiver.

The general procedure for setting up a

SMARTNET/SmartZone channel is as follows. Refer

to the descriptions which follow this procedure for

information on SMARTNET/SmartZone Channel

screen parameters.

1. Make sure that the desired zone is selected in the

Zone box.

2. Select the channel number in the Channels Index

box which is to be programmed with the channel.

This will be the number displayed when the channel

is selected.

TRANSCEIVER PROGRAMMING

3-27 September 2001

Part No. 001-5100-001

Figure 3-5 SMARTNET/SmartZone Channel Screen

3. To set up a SMARTNET channel, select

“SMARTNET” as the channel type, and to set up a

SmartZone channel, select “SmartZone”.

4. Click the Modify button to display the dialog box

shown in the lower part of Figure 3-5. This box

programs the alias (tag) that is displayed when it is

selected.

5. Program the other parameters in the main part of the

screen (see information which follows).

3.6.9 SMARTNET/SMARTZONE CHANNEL

SCREEN PARAMETERS

The following parameters are programmed in the

SMARTNET/SmartZone channel screen shown in

Figure 3-5.

Selected Channel

Zone Box - Clicking the arrow to the right of this box

displays the available zones. Click on a zone to select

it. Zones and zone aliases are set up on the Radio-

Wide General screen described in Section 3.4.2.

Channel Index Box - Displays the channels in the

selected zone. The channel type is selected by the

Channel Type box below it.

- Displays the screen shown in the lower

part of Figure 3-5. The parameters programmed in

this screen are as follows:

Channel - Selects the channel to be edited.

Alias - Programs the identification that is displayed

when the channel is selected. Up to 10

characters can be programmed.

TRANSCEIVER PROGRAMMING

3-28 September 2001

Part No. 001-5100-001

Transmit - Not programmable because the transmit

frequency is dynamically assigned over the

air (“Trunked” is always displayed).

Receive - Dynamically assigned like the preceding

transmit frequency.

Enable This Channel - Not used because SMART-

NET/SmartZone channels are always

enabled if set up. To disable a channel so

that it is not selectable, choose the conven-

tional type and do not check this box.

Copy Parameters From Channel - If another channel

is selected in the box, the parameters from

that channel are copied to the new channel.

Channel Type

Channel Type Box - Selects the specific system from

which the channel is selected. All programmed

systems are displayed by number and type (conven-

tional, SMARTNET, SmartZone). When a different

channel type is selected, the screen for that type of

channel is automatically displayed.

Other Screen Parameters

System Specific Information - With SMARTNET/

SmartZone systems, indicates the system ID

programmed on the system General screen (see

Section 3.6.2).

Talk Group - Selects the talk group selected by that

channel. Talk groups are programmed in the Talk

Group screen described in Section 3.6.5.

Announcement Group - Selects one of up to three

announcement groups selected by the channel. Refer

to “Announcement Group Screen” in Section 3.6.7

for more information.

Emergency Group - Selects the talk group used for

emergency calls.

Talk Permit Tone - When enabled, a short tone

sounds after a request for a group call has been

approved by the main controller. This indicates that

speaking can begin. When disabled, no audio feed-

back is used to indicate when speaking can begin.

System Scan - Selects the Priority Monitor Scan list

selected by the channel (see “Priority Monitor Scan

Screen” description in Section 3.6.7). If “No Scan

List” is programmed, scanning is not selectable on

that channel.

Auto Scan - When enabled and a channel is selected,

the radio automatically begins scanning the scan list

associated with that channel. When disabled, scan-

ning can only be started manually by the Scan option

switch.

3.7 PASSWORD OPERATION

3.7.1 GENERAL

The 50xx portable radio can be programmed with

a Power-Up and Programming password. If the Power-

Up password is enabled, it must be entered each time

power is turned on to make the radio operational. This

prevents unauthorized use. The Programming pass-

word must be entered to access the keypad program-

ming feature of the radio. This prevents unauthorized

reprogramming of the transceiver. Currently, the 50xx

portable is the only transceiver that is programmed

with the PCTrunk software that utilizes password

access. More information on these two passwords

follows.

3.7.2 POWER-UP PASSWORD

The Power-Up password function is enabled on

the Radio-Wide General screen described in Section

3.4.2. This password must then be entered each time

transceiver power is turned on. In addition, since the

radio resets after downloading or uploading data, it

must be entered after performing those functions (see

Sections 3.3.3 and 3.3.4). When entering the pass-

word using the radio keypad, enter the eight password

digits and then press the ENT key. If an error is made,

press the CLR key to start over.

To enable the power-up password function on the

programmer screen, the Power-Up password must be

entered. This prevents the radio from being

programmed with an unknown password which would

make it inoperable. The password is a series of eight

numbers, and it is programmed by clicking the

“Change Password” button on the Radio-Wide

General screen. The default password is eight zeros

(00000000), and it may need to be entered as the “old”

password if applicable. The password can also be

TRANSCEIVER PROGRAMMING

3-29 September 2001

Part No. 001-5100-001

changed using the radio keypad when the keypad is

locked by entering the old password and then pressing

the # key. Refer to Section 2.4.3 for more information.

If the Power-Up password has been enabled in the

radio connected to the programmer, the Programming

password described in the next section must then be

entered before a data can be downloaded or uploaded.

This prevents an unauthorized person from reading

radio data or changing radio programming.

If the password is forgotten, it can be overridden

by pressing the lower button on the side 8 times. This

unlocks the radio and reverts to the default password

of “00000000”. However, it also erases all channel

frequencies, trunked group IDs, and encryption infor-

mation. Therefore, the radio must be reprogrammed

after this is done to make it operational again.

3.7.3 PROGRAMMING PASSWORD

The Programming password must be entered to

enable the Keypad Programming mode described in

Section 2.9. This prevents an unauthorized person

from changing the radio programming. As described

in the preceding section, the Programming password

must also be entered when downloading or uploading

data from a radio that has the Power-Up password

function enabled.

Table 3-1 Call Guard (CTCSS/DCS) Codes and Tones

Recommended Tone Call Guard Codes

Code Freq Code Freq Code Freq Code Freq Code Freq

09 91.5 18 123.0 27 167.9 37* 241.8

01 67.0 10 94.8 19 127.3 28 173.8 38* 250.3

02 71.9 11** 97.4 20 131.8 29 179.9 39** 69.3

03 74.4 12 100.0 21 136.5 30 186.2 40** 206.5

04 77.0 13 103.5 22 141.3 31 192.8 41** 229.1

05 79.7 14 107.2 23 146.2 32 203.5 42** 254.1

06 82.5 15 110.9 24 151.4 33 210.7

07 85.4 16 114.8 25 156.7 34* 218.1

08 88.5 17 118.8 26 162.2 35* 225.7

* These tones normally are not used because of their close proximity to the voice frequencies

** This tone is normally not used because it may cause interference with adjacent tones.

Recommended Digital Call Guard Codes

023 065 131 172 261 346 431 532 654 743

025 071 132 174 263 351 432 546 662 754

026 072 134 205 265 364 445 565 664

031 073 143 223 271 365 464 606 703

032 074 152 226 306 371 465 612 712

043 114 155 243 311 411 466 624 723

047 115 156 244 315 412 503 627 731

051 116 162 245 331 413 506 631 732

054 125 165 251 343 423 516 632 734

TRANSCEIVER PROGRAMMING

3-30 September 2001

Part No. 001-5100-001

1 851.0125 806.0125

2 851.0375 806.0375

3 851.0625 806.0625

4 851.0875 806.0875

5 851.1125 806.1125

6 851.1375 806.1375

7 851.1625 806.1625

8 851.1875 806.1875

9 851.2125 806.2125

10 851.2375 806.2375

11 851.2625 806.2625

12 851.2875 806.2875

13 851.3125 806.3125

14 851.3375 806.3375

15 851.3625 806.3625

16 851.3875 806.3875

17 851.4125 806.4125

18 851.4375 806.4375

19 851.4625 806.4625

20 851.4875 806.4875

21 851.5125 806.5125

22 851.5375 806.5375

23 851.5625 806.5625

24 851.5875 806.5875

25 851.6125 806.6125

26 851.6375 806.6375

27 851.6625 806.6625

28 851.6875 806.6875

29 851.7125 806.7125

30 851.7375 806.7375

31 851.7625 806.7625

32 851.7875 806.7875

33 851.8125 806.8125

34 851.8375 806.8375

35 851.8625 806.8625

36 851.8875 806.8875

37 851.9125 806.9125

38 851.9375 806.9375

39 851.9625 806.9625

40 851.9875 806.9875

41 852.0125 807.0125

42 852.0375 807.0375

43 852.0625 807.0625

44 852.0875 807.0875

45 852.1125 807.1125

46 852.1375 807.1375

47 852.1625 807.1625

48 852.1875 807.1875

49 852.2125 807.2125

50 852.2375 807.2375

51 852.2625 807.2625

52 852.2875 807.2875

53 852.3125 807.3125

54 852.3375 807.3375

55 852.3625 807.3625

56 852.3875 807.3875

57 852.4125 807.4125

58 852.4375 807.4375

59 852.4625 807.4625

60 852.4875 807.4875

61 852.5125 807.5125

62 852.5375 807.5375

63 852.5625 807.5625

64 852.5875 807.5875

65 852.6125 807.6125

66 852.6375 807.6375

67 852.6625 807.6625

68 852.6875 807.6875

69 852.7125 807.7125

70 852.7375 807.7375

71 852.7625 807.7625

72 852.7875 807.7875

73 852.8125 807.8125

74 852.8375 807.8375

75 852.8625 807.8625

76 852.8875 807.8875

77 852.9125 807.9125

78 852.9375 807.9375

79 852.9625 807.9625

80 852.9875 807.9875

81 853.0125 808.0125

82 853.0375 808.0375

83 853.0625 808.0625

84 853.0875 808.0875

85 853.1125 808.1125

86 853.1375 808.1375

87 853.1625 808.1625

88 853.1875 808.1875

89 853.2125 808.2125

90 853.2375 808.2375

91 853.2625 808.2625

92 853.2875 808.2875

93 853.3125 808.3125

94 853.3375 808.3375

95 853.3625 808.3625

96 853.3875 808.3875

97 853.4125 808.4125

98 853.4375 808.4375

99 853.4625 808.4625

100 853.4875 808.4875

101 853.5125 808.5125

102 853.5375 808.5375

103 853.5625 808.5625

104 853.5875 808.5875

105 853.6125 808.6125

106 853.6375 808.6375

107 853.6625 808.6625

108 853.6875 808.6875

109 853.7125 808.7125

110 853.7375 808.7375

111 853.7625 808.7625

112 853.7875 808.7875

113 853.8125 808.8125

114 853.8375 808.8375

115 853.8625 808.8625

116 853.8875 808.8875

117 853.9125 808.9125

118 853.9375 808.9375

119 853.9625 808.9625

120 853.9875 808.9875

121 854.0125 809.0125

122 854.0375 809.0375

123 854.0625 809.0625

124 854.0875 809.0875

125 854.1125 809.1125

126 854.1375 809.1375

127 854.1625 809.1625

128 854.1875 809.1875

129 854.2125 809.2125

130 854.2375 809.2375

131 854.2625 809.2625

132 854.2875 809.2875

133 854.3125 809.3125

134 854.3375 809.3375

135 854.3625 809.3625

136 854.3875 809.3875

137 854.4125 809.4125

138 854.4375 809.4375

139 854.4625 809.4625

140 854.4875 809.4875

141 854.5125 809.5125

142 854.5375 809.5375

143 854.5625 809.5625

144 854.5875 809.5875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

TRANSCEIVER PROGRAMMING

3-31 September 2001

Part No. 001-5100-001

145 854.6125 809.6125

146 854.6375 809.6375

147 854.6625 809.6625

148 854.6875 809.6875

149 854.7125 809.7125

150 854.7375 809.7375

151 854.7625 809.7625

152 854.7875 809.7875

153 854.8125 809.8125

154 854.8375 809.8375

155 854.8625 809.8625

156 854.8875 809.8875

157 854.9125 809.9125

158 854.9375 809.9375

159 854.9625 809.9625

160 854.9875 809.9875

161 855.0125 810.0125

162 855.0375 810.0375

163 855.0625 810.0625

164 855.0875 810.0875

165 855.1125 810.1125

166 855.1375 810.1375

167 855.1625 810.1625

168 855.1875 810.1875

169 855.2125 810.2125

170 855.2375 810.2375

171 855.2625 810.2625

172 855.2875 810.2875

173 855.3125 810.3125

174 855.3375 810.3375

175 855.3625 810.3625

176 855.3875 810.3875

177 855.4125 810.4125

178 855.4375 810.4375

179 855.4625 810.4625

180 855.4875 810.4875

181 855.5125 810.5125

182 855.5375 810.5375

183 855.5625 810.5625

184 855.5875 810.5875

185 855.6125 810.6125

186 855.6375 810.6375

187 855.6625 810.6625

188 855.6875 810.6875

189 855.7125 810.7125

190 855.7375 810.7375

191 855.7625 810.7625

192 855.7875 810.7875

193 855.8125 810.8125

194 855.8375 810.8375

195 855.8625 810.8625

196 855.8875 810.8875

197 855.9125 810.9125

198 855.9375 810.9375

199 855.9625 810.9625

200 855.9875 810.9875

201 856.0125 811.0125

202 856.0375 811.0375

203 856.0625 811.0625

204 856.0875 811.0875

205 856.1125 811.1125

206 856.1375 811.1375

207 856.1625 811.1625

208 856.1875 811.1875

209 856.2125 811.2125

210 856.2375 811.2375

211 856.2625 811.2625

212 856.2875 811.2875

213 856.3125 811.3125

214 856.3375 811.3375

215 856.3625 811.3625

216 856.3875 811.3875

217 856.4125 811.4125

218 856.4375 811.4375

219 856.4625 811.4625

220 856.4875 811.4875

221 856.5125 811.5125

222 856.5375 811.5375

223 856.5625 811.5625

224 856.5875 811.5875

225 856.6125 811.6125

226 856.6375 811.6375

227 856.6625 811.6625

228 856.6875 811.6875

229 856.7125 811.7125

230 856.7375 811.7375

231 856.7625 811.7625

232 856.7875 811.7875

233 856.8125 811.8125

234 856.8375 811.8375

235 856.8625 811.8625

236 856.8875 811.8875

237 856.9125 811.9125

238 856.9375 811.9375

239 856.9625 811.9625

240 856.9875 811.9875

241 857.0125 812.0125

242 857.0375 812.0375

243 857.0625 812.0625

244 857.0875 812.0875

245 857.1125 812.1125

246 857.1375 812.1375

247 857.1625 812.1625

248 857.1875 812.1875

249 857.2125 812.2125

250 857.2375 812.2375

251 857.2625 812.2625

252 857.2875 812.2875

253 857.3125 812.3125

254 857.3375 812.3375

255 857.3625 812.3625

256 857.3875 812.3875

257 857.4125 812.4125

258 857.4375 812.4375

259 857.4625 812.4625

260 857.4875 812.4875

261 857.5125 812.5125

262 857.5375 812.5375

263 857.5625 812.5625

264 857.5875 812.5875

265 857.6125 812.6125

266 857.6375 812.6375

267 857.6625 812.6625

268 857.6875 812.6875

269 857.7125 812.7125

270 857.7375 812.7375

271 857.7625 812.7625

272 857.7875 812.7875

273 857.8125 812.8125

274 857.8375 812.8375

275 857.8625 812.8625

276 857.8875 812.8875

277 857.9125 812.9125

278 857.9375 812.9375

279 857.9625 812.9625

280 857.9875 812.9875

281 858.0125 813.0125

282 858.0375 813.0375

283 858.0625 813.0625

284 858.0875 813.0875

285 858.1125 813.1125

286 858.1375 813.1375

287 858.1625 813.1625

288 858.1875 813.1875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

TRANSCEIVER PROGRAMMING

3-32 September 2001

Part No. 001-5100-001

289 858.2125 813.2125

290 858.2375 813.2375

291 858.2625 813.2625

292 858.2875 813.2875

293 858.3125 813.3125

294 858.3375 813.3375

295 858.3625 813.3625

296 858.3875 813.3875

297 858.4125 813.4125

298 858.4375 813.4375

299 858.4625 813.4625

300 858.4875 813.4875

301 858.5125 813.5125

302 858.5375 813.5375

303 858.5625 813.5625

304 858.5875 813.5875

305 858.6125 813.6125

306 858.6375 813.6375

307 858.6625 813.6625

308 858.6875 813.6875

309 858.7125 813.7125

310 858.7375 813.7375

311 858.7625 813.7625

312 858.7875 813.7875

313 858.8125 813.8125

314 858.8375 813.8375

315 858.8625 813.8625

316 858.8875 813.8875

317 858.9125 813.9125

318 858.9375 813.9375

319 858.9625 813.9625

320 858.9875 813.9875

321 859.0125 814.0125

322 859.0375 814.0375

323 859.0625 814.0625

324 859.0875 814.0875

325 859.1125 814.1125

326 859.1375 814.1375

327 859.1625 814.1625

328 859.1875 814.1875

329 859.2125 814.2125

330 859.2375 814.2375

331 859.2625 814.2625

332 859.2875 814.2875

333 859.3125 814.3125

334 859.3375 814.3375

335 859.3625 814.3625

336 859.3875 814.3875

337 859.4125 814.4125

338 859.4375 814.4375

339 859.4625 814.4625

340 859.4875 814.4875

341 859.5125 814.5125

342 859.5375 814.5375

343 859.5625 814.5625

344 859.5875 814.5875

345 859.6125 814.6125

346 859.6375 814.6375

347 859.6625 814.6625

348 859.6875 814.6875

349 859.7125 814.7125

350 859.7375 814.7375

351 859.7625 814.7625

352 859.7875 814.7875

353 859.8125 814.8125

354 859.8375 814.8375

355 859.8625 814.8625

356 859.8875 814.8875

357 859.9125 814.9125

358 859.9375 814.9375

359 859.9625 814.9625

360 859.9875 814.9875

361 860.0125 815.0125

362 860.0375 815.0375

363 860.0625 815.0625

364 860.0875 815.0875

365 860.1125 815.1125

366 860.1375 815.1375

367 860.1625 815.1625

368 860.1875 815.1875

369 860.2125 815.2125

370 860.2375 815.2375

371 860.2625 815.2625

372 860.2875 815.2875

373 860.3125 815.3125

374 860.3375 815.3375

375 860.3625 815.3625

376 860.3875 815.3875

377 860.4125 815.4125

378 860.4375 815.4375

379 860.4625 815.4625

380 860.4875 815.4875

381 860.5125 815.5125

382 860.5375 815.5375

383 860.5625 815.5625

384 860.5875 815.5875

385 860.6125 815.6125

386 860.6375 815.6375

387 860.6625 815.6625

388 860.6875 815.6875

389 860.7125 815.7125

390 860.7375 815.7375

391 860.7625 815.7625

392 860.7875 815.7875

393 860.8125 815.8125

394 860.8375 815.8375

395 860.8625 815.8625

396 860.8875 815.8875

397 860.9125 815.9125

398 860.9375 815.9375

399 860.9625 815.9625

400 860.9875 815.9875

401 861.0125 816.0125

402 861.0375 816.0375

403 861.0625 816.0625

404 861.0875 816.0875

405 861.1125 816.1125

406 861.1375 816.1375

407 861.1625 816.1625

408 861.1875 816.1875

409 861.2125 816.2125

410 861.2375 816.2375

411 861.2625 816.2625

412 861.2875 816.2875

413 861.3125 816.3125

414 861.3375 816.3375

415 861.3625 816.3625

416 861.3875 816.3875

417 861.4125 816.4125

418 861.4375 816.4375

419 861.4625 816.4625

420 861.4875 816.4875

421 861.5125 816.5125

422 861.5375 816.5375

423 861.5625 816.5625

424 861.5875 816.5875

425 861.6125 816.6125

426 861.6375 816.6375

427 861.6625 816.6625

428 861.6875 816.6875

429 861.7125 816.7125

430 861.7375 816.7375

431 861.7625 816.7625

432 861.7875 816.7875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

TRANSCEIVER PROGRAMMING

3-33 September 2001

Part No. 001-5100-001

433 861.8125 816.8125

434 861.8375 816.8375

435 861.8625 816.8625

436 861.8875 816.8875

437 861.9125 816.9125

438 861.9375 816.9375

439 861.9625 816.9625

440 861.9875 816.9875

441 862.0125 817.0125

442 862.0375 817.0375

443 862.0625 817.0625

444 862.0875 817.0875

445 862.1125 817.1125

446 862.1375 817.1375

447 862.1625 817.1625

448 862.1875 817.1875

449 862.2125 817.2125

450 862.2375 817.2375

451 862.2625 817.2625

452 862.2875 817.2875

453 862.3125 817.3125

454 862.3375 817.3375

455 862.3625 817.3625

456 862.3875 817.3875

457 862.4125 817.4125

458 862.4375 817.4375

459 862.4625 817.4625

460 862.4875 817.4875

461 862.5125 817.5125

462 862.5375 817.5375

463 862.5625 817.5625

464 862.5875 817.5875

465 862.6125 817.6125

466 862.6375 817.6375

467 862.6625 817.6625

468 862.6875 817.6875

469 862.7125 817.7125

470 862.7375 817.7375

471 862.7625 817.7625

472 862.7875 817.7875

473 862.8125 817.8125

474 862.8375 817.8375

475 862.8625 817.8625

476 862.8875 817.8875

477 862.9125 817.9125

478 862.9375 817.9375

479 862.9625 817.9625

480 862.9875 817.9875

481 863.0125 818.0125

482 863.0375 818.0375

483 863.0625 818.0625

484 863.0875 818.0875

485 863.1125 818.1125

486 863.1375 818.1375

487 863.1625 818.1625

488 863.1875 818.1875

489 863.2125 818.2125

490 863.2375 818.2375

491 863.2625 818.2625

492 863.2875 818.2875

493 863.3125 818.3125

494 863.3375 818.3375

495 863.3625 818.3625

496 863.3875 818.3875

497 863.4125 818.4125

498 863.4375 818.4375

499 863.4625 818.4625

500 863.4875 818.4875

501 863.5125 818.5125

502 863.5375 818.5375

503 863.5625 818.5625

504 863.5875 818.5875

505 863.6125 818.6125

506 863.6375 818.6375

507 863.6625 818.6625

508 863.6875 818.6875

509 863.7125 818.7125

510 863.7375 818.7375

511 863.7625 818.7625

512 863.7875 818.7875

513 863.8125 818.8125

514 863.8375 818.8375

515 863.8625 818.8625

516 863.8875 818.8875

517 863.9125 818.9125

518 863.9375 818.9375

519 863.9625 818.9625

520 863.9875 818.9875

521 864.0125 819.0125

522 864.0375 819.0375

523 864.0625 819.0625

524 864.0875 819.0875

525 864.1125 819.1125

526 864.1375 819.1375

527 864.1625 819.1625

528 864.1875 819.1875

529 864.2125 819.2125

530 864.2375 819.2375

531 864.2625 819.2625

532 864.2875 819.2875

533 864.3125 819.3125

534 864.3375 819.3375

535 864.3625 819.3625

536 864.3875 819.3875

537 864.4125 819.4125

538 864.4375 819.4375

539 864.4625 819.4625

540 864.4875 819.4875

541 864.5125 819.5125

542 864.5375 819.5375

543 864.5625 819.5625

544 864.5875 819.5875

545 864.6125 819.6125

546 864.6375 819.6375

547 864.6625 819.6625

548 864.6875 819.6875

549 864.7125 819.7125

550 864.7375 819.7375

551 864.7625 819.7625

552 864.7875 819.7875

553 864.8125 819.8125

554 864.8375 819.8375

555 864.8625 819.8625

556 864.8875 819.8875

557 864.9125 819.9125

558 864.9375 819.9375

559 864.9625 819.9625

560 864.9875 819.9875

561 865.0125 820.0125

562 865.0375 820.0375

563 865.0625 820.0625

564 865.0875 820.0875

565 865.1125 820.1125

566 865.1375 820.1375

567 865.1625 820.1625

568 865.1875 820.1875

569 865.2125 820.2125

570 865.2375 820.2375

571 865.2625 820.2625

572 865.2875 820.2875

573 865.3125 820.3125

574 865.3375 820.3375

575 865.3625 820.3625

576 865.3875 820.3875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

TRANSCEIVER PROGRAMMING

3-34 September 2001

Part No. 001-5100-001

577 865.4125 820.4125

578 865.4375 820.4375

579 865.4625 820.4625

580 865.4875 820.4875

581 865.5125 820.5125

582 865.5375 820.5375

583 865.5625 820.5625

584 865.5875 820.5875

585 865.6125 820.6125

586 865.6375 820.6375

587 865.6625 820.6625

588 865.6875 820.6875

589 865.7125 820.7125

590 865.7375 820.7375

591 865.7625 820.7625

592 865.7875 820.7875

593 865.8125 820.8125

594 865.8375 820.8375

595 865.8625 820.8625

596 865.8875 820.8875

597 865.9125 820.9125

598 865.9375 820.9375

599 865.9625 820.9625

600 865.9875 820.9875

- 866.0000 821.0000

601 866.0125 821.0125

- 866.0250 821.0250

602 866.0375 821.0375

603 866.0500 821.0500

604 866.0625 821.0625

605 866.0750 821.0750

606 866.0875 821.0875

607 866.1000 821.1000

608 866.1125 821.1125

609 866.1250 821.1250

610 866.1375 821.1375

611 866.1500 821.1500

612 866.1625 821.1625

613 866.1750 821.1750

614 866.1875 821.1875

615 866.2000 821.2000

616 866.2125 821.2125

617 866.2250 821.2250

618 866.2375 821.2375

619 866.2500 821.2500

620 866.2625 821.2625

621 866.2750 821.2750

622 866.2875 821.2875

623 866.3000 821.3000

624 866.3125 821.3125

625 866.3250 821.3250

626 866.3375 821.3375

627 866.3500 821.3500

628 866.3625 821.3625

629 866.3750 821.3750

630 866.3875 821.3875

631 866.4000 821.4000

632 866.4125 821.4125

633 866.4250 821.4250

634 866.4375 821.4375

635 866.4500 821.4500

636 866.4625 821.4625

637 866.4750 821.4750

638 866.4875 821.4875

- 866.5000 821.5000

639 866.5125 821.5125

- 866.5250 821.5250

640 866.5375 821.5375

641 866.5500 821.5500

642 866.5625 821.5625

643 866.5750 821.5750

644 866.5875 821.5875

645 866.6000 821.6000

646 866.6125 821.6125

647 866.6250 821.6250

648 866.6375 821.6375

649 866.6500 821.6500

650 866.6625 821.6625

651 866.6750 821.6750

652 866.6875 821.6875

653 866.7000 821.7000

654 866.7125 821.7125

655 866.7250 821.7250

656 866.7375 821.7375

657 866.7500 821.7500

658 866.7625 821.7625

659 866.7750 821.7750

660 866.7875 821.7875

661 866.8000 821.8000

662 866.8125 821.8125

663 866.8250 821.8250

664 866.8375 821.8375

665 866.8500 821.8500

666 866.8625 821.8625

667 866.8750 821.8750

668 866.8875 821.8875

669 866.9000 821.9000

670 866.9125 821.9125

671 866.9250 821.9250

672 866.9375 821.9375

673 866.9500 821.9500

674 866.9625 821.9625

675 866.9750 821.9750

676 866.9875 821.9875

- 867.0000 822.0000

677 867.0125 822.0125

- 867.0250 822.0250

678 867.0375 822.0375

679 867.0500 822.0500

680 867.0625 822.0625

681 867.0750 822.0750

682 867.0875 822.0875

683 867.1000 822.1000

684 867.1125 822.1125

685 867.1250 822.1250

686 867.1375 822.1375

687 867.1500 822.1500

688 867.1625 822.1625

689 867.1750 822.1750

690 867.1875 822.1875

691 867.2000 822.2000

692 867.2125 822.2125

693 867.2250 822.2250

694 867.2375 822.2375

695 867.2500 822.2500

696 867.2625 822.2625

697 867.2750 822.2750

698 867.2875 822.2875

699 867.3000 822.3000

700 867.3125 822.3125

701 867.3250 822.3250

702 867.3375 822.3375

703 867.3500 822.3500

704 867.3625 822.3625

705 867.3750 822.3750

706 867.3875 822.3875

707 867.4000 822.4000

708 867.4125 822.4125

709 867.4250 822.4250

710 867.4375 822.4375

711 867.4500 822.4500

712 867.4625 822.4625

713 867.4750 822.4750

714 867.4875 822.4875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

TRANSCEIVER PROGRAMMING

3-35 September 2001

Part No. 001-5100-001

- 867.5000 822.5000

715 867.5125 822.5125

- 867.5250 822.5250

716 867.5375 822.5375

717 867.5500 822.5500

718 867.5625 822.5625

719 867.5750 822.5750

720 867.5875 822.5875

721 867.6000 822.6000

722 867.6125 822.6125

723 867.6250 822.6250

724 867.6375 822.6375

725 867.6500 822.6500

726 867.6625 822.6625

727 867.6750 822.6750

728 867.6875 822.6875

729 867.7000 822.7000

730 867.7125 822.7125

731 867.7250 822.7250

732 867.7375 822.7375

733 867.7500 822.7500

734 867.7625 822.7625

735 867.7750 822.7750

736 867.7875 822.7875

737 867.8000 822.8000

738 867.8125 822.8125

739 867.8250 822.8250

740 867.8375 822.8375

741 867.8500 822.8500

742 867.8625 822.8625

743 867.8750 822.8750

744 867.8875 822.8875

745 867.9000 822.9000

746 867.9125 822.9125

747 867.9250 822.9250

748 867.9375 822.9375

749 867.9500 822.9500

750 867.9625 822.9625

751 867.9750 822.9750

752 867.9875 822.9875

- 868.0000 823.0000

753 868.0125 823.0125

- 868.0250 823.0250

754 868.0375 823.0375

755 868.0500 823.0500

756 868.0625 823.0625

757 868.0750 823.0750

758 868.0875 823.0875

759 868.1000 823.1000

760 868.1125 823.1125

761 868.1250 823.1250

762 868.1375 823.1375

763 868.1500 823.1500

764 868.1625 823.1625

765 868.1750 823.1750

766 868.1875 823.1875

767 868.2000 823.2000

768 868.2125 823.2125

769 868.2250 823.2250

770 868.2375 823.2375

771 868.2500 823.2500

772 868.2625 823.2625

773 868.2750 823.2750

774 868.2875 823.2875

775 868.3000 823.3000

776 868.3125 823.3125

777 868.3250 823.3250

778 868.3375 823.3375

779 868.3500 823.3500

780 868.3625 823.3625

781 868.3750 823.3750

782 868.3875 823.3875

783 868.4000 823.4000

784 868.4125 823.4125

785 868.4250 823.4250

786 868.4375 823.4375

787 868.4500 823.4500

788 868.4625 823.4625

789 868.4750 823.4750

790 868.4875 823.4875

791 868.5000 823.5000

792 868.5125 823.5125

793 868.5250 823.5250

794 868.5375 823.5375

795 868.5500 823.5500

796 868.5625 823.5625

797 868.5750 823.5750

798 868.5875 823.5875

799 868.6000 823.6000

800 868.6125 823.6125

801 868.6250 823.6250

802 868.6375 823.6375

803 868.6500 823.6500

804 868.6625 823.6625

805 868.6750 823.6750

806 868.6875 823.6875

807 868.7000 823.7000

808 868.7125 823.7125

809 868.7250 823.7250

810 868.7375 823.7375

811 868.7500 823.7500

812 868.7625 823.7625

813 868.7750 823.7750

814 868.7875 823.7875

815 868.8000 823.8000

816 868.8125 823.8125

817 868.8250 823.8250

818 868.8375 823.8375

819 868.8500 823.8500

820 868.8625 823.8625

821 868.8750 823.8750

822 868.8875 823.8875

823 868.9000 823.9000

824 868.9125 823.9125

825 868.9250 823.9250

826 868.9375 823.9375

827 868.9500 823.9500

828 868.9625 823.9625

829 868.9750 823.9750

830 868.9875 823.9875

- 869.0000 824.0000

- 869.0125 824.0125

- 869.0250 824.0250

- 869.0375 824.0375

- 869.0500 824.0500

- 869.0625 824.0625

- 869.0750 824.0750

- 869.0875 824.0875

- 869.1000 824.1000

- 869.1125 824.1125

- 869.1250 824.1250

- 869.1375 824.1375

- 869.1500 824.1500

- 869.1625 824.1625

- 869.1750 824.1750

- 869.1875 824.1875

- 869.2000 824.2000

- 869.2125 824.2125

- 869.2250 824.2250

- 869.2375 824.2375

- 869.2500 824.2500

- 869.2625 824.2625

- 869.2750 824.2750

- 869.2875 824.2875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

TRANSCEIVER PROGRAMMING

3-36 September 2001

Part No. 001-5100-001

- 869.3000 824.3000

- 869.3125 824.3125

- 869.3250 824.3250

- 869.3375 824.3375

- 869.3500 824.3500

- 869.3625 824.3625

- 869.3750 824.3750

- 869.3875 824.3875

- 869.4000 824.4000

- 869.4125 824.4125

- 869.4250 824.4250

- 869.4375 824.4375

- 869.4500 824.4500

- 869.4625 824.4625

- 869.4750 824.4750

- 869.4875 824.4875

- 869.5000 824.5000

- 869.5125 824.5125

- 869.5250 824.5250

- 869.5375 824.5375

- 869.5500 824.5500

- 869.5625 824.5625

- 869.5750 824.5750

- 869.5875 824.5875

- 869.6000 824.6000

- 869.6125 824.6125

- 869.6250 824.6250

- 869.6375 824.6375

- 869.6500 824.6500

- 869.6625 824.6625

- 869.6750 824.6750

- 869.6875 824.6875

- 869.7000 824.7000

- 869.7125 824.7125

- 869.7250 824.7250

- 869.7375 824.7375

- 869.7500 824.7500

- 869.7625 824.7625

- 869.7750 824.7750

- 869.7875 824.7875

- 869.8000 824.8000

- 869.8125 824.8125

- 869.8250 824.8250

- 869.8375 824.8375

- 869.8500 824.8500

- 869.8625 824.8625

- 869.8750 824.8750

- 869.8875 824.8875

- 869.9000 824.9000

- 869.9125 824.9125

- 869.9250 824.9250

- 869.9375 824.9375

- 869.9500 824.9500

- 869.9625 824.9625

- 869.9750 824.9750

- 869.9875 824.9875

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq.

Mobile Tx

Freq

FCC Chan.

No.

Mobile Rx

Freq

Mobile Tx

Freq

800 MHz Channels

4-1 September 2001

Part No. 001-5100-001

CIRCUIT DESCRIPTION

SECTION 4 CIRCUIT DESCRIPTION

4.1 GENERAL OVERVIEW

4.1.1 INTRODUCTION

The E.F Johnson 5100 series digital portable

radio is a microcontroller-based radio that uses a

Digital Signal Processor (DSP) to provide the

following modes of operation:

Narrowband Analog - FM modulation with a

maximum deviation of 2.5 kHz. This mode is usually

used in systems where the channel spacing is 12.5

kHz. Call Guard (CTCSS or DCS) subaudible squelch

signaling can be used in this mode.

Wideband Analog - FM modulation with a maximum

deviation of 5 kHz. This mode is usually used in

systems where the channel spacing is 25 kHz or 30

kHz. Call Guard (CTCSS or DCS) subaudible squelch

signaling can be used in this mode.

Project 25 Digital - The voice is digitized, error

corrected, optionally encrypted and transmitted using

C4FM modulation according to the Project 25 stan-

dard. This mode can be used in channel spacings of

12.5 kHz.

The DSP processes the received signals and

generates the appropriate output signals. The micro-

controller controls the hardware and provides an inter-

face between hardware and DSP.

PC Boards

This radio contains the following PC boards:

•RF Board

•Digital Board

•Keypad Board

•Four flex circuits that provide interconnection and

support for the volume, on/off, and LED controls.

•Encryption board (optional)

The Keypad Board provides the input/output

interface for the user. It accepts input from the keypad

and the various control knobs and sends the appro-

priate signals to the DSP on the Digital Board and to

the RF Board for proper configuration. It provides the

dual display information to inform the user of the

status of the radio. It also performs all RS-232 commu-

nications between the radio and remote computer

stations for the purposes of radio programming, tuning,

encryption key loading and software downloading.

4.1.2 ANALOG MODE

Receive Mode

The signal is routed from the antenna connector

to the RF Board where it is filtered, amplified, and

mixed with the first local oscillator frequency gener-

ated by the synthesizer. The resulting IF signal is also

filtered and amplified and sent to the ABACUS chip.

The signal is then mixed with the second local

oscillator frequency to create a second IF signal of 450

kHz. The second IF signal is then sampled at 14.4

Msps and downconverted to baseband. The baseband

signal is then decimated to a lower sample rate that is

selectable at 20 kHz. This signal is then routed via a

serial interface using a differential current output to

the ADSIC chip on the Digital Board.

On the Digital Board the ADSIC digitally filters

the input signal, performs frequency discrimination to

obtain the message signal and then routes the message

signal to the DSP. The DSP first performs a carrier-

detection squelch function on the radio. If a signal is

determined to be present, the audio portion of the

signal is resampled to an 8 kHz rate and then filtered

appropriately. The filtered signal is then routed back to

a D/A in the ADSIC to produce an analog signal for

output to the audio power amplifier (PA) and then the

speaker. Any detected signaling information is

decoded and the resulting information is sent to the

microcontroller.

CIRCUIT DESCRIPTION

4-2 September 2001

Part No. 001-5100-001

Transmit Mode

The signal from the microphone is amplified by

the audio PA and is then routed to the ADSIC chip

where it is first digitized at a 16 ksps rate and then sent

to the DSP. The DSP performs the required filtering,

adds the desired signaling, converts the sample rate to

48 ksps and then sends the resulting signal back to a

D/A in the ADSIC to produce the analog modulation

signal for the VCO. The modulated VCO signal is then

sent to the RF PA for transmission.

4.1.3 PROJECT 25 DIGITAL MODE

Introduction

In Project 25 Digital Mode, the carrier is modu-

lated with 4 discrete deviation levels. These levels are

± 600 Hz and ± 1800 Hz. Digitized voice is created

using an IMBE™ vocoder.

Receive Mode

The signal is processed in the same way as an

analog mode transmission until after the squelch func-

tion is performed. If a signal is detected to be present,

the DSP resamples the signal from 20 kHz to 24 kHz.

This is done so that the sample rate is an integer

multiple (5x) of the data rate of the digital modulation

which is 4800 symbols/sec (9600 bits/sec).

The resampled signal is then processed by a

demodulator routine to extract the digital information.

The resulting bit stream (9600 bps) is sent to a routine

that performs unframing, error-correction, and voice

decoding. The result of these operations is a recon-

structed voice signal sampled at 8 kHz. The sampled

voice signal is sent to a D/A in the ADSIC to produce

an analog signal for output to the audio power ampli-

fier and speaker.

Transmit Mode

The microphone signal is processed as in the

analog mode until it reaches the DSP. At this point the

audio signal is processed by a voice encoding routine

to digitize the information. The resulting samples are

then converted to a bit stream that is placed into the

proper framing structure and error protected. The

resulting bit stream has a bit rate of 9600 Hz.

This bit stream in then encoded, two bits at a

time, into a digital level corresponding to one of the

four allowable frequency deviations. This produces

16-bit symbols with a rate of 4800 Hz. The symbols

are resampled to a rate of 48 kHz and filtered to

comply with channel bandwidth requirements. The

filtered signal is then sent to a D/A in the ADSIC to

produce the analog modulation signal for the VCO.

The modulated VCO signal is then mixed up to the

final transmit frequency and then sent to the RF PA for

transmission.

4.1.4 RF BOARD

NOTE: The RF Board is not field serviceable. It must

be replaced as a unit with a new board.

The receiver front end consists of a preselector,

RF amplifier, second preselector, and mixer. Both

preselectors on the VHF and UHF board are varactor-

tuned, two-pole filters controlled by the microcon-

troller unit through the D/A IC. The 800 MHz board

uses stripline technology for the preselector. The RF

amplifier is a dual-gate gallium-arsenide IC. The

mixer is a double-balanced, transformer-coupled

active mixer. Injection is provided by the VCO

through an injection filter. See Table 4-1 for local

oscillator (LO) and first IF information.

The frequency generation function is performed

by three ICs and associated circuitry. The reference

oscillator provides a frequency standard to the synthe-

sizer/prescaler IC which controls the VCO IC. The

VCO IC actually generates the first LO and transmit

injection signals and buffers them to the required

power level. The synthesizer/prescaler circuit module

incorporates frequency division and comparison

circuitry to keep the VCO signals stable. The synthe-

sizer/prescaler IC is controlled by the microcontroller

through a serial bus. Most of the synthesizer circuitry

is enclosed in rigid metal on the RF Board to reduce

microphonic effects.

Table 4-1 LO and First IF Frequencies

VHF UHF 800 MHz

LO Frequency

range

181.15 -

219.15 MHz

329.65 -

446.65 MHz

776.65 -

796.65 MHz

First IF

Frequency

45.15 MHz 73.35 MHz 73.35 MHz

CIRCUIT DESCRIPTION

4-3 September 2001

Part No. 001-5100-001

Figure 4-1 Power Supply Diagram

Low Power

Detector

Audio PA

5V Digital

DC/DC

5V Analog

Regulator

Controller

Unswitched

B+

Power

Amplifier

Analog

5 V

Digital

Battery Probe

Transceiver Board Keypad Board

Digital Board

on/off

Switched RF

B+

The receiver back end consists of a two-pole

crystal filter, IF amplifier, a second two-pole crystal

filter, and the ABACUS digital back-end IC. The two

pole filters are wide enough to accommodate 5 kHz

modulation. Final IF filtering is done digitally in the

ADSIC.

The ABACUS digital back-end chip consists of

an amplifier, second mixer, IF analog-to-digital

converter, a baseband down-converter, and a 2.4 MHz

synthesis circuit to provide a clock to the ADSIC on

the Digital Board. The second LO is generated by

discrete components external to the ABACUS. The

output of the ABACUS is a digital bit stream that is

current driven on a differential pair to reduce noise

generation.

The transmitter consists of an RF power amplifier

IC that amplifies an injection signal from the VCO.

Transmit power is controlled by two custom ICs that

monitor the output of a directional coupler and adjust

the power amplifier control voltages correspondingly.

The signal passes through a Rx/Tx switch that uses

PIN diodes to automatically provide an appropriate

interface to transmit or receive signals.

4.1.5 DIGITAL BOARD

The Digital Board contains the ADSIC, DSP

(TMS320C50), static RAM, FLASH memory, and a

programmable logic IC. The RF Board and Keypad/

Display Board are connected to the Digital Board. The

ADSIC performs the Frequency Discrimination and

receiver filtering functions. It also performs analog-to-

digital (A/D) and digital-to-analog (D/A) conversion.

The DSP performs demodulation and modulation,

voice encoding and decoding, audio filtering, and

squelch signaling. The software for the radio is stored

in FLASH memory that is loaded in to static RAM at

turn-on. The programmable logic IC controls which

device (Flash, SRAM, or UART) is connected to the

DSP address and data bus.

4.1.6 KEYPAD/DISPLAY BOARD

The Keypad Board contains the microcontroller

(HC08), audio circuits, front LCD display assembly,

display driver, and 5V analog and 5V digital regula-

tors. All interfaces to the side connector and the

switches are on this board. The microcontroller deter-

mines transmit/receive frequencies, power levels, and

display content. It communicates with the DSP via a

serial interface.

CIRCUIT DESCRIPTION

4-4 September 2001

Part No. 001-5100-001

4.2 POWER SUPPLY

4.2.1 GENERAL

The radio is typically powered by a battery which

is fastened at the back of the radio. The electrical

contact between the battery and the radio occurs on

probes located on the Digital board (see Figure 4-1).

However the positive battery voltage (UNSWB+) is

directly routed through a small flex circuit (Power

Flex) to contacts located on the bottom of the RF

Board.

The UNSWB+ signal is then routed to the RF

power amplifier module and ALC IC on the RF Board.

It also passes through a fuse and is then routed to the

Digital Board.

The UNSWB+ signal passes through the Digital

Board without being used and is transferred to the

Keypad Board. On the keypad board, the UNSWB+

signal is routed as follows:

•Input of the 5V digital regulator

•Electronic switch which controls the input of the 5V

analog regulator and the “switched RF B+”

•“On/off switch” located on the top of the radio

•Low voltage detector

•Audio amplifier power FET

4.2.2 POWER ON OPERATION

When the user turns the radio on using the top

panel “on/off switch”, the following sequence of

events occur:

1. Power is applied to the shutdown pin of the 5V

digital regulator.

2. The 5-volt digital supply is created.

3. The appearance of the 5V digital supply turns on the

electronic switch which applies the battery voltage

to the “Switched RF B+” line and to the input of the

5V analog regulator.

4. The 5-volt analog supply is created.

5. If the battery voltage is high enough, the low voltage

detector output goes high.

6. The controller sets the control line to the shutdown

pin of the DC/DC converter to a high level.

7. The controller sets the radio in an operational mode.

4.2.3 POWER OFF OPERATION

When the user turns the radio off using the top

panel “on/off switch”, the following sequence of

events occur:

1. The “on/off switch” opens.

2. Power is removed from the shutdown pin of the 5V

DC/DC converter.

3. The controller detects that the power is off through

the pin connected to Switched B+.

4. The controller performs all required save

operations.

5. The controller resets the control line to the shut-

down pin of the DC/DC converter.

6. The 5-volt Digital source disappears.

7. The electronic switch opens.

8. The switched RF B+ and 5V analog sources

disappear.

4.2.4 LOW VOLTAGE DETECT

Low battery voltage is detected by a comparator

chip. When a low voltage condition is detected (less

than 6.3V), the following actions occur:

1. The low voltage detector output goes low which

alerts the controller.

2. The controller prevents any action which could have

a damaging effect (like writing in flash memory).

3. The controller releases its control of the shutdown

pin of the DC/DC converter.

4. The transmitter switches to the low power mode.

CIRCUIT DESCRIPTION

4-5 September 2001

Part No. 001-5100-001

Figure 4-2 RF Board Block Diagram

5. When the voltage gets really low, the 5 volt DC/DC

converter automatically shuts down.

6. The 5-volt analog and switched RF B+ sources turn

off.

4.3 RF BOARD CIRCUIT DESCRIPTION

4.3.1 FREQUENCY GENERATION UNIT

The Frequency Generation Unit (FGU) consists

of these three major sections: (1) high stability refer-

ence oscillator, (2) fractional-N synthesizer, and (3)

VCO buffer. A 5-volt regulator supplies power to the

FGU. The regulator output voltage is filtered and then

distributed to the transmit and receive VCOs and the

VCO buffer IC. The mixer LO injection signal and

transmit frequency are generated by the receive VCO

and transmit VCO, respectively. The receive VCO

uses an external active device, and the transmit VCO

active device is a transistor inside the VCO buffer.

The receive VCO is a Colpitts-type oscillator.

The receive VCO signal is received by the VCO buffer

where it is amplified by a buffer inside the IC. The

amplified signal is routed through a low-pass filter and

injected as the first LO signal into the mixer. In the

VCO buffer, the receive VCO signal is also routed to

an internal prescaler buffer. The buffered output is

applied to a low-pass filter. After filtering, the signal is

routed to a prescaler divider in the synthesizer.

The divide ratios for the prescaler circuits are

determined from information stored in an EEPROM.

The microprocessor extracts data for the division ratio

as determined by the position of the channel-select

switch and routes the signal to a comparator in the

synthesizer. A 16.8 MHz reference oscillator applies

the 16.8 MHz signal to the synthesizer. The oscillator

signal is divided into one of three pre-determined

frequencies. A time-based algorithm is used to

generate the fractional-N ratio.

If the two frequencies in the synthesizer’s

comparator differ, an error voltage is produced. The

phase detector error voltage is applied to the loop

filter. The filtered voltage alters the VCO frequency

until the correct frequency is synthesized.

In the transmit mode, the modulation of the

carrier is achieved by using a two-port modulation

technique. The modulation for low frequency tones,

such as CTCSS and DCS, is achieved by injecting the

tones into the A/D section of the fractional-N divider,

generating the required deviation. Modulation of the

high frequency audio signals is achieved by modu-

lating the varactor through a frequency compensation

network.

RF BOARD

CIRCUIT DESCRIPTION

4-6 September 2001

Part No. 001-5100-001

The transmit VCO signal is amplified by an inter-

nal buffer, routed through a low-pass filter, and then

sent to the transmit power amplifier module. The refer-

ence oscillator supplies a 16.8 MHz clock to the synthe-

sizer where it is divided down to a 2.1 MHz clock. This

divided down clock is fed to the ABACUS IC.

4.3.2 ANTENNA SWITCH

A pair of diodes is used to electronically steer the

RF signal between the receiver and transmitter. In the

transmit mode, RF is routed through a transmit switch-

ing diode and sent to the antenna. In receive mode, RF

is received from the antenna, routed through a receive

switching diode and applied to the RF amplifier.

4.3.3 RECEIVER FRONT END

The RF signal from the antenna is sent through a

bandpass filter. The bandpass filter is electronically

tuned by the microcontroller via the D/A IC by

applying a control voltage to the varactor diodes in the

filter. The D/A output range is extended through the

use of a current mirror. Wideband operation of the

filter is achieved by retuning the bandpass filter across

the band.

The output of the bandpass filter is applied to a

wideband amplifier. After being amplified by the RF

amplifier, the RF signal is further filtered by a second

broadband, fixed tuned, bandpass filter to improve

spurious rejection.

The filtered RF signal is routed via a broadband

50 Ω transformer to the input of a broadband mixer/

buffer. The mixer uses GaAs FETs in a double-

balanced Gilbert Cell configuration. The RF signal is

mixed with a first LO signal of about –10 dBm

supplied by the FGU. Mixing of the RF and the first

LO results in an output signal which is the first IF

frequency according to Figure 4-1. The first IF signal

output is routed through a transformer and impedance

matching components and is then applied to a two-

pole crystal filter. The 2-pole crystal filter removes

unwanted mixer products.

4.3.4 RECEIVER BACK END

The output of the crystal filter is matched to the

input of the IF buffer amplifier transistor. The output

of the IF amplifier is applied to a second crystal filter

through a matching circuit. This filter supplies further

attenuation at the IF sidebands to increase radio

selectivity.

In the ABACUS IC the first IF frequency is

amplified and then downconverted to 450 KHz, the

second IF frequency. At this point, the analog signal is

converted into two digital bit streams via a sigma-delta

A/D converter. The bit streams are then digitally

filtered and mixed down to baseband and filtered

again. The differential output data stream is then sent

to the ADSIC on the Digital Board where it is

processed to produce the recovered audio.

The ABACUS IC is electronically program-

mable, and the amount of filtering, which is dependent

on the radio channel spacing and signal type, is

controlled by the microcontroller. Additional filtering,

which used to be provided externally by a conven-

tional ceramic filter, is replaced by internal digital

filters in the ABACUS IC. The ABACUS IC contains

a feedback AGC circuit to expand the dynamic range

of the sigma-delta converter. The differential output

data contains the quadrature (I and Q) information in

16-bit words, the AGC information in a 9-bit word,

imbedded word sync information and fill bits depen-

dent on sampling speed. A fractional-N synthesizer is

also incorporated on the ABACUS IC for 2nd LO

generation.

The 2nd LO/VCO is a Colpitts oscillator. The

VCO has a varactor diode to adjust the VCO

frequency. The control signal for the varactor is

derived from a loop filter.

4.3.5 TRANSMITTER

The transmitter consists of three major sections:

Harmonic Filter, RF Power Amplifier, and the ALC

(Automatic Level Control) circuit.

The RF signal from the PA module is routed

through a coupler, then through the harmonic filter,

then to the antenna switch. The RF power amplifier

module is a wide-band multi-stage amplifier. The

nominal input and output impedance of the power

amplifier is 50 Ω. The DC bias for the RF power

amplifier is controlled by a switching transistor. The

microcontroller uses the D/A IC to produce a ready

RF BOARD (CONT’D)

CIRCUIT DESCRIPTION

4-7 September 2001

Part No. 001-5100-001

signal for the transmit ALC IC. The synthesizer sends

a LOC signal to the transmit ALC IC. When both the

ready signal and LOC signal are available to the

transmit ALC IC, the switching transistor for the RF

power amplifier is turned on.

A coupler module samples the forward power and

the reverse power of the PA output voltage. Reverse

power is present when there is other than 50 Ω imped-

ance at the antenna port. Sampling is achieved by

coupling some of the forward and/or reverse power for

rectification and summing. The resulting DC voltage

is then applied to the transmit ALC IC as an RF

strength indicator.

The transmit ALC circuit is the core of the power

control loop. Circuits in the transmit ALC module

compare the RF strength indicator to a reference value

and generate a bias signal that is applied to the base of

a transistor. This transistor varies the DC control

voltage applied to the RF PA controlling the RF

power.

4.4 DIGITAL BOARD

4.4.1 INTRODUCTION

The Digital Signal Processing (DSP) functions

are performed by the DSP chip (U12) and the ADSIC

(U3) with the support of FLASH (U2) and SRAM

(U5, U6) memory devices. Functions previously

performed in hardware like filtering and limiting are

performed by software running in the DSP chip. The

digital board connects with the Keypad Board via J4

and with the RF board via J1.

4.4.2 DIGITAL SIGNAL PROCESSING

OVERVIEW

The DSP section consists of a DSP chip (U12),

the ADSIC (U3), two 128K x 8-bit Static RAM chips

(U5, U6), one 512K x 16-bit FLASH ROM memory

chip (U2), a UART chip (U7), a programmable logic

IC (U1), and two glue-logic chips (U4, U9). The

FLASH ROM contains the program code executed by

the DSP. Depending on the operational mode selected

for the radio, different sections of the program code in

the FLASH ROM are copied into SRAM for faster

execution.

The ADSIC is a support chip for the DSP. It

provides the interface between the DSP and the analog

signal paths, and between the DSP and the ABACUS

chip on the RF Board. Configuration of the ADSIC is

handled primarily by the microcontroller. The DSP has

access to a few memory-mapped registers on the

ADSIC.

In receive mode, the ADSIC interfaces the DSP

with the ABACUS IC on the RF Board. The ADSIC

collects the I and Q samples from the ABACUS and

performs channel filtering and frequency discrimina-

tion on the signals. The resulting demodulated signal

is routed to the DSP via the serial port for further

processing. After the DSP processing, the signal is

sent to the ADSIC Speaker D/A by writing to a

memory- mapped register. The ADSIC then converts

the processed signal from the DSP to an analog signal

and then outputs this signal to the speaker power

amplifier on the keypad board.

In transmit mode the ADSIC Microphone A/D

digitizes the analog signal from the microphone. The

DSP reads these values from a memory-mapped

sends the modulation signal to the ADSIC via the

serial port. In the ADSIC, the VCO D/A converts the

sampled modulation signal into an analog signal and

then routes this signal to the VCO on the RF Board.

4.4.3 RECEIVE SIGNAL PATH

The ABACUS IC on the RF Board provides a

digital back end for the receiver section. It provides a

digital output of I (in phase) and Q (quadrature)

samples which represent the IF signal at the receiver

back end. These samples are routed to the ADSIC

where the signal is filtered and frequency discrimi-

nated to recover the modulating signal.

The recovered signal is sent to the DSP chip for

processing. The ADSIC interface to the ABACUS is

comprised of four signals SBI, DIN, DIN*, and ODC.

The ODC signal is a clock the ABACUS provides to

the ADSIC. Most internal ADSIC functions are

clocked by this ODC signal at a rate of 2.4 MHz and

are available as soon as the power is supplied to the

circuitry. This signal initially may be 2.4 or 4.8 MHz

after power-up. It is programmed by the ADSIC

through the SBI signal to 2.4 MHz when the ADSIC is

REVISION 2 DIGITAL BOARD

CIRCUIT DESCRIPTION

4-8 September 2001

Part No. 001-5100-001

initialized by the microcontroller through the SPI bus.

For any functionality of the ADSIC to exist, including

initial programming, the reference clock must be

present.

SBI is a programming data line for the ABACUS.

This line is used to configure the operation of the

ABACUS and is driven by the ADSIC. The microcon-

troller programs many of the ADSIC operational

features through the SPI interface. There are 36

configuration registers in the ADSIC of which 4

contain configuration data for the ABACUS. When

these particular registers are programmed by the

microcontroller, the ADSIC in turn sends this data to

the ABACUS through the SBI.

DIN and DIN* are the data lines in which the I

and Q data words are transferred from the ABACUS.

These signals make up a differentially encoded current

loop. Instead of sending TTL-type voltage signals, the

data is transferred by flowing current one way or the

other through the loop. This helps reduce internally

generated spurious emissions on the RF Board. The

ADSIC contains an internal current loop decoder

which translates these signals back to TTL logic and

stores the data in internal registers.

The ADSIC performs digital IF filtering and

frequency discrimination on the signal, sending the

baseband demodulated signal to the DSP. The internal

digital IF filter is programmable with up to 24 taps.

These taps are programmed by the microcontroller

through the SPI interface.

The DSP processes this data through the SSI

serial port. This is a six-port synchronous serial bus.

The ADSIC transfers the data to the DSP on the TxD

line at a rate of 2.4 MHz. This is clocked synchro-

nously by the ADSIC which provides a 2.4 MHz clock

on SCKT. In addition, a 20 kHz interrupt is provided

on TFS to signal the arrival of a data packet. This

means a new I and Q sample data packet is available to

the DSP at a 20 kHz rate which represents the

sampling rate of the received data. The DSP then

processes this data to extract audio, signaling, and

other information based on the 20 kHz interrupt.

In addition to the SPI programming bus, the

ADSIC also contains a parallel configuration bus. This

bus is used to access registers mapped into the DSP

memory. Some of these registers are used for addi-

tional ADSIC configuration controlled directly by the

DSP. Some of the registers are data registers for the

speaker D/A. Analog speaker audio is processed

through this parallel bus where the DSP outputs the

speaker audio digital data words to this speaker D/A.

In addition, an analog waveform is generated which is

output to SDO (Speaker Data Out).

In conjunction with speaker D/A, ADSIC

contains a programmable attenuator to set the rough

signal attenuation. However, the fine levels and differ-

ences between signal types are adjusted through the

DSP software algorithms. The speaker D/A attenuator

setting is programmed by the microcontroller through

the SPI bus.

The ADSIC provides an 8 kHz interrupt to the

DSP on IRQB for processing the speaker data

samples. This 8 kHz signal must be enabled through

the SPI programming bus by the microcontroller and is

necessary for any audio processing to occur.

4.4.4 TRANSMIT SIGNAL PATH

The ADSIC contains an analog-to-digital (ADC)

converter for the microphone. The microphone path in

the ADSIC also includes an attenuator that is

programmed by the microcontroller through the SPI

bus. The microphone input in the ADSIC is on pin

MAI (U3-19). The microphone ADC converts the

analog signal to a series of data words and stores them

in internal registers. The DSP accesses this data

through the parallel data bus. As with the speaker data

samples, the DSP reads the microphone samples from

registers mapped into its memory space. The ADSIC

provides an 8 kHz interrupt to the DSP on IRQB for

processing the microphone data samples.

The DSP processes these microphone samples

and generates and mixes the appropriate signaling and

filters the resultant data. This data is then transferred

to the ADSIC on the DSP SSI port. The ADSIC gener-

ates a 48 kHz interrupt so that a new sample data

packet is transferred at a 48 kHz rate and sets the

transmit data sampling rate at 48 ksps. These samples

are then input to a transmit D/A which converts the

data to an analog waveform. This waveform is the

modulation signal from the ADSIC and is connected to

the VCO on the RF Board.

DIGITAL BOARD (CONT’D)

CIRCUIT DESCRIPTION

4-9 September 2001

Part No. 001-5100-001

4.4.5 DSP CHIP (U12)

DSP chip U12 has a 16-bit data bus and a 16-bit

address bus. It has 10K words of internal SRAM from

which 0.5K are used only to store data and 9.5K are

used either for data or for program storage. The DSP

bus can access through its buses the following external

devices:

SRAM U5 and U6 - These two chips are 128K x 8

chips. U5 stores the lower byte of the word while U6

stores the higher byte. Those chips are selected by

asserting CE2 high and CE1* low. The programmable

logic IC is responsible for controlling the select lines

of these ICs.

FLASH ROM U2 - This chip is 512K x 16 words in

size. It is selected by asserting CE* low. The program-

mable logic IC is responsible for controlling the select

line of this IC.

ADSIC U3 - The ADSIC contains several registers

which can be read from or written to by the DSP. The

ADSIC IC has an output which drives a data/address

bus enable signal for the programmable logic IC.

UART U7 - This chip converts data from the DSP into

serial data. It is used to interface with the optional

encryption board.

Programmable Logic U1 - This IC arbitrates access

to the DSP’s address/data bus between the flash (U2),

SRAMs (U5,U6), and UART (U7). The DSP can

modify the memory configuration by writing to a

series of registers in the programmable logic IC. In

order to reduce power consumption, the programmable

logic IC can be “disconnected” from the DSP’s

address/data bus using the bus enable input on the

programmable logic IC (pin 44).

The DSP uses memory as data space, program

space, and I/O space as follows. Refer to Figure 4-3

for more information.

Program Space - Internal SRAM, external SRAM,

and FLASH memory.

Data Space - Internal SRAM and external SRAM.

I/O Space - Programmable logic IC, ADSIC, and the

UART.

The DSP accesses the difference spaces by setting

the corresponding lines PS*, DS*, IS* low. Only one

of these three signals can be low at a given time. When

the DSP accesses internal SRAM, none of these lines

is activated.

The programmable logic IC (PLD) acts as the

primary arbitrator of the DSP’s memory map. The

FLASH ROM and the SRAM are both mapped in the

program space and cannot both be active at the same

time. The DSP may control which type of memory is

mapped in program space by enabling the program-

mable logic IC (PLD), then manipulating a register in

the PLD. In addition, the DSP can manipulate other

registers to control paging of both the Flash and the

SRAM. Paging refers to the swapping of 64K word

blocks of Flash or SRAM into or out of the DSP’s

memory map.

FLASH ROM U2 is used to permanently store

the program to be executed in the DSP. However, it is

slow to access, so to fully utilize the speed of the DSP,

the program stored in the FLASH ROM must be

copied into the SRAM. As the size of the SRAM is

half the size of the FLASH ROM, only the code

required for the current mode of operation is copied in

the SRAM. As previously mentioned, the FLASH

ROM and the SRAM cannot be active at the same

time. Thus we use the internal data memory as a

temporary buffer to transfer the program from the

FLASH ROM to the SRAM.

The following hardware interrupts are used on the

DSP:

Connector J2 allows connection to an emulator

for debugging purposes. The emulator connects to

some dedicated pins on the DSP.

Interrupt Description

INT1* 8 kHz interrupt for speaker DAC and micro-

phone ADC from ADSIC

INT2* 125 kHz signal from ADSIC

INT3* 2 kHz timer interrupt from the Controller on

the Keypad Board.

INT4* Interrupt from the UART

NMI* Not used

DIGITAL BOARD (CONT’D)

CIRCUIT DESCRIPTION

4-10 September 2001

Part No. 001-5100-001

Figure 4-3 Memory Utilization

External Flash

(pages 0-7)

External SRAM

(pages 0 and 1)

$7FF

$800

$2BFF

$2C00

$FBFF

$FE00

On-chip ROM (MP/MC = 0)

external (MP/MC = 1)

On-chip SRAM (RAM = 1)

external (RAM = 0)

external

On-Chip SRAM (CNF=1)

external (CNF=0)

Internal Map ps_map = 1 ps_map = 0

Program Space

Data Space

External SRAM

(pages 0 and 1)

Note: same sram in data

space is also mapped to

program space

Internal Map External Map

I/O Space

$5F

$60

$7F

$80

$7FF

$800

external

$FF

$100

$2FF

$300

$4FF

$500

$2BFF

$2C00

On-Chip SRAM (OVLY = 1)

external (OVLY = 0)

On-Chip SRAM

On-Chip SRAM (CNF=0)

reserved

On-Chip SRAM

mmregs

$0FFF

$1000

$7FFF

$8000

$8FFF

$9000

$9FFF

$A000

$AFFF

$B000

$DFFF

$E000

UART control/status regs

unused

flash page reg (r/w)

mem control reg (r/w)

i2c interface reg (r/w)

unused

ADSIC registers (r/w)

DIGITAL BOARD (CONT’D)

E F Johnson 2425110 242-5110 User Manual 011402 revised 1 Pages 57 to 85 operators manual

E. F. Johnson Company 242-5110 011402 revised 1 Pages 57 to 85 operators manual

Contents

011402 revised 1 Pages 57 to 85 operators manual

Navigation menu

Namespaces

Views

Navigation
