Brief Introduction
Specifications
Item
MCU
LED
NFC < 4 cm
Zigbee 30 m
Battery Type
Operati ng Temperature
Dimension (W x L x H)
IP Level
Telink 8269f512 ET32
3 Color LED (RGB)
Spec Description
Temp/Humi di ty
Ambi ent Li ght
G-Sens or
Sensors
Connectivity
GR2450
-20~60℃
76* 70 *11 (mm)
IP54
6

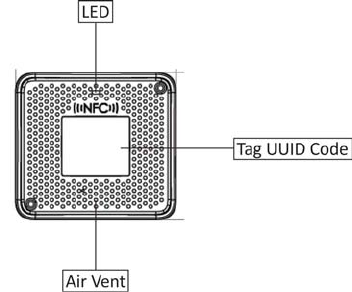

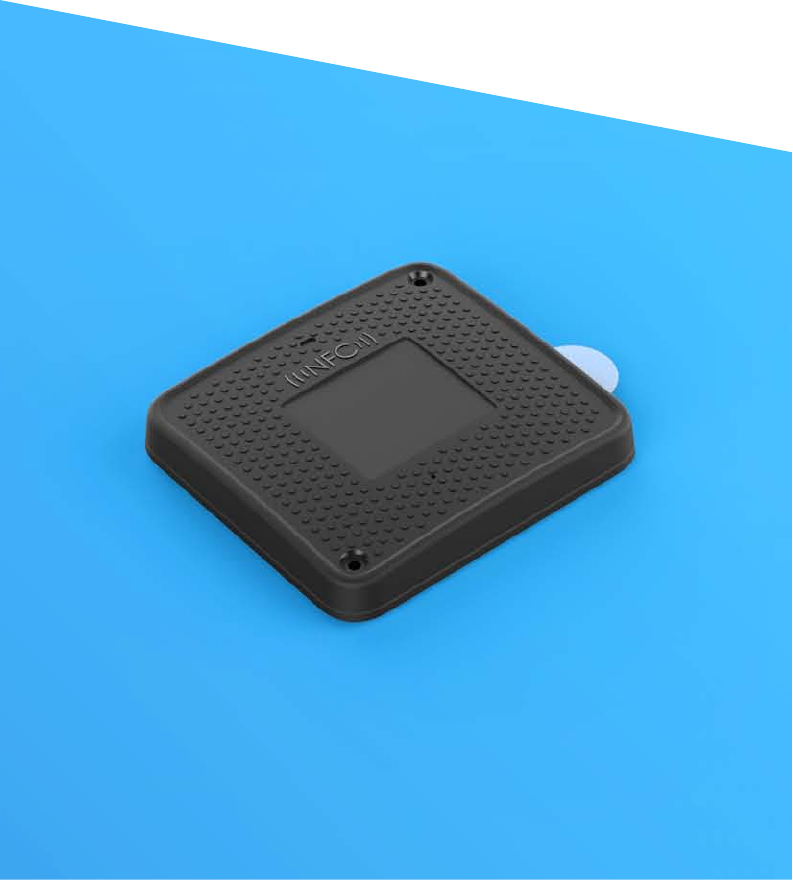

Tag exterior overview
7
How to use GWS-CSCG

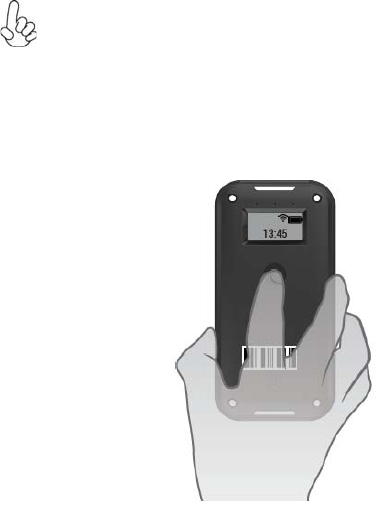

Step 1: Power On/Off
1. Power On - Press button three times. On third press user must hold button down for
20 seconds.
If successful: Power icon on reflecting battery charge status on display, green LED
pattern and positive audio chime.
If unsuccessful: Power icon reflecting insufficient battery on display, red LED light
pattern and negative audio chime.
2. Power Off - Press button three times. On third press user must hold button down for
20 seconds.
If successful: Power icon on reflecting battery charge status on UI, green LED pattern
and positive audio chime.
If unsuccessful: Power icon will be reflected on UI, red LED light pattern and negative
audio chime.
User will not be able to power down device if the shipment is still active.
8
Step 2: NFC Tag Pairing

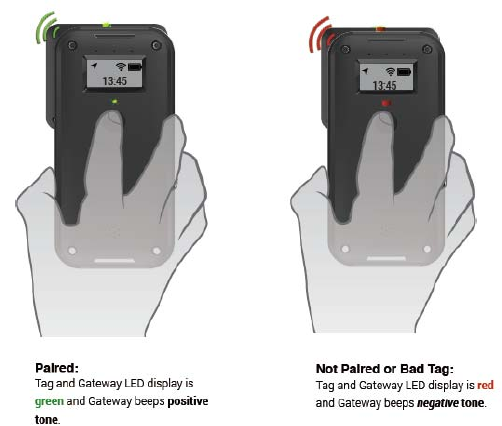

Tap powered on Gateway to Tag and press the NFC button to pair the Tag to the
Gateway.
9
Step 3: Load shipment

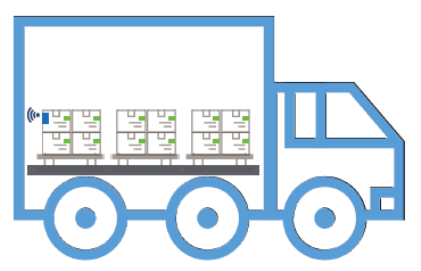

When loading pallets with Tags and Gateways onto a truck, try to place one pallet in
the back of the truck, one pallet in the center of the truck and one pallet with the
Gateway right by the door. Make sure that the Gateway faces the truck door, and is as
close to the door as possible to ensure the Gateway signal can best maintain cell
connectivity.
10

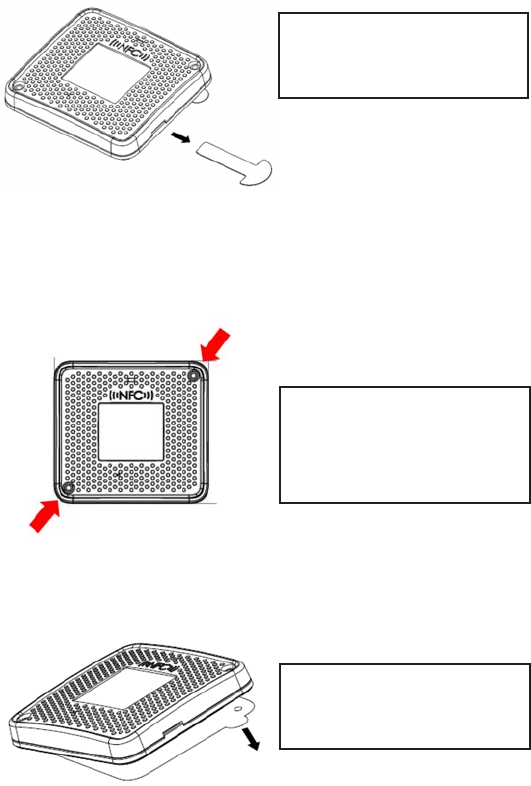

How to Power On Tag
How to Attach Tag to Cargo
By pulling the battery strip away
from the Tag, the tag will be
power-on with LED light blink.
By apply screws through the 2
mounting holes on the corner of
tag, it can be secure to any
wooden crate or box for
transportation.
Via Screws:
Via Self-tape:
By peeling off the back film and
attache the tag to the side of
shipping carton.
GWS-CSCG Tag
Logistics Monitoring Tag
