ELITEGROUP COMPUTER SYSTEMS TRBC1CD1 Wireless Motherboard User Manual
ELITEGROUP COMPUTER SYSTEMS CO., LTD Wireless Motherboard
User Manual
TR10CD1
Motherboard Guide
1
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for
help.
Operations in the 5.15-5.25GHz band are restricted to indoor
usage only.
CAUTION:
Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
2
undesired operation.
3
RF Exposure Information
This device meets the government’s requirements for exposure to
radio waves. This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the
U.S. Government.
End Product Labeling
This transmitter module is authorized only for use in device where
the antenna may be installed such that 20cm may be maintained
between the antenna and users. The final end product must be
labeled in a visible area with the following: "Contains FCC ID:
WL6-TRBC1CD1”
Information for the OEMs and Integrators
The following statement must be included with all versions of this
document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other
restrictions.
This radio transmitter FCC ID: WL6-TRBC1CD1 has been
approved by FCC to operate with the antenna types listed below
with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this
device.
Antenna List
4
No.
Manufacturer
Part No.
Antenna
Type
Peak Gain
1
Pulse
02H475-00
6500
Ceramic
Chip
Antenna
3.2 dBi for 2.4GHz
4.2 dBi for 5 GHz
Note: The antenna connector is I-PEX type.
5
Motherboard layout
Main components
No.
Name
No.
Name
A
CPU+PMIC+DDR+EMMC
E
NFC
B
Audio Codec
F
TPM
C
Microphone
G
Microphone
D
Rear facing camera
6

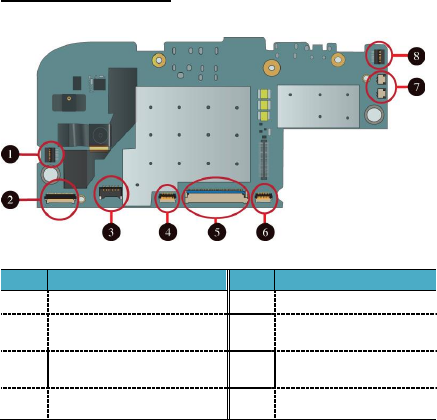

System connectors
No.
Name
No.
Name
1
Power key Connector
5
LCD Connector
2
Front Camera
6
Touch panel
Connector
3
Battery Connector
7
Speaker
Connectors
4
Volume key Connector
8
SIM Card Connector
7
I/O Ports
No.
Name
No.
Name
1
Micro USB port
4
Headphone plug
2
Mini HDMI port
5
DC-in jack
3
Micro SD card slot
8
Features
Processor
Intel Cloverview +
Dual core
L2 cache up to 512KB
Memory
8bit, LP DDR2 Mobile RAM PoP
1GB
Storage
Single eMMC v4.512
Default 16 GB
Wireless
Wi-Fi 802.11 a/b/g/n
Bluetooth 3.0
NFC support
Display
LVDS interface
Resolution: 1280(H) × 3 (RGB) ×
800(V) pixels
Support multi-touch feature
Cameras
Control
Two MIPI CSI-2 interfaces for
external image sensors.
Enhanced color interpolation
12-bit color resolution
Video image stabilization support
Flash light control
Rear camera: 5.0 M
9
Input/Output
1 x micro-USB 2.0, OTG port
(Type A/B)
1 x Mic/head phone jack combo
1 x mini-HDMI (Type D)
1 x micro-SD card slot
1 x DC-in jack
Micro SIM card support
Speaker & Mic
Build-in Speaker x 2
Internal Digital MIC x 1
