ETI Solid State Lighting 5407472018 LED ceiling lamp User Manual

Elec-Tech International Co., Ltd. LED ceiling lamp Users Manual

User Manual

Page 1 of 11 ELEC-TECH INTERNATIONAL CO., LTD. Product Instruction Manual Product Name: LED ceiling lamp Model No.： 540747##（##＝00-99） Manufacturer: ETI Solid State Lighting (Zhuhai) Ltd Address: No.1, Zhongzhu Road South,Science & Technology Innovation Coast, High Tech District, Zhuhai City, Guangdong Prov., China
Page 2 of 11 Contents 1. Product Introduction .................................................................................................................................... 3 1.1. Product Description ................................................................................................................................. 3 1.2. Product schematic diagram: ...................................................................................................................... 3 2. Product Featuers: ....................................................................................................................................... 3 2.1. Product characteristics ： ........................................................................................................................ 3 2.2 Specification ............................................................................................................................................ 4 2.3 Light distribution （Light distribution pattern） ........................................................................................ 4 （I luminance distribution ） ...................................................................................................................... 4 3．Installation Instructions .............................................................................................................................. 5 4．Maintenance instruction ............................................................................................................................ 9 5．Environment requirement .......................................................................................................................... 9 6．Package Carried Standard ........................................................................................................................ 9 7. Package Instruction .................................................................................................................................. 10 7.1 Packing Specification .......................................................................................................................... 10 7.2 Package list ........................................................................................................................................ 10

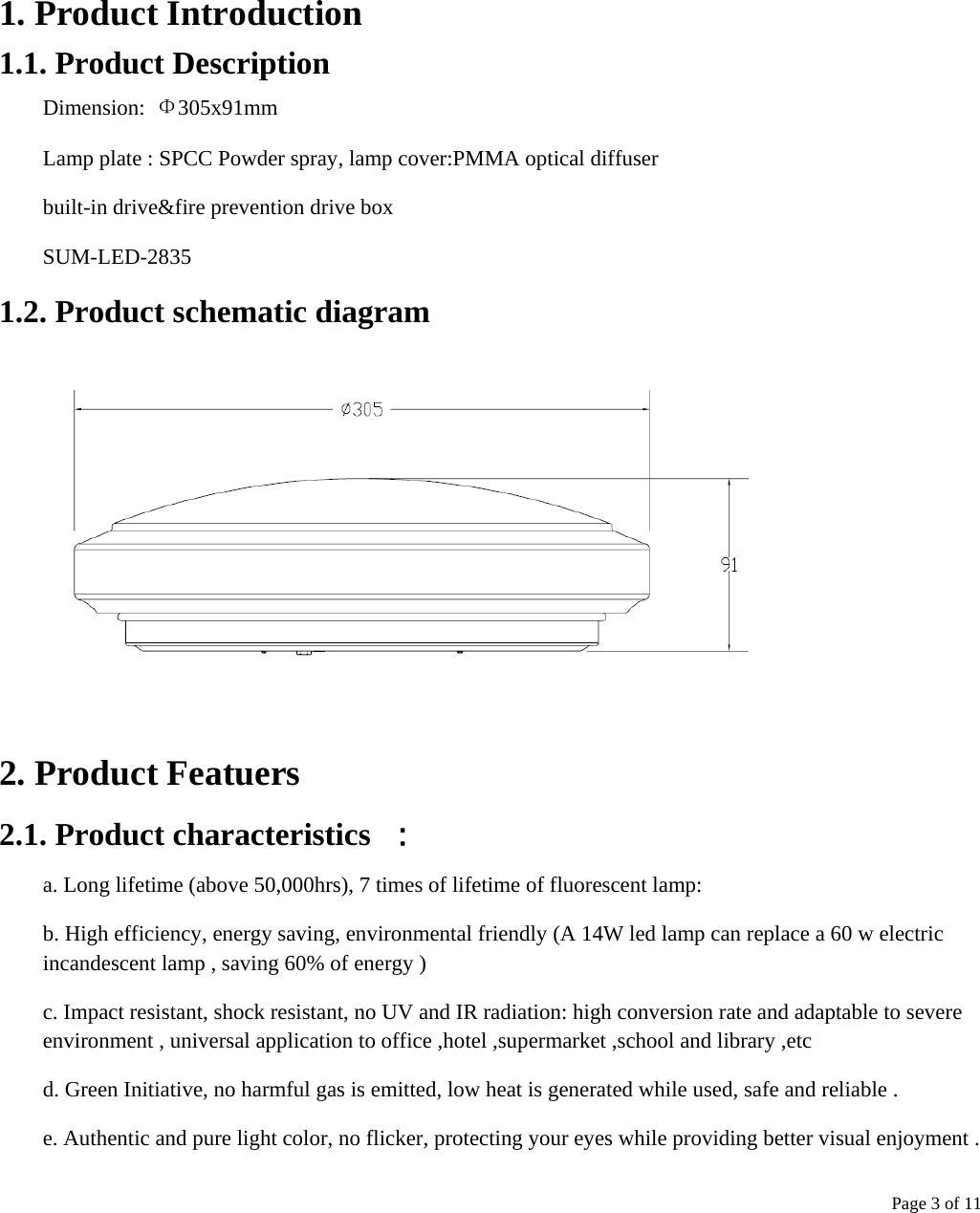

Page 3 of 11 1. Product Introduction 1.1. Product Description Dimension: Φ305x91mm Lamp plate : SPCC Powder spray, lamp cover:PMMA optical diffuser built-in drive&fire prevention drive box SUM-LED-2835 1.2. Product schematic diagram 2. Product Featuers 2.1. Product characteristics ： a. Long lifetime (above 50,000hrs), 7 times of lifetime of fluorescent lamp: b. High efficiency, energy saving, environmental friendly (A 14W led lamp can replace a 60 w electric incandescent lamp , saving 60% of energy ) c. Impact resistant, shock resistant, no UV and IR radiation: high conversion rate and adaptable to severe environment , universal application to office ,hotel ,supermarket ,school and library ,etc d. Green Initiative, no harmful gas is emitted, low heat is generated while used, safe and reliable . e. Authentic and pure light color, no flicker, protecting your eyes while providing better visual enjoyment .

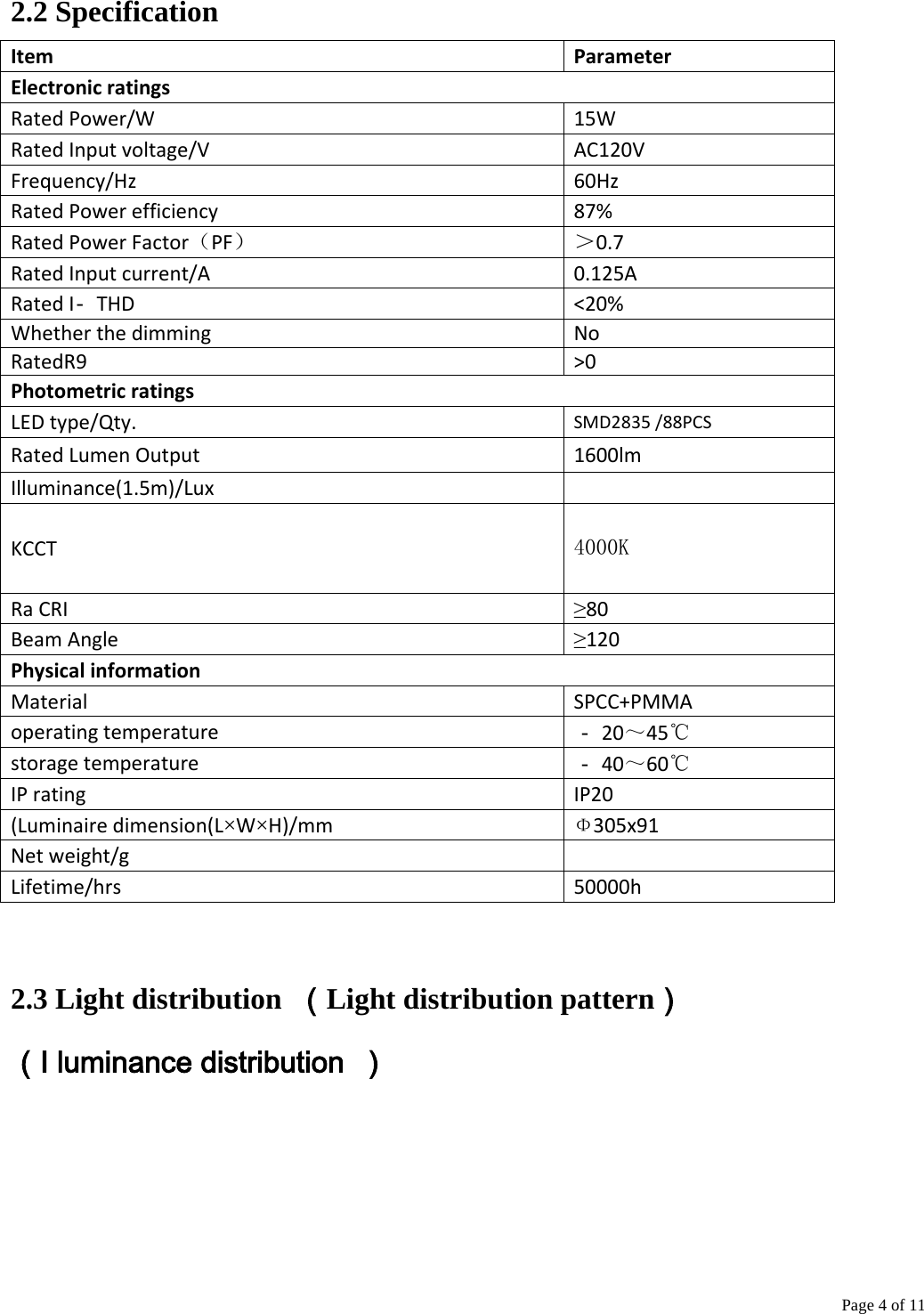

Page 4 of 11 2.2 Specification Item Parameter Electronic ratings Rated Power/W 15W Rated Input voltage/V AC120V Frequency/Hz 60Hz Rated Power efficiency 87% Rated Power Factor（PF） ＞0.7 Rated Input current/A 0.125A Rated I‐THD <20% Whether the dimming No RatedR9 >0 Photometric ratings LED type/Qty. SMD2835 /88PCS Rated Lumen Output 1600lm Illuminance(1.5m)/Lux KCCT 4000K Ra CRI ≥80 Beam Angle ≥120 Physical information Material SPCC+PMMA operating temperature ‐20～45℃ storage temperature ‐40～60℃ IP rating IP20 (Luminaire dimension(L×W×H)/mm Φ305x91 Net weight/g Lifetime/hrs 50000h 2.3 Light distribution （Light distribution pattern） （I luminance distribution ）
Page 5 of 11 3．Installation Instructions 1. Put the Fixture flat on the desktop, turn the lamp shade counterclockwise , and then take out the lamp shade 。 2. If necessary, according to the actual needs, choose to set the microwave induction distance(for details on height and manner of installation, see Radar Sensor Specification), time, trigger the brightness of induction. 2.1 The factory setting is: Detection range of 75% / waiting time of 5 minutes / light failure (that is, regardless of day and night, it was all bright, people left after the delay off) 2.2 This sensor is a mo󲐀on switch, turns on the light on detec󲐀on of movement, and turns off a󲐀er a pre-selected hold-󲐀me when no movement around. A daylight sensor is also built-in to prevent the light from switching on when there is sufficient natural light. 2.2.1With sufficient natural light, the light does not switch on when presence detected.

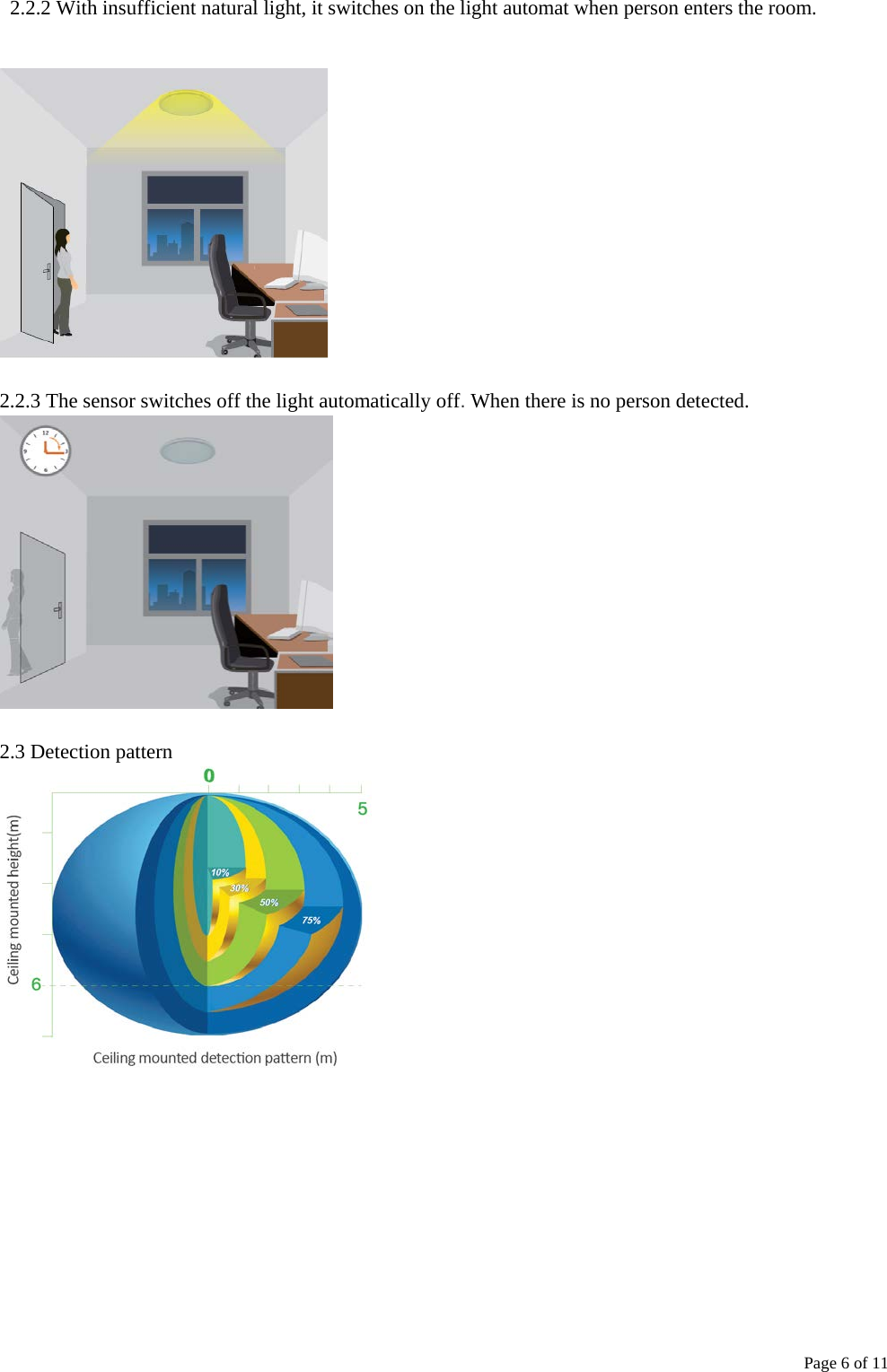

Page 6 of 11 2.2.2 With insufficient natural light, it switches on the light automat when person enters the room. 2.2.3 The sensor switches off the light automatically off. When there is no person detected. 2.3 Detection pattern

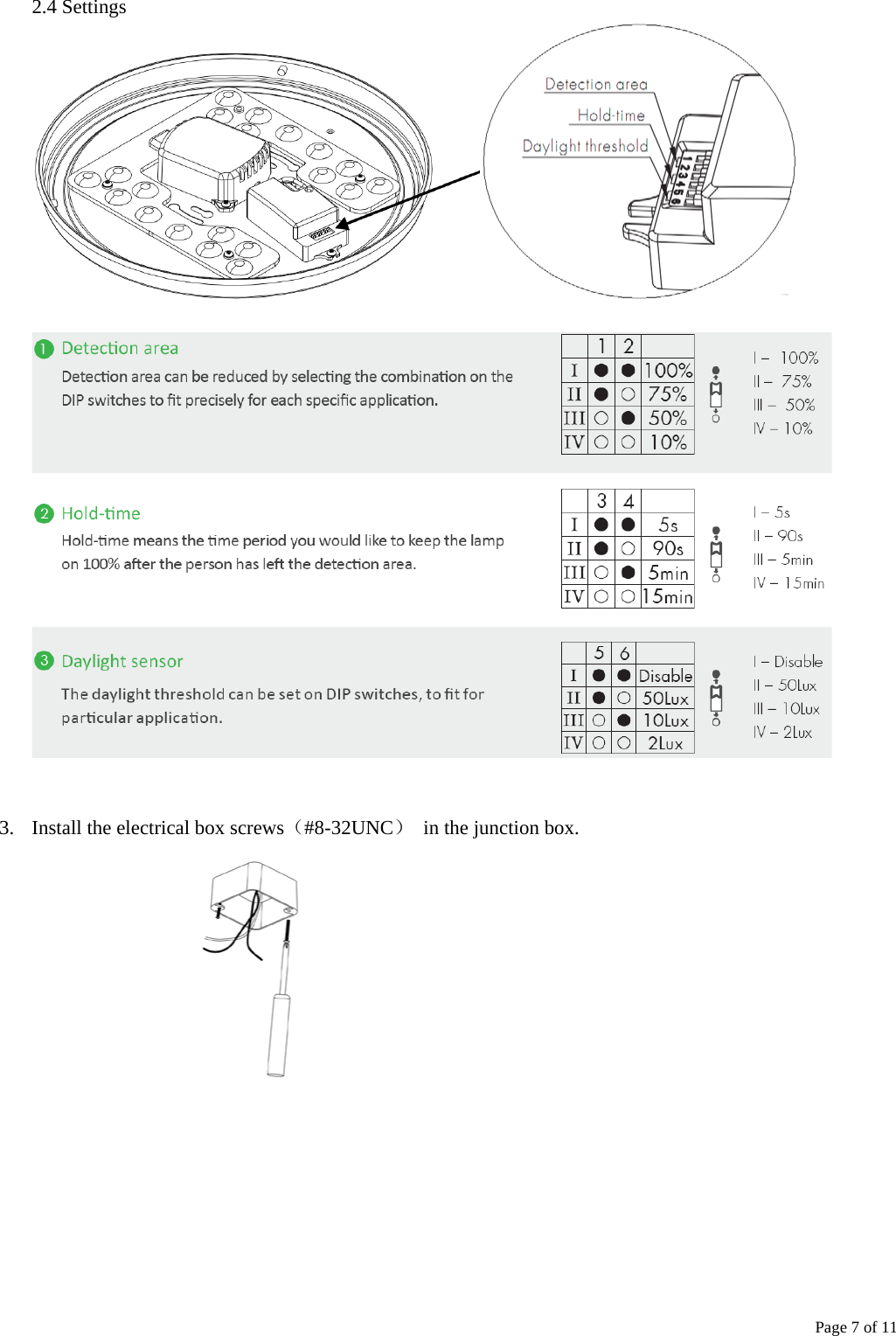

Page 7 of 11 2.4 Settings 3. Install the electrical box screws（#8-32UNC） in the junction box.

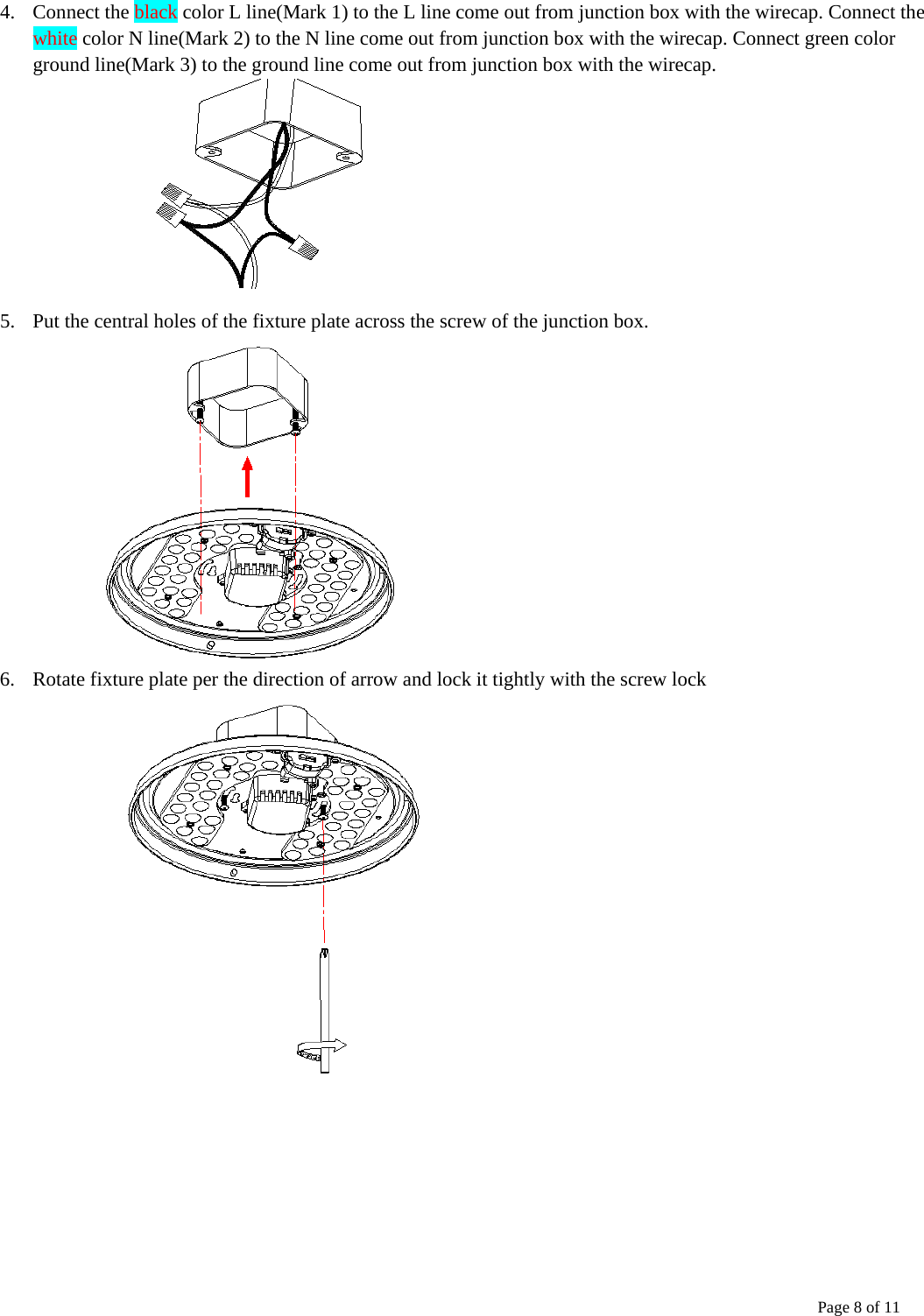

Page 8 of 11 4. Connect the black color L line(Mark 1) to the L line come out from junction box with the wirecap. Connect the white color N line(Mark 2) to the N line come out from junction box with the wirecap. Connect green color ground line(Mark 3) to the ground line come out from junction box with the wirecap. 5. Put the central holes of the fixture plate across the screw of the junction box. 6. Rotate fixture plate per the direction of arrow and lock it tightly with the screw lock
Page 9 of 11 7. Reinstall the lens to fixture and make sure the lens is fastened to the fixture. 8. Turn on power 4．Maintenance instruction 4.1 Do Not use volatile solvent such as alcohol to clean the troffer. 4.2 Use soft cotton cloth with suds to clean the troffer . 4.3 Non-profecssional Do not attempt to take apart and repair the troffer . 4.4 Please use the constant-current driver exclusively adaptive to the troffer, do not change the driver without permission . 5．Environment requirement Operating temperature ：-20～45℃；Storage temperature ：-40～60℃。 6．Package Carried Standard UL-1598/UL8750/ ENERGY STAR

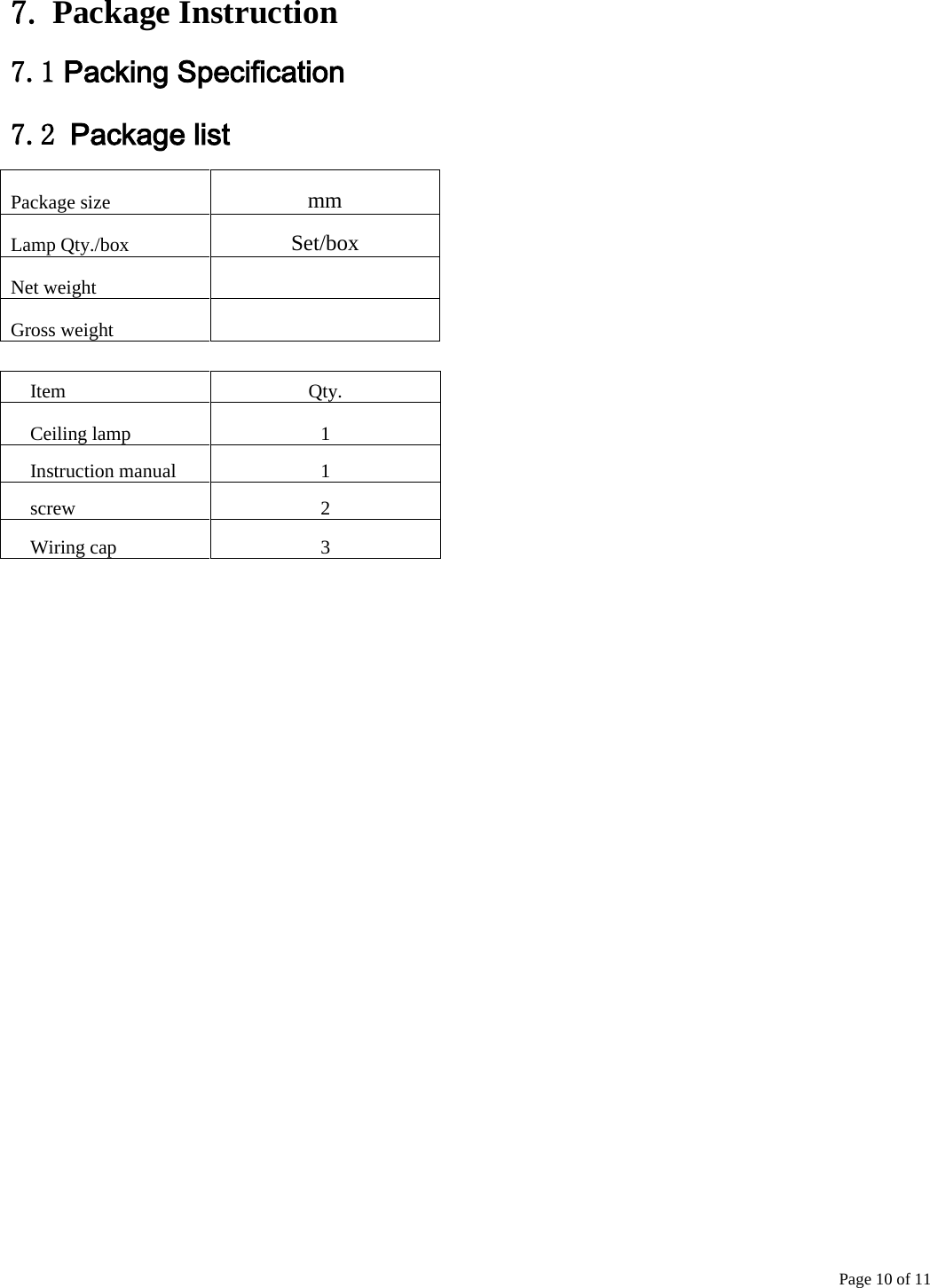

Page 10 of 11 7. Package Instruction 7.1 Packing Specification 7.2 Package list Package size mm Lamp Qty./box Set/box Net weight Gross weight Item Qty. Ceiling lamp 1 Instruction manual 1 screw 2 Wiring cap 3

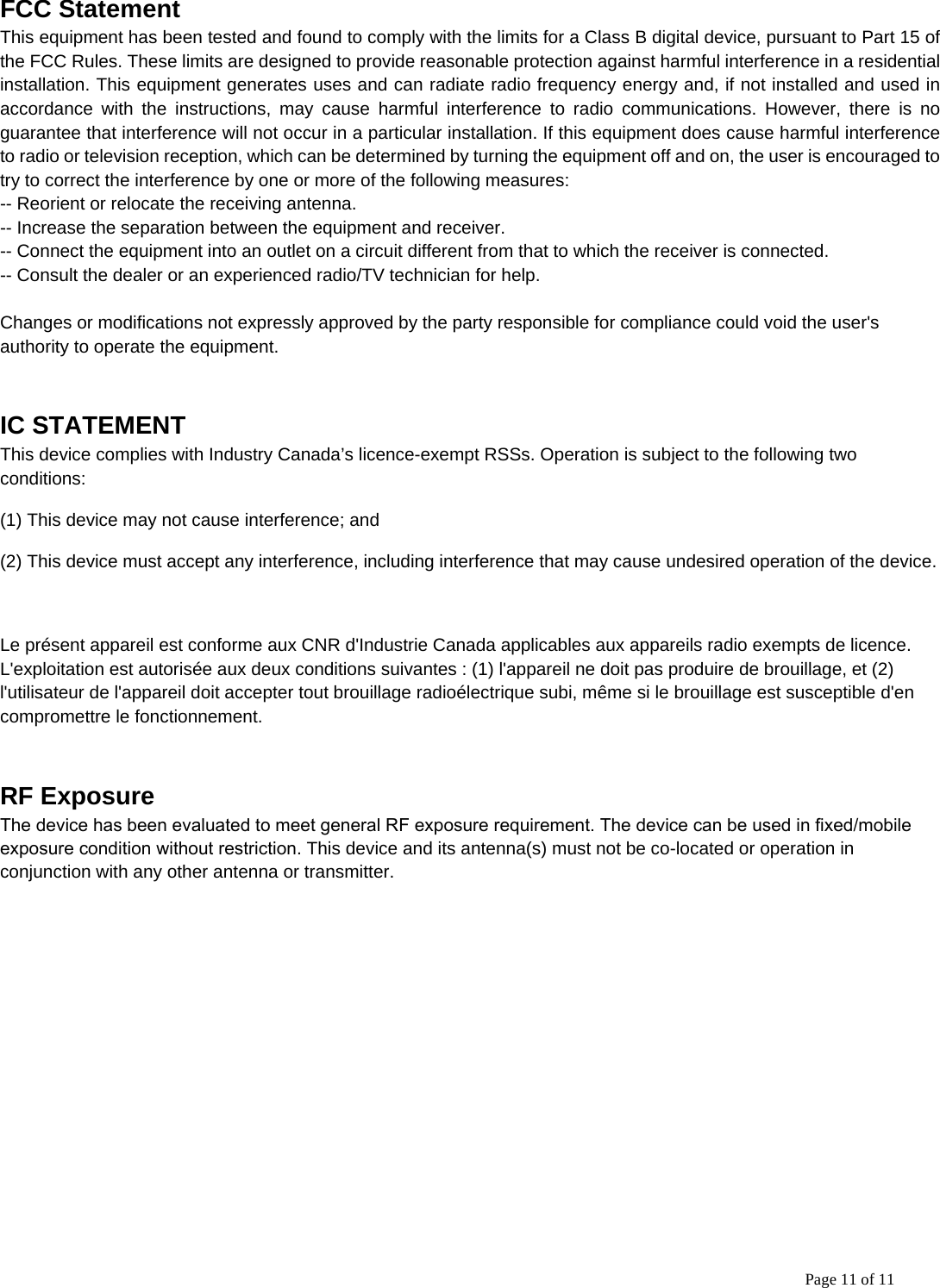

Page 11 of 11 FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC STATEMENT This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Exposure The device has been evaluated to meet general RF exposure requirement. The device can be used in fixed/mobile exposure condition without restriction. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
