ETI Solid State Lighting 5407472018 LED ceiling lamp User Manual
Elec-Tech International Co., Ltd. LED ceiling lamp Users Manual
User Manual
Page 1 of 11
ELEC-TECH INTERNATIONAL CO., LTD.
Product Instruction Manual
Product Name: LED ceiling lamp
Model No.： 540747##（##＝00-99）
Manufacturer: ETI Solid State Lighting (Zhuhai) Ltd
Address: No.1, Zhongzhu Road South,Science & Technology Innovation Coast,
High Tech District, Zhuhai City, Guangdong Prov., China
Page 2 of 11
Contents
1. Product Introduction .................................................................................................................................... 3
1.1. Product Description ................................................................................................................................. 3
1.2. Product schematic diagram: ...................................................................................................................... 3
2. Product Featuers: ....................................................................................................................................... 3
2.1. Product characteristics ： ........................................................................................................................ 3
2.2 Specification ............................................................................................................................................ 4
2.3 Light distribution （Light distribution pattern） ........................................................................................ 4
（I luminance distribution ） ...................................................................................................................... 4
3．Installation Instructions .............................................................................................................................. 5
4．Maintenance instruction ............................................................................................................................ 9
5．Environment requirement .......................................................................................................................... 9
6．Package Carried Standard ........................................................................................................................ 9
7. Package Instruction .................................................................................................................................. 10
7.1 Packing Specification .......................................................................................................................... 10
7.2 Package list ........................................................................................................................................ 10
Page 3 of 11
1. Product Introduction
1.1. Product Description

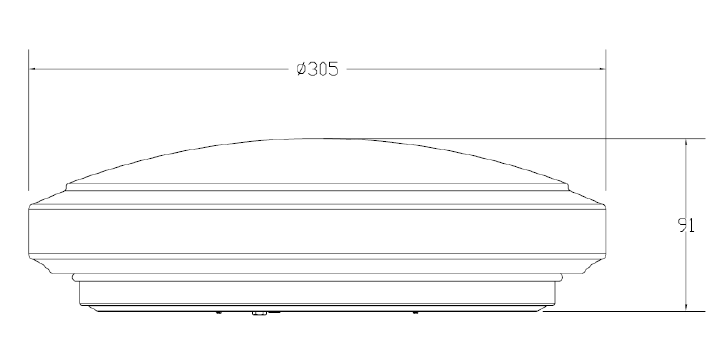

Dimension: Φ305x91mm
Lamp plate : SPCC Powder spray, lamp cover:PMMA optical diffuser
built-in drive&fire prevention drive box
SUM-LED-2835
1.2. Product schematic diagram
2. Product Featuers
2.1. Product characteristics ：
a. Long lifetime (above 50,000hrs), 7 times of lifetime of fluorescent lamp:
b. High efficiency, energy saving, environmental friendly (A 14W led lamp can replace a 60 w electric
incandescent lamp , saving 60% of energy )
c. Impact resistant, shock resistant, no UV and IR radiation: high conversion rate and adaptable to severe
environment , universal application to office ,hotel ,supermarket ,school and library ,etc
d. Green Initiative, no harmful gas is emitted, low heat is generated while used, safe and reliable .
e. Authentic and pure light color, no flicker, protecting your eyes while providing better visual enjoyment .
Page 4 of 11
2.2 Specification
Item Parameter
Electronic ratings
Rated Power/W
15W
Rated Input voltage/V AC120V
Frequency/Hz
60Hz
Rated Power efficiency
87%
Rated Power Factor
（
PF
）
＞
0.7
Rated Input current/A
0.125A
Rated I
‐
THD
<20%
Whether the dimming
No
RatedR9
>0
Photometric ratings
LED type/Qty.
SMD2835 /88PCS
Rated Lumen Output 16
00lm
Illuminance(1.5m)/Lux
KCCT
4000K
Ra CRI
≥80
Beam Angle
≥120
Physical information
Material
SPCC+PMMA
operating temperature
‐
20
～
45
℃
storage temperature
‐
40
～
60
℃
IP rating
IP20
(Luminaire dimension(L×W×H)/mm
Φ
305x91
Net weight/g
Lifetime/hrs
50000h
2.3 Light distribution （Light distribution pattern）
（I luminance distribution ）
Page 5 of 11
3．Installation Instructions

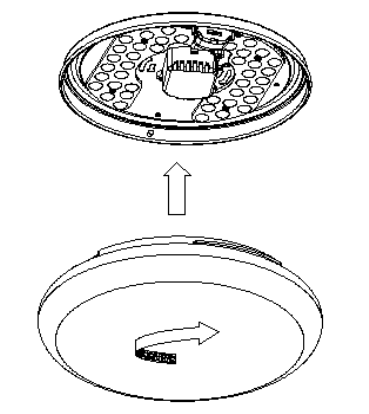

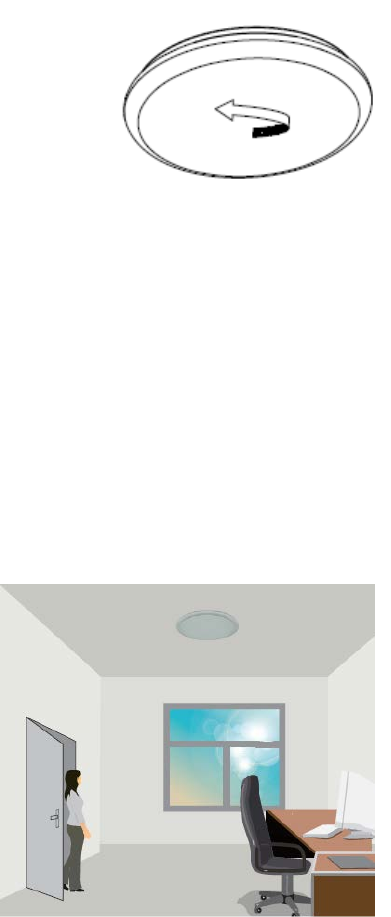

1. Put the Fixture flat on the desktop, turn the lamp shade counterclockwise , and then take out the lamp
shade 。
2. If necessary, according to the actual needs, choose to set the microwave induction distance(for details on height
and manner of installation, see Radar Sensor Specification), time, trigger the brightness of induction.
2.1 The factory setting is:
Detection range of 75% / waiting time of 5 minutes / light failure (that is, regardless of day and night, it was all
bright, people left after the delay off)
2.2 This sensor is a moon switch, turns on the light on detecon of movement, and turns off aer a pre-selected
hold-me when no
movement around. A daylight sensor is also built-in to prevent the light from switching on when there is sufficient
natural light.

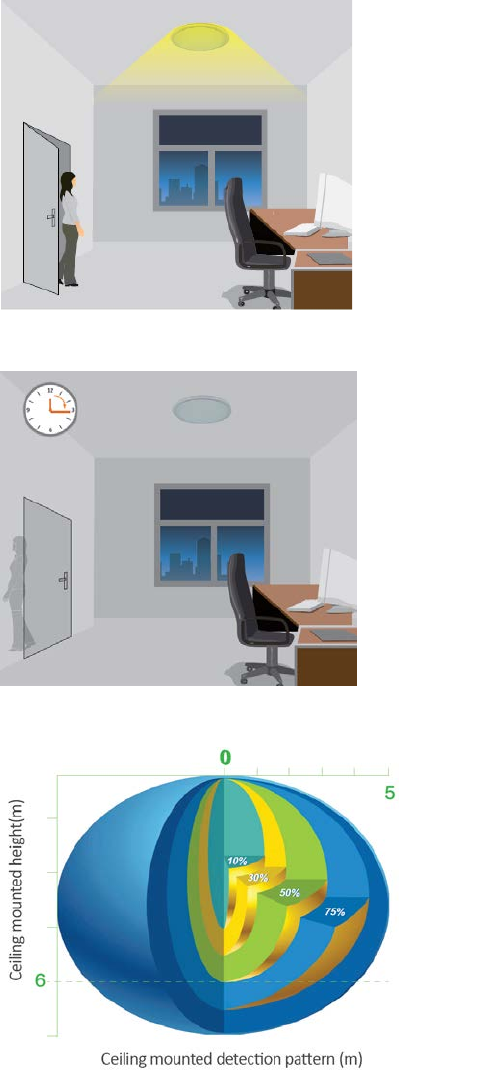

2.2.1With sufficient natural light, the light does not switch on when presence detected.
Page 6 of 11
2.2.2 With insufficient natural light, it switches on the light automat when person enters the room.
2.2.3 The sensor switches off the light automatically off. When there is no person detected.
2.3 Detection pattern
Page 7 of 11

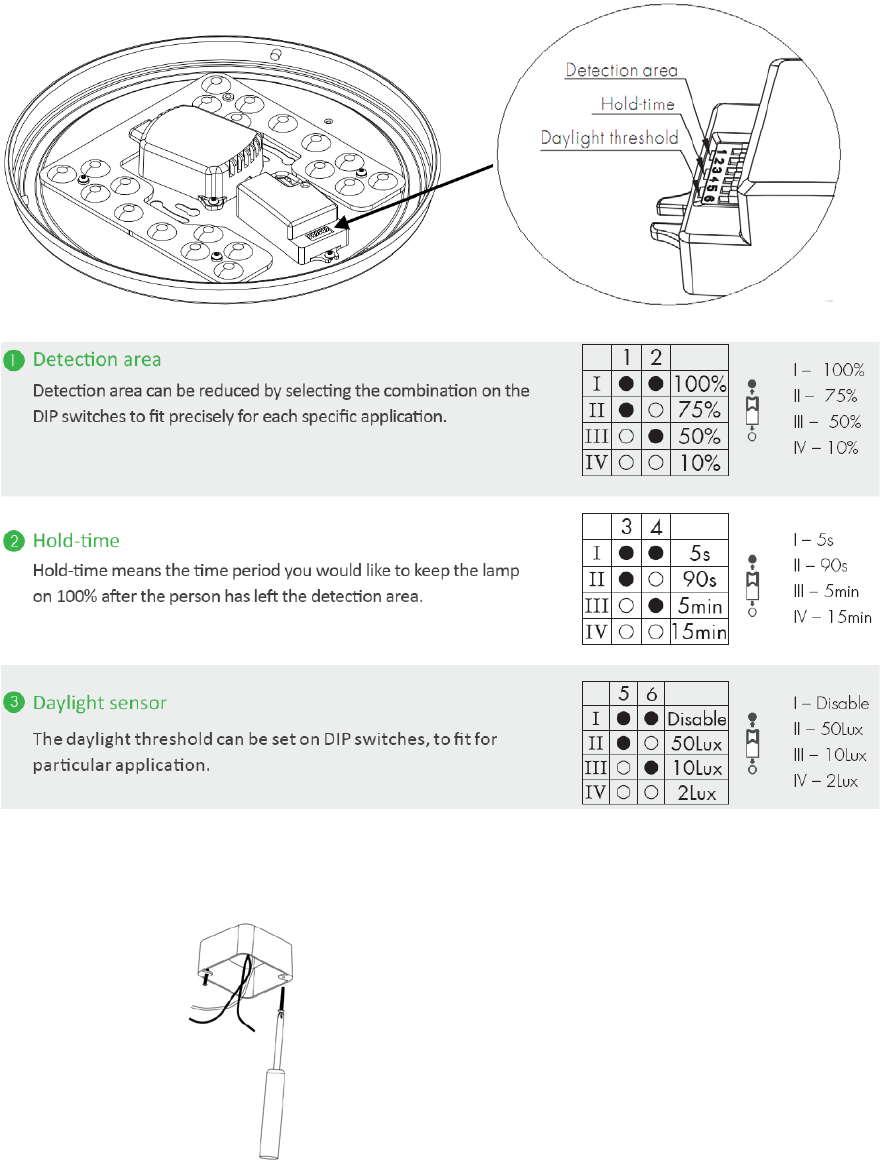

2.4 Settings

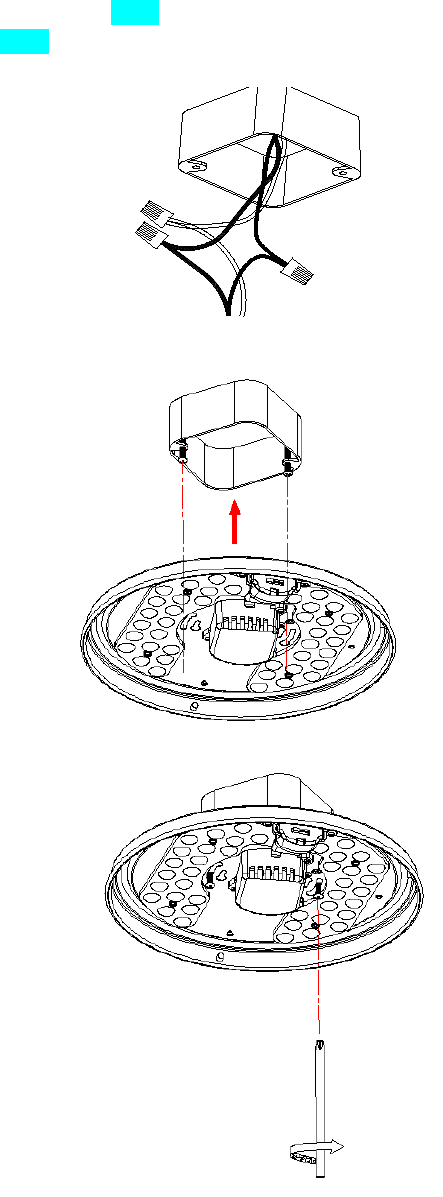

3. Install the electrical box screws（#8-32UNC） in the junction box.
Page 8 of 11
4. Connect the black color L line(Mark 1) to the L line come out from junction box with the wirecap. Connect the
white color N line(Mark 2) to the N line come out from junction box with the wirecap. Connect green color
ground line(Mark 3) to the ground line come out from junction box with the wirecap.
5. Put the central holes of the fixture plate across the screw of the junction box.
6. Rotate fixture plate per the direction of arrow and lock it tightly with the screw lock
Page 9 of 11
7. Reinstall the lens to fixture and make sure the lens is fastened to the fixture.
8. Turn on power
4．Maintenance instruction
4.1 Do Not use volatile solvent such as alcohol to clean the troffer.
4.2 Use soft cotton cloth with suds to clean the troffer .
4.3 Non-profecssional Do not attempt to take apart and repair the troffer .
4.4 Please use the constant-current driver exclusively adaptive to the troffer, do not change the driver without
permission .
5．Environment requirement
Operating temperature ：-20～45℃；Storage temperature ：-40～60℃。
6．Package Carried Standard
UL-1598/UL8750/ ENERGY STAR
Page 10 of 11
7. Package Instruction
7.1 Packing Specification
7.2 Package list
Package size
mm
Lamp Qty./box
Set/box
Net weight
Gross weight
Item
Qty.
Ceiling lamp
1
Instruction manual
1
screw
2
Wiring cap
3
Page 11 of 11
