Note
This film scanner supports Windows XP, Vista/Windows7 (32/64bits) via USB 2.0
only.
We strongly suggest using a clean, dry, non-alcohol cotton swab to insert into the
film scanner slot and clean the glass surface periodically to produce a clear image.
Make sure all negative films, slide films, and cover trays are free of dust and dirt
before inserting into the ITNS-400 as this may affect the image quality when
scanning.
When cleaning films, please use a professionally recommended purger from a
photo store to avoid damaging old or precious films.

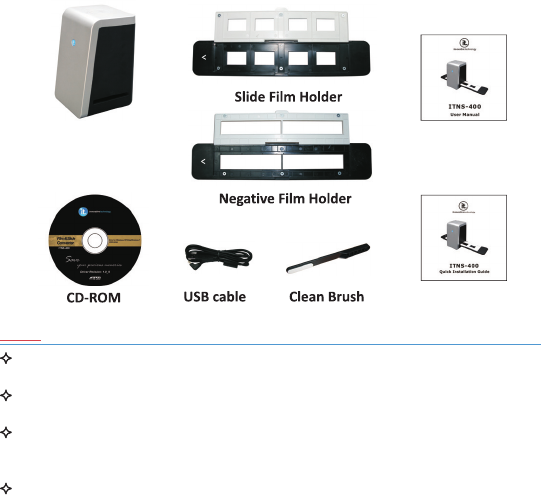

I. Unpack the ITNS-400
Quick Installation Guide
ITNS-400 User Manual
II. Driver Installation
1. Turn on the computer
2. Insert the installation CD into the CD-ROM drive and the installation CD
menu will appear.

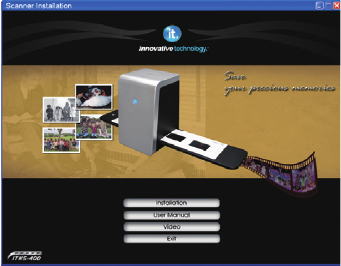

3. Choose Installation.
To use the ITNS-400, please complete the following installation in advance.
-2-

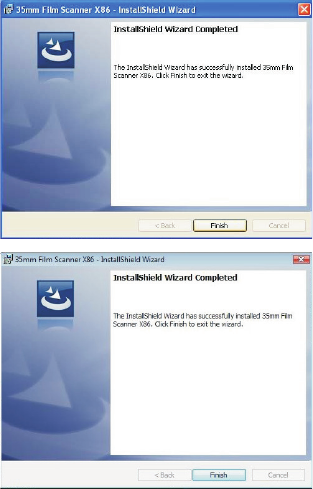

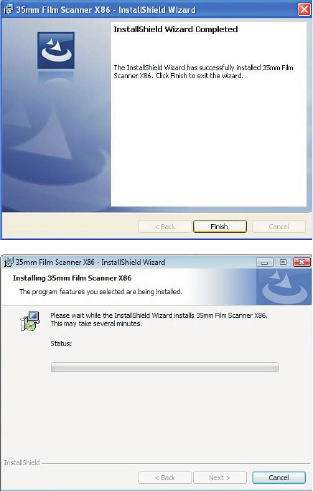

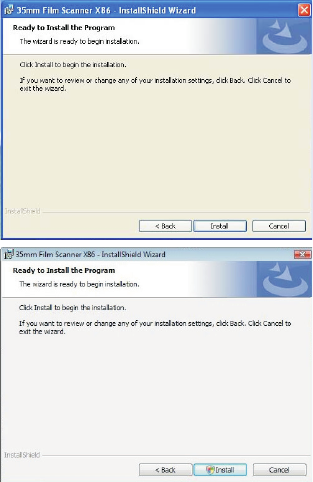

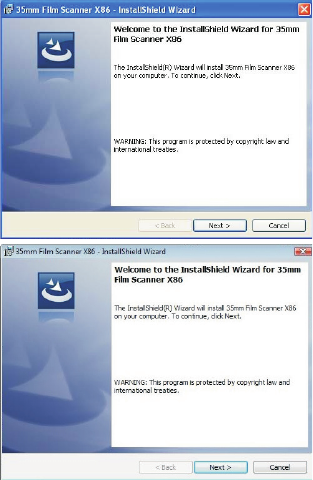

4. Follow the on-screen instructions. (Windows XP, Vista/Windows7)
-3-
-4-
-5-
-6-

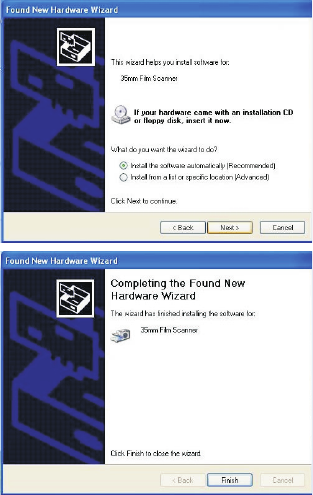

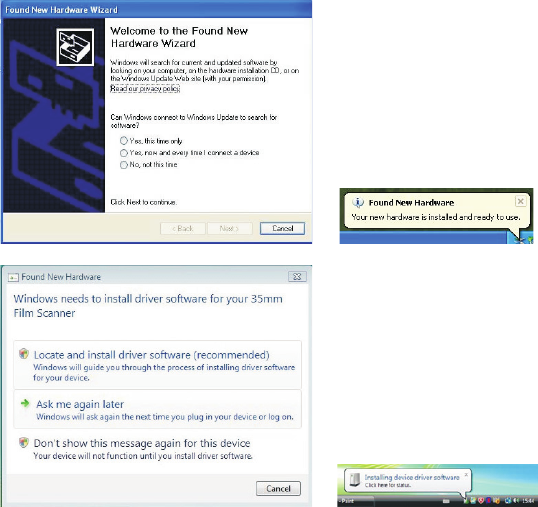

5. After completing software installation, please connect ITNS-400 to PC. The
New Hardware Wizard will detect a new device.
-7-
6. Select “Yes” in XP or “Locate and install driver software (recommended)” in
Vista/Windows7 OS.
-8-
-9-
7. After completing the installation, the filmscanner is ready to start with
“35mm FilmScanner” Image Scan Tool under program files. (Windows XP,
Vista/Windows7 Restart is not required, but it is recommended to restart
your PC after installation/un-installation.
)
III. Using the ITNS-400

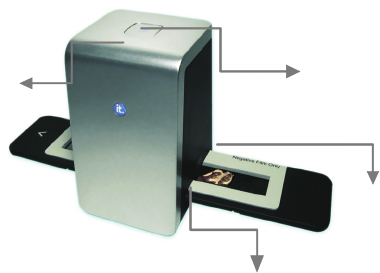

Power status LED Copy button
USB Cable
Film Slot

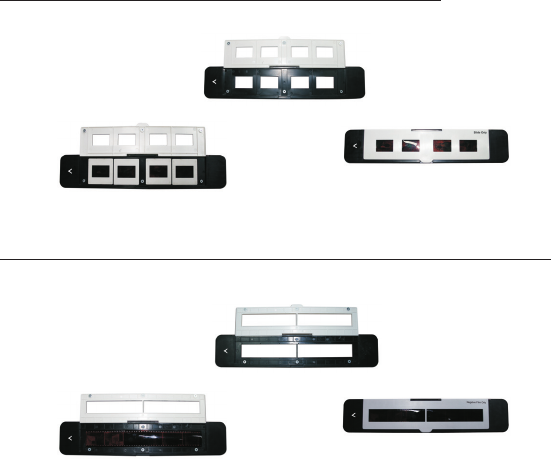

Installing film into the film holder
Install slide Film into the holder entitled “Slides Only”
1. Open the slide holder as illustrated
-10-
2. Place slide in recessed slot in holder 3. Close the film holder

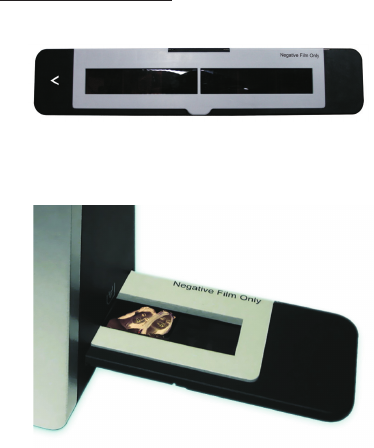

Install Negative Film into the holder entitled “Negative Film Only”:
1. Open the film holder as illustrated
2. Install film into negative film slot 3. Close the film holder
Note

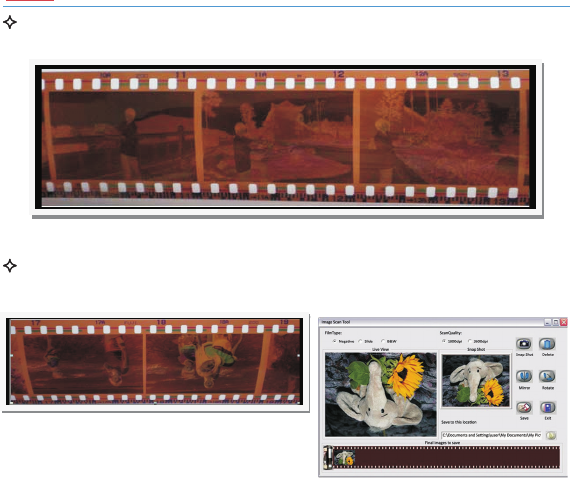

To avoid a mirror image, follow the serial numbers (from left to right) on
top of film when installing negative film into holder.
Figure 1
If the image is upside down [see fig.2], the image can be corrected by
“Rotate” function in Image Scan Tool after capture [see fig.3].
Figure 2
Figure 3
-11-
How to use ITNS-400
1. Put Film into film holder
2. Insert the film holder into the right side of the ITNS-400 unit
-12-
-13-

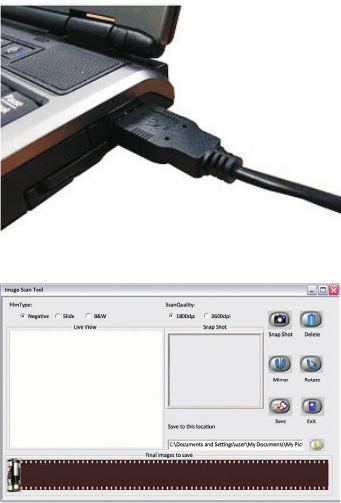

3. Connect ITNS-400 to PC

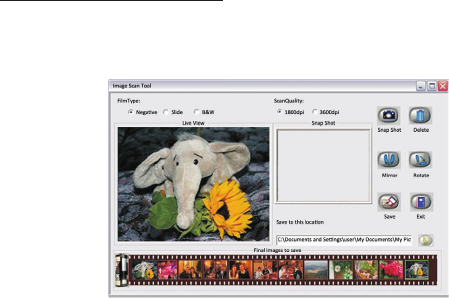

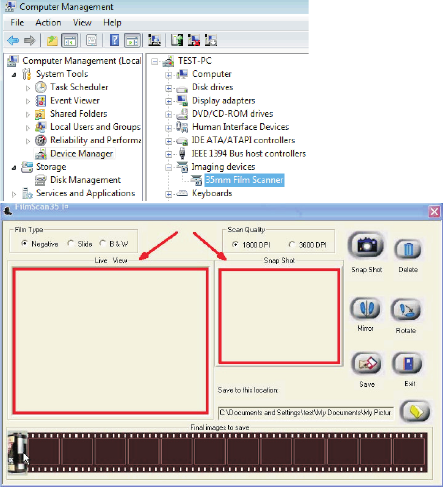

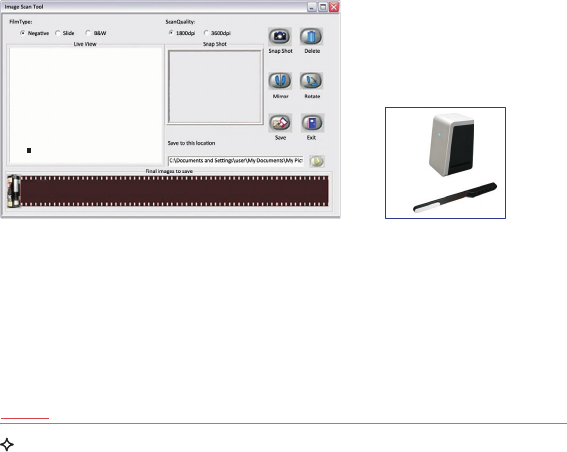

4. Click “Image Scan Tool” to enter operation interface as below
-14-
5. Press “Copy” button to capture the image
6. Process necessary modification by function buttons in right hand side
-15-

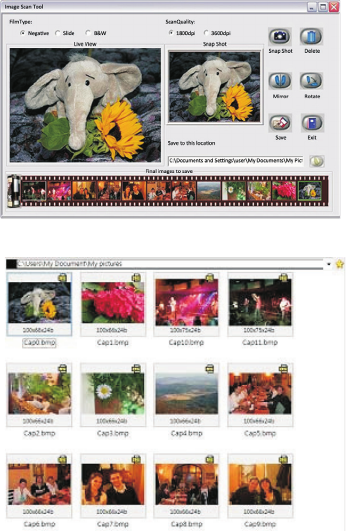

7. Save captured images to PC
8. Get fimal images from PC for further review and edit
-16-
User interface introduction
When user selects a “Negative” source, the image in “Live View” window will
be exactly like the processed result.
-17-

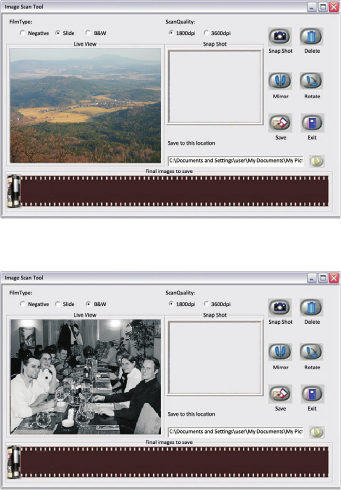

If device processes a slide, the “Live View” will show a color image and the
FilmType will remain the same.
This is the live view under black and white negative option.
-18-

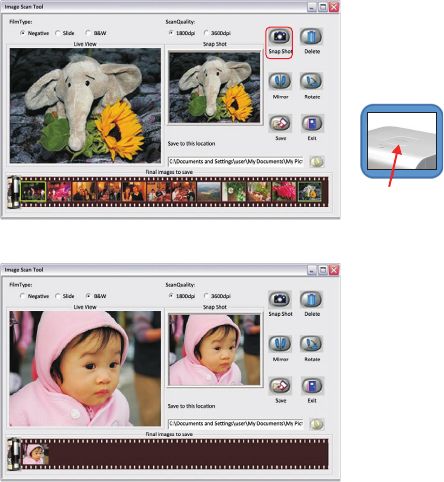

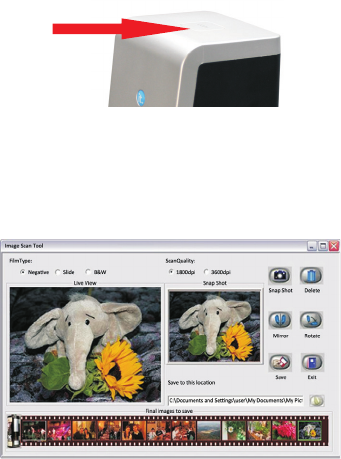

User can convert images from traditional film to digital either by “Snap Shot”
button in Image Scan Tool or the button on top of filmscanner. Then, the
capture result will appear in the “Snap Shot” and “Final images to save”
window.
All of the effects in Image Scan Tool will be ready for instant preview in “Snap
Shot” and “Final images to save” window.
Touch button
-19-

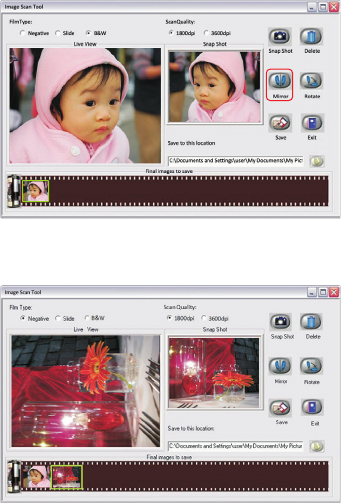

Apply the Mirror function by pressing the “Mirror” icon, that will flip the
image and be shown in the “Snap Shot” window as well as the “Final images
to Save”.
Or apply the Rotate function by pressing “Rotate” button, the image will be
rotated 90 degrees each time. Images can be continuously rotated a full 360
degrees or until desired.

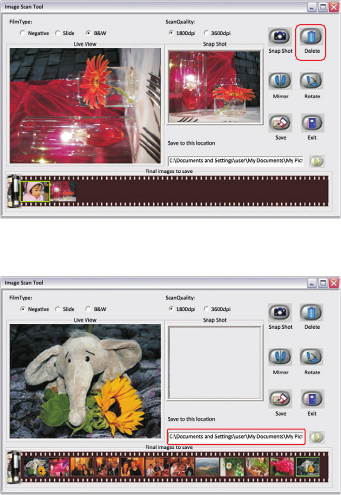

If the user wishes to delete a specific image from the capture pool, simply
click the image under “Final image to save” again, then the selected image
can be deleted by applying the “Delete” button.

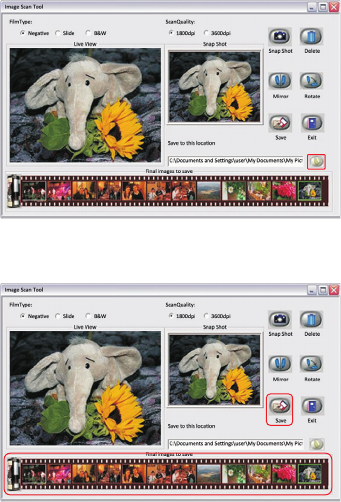

After modification, user can save images to the default location at
“C:\Documents and Settings\Users\My Documents\My Pictures”.
-20-
Once press “Save” key, all of captures images will be saved into defined
location. The “final image” saving window shall be empty after press the
“Save” button.
-21-
Or define preferable location for saving captures images by pressing the
directory button. Another window will pop out for user to select required
location.

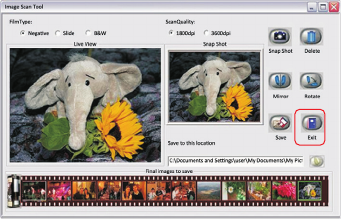

When the capture is complete, the user can press “Exit” button to quit this
Image Scan Tool, Then, review captured images or process more fancy
modification with bundle software for PC.
-22-
-23-
IV. Specification
Image Sensor: 5 mega CMOS sensor
Lens: F no.=2.0, 4 Glass elements,
Focus Range: Fixed focus
Exposure Control: Automatic
Color Balance Automatic
Scan Quality 1,800 dpi /3600 dpi (SW interpolation)
Data Conversion 10 bits per color channel
Scan Method Single pass
Light Source Back light (3 white LEDs)
Interface: USB 2.0
Power: USB port
Dimensions W100.6 x L90.5 x H150.3mm
Weight 0.39kg
Operating Systems Windows XP/Vista/Windows 7
-24-
V. Cleaning the ITNS-400
Please remove the film holder from device when you notice any dust in the
live view window.
Then you can use the cleaning brush to wipe away dust.
Note
We strongly suggest using a clean, dry, non-alcohol cotton swab to clean
the glass surface periodically to produce a clear image during operation.
.‐ .
. ( ‐ ):\ \ .
..,
.
Question 1. How to install ITNS‐400 driver?
Solution：
01 Put FilmScan Driver CD ROM into your CD player
02 Open the X CD ROM Driver folder

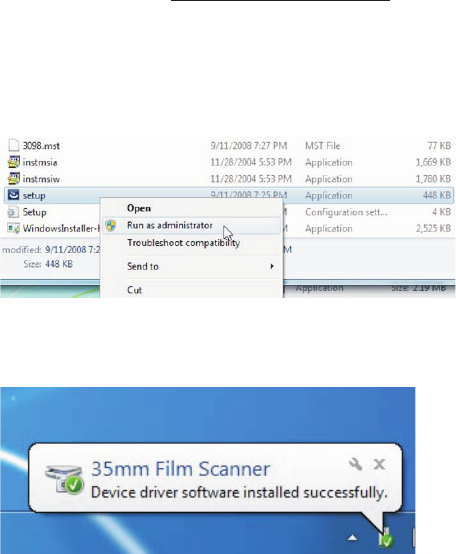

03 Click mouse right buttonon setup exe and click “Run as administrator”
to install driver
：
-25-
ITNS-400 Trouble shooting
04 The InstallShield Wizard will show the message of “InstallShield Wizard
Completed once the driver installed ready
.
.
05 Connect ITNS-400 to your PC the PC will complete the device driver
installation and confirm driver installed successfully
.,
.
-26-

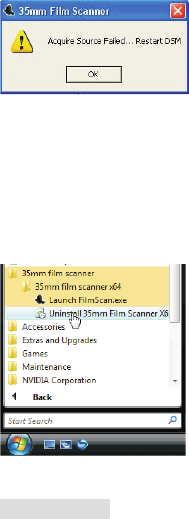

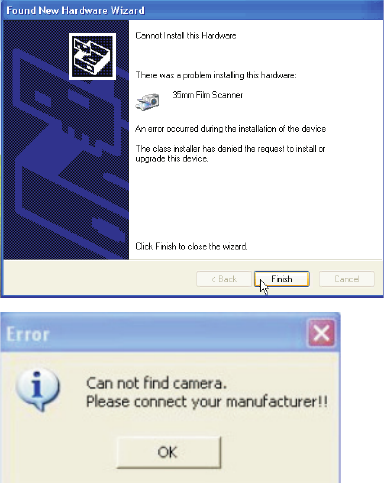

Question 2. Came up the error message “Cannot Install This Hardware” or
Can not find camera. Please connect your manufacturer” or “Acquire
Source Failed…Restart DSM”
“
Solution：
→→
→→
01.Check your USB cable to make sure it is well connected to your PC and
your device.
02.Check your PC to verify the driver is installed properly.
03. Uninstall the existing driver from your system.
a. Using the uninstall program of ITNS‐400 application
Run start All programs (Vista/Win7) or Program files (XP) 35mm film
scanner 35mm film scanner Uninstall 35mm Film Scanner
b. or Using the tool in device manager
(1) Open Device Manager.
Windows XP
Open Start Setting Control Panel System Hardware Device
Manager
→→ →→ →
-27-
Windows Vista
Open Start Control Panel System Device Manager
Wondows 7
Open Start Control Panel System and Security System Device
Manager

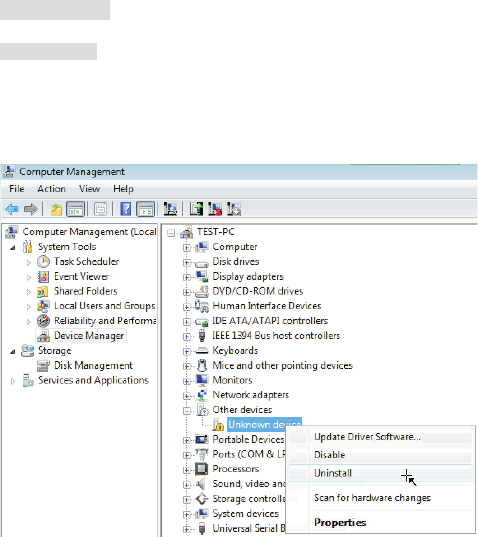

(2) Click the right button of mouse from “Unknown device” and uninstall the
driver.
→→→
→→ →→
04. Re‐install proper driver version again.
-28-

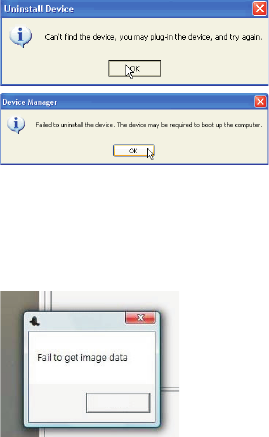

Question 3 If you can t uninstall the driver or came up the error
message Can’t find the device you may plug‐in the device and try
again.” or “Failed to uninstall the device. The device may be required to
boot up the computer.”
.
“,
’
Solution
,
Question 4 Run the ITNS‐400 application and come up the error
message Fail to get image data
：
Please refer to Question 2 solution and reboot your computer, if it still
can’t work please contact us through e-mail
.
“”
support ithomeproducts com@.
Solution
Close the application then re‐start the ITNS‐400 application again
：
.
-29-
OK
Question 5 You can t see the pre‐view image from ITNS‐400 application
when you have re‐installed driver and device status is completed
.’
.
Reason: Devices confliction. (Such as USB cameras or devices.)
-30-
Solution：

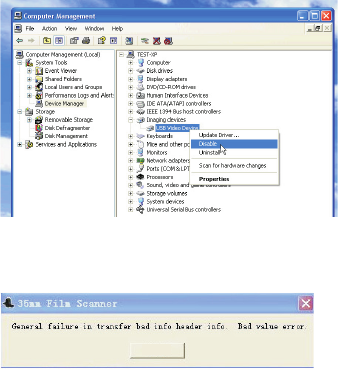

01. Disable the other imaging devices by using bundled program in standard
package first or disable it by the option under Imaging device when press
right button of mouse.
02. Re‐start ITNS‐400 application again.
Question 6. Come up the error message “General failure in transfer bad info
header info. Bad value error”.
Reason: Plug device into USB1.1 port.
ITNS‐400 only supports USB 2.0. Please verify if your PC is compatible with
USB2.0.
Solution：
-31-
OK
01 Open Device Manager.
Windows XP
Open Start Setting Control Panel System Hardware Device Manager
Windows Vista
Open Start Control Panel System Device Manager
Windows 7
Open Start Control Panel System and Security System Device Manager

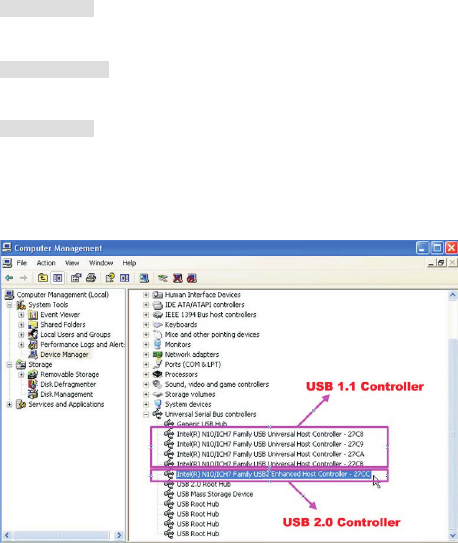

02 Your computer must with a USB 2.0 Controller in Universal Serial Bus
controllers. The figure below shows the difference between USB1.1 and 2.0.
There must be a “USB2” for USB 2.0 controller.
→→ →→ →
→→→
→→ →→
-32-
InnovativeTechnologyElectronicsCorp
LimitedWarranty
90DaysLabor OneYearParts
Sendallinquiresor returnsto
.
,
.( ) “ ”
“” .
“” . , “ ” ,
“”.
“” “ ” .
,,,, ,,
,,,
,, .
,
,, .
.“ ” ,
..
., .
.( )
’.
:
.
.
,,
:-- -(--- )
:. .
:@ .
,( )
.
.
,
,
.,
.
Innovative Technology Electronics Corp IT warrants the product to be free from Defects in
materials under normal use for a period of One Year fom the date of the orginal purchase The
Warrantyis Not transferable IT agrees withintheinitial 90Day period to repairtheproductif
itisdeterminedtobedefectiveat NoCharge ItisfurtheragreedthatITwillcoverthecosttorepairor
replacedamaged Parts only for a totalperiodof OneYear fromthedateof the originalpurchase
The warranty does not cover cosmetic damage antennas AC cords cabinets headbands ear-pads
or damage due to line power surges connection to improper voltage supply or settings misuse
mishandling accident actsofGodorattemptedrepairbyanunauthorizedserviceagent
Toabtainservice the originalpurchaserMUST presentasales receipt/proofofpurchaseindicatingdate
of purchase amount paid and place of purchase Send the unit prepaid to the address below in the
original packaging or reasonablesubstitute to prevent damage You MUST include your full name
shippingaddressandtelephonenumber NoreturnwillbeshippedbacktoaPOBox Pleaseincludeyour
check or money order in the amountof$12 00 payable toInnovative Technology Electronics Corp to
coverhandlingandreturnshippingcharges IT willnotberesponsiblefordelaysorunprocessedclaims
resultingfromapurchaser sfailuretoprovideanyorallofthenecessaryinformation
CustomerServiceDept
InnovativeTechnologyElectronicsCorp
4Anchorway PortWashington NY11050
Tel 1 877 ITECH 97 1 877 483 2497
Website www ithomeproducts com
EMAIL support ithomeproducts com
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CUSTOMER IT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW ANY IMPLIEDWARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY
Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitationsonhowlonganimpliedwarrantylasts sotheaboveexclusionsorlimitationsmaynotapplyto
you This warranty gives you specific legal rights and you may also have other rights which vary from
statetostate
There are no express warranties except as listed above
Instructions shall caution users that modifications not approved by the party responsible
for compliance could void user's authority to operate the equipment.
The following or equivalent as appropriate:
“NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.”
Statement that the product complies with Part 15 (i.e. “This device complies with Part 15
of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.”)
WARNING : This product contains chemicals known to the State of California to cause
birth defects or other reproductive harm. For more information on these regulations and
a list of chemicals, log on the following website address:
http://www.oehha.ca.gov/prop65.html
●
●
●
●
CALIFORNIA PROP 65 WARNING
Driver Revision: 1.0_1
