EnGenius Technologies EDS1130 Intelligent IP-Camera User Manual 1 of 2

EnGenius Technologies Intelligent IP-Camera Users Manual 1 of 2

Contents

Users Manual (1 of 2).pdf

Intelligent IP-Camera
User Manual
EDS1130
HOME
Guardian
2
IMPORTANT
To install this IP-Camera please refer to the
Quick Start Guide included in the product packaging.
3
Table of Contents
Chapter 1 Product Overview ......................................... 6
Introduction ...................................................................................................7
Read Before Using ....................................................................................7
Key Features.................................................................................................8

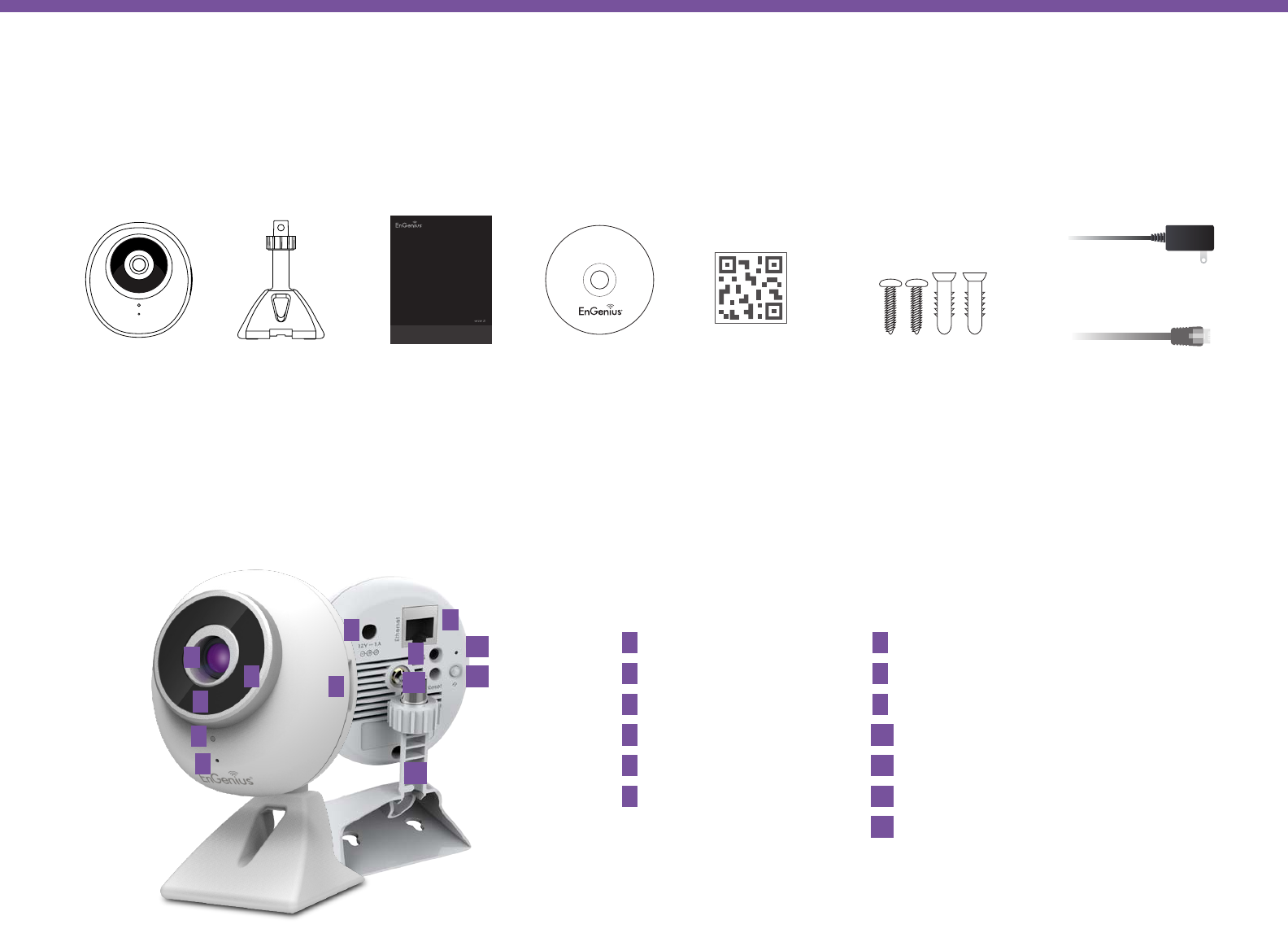

Package Contents.......................................................................................9
Physical Description ..................................................................................9
LED Status .................................................................................................10
Chapter 2 Installation ...................................................11
Hardware Assembly................................................................................12
Tabletop ......................................................................................................13

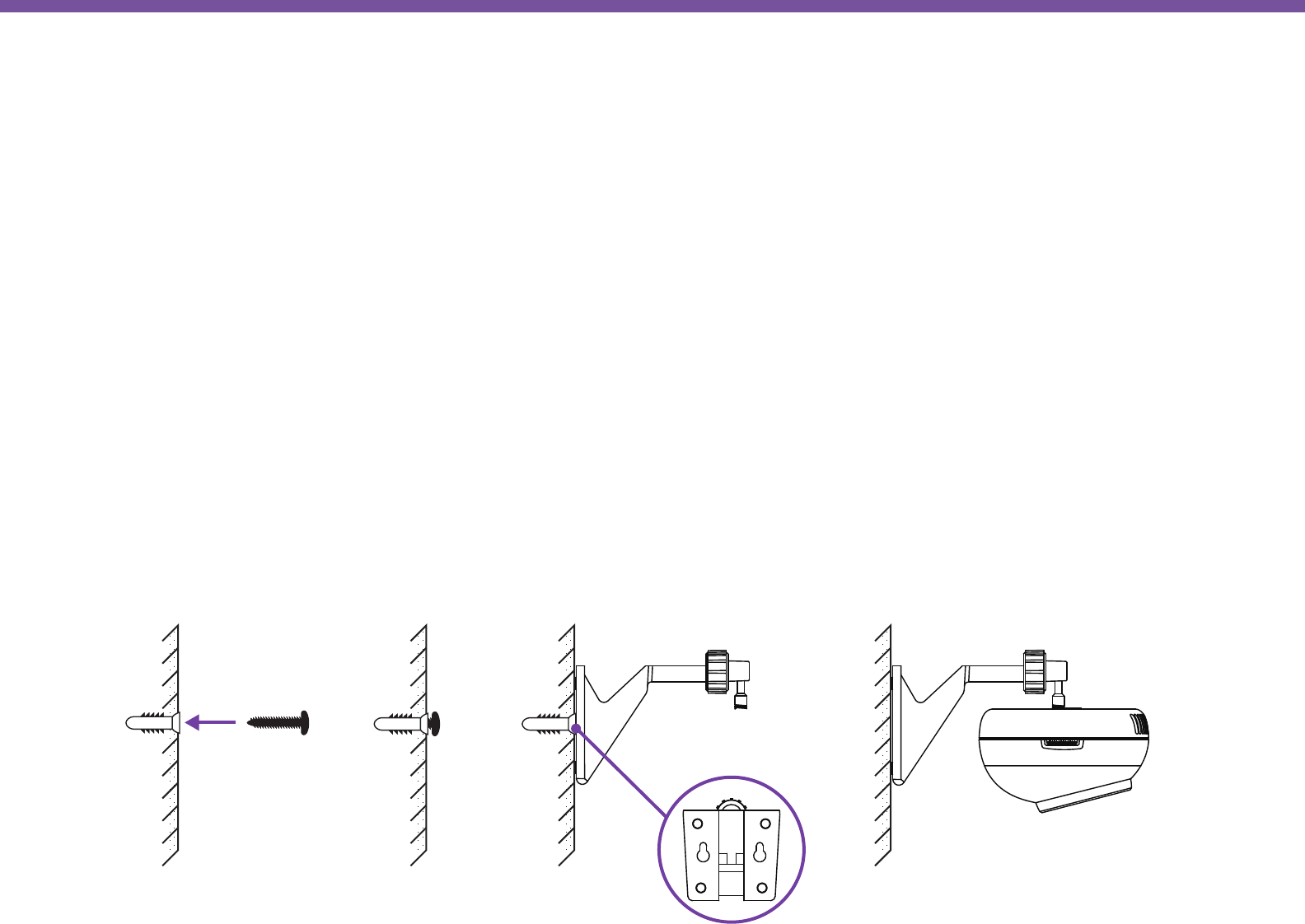

Wall-mount .................................................................................................13

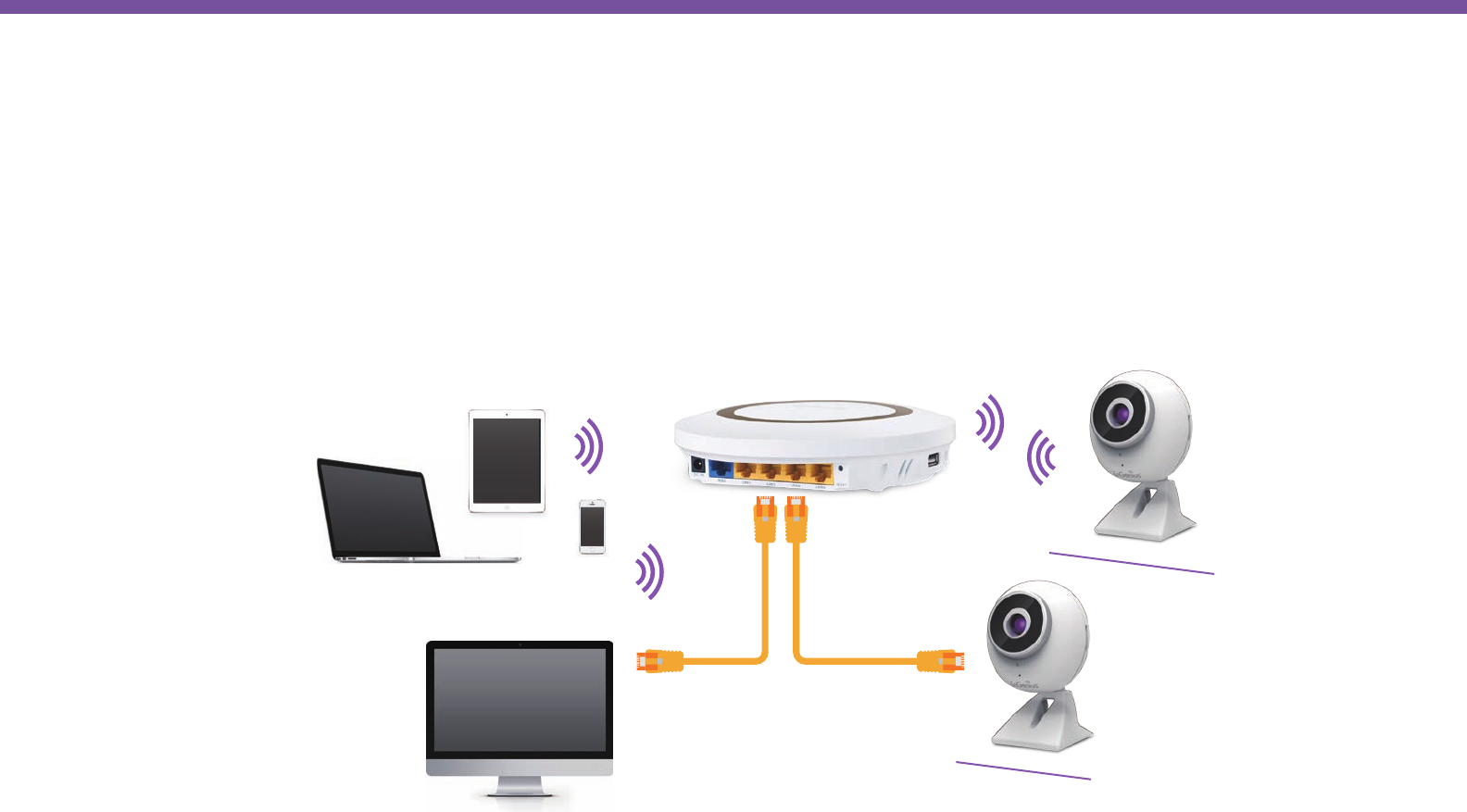

Network Deployment .............................................................................14
Connecting via Ethernet Cable .......................................................... 15

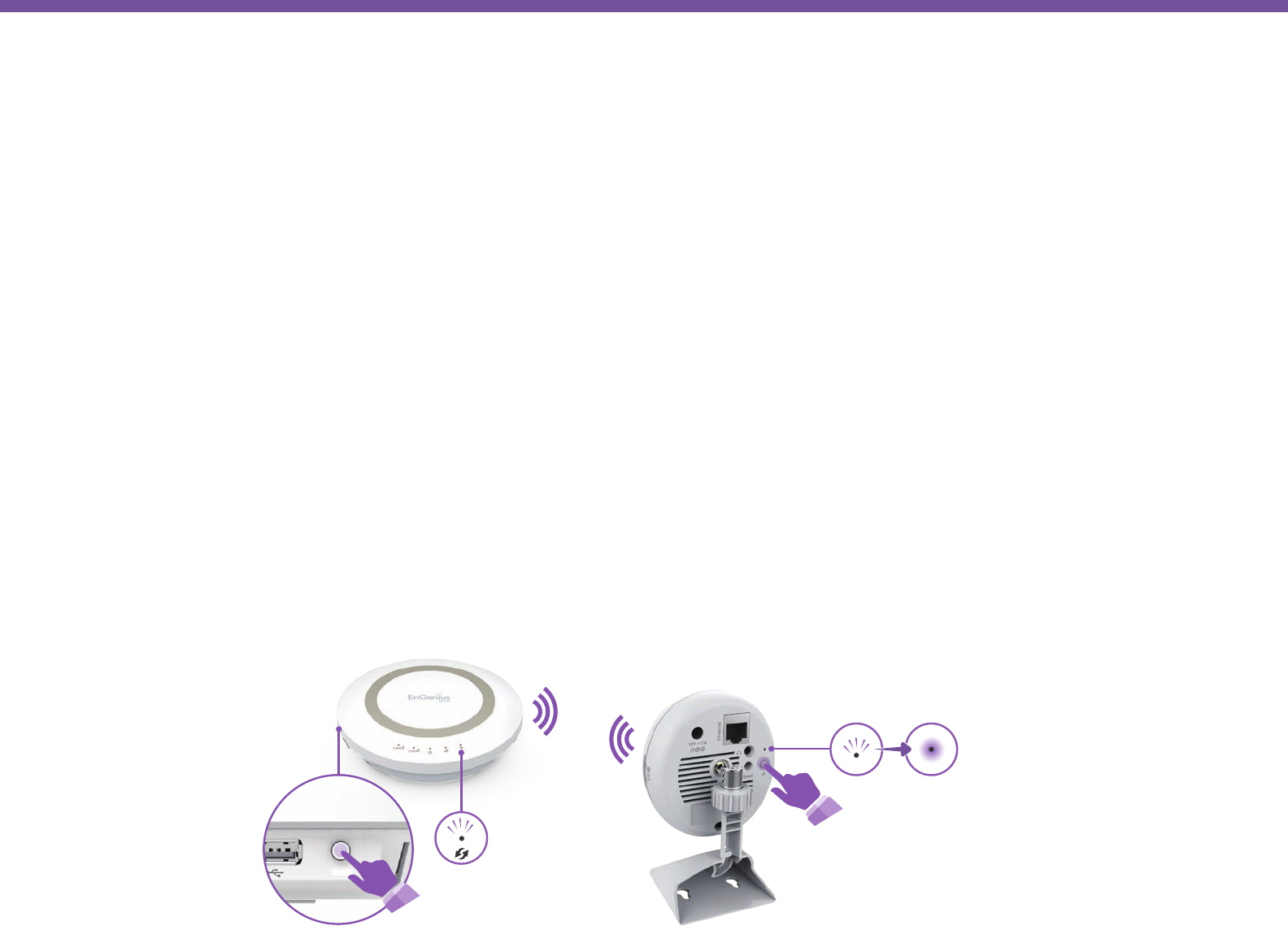

Connecting via Wi-Fi Setup ................................................................. 16
Chapter 3 Accessing the Camera after Installation 17
Managing using PC or Laptop.............................................................19

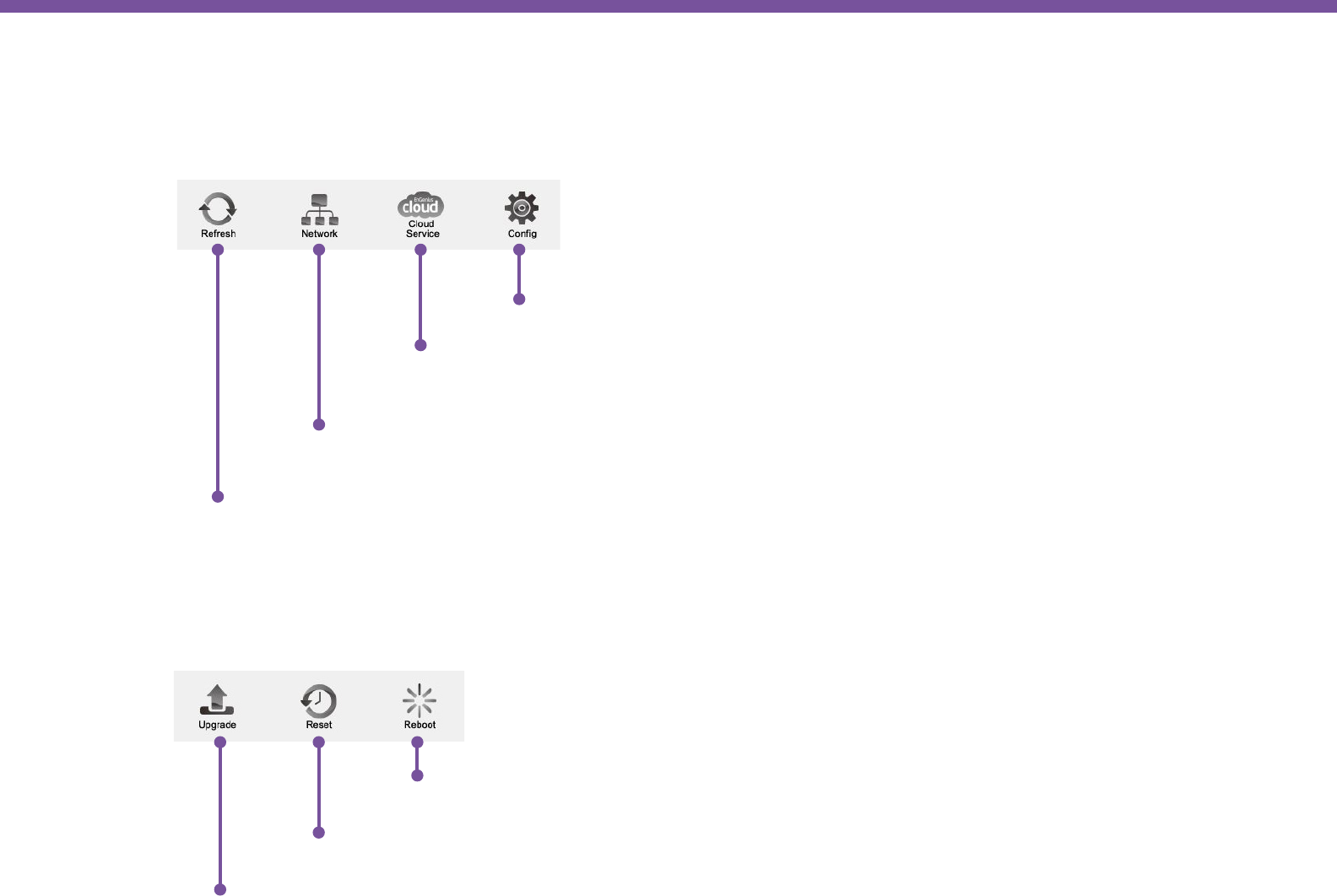

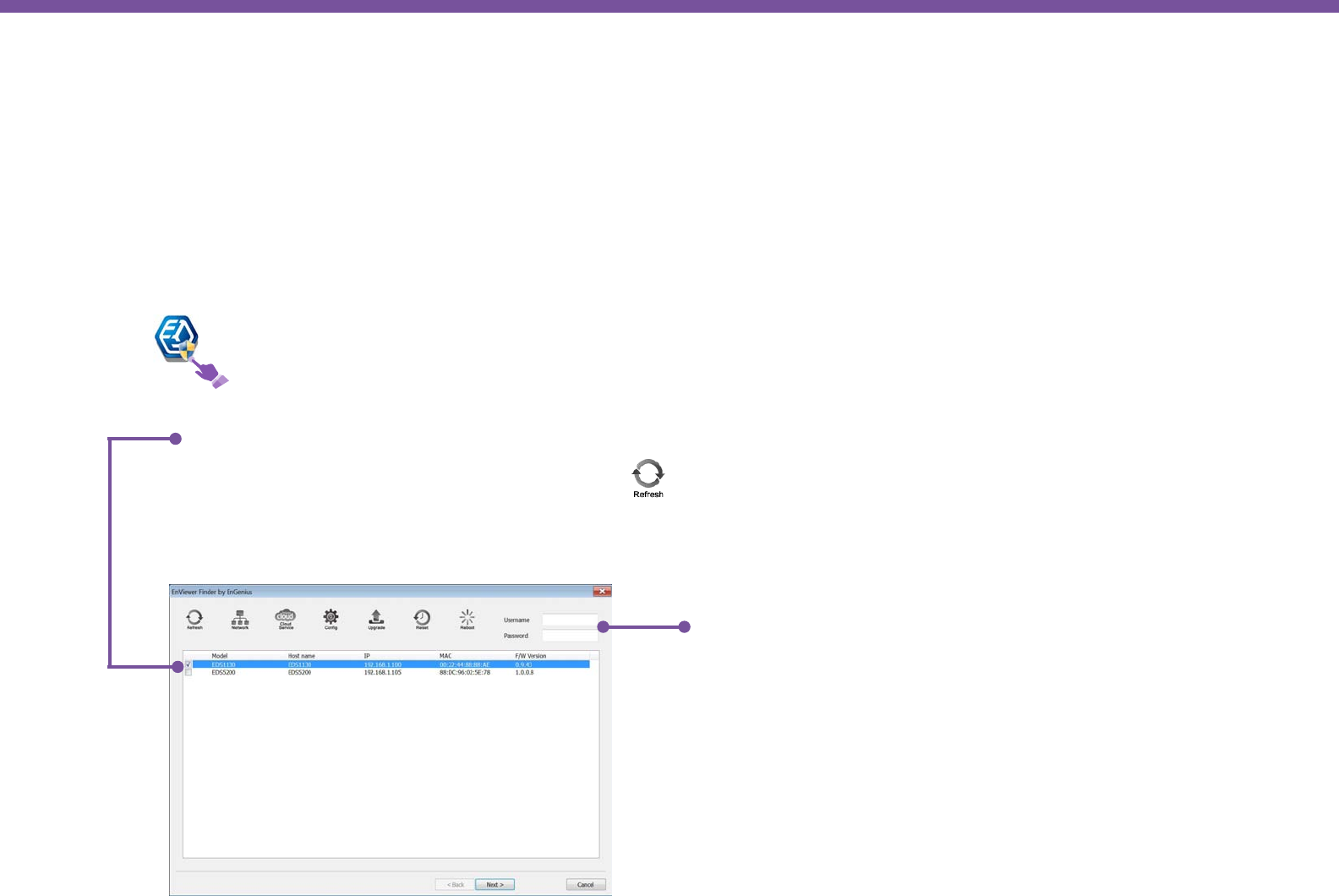

EnViewer Finder by EnGenius ............................................................19
EnViewer Finder by EnGenius ............................................................19

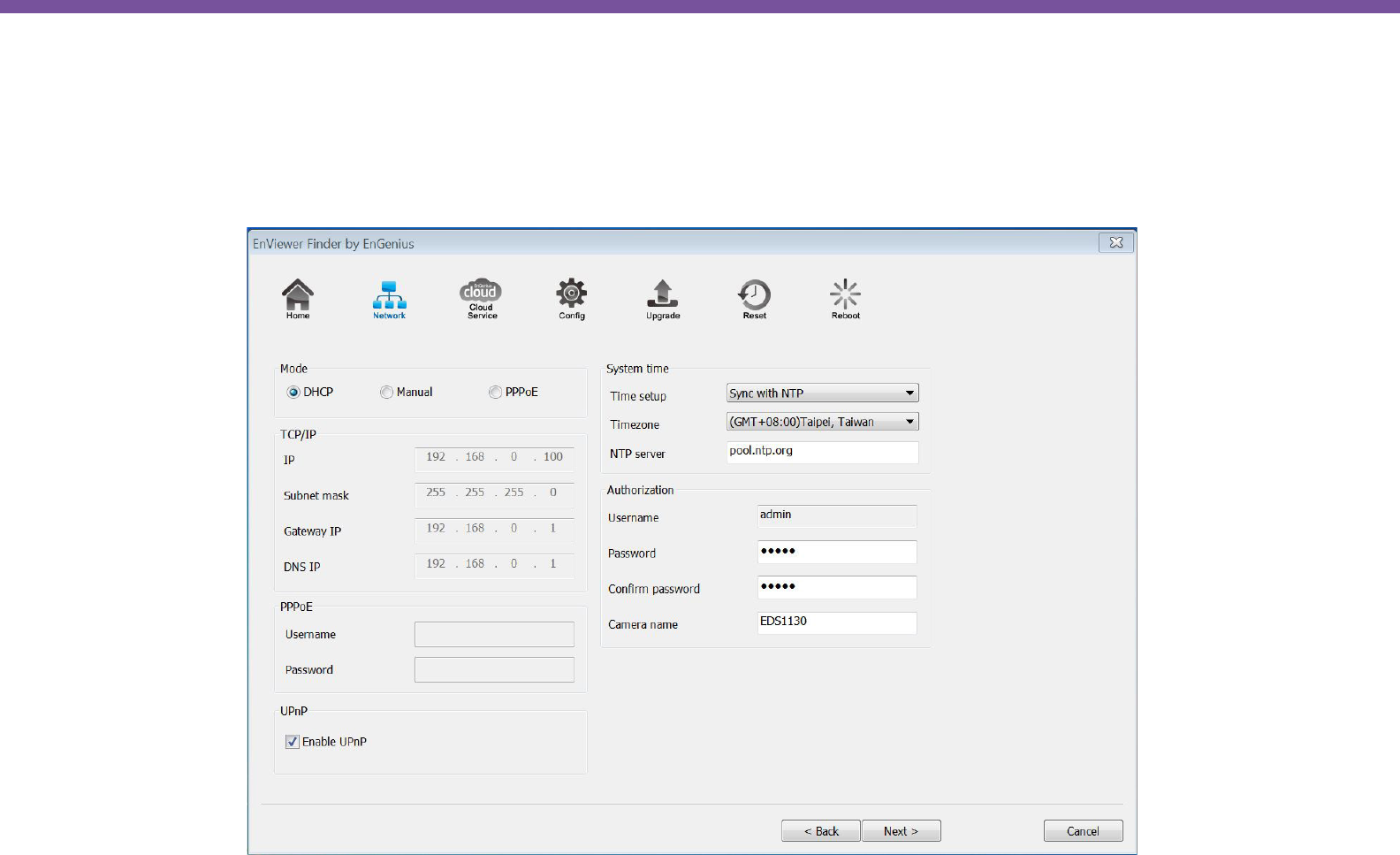

EnViewer Finder>> Network ..............................................................21
EnViewer Finder>> EnGenius Cloud Service ...............................24

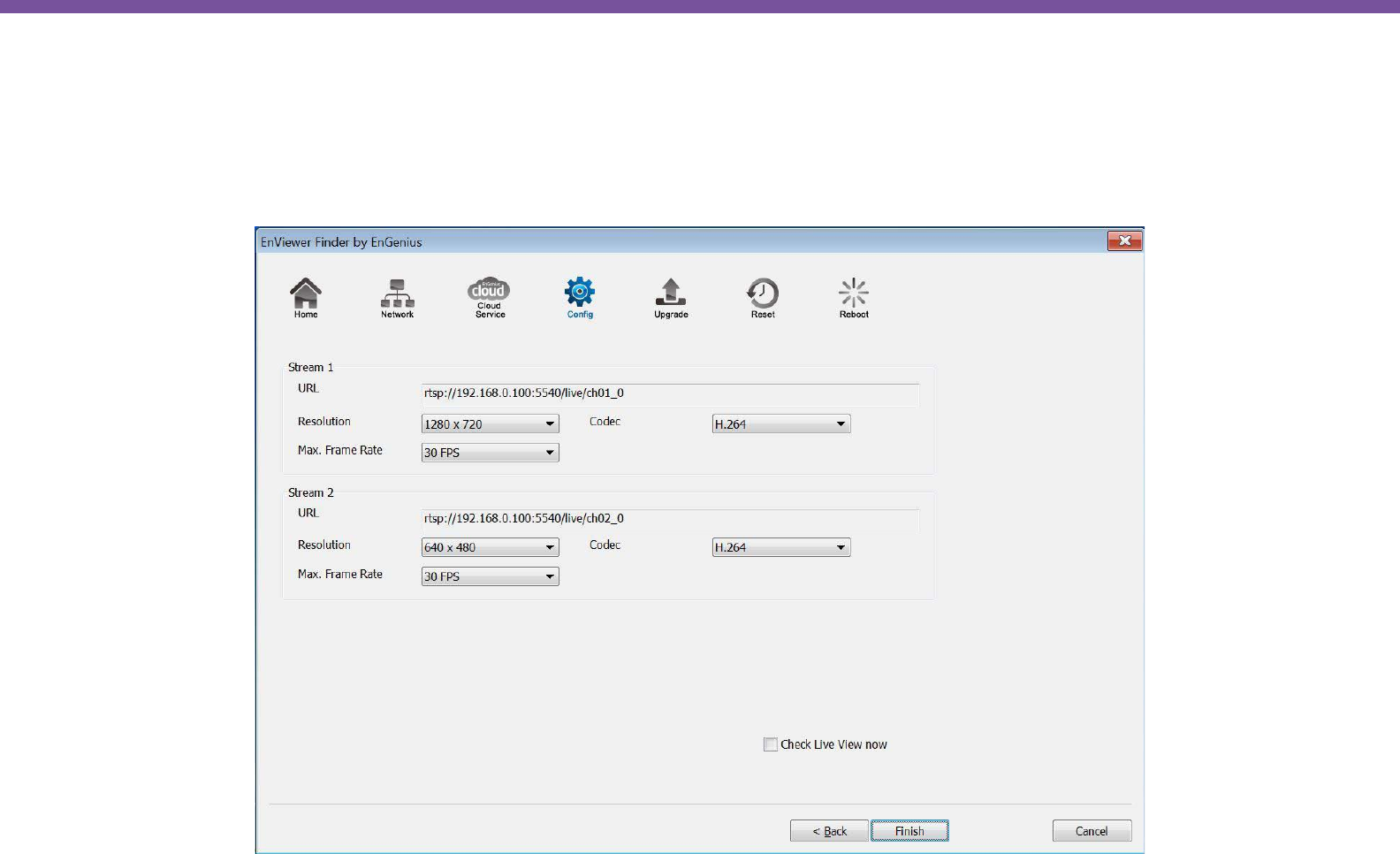

EnViewer Finder>> Cong ..................................................................26

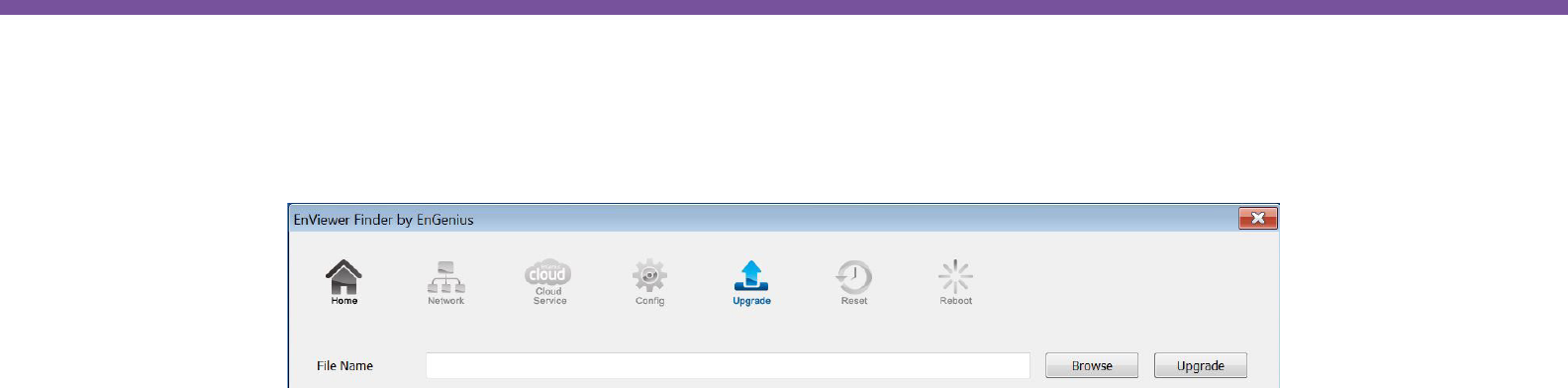

EnViewer Finder>> Upgrade .............................................................. 29

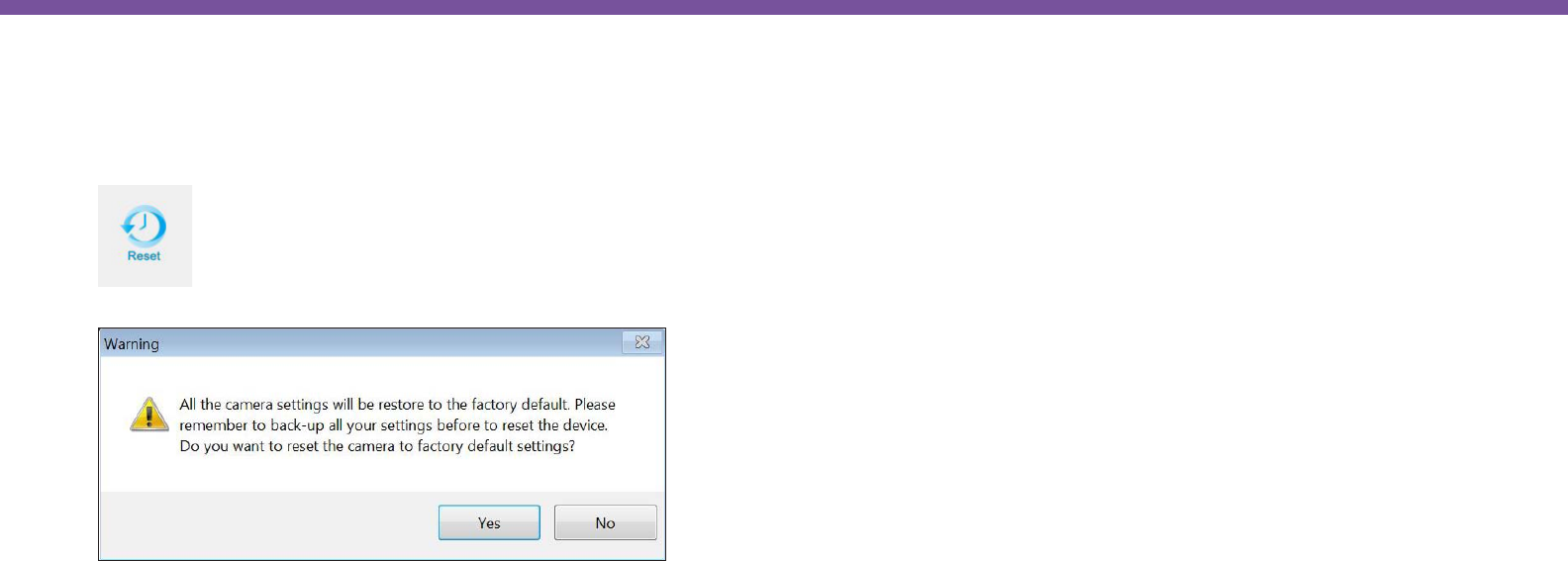

EnViewer Finder>> Reset ...................................................................30

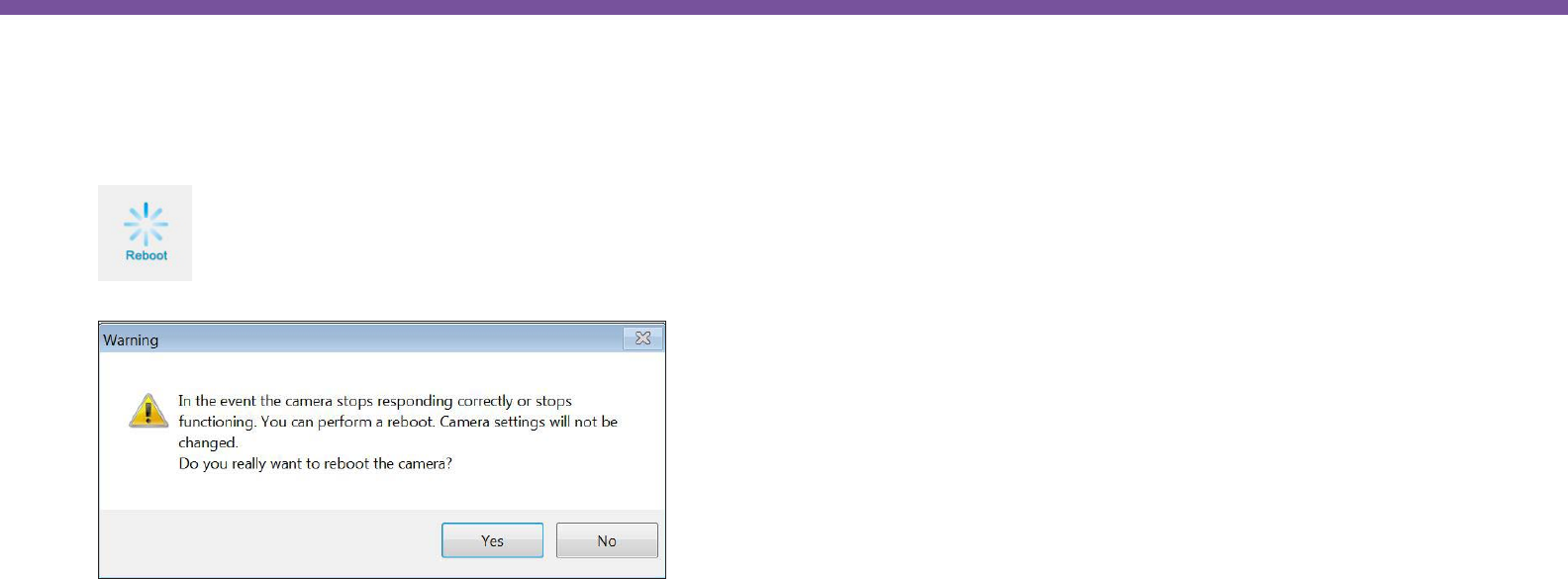

EnViewer Finder>> Reboot ................................................................31

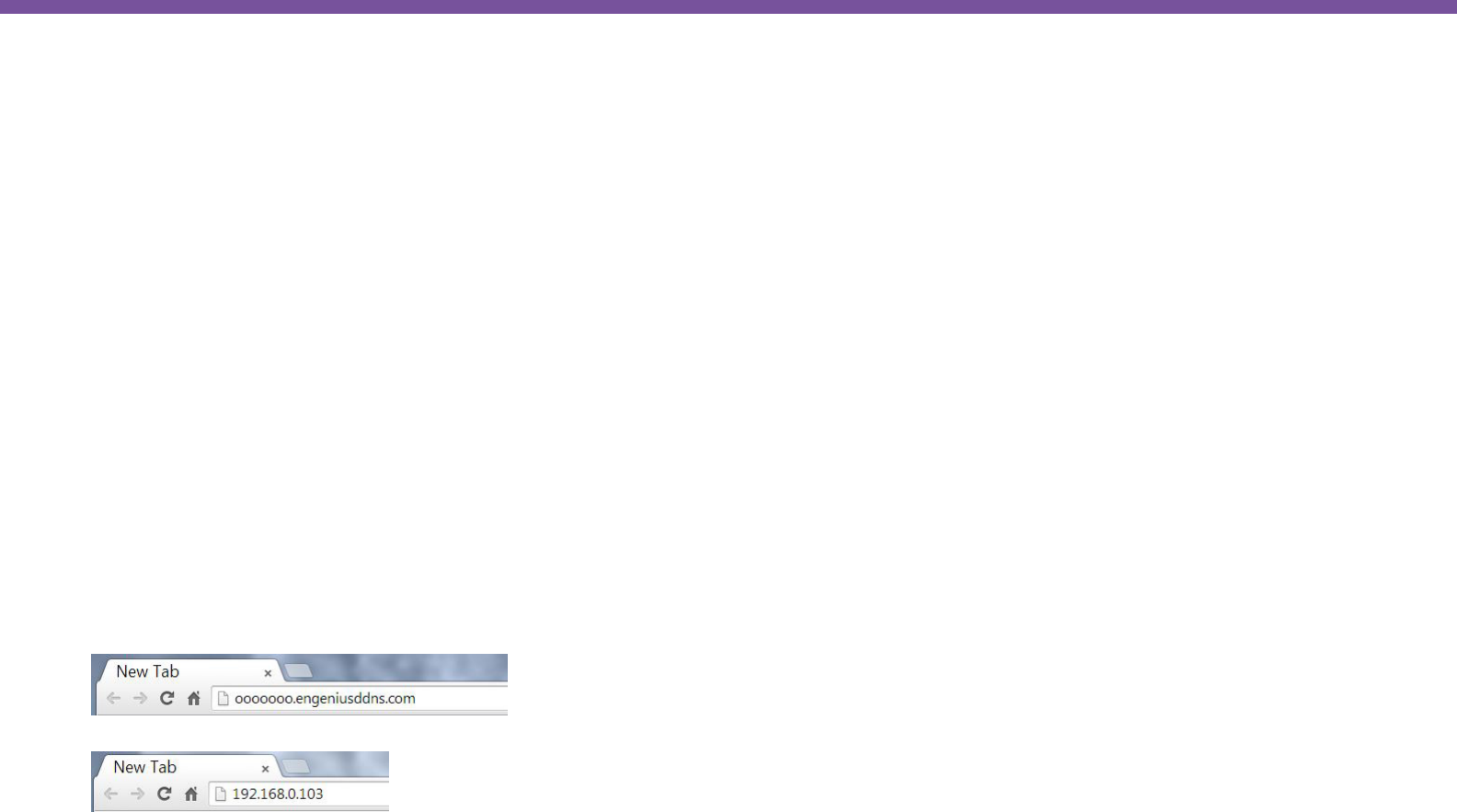

Web Browser ..............................................................................................32
Manage using Smartphone or Tablet .............................................34
Chapter 4 Basic Settings .............................................. 35

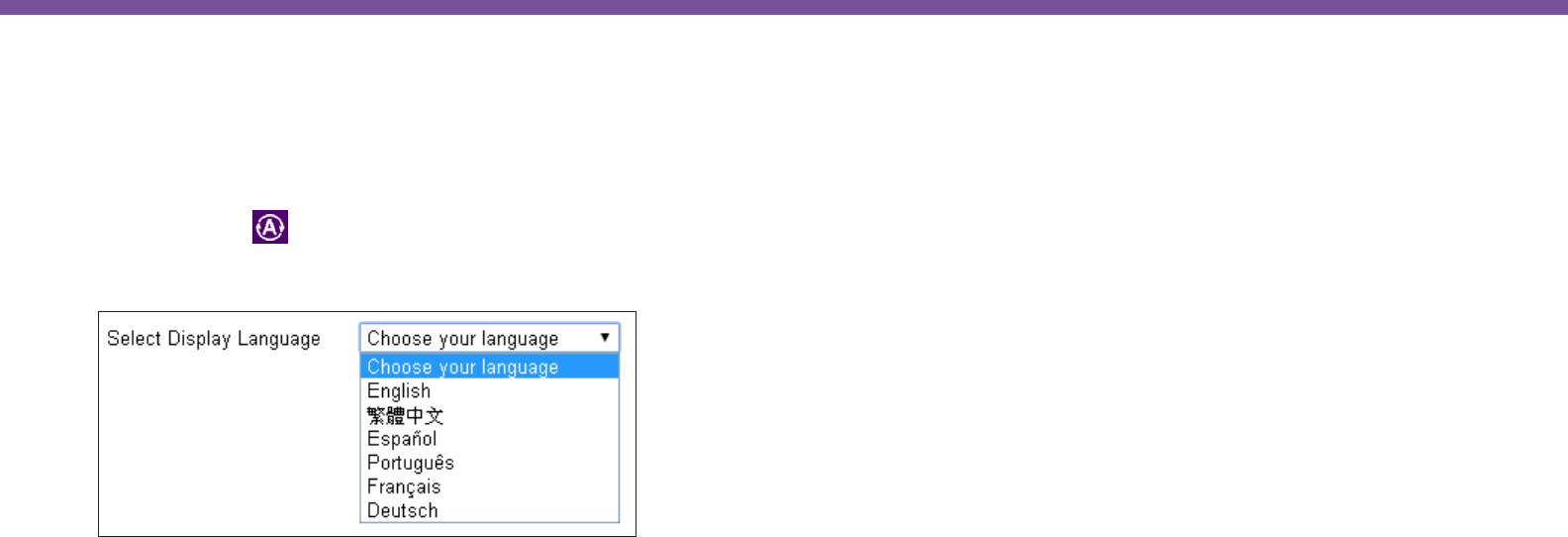

Setting the Interface Language ......................................................39
Changing the Camera Name ...............................................................40
Setting the Camera Time .................................................................... 41
Setting the PC Storage Folder ..........................................................42
Adding a User Account ..........................................................................42

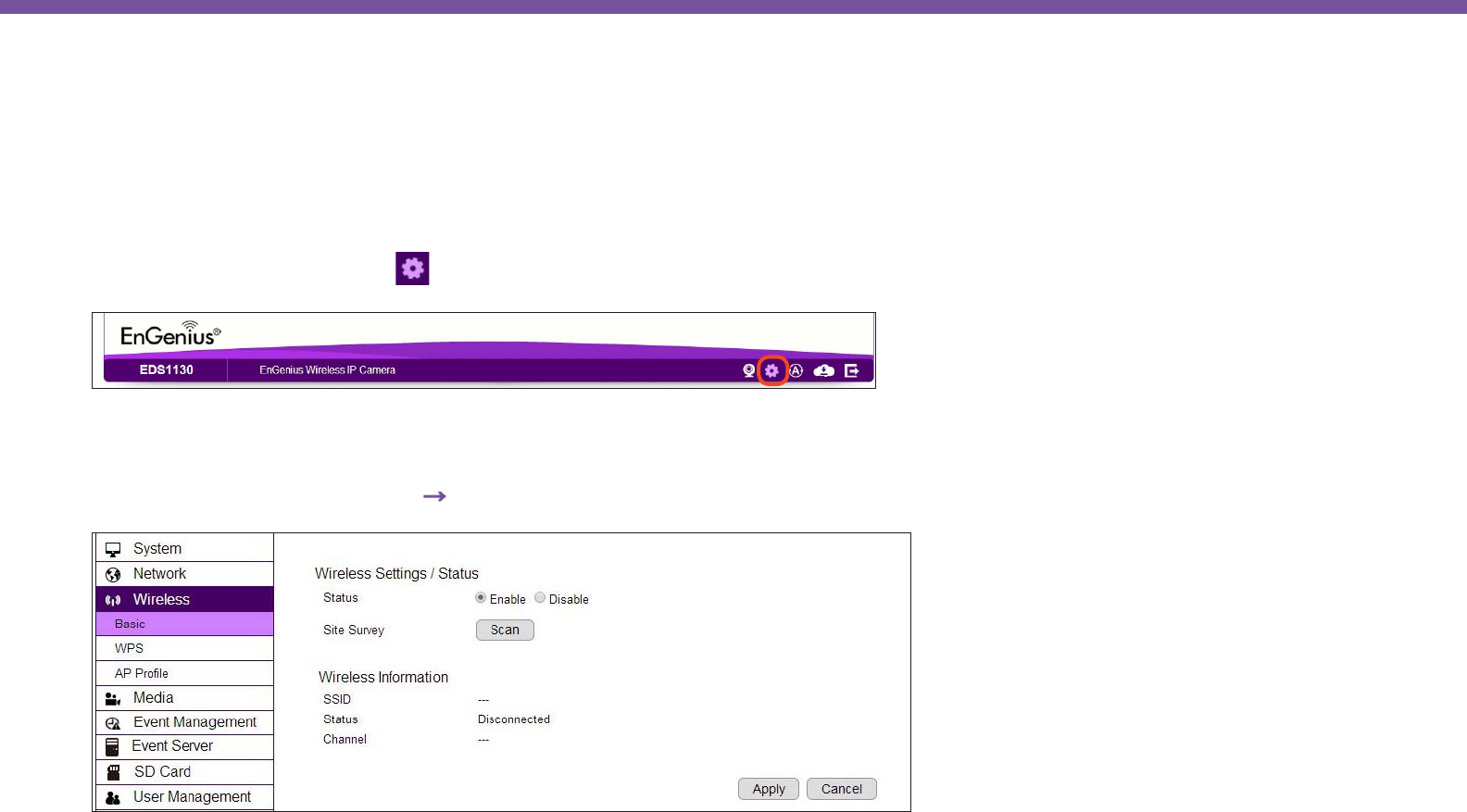

Wireless Setting .......................................................................................43
Chapter 5 User Interface .............................................. 46
Navigation Panel ......................................................................................48

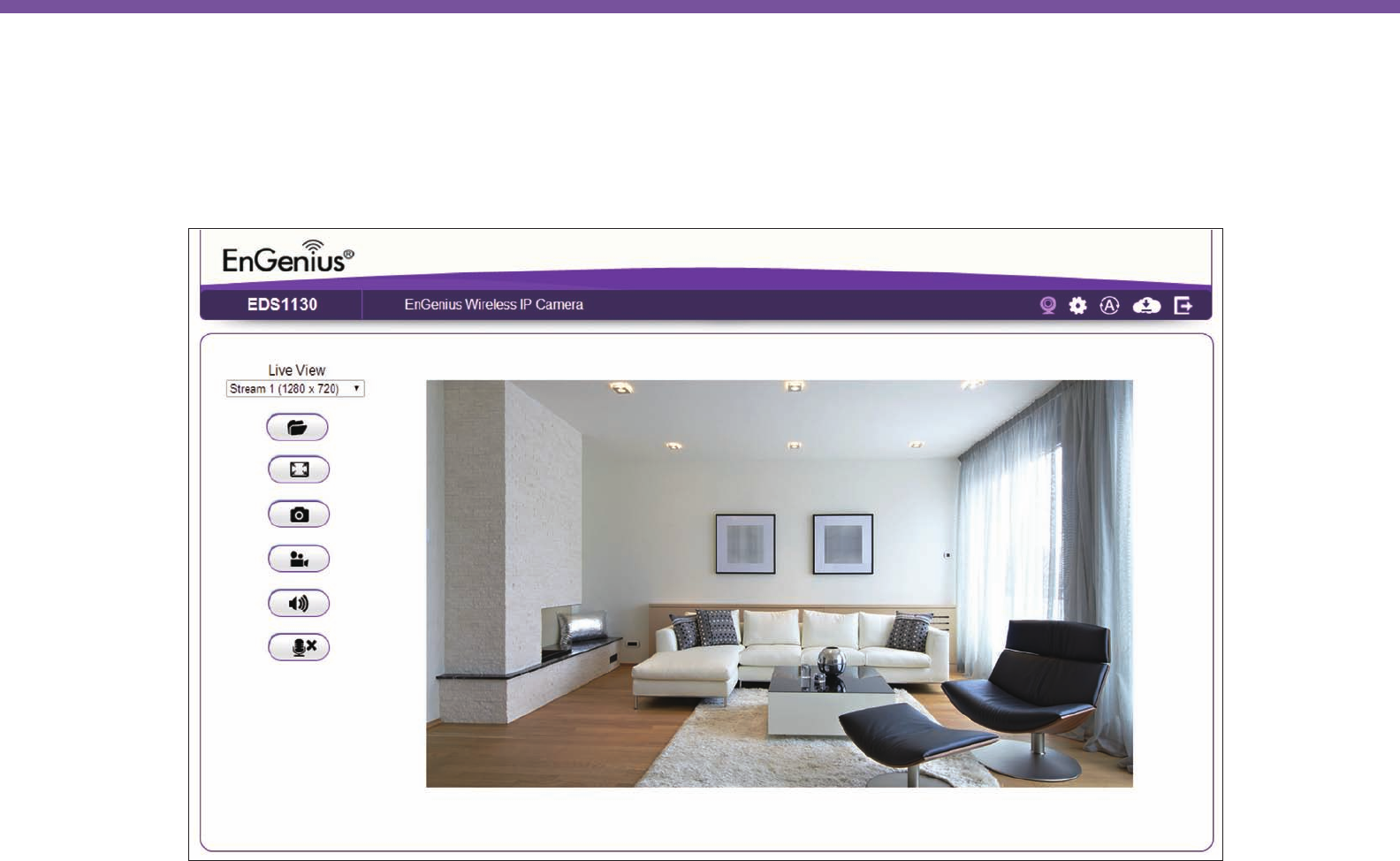

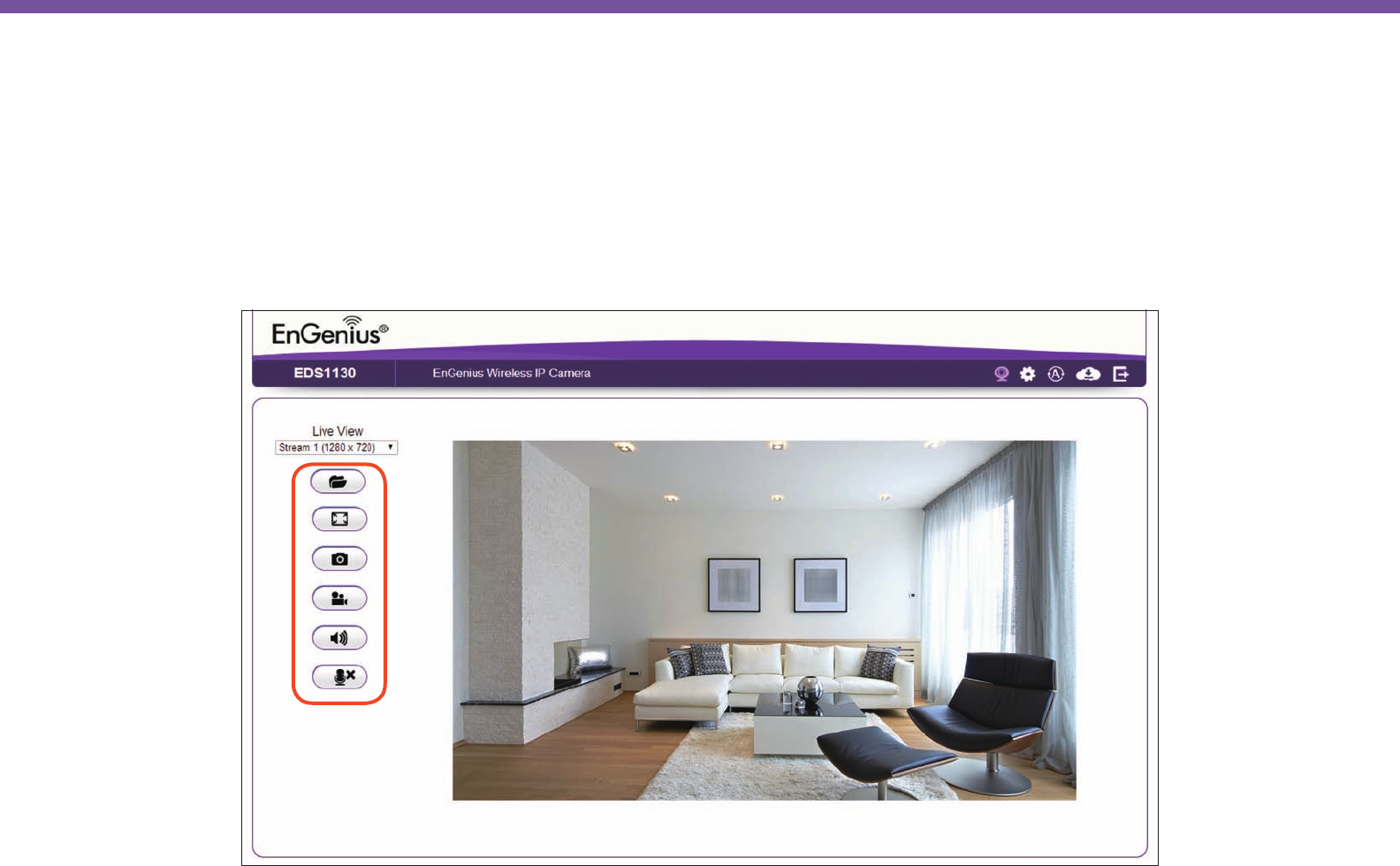

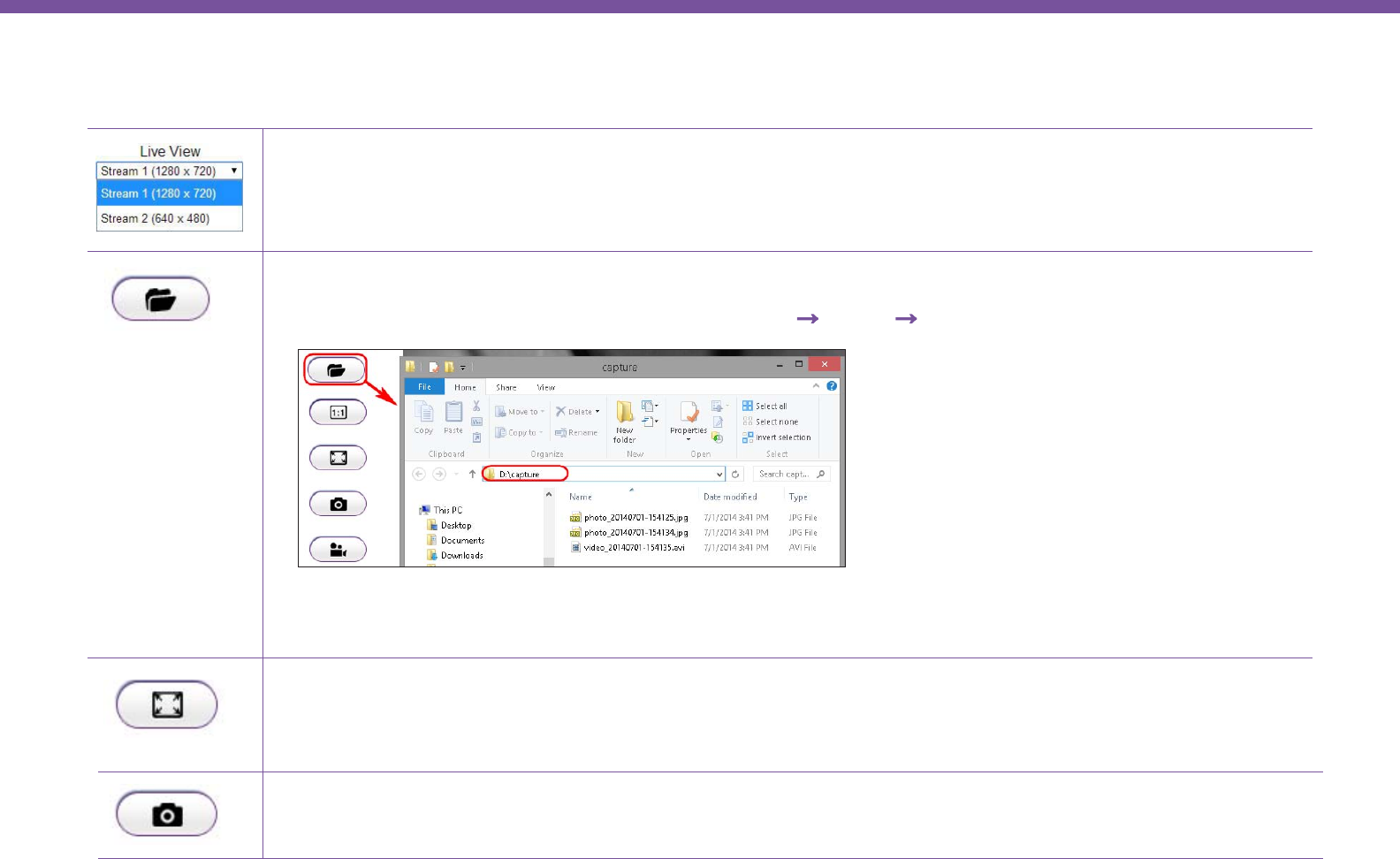

Live View Settings .................................................................................. 51
Main Menus ................................................................................................54
System ..........................................................................................................55

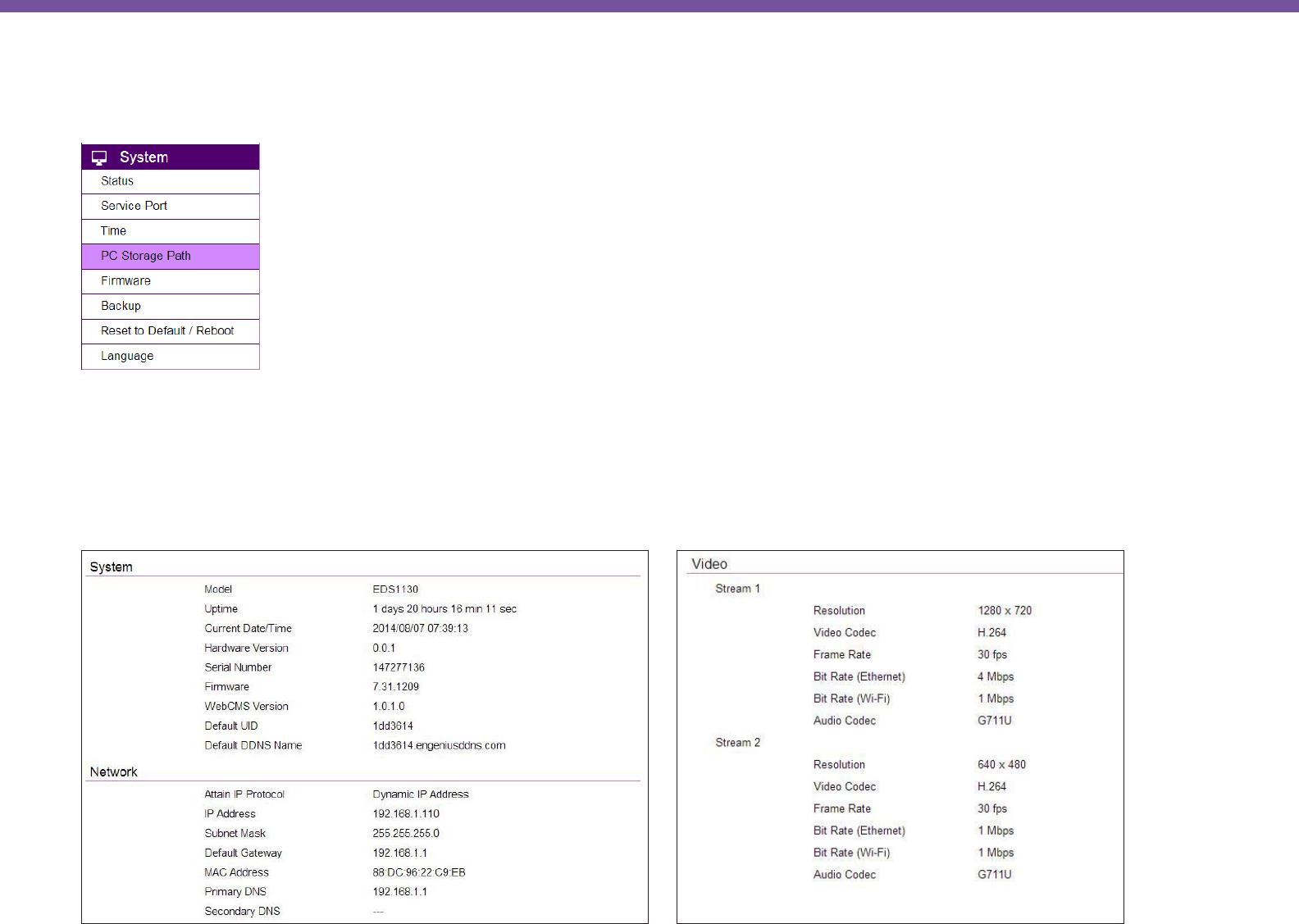

System>> Status ............................................................................. 55

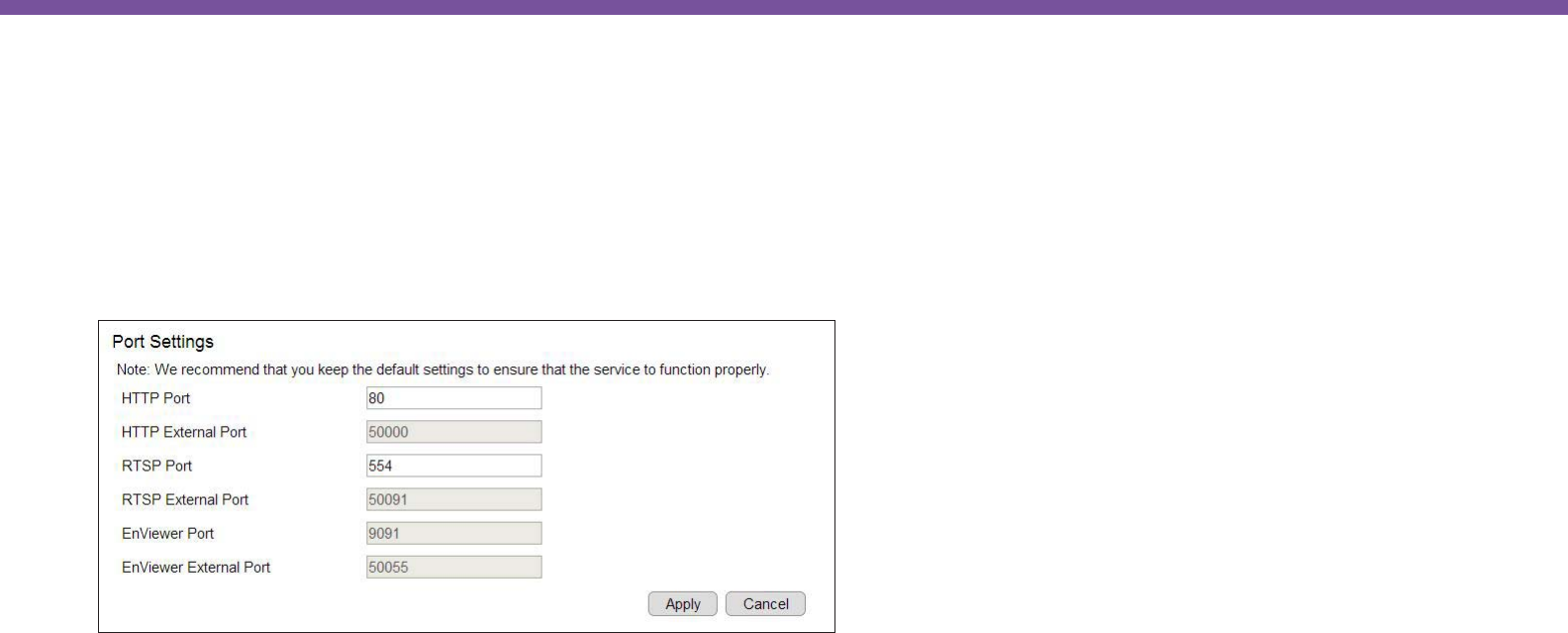

System>> Service Port .................................................................56

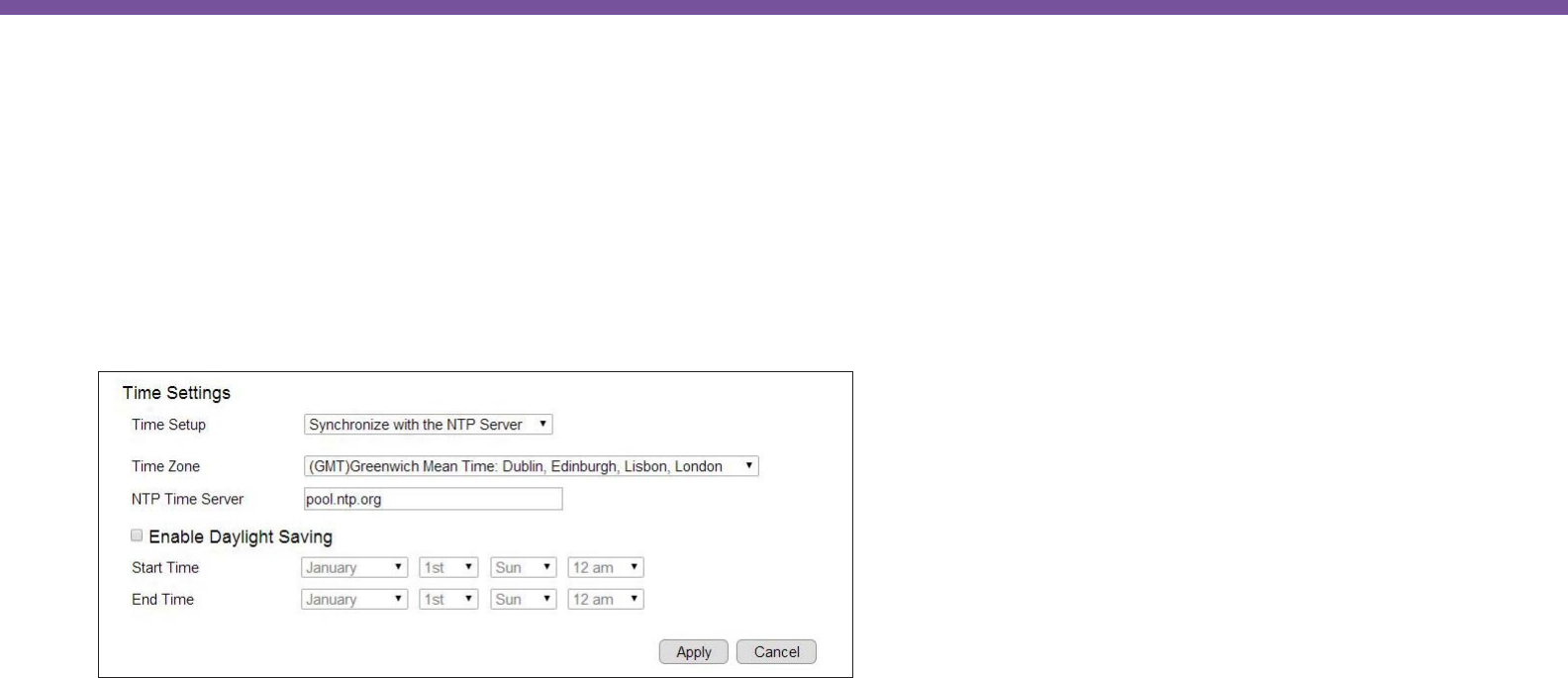

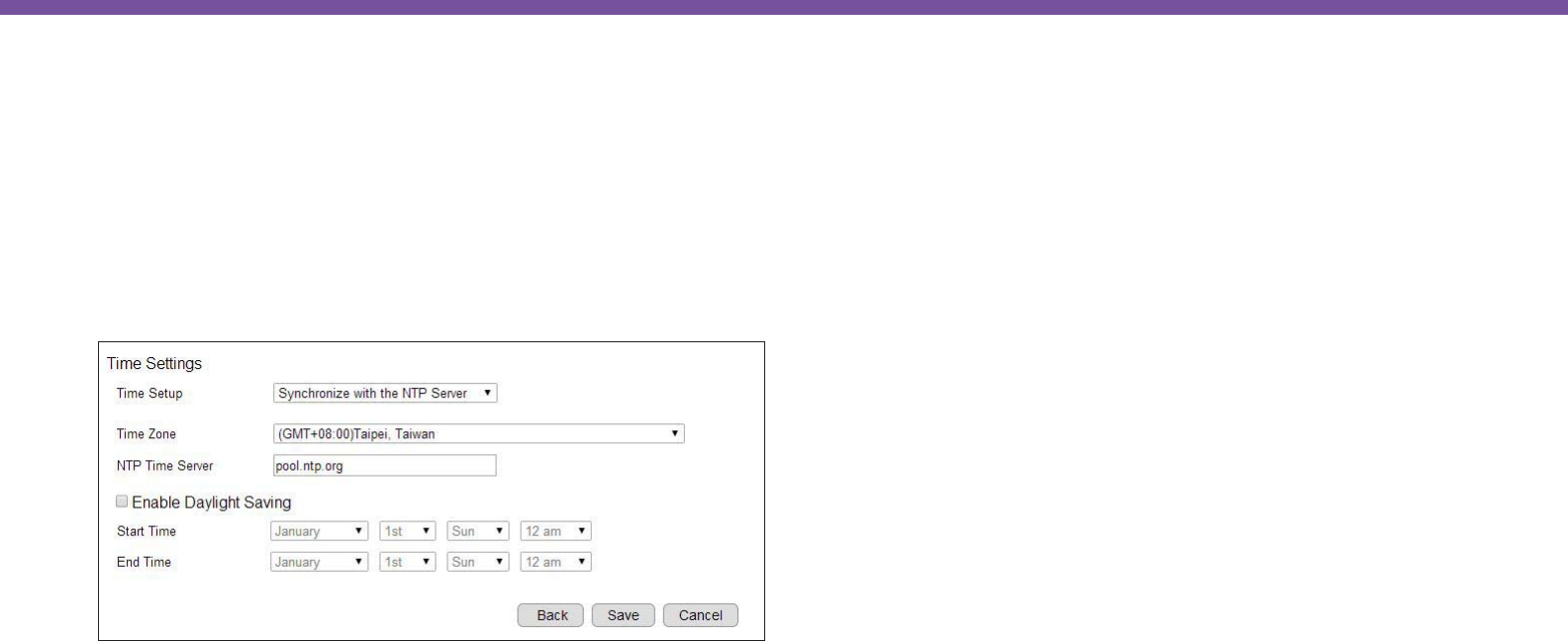

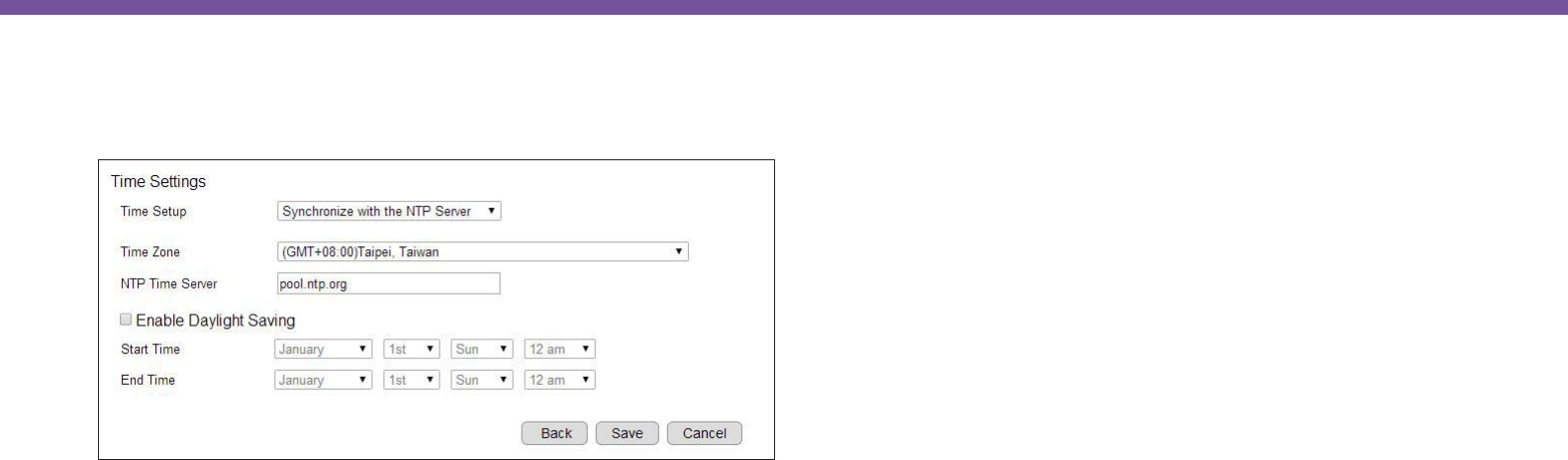

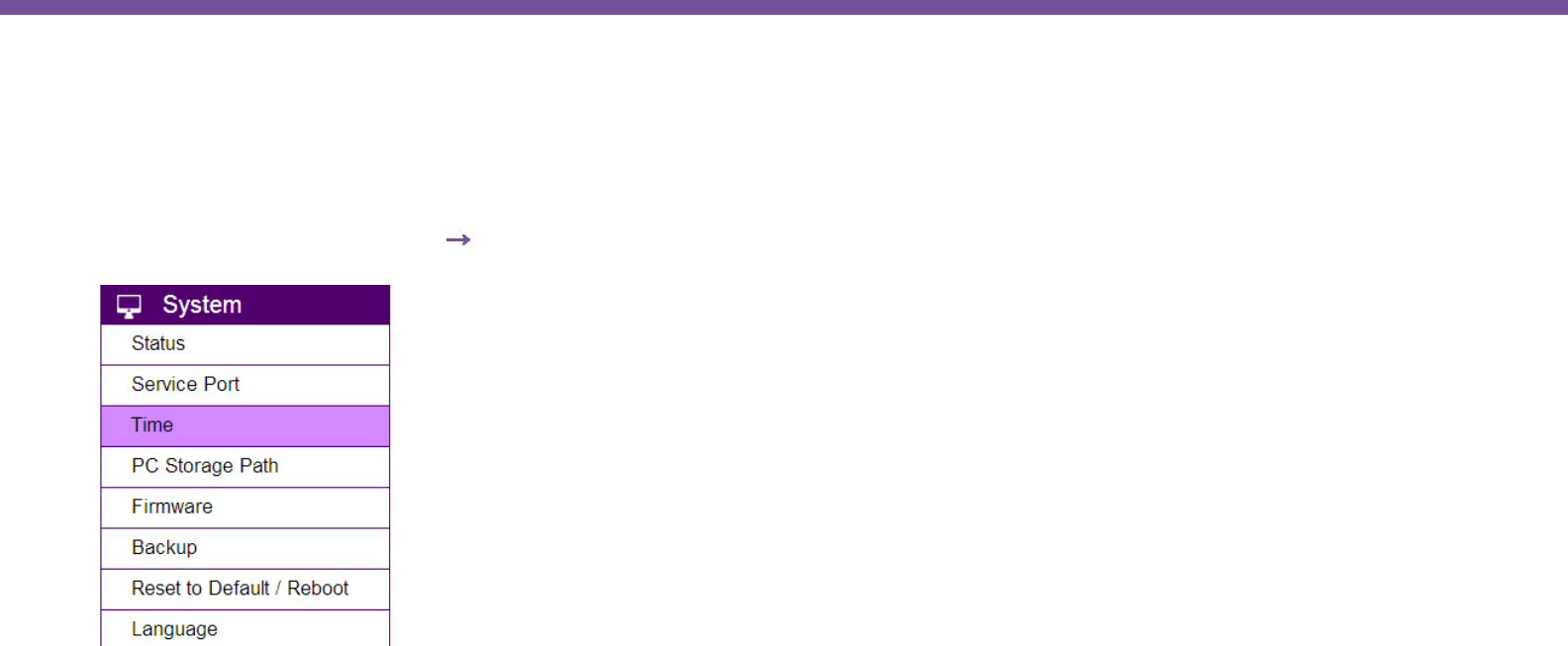

System>> Time ................................................................................57

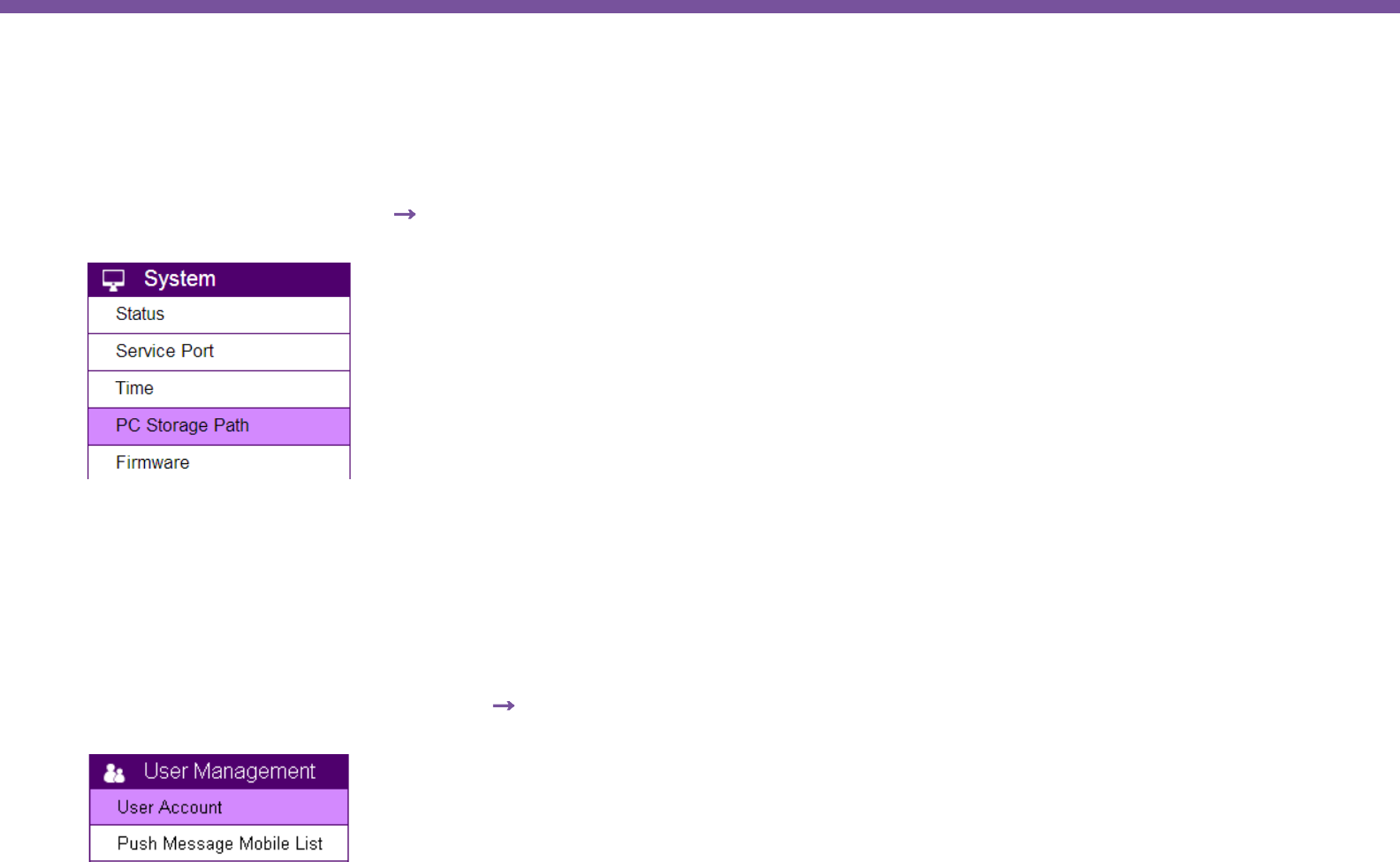

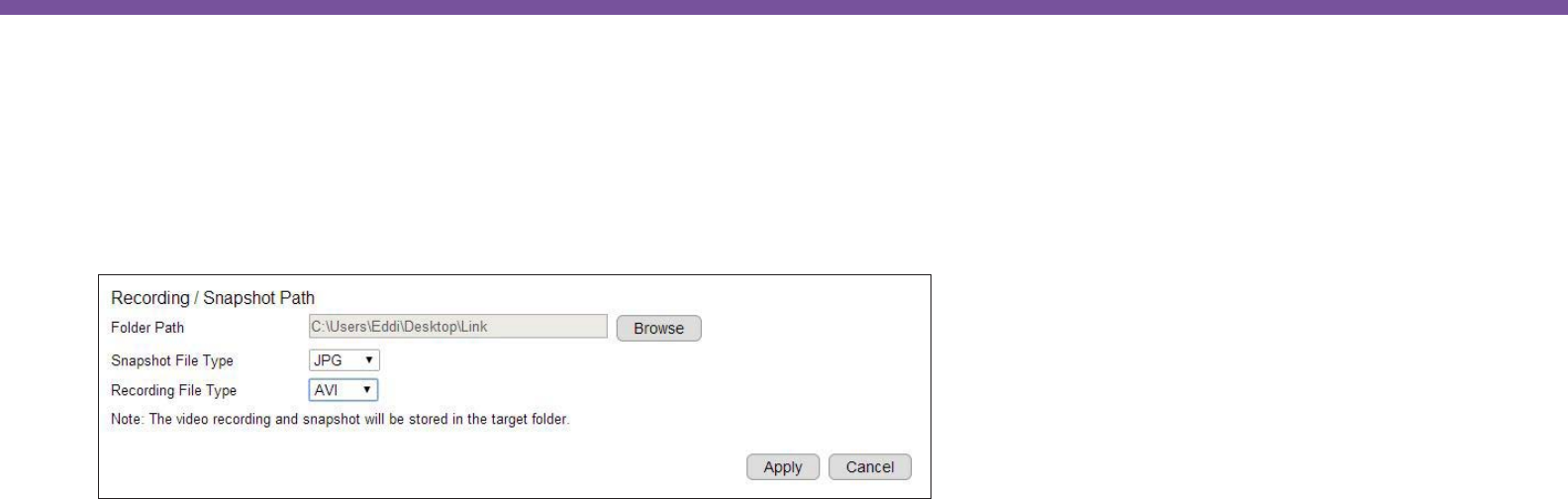

System>> PC Storage Path.........................................................58

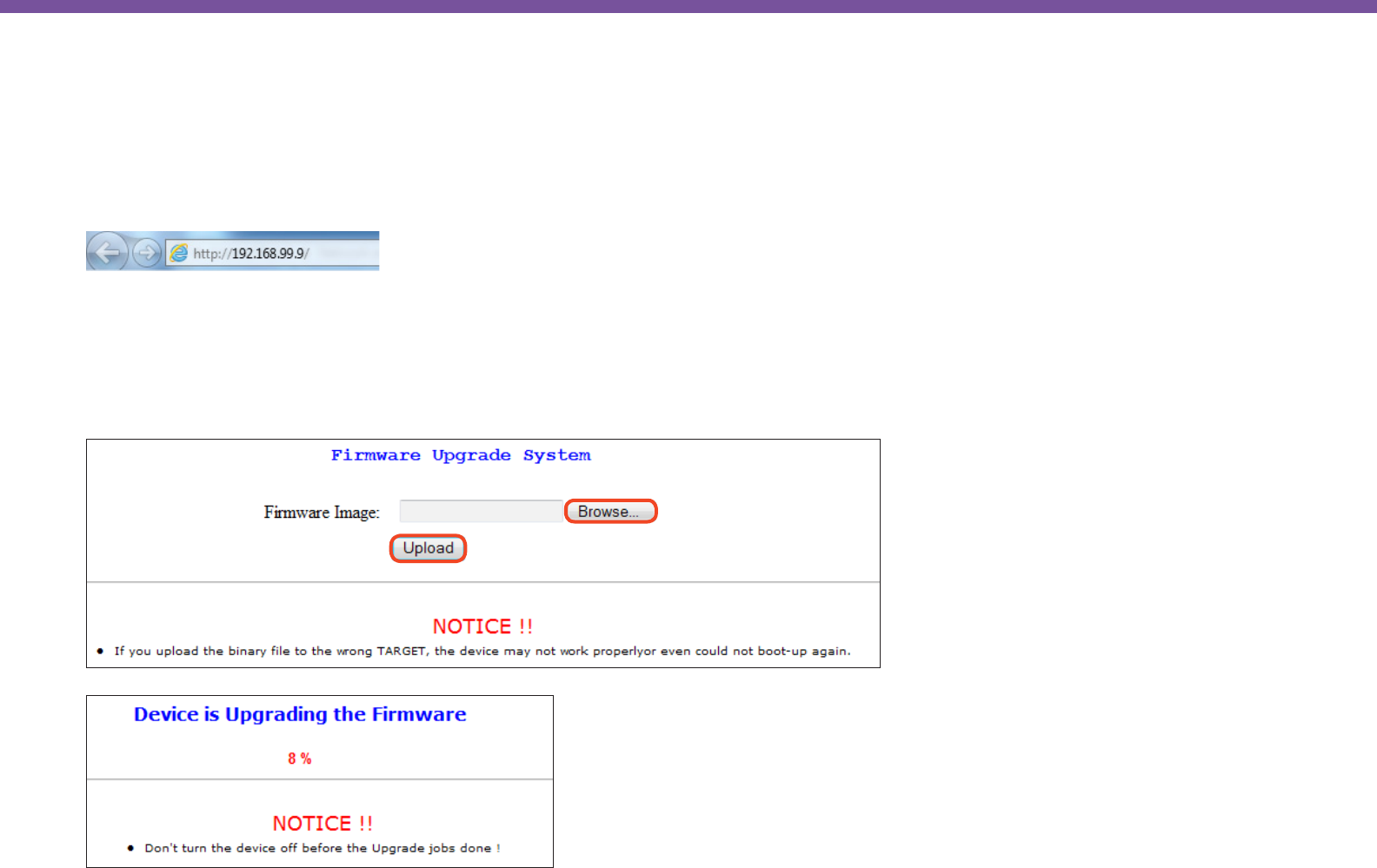

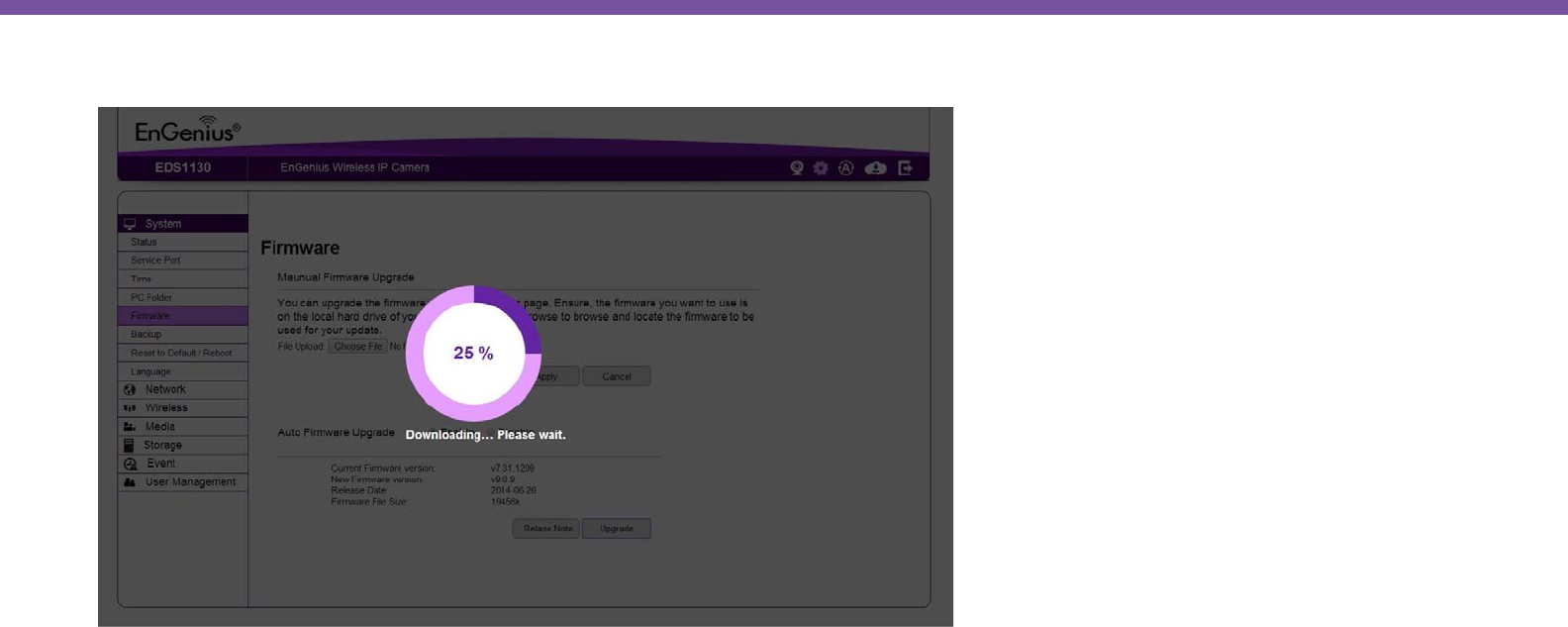

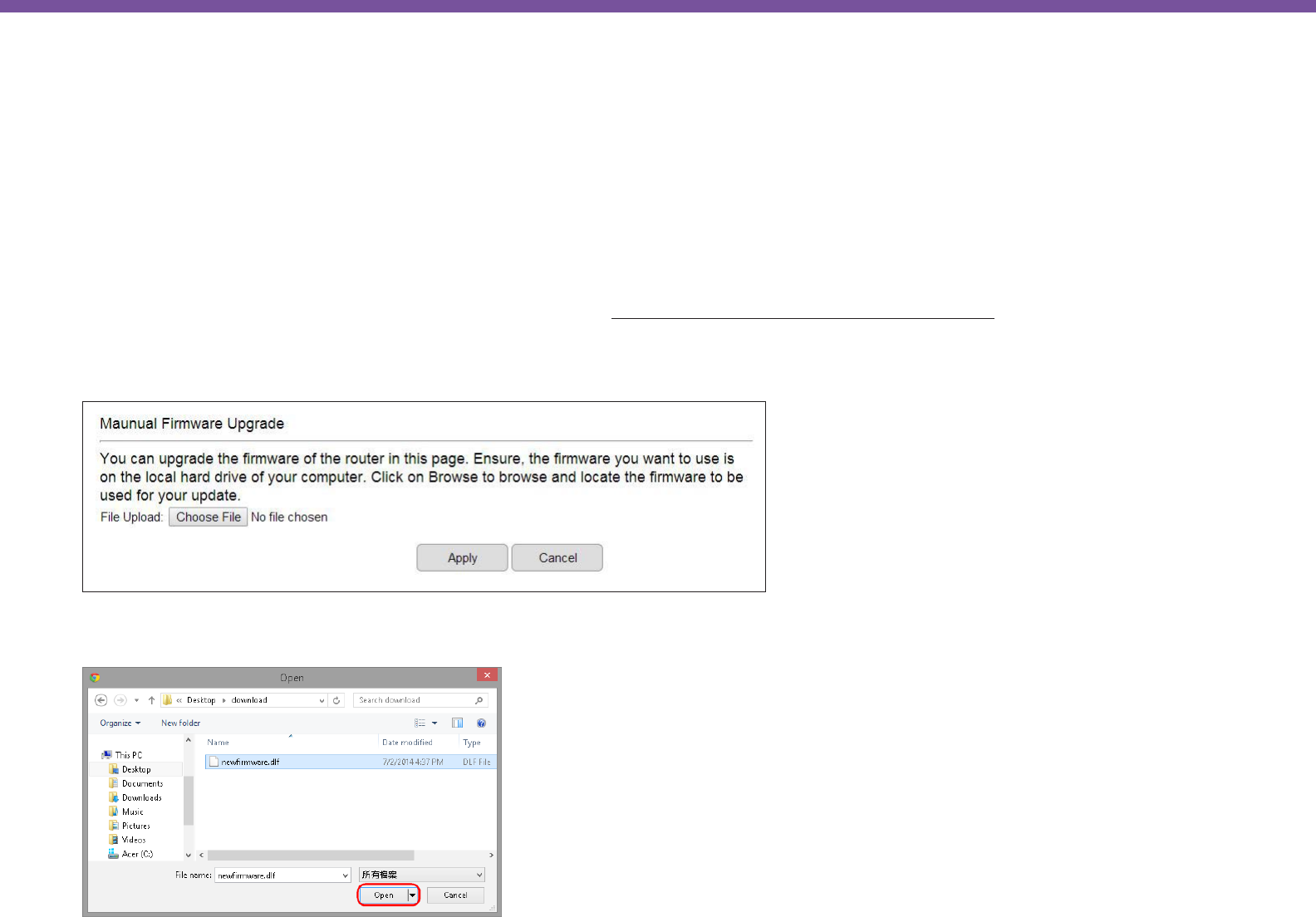

System>> Firmware .......................................................................59

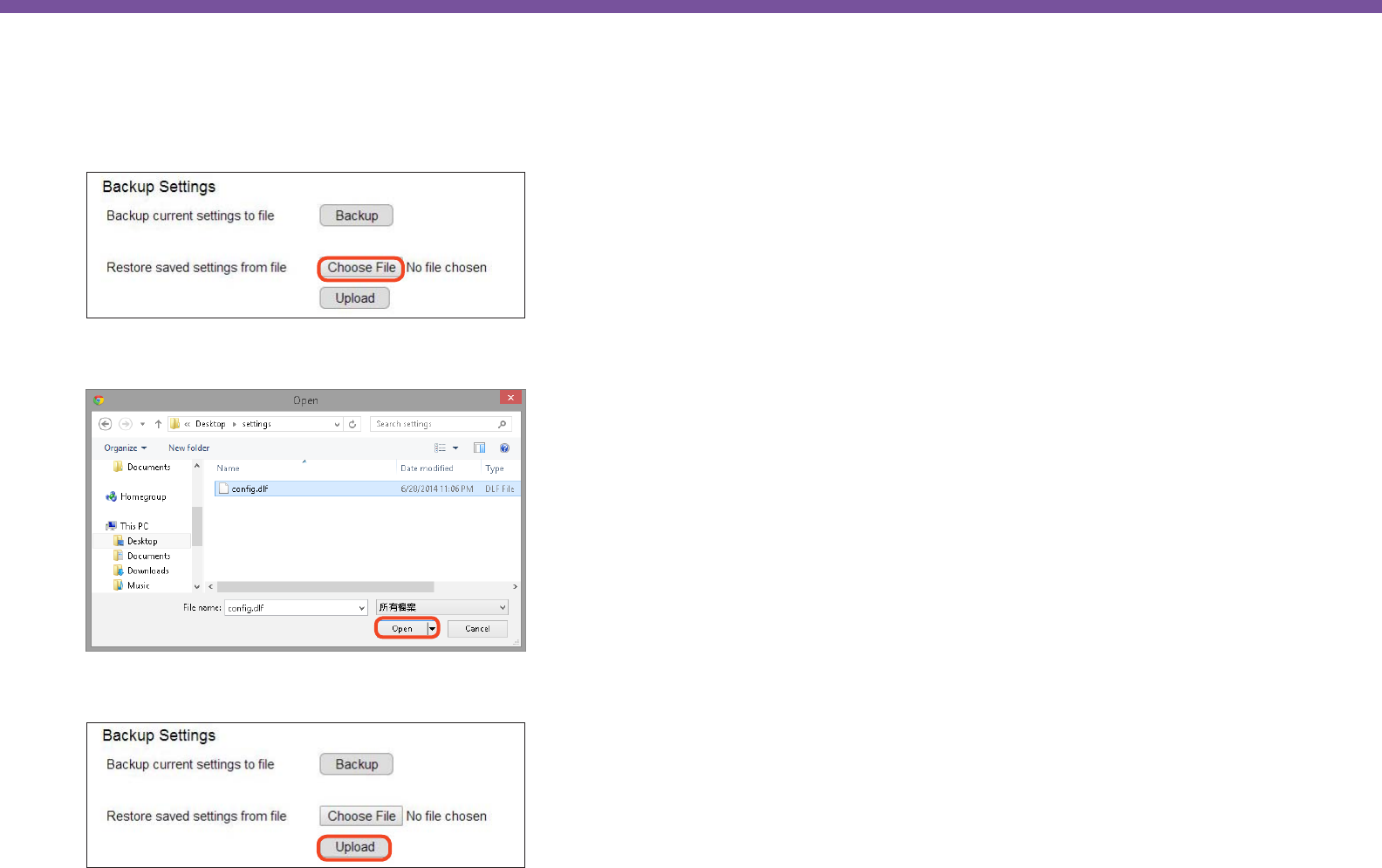

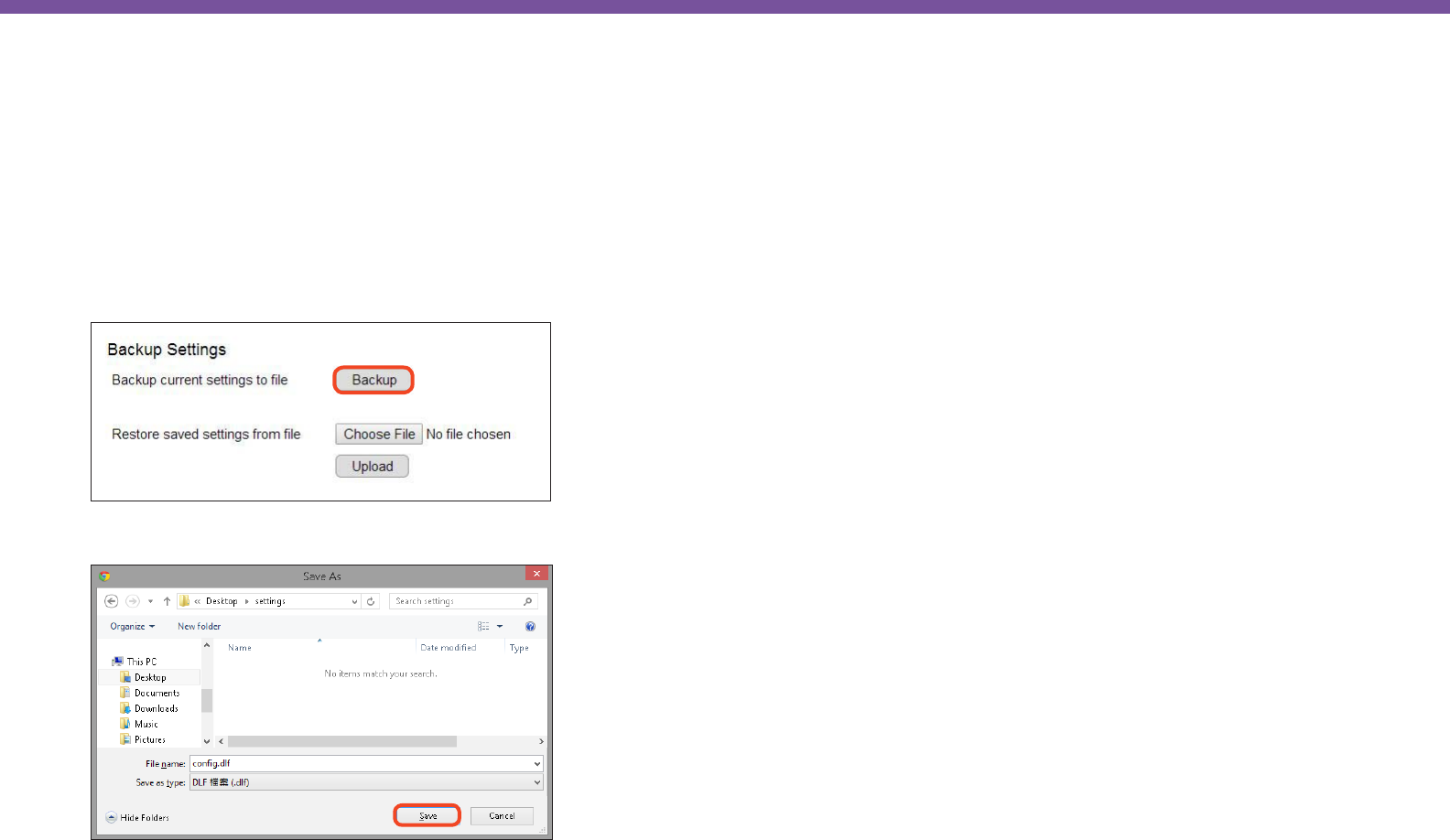

System>> Backup ...........................................................................63

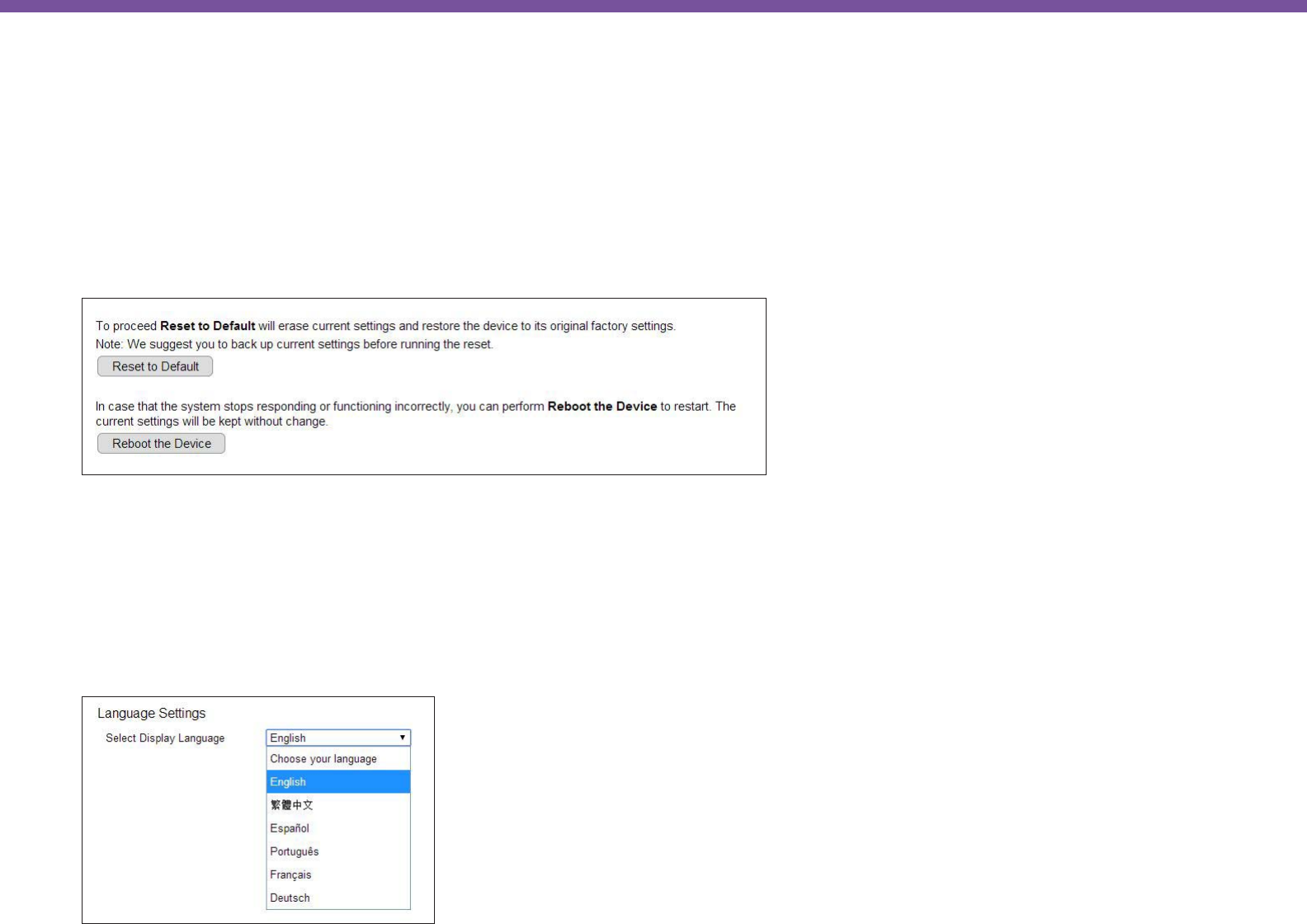

System>> Reset to Default / Reboot .....................................65
System>> Language ......................................................................65
Network .......................................................................................................66

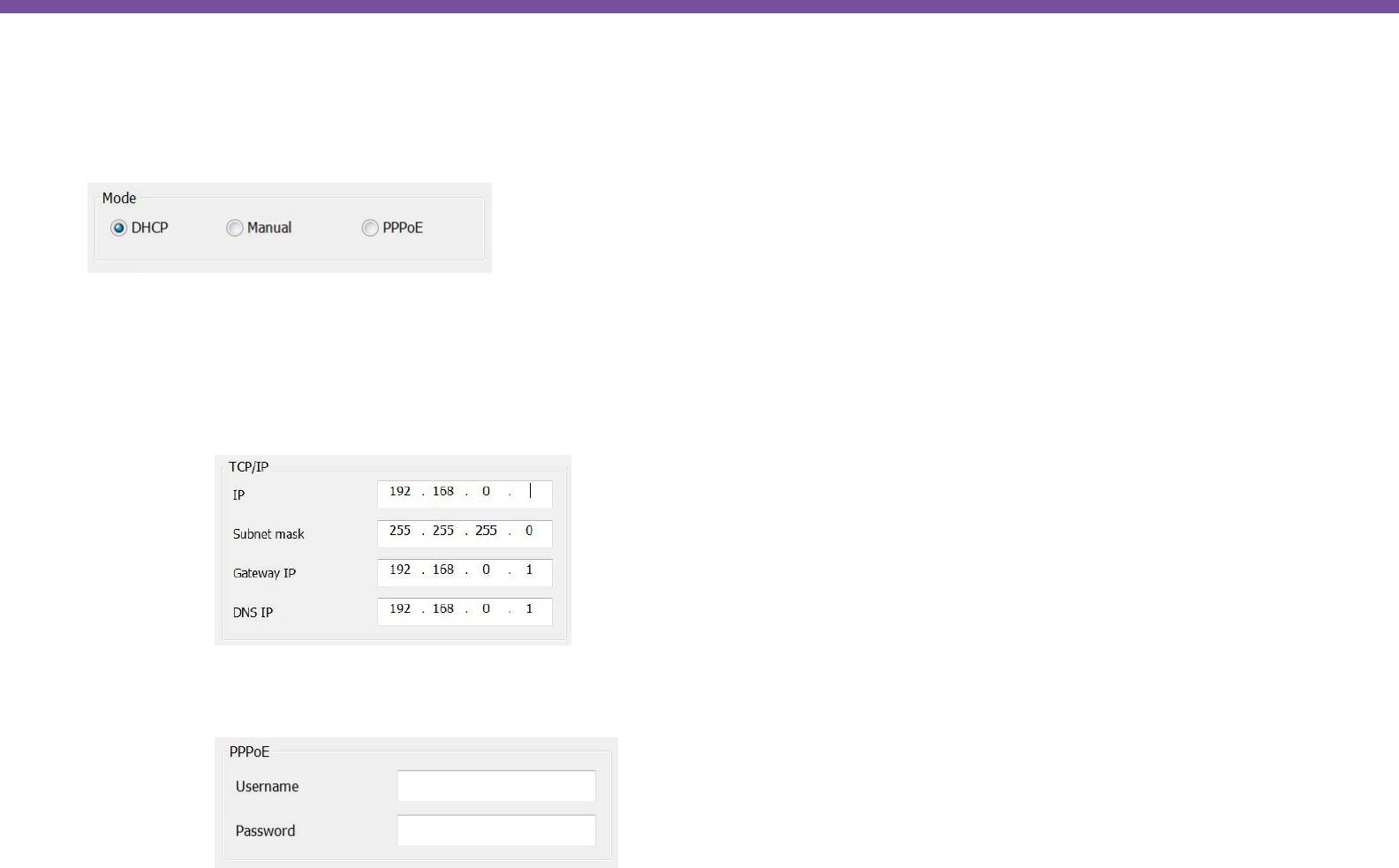

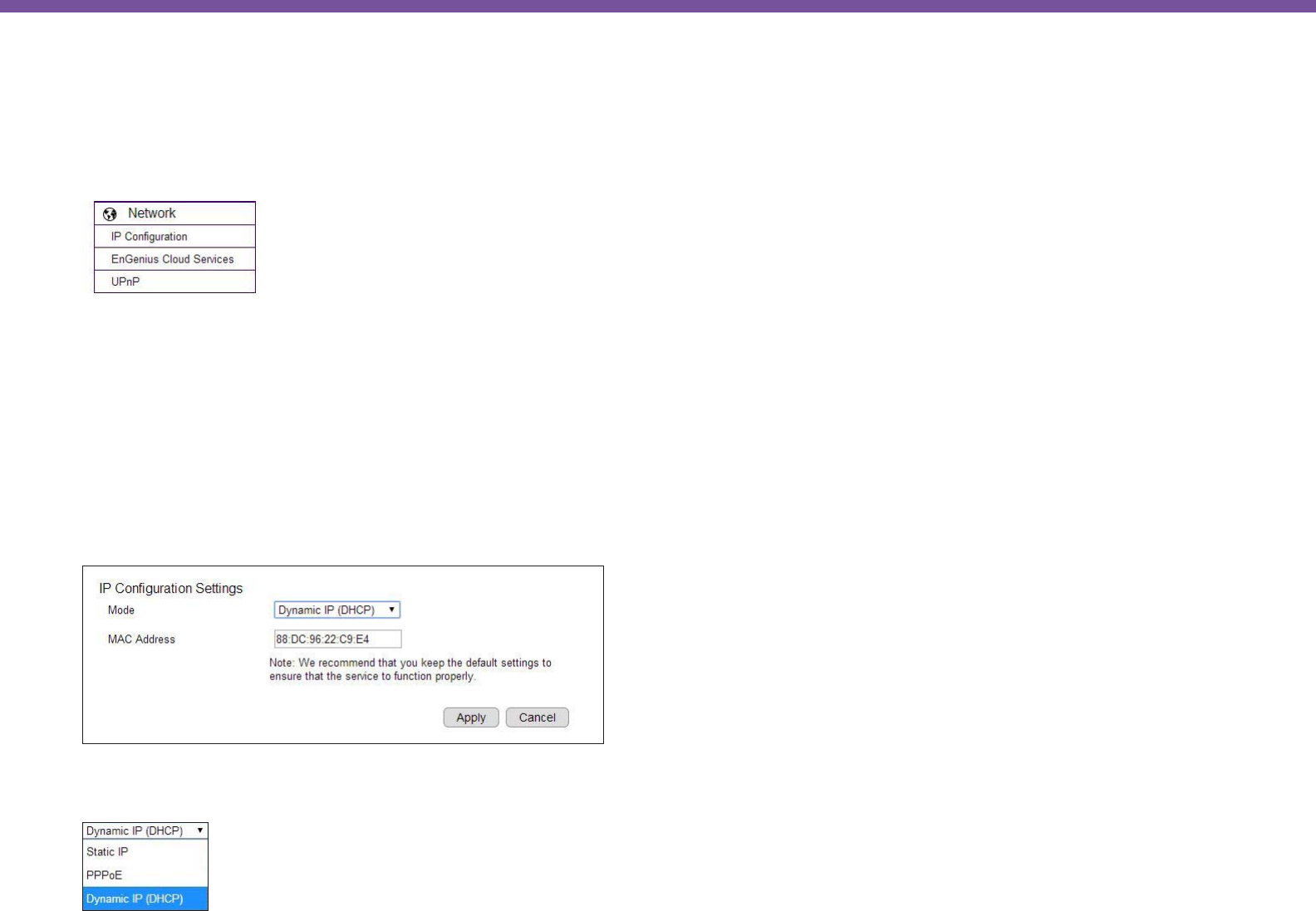

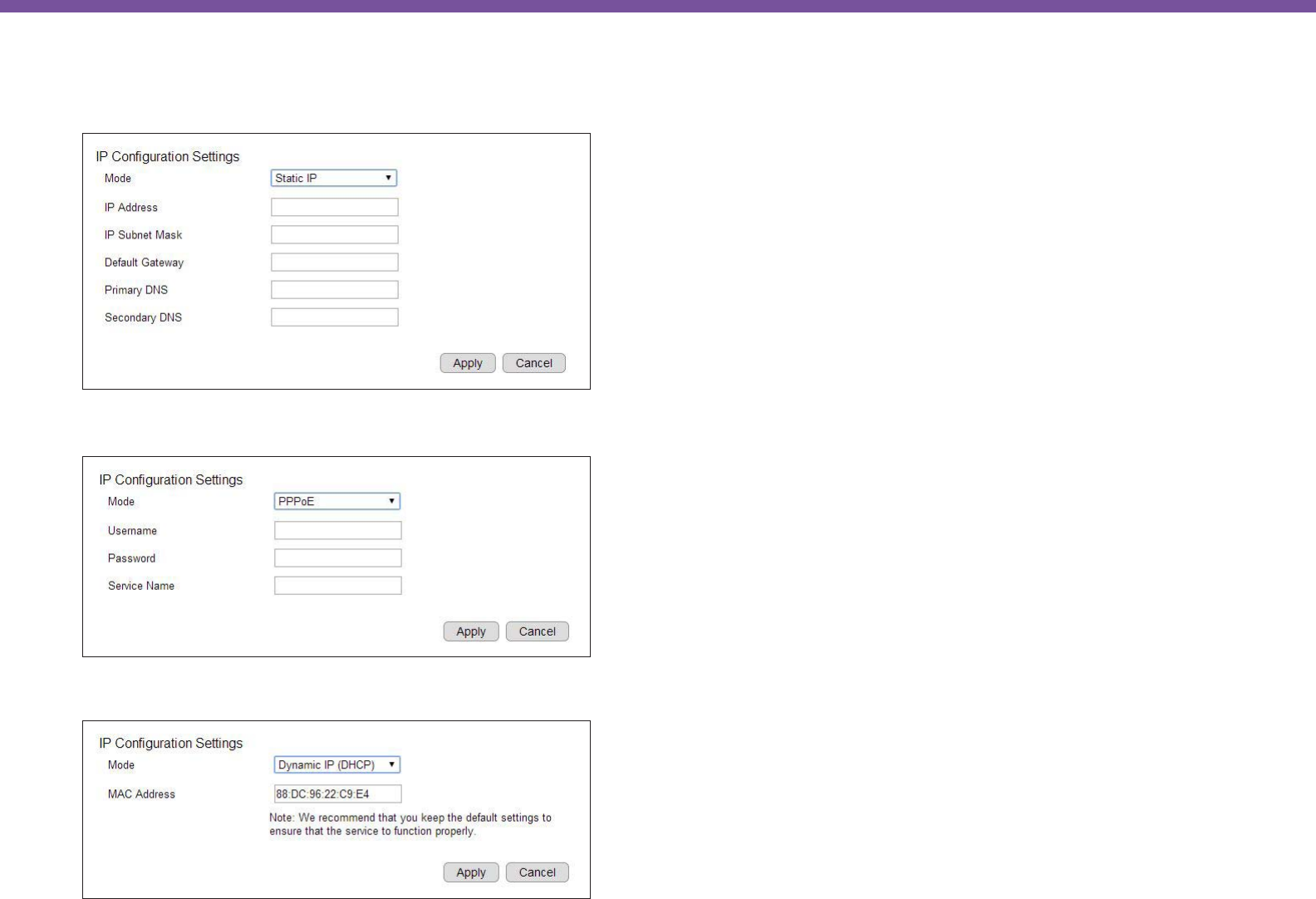

Network>> IP Conguration ......................................................66

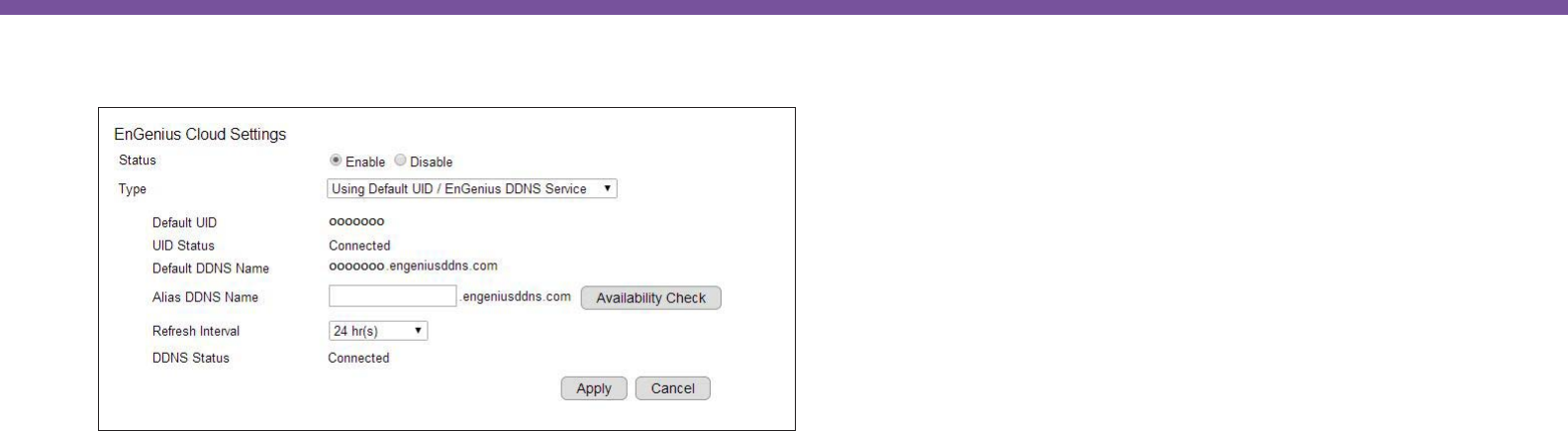

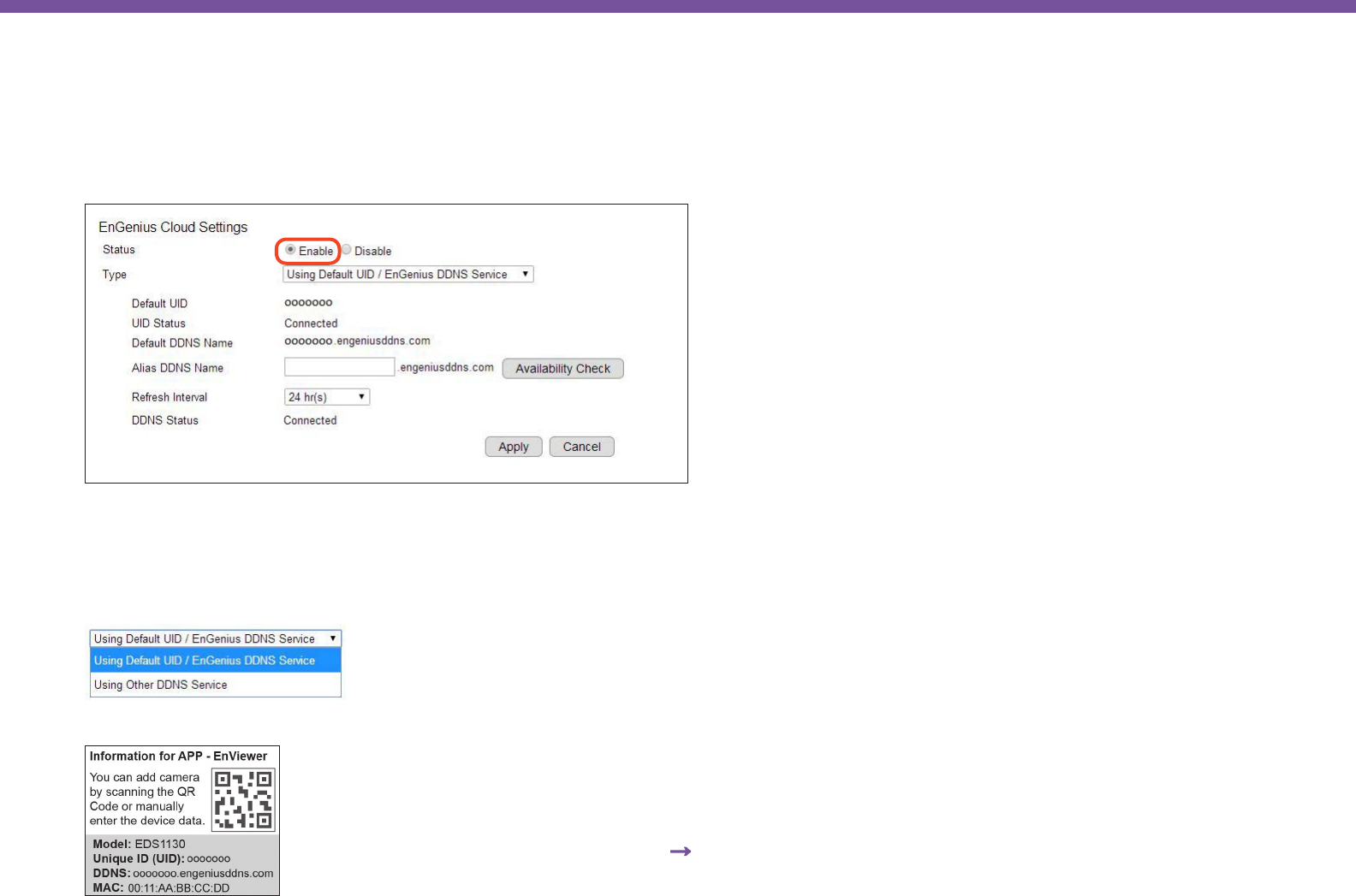

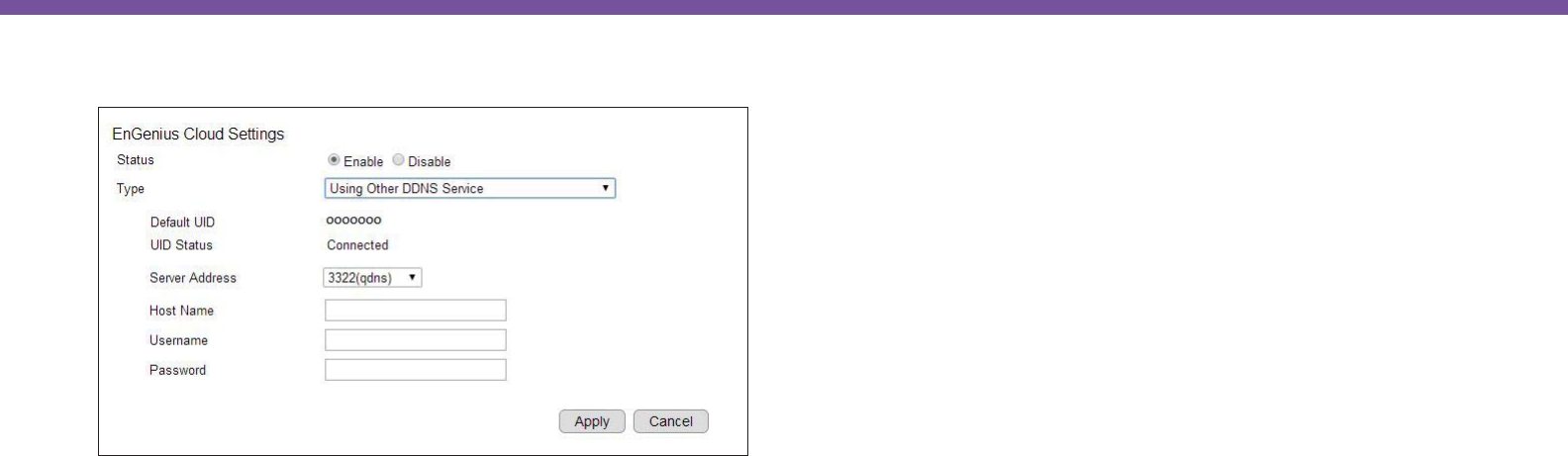

Network>> EnGenius Cloud Services ..................................... 68
Network>> UPnP .............................................................................71
Wireless ........................................................................................................72

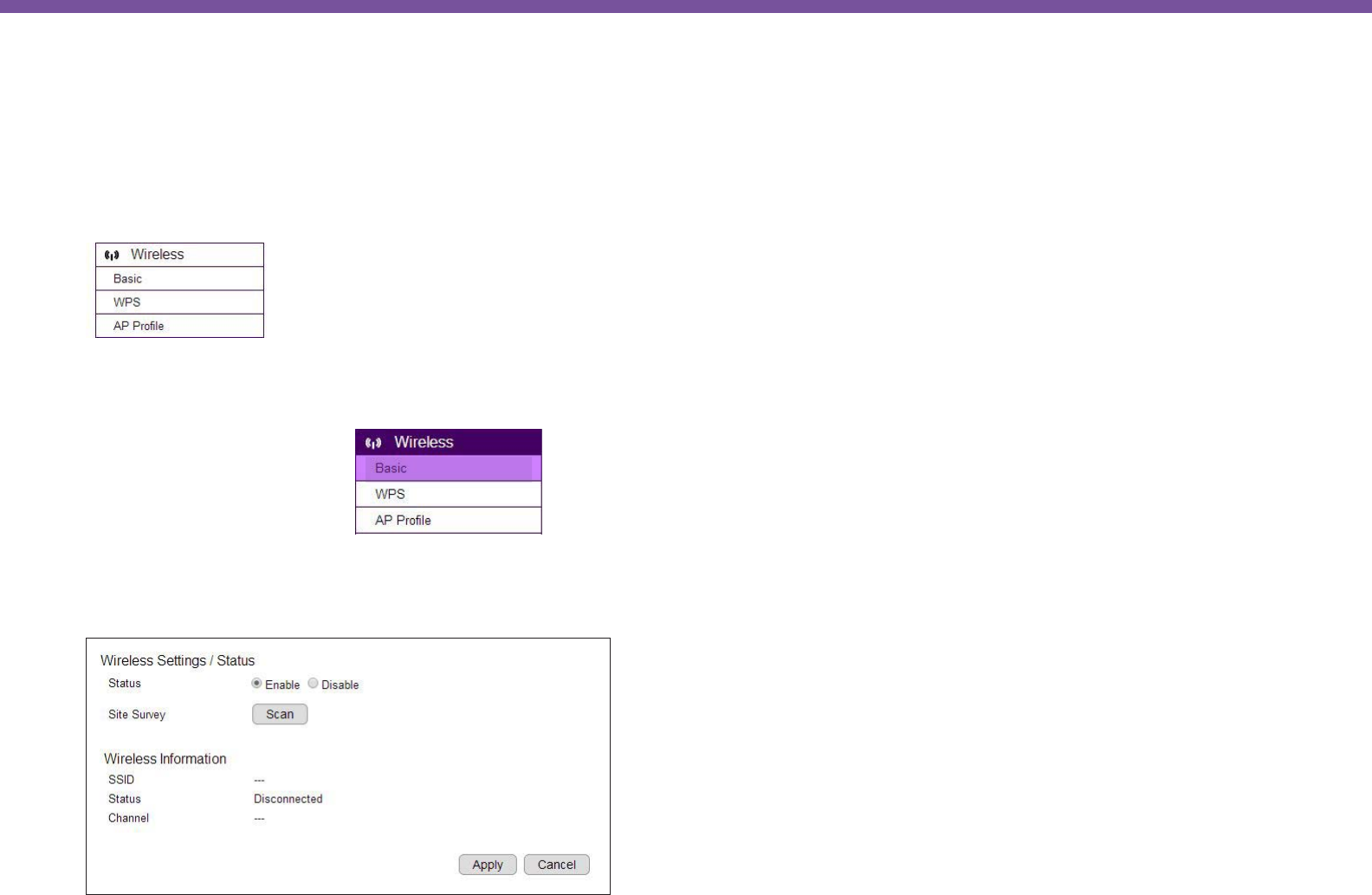

Wireless>> basic ..............................................................................72

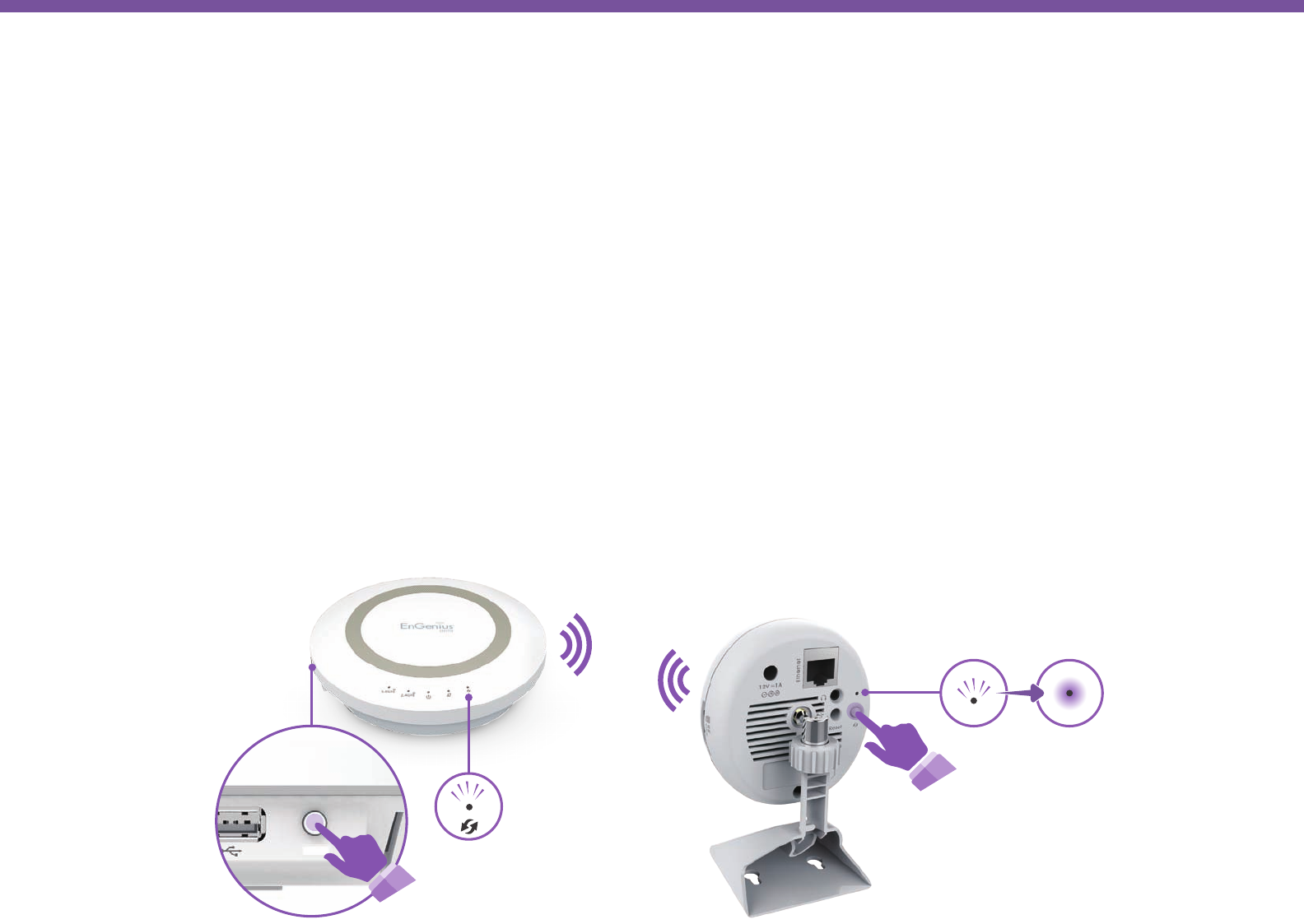

Wireless>> WPS ...............................................................................75

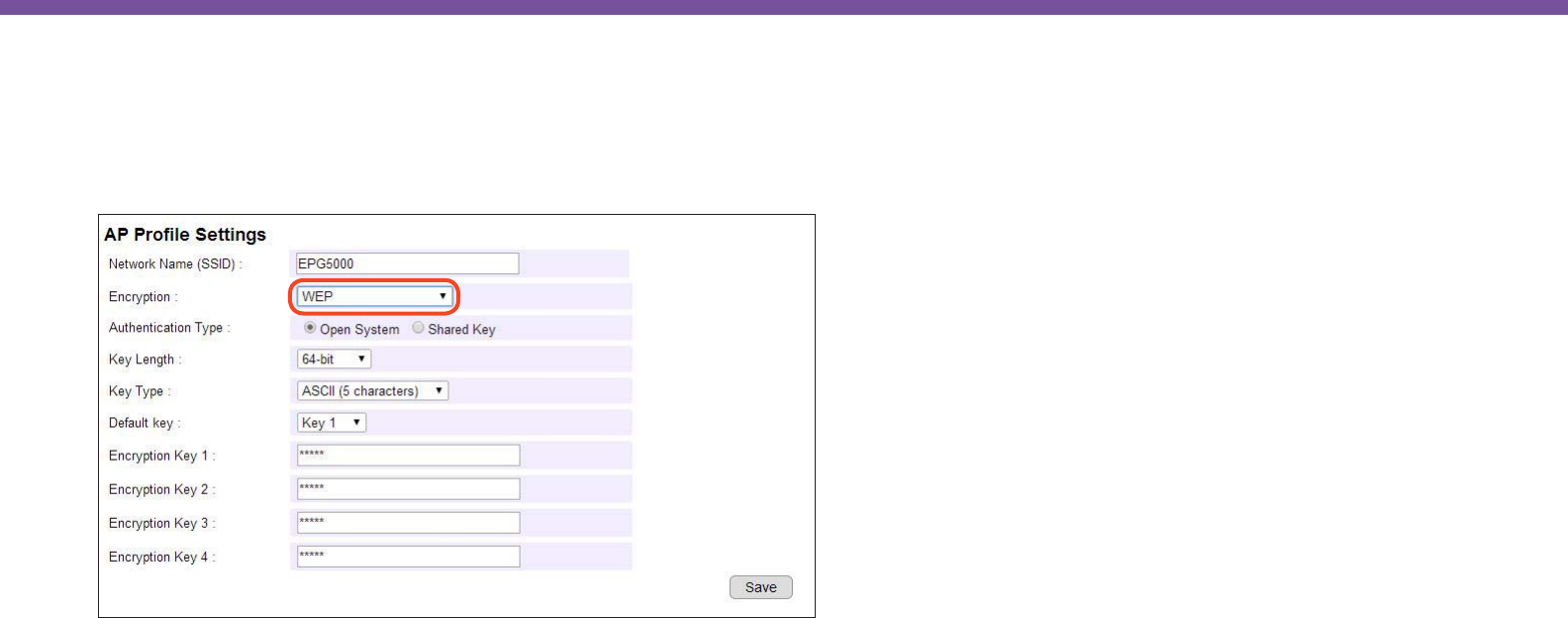

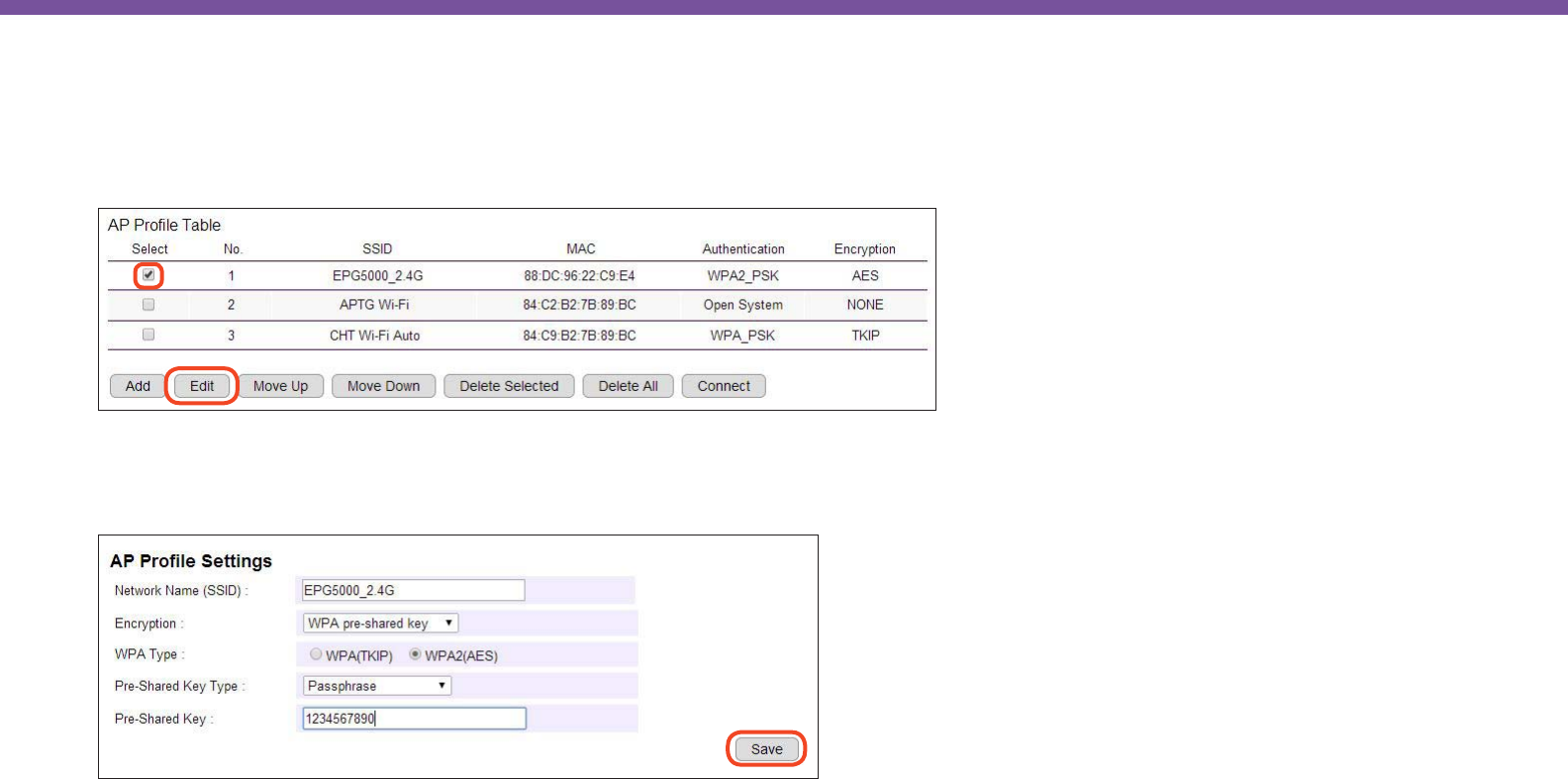

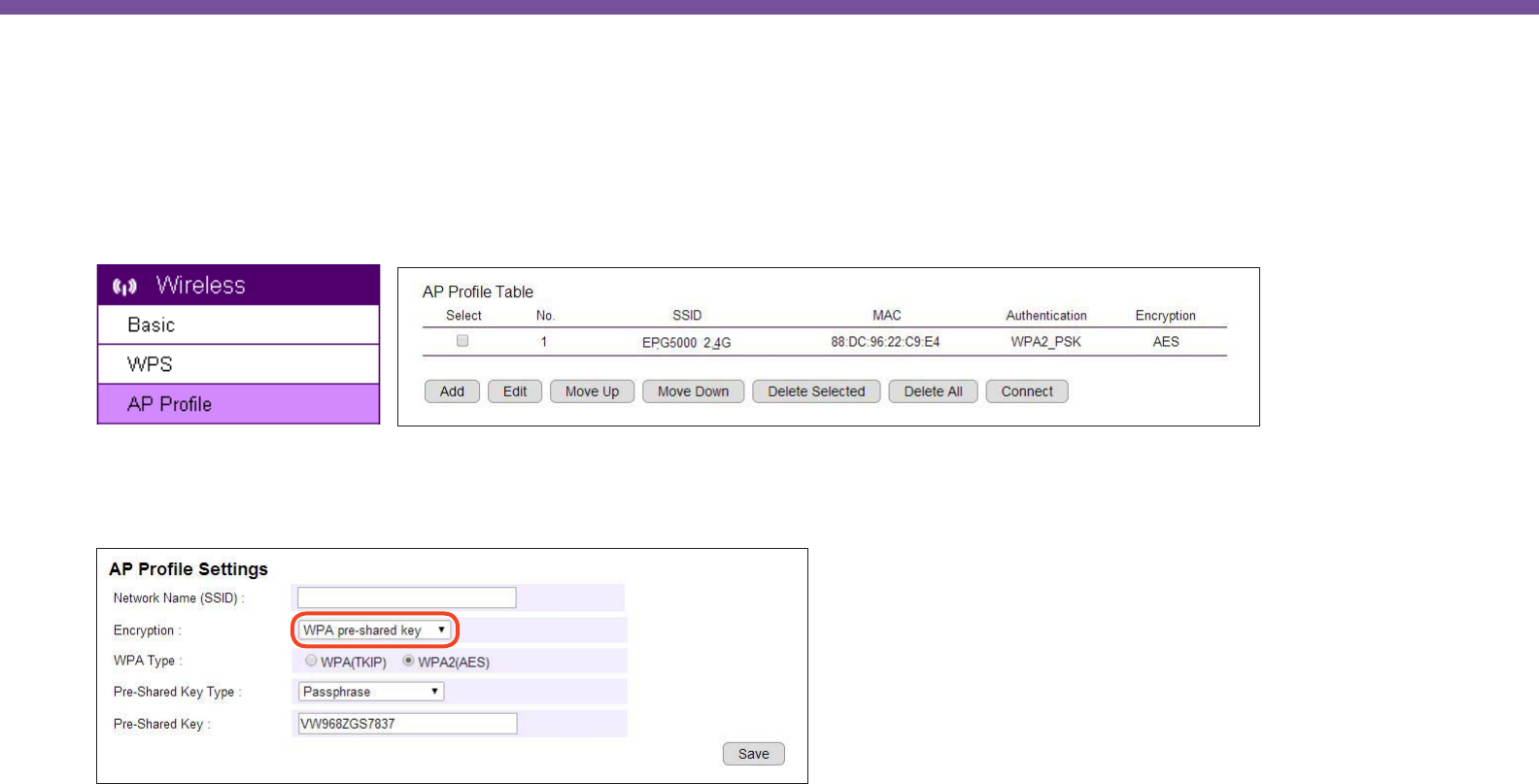

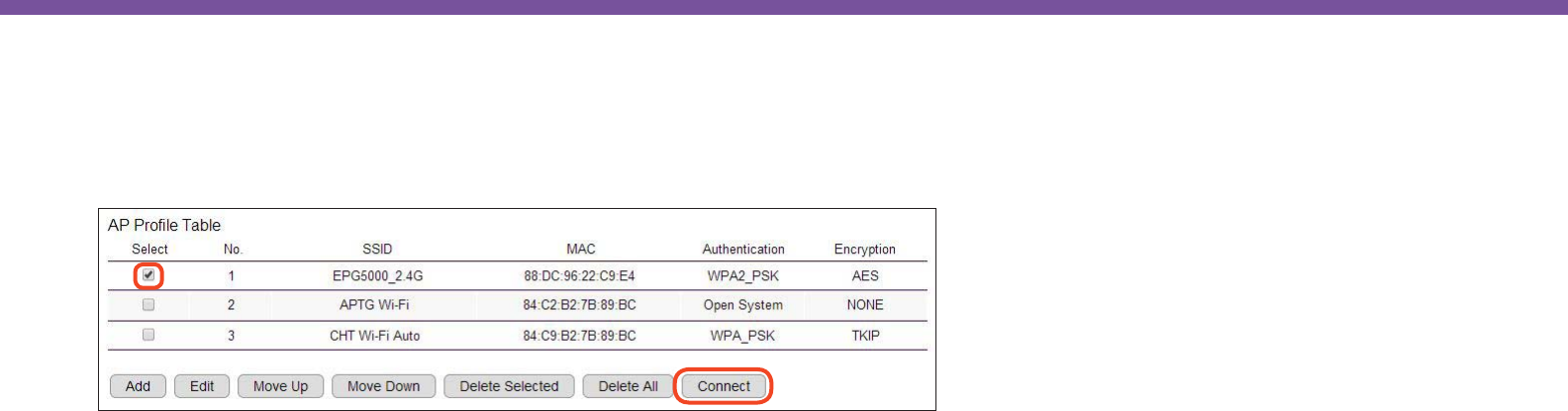

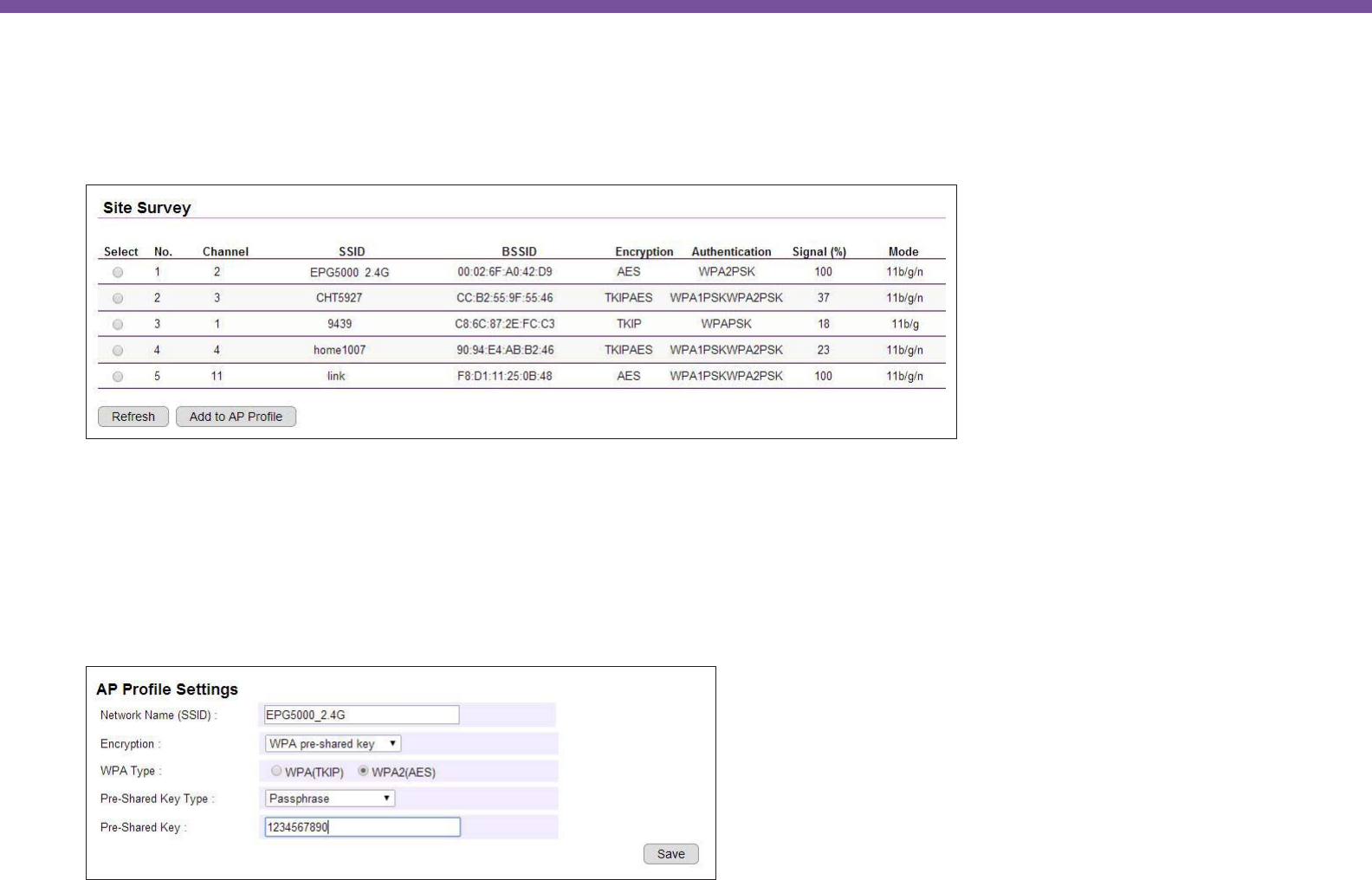

Wireless>> AP Prole ....................................................................77
Media ..........................................................................................................82

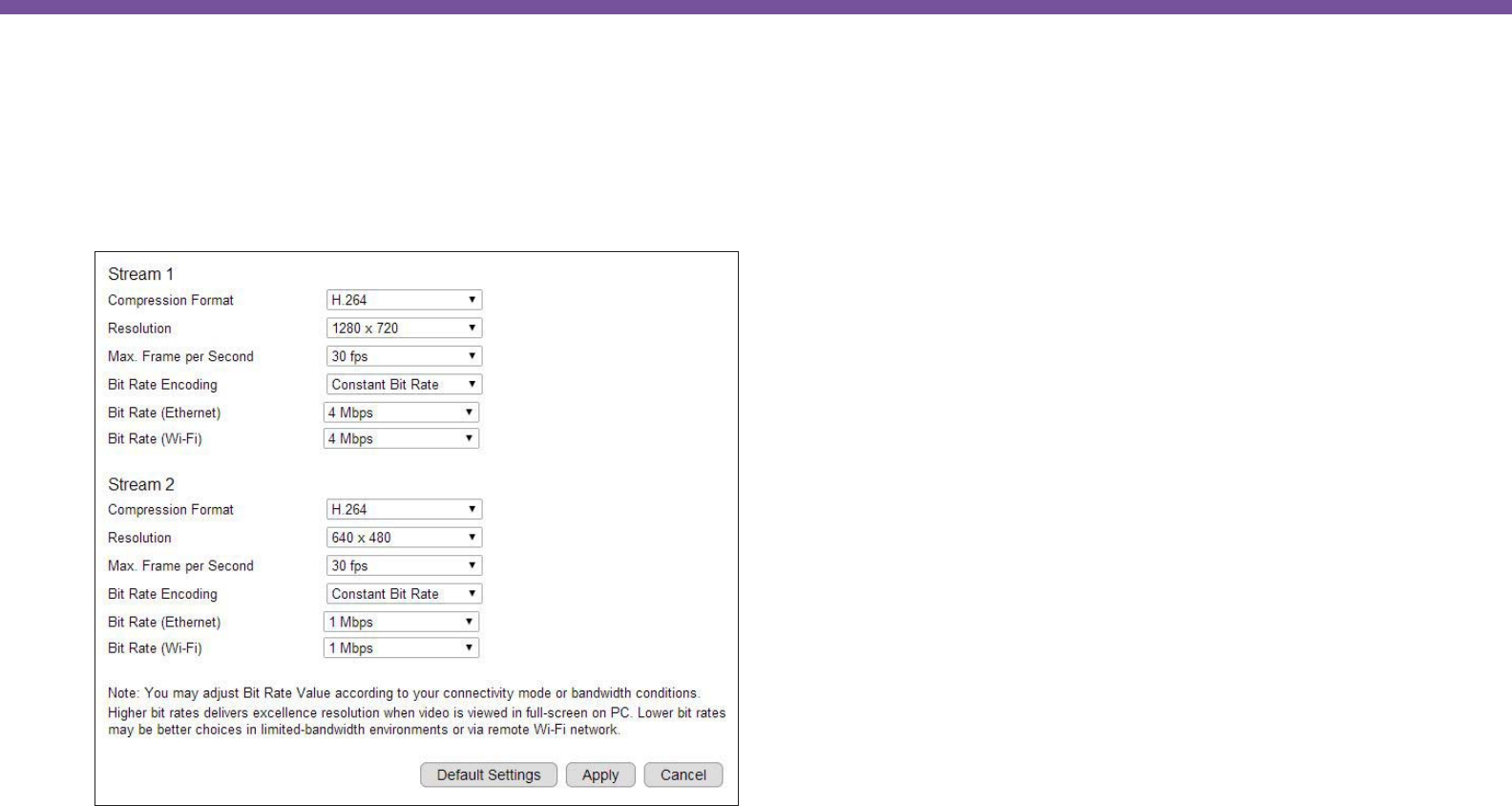

Media>> Video ..................................................................................82
Media>> Camera ..............................................................................84

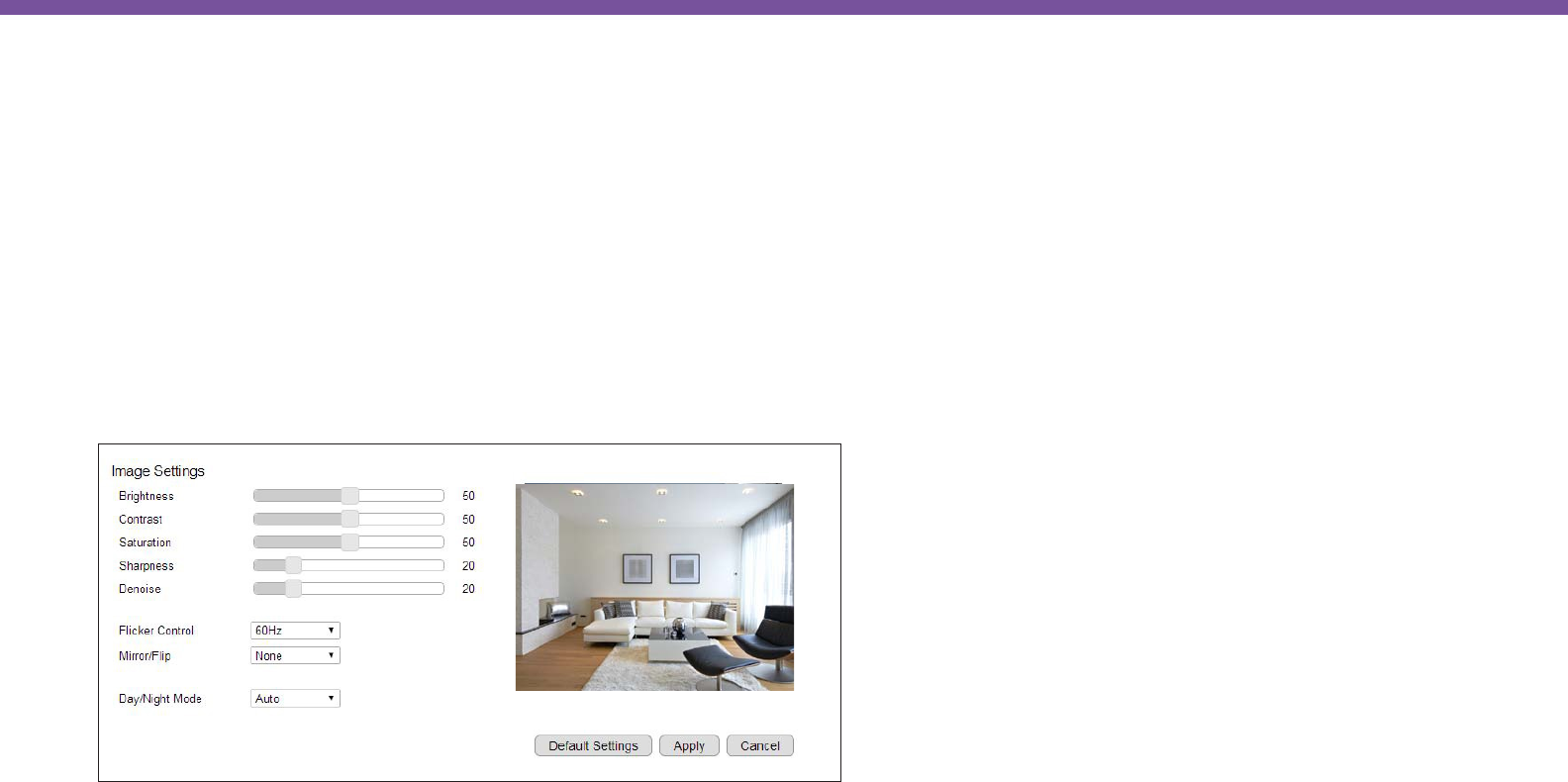

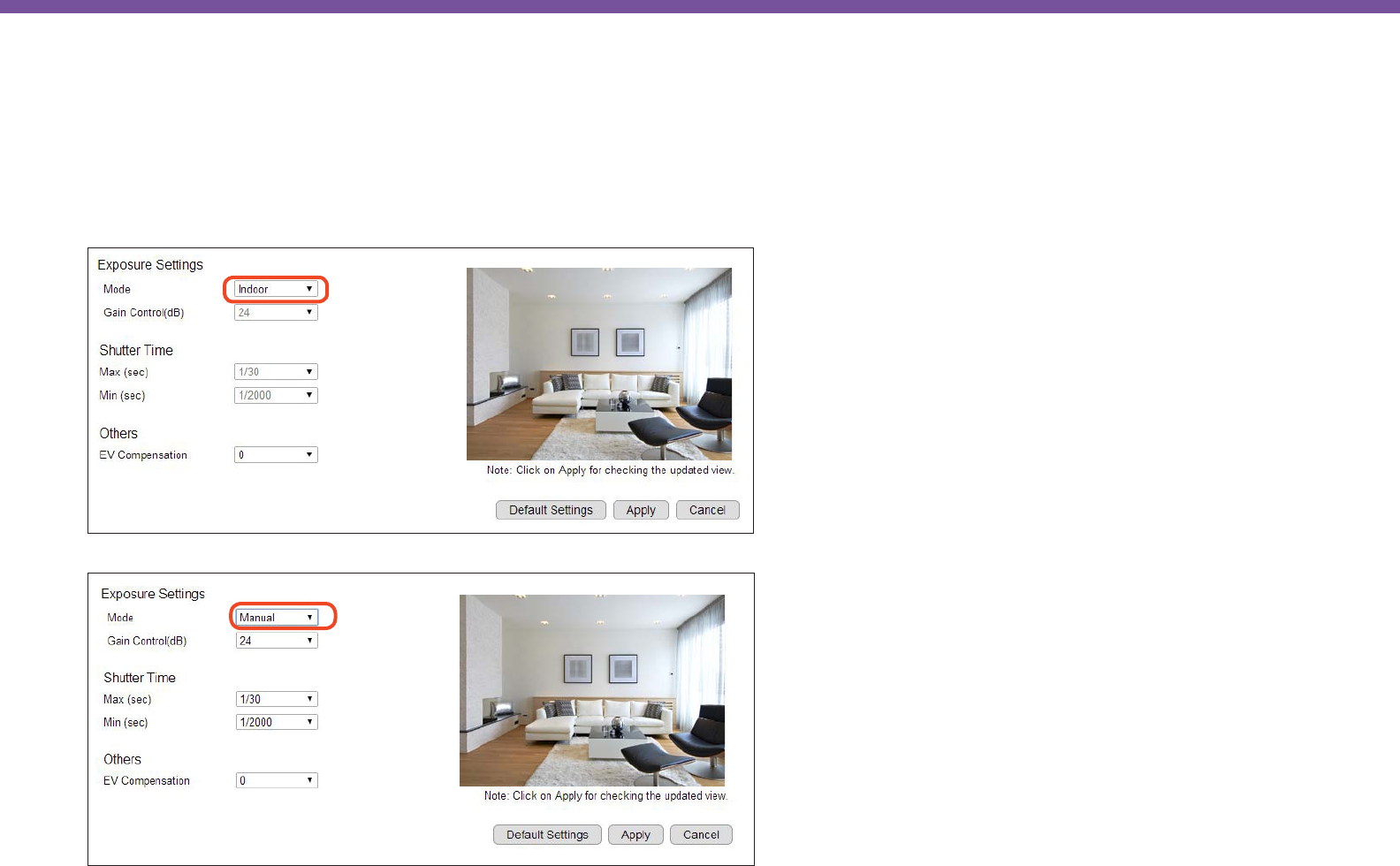

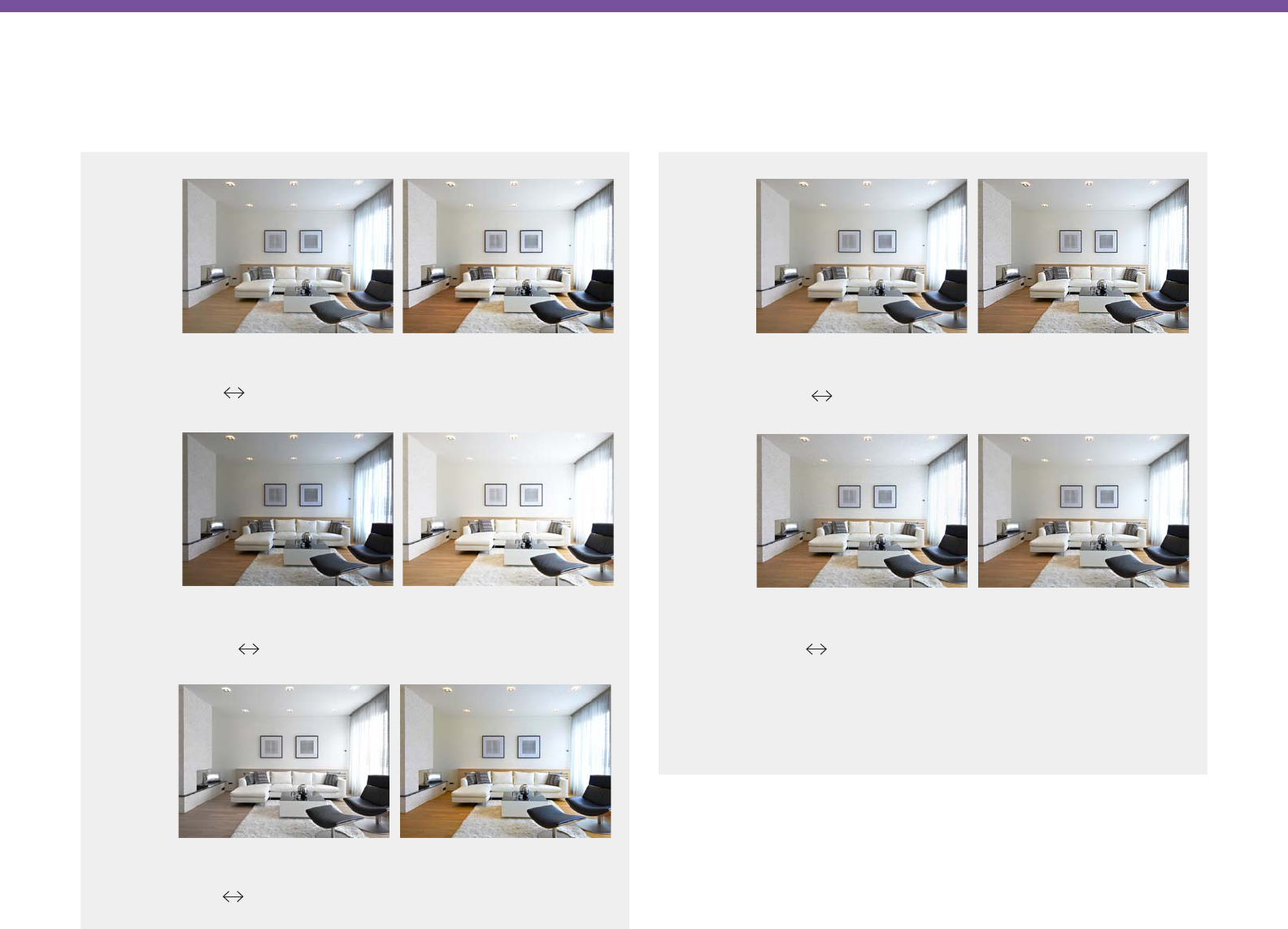

Camera>> Image Settings ................................................... 85
Camera>> Flicker Control .....................................................86
Camera>> Mirror / Flip ...........................................................87

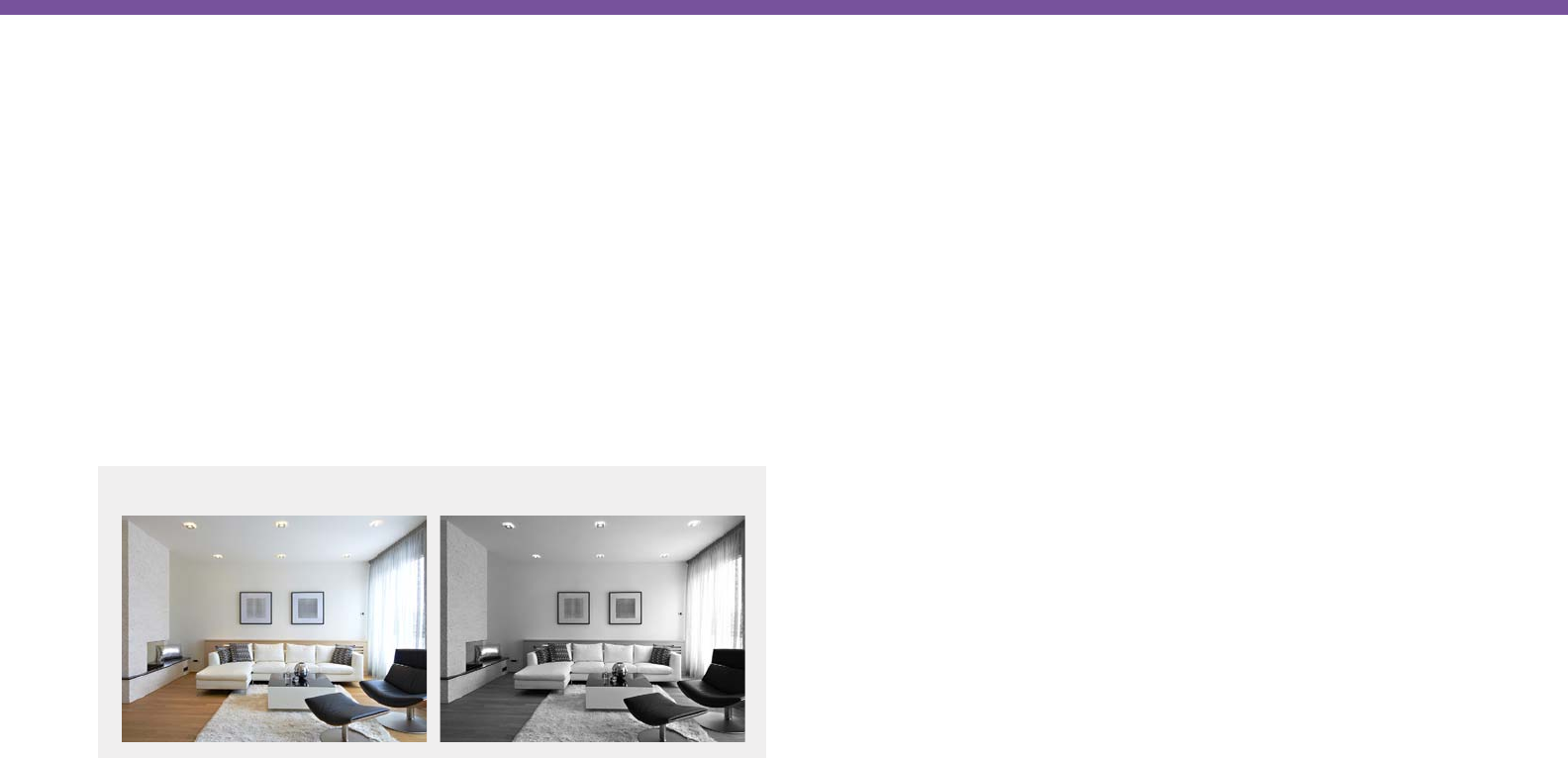

Camera>> Day / Night Mode ..............................................88
Media>> Advanced .........................................................................89

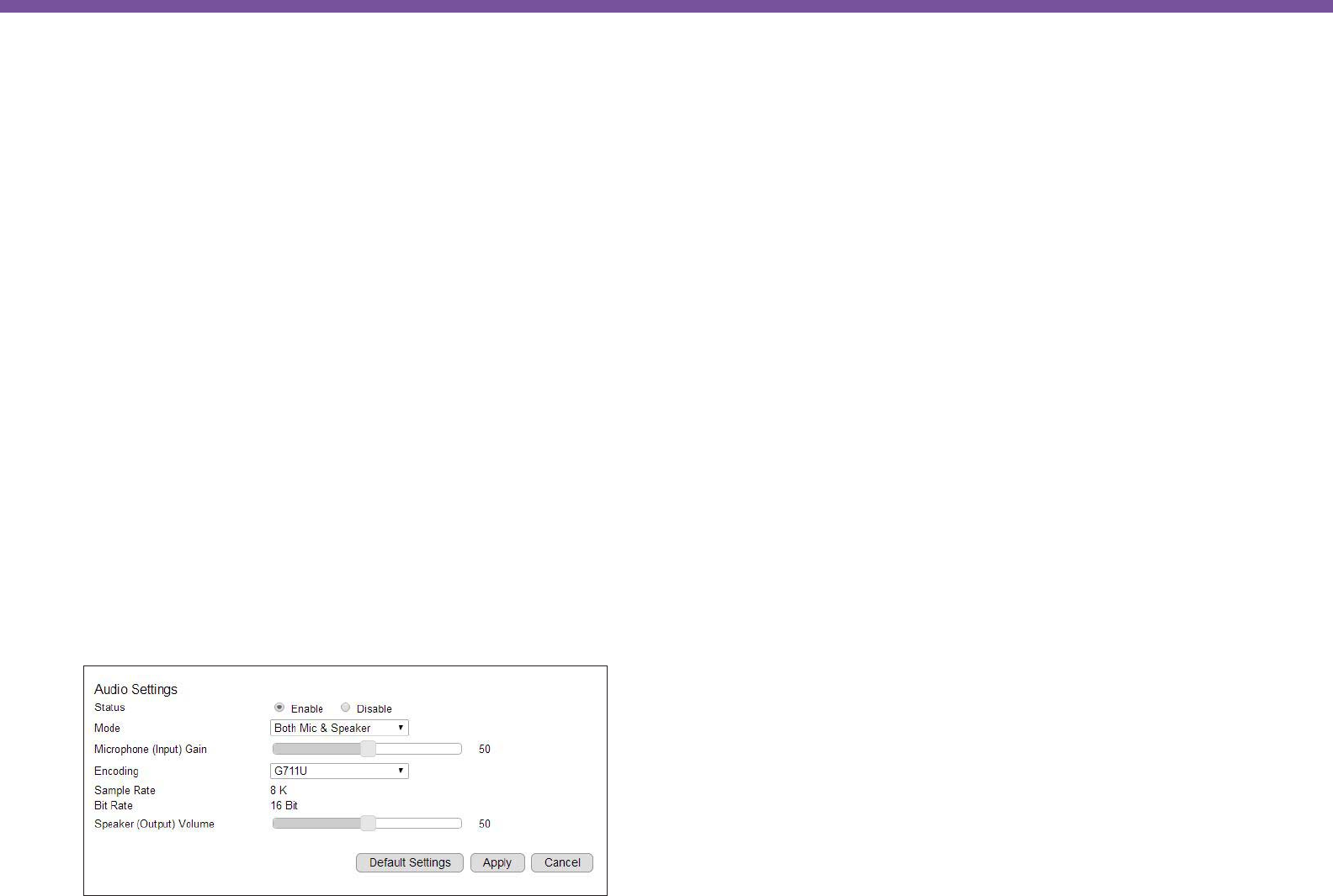

Media>> Audio ..................................................................................90

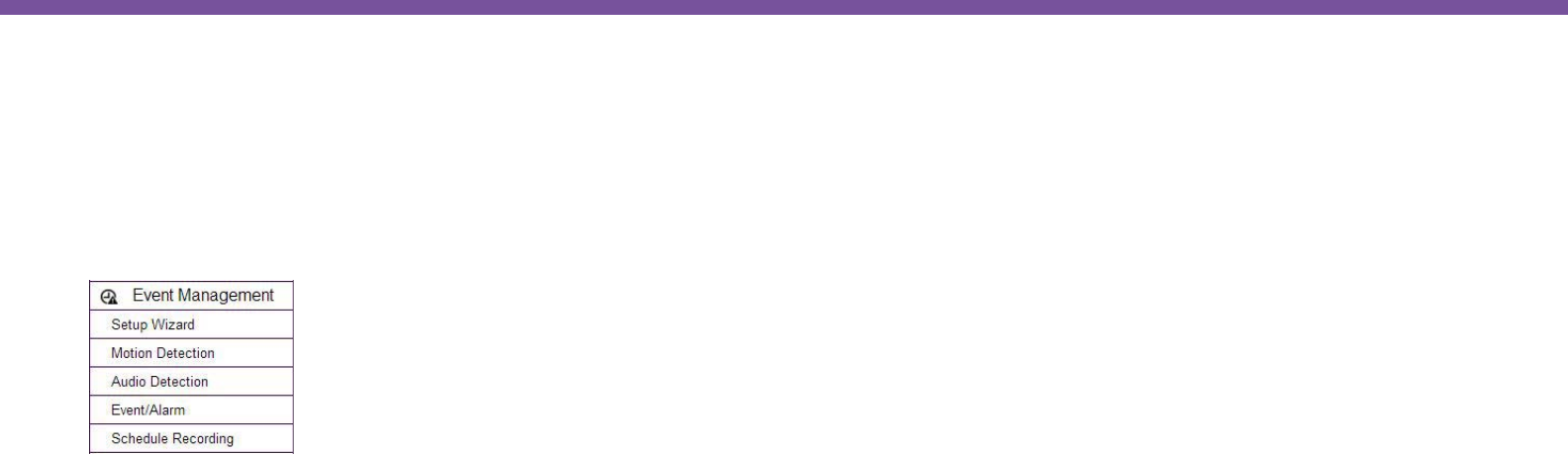

Event Management ................................................................................91

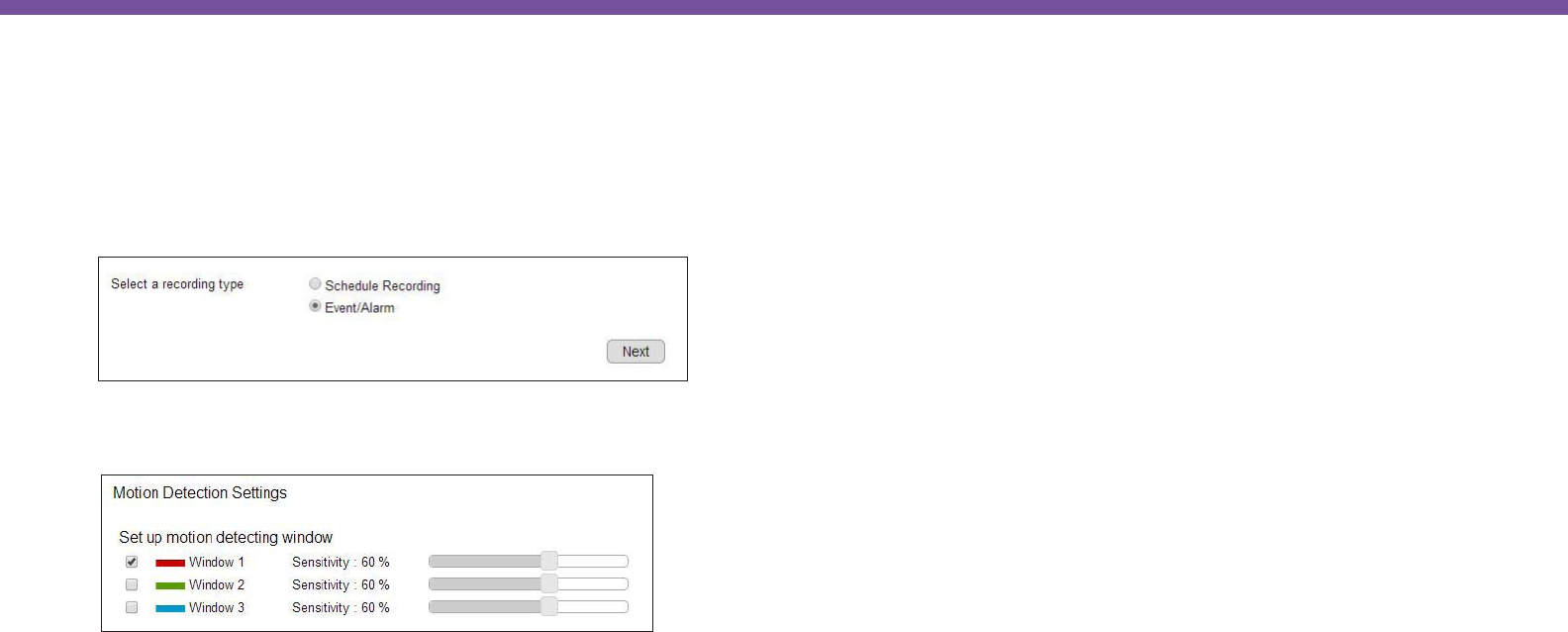

Event Management >> Setup Wizard ...................................91
Wizard – Schedule Recording .............................................92

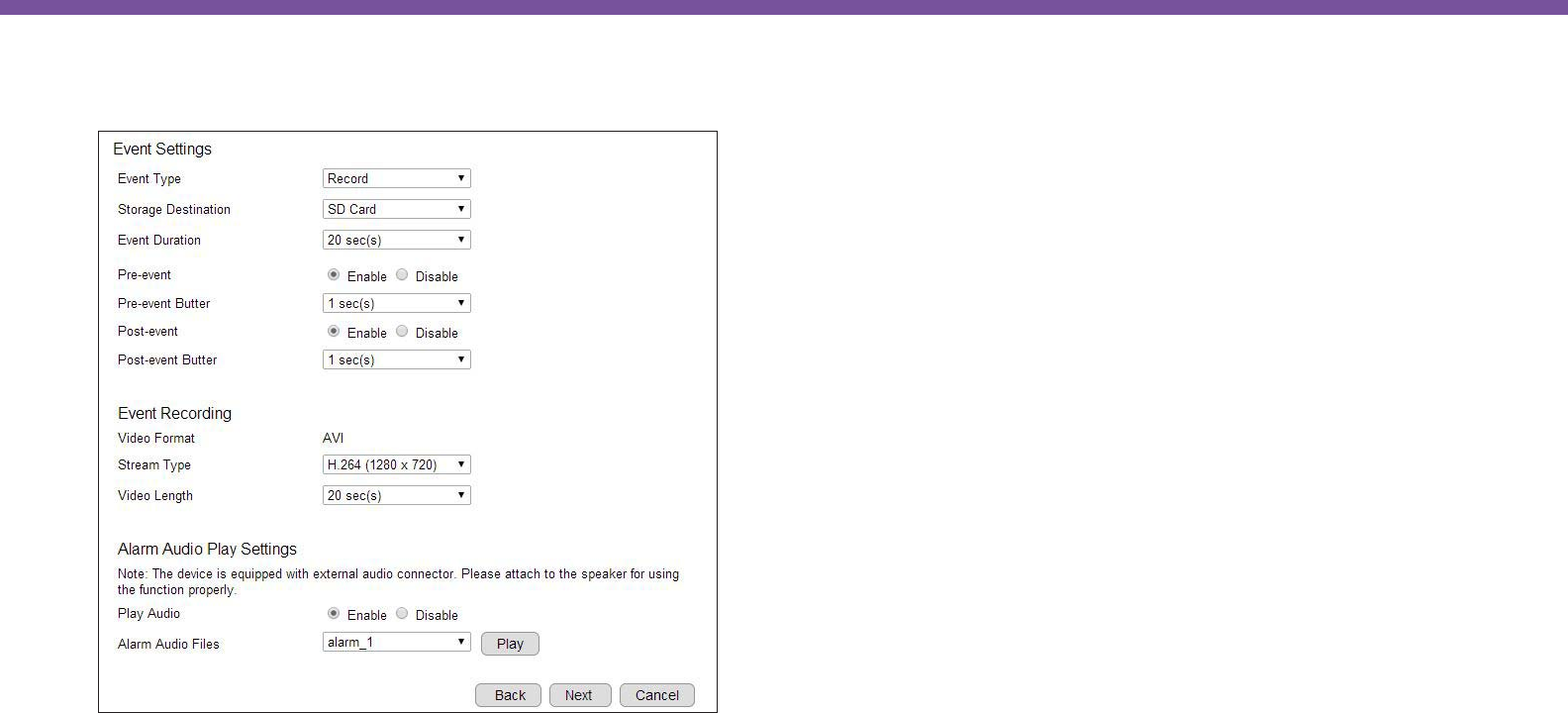

Wizard – Event/Alarm .............................................................94

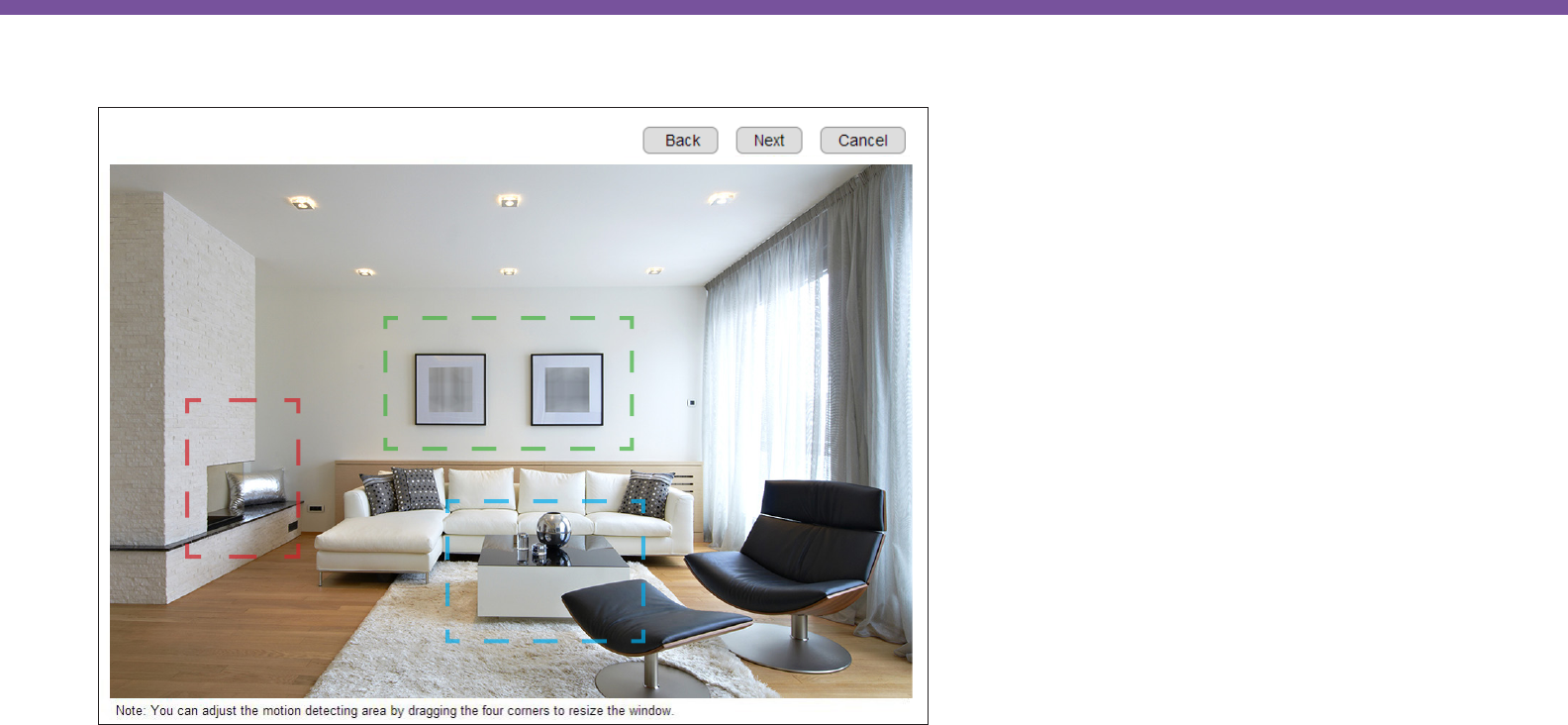

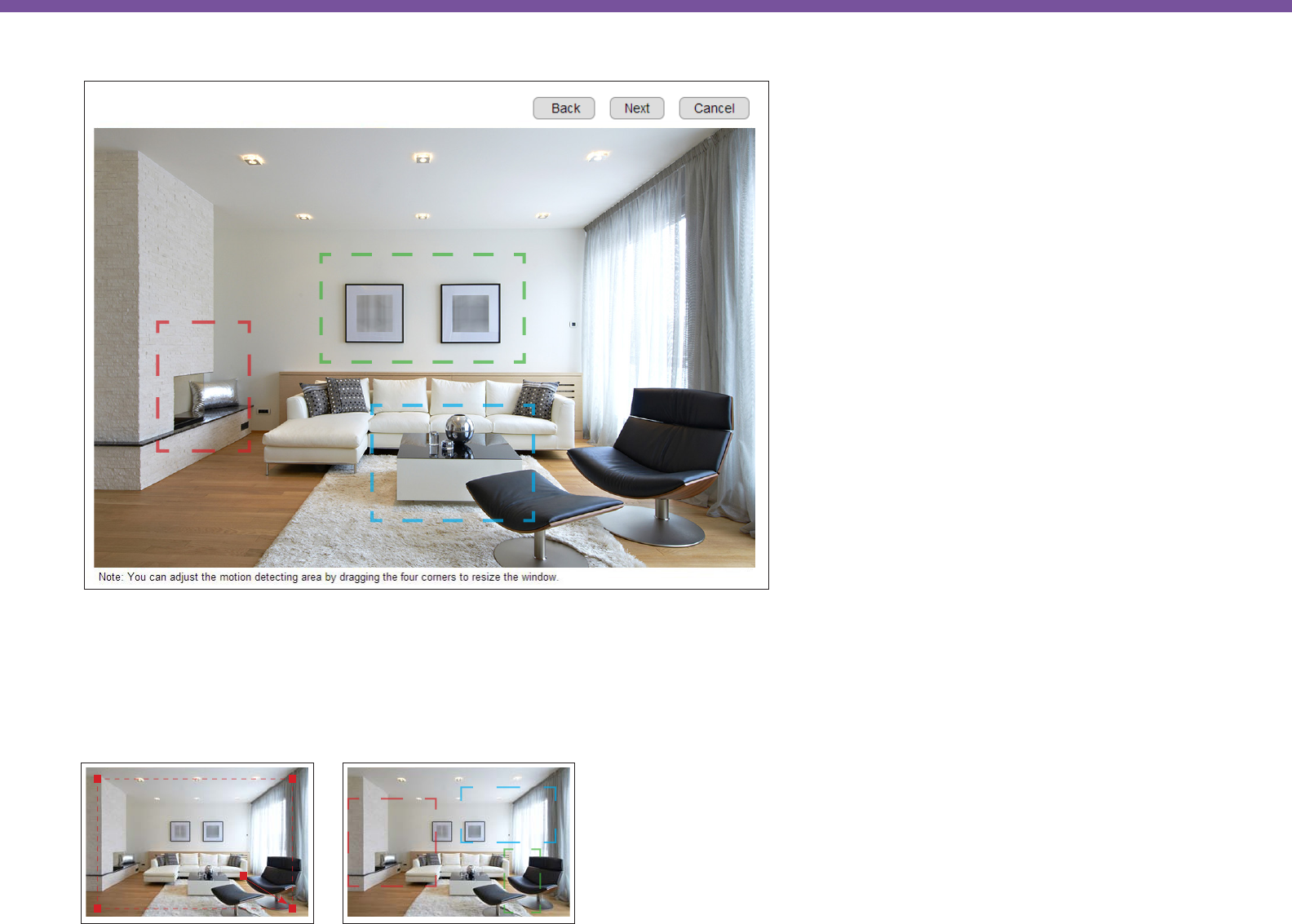

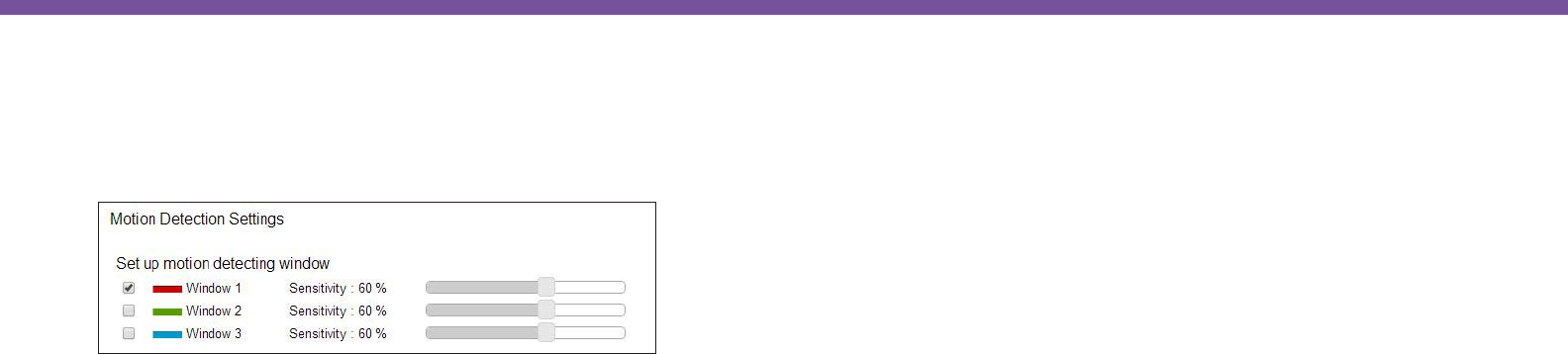

Event Management>> Motion Detection .......................... 101

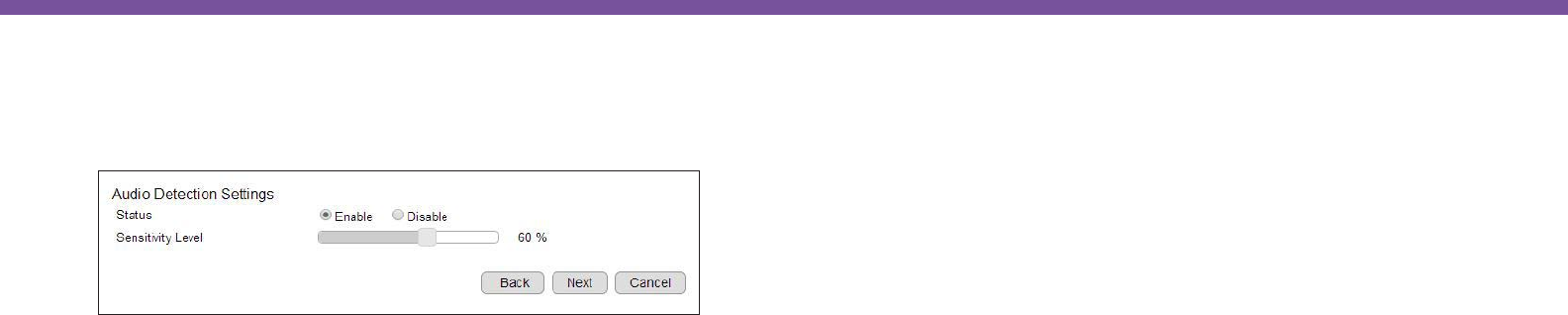

Event Management>> Audio Detection ............................ 103

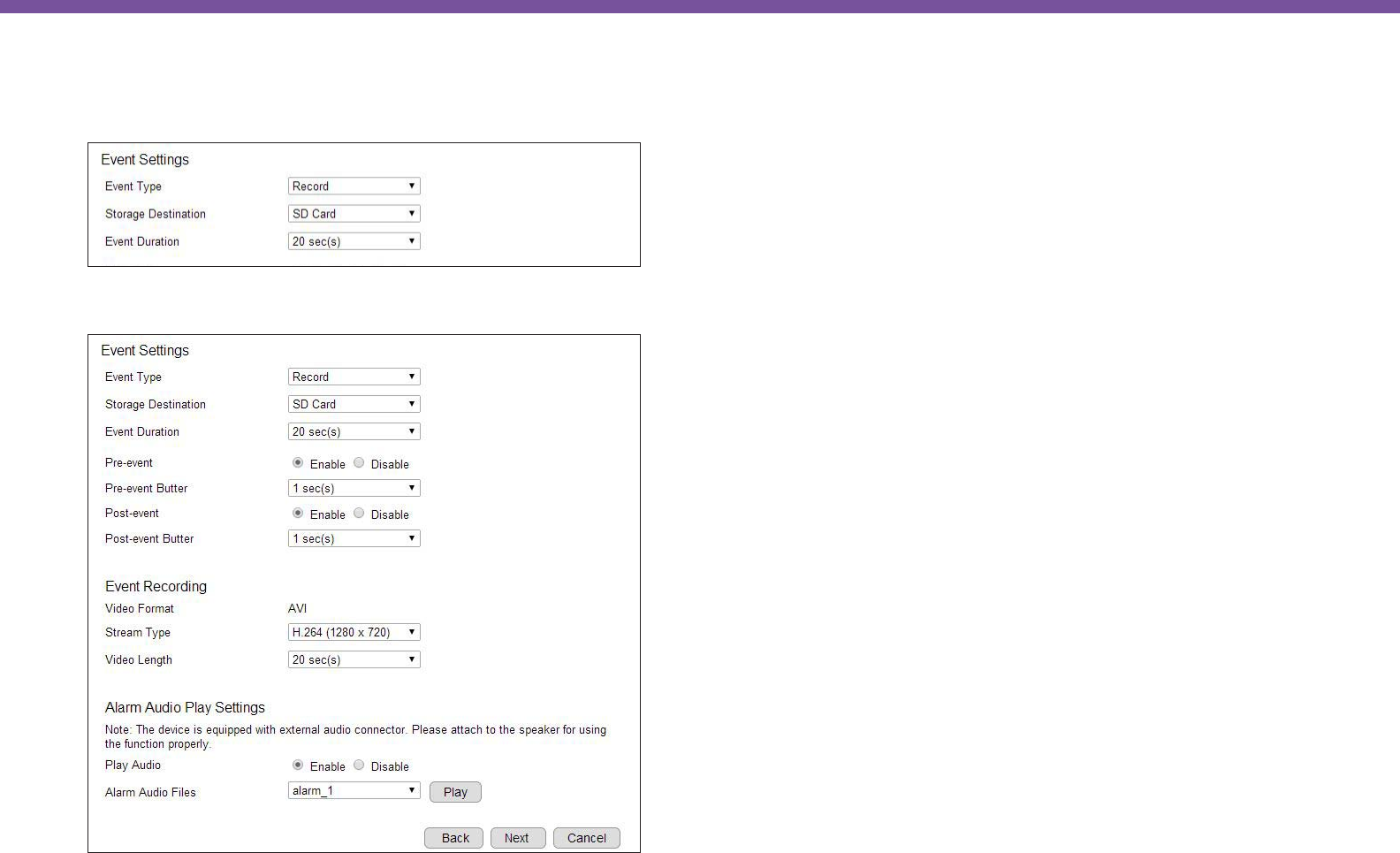

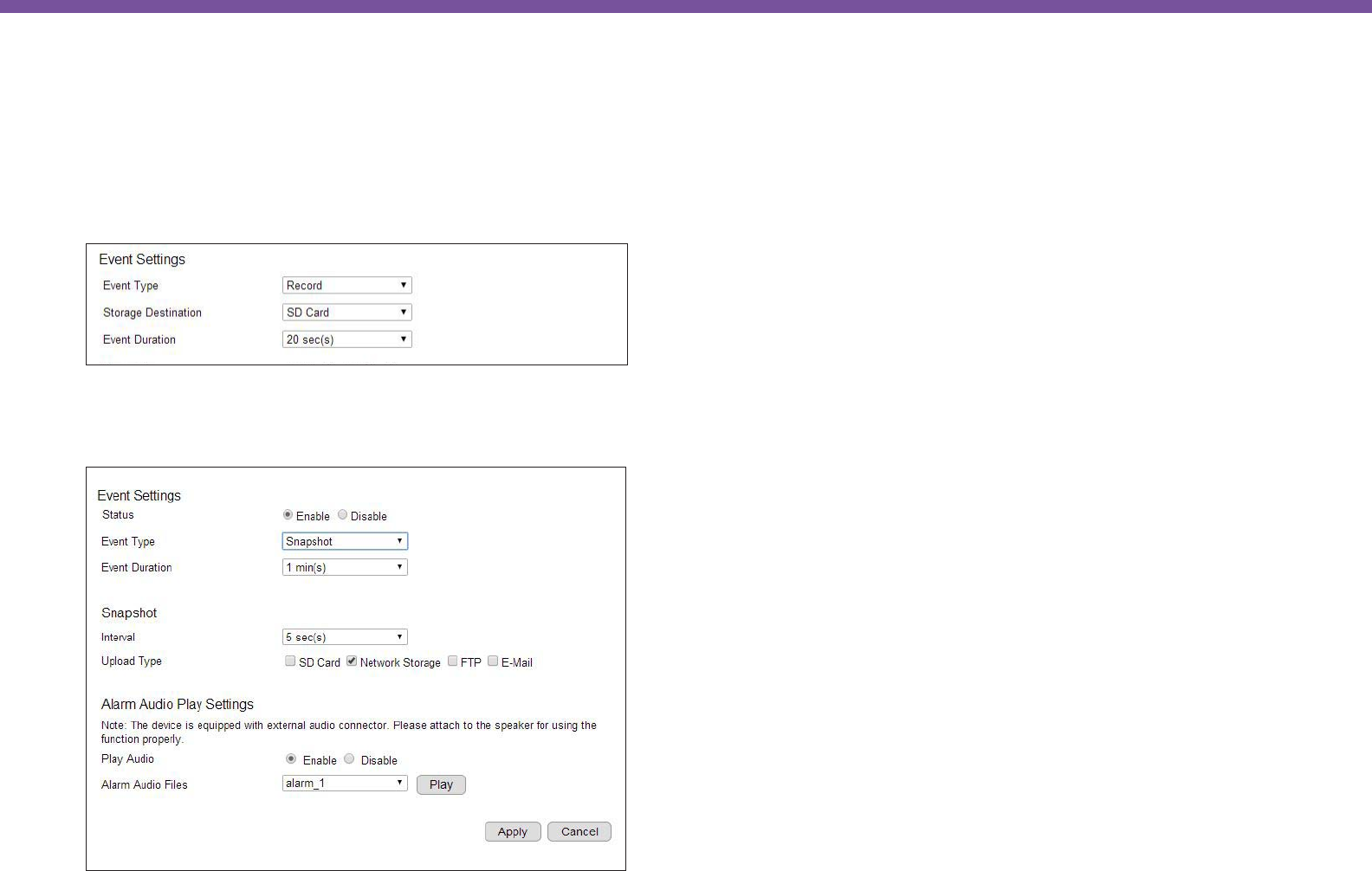

Event Management>> Event / Alarm .................................. 104
4
Event Management>> Schedule Recording ..................... 107

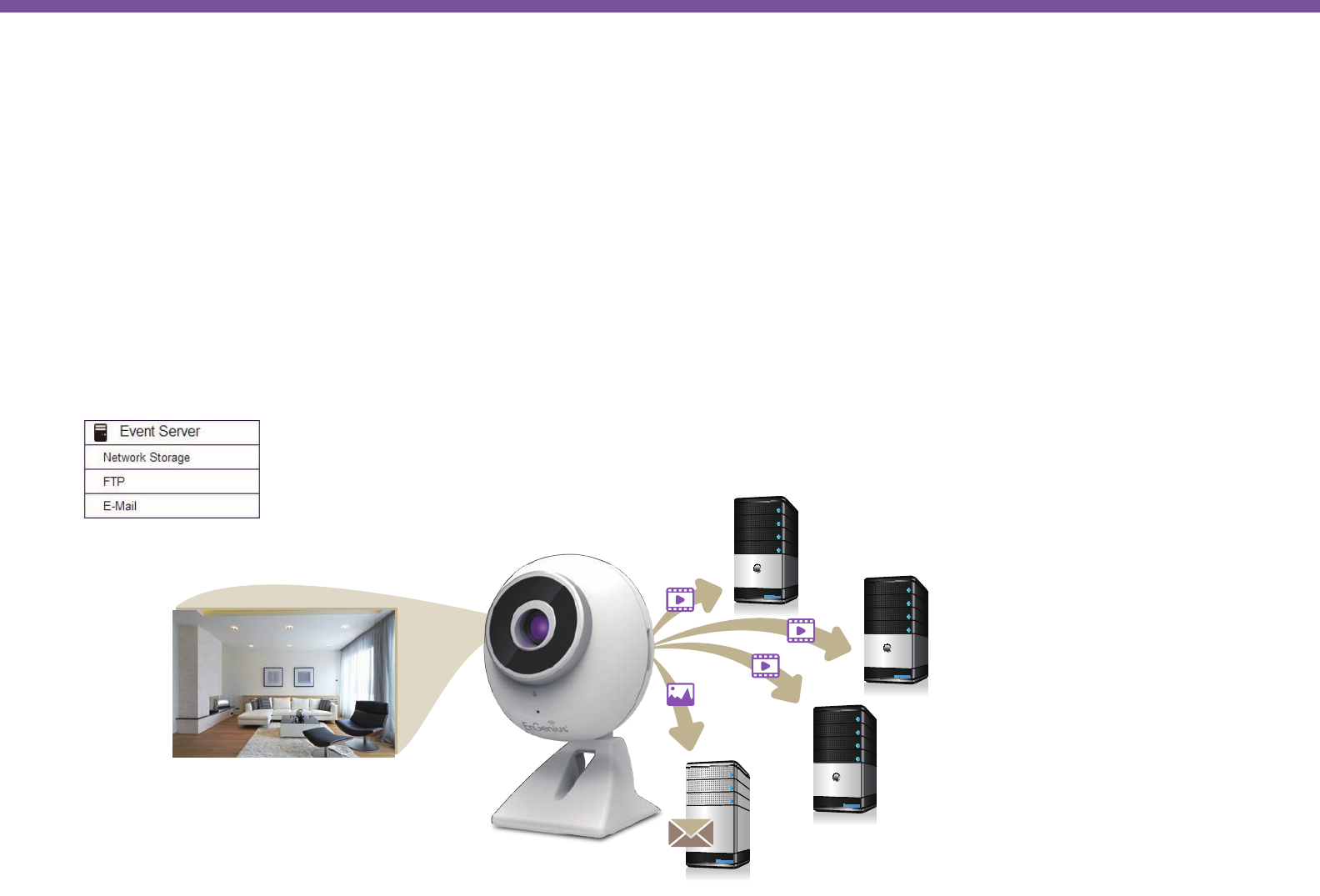

Event Server ...........................................................................................108
Event Server>> Network Storage ........................................ 109

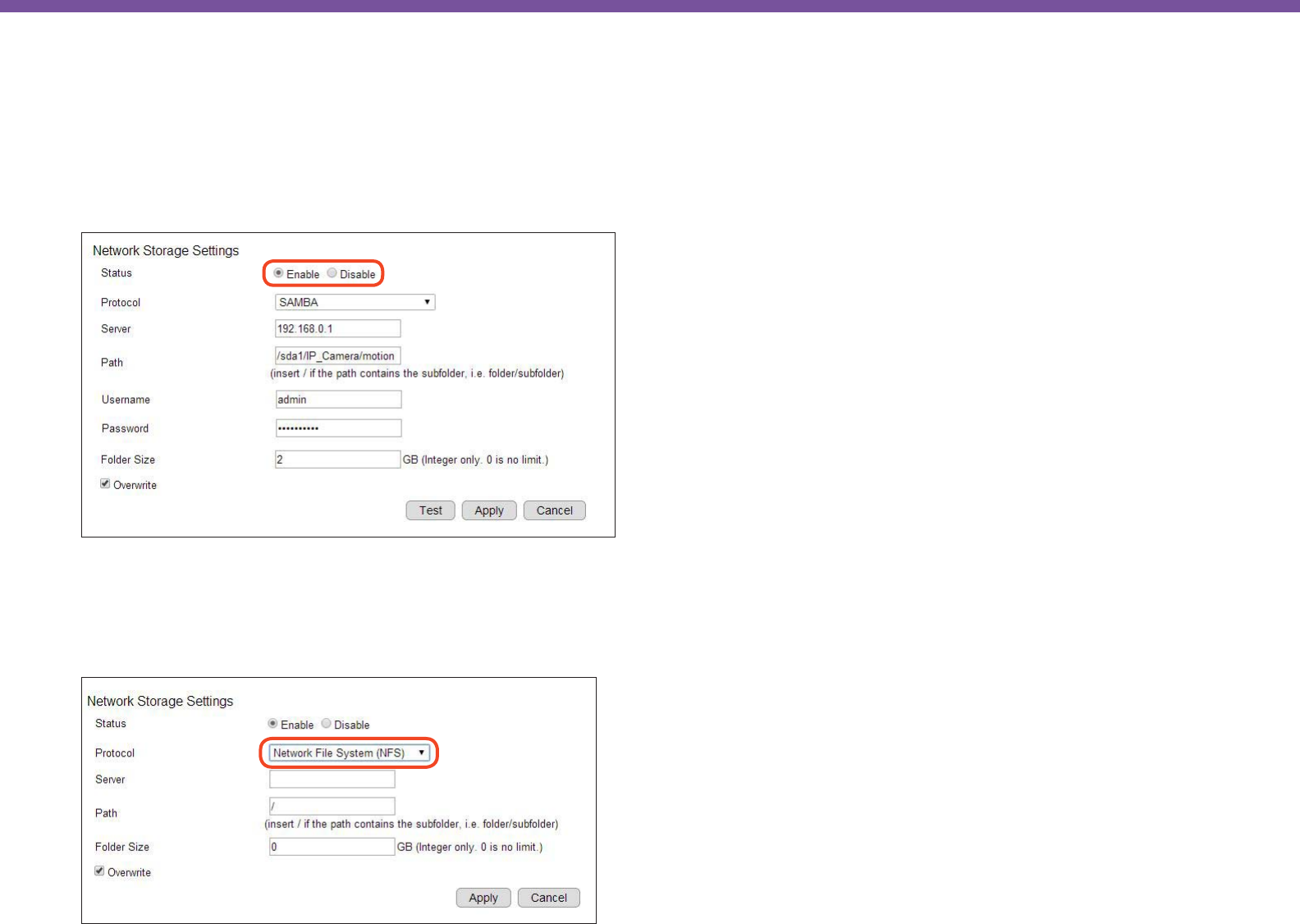

Network Storage >> NFS (Network File System) .. 109

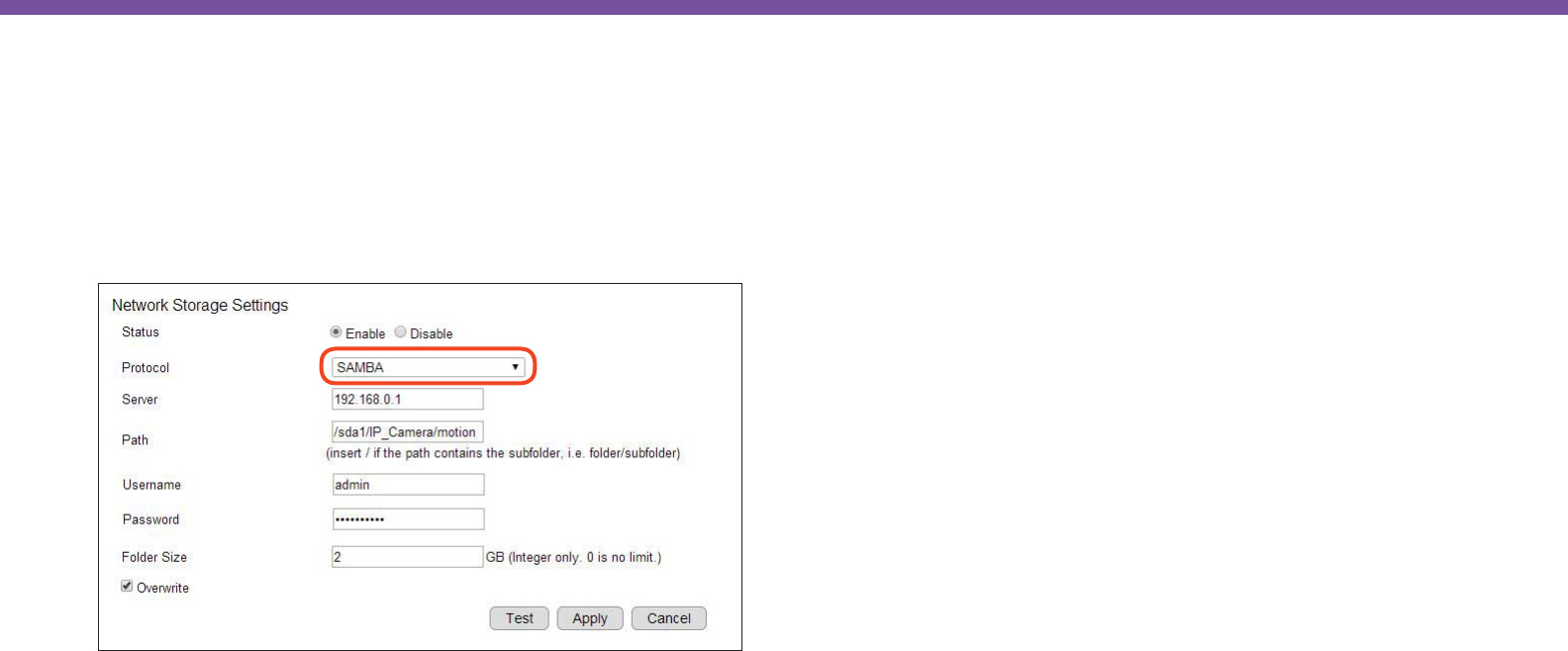

Network Storage >> SAMBA ........................................... 110

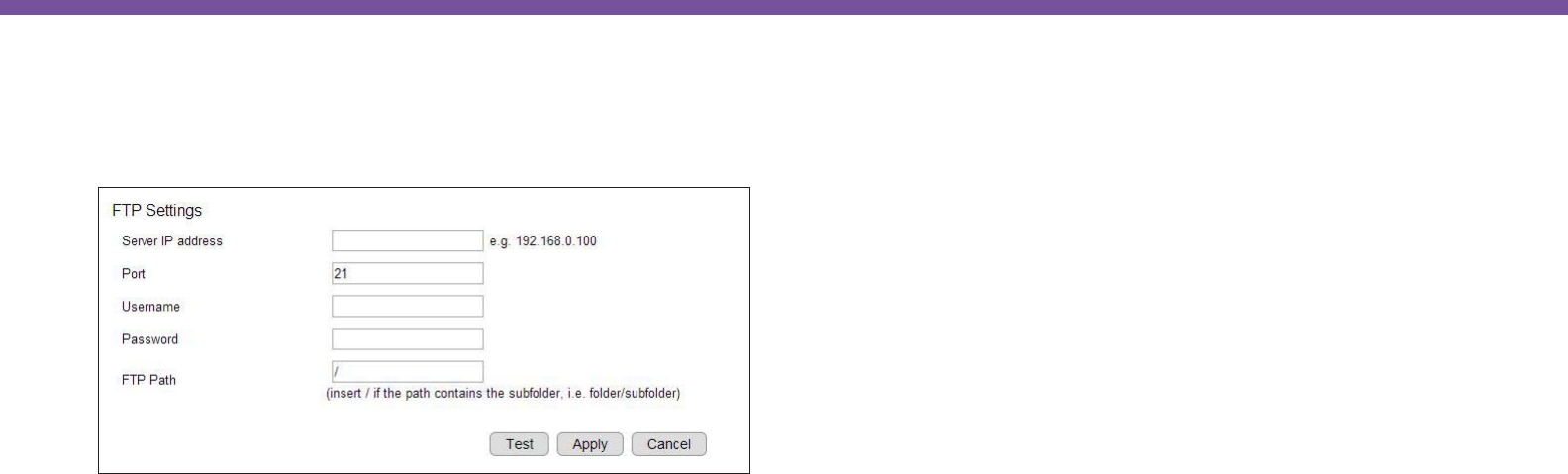

Event Server>> FTP (File Transfer Protocol) ................... 111

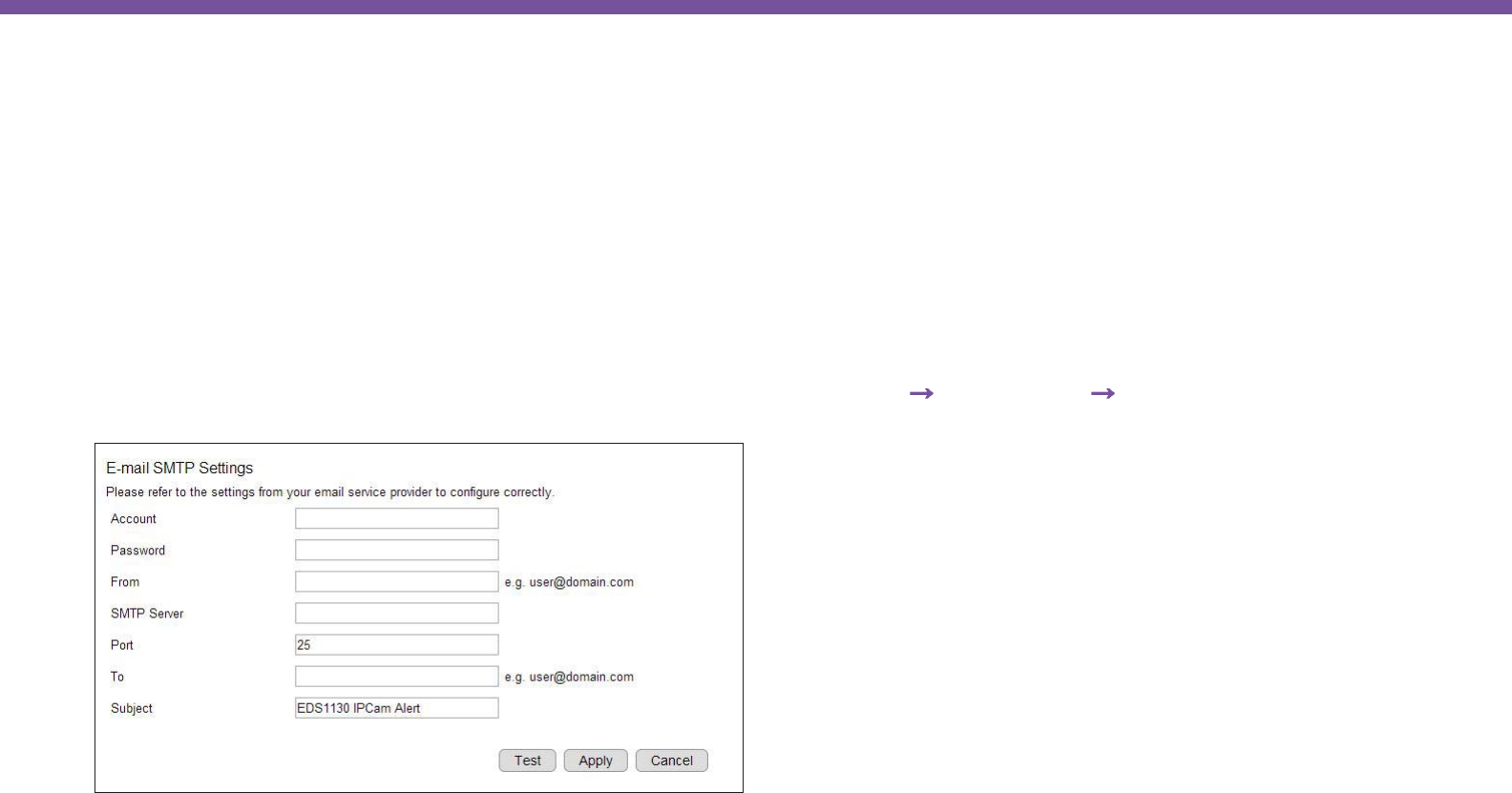

Event Server>> E-mail Alerts .................................................. 112

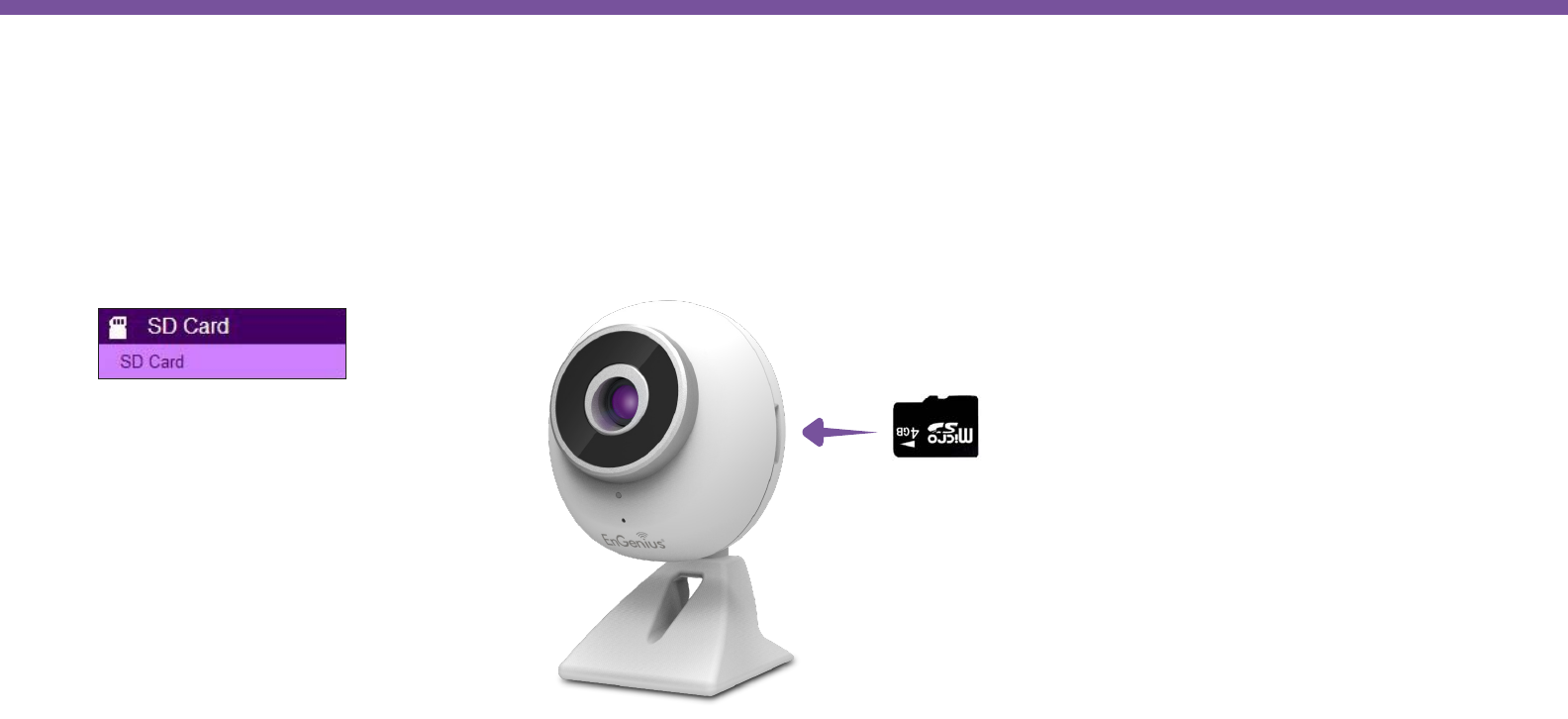

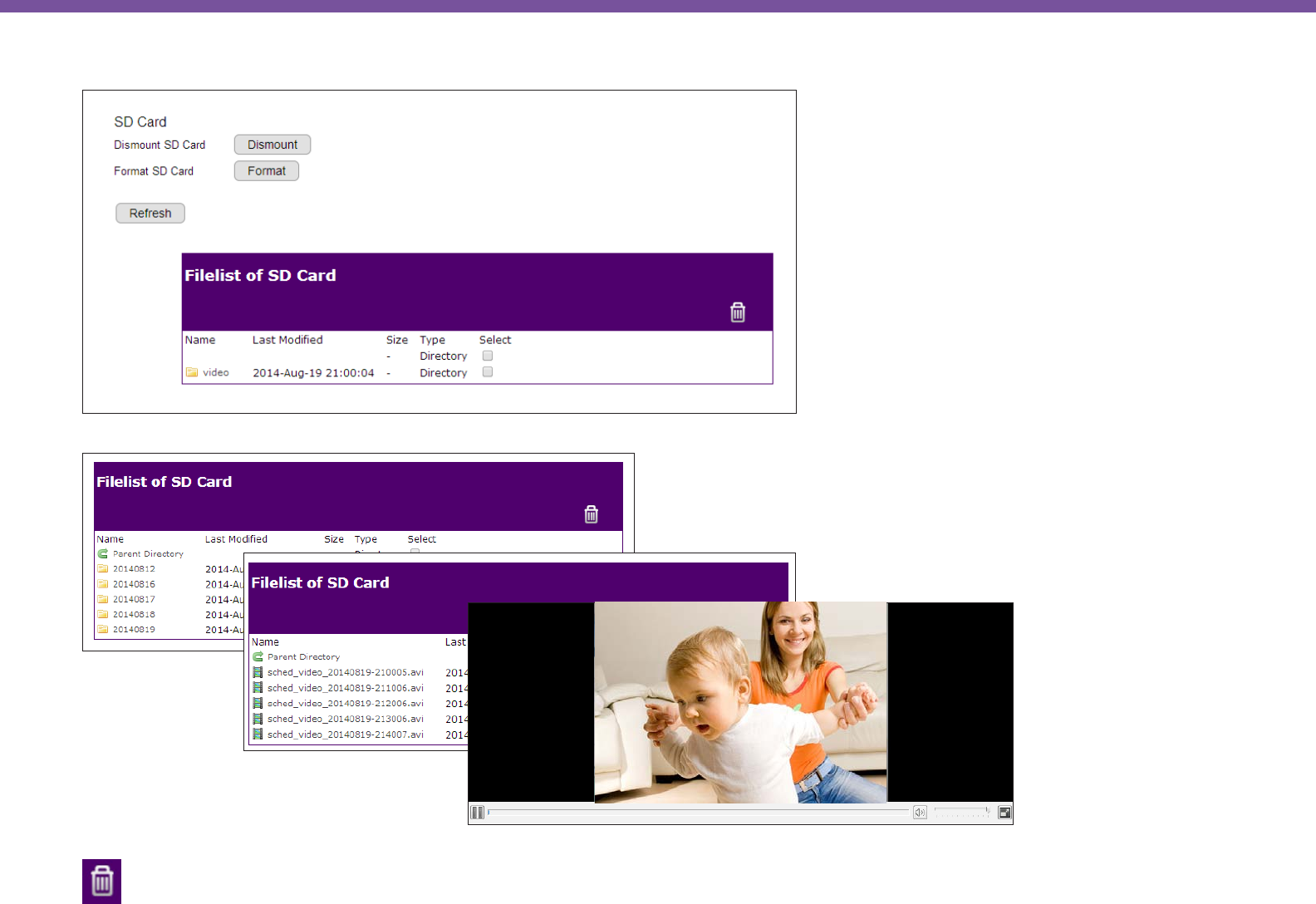

SD Card ......................................................................................................113
User Management ................................................................................ 115

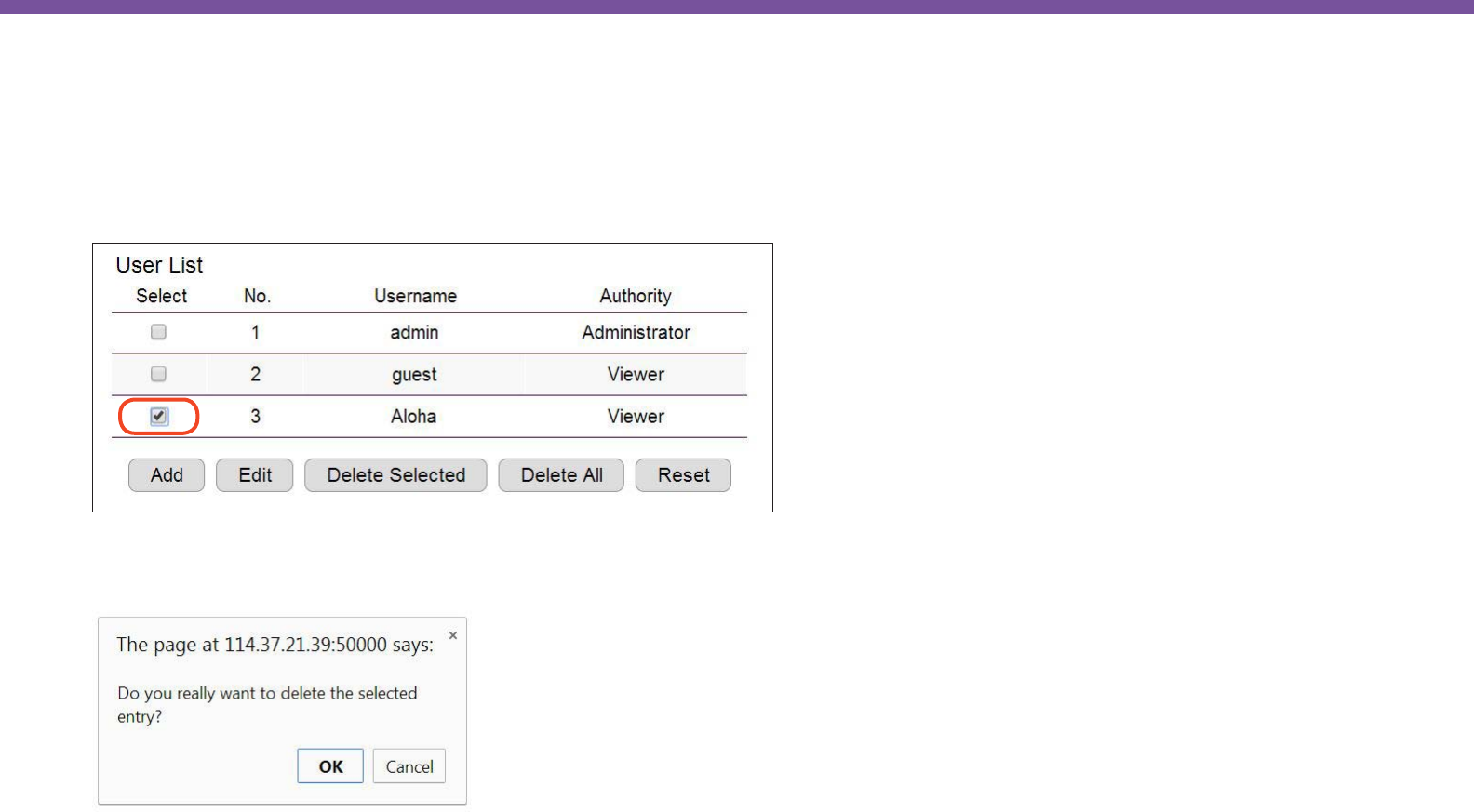

User Management>> User Account ..................................... 115

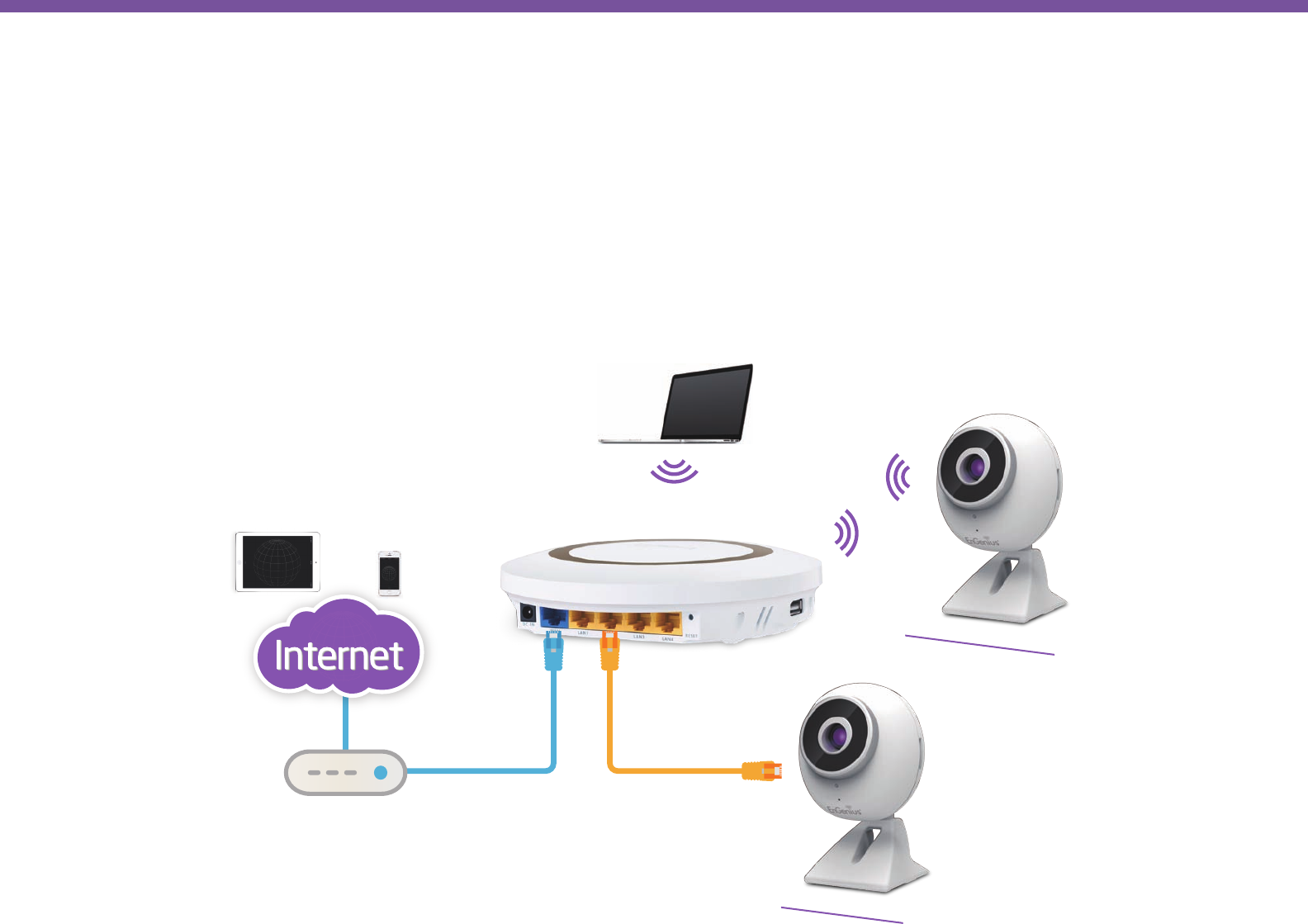

Chapter 6 Camera Connecting to EnGenius
Gateway/Router ................................................... 119
Enable Gateway/Router Storage Function ............................... 122
Camera Prole ........................................................................................124
Fine Tune Camera Conguration set by the
Gateway/Router ............................................................................ 127
Camera Storage Setting ....................................................................128
Camera Event/Alarm Setting ...........................................................129
Camera Motion Detection Setting .................................................130
Access the Media les on the Gateway/Router ..................... 131
Using web browser .............................................................................. 131
Using Windows File Explorer ...........................................................133
Chapter 7 Camera Connecting to Other Router .... 134

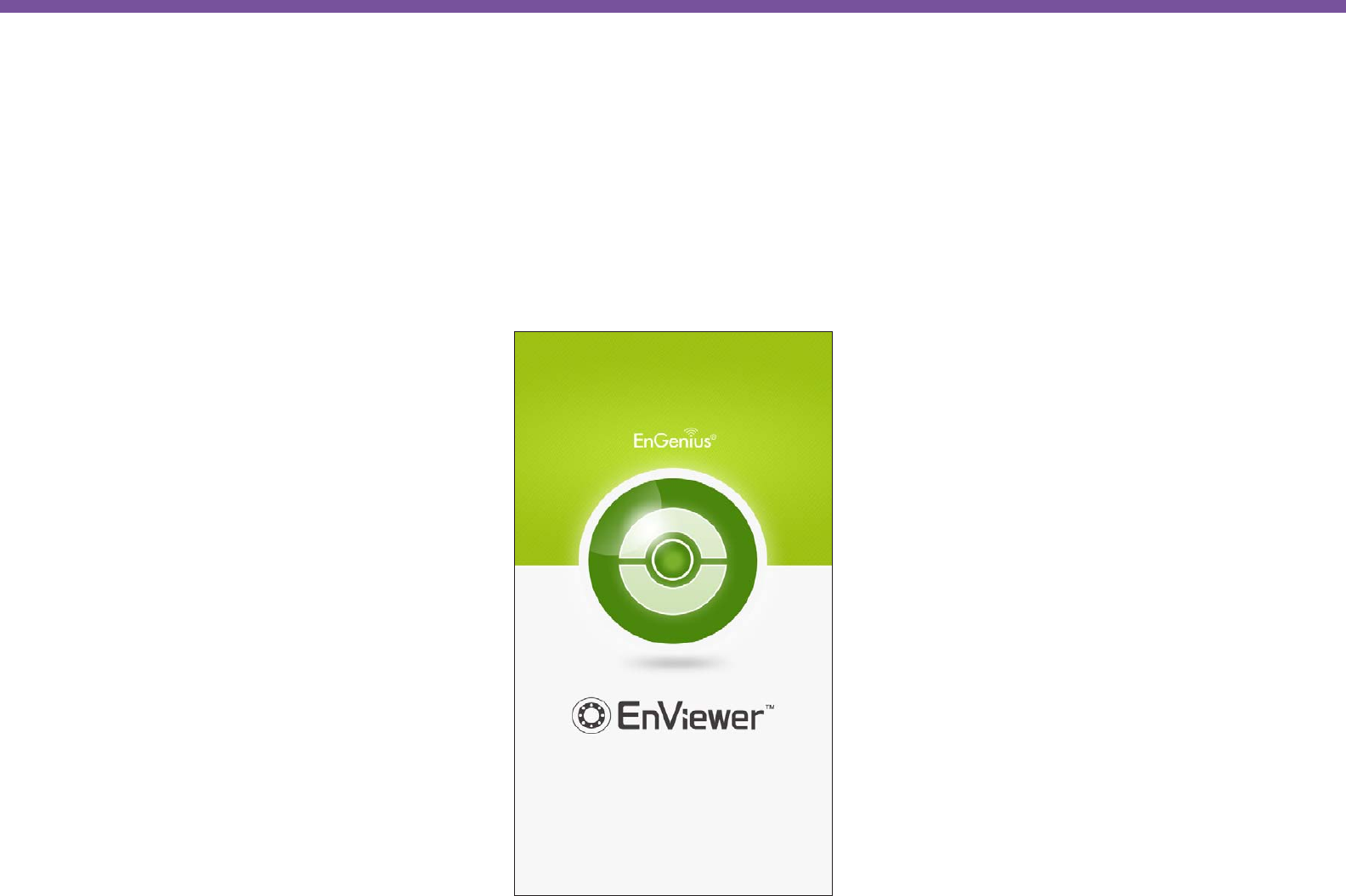

Chapter 8 EnViewer APP ........................................... 136
Install EnViewer ....................................................................................138
EnViewer Wizard ...................................................................................139
QR Code .....................................................................................................140
Auto Search .............................................................................................141
EnViewer Interface ..............................................................................142
Live View ..................................................................................................144
Camera Control Panel..........................................................................145
Adding new Camera .............................................................................146
Edit Camera .............................................................................................147
Remove Camera ....................................................................................147
Why Adding Routers............................................................................148
Adding new Router ..............................................................................149
Edit Router ...............................................................................................150
Remove Router ......................................................................................150
Group View .............................................................................................. 151
Add new Group ......................................................................................152
Edit Group .................................................................................................153
Remove Group ........................................................................................153
Using Group view ..................................................................................154
Search Local Camera ...........................................................................155
Using Play Back ..................................................................................... 156
Settings .....................................................................................................157
Audio 157
Recording .................................................................................................157
Notication ..............................................................................................158
About 160
Chapter 9 Application Guide ..................................... 161
Example1 : Baby Monitoring ............................................................163
Step 1: Disable Schedule Recording .............................................164
Step 2: Congure Event/Alarm .......................................................165
Step 3: Congure Audio Detection ...............................................166
Step 4: Setting EnViewer Notication ........................................166
Example 2: Remote Surveillance and Motion Detection .... 167
Step 1: Disable Schedule Recording .............................................168
Step 2: Congure Motion Detection ............................................169
Step 3: Congure Audio Detection ...............................................169
Step 4: Congure Event/Alarm .......................................................170
Step 5: Setting EnViewer Notication ........................................171
Example 3: Schedule Recording ....................................................172
Step 1: Disable Alarm ..........................................................................173
Step 2: Congure Schedule Recording .......................................174
Step 3: Playback on EnViewer ........................................................175
Step 4: Playback on Web Browser ................................................176
Chapter 10 Troubleshooting .................................... 177
Viewing Your Video ............................................................................. 178
Networking ..............................................................................................180
Security and Privacy ...........................................................................181
5
Cloud Video Services ...........................................................................182
Appendix ...................................................................... 183
Federal Communication Commission Interference
Statement ........................................................................................ 184
Europe – EU Declaration of Conformity ...................................... 185
Chapter 1
Product Overview
7
Chapter1 | Product Overview

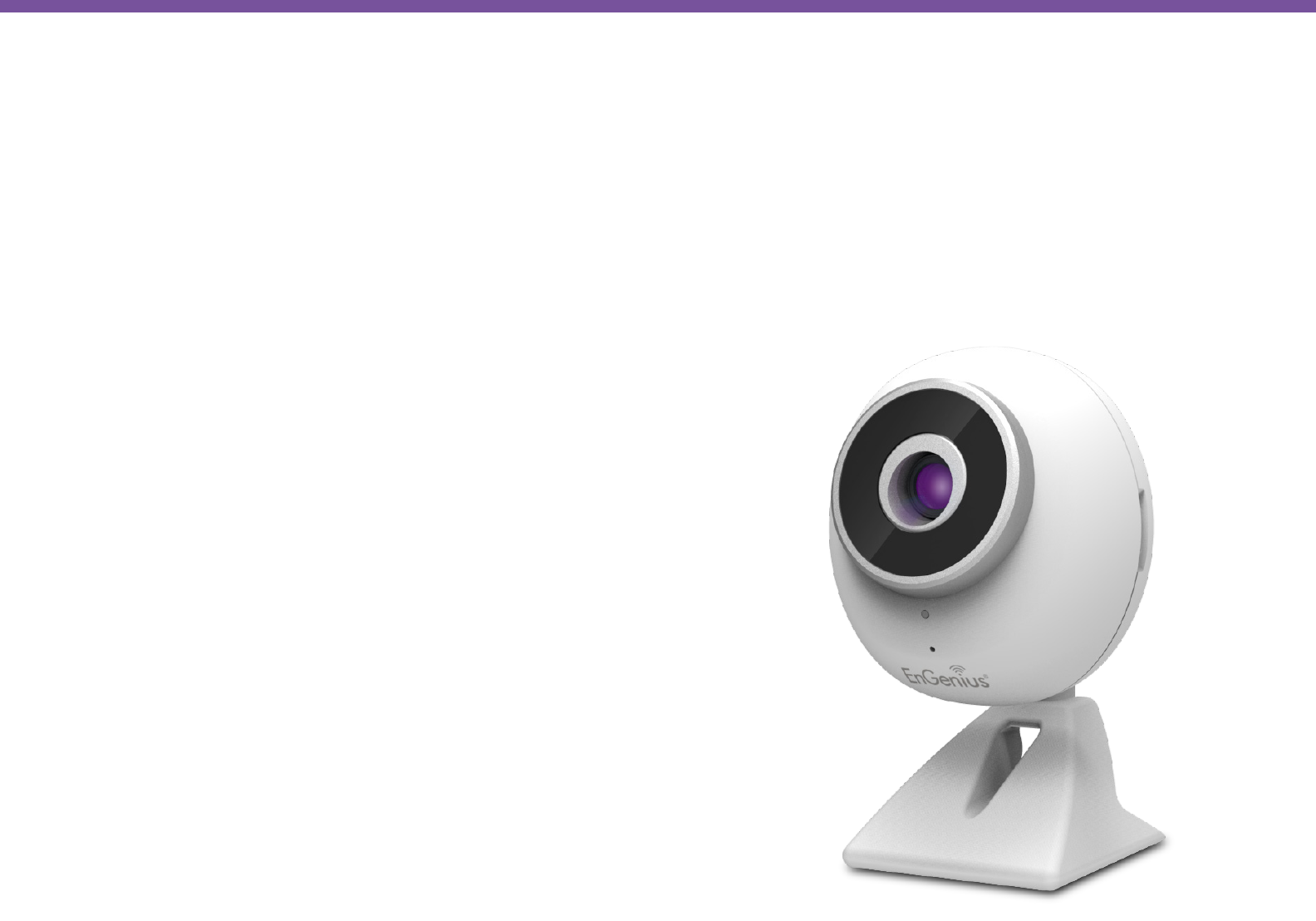

The EDS1130 is a Wireless Intelligent Network Camera which adds surveillance capability to the home network environment.
It helps family members and small business owners keep an eye on what matters and get notied by what just happened on demand
allowing around-the-clock monitoring remotely.
It features LED Infrared Night Vision with automatic activation system. Megapixel HD live streaming with high speed H.264
encoding ensures ne quality image recording without losing any details. Infrared Night Vision feature can deliver 24 hours non-stop
monitoring. With the support of EnGenius Cloud service, you can monitor your home remotely at anytime from anywhere on iPhone®,
iPad® and AndoridTM-based smartphone and tablet using EnViewer app or on PC via web-based User Interface.
Introduction
This document will guide you through steps in detail for EDS1130 installation and both basic and advanced congurations. Be
familiar with the product features can help you fully utilize the camera for various application scenarios. Please note that the product
features may improve over time, be sure to check out the latest rmware and user manual for most updated changes on EnGenius
website.
Thank you for choosing EnGenius products.
Read Before Using
For users’ convenience, the camera is congured with DHCP enabled by default which allows the camera to get an IP address
for itself automatically. This applies to the majority of the home network settings. However, if you are connecting the product in an
ofce (or any public settings), you may need to consult the IT technician at the MIS department ahead to avoid IP address conict.
Like all electronic devices, do not install the product in hazard environment where humidity or temperature is high to avoid
danger. This camera is designed for indoor usage only, do not expose it directly under the sun and avoid contact with water. In case of
wall-mount installing, secure the camera and wires in place and prevent it from dangling.
8
Chapter1 | Product Overview 8
Key Features
+ Megapixel HD Resolution to Deliver Quality Streaming on A Variety of Mobile Devices and PCs
+ LED Infrared Night Vision up to 16 Feet (5 Meters) with Automatic Activation System
+ Wireless-N Network Compliant with Optimum Wi-Fi Performance
+ Supports Dual-Stream Live View with High Speed H.264 Encoding
+ Built-in Microphone & External Audio Out for Two-Way communication
+ Multiple Storage Options – Built-in Micro SD/SDHC Slot for Onboard Storage and Samba/FTP Client to Save to an External Storage
+ Congurable Motion Detection Windows
+ EnGenius Cloud Services Supported (Apps and Web-based Services)
+ Easy Setup with Simple Conguration using UID QR Code or Auto Search
Work with EnViewer APP
+ Supports Push Message and Play Back on Smart Devices triggered by Motion/Sound Detection
9
Chapter1 | Product Overview
Package Contents
The package should contain all of following items shown below.
Camera Camera Stand RJ-45 Ethernet Cable
Quick Start Guide
QR Code Label
(for EnViewer APP)
12V/1A Power Adapter
CD
Minimum Requirements
Quick Start Guide
Intelligent IP-Camera
EnGenius Cloud Services
(EnViewer Finder / EnViewer)
Wall Mount Screw Set
Physical Description
13
13
10
10
11
11
12
12
77
8
8
9
9
11
22
33
4
4
5
5
6
6
Camera
Infrared LED x 6
Micro SD Card Slot
Brightness Sensor
LED indicator: Power
Microphone Receiver
Power Jack
RJ-45 Ethernet Port
Speaker
LED indicator: WiFi / WPS
WPS button
Rest button
Camera stand
10
Chapter1 | Product Overview
LED Status
LED indicator shows operational status with colors.
LED Indicator: Power
Color Status
Green Blinking Booting up
Green Local Connection established
LED Indicator: WiFi/WPS
Color Status
N/A Wi-Fi is o
Orange Wi-Fi is on but did not connect to Gateway/Router yet
Green Blinking Pairing WPS
Green Wi-Fi connected
Chapter 2
Installation
12
Chapter2 | Installation
Hardware Assembly
Before installing the camera, ensure that the camera is properly congured and tested before hardware installation especially
when the camera is intended to be mounted on a wall. Also, the power outlet is required near the installation site.
I. Screw the stand to the camera.
II. Adjust camera angle and tighten the neck knob.
III. Attach the power adapter to the camera and plug into a wall outlet.
12V-1A
Ethernet
Reset
I. II. III.
13
Chapter2 | Installation
Tabletop
• Complete the camera assembly. Find a secure location where the monitored space is within the camera view range and adjust
the camera angle focusing on the target area or object.
• Plug in the power adapter to the wall outlet once ready.
Wall-mount
• Detach the camera from the stand for easily installation.
• Find a proper place on the wall where camera is able to aim at the monitored space.
• Once location is determined, mark and drill two pilot holes aligning to the screw holes at the bottom of the camera stand. Once
aligned, put wall anchors into the holes and insert screws into the wall anchor. Screw and secure the stand in place.
• Now, you can attach the camera to the stand. Then, plug in the power adapter to the wall outlet to complete the installation.
14
Chapter2 | Installation
Network Deployment
Before setting up the camera with your gateway or router, please ensure the Internet is ready.
When camera is congured with the gateway/router with Internet connection, you can then access the camera throughtout
your home or studio ofce. This section will guide you through the connection setup. Please follow the succedding guide step by step
for setting up the connection between your camera and the home gateway/router.
There are two ways to establish connection between the camera and gateway/router: Wired (Ethernet) and Wireless (Wi-Fi).
WAN Ethernet
Modem
Gateway/Router
Wireless Setup
Wired Setup
15
Chapter2 | Installation

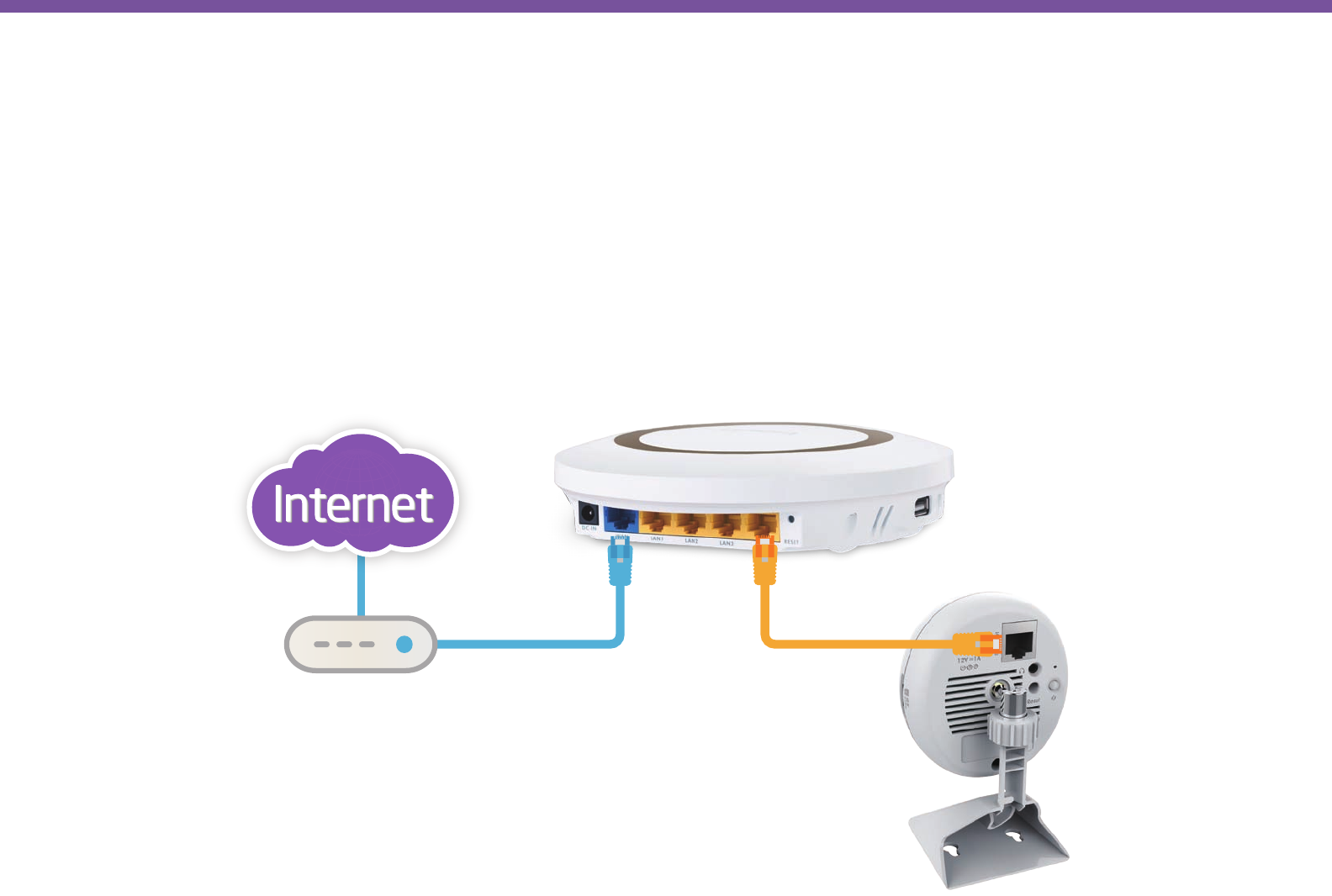

Connecting via Ethernet Cable
Connect the camera to the gateway/router on the LAN ports with a network CAT5 RJ-45 Ethernet cable (shown below). You
may use the cable included in the package for initial setup; however, you may be required to switch to wireless setting or purchase a
longer cable to extend the connecting range.
As a rule of thumb, using an Ethernet cable for optimized connectivity if your camera is close enough to the gateway/router;
and for wall-mount installation, adopting wireless setup will be a better choice. Choose either way for the application you nd suitable.
WAN
RJ-45 Ethernet Cable
Gateway/Router
LAN Port
Modem
16
Chapter2 | Installation
Connecting via Wi-Fi Setup
It is recommended that to make initial setup with RJ-45 Ethernet cable and then switch to wireless after you have completed
all the settings. However, you can also start wirelessly with WPS mechanism.
Note: Ensure the gateway/router supports WPS feature and conrm that the feature is enabled.
Make sure two devices are close enough and the gateway/router is not occupied by heavy trafc or P2P loading.
I. Press the WPS button (shown below) on your gateway or router until WPS LED blinks.
II. Press and hold the WPS button on the back of your camera for 1-5 seconds and the Wi-Fi LED will start blinking
frequently. When the connectivity is complete, the Wi-Fi LED will become solid green. The process may take up to 1 minute.
Please note that there may be differences in WPS between brands; therefore, if the gateway or router does not respond to camera
connection request properly, please use RJ-45 cable for initial setup and manually congure wireless setting afterwards. Please refer
to Chapter 3 for manual wireless setup.
WPS
1~5 SECs
60 SECs
I. II.
Chapter 3
Accessing the Camera
after Installation
18
Chapter3 | Accessing the Camera after Installation
There are several ways to get access to your camera throughout your home network. You should probably have a setup similar
to the following diagram. You can manage the camera using your PC, Laptop, or via iPhone, iPad or Android-based mobile devices; we
will call it management station in the following context.
Note: Please be advised that management station and the camera must be connected to the same gateway or router.
Ethernet
Gateway/Router
Management
Station
Wireless Setup
Wired Setup
19
Chapter3 | Accessing the Camera after Installation
Managing using PC or Laptop
EnViewer Finder by EnGenius
EnViewer Finder is an utility tool provided by EnGenius that helps you to discover the camera within the local network. You
should be able to nd the tool from the included CD in the package. Please copy the tool to your management station desktop for
quick access when you need it. Please take note of the IP address shown. In this example, 192.168.0.101 is the camera IP address.
The camera list displays the discovered cameras currently connected to your gateway or router (local network). If you do
not nd the one you intend to congure, please click on to rescan the network until it appears on the list.
Note: Please ensure any heavy-loading applications such as P2P that may occupy your home network. The scanning
process may take a few seconds.
Enter Username and Password on the upper right for
the selected camera on the list. The default value of both
Username and Password is admin.
Then, click on Next to start conguration.
EnViewer Finder by EnGenius
Double-click on the icon to run the installation.
20
Chapter3 | Accessing the Camera after Installation
The EnViewer Finder will guide you step by step through the basic settings, including Network, EnGenius Cloud Services and
Video Conguration. You can also switch between settings by clicking the icons on the top of the panel.
EnViewer Finder can also assist you to manage the advanced device management.
In EnGenius Cloud Services page, you can give a rememberable name for your exclusive
Dynamic DNS.
In the Network page, you will be reviewing network IP settings, setting up your local time zone and the
administrator login password.
Refresh the network for camera within the local network
In Cong page, you can quickly set up the initial video settings.
Upgrade the latest camera rmware.
Reset the camera to factory default settings
Reboot/restart the camera
21
Chapter3 | Accessing the Camera after Installation
EnViewer Finder>> Network
22
Chapter3 | Accessing the Camera after Installation
EnViewer Finder: Network>>
Mode
There are three modes that your camera can get its IP address: DHCP, Manual or PPPoE.
DHCP:
It is the most popular way in the home network settings. It will request IP address from your gatewaty or router automatically. The
requirement is that your gateway/router should enable DHCP (which is basically the default setting for most of the home gateway/
router products). You are not required to enter any IP related information.
Manual:
You will need to assign the IP address details in TCP/IP section. Please ensure that the IP address is not being used by someone else
in the network.
PPPoE:
If you are connecting to the Internet without going through your home gateway/router, you can connect the camera directly to
your modem (given that your Internet service is using PPPoE protocol). Please consult your local network service provider for more
detail. Basically, the PPPoE setting is exactly the same as what your home gateway or router. You will need to provide at least the
Username and Password to get the access.
23
Chapter3 | Accessing the Camera after Installation
EnViewer Finder: Network>>

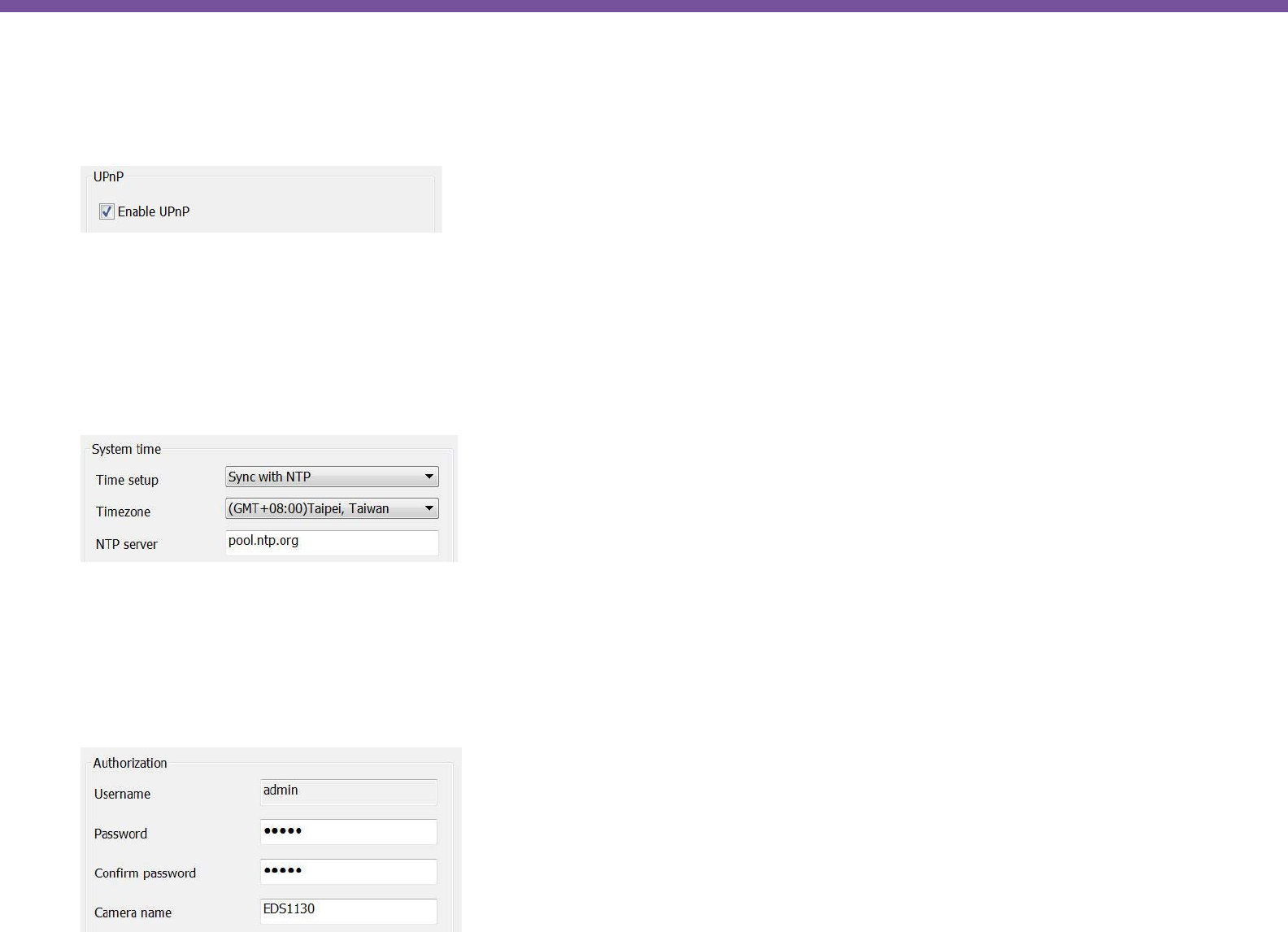

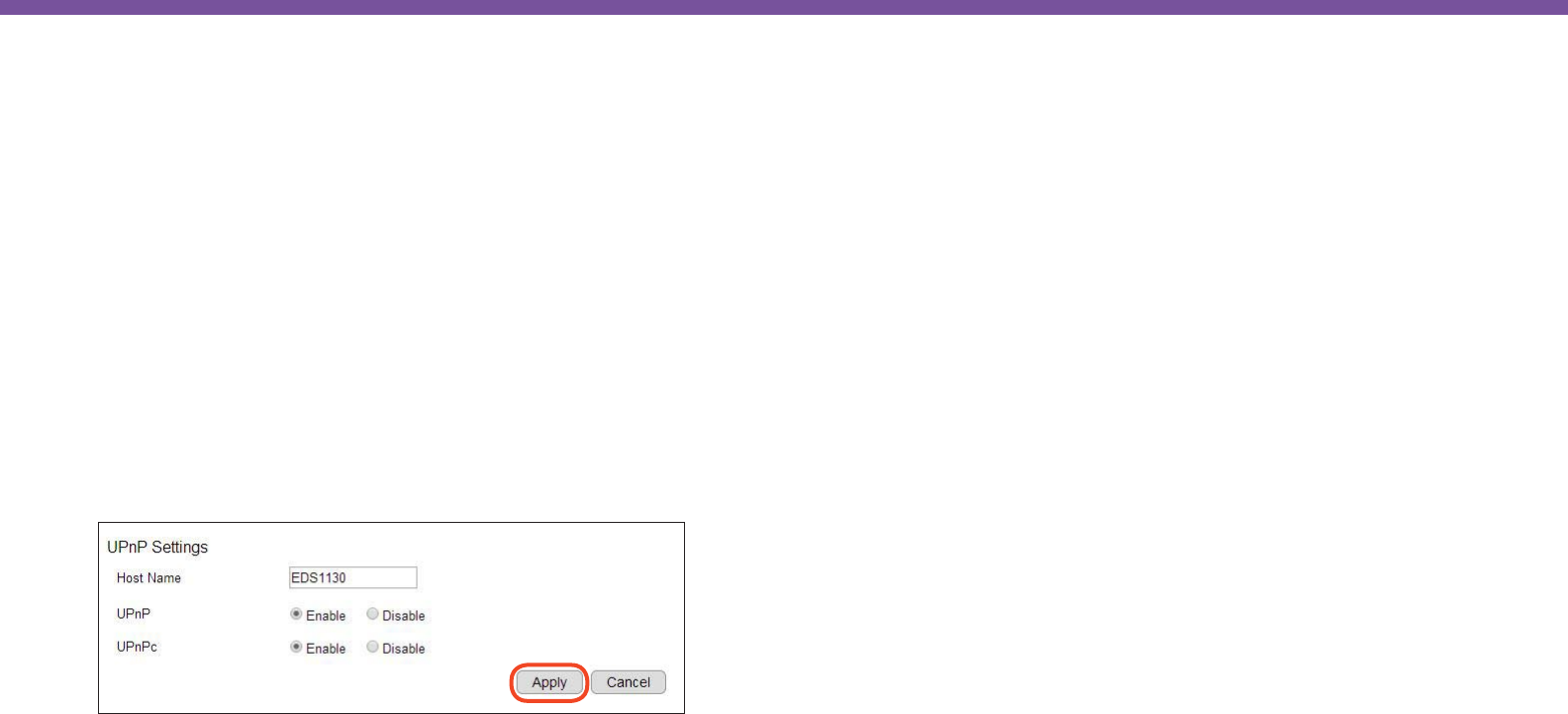

UPnP
This feature must be enabled so that the camera can be discovered by UPnP services. Leave it enabled if you unsure what UPnP is.
System Time
Like any other surveillance system, time is essential because we want to keep track of the time of the events recorded or detected
by the camera. By default, the camera is connected to a public time server (pool.ntp.org) and its time is always synchronized with
the server over the Internet. Normally, you only need to change the Time Zone. Choose the one that matches your location from
the dropdown menu. Leave the other settings as default should be ne. Setting the wrong time server or time zone will result in
inaccurate scheduling and time stamp.
Authorization
You may change the Password of ‘admin’ or Camera Name here. Please note that, once you changed the password. You will need to
provide your new password the next time your login the camera through EnViewer Finder or Web Browser. The Camera Name is the
camera host name that represents the identity of the camera. If you installed several cameras, please assign a unique name for each
camera for better identication.
24
Chapter3 | Accessing the Camera after Installation
EnViewer Finder>> EnGenius Cloud Service
25
Chapter3 | Accessing the Camera after Installation

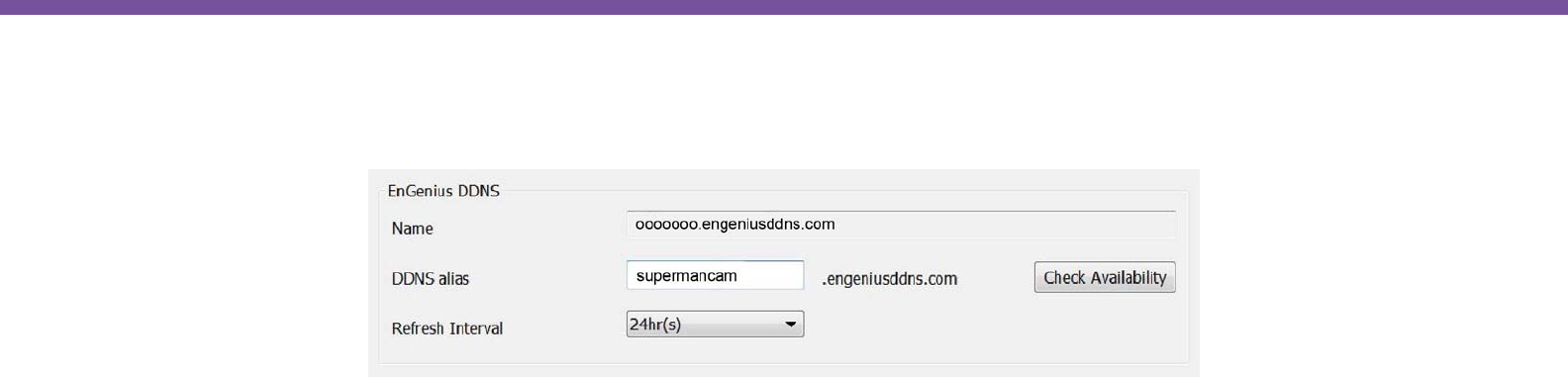

Default DDNS name
Each camera is distributed with a unique DDNS name and the default DDNS name is shown in the column. You can also nd the
default DDNS information on the QR code label inside the package.
DDNS Alias
You may give an rememberable for future access easily. For instance, you can use your nickname with cam as a combination; for
example, supermancam. Then you need to check whether the name has been taken by someone else by clicking on Check Availability
button. If the alias is not being used by others, then you can access the camera with both your default DDNS and the new alias DDNS
(supermancam.engeniusddns.com).
Refresh Time
options are 3HRs, 6HRs, 9HRs, 12HRs and 24HRs. DDNS server needs to synchronize with your IP address often so that you can
access your device over the Internet with DDNS name. Depends on your Internet Service provider, your WAN IP address lease time will
be different. You can check with your local Internet Service provider for WAN IP address refresh time. The default setting is 24HRs
(which means DDNS server will check the synchronization every 24 hours). Normally, the default setting 24HR is ne for most cases.
EnViewer Finder: EnGenius Cloud Services>>
26
Chapter3 | Accessing the Camera after Installation
EnViewer Finder>> Cong
27
Chapter3 | Accessing the Camera after Installation
The camera supports two concurrent video streams simultaneously; by default, Stream 1 serves for monitoring over browser
while Stream 2 serves mobile APP - EnViewer. However, you can switch the stream on both browser and EnViewer app manually.
In this Cong page, you will be able to get the URL of each stream and congure the basic video settings for each stream
before getting started.
URL
The URLs are provided for your reference. There are many 3rd party media player that supports RTSP streams. You can provide these
URLs to those players and view the camera streams in real time.
Resolution
You can select the resolution for both stream according from the dropdown menu. However, it is suggested to keep the settings as
default in regular network environment. As mentioned, the Stream 2 is the default setting for EnViewer app and the lower resolution
(VGA, 640x480) will be recommended for smoother live streaming because mobile devices have smaller screens and are likely with
limited network bandwidth than PCs/Laptops.
EnViewer Finder: Cong>>
28
Chapter3 | Accessing the Camera after Installation
EnViewer Finder: Cong>>
Codec
This setting determines what codec used for video compression. Please keep the default codec H.264 for optimized video quality. The
compression method affects overall performance and le size. The options are reserved for advanced purposes only.
Max. frame rate
This setting determines how many frames are taken per second. This setting affects the quality of the video. High frame rate results
in smoother video quality but it also generate larger video le size.

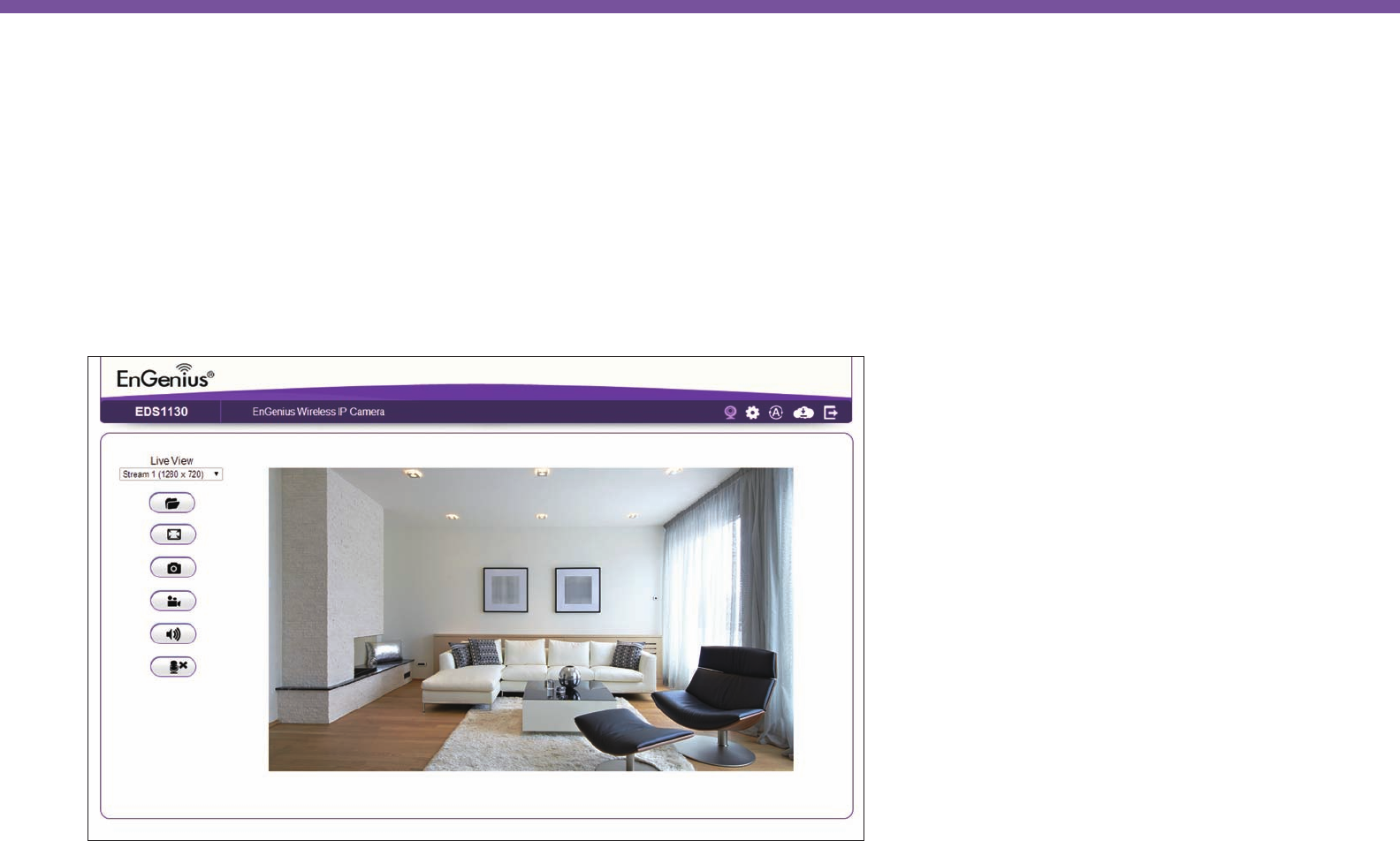

Please ensure that the option “Check Live View now” is ticked before hitting the Finish button. It will direct you to the camera
Live View page for check the video streaming.
Click Finish when completed.

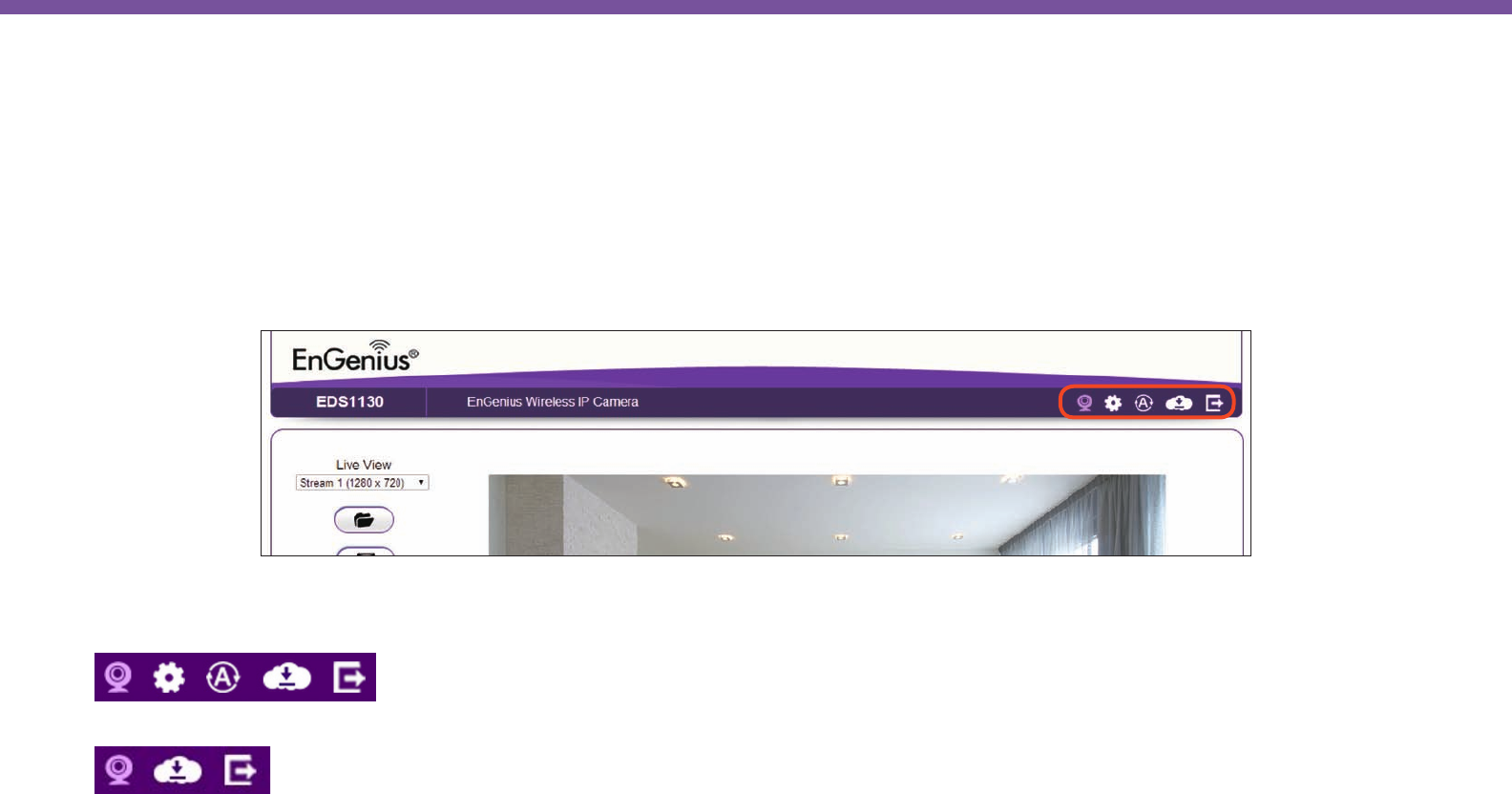

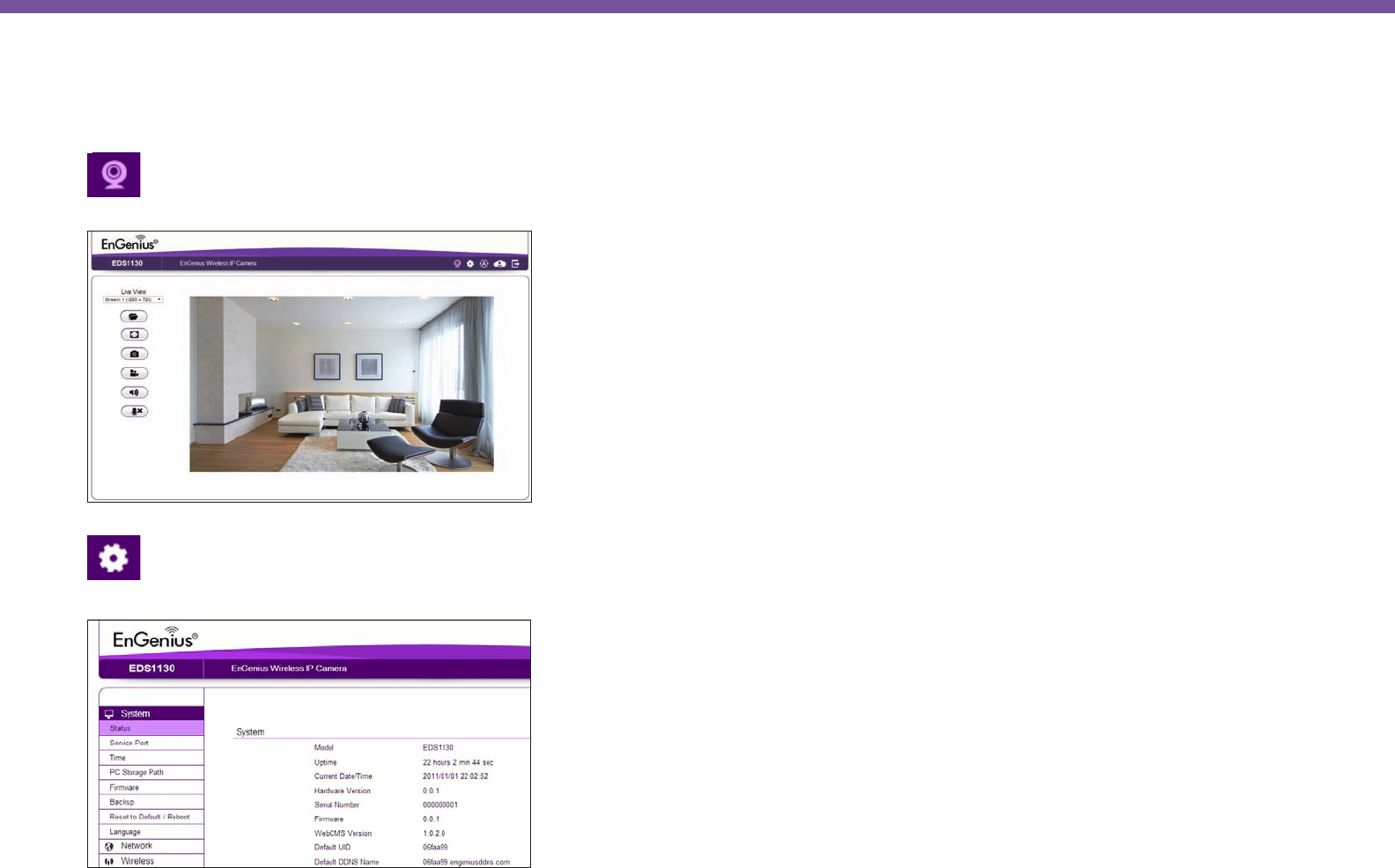

You should get familiar with your camera page. Please bookmark it to your favorite site so that you don’t have to memorize
the IP address the next time you want to login into the camera. Of course, you can also use your DDNS name to access the camera
management page. Either way works ne.
29
Chapter3 | Accessing the Camera after Installation
EnViewer Finder>> Upgrade
EnViewer Finder also allows you to upgrade your camera rmware. The product feature may improve over time, you may check
EnGenius ofcial website for the latest rmware. New rmware may contain bug xes or feature improvements which is benecial to
you. You need to download the latest rmware le to your local computer rst.
Click Browse and select the rmware le you downloaded.
Click Update to proceed upgrade process.
It may take a moment for the upgrading process, please wait patiently.
WARNING: Do not turn off the device in the middle of upgrade process. Terminating the device during the process will damage
the device and may cause the device to fail.
30
Chapter3 | Accessing the Camera after Installation
EnViewer Finder>> Reset
You can reset the camera to its factory default state and your settings on the camera will be erased.

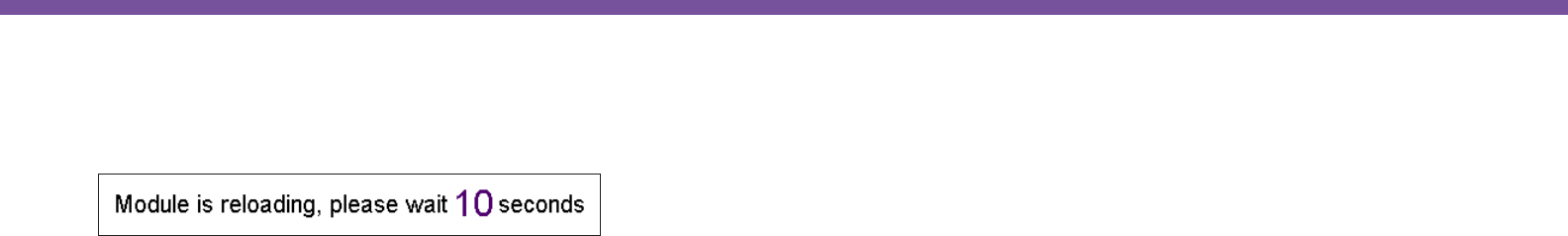

Note: It will take a while for the camera to come back again. Therefore, the camera will not appear on the camera list if you rescan the
network before it resets to default and boots up.
31
Chapter3 | Accessing the Camera after Installation
EnViewer Finder>> Reboot
You can reboot the camera on EnViewer Finder if the camera stops responding for unknown reason.
Click on Yes to proceed.
Note: It will take a while for the camera to come back on again. Therefore, the camera will not appear on the camera list if you rescan
the network before it boots up.
32
Chapter3 | Accessing the Camera after Installation
Web Browser
You can use web browser on the management station to access the camera by entering IP address or DDNS of your camera.
DDNS works only if your gateway or router is already connected to the Internet. Please refer to the previous section EnViewer
Finder: EnGenius Cloud Services if you do not know the IP address or DDNS of your camera.
For this example, we have our DDNS and IP address as follows:
DDNS: ooooooo.engeniusddns.com
IP Address: 192.168.0.101
If you are using EnGenius IoT Gateway or Intelligent Router, please proceed to Manage camera over EnGenius Gateway/
Router chapter.
If not, please proceed to First Time Basic Setting chapter for more detail guide on camera initial settings.
33
Chapter3 | Accessing the Camera after Installation
EnGenius Gateway/Router
If you are using EnGenius IoT Gateway or Intelligent Router or, you can manage the camera through the gateway/router
Graphic User interface (GUI). The benet of this is that you can manage both the gateway/router and the camera on a single
integrated user interface. Please refer to Manage camera over EnGenius Gateway/Router section for detail.
34
Chapter3 | Accessing the Camera after Installation
Manage using Smartphone or Tablet
You can manage your camera over smartphones or tablet using the free EnGenius APP EnViewer. EnViewer currently supports
the two most popular Android and iOS platforms. Please search the keyword “EnViewer by EnGenius” in Google Play if you are using
Android-based devices or in APP Store if you are using iPhone or iPad. For more detail on its usage, please refer to the chapter
EnViewer APP.
Chapter 4
Basic Settings
36
Chapter4 | Basic Settings
Basic Settings

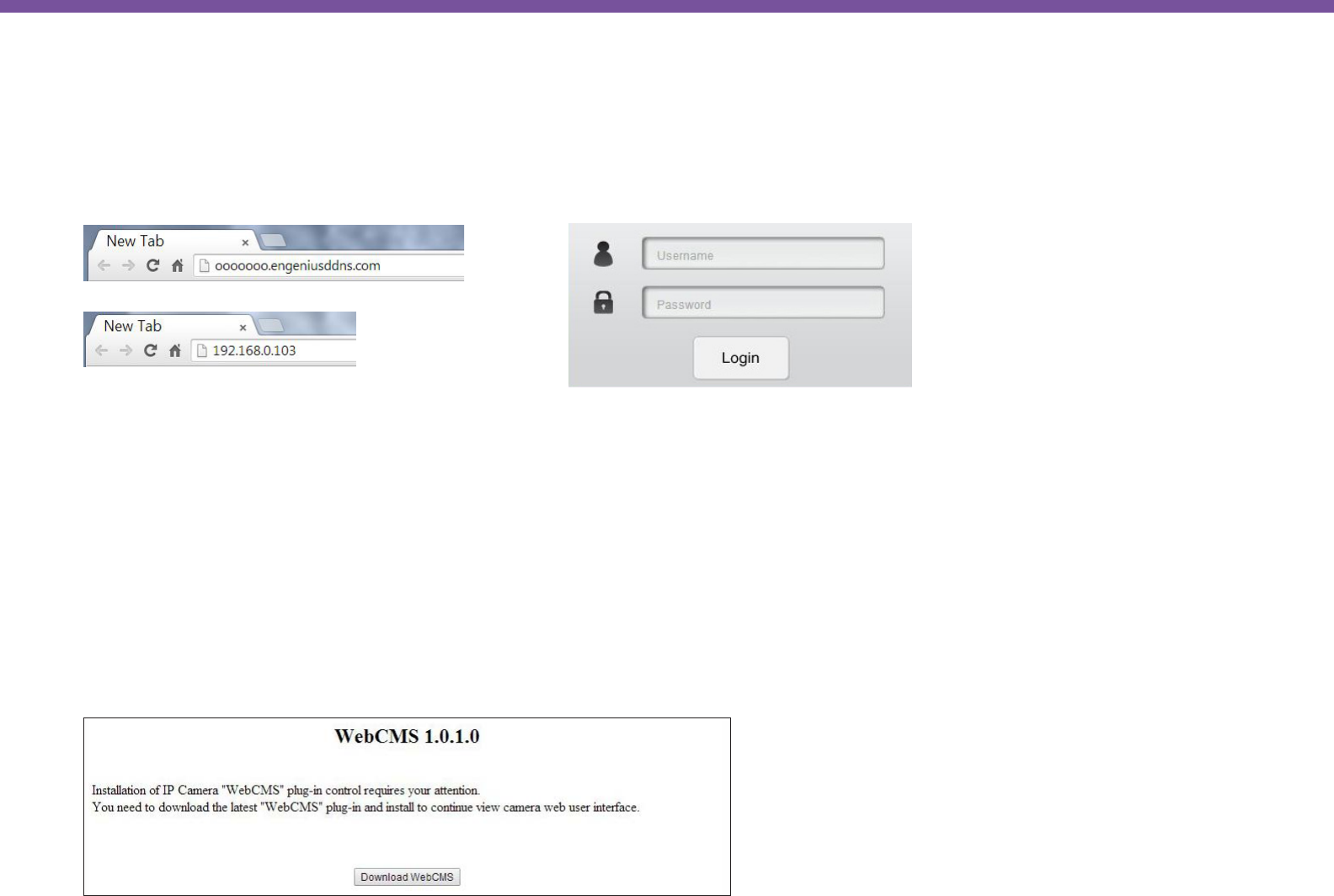

Open your browser and type in the camera IP (e.g. 192.168.0.103) address or the given DDNS name printed on the QR code
label inside the package (e.g. ooooooo.engeniusddns.com) using a regular web browser.
If you have not changed the password of admin in EnViewer Finder utility, enter the default username admin and password admin.
Click Login to proceed.
For the rst time of login or when there is newer version available, you will be informed to download and install “WebCMS”
plug-in for your browser. Please click on “Download WebCMS“ to start downloading (you will be required to have Internet connection
on your gateway/router). WebCMS enables browsers to support camera live view feature. Don’t worry if you are prompted with a
different version number because the software upgrade from time to time.
Note: The WebCMS supports Windows Operation System.
37
Chapter4 | Basic Settings

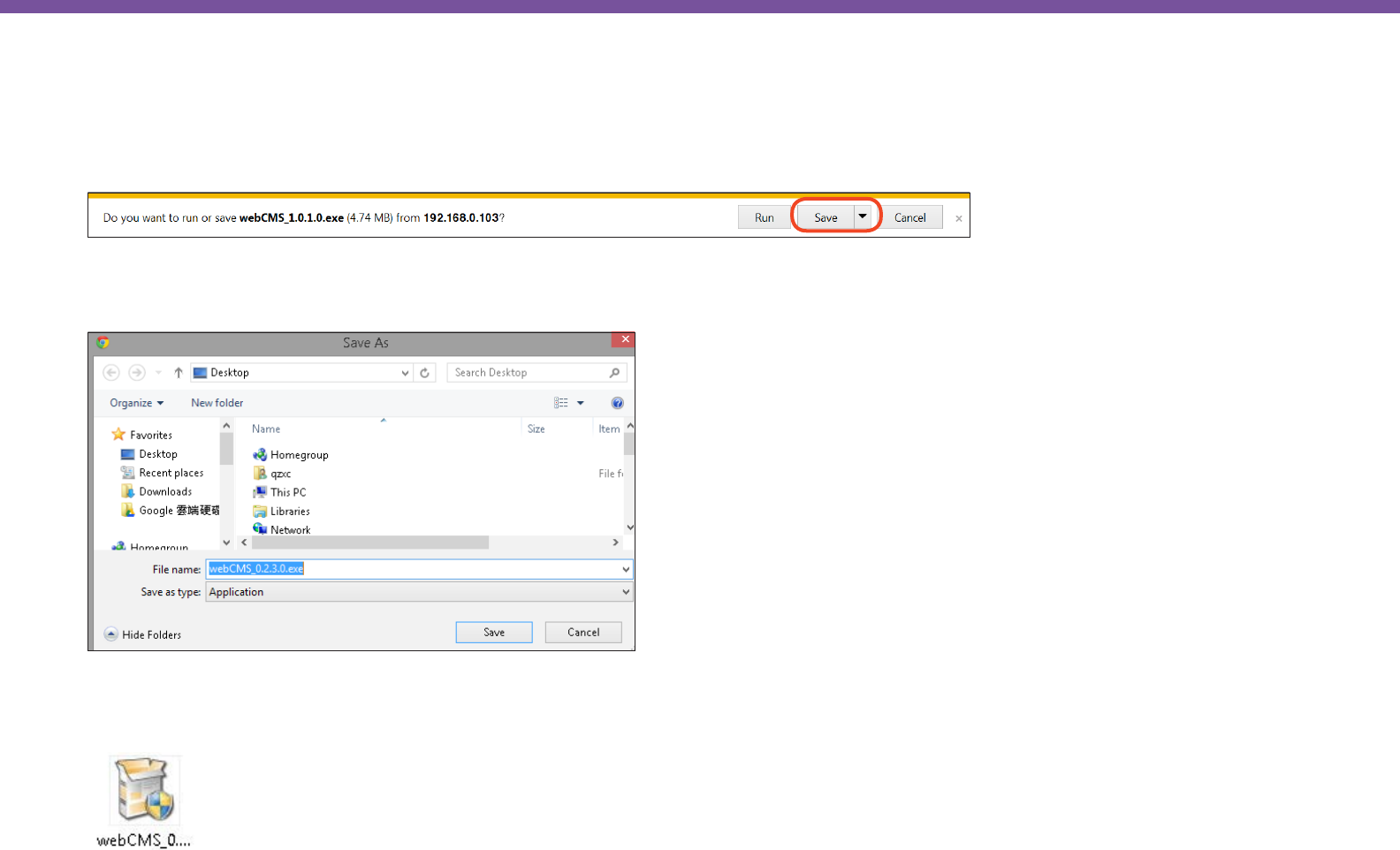

If prompted with the following question, click on Save.
Note: The interface may be slightly different between browsers. Here, Internet Explorer is shown as example.
Save the le to your computer.
Once download is completed, you MUST close all the browsers before install WebCMS.
Double click on WebCMS to install the program. You may not have noticed, the installation is very fast, it only takes a few
seconds for WebCMS to be installed.
38
Chapter4 | Basic Settings
When installation is completed, open the browser and login into the camera again. You should be able to see the camera viewer
in live as shown below. If you do not see the viewer that means you did not install WebCMS properly or try login using other browsers.
NOTE: If you are seeing grey color in the viewer, it is because the camera has detected insufcient of light in the room and
enabled night vision mode automatically. If you point your camera to a brighter space you should be able see it switched to normal
color mode. Try a few places to get a feeling of how it works. You may hear the sound “click” from the camera when night vision is
switched on and off if you listen closely.
Congratulations, you are now ready to proceed to further camera settings!
39
Chapter4 | Basic Settings
Setting the Interface Language
First of all you may want to change the user interface language. The default factory language is English. To change the
language, click on the right side of upper navigation panel to make the change. On the language list, click to select the one you are
familiar with. The user interface with refresh automatically to display in chosen language.
40
Chapter4 | Basic Settings
Changing the Camera Name
On the management page, click on the right side of upper navigation panel to access the conguration Main Menu.
On the Main Menu, select Network → UPnP
Then, you may want to assign the camera Host Name with proper naming for better identication if you have several cameras
at the same time. Meaningful names such as living room, kitchen, baby room or any other descriptions you nd suitable to describe the
space being monitored.
Select Network → UPnP
Hostname: Enter a new name into this eld
Click Apply to change the camera name
41
Chapter4 | Basic Settings
Setting the Camera Time
It is crucial to setup camera time properly so that scheduling can be arranged and events be recorded with accurate date and time.
On the Main Menu, select System → Time.
Please refer to Chapter 5 to learn more about Time Setting.
42
Chapter4 | Basic Settings
Setting the PC Storage Folder
The Storage Folder is the location where media les will be placed.
On the Main Menu, select System → PC Storage Path
Please refer to Chapter 5 for detail setting.
Adding a User Account
On the Main Menu, select User Management → User Account
Please refer to Chapter 5 for User Management for adding a User.
43
Chapter4 | Basic Settings
Wireless Setting
Please skip this step if you only use wired setup for your camera.
Ensure your home gateway/router supports wireless capability and is enabled.
On the management page, click to access the conguration Main Menu.
On the other hand, we also need to enable camera’s wireless feature; please check again to ensure you have wireless enabled.
On the Main Menu, select Wireless → Basic
Enable wireless by choosing Enable option.
44
Chapter4 | Basic Settings
Click on Scan to search for existing wireless access points (APs).
When prompted with Site Survey window, click on Refresh if you do not nd your AP on the list.
On the site list, choose your preferred AP and then click Add to AP Prole.
Then, on the AP Prole Settings window, please check if the security settings are correct. Please review the settings:
Encryption, WPA type, and Pre-Shared Key type. They are automatically detected. Normally, you only need to provide the Pre-
Shared Key (password). However, you can still change the settings if they do not match with the actually AP wireless security
settings.
Enter your Pre-Shared Key and press Save to complete the setting.
45
Chapter4 | Basic Settings
Please wait for a moment for the setup to complete.
While waiting, you can remove RJ-45 Ethernet Cable from the camera now. It may take a moment for the camera to detach from
wired network and switch to the newly established wireless connection with the chosen AP (your gateway/outer).
To check if the connection is successful, you can verify it by login into your camera again. In case if the camera is still not
accessible, please check your gateway/router again see whether your camera is connected. Also, check the security setting again just
for sure.
Chapter 5
User Interface
47
Chapter5 | User Interface
Camera manager page allows you to view and congure the camera at real time. This chapter will introduce all supported
features and detail congurations.
48
Chapter5 | User Interface

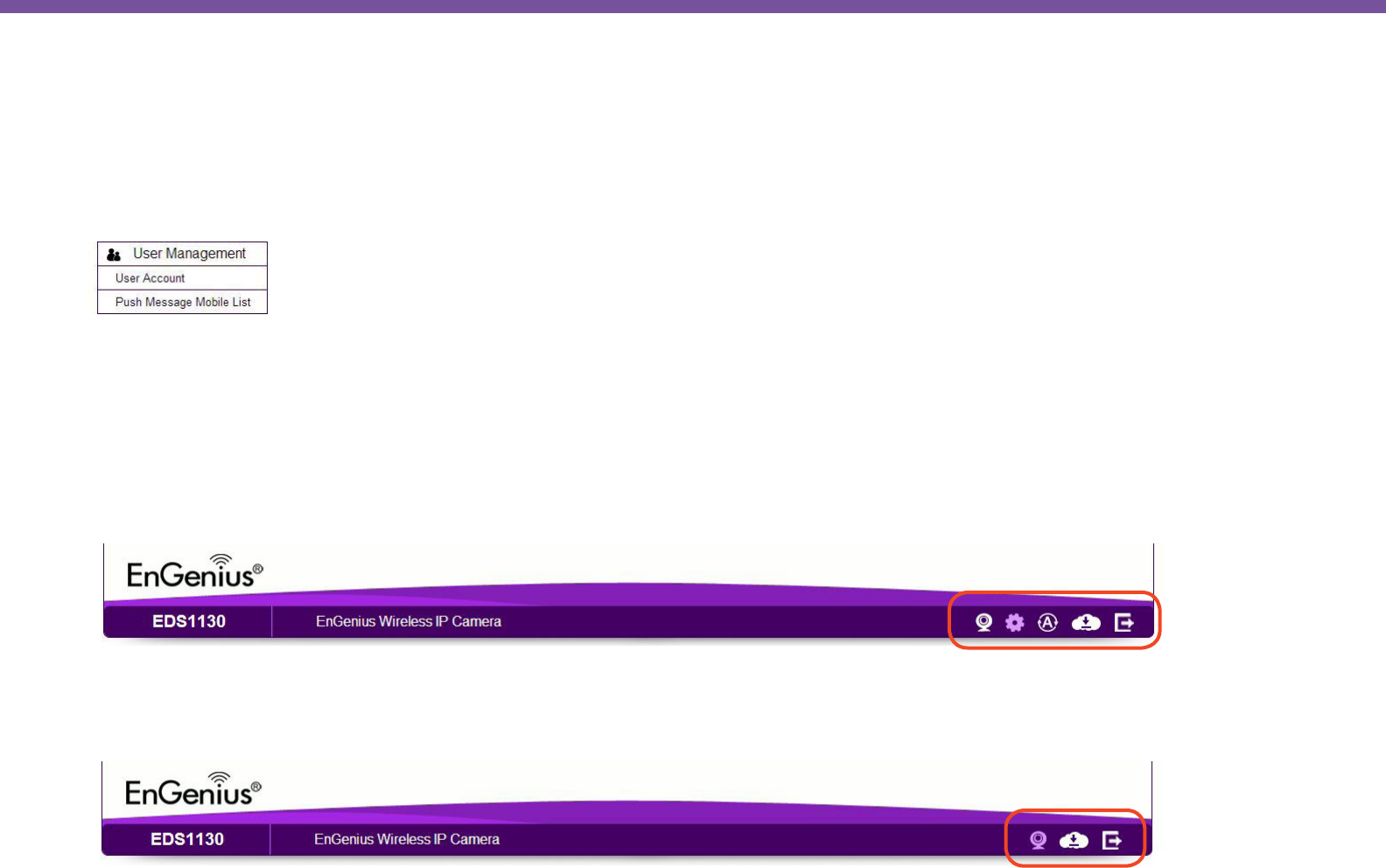

Navigation Panel
The Navigation Panel is located at the upper right corner of the page. Since there are two different user levels (Administrator
and Viewer), the functions shown on the Navigation Panel also vary accordingly. For more information about user account, please
refer to Chapter 5 - User Management for more details.
Administrator has full control of all the camera settings.
The viewer only has camera viewer features.
49
Chapter5 | User Interface
The detail description is as follows
Live View: Switch the management page to camera viewer within which snapshots or video clips can be taken at real time.
Settings: Switch the management page to camera setting. Please refer to Main Menu section for detail camera settings.
50
Chapter5 | User Interface
Language: Allows user to change management language setting.
EnGenius Cloud Service: Deliver the latest EnGenius Cloud Service information.
Logout: Exit the user interface.
51
Chapter5 | User Interface
Live View Settings
The Navigation Panel is located at the upper right corner of the page. Since there are two different user levels (Administrator
and Viewer), the functions shown on the Navigation Panel also vary accordingly. For more information about user account, please
refer to Chapter 5 - User Management.
52
Chapter5 | User Interface
The Live View Management menu is located at the left side of the page.
Live View: There are two streams running concurrently: Stream 1 (1280 x 720) and Stream 2 (640x480). By
default, Stream 1 has the higher resolution than stream 2 and Stream 2 is applied to serve lower resolution for
mobile devices use at remote. You can preview each stream at real time by selecting it from the list.
Open Folder: This opens the local folder on PC where the real time captured images and video clips are stored.
You may change the storage folder path at Main Menu→ System→ PC Storage Path.
Note: To play the recorded video, it is suggested to use VLC media player that supports most of the video
type.
Full Screen: This switch will hide the browser and expand the view to full screen. You can press ESC button to
cancel the full screen mode.
Snapshot: This button takes a snap-shot on the real time view and store the image in the local folder.
53
Chapter5 | User Interface

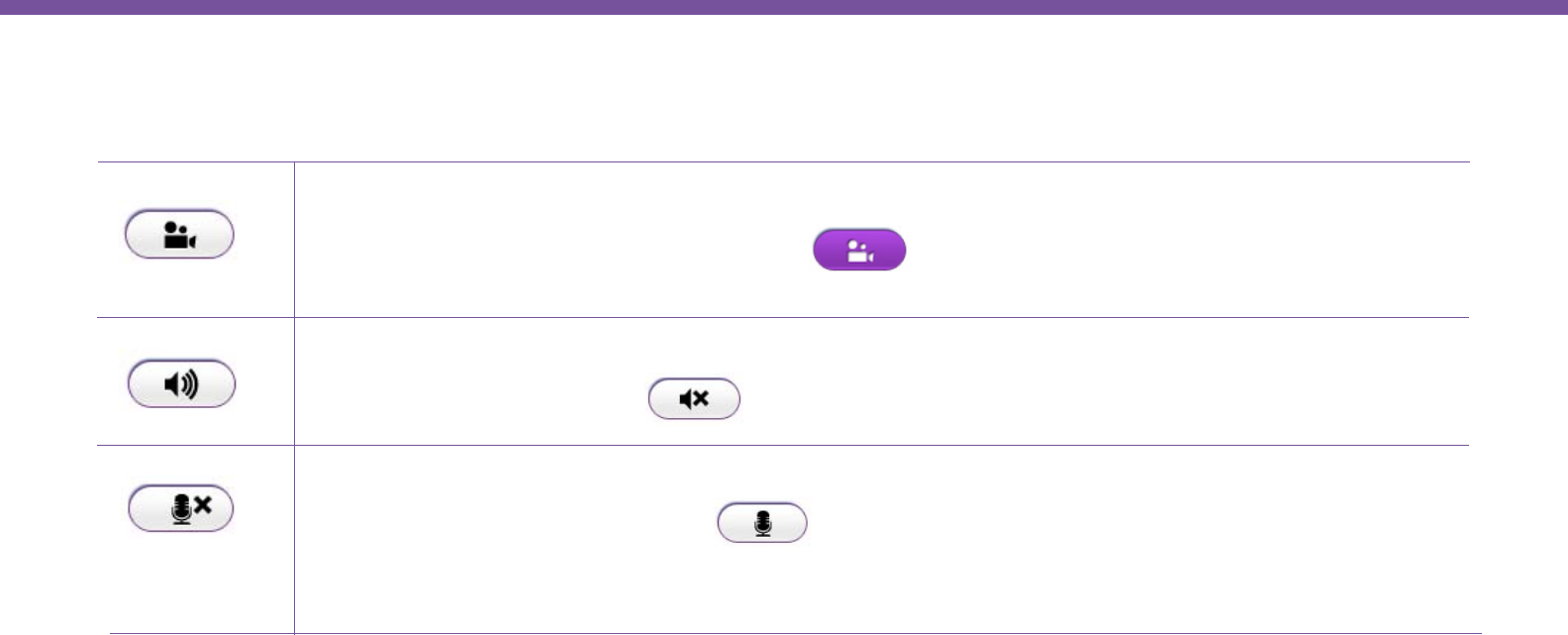

Recording: Toggle this button to start recording movie clip at real time. Click on the button to start recording.
Please note that when icon changed to purple ,the camera recording in process and REC is marked
om the upper right corner. To stop recording, simply click the button again.
Speaker: Toggle this button to turn speaker ON and OFF. The default setting is ON, click the button to turn it
off; the icon should change to to signify off state.
Microphone: Toggle this button to turn microphone ON and OFF. The default setting is OFF, click the button to
turn it ON; the icon should change to to signify ON state.
When microphone is turned off, there won’t be any audio data recorded during recording.
If audio is not important for your application, you are advised to turn it off to reduce the recording le size.
54
Chapter5 | User Interface
Main Menus
Only Users with administrator authority can get access to Main Menu. Guest Viewers do not have the privilege of changing
camera settings.
To get access to the Main Menu, click on the Settings icon.
The Main Menu is shown below.
55
Chapter5 | User Interface
System
The System setting menu consists of system related congurations.

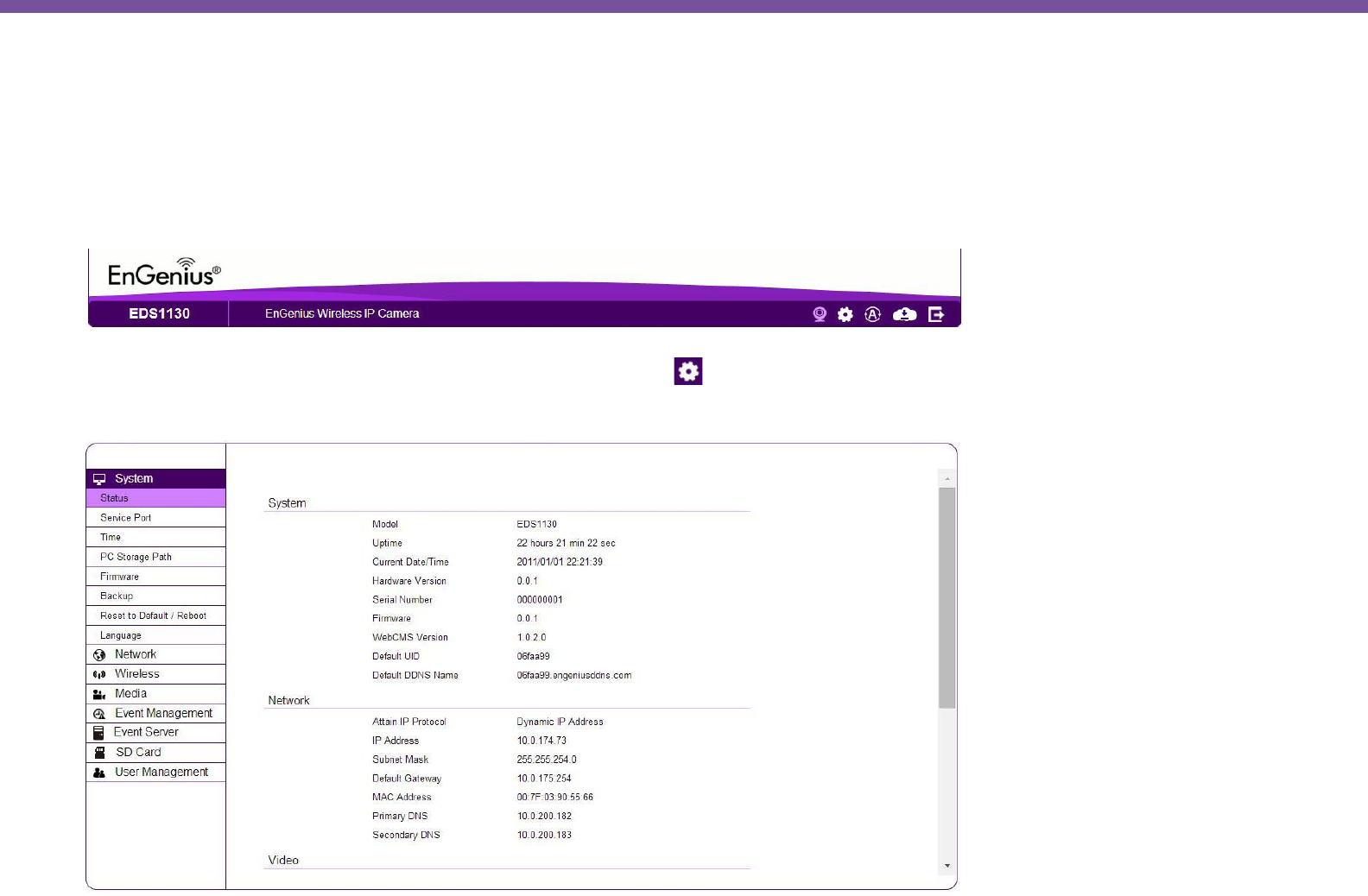

System>> Status
Status Page displays the overview of System, Network and Video information on the page, including current time, rmware
version, DDNS name, IP address …etc.
56
Chapter5 | User Interface
System>> Service Port
The page provides the default service port information of HTTP, RTSP, and EnViewer mobile app.
Warning: This section is only reserved for advanced users who wants to keep certain ports for other particular services. Changing the
ports will result in unexpected result. Unless necessary, please keep the default setting.
57
Chapter5 | User Interface
System>> Time
Like any other surveillance system, time is essential because we want to keep track of the time of the events recorded or
detected by the camera. By default, the camera is connected to a public time server (pool.ntp.org) and its time is always synchronized
with the server over the Internet. Normally, you only need to change the Time Zone. Choose the one that matches your location.
Leave the other setting as default should be ne. Setting the wrong time server or time zone will result in inaccurate scheduling and
time stamp.
Time Setup: select how the camera obtains the current time
Time Zone: select time zone for the camera
NTP Time Server: enter the domain name or IP address of an NTP server.
Enable Daylight Saving: Tick to enable or disable daylight saving time if applicable.
Start Time: select the date and time when daylight saving time starts.
End Time: select the date and time when daylight saving time ends.
Click Apply to save the settings or Cancel to discard changes.
58
Chapter5 | User Interface
System>> PC Storage Path
Select the folder path that you prefer to keep the snapshot and the video clips recorded. You could also choose the image and
video type that is ideal for you to save.
Folder Path: click “Browse” to decide the storage path
Snapshot File Type: select the le type for your snapshot, supporting type are JPG, PNG & BMP.
Recording File Type: select the le type for your snapshot, supporting type are AVI and MP4
Note: If le size is the concern to you, please refer to the compression rate below.
• Image: JPG > PNG > BMP (from High to Low)
• Video: MP4 > AVI (from High to Low)
To make change, click Apply to save the settings.
59
Chapter5 | User Interface
System>> Firmware
The product feature may improve over time, you can choose to upgrade the rmware manually or enable the auto rmware
upgrade to keep informed the latest update.
Manual Firmware Upgrade:
You may check EnGenius ofcial technical support site http://www.engeniusnetworks.com/support/ to get the latest rmware.
New rmware may contains bug xes or feature improvements which is benecial to you. You need to download the latest rmware
le to your local computer rst. Click Browse (for Choose File) and select the rmware le to start upgrade rmware.
Select the downloaded new rmware then click on Open.
60
Chapter5 | User Interface
Click Apply to start upgrading the rmware.
It may take a moment for the upgrading process, please wait patiently.
WARNING: Do not turn off the device in the middle of upgrade process. Terminating the device during the process will damage
the device and may cause the device to fail.
Auto Firmware Upgrade:
Enable the Auto Firmware Upgrade function, and the latest update rmware information will be shown. Click Release Note to check
the update details and click Upgrade to proceed the rmware upgrade immediately.
61
Chapter5 | User Interface
WARNING: Do not turn off the device in the middle of upgrade process. Terminating the device during the process will damage
the device and may cause the device to fail.
62
Chapter5 | User Interface
Emergency Backup Mode
If your rmware upgrade failed, you may enter the Emergency Backup Webpage.
Enter the IP address: 192.168.99.9 to the browser to enter Emergency Backup page.
Note: You have to congure PC/Notebook IP address to 192.168.99.8 manually.
Click the Browse button and navigate to the location of the upgrade le and then click Upload.
You can access the device again.
Wait for rmware upgrade and reboot the device.
63
Chapter5 | User Interface
System>> Backup
There are times that you may want to test new settings or keep different settings for different application scenarios. You can
do the backup by following the steps below.
Click Backup to initiate setting backup process.
Click Save to store the le to the chosen location.
64
Chapter5 | User Interface
Restore Saved Settings from le
Click on Choose File to select the backup le you are going to restore.
Choose the conguration le and click on Open.
Click on Upload to start storing process.
It may take a moment for the uploading process, please wait patiently.
WARNING: Do not turn off the device in the middle of the upload. Terminating the device during the process will damage the
device and may cause the device to fail.
65
Chapter5 | User Interface
System>> Reset to Default / Reboot
There may be times that you feel like to restore the settings to factory default. To reset to default click on the button Reset to
Default.
If the camera stop responding for some reasons or acting abnormally, you can choose to Reboot the Device. If the device still
does not recover to normal operation, please consider to perform a hard reset (unplug and re-plug the power adapter).
System>> Language
The default User Interface language is English, you can change the language with just a mouse click.
On the language list, click to select the one you feel comfortable with from the list. The user interface with refresh
automatically with your chosen language.
66
Chapter5 | User Interface
Network
The Network setting menu consists of Network related congurations.
Network>> IP Conguration
Each camera should be assigned with an IP address in the network for identication. IP Conguration setting allows you to
change the method with which the camera obtain its IP address. The default setting Dynamic IP (DHCP) is applicable to most of the
application scenario. However, advanced users can also change to Static IP or PPPoE whichever suits the purpose.
Mode: Static IP, PPPoE and Dynamic IP (DHCP)
67
Chapter5 | User Interface
Static IP
If your network requires Static IP, you need to specify the detail
IP settings similar to above. Please note that, if you are managing your
camera in local network similar to the example shown above, you will
need to congure your management PC/Laptop under the same domain.
If you are connecting to the Internet without going through
your home gateway/router, you can connect the camera directly to
your modem (given that you are using PPPoE for your Internet service).
Please consult your local network service provider for more detail.
Basically, the PPPoE setting is exactly the same as what your home
gateway/router. You need to provide at least Username and Password
to get access.
MAC Address: Normally, the MAC address is obtained automatically. To
change the setting, type in the MAC address into the eld.
Dynamic IP (DHCP)
PPPoE
Click Apply when conguration is done to activate new settings.
68
Chapter5 | User Interface
Network>> EnGenius Cloud Services
You must Enable EnGenius Cloud rst and then choose the Type.
Users are recommended to use the free EnGenius DDNS service that the address is printed on the QR
Code label inside the packaging. This is because ISP often leases dynamic WAN IP address that changes from
time to time. DDNS domain name will always be the same even if the WAN IP address changes. The domain
name can also be found on your System → Status page. As shown below, the DDNS domain name used for
the example is ooooooo.engeniusddns.com.
A key part about EnGenius Cloud Service is DDNS. Dynamic DNS (DDNS) is a type of DNS that works with dynamic IP address.
DDNS keeps update its mapping regularly and ensures a consistent matching so that your device can be accessed over the Internet
using a xed DDNS name. You can either use the default EnGenius DDNS Service or other 3rd party Service you prefer.
69
Chapter5 | User Interface
Default UID: Each device is distributed with an exclusive unique identication (UID). You can nd the default UID shown here.
UID Status: when working properly, it should show “Connected”.
Default DDNS: Each device is distributed with an exclusive DDNS. You can nd the default DDNS shown here.
Alias DDNS Name: You may nd that your DDNS is too difcult to remember. EnGenius provides free DDNS name registration as long
as the alias is not yet been taken other EnGenius product users. You can check the availability by clicking on the button Availability
Check for verication. For example, if “superman” is available and when the setting is activated, both DDNS name “superman.
engeniusddns.com” and “ooooooo.engeniusddns.com” can be used to access this camera.
Refresh Time: options are 3HRs, 6HRs, 9HRs, 12HRs and 24HRs. DDNS server needs to synchronize with your IP address often so
that you can access your device over the Internet with DDNS name. Depends on your Internet Service provider, your WAN IP address
lease time will be different. You can check with your local Internet Service provider for WAN IP address refresh time. The default
setting is 24 HRs (which means DDNS server will check the synchronization every 24 hours). Normally, the default setting 24 HRs is
okay for most cases.
DDNS Status: when working properly, it should show “Connected”.
Note: DDNS will only work only if your gateway/router is connected to the Internet. If gateway/router is not connected to the
Internet, your DDNS status will show “Disconnected”.
70
Chapter5 | User Interface
If you prefer using third-party DDNS server, you can choose this option.
The current supported third-party DDNS services are 3322(qdns), DHS, DynDNS, ZoneEdit and CyberGate. Choose the one that best
suits your purpose. You should provide your account information so that the camera can communicate with the selected DDNS vendor.
Your third-party DDNS service account credential should include the following information.
Host Name: please enter your registered Host Name
Username: please enter your registered Username
Password: please enter the password for this
Click Apply when conguration is done to activate new settings.
71
Chapter5 | User Interface
Network>> UPnP
Universal Plug and Play (UPnP) allows the other device to detect the presence of the camera so that communication become
possible. You should enable UPnP if you wish your camera to be recognized by your home gateway/router. UPnP Traversal makes
camera remote access over the Internet possible using camera DDNS name. You won’t be able to access the camera if you disable
UPnP feature. Please keep it Enable if you are not sure.
Hostname: You may rename your camera to other meaningful names such as living room, kitchen, baby room or any other descriptions
you nd suitable to describe the space being monitored.
UPnP: Enable or Disable
UPnPc: Enable or Disable
UPnP: Enable or Disable
UPnPc: Enable or Disable
Click Apply when conguration is done to activate new settings.
72
Chapter5 | User Interface
Wireless
All wireless related settings can be found under Wireless menu. The camera store several AP proles (candidate AP list)
although only one AP will be connected at any given time.
Wireless>> basic
Under Basic, you can turn on or off the wireless radio, setting connection with the existing AP surrounded. Wireless Information
shows the current wireless status.
To setup a wireless connection, you must rst enable wireless by
choosing Enable option.
Click on Scan button to search for existing wireless access points (AP).
73
Chapter5 | User Interface
When prompted with Site Survey window, click on Refresh button if you do not nd your AP on the list.
On the site list, choose your preferred AP and then click Add to AP Prole.
Then, on the AP Prole Settings window, please check if the security settings are correct. Please review the settings: Encryption,
WPA type, and Pre-Shared Key type. They are automatically detected. Normally, you only need to provide the Pre-Shared Key
(password). However, you can still change the settings if they do not match with the actually AP wireless security settings.
Enter your Pre-Shared Key and press Save to complete the setting.
74
Chapter5 | User Interface
Please wait for a moment for the setup to complete.
While waiting, you can remove RJ45 Ethernet Cable from the camera now. It may take a moment for the camera to establish
wireless connection with the chosen AP (your gateway/router).
Your camera should be connected to the gateway/router now. You can verify it by logging into your camera again. In case if the
camera is still not accessible, please check your gateway/router wireless setting again see whether your camera is connected.
75
Chapter5 | User Interface
Wireless>> WPS
Wi-Fi Protected Setup (WPS) is a network security standard that allow users to easily secure a wireless home network. This
feature allows user to set up wireless connection between the camera and home gateway/router without entering any detail wireless
security congurations such as SSID, encryption method or pre-shared key (password). However, you need to initiate WPS process on
both the camera and the gateway/router at the same time so that they can nd each other.
Normally, for WPS-enabled products, you should be able to nd the WPS button on the product. Only few rare cases that require
user to initiate WPS process over web page. Make sure WPS feature is Enabled on both the camera and your gateway/router. Then,
you need to know how to initiate gateway’s/router’s WPS process rst. It is mostly likely a simple push of the WSP button on your
gateway/router. On EDS1330, you can initiate WPS process by pressing the WPS button or through the web page.
WPS Button
The simplest way to setup wireless connection with a gateway/router is by pressing on the WPS button.
First, press the WPS button on the gateway/router (there may be changes on the LED lights as signs of initiation).
Then, press the WPS button the camera.
Wait a minute for two devices to establish the wireless connection. Once the process is complete, the WPS LED indicator will become
solid green.
WPS
1~5 SECs
60 SECs
76
Chapter5 | User Interface
WPS over web page
You can initiate camera’s WPS process on the web page.
First, press the WPS button on the gateway/router (there may be changes on the LED lights as signs of initiation).
On camera’s WPS page, press Start to Process.
Wait a minute for two devices to establish the wireless connection; when the connectivity is complete, the WPS LED indicator will
become solid green.
NOTE: For WPS to setup wireless connection successfully, timing is essential. Once the gateway/router has initiated WPS process,
your camera WPS process must be initiated within a given time range. It will be best if you have two devices in close range so that
WPS process on both sides can be initiated immediately after another.
WPS
77
Chapter5 | User Interface
Wireless>> AP Prole
You can keep several AP Proles (settings) if your application may need to switch between APs in case one of them failed.
Each prole matches to a specic AP.
App Prole >> Add >> WPA pre-shared key
Network Name (SSID): enter the SSID of the target AP
Encryption: supports Disabled, WEP and WPA pre-shared key
WPA Type: supports WPA (TKIP) and WPS2(AES)
Pre-Shared Key Type: Passphrase or HEX (64 characters)
78
Chapter5 | User Interface
App Prole >> Add >> WEP
Please note that WEP has proven be insure, this security option is reserved only for legacy products that supports WEP only.
Authentication Type: supports Open System and Shared Key
Key Length: 64bit and 128bit (the longer the safer)
Key Type: ASCII or HEX
Default Key: the key that will be used for authentication
Encryption Key 1~4: the candidate keys for authentication
79
Chapter5 | User Interface
App Prole >> Edit
On the table select the prole and then click on Edit to modify the prole setting.
Once complete the modication, click Save to make the changes effectively.
80
Chapter5 | User Interface
App Prole >> Move Up / Down
Each prole the ordered by the number at the front, the ones on top has higher priority when camera tries to search for the existing
AP. You can change the AP priority by moving them up or down. Select the prole and then click either on Move Up or Move Down.
App Prole >> Delete
Delete Selected: only delete the selected prole.
Select the prole to be deleted and then click on Delete Selected button.
Delete All: this will delete all the AP proles on the table
81
Chapter5 | User Interface
App Prole >> Connect
Select a prole to be connected and then click on Connect to initiate the wireless connection.
82
Chapter5 | User Interface

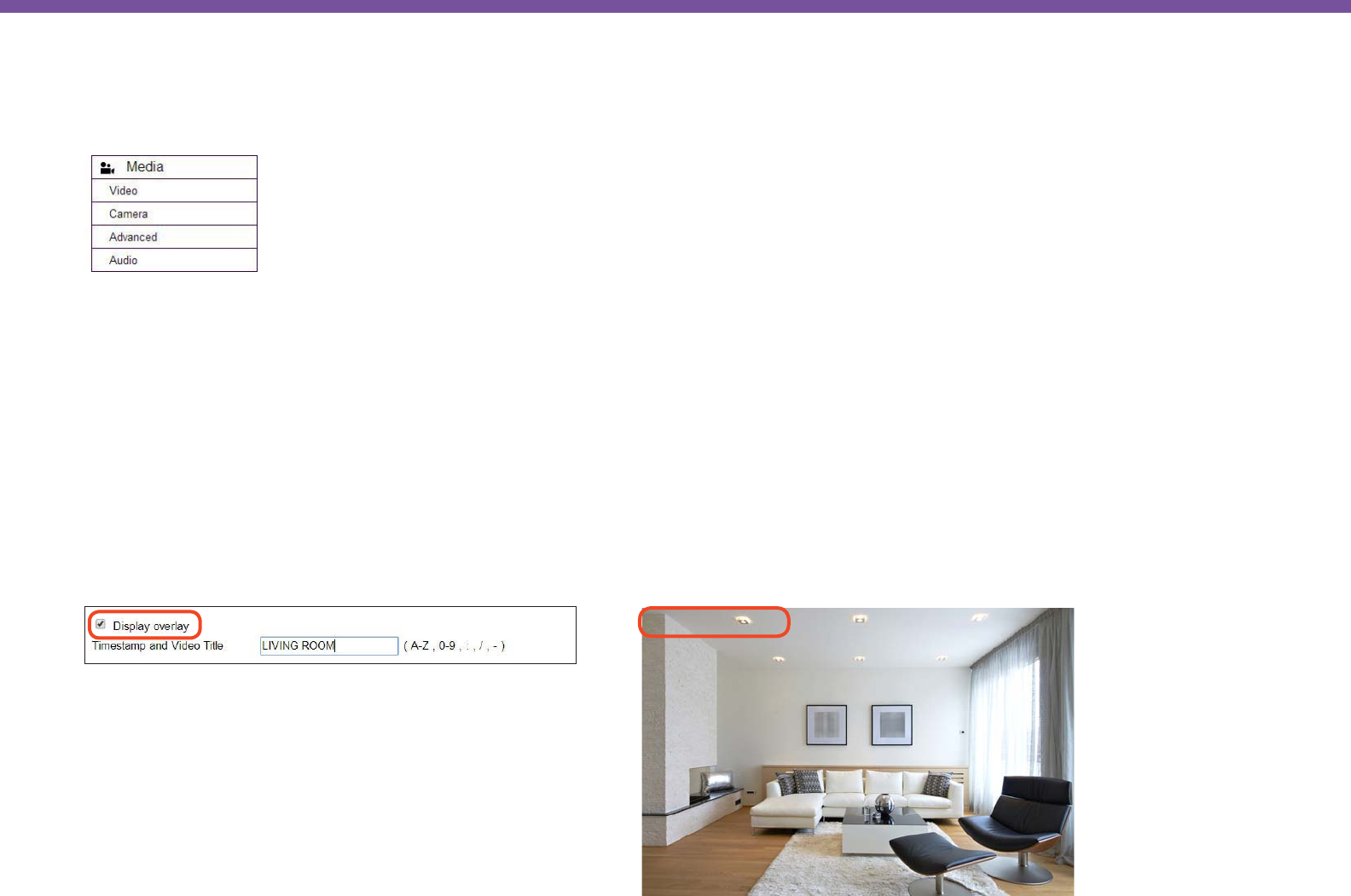

Media
All media quality related settings can be found under Media menu. These settings will have direct effect
on the captured image or video.
Media>> Video
Display Overlay
It is recommended that you enable the Time Stamp and Video Title and enter the Video Title that is easy for you to recognize when
showing on the viewer. The overlay will be shown on the upper left corner of your live viewer as shown below.
2014-08-12 02:07:25 TUE LIVING ROOM
83
Chapter5 | User Interface
Stream1 and Stream2
There are two streams running concurrently: Stream 1 and Stream 2. By default, Stream 1 has the higher resolution than stream 2.
Stream 2 serves lower resolution for mobile devices which has smaller screens. Each stream has independent settings.
Compression Format: H.264 is suggested that serves the best
compression quality.
Resolution: This sets the resolution of the image. Higher
resolution delivers higher quality image but consumes more
storage spaces and network bandwidth.
Max. Frame per Second: This sets the maximun number of frames
to be captured per second. Higher frame rate delivers smoother
video but consumes more storage spaces and network bandwidth.
Bit Rate Encoding: This sets the bit rate encoding at which tha
output data consumed is constant or variable per time segment.
Bit Rate (Ethernet): The bit rate when data is transmitted using
Ethernet.
Bit Rate (WiFi): The bit rate when data is transmitted using
wireless connection.
You are adivsed to set a smaller video size and lower bit rate for remote viewing on mobile phones (Stream 2) and a larger video size
and a higher bit rate for live viewing on web browsers (Stream 1). In addition, Ethernet suffers less interference and tends to be faster
than wireless; therefore, the bit rate can be set higher for (Stream 1). The reason that Stream 2 bit rate settings are both low simply
because Stream 2 is applied to serve low bandwidth appliances such as mobile phone.
84
Chapter5 | User Interface
Media>> Camera
You can get better image appearance by tuning the image parameters of the camera using the sliders shown. For example, in
a dark room you may want to set the Brightness higher to generate clearer result. When directly facing an outdoor window, you may
want to lower the Brightness a bit. There may be different settings under different circumstance; therefore, you should tune the value
if the image quality has become too low to serve its purpose.
By clicking Default Settings, all the settings will be reset to default value. And click Apply to make change effectively.
Please refer to the following examples for comparison between low and high for each of the light settings.
2014-08-12 02:07:25 TUE LIVING ROOM
85
Chapter5 | User Interface
Camera>> Image Settings
Note: Some of the effects will be more obvious in higher
resolution at real time.
Contrast 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Adjust the contrast of the image.
Default: 50
Low 0 100 High
Brightness 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Adjust the brightness of the image by percentage.
Default: 50
Darker 0 100 Brighter
Saturation 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Adjust saturation of image by percentage
Default: 50
Less 0 100 More
Denoise 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Adjust effect of denoise on the image by percentage.
Default: 20
None 0 100 Strong
Sharpness 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Adjust the sharpness of the image by percentage.
Default: 50
Softer 0 100 Sharper
Noise is a random variation of color and brightness in the image captured
under low light environment. You may nd adjusting Denoise useful when your
camera requires to operate under such condition, especially if you do not enable
night-vision.
86
Chapter5 | User Interface
Camera>> Flicker Control
The supported options are: 60Hz & 50Hz
Flicker Control is an anti-icker feature setting.
AC lamp can cause a icker effect, which is a consequence of the AC power frequency (50 or 60 Hz). As the light can change
from picture to picture, causing light icker. This will lead to inconsistent light source between each snapshot. To eliminate icker,
congure your camera to PAL (60Hz) or NTSC (50Hz) modes to compensate the effects. Check the power supply of your region for
proper setting.
87
Chapter5 | User Interface
Camera>> Mirror / Flip
Supported video orientation options are None, Mirror, Flip and Both
There are times that the camera will have to be mounted upside down or sideways. That is, the view become difcult to monitor when
it is upside down. The Mirror settings does not reect on the preview at real time (unlike lighting condition settings). Therefore, you
have to click on Apply to see the result.
To reset to the default, click Default Settings and then click Apply.
The following examples compares none with a chosen mirror/ip effect.
2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Mirror - Horizontally reect the display of the live view Both - Horizontally and vertically reect the display of the live view
Flip - Vertically reect the display of the live view
None None
None
Mirror Both
Flip
88
Chapter5 | User Interface
Camera>> Day / Night Mode
This controls Night Vision ON and OFF.
Auto: the camera automatically switch between Day and Night modes by judging ambient light sufciency.
Day: force the camera to turn OFF Night Vision.
Night: force the camera to turn Night Vision ON.
2014-08-12 02:07:25 TUE LIVING ROOM 2014-08-12 02:07:25 TUE LIVING ROOM
Day Night
89
Chapter5 | User Interface
Media>> Advanced
On this page, you can set the Exposure Mode and Gain Control Settings, Shutter Speed and also the Exposure Value (EV)
Compensation.
2014-08-12 02:07:25 TUE LIVING ROOM Exposure Settings
Mode: Manual, Indoor, Outdoor
For regular users, please choose indoor or outdoor, the
default values will be precongured. The areas are grey
out for precongured settings when you choose Indoor or
Outdoor.
Manual
Choose the mode Manual if you would like to ne tune some
of the settings that suits your application. Please be noted
that these settings may have impacts on the image quality
and performance. If you are not sure about the terms and
behavior, you are suggested to keep it as default.
Click Apply to save the congured settings.
Click Default Settings to reset to default and then click Apply to save the settings.
2014-08-12 02:07:25 TUE LIVING ROOM
90
Chapter5 | User Interface
Media>> Audio
Status:
If the audio is important to what you are monitoring, you need to set the audio status to Enable. So that the microphone can pick
up sounds in the environment. On the other hand, if audio is not necessary (for instance an open space with a lot of noises), you are
advised to Disable the audio to reduce the clips le size.
Mode:
Both Mic & Speaker: enable both microphone and speaker
Only Mic: enable only the microphone
Only Speaker: enable only the speaker
Microphone (Input) Gain: setting the sensitivity of the microphone. High gain will result in higher volume and but may possibly picks
up more noise.
Encoding: supporting encoding type is G711A, AAC and G711U
Sample Rate: 8 K
Bit Rate: 16 Bit
Speaker (Output) Volume: adjusting speaker volume by sliding the bar
91
Chapter5 | User Interface
Event Management
This camera supports many intelligent features that allows you to utilize the camera in many application scenarios. This section
will introduce each of them in detail. For application examples, please refers to the Application Guide.
Event Management >> Setup Wizard
Wizard is an integrated conguration ow guide to the two main features on the camera: Schedule Recording and Event/Alarm.
Schedule Recording: Set the camera to record video regularly based on a predened schedule.
Event/Alarm: When camera detects an event that matches the predened condition, an alarm will be triggered and proceed with the
dened actions; for instance, taking snapshots or recording videos for the specied length of time.
92
Chapter5 | User Interface

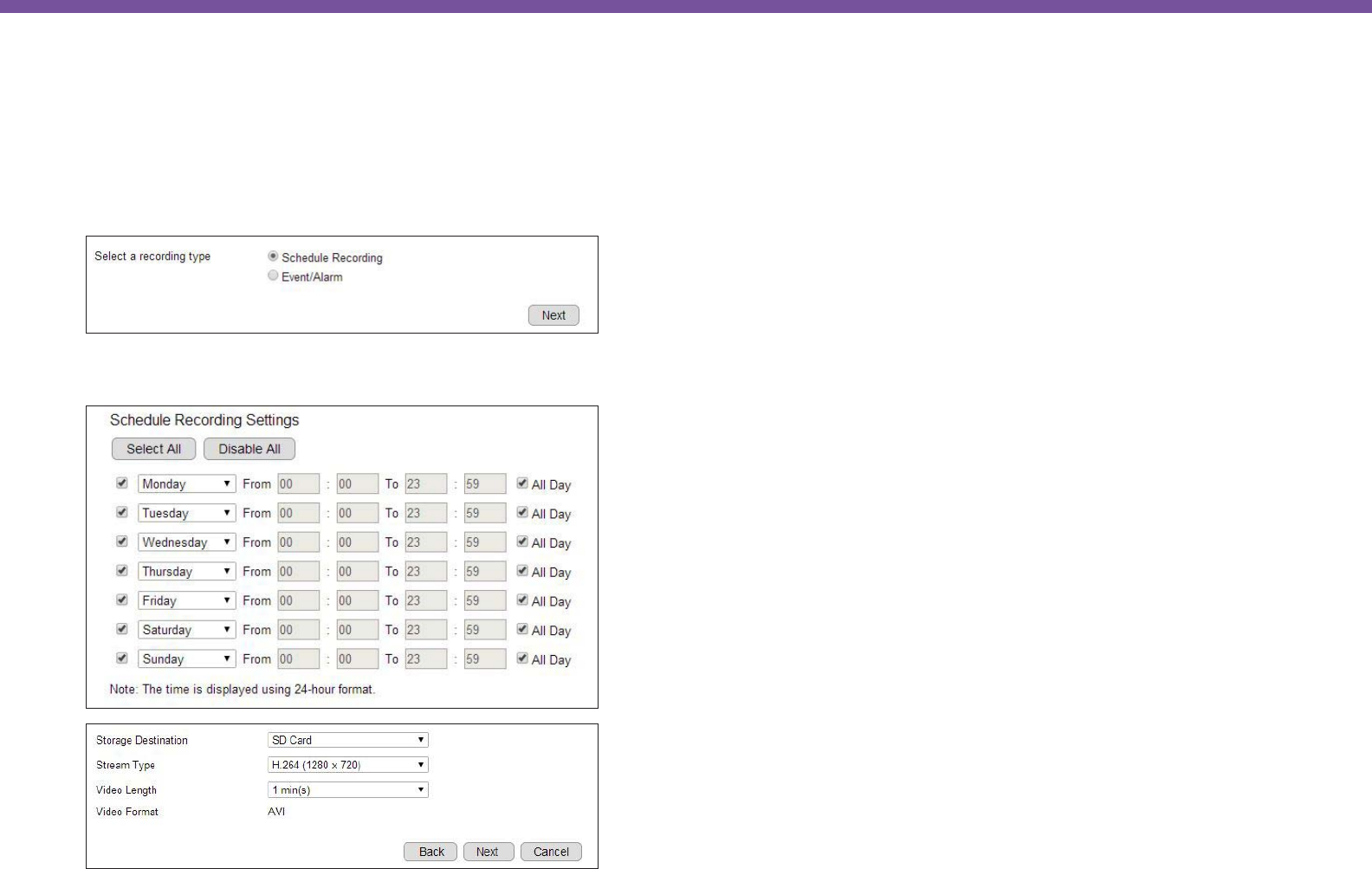

Wizard – Schedule Recording
Step 1: Select Scheduled Recording
Choose Schedule Recording on the page and click Next to proceed.
Step 2: Schedule the Recording
Storage Destination: SD Card or Network Storage
Stream Type: H.264 (1280x720) or H.264 (640x480). This options is based on
current video settings for Stream 1 and Stream 2.
Video Length: the maximum video length of time per le
Video Format: AVI
You can specify the time range for each schedule or simply click on All Day for
24-hour recording.
You must Select to enable the schedule.
Note: You may have two different schedules for the same day. As shown in the example above, you can have two schedules: Monday
08:00~12:00 and Monday 14:00 ~ 18:00.
93
Chapter5 | User Interface
Step 3: Time Settings
Like any other surveillance system, time is essential because we want to keep track of the time of the events recorded or detected by
the camera. You suppose have completed the time setting during the installation. This is just another conrmation just in case if you
did not have not congure the time setting.
Click Save to complete the wizard.
94
Chapter5 | User Interface
Wizard – Event/Alarm
Step 1: Select Alarm
Choose Event/Alarm on the page and click Next to proceed.
Step 2: Motion Detection Window Setting
Motion Detection Window is a hot zone that the camera analyzes for movement. When a motion is detected within the zone, an event
alarm will be triggered.
There can be 3 windows congured at the most. Simply click on the check box to enable or disable the selected window. Three
windows are differentiated by color; Window 1 is Red, Window 2 is Green and Window 3 is Blue.
Sensitivity: The sensitivity is set by percentage. The higher percentage represents higher sensitivity.
Depends on your application, high sensitivity will trigger event more often than low sensitivity and produce more snapshots or videos.
However, overly sensitive detection will ll up the storage very quickly. Even if you have unlimited storage space, large amount of
les can become a problem when you need search through each of the les to nd what you are really looking for. It may take some
time for you to ne tune the optimal sensitivity for your application.
95
Chapter5 | User Interface
By default, Window 1 is enabled and full detecting area is set with red dashed color frame.
You can congure the detection window by dragging around the frame to decide the monitoring objects or area.
Please refer to Event Management>> Motion Detection for resizing the window
Click Next to continunue the event settings.
96
Chapter5 | User Interface
Step 3: Audio Detection Settings
Audio Detection is another way to trigger the event and alarm. It can be enabled to initiate snapshot or recording when there’s sound
detected in the background. When the incidence falls out of the motion detection window, “sound” can be a good indication that a
change in the environment has occurred and it’s better to take actions to keep event in record.
Status: Enable or Disable
Sensitivity Level: The sensitivity is set by percentage. The higher percentage represents higher sensitivity.
Similar to motion detection, high sensitivity will trigger event more often than low sensitivity and produce more snapshots or videos.
However, overly sensitive detection will ll up the storage very quickly. Even if you have unlimited storage space, large amount of
les can become a problem when you need search through each of the les to nd what you are really looking for. It may take some
time for you to ne tune the optimal sensitivity for your application.
97
Chapter5 | User Interface
Event Type: Record (movie clip)
Step 4: Select the Event Type
Event Settings
Storage Destination: SD Card or Network Storage
Event Duration: the length of time when an event is triggered
Pre-event: Enable or Disable pre-event
Pre-event Buffer: duration: the length of pre-event, 1~3 seconds
Post-event: Enable or Disable post-event
Post-event Buffer: the length of post-event, 1~3 seconds
Event Recording
Video Format: AVI is set
Stream Type: H.264 (1280x720) or H.264 (640x480). The options
may vary as it is the settings of current Stream 1 and Stream 2
Video Length: the maximum video length of time per le
Alarm Audio Play Settings
Play Audio: Enable or Disable the alarm audio through the speaker
when an event is triggered.
Alarm Audio Files: the sound le to be played when alarm is triggered.
Click Play to test.
Click Next to continue.
Select the Event Action Type, Record or Snapshot to proceed.
98
Chapter5 | User Interface
Note: If setting Event Duration to 20 seconds, the camera will keep recording for 20 seconds when an event is triggered. In this case,
if the Video Length is 20 seconds, then 1 le will be generated for instance of event. If Video Length per clipis 10 seconds, then 2
les will be generated event. Please note that pre-alarm and post-alarm will extend the length of the clip for the chosen extra length
of time.

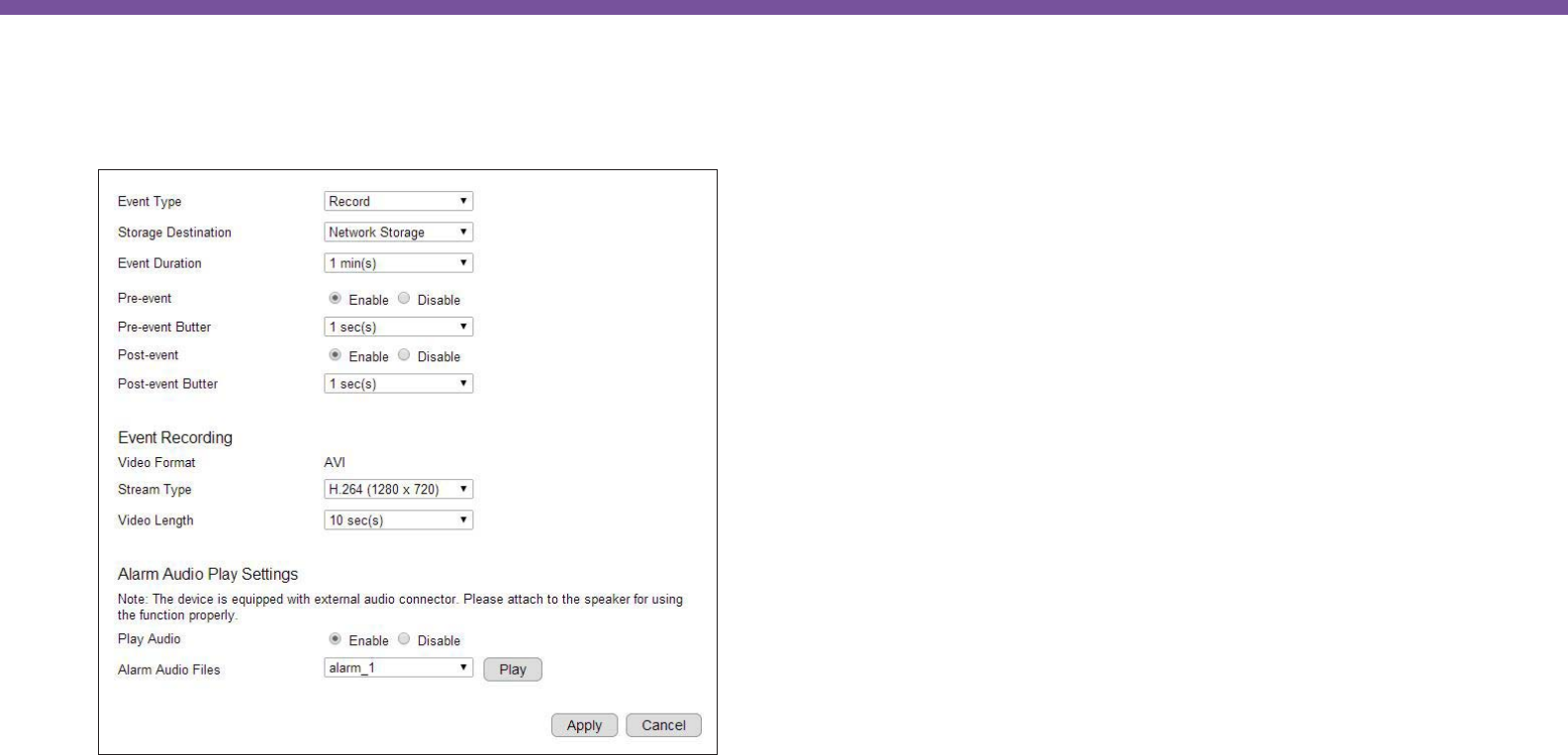

Event Type: Record (movie clip) Event Settings
Storage Destination: SD Card or Network Storage
Event Duration: the length of time when an event is triggered
Pre-event: Enable or Disable pre-event
Pre-event Buffer: duration: the length of pre-event, 1~3 seconds
Post-event: Enable or Disable post-event
Post-event Buffer: the length of post-event, 1~3 seconds
Event Recording
Video Format: AVI is set
Stream Type: H.264 (1280x720) or H.264 (640x480). The options
may vary as it is the settings of current Stream 1 and Stream 2
Video Length: the maximum video length of time per le
Alarm Audio Play Settings
Play Audio: Enable or Disable the alarm audio through the speaker
when an event is triggered.
Alarm Audio Files: the sound le to be played when alarm is triggered.
Click Play to test.
Click Next to continue.
99
Chapter5 | User Interface

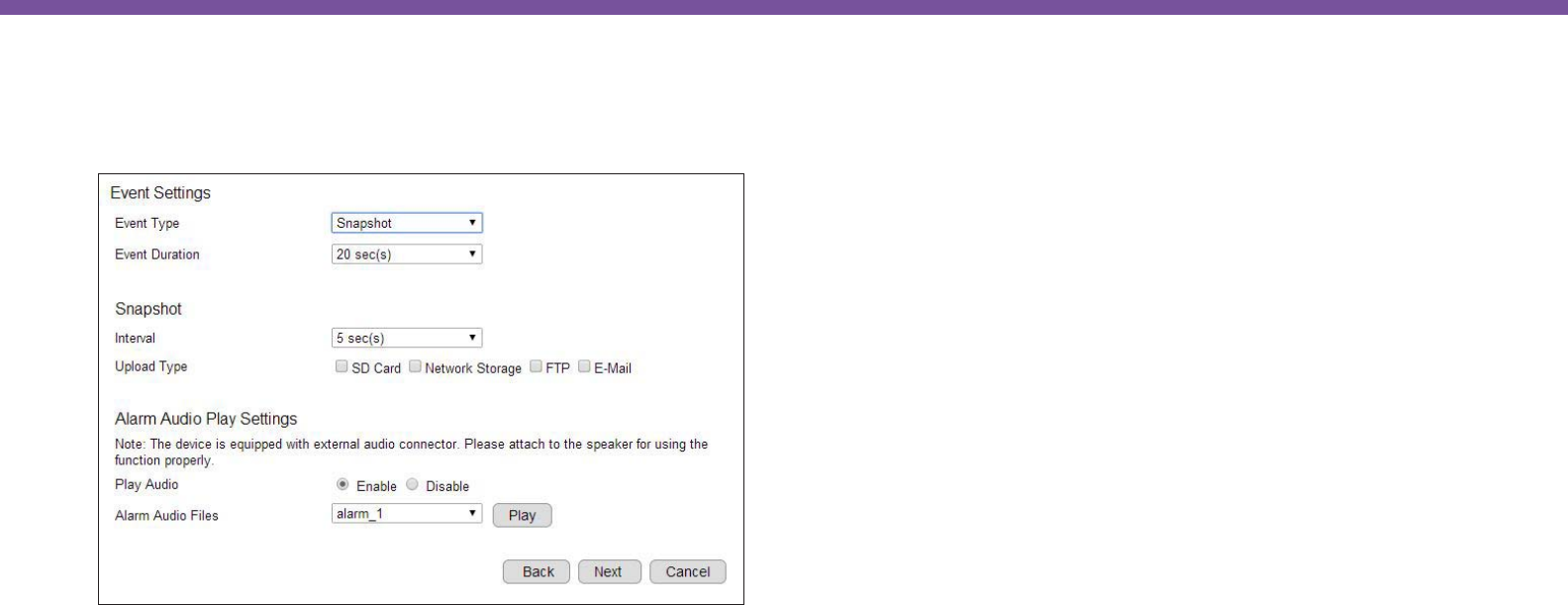

Event Duration: the length of time when an event is triggered.
Interval: the elapse time between each snapshot, the options are from 5 seconds to 5 minutes.
Upload Type: select where you prefer to keep the snapshot. You may choose two at most.
Play Audio: Enable or Disable (enable to play alarm audiothrough the speaker whenan event is triggered).
Alarm Audio Files: the sound le to be played when alarm is triggered. Test the alarm by clicking Play.
Click Next when this step is complete and proceed to the last step.
Event Type: Snapshot (images)
100
Chapter5 | User Interface
Step 5: Time Setting
Like any other surveillance system, time is essential because we want to keep track of the time of the events recorded or detected by
the camera. You suppose have completed the time setting during the installation. This is just another conrmation just in case if you
did not have not congure the time setting.
Click Save to complete the wizard.
101
Chapter5 | User Interface
Event Management>> Motion Detection
Motion Detection Window is a hot zone that the camera analyzes for movement. When a motion is detected within the zone, an event
alarm will be triggered.
There can be 3 windows congured at the most. Simply click on the check box to enable or disable the selected window. Three
windows are differentiated by color; Window 1 is Red, Window 2 is Green and Window 3 is Blue.
Sensitivity: The sensitivity is set by percentage. The higher percentage represents higher sensitivity.
Depends on your application, high sensitivity will trigger event more often than low sensitivity and produce more snapshots or videos.
However, overly sensitive detection will ll up the storage very quickly. Even if you have unlimited storage space, large amount of
les can become a problem when you need search through each of the les to nd what you are really looking for. It may take some
time for you to ne tune the optimal sensitivity for your application.
102
Chapter5 | User Interface
You can adjust the motion detecting area by dragging the four
corners to resize the window.
Therefore, you can have a combination of three different
detection window size.
By default, Window 1 is enabled and full detecting area is set with red dashed color frame.
You can congure the detection window by dragging around the frame to decide the monitoring objects or area.
Click Next to continunue the event settings.
103
Chapter5 | User Interface
Event Management>> Audio Detection
Audio Detection is another way to trigger the event and alarm. You want the camera to initiate recording or snapshot when there’s a
sound in the background. When the incidence falls out of the motion detection window, “sound” can be a good indication that a change
in the environment has occurred and it’s better to start recording.
Status: Enable or Disable
Sensitivity Level: The sensitivity is set by percentage. The higher percentage represents higher sensitivity.
Similar to motion detection, high sensitivity will trigger event more often than low sensitivity and produce more snapshots or videos.
However, overly sensitive detection will ll up the storage very quickly. Even if you have unlimited storage space, large amount of
les can become a problem when you need search through each of the les to nd what you are really looking for. It may take some
time for you to ne tune the optimal sensitivity for your application.
104
Chapter5 | User Interface
Event Management>> Event / Alarm
Enable Schedule Recording for proceeding the succedding settings.
Note: Please disable Event/Alarm ahead of conguring Schedule Recording.
Firstly, select the event action type, Record or Snapshot you prefer
to keep the event on track.
Event Type: Snapshot (images)
Event Duration: the length of time when an event is triggered.
Snapshot Settings
Interval: the elapse time between each snapshot, the options are
from 5 seconds to 5 minutes.
Upload Type: select where you prefer to keep the snapshot. You may
choose two at most.
Alarm Audio Play Settings
Play Audio: Enable or Disable (enable to play alarm audiothrough the
speaker whenan event is triggered).
Alarm Audio Files: the sound le to be played when alarm is
triggered. Test the alarm by clicking Play.
Click Apply to save the event settings.
105
Chapter5 | User Interface
Note: If setting Event Duration to 20 seconds, the camera will keep recording for 20 seconds when an event is triggered. In this case,
if the Video Length is 20 seconds, then 1 le will be generated for instance of event. If Video Length per clipis 10 seconds, then 2
les will be generated event. Please note that pre-alarm and post-alarm will extend the length of the clip for the chosen extra length
of time.
Event Type: Record (movie clip)
Event Settings
Storage Destination: SD Card or Network Storage
Event Duration: the length of time when an event is triggered
Pre-event: Enable or Disable pre-event
Pre-event Buffer: duration: the length of pre-event, 1~3 seconds
Post-event: Enable or Disable post-event
Post-event Buffer: the length of post-event, 1~3 seconds
Event Recording
Video Format: AVI is set
Stream Type: H.264 (1280x720) or H.264 (640x480). The options
may vary as it is the settings of current Stream 1 and Stream 2
Video Length: the maximum video length of time per le
Alarm Audio Play Settings
Play Audio: Enable or Disable the alarm audio through the speaker
when an event is triggered.
Alarm Audio Files: the sound le to be played when alarm is triggered.
Click Play to test.
Click Apply to save the event settings.
106
Chapter5 | User Interface
Event Type: Snapshot (images)
Event Duration: the length of time when an eventis triggered.
Interval: Select the elapse time between each snapshot, the options are from 5 seconds to 5 minutes
Upload Type: method of storage.
Play Audio: Enable or Disable (enable to play audio le through the speaker when alarm is triggered).
Alarm Audio Files: the sound le to be played when alarm is triggered.
Click Apply When complete this step
107
Chapter5 | User Interface
Event Management>> Schedule Recording
Then continue the recording le settings.
Storage Destination: SD Card or Network Storage
Stream Type: H.264 (1280x720) or H.264 (640x480). This options
is based on current video settings for Stream 1 and Stream 2.
Video Length: the maximum video length of time per le
Video Format: the media le format.
Click Apply to enable the schedule recording settings.
Note: You may have two different schedules for the same day. As shown in the example above, you can have two schedules:
Monday 08:00~12:00 and Monday 14:00 ~ 18:00.
You can specify the time range for each schedule or simply click on All Day
for 24-hours recording.
You must Select to enable to schedule.
Enable Schedule Recording for proceeding the succedding settings.
Note: Please disable Event/Alarm ahead of conguring Schedule Recording.
108
Chapter5 | User Interface
Event Server
It is required for you to congure Event Server settings after setting camera Event Management. You will have to tell where
the captured images and video recording are going to be stored. The following concept diagram depicts the ow of the image le
when and when captured. The recording le is stored at one of the predene storage locations while the snapshot can be saved to
two storage destinations.
The simplest way to keep the media les is to save on SD card (see next Chapter); however, SD card storage size is relatively
limited comparing to other alternatives. On the other hand, Network Storage and FTP require you to have existing servers ready
for upload. E-Mail Alerts is good for small image captured since it sends le through email. You should choose what is best for your
application.
FTP
Network Storage:
Samba
Network Storage:
NFS
SMTP
109
Chapter5 | User Interface
Event Server>> Network Storage
This camera supports two types of Network Storage: Network File System (NFS) and SAMBA.
Before going further, you need to Enable to congure the Network Storage rst.
Please refer to the following sections for NFS and SMABA.
Network Storage >> NFS (Network File System)
Server: IP address of the NFS server
Path: enter the initial path if applicable
Folder Size: storage allocated for the camera; the default value 0
signies utilizing full capacity of the storage.
Overwrite: when the dened folder is full, the oldest les will be
overwritten to accommodate the new one.
Click Apply when done.
110
Chapter5 | User Interface
Network Storage >> SAMBA
Click Test to verify the connection with the server using the username and password.
Click Apply when you have completed the settings.
Server: IP address of the SAMBA server
Path: enter the initial path if applicable
User Name: username for accessing SAMBA server
Password: password for accessing SAMBA server
Folder Size: storage allocated for the camera; the default value
0 signies utilizing full capacity of the storage.
Overwrite: when the dened folder is full, the oldest les will
be overwritten to accommodate the new one.
Note: If you are connecting the camera to an EnGenius IoT Gateway or Intelligent Router and have congured the camera prole, the
following information will be shown automatically. Refer to Chapter 6 for more details.
111
Chapter5 | User Interface
Event Server>> FTP (File Transfer Protocol)
Server: IP address of the FTP server
Port: the FTP server port; default port is 21
User Name: username for accessing FTP server
Password: password for accessing FTP server
FTP Path: enter the initial path if applicable
Click Test to verify the connection with the server using the username and password.
Click Apply when you have completed the settings.
112
Chapter5 | User Interface
Event Server>> E-mail Alerts
EDS1130 allows camera to send captured snapshots to the predened e-mail to notify an event triggered by congured motion or
audio detection.
SMTP is an email sender’s server. You need to check whether your e-mail service provider supports SMTP and obtain the required
information for this setting.
Note: The function doesn’t support the SMTP server secured by SSL. Please verify your e-mail provider settings ahead.
The snapshots settings can be congured under Chapter 6.1.3 Event Management → Event Settings → Event Type.
Account: the e-mail account name; if your e-mail is myemail@domain.
com, myemail is the account name.
Password: the password you use to login into your e-mail box.
Sender: you can type in your e-mail address or other address if you
would like the receiver to reply the e-mail to.
SMTP Server: enter the SMTP server address (e.g. smtp.domain.com).
Port: enter SMTP server port (normally the value is 587 or 465)
Receiver: enter the receiver e-mail here (usually your or the
administrator’s e-mail).
Subject: enter the email subject here.
113
Chapter5 | User Interface
You will be seeing the le list after the SD card is inserted securly. If not, refresh the page by clicking on Refresh button and double
check if the Micro SD card has been properly attached.
Default folders named snapshot and video will be created automatically upon the camera stores the media les.
Dismount: you should dismount the SD card before physically removing it from the slot to avoid le damage.
Format: You can clean a SD card by formatting it (all data will be erased).
SD Card
With the onboard SD card slot, the camera provides another simple options for managing media les.
114
Chapter5 | User Interface
You can browse through the folder like any
other le manager by clicking on the folder
name.
Delete function: Select the folder/le(s) and then click on the icon to REMOVE them from the SD card.
Click on the les you are looking for and view it
directly as shown below.
115
Chapter5 | User Interface
User Management
User Management>> User Account
There are two types of user accounts: Administrator and Viewer. Administrator has full control over the camera settings while
viewer only has the accessibility of watching the real time video. Viewer account is particularly useful when you have multiple users
such as other family members. You may have many administrators as well as viewers depends on your needs.
Administrator has full control of the camera interface with conguration features as shown below.
Viewer only has basic camera view interface.
116
Chapter5 | User Interface
User List provides the overview of the account currently registered to the camera.
Add Account
Click Add for adding a new account.
User Name: enter the username for the new account
Password: enter password
Conrm Password: enter password for conrmation
Authority: select Administrator or Viewer from the dropdown menu.
Click Apply to add the user
And the new account should be shown on the User List now.
117
Chapter5 | User Interface
Edit Account
To edit the existing account, Select a user from the list by click on the check box.
Click Edit to change the user account setting.
Enter the new password and dene the authority for the selected account.
Once all necessary changes are made to the accounts, click Apply to make the changes affectively.
118
Chapter5 | User Interface
Delete User
On the user list, select user account(s) to be deleted.
Click on Delete Selected or Delete All if you have ticked multiple accounts.
When prompted with delete conrmation, click OK to delete.
