Chapter 6
Camera Connecting to
EnGenius Gateway/
Router
120
Chapter6 | Camera Connecting to EnGenius Gateway/Router

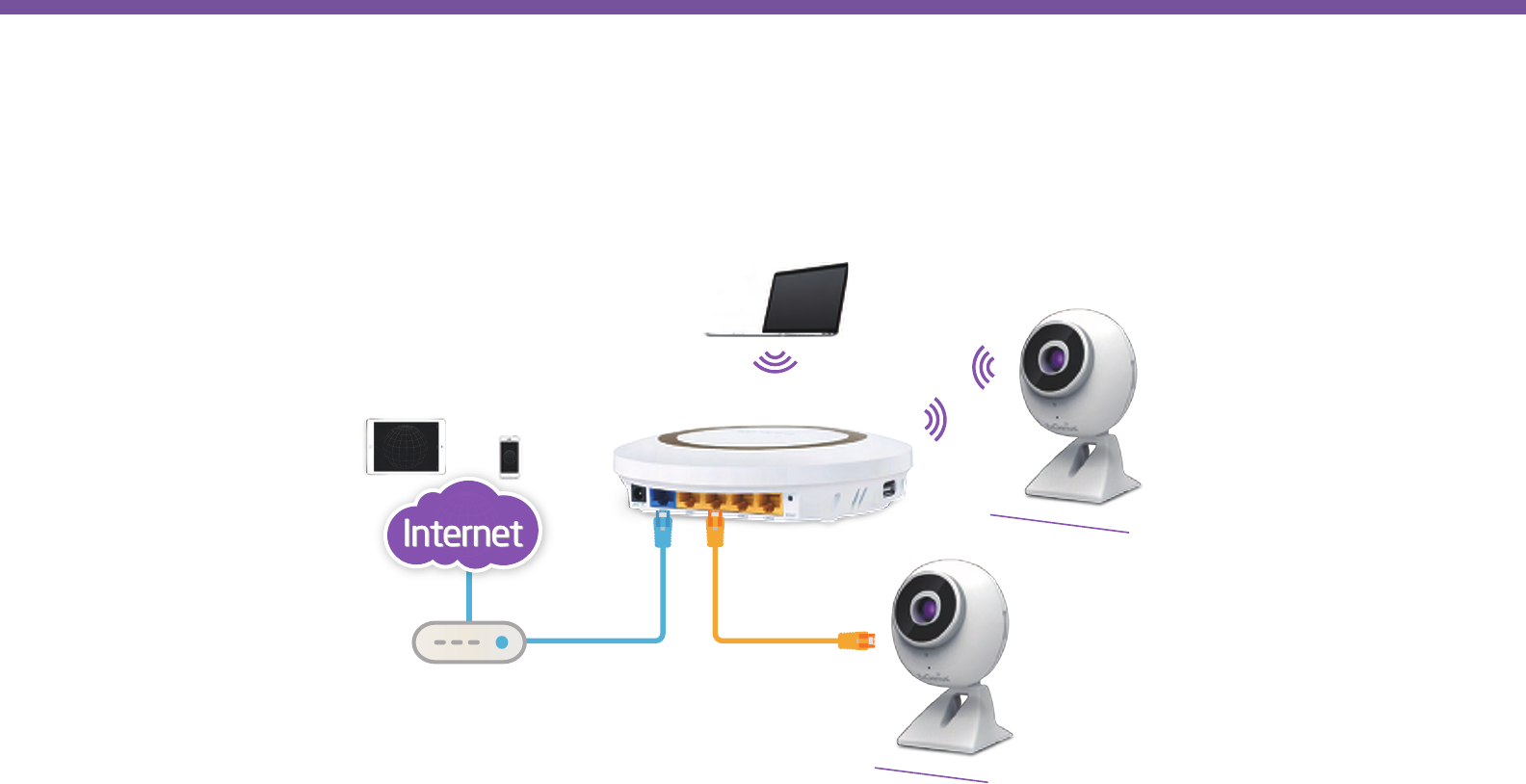

Smart Recording is an intelligent camera management technology that allows EnGenius users to manage cameras collectively
with ease. EnGenius bundles cameras with IoT gateway and Intelligent Router series that provides a single entrance for integrated
management. Traditionally, if you have multiple cameras installed you will need to go through the tedious congurations on each of
the camera. The benets of Smart Recording are as follows:
Integrated Storage
Easy and Integrated Access
manage each camera
individually
unied management with
Smart Recording
121
Chapter6 | Camera Connecting to EnGenius Gateway/Router

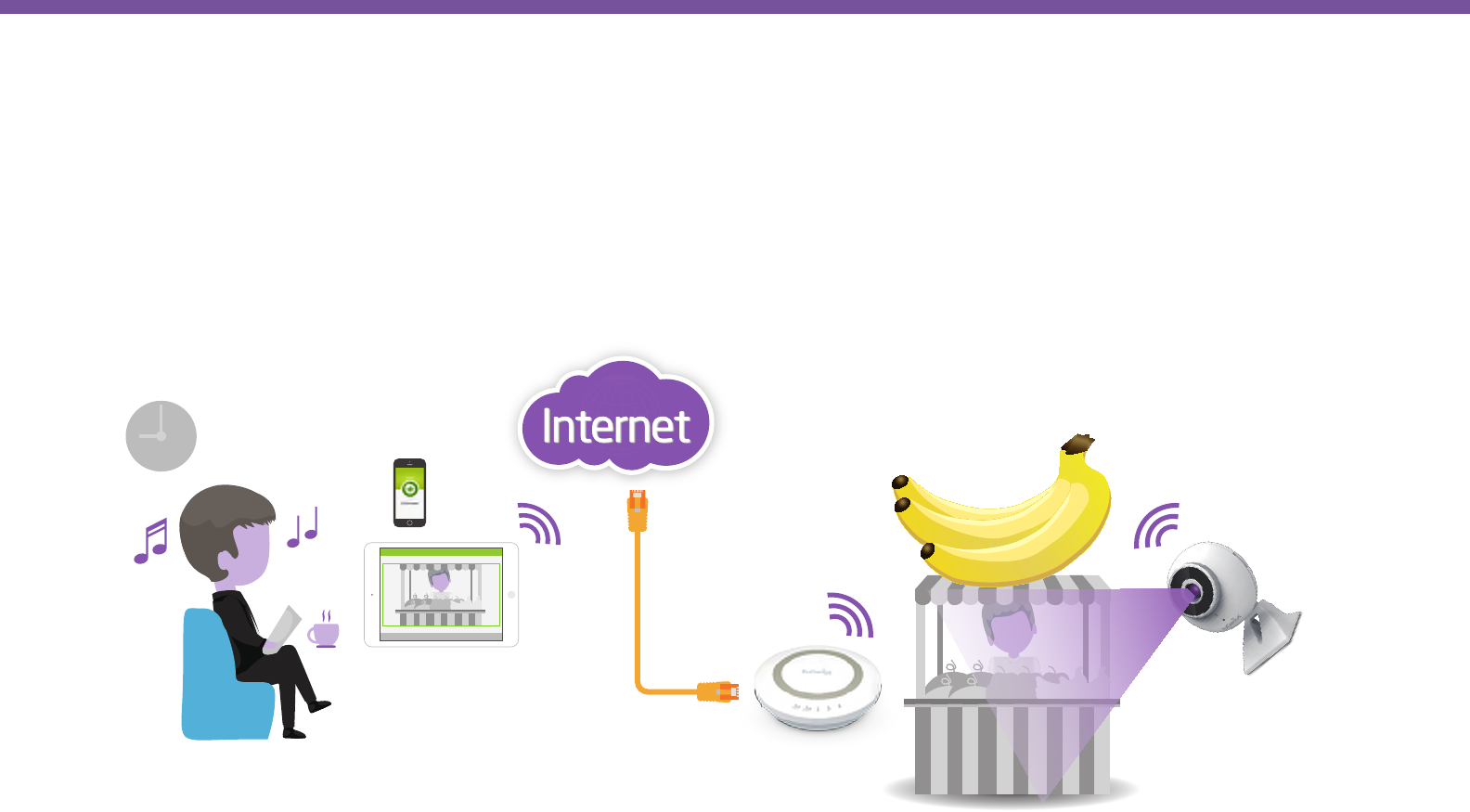

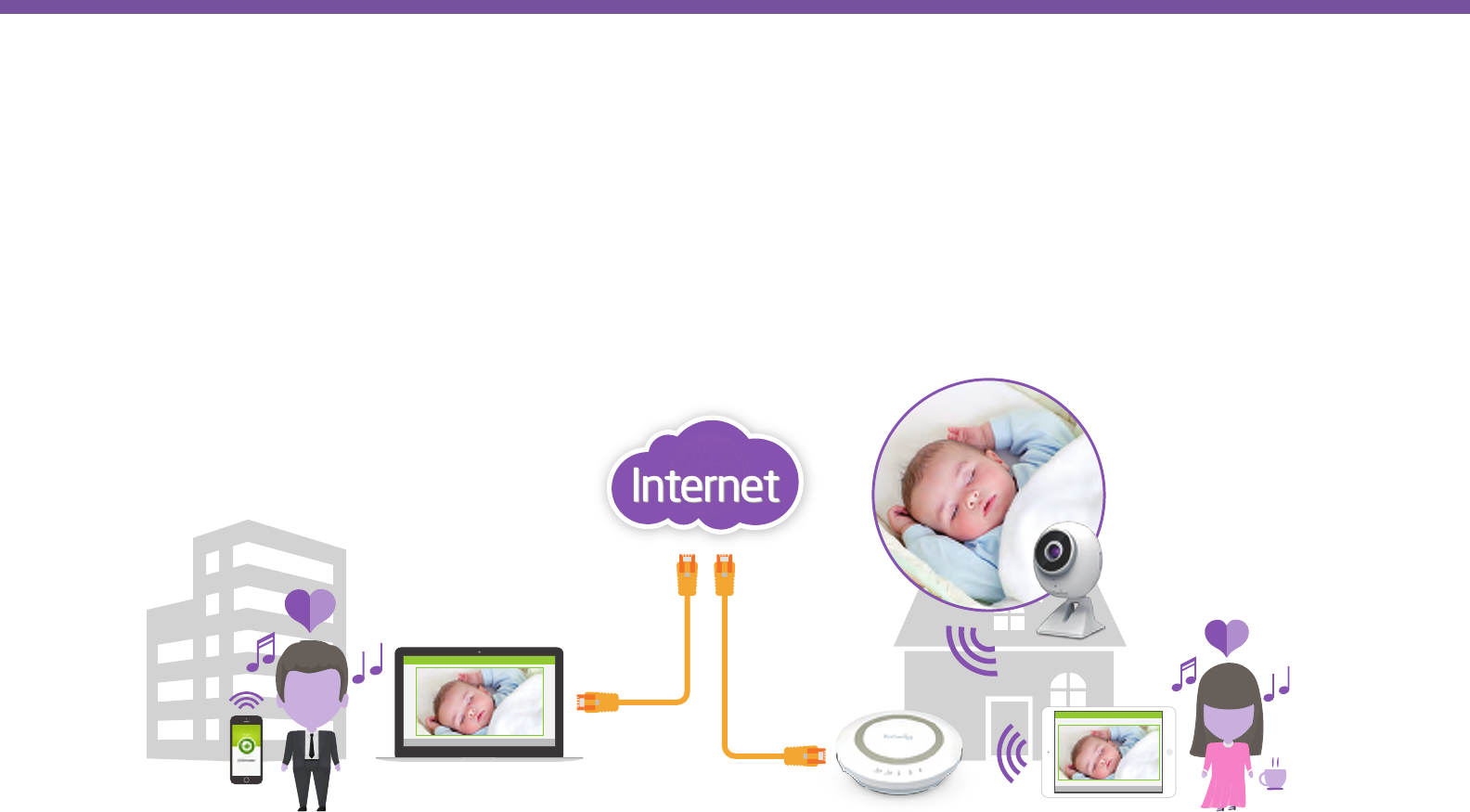

Easy Remote Access over Internet
Traditionally, you cannot get access to your Camera over the Internet without some manual conguration known as Port Forwarding
because your camera is installed under a local network. Smart Recording technology takes care all the complicated setup and leave
you with ease of control. That is, you will be able to access any of the cameras in your home by providing their DDNS names on
EnViewer mobile app or web browser if you are using PC/Laptop.
EnGenius Smart
Recording
manual
conguration
122
Chapter6 | Camera Connecting to EnGenius Gateway/Router

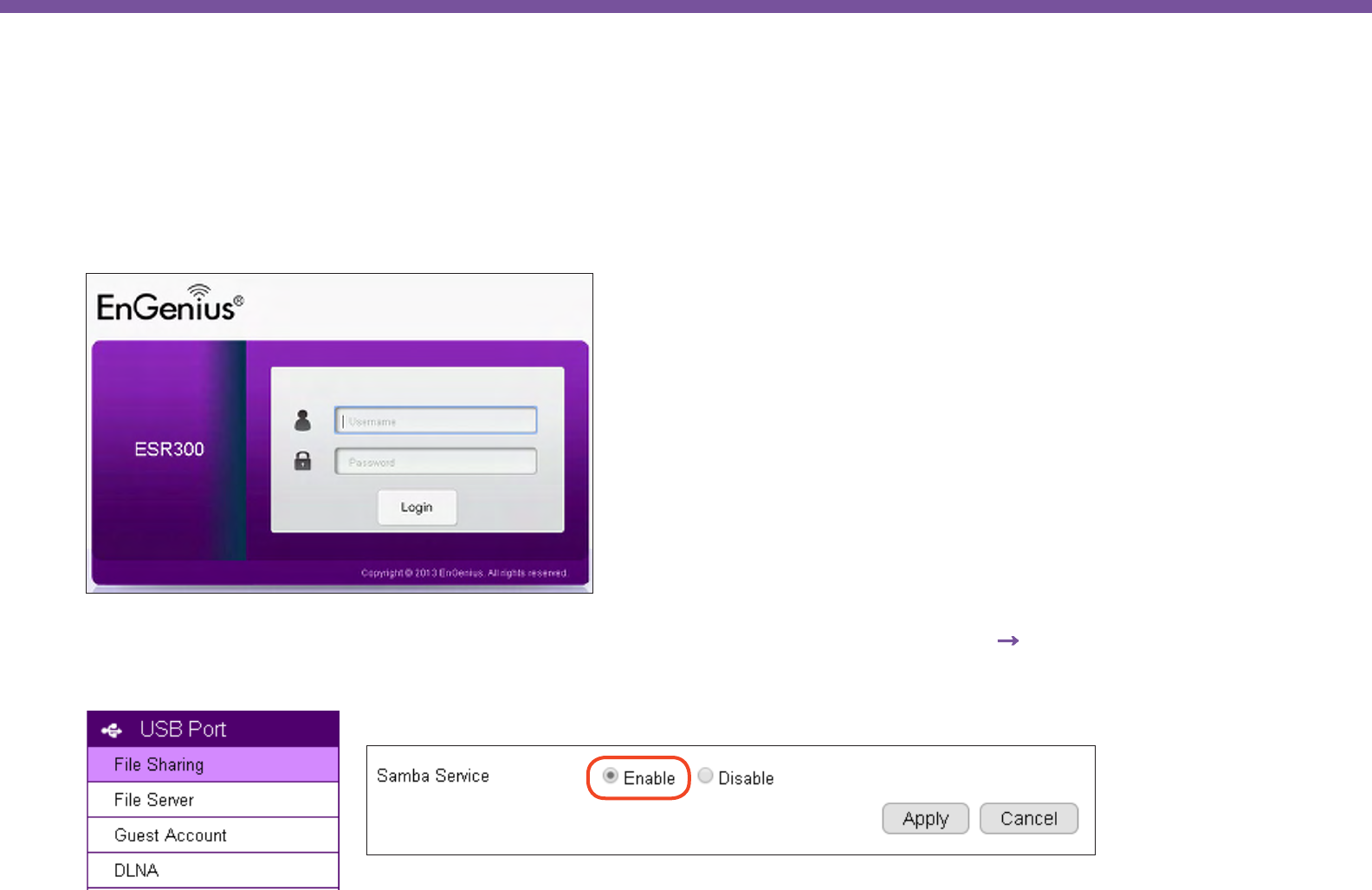

Enable Gateway/Router Storage Function
The best thing about Smart Recording is that you can make use of the EnGenius Network Storage function. You should attach an
external USB storage device (portable hard-disk or USB ash drive) to your gateway/router. Enter the Username and Password of your
gateway/router and click Login.
If you have not yet enable Network Storage Samba Server on your gateway/router, choose USB Port → File Sharing. Skip this step if
Samba is already enabled. Then, Enable Samba Service and click on Apply to activate the function.
123
Chapter6 | Camera Connecting to EnGenius Gateway/Router
On your gateway’s/router’s Main Menu, Click EnViewer → IP Camera under Cloud Services to access the connected cameras.
Depending on the rmware version of the device, the page may be found on System → IP Camera under Device Management.

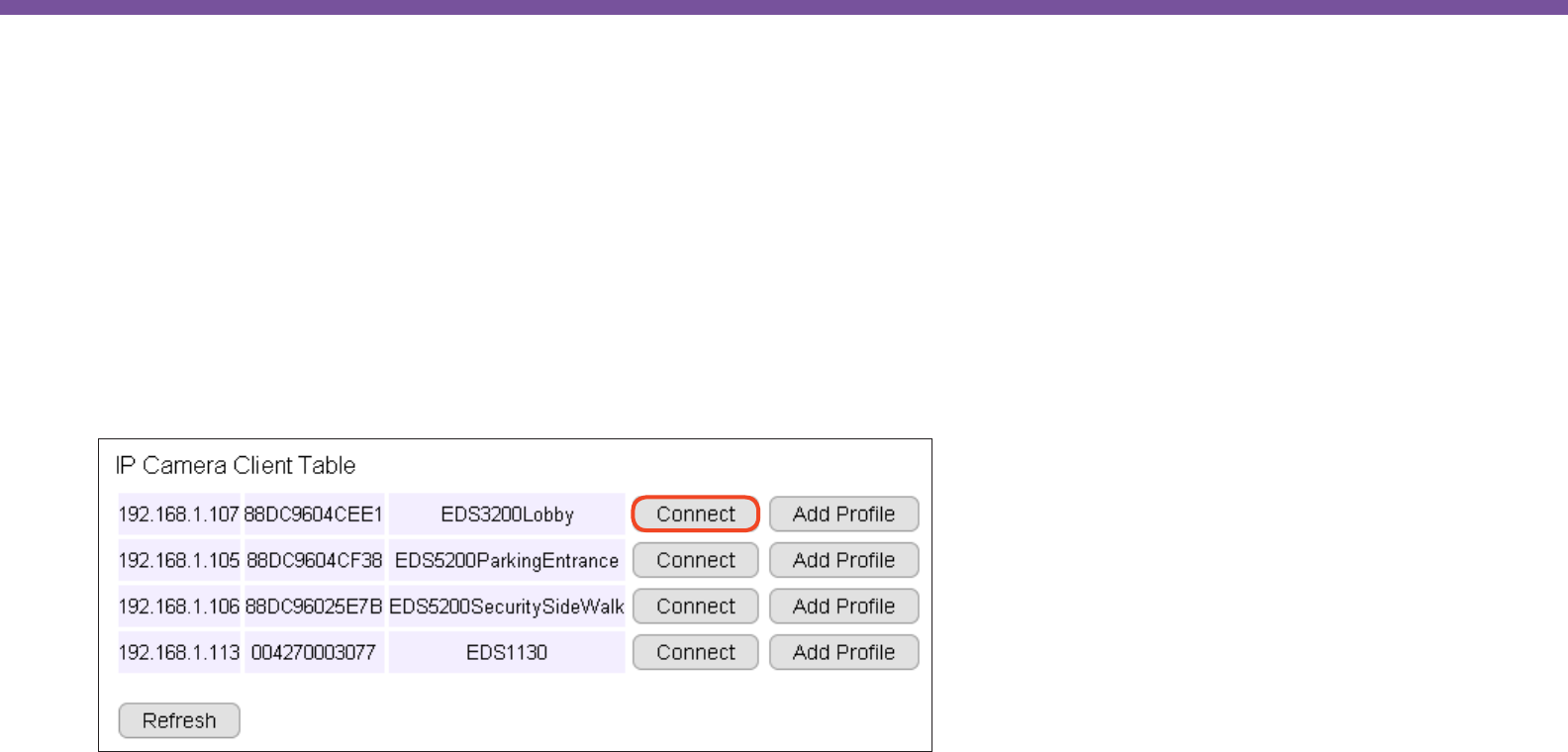

You should be see all your cameras listed on the IP Camera Client Table. If not, click Refresh button to scan the network again.
Please be noted that only EnGenius Cameras will be listed on the table.
Note: Only EnGenius Cameras can be managed collectively by EnGenius Gateway/Router. For other vendor’s cameras, you still have
to congure them one by one manually.
Connect: You can get access to the selected camera’s
User Interface Management page.
Add Prole: Add the selected camera to a prole
(please refer to next section for more detail on
Prole)
124
Chapter6 | Camera Connecting to EnGenius Gateway/Router
Camera Prole
A Prole is an entry that represents the added camera. You must add the camera to a prole so that the gateway/router has
the privilege to congure your camera and link them together.
Add Prole

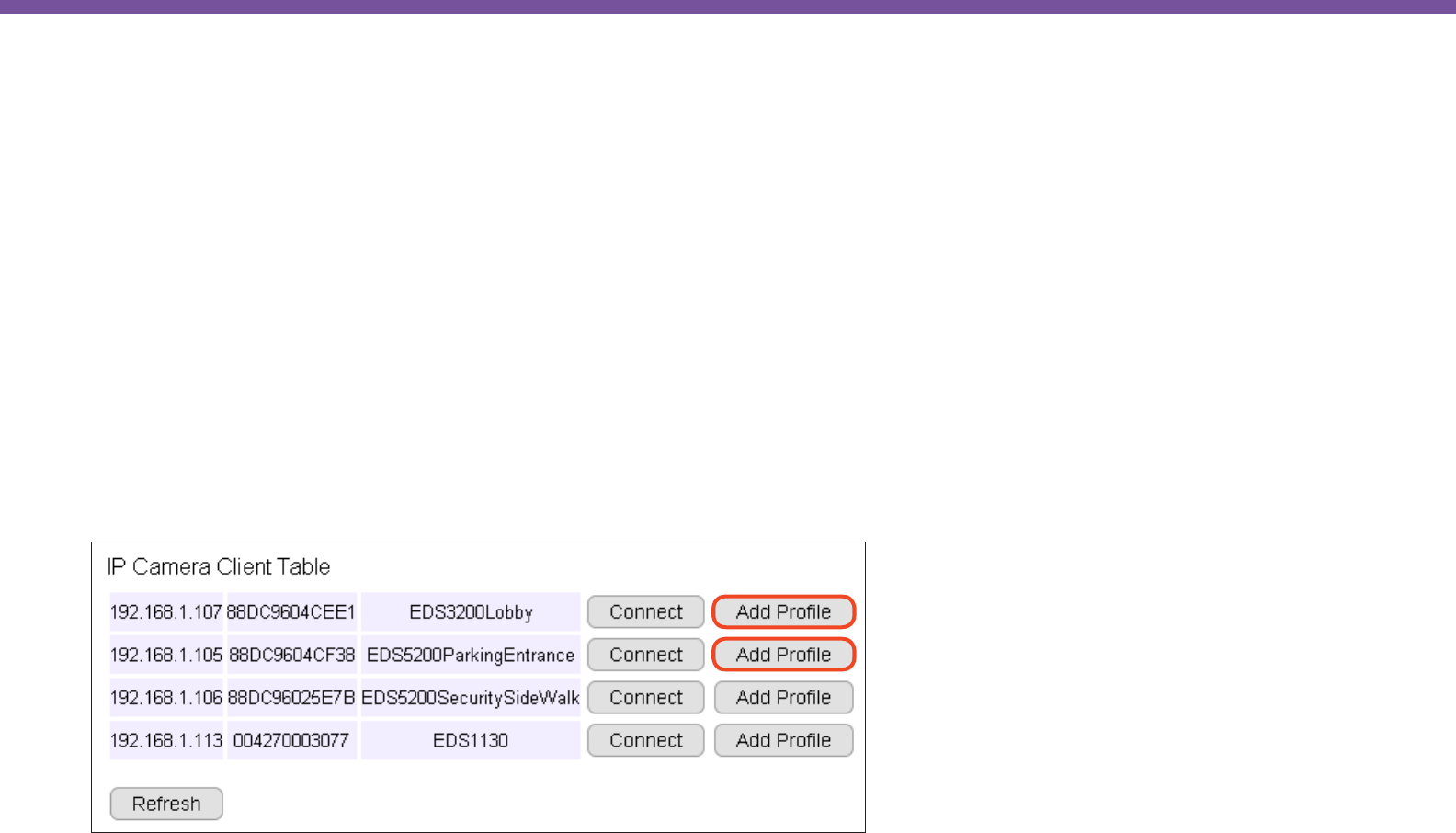

This example shows 4 connecting cameras on the gateway/router. We have chosen to add two cameras (Lobby and Entrance)
for demonstration purpose.
Click on Add Prole button to add the chosen camera.
125
Chapter6 | Camera Connecting to EnGenius Gateway/Router

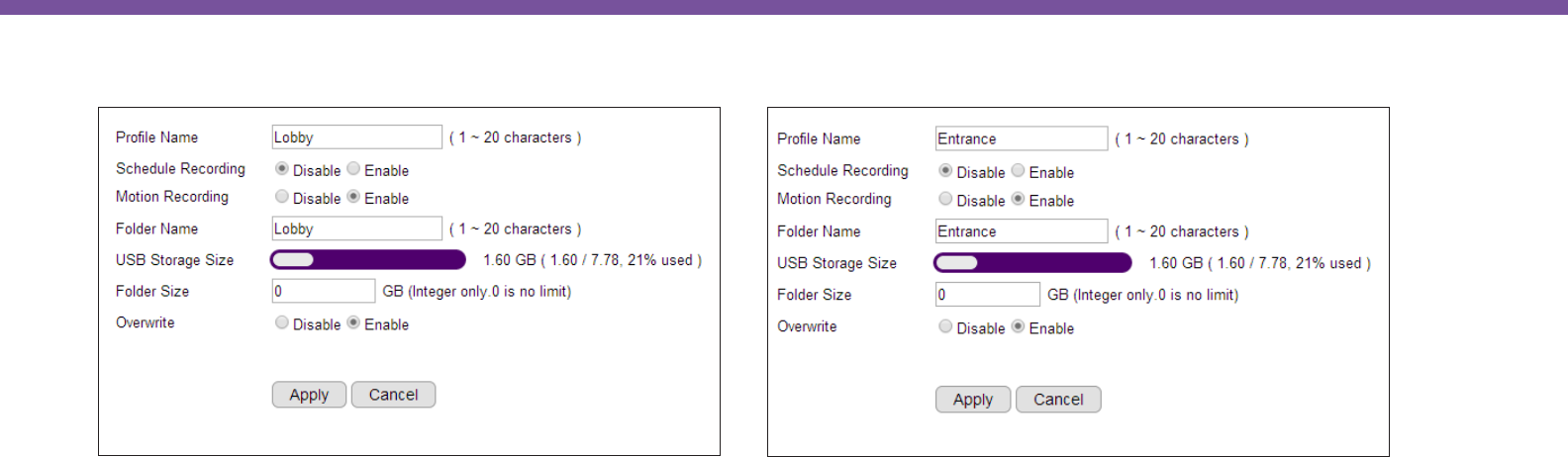

IP Camera Name: Lobby (use meaningful name for better identication)

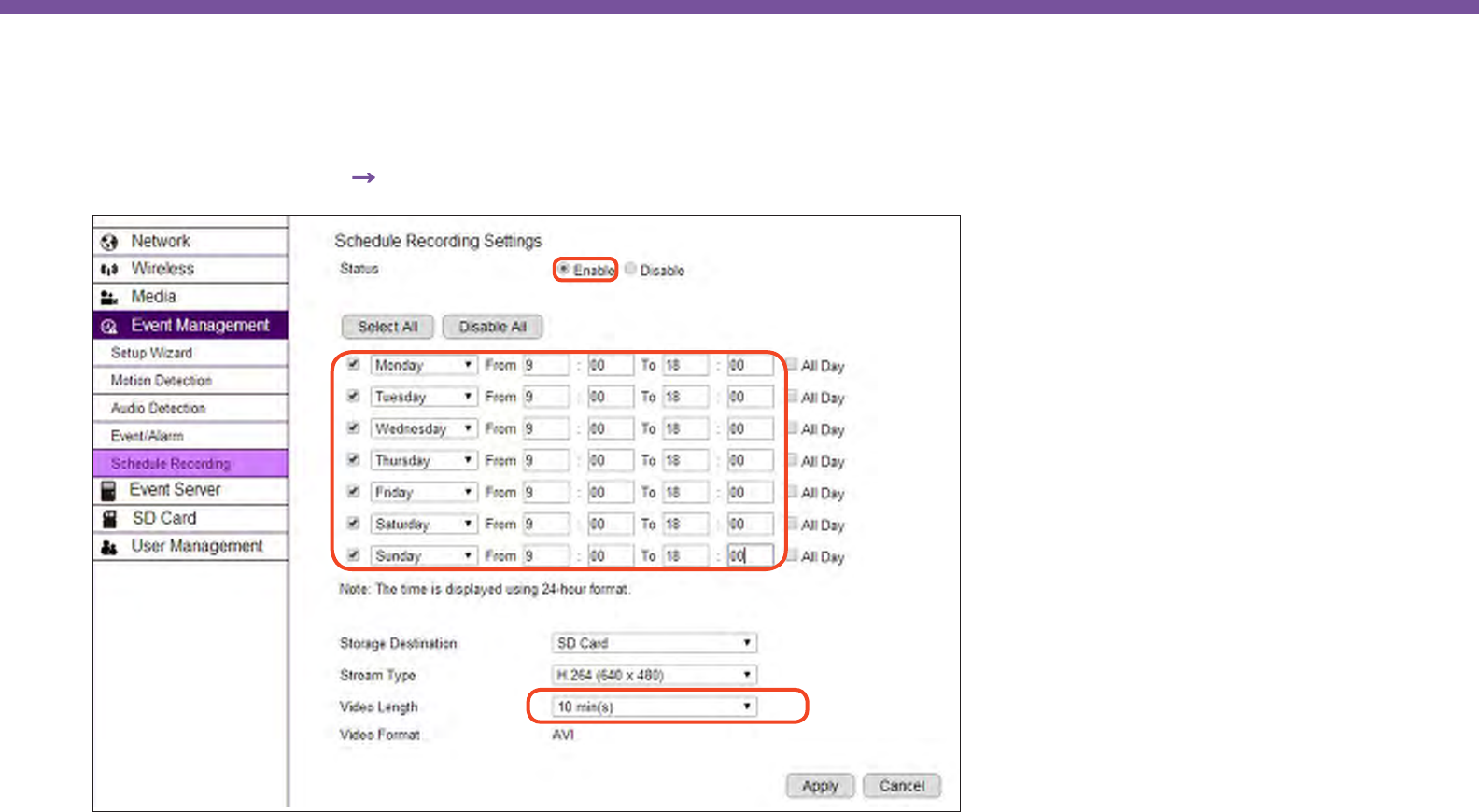

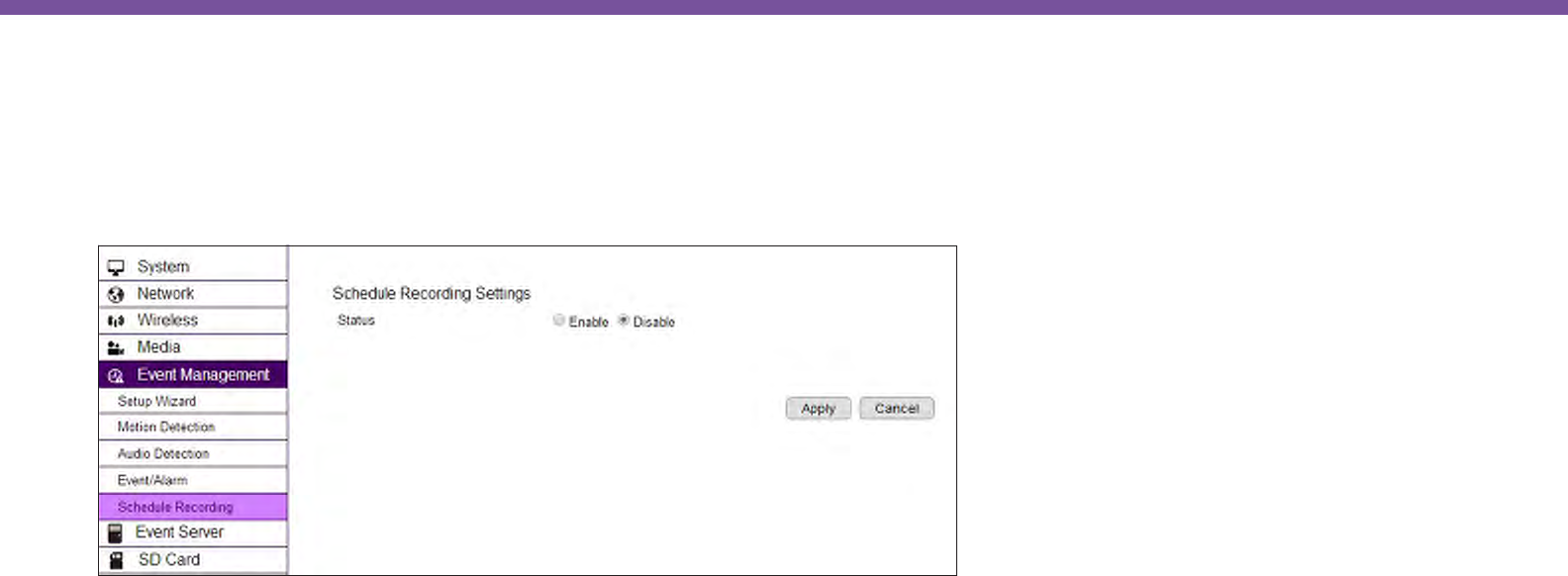

Schedule Recording: Enable/Disable this type of recording
Motion Recording: Enable/Disable this type of recording
Folder Name: The name of the folder where the media les of this camera will be stored on the gateway/router storage.
Storage Size: put 0 if storage is unlimited.
Overwrite: Enable/Disable over-writing the old les when there’s no space for storing the new les
Click Apply when the prole settings is done.
126
Chapter6 | Camera Connecting to EnGenius Gateway/Router
The added cameras will be listed as shown below.
You can Edit or Delete prole by selecting the prole and click on the buttons below.
Edit: Select the camera prole and then click Edit button to make the changes.
Delete Selected: Select the camera prole and then click Delete Selected button to delete the prole.
Delete All: Click Delete All to delete all the proles.
127
Chapter6 | Camera Connecting to EnGenius Gateway/Router
Fine Tune Camera Conguration set by the Gateway/Router
This section provides extra information on what actually happened to your camera’s setting after you added it to the Prole on
the gateway/router.
It is helpful for you to go through the automatically congured camera settings and make proper changes when necessary.
Click on Connect button to open the chosen camera’s login page.
128
Chapter6 | Camera Connecting to EnGenius Gateway/Router

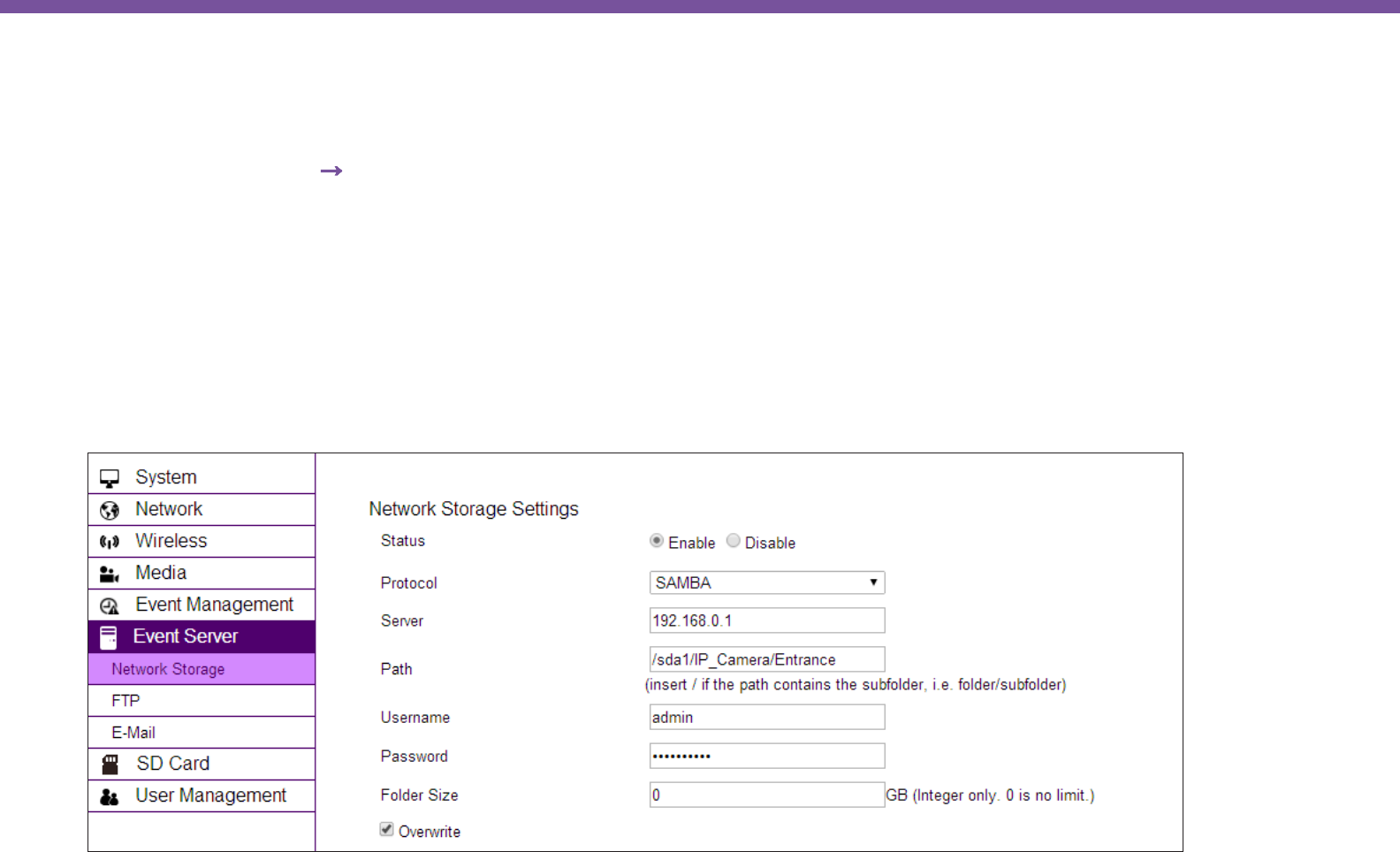

Camera Storage Setting
Then go to Event Server → Network Storage section.
As you can see shown below, the camera storage is automatically congured for you. These settings enables your camera to store
media les on the external storage attached to your gateway/router. Each camera will be given different Path so that you can search
for the associated les easily.
In the previous example, we have named the camera prole as Entrance; therefore, the Path given to this camera is /sda1/IP_
Camera/Entrace. Please do not change the settings because it only works if the setting matches the connected gateway/router.
129
Chapter6 | Camera Connecting to EnGenius Gateway/Router

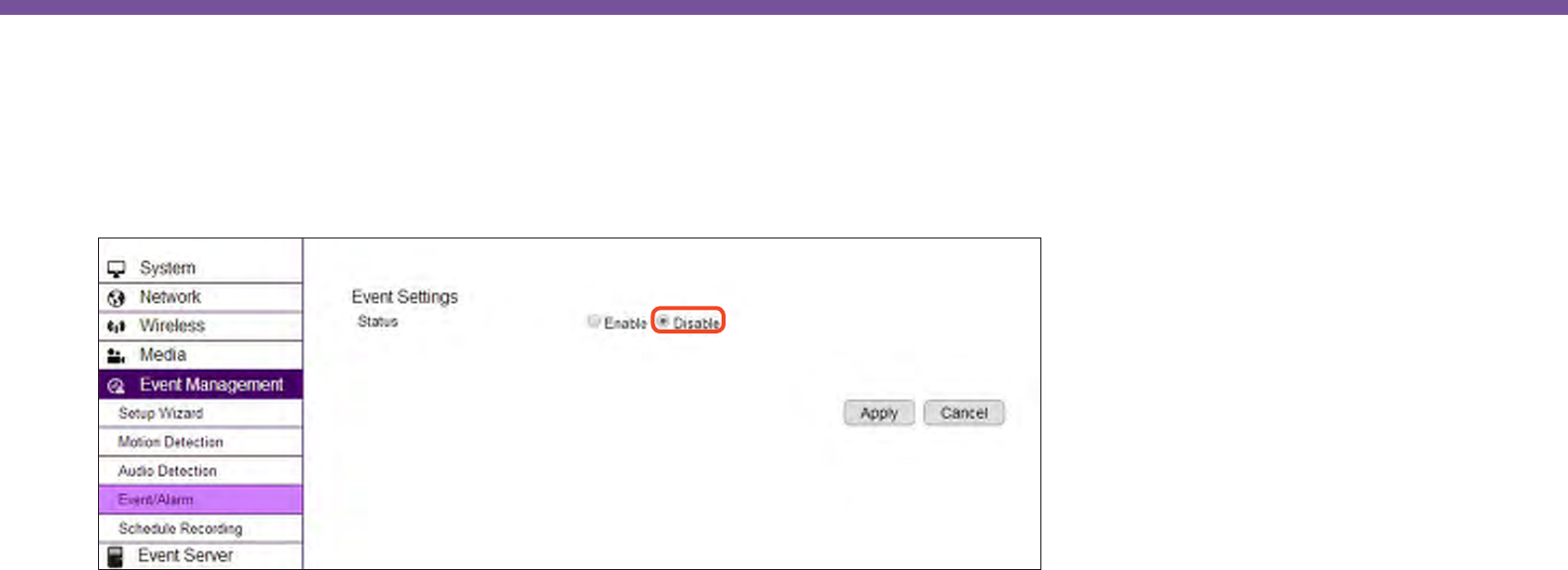

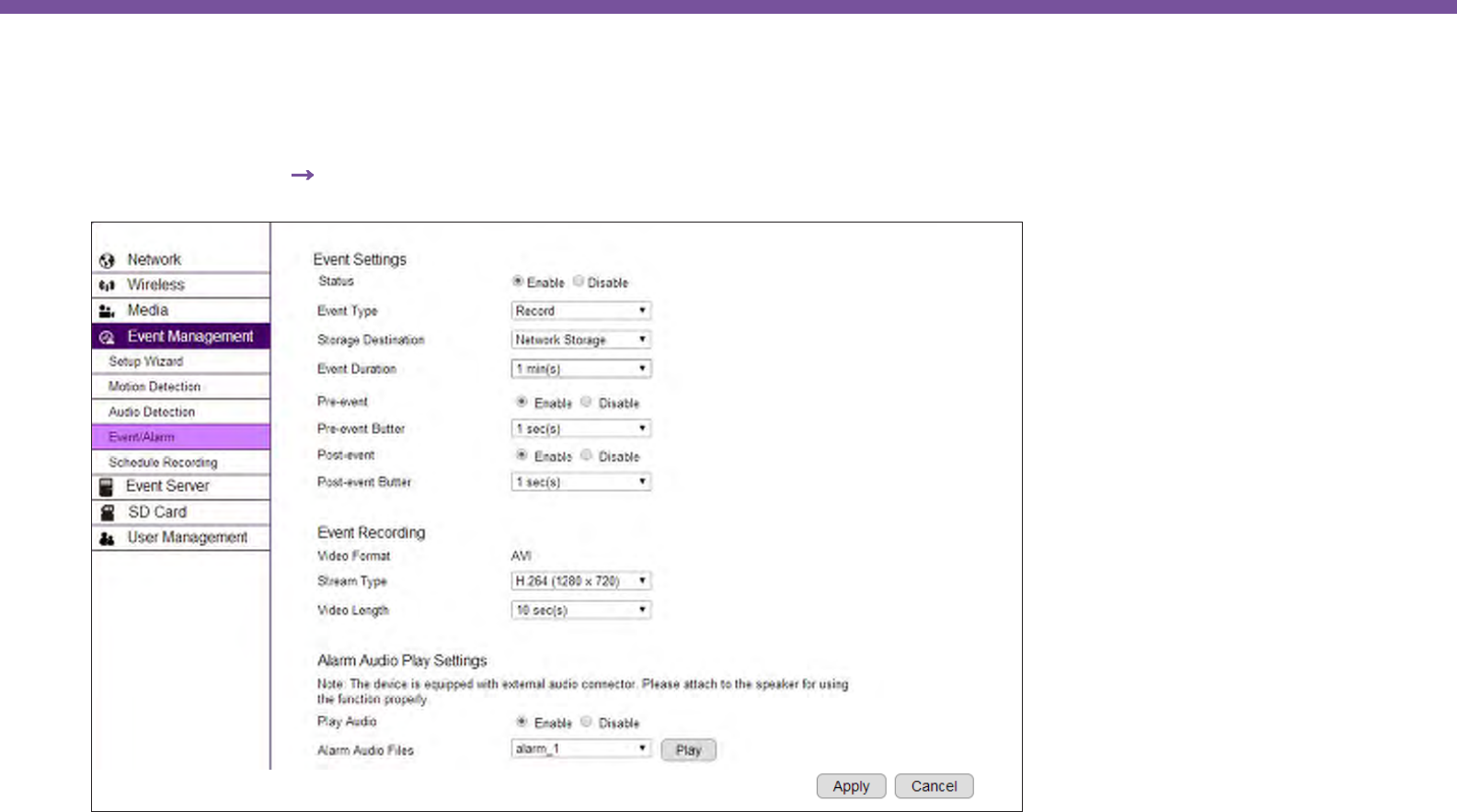

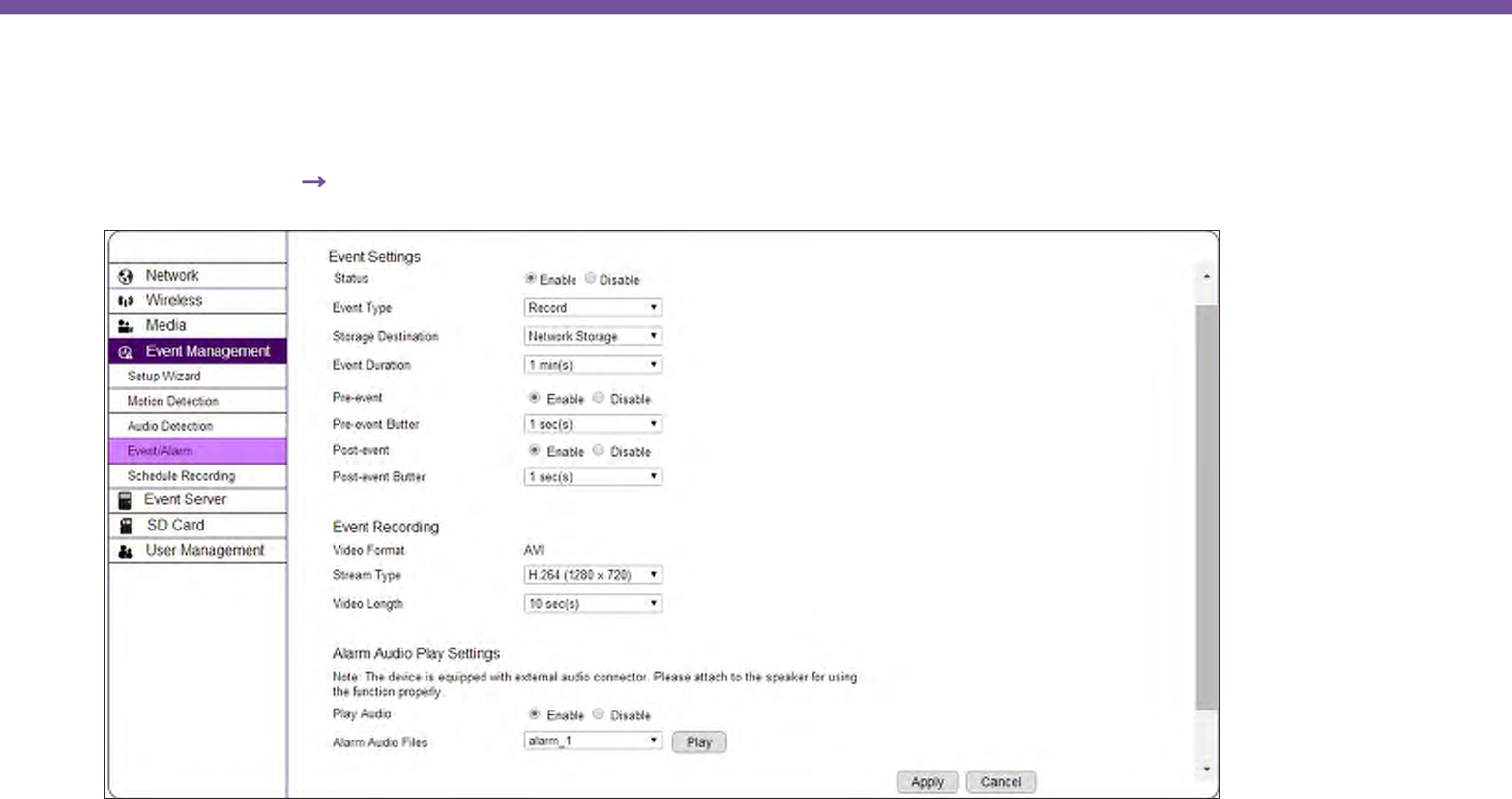

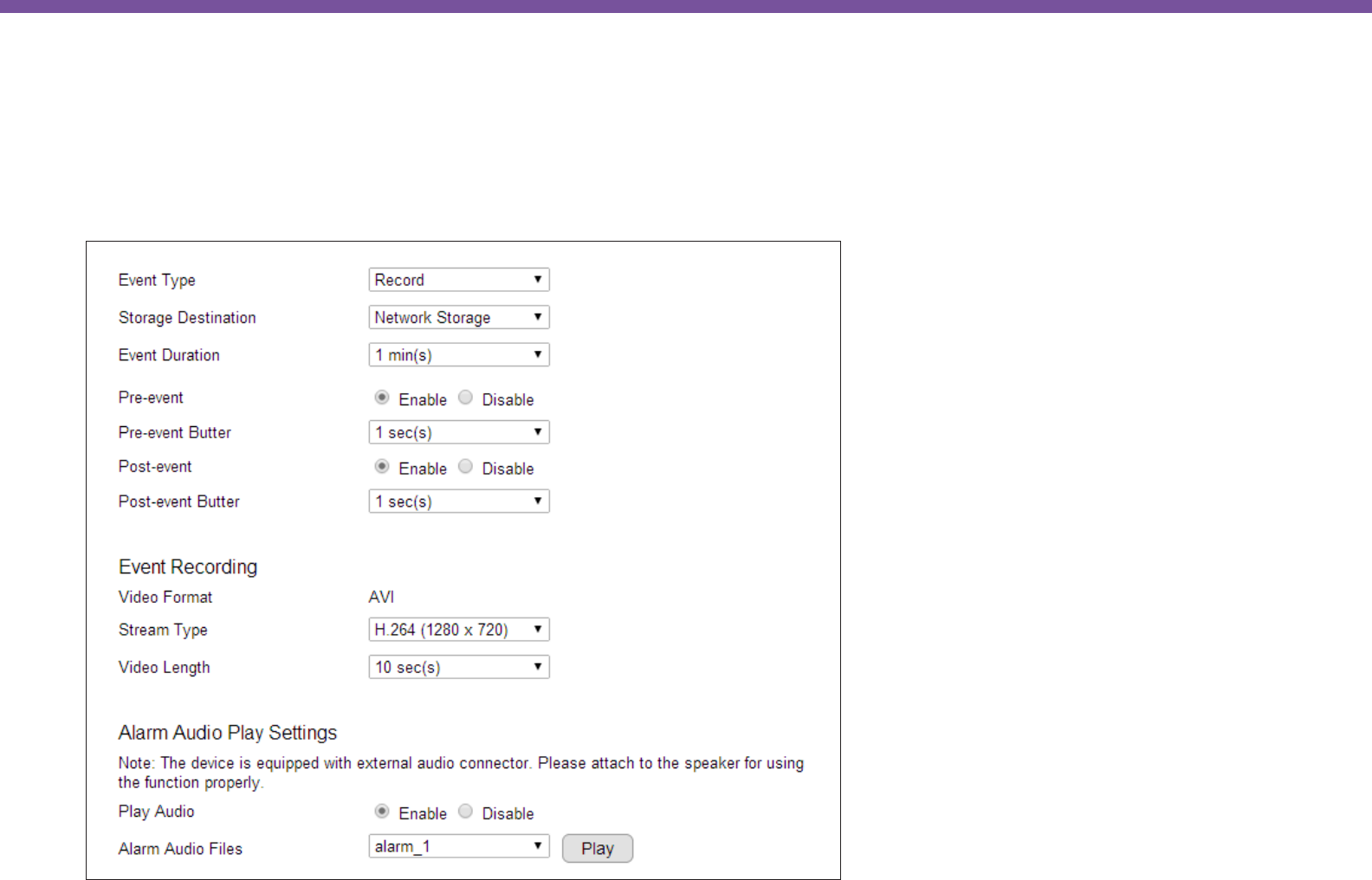

Camera Event/Alarm Setting
The gateway/router congured the camera with default Event Action Type: Record. You can make necessary changes if necessary. For
instance, you may want to change Record to Snapshot if static pictures are preferable in your application.
130
Chapter6 | Camera Connecting to EnGenius Gateway/Router

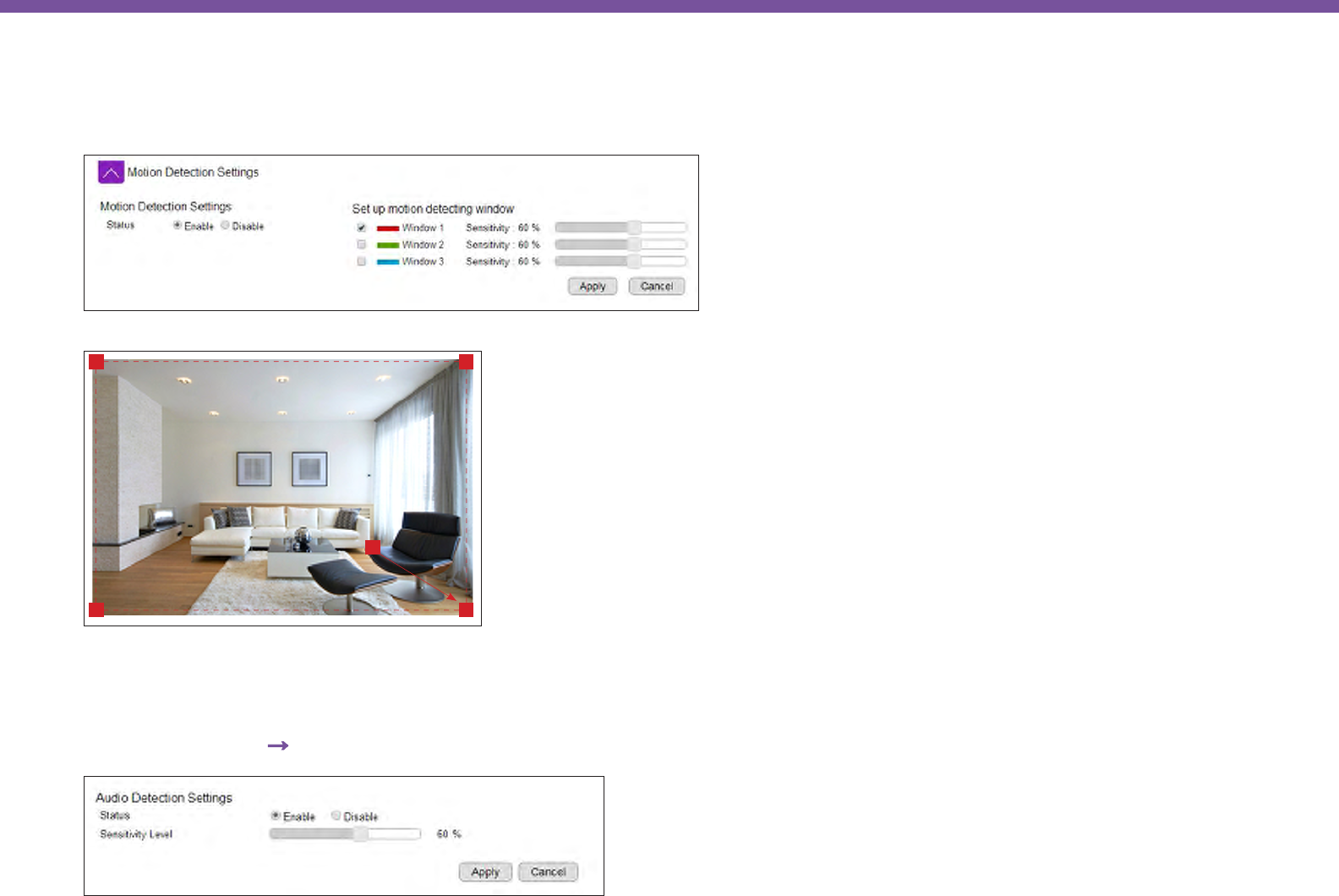

Camera Motion Detection Setting
In the previous section, the Entrance prole is congured with Motion Detection enabled. Therefore, the gateway/router
congured the camera with a full screen motion detection window. You may adjust the motion detection window if necessary.
131
Chapter6 | Camera Connecting to EnGenius Gateway/Router
Access the Media les on the Gateway/Router
Using web browser
Please refer to EnGenius Gateway/Router user’s manual for more detail on the EnShare Storage feature.
You can click on to access the storage.
Choose Admin and click Start to access.
132
Chapter6 | Camera Connecting to EnGenius Gateway/Router
In the previous example, the Entrance camera prole denes the path /sda1/IP_Camera/Entrance/
The media les will be stored as shown below.
Choose the storage device to access the le.
Click the target le to check the video download or
right click to download the le from network storage.
133
Chapter6 | Camera Connecting to EnGenius Gateway/Router

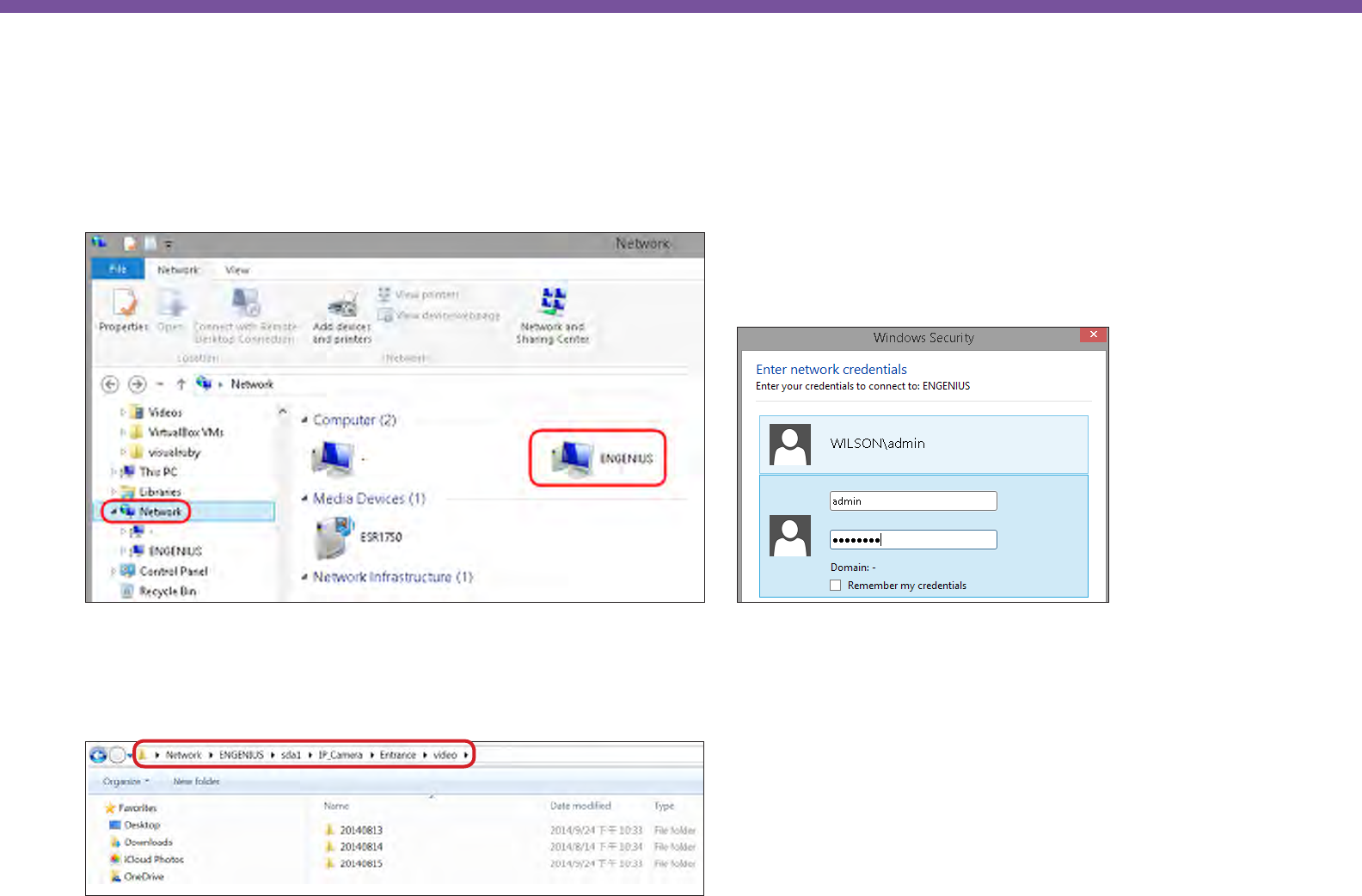

Using Windows File Explorer
Once enabled Samba on the EnGenius gateway/router, you should nd the device under Network in your File Explorer as shown.
Double click on ENGENIUS to get access to the storage space.
Upon security prompt, enter the gateway’s/router’s
username and password to continue.
You can access the media les located under \\ENGENIUS\sda1\IP_Camera\Entrance
Chapter 7
Camera Connecting
to Other Router
135
Chapter7 | Camera Connecting to Other Router
Normally, you do not need to make any changes to your router setting to be able to use the camera. However, in case if you
experience issues in connecting the camera, you should probably check for the following settings. UPnP, UPnP Traversal and Firewall.
UPnP and UPnP Traversal:
Universal Plug and Play (UPnP) allows the other device to detect the presence of the camera so that communication become
possible. Please ensure that your router supports UPnP Traversal and has it enabled. Most of the modern wireless router today
supports this feature. You should enable UPnP if you wish your camera to be recognized by the home router. If you can’t nd the
related settings, they are most likely enabled by default. UPnP Traversal makes camera remote access over the Internet possible using
camera DDNS name.
Firewall:
By default, the rewall function of the router is not congured to lter out specic trafc. However, in case if you have trouble
accessing the camera view, it’s likely that the trafc has been blocked by the rewall on your router. You may want to double check
whether you have blocked the service ports. Check the camera setting System → Service Port. Make sure you do not block the
following ports: 80, 50000, 554, 50045, 9091 and 50075.
Chapter 8
EnViewer APP
137
Chapter8 | EnViewer APP
EnViewer is an APP that runs on the mobile devices such as mobile phones or tablets. This application enables you to view
and control the camera and provides basic control on the camera at real time. You will be required to have a mobile device to go
through the features in this chapter.
138
Chapter8 | EnViewer APP
Install EnViewer
Download the EnViewer APP by scanning the QR code shown on the management page using your mobile phone. Both Android and
iOS version are supported, please scan the corresponding QR code to download and install the APP.
Also, you can search “EnViewer by EnGenius” in App Store (for iPhone and iPad) or Google Play (for Android-based phone and tablets)
for download.

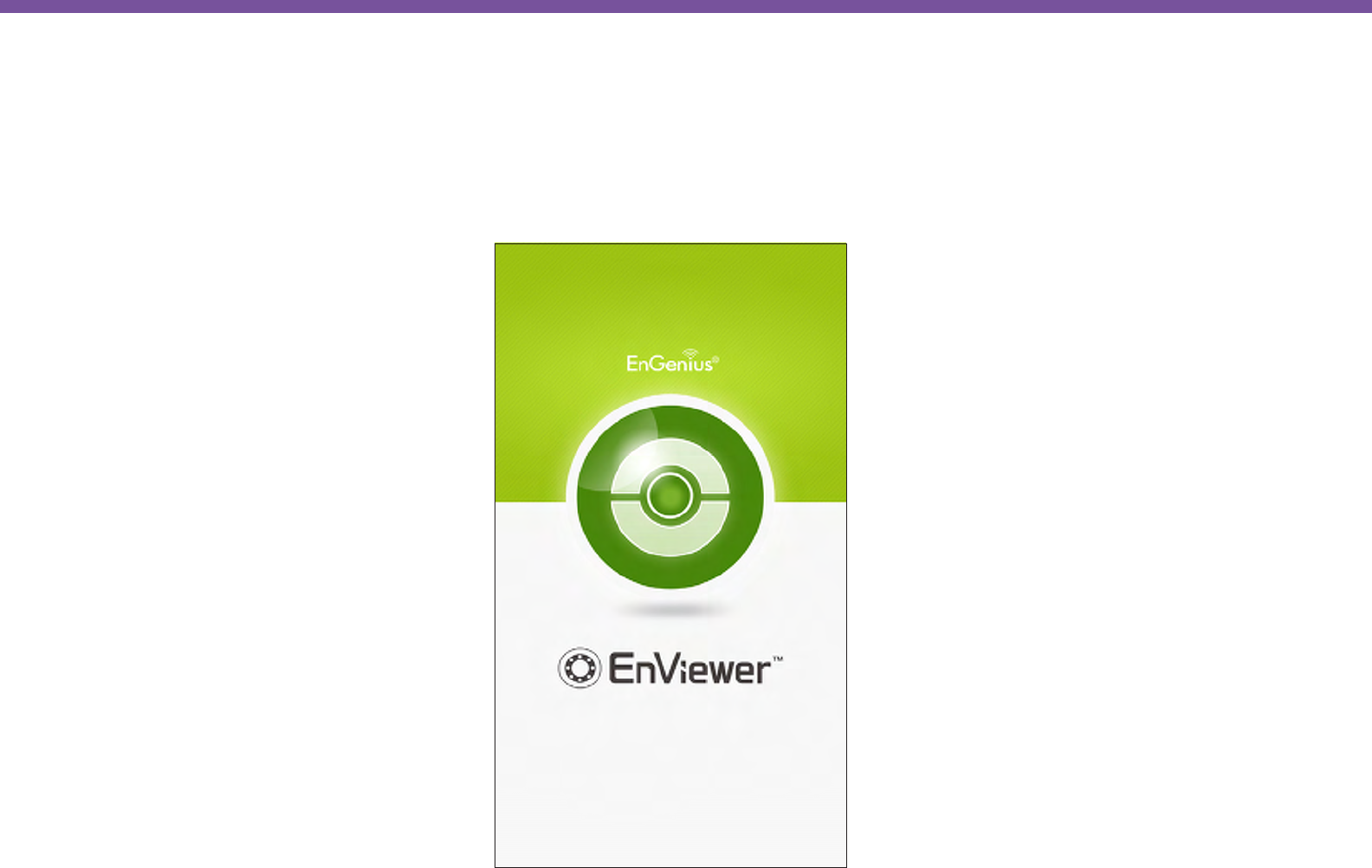

Start the EnViewer. You will be guided to
Wizard for the rst time using this APP.
Welcome for using EnViewer.
Note:
You need to have your camera installed and congured in your home work to be able to use EnViewer.
You need to have your mobile device connected to the same gateway/router that your camera is connected with through Wi-Fi.
139
Chapter8 | EnViewer APP

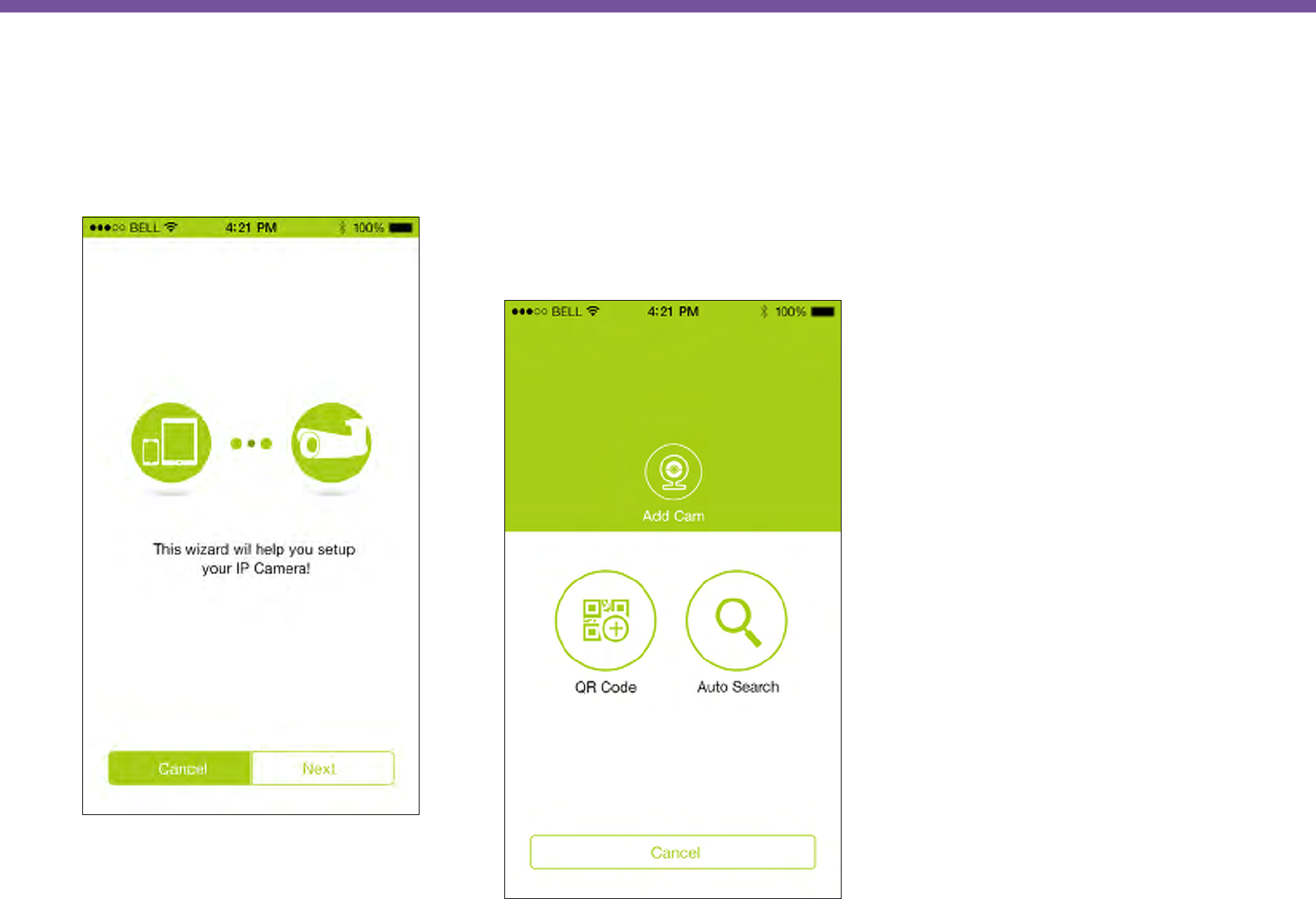

EnViewer Wizard
The Wizard will take you through the initial settings quickly. Press Next to proceed.
There are two ways to add new camera to EnViewer: QR Code and AUTO SEARCH.
140
Chapter8 | EnViewer APP

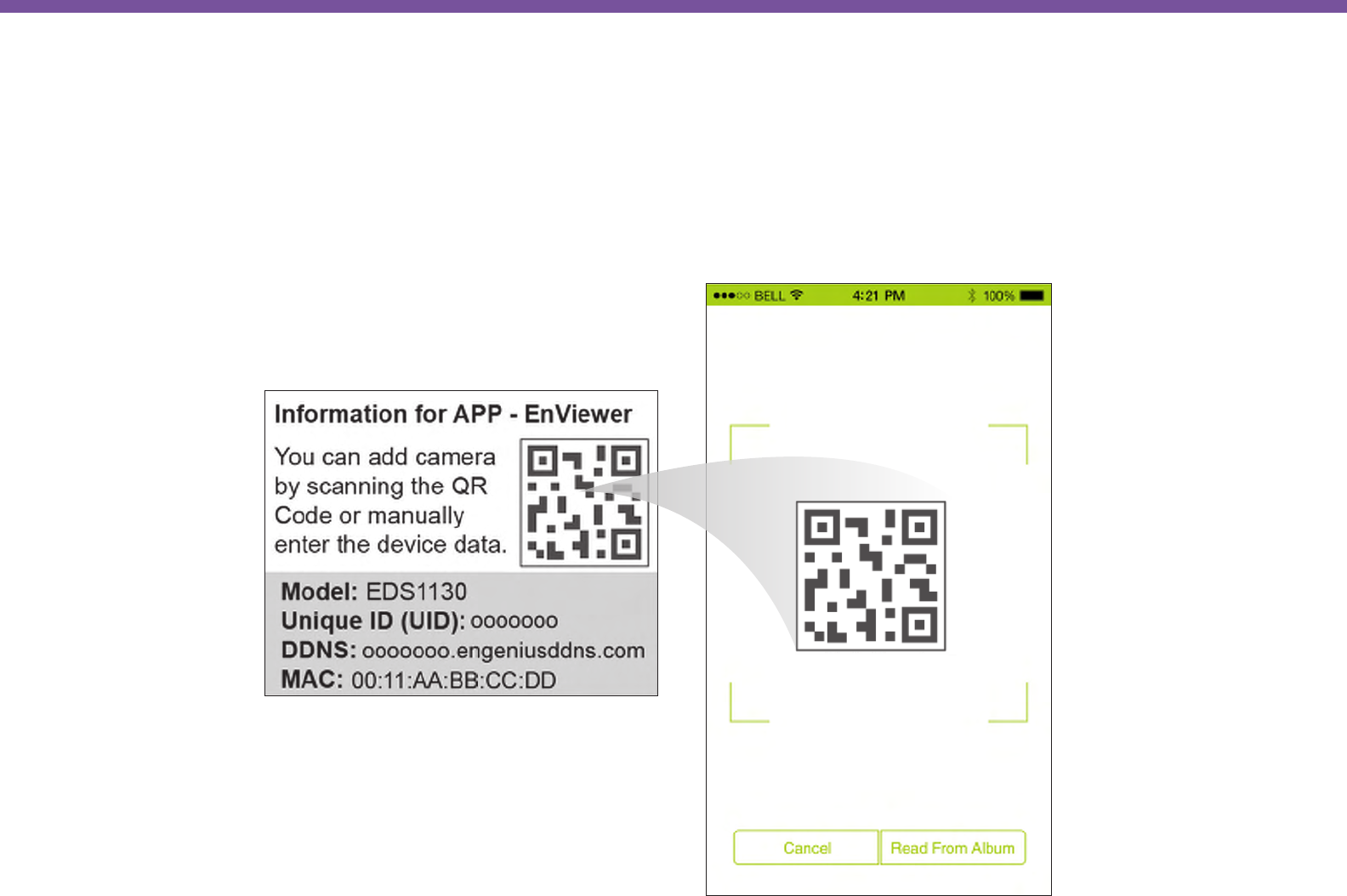

QR Code
EnViewer will turn your mobile device camera into QR code reader. When the QR code reader is on, please aim your mobile
device towards the QR code label inside the packaging as shown below. EnViewer will read QR code and identify your camera in a few
seconds. You can also load the QR code image le stored on your phone for identication by pressing Read from Photo Album button.
141
Chapter8 | EnViewer APP

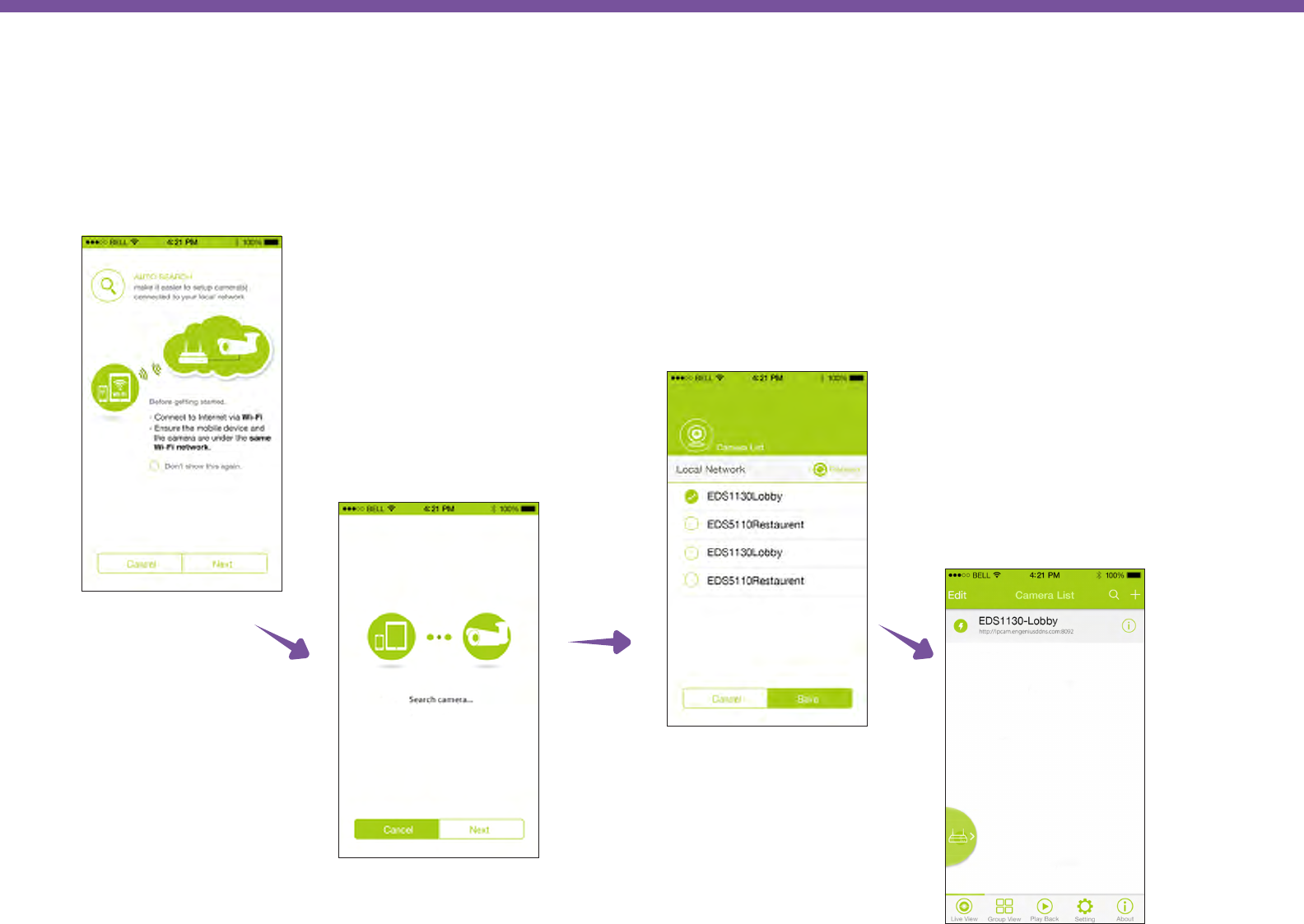

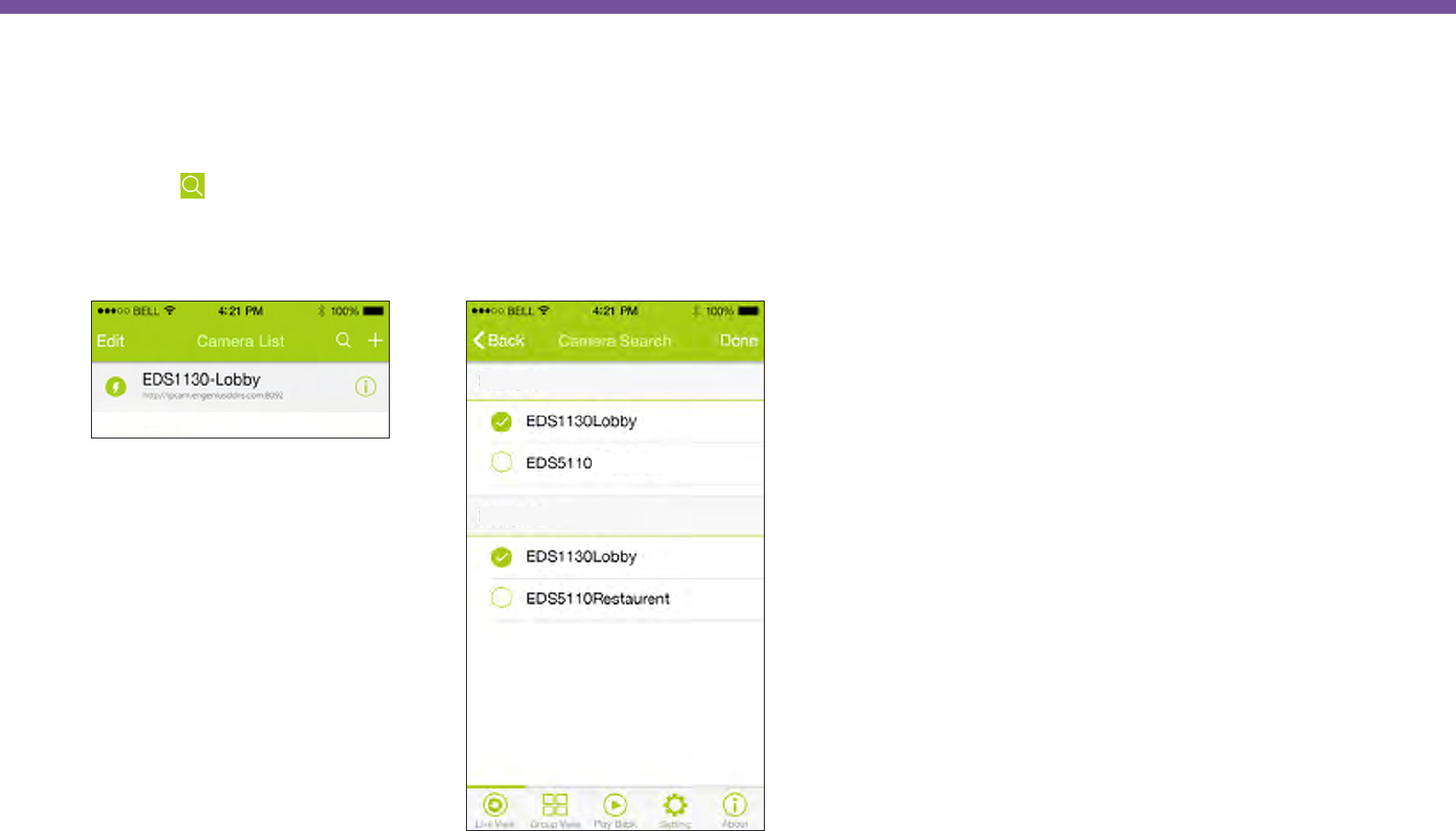

Auto Search
Through Auto Search, EnViewer scans the local
network for cameras. Click Next to start searching.
Please wait while EnViewer
scans the network. In case if
none were found, you can press
Try Again to re-scan.
Now, you have added a new camera
to EnViewer. Please refer to the
following sections on how to use
EnViewer.
Cameras connected to the home gateway/router will be displayed
on the list. Tick the one you want to add by pressing the button
in front of their names. Then, press Save to complete the add
process. If you did not nd the camera you intend to add, you can
press Refresh to try again.
142
Chapter8 | EnViewer APP
EnViewer Interface
Add new Camera / Router or
Enter Wizard Mode
Search existing camera
View the selected camera
Switch to router list
Live View list
Group View list
Play Back
Camera Setting
About Connected
Disconnected
143
Chapter8 | EnViewer APP

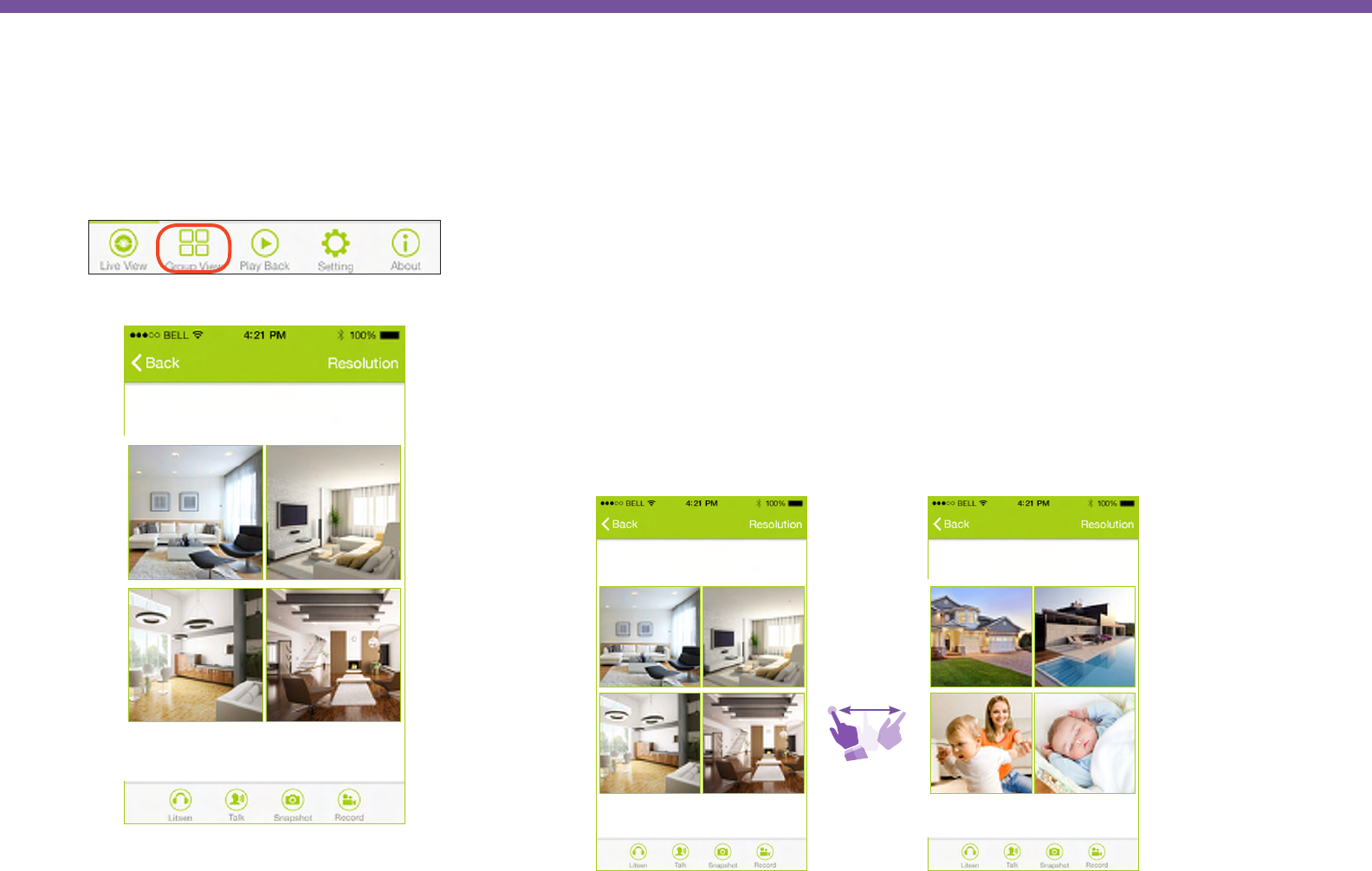

There are two types of view: Live View and Group View.
Live View monitors a single selected camera.
Group View monitors multiple grouped cameras simultaneously.
Which type of view is best for your application?
+ If you only have one camera connected to your gateway/router, Live View is your best choice.
+ If you have multiple cameras connected to your router, Group View enables you to view multiple cameras at once if you grouped them.
+ You can still choose to use Live View if you have several cameras connected to your gateway/router.
144
Chapter8 | EnViewer APP
Live View
Tap on Live View on the panel.
You can switch between Router List and Camera
List by tapping on the tab on the sides shown.
To view the camera, please switch to Camera List.
On the list, please tap on the camera name that you would to like view.
You are now viewing at real time.
The control panel located at the bottom of the screen allows you to
perform basic operation on the camera.
Change to Camera List
Change to Router List
Lobb..
145
Chapter8 | EnViewer APP
Camera Control Panel
When turned on, you will be able to hear the sounds from the video.
Click on Resolution to change the view resolution.
When turned on, you will be able to speak to the phone, the voice
will be played through the camera. The sound can only be played if a
speaker is connected to the camera on audio out port.
Tap on the icon to start recording the video at real time. Click on the
icon again to stop recording. A red-dot “ ” will appear on the screen
when recording.
Takes a snapshot at real time.
146
Chapter8 | EnViewer APP

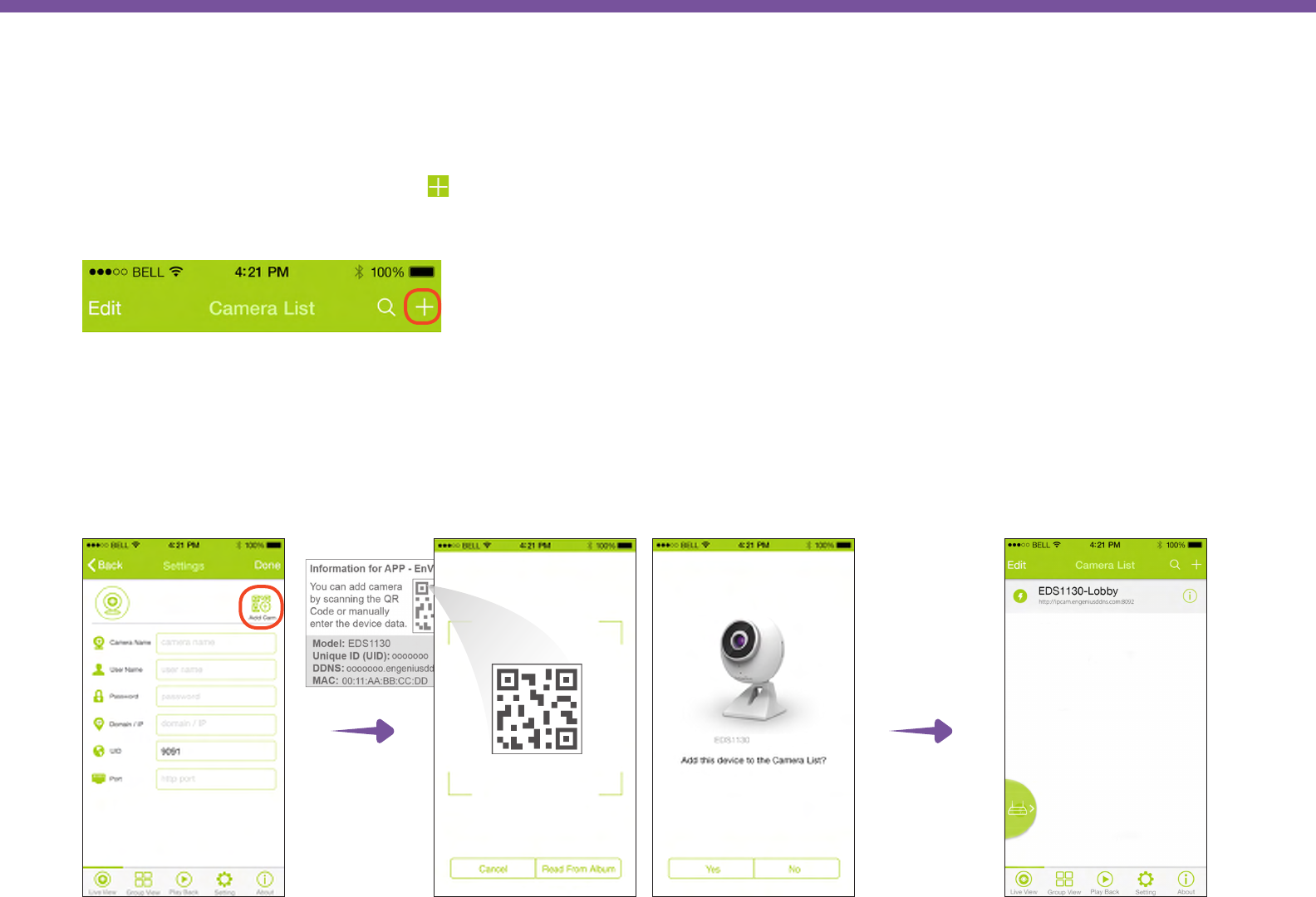

Adding new Camera
You should have added your camera through the Wizard when you start the EnViewer. You can add another camera simply
by calling the Wizard again. Tap on the “ “ icon. On the Add menu, select Start Wizard. Please refer to EnViewer Wizard for
conguration detail.
You can manually enter the camera
information or scan the camera QR code.
Click on Add Cam
Scan the Camera QR code
Click Yes to conrm adding the camera.
-Lobby
147
Chapter8 | EnViewer APP

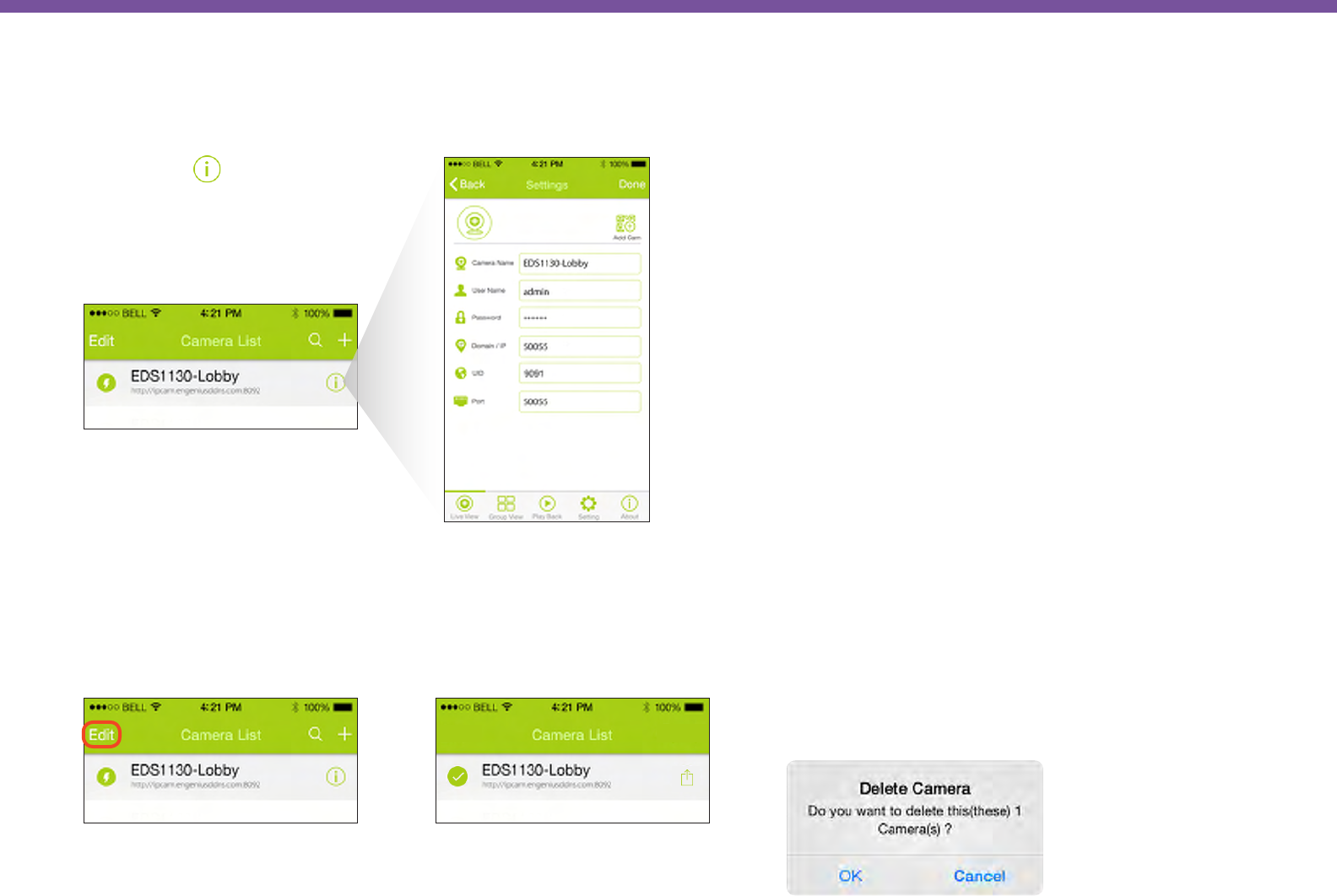

Edit Camera
Remove Camera
Tap on the “ “ icon of
the camera you would like to
modify.
Tap on Done to save the changes.
Click on Edit to enter edit mode
Done Delete
Select the camera and click Delete.
Answer OK to conrm the
deletion
148
Chapter8 | EnViewer APP
Why Adding Routers
If you are monitoring 2 sites at two different locations say, home and store, you will need one router at each site. That is, you
will have two routers. Under each router, you may have multiple cameras and it becomes difcult for you to manage many cameras
under different domains. Adding routers allows you to manage these cameras of different domains easily. In such scenario, you need
to add each router to EnViewer and let EnViewer to discover all the cameras under each router site. After adding routers, the cameras
will be grouped by its connecting router when you perform camera search and live view. You can also add cameras of different under
different router into the same group view.
Home
Kitchen
Store
149
Chapter8 | EnViewer APP
Adding new Router
You may manage multiple routers on your EnViewer. Also, each Router can have multiple cameras under it.
Tap on the “ ” icon. On the
Add menu, select Router to
proceed.
Assign a router name; in this example, we call it demo.
On the settings page, enter router’s information as in the
example shown below.
Click Done when nished.
demo
admin
router.engeniusddns.com
******
Router Name
User Name
Router DDNS Name
Password
150
Chapter8 | EnViewer APP
demo
demo
Edit Router
Remove Router
Tap on the “ “ icon of
the router you would like to
modify.
Tap on Done to save the changes.
Click on Edit to enter edit mode
Done Delete
Select the camera and click Delete.
demo
admin
router.engeniusddns.com
******
demo
Answer OK to conrm the
deletion
Router
Router
151
Chapter8 | EnViewer APP
Group View
EnViewer supports Group View, which allows you to monitor multiple cameras at the same time.
Group View is useful when you have multiple cameras. You can monitor them
simultaneously and magnify the view by simply selecting one of them on the
screen. To use the group view, you need to add a new Group rst. You can view
4 cameras on the screen on a single page. If you have more than 4 cameras, you
can swipe the screen left and right to ip the pages.
MyGroup
MyGroup MyGroup
152
Chapter8 | EnViewer APP
Add new Group
Enter the group name and then click on “ ” icon to add camera to this group.
Note: You may add cameras of different sites (routers) into the same group.
All the cameras will be shown on
the Camera list, tick the camera
name to add into the group and
click Done to add the camera.
When all cameras are added
into the group click on Done
to nish.
MyGroup
153
Chapter8 | EnViewer APP
Edit Group
Remove Group
Click Done to save the changes.
Answer OK to conrm the deletion
MyGroup
MyGroup
Tap on the “ “ icon of the
group you would like to modify
the prole. MyGroup
Edit View
Click on Edit to enter edit
mode.
Select the camera and click
Remove.
MyGroup
Done Delete
Group
Group
154
Chapter8 | EnViewer APP
Using Group view
MyGroup
Tap on the group name to view
its associated cameras.
Double-Tap on the camera to
magnify the view.
MyGroup
The camera control panel works the same as in Live View.
Please refer to the Camera Control Panel section for detail.
MyGroup
155
Chapter8 | EnViewer APP
Search Local Camera
Click on ” “ to search existing camera if not found on the list.
The search process may take a while, please wait patiently.
If you have several routers, your cameras will be
grouped under each router which they belong to.
Home
Kitchen
Store
156
Chapter8 | EnViewer APP

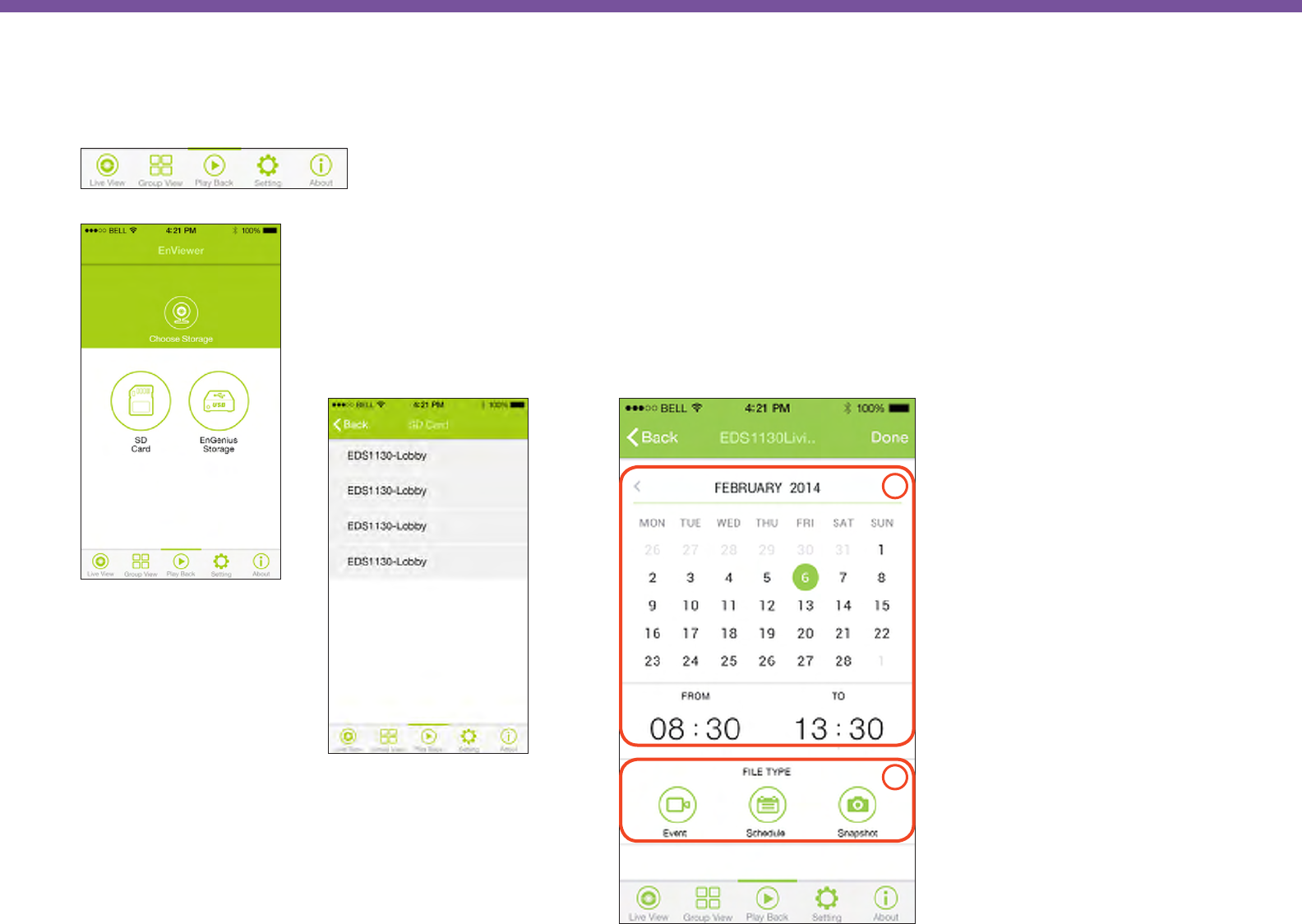

Using Play Back
Choose the Storage you would like to search for playback les. It depends on where you store your media
les for schedule recording or alarm media les. Choose either one to proceed to next screen. Choose SD
Card if you have the les stored locally on the camera SD card or EnGenius Storage if applicable.
Note: Ensure that you have added a router to use playback from EnGenius Storage.
You will be guided to a camera list. Here, you need
to choose the camera that you want to retrieve the
playback les from.
Tap on the camera name to proceed to the next step.
First, choose the Date and
Time for playback.
Then, choose the FILE TYPE
(Video Event, Video Schedule
or Snapshot) by tapping on
the icon.
EnViewer will start searching
for the associated media les
that fall within the time range.
1
2
157
Chapter8 | EnViewer APP

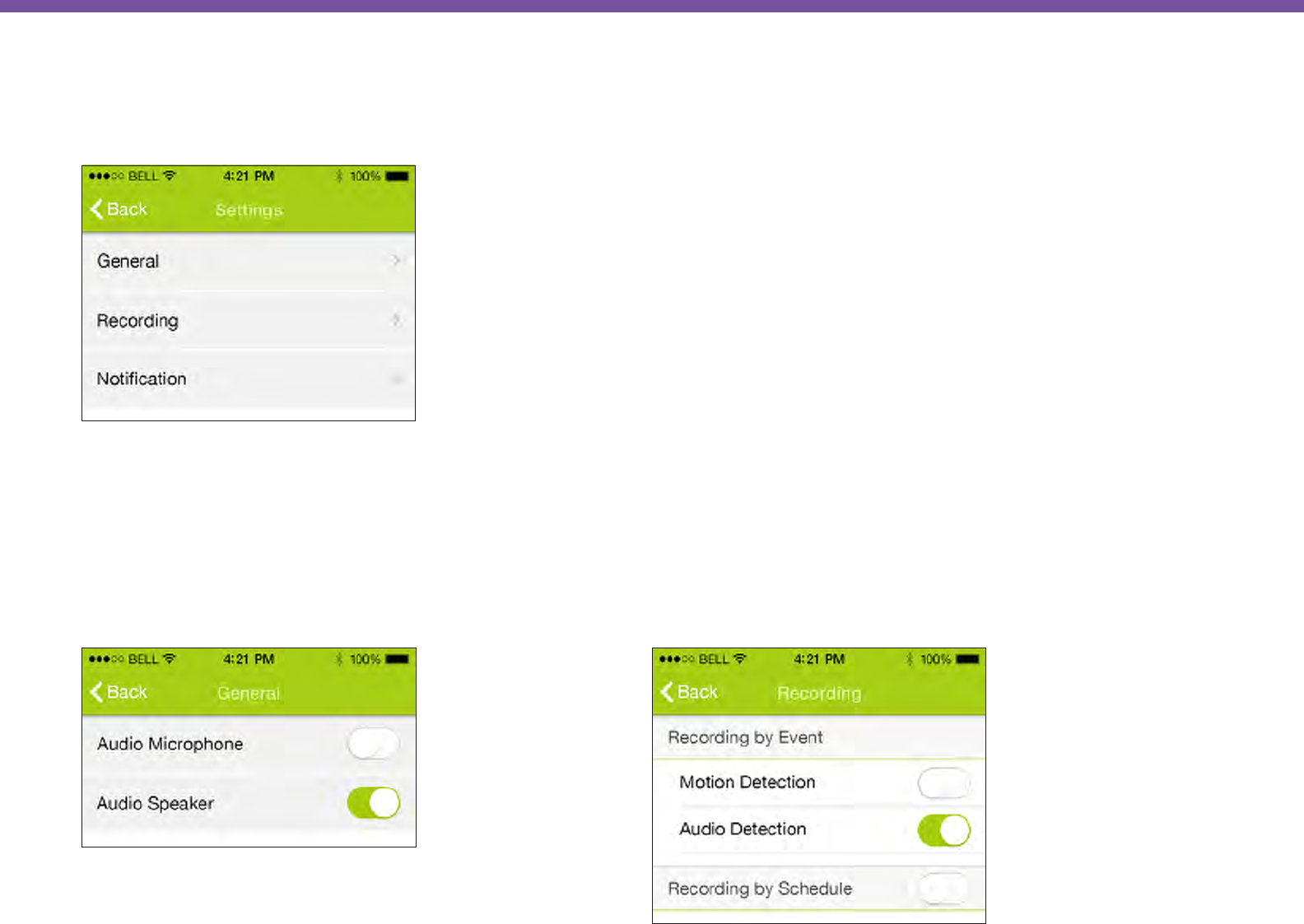

Settings
Under Recording Settings, you may turn ON or OFF:
Recording by Event : Motion Detection / Audio Detection
Recording by Schedule
Tap on Settings and then choose the camera you would like to congure.
On the Settings Menu, choose the item you would like to congure. The supported settings
types are: General ,Recording ,Notication.
Under Audio Settings, you may turn ON or OFF:
Audio Microphone
Audio Speaker
The settings will be applied automatically to your camera.
The settings will be applied automatically to your camera.
Audio Recording
158
Chapter8 | EnViewer APP
On your camera setting User Management → Push Message
Mobile List, you can nd out what device has been registered.
Note1: Alarm message will be sent to your mobile device ONLY if you have congured your
camera with at least one of the event types: motion detection or audio detection.
Note2: A mobile device can only register itself to the service. That is, if you need both your tablet
and mobile phone be notied about the alarms, each device must have EnViewer installed and
registered for notication individually. As long as your EnViewer AP is running the alarm messages
can be received even if the devices operate in idle mode.

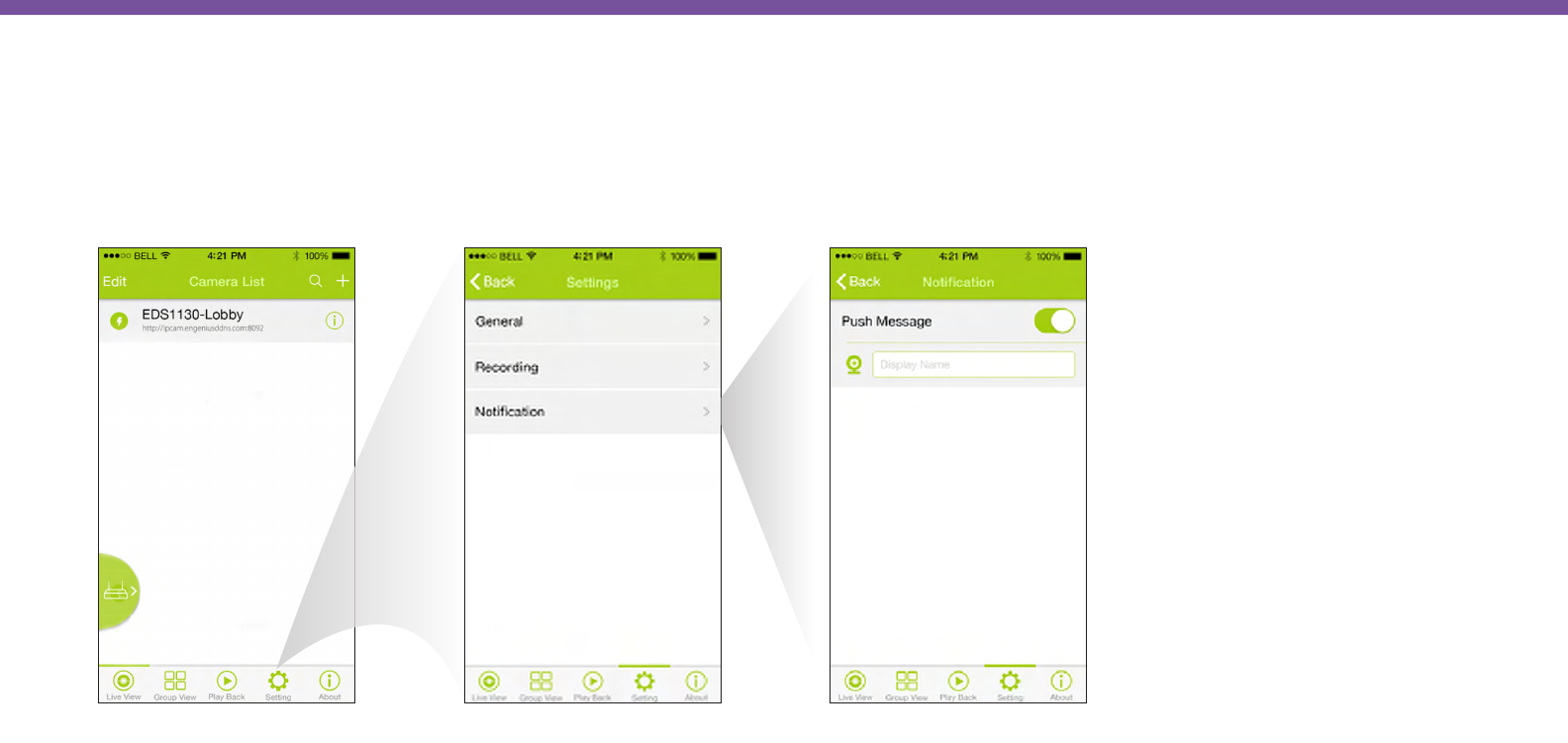

Notication
Notication is a feature that sends message to your mobile devices when your camera detected predened events (alarms). You can
register your mobile device by entering a name and turn set Push Message “ON”. EnViewer will registered your device immediately.
159
Chapter8 | EnViewer APP

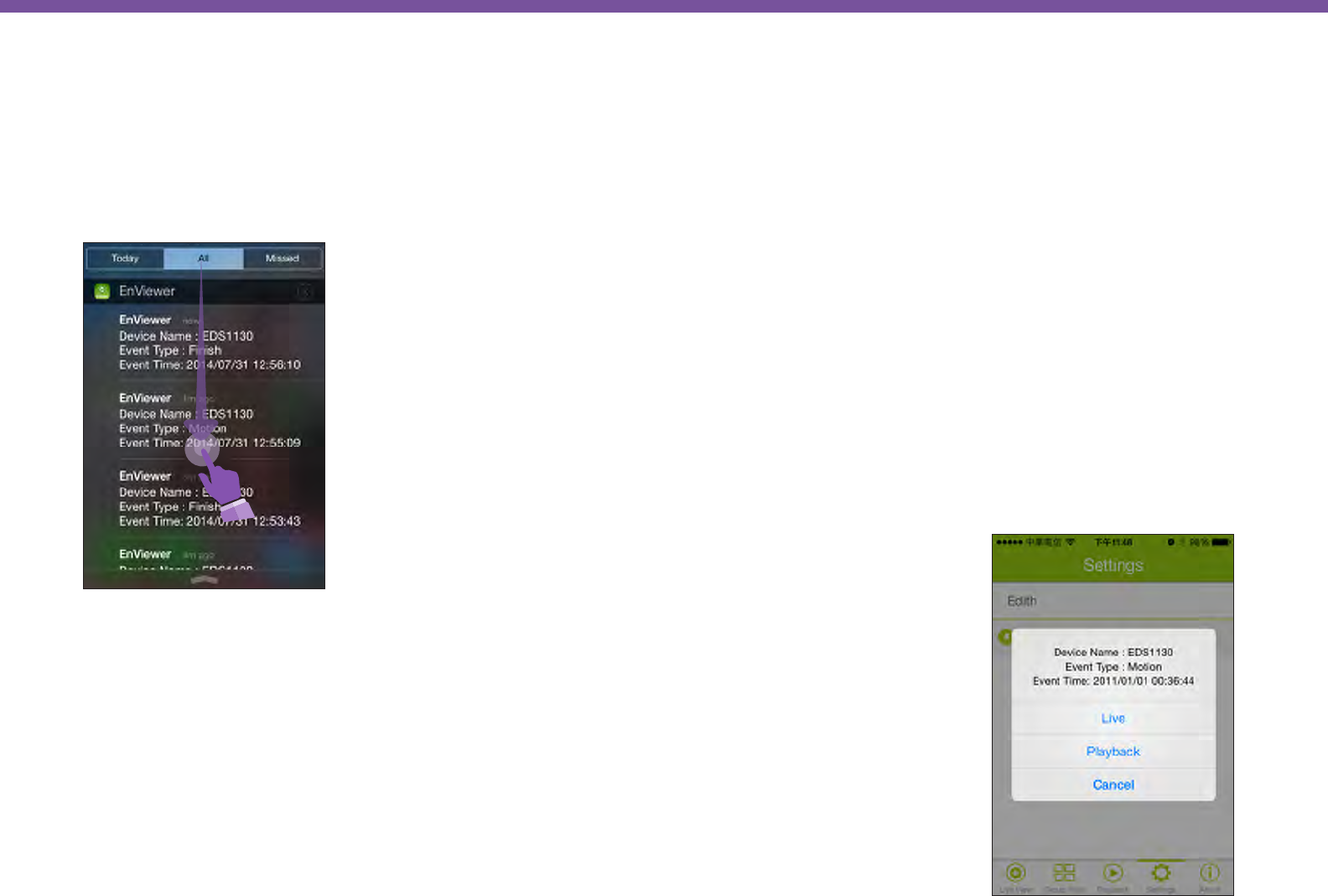

The alarm message may appear differently on various platforms. The following example shows the alarm message on an iphone.
The messages appeared on top of the screen. Since the events may occur in series; therefore, it is normal that you got several
messages for a single event.
Upon receiving the alarm, you can choose to view the camera in Live
or Playback the recorded media les.
Note: You need to keep EnViewer stay in the device memory so that
alarm can be received by your phone upon event occurrence. The
alarm message below shows an example of an alarm event.
By sliding down the message row on the top, the details will appear
similar to the following.
Tap on one of them to open the message.
Note: The Device Name shown could be changed on Chapter 5-
Network - UPnP.
160
Chapter8 | EnViewer APP
About
The About page provide some helpful hints about EnViewer.
Check out the FAQs for some common questions.
Chapter 9
Application Guide
162
Chapter9 | Application Guide
This chapter demonstrates some common applications using EnGenius Camera. The examples assume that the camera is
already connected to a gateway/router that has Internet accessibility.
Note: Please ensure that your gateway/router supports UPnP Traversal and has it enabled. Most of the modern wireless
gateway/router today supports this feature. If you can’t nd the related settings, they are most likely enabled by default. UPnP
Traversal makes camera remote access over the Internet possible using camera DDNS name (ooooooo.engeniusddns.com).
WAN Ethernet
Modem
Gateway/Router
Wireless Setup
Wired Setup
163
Chapter9 | Application Guide
Example1 : Baby Monitoring
The application concept diagram shows a camera monitoring the baby room. The parents can locally and remotely view the
camera in real time. Please follow the instructions below for detail setup. The camera is congured with video detection on so
that the mother can be alarmed when the baby cries.
at Work
Home
baby room
living room
office
real time monitoring locally and remotely
router
192.168.0.1
192.168.0.100
OOOOOO.engeniusddns.com
164
Chapter9 | Application Guide

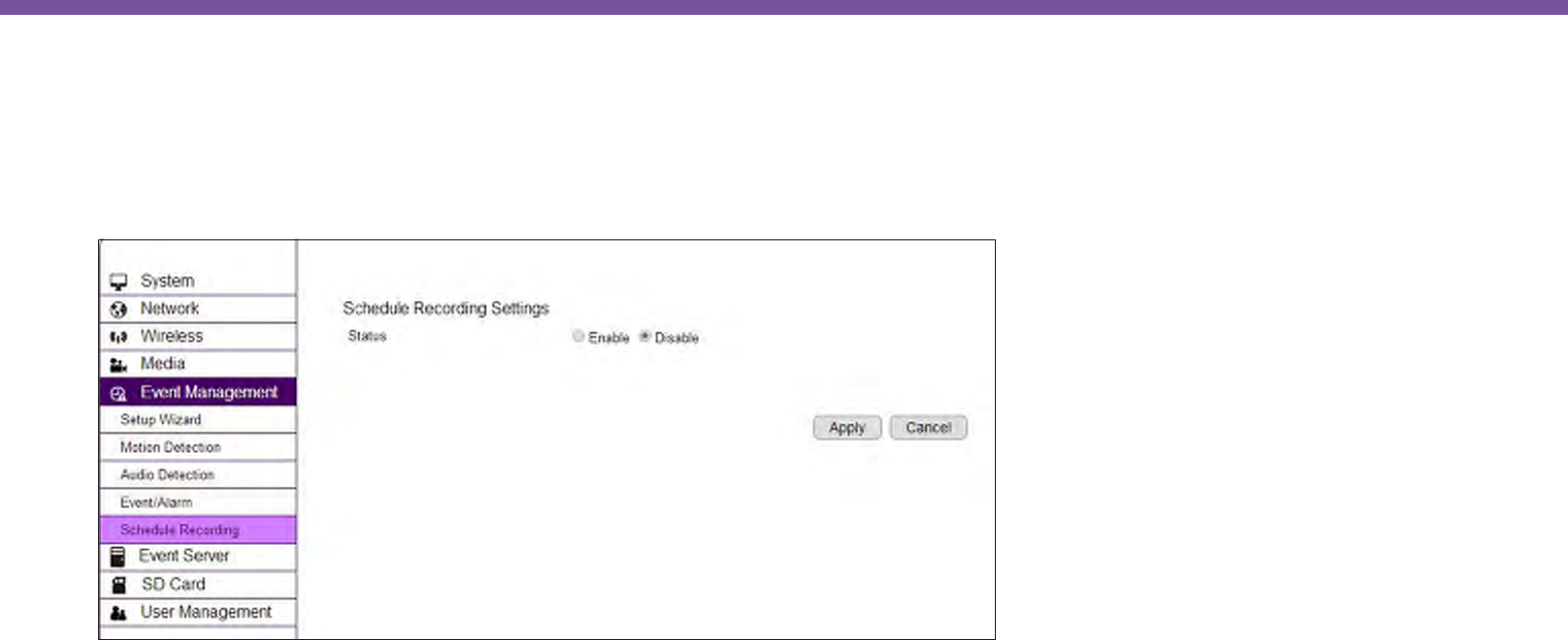

Step 1: Disable Schedule Recording
Please Disable Schedule Recording so that Event Recording can be congured.
165
Chapter9 | Application Guide
Step 2: Congure Event/Alarm
Event Management → Event/Alarm set event and alarm settings to Enable and click Apply.
166
Chapter9 | Application Guide

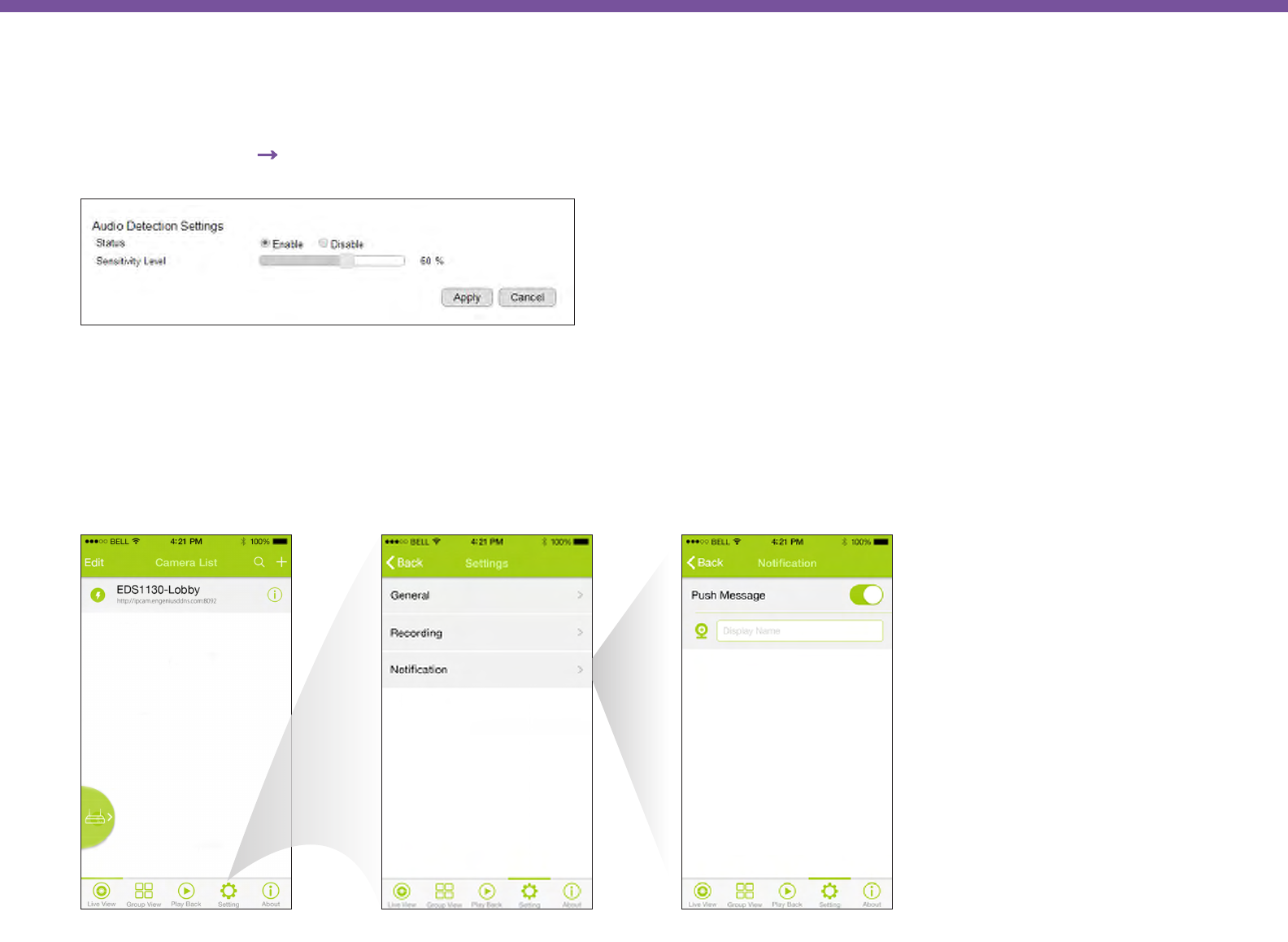

Step 3: Congure Audio Detection
Event Management → Audio Detection enable auto detection. Make changes to the settings and click Apply.
Step 4: Setting EnViewer Notication
Set Push Message ON and enter the device name.
167
Chapter9 | Application Guide
Example 2: Remote Surveillance and Motion Detection
The application concept diagram shows a camera monitoring the living room and entrance of their home. The couple wants
to remotely monitor their home and needs to be alarmed when motion (intrusion) or sound is detected.
on Vacation
Home
router
192.168.0.1
192.168.0.100
OOOOOO.engeniusddns.com
motion detection and audio detection
168
Chapter9 | Application Guide
Step 1: Disable Schedule Recording
Make sure that the Schedule Recording is DIsabled ahead so that the Event Recording can be congured.
169
Chapter9 | Application Guide
Step 2: Congure Motion Detection
Enable motion detection
Select Window 1 and adjust the Sensitivity to
higher percentage.
By default, the window 1 is set as full range as the detecting area. You may keep
the window as it is or resize it to focus on the objects that you intend to monitor.
Click on Apply to activate the setting.
Step 3: Congure Audio Detection
Event Management → Audio Detection enable auto detection. Make changes to the settings and click Apply.
170
Chapter9 | Application Guide
Step 4: Congure Event/Alarm
Event Management → Event/Alarm set event and alarm settings to Enable and click Apply.
171
Chapter9 | Application Guide
Step 5: Setting EnViewer Notication
Set Push Message ON and enter the device name.
172
Chapter9 | Application Guide
Example 3: Schedule Recording
A business owner can remotely monitor his store at home in live or playback the previously recorded video. The camera is
congured with schedule recording for working hours from 9 AM to 9 PM.
remote site
store
router
192.168.0.1
192.168.0.100
OOOOOO.engeniusddns.com
schedual recording duringwork hours for security
173
Chapter9 | Application Guide
Step 1: Disable Alarm
Disable Event/Alarm so that Schedule Recording can be congured.
174
Chapter9 | Application Guide
Step 2: Congure Schedule Recording
Go to Event Management → Schedule Recording
Set Status to Enable.
Select all the check boxes and set the week day Monday to Sunday.
Then, enter time range from 09:00 to 18:00.
Choose to save the recording to SD Card and conrm the Video Length for each le.
Click Apply to activate the settings.
175
Chapter8 | EnViewer APP

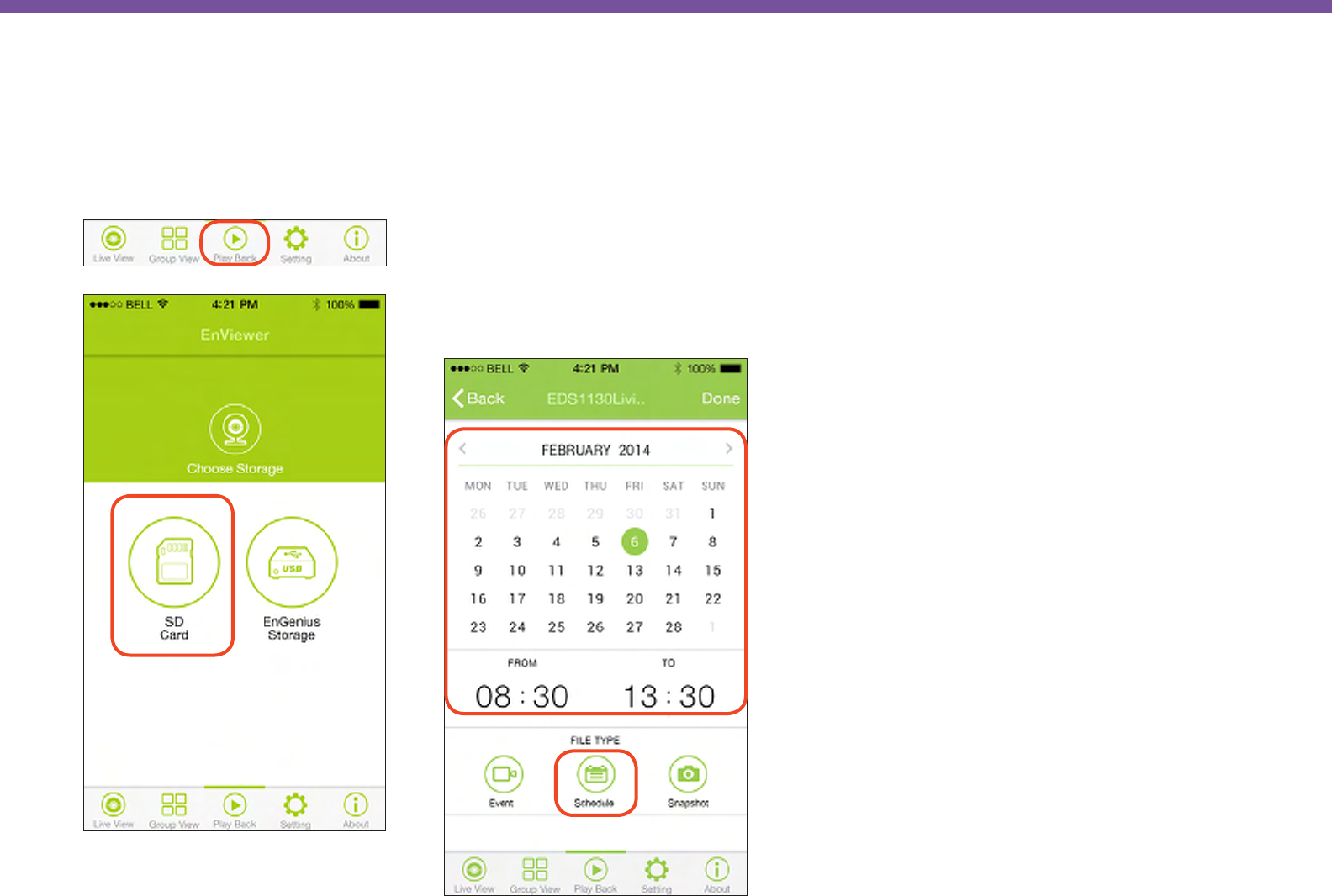

Set the date and time range.
Tap on Video Schedule for playback.
Step 3: Playback on EnViewer
Tap on Playback and then choose SD Card for playback les.
176
Chapter8 | EnViewer APP
Step 4: Playback on Web Browser
Login to the camera and enter main menu Storage → SD Card.
Choose video folder and drill down for the recorded media le you would like to playback.
Chapter 10
Troubleshooting
178
Chapter10 | Troubleshooting
Viewing Your Video
How do I view live streaming using a mobile?
You can view your video on your iPhone, iPad and Android-based phone and tablet by using EnViewer. EnViewer is an App that
allows you to view and manage your camera at real time.
Where can I download my app?
You can download it by or searching APP store (for iPhone and iPad) or Google Play(Android-based mobile devices) for
“EnViewer”. You can also scan the following QR code to download EnViewer directly.
How do I use the web viewer on a computer?
You can view the camera at real time using any of popularweb browser, e.g. Chrome, Internet Explorer, Firefox. Given that you
have congured your camera properly. You should be able to get access to your camera by entering its DDNS or IP address. If you have
trouble nding your camera on your home network. Please use the provided E on your CD, EnViewer Finder, to nd out your camera’s
current IP address.
Google Play
for Android™ Devices
App Store
for iPhone® and iPad®
179
Chapter10 | Troubleshooting
Why is my live view goes grey?
You camera supports night-vision. When camera detects insufcient light, it will switch to night-vision mode for clearer image.
However, you can manually congure this feature under Media → Camera. Set the Day/Night mode to Auto, Day Mode (color) or
Night Mode (grey).
Why is my recorded video grey?
You camera supports night-vision. When camera detects insufcient light, it will switch to night-vision mode for clearer image.
Hence, the recorded video become grey.
Why is the camera having clicking sound?
Your camera supports night-vision. You may hear the clicking sound whenever the camera switches mode. However, you can
manually congure this feature under Media → Camera. Set the Day/Night mode to Auto, Day Mode (color) or Night Mode (grey).
Why is my image blur?
When object become out of focus the image may become blur. Please check your camera lens, make sure it is clean. Dust or
insects may block the view and cause the view become out of focus (blur).
180
Chapter10 | Troubleshooting
Networking
Why does my camera disconnect from my Wi-Fi?
There are various reasons that your camera disconnects from the wireless gateway/router. Usually it is due to weak of Wi-Fi
signals or interference from electrical appliances. Therefore, you should bring your camera closer to the gateway/router and verify
whether it’s caused by weak signal. You should check if gateway/router has just rebooted. The administrator has changed Wi-Fi
security settings. If your camera is located far from the gateway/router, the signal strength may be weak; however, there shouldn’t be
much problem in home settings unless there are many walls or metal obstacles that blocked the wireless signals. Lastly, reboot your
camera and router.
How can I minimize interference?
Make sure there is no electrical appliances near the camera, such as microwave or devices that may interfere with the camera.
Upon experiencing interference, try to turn off any possible electrical devices that are currently running.
Why my live view lags (latency)?
Since your camera image is transmitted over the network.
If you have wireless conguration for your camera, you may be experiencing wireless interference from other wireless devices
or home appliances. If disabling other wireless devices do not resolve the issue. Please use wired setup for your camera to ensure
stable video transmission.
Your network bandwidth determines the latency of your live view. If your network is loaded with P2P trafc; you may
experience some latency. Please avoid heavy trafc loading applications on the network.
It is normal that you experience latency if you are monitoring with your mobile device from a remote site. The 3G or 4G service
provider network bandwidth may vary from location to location.
181
Chapter10 | Troubleshooting
I have connected the camera to the home router, but how can I access the camera?
There are various ways to scan the network for you camera. If you are under a home network setting. The best way to get
access to your camera is by using the enclosed EnViewer Finder. Please refer to Chapter 3 for more detail.
Security and Privacy
Accessing the camera from the Internet is convenient; however, it is also possible for anyone who has your username and
password to login into your camera. Therefore, the utmost key is to keep your username and password safe and change them
regularly. Your videos or images are stored either locally or in network storage. The images and videos are accessible only when
provided with proper security check. Therefore, the media les should be safe.
Can EnGenius employees view my video?
No! No one can view your video or login into your camera without security check. The username and password is stored locally
in your camera and it is not accessible by anyone but yourself. Therefore, it is important for you to keep the security information
safely.
How do I let other family member to view the camera without giving away administrator account?
Your camera supports two types of users: Administrator and Viewer. The username and password you use to login to the
camera for initial setup is your administrator account. Therefore, you should create Viewer account for your family member so that
they can view the camera only. Please refer to User Management chapter for more detail on creating viewer account.
182
Chapter10 | Troubleshooting
Cloud Video Services
I can’t connect. What’s going on?
Check your router’s Internet setting. You can rst check other devices connecting to the router has Internet connectivity and
determine whether the source of the issue. If other connecting devices can connect to the Internet through the router. Then the
problem may lies on other router setting. Check wireless security settings. Turn off any rewall rules on the router see if connection
gets through.
Appendix
184
Appendix | A
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
!
!
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
185
Appendix | B
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been
applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige
krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
• EN60950-1
Safety of Information Technology Equipment
• EN50385
Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to
electromagnetic elds (0 Hz - 300 GHz)
• EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the
2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive
• EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
• EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 17: Specic conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
186
Appendix | B
Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições
da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
