1 Introduction
The
ERA150
is a high-powered, long-range wall mount wireless 802.11b/g/n access point with two major functional
modes. The ERA150 was designed to operate in numerous environments from large homes, small and medium-sized
businesses, multiple-floor offices, hotels and other venues to larger enterprise deployments. Its high-powered, long-range
characteristics make it a cost-effective alternative to ordinary access points that don’t have the range and reach to connect
to a growing number of wireless users who wish to connect to a large home or business network.
The ERA150 delivers up to 3x faster wireless speeds and 7x extended coverage than legacy 802.11b/g wireless devices.
Even though the ERA150 has been designed and engineered for traffic heavy and demanding business environments it is
also quite at home in larger house scenarios because it efficiently extends the wireless range of an existing home router,
especially in very architecturally-challenging structures to provide whole home connectivity.
To protect sensitive data during wireless transmissions, the ERA150 offers different encryption settings for wireless
transmissions including industry-standard WPA and WPA2 encryption. The ERA150 also includes MAC address filtering to
allow network administrators to offer network access only to known computers and other devices based on their MAC
addresses.
6
1.1 Features and Benefits
Features Benefits
High Speed Data Rate Up to 150 Mbps Capable of handling heavy data payloads such as HD multimedia
streaming.
10/100 Fast Ethernet Support up to 100Mbps networking speed.
IEEE 802.11n Compliant and Backwards
Compatible with 802.11b/g devices
Fully compatible with IEEE 802.11b/g/n devices.
Multi-Function Allowing users to select Access Point or Repeater mode in various
applications.
Support Multiple SSID in AP mode (up to 4) Allow clients to access different networks through a single access
point and assign different policies and functions for each SSID
through the built in software.
WPA/WPA2/IEEE 802.1x Support Powerful data security.
MAC Address Filtering in AP Mode Ensure a secure network connection.
User Isolation Support (AP mode) Protect the private network between client users.
Power-over-Ethernet (IEEE802.3af) Allows installers to deploy the access point in locations via a PoE
connection (Ethernet cable) where a power outlet may not be
available.
Save User Settings Firmware upgrade does not delete user settings.
SNMP Remote Configuration Management Allows remote connection to configure or manage the ERA150
easily.
QoS (WMM) support Enhanced user performance and density.
7
1.2 Package Contents
The ERA150 package contains the following items (all items must be in package to issue a refund):
ERA150 Access Point
Detachable 5dBi antenna * 1
12V/1A 100V~240V Power Adapter
RJ-45 Ethernet Cable
Wall Mount Screw Kit
Wiring Belt * 2
CD (User Manual and EZ Controller Software)
Quick Installation Guide
1.3 System Requirements
The following are the minimum system requirements in order configure the device.
Computer with an Ethernet interface or Wireless Network function
Windows OS (XP, Vista, 7), Mac OS, or Linux based operating systems
Web-Browsing Application (i.e.: Internet Explorer, FireFox, Safari, Chrome or other similar software)
1.4 Applications
Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many
applications made possible through the power and flexibility of WLANs:
a) Difficult-to-Wire Environments
There are many situations where wires cannot be installed or deployed easily or cannot be hidden from view. Older
8
buildings, sites with multiple buildings, and/or areas make the installation of a Ethernet-based LAN impossible,
impractical or expensive.
b) Temporary Workgroups
Create temporary workgroups/networks in more open areas within a building – auditoriums, amphitheater
classrooms, ballrooms, arenas, exhibition centers, temporary offices where one wants either a permanent or
temporary Wireless LAN established.
c) The Ability to Access Real-Time Information
Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing
with patients, serving customers, and/or processing information.
d) Frequently Changing Environments
Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).
e) Small Office and Home Office (SOHO) Networks
SOHO users need a cost-effective, easy and quick installation of a small network.
f) Wireless Extensions to Ethernet Networks
Devices like the ERA150 enable network administrators, installers and end-users to extend the range and reach of an
existing Ethernet-based network.
g) Training/Educational Facilities
Training sites at corporations or students at universities use wireless connectivity to ease access to information,
information exchanges, and learning.
9
2 Before you Begin
This section will guide you through the installation process. Placement of the ENGENIUS ERA150 is essential to maximize
the ERA150’s performance. Avoid placing the ERA150 in an enclosed space such as a closet, cabinet, or wardrobe.
2.1 Considerations for Wireless Installation
The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the
environment that the device is deployed in. These could be the number, thickness, and location of walls, ceilings, or other
objects that the ERA150’s wireless signals must pass through. Here are some key guidelines to allow the ERA150 to have
optimal wireless range.
Keep the number of walls and/or ceilings between the ERA150 and other network devices to a minimum. Each wall
and/or ceiling can reduce the signal strength, resulting in lower signal strength.
Building materials makes a difference. A solid metal door and/or aluminum stubs may have a significant negative
effect on the signal strength of the ERA150. Locate your wireless devices carefully so the signal can pass through a
drywall and/or open doorways. Materials such as glass, steel, metal, concrete, water (example: fish tanks), mirrors, file
cabinets and/or brick can also lower your wireless signal strength.
Interferences can also come from your other electrical devices and/or appliances that generate RF noise. The most
usual types are microwaves, or cordless phones.
10
2.2 Computer Settings (Windows XP/Windows 7)
In order to use the ERA150, you must first configure the TCP/IPv4 connection of your Windows OS computer system.

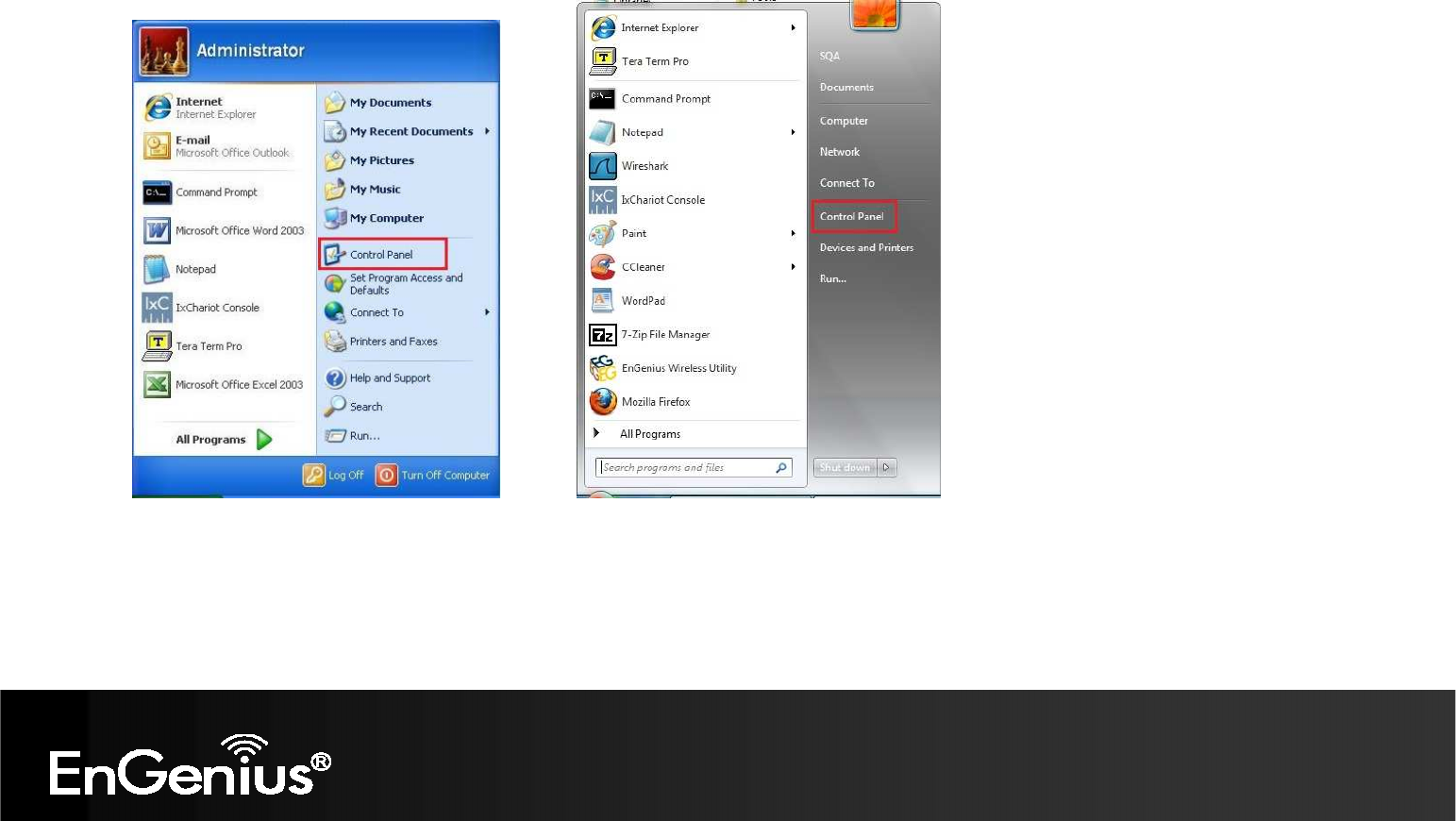

Click Start button and open Control Panel.
Windows XP Windows 7
11

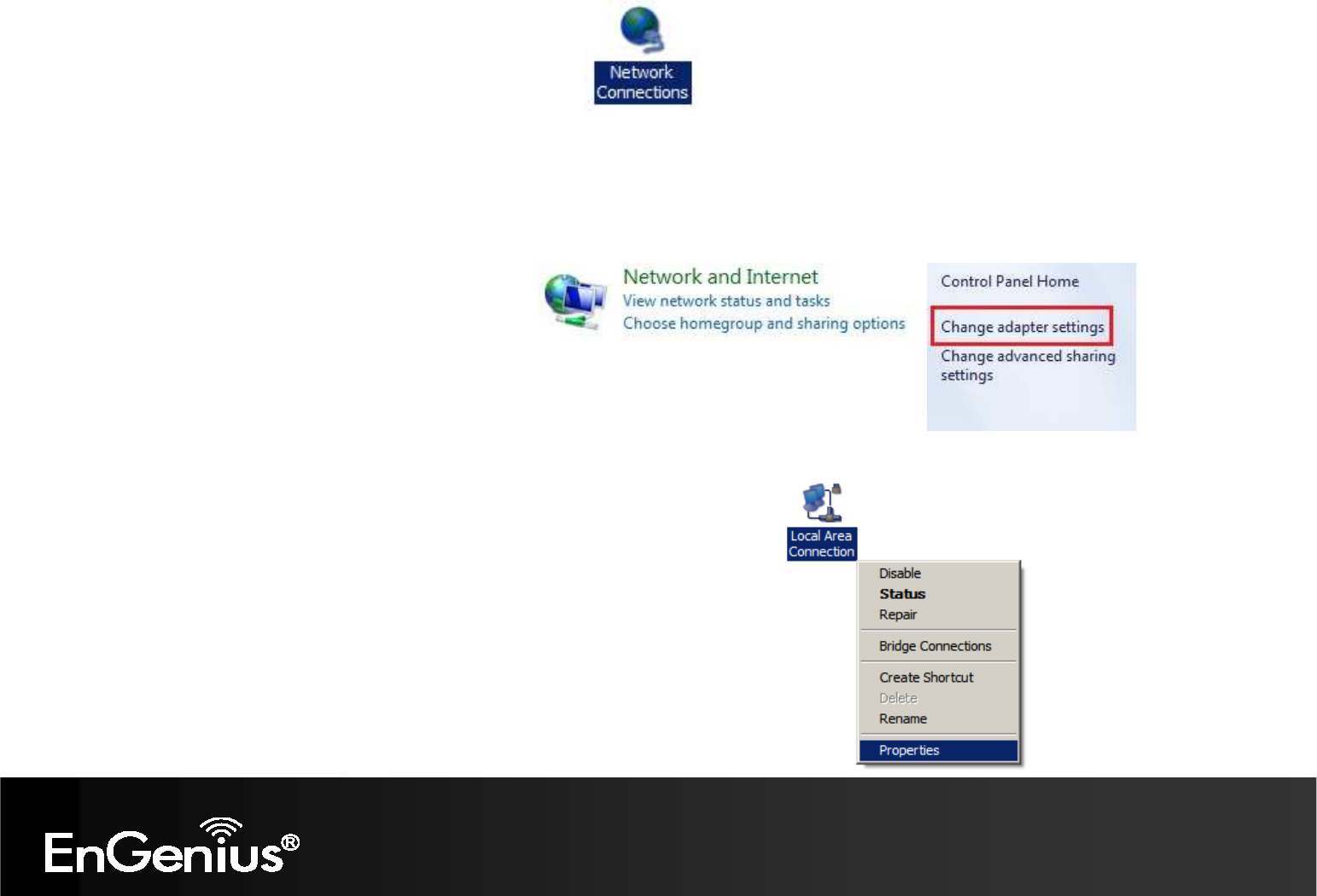

In Windows XP, click Network Connections
In Windows 7, click View Network Status and Tasks in the Network and Internet section, then select Change
adapter settings
Right click on Local Area Connection and select Properties
12

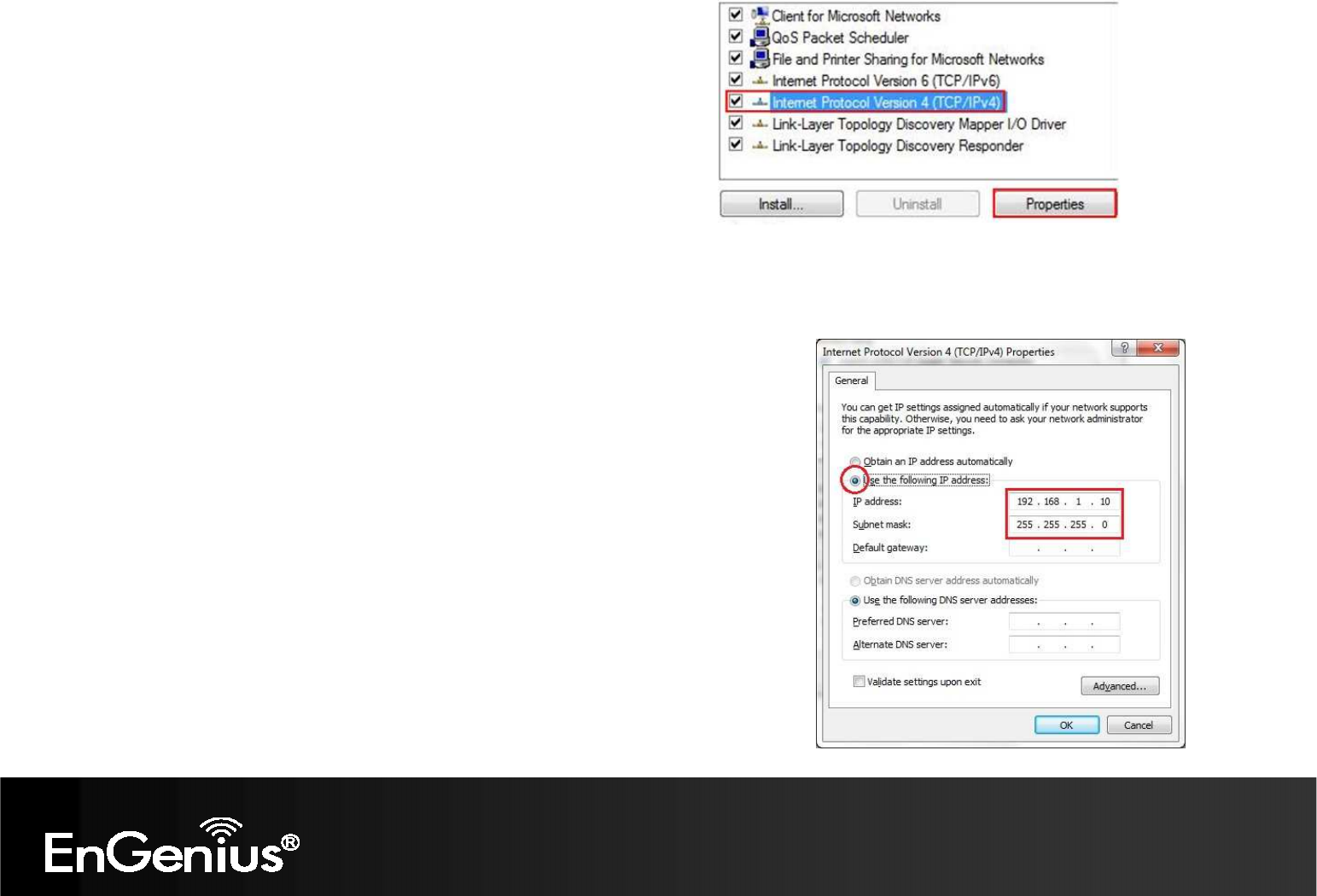

Select “Internet Protocol Version 4 (TCP/IPv4)” and then
select Properties
Select Use the following IP address and enter an IP address that is
different from the ERA150 and subnet mask then click OK.
Note: Ensure that the IP address and subnet mask are on the same subnet as
the device.
For example: ERA150 IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.255
PC subnet mask: 255.255.255.0
13
2.3 Computer Settings in Apple Mac X OS

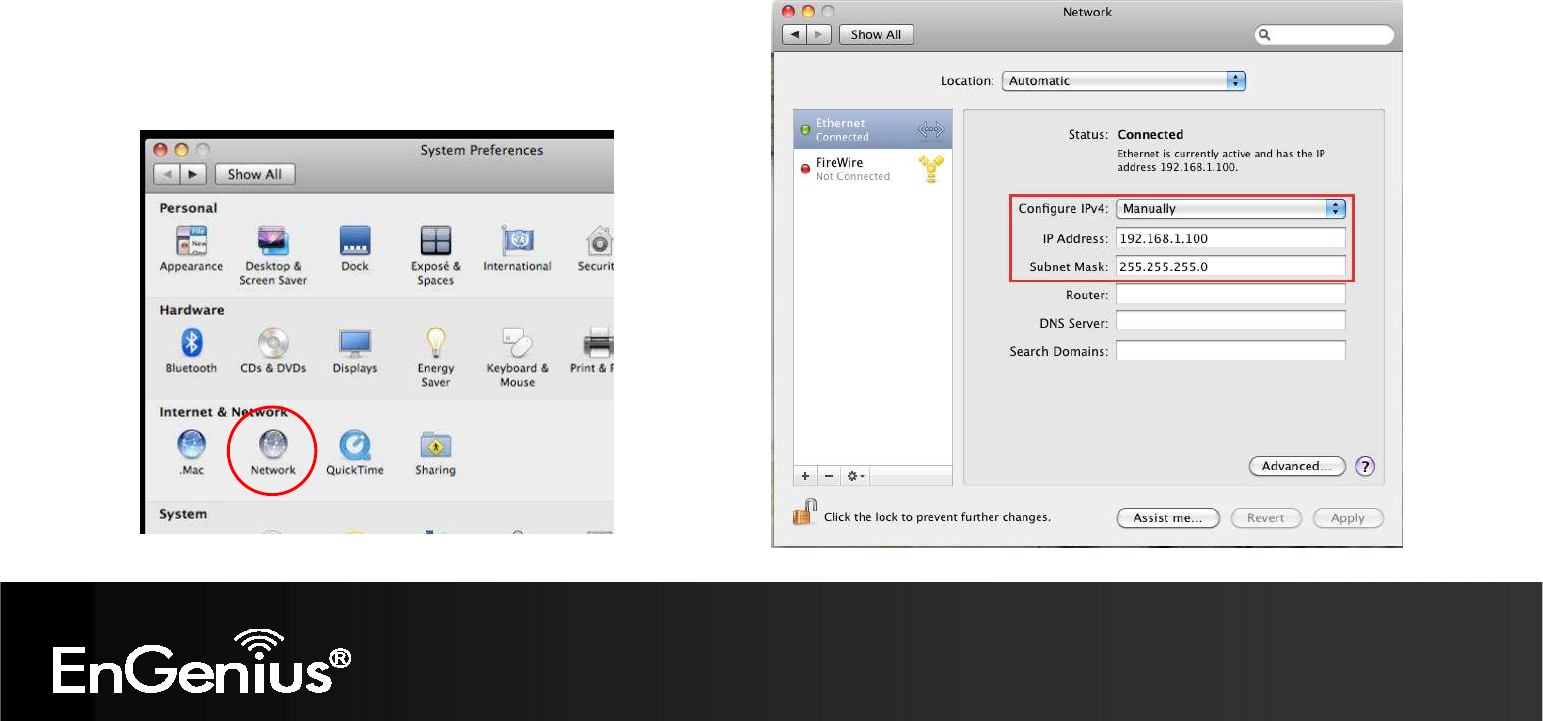

Go to System Preferences (can be opened in the Applications folder or selecting it in the Apple Menu)
Select Network in the Internet & Network section
Highlight Ethernet
In Configure IPv4, select Manually
Enter an IP address that is different from the ERA150 and subnet mask then press OK
Note: Ensure that the IP address and subnet mask are on the same subnet as the device.
For example: ERA150 IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.255
PC subnet mask: 255.255.255.0
Click Apply when done.
14
2.4 Hardware Installation
1. Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information, verify User Manual.
2. Connect one end of the Category 5e Ethernet cable into RJ-45 port of the ERA150 and the other end to the RJ-45 port
on the computer that will use the ERA150. Ensure that the cable is securely connected to both the ERA150 and the
Computer.
3. Connect the Power DC inlet to the DC-IN port of the ERA150 and the Power adapter to the electrical outlet.
Once both connections are secure, verify the following:
a) Ensure that the POWER light is on (it will be green).
b) Ensure that the WLAN light is on (it will be green).
c) Ensure that the LAN (Computer/ERA150 Connection) light is on (LAN1 will be green and LAN2 will be orange).
d) Once all three lights are on, proceed to setting up the computer.

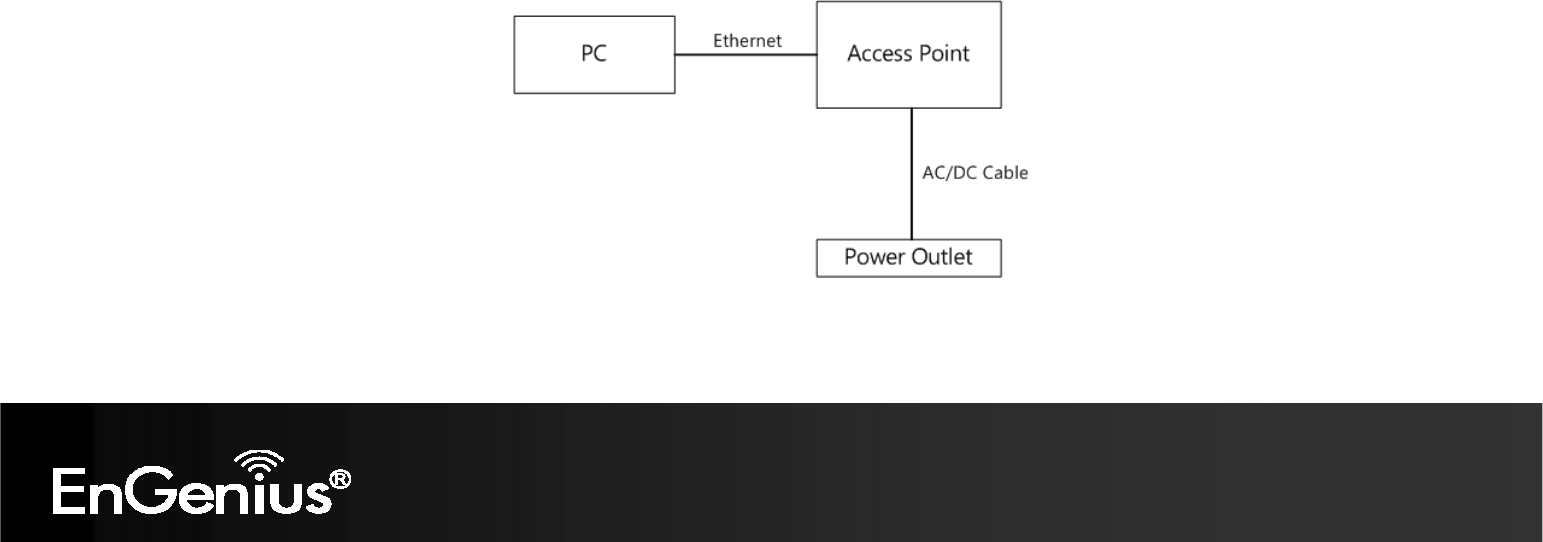

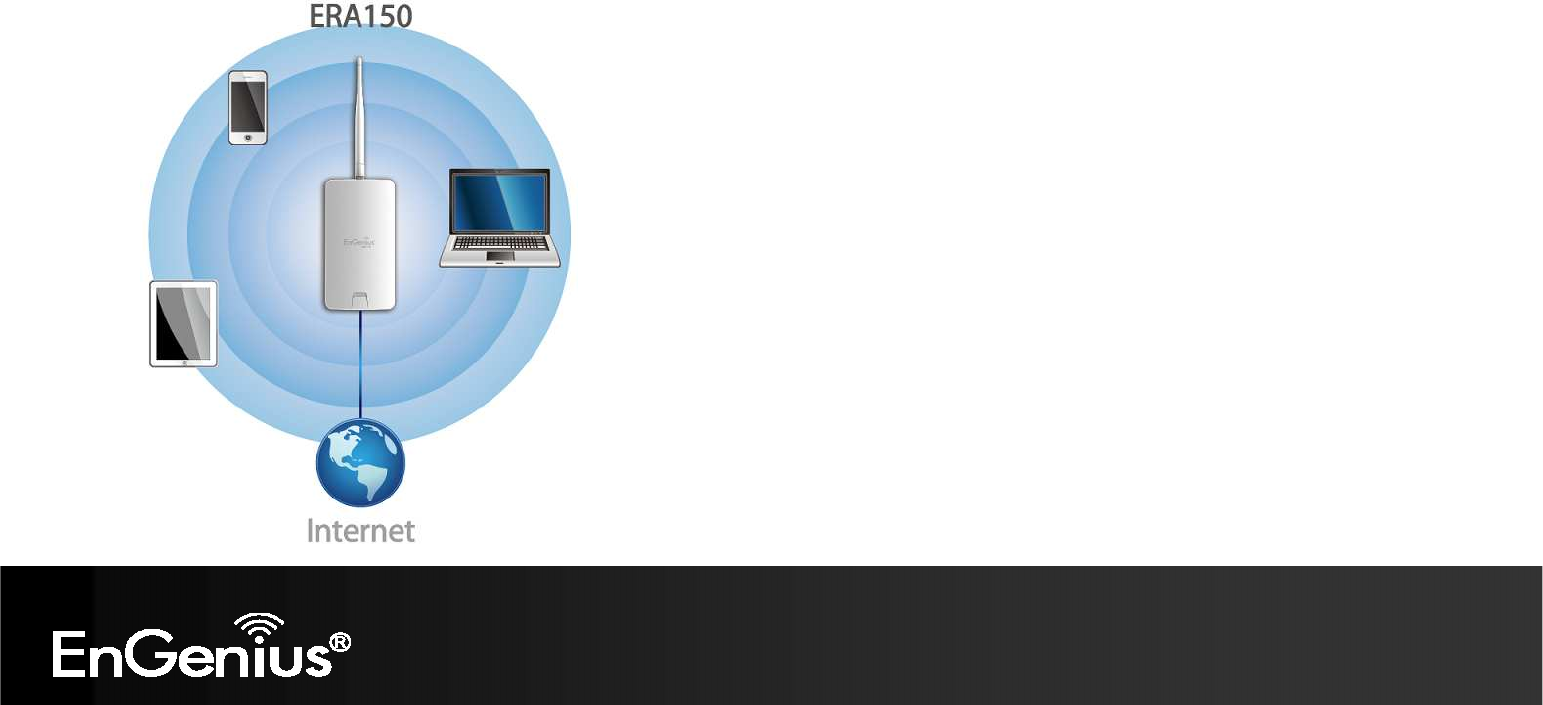

This diagram depicts the hardware configuration.
Note: ERA150 supports both IEEE 802.3af PoE (Power over Ethernet) and regular power adapter. You should use either one as the power source.
Please do not apply both at the same time.
15

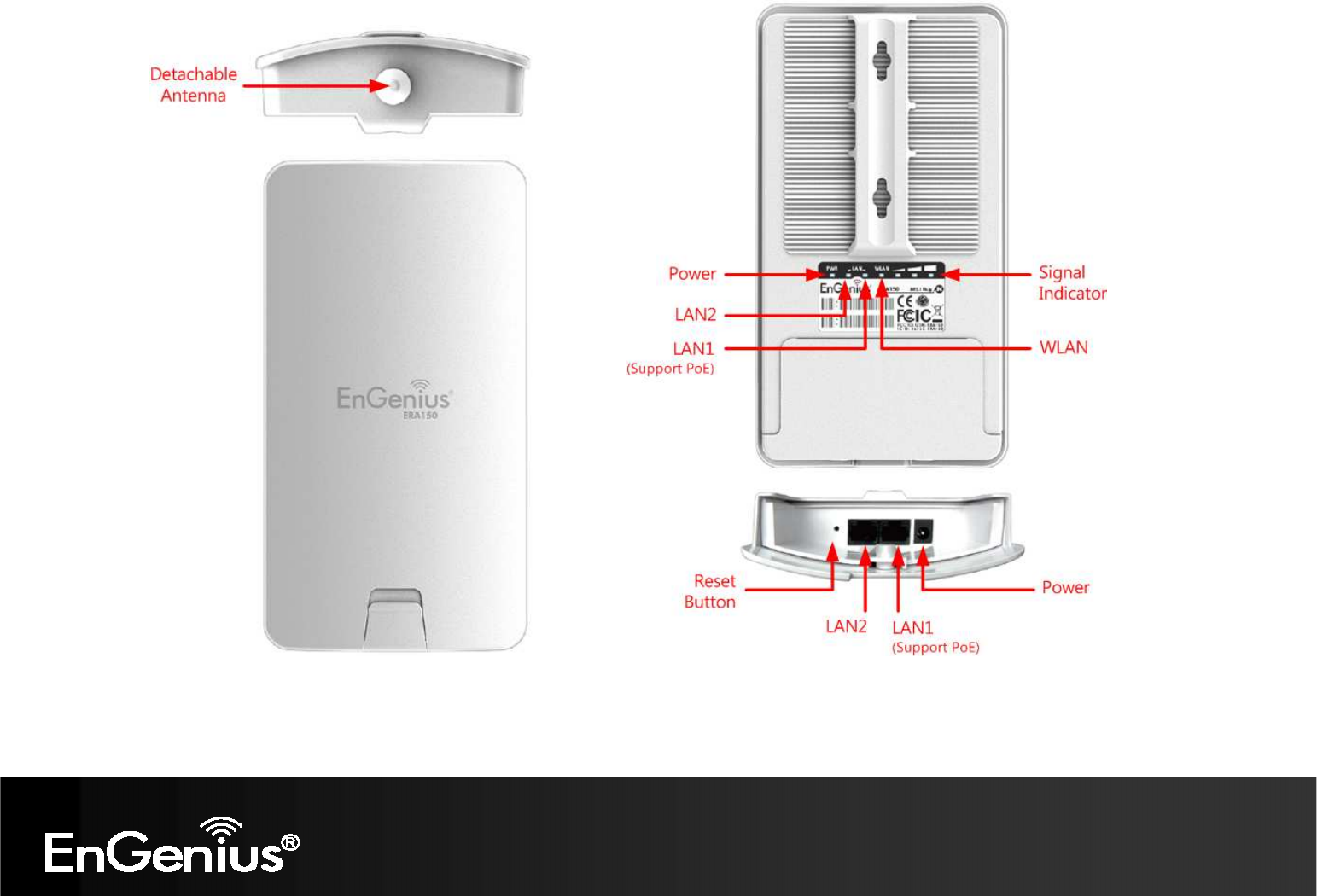

Top and Front Panel Rear and Bottom Panel
16
Top and
Front Panel
Detachable Antenna
Ext
ernal interface for the antenna
.
Rear
and Bottom
Panel
LED Lights
LED lights for Power, LAN1, LAN2, WLAN and Signal Indicator.
Reset Button
One click for reset the device. Pres
s over 10 seconds for reset to factory default.
Ethernet Port
Two Ethernet ports for RJ
-
45 cable. (LAN1 supports PoE)
DC IN
DC IN for Power.
17
3 Configuring Your Access Point
This section will show you how to configure the device using the web-based configuration interface.
3.1 Default Settings
Please use your Ethernet port or wireless network adapter to connect the Access Point.
Default Settings
IP Address
192.168.
1
.1
Username / Password
admin / admin
Operation
Mo
de
Access Point
18
3.2 Web Configuration

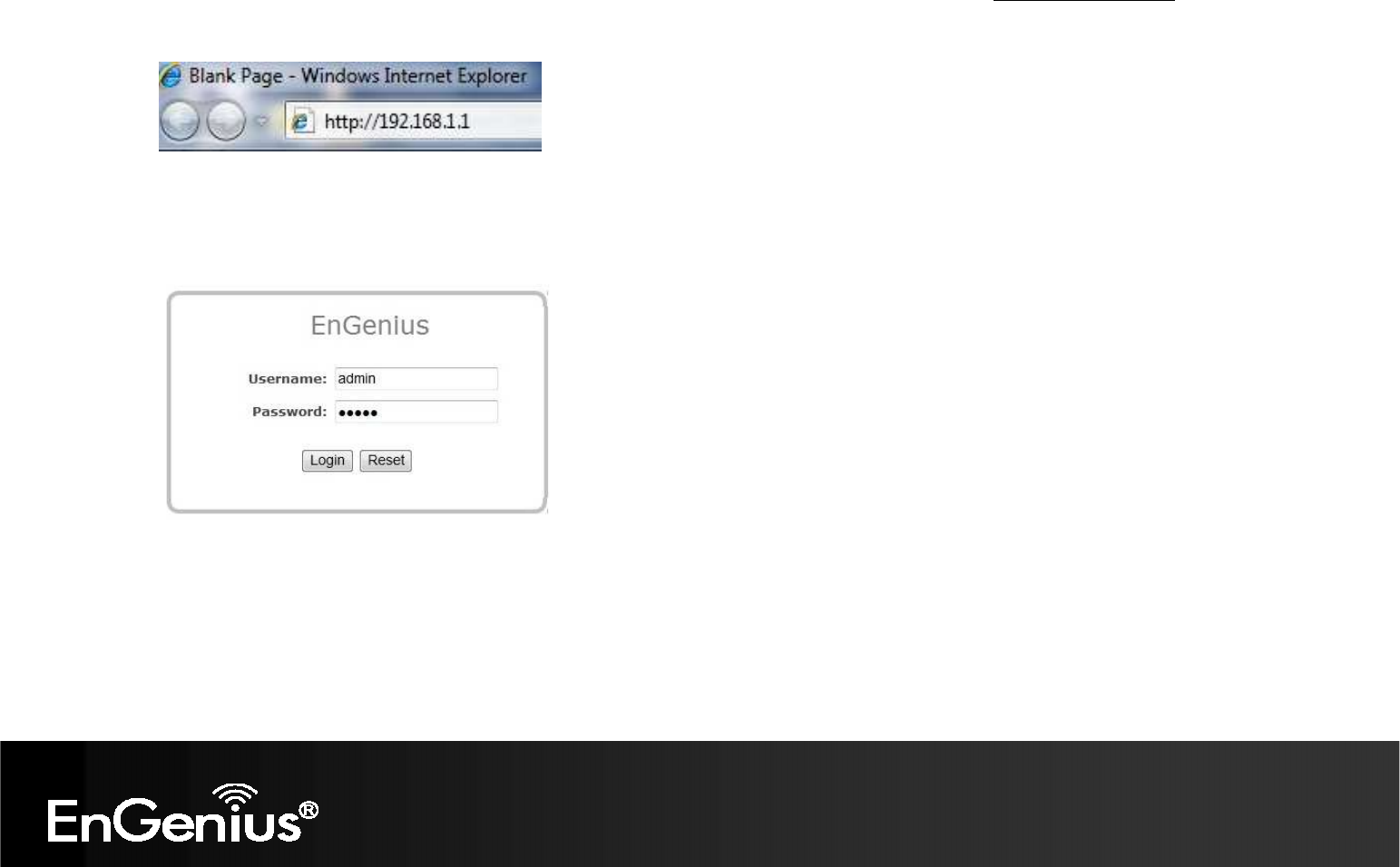

Open a web browser (Internet Explorer/Firefox/Safari/Chrome) and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.
The default username and password are admin. Once you have entered the correct username and password, click the
Login button to open the web-base configuration page.
19
If successful, you will be logging in and see the ERA150 User Menu.
20
4 Building a Wireless Network
The ERA150 has the ability to operate in various modes. This chapter describes the operating modes of the ERA150.
4.1 Access Point Mode
In Access Point Mode, ERA150 behaves likes a central connection for stations or clients that support IEEE 802.11b/g/n
networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password
to associate with the ERA150. The ERA150 supports up to four SSIDs at the same time for secure guest access.
21
4.2 Repeater mode

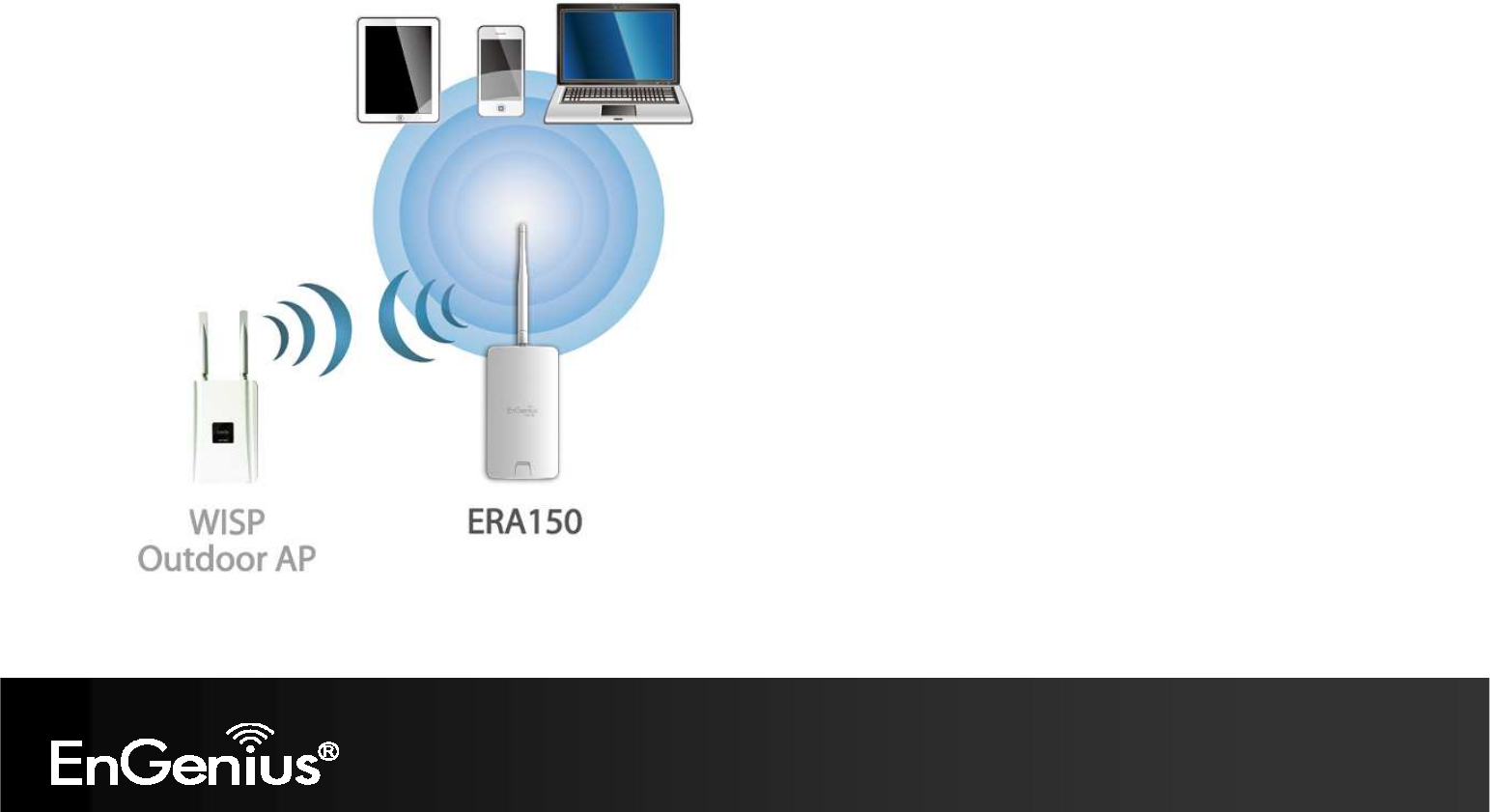

The Repeater mode is used to regenerate or replicate signals from a wireless router or other access point/station that is
unable to reach certain areas in a building. When this mode is activated in the ERA150, the ERA150 receives the wireless
signal from an existing router or AP and relays it to other devices within its range so they can join the network.
22
5 Status
The Status section contains the following options: Save/Reload, Main, Wireless Client List, and System Log.
The following sections describe these options.
5.1 Save/Reload

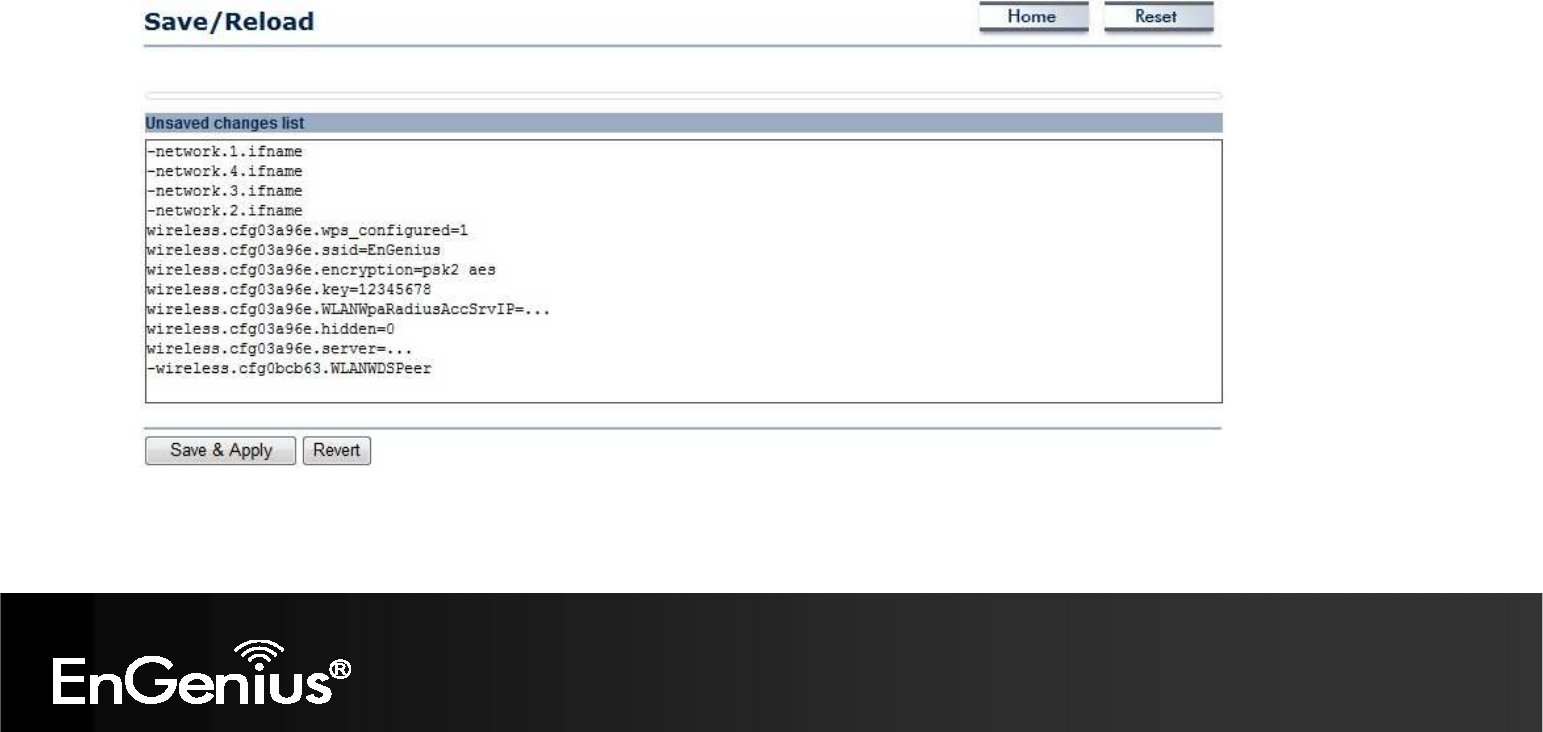

This page lets you save and apply the settings shown under Unsaved changes list, or cancel the unsaved changes and
revert them to the previous settings that were in effect.
23
5.2 Main

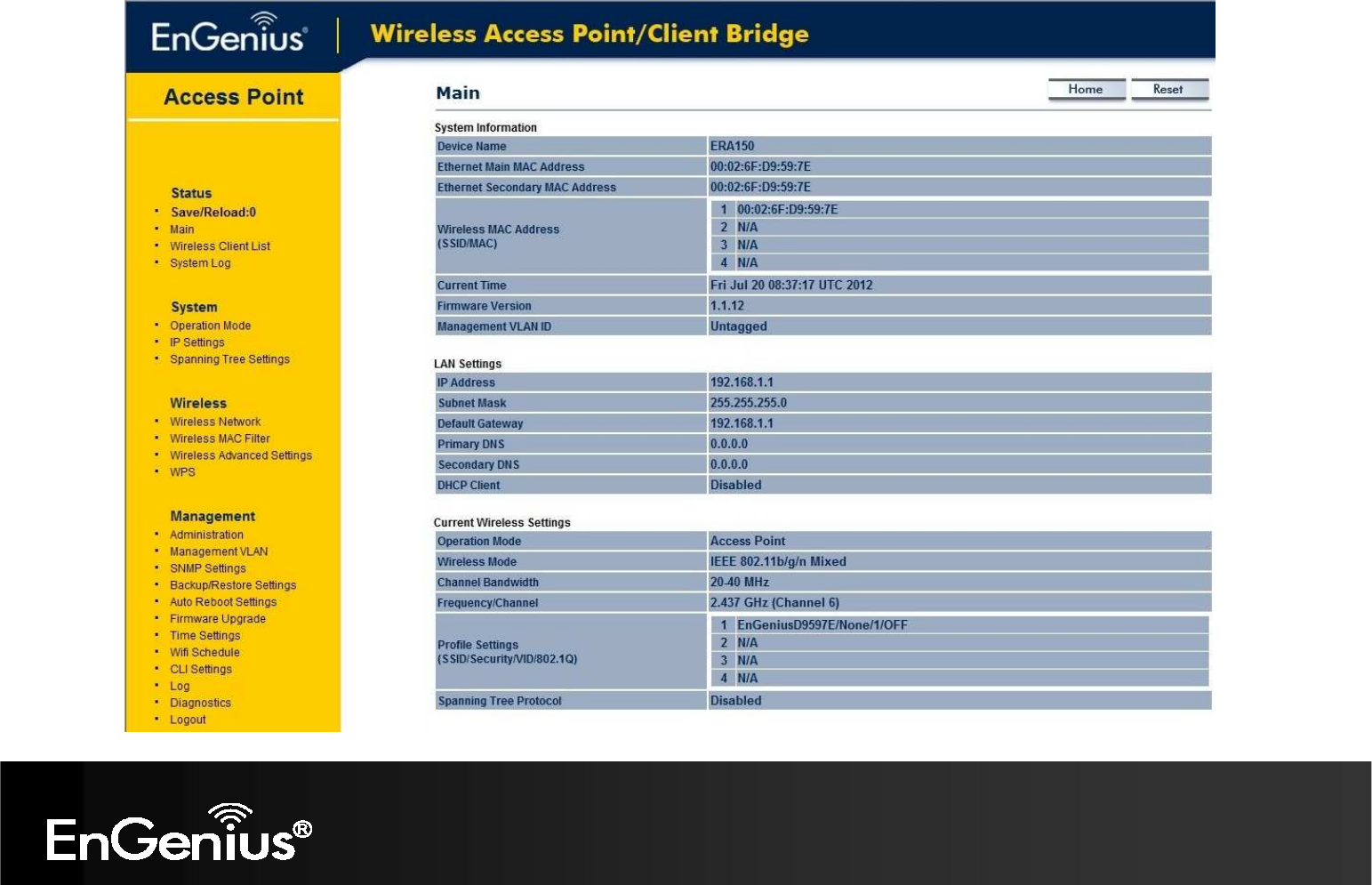

Clicking the Main link under the Status menu or clicking Home at the top-right of the ERA150 Page shows the status
information about the current operating mode.

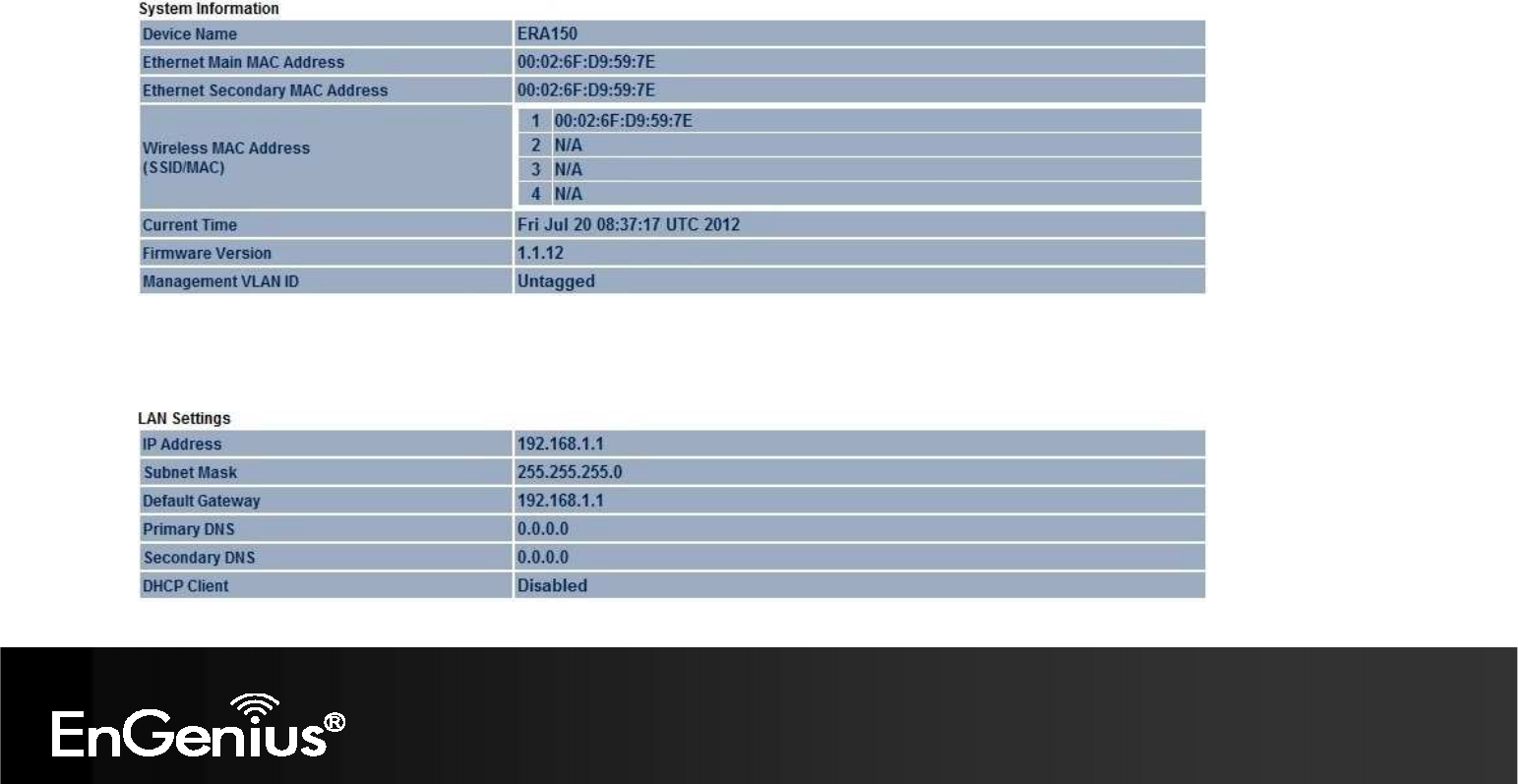

- The System Information section shows general system information such as Device Name, MAC Address, Current Time,
Firmware Version, and Management VLAN ID (Note: VLAN ID is only applicable in Access Point mode).
- The LAN Settings section shows the Local Area Network settings such as the LAN IP Address, Subnet Mask, and DNS
Address.
24

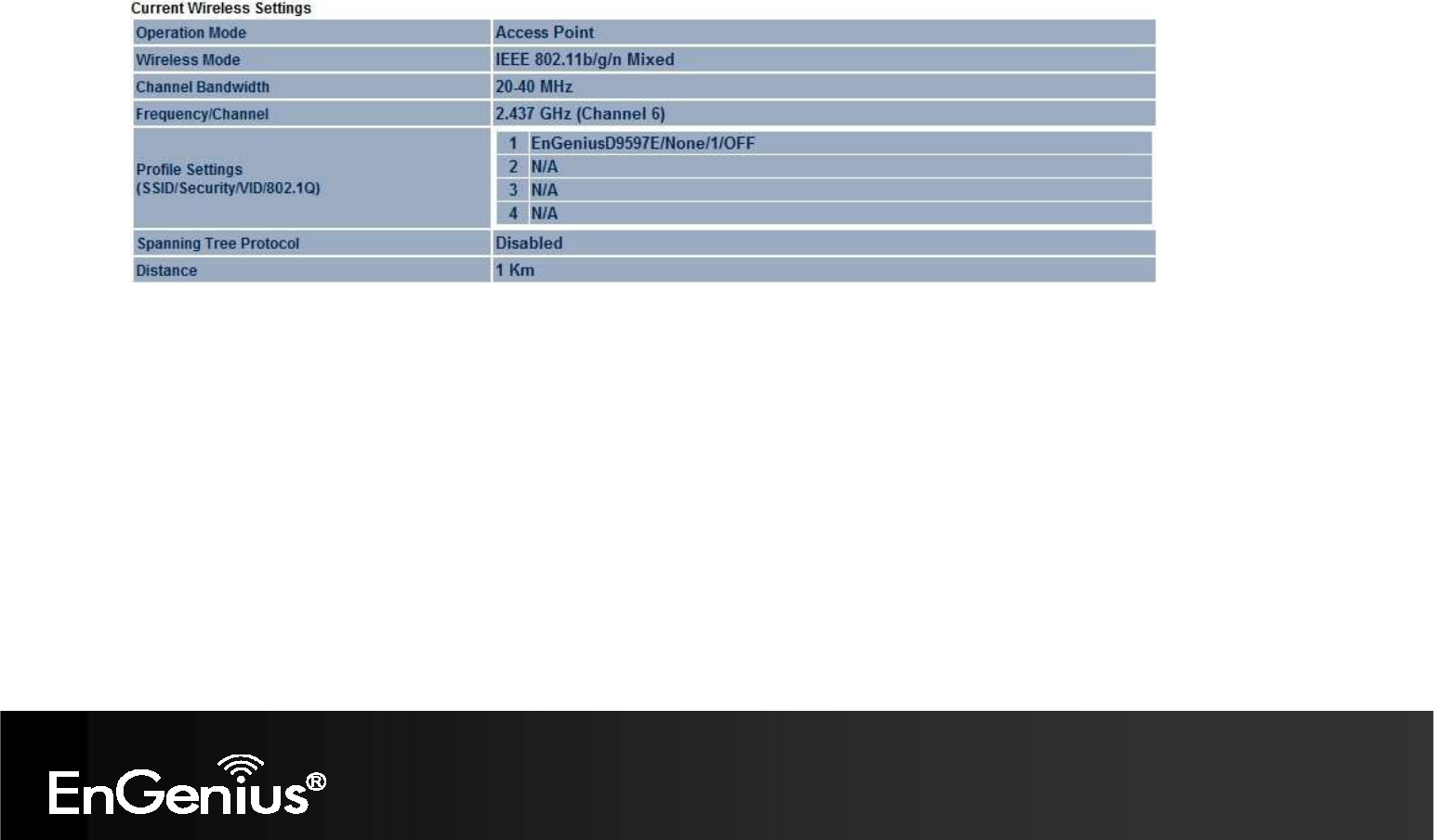

- The Current Wireless Settings section shows wireless information such as Operating Mode, Frequency, and Channel.
Since the ERA150 supports multiple-SSIDs, information about each SSID, the ESSID and security settings, are displayed
(Note: Profile Settings is only applicable in Access Point mode).
25
5.3 Wireless Client List

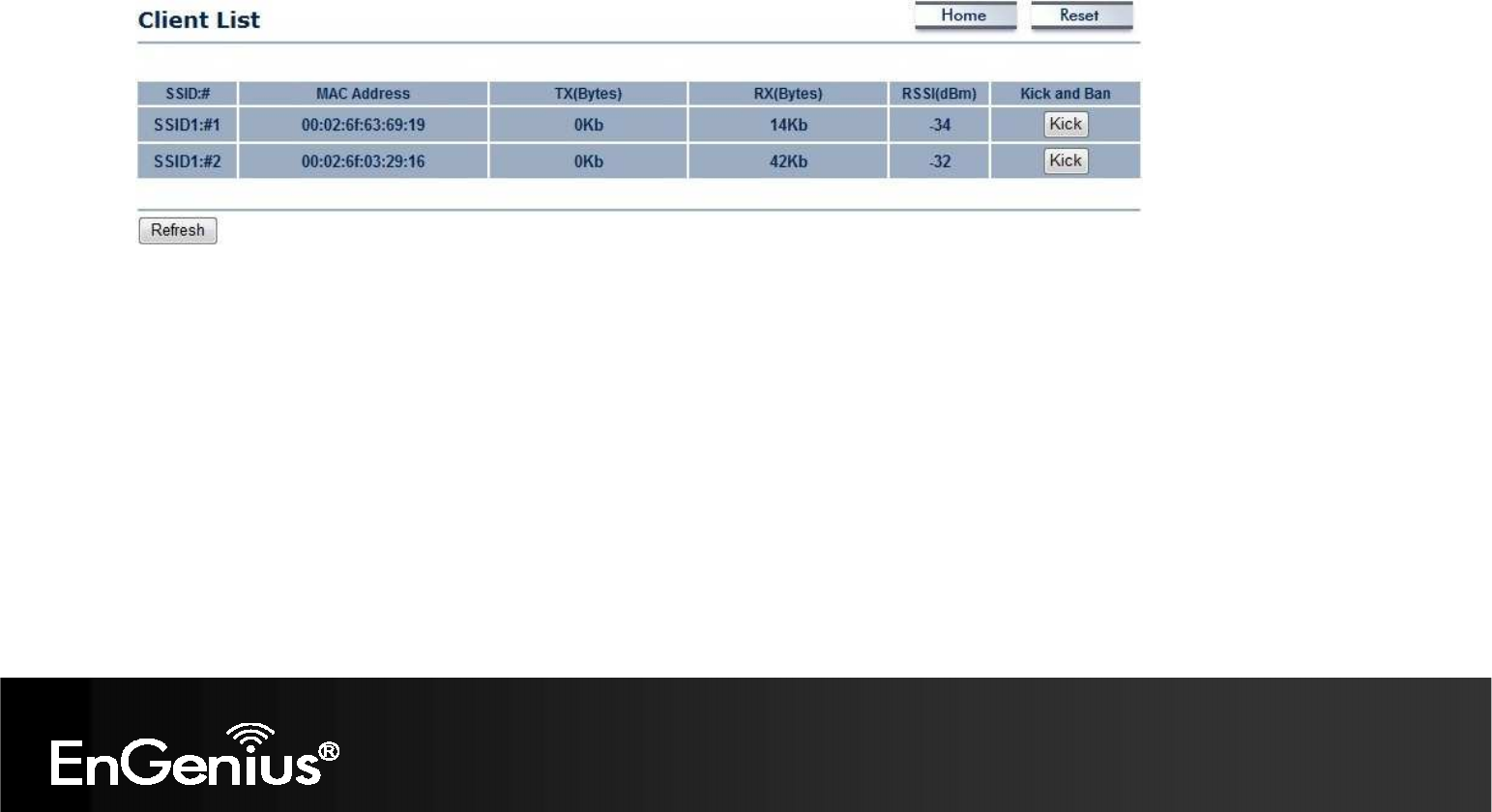

Clicking the Wireless Client List link under the Status menu displays the list of clients associated to the ERA150, along
with the MAC addresses and signal strength for each client. Clicking Kick can kick and ban this client. Clicking Refresh
updates the client list.
26
5.4 Connection Status
Click on the Connection Status link under the Status menu. This page displays the current status of the Network,
including Network Type, SSID, BSSID, Connection Status, Wireless Mode, Current Channel, Security, Data Rate, Noise Level,
and Signal Strength. You can specify the time of refresh duration.
Note: Only applicable in Repeater mode.
27

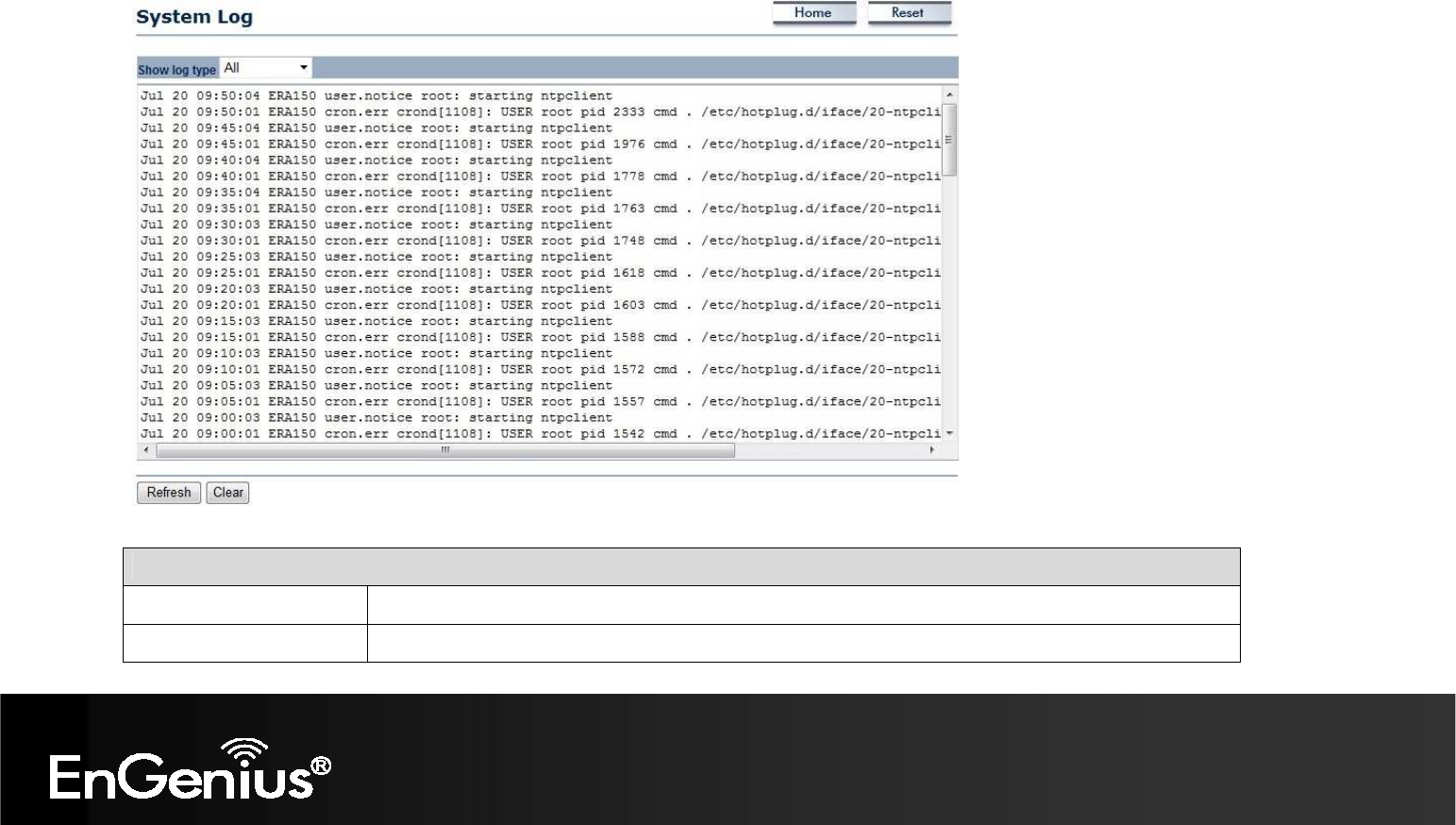

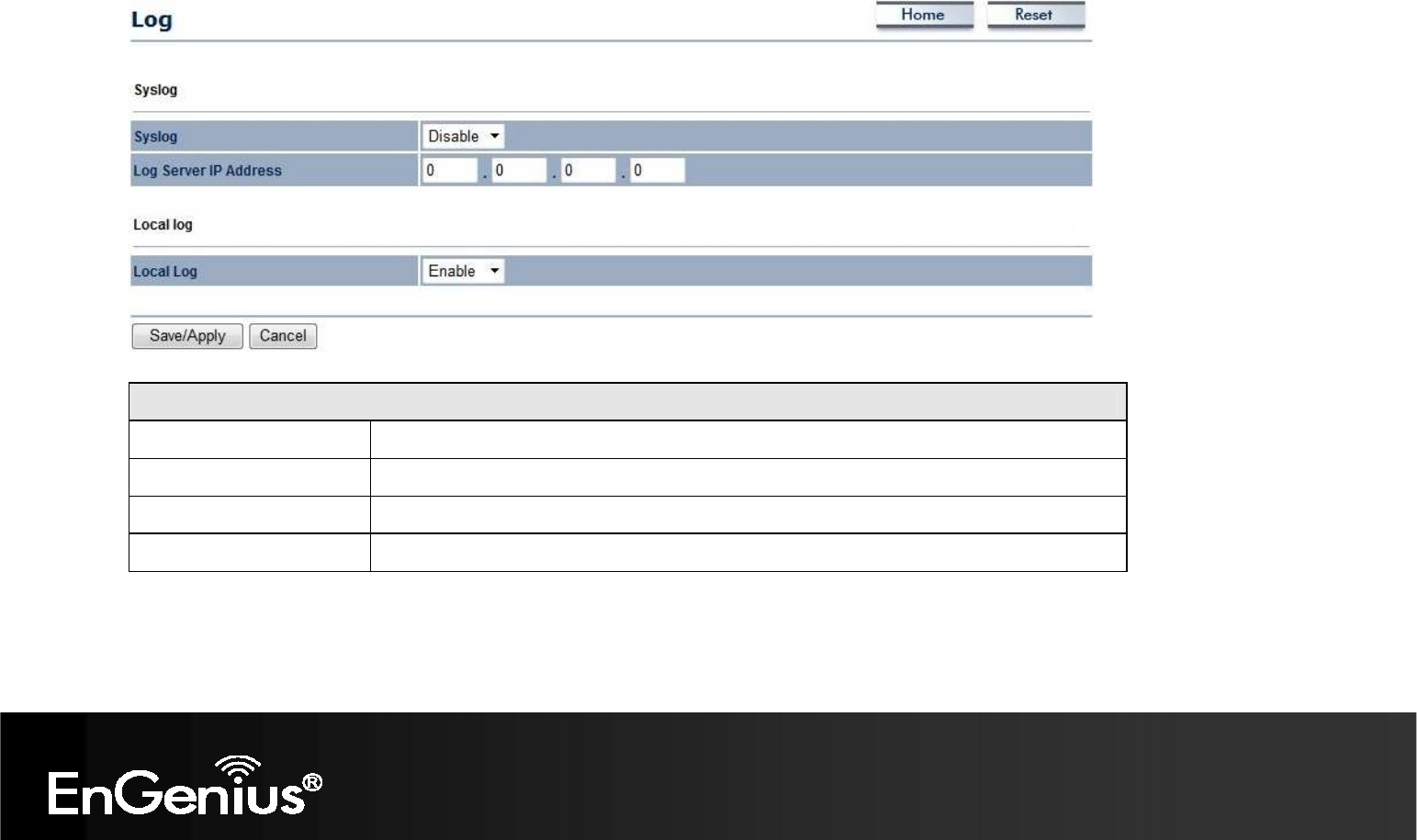

5.5 System Log
The ERA150 automatically logs (records) events of possible interest in its internal memory. To view the logged information,
click the System Log link under the Status menu. If there is not enough internal memory to log all events, older events are
deleted from the log. When powered down or rebooted, the log will be cleared.
System
Log
Refresh
Update the log.
Clear
Clear the log.
28
6 System
6.1 Operation Mode
The ERA150 supports 2 operating modes: Access Point and Repeater.

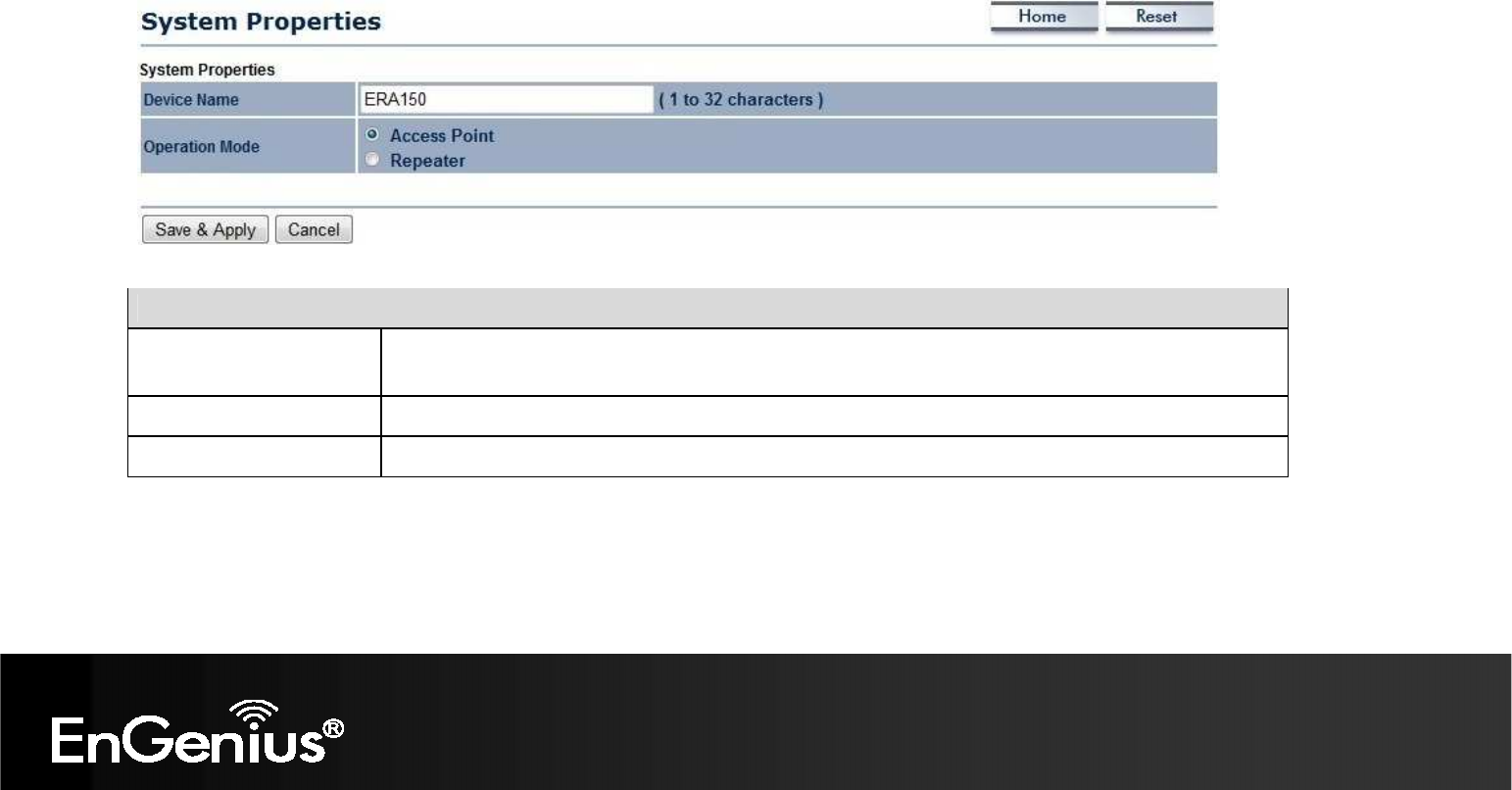

System Properties
Device Name
Enter a name for the device. The name you type appea
rs in SNMP management. This name is
not the SSID and is not broadcast to other devices.
Operation Mode
Use the radio button to select an operating mode.
Save & Apply
/ Cancel
Click
Save & Apply
to confirm the changes or
Cancel
to cancel and return previo
us settings.
29

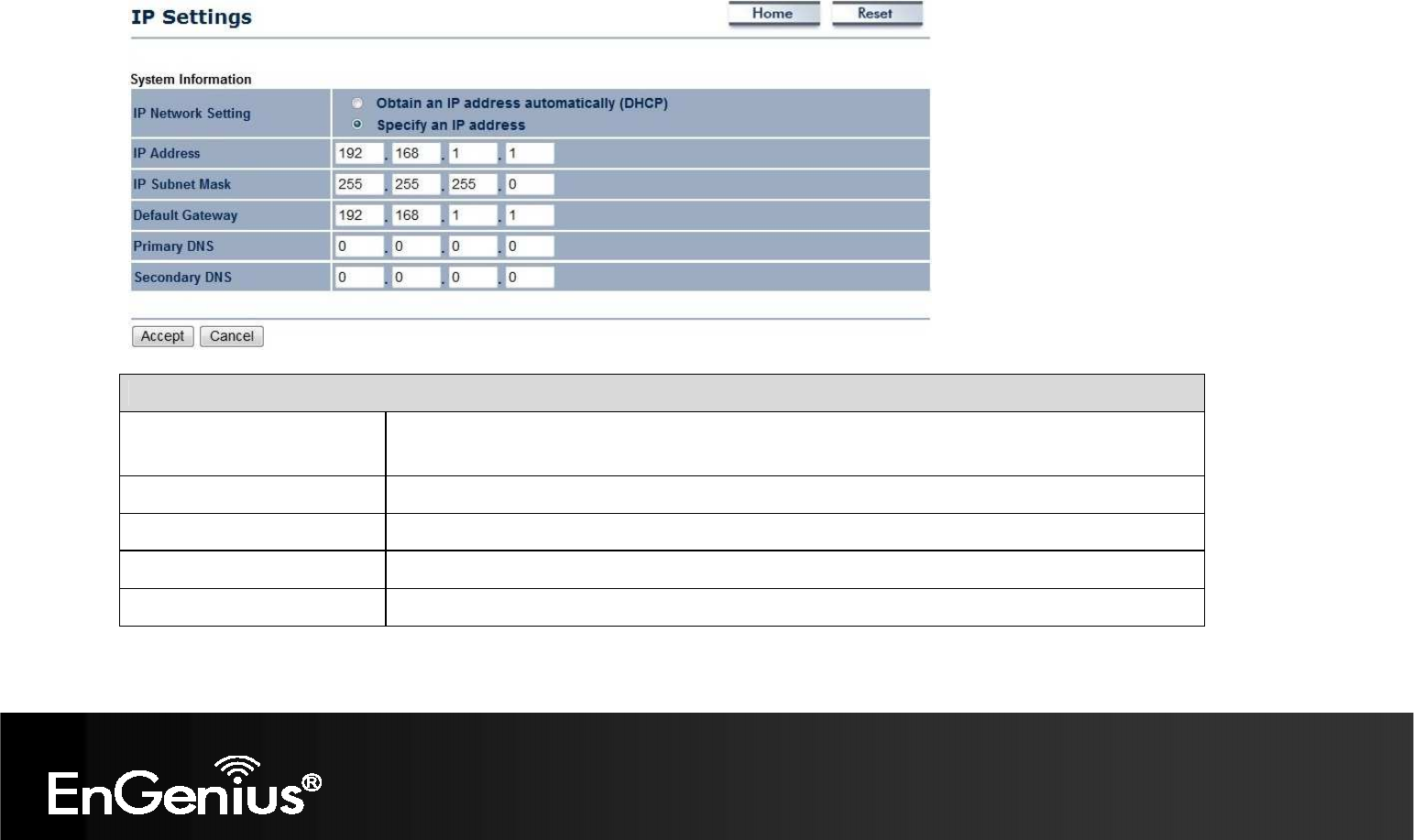

6.2 IP Settings
This page allows you to modify the device's IP settings.
IP
Settings
IP Network Setting
Select whether the
device
IP address will use the static IP address specified in the IP Address
field or be obtained automatically when the device connects to a DHCP server.
IP
A
ddress
The
IP Address of this device.
IP Subnet Mask
The
IP
Subnet Mask of this device.
Default Gateway
The Default Gateway of this device. Leave it blank if you are unsure of this setting.
Primary / Secondary
DNS
The
primary
/ second
ary
DNS address
for this
device
.
30
6.3 Spanning Tree Setting
This page allows you to modify the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops in
your LAN network.
Spanning Tree
Spanning Tree S
tatus
Enable or disable the Spanning Tree function.
Bridge Hello Time
Specify Bridge Hello Time, in seconds. This value determine
s
how
often the
device
sends
handshake packets to communicate information about the topology throughout the entire
Bridged Local Area Network.
Bridge Max Age
Specify Bridge Max Age, in seconds. If another bridge in the spanning tree does not send a
hello packet for a long period of time, it is assumed to be dead.
Bridge Forward Delay
Specify Bridge Forward Delay, in seconds. Fo
rwarding delay tim
e
is the time spent in each of
the Listening and Learning states before the Forwarding state is entered. This delay is provided
so that when a new bridge comes onto a busy network, it analyzes data traffic before
participating.
Priority
Specify the Priority N
umber.
A s
maller number has greater priority.
Accept / Cancel
Click
Accept
to confirm the changes or
Cancel
to cancel and return previous settings.
31
7 Wireless
7.1 Wireless Network

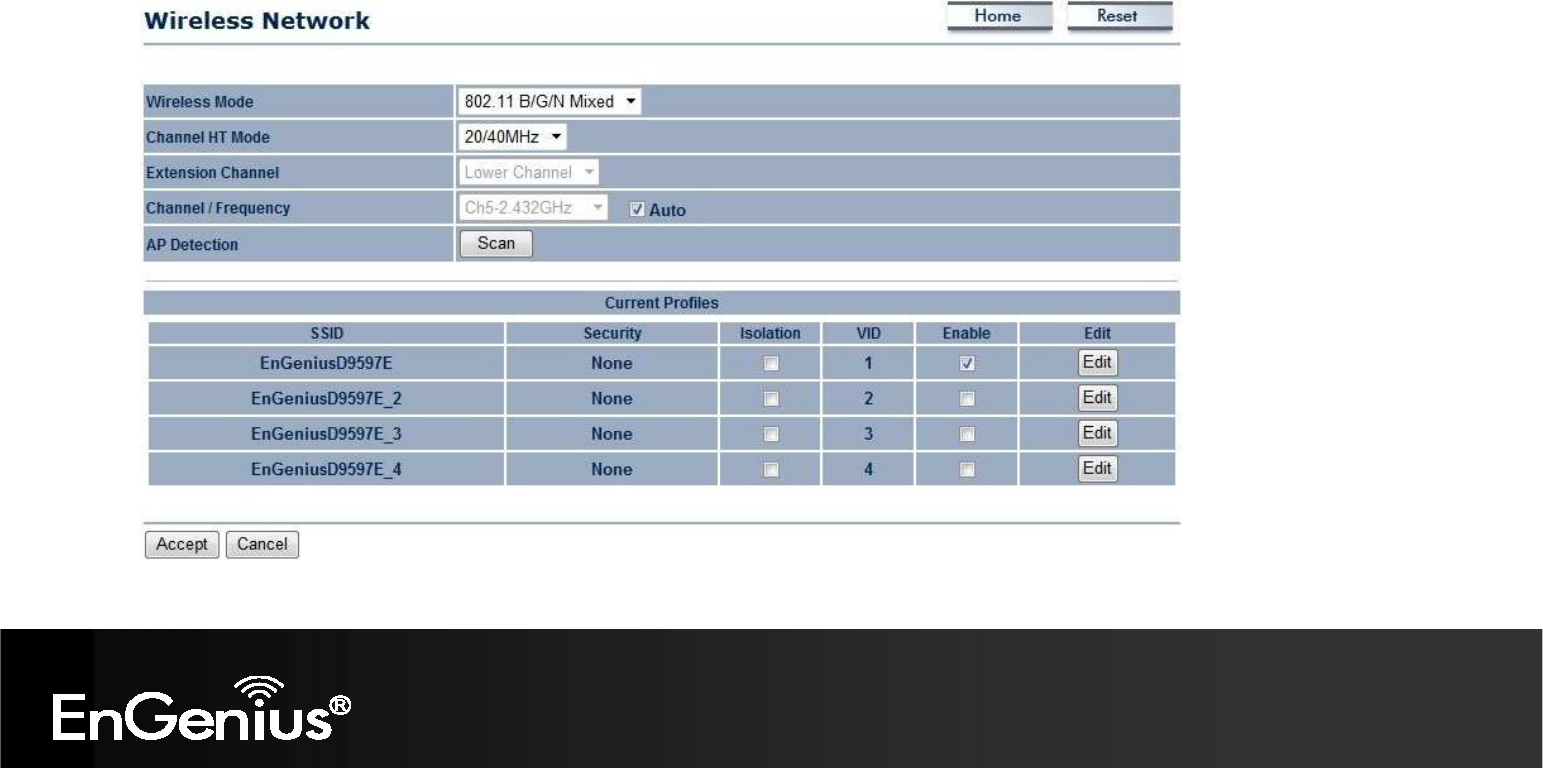

This page displays the current status of the Wireless settings of the ERA150.
Access Point:
32
Wireless Network
(Access Point
mode)
Wireless Mode
Wireless mode supports 802.11b/g
/n mixed mode
.
Channel HT Mode
The default channel bandwidth is
20/
40MHz. The larger the channel, the better the transmission
quality and speed.
Extension Channel
Select upper or lower channel. Your selection may affect the Auto
channel function.
Channel / Frequency
Select the channel and frequency appropriate for your country’s regulation
.
Auto
Check this option to enable auto
-
cha
nnel selection.
AP Detection
AP Detection can select the best channel to use by scanning nearby areas for Access Points.
Current Profile
Configure up to four different SSIDs. If many client devices will be accessing the network, you
can arrange the devices into SSID groups. Click Edit to configure the profile and check whether
you want to enable extra SSID.
Accept / Cancel
Click
Accept
to confirm the changes or
Cancel
to cancel and return previous settings.
33

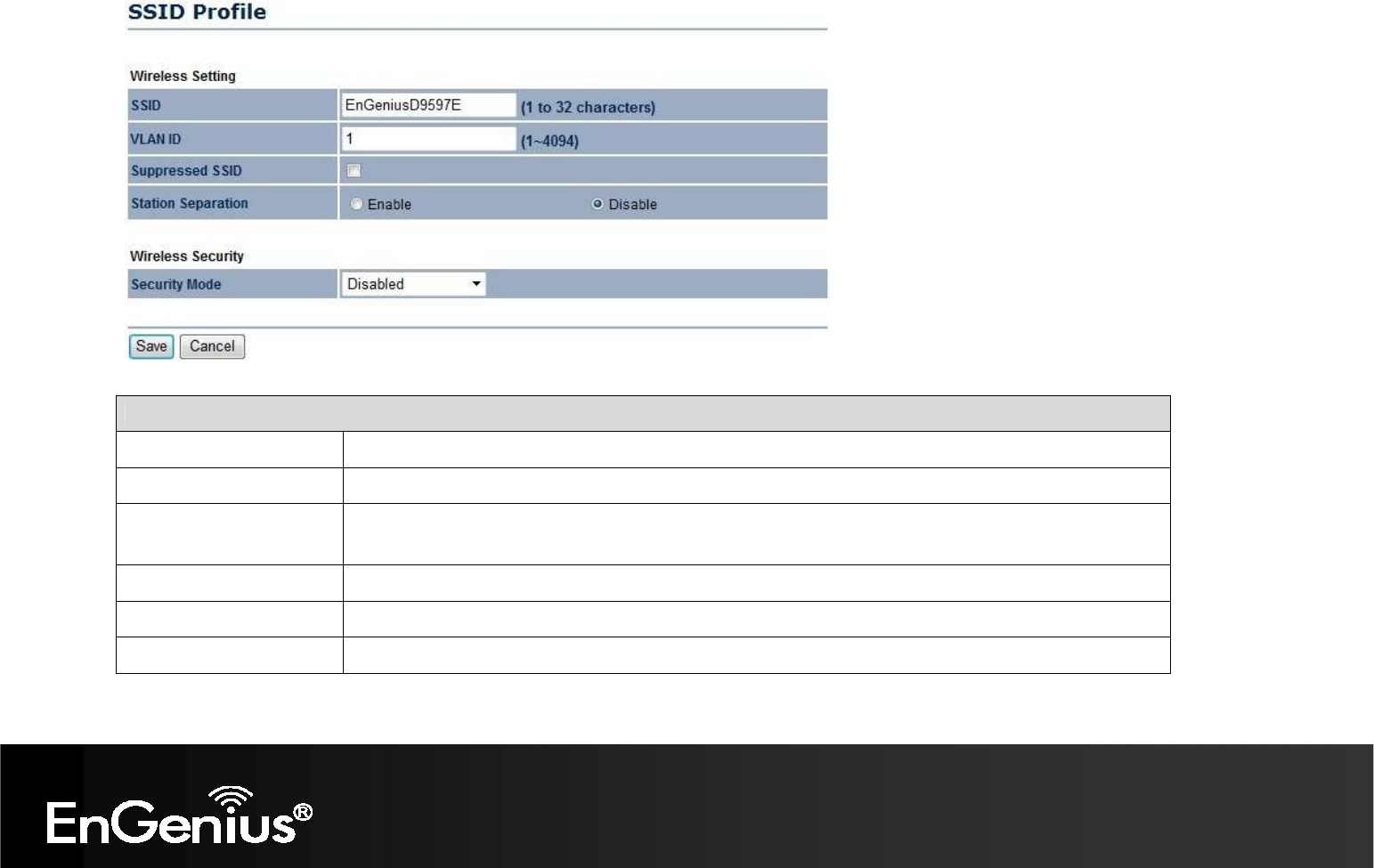

SSID Profile
SSID Profile
S
SID
Specify the SSID for the current profile.
VLAN ID
Specify the VLAN tag for the current profile.
Suppressed SSID
Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site
survey.
Station Separation
Click the ap
propriate radio button to allow or prevent communication between client devices.
Wireless Security
See the Wireless Security section.
Save / Cancel
Click
Save
to accept the changes or
Cancel
to cancel and return previous settings.
34

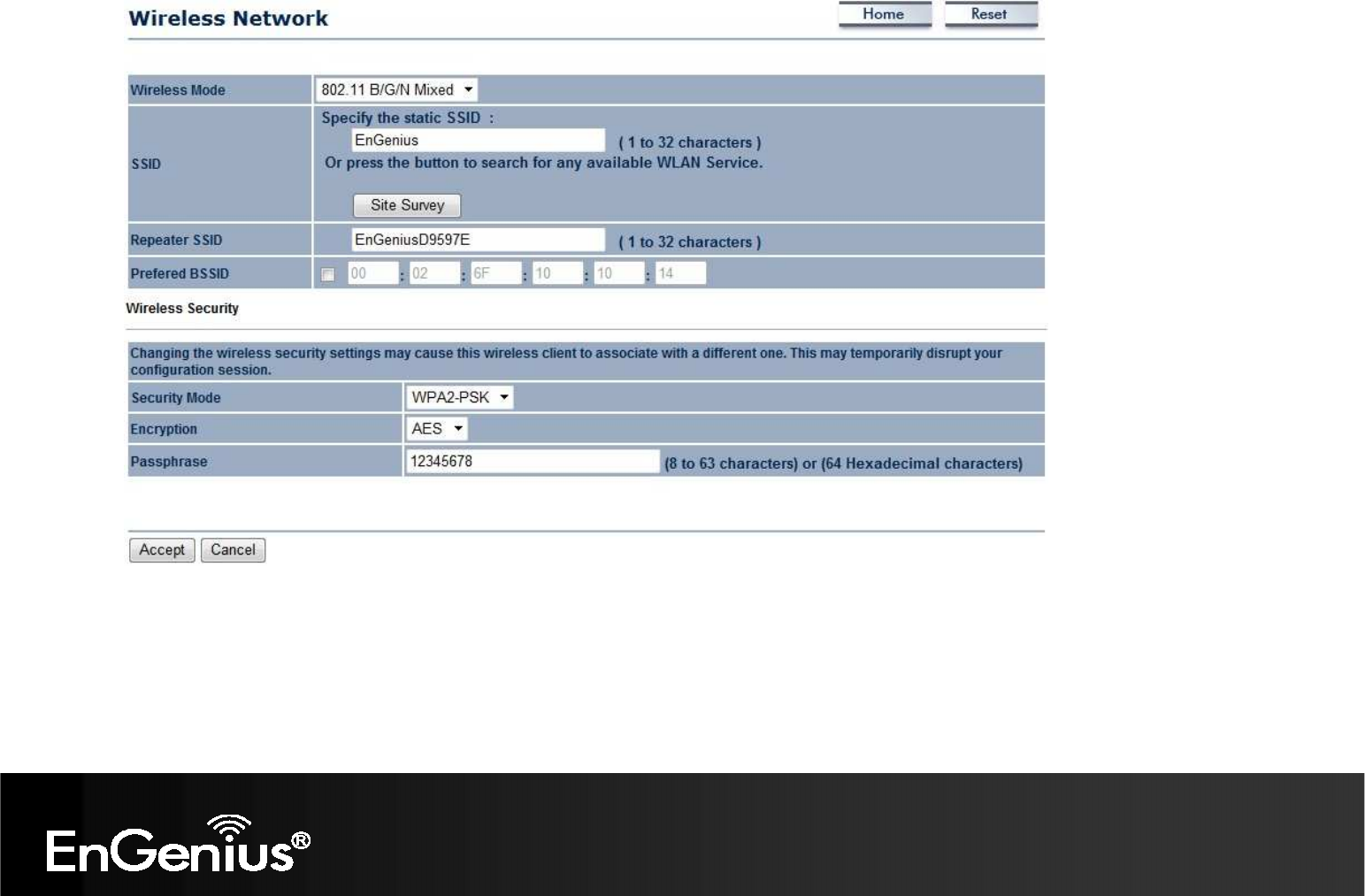

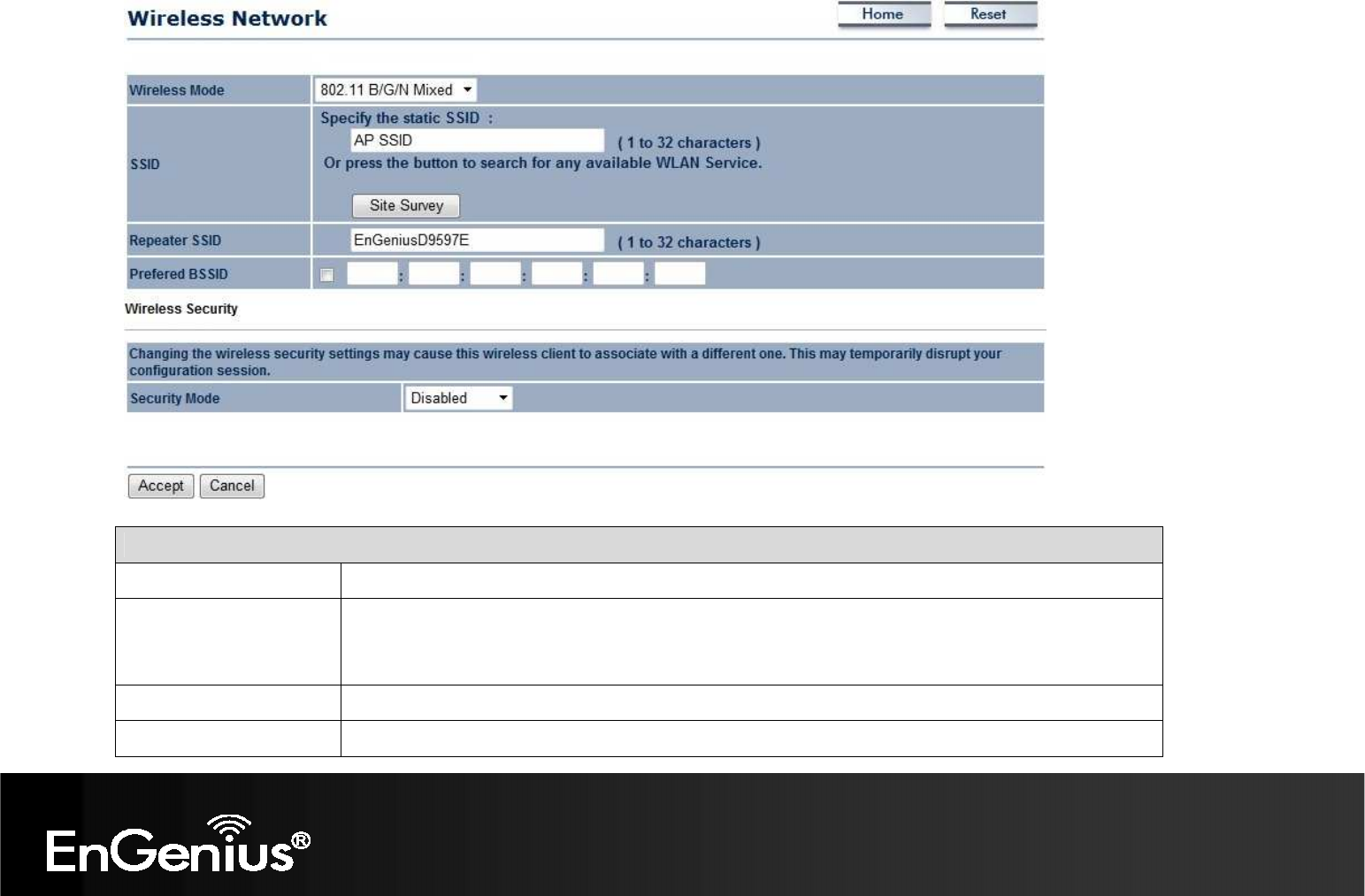

Repeater mode:
W

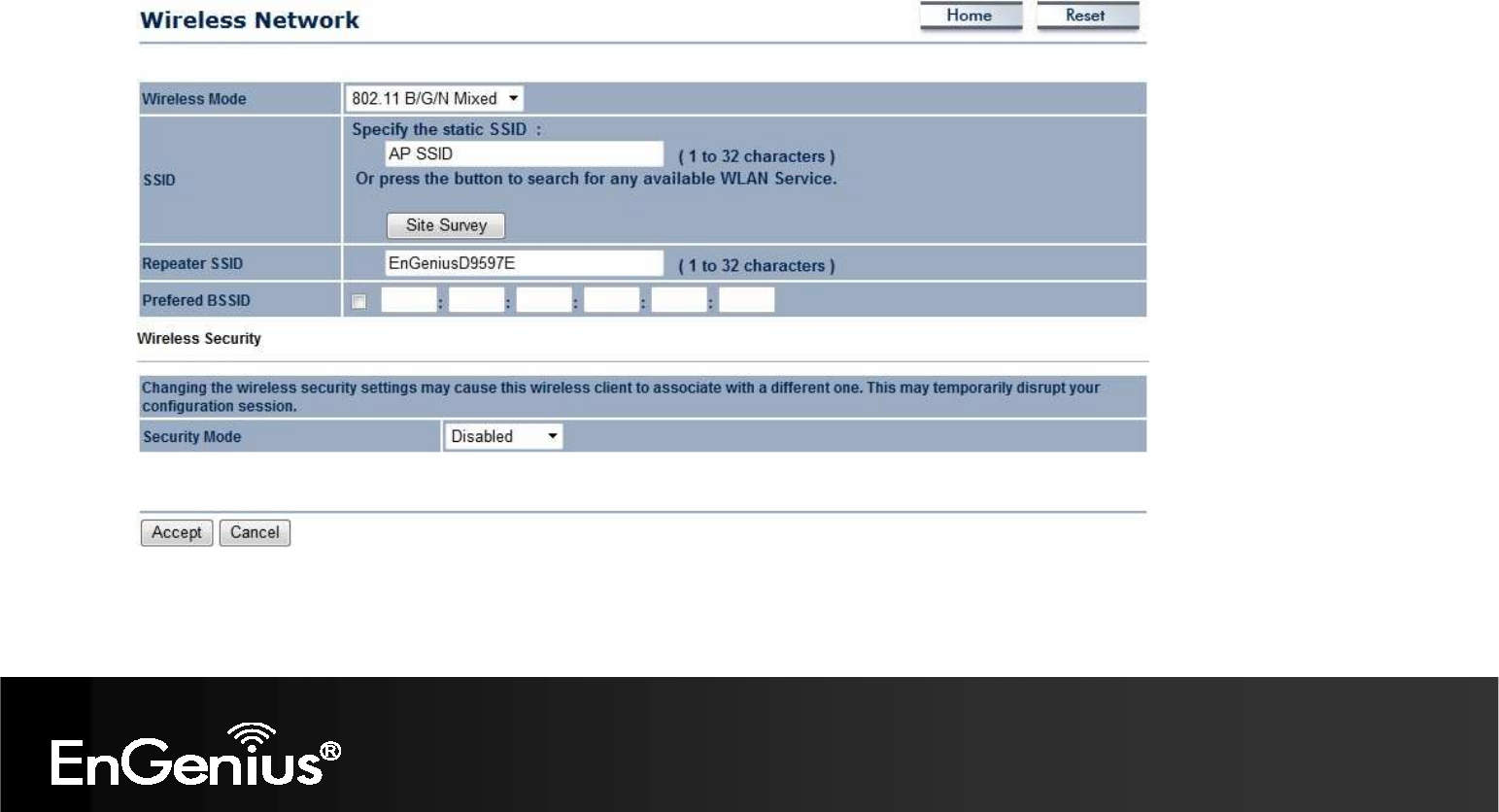

ireless Network (Repeater mode)
Wireless Mode
Wireless mode supports 802.11b/g
/n mixed mode
.
SSID
The SSID is a unique named shared amongst all the points of the wireless network. The SSID
must be identical on all points of the wireless network and cannot exceed 32 characters. You
may specify an SSID or select one from the Site Survey.
Site Survey
Click on
Site Survey
to search the existing Access Points
.
Repeater BSSID
Specify
the SSID for the
repeater
.
It can be different from Access Point
’
s SSID.
35
Pr
eferred
BSSID
Specify the BSSID (Access Point
’
s MAC
A
ddress).
Wireless Security
The encryption is using. It must the same as Access Point
’
s encryption.
Accept / Cancel
Click
Accept
to confirm the changes or
Cancel
to cancel and return previous settings.
36

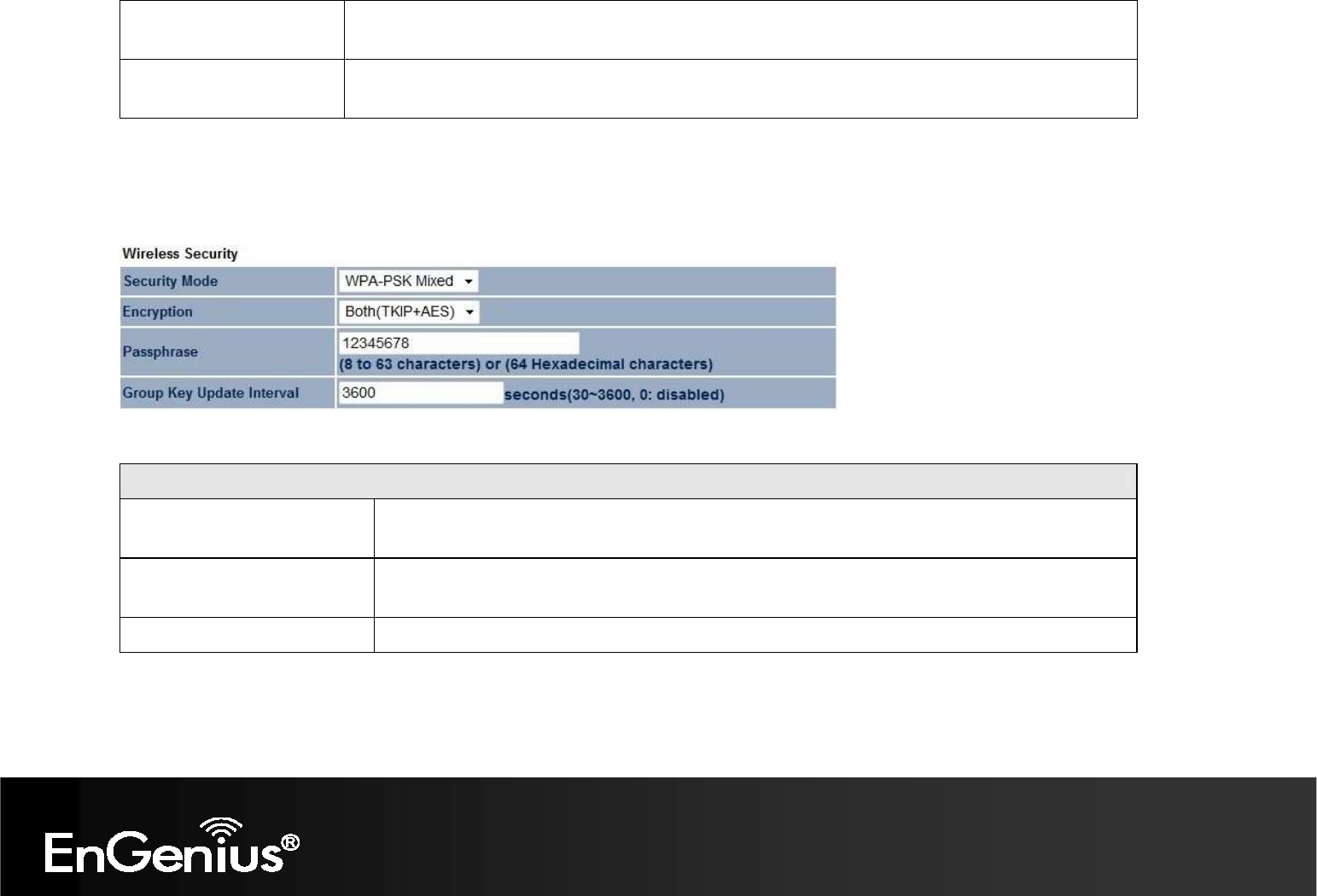

7.2 Wireless Security

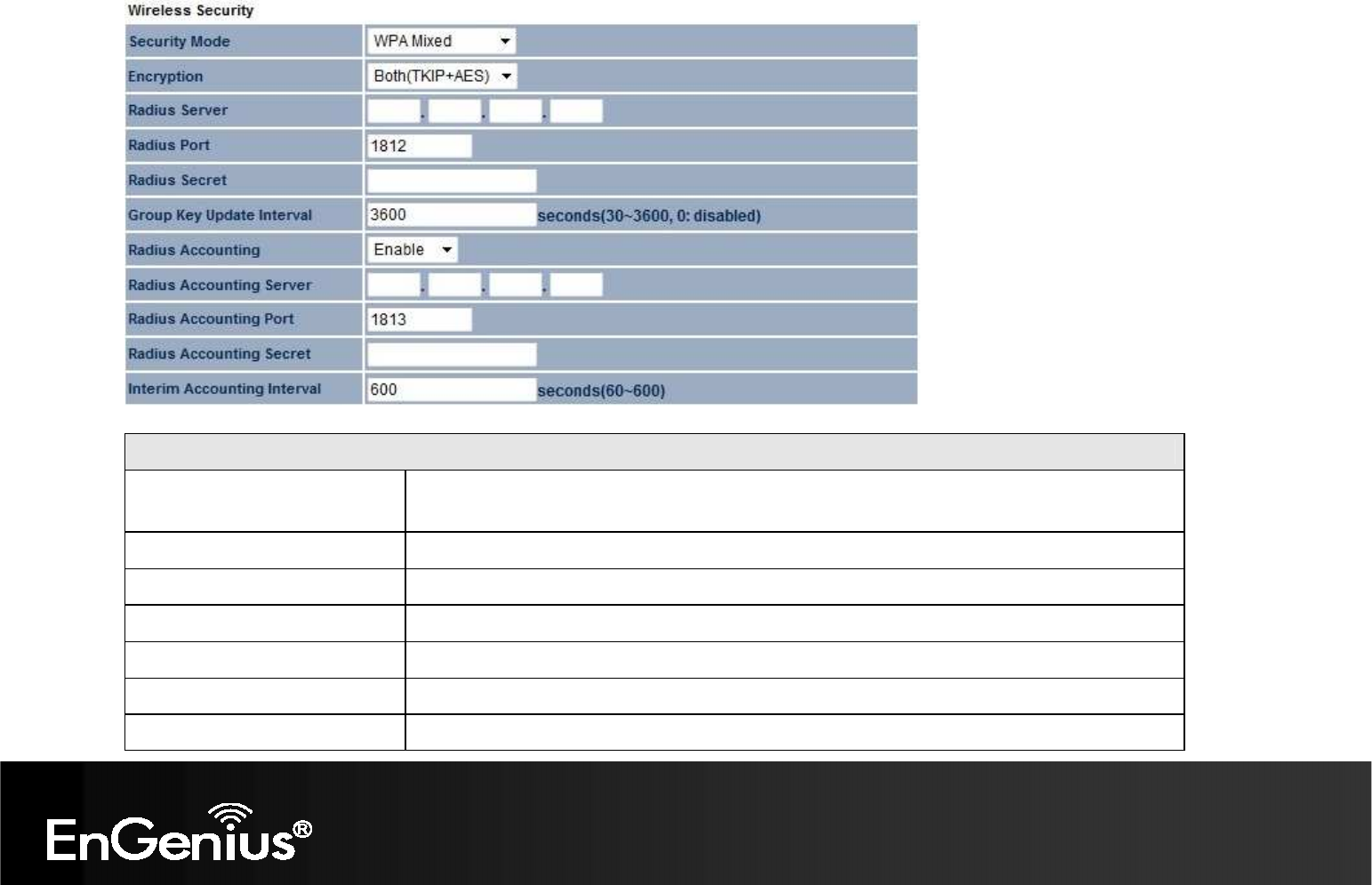

The Wireless Security section lets you configure the ERA150's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed,
WPA, WPA2, and WPA Mixed. It is strongly recommend to use WPA2-PSK.

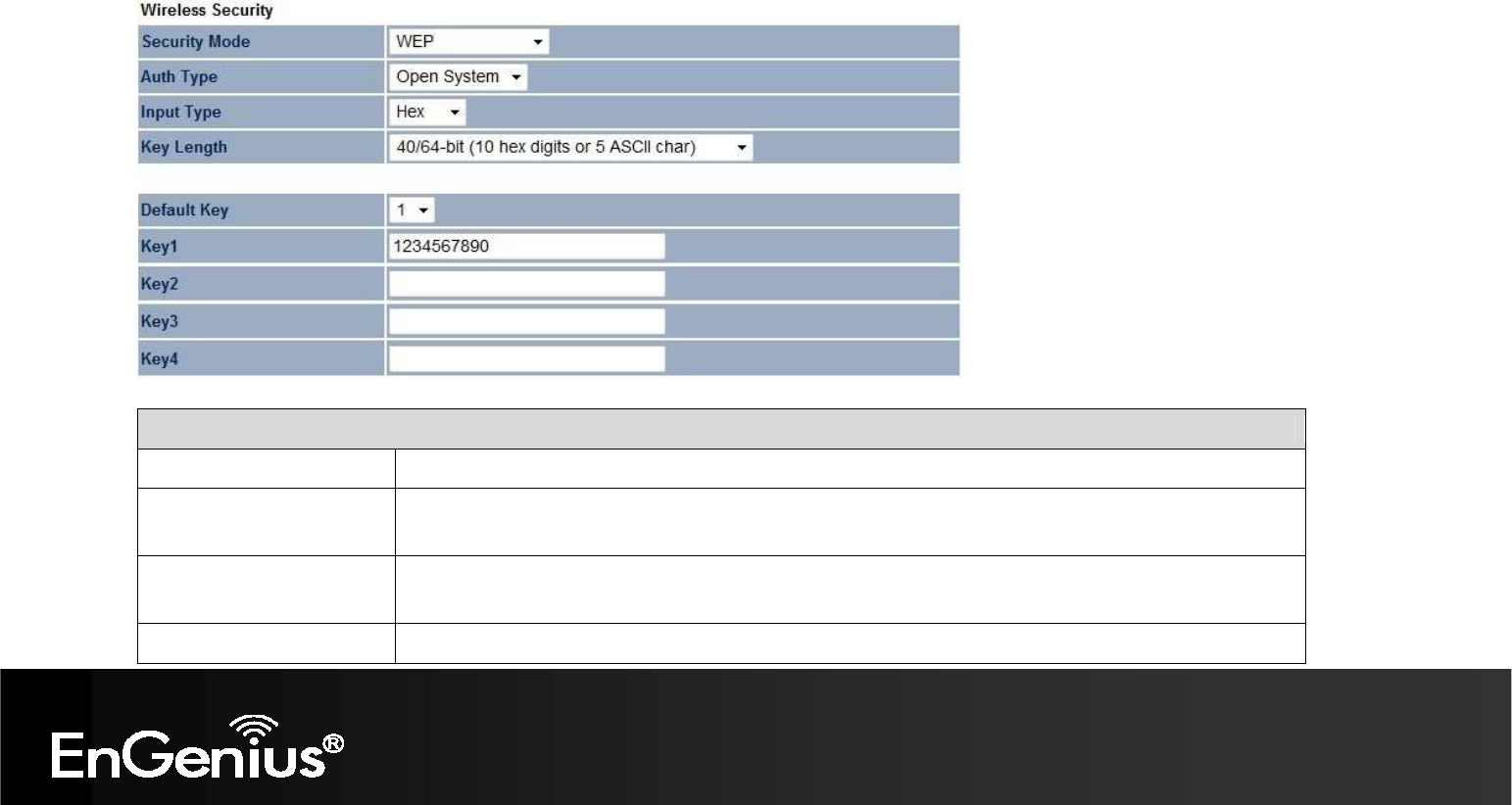

WEP Encryption:
WEP Encryption
Auth
Type
Select
Open System
or
Shared
Key
.
Input
type
ASCII
: Regular T
ext (recommended)
HEX: Hexadecimal Numbers (For advanced users)
Key Length
Select the desired option
and ensure the wireless clients use the same setting.
Choices are 64, 128, 152-bit password lengths.
Default Key
Se
lect the key you wish to be
default. Transmitted data is ALWAYS encrypted using the Default
37
Key; the other Keys are for decryption only.
You must enter a Key Value for the Default Key.
Encryption Key #
Enter the key value or values you wish to use. Only the Key selected as Default is required. The
others are optional.
WPA-PSK (WPA Pre-Shared Key) Encryption:
WPA
-
PSK (
WPA Pre
-
Shared Key
)
Encryption
Encryption
Select the WPA encryption
type
you wo
uld like.
Please ensure that your wireless clients use the same settings.
P
assphrase
Wireless clients must use the same key to associate the device.
If using passphrase format, the Key must be from 8 to 63 characters in length.
Group Key Update
I
nterval
Specify how often, in seconds, the group key changes.
38
WPA Encryption: Only in Access Point mode
WPA
Encryption
Encryption
Select the WPA encryption
type
you would like.
Please ensure that your wireless clients use the same settings.
R
adius
Server
Enter the IP address of the R
adius
s
erver
.
R
adius
Port
Enter the port number used for connections to the R
adius
server.
R
adius
Secret
Enter the
secret
required to connect to the R
adius
server.
Group Key Update
I
nterval
Specify how often, in seconds, th
e group key changes.
Radius Accounting
Enable or disable accounting feature.
Radius Accounting Server
Enter the IP address of the R
adius
accounting s
erver
.
39
Radius Accounting Port
Enter the port number used for connections to the R
adius
accounting
server
.
R
adius
Accounting Secret
Enter the
secret
required to connect to the R
adius
accounting
server.
Interim Accounting I
nterval
Specify how often, i
n seconds,
the accounting data sends
.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The connection mode will automatically change from
802.11n to 802.11g.
40
7.3 Site Survey
Use this feature to scan nearby Access Points.
Note: Only applicable in Repeater modes.
1. Click Site Survey.
41

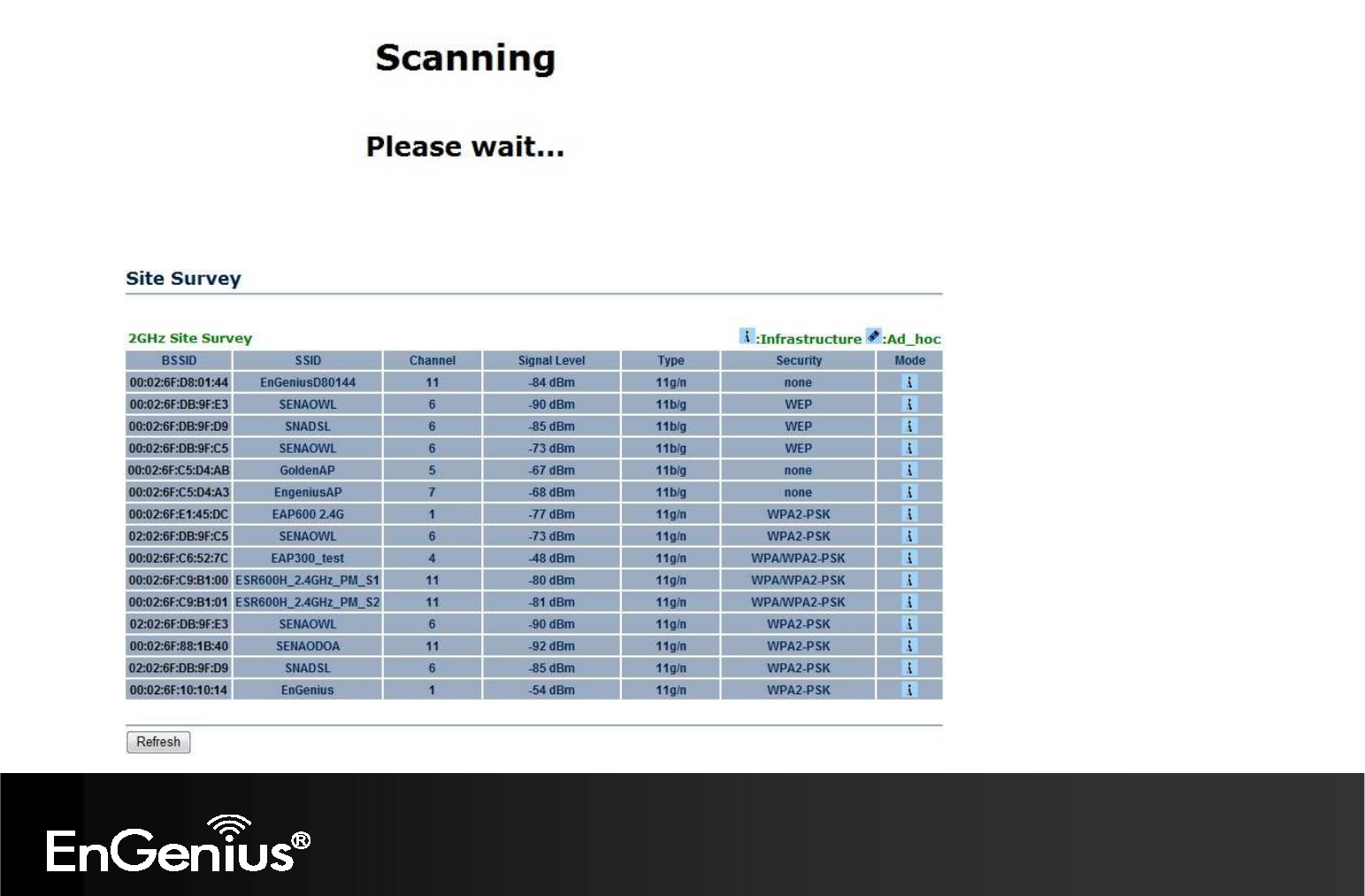

2. Scanning the nearby Access Points
3. The ERA150 will list the available access points after site survey.

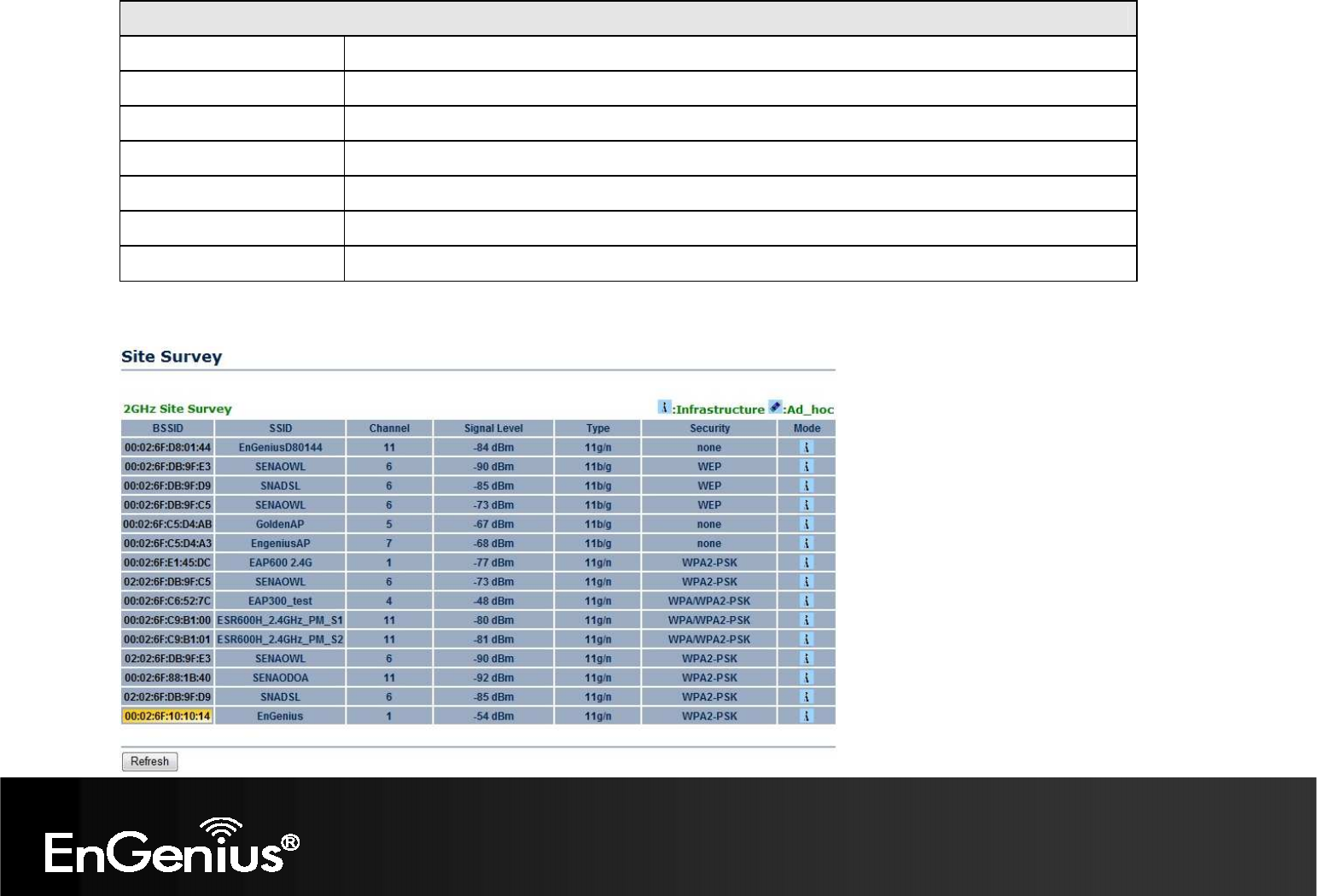

42
Site Survey (Repeater mode)
BSSID
Access Point's wireless MAC address.
SSID
SSID that the Access Point is broadcasting.
Channel
Channel that the Access Point is using.
Signal Level (dB
m)
Signal strength from the Access Point to your station.
Type
The band that the Access Point is using.
Security
Encryption method that the Access Point is using to secure data over the WLAN.
Refresh
Click
Refresh
to rescan nearby Access Point.
4. Select an Access Point and click that Access Point’s BSSID.
43
5. Enter the correct security setting.
44

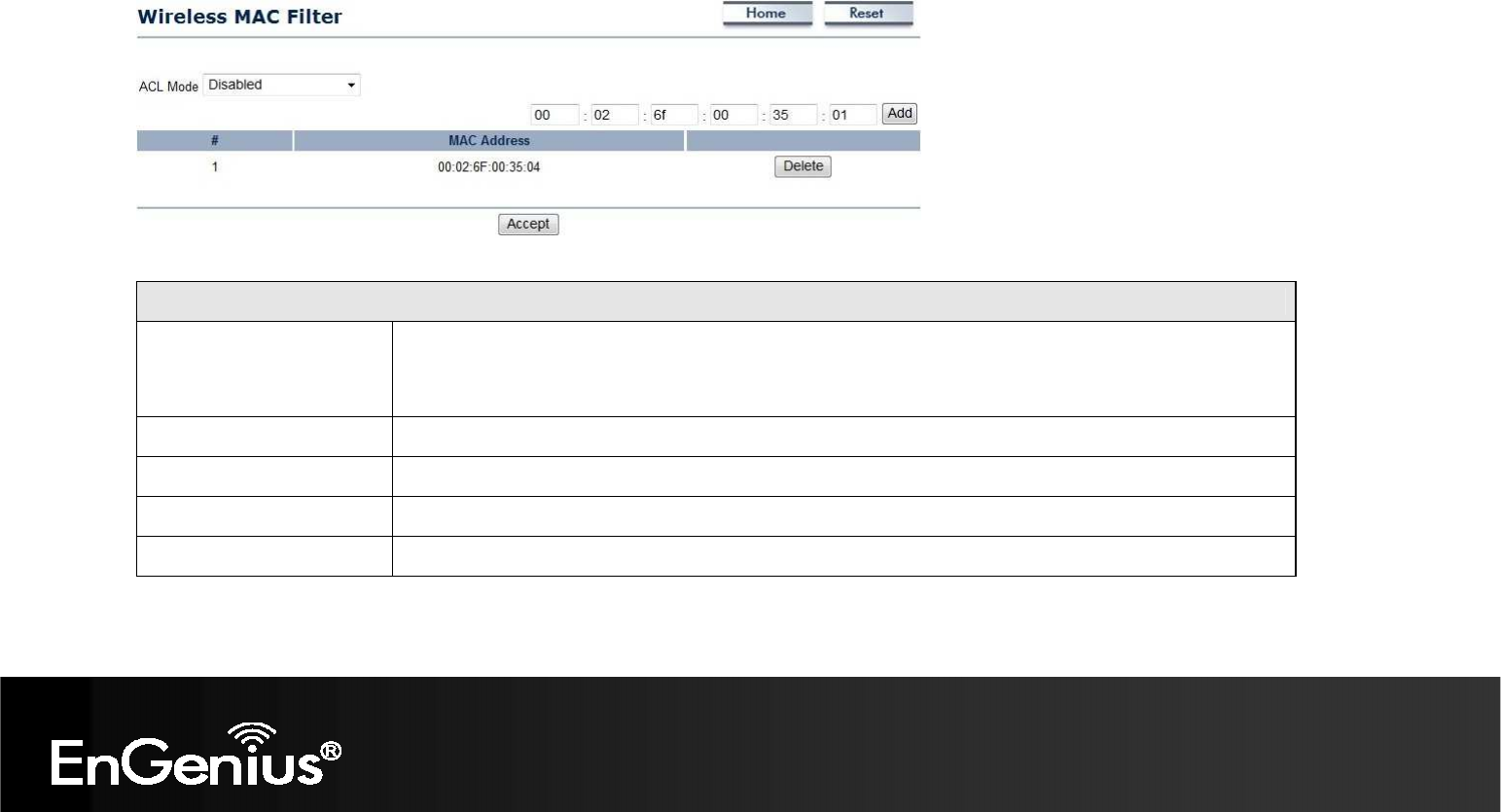

7.4 Wireless MAC Filter
Wireless MAC Filters are used to allow or deny network access to wireless clients according to their MAC addresses. You
can manually add a MAC address to restrict the permission to access ERA150. The default setting is Disable Wireless MAC
Filter.
Wireless Filter
ACL Mode
Determines whether network access is granted or denied to clients whose MAC addresses
appear in the MAC Address table on this page. Choices are: Disabled, Deny MAC in the list, or
Allow MAC in the list
.
MAC Address
Enter the MAC address of
the wireless client
.
Add
Click
Add
to add the MAC address to the
MAC Address
table.
Delete
Delete the selected entries.
App
ly
Click Apply to apply the changes.
45
7.5 Wireless Advanced
This page allows you to configure wireless advance settings. It is recommended that the default settings are used unless
the user has experience with more advanced networking features.
46
Wireless A
dvanced

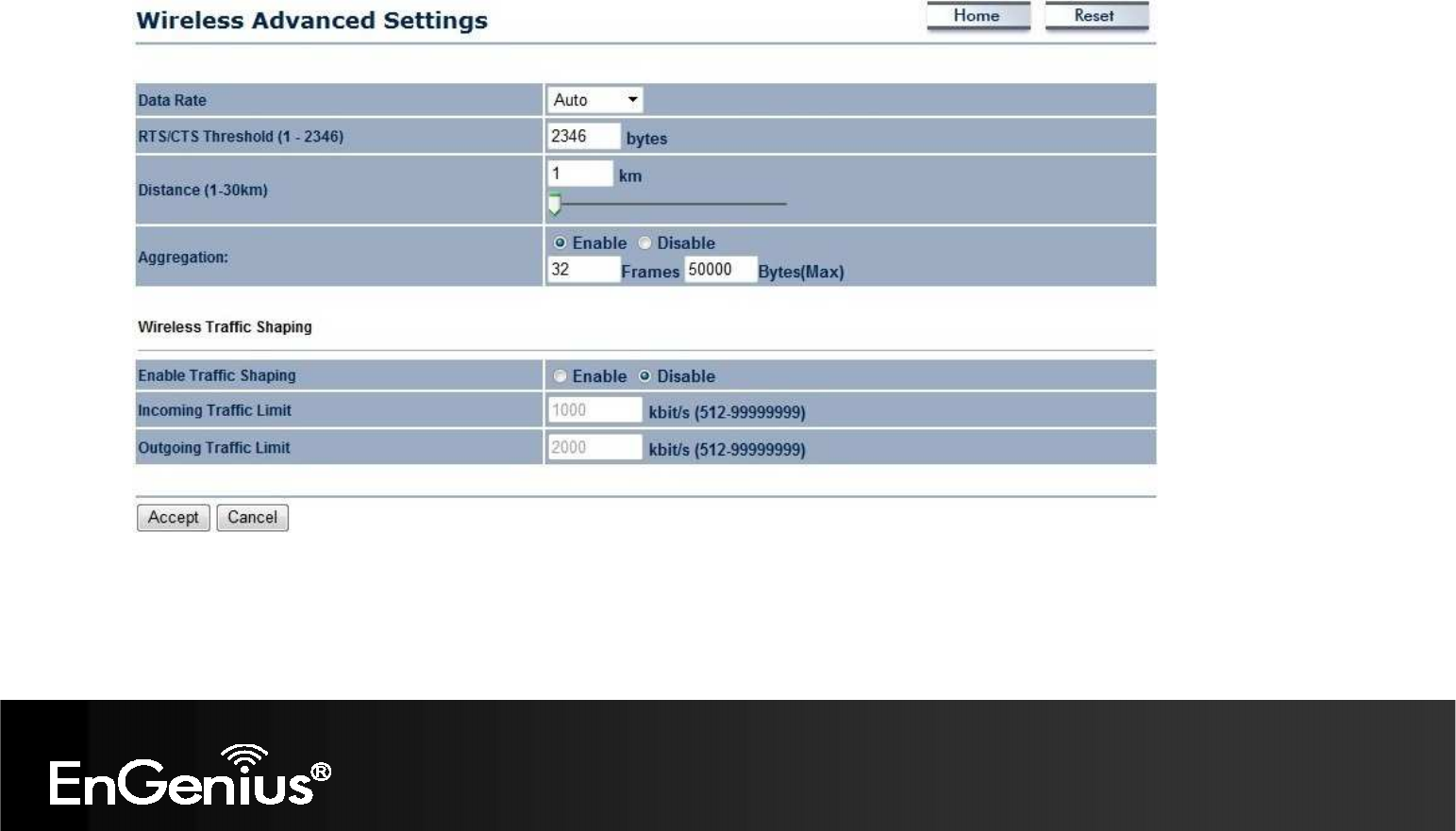

Data Rate
Select a data rate from the drop
-
down list. The data rate affects throughput
of data in the
ERA150
.
The lower the data rate, the throughput will be lower, but so will the transmission distance.
RTS
/CTS
Threshold
S
pecify the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Distance
Specify the distance between Access Points and clients. Longer distances may drop high
-
speed
connections.
Agg
regation
Merges data packets into one packet. This option reduces the number of packets, but increases
packet sizes.
Wireless Traffic
Shaping
Check this option to enable wireless traffic shaping. Traffic shaping regulates the flow of packets
leaving an interface to deliver improved Quality of Service.
Incoming Traffic Limit
Specify the wireless transmission speed used for downloading.
Outgoing Traffic Limit
Specify the wireless transmission speed used for uploading.
Accept / Cancel
Click
Accept
to confi
rm the changes or
Cancel
to cancel and return previous settings.
47
7.6 WPS (Wi-Fi Protected Setup)
Wi-Fi Protected Setup (WPS) feature is following the Wi-Fi Alliance WPS standard and it eases the set up of security-
enabled Wi-Fi networks in the home and small office environment.
It reduces the user steps required to configure a network and supports two methods that are familiar to most consumers
to configure a network and enable security.
Note: Only applicable in Access Point mode.
48
Wi
-
Fi Protecte
d Setup (WPS)

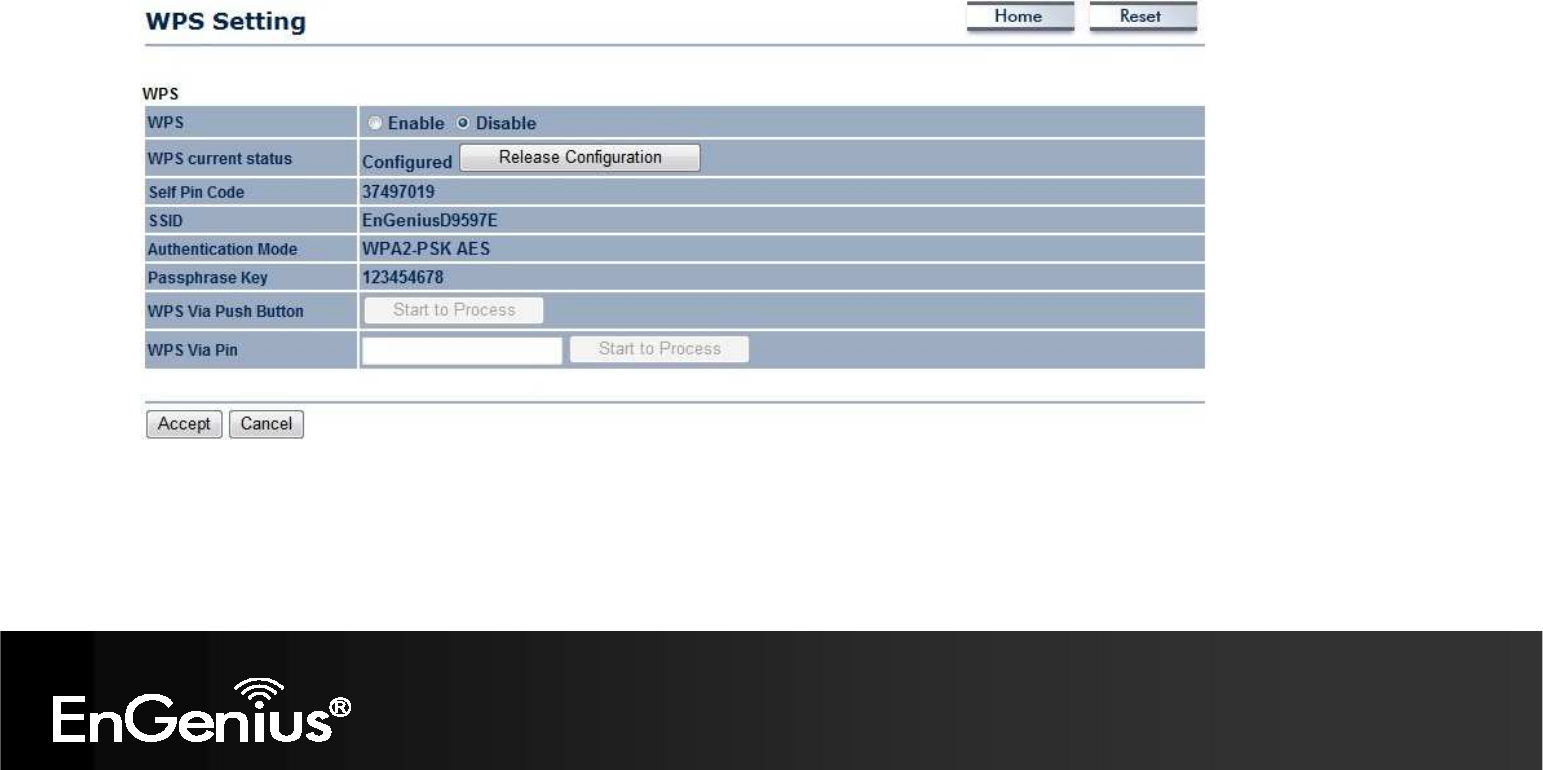

WPS
Select
to
Enable
or Disable
the WPS feature.
WPS Current Status
Shows whether the WPS function is
Configured
or
u
n
C
onfigured
.
When it is Configured, the WPS has been used to authorize connection between the device and
wireless clients.
Self Pin Code
The PIN code of this device.
SSID
The SSID (wireless network name) used when connecting using WPS.
Authentication Mode
Shows the encryption method used by the WPS process.
Passphrase Key
This is the passphrase key that is randomly genera
ted during the WPS process. It is required if
wireless clients that do not support WPS attempts to connect to the wireless network.
WPS v
ia Push Button
Click this button to initialize WPS feature using the push button method.
WPS v
ia
PIN
Enter
the PIN co
de of the wireless device and
c
lick this button to initialize WPS feature using the
PIN method.
49
8 Management
8.1 Administration
This page allows you to change the ERA150 password as well as configure the device by remote access. By default, the
username is admin and the password is: admin. The password can contain 0 to 12 alphanumeric characters and is case
sensitive.
Login Setting
New
Name
Enter a new username for lo
gging in to the New Name entry box
.
New
Password
Ente
r a new password for lo
gging in to the
New
Password entry box
.
Confirm
Password
Re
-
enter the new
password in the Confirm Password entry box
for confirmation.
Save/Apply / Cancel
Click
Save/Apply
to apply the changes or
Cancel
to return previous settings.
Logout
Click
Logout
to
logout
of
the ERA150
interface
.
50
8.2 Management VLAN
This page allows you to assign a VLAN tag to the packets. A VLAN is a group of computers on a network whose software
has been configured so to behave as if they were on a separate Local Area Network (LAN). Computers on a VLAN do not
have to be physically located next to one another on the LAN.
Note: Only applicable in Access Point mode.
Management VLAN
(Only
applicable
in Access Point mode)
Management VLAN ID
If your network in
cludes VLANs
, you can specify a VLAN ID for packets
pass through t
he Access
Point with a tag. Otherwise, select
No VLAN tag
.
Accept / Cancel
Click
Accept
to confirm the changes or
Cancel
to cancel and return previous settings.
Note:
1. If you reconfigure the Management VLAN ID, you may lose your connection to the ERA150. Verify that the DHCP server supports the
reconfigured VLAN ID and then reconnect to the ERA150 using the new IP address.
2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see section 5.1).
51
8.3 SNMP Settings
This page allows you to assign the Contact Details, Location, Community Name, and Trap Settings for Simple Network
Management Protocol (SNMP). This is a networking management protocol used to monitor network attached devices.
SNMP allows messages (called protocol data units) to be sent to various parts of the network. Upon receiving these
messages, SNMP compatible devices (called agents) return the data stored in their Management Information Bases.
52

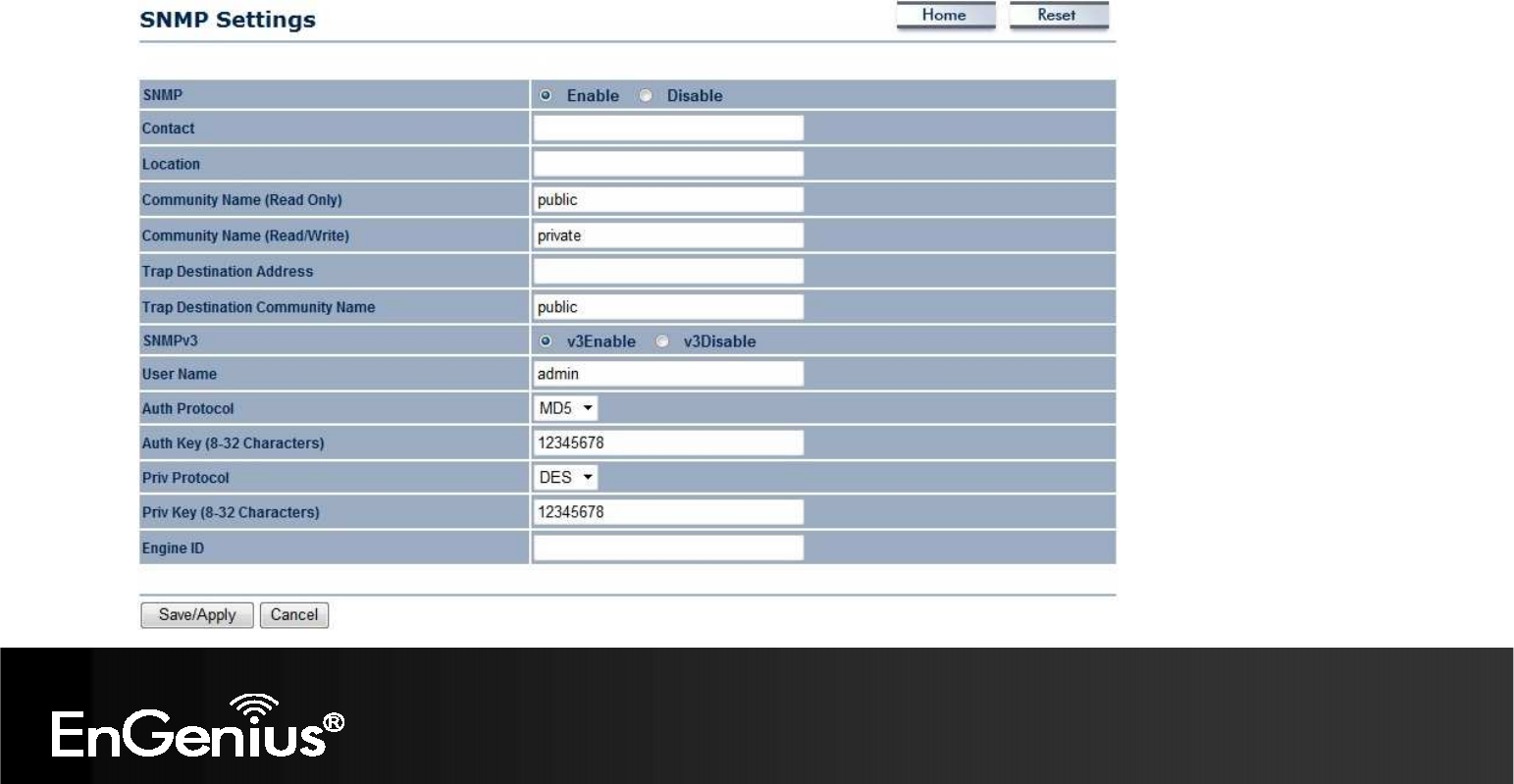

SNMP
SNMP Enable/Disable
Enable or
D
isable SNMP feature.
Contact
Specify the contact details of the device
Location
Specify the location of the device.
Community Name (Read Only)
Specify the password for
the SNMP community for read only
access.
Community Name
(Read/Write)
Specify the password for
the SNMP community with read/write access.
Trap
Trap Destination
Address
Specify the IP address of the computer that will receive the SNMP traps.
Trap Destination Community
Name
Specify the
password for the SNMP trap community.
SNMPv3
SNMPv3 Enable/Disable
Enable or
D
isable SNMPv3 feature.
User Name
Specify the username for SNMPv3.
Auth Protocol
Select the
authentication protocol
type:
MD
5
or
SHA
.
Auth Key
Specify the
authentication key
for
authentication
.
Priv Protocol
Select the privacy
protocol
type:
DES
.
Priv Key
Specify the
privacy key
for
privacy
.
Engine ID
Specify the engine ID for SNMPv3.
Save/Apply / Cancel
Click
Save/Apply
to apply the changes or
Cancel
to return previous se
ttings.
53
8.4 Backup/Restore
This page allows you to save the current device configurations. When you save the configurations, you also can reload the
saved configurations into the device through the Restore Saved Settings from A File section. If extreme problems occur, or
if the you have set the ERA150 wrongly, you can use the Factory Default button in the Revert to Factory Default Settings
section to restore all the configurations of the ERA150 to the original default settings.

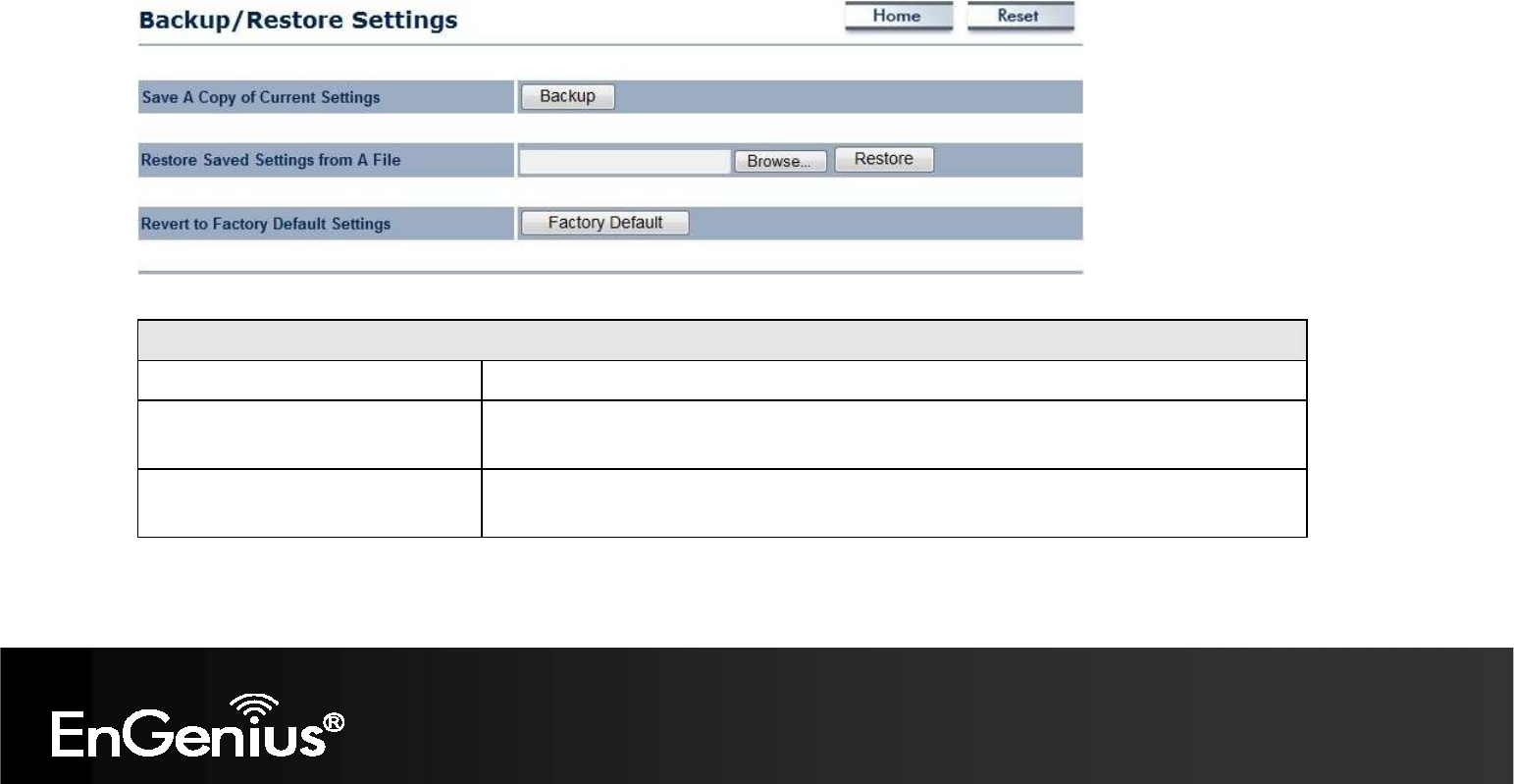

Backup/Restore
Save A Copy of Current Settings
Click
Backup
to save the current configured settings.
Restore Saved Settings from
A
File
To restore settings that have been previously backed up, click
Browse
, select the file,
and click Restore.
Revert to Factory Default
Settings
Click
Factory Default
button to restore the
ERA150
to its factory default settings.
54

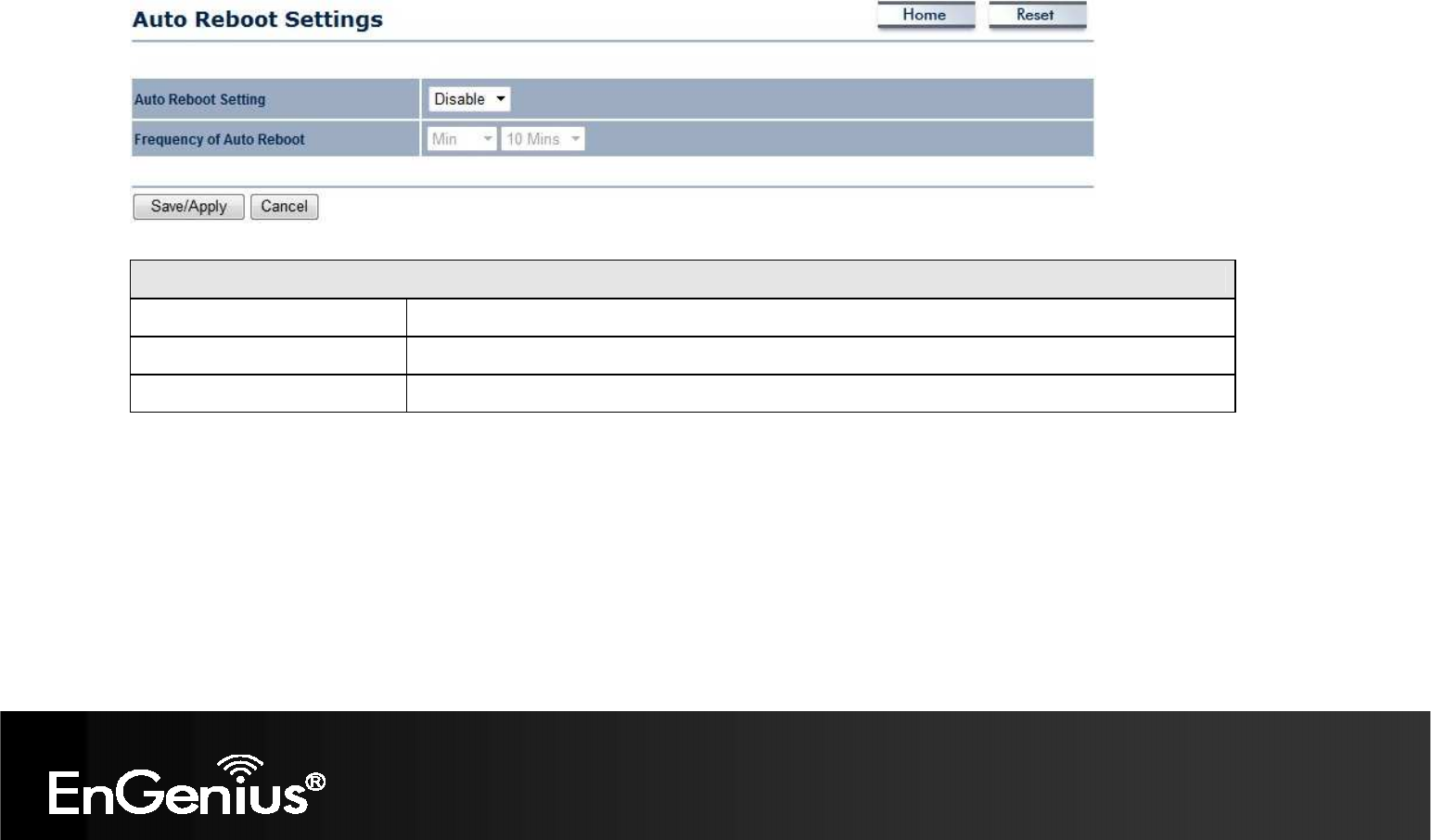

8.5 Auto Reboot Settings
You can specify how long to reboot the ERA150 periodically.
Auto Reboot Settings
Auto Reboot Setting
Enable
or disable the
auto reboot
function.
Frequency of Auto Reboot
T
o specify the time to reboot the E
RA150
by Min, Hour, Day or Week.
Save/Apply / Cancel
Click
Save/Apply
to apply the changes or
Cancel
to return previous settings.
55
8.6 Firmware Upgrade
This page allows you to upgrade the firmware of the ERA150.
To perform the Firmware Upgrade:
1. Click the Browse button and navigate the OS File System to the location of the upgrade file.
2. Select the upgrade file. The name of the file will appear in the Upgrade File field.
3. Click the Upload button to commence the firmware upgrade.
Note: The device is unavailable during the upgrade process and must restart when the upgrade is completed. Any connections to or through the
device will be lost.
56

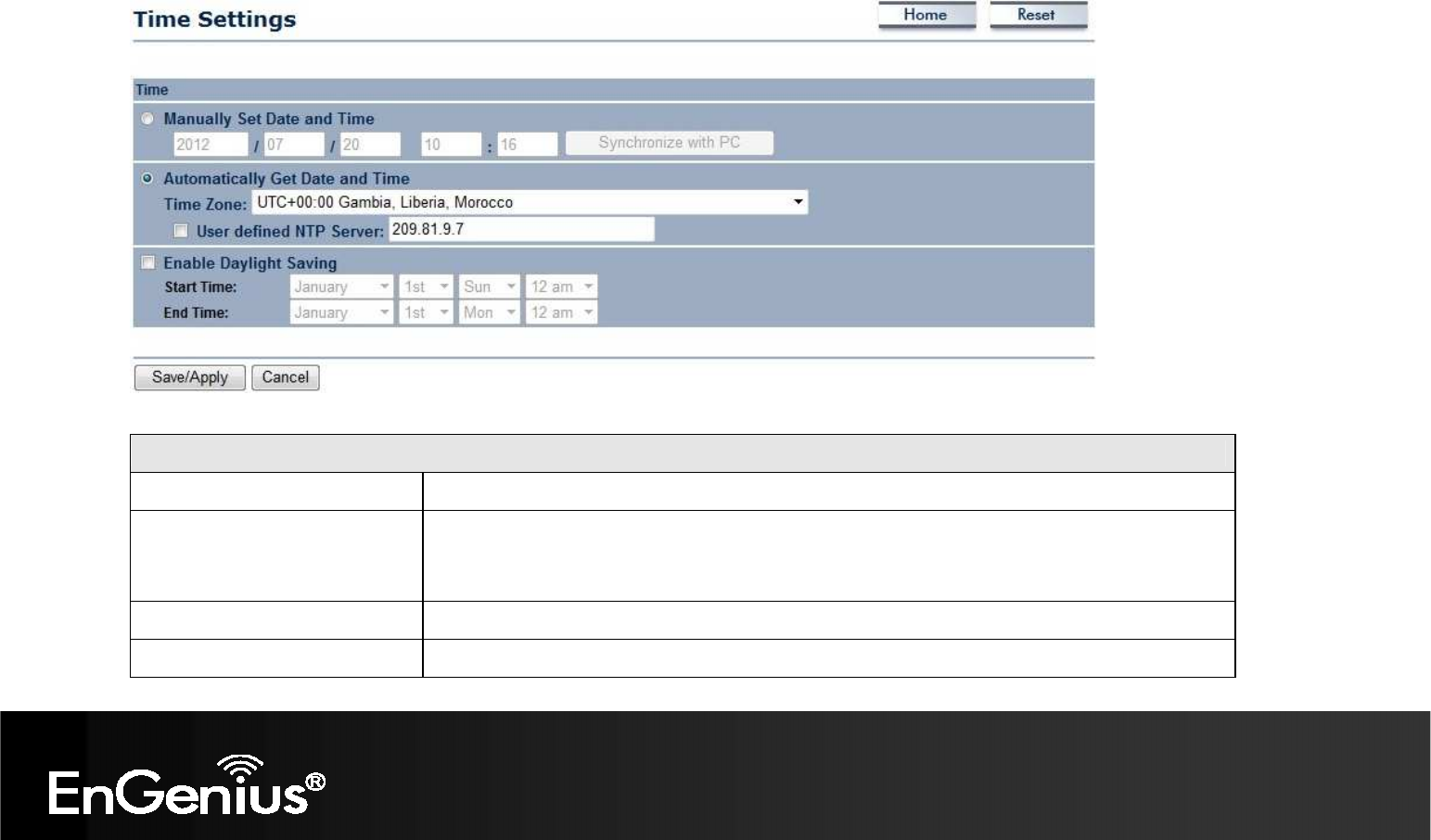

8.7 Time Setting
This page allows you to set the internal clock of the ERA150.
Time
Manually Set Date and Time
Manually specify the date and time
.
Automatically Get Date and
Time
Select a time zone from the drop
-
down list and check whether you want
to enter the IP
address of an NTP server or use the default NTP server to get have the internal clock set
automatically.
Enable Daylight Saving
Check whether daylight savings applies to your area.
Save/Apply / Cancel
Click
Save/Apply
to apply the change
s or
Cancel
to return previous settings.
57
8.8 Wifi Schedule

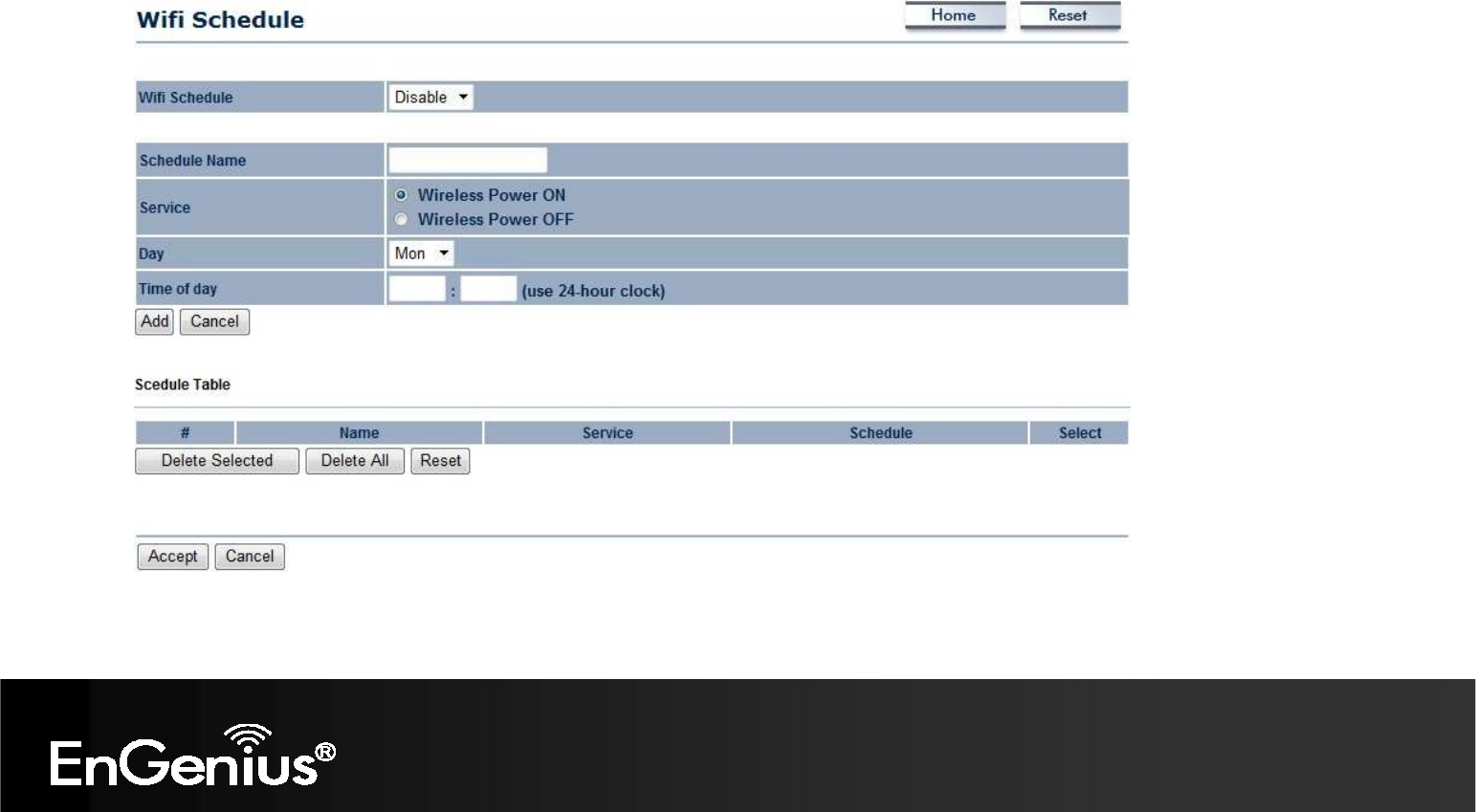

This page allows you to setup Wifi Schedule function of the ERA150. You can set a schedule when the ERA150’s Wireless is
on or off.
Note: Only applicable in Access Point mode.
58
Wifi
Schedule
W
ifi
Schedule
Select to Enable or Disable the Wifi schedule feature.
Default is Disable.
Schedule
Name
Assign a name to the schedule.
Service
The service
(Wireless Power ON /OFF)
provided for the schedule.
Day
Se
lec
t which day the
Wifi
schedule will be a
ctive.
Time of day
Se
t what time of the selected day
the
Wifi
schedule will be active.
Add/Cancel
Click Add to
new schedule
or Cancel to return previous settings.
Schedule
Table
#
The entry number of the schedule.
Name
The name given to the schedule.
Service
Displays whether the wireless service will be activate or not during the scheduled time.
Schedule
Displays when the schedule will execute.
Delete Selected
Delete the selected entries.
Delete All
Delete all entries.
Reset
Deselect all entries.
Accept/Cancel
Click
Accept
to confirm the changes or
Cancel
to cancel and return previous settings.
59
8.9 CLI Setting
This page allows you to setup CLI (Command Line Interface) function of the ERA150.
60
8.10 Log
This page allows you to setup Syslog and local log functions of the ERA150.
Log
Syslog
Enable or disable the
syslog function.
Log Server IP Address
Enter the IP address of the log server.
Local Log
Enable or disable the local log service.
Save/Apply / Cancel
Click
Save/Apply
to apply the cha
nges or
Cancel
to return previous settings.
61
8.11 Diagnostics

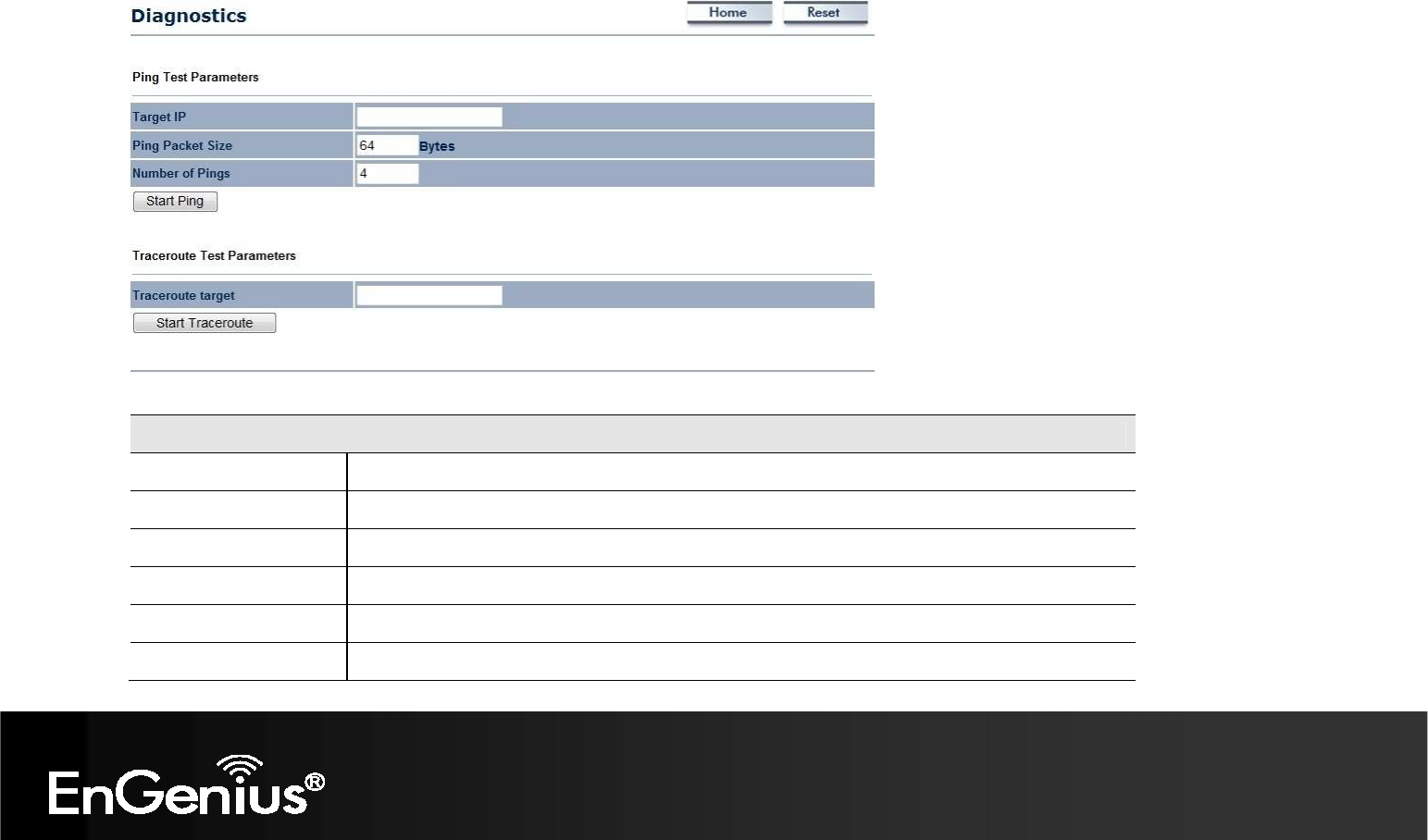

This page allows you to analyze the connection quality of the ERA150 and trace the routing table to a target in the
network.
Diagnosi
tics
Target IP
Enter the IP address you w
ould like to search.
Ping Packet Size
Enter the packet size of each ping.
Number of Pings
Enter the number of times you want to ping.
Start Ping
Click
Start Ping
to begin pinging
target device (via IP)
.
Traceroute Target
Enter an IP address or domain n
ame you want to trace.
Start Traceroute
Click
Start Traceroute
to begin the trace route operation.
62
8.12 Logout

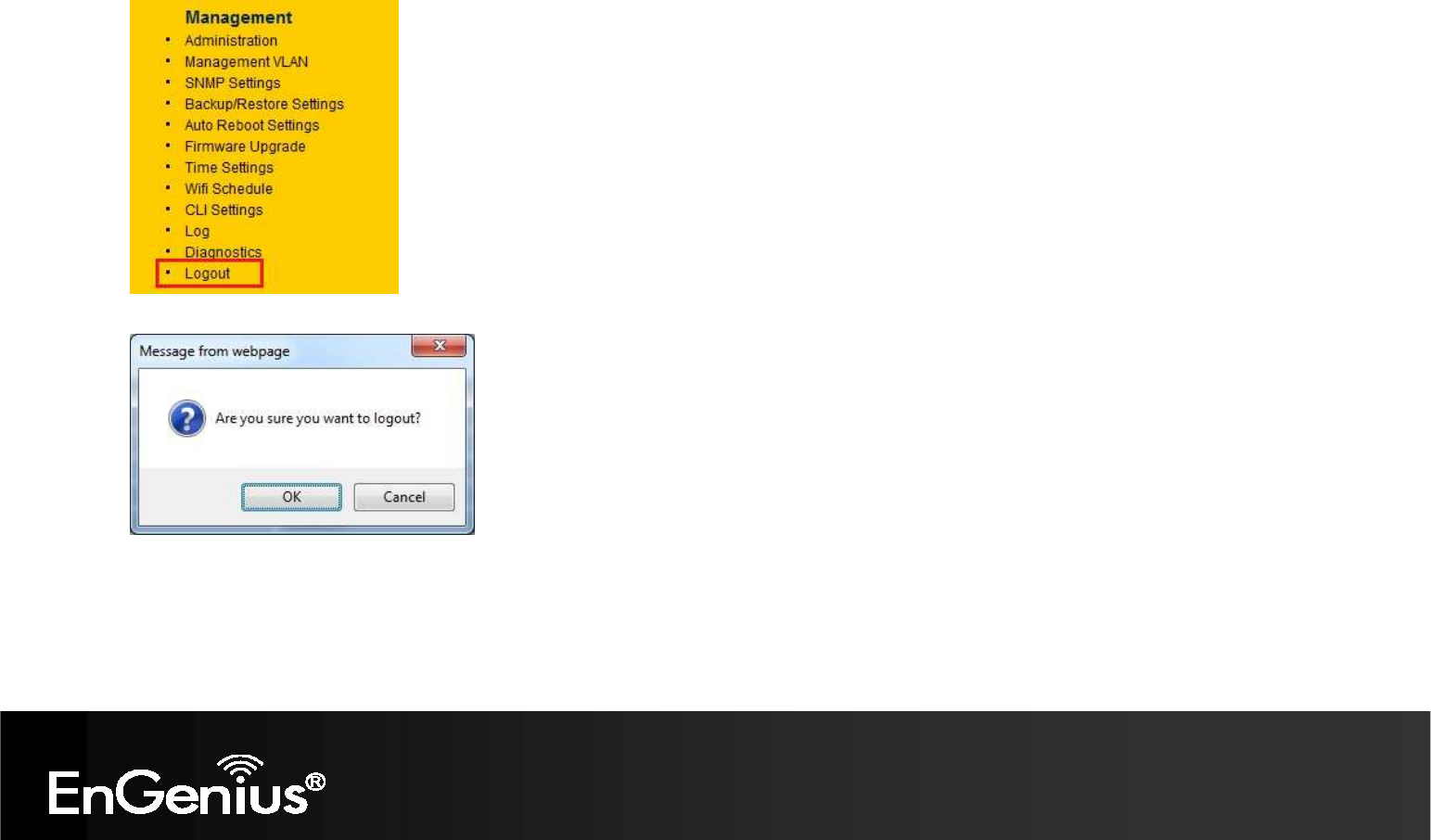

Click Logout in the Management menu to logout of the ERA150 interface.
63

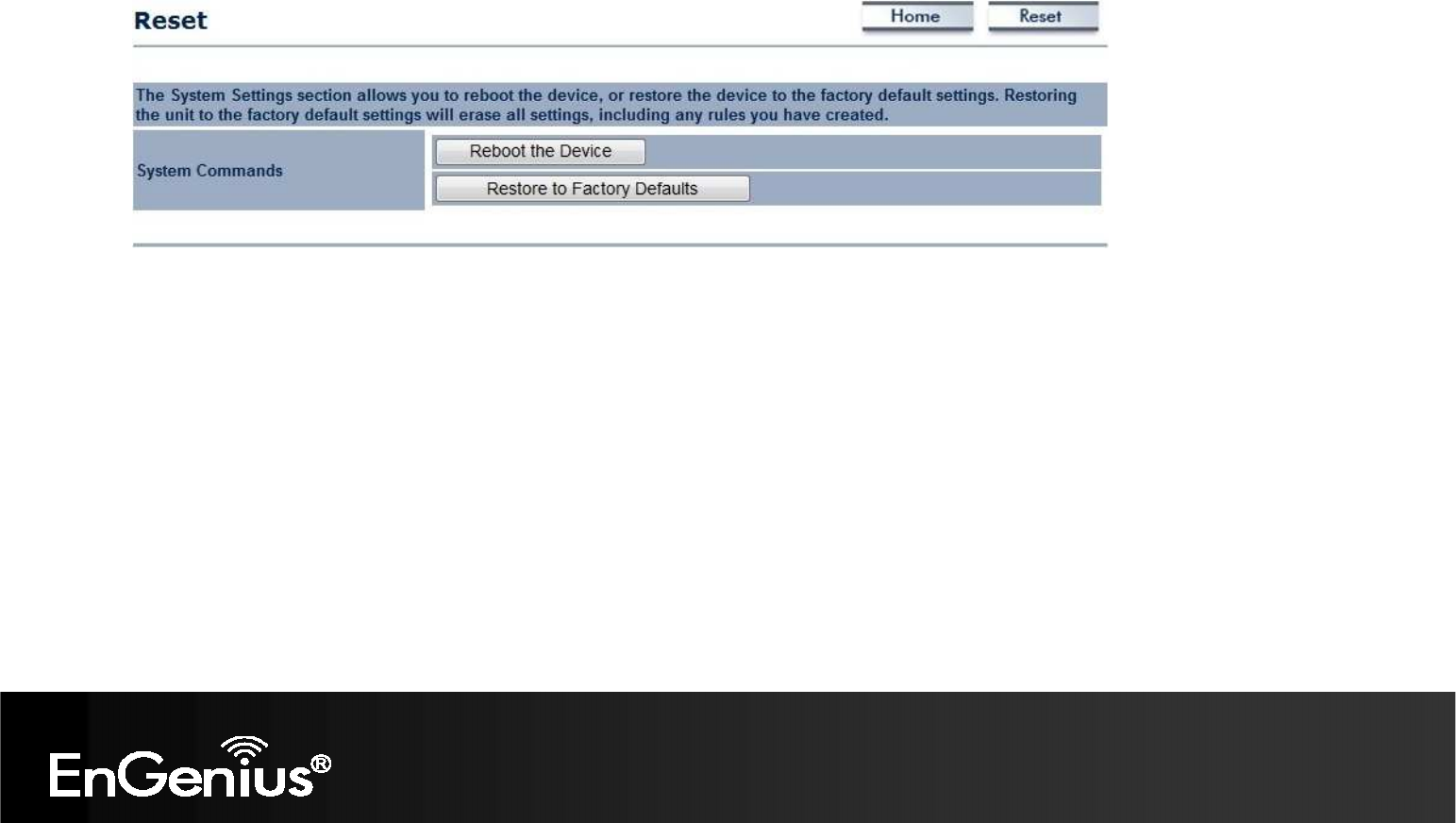

8.13 Reset
In some circumstances, it may be required to force the device to reboot. Click on Reboot the Device to reboot the
ERA150.
64
Appendix A – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US
must fixed to US operation channels only.
65
Appendix B – IC Interference Statement
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet
aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu,
y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
NOTE IMPORTANTE:
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps.
This device has been designed to operate with a diople antenna have a maximum gain of [5] dB. Antenna having a higher gain is strictly prohibited
per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for
the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de diople antenne avec dB [5]. Une antenne à gain plus élevé
est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne requise est de 50 ohms.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d'un type et d'un gain
66
maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l'intention
des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire àl'établissement d'une communication satisfaisante.
67
Appendix C – CE Interference Statement
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to
prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN60950-1
- Safety of Information Technology Equipment
- EN50385
- Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to
electromagnetic fields (0 Hz - 300 GHz)
- EN 300 328
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in
the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of
the R&TTE Directive
- EN 301 489-1
- Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
- EN 301 489-17
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France
and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to telecommunications and/or network services.
68
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
0560
Česky [Czech]
[Jméno výrobce]
tímto prohlašuje, že tento
[typ zařízení]
je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Da
nsk [Danish]
Undertegnede
[fabrikantens navn]
erklærer herved, at følgende udstyr
[udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung
mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti [Estonian]
Käesolevaga kinnitab
[tootja nimi =
n
ame of manufacturer]
seadme
[seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby,
[name of manufacturer]
, declares that this
[type of equipment]
is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]
Por medio de la presente
[nombre del fabricante]
declara que el
[clase de eq
uipo]
cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ
[name of manufacturer]
∆ΗΛΩΝΕΙ ΟΤΙ
[type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ
ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente
[nom du fabricant]
déclare que l'appareil
[type d'appareil]
est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]
Con la presente
[nome del costruttore]
dichiara che questo
[tipo di apparecchio]
è conforme
ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
69
Latviski [Latvian]
Ar šo
[name of manufacturer
/ izgatavotāja nosaukums]
deklarē, ka
[type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių [Lithuanian]
Šiuo
[manufacturer name]
deklaruoja, kad šis
[equipment type]
atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]
Hierbij verklaart
[naam van de fabrikant]
dat het toestel
[type van toestel]
in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti [Maltese]
Hawnhekk,
[
i
sem tal
m
anifattur]
, jiddikjara li dan
[il
-
mudel
tal
-
prodott]
jikkonforma mal
ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]
Alulírott,
[
gyártó neve
]
n
yilatkozom, hogy a
[
... típus
]
megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym
[nazwa producen
ta]
oświadcza, że
[nazwa wyrobu]
jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]
[Nome do fa
bricante]
declara que este
[tipo de equipamento]
está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]
[Meno výrobcu]
týmto vyhlasuje, že
[
typ zariadenia
]
spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]
[Valmistaja
=
manufacturer]
vakuut
taa täten että
[type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish]
Härmed intygar
[företag]
att denna
[utrustningstyp]
står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.

Navigation menu
