User Manual

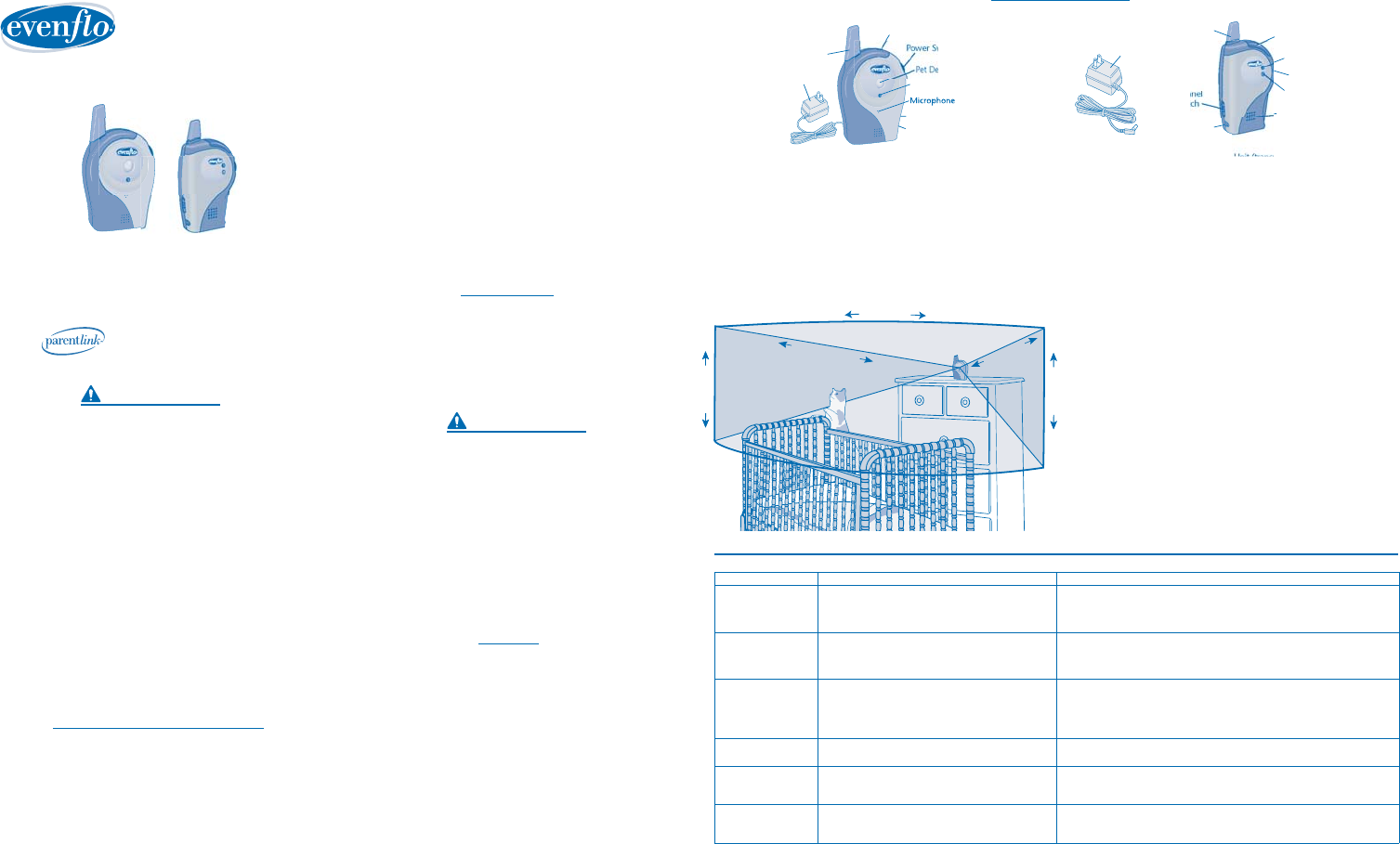

The Parent’s Unit (Receiver)
The Parent’s Unit receives sound fr
o
m
t
h
e
Bab
y
’
s
’s
Unit
(transmitter)
and is powered by either
rechargeable batteries (already in the unit) or by the AC adapter included with the unit.
1. Ensure Parent’s Unit is charged. To charge, connect AC adapter (provided) to Parent’s Unit
and plug into standard wall outlet. To charge while monitoring, set Power/Volume Dial to
ON. A full charge requires 12 continuous hours.
2. Check the channel switch. Ensure the Baby’s Unit is set to the same channel as the
Parent’s Unit.
3. Use the Parent’s Unit in a different room from the Baby’s Unit.
4. Place the Parent’s Unit where you can easily monitor it by sight or sound.
• When using the adapter, plug it into a standard wall outlet.
• When using batteries, wear the Parent’s Unit using the belt clip or place it where you can
easily see or hear it.
5. Turn on the Parent’s Unit by rotating the Power/Volume Dial; adjust the volume. The
Power Light will glow green. If the Power Light flashes, it indicates that battery power is
low and Parent’s Unit needs to be recharged. NOTE: All sound Lights™ will light up and
flash on the Parent’s Unit if it is not properly receiving signals from the Baby’s Unit.
6. Have someone speak into the Baby’s Unit to verify sound transmission.
7. Turn the Parent’s Unit OFF when not in use.
The Baby’s Unit (Transmitter)
The Baby’s Unit is a transmitter, which sends sounds to the Parent’s Unit (receiver). It is powered
by a hardwired (non-removable) AC adapter.
1. Place the Baby’s Unit on a hard flat surface that is higher than the baby and 5 to 10 feet away
(refer to illustration).
• DO NOT place the Baby’s Unit directly above the baby.
• DO NOT place it on a soft surface or it may tip over.
2. Direct the front of the Baby’s Unit towards the baby. Be sure that there aren’t any large
objects blocking the path between the Baby’s Unit and the baby.
3. Fully extend the cord, and plug the adapter into an electrical outlet.
4. Rotate the Power Switch from OFF to ON. The Power Light will glow green.
5. Slide the Channel Switch to Channel A or B. Ensure the Baby’s Unit is set to the same
channel as the Parent’s Unit.
6. Turn Pet Detection ON or OFF, as desired.
7. Turn the Baby’s Unit OFF when not in use.
WhisperConnect
TM
Sensor
900 MHz Nursery Monitor – Pet Detection
Important: Read and keep these instructions for future reference.
Answers. Advice. Affirmation.
™
• www.evenflo.com
• USA & Canada: 1-800-233-5921
• México: 01-800-706-12-00
Thank you for purchasing the Evenflo WhisperConnect Pro Nursery Monitor. If you have any
questions or problems with your Evenflo WhisperConnect Pro Nursery Monitor please do not
return it to the store; call Evenflo’s ParentLink at 1-800-233-5921, Monday through Friday
8:00 AM to 7:00 PM EST.
Model Number: Your WhisperConnect Pro Nursery Monitor model number is 6461500.
•DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. RISK
OF ELECTRIC SHOCK. MAY CAUSE INJURY, FIRE, OR DEATH.
•DO NOT use near water.
•DO NOT place furniture on cord.
•NEVER place the baby’s unit or its adapter in the crib or playpen, or
within the child’s reach.
•DO NOT hang this monitor near or on a crib. The cord can present
a strangulation hazard.
•Always keep the unit out of children’s reach.
•DO NOT use this monitor if it is broken or missing parts.
•This product is designed and intended to be used solely to monitor
the actions of a sleeping child.
•DO NOT use this monitor with products that warn the user: “NEVER
LEAVE CHILD UNATTENDED.”
•This product does not replace responsible adult supervision of a child.
•You should check your child regularly as this product will not detect
your child’s quiet activities.
•This product is not intended to be used as a medical monitor, and its
use should not replace adult supervision.
•Make sure the Parent’s and Baby’s units are functioning properly, on
the same channel, and within reception range of each other.
•It is essential to check the sound reception regularly.
The Evenflo WhisperConnect Pro Nursery Monitor should NOT be used as a replacement for adult
supervision of children. Please note that any modification to the Baby’s Unit (transmitter) or
Parent’s Unit (receiver) will violate FCC compliance and can void the user’s authority to operate
this monitor set.
1. Read and observe all warnings on the product and in this Owner’s Manual. Pay special
attention to information marked “WARNING” and “IMPORTANT.” This information can affect
your child’s safety. Keep this Owner’s Manual nearby for quick and easy reference.
2. Avoid placement near water or moisture. DO NOT use Baby’s Unit outdoors. DO NOT use
your monitor near a bathtub, shower, sink, laundry tub, swimming pool, wet basement, or
other locations where water or moisture may result in electrocution.
3. Allow for proper ventilation of the adapters and the monitors. DO NOT place your monitor on
or under a rug, bed, sofa, blanket or similar object that blocks its ventilation. DO NOT place it
in a built-in installation such as a bookcase or stereo cabinet. These may impede the air flow
through the ventilation openings.
4. Remove the batteries from the monitor components and unplug the AC adapters if the
monitor will not be used for a long period of time.
5. Avoid placement near heat sources. DO NOT use your monitor near a radiator, stove, heat
register, or other appliance (including amplifiers and TV’s) that produce heat. Heat can damage
the case or components.
Troubleshooting Guide
NOTE: If, after checking all of the solutions below, you believe that your WhisperConnnect Parent/Baby Unit is damaged, please call ParentLink at 1-800-233-5921.
For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user
("Purchaser") this Product (including any accessories) against defects in material or workmanship. Evenflo’s
sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any
Product that is determined to be defective by Evenflo and determined to be covered by this warranty.
Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of
purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty
period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo
ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers
or end users of the Product. For warranty service, contact Evenflo’s ParentLink Consumer Resource Center at
(800) 233- 5921 or www.evenflo.com.
Limited Warranty
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY
DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR
PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS
PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS
LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY
THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND
IS HEREBY DISCLAIMED.
•Make sure BOTH units are properly plugged into the wall and the outlet is
switched on.
•Make sure both the Parent’s Unit and the Baby’s Unit are set to the same channel.
•Recharge battery by attaching the AC adapter and plugging it into an outlet.
Power Light isn’t working. Unit isn’t getting power.
•Turn off, unplug or move the device that is causing the problem.
•Move the Parent’s Unit closer to the Baby’s Unit.
•Recharge battery by attaching the AC adapter and plugging it into an outlet.
•Other household appliances, cordless phones, fluorescent lights
or motors may be disrupting the signal.
•Parent’s Unit may be out of effective range.
•Battery is weak.
Reception is poor due to
static, buzzing or
interference.
SOLUTION
POSSIBLE CAUSE
PROBLEM
•Move the Parent’s Unit at least 10 feet away from the Baby’s Unit.
•Lower the volume.
Change the frequency channel that is in use. Be sure to change the channel on BOTH units.A neighbor has a similar baby monitor, cordless phone or
walkie talkie that is transmitting sounds on the same
frequency channel.
Parent’s Unit is picking up
sounds or static from
outside your home.
Parent’s Unit is making a
loud feedback noise. •Baby’s Unit is picking up sounds from the Parent’s Unit because
they are too close to each other.
•Volume may be set too high.
Battery is weak.
Power Light flashes
(Parent’s Unit only).
Recharge battery by attaching the AC adapter and plugging it into an outlet.
•Move Parent’s Unit closer to the Baby’s Unit.
•Make sure that both units are set to the same channel.
•Turn the Power Switch on the Baby’s Unit to the ON position.
•Check the AC outlet to be sure it is working.
•Recharge battery by attaching the AC adapter and plugging it into an outlet.
All Sound Lights flash and
alarm sounds (Parent’s
Unit only).
•Parent’s Unit is outside the transmission range of the Baby’s Unit.
•Baby’s Unit and Parent’s unit are on different channels.
•Baby’s Unit is not turned on, or not plugged into a working outlet.
•Battery in Parent’s unit is weak.
WARNING WARNING
AC Adapter
Antenna
tect.
Lens
w
i
tch
Finder Button
P
et
D
etect.
ON/OFF
Power Li
g
h
t
Channel Switch
Speaker
Ada
p
ter Jac
k
Sound Lights
Power/Volume Dial
Power Light/
Low Battery Indicator
C
h
an
S
wi
t
Antenna
AC Adapter
Pet Detection Light
Important Safety Instructions
UL Listed Adapter. FCC Approved.
6. The Baby’s Unit (transmitter) is operated by a hardwired (non-removeable) AC adapter.
DO NOT attempt to remove the AC adapter; doing so can affect your safety. The Parent’s
Unit (receiver) is operated by rechargeable batteries that are included with your monitor or
by the Evenflo AC adapter (provided). Use only the Evenflo adapter included with this unit.
DO NOT use this adapter with other equipment or use other equipment s’ adapters with this
monitor under any circumstances.
7. Protect the AC adapter cords. Route cords so they are not walked on, pinched by items
placed upon them, or run-over by vacuum cleaners.
8. DO NOT immerse any component in water. Clean the monitor with a dry cloth.
9. DO NOT use near fluorescent lights, appliances with motors, televisions, fans or other
machinery. These items may interfere with the quality of your monitor’s transmission or
reception.
10.Adapter must be removed from the receiver for battery operation.
11.DO NOT use the monitor if:
•Either adapter cord has been damaged.
•Objects have fallen onto or liquid has been spilled into any of its components.
•It has been exposed to rain or water.
•It has been dropped or something inside is damaged.
•If any parts are missing or broken, call Evenflo’s ParentLink at 1-800-233-5921 for
instructional literature or product information if needed.
12.Refer to the Troubleshooting Chart in this Owner’s Manual before returning your monitor
for servicing. You may be able to solve the problem on your own in very little time.
13.There are no serviceable parts inside these monitors. DO NOT open the cases.
14.This device complies with part 15 of the FCC rules. Operation is subject to the following tw o
conditions: (1) This device may not cause harmful interference, and (2) this device mus t
accept any interference received, including interference that may cause undesired operation.
•For best results, use your AC adapter(s) with the monitor. The power is more consistent than
that of the battery.
•For best battery performance, allow batteries to completely discharge every few weeks.
•This nursery monitor operates over public airwaves. Transmissions from your Baby’s Unit may
be picked up by another product operating on the same frequency. Your Parent’s Unit may
also pick up transmissions from another product on the same frequency. If interference
occurs, change BOTH your Baby’s and Parent’s Units to the alternate frequency channel.
•Always make sure that both units are on the same frequency channel. It is possible for the
Parent’s Unit to pick up the Baby’s Unit even if they are not on the same channel when both
units are close together; however, you’ll experience static and interference.
Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority
to operate equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
There is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and Parent’s Unit (receiver).
•Connect the equipment into an outlet on a circuit that is different from the Parent’s Unit (receiver).
•Consult the dealer or a qualified radio-TV technician for help.
Operational Range: Your monitor’s typical transmission/reception range is 650 feet (198 m)
depending on battery power and possible obstructions (i.e., walls) that radio waves encounter. The
methods and materials used in your home’s construction, terrain and other factors may also affect
transmission.
Power Light: The Power Light will illuminate green whenever the unit is turned on, whether the
unit is stationary (plugged into adapter) or portable (using battery power).
Channel A/B: If interference occurs, change BOTH your Baby’s Unit and Parent’s Unit to the
alternate frequency channel. The WhisperConnect Pro Nursery Monitor operates over public
airwaves. Transmission from your Baby’s Unit may be picked up by another product if it is on the
same frequency. Your Parent’s Unit may also pick up transmission from another product if it is
broadcasting on the same frequency.
Sound Lights
TM
: Sound Lights light up when the Parent’s Unit receives sounds. The more lights that
are lit, the louder the sounds.
Low Battery Indicator: When battery power in the Parent’s Unit is low, the Power Light/Low
Battery Indicator will flash. To recharge, attach the AC adapter to the Parent’s Unit, plug the AC
adapter into a standard wall outlet, then set Power/Volume Dial to ON.
Out-of-Range Indicator and Alarm: All Sound Lights
TM
will light up and flash, and an alarm will
sound on your Parent’s Unit if:
• The units are taken out of range of one another. • The units are set to different channels.
• Power to the Baby’s Unit is lost. • A strong interfering signal starts on the selected channel.
The Out-of-Range Indicator and Alarm can only be stopped by re-establishing contact between the
two units or by turning off the Parent’s Unit. This alarm feature is designed to give you confidence
and reassurance that your Evenflo WhisperConnect Pro Nursery Monitor is functioning properly.
Parent Unit Finder: Press the Finder Button on Baby’s Unit to activate the locating signal. Once
the Parent’s Unit is located, turn Power Switch OFF then ON to deactivate the signal.
Additional Receivers: You may expand WhisperConnect capacity by adding additional receivers
(sold separately). Use only Evenflo WhisperConnect Additional Receiver model 6461550 to expand
this monitor system. Please consult the owner’s manual included with the additional receiver for
warning and safety instructions.
Helpful Hints
Using Your Monitor
When the Pet Detection Lens senses movement within range,
an alarm will sound on the Parent’s Unit and the pet detection
light will illuminate. To deactivate/reset the alarm, turn the
parent unit OFF then ON.
NOTE: The Pet Detection feature is NOT active within the first
20 seconds of being turned on. This allows adults sufficient
time to move out of range.
Features
2 ft (0.6 m)
2 ft (0.6 m)
©Evenflo Company, Inc. 2004 25700006 4/04
4ft 3 inch
(1.3m)
8 ft 6 inch
(2,6 m)
8 ft 6 inch (2,6 m)
