User Manual AP3915I
![](/img.php?id=3515833&img=bg1.png)
Installing the ExtremeWireless 802.11 a/ac+b/
g/n Indoor AP3915i Access Point
Overview of the AP3915i
The AP3915i is an 11ac Wave 2, Cloud and IoT ready indoor ceiling mount
model with 5 internal antennas. This AP comes with an 802.3 PoE PD for
powering. The AP3915i features dual-band, dual radio,2 x Multi-User MIMO,
smoke-detector footprint, and can be mounted on a dry wall, on a ceiling or a
solid surface, and suspended on a ceiling.
The AP3915i model has the following features:
• Radios: 2 radios (2.4GHz and 5GHz); 1 IoT Radio (2.4 GHz)
•Console Port: RJ45
• One RJ45, 10/100/1000 Ethernet Port (LAN1) with PoE
•LEDs: 4 (see Figure 2)
•One Reset button
• Power: PoE 802.3af; 12VDC power in connector (see Table 1)
• Antennas:
–5 internal antennas (four band locked antennas and one BLE antenna)
• 0-40 deg Celsius ambient temperature
• Enclosure: Plastic only
In Figure 1, the top image indicates the top view of AP3915i. In the bottom one,
you can see the side view of AP3915i.

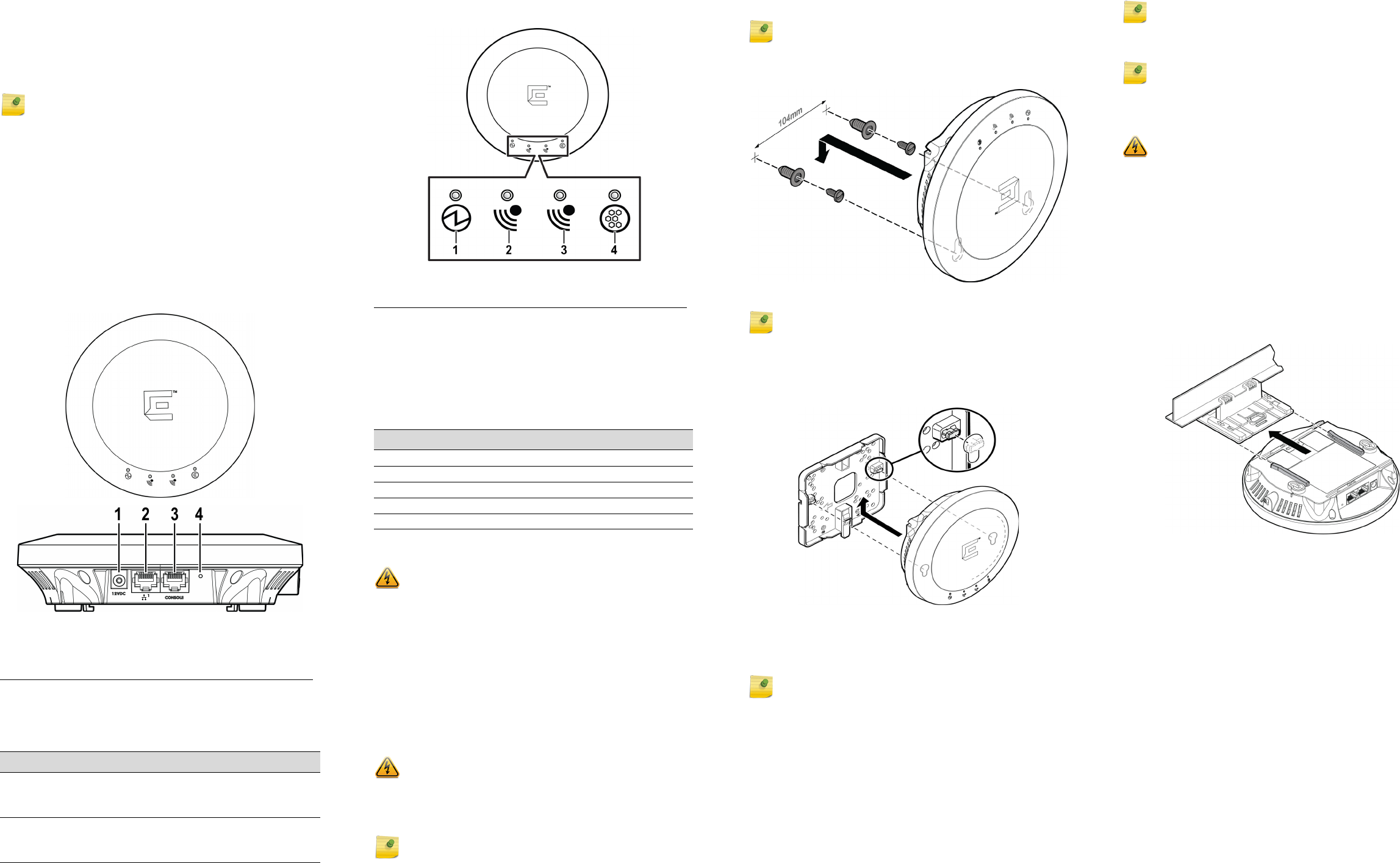

Figure 1 Top and Side View of AP3915i
Table 1 shows ways to power the AP3915i.
Table 1 Powering the AP3915i
Note: The AP3915i requires a minimum base firmware of 10.41.
1Optional 12V DC power supply
2LAN1/GE1 RJ45 connector
3Console RJ45 connector
4Reset button
Power Source Description
Power over
Ethernet
(PoE)
Power is provided through the RJ45 Ethernet port (LAN1
port) to the right of the 12V DC port of AP3915i. This is the
preferred method of powering the AP on ceiling and high
wall installations.
External 12V
DC power
supply
(optional)
The AP3915i can also be powered by an external DC power
supply plugged into an AC source. Plug the supply’s input
jack into the DC-In port (callout 1 in Figure 1).
Figure 2 shows the LEDs on the front of the AP3915i.
Figure 2 LEDs on AP Front Face
Both the Radio LEDs will be Green when they are ON and the LEDs will not
have any lights when they are OFF. Blue LED indicates the IoT status.
For detailed installation information about the AP3915i, see the
ExtremeWireless AP3915i Installation Guide.
Verifying the AP3915i Box Contents
Verify the contents of the box and ensure that the following items are
available:
Mounting and Connecting the AP
Use these instructions as guidelines for mounting and connecting the AP3915i
easily and safely.
The AP3915i does not come with any bracket for mounting on a solid ceiling or
junction/gang box. The optional bracket (WS-MBI-WALL04; Ordering Part
#30516) is sold separately.
You must also purchase the optional adapter if you want to mount the AP on a
beam.
For more information about installing the optional bracket and the adapter,
see the ExtremeWireless AP3915i Installation Guide.
For installation videos of the AP, see www.extremenetworks.com/support/
Mounting the AP on a Dry or Wood Wall/Solid Flat
Ceiling
To install the AP on a dry wall or flat surface:
Option 1: Using the Philips Pan-head wood screws
1 Drill two holes exactly 104mm (4.100”) apart from each other on the wall
where you want to mount the AP.
2 Insert the screws into the holes and use the screw-in anchors if needed.
3 Insert the Ethernet cable’s RJ45 connector into the LAN1/GE1 port.
1Status 4IoT Radio
2Radio 1, 2.4GHz
3Radio 2, 5GHz
Table 2 Contents of the AP3915i Box
Quantity Item
1 AP3915i Quick Reference Guide
1 Cloud Quick Start Card
The following hardware is included:
2 Phillips Pan-head wood screws
2 Screw-in anchors
Electrical Hazard: Only qualified personnel should perform
installation procedures.
Warning: The AP must be mounted ONLY horizontally if you mount
it onto a plenum space.
Note: Leave 1/8” gap between the screw head and the wall.
4 Align the AP against the screw heads and slide it down. Ensure that the AP
is secured in place and tightened. If the AP is loose, unmount the AP and
decrease the distance between the screw head and the wall. Remount the
AP.
Figure 3 Mounting the AP on a Dry Wall or Wood Wall/Solid
Flat Ceiling
Option 2: Using an optional Wall and Box bracket
1 Install the WS-MBI-WALL04 bracket onto a wall/ceiling with 2 screws and
anchors and ensure that the locking tab is on the bottom side.
Figure 4 Mounting the AP using the optional wall and box
bracket
• Use the optional wall and box bracket as a template and mark the holes to
be used to mount as “A” or “B” and mark the hole centers on the
attachment surface.
• Drill the holes and attach the bracket using the screws and anchors
provided in the kit.
2 Connect the LAN/Ethernet cable to the AP.
3 Insert the AP onto the keyhole posts and slide the AP and lock it into place
at about 1/4th inch.
Mounting the AP to a Bracket on a Junction or Gang
Box
To mount the AP to a Bracket on a Junction or Gang box:
1 Use the Wall and Box Bracket (WS-MBI-WALL04 (Ordering Part #30516)
that needs to be purchased separately).
2 Remove the screws from the junction/gang box.
Note: When installing the AP, the LED icons must be on top and the
“E” logo should be inverted and pointing down (as shown in Figure 3).
Note: Mounting the AP to a flat ceiling requires the WS-MBI-
WALL04 (Ordering Part #30516) bracket, which must be purchased
separately.
Note: When using the A or B holes, if the holes are not near the
corners of the bracket, break off the corner to decrease bracket’s
visibility once the AP is installed.
3 Line up the bracket holes on the junction/gang box and ensure that they
align. If the holes do not align, drill new holes.
4 Using the holes aligned together or the new ones drilled, attach the bracket
to the junction/gang box using the screws removed from the box earlier.
5 Connect the LAN/Ethernet cable to the AP.
6 Align the keyhole slots and posts and slide the AP onto the bracket until
you hear it lock in place.
Mounting the AP to a Suspended or Drop Ceiling
To attach the AP on a Suspended or Drop ceiling, use the Multi T-bar bracket.
1 Open the movable sliding part of the T-bar to give the stationary and slider
T-bar more space.
2 Hook the stationary end of the T-bar bracket onto the T-bar.
3 Squeeze the bracket parts together until you hear the T-bar locking tab
click into place (Figure 5).
4 Hold the AP in place and tilt the T-bar up slightly in such a way that you are
holding the stationary and movable sides of the bracket.
5 Slide the T-bar ceiling mount bracket base into the back of the access
point. The locking tab fits into the grooves in the outside of the AP.
Figure 5 AP3915i Mounted on Drop Ceiling T-bar Rail
6 Hold the AP and rock it back and forth to ensure that it is securely
mounted.
7 Attach the Ethernet cable’s RJ45 connector to the LAN1/GE1 port and
place the ceiling tile back in place.
Connecting a Power Supply to the AP3915i
If you need to power the AP3915i with an external 12V DC power supply, you
can plug the power cord into the power connector (callout 2 in Figure 1) on the
back of the AP. There is no wall mount for the 12V DC power supply. When the
device is powered on, the power LED on the front face of the AP is lit. Refer to
the ExtremeWireless AP3915i Installation Guide for information about optional
power supplies.
LAN/Console Connections
The AP3915i has one LAN (Ethernet) port and a Console port. Refer to Figure 1
for the location of these ports. During administration and maintenance
through the LAN or Console, the AP must still have a power connection
through either an Ethernet PoE cable or a DC power supply.
Note: When you line up the holes, the locking tab on the bracket
must be pointing down and the junction/gang box must be fully
covered by the bracket. The bracket must be square to the rest of the
room walls and the two holes that are being used must be on the
opposite side of large center hole on the bracket.
Note: If the holes that you need to use are not near the corners of
the bracket, break off the corner to decrease bracket’s visibility once
the AP is installed.
Caution: Over tightening the screws will cause the bracket to bend.
If the bracket bends, you will not be able to slide the AP onto the
keyhole posts.
![](/img.php?id=3515833&img=bg2.png)
ExtremeWirelessTM
Access Points
Quick Reference
P/N 31028 WS-AP3915i-FCC
P/N 31029 WS-AP3915i-ROW
Notice
Copyright © 2017 Extreme Networks, Inc. All Rights Reserved.
Legal Notices
Extreme Networks, Inc., on behalf of or through its wholly-owned subsidiary,
Enterasys Networks, Inc., reserves the right to make changes in specifications
and other information contained in this document and its website without
prior notice. The reader should in all cases consult representatives of Extreme
Networks to determine whether any such changes have been made.
The hardware, firmware, software or any specifications described or referred
to in this document are subject to change without notice.
Trademarks
Extreme Networks and the Extreme Networks logo are trademarks or
registered trademarks of Extreme Networks, Inc. in the United States and/or
other countries.
All other names (including any product names) mentioned in this document
are the property of their respective owners and may be trademarks or
registered trademarks of their respective companies/owners.
For additional information on Extreme Networks trademarks, please see:
www.extremenetworks.com/company/legal/trademarks/
Documentation & Support
For product support, including documentation, visit:
www.extremenetworks.com/support/
Regulatory and Compliance Information
Safety Guidelines
This section contains notices that are intended to protect your personal safety
and prevent damage to the equipment.
Qualified Personnel:
Federal Communications Commission (FCC) Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Electrical Hazard: Only qualified personnel should perform
installation procedures. Within the context of the safety notes in this
documentation, qualified persons are defined as persons who are
authorized to commission, ground and label devices, systems, and
circuits in accordance with established safety practices and
standards. A qualified person understands the requirements and risks
involved with installing outdoor electrical equipment in accordance
with national codes.
Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority
to operate this equipment.
Warning: FCC Radiation Exposure Statement: This equipment
complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your
body.
Industry Canada Notice
This device complies with ISED’s licence-exempt RSSs. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
Caution :
1 The device for operation in the band 5150-5250 MHz is only for indoor use
to reduce the potential for harmful interference to co-channel mobile
satellite systems;
2 The maximum antenna gain permitted for devices in the band 5725-5850
MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as
appropriate; and
3 Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
1 les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux;
2 le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de
5725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour
l'exploitation point à point et l’exploitation non point à point, selon le cas;
3 De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de
radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-
EL.
Warning: IC Radiation Exposure Statement: This equipment
complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 22cm between the radiator & your
body.
Warning: Déclaration d'exposition aux radiations: Cet
équipement est conforme aux limites d'exposition aux rayonnements
ISED établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de 22 cm de distance
entre la source de rayonnement et votre corps.

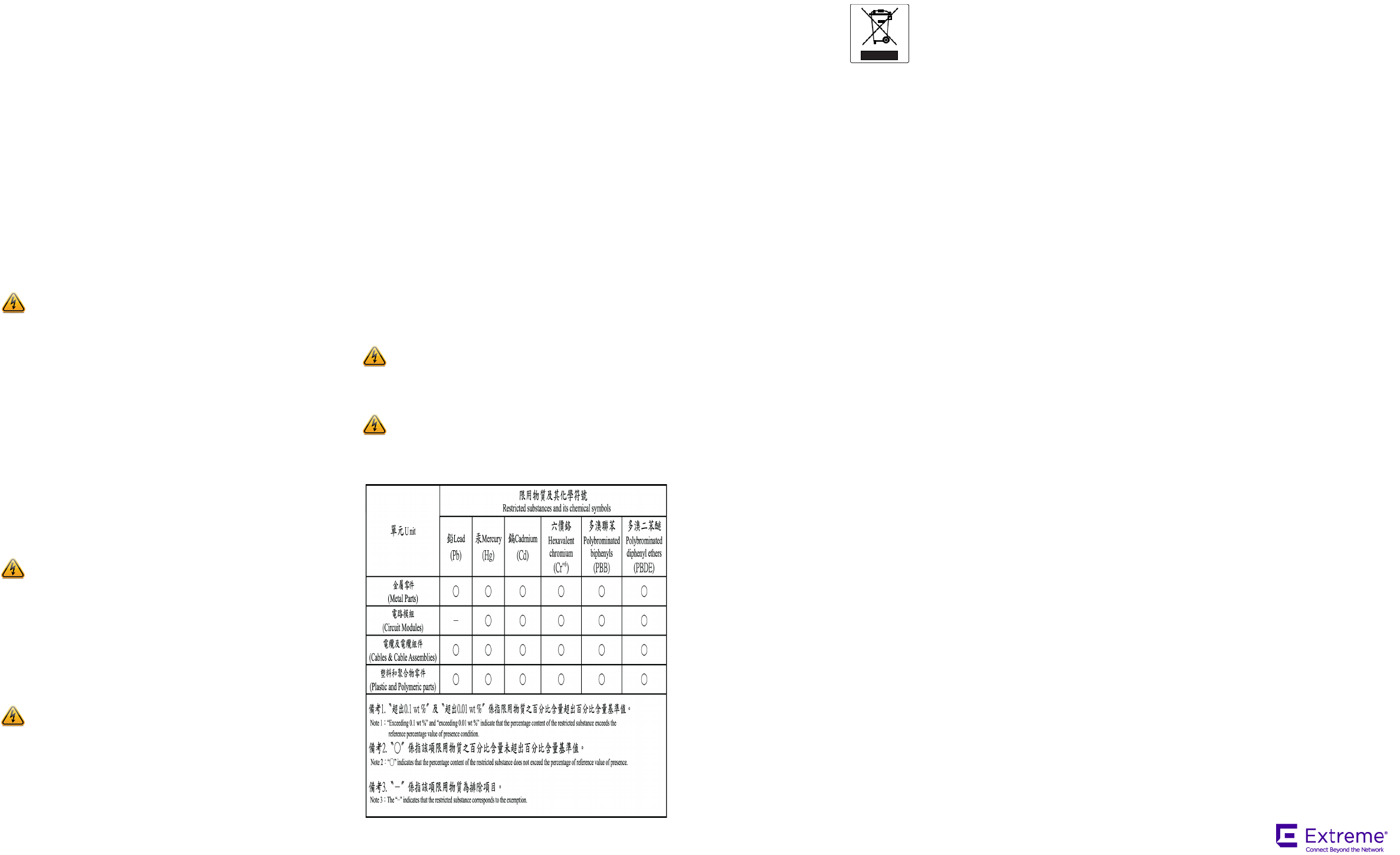

European Waste Electrical and Electronic Equipment
(WEEE) Notice
In accordance with Directive 2012/19/EU of the European Parliament on waste
electrical and electronic equipment (WEEE):
1 The symbol above indicates that separate collection of electrical and electronic
equipment is required.
2 When this product has reached the end of its serviceable life, it cannot be disposed of
as unsorted municipal waste. It must be collected and treated separately.
3 It has been determined by the European Parliament that there are potential negative
effects on the environment and human health as a result of the presence of hazardous
substances in electrical and electronic equipment.
4 It is the users’ responsibility to utilize the available collection system to ensure WEEE
is properly treated.
For information about the available collection system, please contact Extreme
Customer Support at +353 61 705500 (Ireland).
Hazardous Substances
This product complies with the requirements of Directive 2011/65/EU of the
European Parliament and of the Council of 8 June 2011 on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.
Declaration of Conformity in Languages of the European
Community
English Hereby, Extreme Networks, declares that this Radio LAN device is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Finnish Valmistaja Extreme Networks vakuuttaa täten että Radio LAN device
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Dutch Hierbij verklaart Extreme Networks dat het toestel Radio LAN device
in overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart Extreme Networks dat deze Radio LAN device
voldoet aan de essentiële eisen en aan de overige relevante
bepalingen van Richtlijn 1999/5/EC.
French Par la présente Extreme Networks déclare que l'appareil Radio LAN
device est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Par la présente, Extreme Networks déclare que ce Radio LAN device
est conforme aux exigences essentielles et aux autres dispositions de
la directive 1999/5/CE qui lui sont applicables.
Swedish Härmed intygar Extreme Networks att denna Radio LAN device står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Danish Undertegnede Extreme Networks erklærer herved, at følgende udstyr
Radio LAN device overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
German Hiermit erklärt Extreme Networks die Übereinstimmung des "WLAN
Wireless Controller bzw. Access Points" mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der
Richtlinie 1999/5/EG.
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Extreme Networks ∆ΗΛΩΝΕΙ ΟΤΙ Radio LAN
device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ
ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/
ΕΚ.
Icelandic Extreme Networks lysir her med yfir að thessi bunadur, Radio LAN
device, uppfyllir allar grunnkrofur, sem gerdar eru i R&TTE tilskipun
ESB nr 1999/5/EC.
Italian Con la presente Extreme Networks dichiara che questo Radio LAN
device è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
Spanish Por medio de la presente Extreme Networks declara que el Radio LAN
device cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Portuguese Extreme Networks declara que este Radio LAN device está conforme
com os requisitos essenciais e outras disposições da Directiva 1999/5/
CE.
Malti Hawnhekk, Extreme Networks, jiddikjara li dan Radio LAN device
jikkonforma mal-htigijiet essenzjali u ma provvedimenti ohrajn
relevanti li hemm fid-Dirrettiva 1999/5/EC.
P/N 9035133
