Installing the ExtremeWiNG 802.11 a/ac+b/g/n
Indoor AP-7632i Access Point
Overview of the AP-7632i
The AP-7632i is an 11ac Wave 2, Cloud and IoT ready indoor ceiling mount
model with 5 internal antennas. This AP comes with an 802.3 PoE PD for
powering and has an option for 12VDC input when mounted on a wall. The AP-
7632i features dual-band, dual radio,2 x Multi-User MIMO, smoke-detector
footprint, and can be mounted on a dry wall, on a ceiling or a solid surface,
suspended on a ceiling, and attached to a beam.
The AP-7632i model has the following features:
• Radios: 2 radios (2.4GHz and 5GHz); 1 IoT Radio (2.4 GHz)
•Console Port: RJ45
• One RJ45, 10/100/1000 Ethernet Port (LAN1) with PoE
•LEDs: 4 (see Figure 2)
•One Reset button
• Power: PoE 802.3af; 12VDC power in connector (see Table 1)
• Antennas:
–5 internal antennas (2- 4dBi, 2.4GHz band locked antennas; 2- 6dBi,
5GHz band antennas, and 1 BLE antenna)
• Mounting adaptors that can be purchased separately to attach to the Main
Bracket:
– Flat Metal Indoor Bracket for Wall Mounting
– Drop Ceiling T-bars
–Beam Adaptor
• 0-40 deg Celsius ambient temperature
•Enclosure:
– Top Material: Plastic only
– Base Material: Die-cast plastic with metal bracket
In Figure 1, the top image indicates the top view of AP-7632i. In the bottom
one, you can see the side view of AP-7632i.

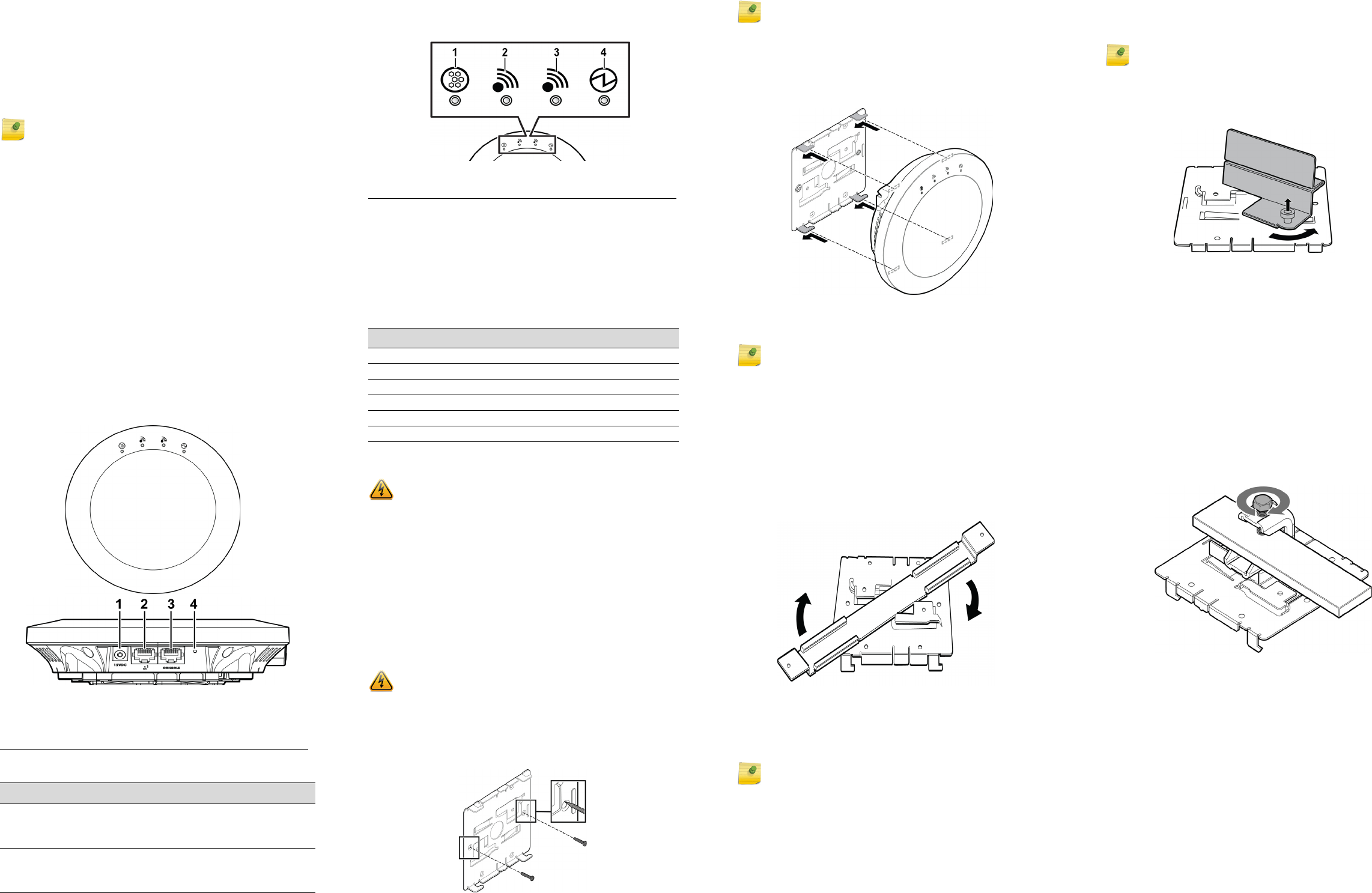

Figure 1 Top and Side View of AP-7632i
Table 1 shows ways to power the AP-7632i.
Table 1 Powering the AP-7632i
Note: The AP-7632i requires a minimum base firmware of WiNG
5.9.1.
1Optional 12V DC power supply
2LAN1/GE1 RJ45 connector
3Console RJ45 connector
4Reset button
Power Source Description
Power over
Ethernet
(PoE)
Power is provided through the RJ45 Ethernet port (LAN1
port) to the right of the 12V DC port of AP-7632i. This is the
preferred method of powering the AP on ceiling and high
wall installations.
External 12V
DC power
supply
(optional)
The AP-7632i can also be powered by an external DC power
supply plugged into an AC source. Plug the supply’s input
jack into the DC-In port (callout 1 in Figure 1).
Figure 2 shows the LEDs on the front of the AP-7632i.
Figure 2 LEDs on AP Front Face
Green LEDs indicate 2G Wi-Fi Radio, Amber LEDs indicate 5.2G Wi-Fi Radio,
and Blue LED indicates the IoT Radio. The Status LED is ON only during
diagnostics.
For detailed installation information about the AP-7632i, see the Extreme
Networks WiNG AP-7632i Installation Guide.
Verifying the AP-7632i Box Contents
Verify the contents of the box and ensure that the following items are
available:
Mounting and Connecting the AP
Use these instructions as guidelines for mounting and connecting the AP-
7632i easily and safely.
The AP-7632i comes with a bracket (3PRAAB003S3-111; ordering part #37201)
mounted on it that can be used to mount the AP on a flat surface. You can also
purchase an optional flat metal indoor bracket (ordering part #37210) for easy
installation.
You also have an option to purchase the optional adapters if you want to
mount the AP on a wall, onto a drop ceiling or mount it onto a beam.
For more information about installing the optional bracket and the adapter,
see the Extreme Networks WiNG AP-7632i Installation Guide.
For installation videos of the AP, see www.extremenetworks.com/support/
Mounting the AP on a Dry or Wood Wall/Solid Flat
Ceiling
To install the AP on a dry wall or flat surface:
Option 1: Using the Main Bracket
1 Remove the main bracket attached to the back of the AP.
2 Use the main bracket as a template and mark the hole centers on the wall
(Figure 3).
Figure 3 AP-7632i Main Bracket
1IoT Radio 4Status
2Radio 1, 2.4GHz
3Radio 2, 5GHz
Table 2 Contents of the AP-7632i Box
Quantity Item
1 AP-7632i Quick Reference Guide
1 3PRAAB003S3-111 assembled onto AP
1 Cloud Quick Start Card
The following hardware is included:
2 Phillips Pan-head wood screws
2 Screw-in anchors
Electrical Hazard: Only qualified personnel should perform
installation procedures.
Warning: The AP must be mounted ONLY horizontally if you mount
it onto a plenum space.
3 Insert the screws into the holes of the main bracket and use the screw-in
anchors if needed.
4 Insert the Ethernet cable’s RJ45 connector into the LAN1/GE1 port.
5 Insert the AP onto the bracket’s 4 feet and slide it to the left to lock it in
place.
Figure 4 Attaching the AP to a Wall using the Main Bracket
Option 2: Mounting the AP directly to the wall using 2 screws
1 Remove the main bracket attached to the back of the AP.
2 Drill two holes 104mm (4.100”) apart from each other on the wall.
3 Insert the screws into the holes and use the screw-in anchors if needed.
4 Insert the Ethernet cable’s RJ45 connector into the GE1 port (Figure 1; side
view). Attach the optional DC adaptor if there is no PoE on the Ethernet
cable.
5 Insert the keyholes of the AP onto the screws and slide it down till it is
firmly held by the screw heads. If the AP is loose, unmount the AP and
decrease the distance between the screw head and the wall. Remount the
AP.
Option 3: Using an optional Flat Metal Indoor Bracket
1 Attach the flat metal indoor bracket to the main bracket. Keep the bracket
to the center of the main bracket, push and rotate it (Figure 5).
Figure 5 Attaching the optional Flat Metal Indoor Bracket to
the main bracket
2 Hold the AP to the surface to which it needs to be attached and use the
optional bracket’s end holes as a template to mark the attachment holes.
3 Drill two holes on the wall where you want to mount the AP.
4 Connect the LAN/Ethernet cable to the back of the AP.
5 Hold the AP, insert and tighten the 2 screws until you lock it into place.
Option 4: Using an optional Wall and Box bracket
Remove the main bracket from the AP and replace it with the Wall and Box
bracket. Follow the procedure mentioned in ExtremeWireless AP-7632i
Installation Guide to mount the AP on a Wall and Box bracket,
Mounting the AP on a Junction or Gang Box
To mount the AP to a Bracket on a Junction or Gang box, use the Wall and Box
Bracket (needs to be purchased separately).
1 Remove the main bracket from the AP.
Note: The 4 feet of the bracket must be horizontal and pointing to
the right and the flat part of the bracket must be touching the surface
it is being attached to.
Note: Leave 1/8” gap between the screw head and the wall.
Note: Mounting the AP to a flat ceiling/wall requires the WS-MBI-
WALL04 (purchasing part #30516) bracket, which must be purchased
separately.
2 Follow the procedure mentioned in ExtremeWireless AP-7632i Installation
Guide to mount the AP on a Wall and Box bracket.
Mounting the AP to a Suspended or Drop Ceiling
1 Attach the T-bar adaptor by pushing down the main bracket’s angled
locking tabs and by pulling up the T-bar adapter’s locking pin.
Figure 6 Attaching the adapter to the main bracket
2 Slide the T-bar holder onto the T-bar and replace the tiles to hold the
adaptor onto the T-bar.
3 Hold the AP and rock it back and forth to ensure that it is securely
mounted.
4 Attach the Ethernet cable’s RJ45 connector to the LAN1/GE1 port.
The optional WS-MBI-DCMTR01 adaptor can also be used for T-bar
installations. For detailed instructions, refer ExtremeWireless AP-7632i
Installation Guide.
Mounting the AP to a Beam
To attach an AP to a beam, attach an adaptor (Accessory BRKT-000147A-01)
to the main bracket:
1 Attach the adapter to the main bracket by using a twisting motion.
2 If the bracket is not already attached to the AP, attach the main bracket to
the AP.
3 Place the adapter on a beam in such a way that there is enough space
between the screw and clamp to be tightened.
4 Use the screw and clamp on the top of the adapter to secure the AP in
place on the beam.
Figure 7 Attaching the beam clamp on a beam
5 Insert the Ethernet plug into the AP.
For detailed procedure on Installing the AP, see the Extreme Networks
WiNG AP-7632i Installation Guide.
Connecting a Power Supply to the AP-7632i
If you need to power the AP-7632i with an external 12V DC power supply, you
can plug the power cord into the power connector (callout 2 in Figure 1) on the
back of the AP. There is no wall mount for the 12V DC power supply. When the
device is powered on, the power LED on the front face of the AP is lit. Refer to
the Extreme Networks WiNG AP-7632i Installation Guide for
information about optional power supplies.
LAN/Console Connections
The AP-7632i has one GE1 (Ethernet) port and a Console port. Refer to Figure 1
for the location of these ports. During administration and maintenance
through the GE1 or Console, the AP must still have a power connection
through either an Ethernet PoE cable or a DC power supply.
Note: Mounting the AP to a suspended or drop ceiling requires the
optional adapter (Accessory KT-135628-01), which must be
purchased separately.
![](/img.php?id=3515834&img=bg2.png)
ExtremeWiNGTM Access
Points
Quick Reference
P/N 37111 AP-7632-680B30-US
P/N 37112 AP-7632-680B30-WR
Notice
Copyright © 2017 Extreme Networks, Inc. All Rights Reserved.
Legal Notices
Extreme Networks, Inc., on behalf of or through its wholly-owned subsidiary,
Enterasys Networks, Inc., reserves the right to make changes in specifications
and other information contained in this document and its website without
prior notice. The reader should in all cases consult representatives of Extreme
Networks to determine whether any such changes have been made.
The hardware, firmware, software or any specifications described or referred
to in this document are subject to change without notice.
Trademarks
Extreme Networks and the Extreme Networks logo are trademarks or
registered trademarks of Extreme Networks, Inc. in the United States and/or
other countries.
All other names (including any product names) mentioned in this document
are the property of their respective owners and may be trademarks or
registered trademarks of their respective companies/owners.
For additional information on Extreme Networks trademarks, please see:
www.extremenetworks.com/company/legal/trademarks/
Documentation & Support
For product support, including documentation, visit:
www.extremenetworks.com/support/
Regulatory and Compliance Information
Safety Guidelines
This section contains notices that are intended to protect your personal safety
and prevent damage to the equipment.
Qualified Personnel:
Federal Communications Commission (FCC) Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Electrical Hazard: Only qualified personnel should perform
installation procedures. Within the context of the safety notes in this
documentation, qualified persons are defined as persons who are
authorized to commission, ground and label devices, systems, and
circuits in accordance with established safety practices and
standards. A qualified person understands the requirements and risks
involved with installing outdoor electrical equipment in accordance
with national codes.
Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority
to operate this equipment.
Warning: FCC Radiation Exposure Statement: This equipment
complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your
body.
Industry Canada Notice
This device complies with ISED’s licence-exempt RSSs. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
Caution :
1 The device for operation in the band 5150-5250 MHz is only for indoor use
to reduce the potential for harmful interference to co-channel mobile
satellite systems;
2 The maximum antenna gain permitted for devices in the band 5725-5850
MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as
appropriate; and
3 Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
1 les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux;
2 le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de
5725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour
l'exploitation point à point et l’exploitation non point à point, selon le cas;
3 De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de
radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-
EL.
Warning: IC Radiation Exposure Statement: This equipment
complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 22cm between the radiator & your
body.
Warning: Déclaration d'exposition aux radiations: Cet
équipement est conforme aux limites d'exposition aux rayonnements
ISED établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de 22 cm de distance
entre la source de rayonnement et votre corps.
European Waste Electrical and Electronic Equipment
(WEEE) Notice
In accordance with Directive 2012/19/EU of the European Parliament on waste
electrical and electronic equipment (WEEE):
1 The symbol above indicates that separate collection of electrical and electronic
equipment is required.
2 When this product has reached the end of its serviceable life, it cannot be disposed of
as unsorted municipal waste. It must be collected and treated separately.
3 It has been determined by the European Parliament that there are potential negative
effects on the environment and human health as a result of the presence of hazardous
substances in electrical and electronic equipment.
4 It is the users’ responsibility to utilize the available collection system to ensure WEEE
is properly treated.
For information about the available collection system, please contact Extreme
Customer Support at +353 61 705500 (Ireland).
Hazardous Substances
This product complies with the requirements of Directive 2011/65/EU of the
European Parliament and of the Council of 8 June 2011 on the restriction of the
use of certain hazardous substances in electrical and electronic equipment.
Declaration of Conformity in Languages of the European
Community
English Hereby, Extreme Networks, declares that this Radio LAN device is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Finnish Valmistaja Extreme Networks vakuuttaa täten että Radio LAN device
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Dutch Hierbij verklaart Extreme Networks dat het toestel Radio LAN device
in overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart Extreme Networks dat deze Radio LAN device
voldoet aan de essentiële eisen en aan de overige relevante
bepalingen van Richtlijn 1999/5/EC.
French Par la présente Extreme Networks déclare que l'appareil Radio LAN
device est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Par la présente, Extreme Networks déclare que ce Radio LAN device
est conforme aux exigences essentielles et aux autres dispositions de
la directive 1999/5/CE qui lui sont applicables.
Swedish Härmed intygar Extreme Networks att denna Radio LAN device står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Danish Undertegnede Extreme Networks erklærer herved, at følgende udstyr
Radio LAN device overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
German Hiermit erklärt Extreme Networks die Übereinstimmung des "WLAN
Wireless Controller bzw. Access Points" mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der
Richtlinie 1999/5/EG.
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Extreme Networks ∆ΗΛΩΝΕΙ ΟΤΙ Radio LAN
device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ
ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/
ΕΚ.
Icelandic Extreme Networks lysir her med yfir að thessi bunadur, Radio LAN
device, uppfyllir allar grunnkrofur, sem gerdar eru i R&TTE tilskipun
ESB nr 1999/5/EC.
Italian Con la presente Extreme Networks dichiara che questo Radio LAN
device è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
Spanish Por medio de la presente Extreme Networks declara que el Radio LAN
device cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Portuguese Extreme Networks declara que este Radio LAN device está conforme
com os requisitos essenciais e outras disposições da Directiva 1999/5/
CE.
Malti Hawnhekk, Extreme Networks, jiddikjara li dan Radio LAN device
jikkonforma mal-htigijiet essenzjali u ma provvedimenti ohrajn
relevanti li hemm fid-Dirrettiva 1999/5/EC. P/N 9035135
