FEIBIT ELECTRONIC TECHNOLOGY FZB57A5PF FZB57A5+Module User Manual FZB57A5 specification

SHENZHEN FEIBIT ELECTRONIC TECHNOLOGY Co., LTD FZB57A5+Module FZB57A5 specification

user manual

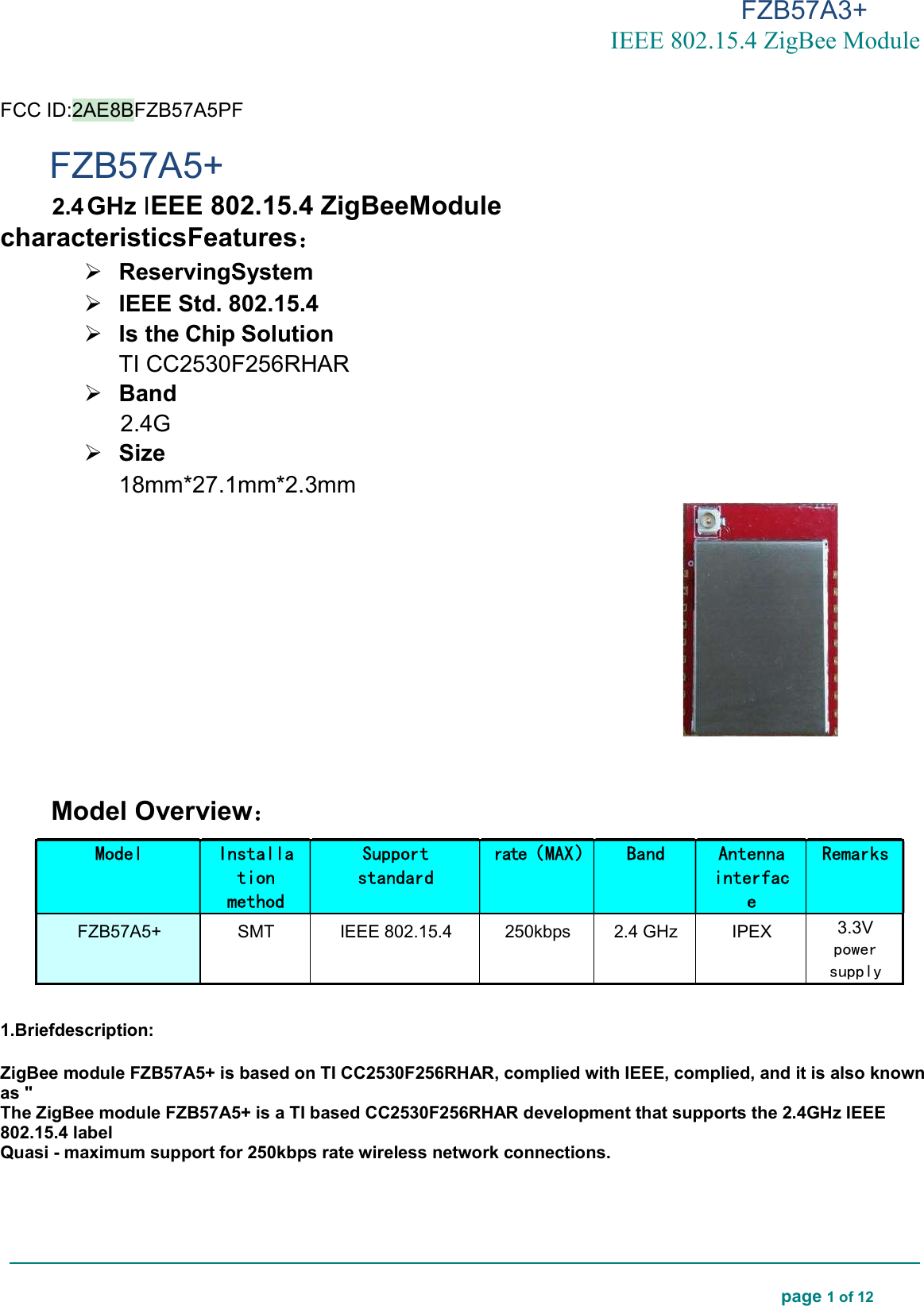

FZB57A3+ IEEE 802.15.4 ZigBee Module  page 1 of 12    FCC ID:2AE8BFZB57A5PF FZB57A5+ 2.4 GHz IEEE 802.15.4 ZigBeeModule characteristicsFeatures:  ReservingSystem  IEEE Std. 802.15.4  Is the Chip Solution TI CC2530F256RHAR  Band 2.4G  Size 18mm*27.1mm*2.3mm   Model Overview:  1.Briefdescription:  ZigBee module FZB57A5+ is based on TI CC2530F256RHAR, complied with IEEE, complied, and it is also known as " The ZigBee module FZB57A5+ is a TI based CC2530F256RHAR development that supports the 2.4GHz IEEE 802.15.4 label Quasi - maximum support for 250kbps rate wireless network connections.    Model Installation method Support standard rate(MAX) Band Antenna interface Remarks FZB57A5+  SMT  IEEE 802.15.4  250kbps  2.4 GHz  IPEX  3.3V power supply

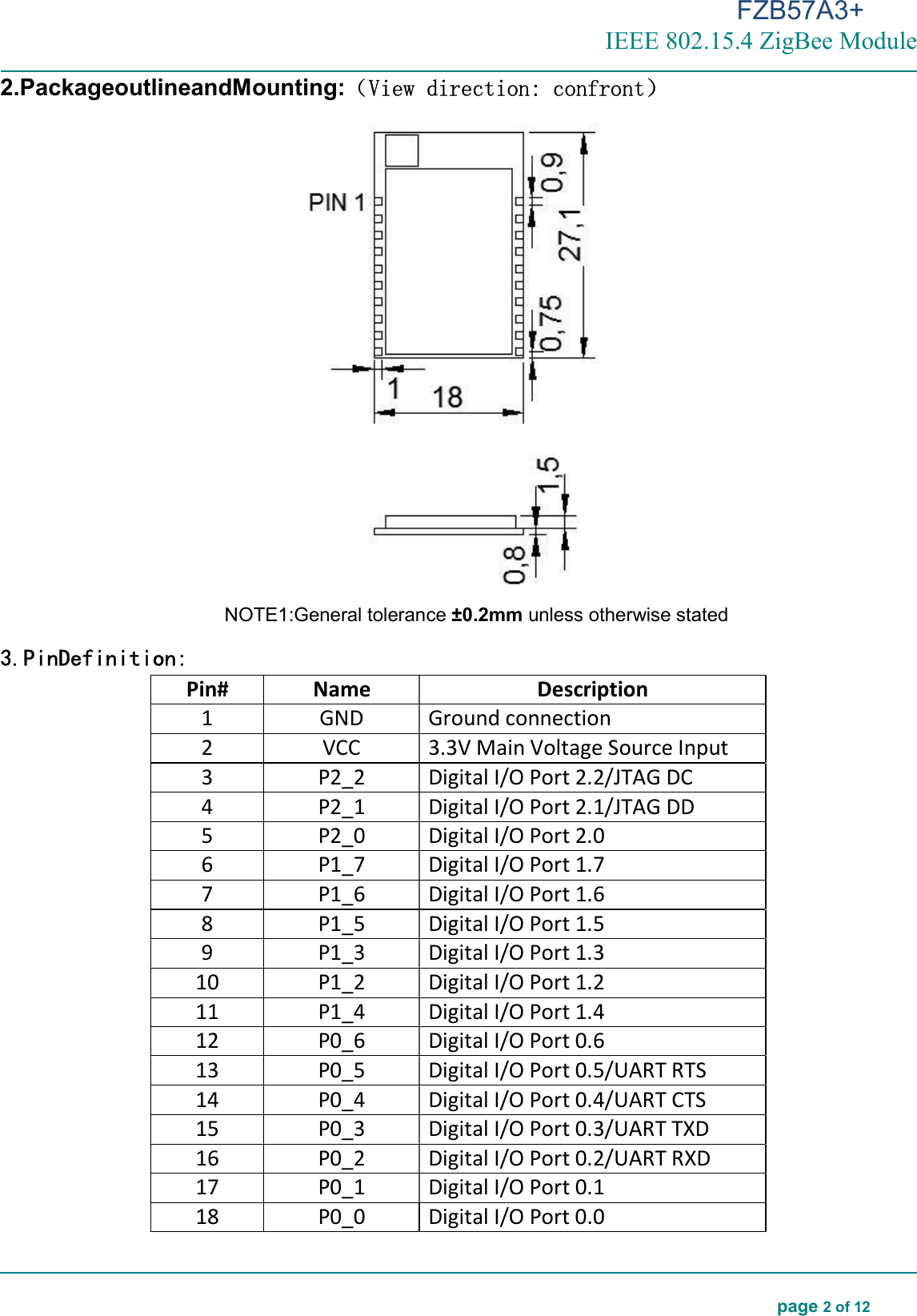

FZB57A3+ IEEE 802.15.4 ZigBee Module  page 2 of 12      2.PackageoutlineandMounting:(View direction: confront)  NOTE1:General tolerance ±0.2mm unless otherwise stated 3.PinDefinition: Pin# Name Description 1 GND Ground connection 2 VCC 3.3V Main Voltage Source Input 3 P2_2 Digital I/O Port 2.2/JTAG DC 4 P2_1 Digital I/O Port 2.1/JTAG DD 5 P2_0 Digital I/O Port 2.0 6 P1_7 Digital I/O Port 1.7 7 P1_6 Digital I/O Port 1.6 8 P1_5 Digital I/O Port 1.5 9 P1_3 Digital I/O Port 1.3 10 P1_2 Digital I/O Port 1.2 11 P1_4 Digital I/O Port 1.4 12 P0_6 Digital I/O Port 0.6 13 P0_5 Digital I/O Port 0.5/UART RTS 14 P0_4 Digital I/O Port 0.4/UART CTS 15 P0_3 Digital I/O Port 0.3/UART TXD 16 P0_2 Digital I/O Port 0.2/UART RXD 17 P0_1 Digital I/O Port 0.1 18 P0_0 Digital I/O Port 0.0

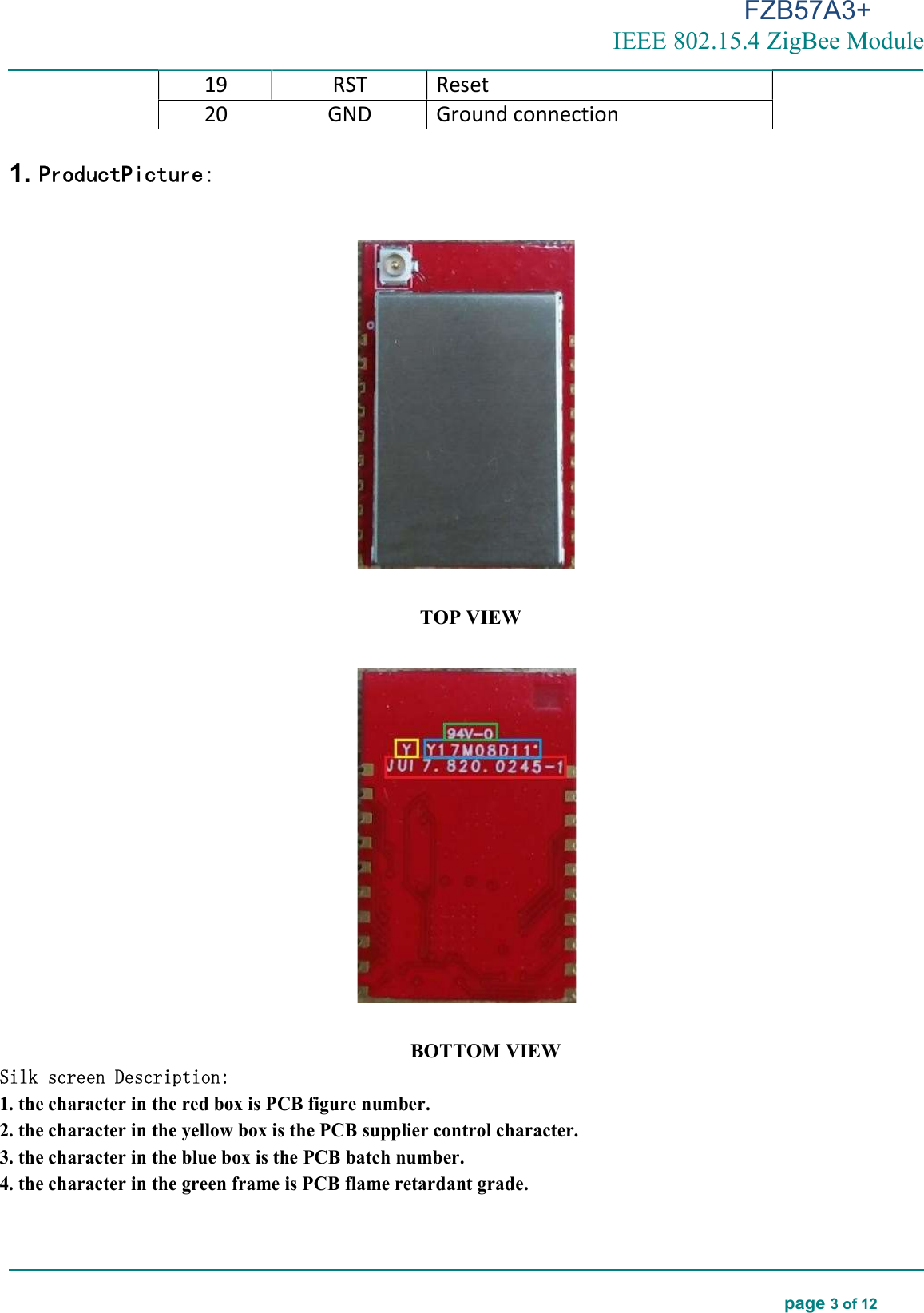

FZB57A3+ IEEE 802.15.4 ZigBee Module  page 3 of 12     19 RST Reset  20 GND Ground connection  1. ProductPicture:    TOP VIEW    BOTTOM VIEW Silk screen Description: 1. the character in the red box is PCB figure number. 2. the character in the yellow box is the PCB supplier control character. 3. the character in the blue box is the PCB batch number. 4. the character in the green frame is PCB flame retardant grade.

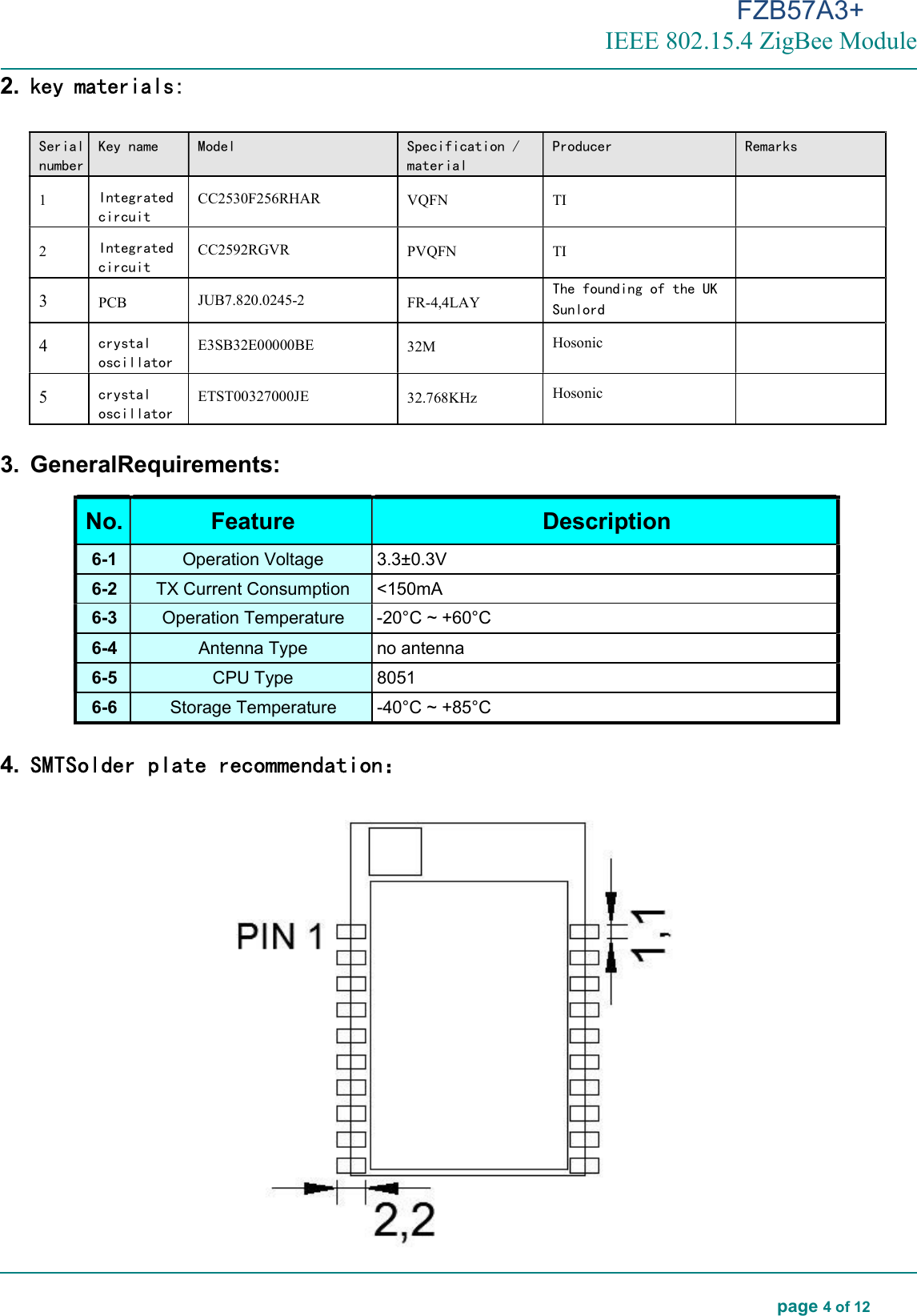

FZB57A3+ IEEE 802.15.4 ZigBee Module  page 4 of 12     2. key materials:  Serial number Key name  Model  Specification / material Producer  Remarks  1  Integrated circuit CC2530F256RHAR  VQFN  TI    2  Integrated circuit CC2592RGVR  PVQFN  TI   3  PCB  JUB7.820.0245-2  FR-4,4LAY The founding of the UK Sunlord  4 crystal oscillator E3SB32E00000BE  32M  Hosonic  5 crystal oscillator ETST00327000JE  32.768KHz  Hosonic   3.  GeneralRequirements:  No. Feature  Description 6-1 Operation Voltage  3.3±0.3V 6-2 TX Current Consumption  <150mA 6-3 Operation Temperature  -20°C ~ +60°C 6-4 Antenna Type  no antenna 6-5 CPU Type  8051 6-6 Storage Temperature  -40°C ~ +85°C  4.  SMTSolder plate recommendation:
 page 5 of 12 ZB-T530-RSF1 IEEE 802.15.4 ZigBee Module    5.  ElectricalCharacteristics:  Items  Contents Specification  IEEE802.15.4 Frequency  2400~2483.5MHz Channel  CH10 to CH26 Data rate  250kbps/MAX  Min.  Typ.  Max.  Unit  Remark TX Characteristics       1. Power Levels(Calibrated)       1) 21.1dBm Mode  18  19.5  21  dBm   2) 19.7dBm Mode  17  18  19.5     3) 11.8dBm Mode 9  10  11.5     2. Spectrum Mask @ target power /  0%  5.12%     3 Constellation Error(EVM)@ target power  0%  10%  35%     4. Frequency Error  -40  -10  40  ppm   RX Characteristics  Min.  Typ.  Max.  Unit   5 Minimum Input Level Sensitivity(each chain) /  -100  -85  dBm   6 Maximum Input Level / /  -20  dBm    6.  TestSoftwareRequirements: Mfg. software tool version is SmartRFProgr_1.12.7 or later. The version of the manufacturing software tool isSmartRFProgr_1.12.7 Or subsequent version。 7.  RefelowStandardCondition:

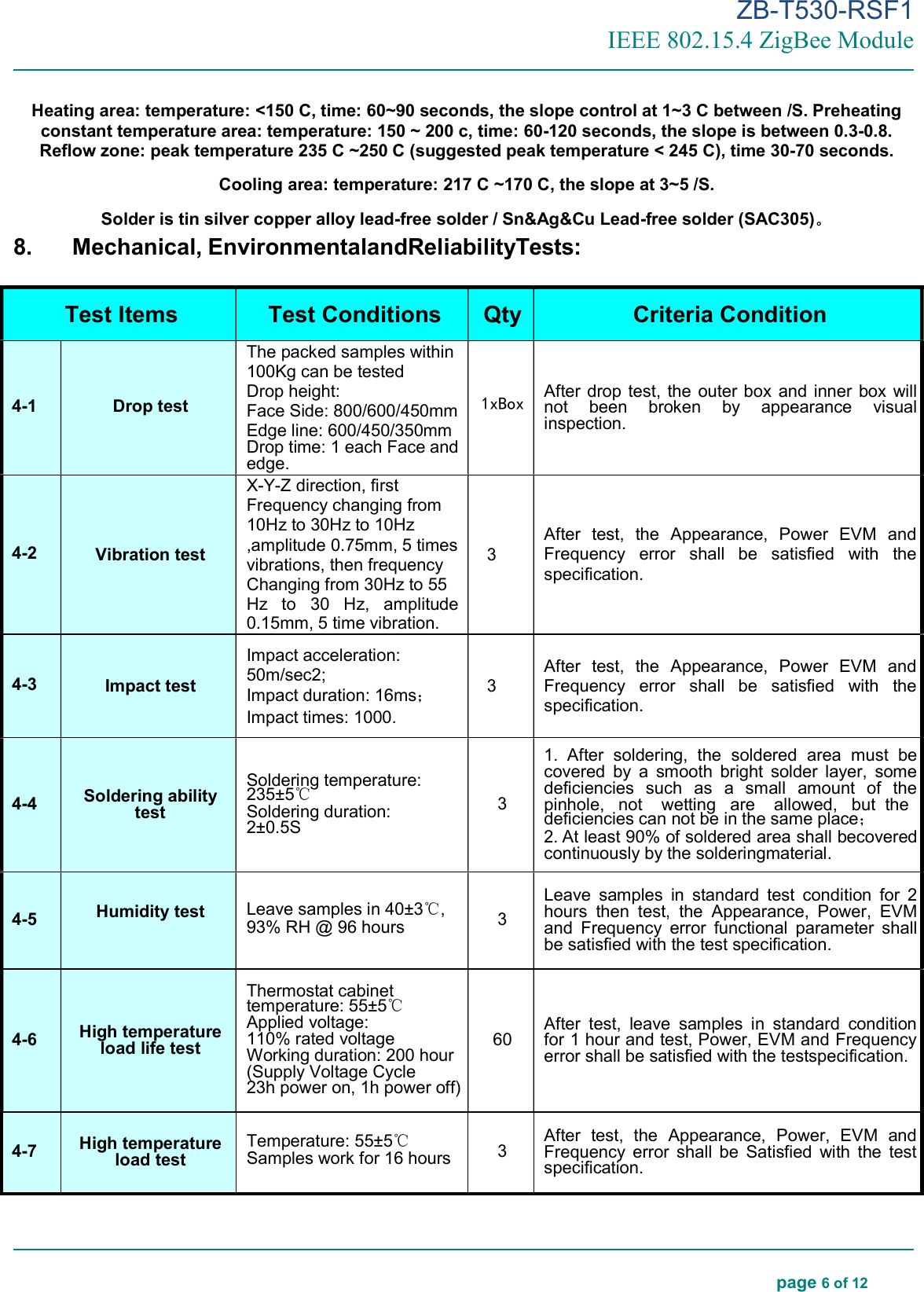

 page 6 of 12 ZB-T530-RSF1 IEEE 802.15.4 ZigBee Module    Heating area: temperature: <150 C, time: 60~90 seconds, the slope control at 1~3 C between /S. Preheating constant temperature area: temperature: 150 ~ 200 c, time: 60-120 seconds, the slope is between 0.3-0.8. Reflow zone: peak temperature 235 C ~250 C (suggested peak temperature < 245 C), time 30-70 seconds. Cooling area: temperature: 217 C ~170 C, the slope at 3~5 /S. Solder is tin silver copper alloy lead-free solder / Sn&Ag&Cu Lead-free solder (SAC305)。 8.  Mechanical, EnvironmentalandReliabilityTests:  Test Items  Test Conditions  Qty Criteria Condition   4-1   Drop test The packed samples within 100Kg can be tested Drop height: Face Side: 800/600/450mm Edge line: 600/450/350mm Drop time: 1 each Face and edge.   1xBox   After drop test, the outer box and inner box will not  been  broken  by  appearance  visual  inspection.    4-2    Vibration test X-Y-Z direction, first Frequency changing from 10Hz to 30Hz to 10Hz ,amplitude 0.75mm, 5 times vibrations, then frequency Changing from 30Hz to 55 Hz   to   30   Hz,   amplitude 0.15mm, 5 time vibration.    3   After  test,  the  Appearance,  Power  EVM  and Frequency  error  shall  be  satisfied  with  the specification.   4-3   Impact test Impact acceleration: 50m/sec2; Impact duration: 16ms; Impact times: 1000.   3  After  test,  the  Appearance,  Power  EVM  and Frequency  error  shall  be  satisfied  with  the specification.   4-4   Soldering ability test   Soldering temperature: 235±5℃ Soldering duration: 2±0.5S   3 1. After  soldering,  the  soldered  area  must  be covered  by  a  smooth  bright  solder  layer,  some deficiencies  such  as  a  small  amount  of  the pinhole,   not    wetting   are    allowed,   but  the deficiencies can not be in the same place; 2. At least 90% of soldered area shall becovered continuously by the solderingmaterial.  4-5  Humidity test  Leave samples in 40±3℃, 93% RH @ 96 hours  3 Leave  samples  in  standard  test  condition  for  2 hours  then  test,  the  Appearance,  Power,  EVM and  Frequency  error  functional  parameter  shall   be satisfied with the test specification.    4-6   High temperature load life test  Thermostat cabinet temperature: 55±5℃ Applied voltage: 110% rated voltage Working duration: 200 hour (Supply Voltage Cycle 23h power on, 1h power off)    60   After  test,  leave  samples  in  standard  condition     for 1 hour and test, Power, EVM and Frequency error shall be satisfied with the testspecification.  4-7  High temperature load test  Temperature: 55±5℃ Samples work for 16 hours  3 After  test,  the Appearance,  Power,  EVM  and Frequency  error  shall  be  Satisfied  with  the  test specification.

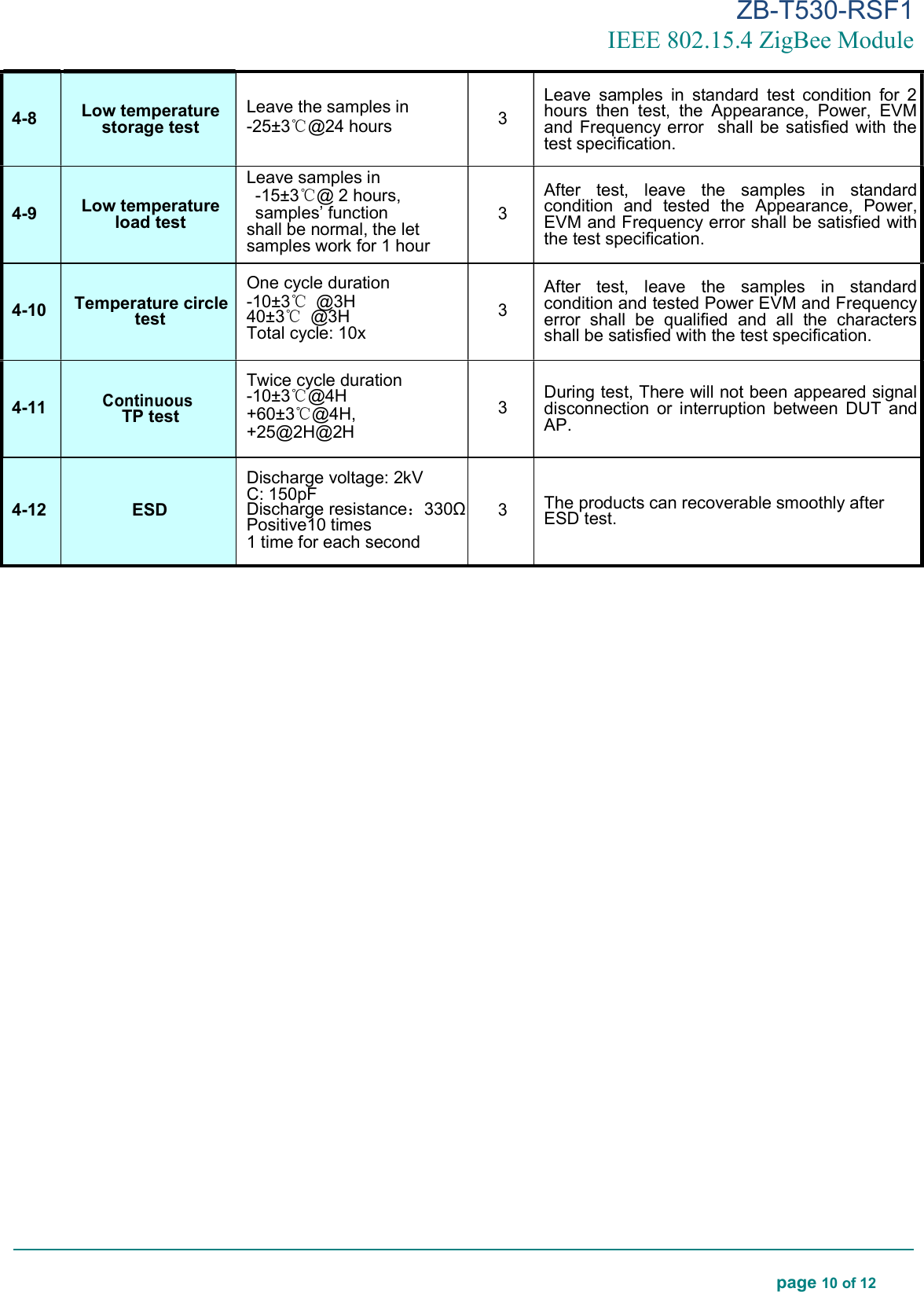

ZB-T530-RSF1 IEEE 802.15.4 ZigBee Module  page 10 of 12     4-8  Low temperature storage test  Leave the samples in -25±3℃@24 hours  3 Leave  samples  in  standard  test  condition  for  2 hours  then  test,  the Appearance,  Power,  EVM and Frequency error    shall be satisfied with the  test specification.  4-9  Low temperature load test Leave samples in -15±3℃@ 2 hours, samples’ function shall be normal, the let samples work for 1 hour  3 After  test, leave  the  samples  in  standard  condition  and  tested  the  Appearance,  Power, EVM and Frequency error shall be satisfied with the test specification.  4-10  Temperature circle test One cycle duration -10±3℃ @3H 40±3℃ @3H Total cycle: 10x  3 After  test, leave  the  samples  in  standard  condition and tested Power EVM and Frequency error  shall  be  qualified  and  all  the  characters shall be satisfied with the test specification.  4-11  Continuous TP test Twice cycle duration -10±3℃@4H +60±3℃@4H, +25@2H@2H  3  During test, There will not been appeared signal disconnection  or  interruption  between  DUT  and AP.   4-12   ESD Discharge voltage: 2kV C: 150pF Discharge resistance:330Ω Positive10 times 1 time for each second   3   The products can recoverable smoothly after  ESD test.

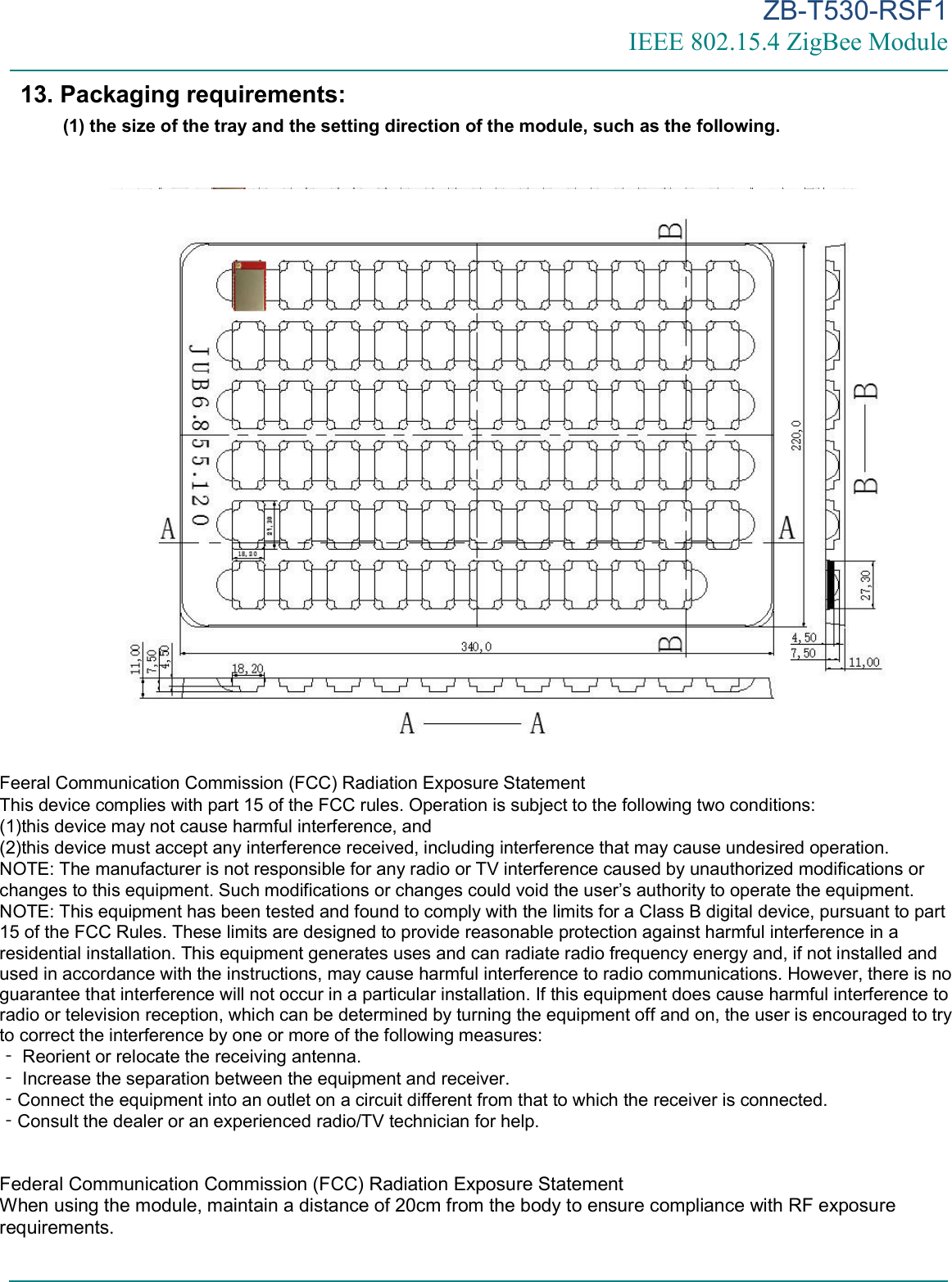

ZB-T530-RSF1 IEEE 802.15.4 ZigBee Module      13. Packaging requirements: (1) the size of the tray and the setting direction of the module, such as the following.    Feeral Communication Commission (FCC) Radiation Exposure Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:  (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.  NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorien‐t or relocate the receiving antenna.  Increase the separation between the equipment and receiver.‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.‐ Consult the dealer or an experienced radio/TV ‐technician for help.   Federal Communication Commission (FCC) Radiation Exposure Statement When using the module, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.
ZB-T530-RSF1 IEEE 802.15.4 ZigBee Module        A certified modular has the option to use a permanently affixed label, or an electronic label. For a permanently affixed label, the module must be labelled with an FCC ID:2AE8BFZB57A5PF.  The OEM manual  must provide clear instructions explaining to the OEM the labelling requirements, options and OEM user manual instructions that are required For a host using a this FCC certified modular with a standard fixed  label, if (1) the module’s FCC ID is notvisible when installed in the host, or (2) if the host is marketed so  that end users do not have straightforward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed  module:   “Contains Transmitter Module FCC ID: 2AE8BFZB57A5PF or “Contains FCC ID:2AE8BFZB57A5PF ”  must be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access the module and the FCC ID.  Host product is required to comply with all applicable FCC equipment authorizations regulations,  requirements and equipment functions not associated with the transmitter module portion. compliance  must be demonstrated to regulations for other transmitter components within the host product; to requirements for unintentional radiators (Part 15B). To ensure compliance with all nontransmitter functions the  host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. If a host was previously authorized as an unintentional radiator under the Declaration of Conformity  procedure without a transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this may depend on the details of how the  module is integrated with the host, we suggest the host device to recertify part 15B to ensure complete  compliance with FCC requirement: Part 2 Subpart J Equipment Authorization Procedures , KDB784748  D01 v07, and KDB 997198 about importation of radio frequency devices into the United States.
