USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
USER MANUAL
RFID Reader/Writer
74Eｰ300810-0001-1D
(Built-in Type)
FUJITSU TEN LIMITED
Version 1.05
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
Contents
1. Safety Precautions
2. Outline
3. Architecture
4. Specification
5. Names and Functions
6. Installation
7. Communications Specifications
1.1 Warning
2.1 Outline
2.2 Feature
2.3 In use
3.1 System Architecture
4.1 Specification
4.2 Dimension
5.1 Names and Functions of each part
6.1 Installation Enviroment
6.2 Connecting Cable
7.1 Communications Specifications
1.2 Caution
FUJITSU TEN LIMITED
[1 / 8]
1.1 Warning
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
1) In case installing this product, Turn off the power supply or remove the
connection
of power cable.
2) This product is permitted by Radio regulation law in Japan. So it is not necessary
to get the permission of high frequency equipment to set.
And this product doesn't use except for the following country.
If you use the module other than PC-180001 or remodels it,
you are punished by ordinance.
Changes or modifications not expressly approved by the manufacturer
for compliance could void the user's authority to operate the equipment.
It is punished similarly when using it in a country other than the above.
3) Don't use other AC adaptor excluding our company specified.
It might cause the electric shock, a fire, and the breakdown.
4) This product uses electric wave.
According to the place and method for use, it is danger that influences
medical equipment.
Observe the following strictly when operating it to reduce this influence.
① Do not use this product in the hospital or the airport.
② Do not use it for medical equipment.
③ Those who install the planting type medical equipment must not bring
the installation part close from the antenna of the RFID equipment
within 22cm.
＜Built-in module＞
R/W module model Number
PC-180001-M AC-10008
＜Electric wave acquisition country＞
Country ID
China
Maxico
Spain
Philippin
Tｈailand
１． Safety Concerns
WARNING
FUJITSU TEN LIMITED
[2 / 8]
1.2 Caution
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
1) Please avoid the installation in the following places.
① Enviroment that deviated from the specifications range of this product.
② Use in the following place
a．Locations exposed to direct sunlight.
b．Locations high temperature and high humidity.
c．Locations directly subjected to vibration and shock.
d．Locations where a strong magnetic field or electric field occurs.
e．Locations with corrosive gas or inflammable gas.
f．Locations where condensation occurs due to sudden temperature changes.
g．Locations covered metal.
2) Content with danger of not operating normally
① When there is equipment which generates the electric wave in the vicinity
of 13.56MHz to be near.
② When there are a speaker or an echo thing to be near.
③ When in surroundings, there is a noise source.
3) Do not set up this product in an unstable place.
It causes the breakdown when falling .
4) If you don't use equipment for a long time, stop to supply power,
except for pull out the AC adaptor.
5) This product is a communication device that uses the electric wave of 13.56MHz.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
① This device may not cause harmful interference, and
② This device must accept any interference received,
including interference that may cause undesired operation.
6) This product and the internal antenna must not be co-located or operating
in conjunction with any other antenna or transmitter.
End user cannot modify this transmitter device.
Any unauthorized modification made on the device could avoid the user's
authority to operate this device.
7) The distance of Reader/Writer (R/W) and IC tag changes by the following.
① Holding of IC tag
② Material (set up)
③ Size and shape
④ Presence of electric conducting material
CAUTION
FUJITSU TEN LIMITED
This product is RFID Reader/Writer to be able to read and write IC tag data by non-contact by using the frequency of 13.56MHz.
It is possible to use it for various usages of management of entrance and exit and the distribution management, etc.
A basic control of this product becomes operation of returning the response for the command from a upper system.
Even when two or more IC tag exists in the area which can be read, this product can be read.
It corresponds to a standard command and two or more option commands in accordance with international standard ISO/IEC15693.
Because the data of IC tag can be freely overwrited, it can repeat, and be low-cost.
It is a Reader/Writer of the small size and low power consumption.
As for the connection with a upper system, the connection with RS-232C or USB becomes possible.
Because this product corresponds to "Inducement type reading and writing communication equipment" of "High frequency use equipment"
of the Radio Law of Japan; This is applied to the Ministry of General Affairs, and the formal licensing is acquired.
Therefore, the user can use it without following a procedure for the permission application of the high frequency use equipment.
2.3 In use
2.1 Outline
[3 / 8]
2.2 Feature
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
2. Outline
RS-232C
RS-232C
CN3
CN1
CN2
USB
Ｄ-ｓｕｂ ９pin⇔RJ45
Ｄ-ｓｕｂ ９pi⇔RJ45
Series A Plug⇔Series B Plug
Connector Connecting Cable ＳpecificationConnector No.
Transmission／Reception
Transmission
Transmission／Reception
Communication
FUJITSU TEN LIMITED
This product communicates with the lower system (IC tag) and the upper system (computer and PLC, etc.).
This product can change operation by sending the command from the upper system.
Power is supplied by Reader/Writer's electric wave when IC tag enters in the antenna area, and the Reader/Writer is communicated.
The communication with the upper system passes serial I/F or USB I/F.
Connection with Computer
Connection with PLC
3.1 System Architecture
[4 / 8]
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
3. Architecture

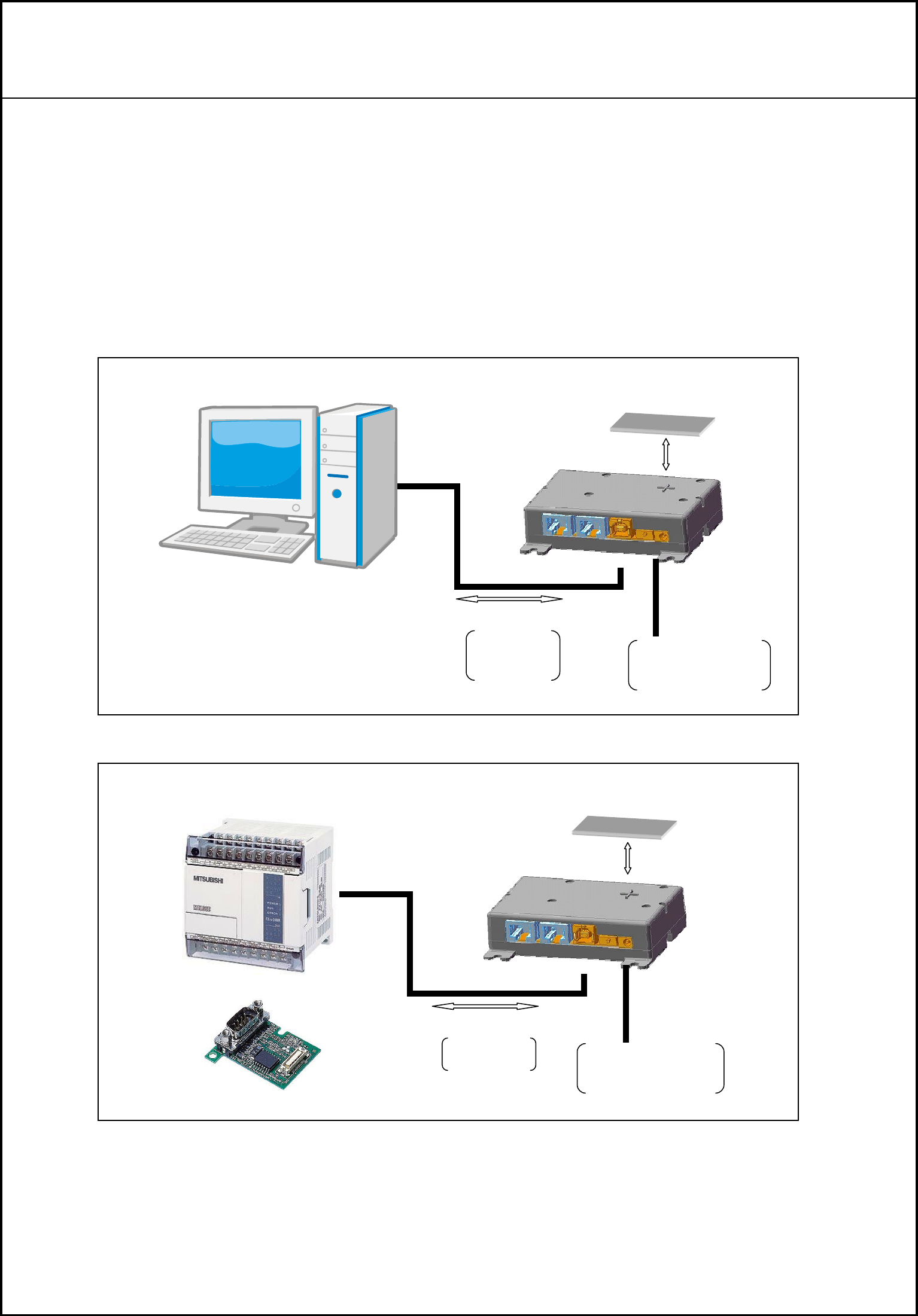

Computer
Ｃommunication with the upper system
Reader/Writer
IC tag
Ｃommunication with
the ｌower system
RS-232C
USB Exclusive AC adaptor
DC5V supply
IC tag
Ｃommunication with
the ｌower system
Ｃommunication with the upper system
RS-232C
PLC Reader/Writer
RS-232C Module
Exclusive AC adaptor
DC5V supply
FUJITSU TEN LIMITED
This product is RFID Reader/Writer to be able to read and write IC tag data by non-contact by using the frequency of 13.56MHz.
It is possible to use it for various usages of management of entrance and exit and the distribution management, etc.
A basic control of this product is operation of returning the response to the command from the upper system.
*1) "Tag-it HF-I" is a registered trademark of the TEXAS INSTRUMENTS Inc.
"I.CODE SLI" and "MIFARE" are registered trademarks of the NXP Semiconductors Ltd.
"Felica" is a registered trademark of the Sony Corporation.
"Felica" is a technological method of the contactless IC card which the Sony Corporation developed.
*2) It is a value for opposing the card tag and the antenna correctly.
The value is different depending on the system requirements and the tag type.
Please see "Multi protocol R/W module software specifications" about the specification of software.
[5 / 8]

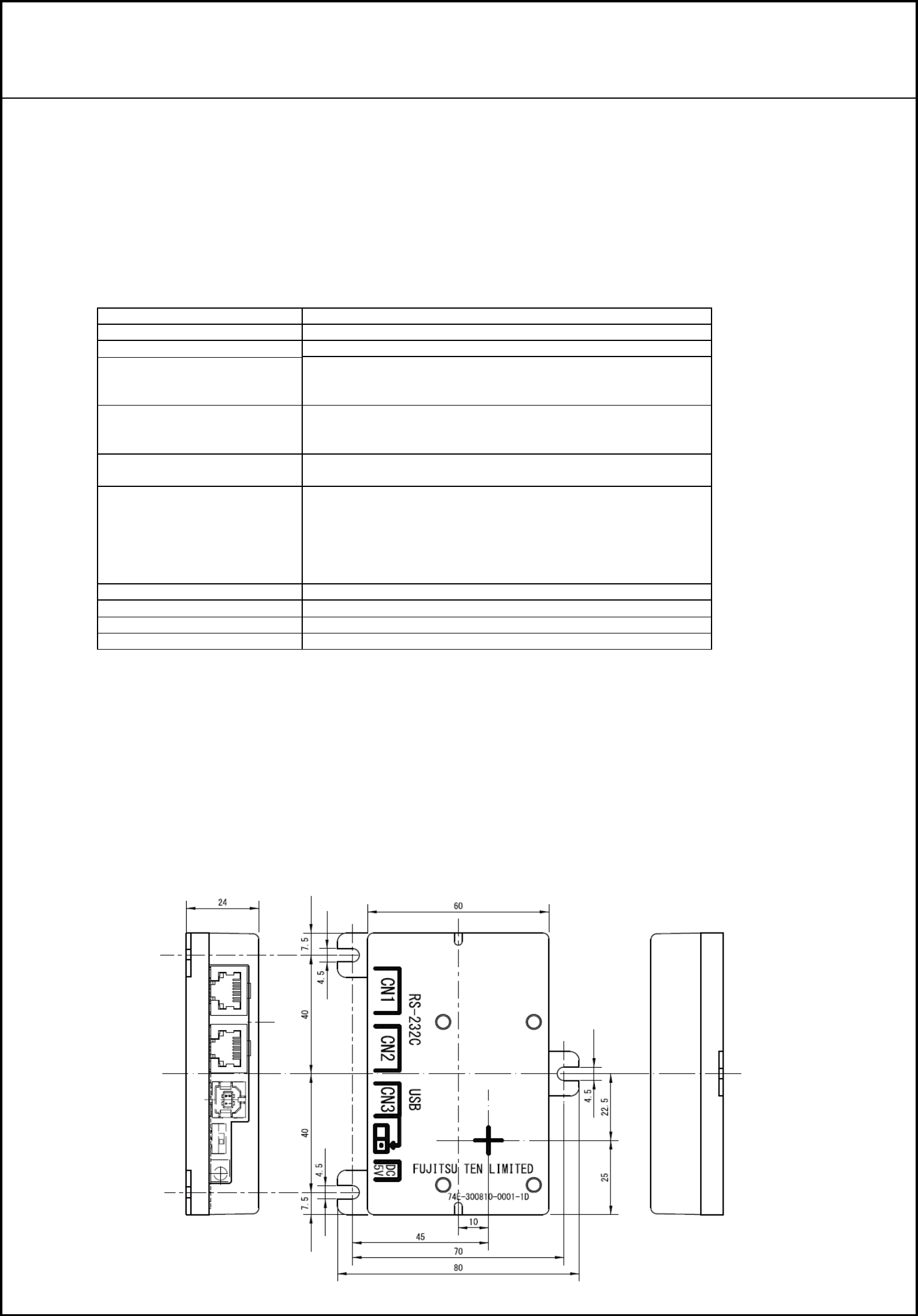

4.2 Dimension
4.1 Specification
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
4.Specification
Item Specifications
Reader/Writer Module PC-1080001-M (Japan Formal Licensing No.: AC-10008)
frequency 13.56 MHz ± 7kHz
Communication Range (*2) Tag-it : 80mm (Max.)
MIFARE : 40mm (Max.)
Felica : 35mm (Max.)
Applied tag (*1) ISO15693 (Tag-it Plus/Pro, I･CODE SLI)
ISO14443 (MIFARE Classic, MIFARE Ultralight)
Felica (ID read only)
Working Temperature 0℃ - 60℃
Dimensions 60 mm X 95 mm X 25 mm (Exclude the installation flange)
Working Humidity 30% - 85%R.H. （Non condensing）
Communication Command Multi Protocol Reader Writer Module (PC-1080001)
(Refer to Software Specification)
Ｉ／Ｆ Serial Communication
Baud Rate: 19200bps (+ 0.32%)
Transmission Method: Asynchronous Communication Method
Data Structure: Data Length: 8bit, Stop Bit: 1bit, Non Parity
Error Detecting: BCC Method
Response Method: Response
Rated Power DC 5V 10VA
FUJITSU TEN LIMITED
①RS-232C Connector
It is a connector of a Reader/Writer and the PC. The communication protocol is RS-232C. (flow control is not done)
In case connect to the PC, use the crossing cable of D-sub 9P (female) connector and RJ45 connector.
Turn on the left of ③Communication SW
Cable (Recommended) ： CBL-RJ45F9-150 （ＭＯＸＡ）
Show the signal name the table below.
ＲＳ－２３２Ｃ（Ｄ sub connector ９Ｐ） ＲＳ－２３２Ｃ（ＲＪ４５ connector）
②USB Connector
It is a connector of a Reader/Writer and the PC.
In case connect to the PC, use the USB cable.
Turn on the right of ③Communication SW
Show the signal name the table below.
USB connector (Standard B)
④Power Adapter Jack
It is an input terminal; DC5V.
Exclusive ＡＣ Adapter ： ＵＳ３０－０５２０ <correspondence ＣＥ marking> [UNIFIVE CO.,LTD.]
Rated Power ：AC100V-AC240V(50/60Ｈz) 12W、0～50℃
Voltage(OUT)：+5V、Current(OUT)：2A、Plug specification ：EIAJ Voltage division2
Do not use exclusive AC adapter.
5.1 Names and Functions of each part
[6 / 8]
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
5. Names and Functions

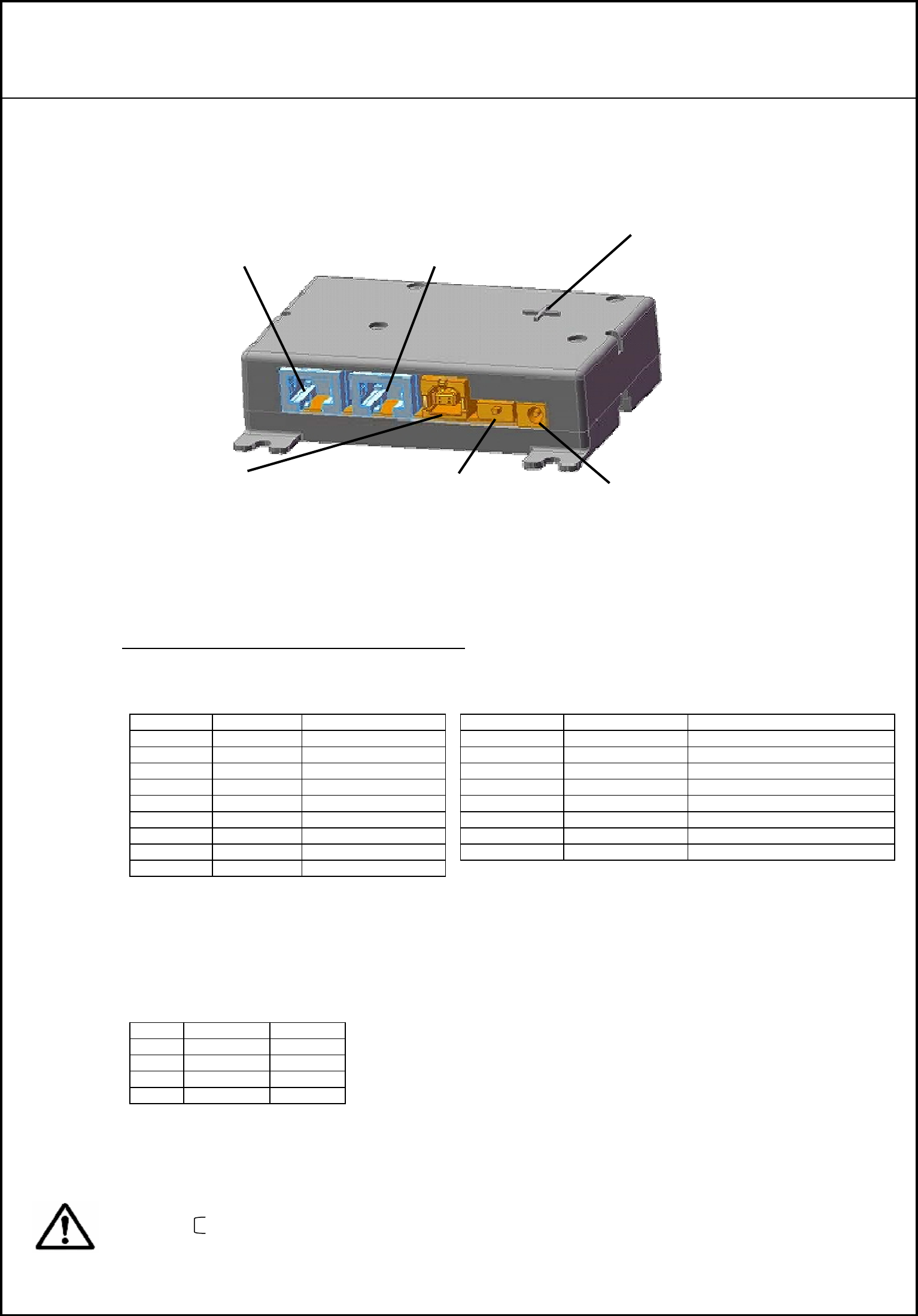

①ＲＳ－２３２Ｃ Connector
（ＲＪ４５）
＜Transmission／Reception＞
ＲＳ－２３２Ｃ Connector
（ＲＪ４５）
＜Transmission＞
②ＵＳＢ Connector
（Standard Ｂ）
＜Transmission／Reception＞
④Power Adapter Jack
（ＥＩＡＪ－＃２）
Center Position of Antenna
③Communication SW
Pin No. Name Function
１Ｖｂｕｓ +5V
２-Ｄａｔａ（Ｄ－） Data Line
３＋Ｄａｔａ（Ｄ＋） Data Line
４ＧＮＤ ＧＮＤ
Pin No. Abbreviation Name
１ＤＳＲ Data Set Ready
２ＲＴＳ Request to Send
３ＧＮＤ ＧＮＤ
４ＴｘＤ Transmitted Data
５ＲｘＤ Received Data
６ＤＣＤ Data Carrier Detect
７ＣＴＳ Clear to Send
８ＤＴＲ Data Terminal Ready
Pin No. Abbreviation Name
１ＤＣＤ Data Carrier Detect
２ＴｘＤ Transmitted Data
３ＲｘＤ Received Data
４ＤＳＲ Data Set Ready
５ＧＮＤ ＧＮＤ
６ＤＴＲ Data Terminal Ready
７ＣＴＳ Clear to Send
８ＲＴＳ Request to Send
９ ---
WARNING
FUJITSU TEN LIMITED
6.1.1 General
Please avoid the installation in the following places.
・Enviroment that deviated from the specifications range of this product.
・Direct sunlight
・High temperature and high humidity
・Vibration
・Strong magnetic force and shock voltage
w
・Firedamp
・Condensation or temperature excursion
・An electrically charged thing
・Do not use in the hospital or the airport.
・Do not use it for medical equipment.
・Those who install the planting type medical equipment must not bring the installation part close
from the antenna of the RFID equipment within 23cm.
6.1.2 Environment in facilities
・Set up at the good ventilation.
・Don't set up near high temperature equipment (Heater,Transfer,Resistance(large capacity))
・In case temperature is over 60℃, set up the fan or air conditioner to down the temperature.
・Don't wire near the power code.
This product use the frequency of 13.56MHz, please attend to the following.
・Metal
Metal has the characteristic, reflect the electric wave.
Reception of the equipment becomes worse or there is a possibility of detecting it in the aria
where the IC tag is not detected either.
・Noise
Transceiver, motor, monitor and power source, generate the noise that influences the communication
with IC tag.
So in case using near the these equipment check the influence before use.
6.1.3 Installation method

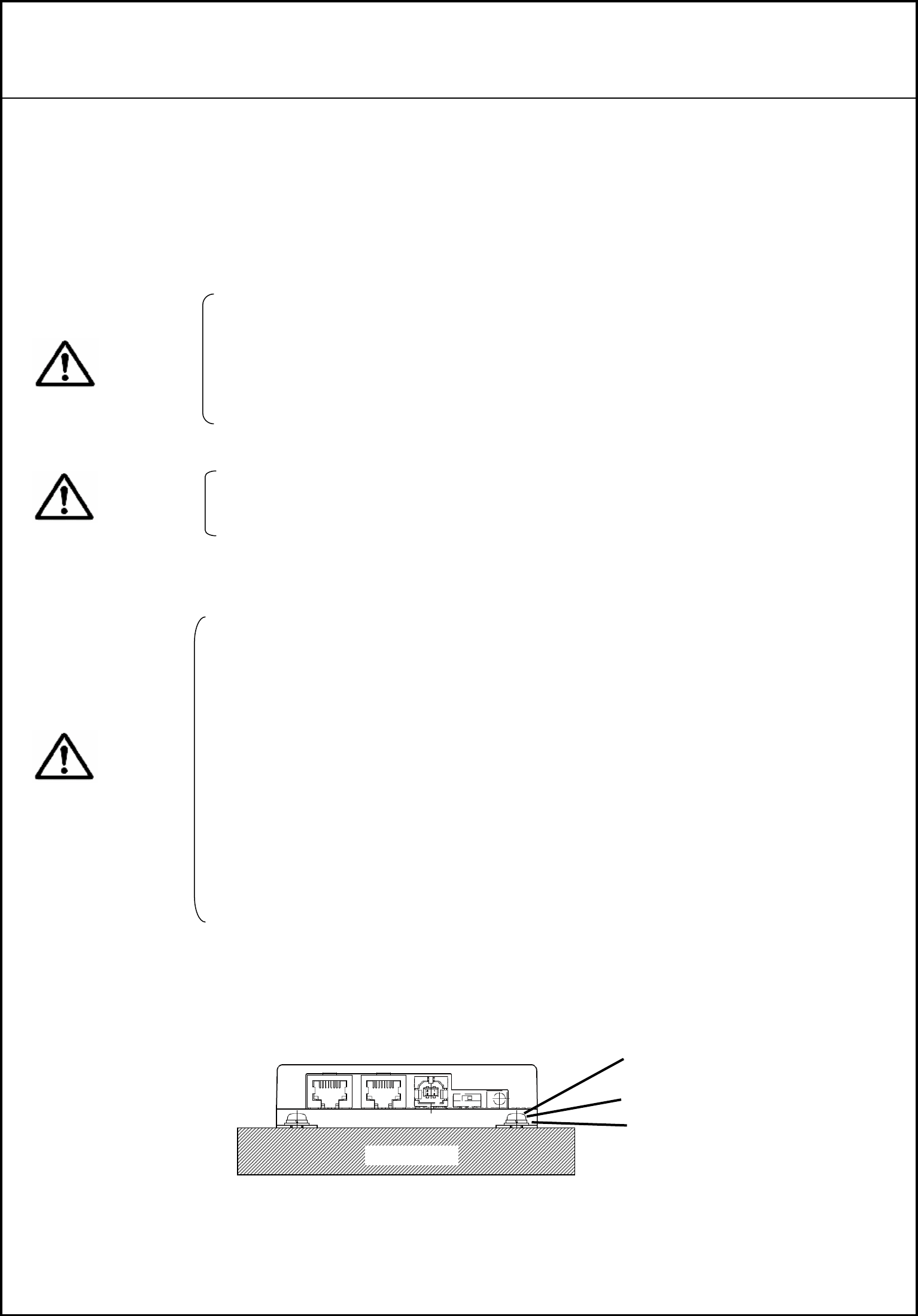

Tighten an M4 screw with spring washer and flat washer in three places.
Do not use the hexagon head screw, so as not to tighten too much.
（The tighten torque is 075±0.05 N・m is recommended. ）
[7 / 8]
6.1 Installation Enviroment
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
６． Installation
Equipment Side
Ｍ４ Cross Pan head Screws
Ｍ４ Spring Washer
Ｍ４ Plain Washer
CAUTION
CAUTION
WARNING
FUJITSU TEN LIMITED

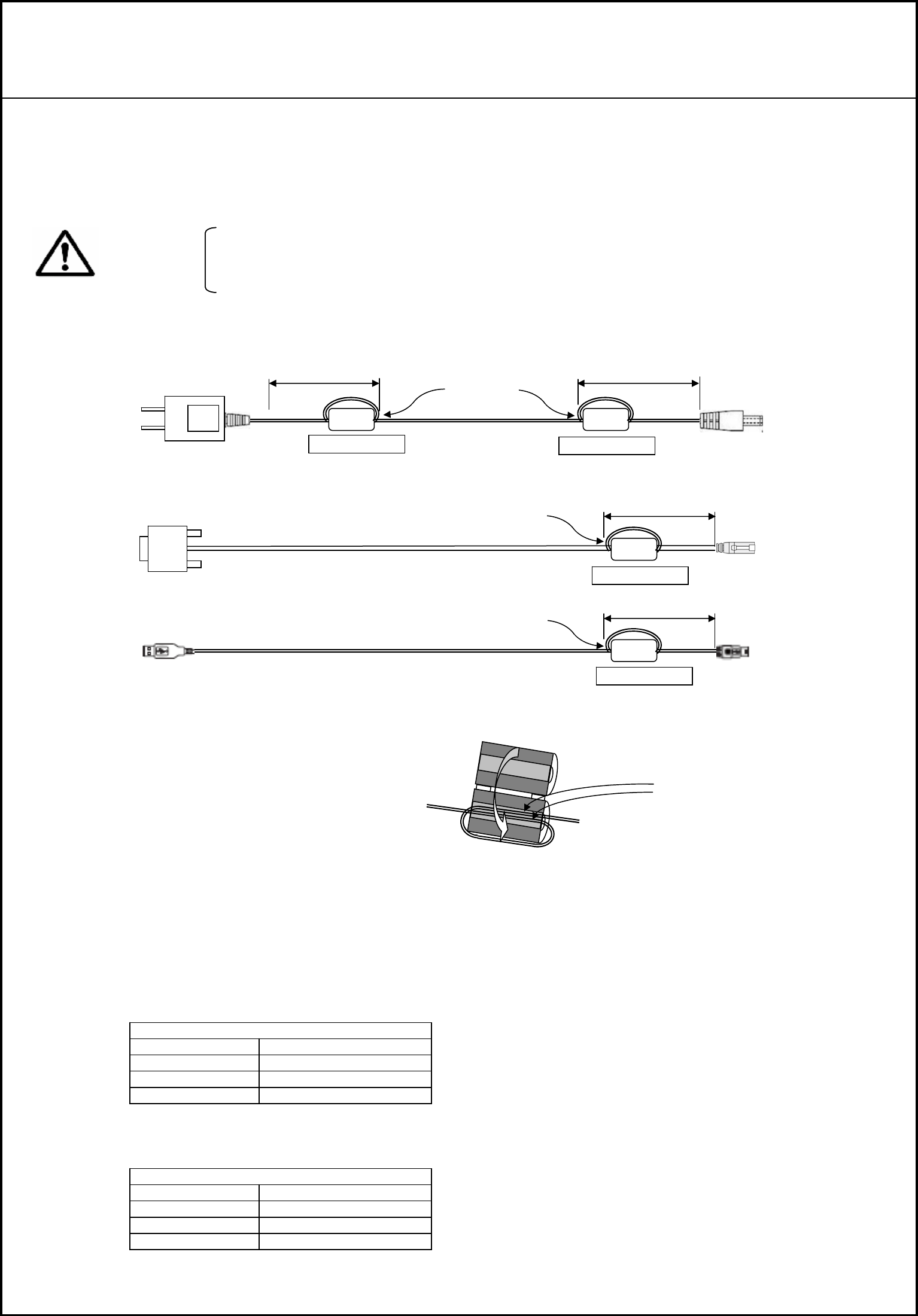

・Set up the cable away from the equipment putting out noise.
・After it wires, check the connector is firmly set or not.
・Attend to cause the large power to the connector
・Install the ferrite core in each cable for the noise control.
Power Cable: Set u
p
the ferrite core in two
p
laces within 100mm from the main bod
y
of the
p
ower ada
p
tor, and within 100mm from the Reader/Writer's main bod
y
.
Communication Cable
(
RS-232C, USB
)
: Set u
p
the ferrite core within 100mm from the the Reader/Writer's main bod
y
.
The cable around the ferrite core once so that the ferrite core should not move.
Close the ferrite core until
y
ou hear it click into
p
lace.
This Reader/Writer has the serial interface (RS-232C)(USB)
RS-232C interface （CN1）
PC can control a Reader/Writer by using serial interface
USB interface （CN3）
PC can control a Reader/Writer by using serial interface
[8 / 8]
6.2.1 Location of Installing Ferrite Core
6.2.2 Method of Installing Ferrite Core
7.1 Communications Specifications
6.2 Connecting Cable
USER MANUAL
RFID Reader/Writer [74Eｰ300810-0001-1D]
６． Installation
7. Communications Specifications
Serial Communication Format
Bit Rates
Data Transmission
Stop Bit
Parity
19200 bps
8 bit
1 bit
-
Serial Communication Format
Bit Rates
Data Transmission
Stop Bit
Parity
19200 bps
8 bit
1 bit
-
100mm Max. 100mm Max.
⇒RFID
Reader/Writer
100mm Max.
⇒RFID
Reader/Writer
100mm Max.
⇒RFID
Reader/Writer
RS-232C
USB
CAUTION
FUJITSU TEN LIMITED
SFT-72SN/TKK
SFT-36SN/TKK
SFT-59SN/TKK
SFT-72SN/TKK
Two Turns
Two Turns
Two Turns
Two Turns
