Faro Technologies 14000 PORTABLE LASER LINE MEASUREMENT ARM User Manual FARO EDGE Laser ScanArm Users Manual

Faro Technologies, Inc. PORTABLE LASER LINE MEASUREMENT ARM FARO EDGE Laser ScanArm Users Manual

Contents

Users Manual 2

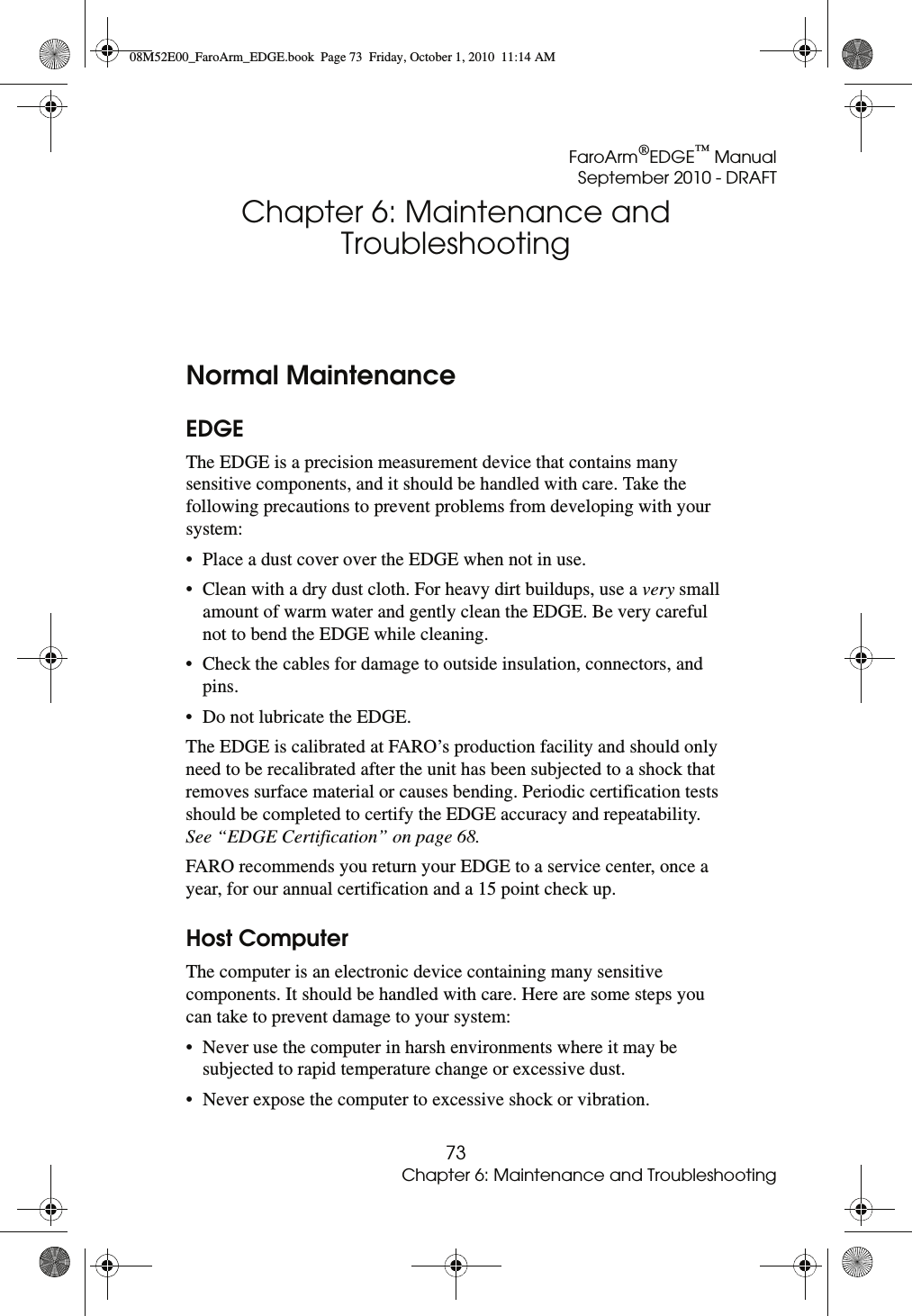

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT73Chapter 6: Maintenance and TroubleshootingChapter 6: Maintenance and TroubleshootingNormal MaintenanceEDGEThe EDGE is a precision measurement device that contains many sensitive components, and it should be handled with care. Take the following precautions to prevent problems from developing with your system:• Place a dust cover over the EDGE when not in use.• Clean with a dry dust cloth. For heavy dirt buildups, use a very small amount of warm water and gently clean the EDGE. Be very careful not to bend the EDGE while cleaning. • Check the cables for damage to outside insulation, connectors, and pins.• Do not lubricate the EDGE.The EDGE is calibrated at FARO’s production facility and should only need to be recalibrated after the unit has been subjected to a shock that removes surface material or causes bending. Periodic certification tests should be completed to certify the EDGE accuracy and repeatability. See “EDGE Certification” on page 68.FARO recommends you return your EDGE to a service center, once a year, for our annual certification and a 15 point check up.Host ComputerThe computer is an electronic device containing many sensitive components. It should be handled with care. Here are some steps you can take to prevent damage to your system:• Never use the computer in harsh environments where it may be subjected to rapid temperature change or excessive dust. • Never expose the computer to excessive shock or vibration. 08M52E00_FaroArm_EDGE.book  Page 73  Friday, October 1, 2010  11:14 AM

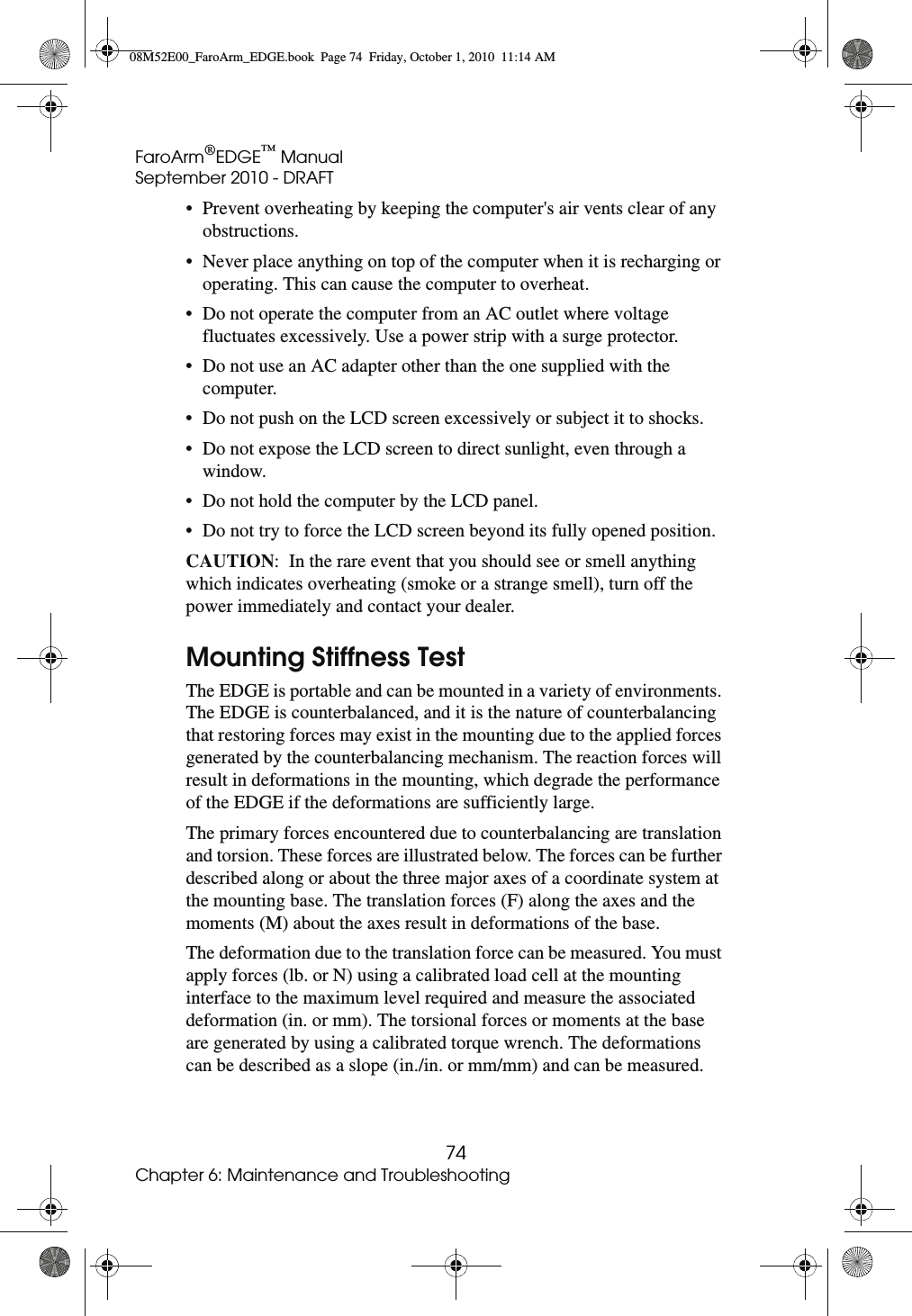

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT74Chapter 6: Maintenance and Troubleshooting• Prevent overheating by keeping the computer's air vents clear of any obstructions. • Never place anything on top of the computer when it is recharging or operating. This can cause the computer to overheat. • Do not operate the computer from an AC outlet where voltage fluctuates excessively. Use a power strip with a surge protector. • Do not use an AC adapter other than the one supplied with the computer. • Do not push on the LCD screen excessively or subject it to shocks. • Do not expose the LCD screen to direct sunlight, even through a window. • Do not hold the computer by the LCD panel. • Do not try to force the LCD screen beyond its fully opened position. CAUTION:  In the rare event that you should see or smell anything which indicates overheating (smoke or a strange smell), turn off the power immediately and contact your dealer.Mounting Stiffness TestThe EDGE is portable and can be mounted in a variety of environments. The EDGE is counterbalanced, and it is the nature of counterbalancing that restoring forces may exist in the mounting due to the applied forces generated by the counterbalancing mechanism. The reaction forces will result in deformations in the mounting, which degrade the performance of the EDGE if the deformations are sufficiently large.The primary forces encountered due to counterbalancing are translation and torsion. These forces are illustrated below. The forces can be further described along or about the three major axes of a coordinate system at the mounting base. The translation forces (F) along the axes and the moments (M) about the axes result in deformations of the base.The deformation due to the translation force can be measured. You must apply forces (lb. or N) using a calibrated load cell at the mounting interface to the maximum level required and measure the associated deformation (in. or mm). The torsional forces or moments at the base are generated by using a calibrated torque wrench. The deformations can be described as a slope (in./in. or mm/mm) and can be measured. 08M52E00_FaroArm_EDGE.book  Page 74  Friday, October 1, 2010  11:14 AM

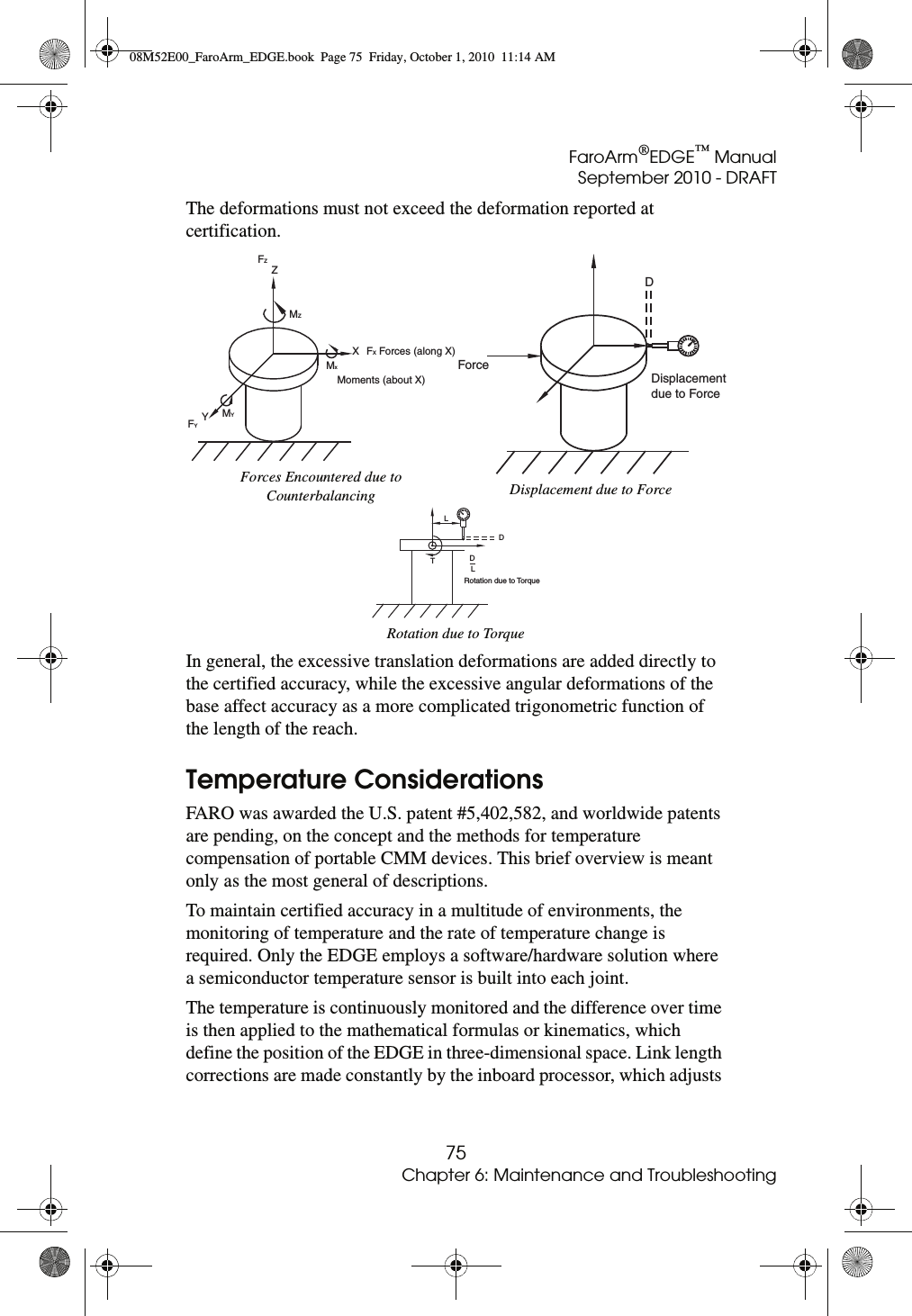

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT75Chapter 6: Maintenance and TroubleshootingThe deformations must not exceed the deformation reported at certification. In general, the excessive translation deformations are added directly to the certified accuracy, while the excessive angular deformations of the base affect accuracy as a more complicated trigonometric function of the length of the reach.Temperature ConsiderationsFARO was awarded the U.S. patent #5,402,582, and worldwide patents are pending, on the concept and the methods for temperature compensation of portable CMM devices. This brief overview is meant only as the most general of descriptions.To maintain certified accuracy in a multitude of environments, the monitoring of temperature and the rate of temperature change is required. Only the EDGE employs a software/hardware solution where a semiconductor temperature sensor is built into each joint.The temperature is continuously monitored and the difference over time is then applied to the mathematical formulas or kinematics, which define the position of the EDGE in three-dimensional space. Link length corrections are made constantly by the inboard processor, which adjusts Forces Encountered due to Counterbalancing Displacement due to ForceRotation due to TorqueFYYMYMxMoments (about X)XFX Forces (along X)MZZFZForceDisplacementdue to ForceDLDDRotation due to TorqueLT08M52E00_FaroArm_EDGE.book  Page 75  Friday, October 1, 2010  11:14 AM

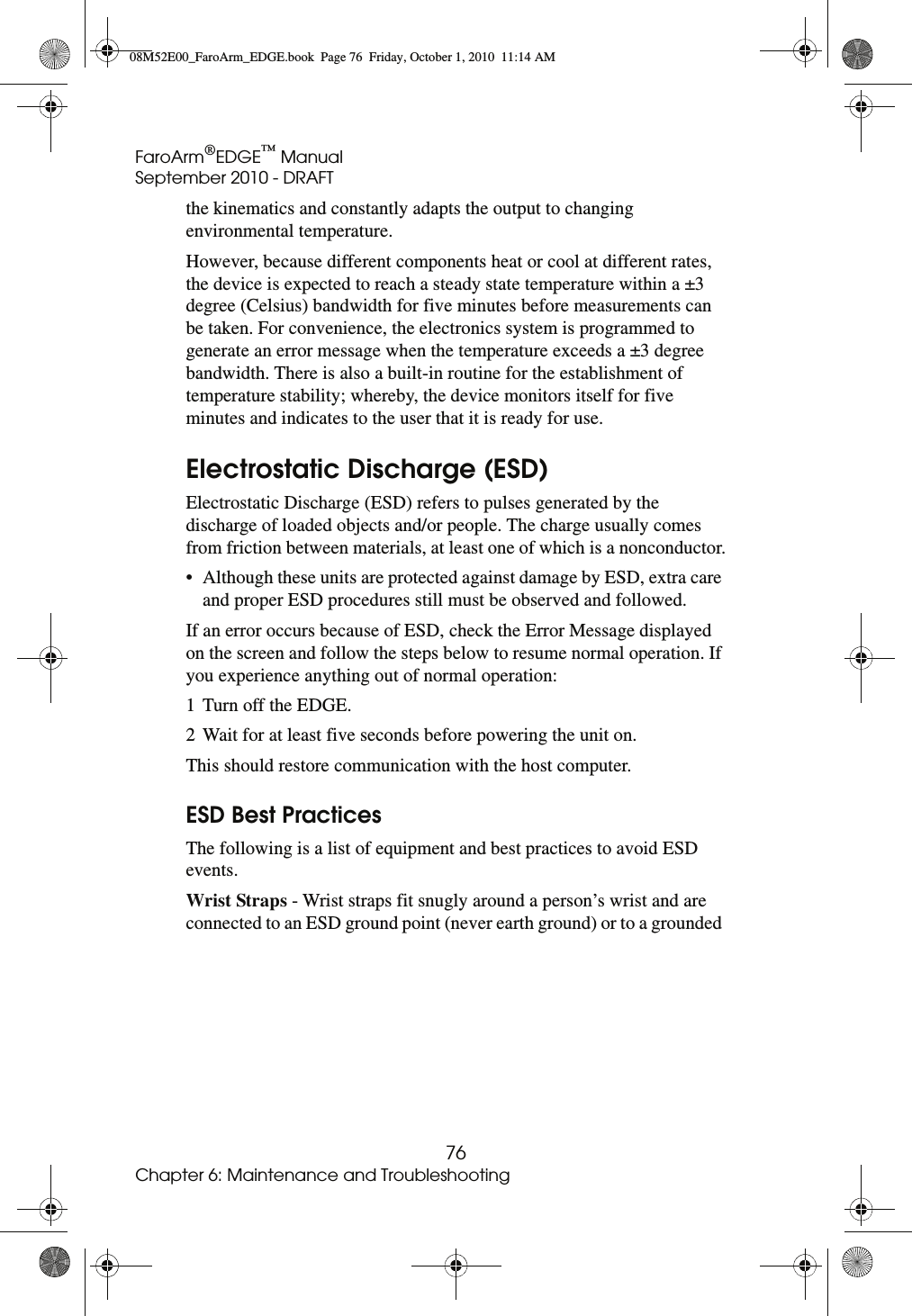

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT76Chapter 6: Maintenance and Troubleshootingthe kinematics and constantly adapts the output to changing environmental temperature.However, because different components heat or cool at different rates, the device is expected to reach a steady state temperature within a ±3 degree (Celsius) bandwidth for five minutes before measurements can be taken. For convenience, the electronics system is programmed to generate an error message when the temperature exceeds a ±3 degree bandwidth. There is also a built-in routine for the establishment of temperature stability; whereby, the device monitors itself for five minutes and indicates to the user that it is ready for use.Electrostatic Discharge (ESD)Electrostatic Discharge (ESD) refers to pulses generated by the discharge of loaded objects and/or people. The charge usually comes from friction between materials, at least one of which is a nonconductor.• Although these units are protected against damage by ESD, extra care and proper ESD procedures still must be observed and followed.If an error occurs because of ESD, check the Error Message displayed on the screen and follow the steps below to resume normal operation. If you experience anything out of normal operation:1 Turn off the EDGE.2 Wait for at least five seconds before powering the unit on.This should restore communication with the host computer.ESD Best PracticesThe following is a list of equipment and best practices to avoid ESD events. Wrist Straps - Wrist straps fit snugly around a person’s wrist and are connected to an ESD ground point (never earth ground) or to a grounded 08M52E00_FaroArm_EDGE.book  Page 76  Friday, October 1, 2010  11:14 AM

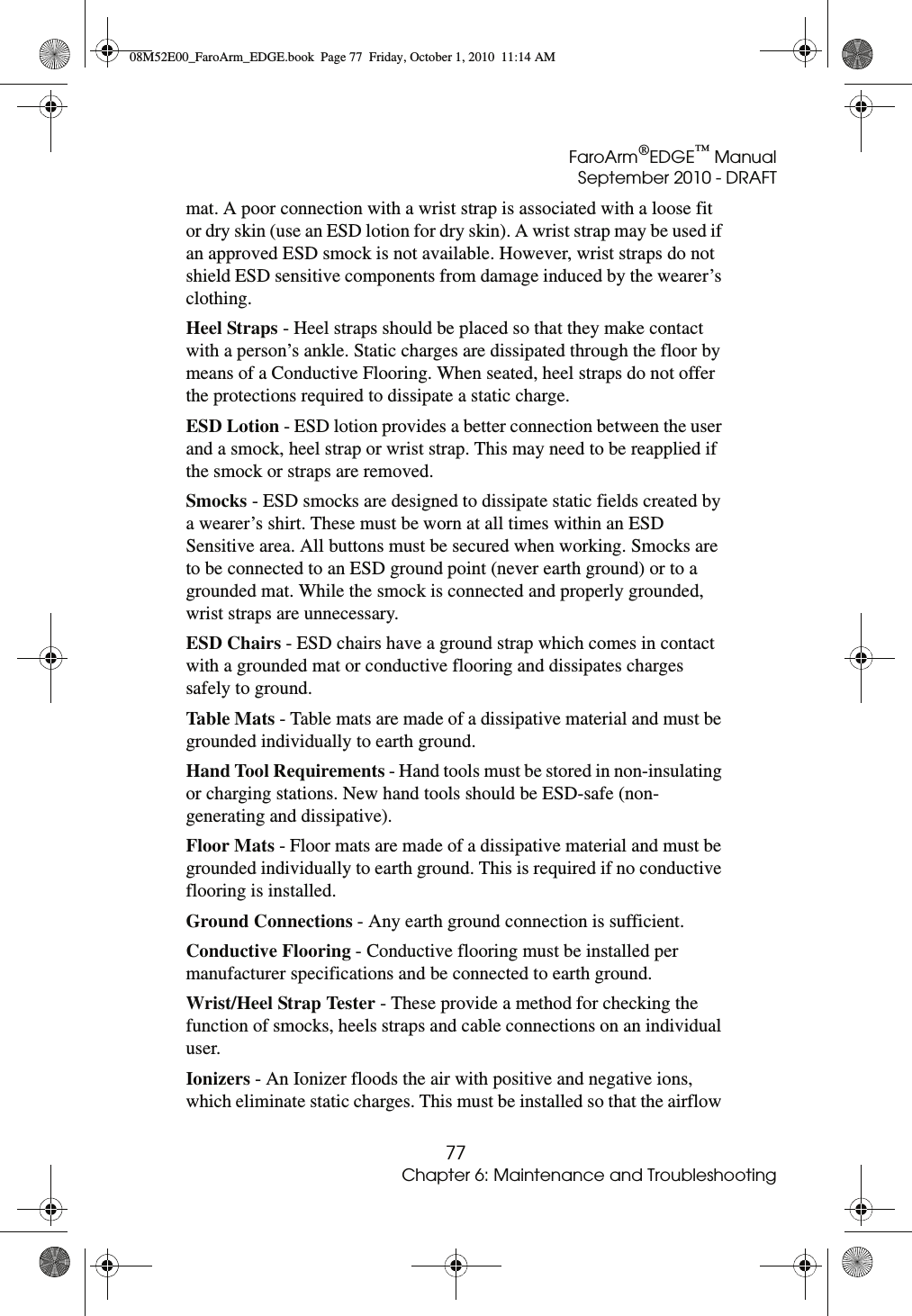

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT77Chapter 6: Maintenance and Troubleshootingmat. A poor connection with a wrist strap is associated with a loose fit or dry skin (use an ESD lotion for dry skin). A wrist strap may be used if an approved ESD smock is not available. However, wrist straps do not shield ESD sensitive components from damage induced by the wearer’s clothing.Heel Straps - Heel straps should be placed so that they make contact with a person’s ankle. Static charges are dissipated through the floor by means of a Conductive Flooring. When seated, heel straps do not offer the protections required to dissipate a static charge.ESD Lotion - ESD lotion provides a better connection between the user and a smock, heel strap or wrist strap. This may need to be reapplied if the smock or straps are removed.Smocks - ESD smocks are designed to dissipate static fields created by a wearer’s shirt. These must be worn at all times within an ESD Sensitive area. All buttons must be secured when working. Smocks are to be connected to an ESD ground point (never earth ground) or to a grounded mat. While the smock is connected and properly grounded, wrist straps are unnecessary.ESD Chairs - ESD chairs have a ground strap which comes in contact with a grounded mat or conductive flooring and dissipates charges safely to ground.Table Mats - Table mats are made of a dissipative material and must be grounded individually to earth ground.Hand Tool Requirements - Hand tools must be stored in non-insulating or charging stations. New hand tools should be ESD-safe (non-generating and dissipative).Floor Mats - Floor mats are made of a dissipative material and must be grounded individually to earth ground. This is required if no conductive flooring is installed.Ground Connections - Any earth ground connection is sufficient.Conductive Flooring - Conductive flooring must be installed per manufacturer specifications and be connected to earth ground. Wrist/Heel Strap Tester - These provide a method for checking the function of smocks, heels straps and cable connections on an individual user.Ionizers - An Ionizer floods the air with positive and negative ions, which eliminate static charges. This must be installed so that the airflow 08M52E00_FaroArm_EDGE.book  Page 77  Friday, October 1, 2010  11:14 AM

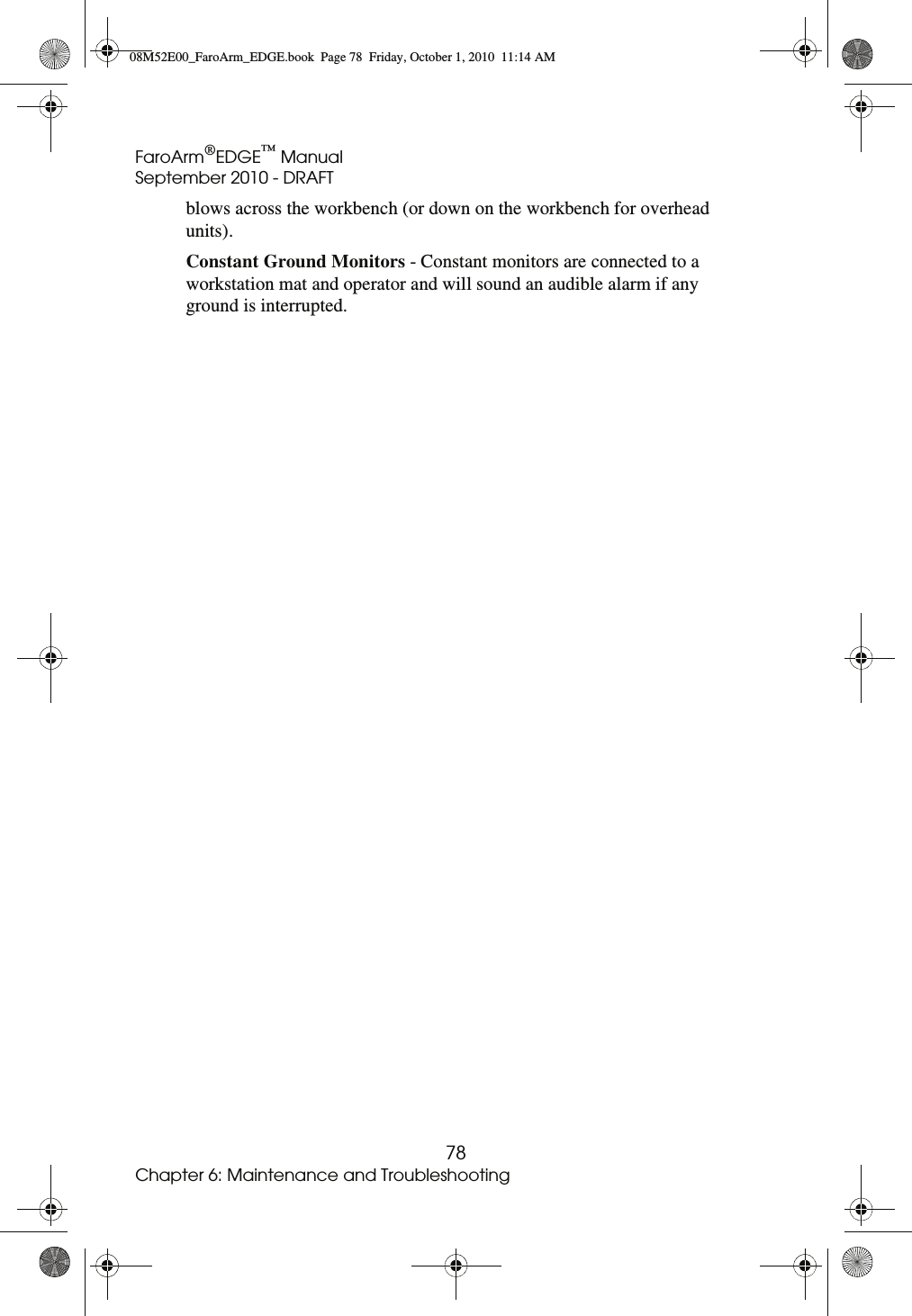

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT78Chapter 6: Maintenance and Troubleshootingblows across the workbench (or down on the workbench for overhead units).Constant Ground Monitors - Constant monitors are connected to a workstation mat and operator and will sound an audible alarm if any ground is interrupted.08M52E00_FaroArm_EDGE.book  Page 78  Friday, October 1, 2010  11:14 AM

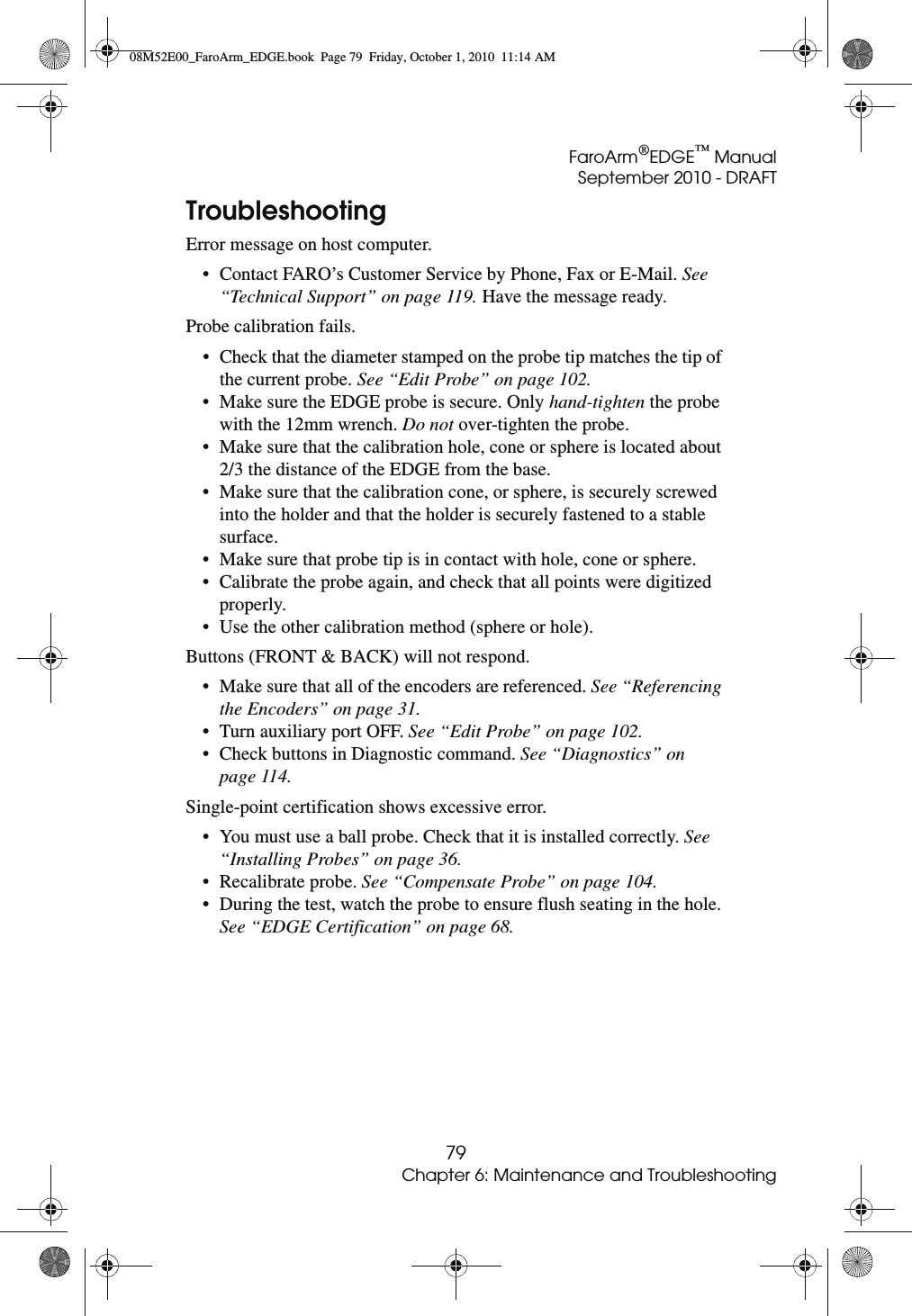

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT79Chapter 6: Maintenance and TroubleshootingTroubleshootingError message on host computer.• Contact FARO’s Customer Service by Phone, Fax or E-Mail. See “Technical Support” on page 119. Have the message ready.Probe calibration fails.• Check that the diameter stamped on the probe tip matches the tip of the current probe. See “Edit Probe” on page 102.• Make sure the EDGE probe is secure. Only hand-tighten the probe with the 12mm wrench. Do not over-tighten the probe.• Make sure that the calibration hole, cone or sphere is located about 2/3 the distance of the EDGE from the base. • Make sure that the calibration cone, or sphere, is securely screwed into the holder and that the holder is securely fastened to a stable surface.• Make sure that probe tip is in contact with hole, cone or sphere.• Calibrate the probe again, and check that all points were digitized properly.• Use the other calibration method (sphere or hole).Buttons (FRONT & BACK) will not respond.• Make sure that all of the encoders are referenced. See “Referencing the Encoders” on page 31.• Turn auxiliary port OFF. See “Edit Probe” on page 102.• Check buttons in Diagnostic command. See “Diagnostics” on page 114.Single-point certification shows excessive error.• You must use a ball probe. Check that it is installed correctly. See “Installing Probes” on page 36.• Recalibrate probe. See “Compensate Probe” on page 104.• During the test, watch the probe to ensure flush seating in the hole. See “EDGE Certification” on page 68.08M52E00_FaroArm_EDGE.book  Page 79  Friday, October 1, 2010  11:14 AM

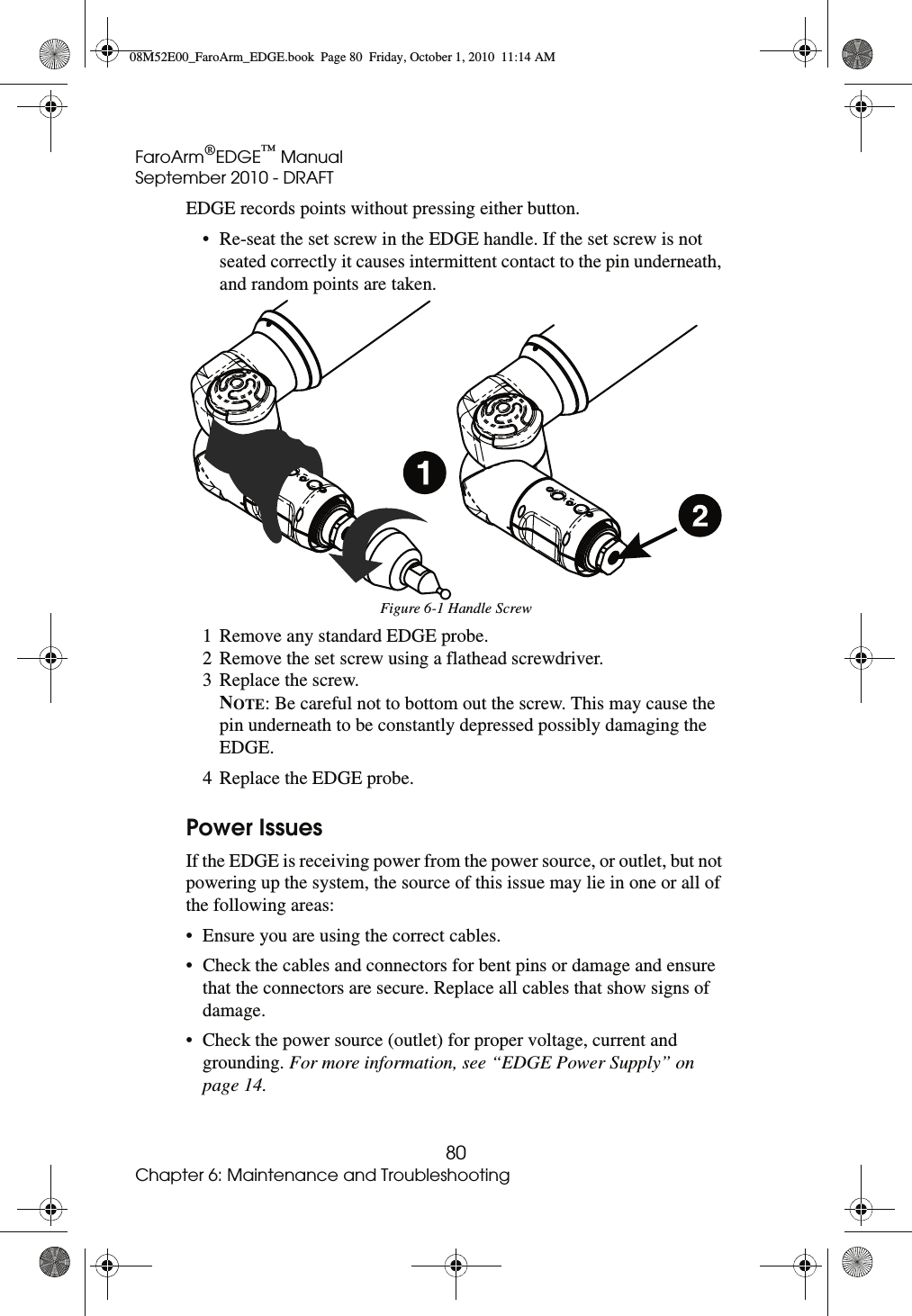

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT80Chapter 6: Maintenance and TroubleshootingEDGE records points without pressing either button.• Re-seat the set screw in the EDGE handle. If the set screw is not seated correctly it causes intermittent contact to the pin underneath, and random points are taken.1 Remove any standard EDGE probe.2 Remove the set screw using a flathead screwdriver.3 Replace the screw. NOTE: Be careful not to bottom out the screw. This may cause the pin underneath to be constantly depressed possibly damaging the EDGE.4 Replace the EDGE probe.Power IssuesIf the EDGE is receiving power from the power source, or outlet, but not powering up the system, the source of this issue may lie in one or all of the following areas: • Ensure you are using the correct cables. • Check the cables and connectors for bent pins or damage and ensure that the connectors are secure. Replace all cables that show signs of damage. • Check the power source (outlet) for proper voltage, current and grounding. For more information, see “EDGE Power Supply” on page 14.Figure 6-1 Handle Screw08M52E00_FaroArm_EDGE.book  Page 80  Friday, October 1, 2010  11:14 AM

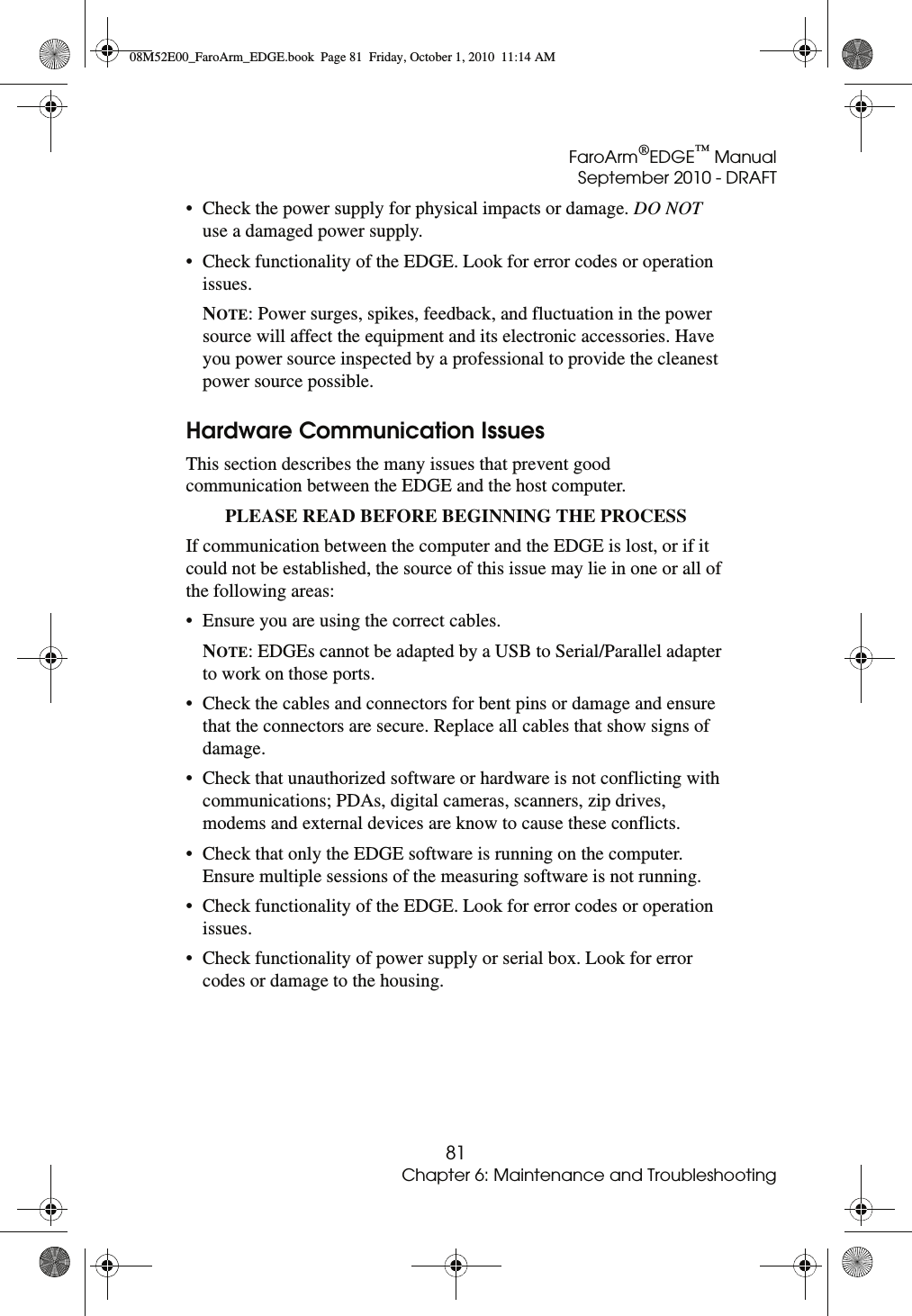

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT81Chapter 6: Maintenance and Troubleshooting• Check the power supply for physical impacts or damage. DO NOT use a damaged power supply. • Check functionality of the EDGE. Look for error codes or operation issues. NOTE: Power surges, spikes, feedback, and fluctuation in the power source will affect the equipment and its electronic accessories. Have you power source inspected by a professional to provide the cleanest power source possible. Hardware Communication IssuesThis section describes the many issues that prevent good communication between the EDGE and the host computer.PLEASE READ BEFORE BEGINNING THE PROCESS If communication between the computer and the EDGE is lost, or if it could not be established, the source of this issue may lie in one or all of the following areas:• Ensure you are using the correct cables.NOTE: EDGEs cannot be adapted by a USB to Serial/Parallel adapter to work on those ports.• Check the cables and connectors for bent pins or damage and ensure that the connectors are secure. Replace all cables that show signs of damage. • Check that unauthorized software or hardware is not conflicting with communications; PDAs, digital cameras, scanners, zip drives, modems and external devices are know to cause these conflicts. • Check that only the EDGE software is running on the computer. Ensure multiple sessions of the measuring software is not running.• Check functionality of the EDGE. Look for error codes or operation issues.• Check functionality of power supply or serial box. Look for error codes or damage to the housing.08M52E00_FaroArm_EDGE.book  Page 81  Friday, October 1, 2010  11:14 AM

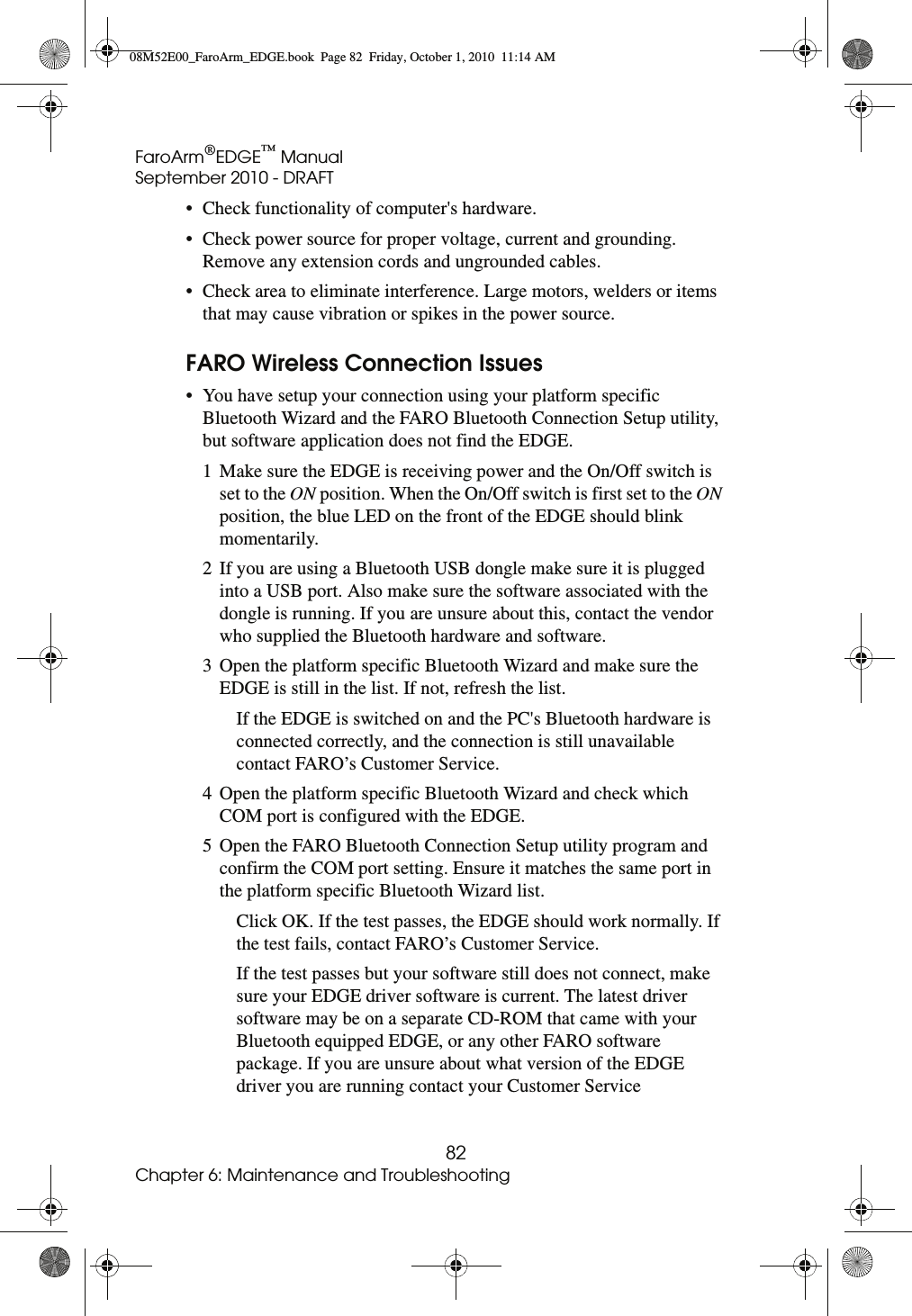

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT82Chapter 6: Maintenance and Troubleshooting• Check functionality of computer's hardware.• Check power source for proper voltage, current and grounding. Remove any extension cords and ungrounded cables. • Check area to eliminate interference. Large motors, welders or items that may cause vibration or spikes in the power source. FARO Wireless Connection Issues• You have setup your connection using your platform specific Bluetooth Wizard and the FARO Bluetooth Connection Setup utility, but software application does not find the EDGE.1 Make sure the EDGE is receiving power and the On/Off switch is set to the ON position. When the On/Off switch is first set to the ON position, the blue LED on the front of the EDGE should blink momentarily.2 If you are using a Bluetooth USB dongle make sure it is plugged into a USB port. Also make sure the software associated with the dongle is running. If you are unsure about this, contact the vendor who supplied the Bluetooth hardware and software.3 Open the platform specific Bluetooth Wizard and make sure the EDGE is still in the list. If not, refresh the list. If the EDGE is switched on and the PC's Bluetooth hardware is connected correctly, and the connection is still unavailable contact FARO’s Customer Service.4 Open the platform specific Bluetooth Wizard and check which COM port is configured with the EDGE. 5 Open the FARO Bluetooth Connection Setup utility program and confirm the COM port setting. Ensure it matches the same port in the platform specific Bluetooth Wizard list. Click OK. If the test passes, the EDGE should work normally. If the test fails, contact FARO’s Customer Service.If the test passes but your software still does not connect, make sure your EDGE driver software is current. The latest driver software may be on a separate CD-ROM that came with your Bluetooth equipped EDGE, or any other FARO software package. If you are unsure about what version of the EDGE driver you are running contact your Customer Service 08M52E00_FaroArm_EDGE.book  Page 82  Friday, October 1, 2010  11:14 AM

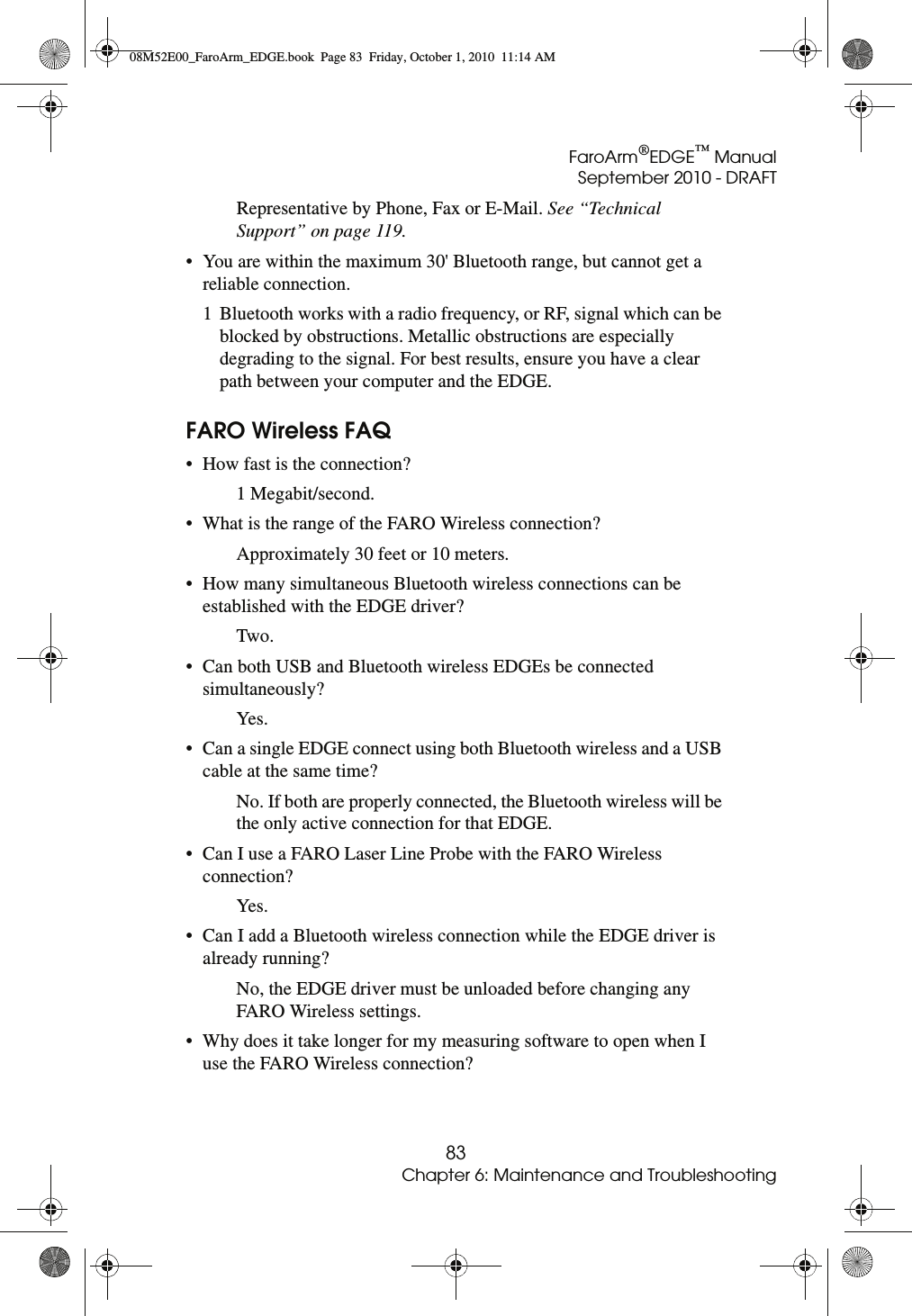

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT83Chapter 6: Maintenance and TroubleshootingRepresentative by Phone, Fax or E-Mail. See “Technical Support” on page 119.• You are within the maximum 30' Bluetooth range, but cannot get a reliable connection.1 Bluetooth works with a radio frequency, or RF, signal which can be blocked by obstructions. Metallic obstructions are especially degrading to the signal. For best results, ensure you have a clear path between your computer and the EDGE.FARO Wireless FAQ• How fast is the connection?1 Megabit/second.• What is the range of the FARO Wireless connection?Approximately 30 feet or 10 meters.• How many simultaneous Bluetooth wireless connections can be established with the EDGE driver?Two.• Can both USB and Bluetooth wireless EDGEs be connected simultaneously?Yes.• Can a single EDGE connect using both Bluetooth wireless and a USB cable at the same time?No. If both are properly connected, the Bluetooth wireless will be the only active connection for that EDGE.• Can I use a FARO Laser Line Probe with the FARO Wireless connection?Yes.• Can I add a Bluetooth wireless connection while the EDGE driver is already running?No, the EDGE driver must be unloaded before changing any FARO Wireless settings.• Why does it take longer for my measuring software to open when I use the FARO Wireless connection?08M52E00_FaroArm_EDGE.book  Page 83  Friday, October 1, 2010  11:14 AM

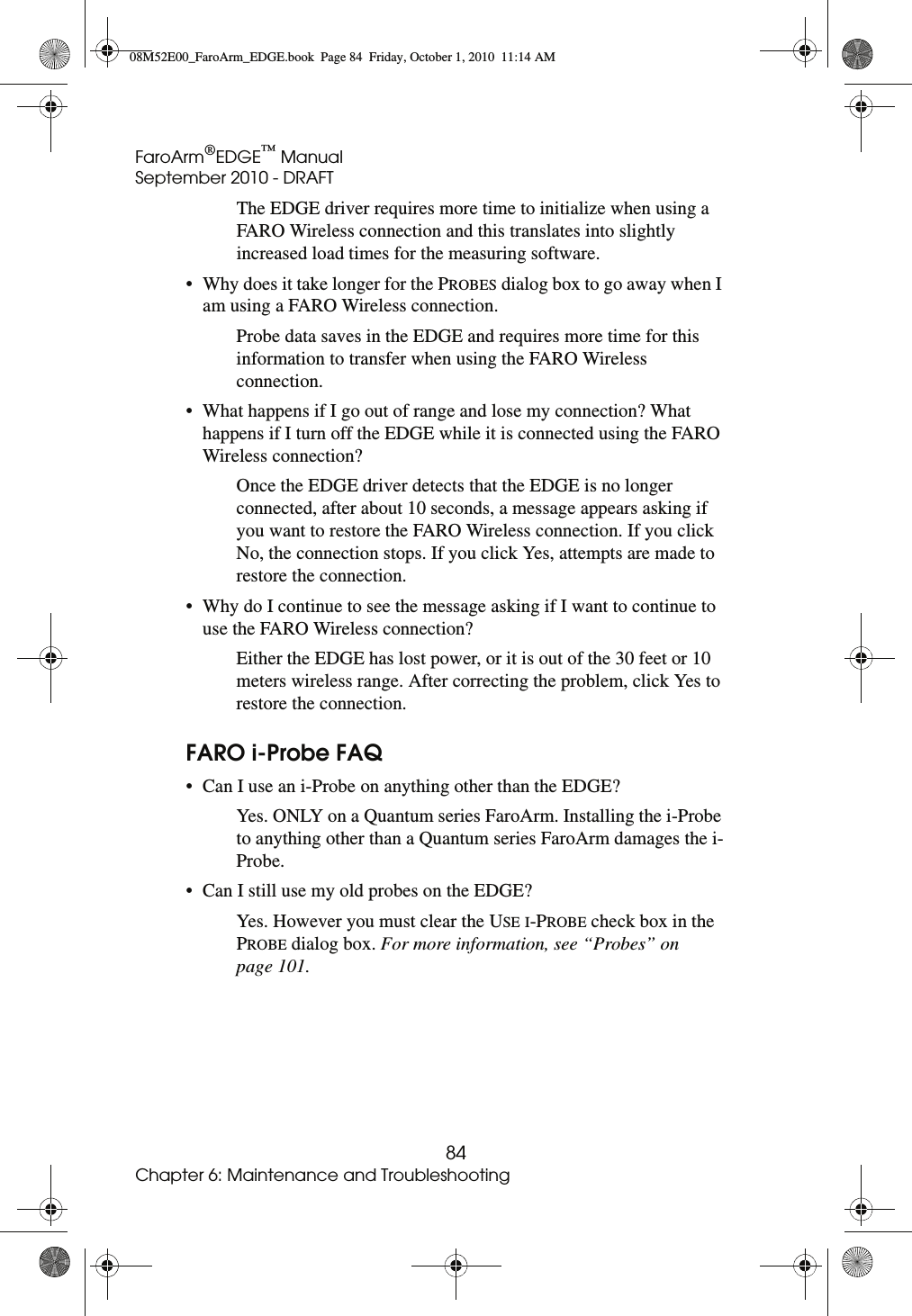

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT84Chapter 6: Maintenance and TroubleshootingThe EDGE driver requires more time to initialize when using a FARO Wireless connection and this translates into slightly increased load times for the measuring software.• Why does it take longer for the PROBES dialog box to go away when I am using a FARO Wireless connection.Probe data saves in the EDGE and requires more time for this information to transfer when using the FARO Wireless connection.• What happens if I go out of range and lose my connection? What happens if I turn off the EDGE while it is connected using the FARO Wireless connection?Once the EDGE driver detects that the EDGE is no longer connected, after about 10 seconds, a message appears asking if you want to restore the FARO Wireless connection. If you click No, the connection stops. If you click Yes, attempts are made to restore the connection.• Why do I continue to see the message asking if I want to continue to use the FARO Wireless connection? Either the EDGE has lost power, or it is out of the 30 feet or 10 meters wireless range. After correcting the problem, click Yes to restore the connection.FARO i-Probe FAQ• Can I use an i-Probe on anything other than the EDGE?Yes. ONLY on a Quantum series FaroArm. Installing the i-Probe to anything other than a Quantum series FaroArm damages the i-Probe.• Can I still use my old probes on the EDGE?Yes. However you must clear the USE I-PROBE check box in the PROBE dialog box. For more information, see “Probes” on page 101.08M52E00_FaroArm_EDGE.book  Page 84  Friday, October 1, 2010  11:14 AM

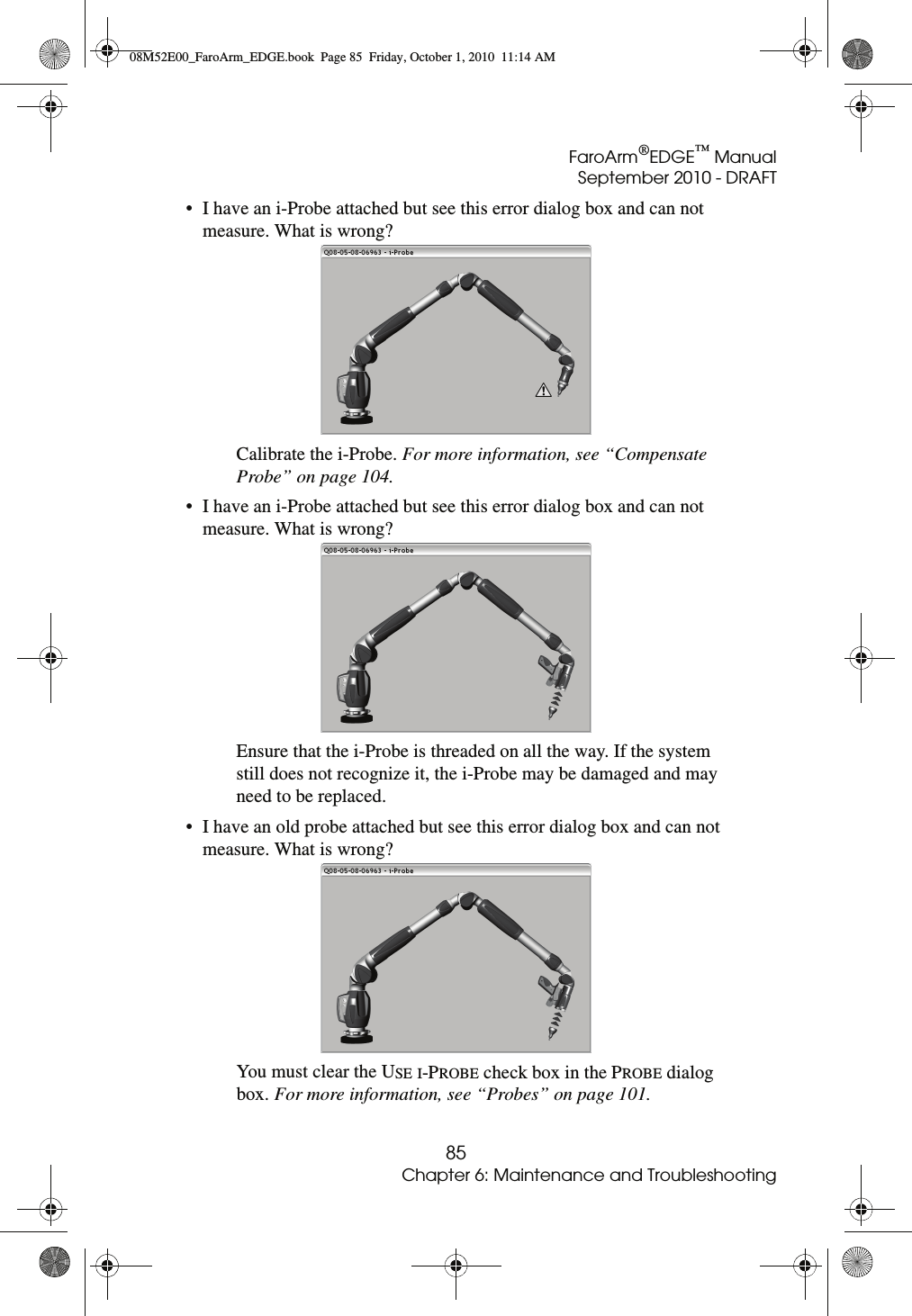

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT85Chapter 6: Maintenance and Troubleshooting• I have an i-Probe attached but see this error dialog box and can not measure. What is wrong? Calibrate the i-Probe. For more information, see “Compensate Probe” on page 104.• I have an i-Probe attached but see this error dialog box and can not measure. What is wrong? Ensure that the i-Probe is threaded on all the way. If the system still does not recognize it, the i-Probe may be damaged and may need to be replaced. • I have an old probe attached but see this error dialog box and can not measure. What is wrong? You must clear the USE I-PROBE check box in the PROBE dialog box. For more information, see “Probes” on page 101.08M52E00_FaroArm_EDGE.book  Page 85  Friday, October 1, 2010  11:14 AM

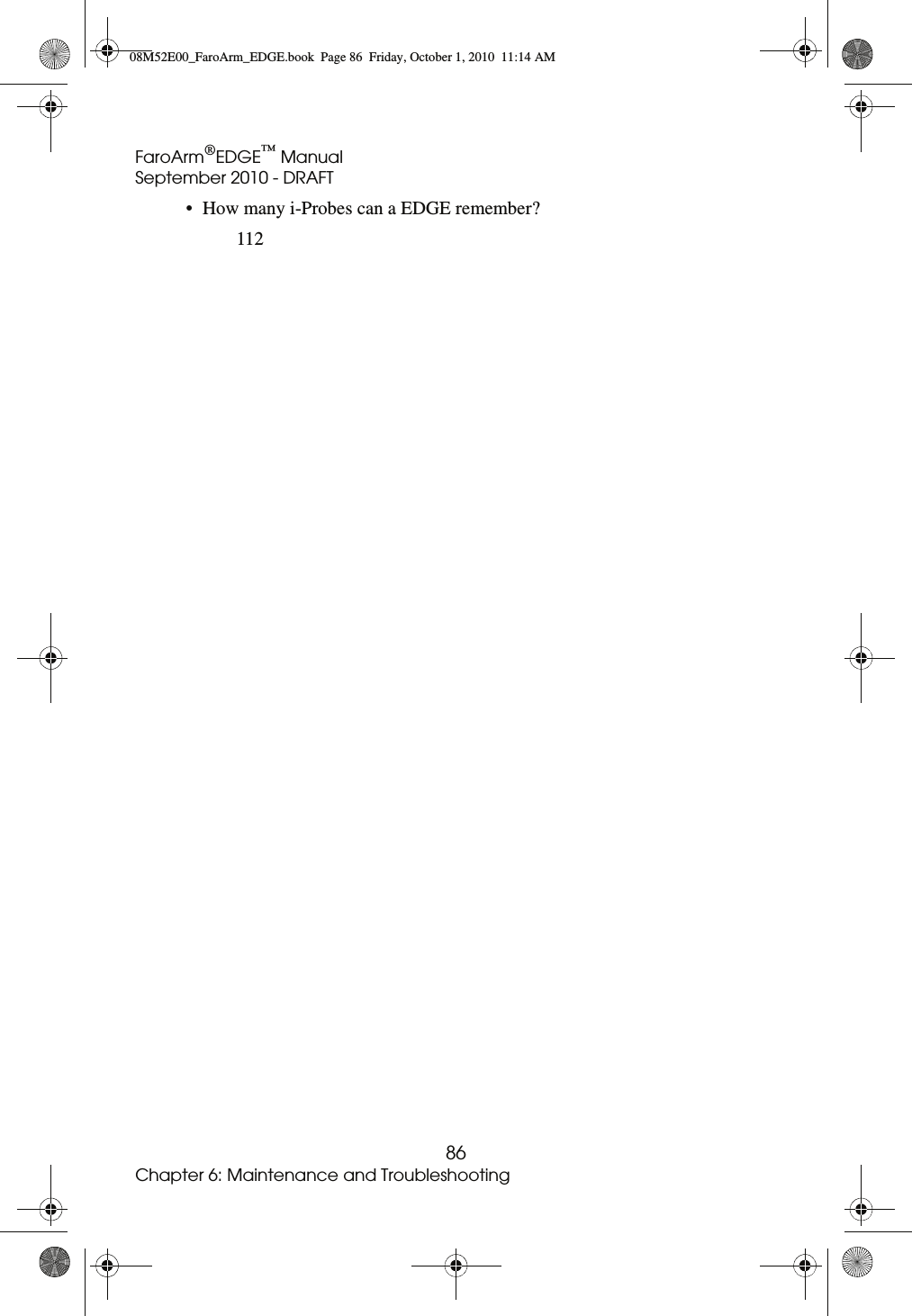

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT86Chapter 6: Maintenance and Troubleshooting• How many i-Probes can a EDGE remember?11208M52E00_FaroArm_EDGE.book  Page 86  Friday, October 1, 2010  11:14 AM

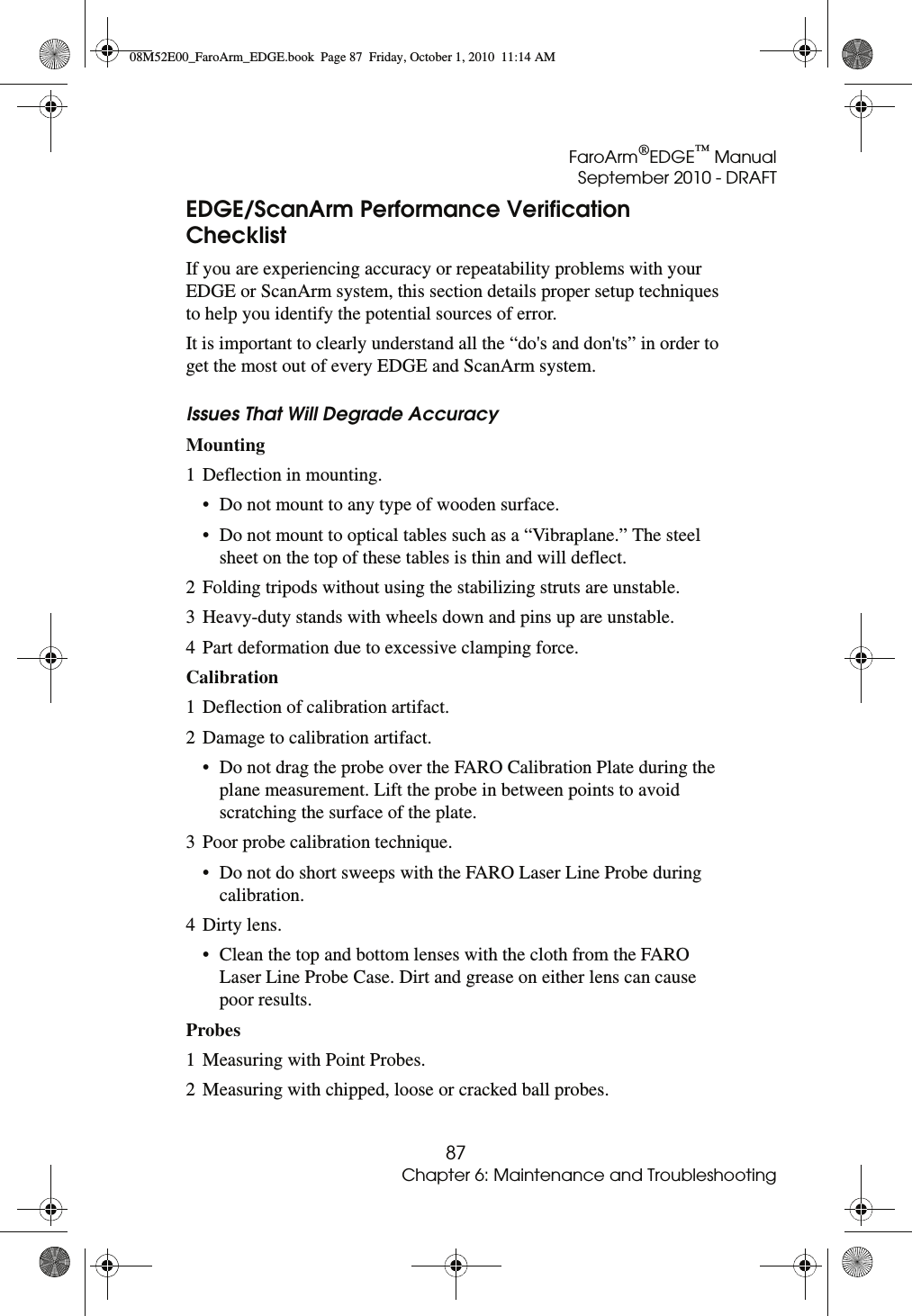

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT87Chapter 6: Maintenance and TroubleshootingEDGE/ScanArm Performance Verification ChecklistIf you are experiencing accuracy or repeatability problems with your EDGE or ScanArm system, this section details proper setup techniques to help you identify the potential sources of error. It is important to clearly understand all the “do's and don'ts” in order to get the most out of every EDGE and ScanArm system.Issues That Will Degrade AccuracyMounting 1 Deflection in mounting. • Do not mount to any type of wooden surface. • Do not mount to optical tables such as a “Vibraplane.” The steel sheet on the top of these tables is thin and will deflect. 2 Folding tripods without using the stabilizing struts are unstable. 3 Heavy-duty stands with wheels down and pins up are unstable. 4 Part deformation due to excessive clamping force. Calibration 1 Deflection of calibration artifact. 2 Damage to calibration artifact. • Do not drag the probe over the FARO Calibration Plate during the plane measurement. Lift the probe in between points to avoid scratching the surface of the plate. 3 Poor probe calibration technique. • Do not do short sweeps with the FARO Laser Line Probe during calibration. 4 Dirty lens. • Clean the top and bottom lenses with the cloth from the FARO Laser Line Probe Case. Dirt and grease on either lens can cause poor results.Probes 1 Measuring with Point Probes. 2 Measuring with chipped, loose or cracked ball probes. 08M52E00_FaroArm_EDGE.book  Page 87  Friday, October 1, 2010  11:14 AM

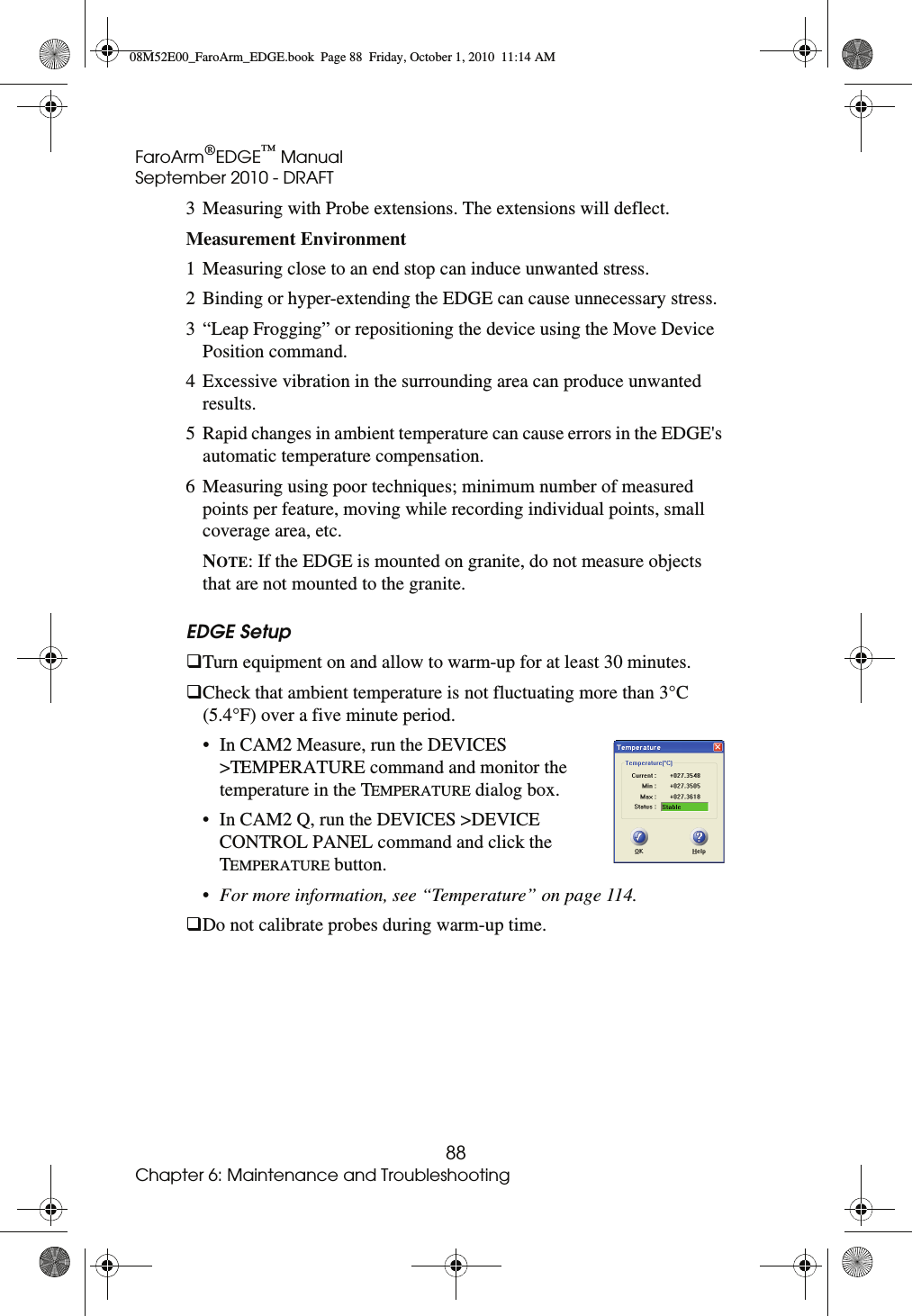

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT88Chapter 6: Maintenance and Troubleshooting3 Measuring with Probe extensions. The extensions will deflect. Measurement Environment 1 Measuring close to an end stop can induce unwanted stress. 2 Binding or hyper-extending the EDGE can cause unnecessary stress. 3 “Leap Frogging” or repositioning the device using the Move Device Position command. 4 Excessive vibration in the surrounding area can produce unwanted results. 5 Rapid changes in ambient temperature can cause errors in the EDGE's automatic temperature compensation. 6 Measuring using poor techniques; minimum number of measured points per feature, moving while recording individual points, small coverage area, etc.NOTE: If the EDGE is mounted on granite, do not measure objects that are not mounted to the granite.EDGE Setup Turn equipment on and allow to warm-up for at least 30 minutes.Check that ambient temperature is not fluctuating more than 3°C (5.4°F) over a five minute period. • In CAM2 Measure, run the DEVICES >TEMPERATURE command and monitor the temperature in the TEMPERATURE dialog box. • In CAM2 Q, run the DEVICES >DEVICE CONTROL PANEL command and click the TEMPERATURE button. •For more information, see “Temperature” on page 114.Do not calibrate probes during warm-up time.08M52E00_FaroArm_EDGE.book  Page 88  Friday, October 1, 2010  11:14 AM

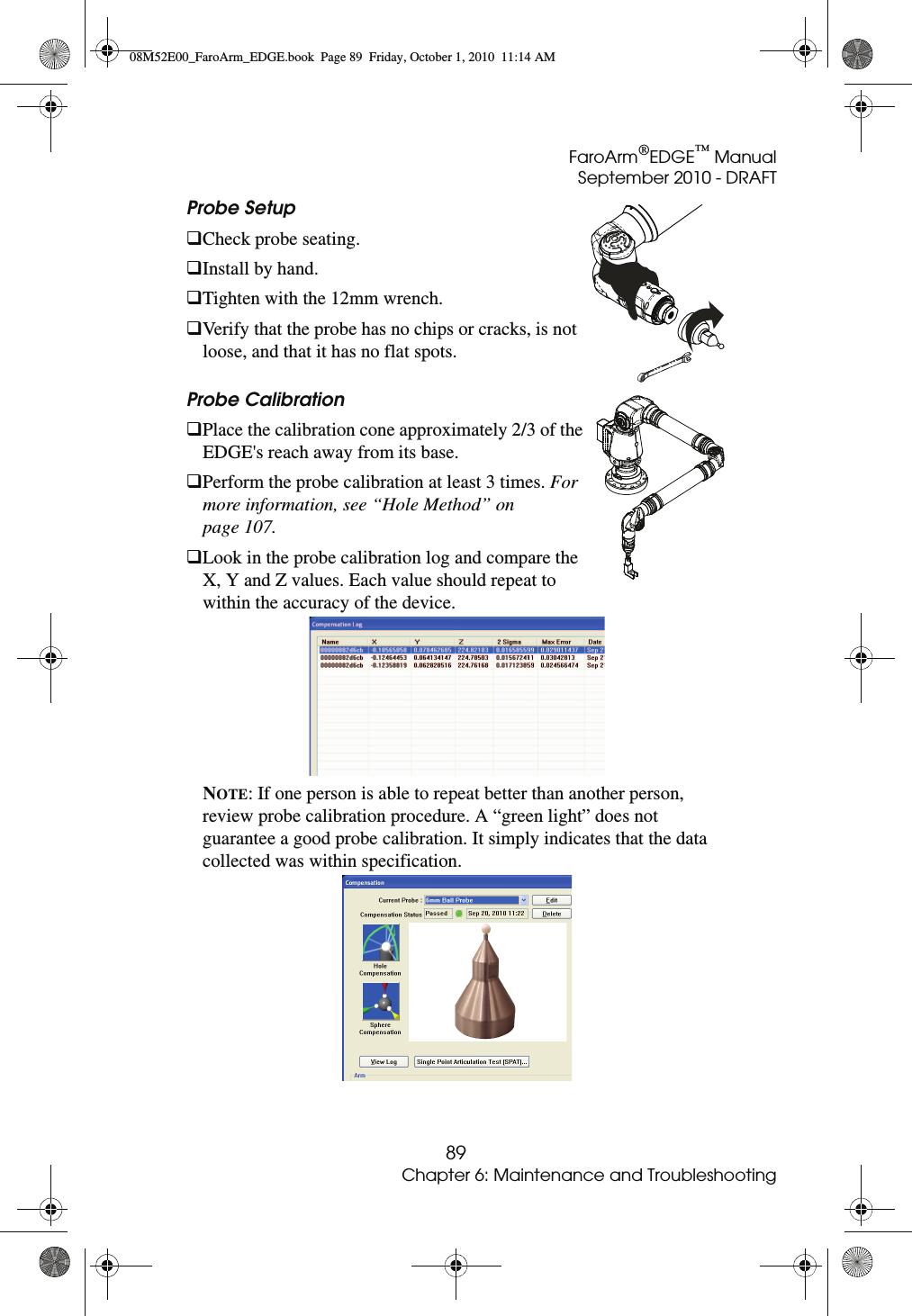

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT89Chapter 6: Maintenance and TroubleshootingProbe Setup Check probe seating.Install by hand.Tighten with the 12mm wrench.Verify that the probe has no chips or cracks, is not loose, and that it has no flat spots.Probe Calibration Place the calibration cone approximately 2/3 of the EDGE's reach away from its base.Perform the probe calibration at least 3 times. For more information, see “Hole Method” on page 107.Look in the probe calibration log and compare the X, Y and Z values. Each value should repeat to within the accuracy of the device. NOTE: If one person is able to repeat better than another person, review probe calibration procedure. A “green light” does not guarantee a good probe calibration. It simply indicates that the data collected was within specification. 08M52E00_FaroArm_EDGE.book  Page 89  Friday, October 1, 2010  11:14 AM

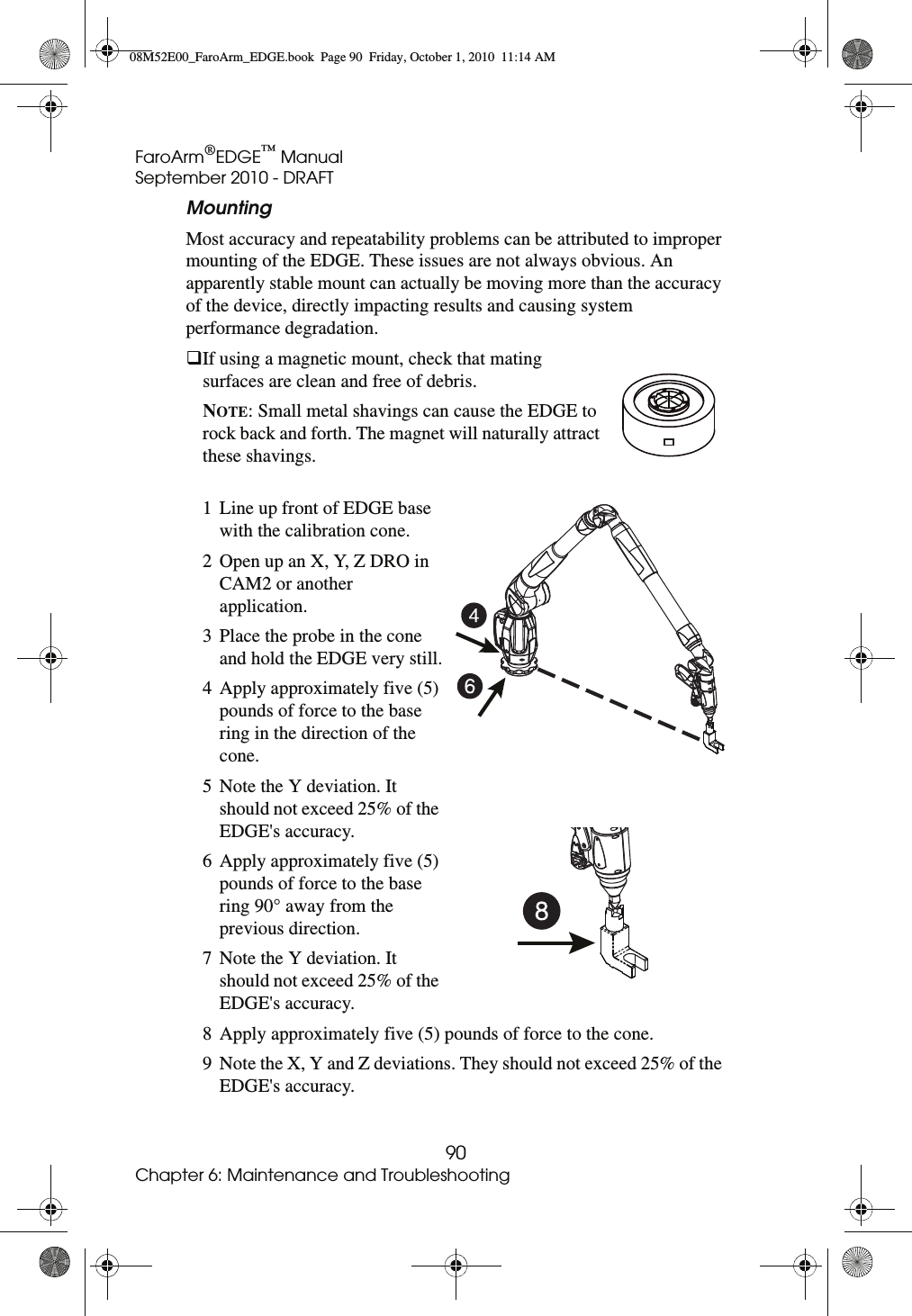

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT90Chapter 6: Maintenance and TroubleshootingMounting Most accuracy and repeatability problems can be attributed to improper mounting of the EDGE. These issues are not always obvious. An apparently stable mount can actually be moving more than the accuracy of the device, directly impacting results and causing system performance degradation. If using a magnetic mount, check that mating surfaces are clean and free of debris.  NOTE: Small metal shavings can cause the EDGE to rock back and forth. The magnet will naturally attract these shavings.1 Line up front of EDGE base with the calibration cone. 2 Open up an X, Y, Z DRO in CAM2 or another application.3 Place the probe in the cone and hold the EDGE very still.4 Apply approximately five (5) pounds of force to the base ring in the direction of the cone.5 Note the Y deviation. It should not exceed 25% of the EDGE's accuracy.6 Apply approximately five (5) pounds of force to the base ring 90° away from the previous direction.7 Note the Y deviation. It should not exceed 25% of the EDGE's accuracy.8 Apply approximately five (5) pounds of force to the cone.9 Note the X, Y and Z deviations. They should not exceed 25% of the EDGE's accuracy.08M52E00_FaroArm_EDGE.book  Page 90  Friday, October 1, 2010  11:14 AM

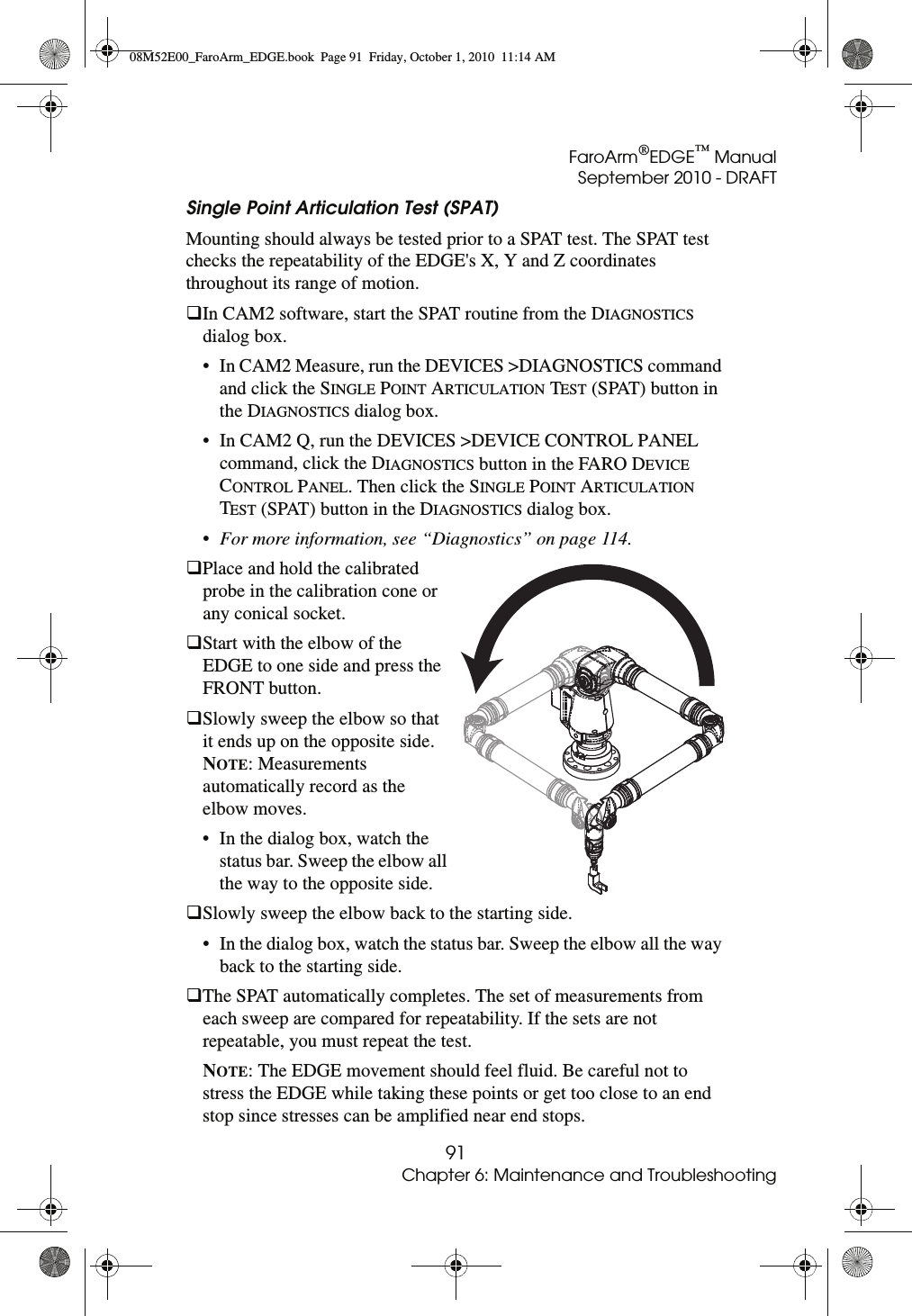

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT91Chapter 6: Maintenance and TroubleshootingSingle Point Articulation Test (SPAT) Mounting should always be tested prior to a SPAT test. The SPAT test checks the repeatability of the EDGE's X, Y and Z coordinates throughout its range of motion. In CAM2 software, start the SPAT routine from the DIAGNOSTICS dialog box.• In CAM2 Measure, run the DEVICES >DIAGNOSTICS command and click the SINGLE POINT ARTICULATION TEST (SPAT) button in the DIAGNOSTICS dialog box. • In CAM2 Q, run the DEVICES >DEVICE CONTROL PANEL command, click the DIAGNOSTICS button in the FARO DEVICE CONTROL PANEL. Then click the SINGLE POINT ARTICULATION TEST (SPAT) button in the DIAGNOSTICS dialog box. •For more information, see “Diagnostics” on page 114.Place and hold the calibrated probe in the calibration cone or any conical socket.Start with the elbow of the EDGE to one side and press the FRONT button. Slowly sweep the elbow so that it ends up on the opposite side. NOTE: Measurements automatically record as the elbow moves.• In the dialog box, watch the status bar. Sweep the elbow all the way to the opposite side.Slowly sweep the elbow back to the starting side.• In the dialog box, watch the status bar. Sweep the elbow all the way back to the starting side.The SPAT automatically completes. The set of measurements from each sweep are compared for repeatability. If the sets are not repeatable, you must repeat the test.NOTE: The EDGE movement should feel fluid. Be careful not to stress the EDGE while taking these points or get too close to an end stop since stresses can be amplified near end stops.08M52E00_FaroArm_EDGE.book  Page 91  Friday, October 1, 2010  11:14 AM

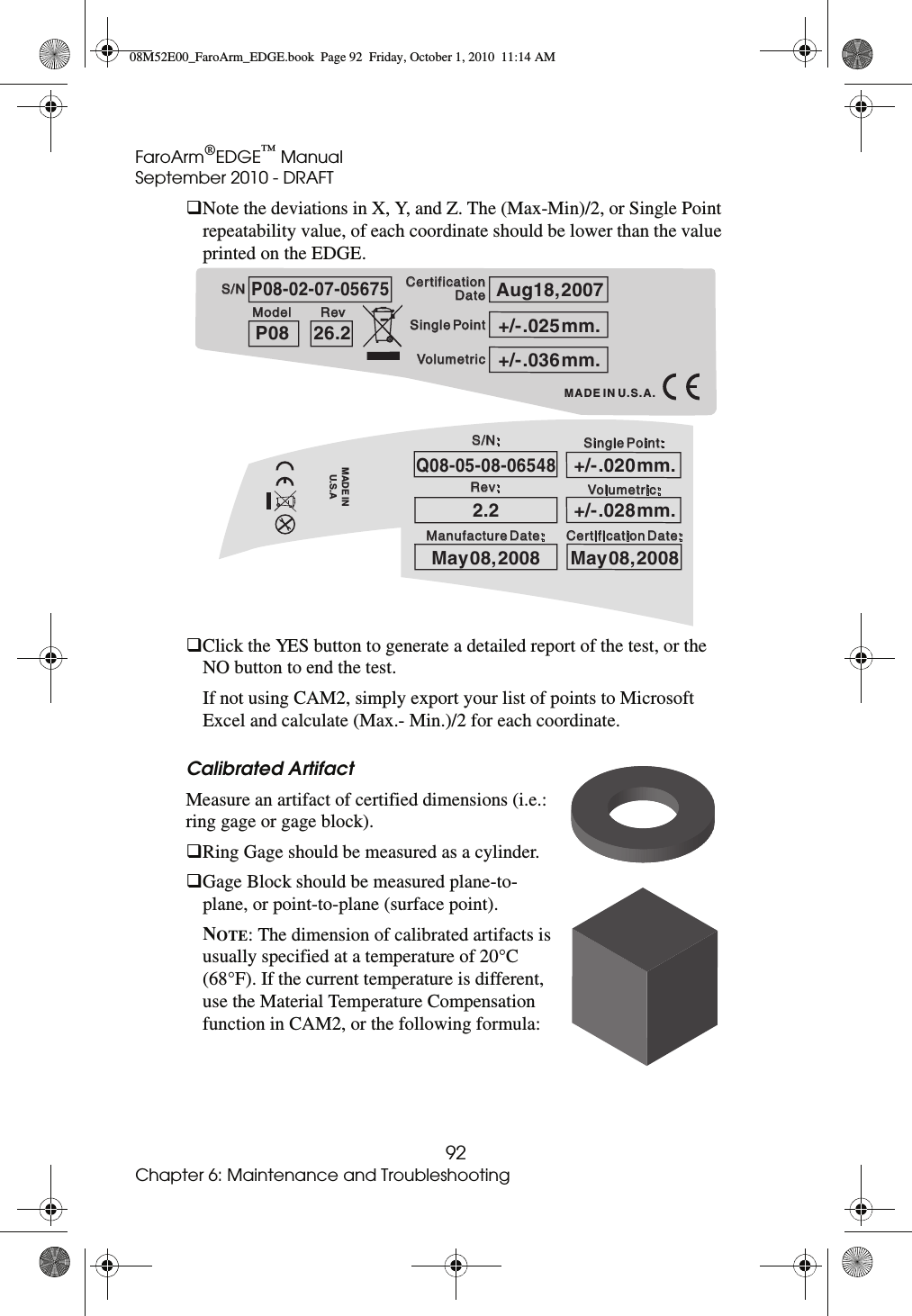

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT92Chapter 6: Maintenance and TroubleshootingNote the deviations in X, Y, and Z. The (Max-Min)/2, or Single Point repeatability value, of each coordinate should be lower than the value printed on the EDGE.Click the YES button to generate a detailed report of the test, or the NO button to end the test. If not using CAM2, simply export your list of points to Microsoft Excel and calculate (Max.- Min.)/2 for each coordinate.Calibrated Artifact Measure an artifact of certified dimensions (i.e.: ring gage or gage block). Ring Gage should be measured as a cylinder.Gage Block should be measured plane-to-plane, or point-to-plane (surface point).NOTE: The dimension of calibrated artifacts is usually specified at a temperature of 20°C (68°F). If the current temperature is different, use the Material Temperature Compensation function in CAM2, or the following formula: S/NS/NModelModel RevRev Single PointSingle PointVolumetricVolumetricCertification Certification DateDateMADE IN U.S.A.P08-02-07-05675P0826.2Aug18, 2007+/- .036 mm.+/- .025 mm.Q08-05-08-065482.2May 08, 2008May 08, 2008+/- .028 mm.+/- .020 mm.Rev:MADE INU.S.AS/N:Volumetric:Certification Date:Manufacture Date:Single Point:08M52E00_FaroArm_EDGE.book  Page 92  Friday, October 1, 2010  11:14 AM

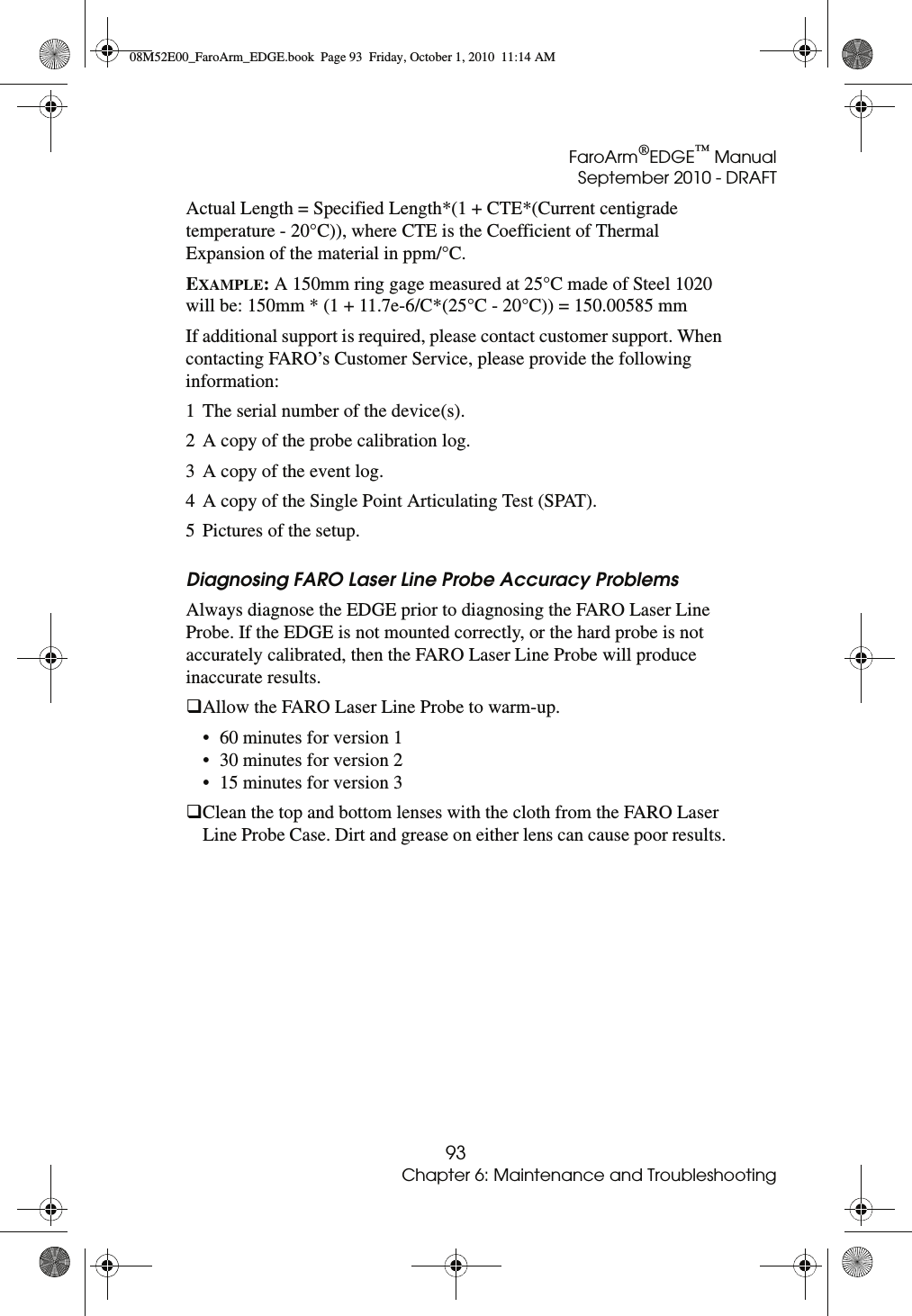

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT93Chapter 6: Maintenance and TroubleshootingActual Length = Specified Length*(1 + CTE*(Current centigrade temperature - 20°C)), where CTE is the Coefficient of Thermal Expansion of the material in ppm/°C.EXAMPLE: A 150mm ring gage measured at 25°C made of Steel 1020 will be: 150mm * (1 + 11.7e-6/C*(25°C - 20°C)) = 150.00585 mmIf additional support is required, please contact customer support. When contacting FARO’s Customer Service, please provide the following information:1 The serial number of the device(s).2 A copy of the probe calibration log.3 A copy of the event log.4 A copy of the Single Point Articulating Test (SPAT).5 Pictures of the setup.Diagnosing FARO Laser Line Probe Accuracy Problems Always diagnose the EDGE prior to diagnosing the FARO Laser Line Probe. If the EDGE is not mounted correctly, or the hard probe is not accurately calibrated, then the FARO Laser Line Probe will produce inaccurate results. Allow the FARO Laser Line Probe to warm-up.• 60 minutes for version 1 • 30 minutes for version 2 • 15 minutes for version 3 Clean the top and bottom lenses with the cloth from the FARO Laser Line Probe Case. Dirt and grease on either lens can cause poor results.08M52E00_FaroArm_EDGE.book  Page 93  Friday, October 1, 2010  11:14 AM

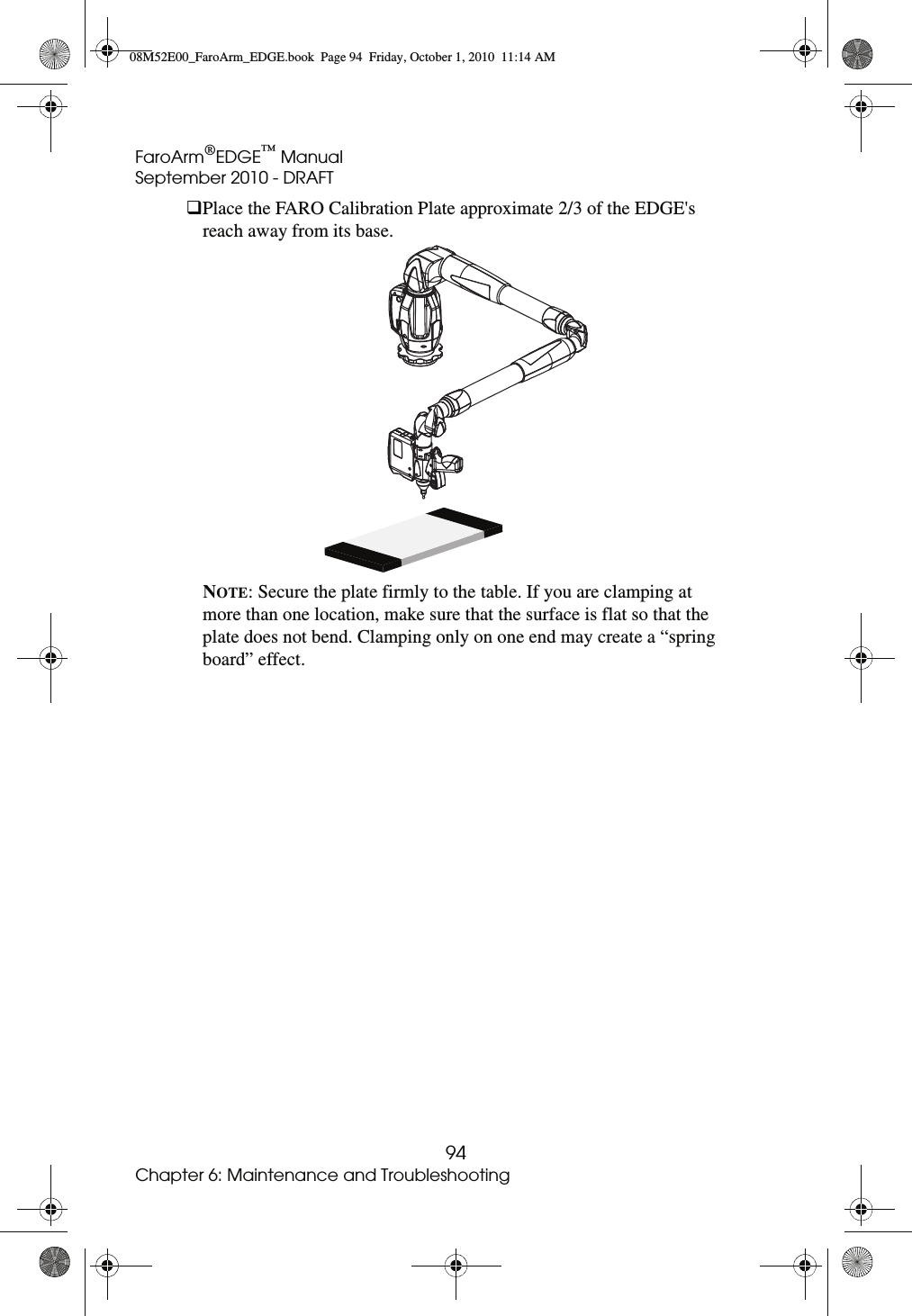

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT94Chapter 6: Maintenance and TroubleshootingPlace the FARO Calibration Plate approximate 2/3 of the EDGE's reach away from its base. NOTE: Secure the plate firmly to the table. If you are clamping at more than one location, make sure that the surface is flat so that the plate does not bend. Clamping only on one end may create a “spring board” effect.08M52E00_FaroArm_EDGE.book  Page 94  Friday, October 1, 2010  11:14 AM

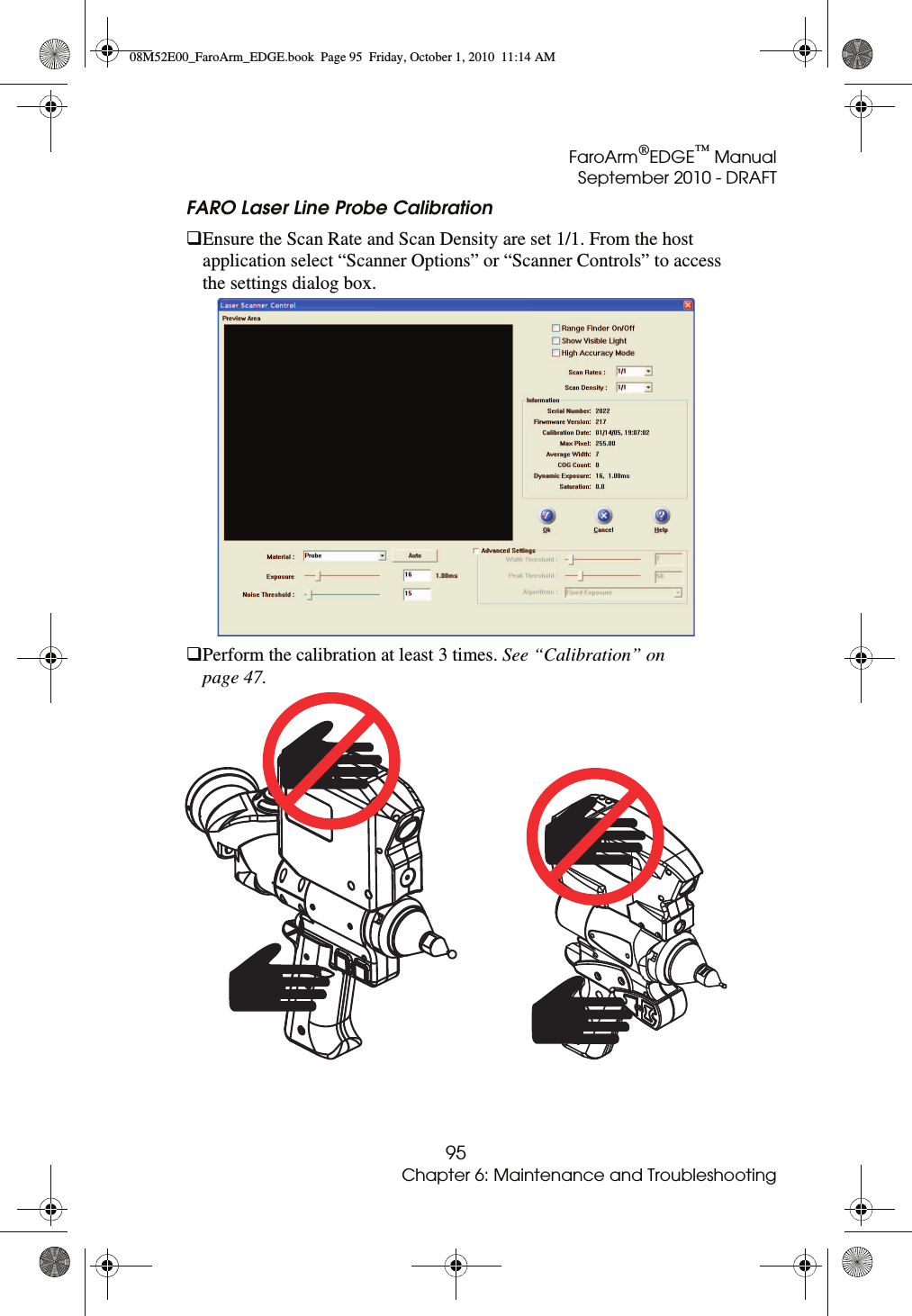

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT95Chapter 6: Maintenance and TroubleshootingFARO Laser Line Probe Calibration Ensure the Scan Rate and Scan Density are set 1/1. From the host application select “Scanner Options” or “Scanner Controls” to access the settings dialog box.Perform the calibration at least 3 times. See “Calibration” on page 47. 08M52E00_FaroArm_EDGE.book  Page 95  Friday, October 1, 2010  11:14 AM

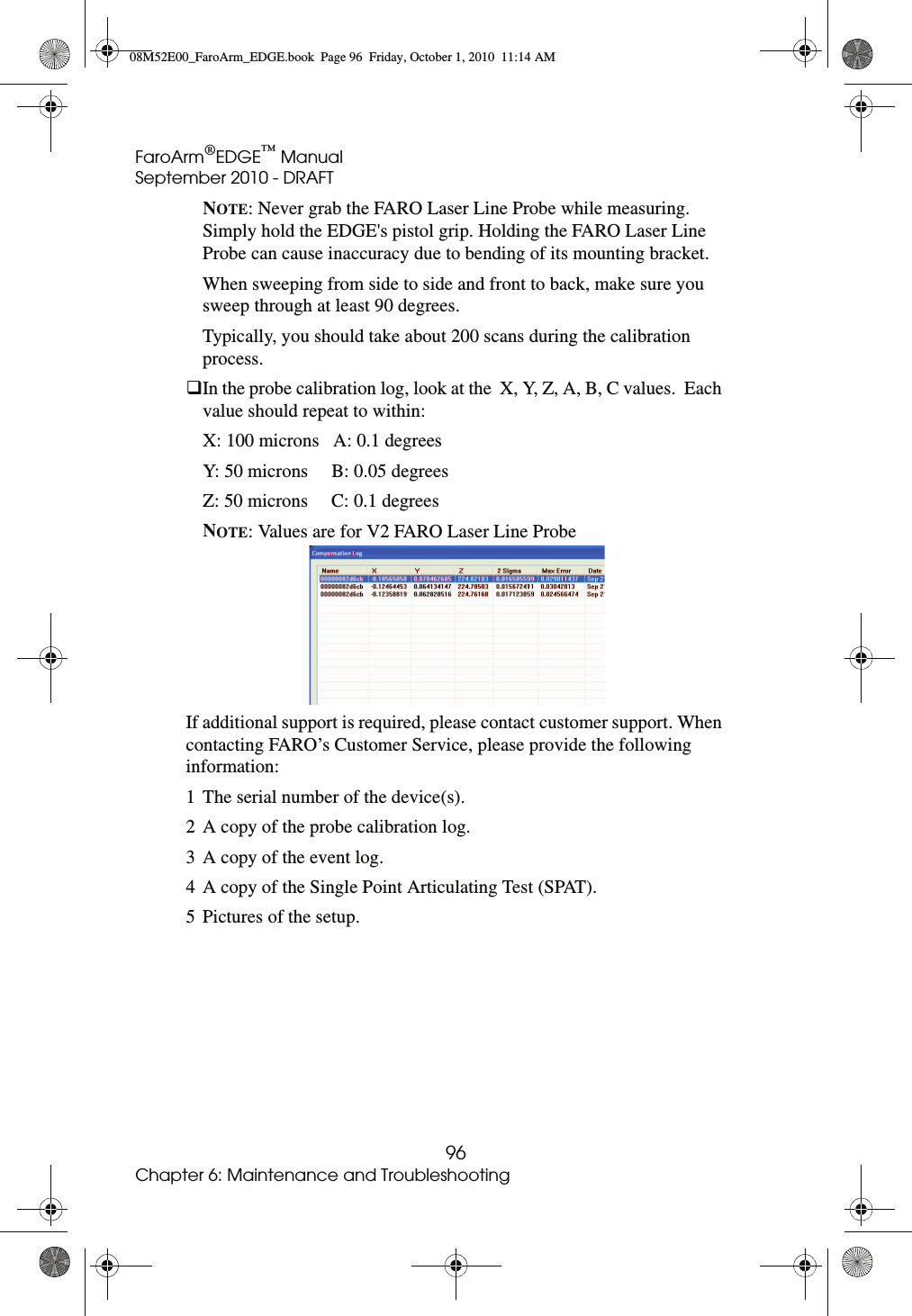

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT96Chapter 6: Maintenance and TroubleshootingNOTE: Never grab the FARO Laser Line Probe while measuring. Simply hold the EDGE's pistol grip. Holding the FARO Laser Line Probe can cause inaccuracy due to bending of its mounting bracket.When sweeping from side to side and front to back, make sure you sweep through at least 90 degrees.Typically, you should take about 200 scans during the calibration process.In the probe calibration log, look at the  X, Y, Z, A, B, C values.  Each value should repeat to within:X: 100 microns   A: 0.1 degreesY: 50 microns     B: 0.05 degreesZ: 50 microns     C: 0.1 degreesNOTE: Values are for V2 FARO Laser Line ProbeIf additional support is required, please contact customer support. When contacting FARO’s Customer Service, please provide the following information:1 The serial number of the device(s).2 A copy of the probe calibration log.3 A copy of the event log.4 A copy of the Single Point Articulating Test (SPAT).5 Pictures of the setup.08M52E00_FaroArm_EDGE.book  Page 96  Friday, October 1, 2010  11:14 AM

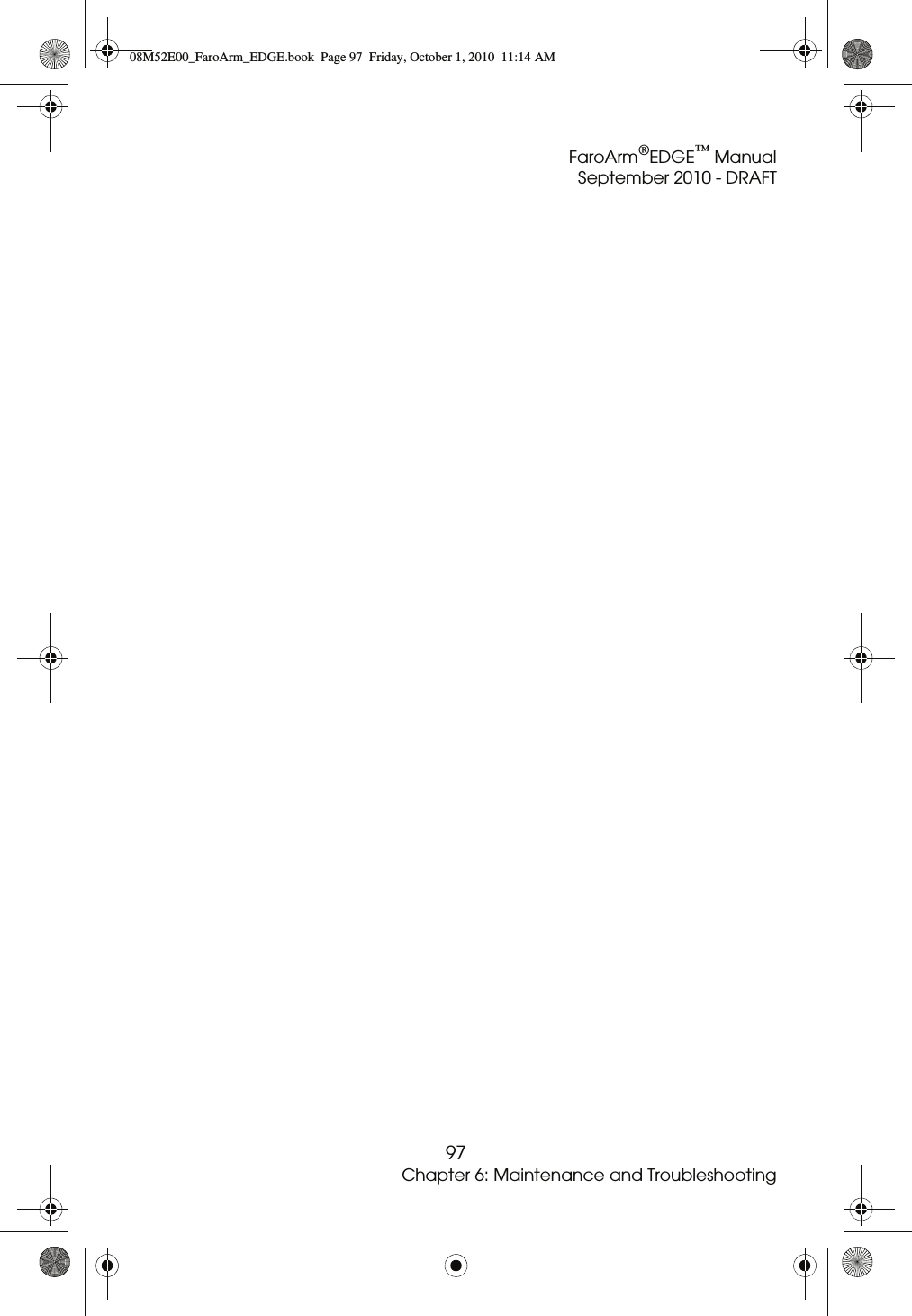

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT97Chapter 6: Maintenance and Troubleshooting08M52E00_FaroArm_EDGE.book  Page 97  Friday, October 1, 2010  11:14 AM

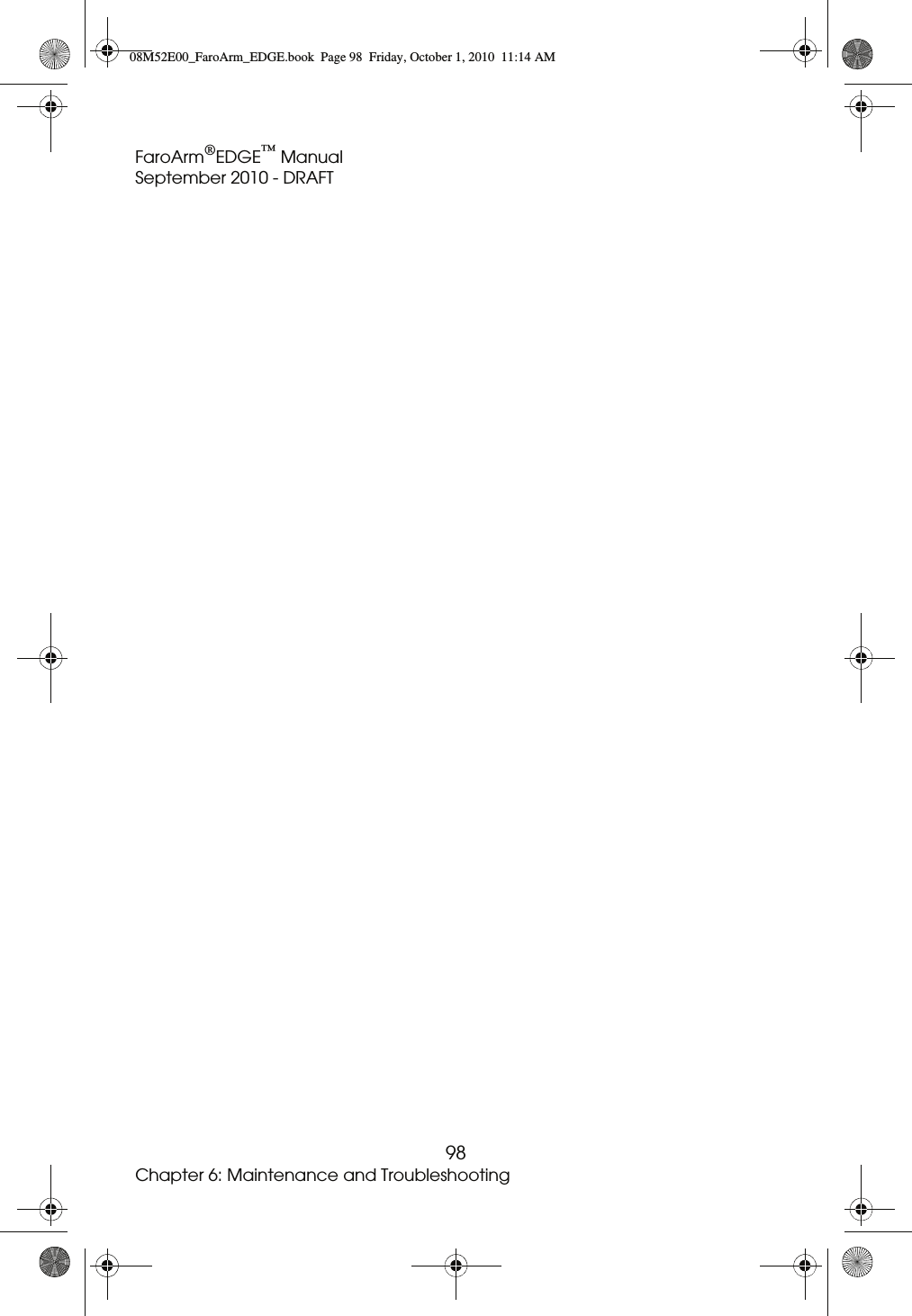

FaroArm®EDGE™ ManualSeptember 2010 - DRAFT98Chapter 6: Maintenance and Troubleshooting08M52E00_FaroArm_EDGE.book  Page 98  Friday, October 1, 2010  11:14 AM

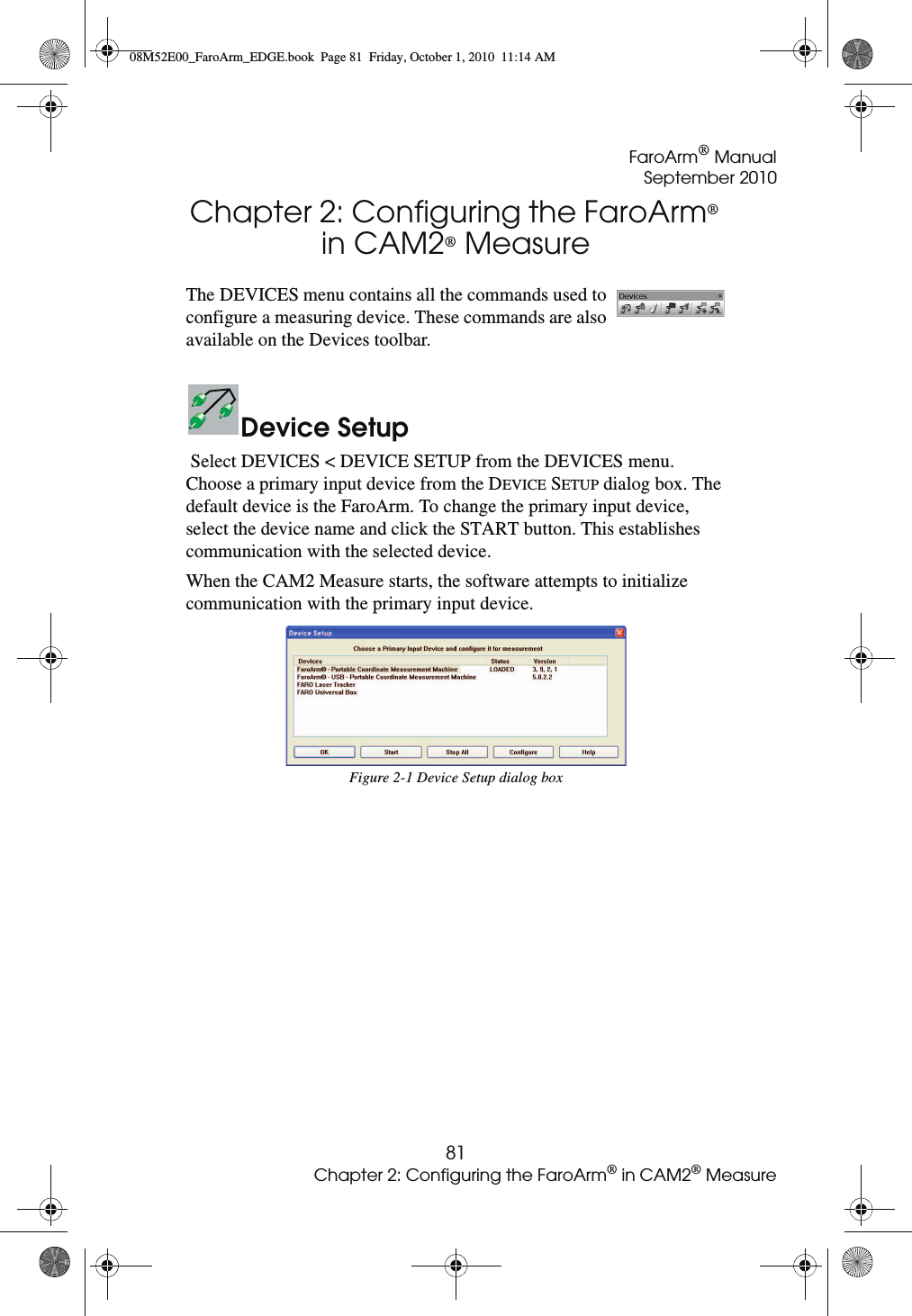

FaroArm® ManualSeptember 201081Chapter 2: Configuring the FaroArm® in CAM2® MeasureChapter 2: Configuring the FaroArm® in CAM2® MeasureThe DEVICES menu contains all the commands used to configure a measuring device. These commands are also available on the Devices toolbar.Device Setup Select DEVICES < DEVICE SETUP from the DEVICES menu. Choose a primary input device from the DEVICE SETUP dialog box. The default device is the FaroArm. To change the primary input device, select the device name and click the START button. This establishes communication with the selected device.When the CAM2 Measure starts, the software attempts to initialize communication with the primary input device. Figure 2-1 Device Setup dialog box08M52E00_FaroArm_EDGE.book  Page 81  Friday, October 1, 2010  11:14 AM

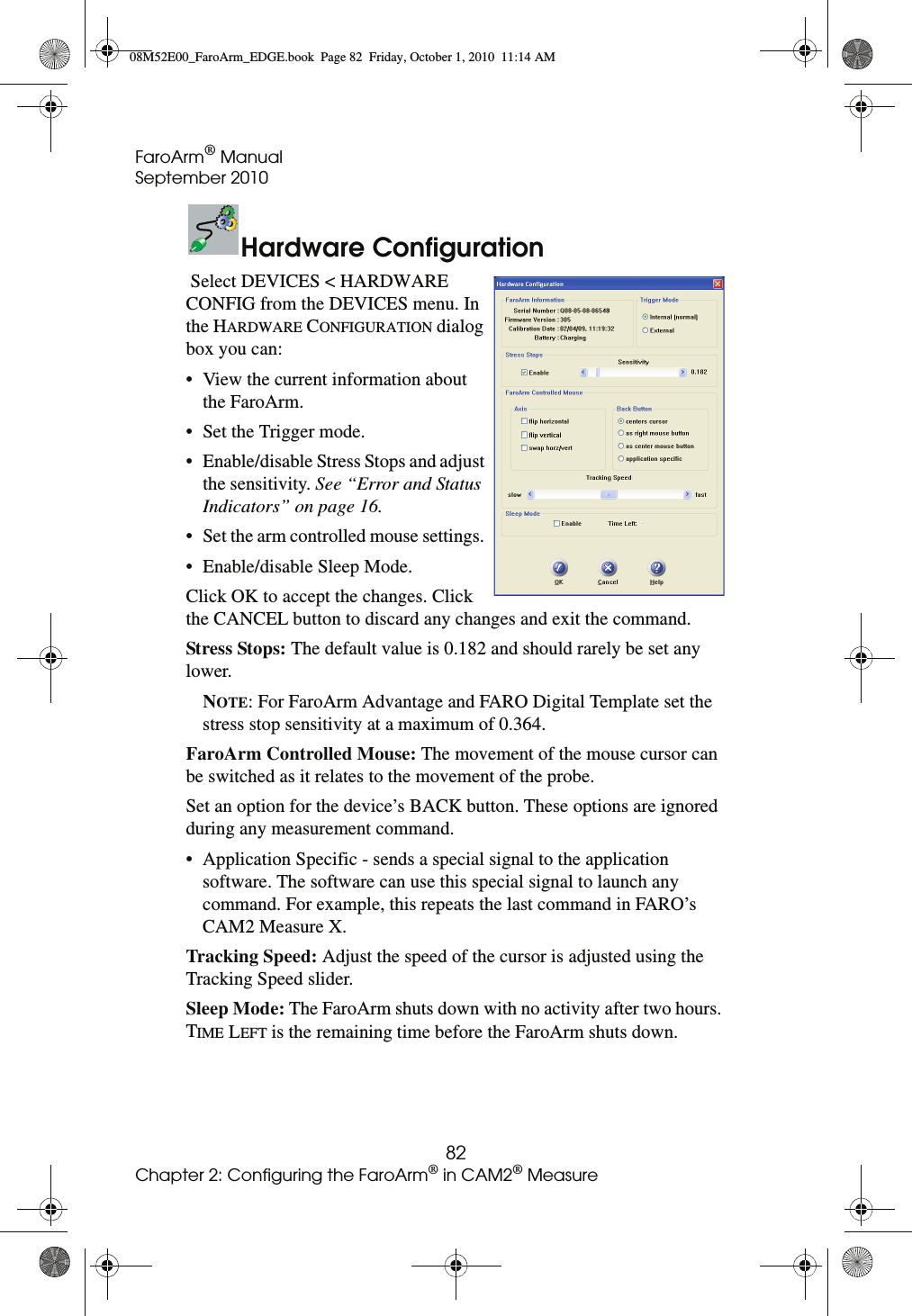

FaroArm® ManualSeptember 201082Chapter 2: Configuring the FaroArm® in CAM2® MeasureHardware Configuration Select DEVICES < HARDWARE CONFIG from the DEVICES menu. In the HARDWARE CONFIGURATION dialog box you can: • View the current information about the FaroArm. • Set the Trigger mode. • Enable/disable Stress Stops and adjust the sensitivity. See “Error and Status Indicators” on page 16. • Set the arm controlled mouse settings. • Enable/disable Sleep Mode. Click OK to accept the changes. Click the CANCEL button to discard any changes and exit the command. Stress Stops: The default value is 0.182 and should rarely be set any lower.NOTE: For FaroArm Advantage and FARO Digital Template set the stress stop sensitivity at a maximum of 0.364. FaroArm Controlled Mouse: The movement of the mouse cursor can be switched as it relates to the movement of the probe.Set an option for the device’s BACK button. These options are ignored during any measurement command.• Application Specific - sends a special signal to the application software. The software can use this special signal to launch any command. For example, this repeats the last command in FARO’s CAM2 Measure X.Tracking Speed: Adjust the speed of the cursor is adjusted using the Tracking Speed slider.Sleep Mode: The FaroArm shuts down with no activity after two hours. TIME LEFT is the remaining time before the FaroArm shuts down. 08M52E00_FaroArm_EDGE.book  Page 82  Friday, October 1, 2010  11:14 AM

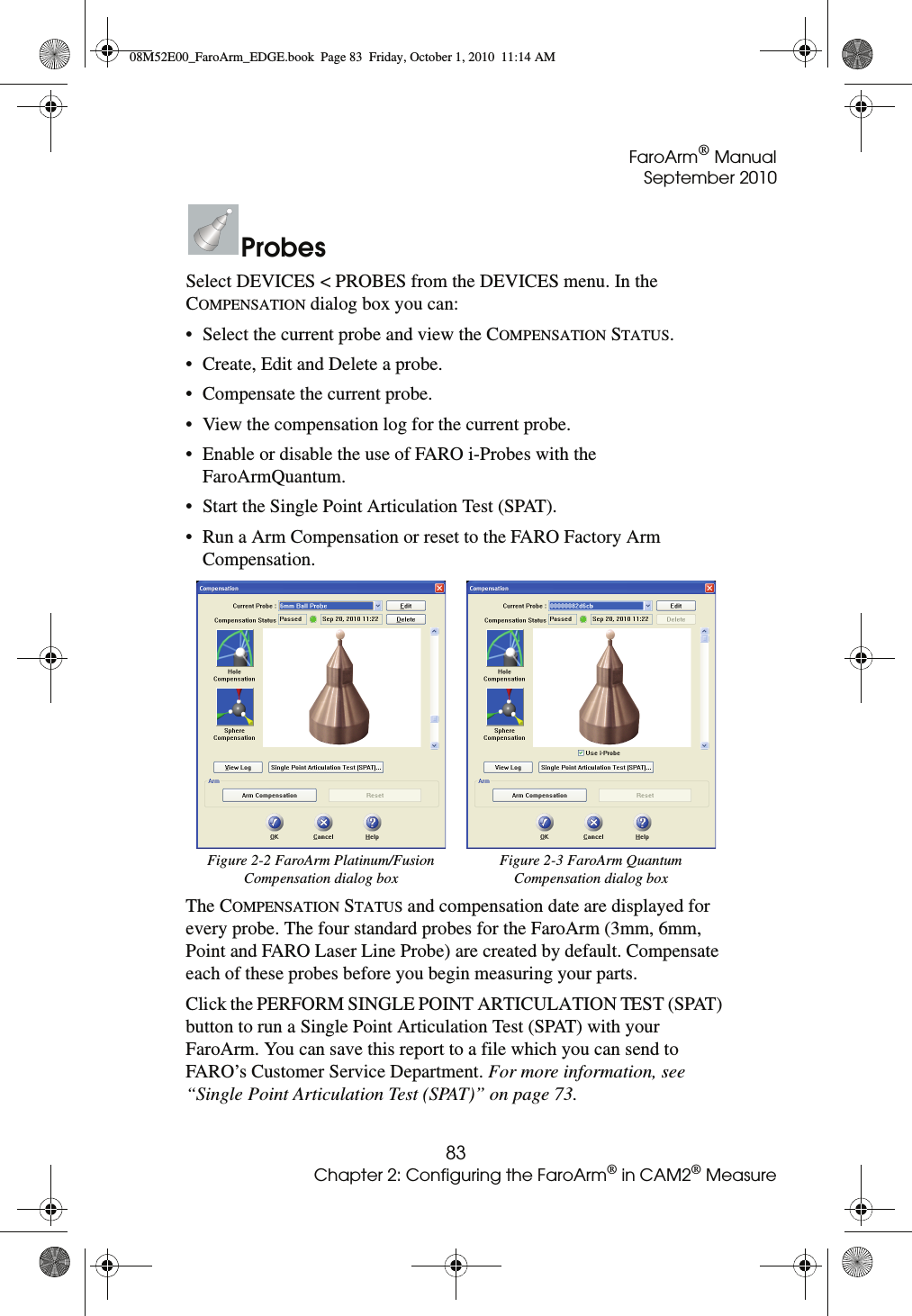

FaroArm® ManualSeptember 201083Chapter 2: Configuring the FaroArm® in CAM2® MeasureProbesSelect DEVICES < PROBES from the DEVICES menu. In the COMPENSATION dialog box you can:• Select the current probe and view the COMPENSATION STATUS.• Create, Edit and Delete a probe.• Compensate the current probe.• View the compensation log for the current probe.• Enable or disable the use of FARO i-Probes with the FaroArmQuantum.• Start the Single Point Articulation Test (SPAT).• Run a Arm Compensation or reset to the FARO Factory Arm Compensation. The COMPENSATION STATUS and compensation date are displayed for every probe. The four standard probes for the FaroArm (3mm, 6mm, Point and FARO Laser Line Probe) are created by default. Compensate each of these probes before you begin measuring your parts.Click the PERFORM SINGLE POINT ARTICULATION TEST (SPAT) button to run a Single Point Articulation Test (SPAT) with your FaroArm. You can save this report to a file which you can send to FARO’s Customer Service Department. For more information, see “Single Point Articulation Test (SPAT)” on page 73.Figure 2-2 FaroArm Platinum/Fusion Compensation dialog boxFigure 2-3 FaroArm Quantum Compensation dialog box08M52E00_FaroArm_EDGE.book  Page 83  Friday, October 1, 2010  11:14 AM

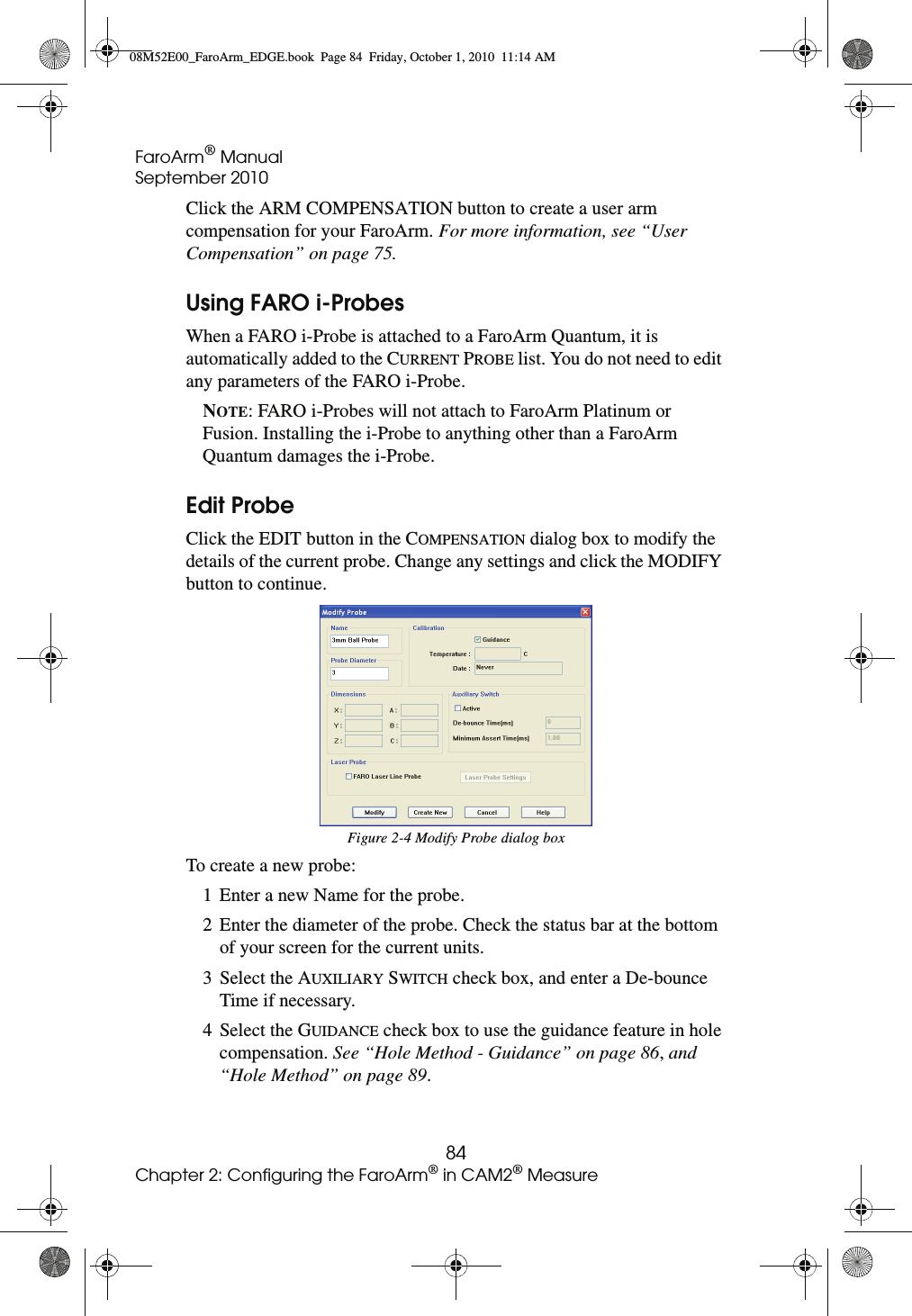

FaroArm® ManualSeptember 201084Chapter 2: Configuring the FaroArm® in CAM2® MeasureClick the ARM COMPENSATION button to create a user arm compensation for your FaroArm. For more information, see “User Compensation” on page 75.Using FARO i-ProbesWhen a FARO i-Probe is attached to a FaroArm Quantum, it is automatically added to the CURRENT PROBE list. You do not need to edit any parameters of the FARO i-Probe. NOTE: FARO i-Probes will not attach to FaroArm Platinum or Fusion. Installing the i-Probe to anything other than a FaroArm Quantum damages the i-Probe.Edit ProbeClick the EDIT button in the COMPENSATION dialog box to modify the details of the current probe. Change any settings and click the MODIFY button to continue.To create a new probe:1 Enter a new Name for the probe.2 Enter the diameter of the probe. Check the status bar at the bottom of your screen for the current units.3 Select the AUXILIARY SWITCH check box, and enter a De-bounce Time if necessary.4 Select the GUIDANCE check box to use the guidance feature in hole compensation. See “Hole Method - Guidance” on page 86, and “Hole Method” on page 89.Figure 2-4 Modify Probe dialog box08M52E00_FaroArm_EDGE.book  Page 84  Friday, October 1, 2010  11:14 AM

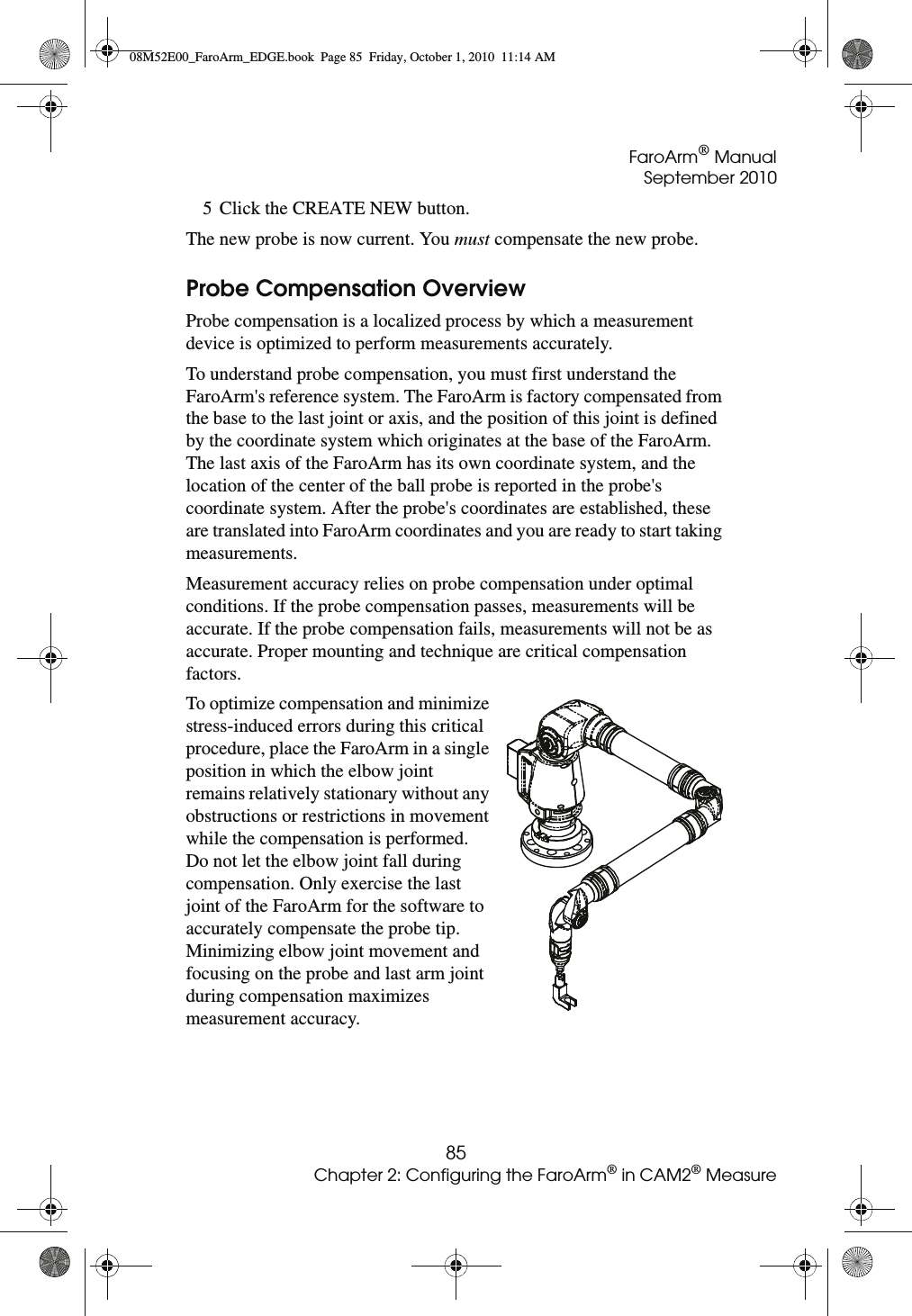

FaroArm® ManualSeptember 201085Chapter 2: Configuring the FaroArm® in CAM2® Measure5 Click the CREATE NEW button.The new probe is now current. You must compensate the new probe.Probe Compensation OverviewProbe compensation is a localized process by which a measurement device is optimized to perform measurements accurately.To understand probe compensation, you must first understand the FaroArm's reference system. The FaroArm is factory compensated from the base to the last joint or axis, and the position of this joint is defined by the coordinate system which originates at the base of the FaroArm. The last axis of the FaroArm has its own coordinate system, and the location of the center of the ball probe is reported in the probe's coordinate system. After the probe's coordinates are established, these are translated into FaroArm coordinates and you are ready to start taking measurements. Measurement accuracy relies on probe compensation under optimal conditions. If the probe compensation passes, measurements will be accurate. If the probe compensation fails, measurements will not be as accurate. Proper mounting and technique are critical compensation factors.To optimize compensation and minimize stress-induced errors during this critical procedure, place the FaroArm in a single position in which the elbow joint remains relatively stationary without any obstructions or restrictions in movement while the compensation is performed. Do not let the elbow joint fall during compensation. Only exercise the last joint of the FaroArm for the software to accurately compensate the probe tip. Minimizing elbow joint movement and focusing on the probe and last arm joint during compensation maximizes measurement accuracy.08M52E00_FaroArm_EDGE.book  Page 85  Friday, October 1, 2010  11:14 AM

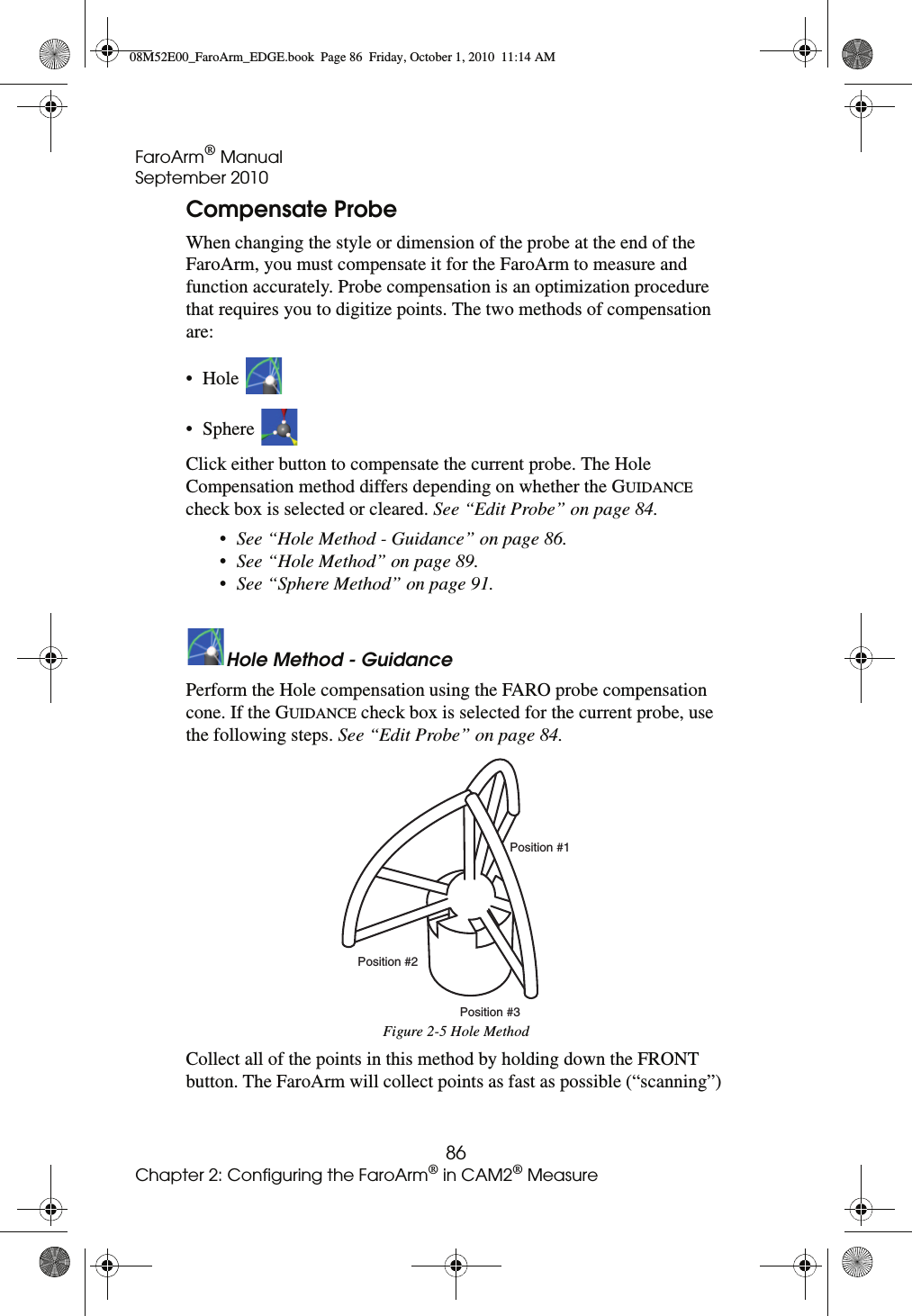

FaroArm® ManualSeptember 201086Chapter 2: Configuring the FaroArm® in CAM2® MeasureCompensate ProbeWhen changing the style or dimension of the probe at the end of the FaroArm, you must compensate it for the FaroArm to measure and function accurately. Probe compensation is an optimization procedure that requires you to digitize points. The two methods of compensation are:•Hole • Sphere Click either button to compensate the current probe. The Hole Compensation method differs depending on whether the GUIDANCE check box is selected or cleared. See “Edit Probe” on page 84.•See “Hole Method - Guidance” on page 86.•See “Hole Method” on page 89.•See “Sphere Method” on page 91.Hole Method - GuidancePerform the Hole compensation using the FARO probe compensation cone. If the GUIDANCE check box is selected for the current probe, use the following steps. See “Edit Probe” on page 84.Collect all of the points in this method by holding down the FRONT button. The FaroArm will collect points as fast as possible (“scanning”) Figure 2-5 Hole MethodPosition #1Position #2Position #308M52E00_FaroArm_EDGE.book  Page 86  Friday, October 1, 2010  11:14 AM

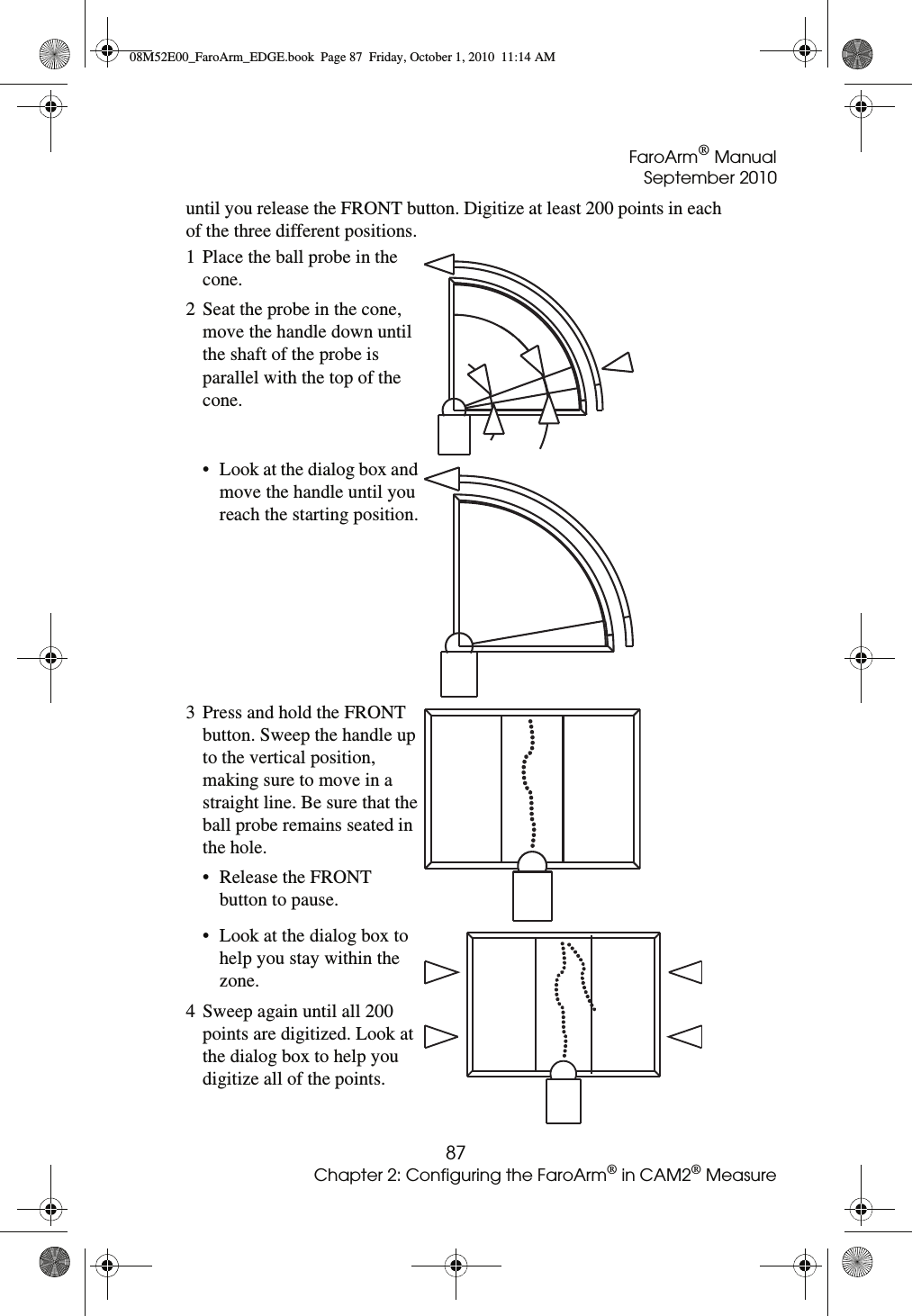

FaroArm® ManualSeptember 201087Chapter 2: Configuring the FaroArm® in CAM2® Measureuntil you release the FRONT button. Digitize at least 200 points in each of the three different positions.1 Place the ball probe in the cone.2 Seat the probe in the cone, move the handle down until the shaft of the probe is parallel with the top of the cone. • Look at the dialog box and move the handle until you reach the starting position.3 Press and hold the FRONT button. Sweep the handle up to the vertical position, making sure to move in a straight line. Be sure that the ball probe remains seated in the hole.• Release the FRONT button to pause.• Look at the dialog box to help you stay within the zone.4 Sweep again until all 200 points are digitized. Look at the dialog box to help you digitize all of the points.08M52E00_FaroArm_EDGE.book  Page 87  Friday, October 1, 2010  11:14 AM

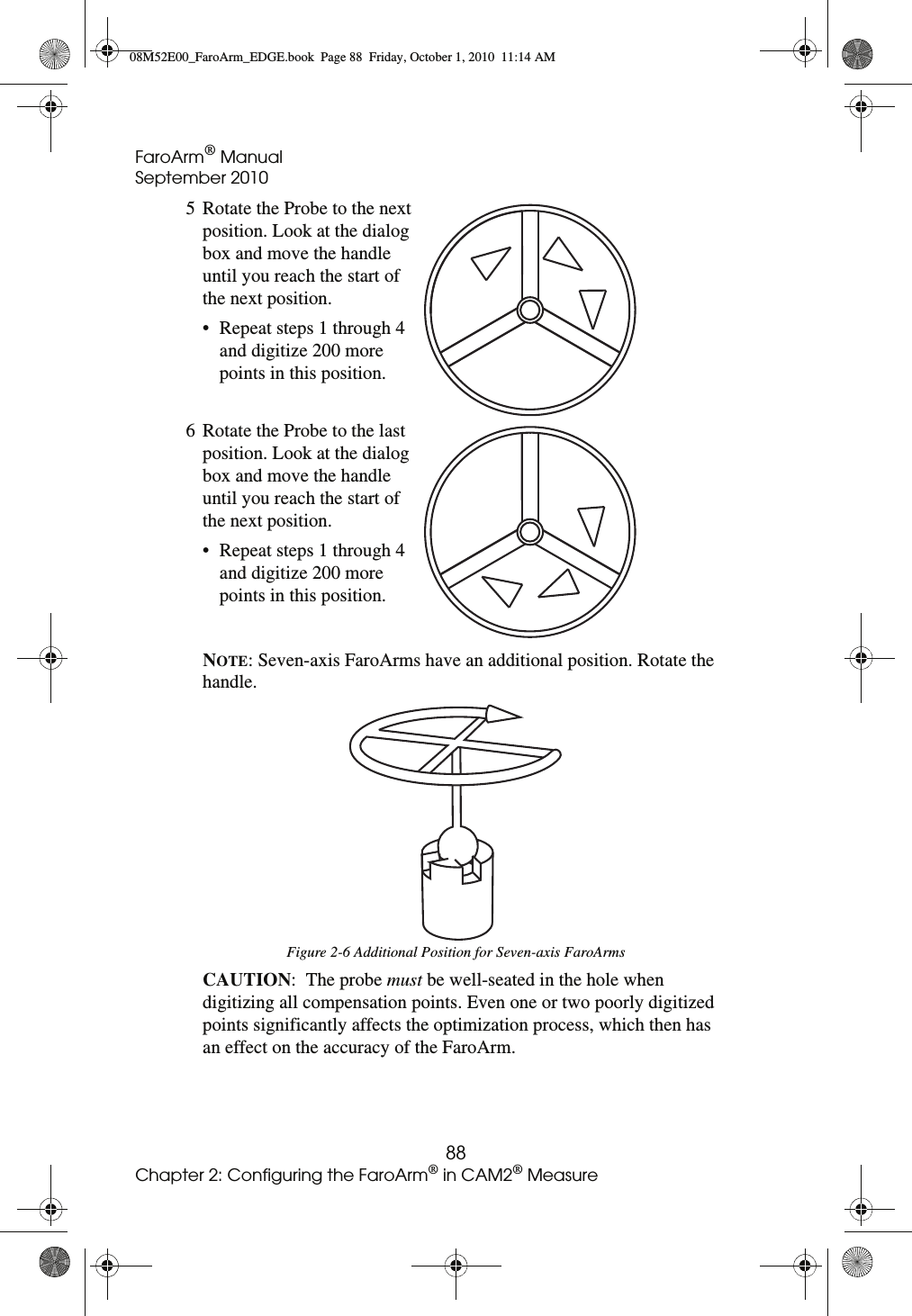

FaroArm® ManualSeptember 201088Chapter 2: Configuring the FaroArm® in CAM2® MeasureNOTE: Seven-axis FaroArms have an additional position. Rotate the handle. CAUTION:  The probe must be well-seated in the hole when digitizing all compensation points. Even one or two poorly digitized points significantly affects the optimization process, which then has an effect on the accuracy of the FaroArm.5 Rotate the Probe to the next position. Look at the dialog box and move the handle until you reach the start of the next position.• Repeat steps 1 through 4 and digitize 200 more points in this position.6 Rotate the Probe to the last position. Look at the dialog box and move the handle until you reach the start of the next position.• Repeat steps 1 through 4 and digitize 200 more points in this position.Figure 2-6 Additional Position for Seven-axis FaroArms08M52E00_FaroArm_EDGE.book  Page 88  Friday, October 1, 2010  11:14 AM

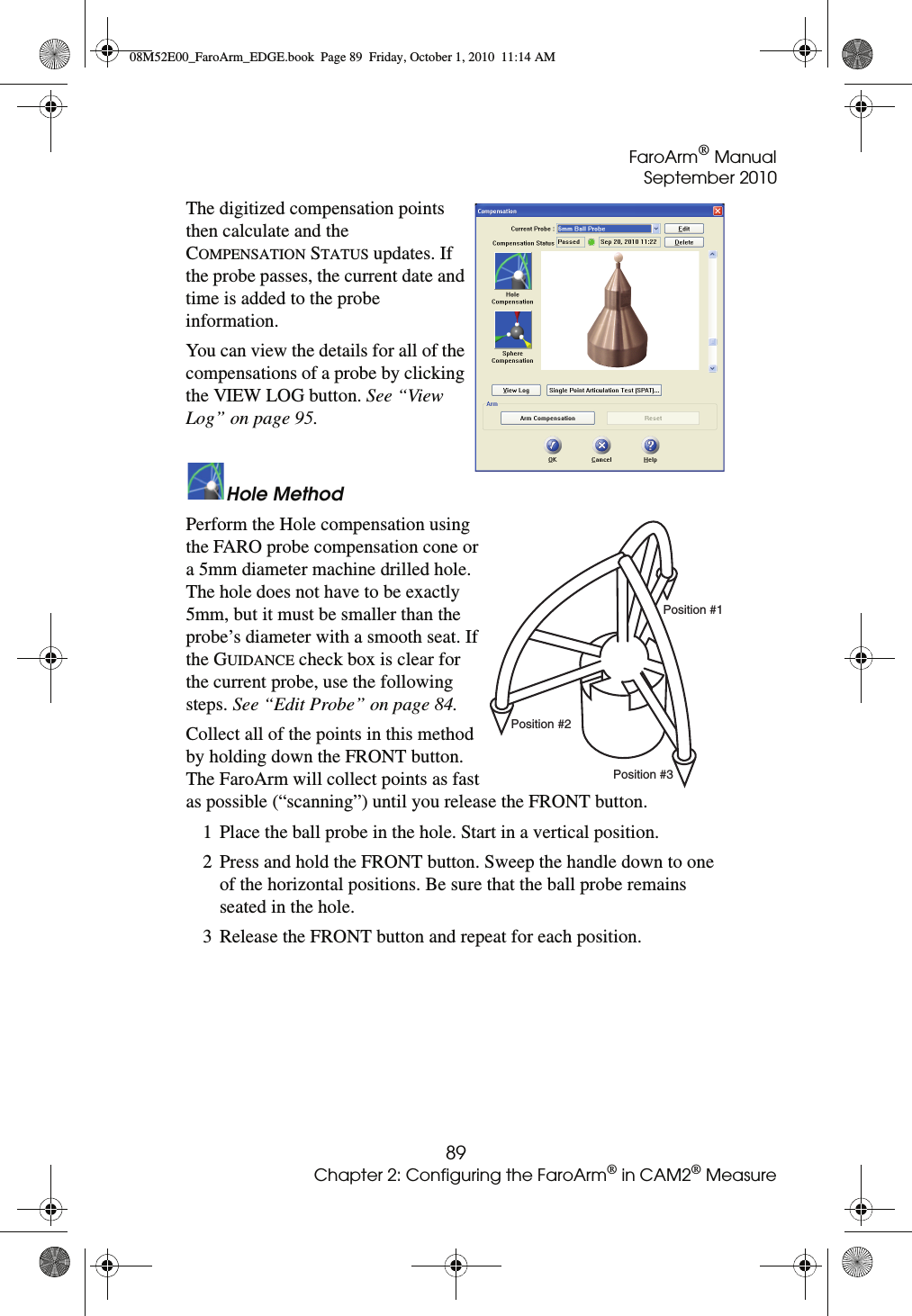

FaroArm® ManualSeptember 201089Chapter 2: Configuring the FaroArm® in CAM2® MeasureThe digitized compensation points then calculate and the COMPENSATION STATUS updates. If the probe passes, the current date and time is added to the probe information.You can view the details for all of the compensations of a probe by clicking the VIEW LOG button. See “View Log” on page 95.Hole MethodPerform the Hole compensation using the FARO probe compensation cone or a 5mm diameter machine drilled hole. The hole does not have to be exactly 5mm, but it must be smaller than the probe’s diameter with a smooth seat. If the GUIDANCE check box is clear for the current probe, use the following steps. See “Edit Probe” on page 84.Collect all of the points in this method by holding down the FRONT button. The FaroArm will collect points as fast as possible (“scanning”) until you release the FRONT button.1 Place the ball probe in the hole. Start in a vertical position.2 Press and hold the FRONT button. Sweep the handle down to one of the horizontal positions. Be sure that the ball probe remains seated in the hole.3 Release the FRONT button and repeat for each position.Position #1Position #2Position #308M52E00_FaroArm_EDGE.book  Page 89  Friday, October 1, 2010  11:14 AM

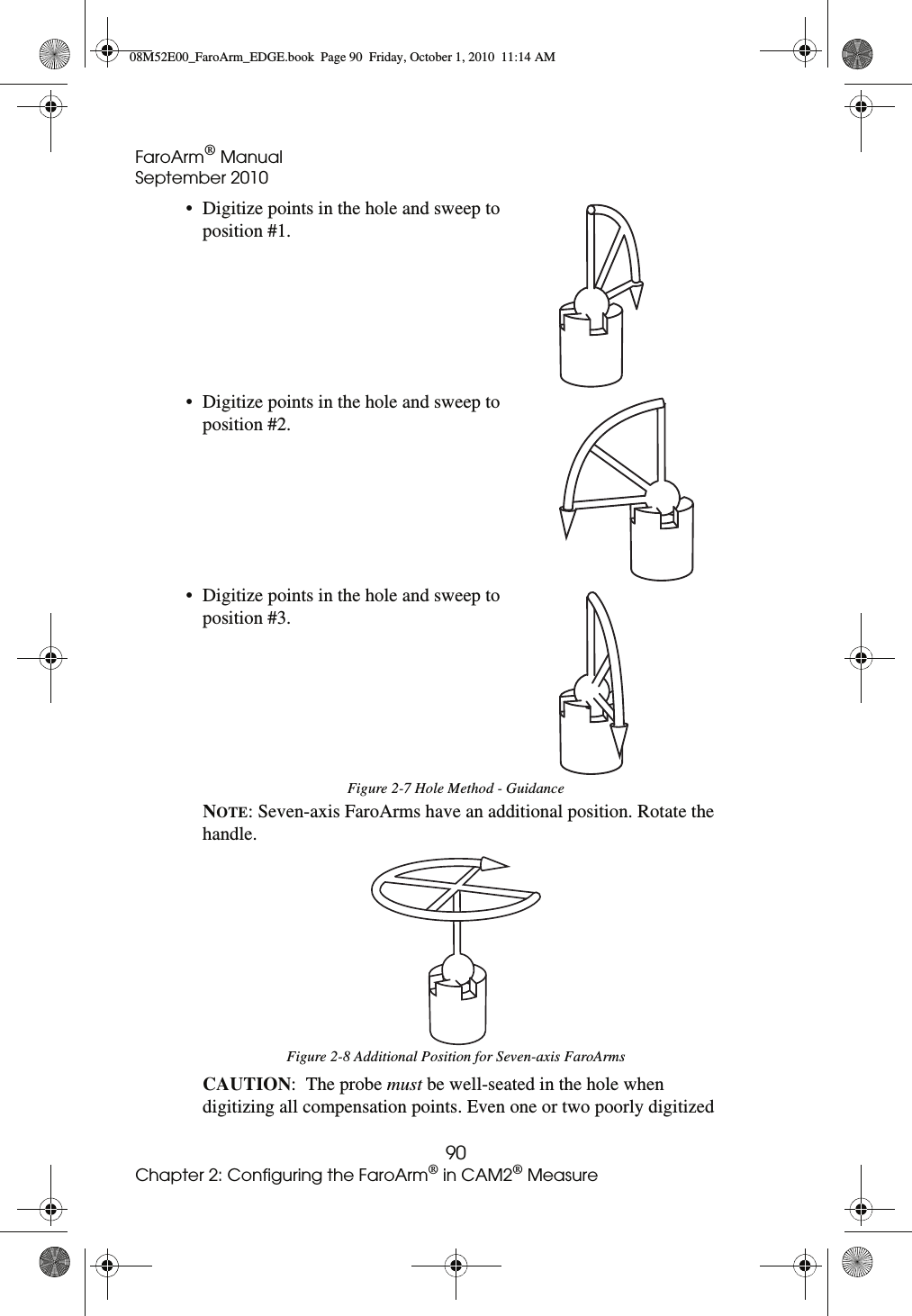

FaroArm® ManualSeptember 201090Chapter 2: Configuring the FaroArm® in CAM2® MeasureNOTE: Seven-axis FaroArms have an additional position. Rotate the handle. CAUTION:  The probe must be well-seated in the hole when digitizing all compensation points. Even one or two poorly digitized • Digitize points in the hole and sweep to position #1.• Digitize points in the hole and sweep to position #2.• Digitize points in the hole and sweep to position #3.Figure 2-7 Hole Method - GuidanceFigure 2-8 Additional Position for Seven-axis FaroArms08M52E00_FaroArm_EDGE.book  Page 90  Friday, October 1, 2010  11:14 AM

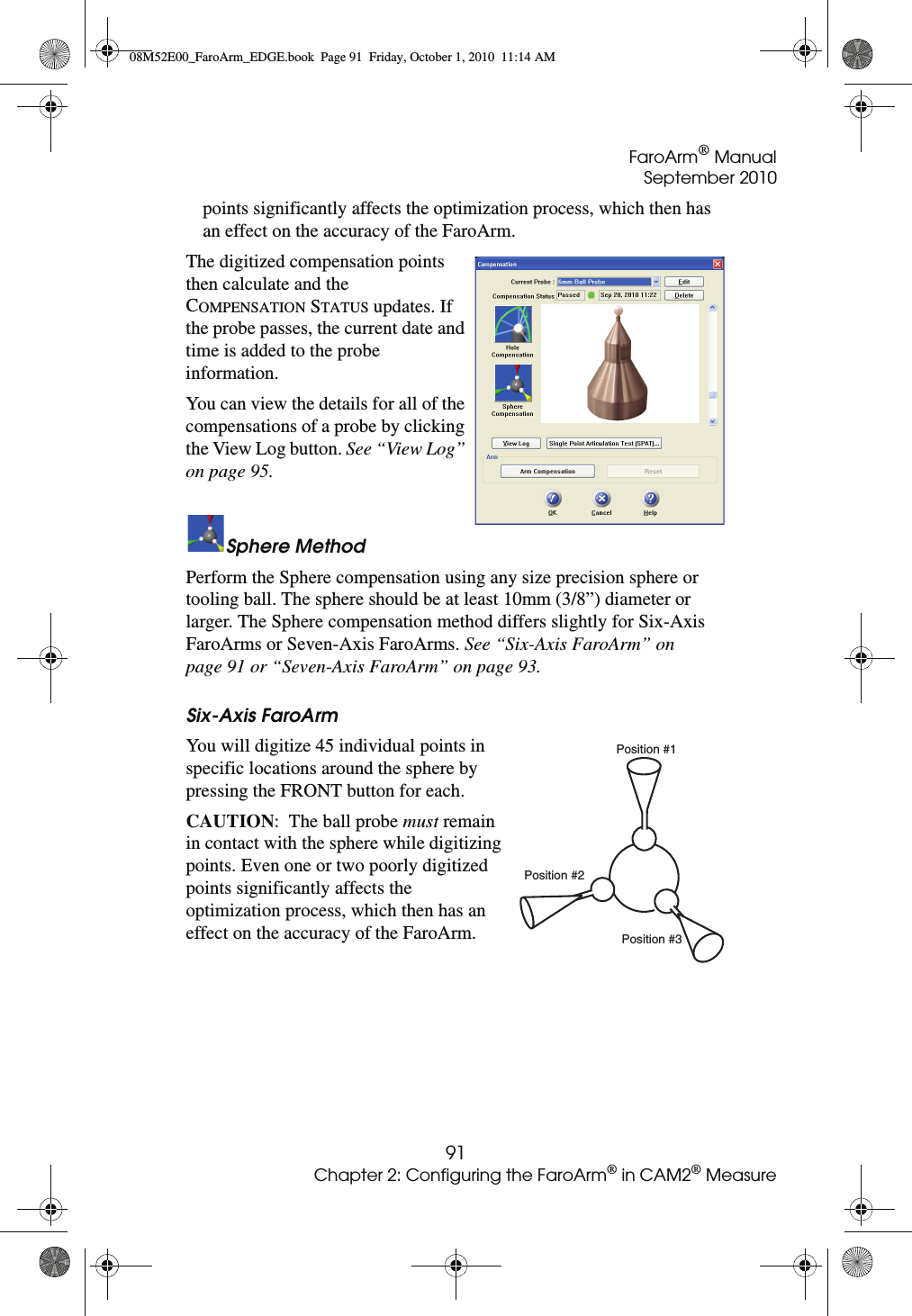

FaroArm® ManualSeptember 201091Chapter 2: Configuring the FaroArm® in CAM2® Measurepoints significantly affects the optimization process, which then has an effect on the accuracy of the FaroArm.The digitized compensation points then calculate and the COMPENSATION STATUS updates. If the probe passes, the current date and time is added to the probe information.You can view the details for all of the compensations of a probe by clicking the View Log button. See “View Log” on page 95.Sphere MethodPerform the Sphere compensation using any size precision sphere or tooling ball. The sphere should be at least 10mm (3/8”) diameter or larger. The Sphere compensation method differs slightly for Six-Axis FaroArms or Seven-Axis FaroArms. See “Six-Axis FaroArm” on page 91 or “Seven-Axis FaroArm” on page 93. Six-Axis FaroArmYou will digitize 45 individual points in specific locations around the sphere by pressing the FRONT button for each.CAUTION:  The ball probe must remain in contact with the sphere while digitizing points. Even one or two poorly digitized points significantly affects the optimization process, which then has an effect on the accuracy of the FaroArm.Position #1Position #2Position #308M52E00_FaroArm_EDGE.book  Page 91  Friday, October 1, 2010  11:14 AM

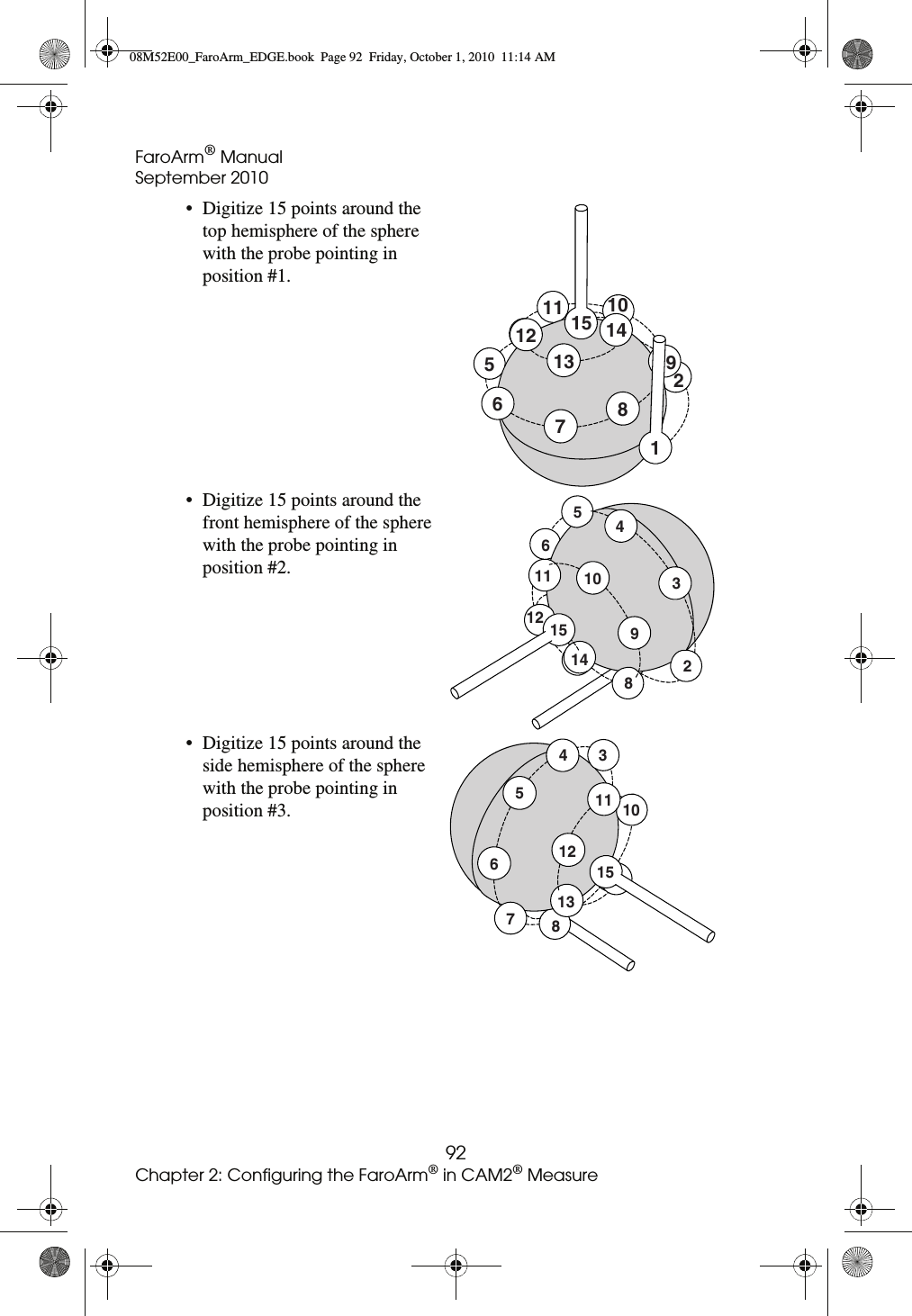

FaroArm® ManualSeptember 201092Chapter 2: Configuring the FaroArm® in CAM2® Measure• Digitize 15 points around the top hemisphere of the sphere with the probe pointing in position #1. • Digitize 15 points around the front hemisphere of the sphere with the probe pointing in position #2.• Digitize 15 points around the side hemisphere of the sphere with the probe pointing in position #3.128131211 10976515 1415141211 10982345615131211 1034567808M52E00_FaroArm_EDGE.book  Page 92  Friday, October 1, 2010  11:14 AM

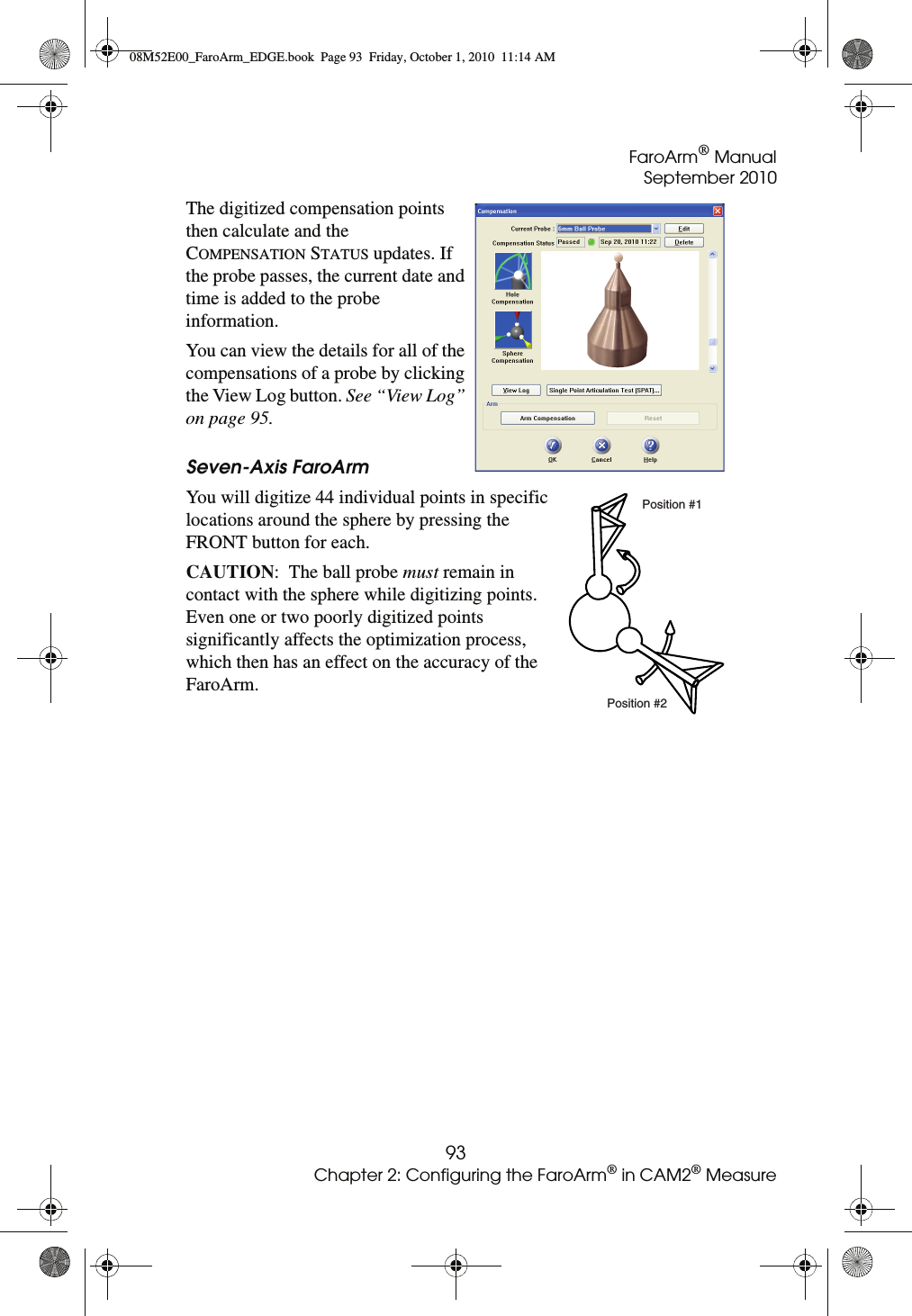

FaroArm® ManualSeptember 201093Chapter 2: Configuring the FaroArm® in CAM2® MeasureThe digitized compensation points then calculate and the COMPENSATION STATUS updates. If the probe passes, the current date and time is added to the probe information.You can view the details for all of the compensations of a probe by clicking the View Log button. See “View Log” on page 95.Seven-Axis FaroArmYou will digitize 44 individual points in specific locations around the sphere by pressing the FRONT button for each.CAUTION:  The ball probe must remain in contact with the sphere while digitizing points. Even one or two poorly digitized points significantly affects the optimization process, which then has an effect on the accuracy of the FaroArm.Position #1Position #208M52E00_FaroArm_EDGE.book  Page 93  Friday, October 1, 2010  11:14 AM

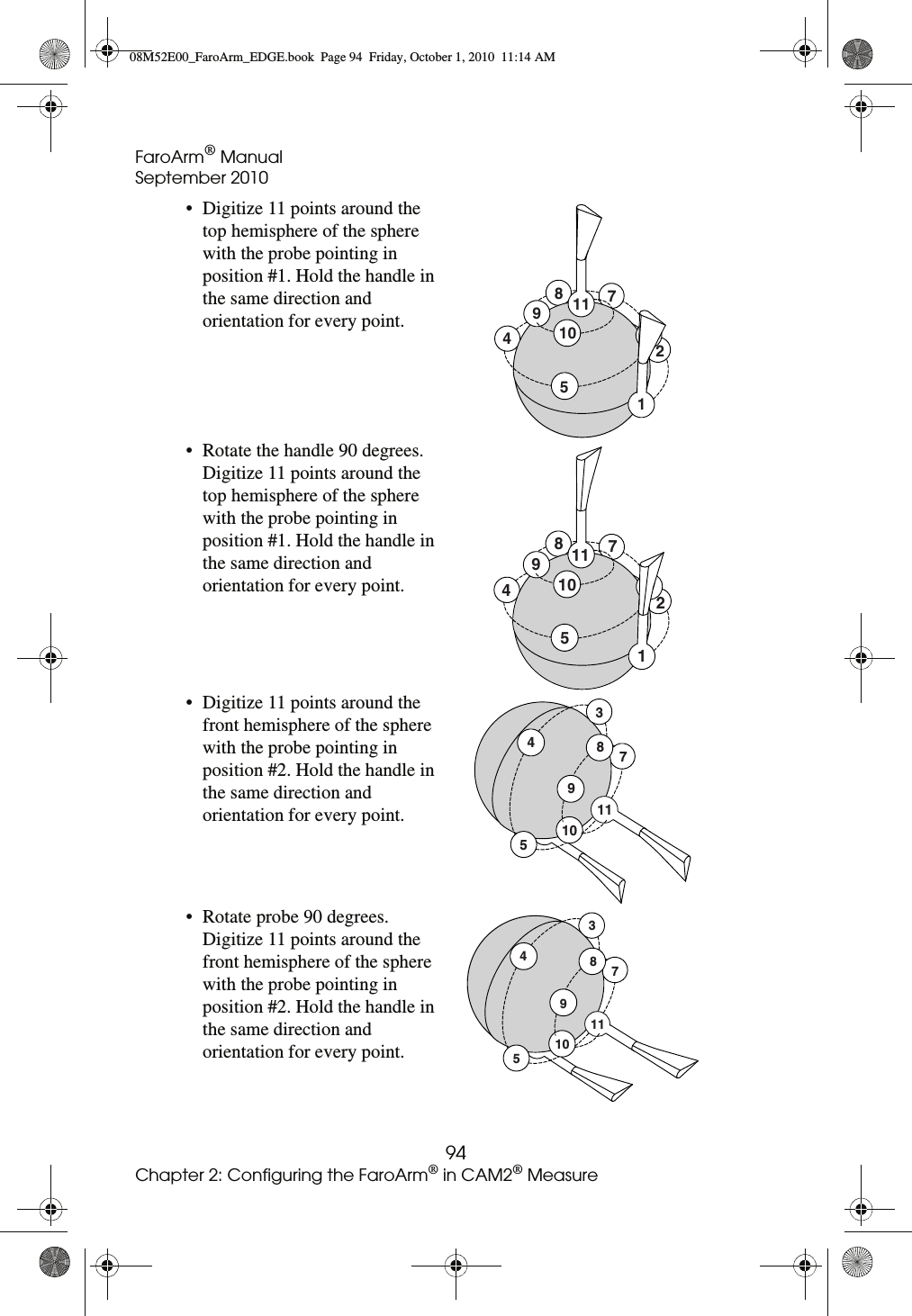

FaroArm® ManualSeptember 201094Chapter 2: Configuring the FaroArm® in CAM2® Measure• Digitize 11 points around the top hemisphere of the sphere with the probe pointing in position #1. Hold the handle in the same direction and orientation for every point.• Rotate the handle 90 degrees. Digitize 11 points around the top hemisphere of the sphere with the probe pointing in position #1. Hold the handle in the same direction and orientation for every point.• Digitize 11 points around the front hemisphere of the sphere with the probe pointing in position #2. Hold the handle in the same direction and orientation for every point.• Rotate probe 90 degrees. Digitize 11 points around the front hemisphere of the sphere with the probe pointing in position #2. Hold the handle in the same direction and orientation for every point.12459108711127891045113451110987510117389408M52E00_FaroArm_EDGE.book  Page 94  Friday, October 1, 2010  11:14 AM

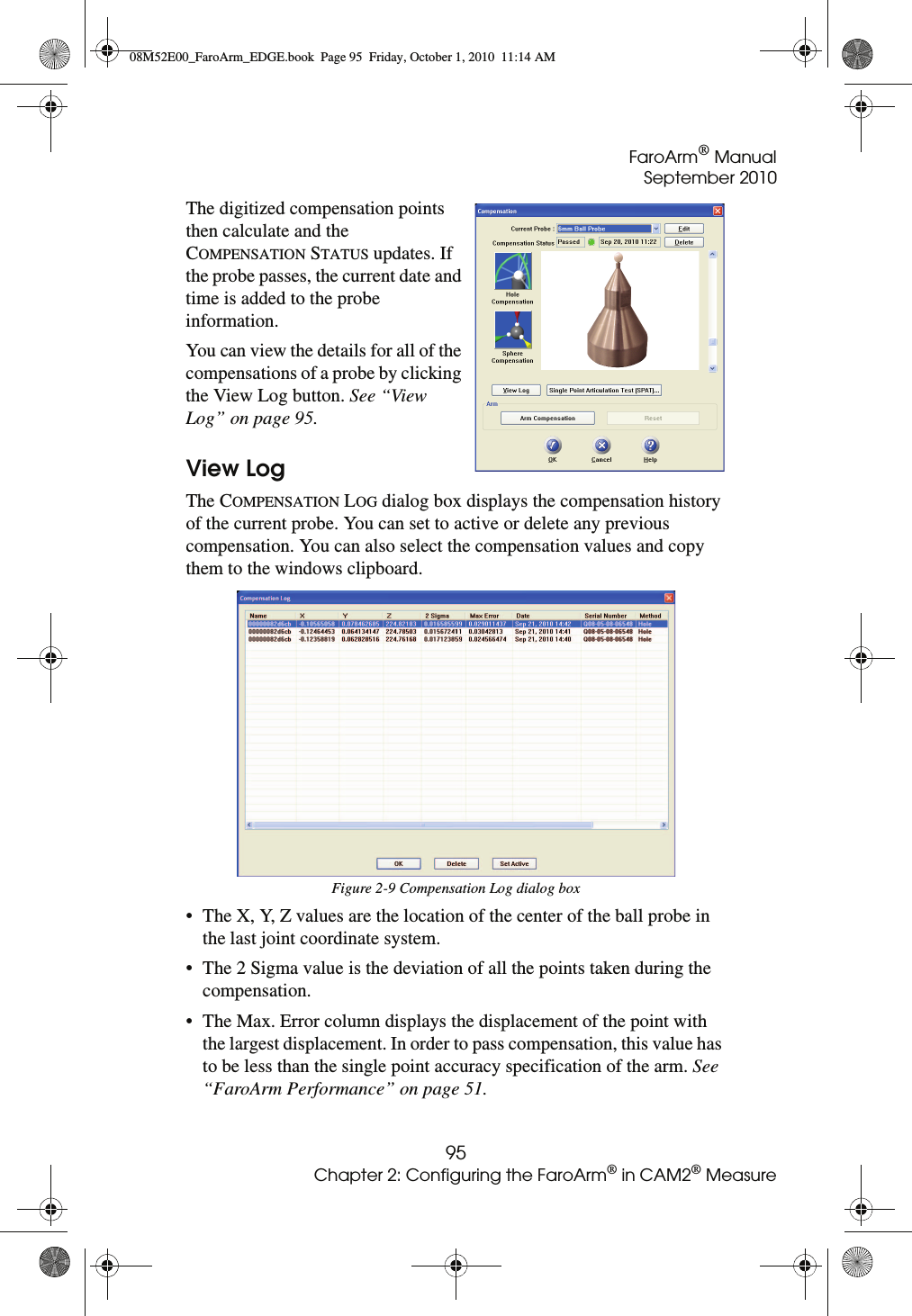

FaroArm® ManualSeptember 201095Chapter 2: Configuring the FaroArm® in CAM2® MeasureThe digitized compensation points then calculate and the COMPENSATION STATUS updates. If the probe passes, the current date and time is added to the probe information.You can view the details for all of the compensations of a probe by clicking the View Log button. See “View Log” on page 95.View LogThe COMPENSATION LOG dialog box displays the compensation history of the current probe. You can set to active or delete any previous compensation. You can also select the compensation values and copy them to the windows clipboard.• The X, Y, Z values are the location of the center of the ball probe in the last joint coordinate system. • The 2 Sigma value is the deviation of all the points taken during the compensation. • The Max. Error column displays the displacement of the point with the largest displacement. In order to pass compensation, this value has to be less than the single point accuracy specification of the arm. See “FaroArm Performance” on page 51.Figure 2-9 Compensation Log dialog box08M52E00_FaroArm_EDGE.book  Page 95  Friday, October 1, 2010  11:14 AM

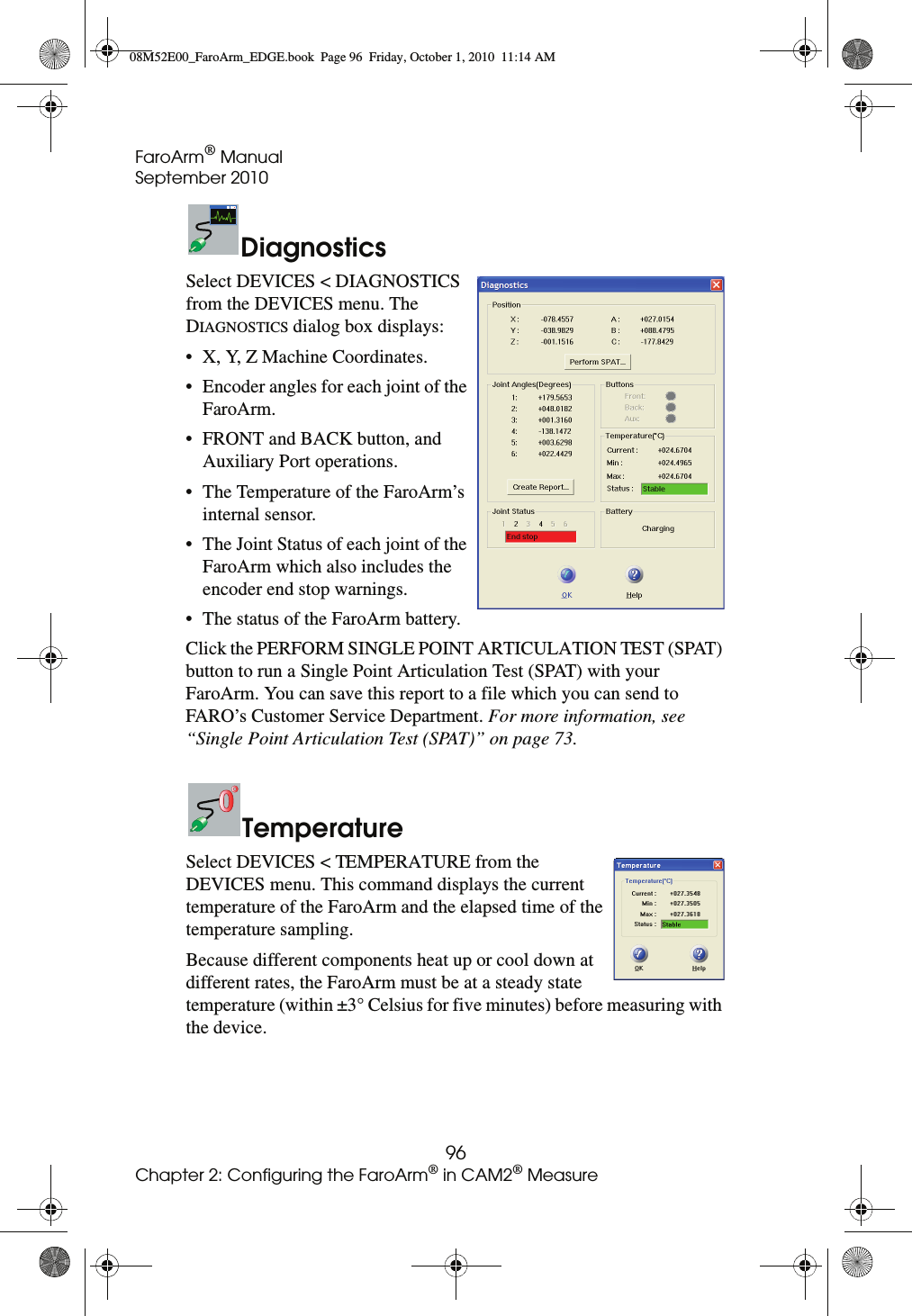

FaroArm® ManualSeptember 201096Chapter 2: Configuring the FaroArm® in CAM2® MeasureDiagnosticsSelect DEVICES < DIAGNOSTICS from the DEVICES menu. The DIAGNOSTICS dialog box displays:• X, Y, Z Machine Coordinates.• Encoder angles for each joint of the FaroArm.• FRONT and BACK button, and Auxiliary Port operations.• The Temperature of the FaroArm’s internal sensor.• The Joint Status of each joint of the FaroArm which also includes the encoder end stop warnings.• The status of the FaroArm battery.Click the PERFORM SINGLE POINT ARTICULATION TEST (SPAT) button to run a Single Point Articulation Test (SPAT) with your FaroArm. You can save this report to a file which you can send to FARO’s Customer Service Department. For more information, see “Single Point Articulation Test (SPAT)” on page 73.TemperatureSelect DEVICES < TEMPERATURE from the DEVICES menu. This command displays the current temperature of the FaroArm and the elapsed time of the temperature sampling. Because different components heat up or cool down at different rates, the FaroArm must be at a steady state temperature (within ±3° Celsius for five minutes) before measuring with the device. 08M52E00_FaroArm_EDGE.book  Page 96  Friday, October 1, 2010  11:14 AM

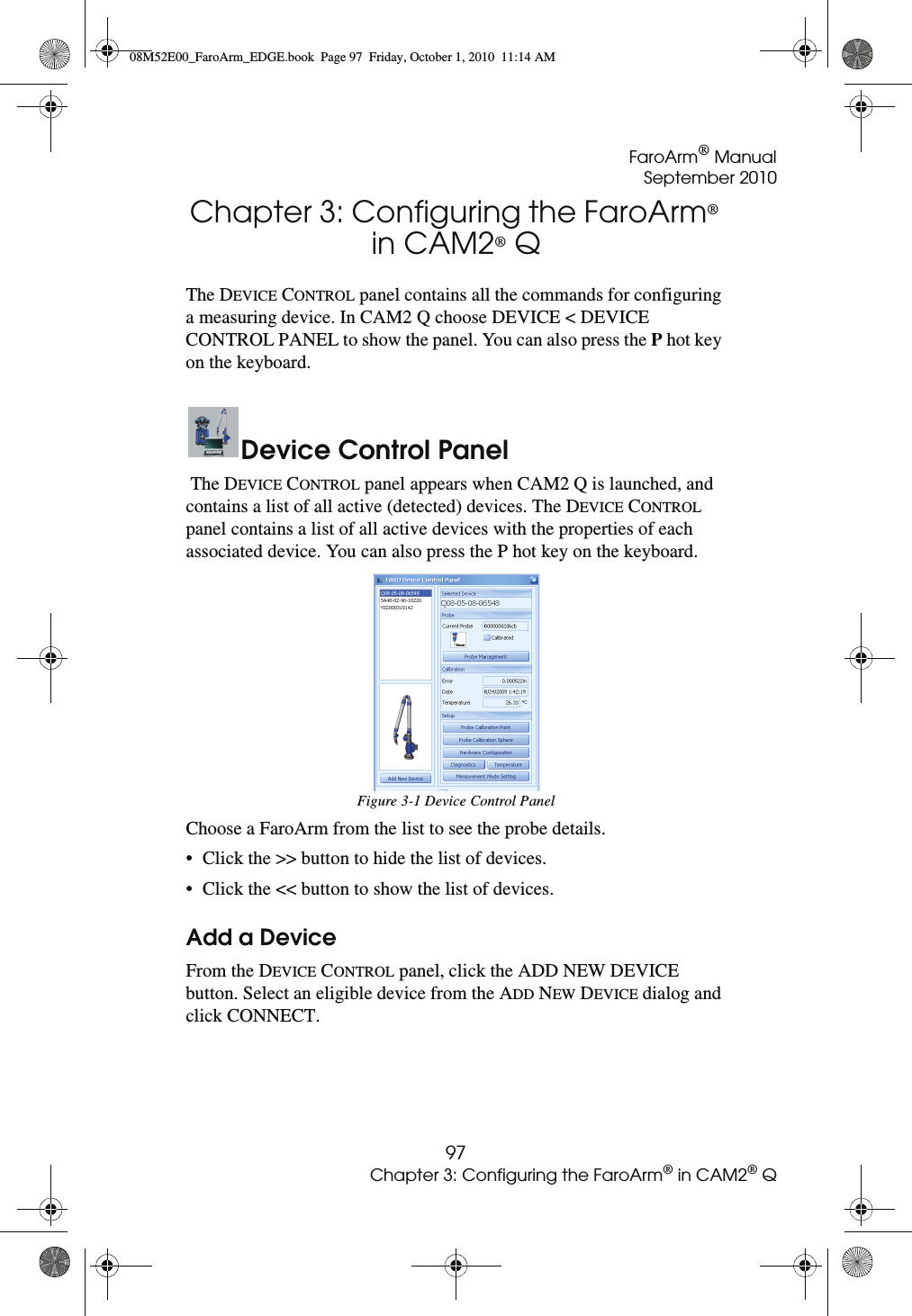

FaroArm® ManualSeptember 201097Chapter 3: Configuring the FaroArm® in CAM2® QChapter 3: Configuring the FaroArm® in CAM2® Q The DEVICE CONTROL panel contains all the commands for configuring a measuring device. In CAM2 Q choose DEVICE < DEVICE CONTROL PANEL to show the panel. You can also press the P hot key on the keyboard.Device Control Panel The DEVICE CONTROL panel appears when CAM2 Q is launched, and contains a list of all active (detected) devices. The DEVICE CONTROL panel contains a list of all active devices with the properties of each associated device. You can also press the P hot key on the keyboard. Choose a FaroArm from the list to see the probe details. • Click the >> button to hide the list of devices. • Click the << button to show the list of devices. Add a DeviceFrom the DEVICE CONTROL panel, click the ADD NEW DEVICE button. Select an eligible device from the ADD NEW DEVICE dialog and click CONNECT.Figure 3-1 Device Control Panel08M52E00_FaroArm_EDGE.book  Page 97  Friday, October 1, 2010  11:14 AM

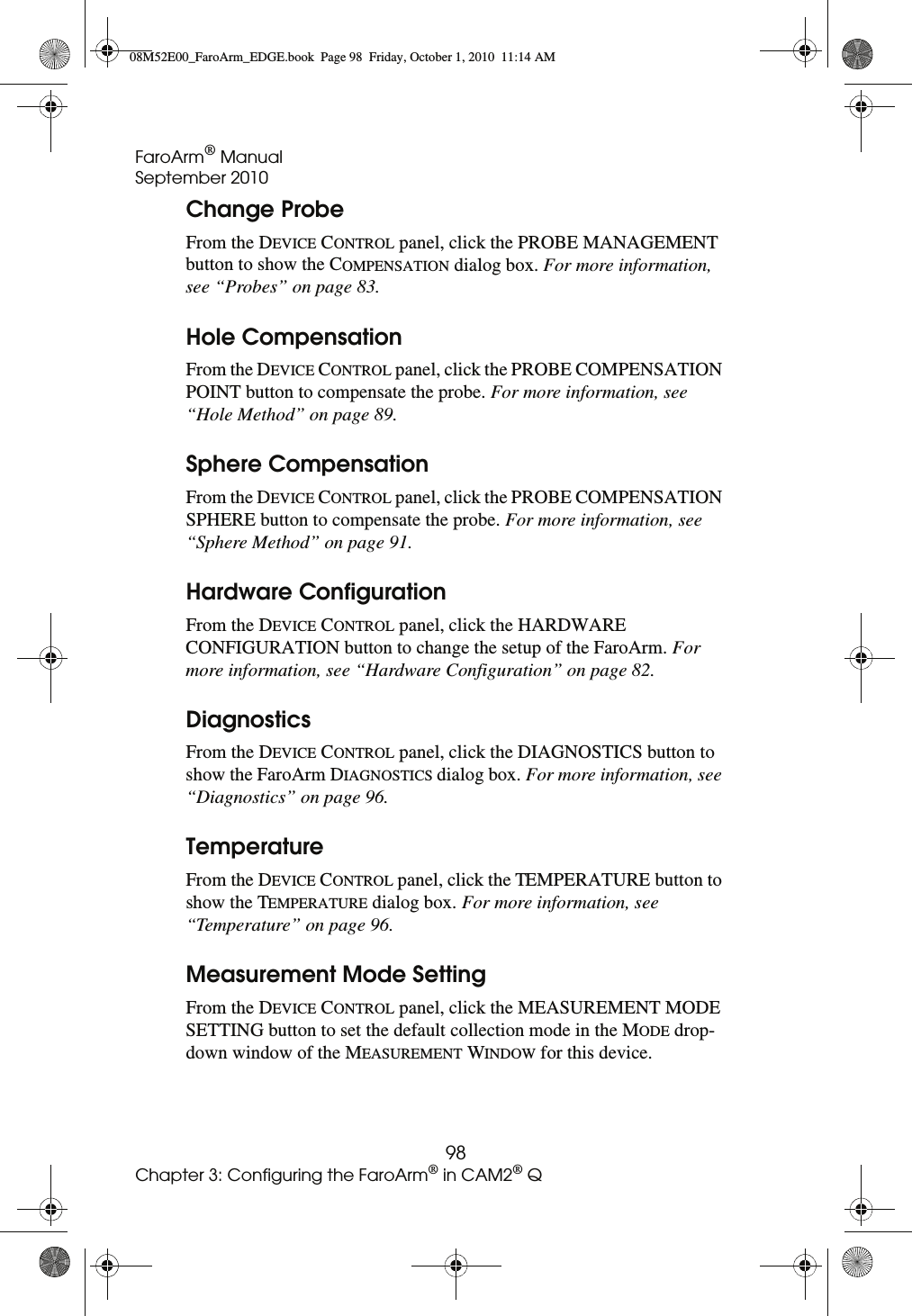

FaroArm® ManualSeptember 201098Chapter 3: Configuring the FaroArm® in CAM2® QChange ProbeFrom the DEVICE CONTROL panel, click the PROBE MANAGEMENT button to show the COMPENSATION dialog box. For more information, see “Probes” on page 83.Hole CompensationFrom the DEVICE CONTROL panel, click the PROBE COMPENSATION POINT button to compensate the probe. For more information, see “Hole Method” on page 89.Sphere CompensationFrom the DEVICE CONTROL panel, click the PROBE COMPENSATION SPHERE button to compensate the probe. For more information, see “Sphere Method” on page 91.Hardware ConfigurationFrom the DEVICE CONTROL panel, click the HARDWARE CONFIGURATION button to change the setup of the FaroArm. For more information, see “Hardware Configuration” on page 82.DiagnosticsFrom the DEVICE CONTROL panel, click the DIAGNOSTICS button to show the FaroArm DIAGNOSTICS dialog box. For more information, see “Diagnostics” on page 96.TemperatureFrom the DEVICE CONTROL panel, click the TEMPERATURE button to show the TEMPERATURE dialog box. For more information, see “Temperature” on page 96.Measurement Mode SettingFrom the DEVICE CONTROL panel, click the MEASUREMENT MODE SETTING button to set the default collection mode in the MODE drop-down window of the MEASUREMENT WINDOW for this device. 08M52E00_FaroArm_EDGE.book  Page 98  Friday, October 1, 2010  11:14 AM

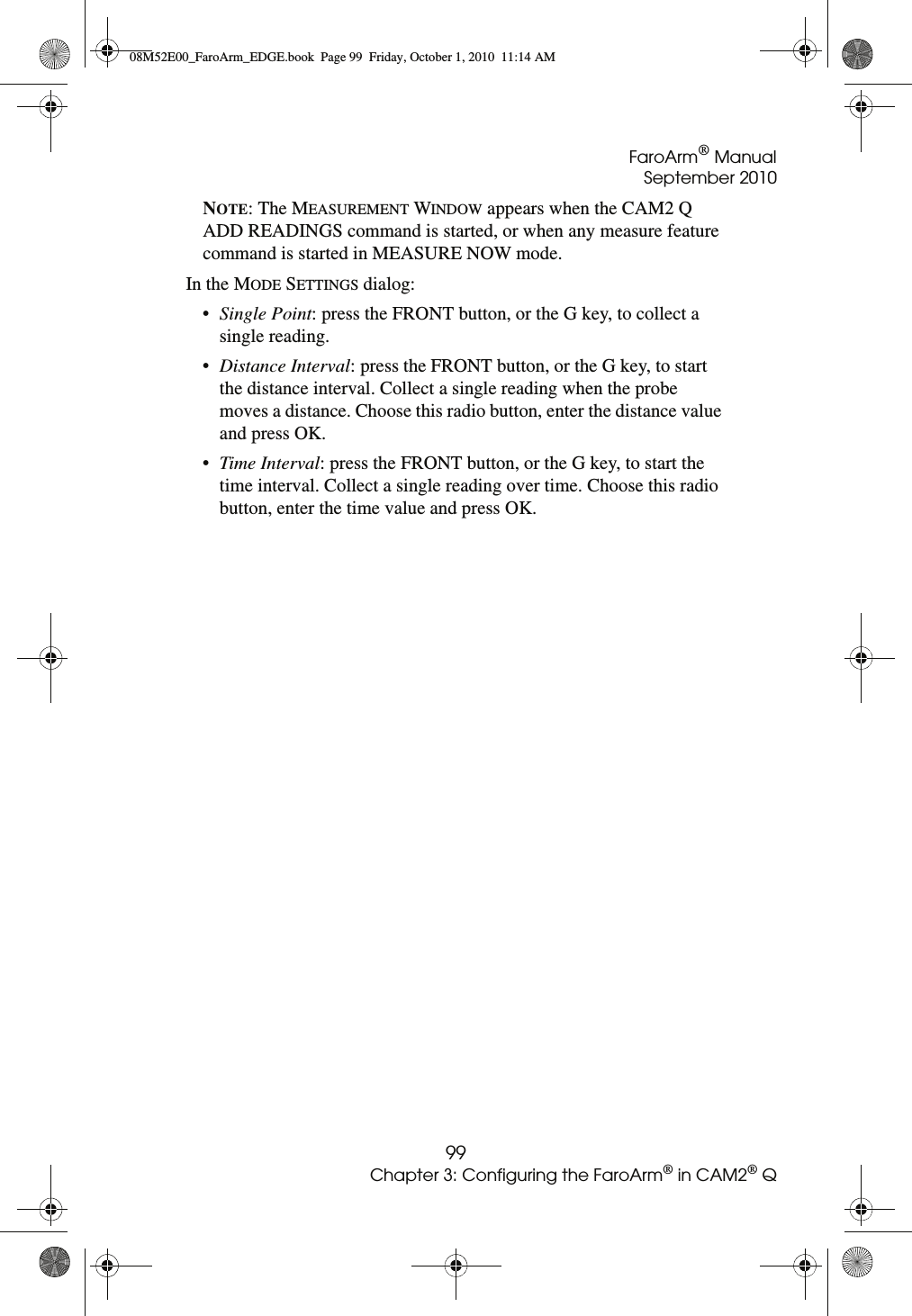

FaroArm® ManualSeptember 201099Chapter 3: Configuring the FaroArm® in CAM2® QNOTE: The MEASUREMENT WINDOW appears when the CAM2 Q ADD READINGS command is started, or when any measure feature command is started in MEASURE NOW mode. In the MODE SETTINGS dialog: •Single Point: press the FRONT button, or the G key, to collect a single reading. •Distance Interval: press the FRONT button, or the G key, to start the distance interval. Collect a single reading when the probe moves a distance. Choose this radio button, enter the distance value and press OK.•Time Interval: press the FRONT button, or the G key, to start the time interval. Collect a single reading over time. Choose this radio button, enter the time value and press OK.08M52E00_FaroArm_EDGE.book  Page 99  Friday, October 1, 2010  11:14 AM
08M52E00_FaroArm_EDGE.book  Page 100  Friday, October 1, 2010  11:14 AM

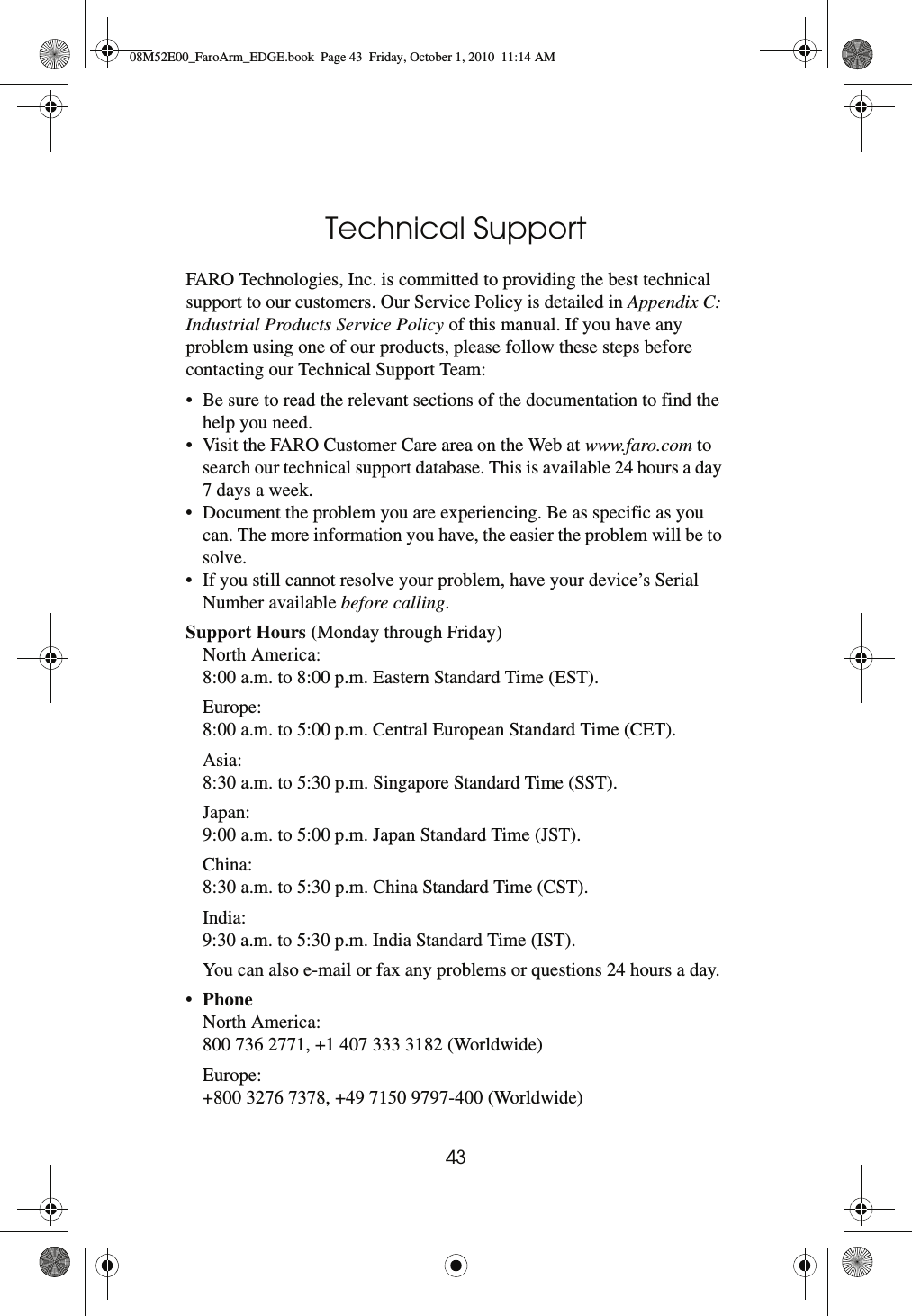

43Technical SupportFARO Technologies, Inc. is committed to providing the best technical support to our customers. Our Service Policy is detailed in Appendix C: Industrial Products Service Policy of this manual. If you have any problem using one of our products, please follow these steps before contacting our Technical Support Team:• Be sure to read the relevant sections of the documentation to find the help you need.• Visit the FARO Customer Care area on the Web at www.faro.com to search our technical support database. This is available 24 hours a day 7 days a week. • Document the problem you are experiencing. Be as specific as you can. The more information you have, the easier the problem will be to solve. • If you still cannot resolve your problem, have your device’s Serial Number available before calling.Support Hours (Monday through Friday) North America:8:00 a.m. to 8:00 p.m. Eastern Standard Time (EST). Europe:8:00 a.m. to 5:00 p.m. Central European Standard Time (CET). Asia:8:30 a.m. to 5:30 p.m. Singapore Standard Time (SST). Japan:9:00 a.m. to 5:00 p.m. Japan Standard Time (JST). China:8:30 a.m. to 5:30 p.m. China Standard Time (CST). India:9:30 a.m. to 5:30 p.m. India Standard Time (IST). You can also e-mail or fax any problems or questions 24 hours a day.•Phone North America:800 736 2771, +1 407 333 3182 (Worldwide)Europe:+800 3276 7378, +49 7150 9797-400 (Worldwide)08M52E00_FaroArm_EDGE.book  Page 43  Friday, October 1, 2010  11:14 AM

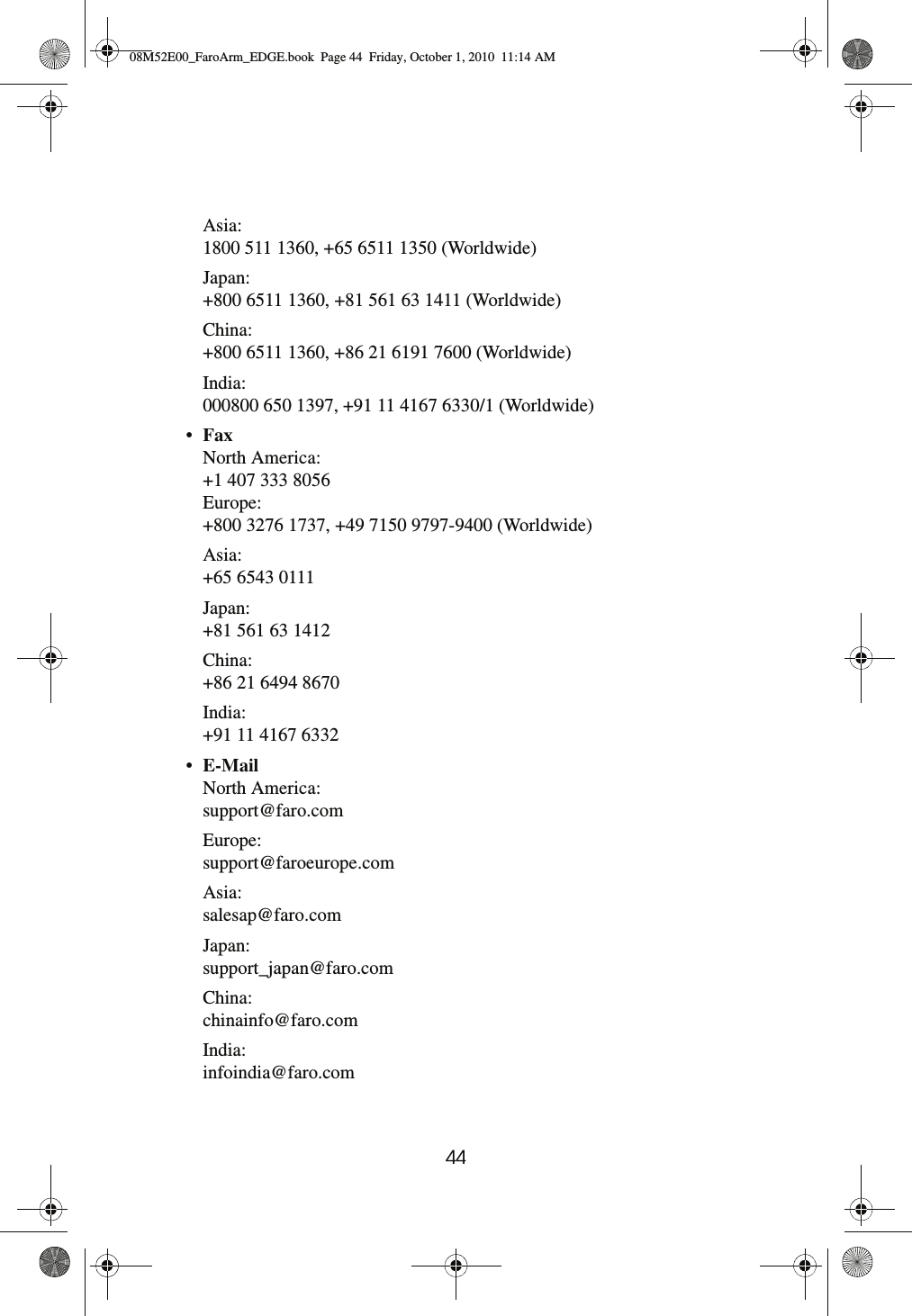

44 Asia:1800 511 1360, +65 6511 1350 (Worldwide)Japan:+800 6511 1360, +81 561 63 1411 (Worldwide)China:+800 6511 1360, +86 21 6191 7600 (Worldwide)India:000800 650 1397, +91 11 4167 6330/1 (Worldwide)•Fax North America:+1 407 333 8056Europe:+800 3276 1737, +49 7150 9797-9400 (Worldwide)Asia:+65 6543 0111Japan:+81 561 63 1412China:+86 21 6494 8670India:+91 11 4167 6332•E-Mail North America:support@faro.comEurope:support@faroeurope.comAsia:salesap@faro.comJapan:support_japan@faro.comChina:chinainfo@faro.comIndia:infoindia@faro.com08M52E00_FaroArm_EDGE.book  Page 44  Friday, October 1, 2010  11:14 AM

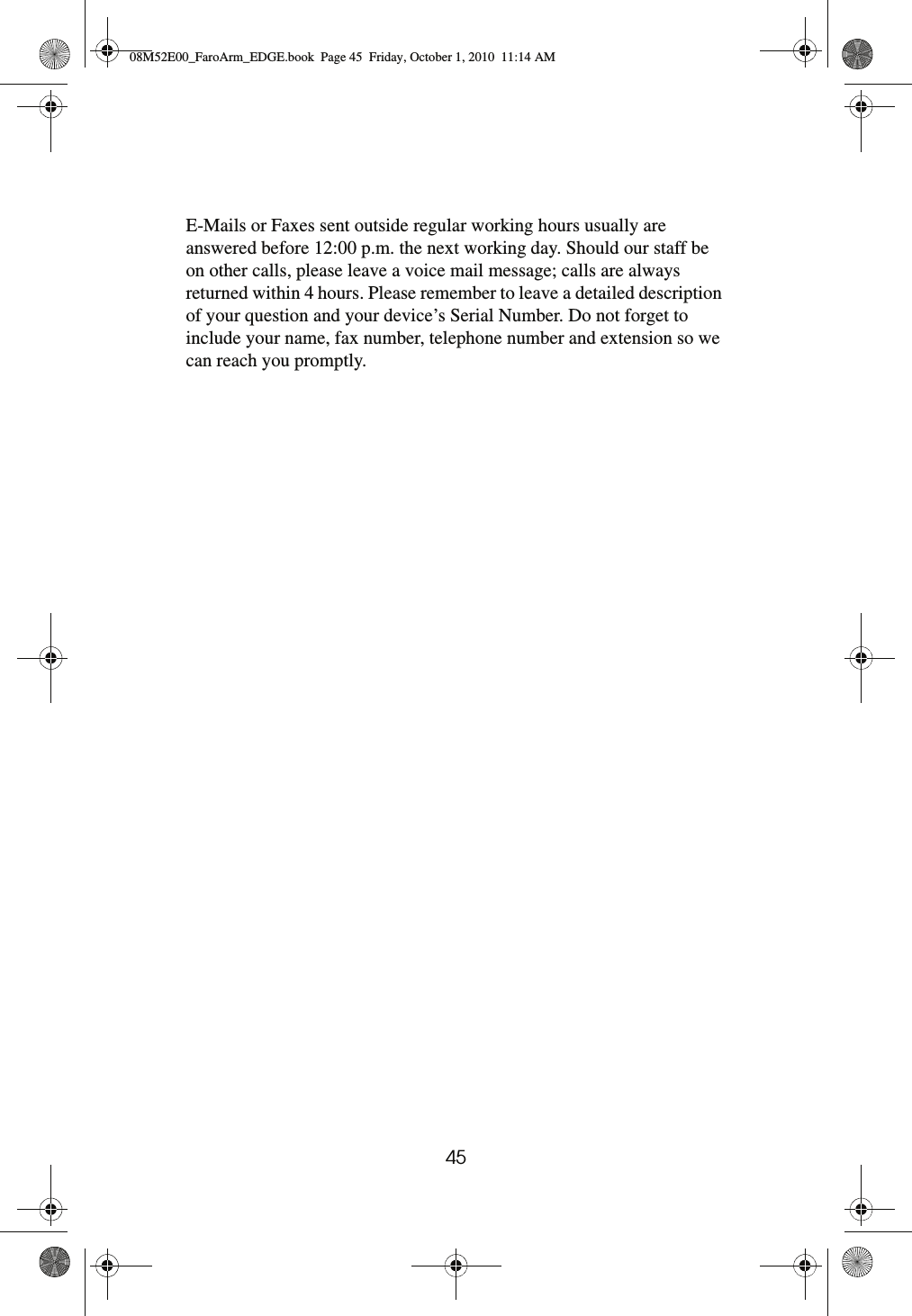

45E-Mails or Faxes sent outside regular working hours usually are answered before 12:00 p.m. the next working day. Should our staff be on other calls, please leave a voice mail message; calls are always returned within 4 hours. Please remember to leave a detailed description of your question and your device’s Serial Number. Do not forget to include your name, fax number, telephone number and extension so we can reach you promptly.08M52E00_FaroArm_EDGE.book  Page 45  Friday, October 1, 2010  11:14 AM
08M52E00_FaroArm_EDGE.book  Page 46  Friday, October 1, 2010  11:14 AM

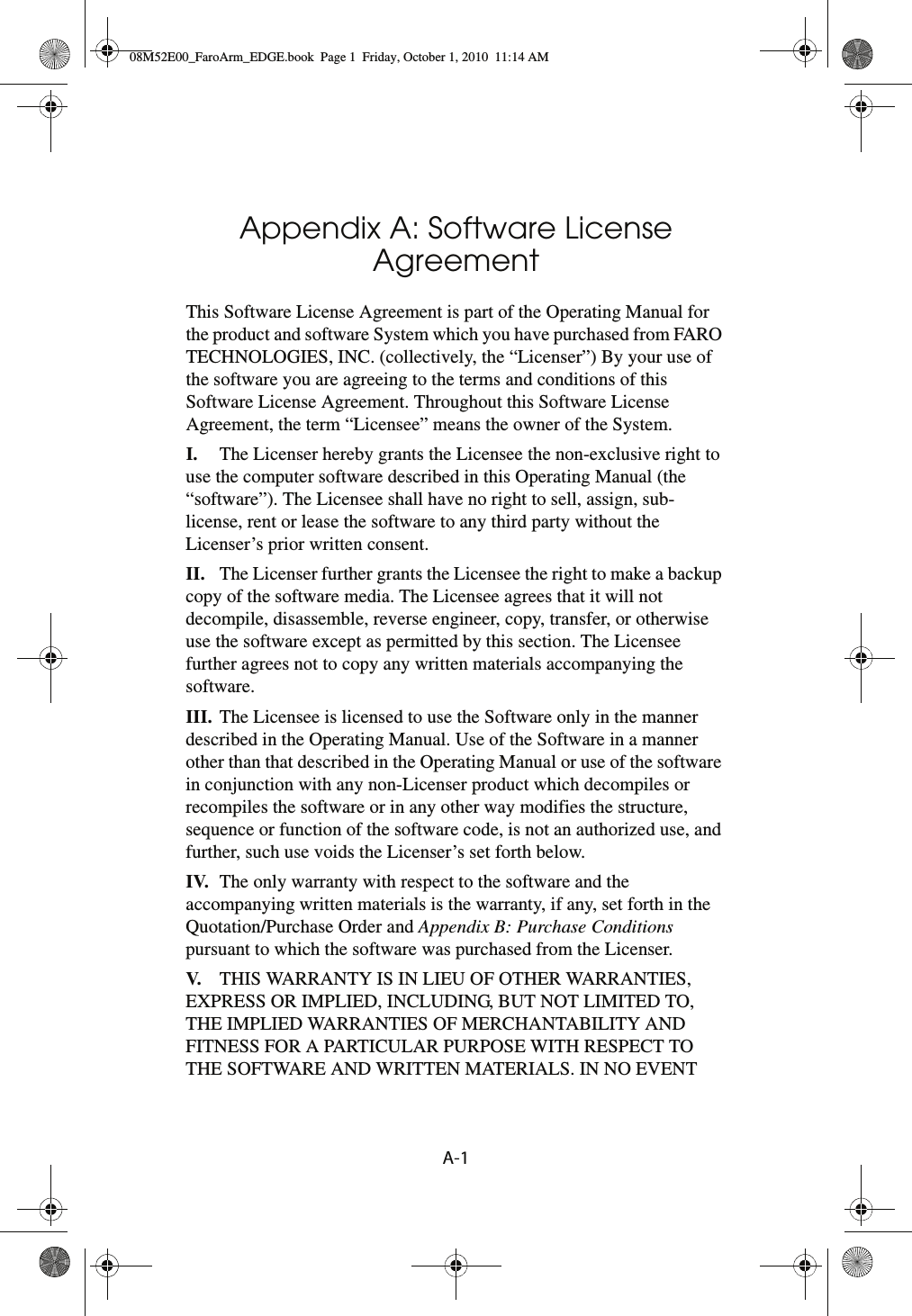

A-1Appendix A: Software License AgreementThis Software License Agreement is part of the Operating Manual for the product and software System which you have purchased from FARO TECHNOLOGIES, INC. (collectively, the “Licenser”) By your use of the software you are agreeing to the terms and conditions of this Software License Agreement. Throughout this Software License Agreement, the term “Licensee” means the owner of the System.I. The Licenser hereby grants the Licensee the non-exclusive right to use the computer software described in this Operating Manual (the “software”). The Licensee shall have no right to sell, assign, sub-license, rent or lease the software to any third party without the Licenser’s prior written consent.II. The Licenser further grants the Licensee the right to make a backup copy of the software media. The Licensee agrees that it will not decompile, disassemble, reverse engineer, copy, transfer, or otherwise use the software except as permitted by this section. The Licensee further agrees not to copy any written materials accompanying the software.III. The Licensee is licensed to use the Software only in the manner described in the Operating Manual. Use of the Software in a manner other than that described in the Operating Manual or use of the software in conjunction with any non-Licenser product which decompiles or recompiles the software or in any other way modifies the structure, sequence or function of the software code, is not an authorized use, and further, such use voids the Licenser’s set forth below.IV. The only warranty with respect to the software and the accompanying written materials is the warranty, if any, set forth in the Quotation/Purchase Order and Appendix B: Purchase Conditions pursuant to which the software was purchased from the Licenser.V. THIS WARRANTY IS IN LIEU OF OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THE SOFTWARE AND WRITTEN MATERIALS. IN NO EVENT 08M52E00_FaroArm_EDGE.book  Page 1  Friday, October 1, 2010  11:14 AM

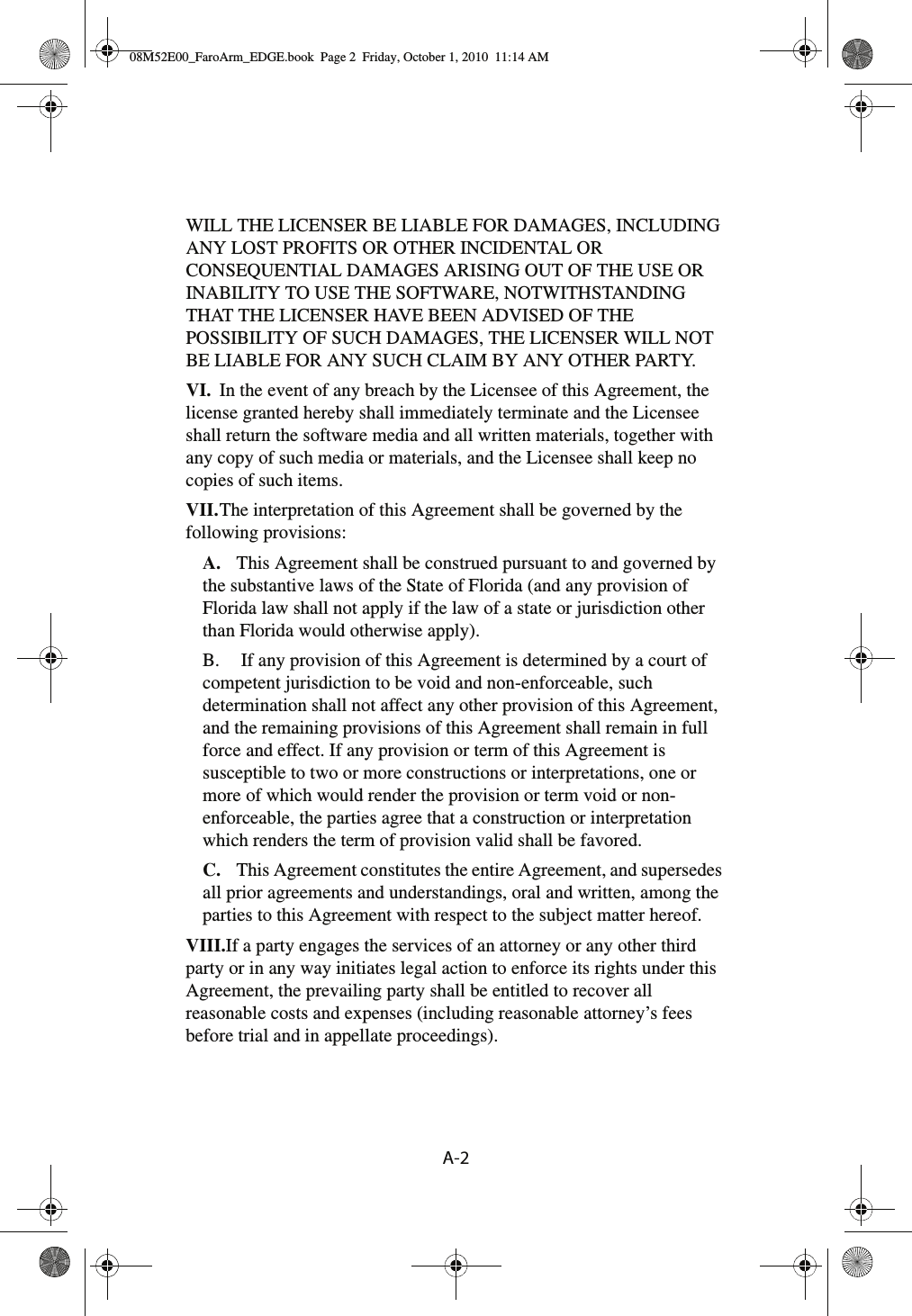

A-2 WILL THE LICENSER BE LIABLE FOR DAMAGES, INCLUDING ANY LOST PROFITS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE, NOTWITHSTANDING THAT THE LICENSER HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, THE LICENSER WILL NOT BE LIABLE FOR ANY SUCH CLAIM BY ANY OTHER PARTY.VI. In the event of any breach by the Licensee of this Agreement, the license granted hereby shall immediately terminate and the Licensee shall return the software media and all written materials, together with any copy of such media or materials, and the Licensee shall keep no copies of such items.VII.The interpretation of this Agreement shall be governed by the following provisions:A. This Agreement shall be construed pursuant to and governed by the substantive laws of the State of Florida (and any provision of Florida law shall not apply if the law of a state or jurisdiction other than Florida would otherwise apply).B.  If any provision of this Agreement is determined by a court of competent jurisdiction to be void and non-enforceable, such determination shall not affect any other provision of this Agreement, and the remaining provisions of this Agreement shall remain in full force and effect. If any provision or term of this Agreement is susceptible to two or more constructions or interpretations, one or more of which would render the provision or term void or non-enforceable, the parties agree that a construction or interpretation which renders the term of provision valid shall be favored.C. This Agreement constitutes the entire Agreement, and supersedes all prior agreements and understandings, oral and written, among the parties to this Agreement with respect to the subject matter hereof.VIII.If a party engages the services of an attorney or any other third party or in any way initiates legal action to enforce its rights under this Agreement, the prevailing party shall be entitled to recover all reasonable costs and expenses (including reasonable attorney’s fees before trial and in appellate proceedings).08M52E00_FaroArm_EDGE.book  Page 2  Friday, October 1, 2010  11:14 AM
