Feig Electronic PRHD102 RFID Reader User Manual Installation ID ISC PRH D 102
Feig Electronic GmbH RFID Reader Installation ID ISC PRH D 102
User Manual
INSTALLATION
final
public (B)
2010-01-18
PRH102 - Manual.doc
OBI
D
i-scan
®
ID ISC.PRH102
ID ISC.PRHD102
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 2 of 12 PRH102 - Manual.doc
Note
© Copyright 2008-2009 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg-Waldhausen
Tel.: +49 6471 3109-0
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are forbidden
without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the
grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID® and OBID i-scan® are registered trademarks of FEIG ELECTRONIC GmbH.
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 3 of 12 PRH102 - Manual.doc
Contents
1. Safety Instructions / Warning - Read before start-up ! 4
2. Performance Features of the Readers 5
2.1. Performance features .........................................................................................................5
2.2. Available Reader-Types......................................................................................................6
3. Control and Display Elements 7
3.1. Signal buzzer .......................................................................................................................7
3.2. Scan - button .......................................................................................................................7
3.3. LED .......................................................................................................................................8
4. Assembly and Wiring 9
4.1. Reader with asynchronous serial interface ID ISC.PRH102-B / ID ISC.PRHD102-B......9
4.2. Reader with USB interface ID ISC.PRH102-USB / ID ISC.PRHD102-USB .......................9
5. Technical Data 10
6. Approvals 12
6.1. Europe (CE).......................................................................................................................12
6.2. USA and Canada (FCC).....................................................................................................12
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 4 of 12 PRH102 - Manual.doc
1. Safety Instructions / Warning - Read before start-up !
• The device may only be used for the intended purpose designed by for the manufacturer.
• When installing the device in areas covered under FCC 47 CFR Part 15 a minimum separation
of 20 cm between antenna and the human body must be maintained.
• The operation manual should be conveniently kept available at all times for each user.
• Unauthorized changes and the use o f spare parts and additional devices which have not been
sold or recommended by the manufacturer ma y cause fire, electric shocks or injur ies. Such
unauthorized measures shall exclude any liability by the manufacturer.
• The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
• Repairs may only be executed by the manufacturer.
• Installation, operation, and maintenance procedure s shou ld only be carried out by qualified
personnel.
• Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
• When working on devices the valid safety regulations must be observed.
• Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm (10 inch) between the device and your cardiac pacemaker.
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 5 of 12 PRH102 - Manual.doc
2. Performance Features of the Readers
2.1. Performance features
The ID ISC.PRH102 and the ID ISC.PRHD102 have been developed for reading passive data car-
riers, so-called „Smart Labels“, using operating frequencies either in the HF range or in the HF and
UHF range. The readers have internal antennas and will be delivered ready for connection. The
device is designed as a handheld.
An anti-collision function enables simultaneous reading of several transponders per second.
The Reader electronic is fitted in a plastic housing with a protection class IP30.
The Reader ID ISC.PRH(D)102-B have an asynchronous serial interface and the ID
ISC.PRH(D)102-USB have an USB interface.

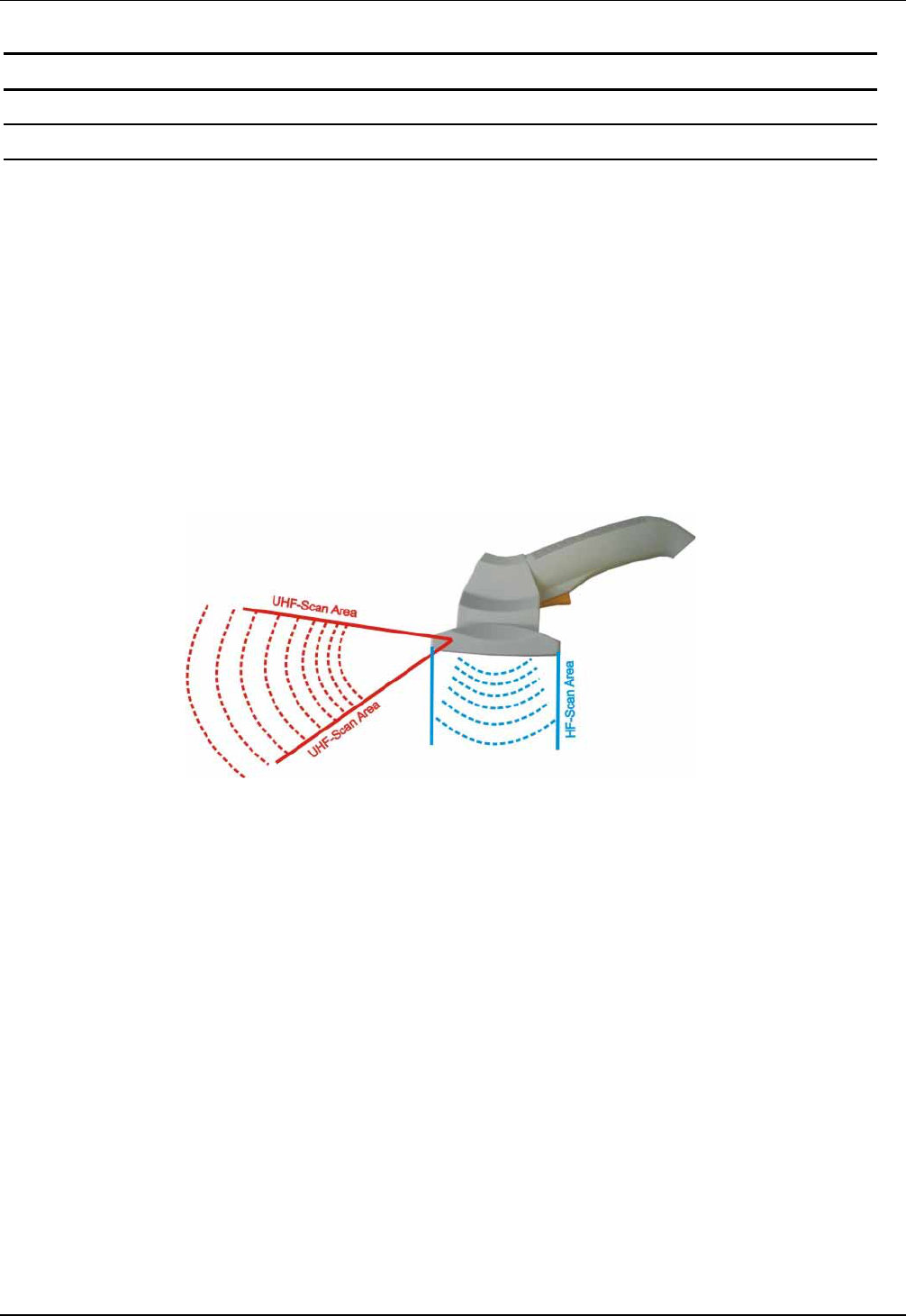

Depending on if HF or UHF transponder should be detected the re ader comes with the following
different field areas as shown in the Fig.1 .
Fig. 1: HF and UHF detection areas
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 6 of 12 PRH102 - Manual.doc
2.2. Available Reader-Types
Following Reader-Types are available at present:
Reader-Types Description
ID ISC.PRH102-B HF Reader with serial interface with internal antenna.
Powered via external 5 V DC/ power supply.
ID ISC.PRH102-USB HF Reader with serial interface with internal antenna.
Powered via a high powered USB port.
ID ISC.PRHD102-B-EU Reader for Europe:
HF and UHF Reader with serial interface with internal antenna.
Powered via external 5 V DC/ power supply.
ID ISC.PRHD102-USB-EU Reader for Europe:
HF and UHF Reader with serial interface with internal antenna.
Powered via a high powered USB port.
ID ISC.PRHD102-B-FCC Reader for USA and Canada:
HF and UHF Reader with serial interface with internal antenna.
Powered via external 5 V DC/ power supply.
ID ISC.PRHD102-USB-FCC Reader for USA and Canada:
HF and UHF Reader with serial interface with internal antenna.
Powered via a high powered USB port.
Table 1: Reader-Types
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 7 of 12 PRH102 - Manual.doc

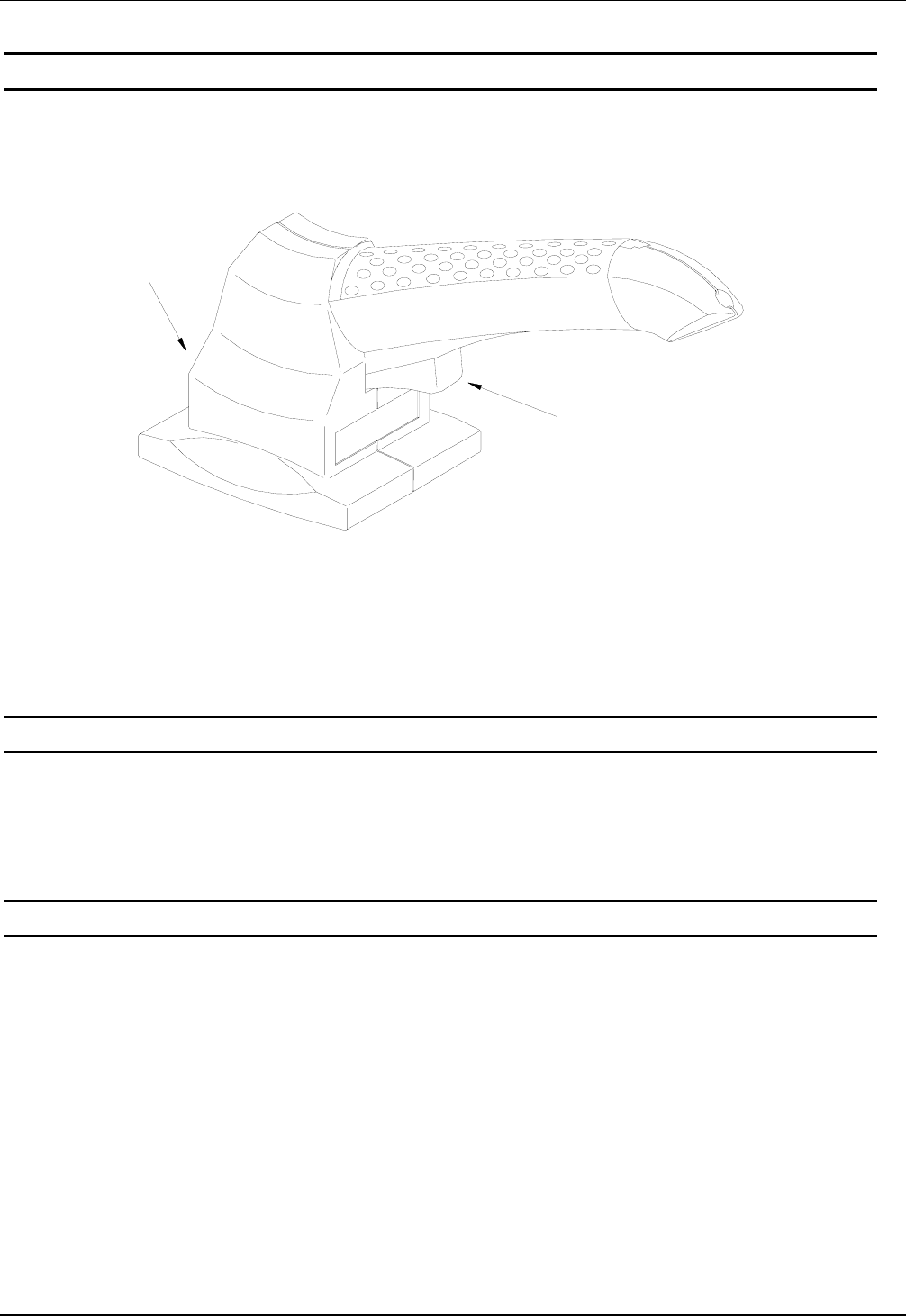

3. Control and Display Elements
LED
Scan-button
Fig. 2 Control and Display Elements
3.1. Signal buzzer
The signal buzzer can be configured by the software.
In the standard configuration the signal buzzer will be active if a Transponder is recognized.
3.2. Scan - button
The switch of the reader can be configured by the software.
In the standard con figuration the serial number of the Transponder is read and is sent to the host
after pressing the scan - button.
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 8 of 12 PRH102 - Manual.doc
3.3. LED
The Reader’s LED can be configured through software.
Abbreviation Description
LED green "RUN "
- Turns on when the Reader is ready.
LED blue „TRANSPONDER“
- Turns on when a Transponder is detected.
LED red „WARNING“
- Signals a warning
LED orange „INITIALIZING “ and „WARNING“
- Flashes during Reader initialization after power-up.
Table 2: Standard configuration of the LEDs
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 9 of 12 PRH102 - Manual.doc
4. Assembly and Wiring
4.1. Reader with asynchronous serial interface ID ISC.PRH102-B / ID ISC.PRHD102-B
The communication and the power supply follows through the serial interface. The COM-port set-
tings can be configured by the software.
Note:
If there is an USB/RS232 converter used on the PC/Notebook side, we recommend to in-
crease the „Char Timeout Multiplier“ parameter in the COM-Port settings from „1“ to about
„5“.
4.2. Reader with USB interface ID ISC.PRH102-USB / ID ISC.PRHD102-USB
The power supply follows through the USB-interface (Bus-powered)
The USB-interface must support a current of 500 mA (High Powered Interface)
The data rate of the reader is reduced to 12 Mbit (USB high speed).
The reader dispose of a fixed connected interfaces cable with standardized USB-connector. The
Reader must only be connected to the USB-port of the PC.
If the reader is used for the first time, it must be registered in the operating system of the computer.
For this the instruction "M30100-xde-ID-B: Installation of the OBID USB driver" can be used
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 10 of 12 PRH102 - Manual.doc
5. Technical Data
Mechanical Data
• Housing ABS plastic (enclosed)
• Dimensions ( W x H x D ) 230 x 100 x 80 mm (9,06 x 3,94 x 3,15 inch)
• Weight 320 g
• Degree of Protection IP 30
• Cable length approx. 2,5 m / 8,2 ft.
• Color similar RAL 9002
Electrical Data
• Supply Voltage
– ID ISC.PRH(D)102-B
– ID ISC.PRH(D)102-USB
5,0 V DC/ ± 0,2 V regulated
USB - High Powered Interface
• Current Draw max. 0,5 A
• Power Consumption max. 2,5 VA
• Operating Frequency
– ID ISC.PRH102
– ID ISC.PRHD102
13,56 MHz
13,56 MHz and 860 ... 960 MHz
• Transmitting Power
– HF
– UHF
200 mW ± 2 dB
100mW ± 2 dB
• Antennas internal
• Interface
– ID ISC.PRH(D)102-B
– ID ISC.PRH(D)102-USB
Serial
USB (12 Mbit)
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 11 of 12 PRH102 - Manual.doc
Functional Properties
• Supported Transponders
– HF
– UHF
• ISO15693, ISO18000-3-Mode1
(EM HF ISO Chips, Fujitsu HF ISO Chips,
KSW Sensor Chips, Infineon my-d, NXP I-
Code, STM LRI ISO Chips, TI Tag-it)
• EPC class 1 Gen 2
18000-6-C (optional)
• Address setting for USB interface Device ID of the Readers
• Indicators
– optical
– acoustical
1 LED ( multicolor – red / green / blue)
buzzer
Ambient Conditions
• Temperature range
– Operation
– Storage
0°C to +50°C (32°F to 122°F)
-20°C to +70°C (-4°F to 158°F)
• Humidity 5 – 95% non condensing
• Fall Withstands multiple 5´/1,5 m drops to concrete
Applicable Norms
• Radio approval
– Europe EN 300 330, EN 302 208
• EMC EN 301 489
• Safety
- low voltage
- Human Exposure
EN 60950
EN 50364
OBID i-scan ® Installation ID ISC.PRH(D)102-B / -USB
FEIG ELECTRONIC GmbH Page 12 of 12 PRH102 - Manual.doc
6. Approvals
6.1. Europe (CE)
When used according to regulation, this radio equipment conforms with the basic requirements of
Article 3 and the other relevant provisions of the R&TTE Guideline 1999/5/EC dated March 99.
Equipment Classification according to ETSI EN 301 489: Class 2
6.2. USA and Canada (FCC)
FCC ID PJMPRH102 / FCC ID PJMPRHD102
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
Changes or modifications made to this equipment not expressly approved by
FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
