Notebook User Guide
80
Ethernet standard. Because it is 10 times faster than Ethernet, it is often
referred to as Fast Ethernet.
The built-in LAN module provides a standard RJ-45 connector.
To connect the twisted-pair cable to your LAN port:
1. Locate the twisted-pair cable in the accessories box in notebook shipping
carton. Each end of the cable has a RJ-45 connector.
2. Connect one end of the cable into the network wall outlet or HUB.
3. Connect the other end of the cable into the computer RJ-45 LAN port.
5.6 Using the Wireless LAN
Wireless LAN is the major breakthrough in computer communication
technology. It lets user connect to the LAN environment without using any
wire to traditional RJ-45 jack. User can enjoy the wireless connection within the
range of Access Point (AP) of LAN.
Access Point (AP) is the wireless transmission and receiving device, it generally
connects to the server of a LAN environment or act as a LAN hub with
wireless connection. Access point can be set in an office environment, airport,
major railway station, etc. that depends on the construction of each country. In
most case, you probably can use it at office, please consult with the network
department of your company for more details.
Connecting to Peripherals 5
81
This computer integrates built-in 802.11b wireless LAN module, with using
Intel ® PRO/Wireless network solution by Intel ® Centrino™ mobile
technology. IEEE 802.11b standard supports 11 Mbps wireless connection
speed. You can connect to the wireless LAN Access Point without insert extra
wireless LAN card into the PCMCIA slot.
Wireless LAN module is similar to LAN module. You need to install software
driver before using it. Please refer to chapter 2.5 on how to install the driver.
5.7 Using the Modem Port
This notebook comes equipped with a 56K internal fax/data modem that
allows you to communicate with others via fax, email, or to connect to an
online service or bulletin board.

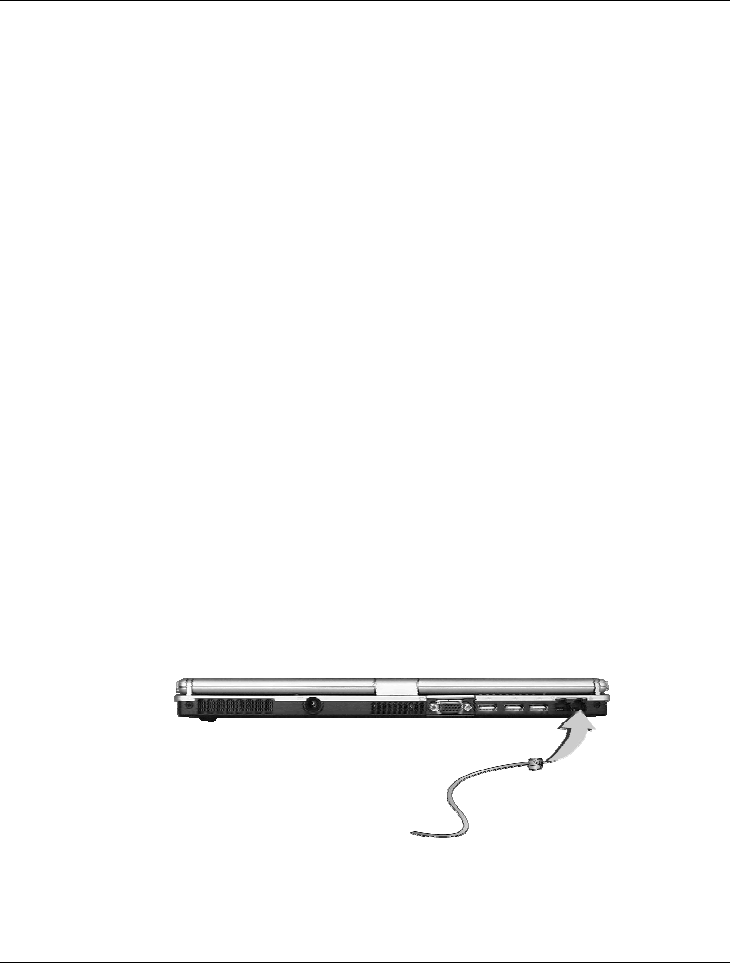

The built-in fax/data modem provides on standard phone connector.

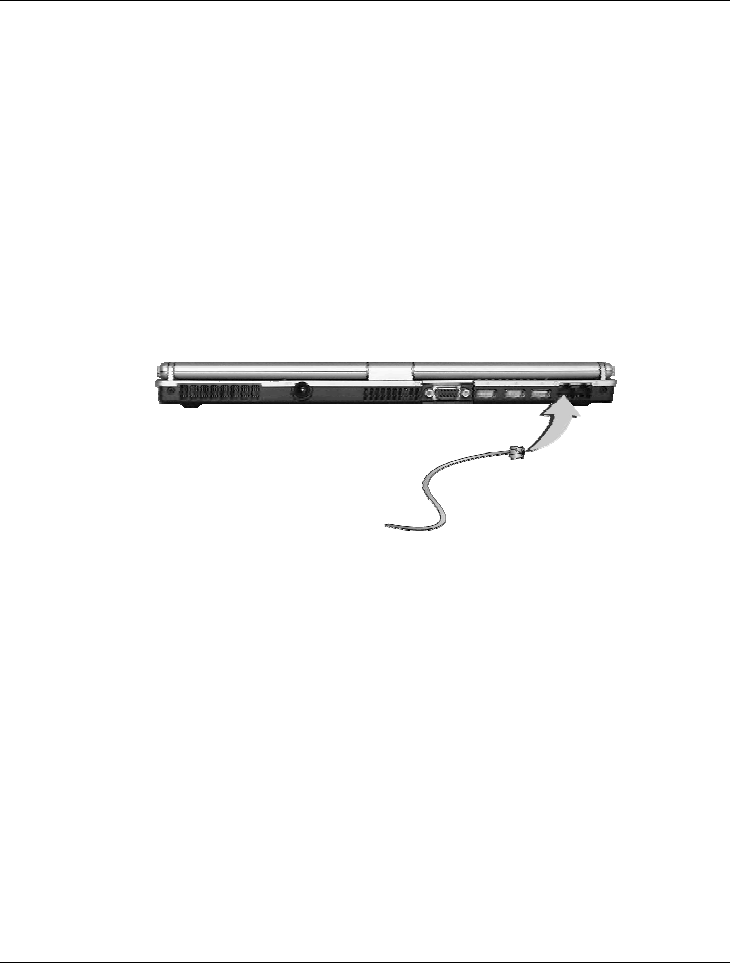

To connect the analog phone cable to your modem:
1. Locate the analog phone cable in the accessories box in notebook shipping
carton. Each end of the cable has a RJ-11 connector.
2. Connect one end of the cable into a standard wall outlet.
3. Connect the other end of the cable into the computer modem port.
Notebook User Guide
82
++ The speed of data transmission is dependent on the quality of telephone
lines. Digitally terminated lines improve the speed of data transmission.
Contact your service provider for more information.
++ The analog phone cable is an industry standard cable. Longer cables are
available at your local electronics store.
Customizing Your Notebook 6
83
6 Customizing Your Notebook
Your computer uses the Phoenix BIOS Setup
program that allows you to set several system
configuration in changing the way your computer
performs. This includes your system time and date,
disk drive configuration and password setup. This
information is then stored in the CMOS RAM and
will remain permanent unless you change it again.
This chapter discusses on how you will activate the
BIOS Setup program and change the system
configuration to suit your desired operation. You
must be careful to set the configuration properly in
order for your computer to run smoothly. If you are
not sure of any settings, contact your dealer.
Notebook User Guide
84
6.1 Running the BIOS Setup Program
Your computer is likely to have been properly setup and configured by your
dealer prior to delivery. However, you may find it necessary to use the
computer’s BIOS (Basic Input-Output System) Setup program to change
system configuration information, such as the current date and time, or your
hard disk drive type. The Setup program can be accessed when you power on
the system and pressing the <F2> function key.
The settings that you specify within the Setup program are recorded in a special
area memory called the CMOS RAM. This memory is backed up by a battery
so that is will not be erased when you turn off or reset the system. Whenever
you turn on the computer, the system will read the settings stored in the CMOS
RAM and compare them to the equipment check conducted during the Power
On Self Test (POST). If an error occurs, an error message will be displayed on
the screen, and you will then be prompted to run the Setup Program.
As the POST (Power-On Self Test) executes during the boot up process, the
screen will display the following message:
Press <F2> to Enter SETUP
Press the <F2> key to run the BIOS Setup program. The BIOS Setup program
is organized into five menus which you can select using the <-- and --> keys.
To move from one option to another, you use the up and down arrow keys
while using the <F5> and <F6>, or <+>and <-> keys to change the settings.
On the right hand side of the screen are some brief help descriptions of each
item you want to change.
On the BIOS Setup program, you will find the following parts on the screen:
Customizing Your Notebook 6
85
• Item Specific Help
The right side of the screen. This area describes each parameter and its
available settings.
• Menu Bar
The top line of the screen. Each of the five selections displays its own
screen.
• Parameters
The left side of the screen. This area lists the parameters and their current
settings.
• Key Status Bar
The bottom part of the screen. These lines display the keys available to
move the cursor, select a particular function and so forth.
To exit the BIOS Setup program, simply press the <Esc> key and select from
the Exit menu whether you want to Save changes and exit; Discard Changes
and exit.
Notebook User Guide
86
6.2 Using the Main Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
System Time:
[12
:00 :00]
<Tab>, <Shift-Tab>,
System Date: [02/19/2003] or <Enter> selects
field.
Legacy Diskette A: [Disable]
Legacy Diskette B: [Disable]
4 Primary Master [30006MB]
4 Primary Slave [None]
4 Secondary Master [CD-ROM]
4 Secondary Slave [None]
System Memory: 640 KB
Extended Memory: 228352 KB
CPU Type: Intel Banias processor
CPU Speed: 1400 MHz
BIOS Version: 0.3A-2869-0812
F1 Help áá ââ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ßß--> Select Menu Enter Select 44Sub-Menu F10 Save and Exit
Customizing Your Notebook 6
87
• System Time
Allows you to change the system time using the hour:minute:second
format of the computer.
Enter the current time for reach field and use the <Tab>,
<Shift>+<Tab>, or <Enter> key to move from one field or back to
another.
You can also change the system time from your operating system.
• System Date
Allows you to set the system date using the month/date/year format.
Enter the current time for reach field and use the <Tab>,
<Shift>+<Tab>, or <Enter> key to move from one field or back to
another.
You can also change the system time from your operating system.
• Legacy Diskette A:
This item enables or disables the floppy disk drive by pressing the
<Enter> key. When you select 1.44MB/1.25MB 3 ½”, you should know
that the 1.25MB 3 ½” diskette requires a 3-mode floppy-disk drive and
refers to a 1024byte/sector Japanese media format. This function can be
activated only when you plug external USB floppy disk drive purchased by
yourself.
• Legacy Diskette B:
The floppy disk drive B is not available, so it always shows Disable
• Primary Master
This field display various parameters for the hard disk drive. If type [Auto]
is selected, the system automatically sets these parameters. If type [User] is
selected, Cylinders, Heads and Sectors and other value can be edited.
• Primary Slave
The Primary Slave device is not available, so it shows [None]
Notebook User Guide
88
• Secondary Master
This field is for information only as the BIOS automatically detects the
optical drive.
• Secondary Slave
The Secondary Slave device is not available, so it shows [None]
• System Memory
This field reports the amount of base (or conventional) memory found by
the BIOS during Power-On Self-Test (POST).
• Extended Memory
This field reports the amount of extended memory found by the BIOS
during Power-On Self-Test (POST).
• CPU Type
This field reports the CPU type information detected by the BIOS during
Power-On Self-Test (POST).
• CPU Speed
This field reports the CPU speed information detected by the BIOS during
Power-On Self-Test (POST).
• BIOS Version
This field is for information only as the BIOS displays the BIOS version
during the Power-On Self-Test (POST).
Customizing Your Notebook 6
89
6.2.1 INTERNAL HDD SUB-MENU
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Internal HDD: [20004MB] Item Specific Help
Type:
[Auto]
User = you enter
LBA Format parameters of hard-
Total Sectors: [58605120] disk drive installed
Maximum Capacity: 30006MB at the Connection.
Auto = autotypes
Multi-Sector Transfers: [16 Sectors] Hard-disk drive
LBA Mode Control: [Enabled] installed here.
32 Bit I/O: [Disabled] None = no device is
Transfer Mode: [FPIO 4/DMA 2] installed here.
Ultra DMA Mode: [Mode 5] CD-ROM = a CD-
ROM drive is
installed here.
F1 Help áá ââ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ßß--> Select Menu Enter Select 44Sub-Menu
F10 Save and Exit
Use the Type field to select the drive type installed. You can select different
drive types as CD-ROM, User, Auto or None by pressing <Space> bar. Set
this option to Auto so your computer will automatically detect the drive type
during power on. Set this option to None when your computer is not installed
any devices. Press <Esc> to return to the Main Menu.
Notebook User Guide
90
6.3 Using the Advanced CMOS Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Installed O/S [WinXP] Display the diagnostic
Reset Configuration Date [No] screen during boot
Large Disk Access Mode [DOS]
Boot-time Diagnostic Screen [Disable]
Legacy USB Support [Enable]
F1 Help áá ââ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ßß--> Select Menu Enter Select 44Sub-Menu F10
Save and Exit
• Installed O/S
Select the operating system installed on your system that you will use at the
most time. This option provides WinXP for your selection. An incorrect
setting can cause unexpected behavior in some operating systems.
• Reset Configuration Date
Lets you specify Yes or No for clearing the Extended System
Configuration Date (ESCD). Please always set it to "No", only set it to
"Yes" when you have problem on the Extended System of this notebook.
• Large Disk Access Mode
Lets you specify the access mode from the operating system. For Windows
operating system like WinXP, please select DOS. For other operating
system like UNIX, Novell NetWare, please select Other
Customizing Your Notebook 6
91
• Boot-time Diagnostic Screen
Lets you specify the boot screen to Logo screen or POST screen by
choosing Disabled or Enabled, respectively.
• Legacy USB Support
Enable or disable the USB Bus support when in connection with USB
device.
6.4 Security Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Set User Password
[Enter]
Supervisor Password
Set Supervisor Password [Enter] controls access to the
setup utility.
Password on boot [Disabled]
Fixed disk boot sector [Normal]
F1 Help áá ââ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ßß--> Select Menu Enter Select 44Sub-Menu F10 Save and Exit
• Set User Password
This field is only available when Supervisor Password has set. Enter the
user password when boot the system or resume from suspend mode. But
if the Write Protect is set in the Fixed disk boot sector field, you should
enter a supervisor password to access the fixed disk when boot the system
or resume from suspend mode.
Notebook User Guide
92
• Set Supervisor Password
Supervisor password gives you the authority in accessing the setup utility.
You also need to enter this password in system booting and resuming
from suspend mode. When you press <Enter> in this field, the Set
Supervisor Password dialog box appears. Enter a new password with up to
8 alpha-numeric characters, and then re-enter it for confirmation.
• Password on Boot
If you set this field to Enabled, your computer will always ask for the
password every time you boot your computer.
• Fixed Disk Boot Sector
If you set this field to Write Protect, the write protect boot sector on hard
disk will protect against viruses. In this situation, only the supervisor can
access the Boot Sector of fixed disk.
Customizing Your Notebook 6
93
6.5 Using the Boot Setup
This item allows you to set the search drive sequence where the system will try
to boot up first.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Removable Devices Keys used to view or
+Hard Drive configure devices:
CD-ROM Drive <Enter> expands or
IBA FE Slot 0240 v4109 collapses devices with
a + or -
<Ctrl+Enter> expands
all
<Shift + 1> enables or
disables a device.
<+> and <-> moves the
device up or down.
<n>May move removable
device between Hard
Disk or Removable Disk
<d> Remove a device
that is not installed.
F1 Help áá ââ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ßß-->
Select Menu Enter
Select 44Sub-Menu F10 Save and Exit
Notebook User Guide
94
To select the boot device, you can use the up or down arrow key, then press
<+> to move up the device in the list or press <-> to move down the device
in the list. To exit from this menu, press <Esc>.
6.6 How to Exit the Setup Program
There are two choices to escape from the Setup program.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Exit Saving Changes
Exit System Setup
Exit Discarding Changes and save your
Load Setup Defaults changes to CMOS.
Discard Changes
Save Changes
Battery Refresh
F1 Help áá ââ Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit ßß-->
Select Menu Enter Execute Command F10 Save and Exit
• Exit Saving Changes
Saves all changes to CMOS while running the BIOS setup program and
exit from the system setup program.
• Exit Discarding Changes
Allows you to discard all changes made while running the BIOS setup
program and exit from the system setup program.
Customizing Your Notebook 6
95
• Load Setup Defaults
Lets you load the default values for all setup items.
• Discard Changes
Reverts to previously selected settings.
• Save Changes
Saves Setup data to CMOS.
• Battery Refresh
Conditions the battery so that the battery can be fully charged.
6.7 How to Upgrade the BIOS
Your computer uses EPROM Flash BIOS chip that allows you to easily
upgrade the BIOS program. When you update the BIOS, any customized
settings you made are lost.
To upgrade the BIOS:
1. Insert the BIOS Update diskette into the diskette drive.
2. Power on the system with the diskette in the diskette drive.
3. On the DOS prompt, type the following command.
A:\>Phlash XXXXXX.ROM (BIOS filename) or
A:\>XXXXXX.BAT (Batch file for BIOS file)
4. Press <Enter> to run this BIOS utility. After the system has been
successfully run this program, a message similar to the following appears:
Flash memory has been successfully programmed,
press any key to restart the system. If the
system does not restart, turn it off, then turn
on again.
5. Press any key to restart this system.
Notebook User Guide
96
Contact your dealer for the latest BIOS update file.
Caring for Your Notebook 7
97
7 Using Options
This chapter describes the advanced features and
expandable architecture in your notebook. You can
upgrade your system for specific requirements.
Notebook User Guide
98
System Upgrade
This section provides some steps in doing system upgrade for your notebook
computer. The upgrade procedures include the following:
MEMORY UPGRADE
Your notebook computer offers 144-pin SODIMM (Small Outline Dual Inline
Memory Module) at least 128MB DDR-SDRAM. The memory compartment is
located inside your computer. The table below lists the possible combinations
of different memory module and memory size.
++ Please contact dealer for changing or adding DDR-SDRAM module. It is
not available for users to change it by themselves.
Based Memory Installing Memory Total
128 MB 128 MB 256 MB
128 MB 256 MB 384 MB
128 MB 512 MB 640 MB
128 MB 1024 MB 1152 MB
256 MB 128 MB 384 MB
256 MB 256 MB 512 MB
256 MB 512 MB 768 MB
256 MB 1024 MB 1280 MB
512 MB 128 MB 640 MB
512 MB 256 MB 768 MB
Caring for Your Notebook 7
99
Based Memory Installing Memory Total
512 MB 512 MB 1024 MB
512 MB 1024 MB 1536 MB
1024 MB 128 MB 1152 MB
1024 MB 256 MB 1280 MB
1024 MB 512 MB 1536 MB
1024 MB 1024 MB 2048 MB
INSTALLING MEMORY MODULE
Since this computer is a super slim Notebook PC, all the components inside the
computer is very sensitive. It is not available for users to add or replace it by
themselves. Please contact the dealer to upgrade the memory module.
UPGRADE HARD DISK
Your notebook computer offers one 2.5" format, 9.5mm height hard disk. If
the volume does not fit your need or it is crashed, you can upgrade it by
replacing with new hard disk. Please do the following steps to change it.

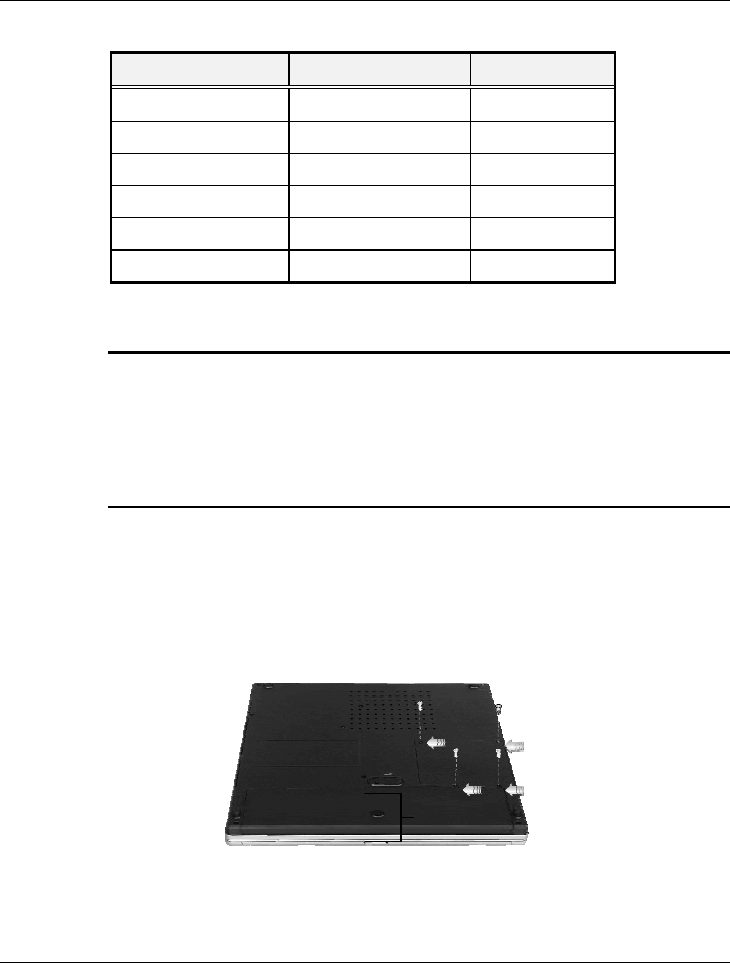

1. Remove the screws and open the cover by lifting its upper side cover.
2. Take out the hard disk from the compartment by finger carefully
3. Remove the connector from the hard disk gently.
Screws
Notebook User Guide
100
4. Remove the crane screws located at each side of the hard disk.
5. Rotate and tighten the crane screws to the new hard disk.
6. Attach the connector to the new hard disk precisely.
7. Place the hard disk back to the compartment.
8. Cover the lid, then rotate and tighten the screws.
9. Set the boot device as DVD/CD-RW Combo drive and Primary Master as
Auto on BIOS setup menu. Please refer to Chapter 6 about the setting of
BIOS setup menu. Then, boot the system by using WinXP CD-ROM and
the system will detect the hard disk automatically and prompt you how to
format the new disk.
++ Please tighten the screws located at each side of the hard disk before
operating the hard disk. Any vibration may cause damage for the running
hard disk.
++ Please contact dealer or certified technician for changing the hard disk
drive. The damage of changing HDD resulting from users may not be
under warranty
Caring for Your Notebook 8
101
8 Caring for Your
Notebook
Your Notebook PC is a fully IBM compatible
portable personal computer with the latest features in
mobile computing and multimedia technology.
Lightweight and compact, your Notebook PC runs on
a whole wide range of general business, personal
productivity, and professional applications, it is ideal
for use in the office, at home, and on the road.
Your Notebook PC also allows you for several levels
of customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
102
8.1 Important Safety Instructions
Portable computers take the most beating from end users. This section gives
you detailed information about how to maintain a safe working environment
while using the notebook computer. You can maintain its condition and
performance by following these guidelines. Please read it carefully to ensure
maximum safety.
• Before cleaning the notebook computer, make sure it is disconnected from
any external power supplies (i.e. AC adapter, car adapter and so on).
• When cleaning, do not use liquid or sprayed detergent for cleaning.
Instead, use moisture sheet or a cloth for cleaning.
• The socket-outlet shall be installed near the notebook computer and shall
be easily accessible.
• Please keep the notebook computer from humidity.
• Lay the notebook computer on a reliable surface when installing. A drop
or fall may cause injury.
• The openings on the enclosure are for air convection hence the notebook
computer can be protected from overheating. DO NOT COVER THE
OPENINGS.
• Be careful of using power supply. The notebook computer has specific
power requirements.
• Use only a power adapter approved for use with this notebook computer.
• The power adapter may have a 2-prong plug. This is an important safety
feature. A compatible outlet is required. If it is not available, find a
qualified electrician to install one.
Caring for Your Notebook 8
103
• While unplugging the power cord, disconnect it by the plug head, not by
its wire.
• Make sure the socket and any extension cords you may use can support
the total current load of all the connected devices.
• Though your AC adapter is suitable for universal international voltage, it
still requires a stable and continual power supply. Make sure the voltage of
the power source when connect the notebook computer to the power
outlet. If your are unsure of your local power specifications, consult your
dealer or local power company.
• Place the power cord in such a way that people can not step on it. Do not
place anything over the power cord.
• All cautions and warnings on the notebook computer should be noted.
• If the notebook computer is not in use for a long time, disconnect it from
mains to avoid possible damage by transient over-voltage.
• Never pour any liquid into openings as this may cause fire or electrical
shock.
• Never open the body of notebook computer. For safety reason, the
notebook computer should only be opened by qualified service personnel.
• If one of the following situations arises, have the notebook computer
checked by service personnel:
ß The power cord or plug is damaged.
ß Liquid has penetrated into the notebook computer.
ß The notebook computer has been exposed to moisture.
ß The notebook computer has not worked well or you can not get it
work according to user’s manual.
Notebook User Guide
104
ß The notebook computer has dropped and damaged.
ß The notebook computer has obvious sign of breakage.
• Do not leave this notebook computer in an environment unconditioned.
Storage temperature above 60ºC (140ºF) may damage the notebook
computer.
• An approved power cord has to be used for the notebook computer’s
power supply. For a rated current up to 6A and an equipment weight
more than 3 kg, a power cord not lighter than H05VV-F, 2G, 0.75mm2,
has to be used.
• To avoid any damage happened to the internal device, you should first
disconnect the AC adapter and remove the battery pack from the
notebook when replacing any internal device.
The sound pressure level at the operator's position according to IEC 60704-1 is
equal or less than 70dB(A).
8.2 Cleaning Your Computer
When it is necessary to clean the plastic case and keyboard, use a soft, lint-free
cloth, slightly dampened with a mild detergent solution or use the contents of
any commercially available computer cleaning kit.
Never use alcohol, petroleum-based solvents, or harsh detergents to clean the
notebook. Also never spray any liquids directly on the computer case,
keyboard, or screen. If the liquid-crystal display (LCD) screen has become
smeared or dusty, clean the screen by first applying a mild glass cleaner to a
soft, clean, lint-free cloth, and gently wipe the glass. Never apply liquids directly
on the screen surface. Moreover, do not use paper towels to clean the display
screen. Paper can scratch the display screen matte.
Caring for Your Notebook 8
105
8.3 Maintaining the LCD Quality
When it comes to screen problems, heat plays a big part. After a good working
session, the typical routine is to shut the machine and close the cover. But the
display surface - no matter what type it is - and the components inside the
computer radiates heat; when you close the cover, you trap the heat against the
screen. Leave the computer's cover open for about ten minutes while the heat
disperses. Make this a habit.
You should also enable the power management of your computer to turn off
the LCD power and display when the system is in inactivity for some time.
Adding screen savers is also acceptable.
Follow the safety guidelines mentioned earlier and how to clean your computer.
8.4 Maintaining Your Hard Disk
Losing your data has the same consequences as a system break down. Users
must make it a habit of doing hard disk maintenance every week or so. Here is
some maintenance you could do:
• Always back up your data files from your hard disk.
• Install the virus detecting program to monitor virus that could tamper your
files.
• Use SCANDISK once in a while to correct any errors found in the
directory and File Allocation Table. This will also free up space from any
unused sectors.
• Never move or raise the computer while the hard disk is being accessed,
most especially don't jar the hard disk as this may cause a hard disk crash.
Notebook User Guide
106
• Use hard disk maintenance programs like Disk Defragmenter of
Windows. These reorganize your hard disk by eliminating fragmentation
and improving your hard disk access time.
• Install a system password in your computer so others won't be able to use
the hard disk.
8.5 Battery Care Guidelines
The battery pack furnished with the computer requires reasonable care and
handling to ensure efficient operation and maximum life. There is a risk of fire
and chemical burn if the battery pack is handled improperly.
To ensure that the battery pack endures normal life cycle, always observe the
following precautions when handling the battery pack:
• Handle batteries carefully. Do not try to disassemble, crush, puncture,
open, drop, mutilate, short external contacts, disposed of in water or fire,
or expose it to temperatures higher than 60 C.
• Recharge batteries only as described in this manual and only in ventilated
areas. Never use an external charger other than the one supplied with your
computer.
• Do not leave batteries in hot locations for more than a day or two.
• Do not leave your battery in your computer for longer than 1 month
without plugging in the power adapter.
• Do not leave battery in storage for more than 2 months without recharging
it to prevent over discharge. Over discharge will hurt the battery
• Dispose dead battery properly to protect the environment. The batteries
contain hazardous chemicals and should not be thrown out with
household or office trash.
Caring for Your Notebook 8
107
• You should always discharge your battery before recharging it on either of
these two conditions: first, this is the first time you start to use your
battery; second, you had not charge the battery for more than 2 months.
To discharge the battery, please execute the "Battery Refresh" function in
the BIOS Setup Utility.
8.6 When You Travel
For safety and convenience when traveling, please follow these instructions:
• Back up all needed files on your hard disk before traveling.
• Recharge your battery overnight to ensure full battery power before you
leave.
• Don't forget to bring along the AC adapter and extra battery pack.
• Try to bring backup software as well.
• Check the voltage rating and the outlet type of your destination. If the
power cord of the adapter is different, then you need to purchase a
suitable one. Consult your dealer.
• Carry your computer in its carrying case or in a briefcase. Never check-in
the computer as a luggage.
• Remember to apply those power saving features and techniques to save
battery power.
System Specification A
109
APPENDIX A
System Specification
This appendix gives information on the technical
and hardware specifications of your computer. Please
note that the information mentioned here may not be
exactly the same with your computer as specification
is subject to change without notice or modifying this
manual.
Designed with an advanced modular architecture,
your Notebook PC also allows you for several levels
of customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
110
PROCESSOR UNIT
• Intel ® Pentium ® M processor by Intel ® Centrino™ mobile technology
• Above 1.4 GHz Intel ® Pentium ® M CPU
• 1024KB integrated L2 cache for the processor
SYSTEM MEMORY
• Two 144-pin memory slots
• User-upgradeable to maximum 2048MB using 144-pin SODIMM 128MB,
256MB, 512MB and 1024MB modules
• PC-266 DDR SDRAM modules
LCD DISPLAY
• 14.1" XGA (1024x768), 14.1" SXGA+ (1400 x1050) Color TFT LCD
• Maximum 16M true colors on all LCD display
VGA SYSTEM
• Integrated Intel graphic engine
• Simultaneous LCD and external monitor (CRT) display
• Maximum 16 million colors on LCD display at 1400x1050 resolution for
14.1" LCD
• Maximum 16 million colors on external monitor or projector at 1400x1050
resolution (Non-Interlaced)
System Specification A
111
STORAGE
• 2.5” Format 9.5mm High HDD Module; Bus Mastering, Ultra DMA
ATA-100 Support for LBA Scheme
• Enhanced IDE bootable CD-RW/DVD combo drive
AUDIO SYSTEM
• Full-duplex 16-bit stereo speaker with wavetable support
• H/W Audio Sound Blaster 16 compatible
• Built-in dual speakers
• Audio input jacks for microphone (MIC)
• Audio output jack for external speaker or headphone (Line-Out)
• Built-in two hotkeys for Volume Control
PCMCIA
• 32-bit CardBus PCI Local Bus PCMCIA controller
• Supports 1 x Type II PC card
• Supports 32-bit Cardbus Cards, and 16-bit PC Cards
GLIDE PAD
Integrated Glide Pad (Serial/USB mouse) pointing device with left, right and
scroll buttons.
Notebook User Guide
112
KEYBOARD
• Full-sized 82/84-keys keyboard with Windows systems hot-keys, inverted
T-cursor keys, 7 hot keys, 12 function keys, and embedded numeric
keypad
• Provides international language keyboard
FLASH BIOS
512K Flash ROM BIOS for easy BIOS upgrade
I/O PORTS
• 3 x Universal Serial Bus (USB 2.0)
• 1 x 15-pin VGA (CRT)
• 1 x IEEE 1394 port
• 1 x LAN port
• 1 x Modem port
WIRELESS DEVICES
• 802.11b Wireless LAN (Intel ® PRO/Wireless network solution by Intel
® Centrino™ mobile technology)
•
• Validated with GPRS solution (BTO)
AC/DC POWER SUPPLY ADAPTER
Universal auto-switching 60W (100V~240V) adapter
System Specification A
113
BATTERY
• Rechargeable 8 Cells Li-ion battery pack with Smart Battery function
• 4.3 hours of usage (when run ZD Battery Mark diagnostic program)
• 2 hours quick charge (computer turn off)
WEIGHT AND DIMENSION
• 316 x 274.5 x 27.1mm (front)
• 5.0 lbs, 2.2kg
