CSAFE BODYLAN MODULE DOC #: 930-00003-01 REVISION: 01
1 User Guide
1.1 Introduction:

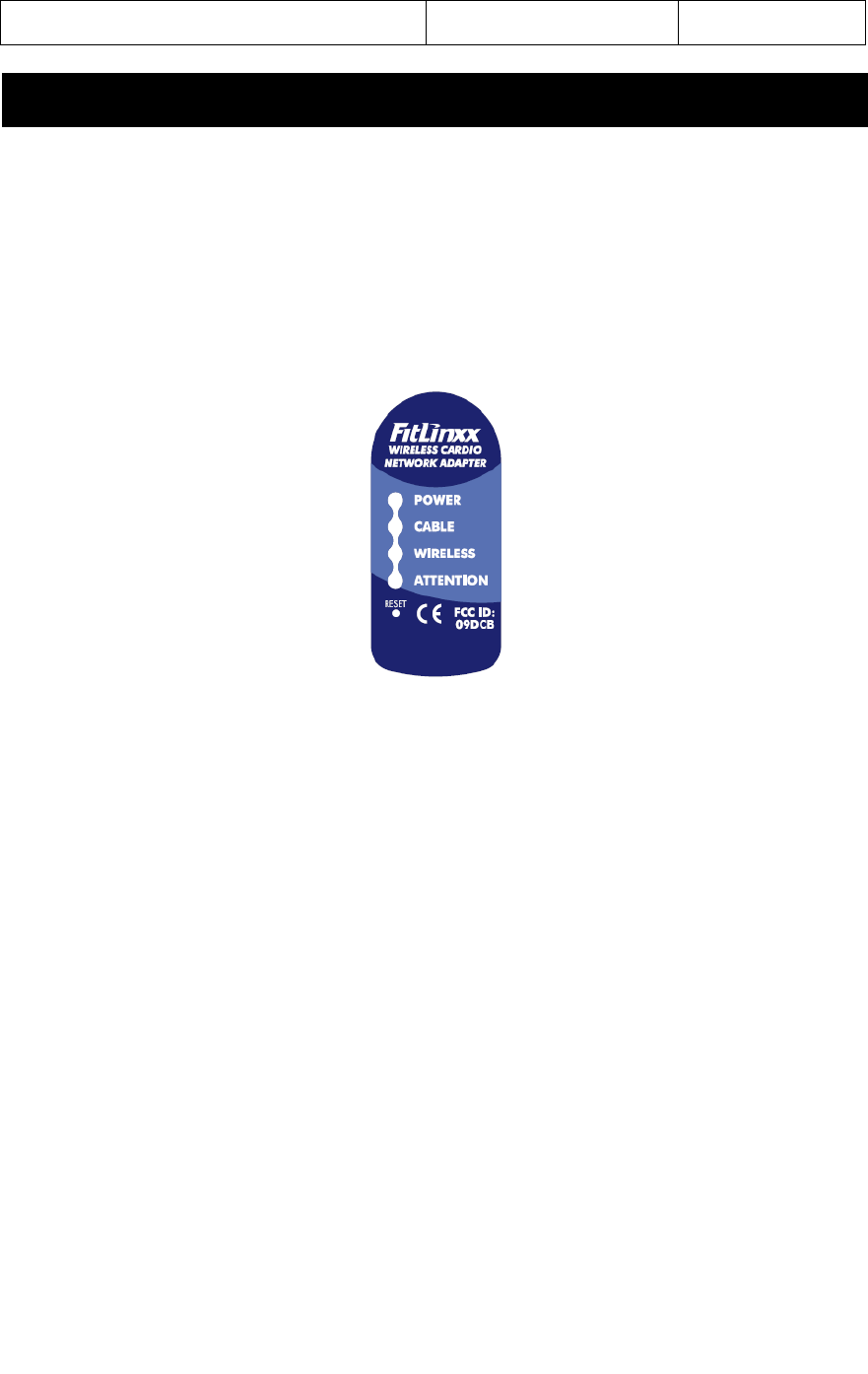

The CSAFE BodyLan Module (CBM) provides wireless communication between a CSAFE equipped
fitness equipment and the Local Acess Point or Remote Acess Point. Included with a CBM is a 12 inch
flat data cable.
1. Installation:
Installaton and Serviceing is only to be performed by a qualified
technician trained by FitLinxx in the installation of this module.
1. Locate the CSAFE port on the fitness equipment console.
2. The CBM needs to be placed near the CSAFE port and just below the top of the equipments
console
3. With a cleaning solvent clean the area on the console where the CBM is going to be placed.
4. On the back of the CBM, peel off the protective cover of the Velcro adhesive and attach it to the
console.
5. Insert the small connector end of the data cable into the CBM and the larger end connector into
the CSAFE port on the console.
© 2006 FITSENSE TECHNOLOGY CONFIDENTIAL PAGE 2 OF 3
![](/img.php?id=825656&img=bg3.png)
CSAFE BODYLAN MODULE DOC #: 930-00003-01 REVISION: 01
1.3 Operation:
The following LED configurations represent the operation modes of the CBM.
(●)
(●)
(●)
(●)
GREEN Solid CSAFE port is providing power
(●)
(●)
(●)
(●)
GREEN Solid
YELLOW Solid
CSAFE port is providing power
CSAFE port is communicating with the CBM
(●)
(●)
(●)
(●)
GREEN Solid
YELLOW Solid
YELLOW Solid
CSAFE port is providing power
CSAFE port is communicating with the CBM
Wireless communication between the CBM and the LAP or RAP
(●)
(●)
(●)
(●)
GREEN Blinking CBM is in low power mode
(●)
(●)
(●)
(●)RED Solid Attention required
1.4 Regulatory:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operations.
Changes or modifications not expressly approved by the party responsible for compliance
could void the users authority to operate the device.
WARNING
Rating 4.7V - 20V 20ma - - -
No operator serviceable parts
