Installation instructions
Waste Electrical and Electronic Equipment Directive
The Waste Electrical and Electronic Equipment (WEEE) Directive requires
the recycling of waste electrical and electronic equipment. Whilst the WEEE
Directive does not apply to some of Raymarine’s products, we support its
policy and ask you to be aware of how to dispose of this product.
The crossed out wheelie bin symbol, illustrated above, and found on our
products signifies that this product should not be disposed of in general
waste or landfill.
Please contact your local dealer, national distributor or Raymarine Technical
Services for information on product disposal.
Disclaimer
The technical and graphical information contained in this document, to the best of our
knowledge, was correct as it went to press. However, our policy of continuous improve-
ment and updating may change product specifications without prior notice. As a result,
unavoidable differences between the product and handbook may occur from time to
time. Raymarine cannot accept responsibility for any inaccuracies or omissions it may
contain. For the latest product information visit our website - www.raymarine.com
EMC installation guidelines
Raymarine equipment and accessories conform to the appropriate Electromagnetic
Compatibility (EMC) regulations. This minimizes electromagnetic interference between
equipment, which could otherwise affect the performance of your system.
Correct installation is required to ensure that EMC performance is not compromised.
For optimum EMC performance, we recommend that:
Raymarine equipment and the cables connected to it are:
i. At least 3 ft. (1 m) from any equipment transmitting or cables carrying radio
signals e.g. VHF radios, cables and antennas. In the case of SSB radios, the
distance should be increased to 7 ft. (2 m).
ii. More than 7 ft. (2 m) from the path of a radar beam. A radar beam can
normally be assumed to spread 20 degrees above and below the radiating
element.
• Raymarine specified cables are used.
• Cables are not cut or extended.
Always allow the maximum separation possible between different items of electrical
equipment. This will provide the best conditions for EMC performance for the
installation.
Technical specification
Product installation
This equipment must be installed and operated in
accordance with the Raymarine instructions
provided. Failure to do so could result in poor
product performance, personal injury, and/or
damage to your boat.
Service and Maintenance
This product contains no user serviceable
components. Please refer all maintenance and
repair to authorized Raymarine dealers.
Unauthorized repair may affect your warranty.
Ultra violet light
To provide protection against the damaging
effects of ultra violet (UV) light, the sun cover
should be placed on the unit when not in use.
Cleaning
DO NOT use acid, ammonia based or abrasive
products.
DO NOT use commercial high pressure washing
(jet wash) equipment.
Document number: 87084-1
Date: July 2007
Approvals:
CE - conforms to
FCC- conforms to
Additional conformance
EN60945, EN300-440-2
CFR47 PART 15
IC-RSS-210
Size 297 x 98 x 46
Weight 0.65 kg
Mounting Dash mount
Handheld (with optional wireless upgrade)
Supply voltage 9 V to 16 V
Power consumption 1.5 W
Environmental conditions: operating temperature: -15°C to 55°C (5°F to 131°F)
non-operating temperature: -25°C to 70°C (-13°F to
158°F)
relative humidity limit: 95%
water protection:waterproof to CFR-46 standard
Storage conditions when
packed: Temperature : -25°C to 55°C (-13°F to 158°F)
relatiive humidity: 75%
LEN 3
Raymarine plc
Anchorage Park,
Portsmouth,
Hampshire PO3 5TD
United Kingdom
Tel: +44 (0) 23 9269 3611
Fax: +44 (0) 23 9269 4642
Raymarine Inc.
21 Manchester Street,
Merrimack,
New Hampshire 03054-4801
USA
Tel: +1 603.881.5200
Fax: +1 603.864.4576
www.raymarine.com
Pack items
G-Series system
The Keyboard is installed as a part of the Raymarine G-Series
marine electronics system.
Refer to the additional documentation supplied with your G-series
GPM400 processor for additional information necessary to install
the keyboard within your system.
All documents can be downloaded from
www.raymarine.com/handbooks.
G-Series System
Maximum quantity of Keyboards
The G-Series system will support up to 8 keyboards.
G-Series system documentation
D10065-1
Suncover
Handbook/
Documentation
Command
center keyboard
Panel seal
Stud (x4)
Finger
nut (x4)
Rear clamp
assembly
SeaTalkng backbone cable
SeaTalkng spur cable
SeaTalkng T connector
Description Part No.
G-Series command center keyboard E02044
Sun cover R08307
1 m (3.3 ft) SeaTalkng/NMEA2000 cable A06039
400 mm (15.75 in) SeaTalkng backbone cable A06033
SeaTalkng T-piece connector A06028
Rear cover / mounting bracket R08308
Screw pack R08309
Installation sheet 87084
Warranty booklet 80017
Title Part number
G-Series system installation and commissioning
Instructions
87070
G- Series system operating guide 86126
G-Series system user reference guide 81276
Monitor
Keyboard
D10068-1
SeaTalkng backbone
SeaTalkng spur
SeaTalkng spur
GPM 400
9
WXYZ
8
TUV
7
PQRS
4
GHI
5
JKL
6
MNO
ACTIVE
WPTS
MOB
DATA
MENU
PAGE
.0
2
ABC
3
DEF
1
CANCEL
STANDBY
DODGE PILOT OK
RANGE
OUT
IN
ENTER
Keyboard connections
The G-Series Keyboard communicates using the SeaTalkng system.
It may be connected directly to the backbone (wired) or used
remotely with a separate basestation and wireless upgrade kit.
Note: You should have at least one permanently wired keyboard. In
the event that any wireless keyboards are lost, the wired
keyboard can be used to control the system.
Schematic diagram
When connecting a keyboard to the system, record its details on
your system/schematic diagram. You will need this information dur-
ing commissioning. (Refer to the separate G-Series system
installation instructions for sample diagrams.)

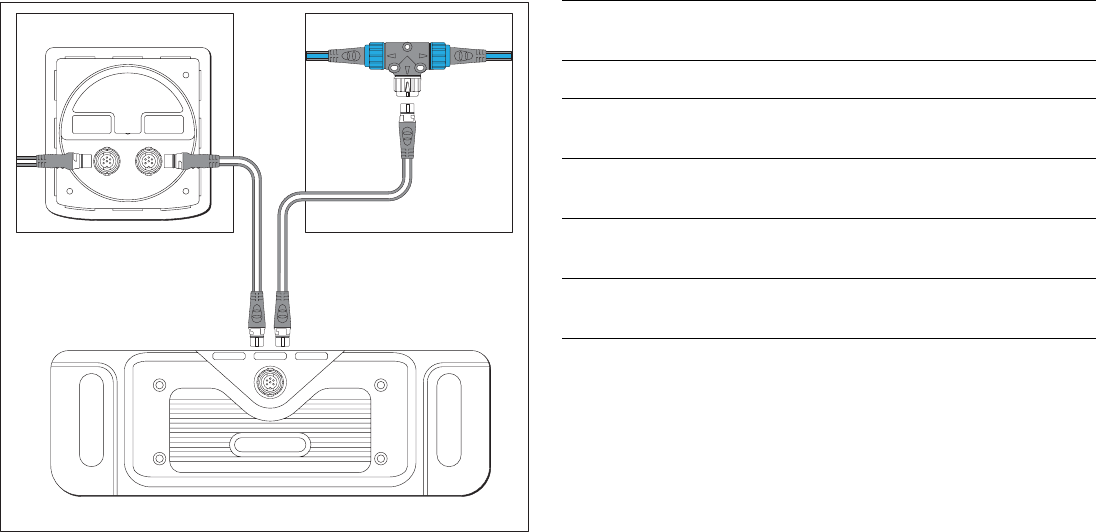

Keyboard connection details Keyboard cables
OR
SeaTalkng instrument, e.g. ST70
SeaTalkng
spur
SeaTalkng
spur
Keyboard
SeaTalkng backbone
D10070-1
Cable Part
Number Notes
Keyboard to SeaTalkng
400 mm (15.75 in)
SeaTalkng spur cable
A06038
1 m (3.3 ft)
SeaTalkng spur cable*A06039*Suppled with the keyboard
3 m (9.8 ft)
SeaTalkng spur cable
A06040
5 m (16.4 ft)
SeaTalkng spur cable
A06041

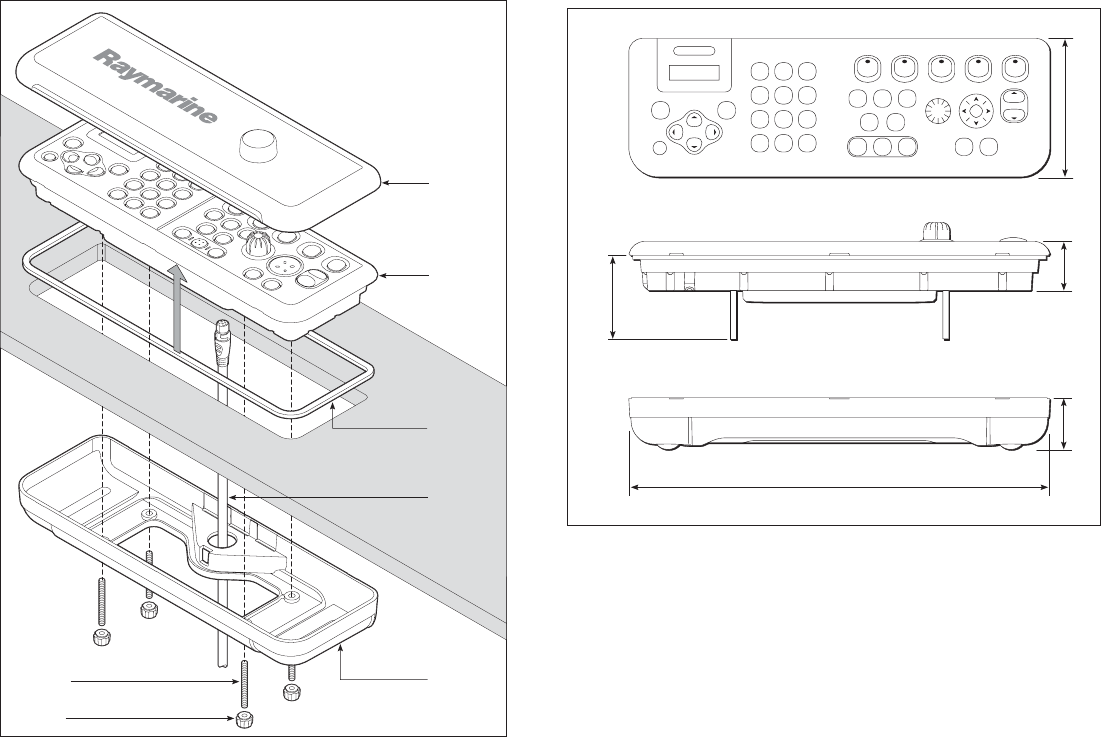

Mounting arrangement Dimensions Mounting and environment
• The keyboard is suitable for mounting both above and below
decks. It is waterproof to CFR-46 standard.
• Use the cutting template provided within this booklet.
• Connect cable into keyboard before clamping in place.
The following conditions apply:
• Do NOT install near sources of heat. (e.g. engine).
• Install the unit well away from potential sources of ignition.
Cables
• Minimum bend radius of 100 mm (3.94 in).
D10101-1
G-Series keyboard
Sun cover
Keyboard
Panel seal
(adhesive
side up)
SeaTalk NG
cable
Stud (x4)
Finger
nut (x4)
Rear clamp
assembly
D10226-1
297 mm (11.69 in)
98 mm (3.85 in)
35 mm (1.38 in)
59.8 mm (2.35 in)
minimum clearance
46 mm (1.81 in)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
11.1 in (281.6 mm)
3.25 in (82.6 mm)

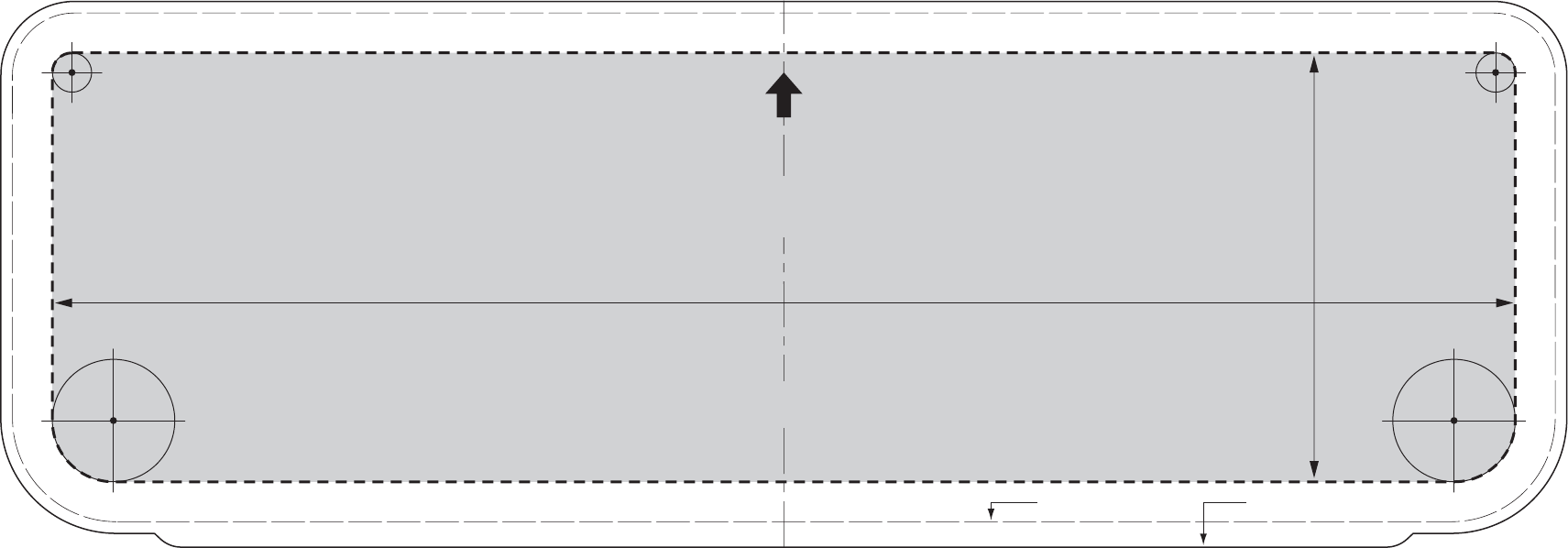

Command Centre Keyboard
Template
Remove material
from shaded area only
Instrument edge Sun cover edge
Drill hole,
19/64 in (7.5 mm)
diameter in
2 positions
Drill hole,
15/16 in (23.6 mm)
diameter in
2 positions
D10143-1
