Fuji Film 02100006 Wi-Fi Module User Manual

Fuji Film Corporation Wi-Fi Module

Users Manual

AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
i
Doc. NO:
AMPAK
WSDB-741
Setup Guide
Rev. 0.1
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
1
1. WLAN Function HW Setup Guide

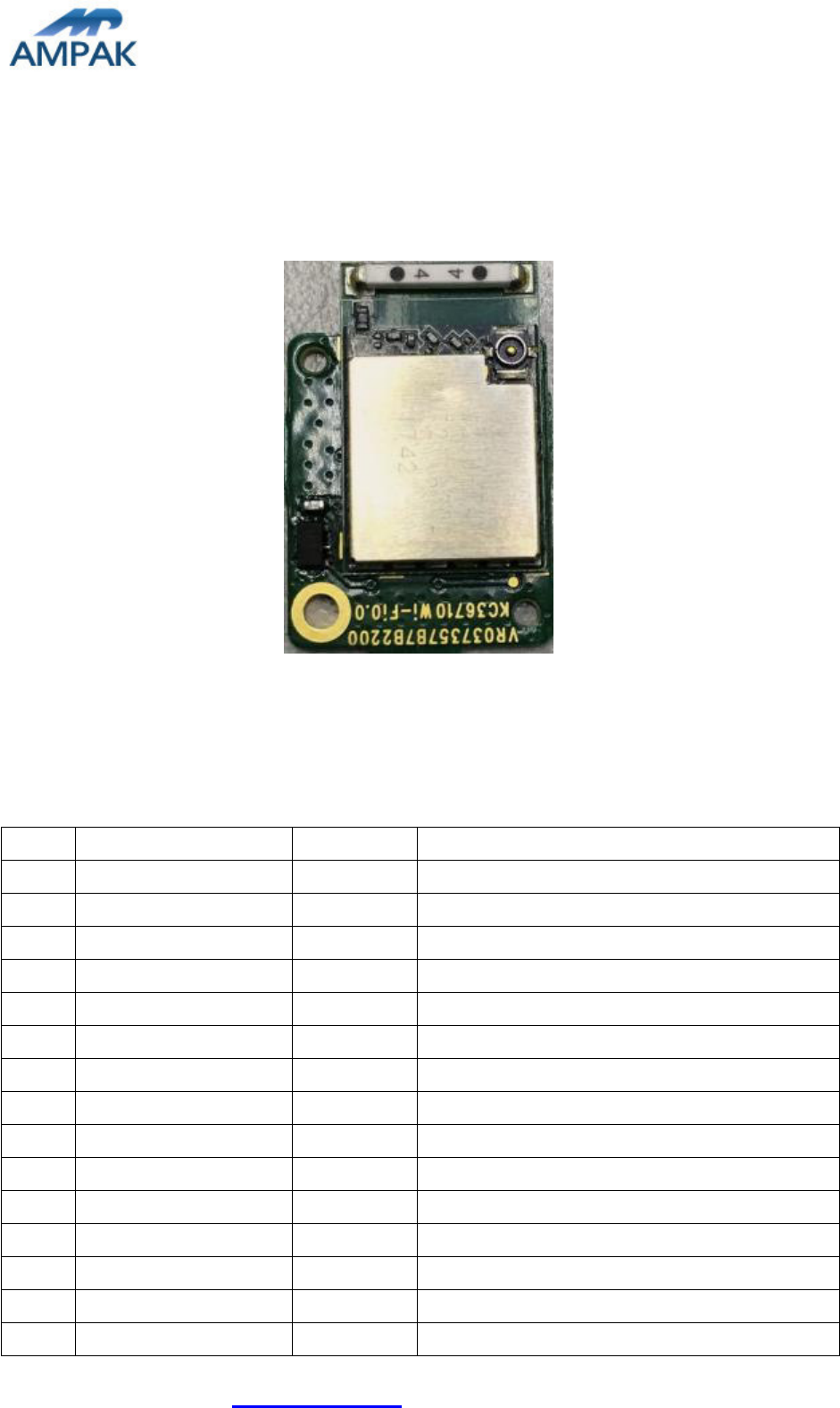

Physical hardware configuration likes as figure1. Please follow the following procedure step by
step to get starting WLAN and Bluetooth function.
Pin Assignment
PIN
NAME
TYPE
DESCRIPTION
1
GND
G
Ground connections
2
GND
G
Ground connections
3
RF_ANT
I/O
RF I/O Port (Option)
4
GND
G
Ground connections
5
GND
G
Ground connections
6
WL_GPIO2
I/O
WLAN GPIO2(Internal 10K PD )
7
GND
G
Ground connections
8
SDIO_DATA_CLK
I/O
SDIO clock line
9
GND
G
Ground connections
10
SDIO_DATA_2
I/O
SDIO data line 2
11
SDIO_DATA_CMD
I/O
SDIO command line
12
SDIO_DATA_0
I/O
SDIO data line 0
13
SDIO_DATA_3
I/O
SDIO data line 3
14
SDIO_DATA_1
I/O
SDIO data line 1
15
GND
G
Ground connections
SDIO Board
LED
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
2
16
WL_HOST_WAKE
(WL_GPIO_0)
O
WLAN to wake-up HOST
17
WL_GPIO1
I/O
WLAN GPIO1(Internal 10K PD )
18
WL_REG_ON
I
Internal regulators power enable/disable
Chip has an internal default 200k Ohm
pull-down resistor. It can be disabled
through programming.
19
VDDIO
P
I/O Voltage supply input
20
GND
G
Ground connections
21
VBAT
P
Main power voltage source input
22
VBAT
P
Main power voltage source input
23
GND
G
Ground connections
24
BT_REG_ON
I
Internal regulators power enable/disable
Chip has an internal default 200k Ohm
pull-down resistor. It can be disabled
through programming.
25
LPO_IN
I
External Low Power Clock input
(32.768KHz)
26
GND
G
Ground connections
27
GND
G
Ground connections
28
PCM_CLK
I/O
PCM clock
29
PCM_SYNC
I/O
PCM sync signal
30
PCM_OUT
O
PCM Data output
31
PCM_IN
I
PCM data input
32
UART_RTS_N
O
Bluetooth UART interface
33
UART_CTS_N
I
Bluetooth UART interface
34
UART_TXD
O
Bluetooth/FM UART interface
35
UART_RXD
I
Bluetooth/FM UART interface
36
GND
G
Ground connections
37
BT_DEV_WAKE UP
I
HOST wake-up Bluetooth device
38
BT_HOST_WAKE
O
Bluetooth device to wake-up HOST
39-50
GND
G
Ground connections
H1~H9
GND
G
BOT GND PAD
(with open 9 solder mask)
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
3
Application Schematic

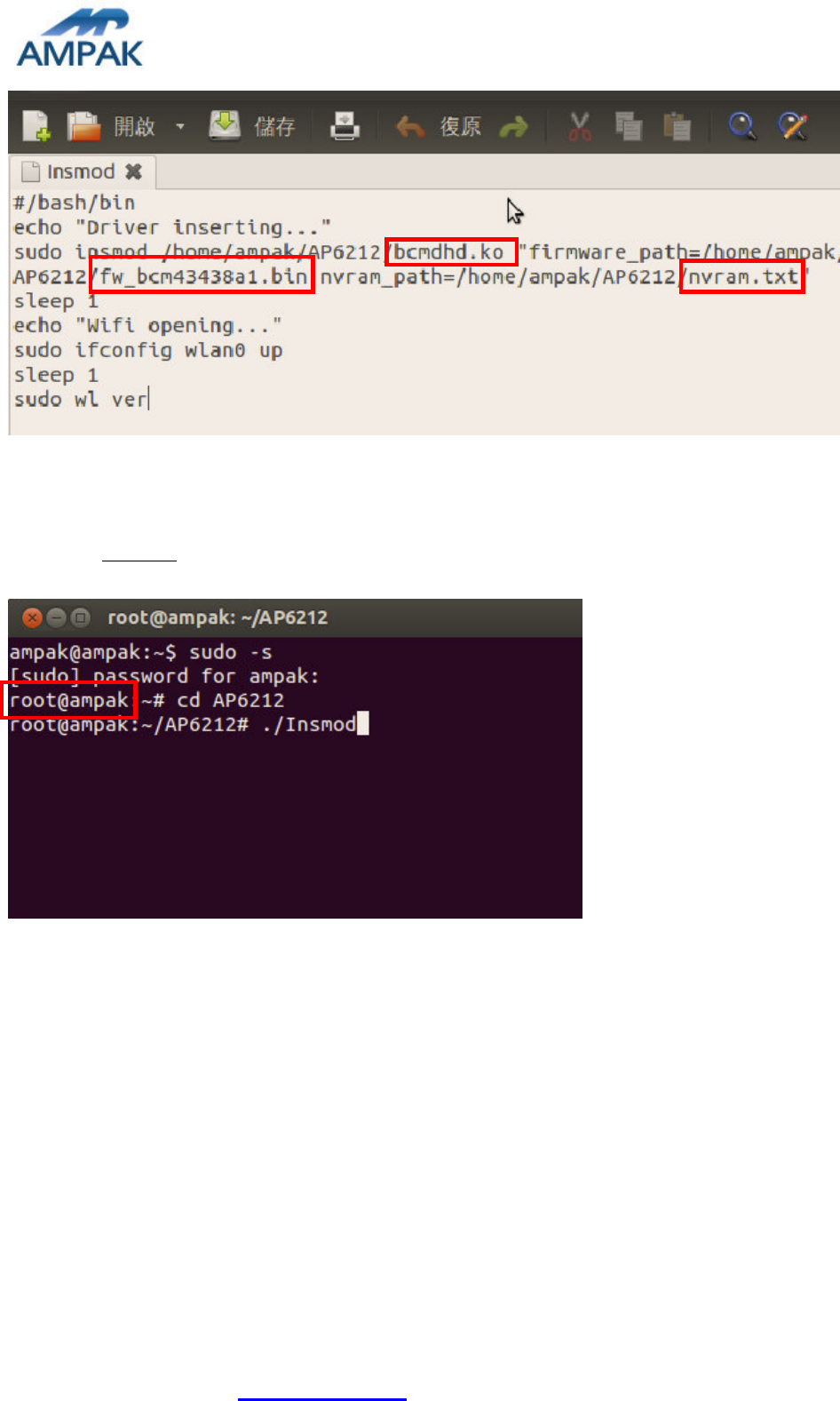

1. Software wi-fi setup:(Ubuntu 12.04 LTS kernel Linux3.4.0)
1-1.Put four files in the select document.
1. bcmdhd.ko
2. Fw.bin
3. Nvram.txt
4.Insmod
1-2. You have to marked the path of three files.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
4
1-3.Enter ”sudo –s” to root.

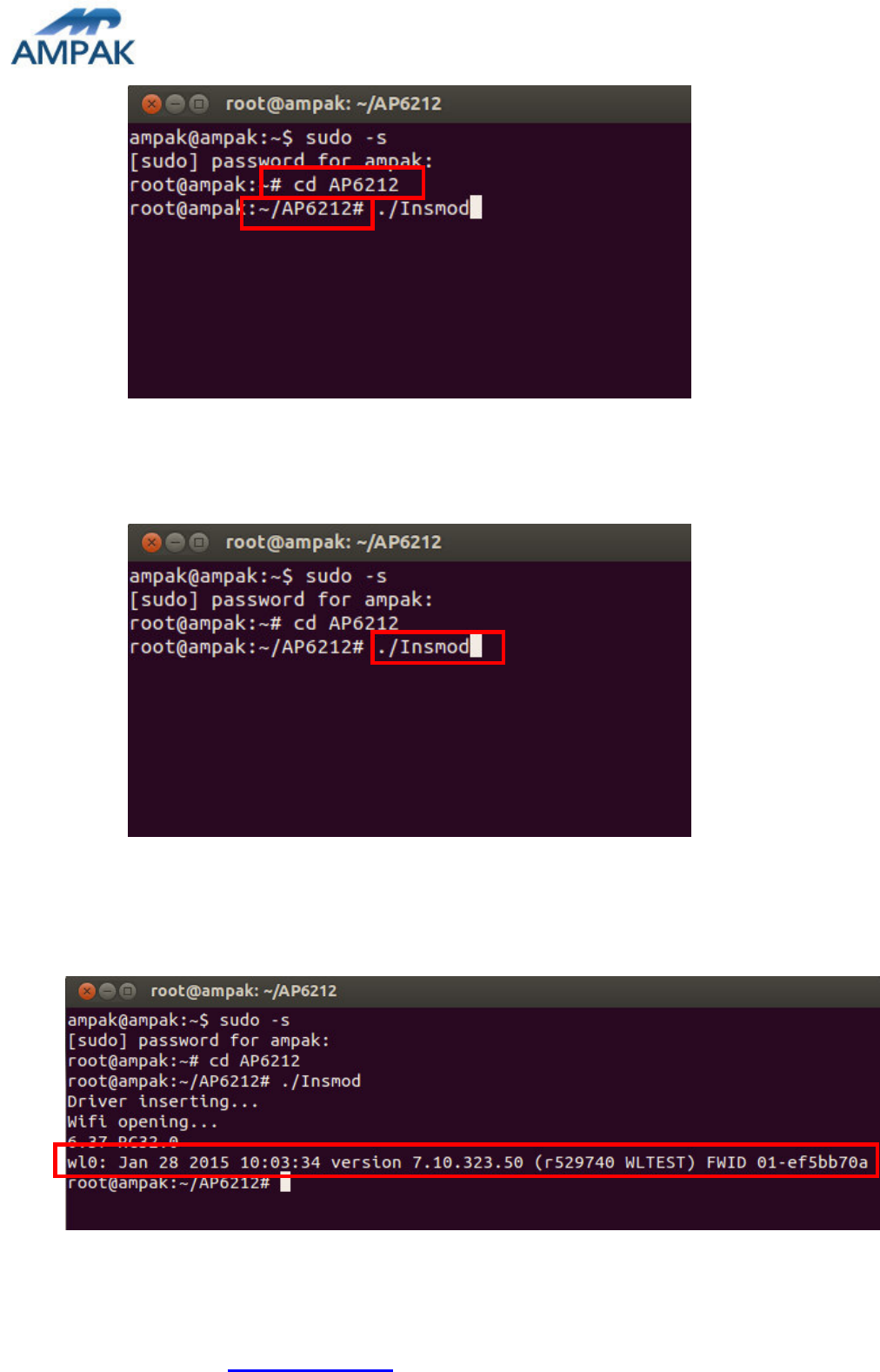

1-4.Change directory to the select document.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
5
1-5.Enter “./Insmod” to execute the file Insmod.
1-6.It will show the messege means success.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
6
2. Software Bluetooth setup:(Ubuntu 12.04 LTS kernel Linux3.2.0)

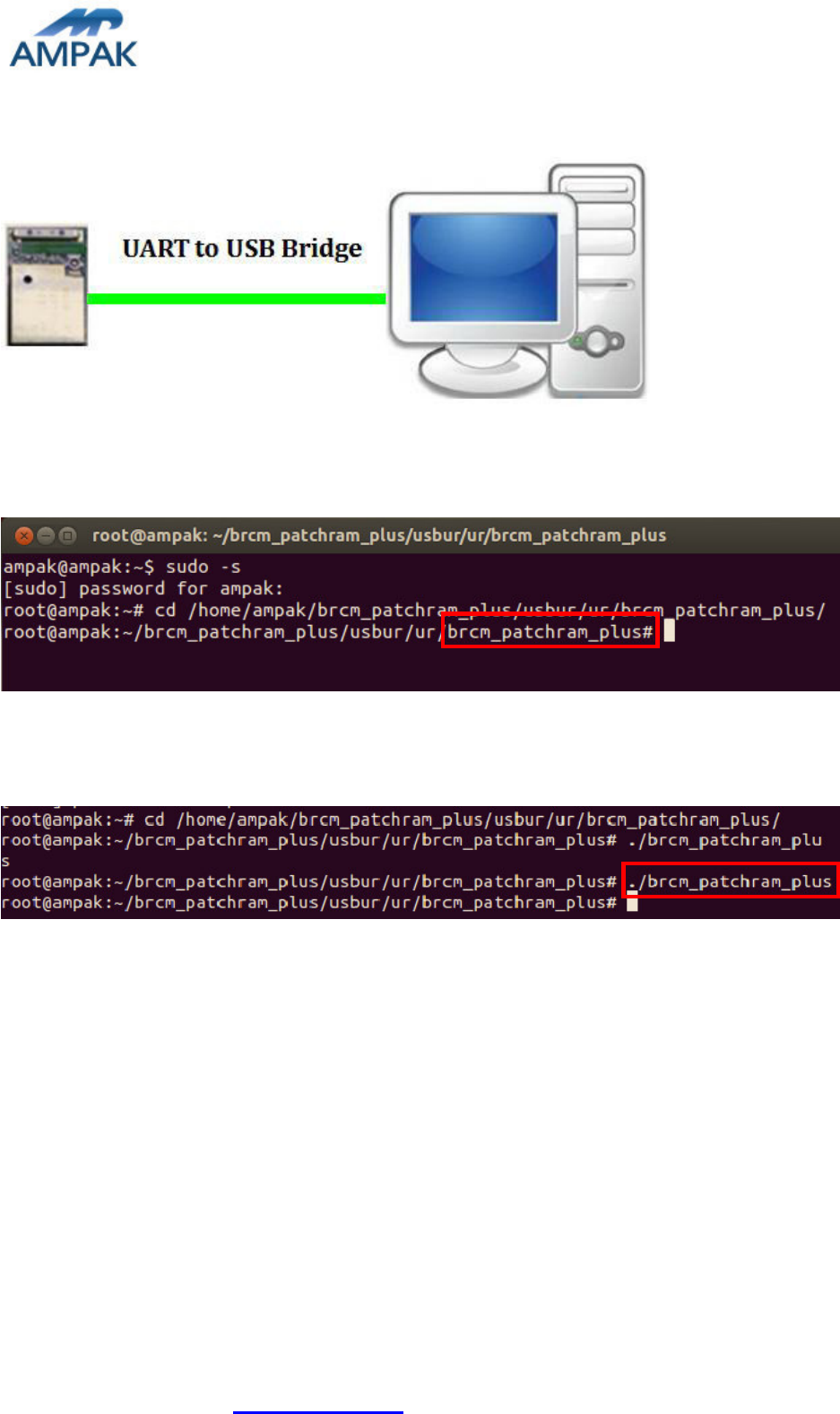

2-1. Change directory to document “brcm_patchram_plus”
2-2. Enter “./brcm_patchram_plus”.

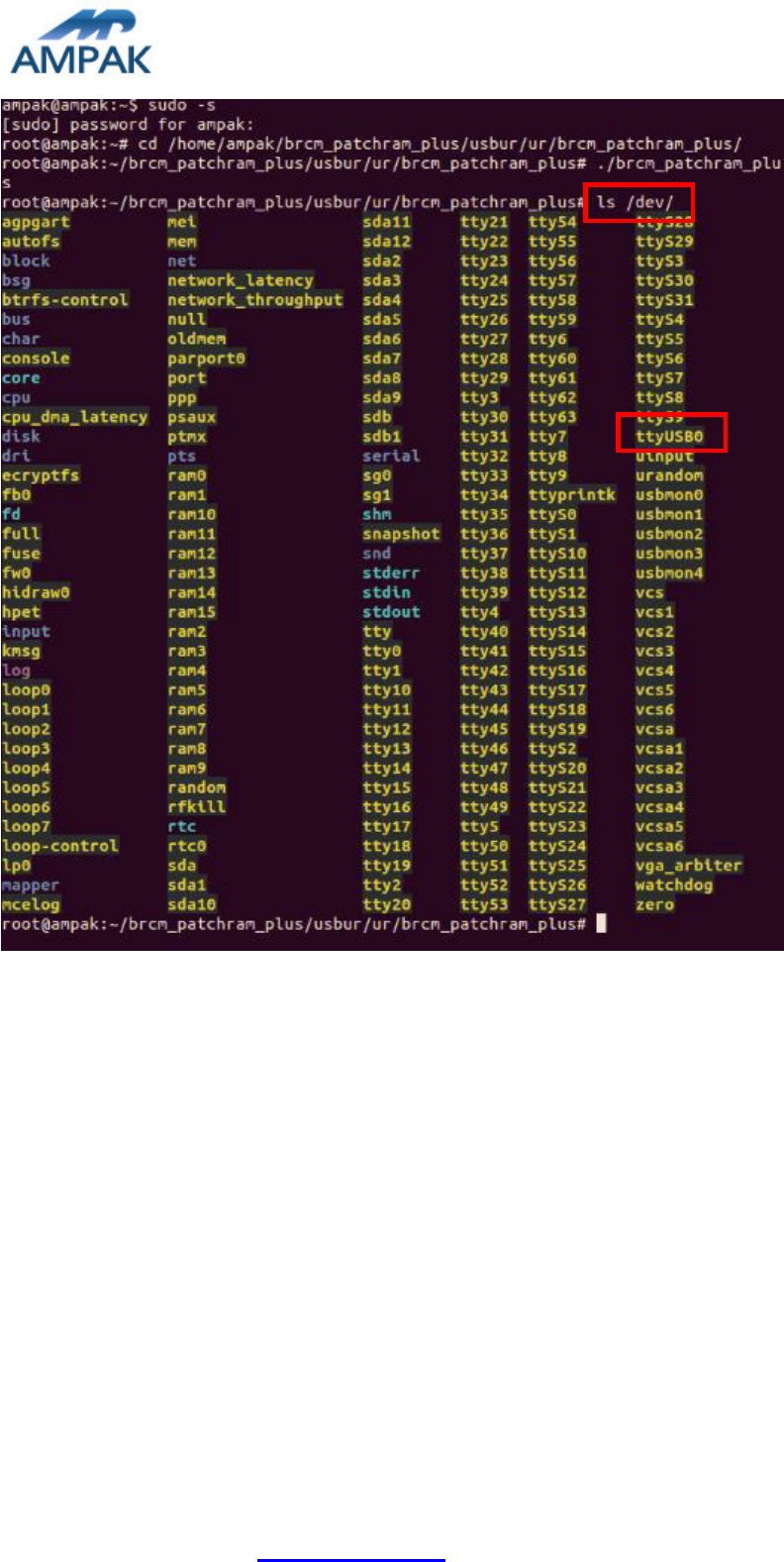

2-3. Enter “ls /dev/” and you will found the device “ttyUSB0”.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
7

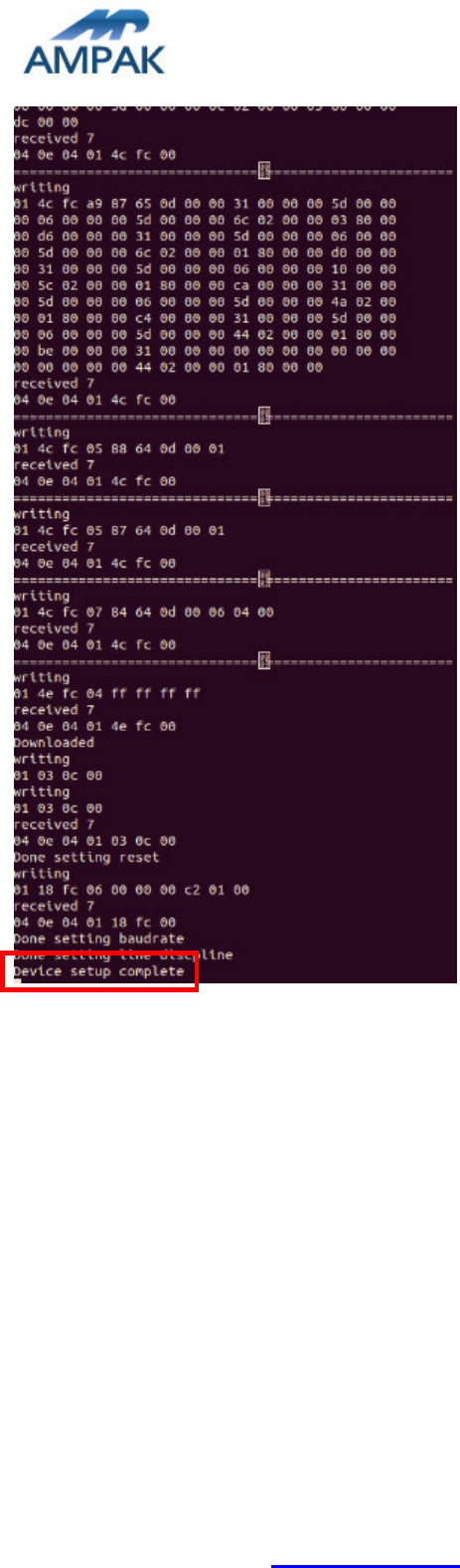

3-3. Put the HCD file to the path ” /brcm_patchram_plus/ur/brcm_patchram_plus/” and enter
“./brcm_patchram_plus --enable_hci --no2bytes --tosleep 200000 --baudrate 115200
--patchram bcm43438a1.hcd /dev/ttyUSB0 –d” to download firmware.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
8
