FOMA® F884i
INSTRUCTION MANUAL
ISSUE DATE:
NAME:
PHONE NUMBER:
MAIL ADDRESS:
‘08.X
’07.X
FOMA® F884i INSTRUCTION MANUAL
・By "Voice reading function", you can perform
menu operation without depending on your
vision or you can use mail or i-mode.
・By "One-touch dial function", you can make
a call with one touch of a button.
20% recycled-content
level
80% made from
trees in properly
managed forests
Li-ion
To promote environmental conservation,
be sure to return your used battery pack
to NTT DoCoMo’s sales outlets, our
cooperate agencies or the shops that
collect used battery in your community.
Retailer NTT DoCoMo Group
Manufacturer: FUJITSU LIMITED
NTT DoCoMo, Inc.
NTT DoCoMo Kansai, Inc.
NTT DoCoMo Kyushu, Inc.
NTT DoCoMo Hokkaido, Inc.
NTT DoCoMo Tokai, Inc.
NTT DoCoMo Chugoku, Inc.
NTT DoCoMo Tohoku, Inc.
NTT DoCoMo Hokuriku, Inc.
NTT DoCoMo Shikoku, Inc.
■(In English)
■(In Japanese only)
0120-005-250 (toll-free)
* Available from general subscriber phones, mobile
phones and PHSs.
No prefix 151 (toll-free)
* Available only from mobile phones and PHSs.
■(In Japanese only)
No prefix 113 (toll-free)
* Available only from mobile phones and PHSs.
●Please check on the number before dialing.
●For further information, please refer to the list of service
stations supplied with your FOMA terminal.
0120-800-000 (toll-free)
* Available from general subscriber phones, mobile
phones and PHSs.
Repairs
Failures encountered overseas
General Inquiries <DoCoMo Information Center>
<DoCoMo Information Center> (24 hours)(In Japanese only)
* Long distance call to Japan will be charged when calling from a
general subscriber phone.
* Long distance call to Japan will be charged when calling from a
general subscriber phone.
●From DoCoMo mobile phone
<Network Operation Center> (24 hours)
●From DoCoMo mobile phone
* When calling from an F884i, dial +81-3-5366-3114 to
contact the DoCoMo Information Center. (Press and hold
the "0" key for 1 second or more to enter "+".)
* When calling from an F884i, dial +81-3-6718-1414 to
contact the Network Operation Center. (Press and hold
the "0" key for 1 second or more to enter "+".)
* For International access number for major countries
(Table1)/International phone code for Universal number
(Table2), see PXXX in User's manual.
* For International access number for major countries
(Table1)/International phone code for Universal number
(Table2), see PXXX in User's manual.
International access number for
your staying country (Table 1)
International access number for
your staying country (Table 1) -81-3-6718-1414*
(toll-free)
Loss or theft of FOMA terminal or
payment of cumulative cost overseas
-800-0120-0151*
* Local call charges may be required. * Local call charges may be required.
International phone code for
Universal number (Table 2) -800-5931-8600*
International phone code for
Universal number (Table 2)
●From general subscriber phone <Universal number> ●From general subscriber phone <Universal number>
●In case your FOMA terminal is misplaced or stolen, immediately contact DoCoMo to request suspension of usage.
●In case your FOMA terminal has troubles, bring it to the nearest DoCoMo repair handling service counter after returning to
Japan.
-81-3-5366-3114*
(toll-free)
●Please check on the number before dialing.
Voice/Videophone Calls
Voice calling/Voice reading
Data Display/Edit/Management
Other Convenient Functions
Network Services
Index/Quick Manual
Appendix/External Devices/
Troubleshooting
Easy Search/Contents/Precautions
Before Using the Handset
Phonebook
Sound/Screen/Light Settings
Security Settings
Camera
i-mode/i-motion/i-Channel
Mail
i-αppli
GPS function
1Seg
Osaifu-Keitai/ToruCa
PC connection setting
Overseas Use
Character Entry
F884i_2kou
DoCoMo W-CDMA, GSM/GPRS System
Thank you for selecting FOMA F884i mobile terminal.
Both before and during use of your FOMA mobile terminal, be sure to thoroughly read this manual
and instruction manuals that come with other optional devices to ensure you are able to correctly
use your FOMA mobile terminal. For more information, you may contact us as mentioned on the
back of this manual.
Treated with care, your FOMA F884i mobile terminal will be your able partner.
Before using your FOMA terminal
●Because your FOMA terminal uses radio waves, it may not function in locations where it is
difficult for radio waves to penetrate, such as tunnels, underground passages and some
buildings, in areas where radio wave signals are weak, or out of service area. Even when you are
high up in a tall building or condominium and nothing blocks your view outside, your FOMA
terminal may not be able to receive or transmit signals. Also, communication may be interrupted
even when the signal meter on your FOMA terminal indicates there is a strong signal and you are
not moving (traveling).
●Use your FOMA terminal in a way that does not disturb others in public spaces, crowded
locations or quiet places.
●Because your FOMA terminal uses radio waves to communicate, it is possible that a third party
may attempt to tap your calls. However, the W-CDMA or GSM/GPRS system automatically
applies a confidential communication function to all calls, so even if a third party could somehow
tap a call, they only hear noise.
●Your FOMA terminal encodes voice communication as digital data. When you are operating your
FOMA terminal while moving to a location subject to weaker radio wave signals, the transmitted
digital data may not be correctly decoded and as a result the decoded voice may differ somewhat
from the actual voice.
●Maintain a separate record of the data (Phonebook, Schedule, Recorded messages, Voice
memos) you registered in your FOMA terminal. If the data should be deleted, DoCoMo assumes
no responsibility for the loss of any data.
●You are recommended to save important data to microSD memory card. Using DoCoMo keitai
datalink, you can transfer and save phonebook, mail, schedule and other data to a PC.
●The user hereby agrees that the user shall be solely responsible for the result of the use of SSL.
Neither DoCoMo nor the certifier as listed herein makes any representation and warranty as for
the security in the use of SSL. If the data should be erased, DoCoMo assumes no responsibility
for the loss of any data.
Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K.
RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd.
●This FOMA terminal is applicable to FOMA Plus-Area and FOMA HIGH-SPEED Area.
●This FOMA terminal is unavailable outside FOMA network provided by DoCoMo or DoCoMo's
roaming service areas.
●FOMA F884i does not support bilingual function.
When using FOMA terminal for the first time
When you are going to use FOMA terminal for the first time, please read this manual in the
order below. You will be able to understand an outline of the preparation for using FOMA
terminal and basic operations.
1. Check "Precautions"→p.10
2. Attach and charge the battery pack→p.38, p.39
3. Turn the power ON, make initial settings and check your phone number→p.45, p.51
4. Check the functions of terminal keys→p.22
5. Check the definitions of icons appearing on the display→p.25
6. Check how to use the menus→p.30
7. Check how to make and receive calls→p.56, p.69
Latest information about this manual can be downloaded from DoCoMo's website.
･User's Manual Download
http://www.nttdocomo.co.jp/english/support/manual/index.html
* The URL and contents are subject to change without prior notice.
F884i_000_HYO2.fm 0 ページ ２００８年１月９日 水曜日 午後６時１９分
1
F884i_2kou
How to use this manual
Structure and describing ways of this manual are introduced here.
●In this manual, to select a function or an item by pressing UDLR (Multi-
cursor button) is referred to as "select".
●The character input method is described mainly by in-line entry (the method to enter
characters directly in the field).→p.404
This manual provides the methods below for necessary function's easy search :
Searching from CONTENTS ep.6
Use CONTENTS categorized into chapters based on purposes to search for items.
Searching by main functions ep.8
Functions can be searched from specific, convenient features of F884i.
Searching from Index ep.518
Search from the function name, item keyword or service name.
Using Quick Manual ep.524
You can cut out Quick Manual from this manual and carry it with you anywhere.
How to look up in this manual
Searching from Easy Search ep.4
Using friendly words, search for functions frequently used or convenient functions.
Searching from Menu list ep.442
Search from menu displayed on the display of F884i.
Searching from thumb indices
e
Front cover
Use indices on the right of the front cover and turn the pages to search for functions.
See p.2-3 for examples.
●In this "Manual for FOMA F884i", "FOMA F884i" mobile terminal is usually
referred to as "FOMA terminal". Please be forewarned.
●The screens and illustration shown here are examples. They may differ from
those of the actual FOMA terminal.
●To make screens more visible, the screens in this manual are shown with stand-
by display set to "表示なし (No icon)".
●This manual uses examples of setting the menu items to "リスト形式 (List
format)". When setting to "タイル形式 (Tile display)", some menu item names
may differ from those described in this manual, but the keypads for operating
them are the same.
●Press f to return to stand-by display during/after operation.
F884i_010_BK.fm 1 ページ ２００８年１月９日 水曜日 午後６時２分
4
F884i_2kou
Easy Search/CONTENTS/Handling instructions
Easy Search
Use this function when you want to look up a frequently-used function or a
convenient fraction by a simple word.
Easy Search
Easy Search
Convenient
functions
for calls
Showing/Hiding your phone number ..... Caller ID notification 50
Putting the call on hold................................................ On hold 58
Making the other party's voice more audible ....... Voice clear 59
Adjusting the other party's speaking speed .... Voice slowing 59
Switching from voice call to videophone call
....................................................... Switching to videophone call 59
Changing the volume of the other party's voice ....
Listen volume
72
Making a call with one touch of a button......... One-touch dial 101
When you
cannot answer
the call
Putting the call on hold when you cannot answer it
immediately ................................................... Respond and hold 73
Notifying the caller that you have to refrain from talking
............................................................ Public mode (Drive mode) 73
............................................................. Public mode (Power OFF) 74
Recording the other party.......................... Recorded messages 75
Changing
sound and
vibration
Changing ring alert, etc., by the group of the phonebook..... 91
Changing ring alert ................................................... Ring alert 112
Making vibration when there is an incoming call
...................................................................... Vibrate alert/effect 115
Muting keypad sound .................................... Operation sound 116
Making FOMA terminal silent .............................. Silent mode 117
Changing
displays Meanings of icons on display ....................... Display overview 25
Changing stand-by display............................ Stand-by display 118
Changing display colors ..................................... Display colors 120
Changing font size...................................................... Font size 263
Mail Listening the received mail by voice ................. Voice reading 146
Starting the mail creation screen with two touch of buttons
........................................................................... Two-touch mail 219
Sending images and/or melodies .................... Attaching data 223
Sending voice message.................................... Voice message 224
F884i_011_TOC.fm 4 ページ ２００８年１月９日 水曜日 午後６時３７分
5
F884i_2kou
Easy Search/CONTENTS/Handling instructions
Saving shot photos to microSD memory card....................... 160
Shooting a photo with a frame....................... Selecting frame 166
Changing the size of photo ..................................... Image size 166
Viewing shot photos........................................... Display image 340
Camera
Safety and
security
Hiding contents of phonebook ............ Secret attribute setting 100
Locking FOMA remotely in case of misplacement, etc.
.......................................................................... Omakase Lock*1 129
Rejecting calls from parties not saved in phonebook
....................................................................... Unregistered caller 135
Rejecting calls with no caller IDs ................. Anonymous caller 136
Saving phonebook and other data as a precaution against
data loss................................................. Data Security Service*2 139
Other
functions
Reading QR and/or bar code........................... Bar code reader 170
Making back-up copy of phonebook, mail, photos, etc.... 362, 366
Using alarm clock .................................................. Alarm clock 378
Managing schedule ................................................... Schedule 380
Sounding the large volume buzzer with one touch of a button
........................................................................ One-touch buzzer 388
Using calculator ........................................................ Calculator 391
Using pedometer ..................................................... Pedometer 392
Using a mobile phone overseas ......................... Overseas use 428
Updating software .......................................... Software update 496
Keeping security software updated............. Scanning function 505
●For procedures to search for other functions, see "How to use this manual". →p.1
●Quick Manual introduces you procedures for using convenient functions. →p.524
Voice calling/
Voice
reading
Calling the phonebook by voice .............................. Voice dial 143
Calling a function by voice.................................... Voice menu 145
Reading the explanation of a function by voice ....
Voice reading
146
*1 This is charged service.
*2 This is an optional service to be charged requiring subscription.
Watching 1Seg .................................................... Activate 1Seg 324
Reserving watching/recording 1Seg
................................ Watching reservation/Recording reservation 327
Recording 1Seg................................................. 1Seg recording 333
Changing settings of images and sounds ......... User Settings 334
Making full
use of 1Seg
F884i_011_TOC.fm 5 ページ ２００８年１月９日 水曜日 午後６時３７分
6
F884i_2kou
Easy Search/CONTENTS/Handling instructions
Before Using the Handset 21
Names and functions of parts Display overview Sub-display overview Operating menu
Using UIM (FOMA card) Attaching/Removing battery pack Charging battery Battery
level Power ON/OFF Date & time Caller ID notification User information etc.
Voice/Videophone Calls 55
Making calls Redial/Received calls 186/184 Tone signal (DTMF) WORLD CALL
Receiving calls Listen volume Alert volume Respond and hold Public mode Recorded
messages Videophone call settings Switching videophone call function etc.
Phonebook 85
Registering phonebook Setting group Searching phonebook Editing phonebook
Deleting phonebook Secret attribute One-touch dial Phonebook saving notice setting
etc.
Sound/Screen/Light Settings 111
Select ring tone Vibrator setting Silent mode Stand-by display setting Sub-display
setting Display colors setting Light setting Selecting fonts Clock format etc.
Security Settings 123
Security code Change terminal security code PIN code setting All lock Omakase Lock
Self mode Secret mode Call log display restriction User Info. display restriction Keypad
dial open/close lock Unregistered caller Data Security Service etc.
Voice calling/Voice reading 141
Voice dial registration Voice dial Voice menu registration Voice menu Voice reading
settings Voice reading word registration
Camera 155
Before using the handset Photo shooting Movie recording Setting for shooting/
recording Barcode reader
i-mode/i-motion/i-Channel 173
i-mode menu My menu i-mode password change Internet connection Bookmark
Screen memo Save image i-melody MessageR/F Certificate download i-motion
downloading i-motion setting i-channel i-channel setting etc.
Mail 210
Easy mail creation/sending i-mode mail creation/sending Saving unsent/sent mail Check
new message Received mail Mail setting SMS creation/sending Managing mail etc.
■
Before using your FOMA terminal ...Inside of the front cover
■How to use this manual.......................................................... 1
■Easy Search.............................................................................. 4
■Main functions of FOMA F884i............................................... 8
■Precautions (ALWAYS FOLLOW THESE DIRECTIONS)...... 10
■Handling instructions............................................................ 16
■Intellectual property rights................................................... 18
■Basic package and optional accessories ............................. 20
CONTENTS
F884i_011_TOC.fm 6 ページ ２００８年１月９日 水曜日 午後６時３分
7
F884i_2kou
Easy Search/CONTENTS/Handling instructions
i-αppli 267
Downloading Starting i-αppli Sync i-αppli start i-αppli stand-by display Managing
i-αppli etc.
Osaifu-Keitai/ToruCa 287
iC transfer service Starting Osaifu-Keitai compatible i-αppli Downloading ToruCa
Managing ToruCa IC card lock etc.
GPS Function 299
GPS Position location Navigation software Location request Notify location Loc.
history Setting GPS etc.
1Seg 319
Channel setting 1Seg watching Program guide i-αppli Reserve program Data
broadcasting TVlink Recording User setting etc.
Data Display/Edit/Management 338
Displaying image Checking remaining number Playing movie/i-motion Setting display size
Playing melody Set play position microSD memory card Managing data Receive Ir data etc.
Other Convenient Functions 375
Multiaccess Auto power ON/OFF Notified time Auto power ON/OFF Alarm clock
Scheduler Voice memo Last call duration/Total calls duration Last call cost/Total calls
cost One-touch buzzer Calculator Pedometer Earphone/Microphone with Switch Reset
Delete all data etc.
Character Entry 403
About character entry Character entry Enter pictogram/symbol/phrase Save phrase Copy/
Paste character Enter kuten code Save word Call phonebook Set character entry method etc.
Network Services 415
Voice Mail service Call waiting Call forwarding service Nuisance call barring service
Caller ID request service Dual network service English guidance Service numbers
Arrival call act Remote control etc.
PC connection setting 421
Data Communication AT commands DoCoMo keitai datalink etc.
Overseas use 427
Overview of international roaming service (WORLD WING) Services available Preparing
and checking for using FOMA terminal overseas Making/Receiving a call Network search
mode PLMN setting Select networks Roaming guidance Bar calls at roaming Services
available overseas etc.
Appendix/External Devices/Troubleshooting 441
Menu list List of character assignments Combination of Multiaccess functions Options
and related devices Troubleshooting Error messages Warranty and After-Sales Service
Software update Specifications SAR certification information etc.
Index/Quick Manual 517
F884i_011_TOC.fm 7 ページ ２００８年１月９日 水曜日 午後６時３分
8
F884i_2kou
Easy Search/CONTENTS/Handling instructions
Main functions of FOMA F884i
FOMA is a DoCoMo's service name based on W-CDMA recognized as one of the global
standards for 3rd generation wireless communication (IMT-2000).
Major characteristics of F884i
GPS Function →p.300
Using radio wave emitted from GPS satellite,
Location information of the FOMA terminal
can be obtained. Using the information, you
can search the map of your current location
or ambient information, and send mails by
attaching your current location. And, you can
notify the other party of your location
information by voice or mail, or you can
search the route to the destination.
1Seg →p.320
You can receive Digital Terrestrial TV
broadcasting for mobile object (1Seg). You
can easily enjoy participating in quiz program
or TV shopping, etc., by sending and
receiving information to/from TV
broadcasting companies (stations).
Convenient functions such as subtitle display
with large font, watching reservation, and
recording or recording reservation of video
are available.
i-mode mail and Easy Deco-mail
→p.221, p.223
In addition to message text, you can attach
up to 10 files (images, ToruCa, etc.) or files of
up to 2 Mbytes in total to a message.
Moreover, because Deco-mail is available,
you can receive colorful and joyful mails or
send decorated mails.
International Roaming →p.428
While staying overseas, you can use the
same FOMA terminal, phone number and
mail address as those used in Japan. You can
use voice/videophone calls, i-mode, i-mode
mail, SMS and network services.
Osaifu-Keitai/ToruCa
→p.276, p.288, p.290
By downloading Osaifu-Keitai compatible
i-
α
ppli, you can deposit electronic money from
the site into the IC card in the FOMA terminal,
and check the balances and payment records.
Moreover, i-
α
ppli of "DCMX" (DoCoMo's credit
service) is preinstalled. And, compatible with "iC
お引っこしサービス
(iC transfer service)" that you
can easily transfer data in IC card when replacing
the FOMA terminal by changing of the model etc.
ToruCa is an electronic card that can be downloaded
from the IC card reader, site, etc. and can be easily
exchanged using mail or infrared communication.
The unique convenient functions of F884i
Optic guide and the guide function
→p.27, p.69, p.162
When a voice call or a videophone call comes
in, keypads flash in bright colors to notify you
of the way to answer the call. When recording
a movie or checking the settings, you can see
which button to press. For the menu or
functions name that "Guide" appears below the
display, you can read the explanation.
Voice reading →p.146
Read aloud the explanation of operation
currently shown on the display, or the
contents of a received mail or a site.
With the FOMA terminal folded, if you press
and hold on the right side for 1 second or
more, the FOMA terminal lets you know the
current time by voice. You can change the
voice quality or speed of reading to set the
reading operation to be easy to hear.
(
Voice recognition →p.143, p.145
You can handily call a phonebook or function
by voice-registering the name or word.
Simple mail and voice message
→p.212, p.224
You can handily create mails by operating
according to the instructions shown on the
display. It is also easy to attach photograph or
movie. And, you can instantly record what you
want to tell and attach it to a mail and send it.
One-touch dial →p.107
Only by pressing the numeric keypad (One-
touch dial button) above the multi-cursor
button, you can easily make a call to or create
a mail for a registered party. You can also set
a ring alert or an incoming call image
dedicated to the registered party.
F884i_012_PRE.fm 8 ページ ２００８年１月１０日 木曜日 午後７時５９分
9
F884i_2kou
Easy Search/CONTENTS/Handling instructions
Data Security Service*→p.139
This service allows you to store phonebook,
mails and/or images saved in FOMA terminal
to Data Center and, in case of misplacement,
etc. of FOMA terminal, restore the data to
FOMA terminal. In addition, you can edit or
manage data stored in Date Center from a PC
and reflect the edited data to FOMA terminal.
* This is an optional service to be charged
requiring subscription. For precautions and
detailed procedure for using this service,
see "Mobile Phone User's Guide [i-mode]".
Various security settings
Omakase Lock*→p.129
Omakase Lock is a service that locks FOMA
terminal on request from the subscriber. Even
if the holder of FOMA terminal is different
from its subscriber, the terminal may be
locked on request from the subscriber.
* This is charged service. If you request
unlocking at the same time as service
interruption or during interruption, no charges
occur. Even in Omakase Lock, if Request
permit/deny is "ON", the FOMA terminal
responds to location request of GPS function.
For precautions and detailed procedure for
using this service, see "Mobile Phone User's
Guide [Procedures and After-Sales Service]".
Videophone call →p.56
Phone conversations can be made between
FOMA terminals supporting videophone call
while looking at the other party's image
displayed on the screen. By using
speakerphone function, you can talk with the
FOMA terminal placed.
Pedometer →p.392
By using the FOMA terminal as a pedometer,
you can calculate the distance you walked
and the calorie you consumed. And, you can
automatically send the information of the
pedometer to the same receiver at the same
time every day (Pedometer automatic
sending mail).
One-touch buzzer →p.388
By sounding a large-volume buzzer pressing the
button in emergency situation, you can notify
the people around you of your current location.
And, when you sound the one-touch buzzer, you
can automatically make a voice call or use GPS
function to notify of your current location.

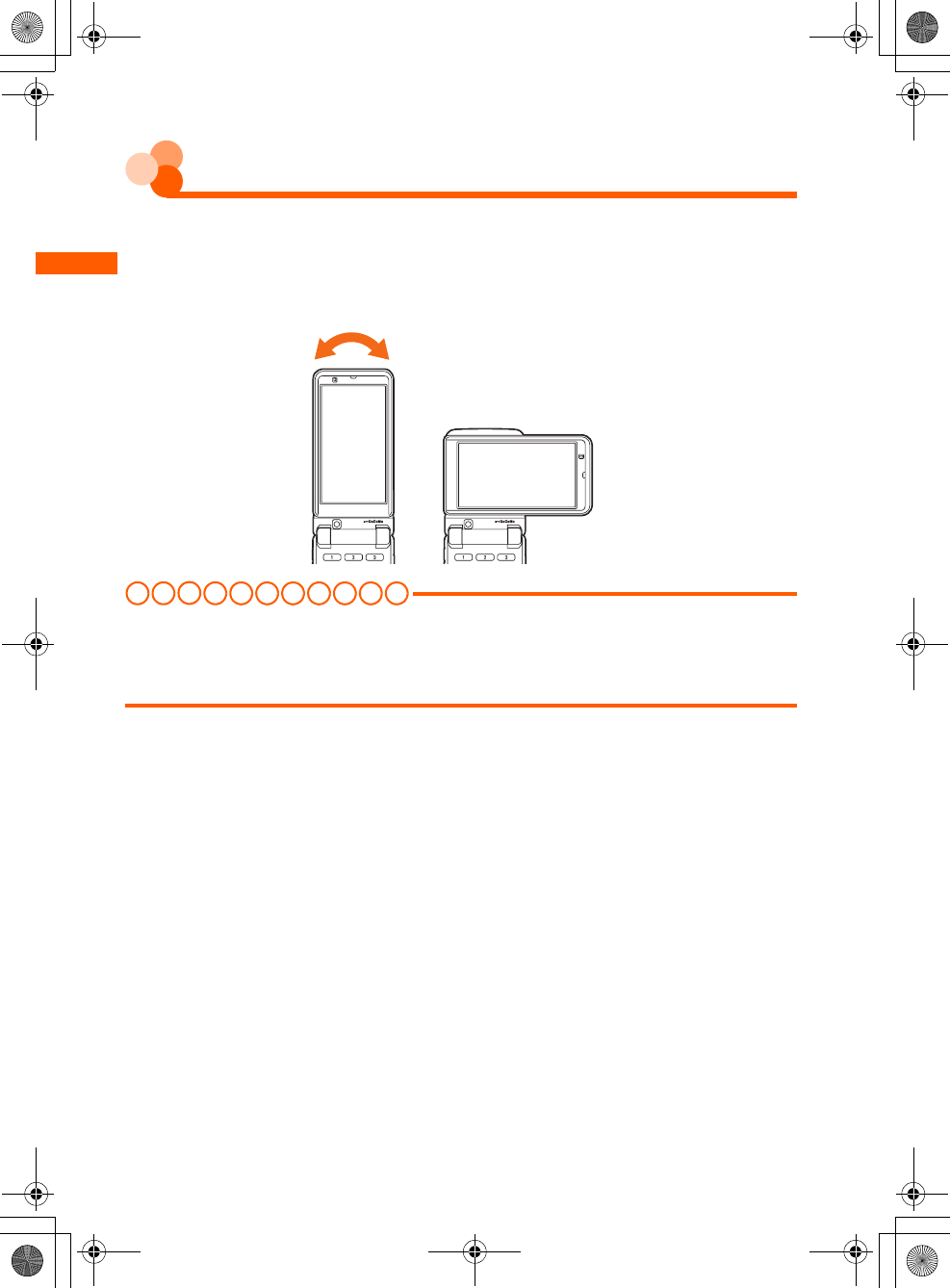

Swing display (YOKO-MOTION)
→p.24
By rotating the display 90 degrees to the right
or left, you can use the horizontal screen to
watch 1Seg or shoot and play still images/
movies. And, some functions and i-αppli are
applicable to Wide display that can display
fully on the horizontal screen.
Infrared communication/iC transmission
→p.369
You can send/receive data to/from other FOMA
terminals, mobile phones or PCs equipped
with the infrared communication function.
And, by iC transmission, you can send/receive
data by making FeliCa marks of the FOMA
terminals of the sender close to each other.
Other covenant functions
Supporting "microSD memory card"
→p.366, p.482
You cam make back-up copy of such data as
images, melodies, phonebooks or mails in
the FOMA terminal.
By saving a movie created with external
device in microSD memory card, you can
play it with the FOMA terminal (it may not be
played under some conditions).
Barcode reader and magnifier
→p.170
By using the camera's closeup function, you
can use the FOMA terminal as a barcode
reader or a magnifier.
By using the barcode reader, you can collect
information.
Voice clear and Voice slowing
→p.59
"Voice slowing" that adjusts the speed of
other party's voice, and "Voice clear" that
makes the other party's voice clear and
adjusts the volume even in noise. Supports 2
functions that make other party's voice easy
to hear for voice calls.
･Voice Mail service (Charged)*1 →p.416
･Call waiting (Charged)*1 →p.417
･Call forwarding service*1 →p.417
･Nuisance call barring service*2 →p.418
･SMS*2 →p.249
･Dual network service (Charged)*1 →p.419
*1 Subscription is required. *2 Subscription is not required.
abundant network services
F884i_012_PRE.fm 9 ページ ２００８年１月１０日 木曜日 午後７時５９分
F884i_2kou
10
Easy Search/CONTENTS/Handling instructions
Precautions
(ALWAYS FOLLOW
THESE DIRECTIONS)
●Before using your FOMA terminal, or
when necessary, read the precautions
below to ensure safe use and handling.
After reading this manual, keep it
carefully.
●These precautions are intended to protect
you and others around you. Read and
follow them carefully to avoid injury,
damage to the product or damage to
property.
■
The signs below differentiate
between the levels of danger that
can occur if the product is not used
within the specified guidelines :
■
The symbols below show specific
directions :
■
Precautions contain the
description below :
Handling FOMA terminal, battery pack, adapter
(including battery charger) and UIM (Common)...10
Handling FOMA terminal ...................................... 11
Handling battery pack ........................................... 13
Handling optional devices (AC adapter/DC adapter/
desktop holder/In-car holder)............................ 14
Handling UIM ......................................................... 15
Handling mobile phones near electronic medical
equipment .......................................................... 15
Handling FOMA terminal, battery
pack, adapter (including battery
charger) and UIM (Common)
DANGER
DANGER
This sign denotes that death
or serious injury may directly
result from improper use.
WARNING
This sign denotes that death
or serious injury may result
from improper use.
CAUTION
This sign denotes that bodily
injury or damage to property
may result from improper use.
This symbol denotes that the action is
prohibited.
This symbol denotes that
disassembling the phone or its
components is not allowed.
This symbol denotes that using the
phone or its components with wet
hands is not allowed.
This symbol denotes that using the
phone or its components in a bathroom
or other highly humid area is not allowed.
This symbol denotes that an instruction
must be obeyed at all times.
This symbol denotes that the
equipment should be unplugged.
Don’t
No disassembly
No wet hands
No liquids
Do
Unplug
Do not use, store, or leave the
equipment in hot areas such as near
flames or in areas under strong direct
sunlight such as inside a vehicle.
May cause the equipment to be deformed
or malfunction, and battery pack to leak,
heat, burst or ignite, and the capability or
life to be reduced or shortened.
Overheating on parts of the case may cause
burns or injuries.
Do not disassemble or remodel the
equipment. Do not solder items onto
the equipment.
May cause fire, injuries, electric shock, or
malfunction. It may also cause the battery
pack to leak, heat, burst or ignite.
Do not let the equipment get wet.
Contact with water or other liquids can
cause heating, electric shock, fire,
malfunctions or injuries. Take care of the
place for use and treatment of the
equipment.
Use equipment specified by the
DoCoMo Group companies with your
FOMA terminal.
Use of equipment not specified by DoCoMo
can cause the FOMA terminal, battery pack
and other parts to leak, heat, burst, catch
fire or malfunction.
Battery Pack F11
Desktop Holder F25
FOMA AC Adapter 01/02
FOMA DC Adapter 01/02
FOMA Dry Battery Adapter 01
FOMA USB Cable with Charge Function 01
FOMA AC Adapter 01 for Global use
FOMA Portable Charging Adapter 01
* Contact a sales outlet such as DoCoMo
Shop for information on other compatible
products.
Don’t
No disassembly
No liquids
Do
F884i_013_PL.fm 10 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
11
Easy Search/CONTENTS/Handling instructions
WARNING
CAUTION
Handling FOMA terminal
WARNING
Do not put the battery pack, FOMA
terminal, adapter (including battery
charger) or UIM in microwave ovens
or other heating appliances or high-
pressure containers.
May cause the battery pack to leak, heat,
burst or ignite, the FOMA terminal or
adapter (including battery charger) to heat,
smoke, ignite, or damage circuits.
Do not throw the equipment or give
hard shock to it.
May cause the battery pack to leak, heat,
burst or ignite, and the equipment to
malfunction or catch fire.
Keep conductive materials (metal
pieces, pencil lead, etc.) from coming
in contact with the charger terminal
or external connecting jack. Do not
put those materials inside the
terminal.
May be subject to electrical short and could
cause fire or malfunction.
Turn the FOMA terminal OFF before
entering a place such as a gas station
where flammable gases are
generated.
Do not charge the battery. The gas
may catch fire.
When using Osaifu-keitai in a place as a gas
station, turn OFF the terminal before using
it.
(When IC card lock is activated, deactivate it
before turning OFF the terminal.)
If the equipment starts giving off a
strange smell, overheats, becomes
discolored or deformed during use,
charging or in storage, immediately
perform the following operations :
1. Remove the power plug from the wall
outlet or cigarette lighter socket.
2. Turn the FOMA terminal OFF.
3. Remove the battery pack from the
FOMA terminal.
May cause the equipment to heat, burst or
ignite or the battery pack to leak if you keep
using the equipment.
Do not leave the equipment on
unstable or sloping surfaces.
May cause malfunction or injuries.
Don’t
Don’t
Don’t
Do
Do
Don’t
Do not store the equipment in
extremely humid, dusty or hot areas.
May cause malfunction.
Children using the equipment should
be instructed in proper operation by
an adult. Do not allow them to use
the equipment without adult
supervision.
May cause injuries.
Store the equipment out of reach of
small children.
The equipment can be accidentally
swallowed or cause injuries.
Be careful especially when using the
FOMA terminal connected to the
adapter (including battery charger)
continuously for a long time.
If you execute i-αppli, use videophone call
or watch 1Seg while charging the battery
pack, the FOMA terminal, battery pack and
adapter (including battery charger) may
become hot.
Directly touching a hot part for a long time,
you may have redness, itching or rash on
your skin, or it may result in low-
temperature burns depending on your
constitution and/or health condition.
Do not direct the infrared data port
toward your eye and transmit
signals.
May affect your eyes. Faulty operation
could result from directing the infrared data
port toward other infrared equipment and
transmitting signals.
Do not put the FOMA terminal in the
place such as the dashboard near the
air-bag, where the influence of air-
bag explosion is expected.
When the air-bag deploys, the FOMA
terminal may hit yourself or others and
could cause injury, equipment malfunction
or damage.
When you use medical electrical
equipment, do not keep the terminal
in your chest pocket or inside pocket.
Using your FOMA terminal near medical
electronic equipment could cause
equipment failure.
Don’t
Do
Do
Do
Don’t
Don’t
Don’t
F884i_013_PL.fm 11 ページ ２００８年１月１０日 木曜日 午後８時１分
F884i_2kou
12
Easy Search/CONTENTS/Handling instructions
CAUTION
Do not put foreign objects such as
liquid like water, metal pieces or
burnable things into the UIM slot or
microSD memory card slot.
May cause fire, electric shock or equipment
failure.
Do not turn on the light aiming
directly at the driver of the car, etc.
It hinders driving, and may result in an
accident.
Turn the FOMA terminal OFF in areas
where use is prohibited, such as in
airplanes and hospitals.
Use in these areas can cause electronic
medical equipment and electronic
equipment to malfunction or fail.
If the function which automatically turns on
the power is set, cancel the setting before
turning the power off.
When using the phone in a medical facility,
be sure to observe the regulations of the
facility.
If you do prohibited act such as using the
phone in an airplane, you may be punished
according to law.
When you talk by setting handsfree,
always keep the FOMA terminal
away from your ear.
And, when connecting the earphone/
microphone to the FOMA terminal
and play a game or music, adjust the
volume moderately.
Too loud volume may cause a hearing loss.
And, if you cannot hear the sound around
you clearly, it may cause an accident.
If you have weak heart, be careful
when setting the Vibrate alert
(vibration) or alert volume setting.
Could affect heart function.
If it starts thunder while using the
phone outside, retract antenna and
turn the power OFF immediately, and
move to a safe location.
May be subject to lightning strike and could
cause electric shock.
Don’t
Don’t
Do
Do
Do
Do
Turn the FOMA terminal OFF near
high-precision electronic control
equipment or electronic equipment
using low-power signals.
Using the phone near this type of
equipment can cause the equipment to fail
or malfunction.
* Examples of electronic equipment to avoid :
Hearing aids, implanted pacemakers or
defibrillators, other electrical medical
equipment, fire alarms, automatic doors
and other automatic control equipment.
Users wearing implanted pacemakers or
defibrillators or other electrical medical
equipment should check with the
manufacturer or sales outlet about the
effect of radio frequencies on the
equipment.
When the display or camera lens is
accidentally broken, be careful of
broken glass or exposed internal
parts of the FOMA terminal.
Surfaces of display and camera lens are
made of plastic panels and they are
structured for the glass not to scatter,
however, if you mistakenly touch broken or
exposed parts, you may be injured.
When sounding one-touch buzzer,
always keep the FOMA terminal
away from your ear.
It may cause hearing loss.
Do not swing the FOMA terminal by
its antenna or strap.
May cause the terminal damage or failure,
or injury to yourself or others.
Do not use the FOMA terminal in
crowded places.
The antenna may hit other people, causing
accidents such as injuries.
Do not use the FOMA terminal with
its antenna damaged.
If it touches skin, it may cause accidents
such as injuries.
Do not place magnetic disks or cards
with magnetic stripes near the FOMA
terminal or place inside and fold the
terminal.
Data stored on media such as cash cards,
credit cards, telephone cards and floppy
disks may be erased if the storage medium
is placed near the phone.
Do
Do
Do
Don’t
Don’t
Don’t
Don’t
F884i_013_PL.fm 12 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
13
Easy Search/CONTENTS/Handling instructions
Handling battery pack
■Check that the battery type matches
the type displayed on the battery pack
label :
DANGER
WARNING
Do not bring magnetized objects
close to the FOMA terminal.
Bringing strong magnetism close may
cause a malfunction.
If the display part is accidentally
damaged and liquid crystal leaks out,
do not put the liquid in your mouth,
inhale, or make contact with your
skin.
If the liquid gets into your eyes or
mouth, rinse it with clean water and
see a doctor immediately.
And, if the liquid adheres to skin or
clothing, use alcohol, etc. to wipe it
off, then wash with soap.
May cause loss of sight or skin problems.
Do not bring the speaker close to
your ear when the ring alert is
sounding or you are playing a melody
with the FOMA terminal.
It may cause hearing loss.
In rare cases, using the phone in
some vehicle models can cause the
vehicle's electronic equipment to
malfunction or fail.
In this case, do not use the phone because
it may hamper safe driving.
Mobile phones can give some users
skin problems such as itching,
allergic reactions or rashes. If you
develop skin problems, stop using
the phone immediately, and see a
doctor.
The FOMA terminal contains metal in the
parts below :
When opening or closing FOMA
terminal, take care not to have your
fingers or strap caught by the
terminal.
May cause injuries or damages.
Don’t
Don’t
Don’t
Do
Do
Place of use Material Surface
finishing
Model name panel on
the back
Aluminum
Coating
Metal
part of
the TV
antenna
Front edge,
Center part,
Lower hinge
Brass Ni plating
Extendable
shaft
Stainless
None
Upper hinge
Stainless
Ni plating,
NiPd plating
Charging jack Copper Gold plating
Do
When watching 1Seg, take a certain
distance from the display in a fully
bright place.
May cause your eyesight to be impaired.
Display Battery type
Li-ion Li-ion battery
Do not connect a wire or other metal
objects to the jack. And, do not carry
or store the FOMA terminal with
objects like a metal necklace.
May cause the battery pack to leak, heat,
burst or ignite.
Do not try to force the battery pack
onto the FOMA terminal if you are
having trouble attaching it. Always
attach it after checking that it is
correctly oriented.
May cause the battery pack to leak, heat,
burst or ignite.
Do not throw the battery pack into
the fire.
May cause the battery pack to leak, heat,
burst or ignite.
Do not nail the battery pack, hit with
a hammer or step on it.
May cause the battery pack to leak, heat,
burst or ignite.
If the battery pack's fluid contacts
eyes, immediately flush the eyes with
clean water and see a doctor right
away. Do not rub the eyes.
Battery fluid in the eyes may cause
blindness.
If the battery pack seems to have
abnormalities such as deformation or
scratches due to an external impact
or falling, stop using it immediately.
May cause the battery pack to leak, heat,
burst or ignite, and the equipment to
malfunction or catch fire.
Do
Don’t
Don’t
Don’t
Don’t
Do
Don’t
F884i_013_PL.fm 13 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
14
Easy Search/CONTENTS/Handling instructions
CAUTION
Handling optional devices (AC
adapter/DC adapter/desktop
holder/In-car holder)
WARNING
If the battery pack does not have a
full charge after being charged for the
specified time, stop charging it.
May cause the battery pack to leak, heat,
burst or ignite.
If the battery pack leaks or gives off a
strange smell, immediately remove it
from the vicinity of open flames.
The vapors from leaking battery pack fluid
may ignite or explode.
Be careful not to let your pet bite the
battery pack.
May cause the battery pack to leak, heat,
burst or ignite, and the equipment to
malfunction or catch fire.
Do not discard old battery packs
together with other garbage.
May cause fire or destruction of
environment. Tape the terminals of old
battery packs to insulate them, and then
bring them into a sales outlet such as
DoCoMo Shop. If your local municipality
has a battery recycling program, dispose of
them as provided for.
Do not charge a wet battery pack.
May cause heat generation, ignition or
rupture of the battery pack.
If the battery pack's fluid contacts
skin or clothes, immediately flush the
contacted area thoroughly with clean
water.
The fluid may damage the skin.
Do not use the adapter (including
battery charger) cord or power cord if
it gets damaged.
May cause electric shock, heat or fire.
Do not use the AC adapter or desktop
holder (battery pack's battery
charger) in a bathroom or other
highly humid area.
May cause electric shock.
Do
Do
Do
Don’t
Don’t
Do
Don’t
Don’t
Always use the DC adapter with a
negative-ground vehicle. Do not plug
it into a positive-ground vehicle.
May cause fire.
When it starts to thunder, do not
touch the FOMA terminal and
adapter (including battery charger).
May be subject to lightning strike and could
cause electric shock.
Do not short the charger terminal
while it is connected to the outlet or
cigarette lighter socket.
Do not touch the charger terminal
with a part of your body such as your
hand or finger.
May cause fire, malfunction, electric shock
or injuries.
Place battery charger and desktop
holder in a stable location during
charging. Do not cover or wrap
battery charger and desktop holder
with a cloth or blanket, etc.
May cause the FOMA terminal to be
removed or the optional devices to be
heated, resulting in fire or troubles.
Do not place heavy objects on the
adapter (including battery charger)
cord or power cord.
May cause electric shock or fire.
Do not touch the adapter (including
battery charger) cord or outlet with
wet hands.
May cause electric shock.
Only use with the specified power
source and voltage.
If incorrect voltage is used, this may cause
fire or failure. When using FOMA terminal
overseas, use AC Adapter for global use.
AC adapter : AC100V
DC adapter :
DC 12V/24V (specific for negative
ground vehicle)
AC adapter available overseas :
AC 100V-240V (Connect to AC outlet for
internal household use)
If the DC adapter's fuse blows,
replace it only with the specified fuse.
Using other fuses may cause fire or
equipment failure. For the specified fuse,
see the instructions that come with the DC
adapter.
Wipe off any dust that accumulates
on the power plug.
May cause fire.
Don’t
Don’t
Don’t
Don’t
Don’t
No wet hands
Do
Do
Do
F884i_013_PL.fm 14 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
15
Easy Search/CONTENTS/Handling instructions
Handling UIM
CAUTION
Handling mobile phones near
electronic medical equipment
■
These precautions are based on
the guidelines produced at the
Electromagnetic Compatibility
Conference Japan, regarding the
protection of electronic medical
equipment from radio waves
emitted by mobile phone units.
WARNING
When you connect the AC adapter to
an outlet, make sure not to touch
with metal such as metal straps and
firmly connect to the outlet.
May cause electric shock, electrical short or
fire.
When disconnecting the adapter
(including battery charger) from the
outlet or cigarette lighter socket, do
not pull the adapter (including
battery charger) cord or power cord
forcibly; instead hold the plug to
disconnect.
Pulling the cord could damage it, possibly
leading to electric shock or fire.
Always remove the power plug from
the outlet when not using the
adapter for an extended period.
May cause electric shock, fire or
malfunction.
Immediately remove the power plug
from the outlet or cigarette lighter
socket if water or other fluids get into
the adapter.
May cause electric shock, smoke or fire.
Always remove the power from the
cigarette lighter socket when
cleaning the equipment.
May cause electric shock.
Be careful of the cut surface when
removing the UIM (ICs).
Hands or fingers may be injured.
Do
Do
Unplug
Unplug
Unplug
Do
Obey the following rules inside
medical facilities :
･Do not bring the FOMA terminal into
operating rooms (ORs), intensive care
units (ICUs) or coronary care units
(CCUs).
･Turn the FOMA terminal OFF in hospital
wards.
･Turn the FOMA terminal OFF in hospital
lobbies and corridors if electrical medical
devices could be nearby.
･If the medical facility has specified zones
where use or possession of mobile
devices is prohibited, obey those
instructions.
･If the function to automatically turn on the
power is set, cancel the setting before
turning the power off.
Turn the FOMA terminal OFF in
crowded trains or other public places
where pacemaker or defibrillator
wearers could be nearby.
The FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
Wearers of implanted pacemakers or
defibrillators must carry and use the
FOMA terminal at least 22 cm away
from the implanted device.
The FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
When electrical medical devices
other than implanted pacemakers or
defibrillators are in use outside of
medical facilities (such as in home
care settings), check with the device
manufacturer to determine how the
device is affected by electrical
signals.
The FOMA terminal's signals may affect the
performance of electrical medical devices.
Do
Do
Do
Do
F884i_013_PL.fm 15 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
16
Easy Search/CONTENTS/Handling instructions
Handling instructions
General
●Keep water away from FOMA terminal.
･FOMA terminal, battery pack, adapter
(including battery charger) and UIM are not
waterproof. Do not use FOMA terminal in
bathrooms or other high-humidity areas, or in
the rain. When carrying FOMA terminal in a
pocket near your body, sweat may corrode the
inner components, causing malfunction.
Malfunctions deemed to be caused by water
are not covered by the warranty, and may be
impossible to repair. Since these conditions
are outside the scope of the warranty, a repair,
if at all possible, is charged.
●Clean FOMA terminal with a dry soft cloth (such
as a cloth for eyeglasses).
･
The display of FOMA terminal may have been
applied special coating to improve clearness of
the color LCD. When cleaning FOMA terminal,
rubbing it roughly with a dry cloth can scratch
the display. Take care when handling the unit,
and clean it with a dry soft cloth (such as a cloth
for eyeglasses). Drops of water or dirt left on the
display can cause stains or remove the coating.
･If FOMA terminal is wiped with alcohol, paint
thinner, benzine or detergent, the printing may
disappear or color may fade.
●Clean the jack occasionally with a dry cotton
swab.
･If the jack is dirty, the contact may become
poor and the power may shut off. A dirty jack
can result in poor charging, so clean it with a
dry cloth or cotton swab.
●Do not place FOMA terminal near an air-
conditioner outlet.
･The rapid change in temperature may cause
condensation, causing internal corrosion and
malfunction.
●When using, be careful not to subject excessive
force to the FOMA terminal or the battery.
･If the FOMA terminal is crammed into a
brimming bag or placed in a pocket and sat on,
display, internal PCBs or battery pack may be
damaged or malfunction.
And, if external devices are plugged into the
external connecting jack or earphone/
microphone jack, the breakage of the
connector or malfunction may result.
●Carefully read the separate instructions that
come with the FOMA terminal, adapter
(including battery charger) and desktop holder.
●Do not rub or scrape the display with a metal
piece, etc.
･It may scratch the display, causing malfunction
or damage.
FOMA terminal
●Avoid extreme temperature.
･Use FOMA terminal in an ambient temperature
range of between 5 and 35℃, and in a humidity
range of between 45 and 85%.
●FOMA terminal may affect general subscriber
phones, TVs or radios in use nearby, so use it as
far as possible from these appliances.
●Maintain a separate record of the data you
register in your FOMA terminal.
･If the data should be deleted, DoCoMo
assumes no responsibility for the loss of any
data.
●Do not plug external devices into the external
connecting jack or the earphone/microphone
jack at a slant, or do not pull it forcibly while it is
plugged.
･May cause malfunction or damage.
●Do not fold FOMA terminal with the strap held
inside.
･May cause malfunction or damage.
●It is normal for FOMA terminal to become warm
during use or charging. Continue to use it.
●Do not leave the FOMA terminal with the camera
in areas under strong direct sunlight.
･May cause discoloring or burn-in of materials.
●Usually, use FOMA terminal with the earphone/
microphone jack cover, external connecting jack
cap and microSD memory card slot cover
placed.
･Dust and/or water brought into FOMA terminal
cause troubles.
●Do not use the FOMA terminal with the back
cover removed.
･It may cause the battery to come off, or may
cause a malfunction or damage.
●Do not put an extremely thick sticker, etc. on the
surface of display or keys.
･May cause malfunction.
●Do not rotate the display with the FOMA
terminal folded.
･It may cause the display or around the keys to
be scratched, causing a malfunction or
damage.
●While using microSD memory card, do not
remove microSD memory card or turn OFF the
FOMA terminal.
･It may cause data loss or malfunction.
Battery pack
●The battery pack is a consumable part.
･Replace the battery pack if FOMA terminal has
extremely short operation time on a full
charge, though it may vary by operating
conditions. Purchase a new battery pack of the
specified type.
F884i_013_PL.fm 16 ページ ２００８年１月１０日 木曜日 午後８時６分
F884i_2kou
17
Easy Search/CONTENTS/Handling instructions
●Charge the battery in an area within the proper
ambient temperature range (5-35℃).
●Always charge before using it for the first time or
after extended disuse.
●The operation time provided by the battery pack
varies by the operating environment and battery
pack's deterioration.
●The battery pack may swell out as it comes to
near the end of its lifetime depending on the
usage conditions, but it is not a problem.
●Do not preserve or leave the battery pack as it is
empty.
･It may cause the battery pack performance to
be degraded or its lifetime to be shortened.
Adapter (including battery
charger)
●Charge the battery in an area within the proper
ambient temperature range (5-35℃).
●Do not charge the battery in the areas below :
･In areas of excessive humidity, dust or
vibrations
･Near general subscriber phones, TVs or radios
●It is normal for the adapter (including battery
charger) to become warm while charging.
Continue to use it.
●When using the DC adapter for charging, keep
the vehicle engine running.
･The vehicle's battery could become flat.
●When using an outlet with a mechanism
preventing unplugging, follow the handling
instructions for that outlet.
●Do not give hard shock to the adapter (including
battery charger). Do not deform the charger
terminal.
･May cause malfunction.
UIM
●Do not use excessive force to insert/remove the
UIM.
●It is normal for the UIM to become warm during
use. Continue to use it.
●Note that DoCoMo assumes no responsibility for
malfunctions occurring as the result of inserting
and using a UIM with another IC card reader/
writer.
●Always keep UIM ICs clean.
●Clean the UIM with a soft, dry cloth (such as a
cloth for eyeglasses).
●Maintain a separate record of the data you
register on the UIM.
･If the data should be deleted, DoCoMo
assumes no responsibility for the loss of any
data.
●To preserve the environment, bring the old UIM
to a sales outlet such as DoCoMo Shop.
●Avoid extreme temperature.
●Take care not to scratch, touch accidentally or
short IC.
･It may cause data loss or malfunction.
●Do not drop the UIM or subject it to shocks.
･May cause malfunction.
●Do not bend the UIM or place heavy objects on it.
･May cause malfunction.
●Do not insert UIM into the FOMA terminal with a
label or sticker put on UIM.
･May cause malfunction.
FeliCa reader/writer
●FeliCa reader/writer function of FOMA terminal
uses weak waves requiring no licenses for radio
stations.
●It uses 13.56 MHz frequency band. When using
other reader/writers in your surroundings, keep
FOMA terminal away sufficiently from them.
Before using the FeliCa reader/writer, confirm
that there are no radio stations using the same
frequency band nearby.
CAUTION
●Do not use a remodeled FOMA terminal. Using a
remodeled terminal violates the Radio Law.
･FOMA terminal is certified according to
technical standard conformance of specified
wireless equipment based on the Radio Law,
and as a proof of it, the "Technical Compliance
Mark " is depicted on the engraved sticker of
FOMA terminal.
If you remodel FOMA terminal by removing its
screws, your certification of technical standard
conformance becomes invalid.
Do not use FOMA terminal with its certification
of technical standard conformance invalid as it
violates the Radio Law.
●Be careful when you use the FOMA terminal
while driving a car, etc.
･Using a mobile phone while driving is subject
to penal regulations. If you inevitably receive a
call, tell the caller that you will "call back" by
handsfree, then park in a safe place and call
back.
●Use FeliCa reader/writer function only in Japan.
･FeliCa reader/writer function of FOMA terminal
conforms to Japanese radio standards.
If you use this function overseas, you may be
punished.
F884i_013_PL.fm 17 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
18
Easy Search/CONTENTS/Handling instructions
Intellectual property
rights
Copyrights and portrait rights
Except for the case protected by copyright laws
such as personal use, use of FOMA terminal to
reproduce, alter, or publicly transmit recorded
pictures or sounds, or copyrighted text, images,
music or software downloaded from websites
without the copyright holder's authorization is
prohibited.
Note that taking photos or recordings at some
demonstrations, performances or exhibitions
may be prohibited even when only for personal
use.
Avoid taking pictures of others with FOMA
terminal without their consent or disclosing
recorded pictures of others without their
consent to general public through Internet
websites, etc., because they may infringe on
portrait rights.
Trademarks
Company and product names mentioned in this
manual are trademarks or registered
trademarks of their respective holders.
●"FOMA", "mova", "i-motion", "i-mode", "i-αppli",
"i-motion mail", "i-shot", "DoPa", "mopera",
"mopera U", "WORLD CALL", "WORLD WING",
"Chaku-motion (Movie ringtone)", "Deco-mail",
"V-live", "i-area", "i-αppliDX", "i-Channel", "Dual
Network", "FirstPass", "sigmarion", "Security
Scan", "musea", "Public mode", "ToruCa", "iD",
"DCMX", "IMCS" and logos of "FOMA", "i-mode",
"i-αppli", "DCMX", "iD" and "WORLD WING" are
trademarks or registered trademarks of NTT
DoCoMo.
●Microsoft®, Windows® and Windows Vista® are
trademarks or registered trademarks of
"Microsoft Corporation" in the US and other
countries.
●Java and all Java-related trademarks are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the US and other
countries.
●"Catch Phone (Call waiting service)" is a
registered trademark of Nippon Telegraph and
Telephone Corporation.
●Free Dial logo mark is a registered trademark of
NTT Communications Corporation.
●This product contains NetFront Browser and
NetFront Sync Client of ACCESS CO., LTD.
Copyright© 2008 ACCESS CO., LTD. All rights
reserved.
ACCESS and NetFront are trademarks or
registered trademarks of ACCESS CO., LTD.in
Japan and other countries.
●Contains Flash® LiteTM and Adobe® Reader®
technology by Adobe Systems Incorporated.
Flash Lite copyright© 1995-2008 Adobe
Macromedia Software LLC. All rights reserved.
Adobe Reader copyright© 1984-2008 Adobe
Systems Incorporated. All rights reserved.
Adobe, Flash, Flash Lite and
Reader are either registered
trademarks or trademarks of
Adobe Systems Incorporated in the United
States and/or other countries.
●FlashFX® ProTM is a registered trademark of
DATALIGHT, Inc.
FlashFX® Copyright 1998-2008 DATALIGHT, Inc.
U.S.Patent Office 5,860,082/6,260,156
●QR code is a registered trademark of Denso
Wave Inc.
●microSD logo is a trademark.
●FeliCa is a registered trademark of Sony
Corporation.
● is a registered trademark of FeliCa
Networks, Inc.
●Powered by JBlendTM Copyright 2002-2008 Aplix
Corporation. All rights reserved.
JBlend and JBlend-related trademarks are
trademarks or registered trademarks of Aplix
Corporation in Japan and other countries.
●McAfee® is registered trademarks or trademarks
of McAfee, Inc. and/or its affiliates in the US and/
or other countries.
●Adobe and Reader are either registered
trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other
countries.
●QuickTime is a registered trademark of Apple
Inc. in the US and other countries.
●ATOK + APOT of Justsystem Corporation is
installed in this product as Japanese character
conversion function.
"ATOK" "APOT (Advanced Prediction
Optimization Technology)" are registered
trademarks of Justsystem Corporation.
●This product contains software licensed by
Symbian Software Ltd © 1998-2008.
and Symbian OS are trademarks of Symbian Ltd.
●Other company and product names mentioned
in this manual are trademarks or registered
trademarks of their respective holders.
F884i_013_PL.fm 18 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
19
Easy Search/CONTENTS/Handling instructions
The abbreviations of operating systems
(Japanese versions) below are used in this
manual :
●Windows Vista stands for Windows Vista®
(Home Basic, Home Premium, Business,
Enterprise and Ultimate).
●Windows XP indicates the Microsoft®
Windows® XP Professional operating system or
Microsoft® Windows® XP Home Edition
operating system.
●Windows 2000 indicates the Microsoft®
Windows® 2000 Professional operating system.
Other
●FeliCa is a contactless IC card technology
developed by Sony Corporation.
●This product contains a module developed by
the Independent JPEG Group.
●This product is licensed based on MPEG-4 Visual
Patent Portfolio License. The use of MPEG-4
Video Codec function is allowed for personal
and nonprofit use only in the cases below :
･Recording movies and i-motion that conform
to MPEG-4 Visual Standard (hereinafter
referred to as MPEG-4 Video)
･Playing MPEG-4 Videos recorded personally
by consumers not engaged in profit activities
･Playing MPEG-4 Video supplied from the
provider licensed from MPEG-LA
For further utilizing such as promotion, in-
house use or profit-making business, please
contact MPEG LA, LLC in U.S.
●Licensed by QUALCOMM Incorporated under
one or more of the following United States
Patents and/or their counterparts in other
nations;
4,901,307 5,504,773 5,109,390
5,535,239 5,267,262 5,600,754
5,416,797 5,490,165 5,101,501
5,511,073 5,267,261 5,568,483
5,414,796 5,659,569 5,056,109
5,506,865 5,228,054 5,544,196
5,337,338 5,657,420 5,710,784
5,778,338
F884i_013_PL.fm 19 ページ ２００８年１月９日 水曜日 午後６時８分
20
F884i_2kou
Easy Search/CONTENTS/Handling instructions

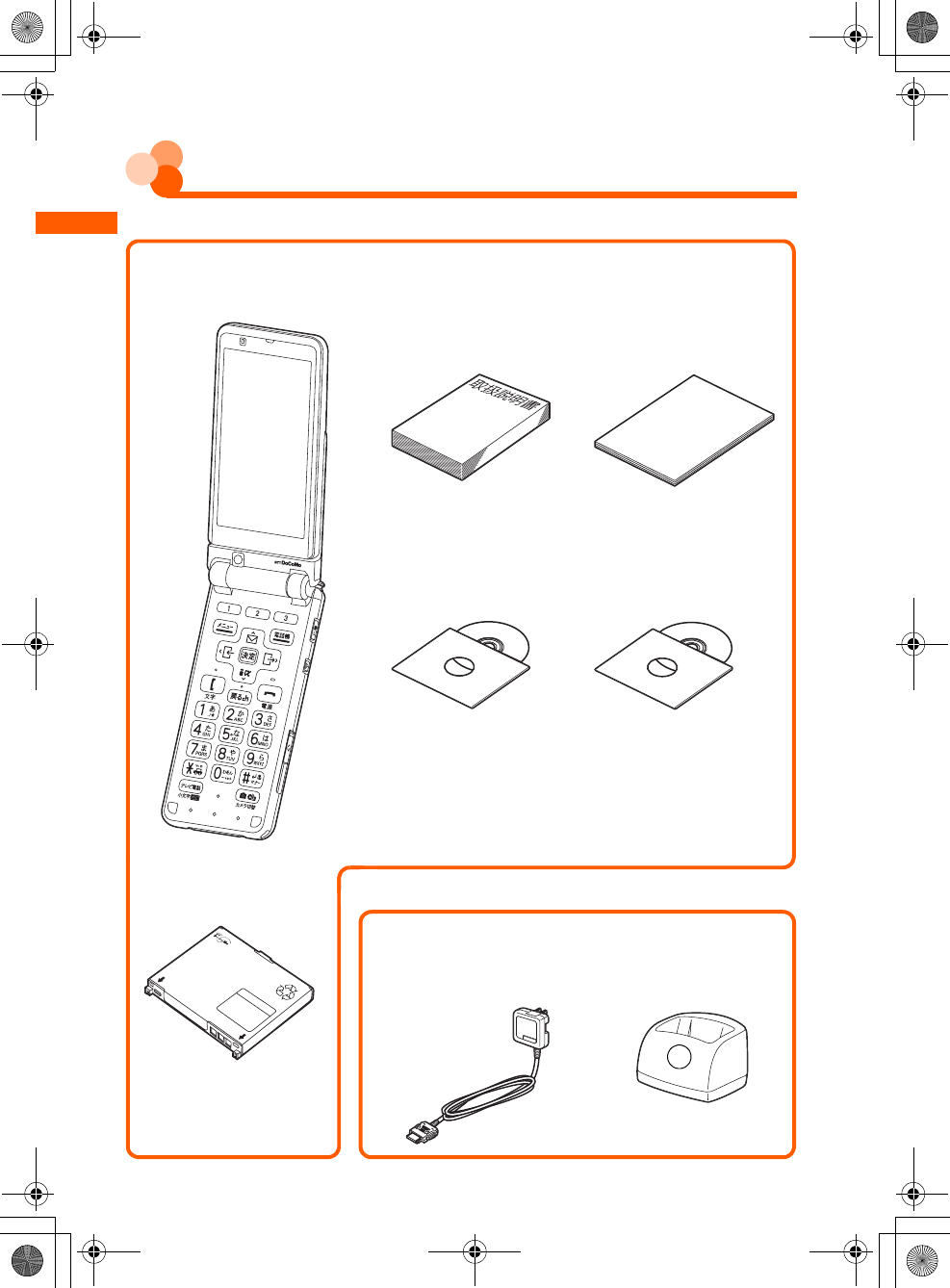

Basic package and optional accessories
■Basic package
Other optional accessories→p.481
FOMA F884i
(including the Back Cover F28
and the written warranty) FOMA F884i
INSTRUCTION MANUAL
(This manual)
* Quick Manual is
appended on p.524.
CD-ROM for
FOMA F884i
* PDF version "パソコン接
続マニュアル (Manual for
PC connection setting)"
and "区点コード一覧
(Kuten Code List)" are
included.
FOMA F884i
かんたん操作ガイド
(Easy operation guide)
かんたん操作ガイド
らくらくホンⅣ
(Rakuraku phone IV)
DVD for 操作ガイド
(Operation guide)
Battery Pack F11 ■Optional accessories
FOMA AC Adapter 01/02
(including the written
warranty, operation manual)
Desktop Holder F25
(including
operation manual)
仮
F884i_013_PL.fm 20 ページ ２００８年１月９日 水曜日 午後６時８分
F884i_2kou
21
Before Using the Handset
Names and functions of parts..................................................................................... 22
Swinging display (YOKO-MOTION)............................................................................ 24
Display overview .......................................................................................................... 25
Sub-display overview .................................................................................................. 28
Menu operation ............................................................................................................ 30
Using UIM (FOMA card)............................................................................................... 35
Attaching/Removing battery pack ............................................................................. 38
Charging the FOMA terminal ...................................................................................... 39
Checking remaining battery level.................................. <Remaining battery level> 43
Turning power ON/OFF ................................................................. <Power ON/OFF> 45
Setting date and time ......................................................................... <Date & time> 48
Notifying your phone number to the other party .............. <Caller ID notification> 50
Checking your own phone number .......................................... <User Info. display> 51
F884i_020_BEF.fm 21 ページ ２００８年１月９日 水曜日 午後５時５０分
F884i_2kou
22
Before Using the Handset

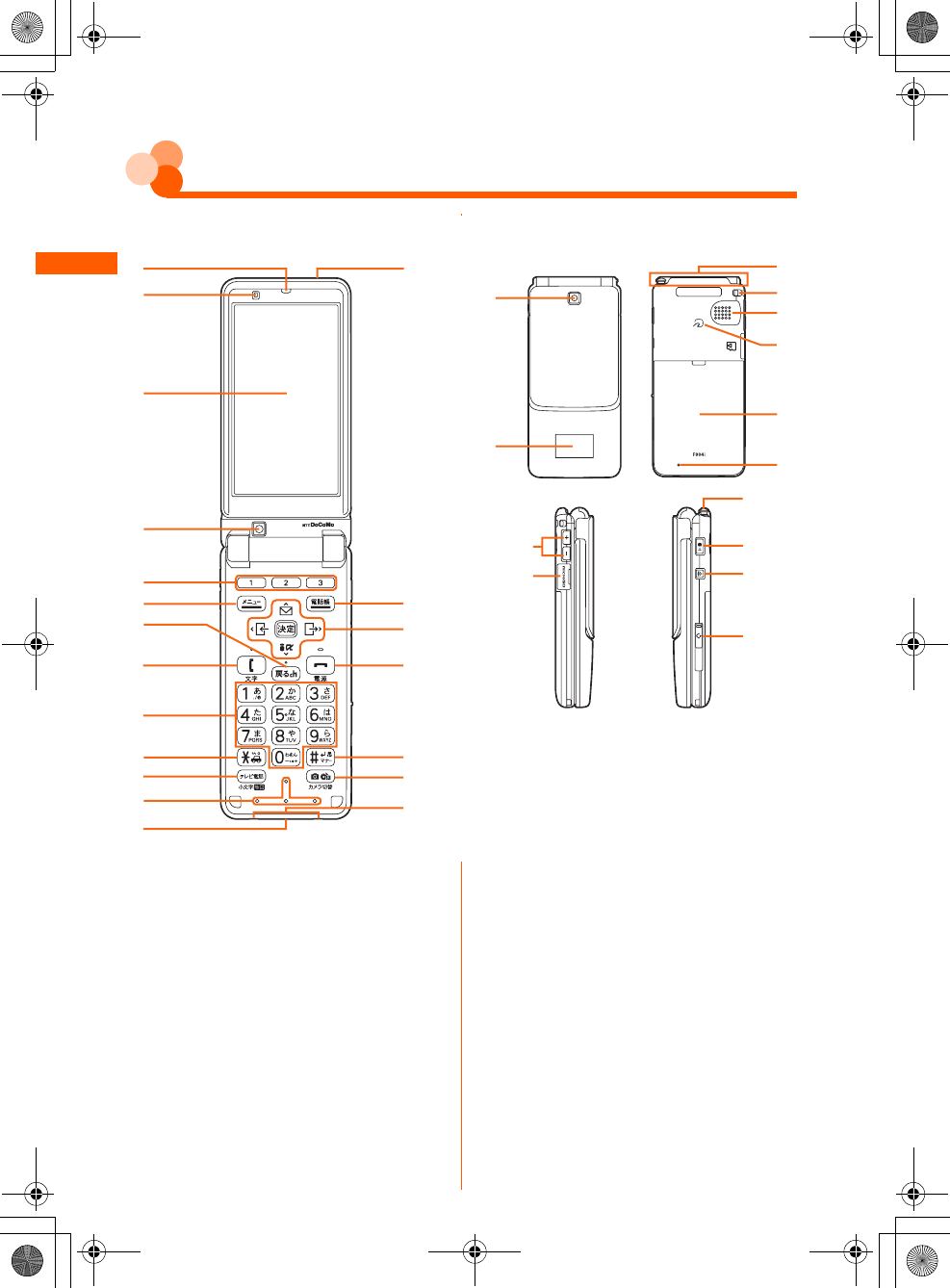

Names and functions of parts
aEarpiece
Other party's voice is heard from here.
bLight sensor
Use to adjust automatically the brightness of
the display.
* Blocking the light sensor may disable
automatic adjustment of Display light
correctly.
cDisplay→p.25
dIn Camera
Use to shoot the image of yourself or to send
the image of yourself over a videophone call.
eghiOne-touch dial button
1/2/3
Register one-touch dial key.
Pressing this key for 1 sec. or more allows you
to make a call to the registered party.
fmMenu button
Use to display menus or to perform the
operation shown on the left of the guide line.
Press for 1 sec. or more to use the voice menu.
gCReturn button
Use to display i-Channel list, switch i-αppli
stand-by display and i-αppli activation, delete
characters or return to previous display.
Press for 1 sec. or more to delete the display of
newly arrived information.
hnStart/Character button
Use to make/answer voice calls, switch ordinary
and speakerphone calls or switch character
entry modes.
Press for 1 sec. or more to play the voice
message of Voice Mail.
Names of parts of F884i and main functions assigned to buttons are explained below.
●
In the explanation of operations, the buttons described here are represented by graphical symbols.
a
o
l
m
q
p
r
s
t
b
c
d
h
f
e
g
i
j
k
y
z
v
u
A
l
B
CF
E
G
x
D
nw
F884i_020_BEF.fm 22 ページ ２００８年１月９日 水曜日 午後５時５０分
F884i_2kou
23
Before Using the Handset
i0-9Keypad dial
Use to enter phone numbers or text, or to select
menu items.
Press 0 for 1 sec. or more to enter "+".
j
*
/Public mode (Drive mode) key
Use to enter " ", "゛" or "゜".
Press for 1 sec. or more to start/cancel Public
mode.
ktVideophone/Lower case/
Navigation button
Use to make a videophone call or to change
upper/lower case.
Press for 1 sec. or more to check your current
location.
lMicrophone
Send your voice from here.
* If you cover the microphone, your voice may
not be heard clearly to the other party or the
voice may not be recorded correctly.
* The microphone on the rear side is for
reducing the noise, and it does not pick up
your voice.
mExternal connecting jack
Connect various optional devices such as
FOMA AC Adapter 01/02.→p.41
nInfrared data port
Use to send or receive data via infrared
communication.
opPhonebook button
Use to display phonebook, to perform the
operation shown on the right of the guide line
or to switch the call by Speakerphone.
Press for 1 sec. or more to perform voice search
of the phonebook.
pMulti-cursor button
kEnter button
Use to perform selected operation or to display
the convenient tool menu. When there is an
information to notify, display the contents of it.
UMail/Up button
Use to display mail menu screen, to move the
cursor up and down, to adjust the volume (up) or
to display the mail folder list after receiving new
mails.
Press for 1 sec. or more to display mail creation
screen.
DDown button
Use to display i-mode menu, to move the cursor
down or to adjust the volume (down).
Press for 1 sec. or more to display i-αppli list.
LReceived calls/Left button
Use to display received calls, to move the
cursor left, to switch screen or to adjust the
volume (down).
RRedial/Right button
Use to display received calls, to move the
cursor right, to switch screen or to adjust the
volume (up).
qfEnd/Power button
Use to terminate calling/operating function, on-
hold, or to cancel Secret mode.
Press for 2 sec. or more to turn ON/OFF the
power of the FOMA terminal.
r##/Line-fee/Macro shooting/
Silent mode button
Use to enter "#", to start a new line or to switch
Macro mode while shooting.
Press for 1 sec. or more to start/cancel Silent
mode.
s)Camera/Camera switching/
Voice input button
Use to activate photo taking screen, to switch
out/in camera or voice input for mail creation.
Press for 1 sec. or more to display camera
menu.
tCharging terminal
uOut camera
Use to shoot or send the image of yourself over
a videophone call.
vSub-display→p.28
wFOMA Antenna
The terminal has a FOMA built-in antenna. To
talk in better conditions, do not cover the
antenna with your hand.
xStrap opening
ySpeaker
Ring alert, voice of the other party using the
speakerphone or one-touch buzzer are heard
from here.
zFeliCa mark→p.290, p.369
Indicate that IC card is inserted.
* You can use Osaifu-Keitai by placing it over
IC card reader or send/receive data by iC
transmission. The IC card cannot be
detached.
ABack cover
BudVolume button
Use to turn on the Sub-display or to adjust the
volumes, brightness for shooting or thickness
of colors.
CmicroSD memory card slot→p.359
D1Seg antenna→p.321
E(Voice reading button
Use to turn on the light of the sub-display, to
switch display, to set Voice slowing, Voice
reading or to terminate Alarm clock or the voice
for notification of the schedule.
FoOne-touch buzzer button
Use to sound one-touch buzzer.→p.388
GEarphone/Microphone jack
Connect Flat-plug Earphone/Microphone with
Switch (optional).→p.398
F884i_020_BEF.fm 23 ページ ２００８年１月９日 水曜日 午後５時５０分
24
F884i_2kou
Before Using the Handset
Swinging display (YOKO-MOTION)
With FOMA terminal open, rotate the display 90 degrees to the right or left to display
Horizontal display.
●If you rotate the display clockwise, 1Seg starts, and if you rotate the display
counterclockwise, image shooting starts.
●Horizontal display can be used for such functions as 1Seg or camera.
fi
I N FO R M A T I O N
●Do not rotate the display with the FOMA terminal folded. The display and around the buttons may be
scratched.
●When swinging with a function unavailable with Horizontal display, "画面を縦に戻してください (Return
the display to vertical position)" appears.
When swung to the right
F884i_020_BEF.fm 24 ページ ２００８年１月９日 水曜日 午後５時５０分
F884i_2kou
25
Before Using the Handset
a: Display of remaining battery level
→p.43
b/ : Display of reception level
→p.45
: Self mode ON→p.130
: Data exchange (sending/
receiving) going on/Using data
link software
→p.357, p.369, p.425, p.482
c: In i-mode, connected→p.174
: Displaying SSL page→p.176
/ : Packet communication is
going on, connected with PC/
Exchanging data→p.422
: In infrared communication→p.369
d: Secret mode ON→p.131
e: During a voice call→p.56
: During videophone call→p.56
: Switching between voice call and
videophone call→p.59
: Disconnecting voice/videophone
call→p.56
: 64K data communication is going
on→p.422
: Voice reading available/Voice
reading ON→p.146
f: Unread Area Mail→p.247
: Reception notification of i-mode
mail, SMS, MessageR/F
→p.196, p.230, p.252
/: i-αppli/i-αppliDX is running
→p.270
/: i-αppli/i-αppliDX stand-by
display is displayed→p.280
/ : Activating from i-αppli/
i-αppliDX stand-by display→p.282
///:
Network in use→p.430
: One-touch buzzer ON→p.388
: One-touch buzzer OFF→p.390

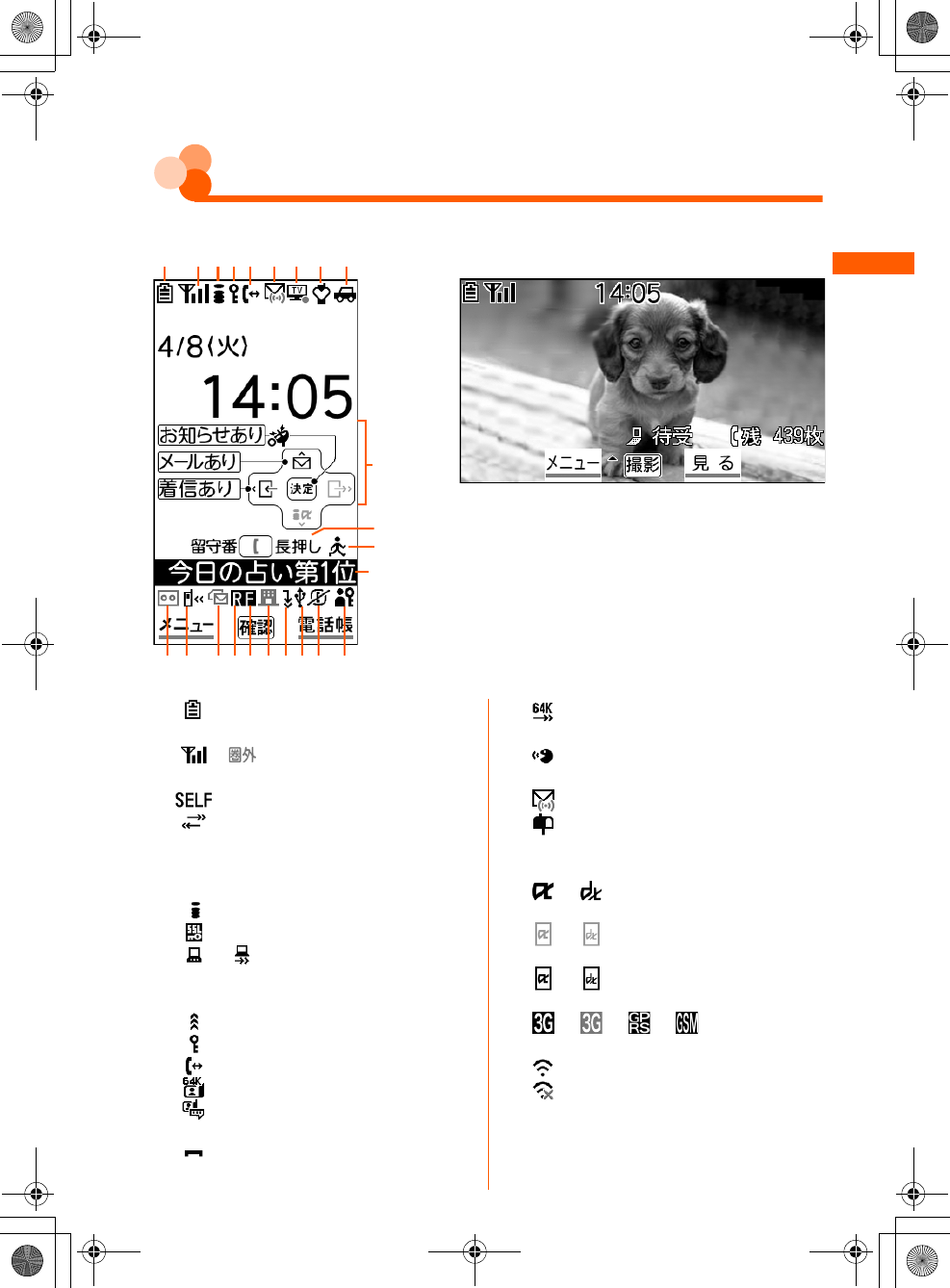

Display overview
Icons shown on the display are explained here.
a b cde f g h i
l
Information,
newly arrived
information
j
Ticker of
i-Channel
mnop rs u
<Vertical position>
<Horizontal position>
k
qt
*1
F884i_020_BEF.fm 25 ページ ２００８年１月９日 水曜日 午後５時５０分
F884i_2kou
26
Before Using the Handset
g: Performing 1Seg Timer recording/
1Seg recording (only watching
stopped)→p.328, p.333
: i-αppli Auto start failed→p.278
: P-Talk speakerphone→p.71
: In i-mode→p.174
: Obtaining i-motion data→p.204
: Positioning with GPS→p.300
//// /
: Display of input mode→p.405
h: Silent mode ON→p.117
: Vibrator for voice call and Mute of
Call alert volume are set to ON at
the same time→p.114, p.115
: Vibrator for voice call ON→p.115
: Mute of Call alert volume ON
→p.114
: Receiving i-mode mail, SMS
→p.230, p.252
i: In Public mode (Drive mode)
→p.73
(black) : Reading UIM→p.45
: Receiving MessageR→p.196
: Receiving MessageF→p.196
j*4 : Voice messages in
Voice Mail service→p.27, p.416
: IC card lock ON→p.296
/ : Auto-send mail exists/failed
auto-send mail/auto-send
pedometer mail exists
→p.217, p.395
k/ : Setting the usage of
pedometer/Setting the usage of
pedometer and auto-send mail of
pedometer→p.393, p.395
l(red) : Recorded message full→p.75
: Unchecked Recorded message
exists→p.78
(black) : Setting Recorded message
→p.75
m: Unchecked Missed call exists
→p.62
nDisplay status of unread i-mode mail and
SMS→p.230, p.231, p.252, p.253
: Unread i-mode mail and SMS are
full and SMS are full on UIM
(red) : Unread i-mode mail and SMS
are full
(red) : SMS are full in UIM
(black) : Unread i-mode mail and
SMS exist
o / (black/red) : Unread MessageR exits/
full→p.197, p.199
p / (black/red) : Unread MessageF exits/
full→p.197, p.199
qStorage status in i-mode Center
→p.197, p.231
(red) : i-mode mail and MessageR/F
storage are full or one of these
spaces is full and unreceived
message exists
/ / (all red) : i-mode mail or
MessageR/F storage is full
(black) : Unreceived i-mode mail
and MessageR/F exist
/ / (all black) : Unreceived
i-mode mail and MessageR/F exist
: Unread ToruCa exists→p.291
: Location request setting with GPS
→p.312
r: Reserving Software update
→p.503
: microSD memory card exists
→p.359
s: Connected to PC, etc., using
FOMA USB Cable→p.422, p.482
t: Keypad dial lock ON→p.133
u: User Info. display restriction ON
→p.132
: Alarm clock ON→p.378
: Setting to notify the Schedule
→p.380
: Setting to notify the Alarm clock
and Schedule→p.378, p.380
*1 When returning to the stand-by display,
the display disappears.
*2 Time is displayed on other than stand-by
display.
*3 The current highest-priority item is
displayed. These icons are listed in
descending order of the priority from the
top.
*4 Displayed in priority to other icons.
*5 Not displayed when the icon s is
displayed.
*2, 3
*3
*3
*5
*3
F884i_020_BEF.fm 26 ページ ２００８年１月９日 水曜日 午後５時５０分
27
F884i_2kou
Before Using the Handset

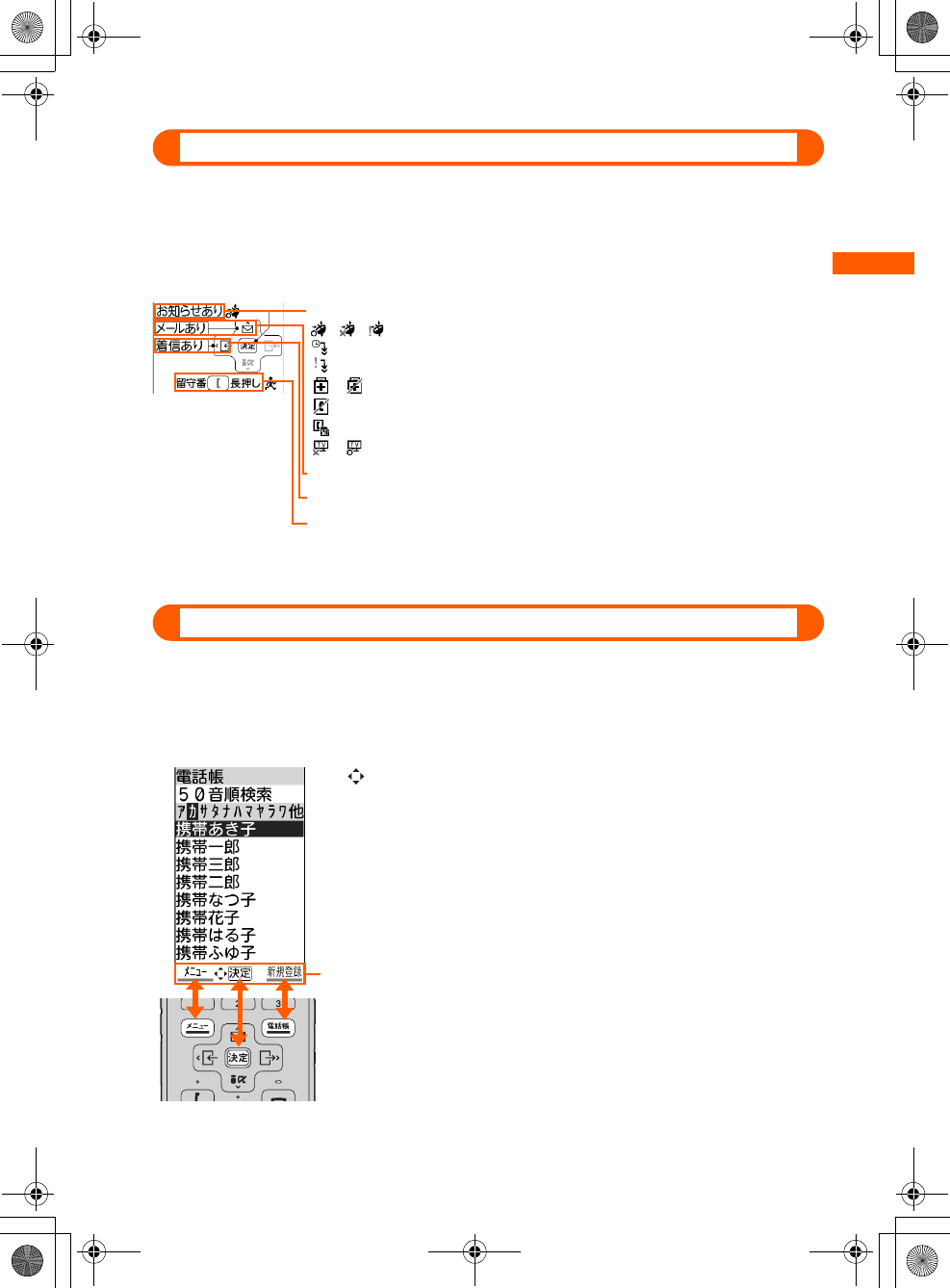

Display of information/newly arrived information
If there is a notification of failed auto-update of phonebook or saving phonebook, auto-update
of pattern definitions or result of Location request of GPS, it is displayed as information on
stand-by display. And, if there is a record of received mail or missed call, recorded message,
or Voice messages in Voice Mail service center, it is notified as information on the stand-by
display.
●C for 1 sec. or more : Delete the display of newly arrived information.
●When FOMA terminal is folded, newly arrived information appears on the sub-display.
Display of guide line
Operations that can be performed by pressing m, k, p are displayed on the guide line
(the displayed operations differ by the screen).
In this manual, the explanation of operations displayed on the guide line is explained by
corresponding buttons (m, k, p). Display locations and buttons correspond as shown
in the figure.
Press U : The received mail list is displayed.→p.234
Press L : The display screen of received calls is displayed.→p.61
Press n : A confirmation screen for playing message appears.→p.416
Press k : The notification below is displayed by displayed icons.
/ / : End by success/failure/no response of Location request→p.312
: Overwriting notice icon→p.499
: Update notification icon→p.500
/ : Notification of Auto-updating pattern definitions→p.506
: Auto-update of latest pattern definition failure→p.99
: Information of saving phonebook→p.109
/ : 1Seg recording reservation failure/success→p.328
● on the guide line corresponds with UDLR of multi-
cursor button.
With "ガイド (Guide)" displayed on the guide line, press p to
display the guide screen explaining the details of the function.
Press p or C to end the guide screen.
Guide line
F884i_020_BEF.fm 27 ページ ２００８年１月９日 水曜日 午後５時５０分
F884i_2kou
28
Before Using the Handset
I N FOR M A T I O N
●On the screen of ナビソフト (Navigation software) or 脳力ストレッチ (Brain power stretch), even if the
operations corresponding to kUDLR are not displayed on the guide line, these buttons may
be available.
a: Display of remaining battery level
→p.43
b / : Display of reception level
→p.45
: Self mode ON→p.130
: Data transfer (sending/receiving)
going on/Using data link software
→p.357, p.369, p.425, p.482
c: In i-mode, connected→p.174
d / : One-touch buzzer ON/OFF status
→p.388, p.390
e: In Public mode (Drive mode)
→p.73
: Silent mode ON→p.117
: Voice reading available/Voice
reading ON→p.146
fDisplay of the number of steps→p.394
gNewly arrived information→p.27
*1 Display the current high-priority item.
These icons are listed in descending
order of the priority from the top.
*2 When there is newly arrived information,
any of "着信あり (Missed call)", "メールあ
り (New mail)", "伝言あり (Recorded
message)" or "留守電あり (Voice mail)" is
displayed. Note that when two or more
kinds of newly arrived information exist,
"新着あり (New information)" appears.
Sub-display overview
Even when FOMA terminal is folded, set functions or various information can be checked.
List of displayed icons
●The icon can be displayed by switching the display of sub-display.→p.30
abcdef
g
仮
仮
仮
*1
*2
Main displayed information
If there is any change from stand-by status like you receive a call or you are receiving a mail
while the FOMA terminal is folded, it is notified by displaying the status. Main displayed
information are as below :
F884i_020_BEF.fm 28 ページ ２００８年１月９日 水曜日 午後５時５０分
