OPERATORS MANUAL

MARINE RADAR

MODEL 851 MARK-2

9-52, Ashihara-cho,

Nishinomiya, Japan

Telephone: 0798-65-2111

Telefax: 0798-65-4200

Your Local Agent/Dealer

PUB. No. OME-34900

MODEL 851 MARK-2

(

TENI

)

FIRST EDITION: JUNE 2000

Printed in Japan

Do not open the equipment.

Hazardous voltage which can

cause electrical shock, burn or

serious injury exists inside the

equipment. Only qualified

personnel should work inside

the equipment.

Wear a safety belt and hard

hat when working on the

antenna unit.

Serious injury or death can

result if someone falls from

the radar antenna mast.

WARNING

ELECTRICAL

SHOCK

HAZARD

Stay away from transmitting

antenna.

The radar antenna emits mi-

crowave radiation which can

be harmful to the human body,

particularly the eyes. Never

look directly into the antenna

radiator from a distance of

less than 1 m when the radar

is in operation.

Turn off the radar power

switch before servicing the

antenna unit. Post a warn-

ing sign near the switch

indicating it should not be

turned on while the antenna

unit is being serviced.

Prevent the potential risk of

someone begin struck by the

rotating antenna and expo-

sure to RF radiation hazard.

WARNING

Do not disassemble or modify the

equipment.

Fire, electrical shock or serious injury can

result.

Turn off the power immediately if water

leaks into the equipment or the

equipment is emitting smoke or fire.

Fire or equipment damage can result if a

different cable is used.

Keep heater away from equipment.

Heat can alter equipment shape and melt

the power cord, which can cause fire or

electrical shock.

CAUTION

Use the proper fuse.

Use of a wrong fuse can result in fire or

permanent equipment damage.

A warning label is attatched to the

display unit. Do not remove the label.

If the label is missing or damaged,

contact a FURUNO agent or dealer.

SAFETY INSTRUCTIONS

WARNING

To avoid electrical shock,

do not remove cover.

No user-serviceable parts

inside.

Name: Warning Label (2)

Type: 03-129-1001-0

Code No.: 100-236-740

TABLE OF CONTENTS

FOREWORD.......................................... iv

SYSTEM CONFIGURATION .................. v

1. PRINCIPLE OF OPERATION

1.1 What is Radar?...........................1-1

1.2 How Ships Determined Position

Before Radar..............................1-1

1.3 How Radar Determines Range... 1-1

1.4 How Radar Determines

Bearing.......................................1-1

1.5 Radar Wave Speed and Antenna

Rotation Speed .......................... 1-2

1.6 The Radar Display...................... 1-2

2. OPERATION

2.1 Control Description.....................2-1

2.2 Display Indications and

Markers ......................................2-2

2.3 Turning the Radar On and Off .... 2-2

2.4 Transmitting................................ 2-3

2.5 Selecting the Range ...................2-3

2.6 Adjusting LCD Backlighting and

Display Tone...............................2-3

2.7 Adjusting Control Panel

Illumination................................. 2-4

2.8 Adjusting GAIN, STC, A.C RAIN

and FTC ..................................... 2-4

2.9 Tuning the Receiver ...................2-6

2.10 Measuring the Range ............... 2-6

2.11 Measuring the Bearing ............. 2-7

2.12 Menu Operation........................2-8

2.13 Selecting the Display Mode .... 2-10

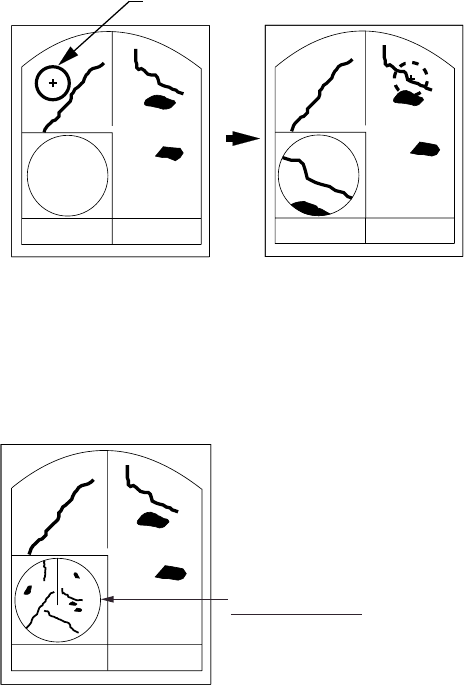

2.14 The Window Display............... 2-11

2.15 Selecting the Presentation

Mode ........................................ 2-12

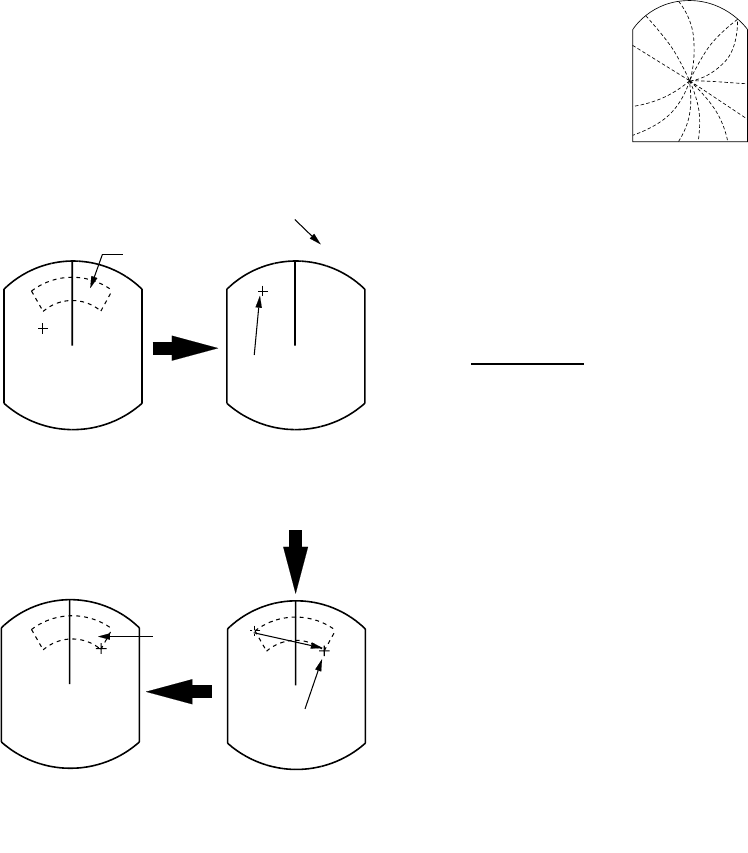

2.16 Guard Alarm ........................... 2-12

2.17 Suppressing Radar

Interference .............................. 2-14

2.18 Suppressing Noise

Interference ............................. 2-15

2.19 Selecting Pulselength............. 2-15

2.20 Off Centering the Display ....... 2-15

2.21 Echo Trails ............................. 2-16

2.22 Navigation Data Display......... 2-17

2.23 Echo Stretch (magnifying

long range echoes) .................. 2-18

2.24 Selecting Unit of

Measurement for Range .......... 2-19

2.25 Selecting Bearing Reference.. 2-19

2.26 Watchman.............................. 2-19

2.27 Erasing the Heading Marker... 2-20

2.28 Deselecting Ranges............... 2-20

2.29 Displaying Navigation Data

During Stand-by....................... 2-20

2.30 Outputting Cursor Position to

Navigator ................................. 2-21

2.31 Displaying Cursor Position,

Range and Bearing to Cursor .. 2-21

2.32 Visual Alarm Indications......... 2-21

3. INTERPRETING THE DISPLAY

3.1 The Radar Wave and Radar

Horizon ...................................... 3-1

3.2 Target Properties and Radar

Wave Reflection......................... 3-2

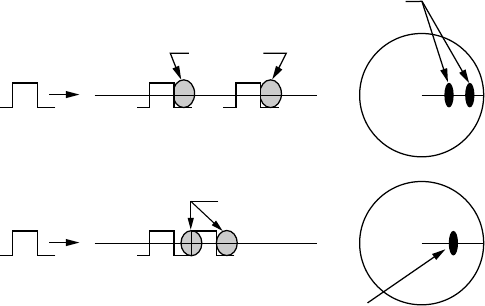

3.3 Range Resolution ...................... 3-2

3.4 Bearing Resolution..................... 3-2

3.5 False Echoes ............................. 3-3

3.6 SART ......................................... 3-5

3.7 Racon (Radar Beacon) .............. 3-7

4. MAINTENANCE &

TROUBLESHOOTING

4.1 Preventative Maintenance.......... 4-1

4.2 Replacing the Fuse .................... 4-2

4.3 Troubleshooting ......................... 4-2

4.4 Test ............................................ 4-3

4.5 Replacing the Magnetron........... 4-3

iii

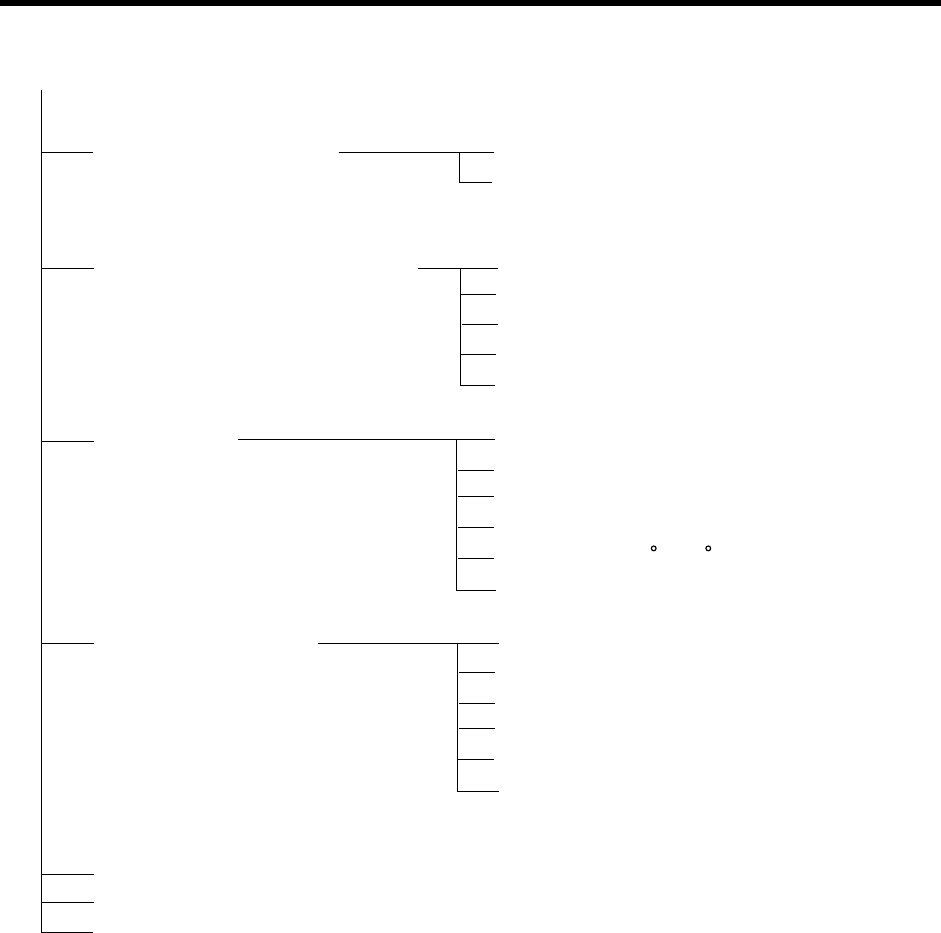

MENU TREE....................................... A-1

SPECIFICATIONS ............................ SP-1

INDEX .......................................... index-1

FOREWORD

Congratulations on your choice of the

FURUNO Marine Radar MODEL 851

MARK-2. We are confident you will see why

the FURUNO name has become synonymous

with quality and reliability.

For over 50 years FURUNO Electric

Company has enjoyed an enviable reputation

for innovative and dependable marine

electronics equipment. This dedication to

excellence is furthered by our extensive

global network of agents and dealers.

Your radar is designed and constructed to

meet the rigorous demands of the marine

environment. However, no machine can

perform its intended function unless properly

installed and maintained. Please carefully

read and follow the recommended procedures

for installation, operation and maintenance.

While this unit can be installed by the

purchaser, any purchaser who has doubts

about his or her technical abilities may wish to

have the unit installed by a FURUNO

representative or other qualified technician.

The importance of a thorough installation

cannot be overemphasized.

We would appreciate hearing from you, the

end-user, about whether we are achieving our

purposes.

Thank you for considering and purchasing

FURUNO equipment.

Features

Your radar has a large variety of functions, all

contained in a remarkably small cabinet.

The main features of the MODEL 851

MARK-2 are:

•Traditional FURUNO reliability and quality

in a compact, lightweight and low-cost

radar.

•Smartly styled, light-weight and compact

antenna fits even on small yachts.

•Durable brushless antenna motor.

•High definition 8" LCD raster-scan display.

•On-screen alphanumeric readout of all

operational information.

•Standard features include EBL (Electronic

Bearing Line), VRM (Variable Range

Marker), Guard Alarm, Display Off Center

and Echo Trail.

•Watchman feature periodically transmits

the radar to check for radar targets which

may be entering (or exiting) the alarm

zone.

•Ship’s position in latitude and longitude (or

Loran C Time Differences), range and

bearing to a waypoint, ship’s speed,

heading and course can be shown in the

bottom text area. (Requires a navigation

aid which can output such data in NMEA

0183 format.)

•Zoom feature provided.

•Omnipad makes the selection of target and

menu items easy.

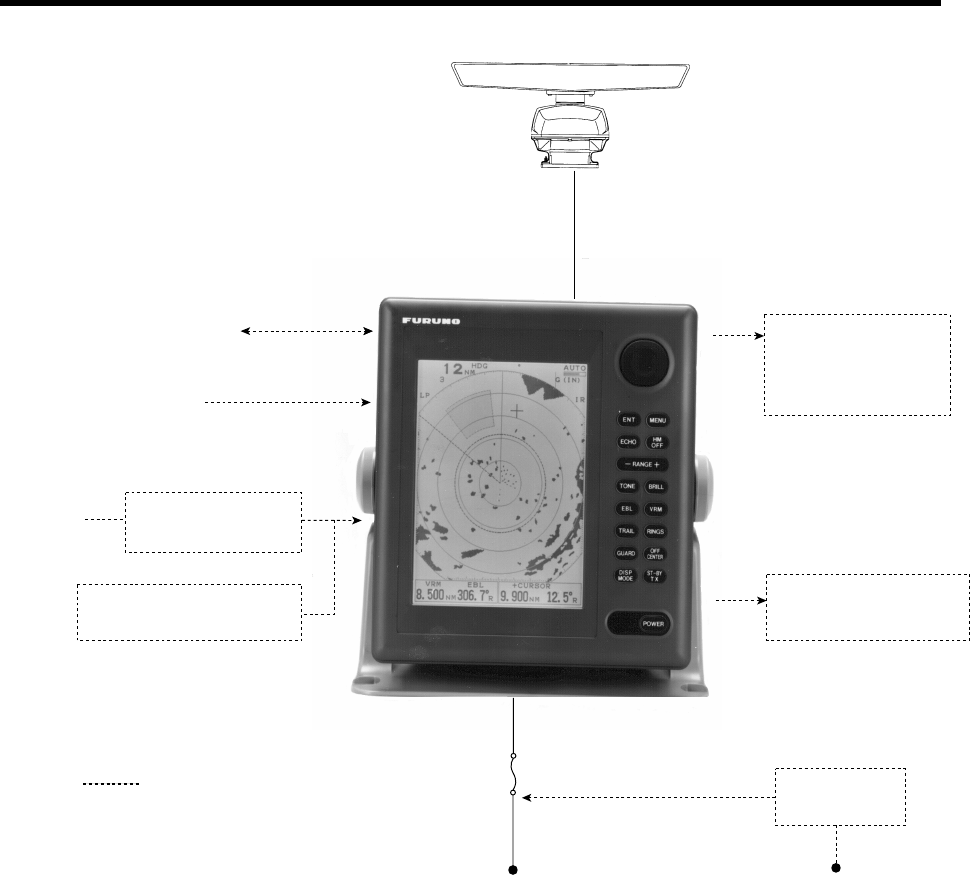

SYSTEM CONFIGURATION

Remote Display

FMD-8010

FMD-811

External Alarm

Buzzer OP03-169

Rectifier

RU-3423

Navigation Device

Echo Sounder

Gyro-

compass

Ship's Mains

100/110/115 VAC

200/220/230 VAC

1φ, 50/60 Hz

Ship's Mains

12-24 VDC

Option

MODEL 851 MARK-2

Antenna unit

Integrated Heading

Sensor PG-1000

Gyro Converter

AD-100

1-1

1. PRINCIPLE OF OPERATION

1.1 What is Radar?

The term "RADAR" is an acronym meaning

RAdio Detection And Ranging. It is a

device which measures the time it takes for

a pulsed signal to be reflected back from

an object.

1.2 How Ships Determined

Position Before Radar

The use of echoes to determine position

did not begin with radar. Ships would sound

a short blast on their whistles, fire a shot, or

strike a bell as an aid to navigation when

running in fog near a rugged shoreline. The

time between the origination of the sound

and the returning of the echo indicated how

far the ship was from the cliffs or the shore.

The direction from which the echo was

heard indicated the relative bearing of the

shore.

1.3 How Radar Determines

Range

Radar determines the distance to the target

by calculating the time difference between

the transmission of a radar signal and the

reception of the reflected echo. It is a

known fact that radar waves travel at a

nearly constant speed of 162,000 nautical

miles per second. Therefore the time

required for a transmitted signal to travel to

the target and return as an echo to the

source is a measure of the distance to the

target. Note that the echo makes a

complete round trip, but only half the time

of travel is needed to determine the one-

way distance to the target. This radar

automatically takes this into account in

making the range calculation.

1.4 How Radar Determines

Bearing

The bearing to a target found by the radar

is determined by the direction in which the

radar antenna is pointing when it emits an

electronic pulse and then receives a

returning echo. Each time the antenna

rotates pulses are transmitted in the full

360 degree circle, each pulse at a slightly

different bearing from the previous one.

Therefore, if one knows the direction in

which the signal is sent out, one knows the

direction from which the echo must return.

1-2

1.5 Radar Wave Speed and

Antenna Rotation Speed

The speed of the radar waves out to the

target and back again as echoes is

extremely fast compared to the speed of

rotation of the antenna. By the time radar

echoes have returned to the antenna, the

amount of antenna rotation after initial

transmission of the radar pulse is

extremely small.

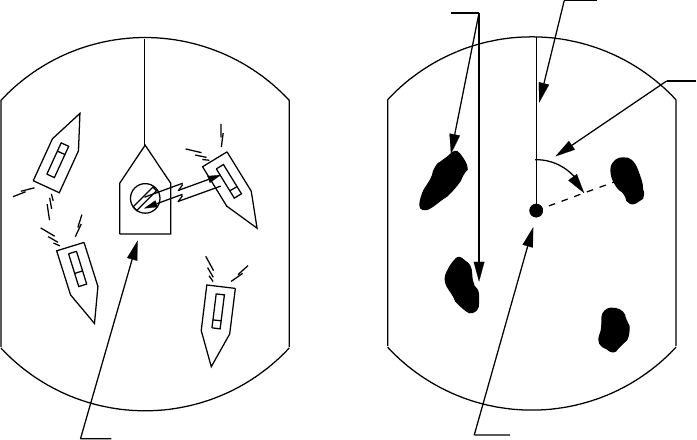

1.6 The Radar Display

Targets are displayed on what is called a

Plan Position Indicator (PPI). This display

is essentially a polar diagram, with the

transmitting ship’s position at the center.

Images of target echoes are received and

displayed at their relative bearings, and at

their distance from the PPI center.

With a continuous display of the images of

targets, the motion of the transmitting ship

is also displayed.

Own ship

(radar)

Heading marker

Targets

Own ship

in center

Range and bearing

of a target, relative

to own ship, are

readable on the PPI.

(A) Bird's eye view of situation (B) Radar picture of (A)

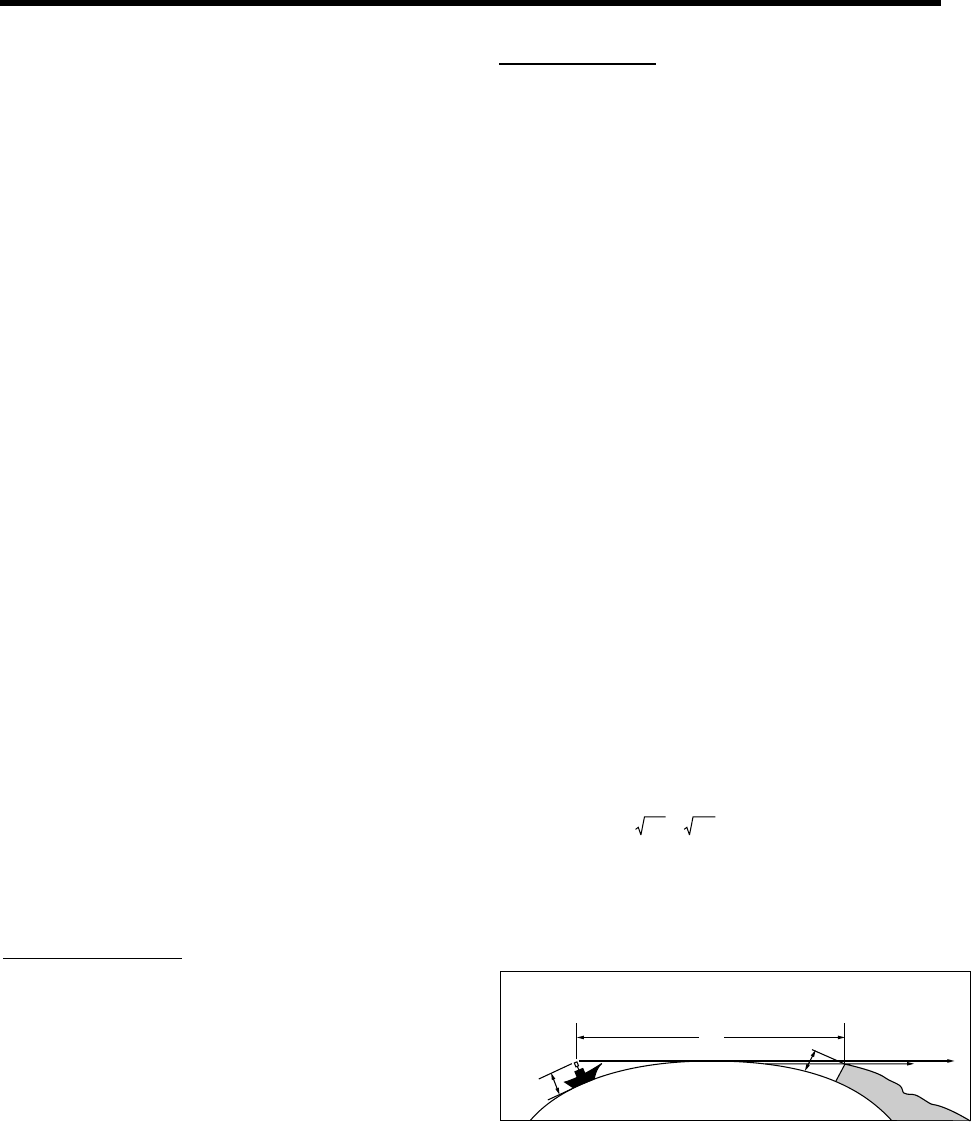

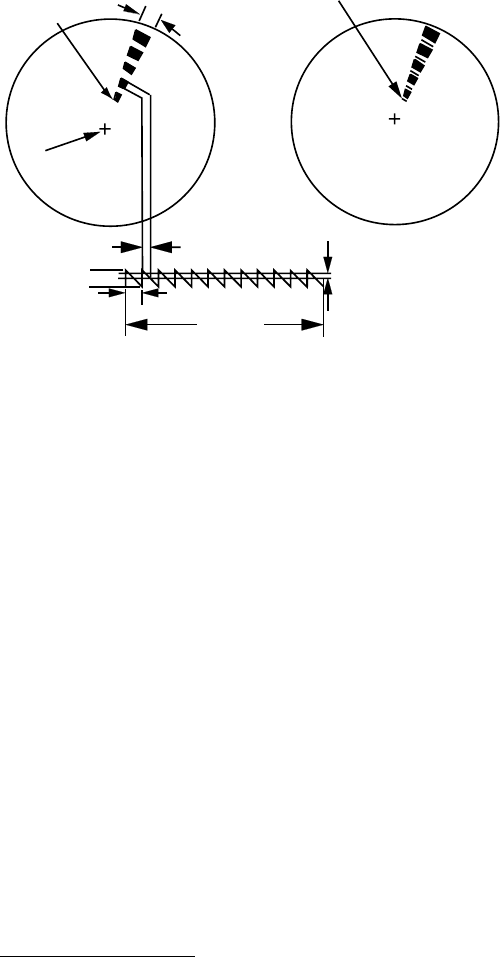

Figure 1-1 How radar works

2-1

2. OPERATION

2.1 Control Description

Omnipad

Shifts cursor, VRM

and EBL; selects

items and options

on menu.

Selects display mode;

erases heading error

indication.

Turns power on/off.

Adjusts display brilliance.

Sets radar in stand-by;

transmits radar pulse.

Selects radar range.

Plots targets' trails.

Opens/closes menus.

Turns the VRM on/off.

Turns the EBL

on/off.

ENT MENU

ECHO HM

OFF

RANGE

TONE BRILL

EBL VRM

TRAIL RINGS

GUARD OFF

CENTER

DISP

MODE ST-BY

POWER

Erases heading marker;

selects cursor data (Lat/Long, R/B);

outputs cursor position.

Turns the range

rings on/off.

Off centers

the display.

Sets guard

zone area.

Adjusts display

tone.

Adjusts GAIN,

STC, A.C RAIN

and FTC.

Registers selection

on menus.

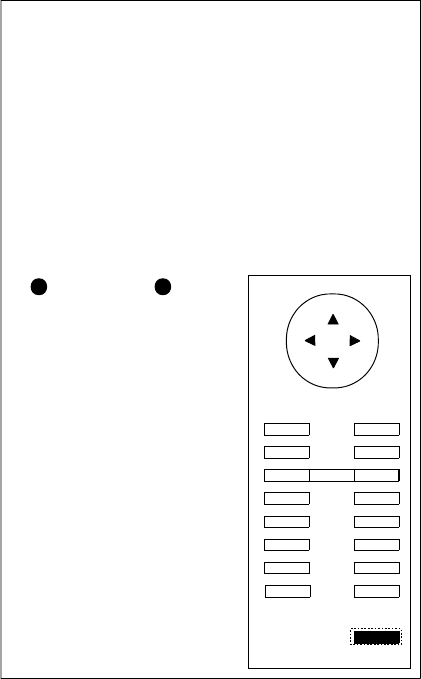

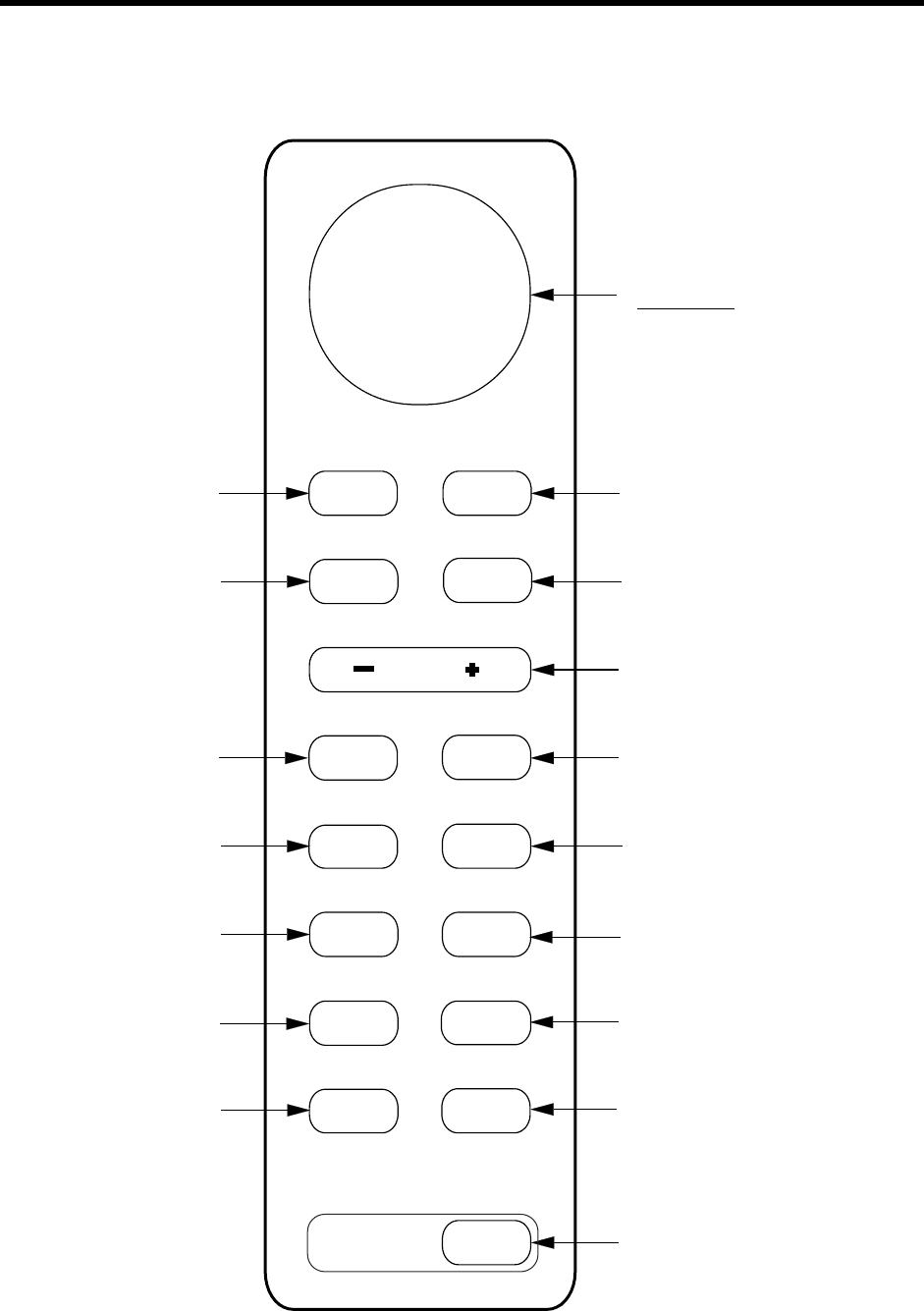

Figure 2-1 Control panel

2-2

2.2 Display Indications and Markers

TRAIL

15S

G ( IN )

FTC1

0.5

Range

Range ring interval

Echo trail, AUTO tuning

Echo trail elapsed time,

echo trail time, tuning

indicator

Guard zone

FTC

(rain clutter suppressor)

Echo stretch

Interference rejector

EBL

Range rings

Cursor

Heading marker

Guard zone

area

VRM

1.5NM

HDG 326.8˚

Pulsewidth

Heading (requires

heading data)

OFF

CENTER

Off center

0:00

VRM

range EBL

bearing Cursor

range Cursor

bearing

}Range and bearing to

cursor or cursor position in

latitude and longitude may

be displayed by pressing

the [HM OFF] key.

Presentation mode

VRM EBL + CURSOR

0.675NM

232.5˚R

0.681NM 308.7˚R

AUTO

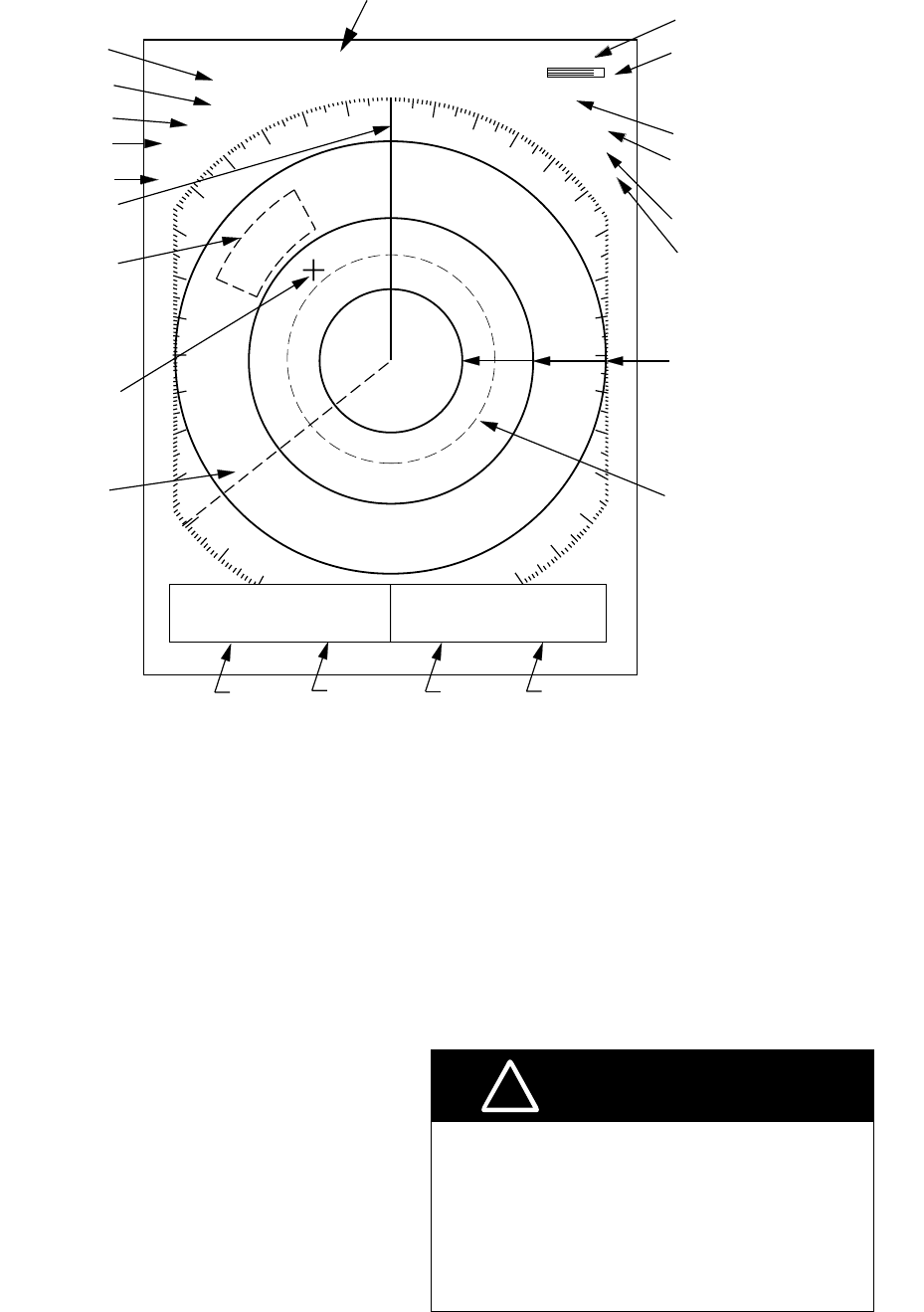

Figure 2-2 Display indications

2.3 Turning the Radar On and

Off

Press the [POWER] key to turn the radar

on or off. The control panel lights and a

timer displays the time remaining for warm

up of the magnetron (the device which

produces radar pulses), counting down

from 1:30.

Note: When the power is reapplied within a

certain amount of time and circuits

remain charged, the warmup process

is skipped—you can transmit without

one and a half minutes st-by time.

The radar antenna emits high frequency radio

radiation which can be harmful, particularly to

your eyes. Never look directly at the antenna

from a distance of less than three feet when

the radar is in operation. Always make sure

no one is near the antenna before turning on

the radar.

WARNING

2-3

Note: When the heading signal is lost, the

HDG readout at the top of the screen

shows ***.*. This warning stays on

when the heading signal is restored

to warn the operator that the readout

may be unreliable. After confirming

the heading readout (if necessary,

adjust it), the warning may be erased

by pressing the [DISP MODE] key.

2.4 Transmitting

After the power is turned on and the

magnetron has warmed up, ST-BY (Stand-

By) appears at the screen center. This

means the radar is now fully operational. In

stand-by the radar is available for use at

anytime—but no radar waves are being

transmitted.

Press the [ST-BY TX] key to transmit.

When transmitting, any echoes reflected

from targets appear on the display. This

radar displays echoes in four tones of gray

according to echo strength.

When you won’t be using the radar for an

extended period but want to keep it in a

state of readiness, press the [ST-BY TX]

key to set the radar in stand-by.

2.5 Selecting the Range

The range selected automatically

determines the range ring interval, the

number of range rings, pulselength and

pulse repetition rate, for optimal detection

capability in short to long ranges.

Procedure

Press the [– RANGE +] key. The range and

range ring interval appear at the top left

corner on the display.

Tips for selecting the range

•When navigating in or around crowded

harbors, select a short range to watch

for possible collision situations.

•If you select a lower range while on

open water, increase the range

occasionally to watch for vessels that

may be heading your way.

2.6 Adjusting LCD

Backlighting and Display

Tone

The [BRILL] key adjusts the LCD

backlighting in eight levels, including off.

The [TONE] key adjusts the tone (contrast)

of the display in 32 levels, including off.

Procedure

1. Press the [BRILL] key (or [TONE] key).

The display shown in Figure 2-3

appears.

BRILL

DOWN

BRILL

TONE

DOWN

19 7

<MENU> TO EXIT

Item selected

for adjustment

Tone

setting

TONE

LCD brilliance

setting

Figure 2-3 Display for adjustment of

brilliance and tone

2. Press the [BRILL] key (or [TONE] key)

to set level. For fine adjustment, press

omnipad at 12 o'clock/6 o'clock for

brilliance and 3 o'clock/9 o'clock for

tone.

2-4

2.7 Adjusting Control Panel

Illumination

Procedure

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Backlight/Brilliance and press

the [ENT] key.

3. Press the omnipad at 6 o’clock to

select Panel.

4. Press the omnipad at 3 o’clock/9

o’clock to select illumination level; 4 is

the highest.

5. Press the [ENT] key followed by the

[MENU] key.

2.8 Adjusting GAIN, STC, A.C

RAIN and FTC

General procedure

The [ECHO] key enables adjustment of the

GAIN, STC, A.C RAIN and FTC.

1. Press the [ECHO] key. The following

display appears.

AUTO

MAN

AUTO 1 2 3

MAN

GAIN

STC

◆

[

012

ECHO KEY

TO EXIT

Current level

Item selected

for adjustment

Select auto or

manual by

pressing the

omnipad at

6 o'clock or

12 o'clock and

pressing [ENT]

key.

Select auto or manual by

pressing the omnipad at

6 o'clock or 12 o'clock and

pressing [ENT] key.

FTC

A.C RAIN

Select item/option

by pressing appropriate

omnipad arrow.

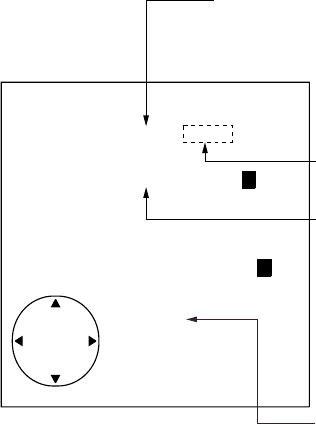

Figure 2-4 Display for adjustment of GAIN,

STC, A.C RAIN and FTC

2. Press the omnipad at 6 o’clock/12

o’clock to select item to adjust. Current

selection is circumscribed by dashed

rectangle.

3. Press the [ENT] key.

4. Press the omnipad at 3 o’clock/9

o’clock to set level.

5. Press the [ECHO] key to finish.

How to adjust the GAIN (sensitivity)

The GAIN works in precisely the same

manner as the volume control of a

broadcast receiver, amplifying the signals

received.

You can adjust the GAIN automatically or

manually. If you select AUTO, the GAIN

automatically adjusted. The range of the

GAIN adjustment is from 1 to 3; 3 is the

highest. For manual adjustment, adjust the

sensitivity on the highest range—the

background noise is clearer on that range.

The range of GAIN adjustment is from 01

to 41. The proper setting is such that the

background noise is just visible on the

screen. If you set up for too little GAIN,

weak echoes may be missed.

On the contrary excessive GAIN yields too

much background noise; strong targets

may be missed because of the poor

contrast between desired echoes and the

background noise on the display.

2-5

How to adjust STC (suppressing

sea clutter)

Echoes from waves can be troublesome,

covering the central part of the display with

random signals known as sea clutter. The

higher the waves, and the higher the

antenna above the water, the further the

clutter will extend. Sea clutter appears on

the display as many small echoes which

might affect radar performance. (See the

left-hand figure in Figure 2-5).

The STC reduces the amplification of

echoes at short ranges (where clutter is the

greatest) and progressively increases

amplification as the range increases, so

amplification will be normal at those ranges

where there is no sea clutter. The control is

effective up to about 4 miles.

STC can be adjusted automatically or

manually. If you select AUTO, the STC

automatically adjusted. The range of STC

adjustment is from 1 to 3; 3 is the highest.

For manual adjustment, first adjust the gain

and then transmit on short range. The

range of STC adjustment is from 00 to 50.

Adjust the STC level such that the clutter is

broken up into small dots, and small targets

become distinguishable. If the setting is set

too low, targets will be hidden in the clutter,

while if it is set too high, both sea clutter

and targets will disappear from the display.

In most cases adjust so clutter has

disappeared to leeward, but a little is still

visible windward.

If there is no clutter visible on the display,

turn off the circuit.

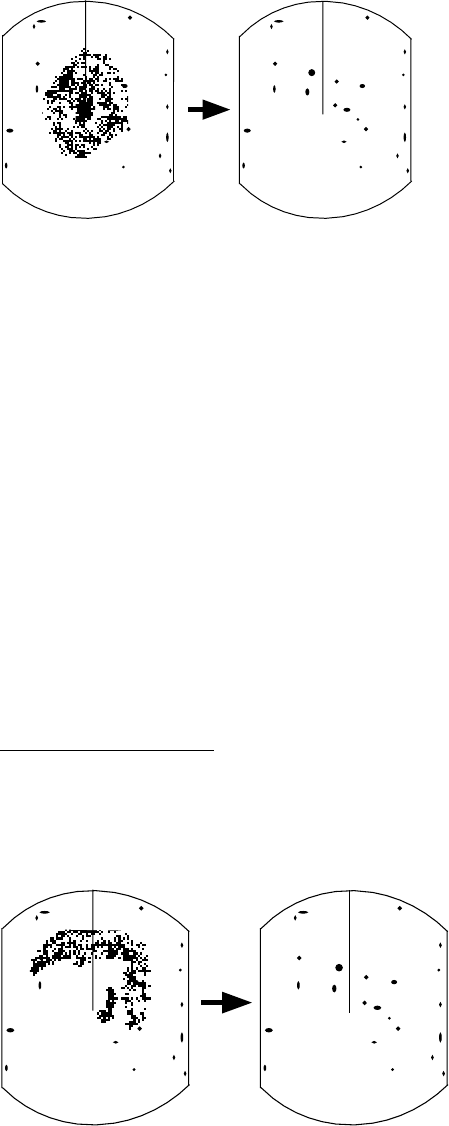

Sea clutter at

display center STC adjusted;

sea clutter suppressed.

Figure 2-5 Effect of STC

How to adjust A.C RAIN and FTC

(suppressing rain clutter)

The vertical beamwidth of the antenna is

designed to see surface targets even when

the ship is rolling. However, by this design

the unit will also detect rain clutter (rain,

snow, hail, etc.) in the same manner as

normal targets. Figure 2-6 shows the

appearance of rain clutter on the display.

Adjusting A.C RAIN

When rain clutter masks echoes over a

wide range, raise the A.C RAIN slightly to

distinguish targets from the clutter.

Appearance of

rain clutter A.C RAIN adjusted;

rain clutter suppressed.

Figure 2-6 Effect of A.C RAIN

2-6

Adjusting FTC

To suppress rain clutter from heavy storms

or scattered rain clutter, adjust the FTC

among 0, 1 and 2 (0 is off). The FTC circuit

splits up these unwanted echoes into a

speckled pattern, making recognition of

solid targets easier. FTC and selected level

appear at the top right-hand corner of the

display when the circuit is turned on.

Note: In addition to reducing clutter, the

FTC can be used in fine weather to

clarify the picture when navigating in

confined waters. However, with the

circuit activated the receiver is less

sensitive. Therefore, turn off the

circuit when its function is not

required.

2.9 Tuning the Receiver

The receiver can be tuned automatically or

manually. For automatic tuning the receiver

is tuned each time you switch from stand-

by to transmit. For manual tuning, the

receiver is properly tuned when the longest

tuning indicator appears. (However, the

length of the indicator changes with the

number of radar echoes, range and other

factors.)

1.5NM

0.5

AUTO

Tuning

indicator

Figure 2-7 Tuning indicator

Manual tuning

The default tuning method is automatic. To

switch to manual tuning;

1. Press the [MENU] key to open the

menu.

2. Press the omnipad at 6 o’clock to

select Tuning.

3. Press the omnipad at 3 o’clock to

select MANUAL.

4. Press the [ENT] key followed by the

[MENU] key.

How to tune manually

While pressing and holding down the [HM

OFF] key, press the 9 o'clock or 3 o'clock

position on the omnipad to tune. Tune to

show the longest tuning indicator.

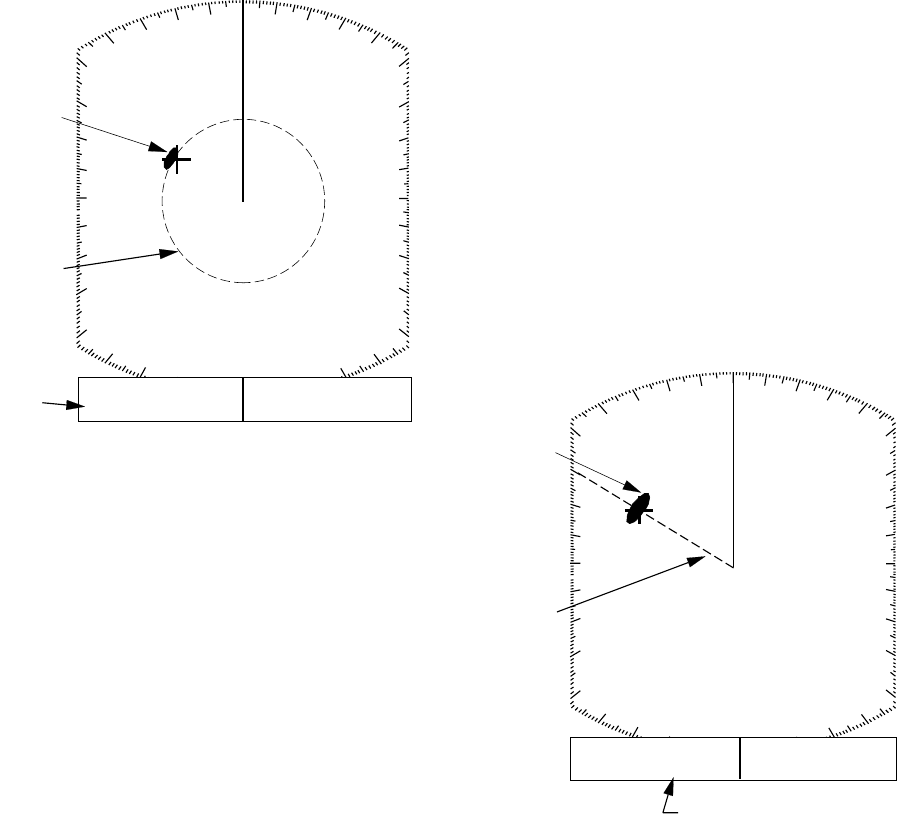

2.10 Measuring the Range

You can measure the range to a target

three ways: by the range rings, by the

cursor, and by the VRM (Variable Range

Marker).

By range rings

Press the [RINGS] key to display the range

rings. Count the number of rings between

the center of the display and the target.

Check the range ring interval (at the top left

corner) and judge the distance of the echo

from the inner edge of the nearest ring.

By cursor

Operate the omnipad to place the cursor

intersection on the inside edge of the target

echo. The range to the target, as well as

the bearing, appears at the bottom of the

display.

2-7

By VRM

1. Press the [VRM] key to display the

VRM.

2. Press the omnipad to place the VRM

on the inside edge of the target.

3. Check the VRM readout at the bottom

left-hand corner of the display to find

the range to the target.

Note: The VRM is automatically anchored

if the omnipad is not operated within

about 10 seconds.

To erase the VRM, press and hold down

the [VRM] key for about two seconds.

1.5NM

0.5

VRM

range

VRM

Target

VRM EBL + CURSOR

0.675NM

220.9¡R

0.675NM 308.7˚R

Figure 2-8 Measuring range by the VRM

2.11 Measuring the Bearing

There are two ways to measure the bearing

to a target: by the cursor, and by the EBL

(Electronic Bearing Line).

By cursor

Operate the omnipad to bisect the target

with the cursor intersection. The bearing to

the target appears at the bottom right-hand

corner of the display.

By EBL

1. Press the [EBL] key to display the EBL.

2. Press the omnipad to bisect the target

with the EBL.

3. Check the EBL readout at the bottom

left-hand corner of the display to find

the bearing to the target.

Note: The EBL is automatically anchored if

the omnipad is not operated within

about 10 seconds.

To erase the EBL, press and hold down

the [EBL] key for about two seconds.

1.5

0.5

EBL

Target

EBL

bearing

VRM EBL + CURSOR

0.675

300.1˚

0.675

300.1˚

Figure 2-9 Measuring bearing by the EBL

2-8

Tips for measuring the bearing

•Bearing measurements of smaller

targets are more accurate; the center of

larger target echoes is not as easily

identified.

•Bearings of stationary or slower moving

targets are more accurate than bearings

of faster moving targets.

•To minimize bearing errors keep echoes

in the outer half of the picture by

changing the range scale; angular

difference becomes difficult to resolve

as a target approaches the center of the

display.

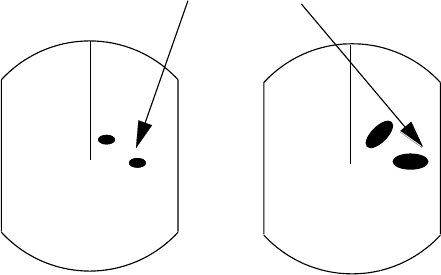

Target on Collision course with your

vessel?

You can determine if a target might be

on a collision course with your vessel by

placing the EBL on the target. If it tracks

along the EBL as it approaches the

screen center it may be on a collision

course with your vessel.

2.12 Menu Operation

The menu, consisting of six sub menus,

mostly contains less-often used functions

which once preset do not require regular

adjustment. To open or close the menu,

press the [MENU] key. You can select

items and options on the menu with the

omnipad.

Basic menu operation

1. Press the [MENU] key to open the main

menu.

● MAIN MENU ●

Select item by ▲▼ keys

and press ENT key.

1. Backlight/Brilliance

2. P/L, IR, NR & Radar Mode

3. Nav Data

4. Mode & Function

5. Tuning AUTO MANUAL

6. Self Check

7. Installation Setup 1

. . . . . . . . . . . . . . . . . . .

Press HM-OFF to temporarily

hide menu.

Figure 2-10 Main menu

2. Press the omnipad at 6 o’clock/12

o’clock to select menu and press the

[ENT] key.

3. Press the omnipad at 6 o’clock/12

o’clock to select a menu item.

4. Press the omnipad at 3 o’clock/9

o’clock to select an option.

5. Press the [ENT] key to register

selection.

6. Press the [MENU] key to close the

menu.

2-9

Menu description

Table 2-1 Menu description

Wide

Menu Function

1. Selects control panel backlighting; four is

maximum backlighting.

2. Selects brilliance for echo trails and

markers; two is maximum brilliance.

1. Selects pulselength for 1.5 and 3 mile

ranges.

2. Selects radar interference rejector level; 3

provides highest degree of rejection.

3. Turns noise rejector on/off.

4. Turns echo stretch on/off.

5. Selects presentation mode for CU or

WPT-UP.

1. Selects navigator among GPS, Loran C and

all navigators available. In the "ALL" setting

the radar selects a navigator in order of

navigator accuracy–GPS, Loran and other.

2. Turns navigation data display on/off.

3. Selects position display format; latitude and

longitude or Loran C TDs.

4. Selects unit of measurement for depth;

meters, feet or fathoms.

5. Selects unit of water temperature

measurement; ˚C or ˚F.

6. Selects what to display during stand-by;

navigation data (requires navigation input)

and "STBY".

1. Selects window display format; zoom or

wide.

2. Selects watchman interval among 5 min,

10 min and 20 min.

3. Selects alarm mode; IN (alarm to targets

entering the guard zone, or OUT (alarm to

targets exiting the guard zone.

4. Selects VRM unit; nm, km or sm.

5. Selects EBL reference; relative to the

ship's heading or true.

6. Selects ranges to use. (At least two are

selected.)

Select range to enable (disable) and press

[ENT] key.

Tuning Selects AUTO or MANUAL tuning.

* Default settings shown in reverse video.

● BACKLIGHT/BRILLIANCE MENU ●

Select item and option

by ▲▼ keys.

1. Panel

2. Echo Trail

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Press HM-OFF to temporarily

hide menu.

● P/L, IR, NR & Radar Mode ●

Select item and option

by ▲▼ keys.

1. Pulselength

2. Int Reject

3. Noise Reject

4. Echo Stretch

5. Radar Mode

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Press HM-OFF to temporarily

hide menu.

● NAV DATA MENU ●

Select item and option

by ▲▼ keys.

1. Navigator

2. Nav Data Disp

3. Pos Disp Mode

4. Depth Unit

5. Temp Unit

6. STBY Display

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Press HM-OFF to temporarily

hide menu.

ALL GPS LC

OFF ON

L/L

M FA FT

˚C ˚F

NORM NAV

Select item and option

by ▲▼ keys.

1. Window Display

2. Watchman

3. Alarm Mode

4. VRM Unit

5. EBL Ref

6. Range

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Press HM-OFF to temporarily

hide menu.

Zoom

● MODE & FUNCTION MENU ●

Self Check Checks the radar system for proper operation.

1 2 3 4

1 2

SHORT LONG

OFF 1 2 3

OFF ON

5' 10' 20'

OUT

KM SM

TRUE

1/8 1/4 1/2 3/4 1 1.5

2 3 4 6 8 12 16 24 36 48

OFF

REL

CU WPT-UP

OFF ON

2-10

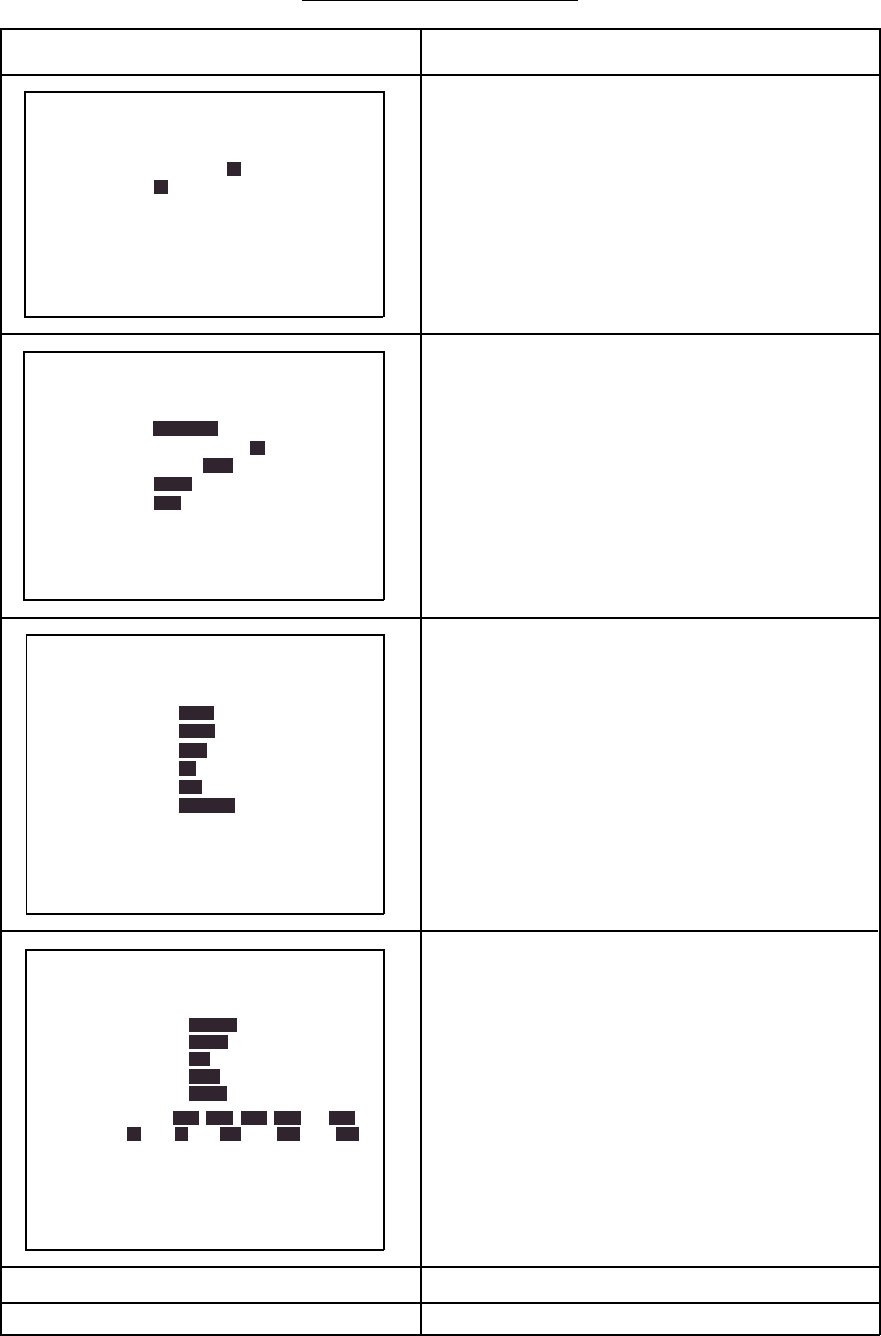

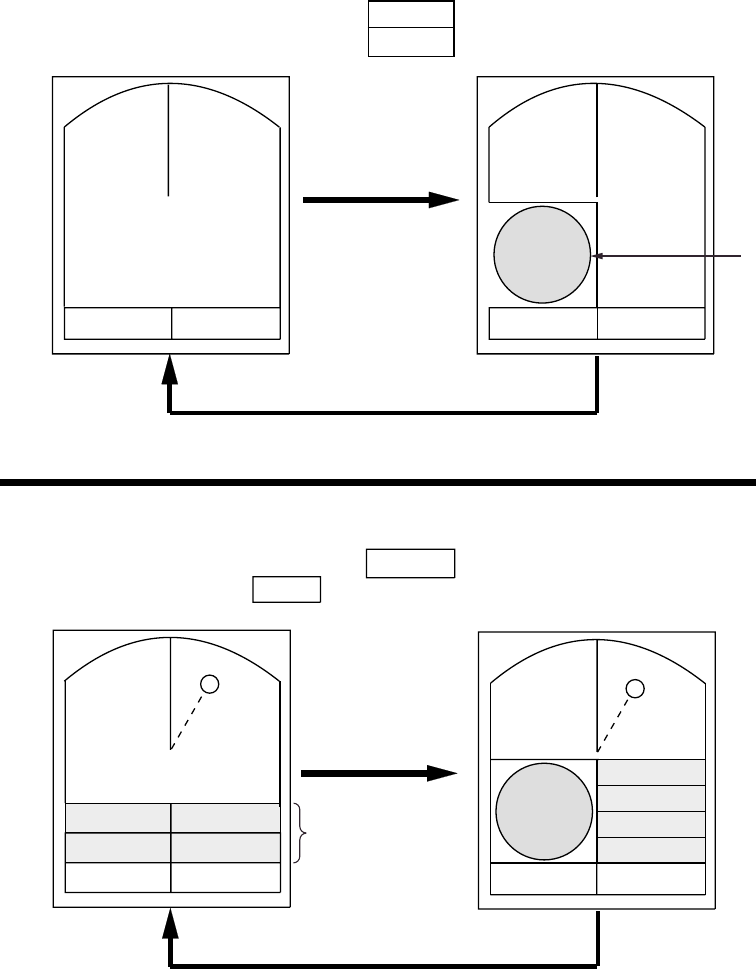

2.13 Selecting the Display

Mode

The display mode may be selected with the

[DISP MODE] key. Four modes are

available (with navigation input): Normal,

Normal + Window, Normal + Nav Data, and

Normal + Window + Nav Data.

Each time the key is pressed the display

mode changes in one of the sequences

shown below, depending on equipment

connected and menu settings.

Window Display

Nav Display WIDE / ZOOM

ON / OFF

VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R

ZOOM

VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R

WIDE / ZOOM

ON / OFF

Window Display

Nav Display

VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R

ZOOM

Window display

(Zoom or Wide)

Normal Normal + Window

Normal + Nav Data Normal + Window + Nav Data

Nav data

Figure 2-11 Display modes

2-11

2.14 The Window Display

The window display appears at the bottom

left (or right) 1/4 of the display. Two types of

window displays are available: zoom and

wide. Zoom doubles the size of the area

selected by the operator, and wide (range-

up) compresses and displays the entire

radar picture from the next higher range.

Note 1: The zoom display does not

function on the 0.125 and 0.25 nm

ranges.

Note 2: The wide display does not function

on the 48 nm range.

Selecting the type of window

display

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

3. Press the omnipad at 6 o’clock to

select Window Display to Zoom or

Wide as appropriate.

4. Press the [ENT] key followed by the

[MENU] key.

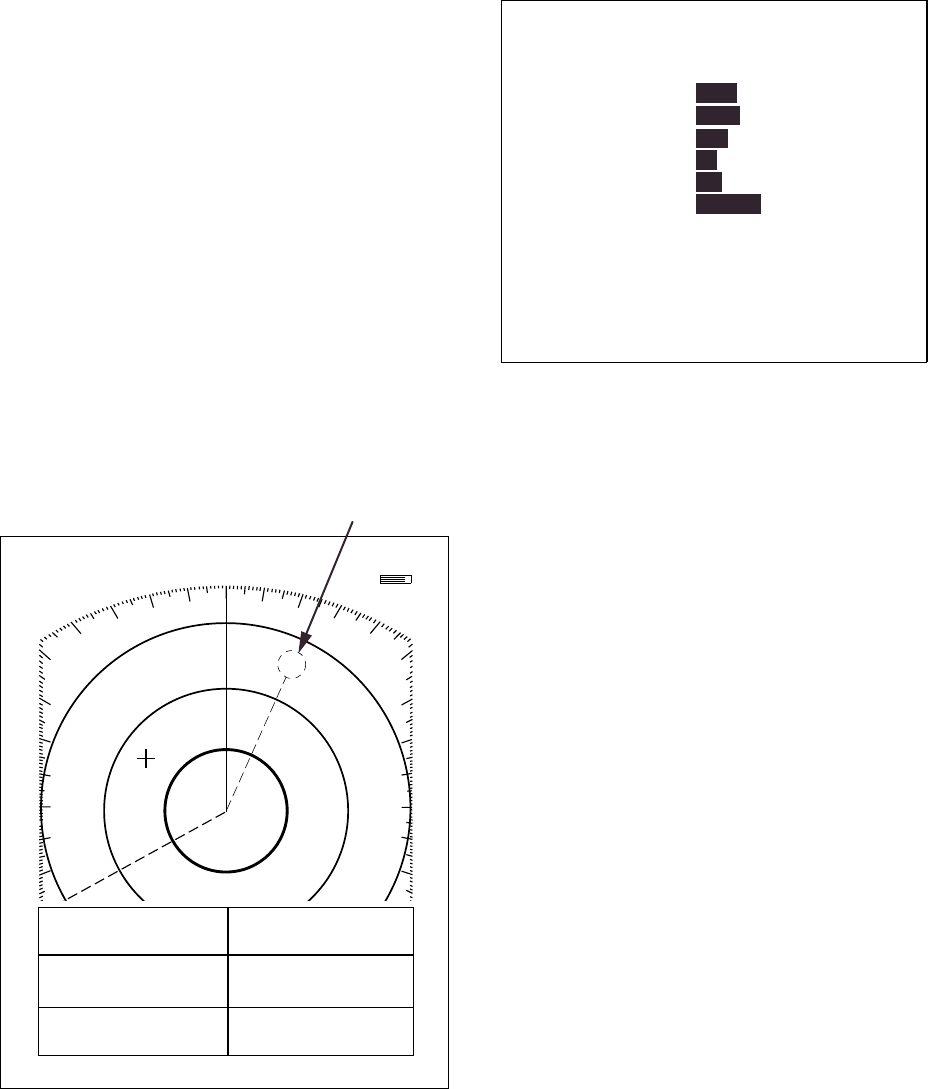

Selecting the area for the zoom


1. Press the [DISP MODE] key to select

the window display. The area selector, a

solid circle, appears.

2. Use the omnipad to place the area

selector on the area to zoom.

Note: When you place the area selector

behind the window display, the

window display shifts right (or left) so

you may view the circle cursor.

3. Press the [ENT] key to confirm the

zoom area in the window display. The

area selector becomes a dashed circle

and the cursor can be moved

independently.

To reselect area to zoom, press [ENT] or

[DISP MODE] and follow steps 2 and 3.

Zoom

VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R

Window

display

area

VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R

(1) Press [DISP MODE]

to select the window

display.

Area selector (1/4 or 1/3 of range)

(2) Use the omnipad

to select area to zoom

and press [ENT].

Zoom

Figure 2-12 How to select

the area to zoom

IDE

VRM EBL +CURSOR

**.** NM ***.*˚R ***.**NM ***.*˚ R

Wide display

The entire picture on

the next higher range.

Figure 2-13 Example of wide display

2-12

2.15 Selecting the

Presentation Mode

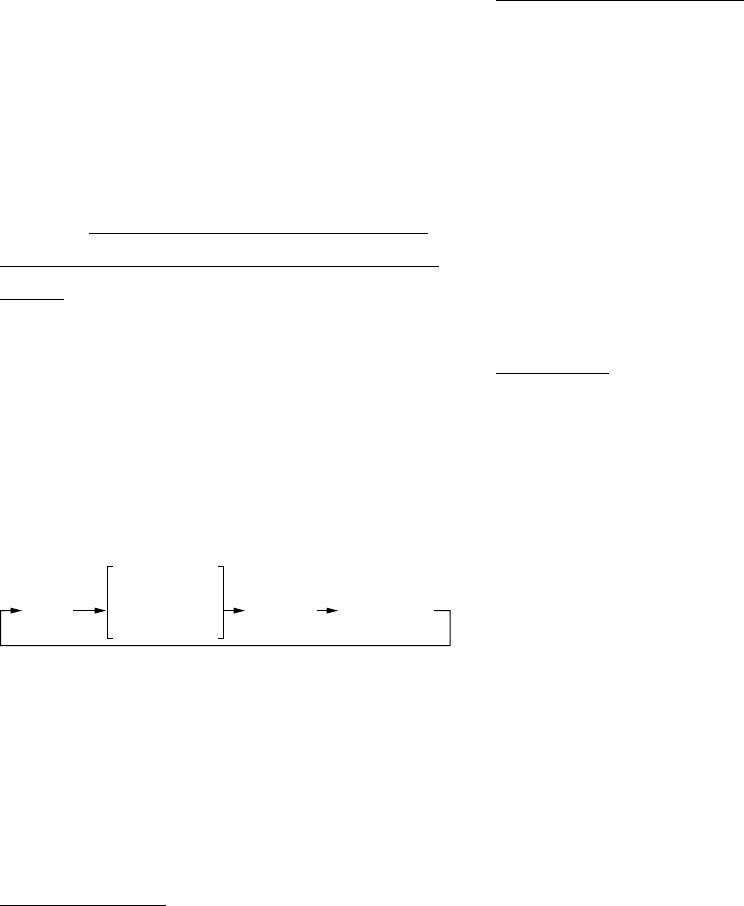

This radar provides four presentation

modes: head-up, course-up (course-up or

waypoint-up; selectable on menu), north-

up and true motion (requires heading

sensor). Press the [DISP MODE] and [HM

OFF] keys together to select a presentation

mode. Each time the keys are pressed, if

heading signal is input to the radar, the

presentation mode changes in the

sequence of HU, CU (or WU), NU, TM. If

there is no heading signal input to the radar,

the presentation mode is always HU.

Note: TM does not function on the 48 nm

range.

(head-up)

(course-up)

WPT-UP

(waypoint-up)

(north-up) TM

(true motion)

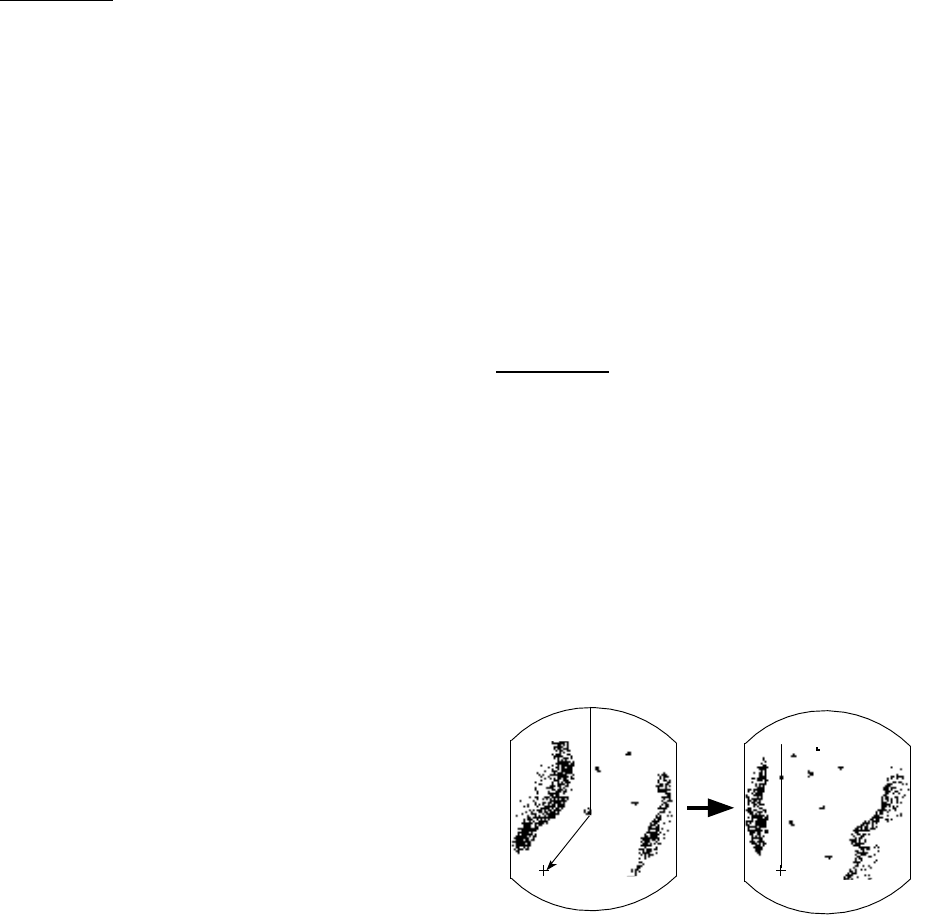

Selecting course-up mode for CU

or WPT-UP

You may select WPT-UP instead of CU on

the menu.

CU (course-up)

An azimuth stabilized display in which a

line connecting the center with the top of

the display indicates own ship’s intended

course (namely, own ship’s previous

heading just before this mode has been

selected).

Target pips are painted at their measured

distances and in their directions relative to

the intended course which is maintained at

the 0-degree position while the heading

line moves in accordance with ship’s

yawing and course change. This mode is

useful to avoid smearing of picture during

course change.

WPT-UP (waypoint-up)

An azimuth stabilized display in which the

line connecting the center with the top of

the display indicates the bearing to the

“TO” waypoint, which is selected on the

navigational equipment connected to the

radar. When navigating a route and own

ship enters the arrival zone of a waypoint,

the radar displays the bearing to the next

“TO” waypoint.

Procedure

1. Press the [MENU] key to open the

menu.

2. Press the omnipad at 6 o’clock to

select 2. P/L, IR, NR & Radar Mode.

3. Press the [ENT] key.

4. Press the omnipad at 6 o’clock to

select Radar Mode.

5. Press the omnipad at 3 o’clock/9

o’clock to select the option CU or

WPT-UP as desired.

6. Press the [ENT] key followed by the

[MENU] key.

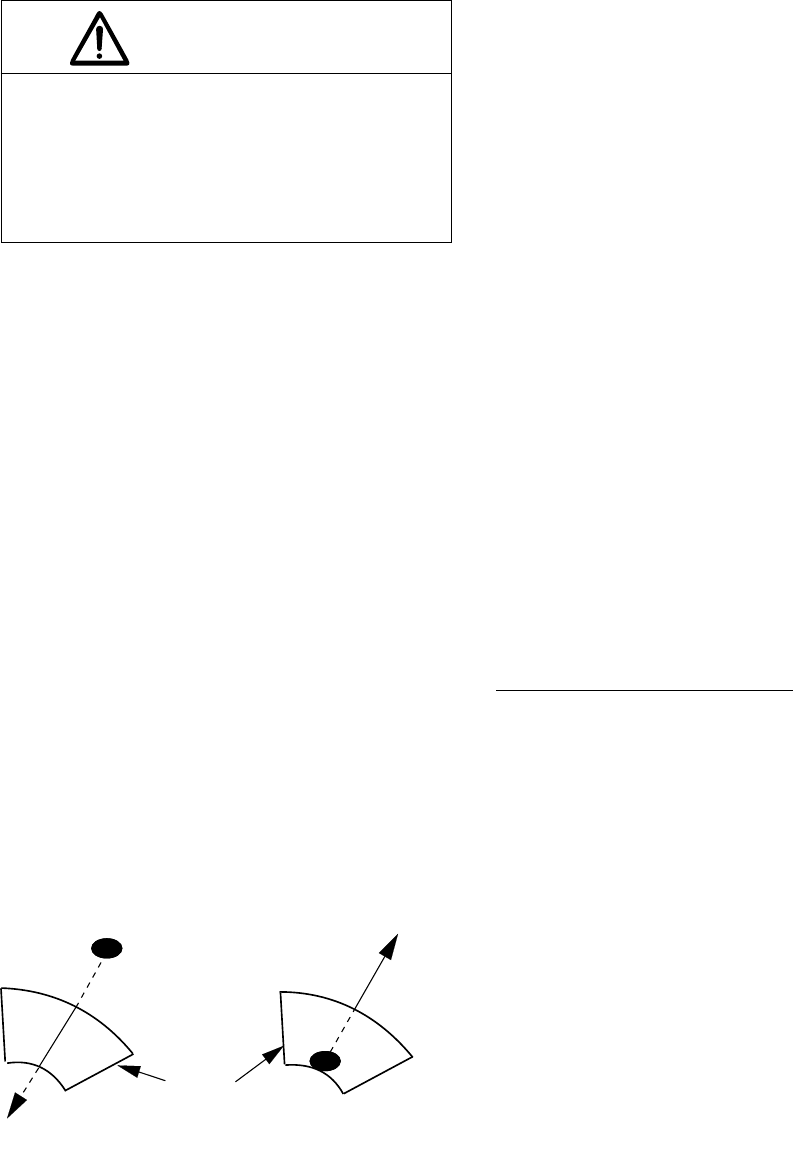

2.16 Guard Alarm

The guard alarm allows the operator to set

the desired range and bearing for a guard

zone. When ships, islands, landmasses,

etc. enter (or exit, depending on type of

guard zone in use) the guard zone an

audible alarm sounds to call the operator’s

attention. The alarm is very effective as an

anticollision aid when using an autopilot or

navigating in narrow channels.

2-13

The guard alarm is a useful anti-collision aid,

but does not relieve the operator of the

responsibility to also keep a visual lookout

for possible collision situations. The alarm

should never be used as the sole means for

detecting possible collision situations.

CAUTION

Selecting guard zone type

The guard alarm can be set to sound on

targets entering (guard in) or exiting (guard

out) the guard zone. Select type of guard

zone as follows.

1. Press the [MENU] key to display the

menu.

2. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

3. Press the omnipad at 6 o’clock to

select Alarm Mode.

4. Press the omnipad at 3 o’clock/9

o’clock to select IN or OUT as

appropriate.

5. Press the [ENT] key followed by the

[MENU] key.

Dashed line:

no alarm

IN ALARM OUT ALARM

Guard

zone

Figure 2-14 In and out alarms

Setting the guard zone

1. Mentally create the guard zone you

want to display. See Figure 2-15 (1).

2. Operate the omnipad to set cursor on

top (bottom) left edge of the guard zone.

Press the [GUARD] key. *G (IN) (or G

(OUT)), with asterisk blinking, appears

at the top right-hand corner on the

display. (The asterisk indicates the

guard zone is partially set.) See Figure

2-15 (2).

3. Operate the omnipad to set cursor on

bottom (top) right edge of the guard

zone and press the [GUARD] key. The

asterisk disappears. See Figure 2-15

(3).

4. Guard zone appears on the display.

See Figure 2-15 (4).

Silencing the audible alarm

Any ships, landmasses, etc. coming into

(or going out of) the guard zone will trigger

the audible alarm and display the guard

zone in reverse video. You can silence the

alarm by pressing the [GUARD] key. When

this is done, G (ACKN) replaces G (IN) (or

G (OUT)).

Press the [GUARD] key again to reactivate

the alarm. G (IN) (or G (OUT)) replaces G

(ACKN).

2-14

Canceling the guard zone

Press and hold down the [GUARD] key

until the guard zone disappears.

Notes on the guard alarm

•When the radar range is less than one

half of the guard zone range, the guard

zone disappears from the display and

G (IN) (or G (OUT)) is displayed in

reverse video. If this happens, raise the

range to redisplay the guard zone.

•A target echo does not always mean a

landmass, reef, ships or surface objects

but can imply returns from sea surface

or precipitation. As the level of these

returns varies with environment, the

operator should properly adjust the STC,

GAIN (sensitivity), A. C RAIN and FTC

to be sure the alarm system does not

overlook target echoes.

Guard zone

to set * G (IN)

(2) Drag cursor to

top left corner of

zone and press

[GUARD].

Asterisk blinking

Drag cursor

here.

(1) Mentally create

the guard zone to set.

G (IN)

(3) Drag cursor to

bottom right corner

of zone and press

[GUARD].

(4) Guard zone

completed.

G (IN)

Guard

zone

Drag cursor

here.

Figure 2-15 How to set a guard zone

2.17 Suppressing Radar

Interference

Radar interference may occur when near

another shipborne radar operating in the

same frequency band as your radar. Its on-

screen appearance is many bright dots

either scattered at random or in the form of

dotted lines extending from the center to

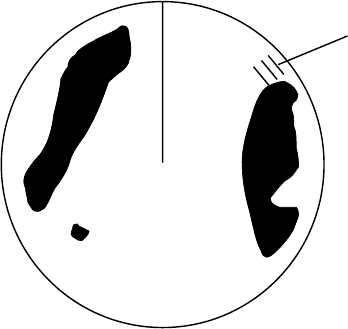

the edge of the display. Figure 2-16

illustrates interference in the form of curved

spokes. Interference effects are

distinguishable from normal echoes

because they do not appear in the same

place on successive rotations of the

antenna.

Figure 2-16 Radar interference

Four levels of interference are available,

including off. 3 provides the highest level of

rejection.

Procedure

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select P/L, IR, NR & Radar Mode and

press the [ENT] key.

3. Press the omnipad at 6 o’clock to

select Int Reject.

4. Press the omnipad at 3 o’clock/9

o’clock to select level desired; 3

provides the greatest degree of

interference rejection.

5. Press [ENT] and [MENU] keys.

IR appears at the top right corner on the

display when the interference rejection

circuit is turned on.

2-15

2.18 Suppressing Noise

Interference

Noise interference appears on the screen

as many bright dots. These dots can be

suppressed by turning on the noise rejector.

Note however that there are some forms of

noise interference which this radar cannot

suppress.

Procedure

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select P/L, IR, NR & Radar Mode and

press the [ENT] key.

3. Press the omnipad at 6 o’clock to

select Noise Reject.

4. Press the omnipad at 3 o’clock/9

o’clock to select ON or OFF as

appropriate.

5. Press the [ENT] key followed by the

[MENU] key.

2.19 Selecting Pulselength

Pulselength is the transmission time of a

single radar pulse. The longer the

pulselength the greater the detection range

capability, however range accuracy and

range resolution are reduced.

Pulselength can be selected to short or

long on the 1.5 and 3 nautical mile ranges.

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select P/L, IR, NR & Radar Mode and

press the [ENT] key.

3. Press the omnipad at 6 o’clock to

select Pulselength.

4. Press the omnipad at 3 o’clock/9

o’clock to select SHORT or LONG as

appropriate.

5. Press [ENT] and [MENU] keys.

SP or MP for 1.5 NM range, or MP or LP for

3 NM range appears at the upper left-hand

corner.

2.20 Off Centering the Display

Note: This function is not available on the

48 nm range.

Your vessel’s position can be shifted

anywhere in the effective display area. The

primary advantage of the off centered

display is that for any range setting, the

view ahead of your vessel can be extended

without changing the range or size of

targets.

Procedure

1. Locate the cursor where you want to

the screen center to be.

2. Press the [OFF CENTER] key.

OFF CENTER appears at the top left

corner on the display when the display is

off centered.

3. To cancel the off center display, press

the [OFF CENTER] key again.

Cursor Cursor

(1) Place cursor

where desired.

(2)

Press [OFF CENTER] key;

cursor location becomes

own ship's position.

Figure 2-17 Off centering the display

2-16

2.21 Echo Trails

You can show the trails of targets in

afterglow. This function is useful for alerting

you to possible collision situations.

Starting echo trail

Press the [TRAIL] key to start the echo trail

function. Afterglow starts extending from

targets and "TRAIL" and the echo trail time

appear at the top right-hand corner of the

display. Press the key again within 3

seconds to select a different trail time,

among 15 sec, 30 sec, 1 min, 3 min, 6 min,

15 min, 30 min, and continuous. In

continuous plotting the time elapsed

appears at the top right corner on the

display.

Note: If the range is changed, trails are

painted anew with the newly selected

range.

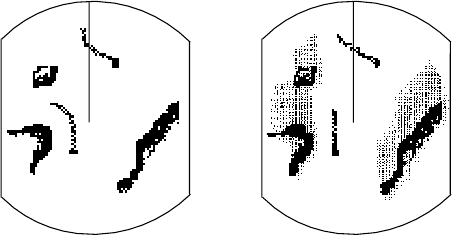

True trails Relative trails

Figure 2-18 Appearance of echo trails

Fixed time trails

When the elapsed time clock counts up to

the trail time selected, the elapsed time

display freezes. The oldest portions of trails

are erased so only the latest trail, equal in

length to the trail time selected, is shown.

Then, trails start extending again. For

example, the one minute trail time is

selected. When the elapsed time display

freezes at 60 seconds, all but the latest one

minute of trails are erased and then trailing

continues.

Continuous trail

The maximum continuous trail time is 99

minutes and 59 seconds. When the

elapsed time clock counts up to that time

the elapsed time display is reset to zero, all

trails are erased and then trailing is

restarted.

Adjusting brilliance of afterglow

The brilliance of the trails' afterglow can be

set on the Backlight/Brilliance menu.

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Backlight/Brilliance and press

the [ENT] key.

3. Press the omnipad at 6 o’clock to

select Echo Trail.

4. Select brilliance level, 1 or 2 as desired.

2 is the highest level.

5. Press the [ENT] key followed by the

[MENU] key.

Canceling echo trails

Press the [TRAIL] key to erase the TRAIL

indication.

2-17

2.22 Navigation Data Display

Navigation data can be displayed at the

screen bottom if this radar receives

appropriate navigation input in NMEA 0183

format. Navigation data includes

•Position in latitude and longitude or

Loran-C time differences (TDs)

•Bearing and range to a waypoint

selected on the navigator

•Cross track error (XTE-the amount in

nautical miles and the direction the

vessel if off course)

•Depth

•Speed

If the navigation data includes the

destination data, waypoint position is

denoted on the radar display by a dashed

ring.

1.5

0.5

HDG 326.8˚

66˚ 04. 00N

166˚ 04. 00E

VRM EBL + CURSOR

0.675

240.1˚

0.646

308.7˚

DEPTH XTE SPD

350.0m 0.05NML 30.0KT

WAYPOINT POSI L/L

1.8

25˚

AUTO

Waypoint position

Figure 2-19 Sample nav data display

Setting up the nav data display

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Nav Data and press the [ENT]

key.

● NAV DATA MENU ●

Select item and option

by ▲▼ keys.

1. Navigator

2. Nav Data Disp

3. Pos Disp Mode

4. Depth Unit

5. Temp Unit

6. STBY Display

. . . . . . . . . . . . . . . . . . .

Press HM-OFF to temporarily

hide menu.

ALL GPS LC

OFF ON

L/L TD

M FA FT

˚C ˚F

NORM NAV

Figure 2-20 Nav data menu

3. Press the omnipad at 6 o'clock to

select Navigator.

4. Press the omnipad at 3 o'clock/9

o'clock to select ALL, GPS or LC as

appropriate and press the [ENT] key.

(Select ALL if several navigators are

connected to the radar. In this case,

position data is selected in order of

GPS, Loran C and other.)

5. Press the omnipad at 6 o'clock to

select Nav Data Disp.

6. Press the omnipad at 3 o'clock/9

o'clock to select ON or OFF as

appropriate and press the [ENT] key.

7. Press the omnipad at 6 o'clock to

select Pos Disp Mode.

8. Press the omnipad at 3 o'clock/9

o'clock to select L/L (latitude and

longitude) or TD (Loran C) as

appropriate and press the [ENT] key.

9. Press the omnipad at 6 o'clock to

select Depth Unit.

2-18

10. Press the omnipad at 3 o'clock/9

o'clock to select M (meters), FA

(fathoms) or FT (feet) as desired and

press the [ENT] key.

11. Press the omnipad at 6 o'clock to

select Temp Unit.

12. Press the omnipad at 3 o'clock/9

o'clock to select °C or °F as desired

and press the [ENT] key.

13. Press the omnipad at 6 o'clock to

select STBY Display.

14. Press the omnipad at 3 o'clock/9

o'clock to select NORM (navigational

data is not displayed) or NAV

(navigational data is displayed as

desired) and press the [ENT] key.

15. Press the [MENU] key to escape.

2.23 Echo Stretch (magnifying

long range echoes)

Normally, the reflected echoes from long

range targets appear on the display as

weaker and smaller blips even though they

are compensated by the radar’s internal

circuitry. To stretch long range echoes, in

the range direction, turn on the echo

stretch function.

Echo stretch OFF Echo stretch ON

Distant echo

Figure 2-21 Echo stretch

Turning echo stretch on or off

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select P/L, IR, NR & Radar Mode and

press the [ENT] key.

3. Press the omnipad at 6 o’clock to

select Echo Stretch.

4. Press the omnipad at 3 o’clock/9

o’clock to select ON or OFF as

appropriate.

5. Press the [ENT] key followed by the

[MENU] key. ES appears at the top

right side on the display when the echo

stretch feature is on.

Note 1: This function magnifies not only

targets but also sea clutter and

radar interference. For this reason

be sure the controls for adjustment

of sea clutter and radar interference

are properly adjusted before

activating the echo stretch.

Note 2: Echo stretch is inoperative on

ranges from 0.125 to 0.5 nautical

miles.

Note 3: When the echo stretch function is

selected, the equipment

automatically selects interference

rejection level #3 and turns on the

noise rejector. These can be turned

off via the menu if desired.

2-19

2.24 Selecting Unit of

Measurement for Range

The unit of measurement for the VRM and

cursor can be nautical miles, kilometers, or

statute miles. You may select unit desired

as follows.

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

3. Press the omnipad at 6 o’clock to

select VRM Unit.

4. Press the omnipad at 3 o’clock/9

o’clock to select NM, KM, or SM as

desired.

5. Press [ENT] followed by [MENU] key.

2.25 Selecting Bearing

Reference

Bearing can be displayed relative to ship’s

heading (relative bearing) or relative to true

north (true bearing) as follows. (True

bearing requires heading sensor input.)

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

3. Press the omnipad at 6 o’clock to

select EBL Ref.

4. Press the omnipad at 3 o’clock/9

o’clock to select REL(ATIVE) or TRUE

as appropriate.

5. Press the [ENT] key followed by the

[MENU] key.

2.26 Watchman

How watchman works

The watchman function periodically

transmits the radar for about one minute to

check for targets in a guard zone. If it finds

change in the zone from the previous

transmission it sounds the aural alarm,

cancels the watchman function, and

transmits the radar continuously. This

feature is useful when you do not need the

radar’s function continuously but want to be

alerted to radar targets in a specific area.

Tx St-by St-byTx

1 min 1 min5, 10 or

20 min 5, 10 or

20 min

Watchman

starts.

Figure 2-22 How watchman works

Turning on watchman

1. Create a guard zone (usually 360

degrees) with the guard alarm function.

2. Press the [MENU] key.

3. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

4. Press the omnipad at 6 o’clock to

select Watchman.

5. Press the omnipad at 3 o’clock/9

o’clock to select watchman rest interval

(amount of time until next rotation of

antenna); 5 minutes, 10 minutes or 20

minutes as desired.

6. Press the [ENT] key followed by the

[MENU] key. Then, WATCHMAN

appears, and the radar transmits for

one minute and then goes into stand-

by.

2-20

Canceling watchman

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

3. Press the omnipad at 6 o’clock to

select Watchman.

4. Press the omnipad at 3 o’clock/9

o’clock to select OFF.

5. Press the [ENT] key followed by the

[MENU] key.

2.27 Erasing the Heading

Marker

The heading marker continuously appears

on the display and shows your vessel’s

heading. When this mark obscures a target

echo, you can temporarily erase it by

pressing and holding down the [HM OFF]

key. Release the key to redisplay the

marker.

2.28 Deselecting Ranges

This radar has 16 ranges, some which you

may not require. You can deselect up to

fourteen ranges as follows.

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select Mode & Function and press the

[ENT] key.

3. Select Range and press the [ENT] key.

Active ranges appear in reverse video.

4. Press the omnipad at 3 o’clock/9

o’clock to select range to disable (or

enable) and press the [ENT] key.

Current selection is underlined.

5. Press the [ENT] key.

6. Repeat steps 4 and 5 to disable (or

enable) other ranges.

7. When finished, press the [MENU] key.

2.29 Displaying Navigation

Data During Stand-by

Various navigation data can be displayed

during stand-by. A barometer is built in this

radar; atmospheric pressure appears, in

graph form, on the navigation data display

during stand-by. If your navigation aid can

output data in NMEA 0183 data format,

your vessel’s position in latitude and

longitude, the range and bearing to

waypoint, speed, course, date, time and

cross track error may be input to this radar,

and be seen in the bottom text area during

stand-by. Further, with video sounder input,

depth may be displayed, both digitally and

in graph form.

The barometer and depth displays are intended

as reference. Any data displayed by them should

be used with extreme caution.

CAUTION

Procedure

1. Press the [MENU] key.

2. Press the omnipad at 6 o’clock to

select the Nav Data and press the

[ENT] key.

3. Press the omnipad at 6 o’clock to

select STBY Display.

4. Press the omnipad at 3 o’clock/9

o’clock to select NAV and press the

[ENT] key.

5. Press the [MENU] key.

2-21

Note 1: The depth display scale changes

automatically with depth and the

maximum depth is 1,000 meters.

Note 2: The barometer display is updated

hourly, thus the data shown may

not be the latest.

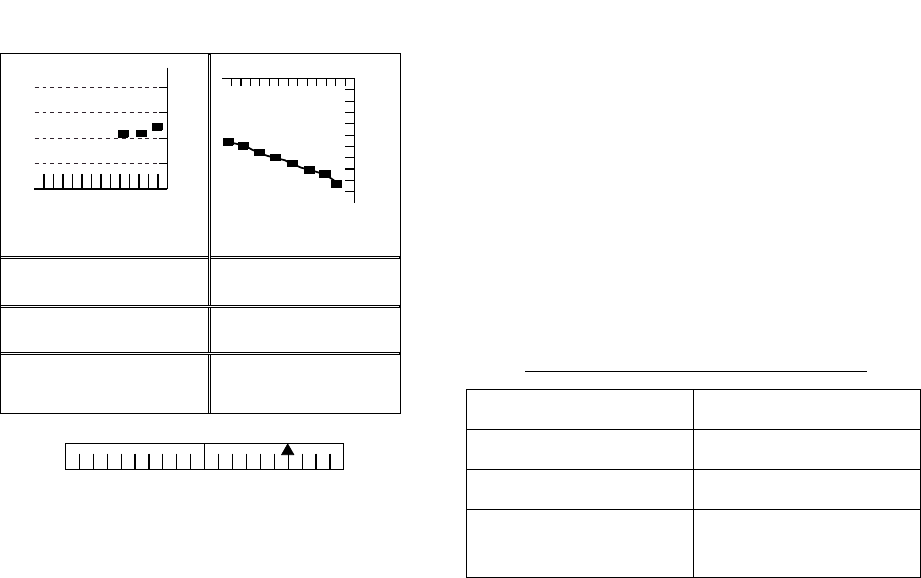

DATE TIME TEMP CRS

08.22 15:19 30.0

˚C

0.0˚M

DEPTH XTE SPD

827 m 0.6NM R 30.0KT

WAYPOINT POSI L/L

65˚43.98N

165˚43.96E

XTE

1 10

0.5 0.5

XTE

(NM)

L R

BAROMETER DEPTH

500

1000

(m)

(MIN)

-12 -9 -6 -3

1020

1010

1000

990

(HOUR)

(mbar/hPa)

ST–BY

12.0NM 114.8˚R

Figure 2-23 Navigation data display during

stand-by

2.30 Outputting Cursor

Position to Navigator

Cursor position (NMEA0183 data sentence

TLL) can be output to the navigator

connected to this radar by pressing and

holding down the [HM OFF] key.

2.31 Displaying Cursor

Position, Range and

Bearing to Cursor

The cursor data indication at the bottom of

the display can show cursor position in

latitude and longitude or the range and

bearing from own ship to the cursor. You

can select the indication desired by

pressing the [HM OFF] key.

Navigation data is required to display

latitude/longitude position.

2.32 Visual Alarm Indications

This radar display various visual alarms to

alert you to error.

Table 2-2 Visual alarm indications

Error Visual alarm

No heading pulse HD SIG MISSING

No bearing pulse BRG SIG MISSING

Heading signal

turned off

***.* (appears as

heading)

The heading signal visual alarm may be

cleared by pressing the [DISP MODE] key.

3-1

3. INTERPRETING THE DISPLAY

As an aid to navigation, radar can be a very

valuable tool. No other electronic

navigation aid can give you the ability to

spot vessels coming at you in the fog, or

tell you the location of the inlet to the

harbor in the pitch black of night.

To help you understand what your radar

can (and cannot) do for you this chapter

covers

•the characteristics of the radar wave

•target properties and radar wave

reflection

•range and bearing resolution, and

•false echoes.

3.1 The Radar Wave and Radar

Horizon

How the radar wave travels

The radar wave tends to travel in straight

lines at the speed of light. However, it is

subject to bending or refraction in the

atmosphere, the amount depending on

region and density.

Super-refraction

Super-refraction is a condition in which

there is an upper layer of warm dry air over

a surface layer of cold, moist air. Radar

waves bend downward and thus increase

the ranges at which targets may be

detected.

Sub-refraction

Sub-refraction is the reverse condition of

super-refraction; a layer of cold air is above

a layer of warm air. Radar waves bend

upward and thus decrease the ranges at

which targets may be detected.

Radar horizon

Radar is essentially a “line-of-sight”

phenomenon. That means you have just

about the same range to horizon with a

radar as you do with your own eyes.

However under normal atmospheric

conditions, the radar horizon is 6% greater

than the optical horizon. Therefore, if the

target does not rise above the horizon the

radar beam cannot be reflected from the

target.

The distance to the horizon from the

antenna, under normal conditions, is

calculated by the following formula.

Rmax = 2.2 × h + h

Where Rmax: Radar horizon (mile), h1:

Antenna height (meters), h2: Target height

(meters)

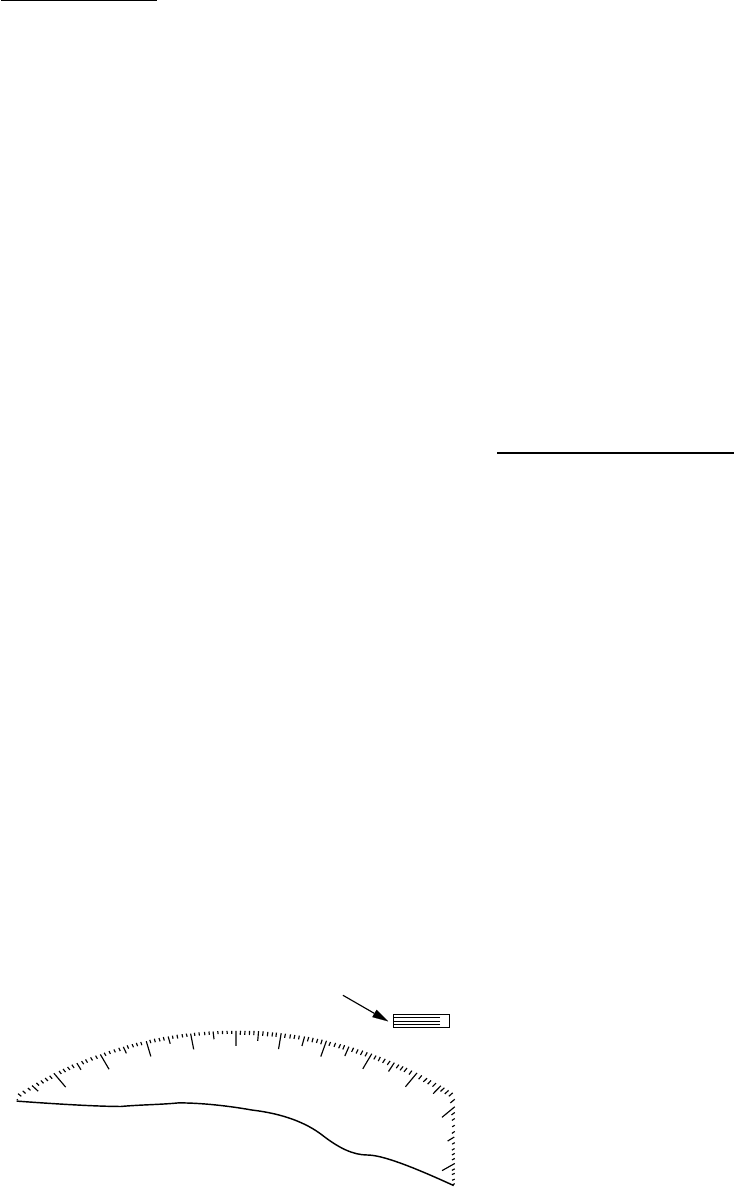

DHorizon

Wave

path

Figure 3-1 Radar horizon

3-2

3.2 Target Properties and

Radar Wave Reflection

Generally, larger targets can be seen on

the radar display at greater ranges,

provided line-of-sight exists between the

scanner and target. However, a large target

with poor reflecting properties may not be

detected as easily as a smaller target with

better reflecting properties. For example,

you might expect a lighthouse to be a good

radar target because of its size. In actuality

the return echo is weak since the conical

shape diffuses most of the radiated energy.

A ship whose hull is made of conducting

materials, such as steel, will return a

relatively strong echo.

On the other hand, hulls made from wood

or fiberglass return much weaker echoes.

Vertical surfaces, such as a cliff, are good

targets provided they face the radar.

Conversely, horizontal and smooth

surfaces such as mudbanks, sandy

beaches, and gently sloping hills make

poor targets because they disperse rather

than reflect most of the energy that strikes

them.

The strongest radar echoes known come

from built-up areas, docks, etc., because

these targets are less subject to changes in

aspect. These types of targets have three

flat, smooth surfaces mutually at right

angles. Some radar buoys are arranged

this way so as to deliberately increase their

detection range.

3.3 Range Resolution

Range resolution is a measure of the

capability of a radar to display as separate

pips the echoes received from two targets

which are on the same bearing and are

close together.

The main factor which affects range

resolution is pulselength. Two targets on

the same bearing, close together, cannot

be seen as two distinct echoes on the

display unless they are separated by a

distance greater than one-half the

pulselength.

Transmitted

radar

pulse

Radar is able to display two

distinct target echoes.

Target

Transmitted

radar

pulse

Radar cannot display targets as

separate echoes because they

are within the pulselength.

Target

Figure 3-2 Range resolution

3.4 Bearing Resolution

Bearing resolution is a measure of the

capability of a radar to display as separate

targets the echoes received from two

targets which are at the same range and

are close together.

The principal factor which affects bearing

resolution is horizontal beamwidth. Two

targets at the same range must be

separated by more than one beamwidth to

appear as separate pips.

3-3

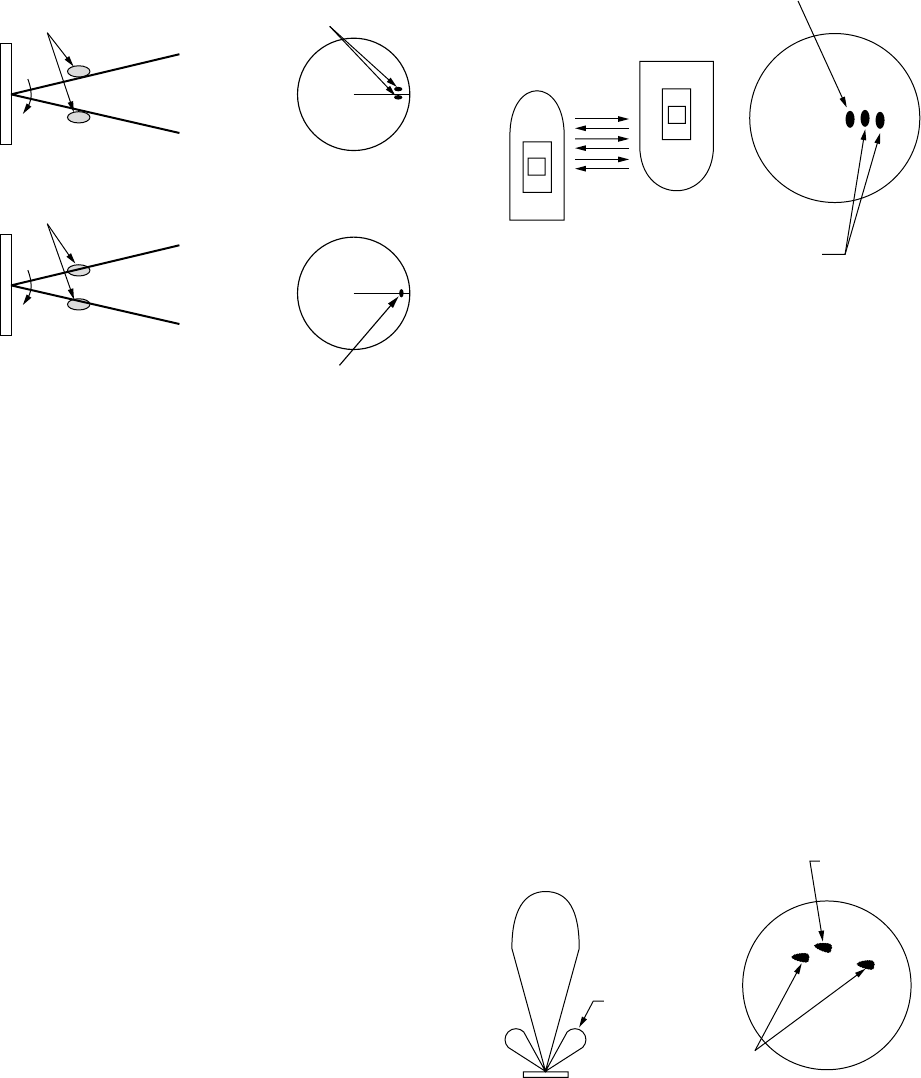

Radar is able to display two

distinct target echoes.

Target

Horizontal

beamwidth

Direction of

scanner rotation

Target

Horizontal

beamwidth

Direction of

scanner rotation

Radar cannot display targets as

separate echoes because they

are within the beamwidth.

Figure 3-3 Bearing resolution

3.5 False Echoes

Occasionally false echoes appear on the

screen at positions where there is no target.

In some cases the effects can be reduced

or eliminated. The operator should

familiarize himself or herself with the

appearance and effects of these false

echoes, so as not to confuse them with

echoes from legitimate contacts.

Multiple echoes

Multiple echoes occur when a short range,

strong echo is received from a ship, bridge,

or breakwater. A second, a third or more

echoes may be observed on the display at

double, triple or other multiples of the

actual range of the target as shown in

Figure 3-4. Multiple reflection echoes can

be reduced and often removed by

decreasing the sensitivity or properly

adjusting the STC.

True

echo

Multiple

echo

Target

Own ship

Figure 3-4 Multiple echoes

Side-lobe echoes

Every time the antenna rotates, some

radiation escapes on each side of the

beam-called “side-lobes.” If a target exists

where it can be detected by the side-lobes

as well as the main-lobe, the side-lobe

echoes may be represented on both sides

of the true echo at the same range, as

shown in Figure 3-5. Side-lobes show

usually only at short ranges and from

strong targets. They can be reduced

through careful reduction of the sensitivity

or proper adjustment of the STC.

True echo

Spurious

target

Main-lobe

Antenna

Side-lobe

Figure 3-5 Side-lobe echoes

3-4

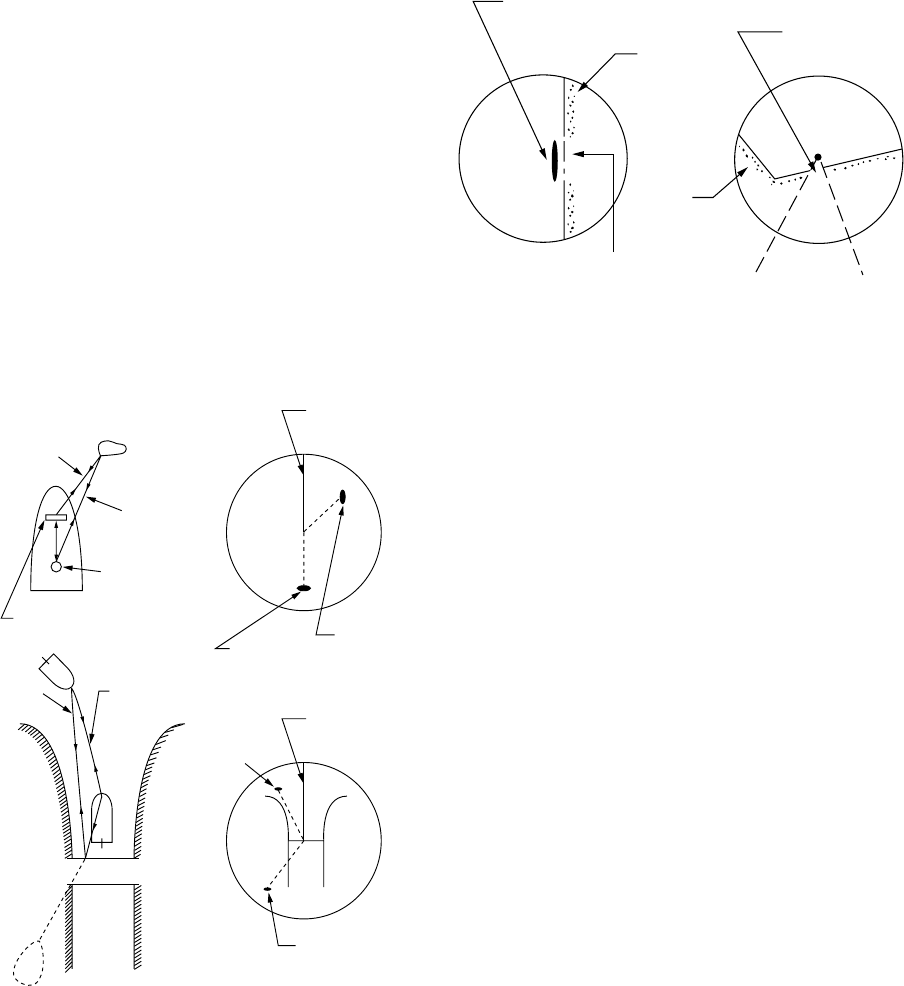

Indirect echoes

Indirect echoes may be returned from

either a passing ship or returned from a

reflecting surface on your own ship, for

example, a stack. In both cases, the echo

will return from a legitimate contact to the

antenna by the same indirect path. The

echo will appear on the same bearing of

the reflected surface, but at the same

range as the direct echo. Figure 3-6

illustrates the effect of an indirect echo.

Indirect echoes may be recognized as

follows:

•they usually occur in a shadow sector

•they appear on the bearing of the

obstruction but at the range of the

legitimate contact

•when plotted, their movements are

usually abnormal, and

•their shapes may indicate they are not

direct echoes.

Heading

marker

Indirect

echo

True

echo

Heading

marker

Indirect

echo

True

echo

Direct

path

Target

Indirect

path

Obstruction

(mast, funnel,

etc.)

Antenna

Bridge

Indirect

echo

Target

Indirect

path Direct

path

Own

ship

Figure 3-6 Indirect echoes

Blind and shadow sectors

Funnels, stacks, masts, or derricks in the

path of antenna may reduce the intensity of

the radar beam. If the angle subtended at

the antenna is more than a few degrees a

blind sector may be produced. Within the

blind sector small targets at close range

may not be detected while larger targets at

much greater ranges may be detected. See

Figure 3-7.

Vessel taller

than whart

Wharf

Blind sector

(no echo)

Mast, etc. in path

of radar beam

Size of blind sector

depends on target

size and range.

Figure 3-7 Blind and shadow sectors

3-5

3.6 SART

Note: The SART (Search and Rescue

Transponder) information below is

excerpted from IMO SN/Circ 197

Operation of Marine Radar for SART

Detection.

A Search and Rescue Transponder (SART)

may be triggered by any X-Band (3 cm)

radar within a range of approximately 8 nm.

Each radar pulse received causes it to

transmit a response which is swept

repetitively across the complete radar

frequency band. When interrogated, it first

sweeps rapidly (0.4 µs) through the band

before beginning a relatively slow sweep

(7.5 µs) through the band back to the

starting frequency. This process is

repeated for a total of twelve complete

cycles. At some point in each sweep, the

SART frequency will match that of the

interrogating radar and be within the pass

band of the radar receiver. If the SART is

within range, the frequency match during

each of the 12 slow sweeps will produce a

response on the radar display, thus a line

of 12 dots equally spaced by about 0.64

nautical miles will be shown.

When the range to the SART is reduced to

about 1 nm, the radar display may show

also the 12 responses generated during

the fast sweeps. These additional dot

responses, which also are equally spaced

by 0.64 nm, will be interspersed with the

original line of 12 dots. They will appear

slightly weaker and smaller than the

original dots.

Radar antenna

beamwidth

Screen A: When SART

is distant Screen B: When SART

is close

SART mark

length

Position of

own ship

Radar receiver

bandwidth

Sweep time

9500 MHz

9200 MHz

7.5 µs 95 µs

Position of

SART Position of SART

Figure 3-8 Appearance of SART signal

on the radar display

General procedure for detecting

SART response

1. Use the range scale of 6 or 12 nm as

the spacing between the SART

responses is about 0.6 nm (1125 m) to

distinguish the SART.

2. Turn off the automatic clutter

suppression.

3. Turn off the Interference Rejector.

General remarks on receiving

SART

SART range errors

When responses from only the 12 low

frequency sweeps are visible (when the

SART is at a range greater than about 1

nm), the position at which the first dot is

displayed may be as much as 0.64 nm

beyond the true position of the SART.

When the range closes so that the fast

sweep responses are seen also, the first of

these will be no more than 150 meters

beyond the true position.

3-6

Radar bandwidth

This is normally matched to the radar

pulselength and is usually switched with

the range scale and the associated

pulselength. Narrow bandwidths of 3-5

MHz are used with long pulses on long

range and wide bandwidths of 10-25 MHz

with short pulses on short ranges.

Any radar bandwidth of less than 5 MHz

will attenuate the SART signal slightly, so it

is preferable to use a medium bandwidth to

ensure optimum detection of the SART.

Radar side lobes

As the SART is approached, sidelobes

from the radar antenna may show the

SART responses as a series of arcs or

concentric rings. These can be removed by

the use of the anti-clutter sea control

although it may be operationally useful to

observe the sidelobes as they may be

easier to detect in clutter conditions and

also they will confirm that the SART is near

to the ship.

GAIN

For maximum range SART detection the

normal gain setting for long range detection

should be used, that is, with background

noise speckle visible.

STC control

For optimum range SART detection, this

control should be set to the minimum. Care

should be exercised as a wanted target in

sea clutter may be obscured. Note also that

in clutter conditions the first few dots of the

SART response may not be detectable,

irrespective of the setting of the anti-clutter

sea control. In this case, the position of the

SART may be estimated by measuring 9.5

nm miles from the furthest dot back

towards own ship.

Some sets have automatic/manual anti-

clutter sea control facilities in which case

the operator should switch to manual.

FTC control

This should be used normally (to break up

areas of rain) when trying to detect a SART

response which, being a series of dots, is

not affected by the action of the anti-clutter

rain circuitry. Note that Racon responses,

which are often in the form of a long flash,

will be affected by the use of this control.

Some sets have automatic/manual anti-

clutter rain control facilities in which case

the operator should switch to manual.

When the range to the SART is reduced to

about 1 nm, the radar display may show

also the 12 responses generated during

the fast sweeps. These additional dot

responses, which also are equally spaced

by 0.64 nm, will be interspersed with the

original line of 12 dots. They will appear

slightly weaker and smaller than the

original dots.

3-7

3.7 Racon (Radar Beacon)

A racon is a radar transponder which emits

a characteristic signal when triggered by a

ship’s radar (usually only the 3 centimeter

band). The signal may be emitted on the

same frequency as that of the triggering

radar, in which case it is superimposed on

the ship's radar display automatically.

The racon signal appears on the PPI as a

radial line originating at a point just beyond

the position of the radar beacon or as a

Morse code signal (see figure below)

displayed radially from just beyond the

beacon.

Racon

Figure 3-9 Appearance of racon signal

on the display

4-1

4. MAINTENANCE &

TROUBLESHOOTING

This chapter tells you how to keep your

radar in good working order. Before

reviewing this chapter please read the

safety information which follows.

Do not open the equipment.

Only qualified personnel should

work inside the equipment.

RF RADIATION HAZARD

The radar antenna emits high

frequency radio radiation which

can be harmful, particularly to your eyes.

Never look directly into the antenna from a

distance of less than 1 m when the radar is

in operation as you could injure the cornea

of your eyes. Always make sure the radar is

set to stand-by or is turned off before

starting work on the antenna unit.

WARNING

4.1 Preventative

Maintenance

Regular maintenance is important for good

performance. Always keep the equipment

as free as possible from dirt, dust, and

water splashes. Make sure all screws

securing the components are properly

tightened.

A maintenance program should be

established and should at least include the

items listed in Table 4-1.

Table 4-1 Recommended maintenance program

Period

3 to 6

months

6 months

to 1 year

Item

Exposed

nuts and

bolts on

antenna unit

Antenna

radiator

Terminal

strips and

plugs in

antenna unit

LCD

Display unit

connectors

Check point

Check for corrorded or loosened nuts

and bolts. If necessary, clean and

repaint them thickly. Replace them if

heavily corroded.

Check for dirt and cracks on radiator

surface. thick dirt should be wiped off

with soft cloth dampened with fresh

water. If a crack is found, apply a slight

amount of sealing compound or

adhesive as a temporary remedy, then

call for repair.

Open antenna cover to check terminal

strip and plug connections inside. Also

check the rubber gasket of antenna

covers for deterioration.

The LCD will, in time, accumulate a

coating of dust which tends to dim the

picture. Wipe LCD lightly with a soft

cloth.

Check for tight connection and

corrosion.

Remarks

Sealing compound may be used

instead of paint. Apply a small

amount of grease between nuts

and bolts for easy removal in future.

Do not use plastic solvent (acetone)

for cleaning. If you need to remove

ice from antenna unit, use a

wooden hammer or plastic head

hammer. Crack on the unit may

cause water ingress, causing

serious damages to internal circuits.

When closing antenna covers in

position, be careful not to catch

loose wires between covers and

unit.

Do not use chemical cleaners to

clean any part of the display unit;

they can remove paint and

markings.

If corroded, contact your dealer

for replacement.

4-2

4.2 Replacing the Fuse

The fuse in the power cable protects the

equipment against reverse polarity of ship’s

mains, overcurrent, and equipment fault. If

the fuse blows, find the cause before

replacing it. Never use an incorrect fuse–

serious damage to equipment may result

and void the warranty.

24/32 VDC :5 A fuse

12 VDC :10 A fuse

4.3 Troubleshooting

Table 4-2 contains simple troubleshooting

procedures which you can follow to try to

restore normal operation. If you cannot

restore normal operation, do not attempt to

check inside any unit of the radar system.

Any repair work is best left to a qualified

technician.

Table 4-2 Troubleshooting table

If...

you pressed the

[POWER] key to

turn on the radar

the radar has

warmed up and you

pressed the

[ST-BYTX] key to

transmit

you have adjusted

the gain with FTC

and STC off

a key is pressed

But...

the control panel does not

light

nothing appears on the

display or display contrast

is poor

characters are distorted

the antenna does not

rotate

characters and indications

are abnormal

neither noise nor targets

appear (indications and

markers do)

neither indications nor

markers appear

(noise and targets do)

the sweep (radial line

sweeping around the

display) is not

synchronized with

antenna rotation

there is no change in

sensitivity.

nothing happens

Then...

try adjusting the control panel backlighting

on the Brilliance/Backlighting menu.

battery may have discharged.

check fuse in power cable.

try adjusting the tone.

(Extreme ambient temperature may affect

display tone.)

request service.

the problem may be in antenna unit.

Request service.

have a qualified technician check the set.

check signal cable for damage.

the problem may be in the antenna unit.

Request service.

request service.

key may be faulty. Request service.

4-3

4.4 Test

The self test facility checks the keyboard,

ROM and RAM for proper operation. You

may run the test as follows.

1. Press the [MENU] key.

2. Select Self Check. The following

display appears.

SELF TEST

KEY Board TEST :

Press each key and

note that the cor-

responding key on

the screen turns

black.

Prog. No. 03591371**

ROM : OK

RAM : OK

On Hours 000008.3H

Tx Hours 000007.9H

<MENU> = MAIN MENU

**: Program version no.

M851

Figure 4-1 Test screen

3. To check the keyboard, press each key

except the [MENU] key. Its

corresponding location on the display

lights in black if the key is operating

properly.

4. To escape from the test, press the

[MENU] key.

The ROM and RAM are automatically

checked. If NG (No Good) appears to the

right of ROM or RAM indication, contact

your dealer for advice.

NMEA data can be displayed on the test

screen as follows;

1. Press the [+] key. NMEA data appears

on the upper half of the screen.

2. Press the [TONE] key to select input

source; NAV, HDG or E/S.

3. To display the NMEA data over the

entire screen, press the [-] key three

times.

4. To erase the NMEA data, press the [+]

key.

4.5 Replacing the

Magnetron

When the magnetron has expired distant

targets cannot be seen on the display. When

you feel long range performance has

decreased contact a FURUNO agent or

dealer about replacement of the magnetron.

Magnetron type: MG5248

(Code No. 000-116-121)

A-1

MENU TREE

1. Backlight/Brilliance

2. P/L, IR, NR & Radar Mode

3. Nav Data

4. Mode & Function

5. Tuning (

AUTO

, MANUAL)

6. Self Check (Checks equiment for proper operation.)

7. Installation Setup 1 (For installation use.)

1. Panel (1, 2, 3,

)

2. Echo trail (

, 2)

1. Pulselength (

SHORT

, LONG)

2. Int Reject (OFF,

, 2, 3)

3. Noise Reject (OFF,

)

4. Echo Stretch (

OFF

, ON)

5. Radar Mode (

, WPT-UP)

1. Navigator (

ALL

, GPS, LC)

2. Nav Data Disp (

OFF

, ON)

3. Pos Disp Mode (

L/L

, TD)

4. Depth Unit (M, FA, FT)

5. Temp Unit ( C, F)

6. STBY Display (

NORM

, NAV)

1. Window Display (

Zoom

, Wide)

2. Watchman (

OFF

, 5', 10', 20')

3. Alarm Mode (

, OUT)

4. VRM Unit (

, KM, SM)

5. EBL Ref (

REL

, TRUE)

6. Range (

1/8, 1/4, 1/2, 3/4

, 1,

1.5

, 2,

, 8,

, 16,

, 36,

)

[MENU] key

Default settings shown in bold italic.

SP - 1

SPECIFICATIONS OF MARINE RADAR

MODEL 851 MARK-2

1. GENERAL

(1) Indication System PPI Daylight display, raster scan, 4 tones in monochrome

(2) Range, Pulse Length (PL) & Pulse Repetition Rate (PRR)

Range (nm) Pulse Length (µs) PRR (Hz

approx.)

0.125 to 1.5 0.08 2100

1.5 to 3 0.3 1200

3 to 48 0.8 800

(3) Range Resolution 32 m

(4) Bearing Resolution 2.7º

(5) Minimum Range 27 m

(6) Bearing Accuracy Within ±1º

(7) Range Ring Accuracy 1 % of range or 8 m, whichever is the greater

2. SCANNER UNIT

(1) Radiator Slotted wave-guide array

(2) Polarization Horizontal

(3) Antenna Rotation Speed 24 rpm nominal

(4) Radiator Length 100 cm

(5) Horizontal Beamwidth 2.4° nominal

(6) Vertical Beamwidth 25° nominal

(7) Sidelobe Attenuation less than -24 dB, -30 dB outside of main-lobe

(8) Bearing Wind 51.5 m/s (100 knots) relative

3. TRANSCEIVER MODULE

(1) Frequency and Modulation 9410 MHz ±30MHz (X band), P0N

(2) Peak Output Power 4 kW nominal

(3) Modulator FET Switching Method

(4) Intermediate Frequency 60 MHz

(5) Tuning Automatic

(6) Magnetron MG5248 or E3571/E3571A

(7) Receiver Front End MIC (Microwave IC)

(8) Bandwidth 10 MHz

(9) Duplexer Circulator with diode limiter

(10) Time of Heat-up 90 seconds approx.

SP - 2

4. DISPLAY UNIT

(1) Picture Tube 8 inch rectangular monochrome LCD, 122.4 mm x 163.1 mm

(2) Effective Area 481(H) x 640(V) dots, Effective radar display area: 481 x 481 dots

(3) Range, Range Interval, Number of Rings

Range (NM) 0.125 0.25 0.5 0.75 1 1.5 2 3 4 6 8 12 16 24 36 48

Ring Interval (NM) 0.0625 0.125 0.125 0.25 0.25 0.5 0.5 1 1 2 2 3 4 6 12 12

Number of Rings 2 2 4 3 4 3 4 3 4 3 4 4 4 4 3 4

(4) Markers Heading Line, Bearing Scale, Range Rings,

Variable Range Marker (VRM), Electronic Bearing Line (EBL),

Tuning Bar, Alarm Zone,

Waypoint Mark (navigation input required)

North Mark (heading sensor input required)

(5) Alphanumeric Indications Range, Range Ring Interval, Display Mode (HU),

Interference Rejection (IR), Variable Range Marker (VRM),

Electronic Bearing Line (EBL), Stand-by (ST-BY),

Guard Alarm (G(IN), G(OUT)), Echo Stretch (ES),

Range and Bearing to Cursor, *Bearing or L/L Position,

Echo Tailing (TRAIL), Trailing Time, Trailing Elapsed Time,

Watchman (WATCHMAN), Zoomed Display (ZOOM)

*Ship’s speed (SPD), **Water temperature, **Water depth

*: Navigation data required, **: Echo sounder data required

(6) Input Data IEC 61162-1 adopted

Own ship’s position: GGA>RMA>RMC>GLL

Ship’s speed: RMA>RMC>VTG>VBW

Bearing (True): HDT>HDG*1>HDM*1

Bearing (Magnetic): HDM>HDG*1>HDT*1

Course (True): RMA>RMC>VTG

Course (Magnetic): VTG>RMA

Waypoint (Range, Bearing): RMB>BWC>BWR

Loran time difference: RMA>GLC>GTD

Water depth DPT>DBK>DBS>DBT

Water Temperature MTW

*1: calculated by magnetic drift

(7) Output Data

Alarm signal 12 VDC, 100 mA or less

Radar signal For radar remote display

SP - 3

5. POWER SUPPLY

(1) Rated Voltage/Current 12-24 VDC: 5.0-2.5 A

(2) Rectifier (option) 100/110/115/200/220/230 VAC, 1 phase, 50/60 Hz

6．ENVIRONMENTAL CONDITION

(1) Ambient Temperature Scanner Unit: -25°C to +70°C

(IEC 60945) Display Unit: -15°C to +55°C

(2) Relative Humidity 93 % ±2% at +40°C

(3) Waterproofing Scanner Unit: IPX6

(IEC 60529) Display Unit: IPX5

(4) Bearing Vibration IEC 60945

7. COATING COLOR

(1) Display Unit Panel: N3.0, Chassis: 2.5GY5/1.5

(2) Scanner Unit N9.5 (upper), 2.5PB3.5/10 (lower)

8. COMPASS SAFE DISTANCE

(1) Display Unit Standard: 0.70 m Steering: 0.50 m

(2) Scanner Unit Standard: 1.00 m Steering: 0.75 m

Index-1

INDEX

A.C RAIN .....................................................2-5

BRILL key ............................................ 2-1, 2-3

Backlight/Brilliance menu ............................2-9

Backlightings ...............................................2-3

Bearing measurement .................................2-7

Bearing resolution........................................3-2

Blind and shadow sectors ...........................3-4

Illumination ..................................................2-4

Curse-up mode..........................................2-12

Control panel ...............................................2-1

Cursor..........................................................2-2

Cursor position ..........................................2-21

Cursor range................................................2-2

DISP MODE key........................ 2-1, 2-10-2-11

Display mode.............................................2-10

EBL...................................................... 2-2, 2-7

EBL reference............................................2-19

EBL key ............................................... 2-1, 2-7

ECHO key............................................ 2-1, 2-4

ENT key.......................................................2-1

Echo stretch...............................................2-18

Echo trail....................................................2-16

FTC ............................................... 2-4-2-6, 3-6

Fuse ............................................................ 4-2

GUARD key........................................ 2-1, 2-13

GAIN ....................................................2-4, 3-6

Guard alarm ......................................2-12-2-14

HM OFF key.......................................2-1, 2-21

Heading marker .................................2-2, 2-20

Head-up mode .......................................... 2-12

Indirect echoes............................................ 3-4

MENU key................................................... 2-1

Maintenance ............................................... 4-1

Menu .....................................................2-8-2-9

Menu tree ....................................................A-1

Mode & Function menu............................... 2-9

Multiple echoes ........................................... 3-3

Nav Data menu ........................................... 2-9

Navigation data ......................................... 2-17

Noise rejection .......................................... 2-15

OFF CENTER key .............................2-1, 2-15

Omnipad...................................................... 2-1

Index-2

P/L, IR, & Radar menu ................................2-9

POWER key ................................................2-1

Post Disp Mode .........................................2-17

Pulselength ................................................2-15

RANGE key ......................................... 2-1, 2-3

RINGS key........................................... 2-1, 2-6

Radar horizon ..............................................3-1

Radar wave .................................................3-1

Range

Measuring ................................................2-6

Selecting ..................................................2-3

Range resolution .........................................3-2

ST-BY TX key..............................................2-3

STC .............................................................2-4

Self test........................................................4-3

Side-lobe echoes.........................................3-3

Sub-refraction ..............................................3-1

Super-refraction...........................................3-1

System configuration ...................................... v

Tone.............................................................2-3

TONE key ............................................ 2-1, 2-3

TRAIL key.......................................... 2-1, 2-16

Troubleshooting ...........................................4-2

Tuning..........................................................2-6

VRM..................................................... 2-2, 2-7

VRM key .............................................. 2-1, 2-7

WPT-UP mode.......................................... 2-12

Watchman ................................................. 2-19

Wide display.............................................. 2-11

Window Display ........................................ 2-11

Zoom display............................................. 2-11

Furuno USA 9ZWRTR065 MARINE RADAR User Manual OPERATORS MANUAL

Furuno USA Inc MARINE RADAR OPERATORS MANUAL

OPERATORS MANUAL

Navigation menu

Namespaces

Views

Navigation
