G4S Technology S680A S680 Proximity Card Reader User Manual
G4S Technology Limited S680 Proximity Card Reader
User Manual
1Mount the Reader
Installation and User Instructions for S680 & S690 Readers
You can remove the front cover by
easing it off gently with a screwdriver
at this point
2Reader Connections
Note: (For UL Listed Products)
1). Consult local AHJ (Authority Having Jurisdiction) when installing access control readers and locking
mechanisms to any portal in an egress path.
2). The use of Fail Closed / secure configuration shall be determined by local building codes and the
local AHJ.
3). Wiring methods shall be in accordance with NEC (National Electrical Code) ANSI/NFPA 70.
4). All Interconnected devices must be UL listed.
5). For UL294 Installations the S680 and S690 Readers have only been determined compatible to be
used with the M2150 Series Control and Elevator Units.
You should find that the
backplate has holes for
connection to most standard
electrical back boxes.

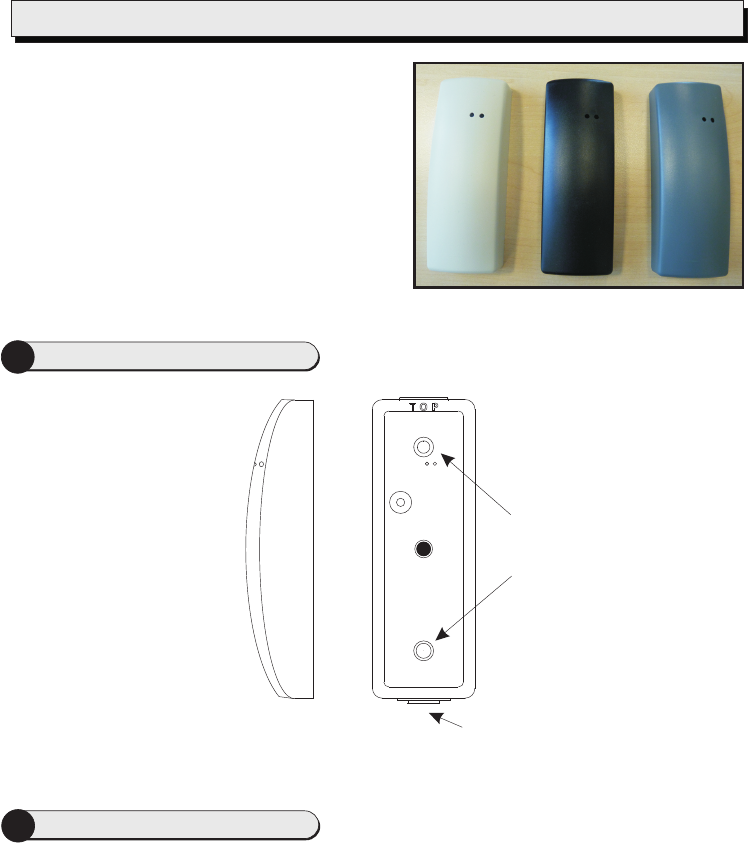

The S680 and S690 readers are
readers that are capable of reading HID format card,
with LED’s. The readers use
For additional information regarding the installation,
configuration and proper use of this product please
refer to:
M2150 Design Guide, P/N 9600-0420 Issue 1.6.4 or
later and SMS Software User Guide, P/N 9600-0429
Issue 7.0.4 or later.
125kHz proximity card
®
20mA current loop
communications.
Mount the backplate using
countersunk headed screws
adjacent to the opening edge
of the door.
Present the card face-on to the reader until you hear a "bleep". The reader is now working correctly. Cards can
be presented in rapid succession; there is no need, for example, to wait for "GREEN LED’s" to disappear before
presenting another.
When faulted, the reader can not accept a card read. Check wiring for faults or replace reader.
9600-0199. Installation and User Instructions for S680/690 Readers,
Issue 2.0x1 5th November 2013. G4S Technology, 2013.
FCC Notice: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Any unauthorized modification to this device may void the authority of
the user to operate it. All trademarks acknowledged.
©
LED Status Indicator
GREEN – The lock is released and you may open the door.
RED – You do not have access rights to gain entry, or the reader did not read your card properly (in this case,
present it again).
Specifications
Input voltage: 12Vdc.
Input current: 100mA Max.
Operating temperature: -13 to 158°F (-25 to 70°C)
Operating humidity: 90%, non-condensing.
Maximum read range: 4" (100mm).
Approvals: EN300330, EN301489
4Using / Testing the Reader

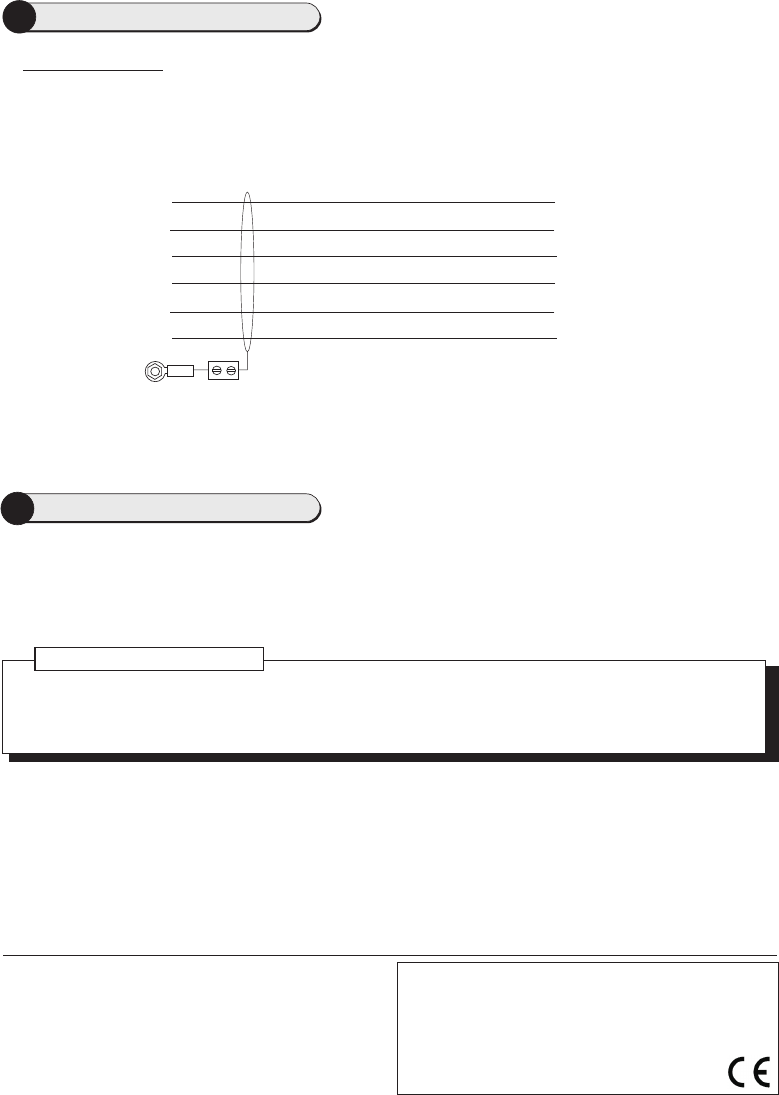

3Reader Connections contd.
TX-
RX+
RX-
680/690 Reader
20mA current loop
Connect shield at
controller end only.
Shielded Belden 9537 7x24 awg cable UL Listed style 2464 (DUZX) cable.
Maximum distance 150m
12V
0V
TX+
RX-
TX+
TX-
12V
0V
RX+
Controller
Note:
Brown wire not used
Red
Black
Green
Orange
White
Blue
