Macaron N Series
SM-MSN09-C01
NFC Controller Module with Integrated Antenna
Datasheet Version 1.0
Smart Approach Co., Ltd.
4F,No.669,Sec.4.Chung Hsing Rd.,
Chutung, Hsinchu 310,
Taiwan, R.O.C.
+886-3-5830303
www.smart-approach.com.tw
SM-MSN09-C01 Datasheet
- 2 -
Revision 1.0 June 2014
Smart Approach Co., Ltd (“S.A.”) retains the right to make changes to its products or specifications to
improve performance, reliability or manufacturability. All information in this document, including
descriptions of features, functions, performance, technical specifications and availability, is subject to
change without notice at any time. While the information furnished herein is held to be accurate and
reliable, no responsibility will be assumed by Smart Approach for its use. Furthermore, the information
contained herein does not convey to the purchaser of microelectronic devices any license under license
under the patent right of any manufacturer.
Smart Approach Co., Ltd is a registered trademark. All other products or service names used in this
publication are for identification purposes only, and may be trademarks or registered trademarks of their
respective companies. All other trademarks or registered trademarks mentioned herein are the property
of their respective holders.
Feedback on the use of any of the document is welcomed and encouraged by Smart Approach.
Please contact service@smart-approach.com.tw for your feedback or any ordering inquiry.
Please contact support@smart-approach.com.tw for any technical question.
SM-MSN09-C01 Datasheet
- 3 -
Revision 1.0 June 2014
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
This device may not cause interference, and
This device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
cet appareil ne doit pas provoquer d’interférences et
cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer
un fonctionnement non souhaité de l’appareil.
SM-MSN09-C01 Datasheet
- 4 -
Revision 1.0 June 2014
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、 加
大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；
經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信
法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that
20cm may be maintained between the antenna and users. The final end product must be labeled in a
visible area with the following: "Contains FCC ID: JCK-MSN09C01 ” and "Contains IC: 6655A-MSN09C01“
SM-MSN09-C01 Datasheet
- 5 -
Revision 1.0 June 2014
Revision History
This section describes the changes that were implemented in this document. The changes are
listed by revision, starting with the most current publication.
Revision 1.0
Revision 1.0 of this datasheet was published in June 2014. This was the first publication of the
document.
SM-MSN09-C01 Datasheet
- 6 -
Revision 1.0 June 2014
Contents
REVISION HISTORY ............................................................................................................................. - 5 -
CONTENTS ........................................................................................................................................... - 6 -
FIGURE CONTENTS ............................................................................................................................ - 7 -
TABLE CONTENTS .............................................................................................................................. - 7 -
1 INTRODUCTION .......................................................................................................................... - 8 -
2 PRODUCT OVERVIEW ................................................................................................................ - 9 -
2.1 FEATURES .............................................................................................................................. - 9 -
2.2 APPLICATION .......................................................................................................................... - 9 -
3 FUNCTIONAL DESCRIPTIONS ................................................................................................ - 11 -
3.1 COMMUNICATION OVERVIEW FOR ISO/IEC 14443A / MIFARE CONTROLLER .......................... - 12 -
4 ELECTRICAL SPECIFICATIONS .............................................................................................. - 13 -
4.1 PIN DESCRIPTION ................................................................................................................. - 13 -
4.2 I2C ADDRESS ....................................................................................................................... - 14 -
4.3 TEMPERATURE MAXIMUM RATINGS ........................................................................................ - 14 -
4.4 DC ELECTRICAL PARAMETERS .............................................................................................. - 14 -
4.5 ANTENNA SPECIFICATIONS .................................................................................................... - 15 -
4.6 POWER CONSUMPTION ......................................................................................................... - 15 -
4.7 THERMAL PROTECTION ......................................................................................................... - 16 -
4.8 SYSTEM POWER MODES ........................................................................................................ - 16 -
4.9 RESET AND DOWNLOAD CONCEPT .......................................................................................... - 17 -
4.10 NFC CONNECTION RECOMMENDATION .................................................................................. - 18 -
4.11 MAIN BOARD DESIGN REFERENCE ........................................................................................ - 18 -
5 ORDERING INFORMATION ...................................................................................................... - 19 -
6 RELIABILITY VERIFICATION .................................................................................................... - 20 -
7 NFC MODULE OUTLINE ........................................................................................................... - 21 -
SM-MSN09-C01 Datasheet
- 7 -
Revision 1.0 June 2014
Figure Contents
Figure 1 Typical Application ................................................................................................. - 9 -
Figure 2 Typical Application II ............................................................................................ - 10 -
Figure 3 Module Block Diagram ........................................................................................ - 11 -
Figure 4 Transmission Modes ........................................................................................... - 12 -
Figure 5 Reset via VEN pin ................................................................................................. - 17 -

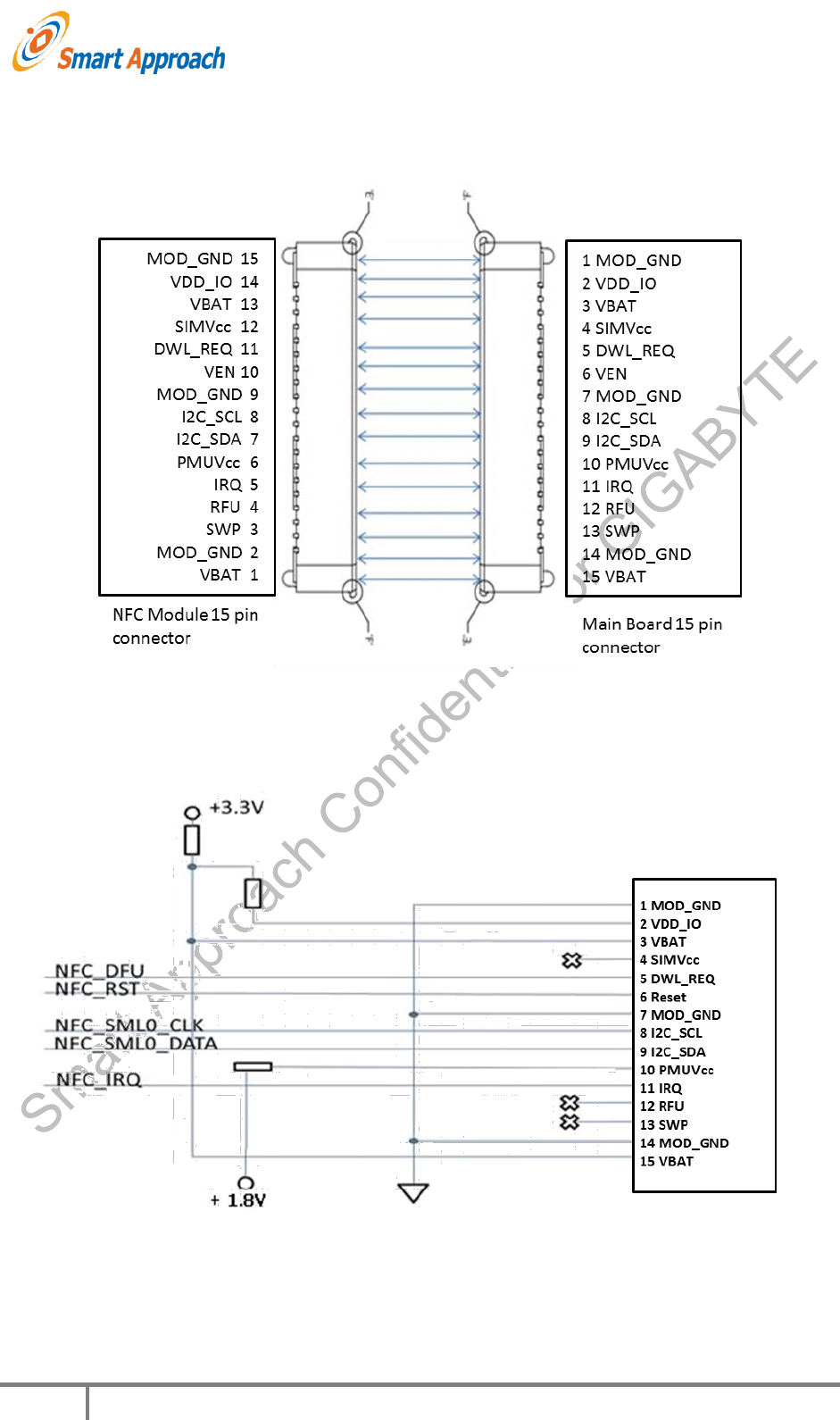

Figure 6 Connection Recommendation ............................................................................. - 18 -
Figure 7 Main Board Design W/O UICC Reference ........................................................... - 18 -

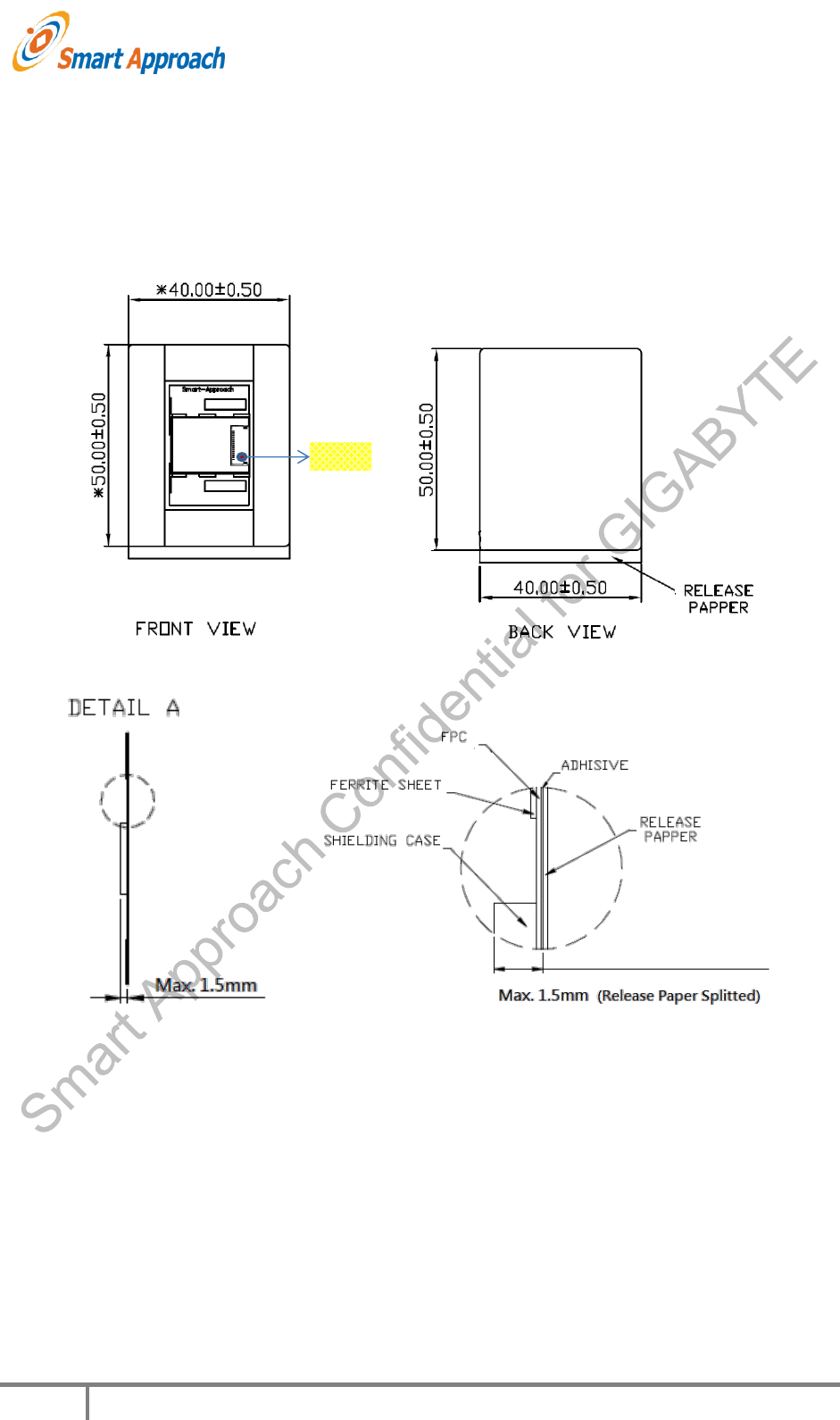

Figure 8 Antenna Module Drawing .................................................................................... - 21 -
Figure 9 Module FPC Connection Footprint (Button Contact) ............................................ - 22 -

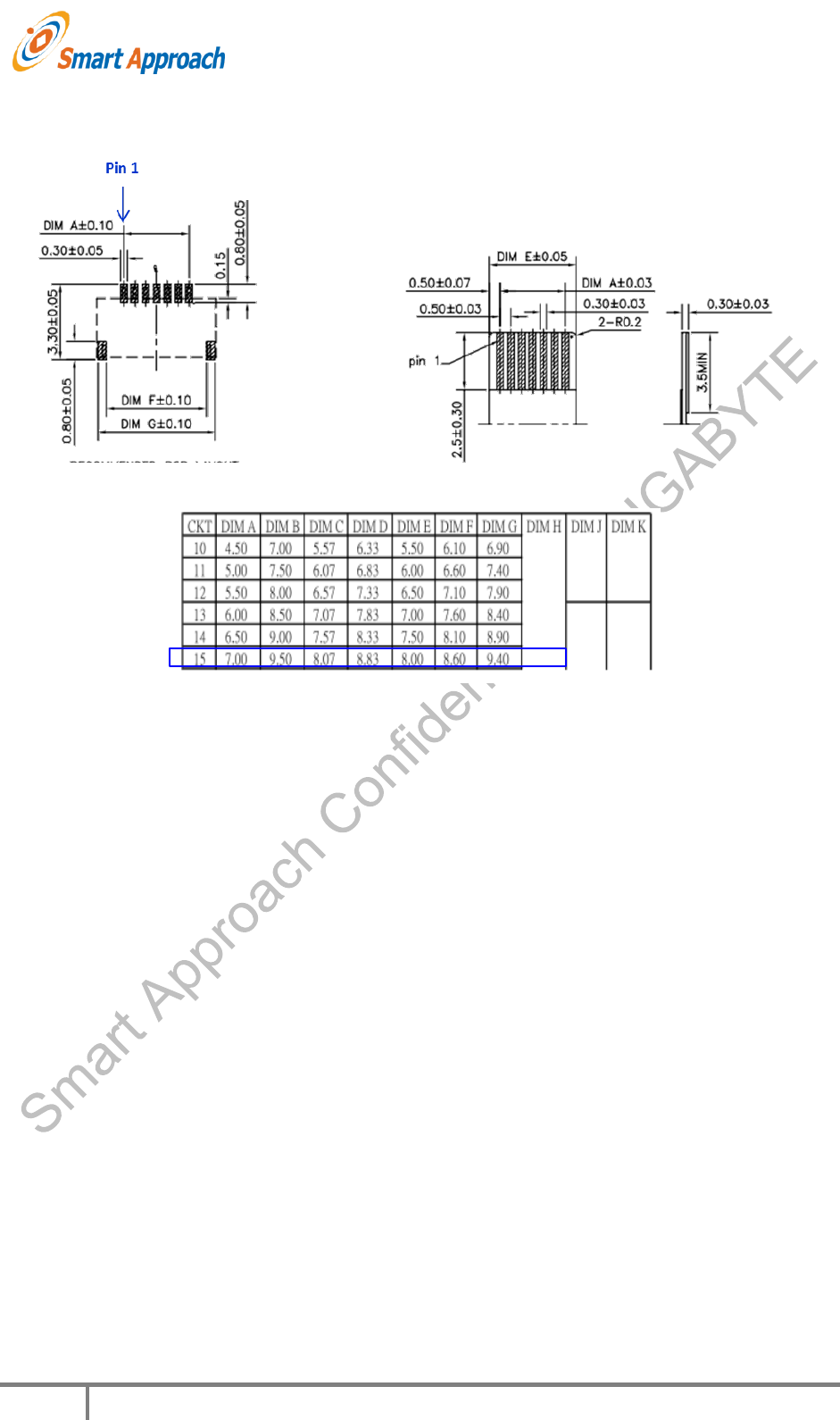

Figure 10 FPC Wire Dimension ......................................................................................... - 22 -
Table Contents
Table 1 Module Pin Description ......................................................................................... - 13 -
Table 2 I2C Address ........................................................................................................... - 14 -
Table 3 Temperature Maximum Ratings ............................................................................ - 14 -
Table 4 DC Electrical Specification .................................................................................... - 14 -
Table 5 Antenna Specifications .......................................................................................... - 15 -
Table 6 Current Consumption ............................................................................................ - 15 -
Table 7 Thermal Protection ................................................................................................ - 16 -
Table 8 System Power Modes Description ........................................................................ - 16 -
Table 9 Power Mode Configuration .................................................................................... - 17 -
Table 10 Reset Timing ....................................................................................................... - 17 -
Table 11 Ordering Information Table .................................................................................. - 19 -
Table 12 Reliability Item Table ........................................................................................... - 20 -
SM-MSN09-C01 Datasheet
- 8 -
Revision 1.0 June 2014
1 Introduction
This document consists of descriptions and specifications for both functional and physical
aspects of the SM-MSN09-C01 NFC reader / writer module.
In addition to the datasheet, Smart Approach maintains and extensive device-specific library of
support and collateral materials that you may find useful in your application. Depending upon
the Smart Approach device, this library may include:
Presentations highlighting the operational features and specifications of the device to
assist in developing your own product road map.
Application notes that provide detailed descriptions of the use of the particular Smart
Approach product to solve real-world problems.
SM-MSN09-C01 Datasheet
- 9 -
Revision 1.0 June 2014
2 Product Overview
SM-MSN09-C01 is full featured NFC controllers designed for integration in portable equipment.
It is optimized for low power consumption with fully host controllable power states and for small
footprint for portable equipment applications.
The module’s compact, flexible design with and exposed pad is optimal for size-sensitive
applications, assures robust performance.

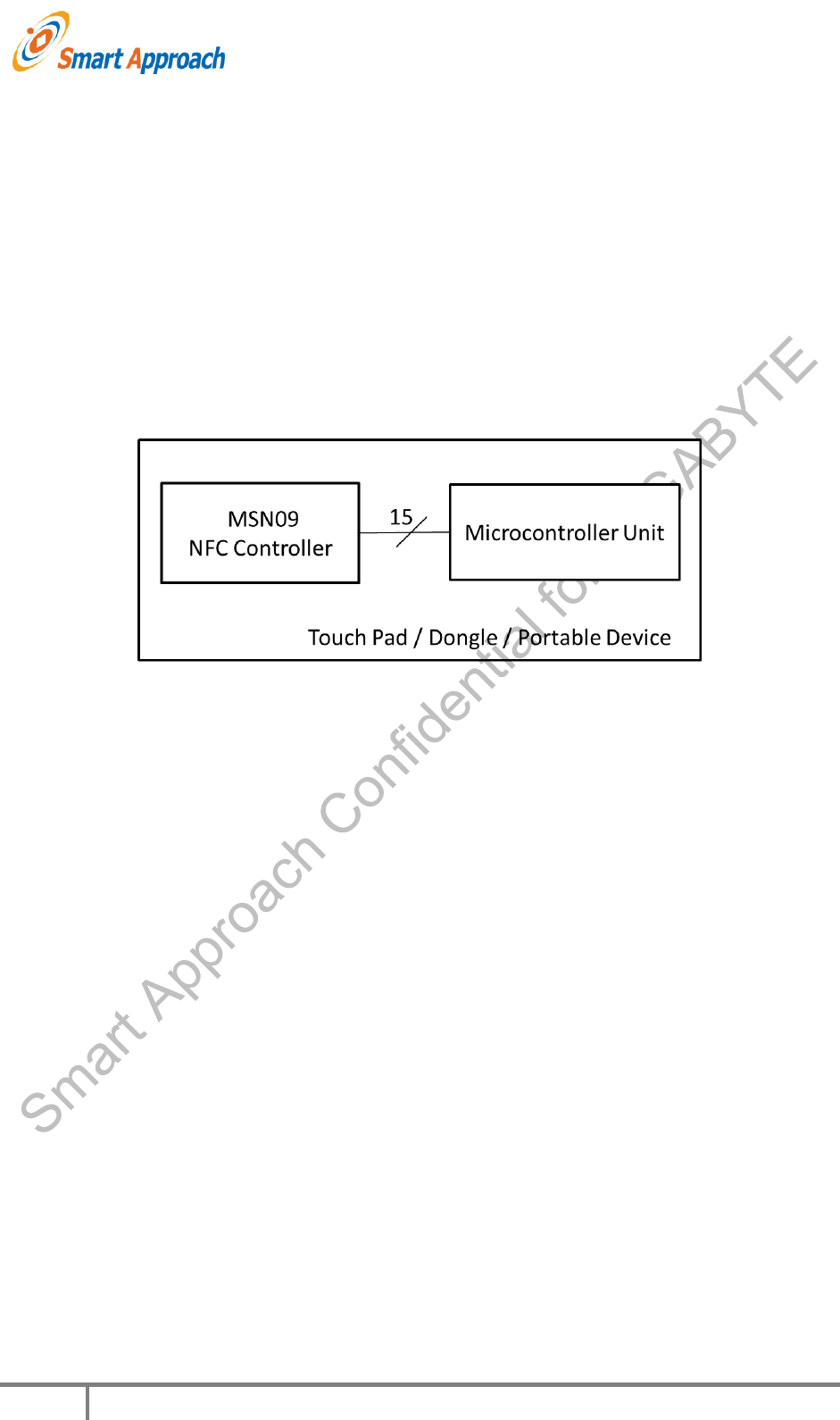

The following illustration shows a high-level, generic view of a SM-MSN09-C01 application.
Figure 1 Typical Application
2.1 Features
This section Tables key aspects of the SM-MSN09-C01 module functionality and design that
distinguish it from similar products:
NXP NPC100 NFC Controller
Full featured NFC controller industry’s low power consumption.
Compliant with ISO/IEC 14443 A/B
Compliant with 15693/18092
Antenna pairing could be customized
I2C interface
The maximum of thickness is 1.5 mm.
2.2 Application
Suggested applications for the SM-MSN09-C01 module include:
NFC writer
NFC reader
NFC peer to peer controller
NFC payment
NFC identification
SM-MSN09-C01 Datasheet
- 10 -
Revision 1.0 June 2014

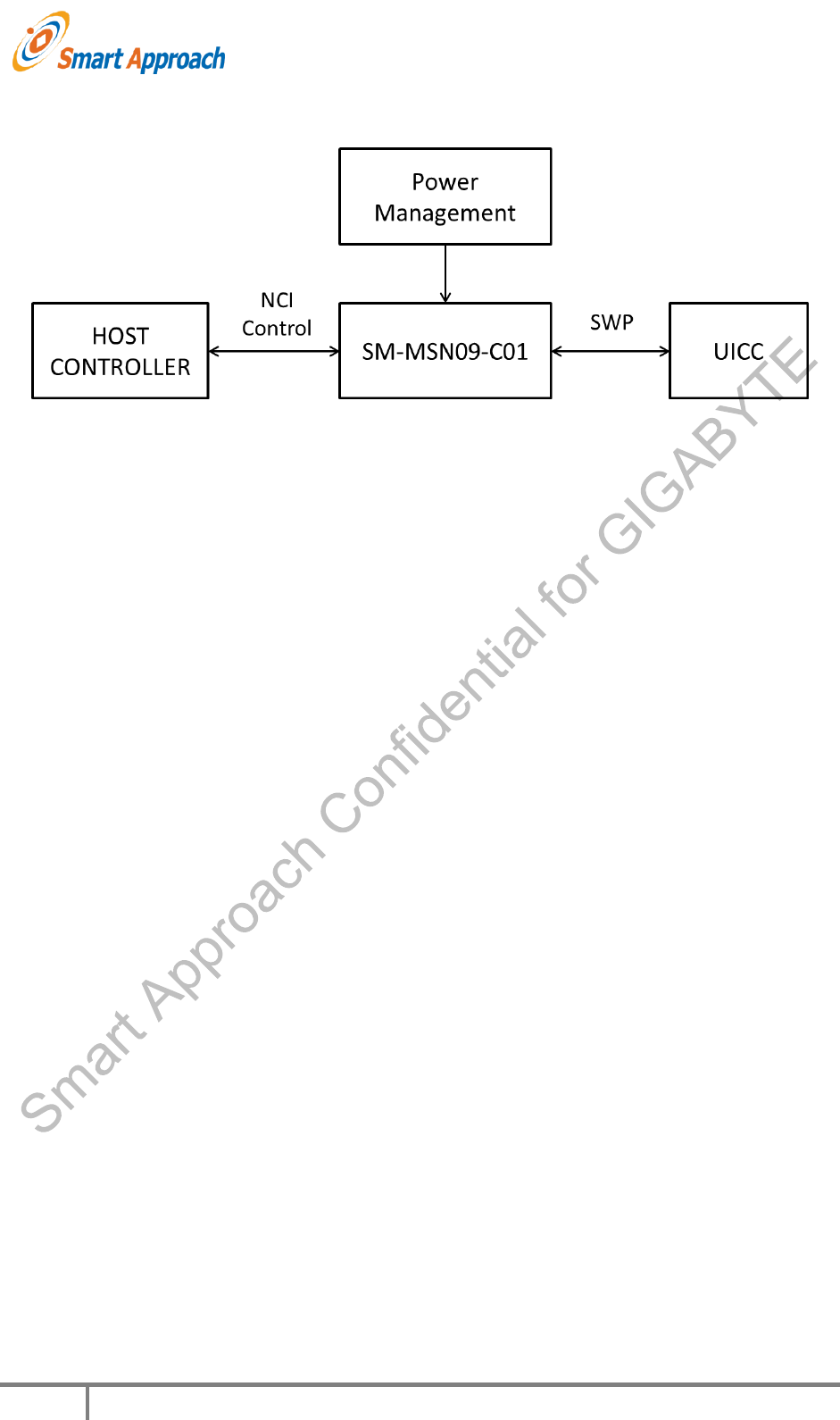

Figure 2 Typical Application II
SM-MSN09-C01 can be connected on a host controller through I2C-bus interfaces. The logical
interface towards the host base band is NCI-compliant with additional command set for SA
specific product features. SM-MSN09-C01 can be connected to a UICC through an SWP
interface. The SWP physical interface is compliant with ETSI/SCP SWP and HCI.
Moreover, SM-MSN09-C01 provides flexible and integrated power management unit in order to
preserve energy supporting Powered by the Field and Power Off mode. It also allows various
power schemes for the UICC.
SM-MSN09-C01 Datasheet
- 11 -
Revision 1.0 June 2014
3 Functional Descriptions
This section provides detailed information about how SM-MSN09-C01 module works, what
configurations and operational features are available.

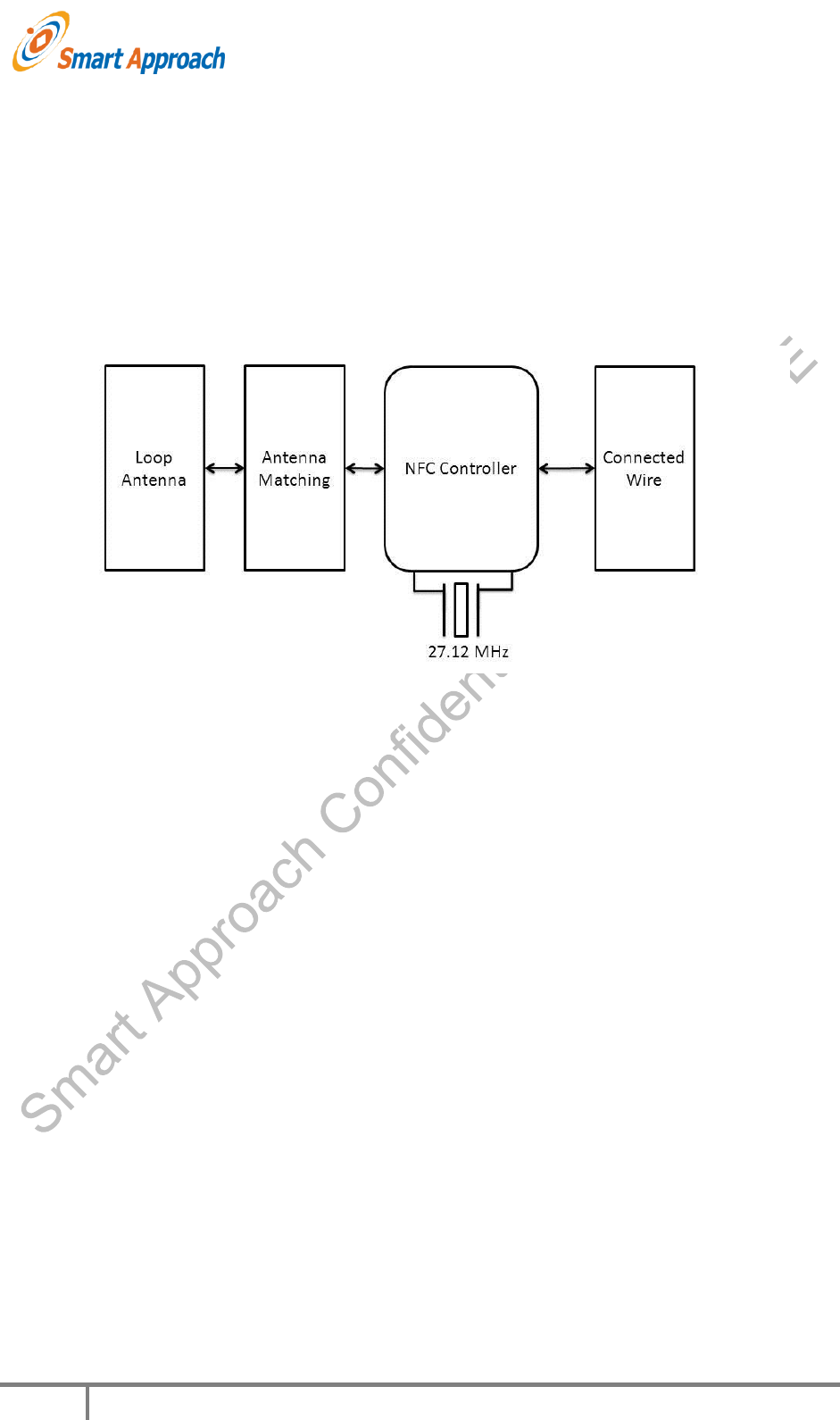

The following illustration shows the primary functional blocks of SM-MSN09-C01 module.
Figure 3 Module Block Diagram
Loop Antenna is Smart Approach customize solution, Antenna size of SM-MSN09-C01 is
40mm x 50 mm. Antenna matching is also a customize solution. NFC controller includes NXP
NPC100 chipset, and has an I2C control interface through the connector to mother board.
SM-MSN09-C01 Datasheet
- 12 -
Revision 1.0 June 2014

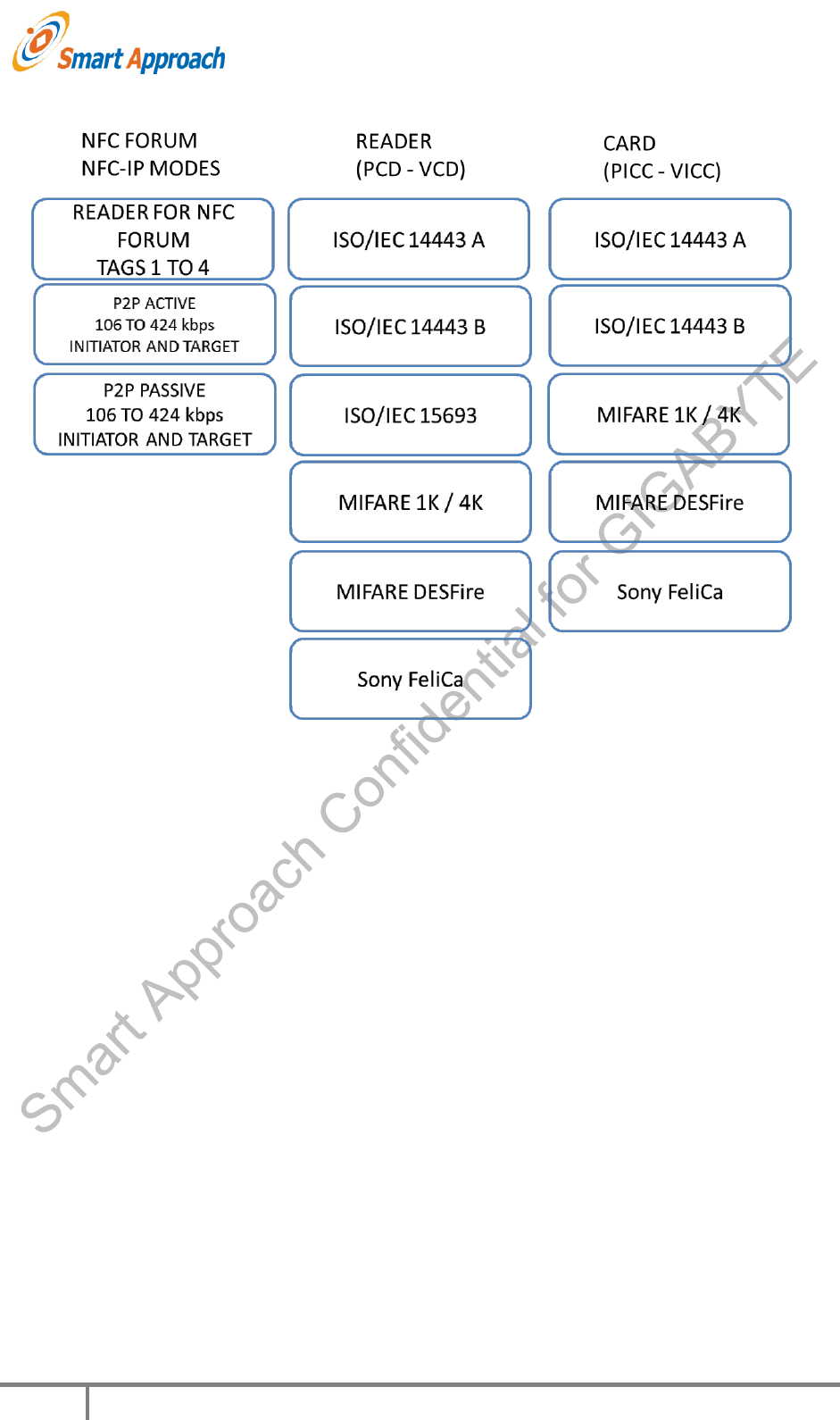

Figure 4 Transmission Modes
For contactless card functionality, SM-MSN09-C01 can act autonomously if previously
configured by the host in such a manner. PICC functionality can be supported without device
being turned on or even with battery removed.
3.1 Communication overview for ISO/IEC 14443A / MIFARE Controller
The contactless coprocessor and the on-chip CPU of SM-MSN09-C01 handle the complete
ISO/IEC 14443A/MIFARE RF-protocol, nevertheless a dedicated external host has to handle
the application layer communication.
SM-MSN09-C01 Datasheet
- 13 -
Revision 1.0 June 2014
4 Electrical Specifications
This section provides the DC characteristics, AC characteristics, recommended operating
conditions. It includes information on the various timing functions of the module.
4.1 Pin Description
The following Table shows the pin description for SM-MSN09-C01 module.
The connection ground is internally connected and should be connected to GND on the main
board as well.
Table 1 Module Pin Description
PIN
No.
Name
Description
Power
Reference
P/I/O
1
VBAT
+3.3V power supply input
3.3V
P
2
MOD_GND
Module Ground
GND
P
3
SWP
SWP data line to UICC/SIM, Input / Output
PMUVCC
I/O
4
RFU
Unused pin could be floating
-
-
5
IRQ
Interrupt to host, High: Interrupt; Low: Normal
VDD_IO
O
6
PMUVCC
Power supply to UICC/SIM, input, + 1.8V
1.8V
P
7
I2C_SDA
I2C Data Line
VDD_IO
I/O
8
I2C_SCL
I2C Clock
VDD_IO
I
9
MOD_GND
Module Ground
GND
P
10
VEN
Wake up the module from standby mode or reset the
module
VBAT
I
11
DWL_REQ
Firmware download control: Active High
VDD_IO
I
12
SIMVCC
The power rail used to power UICC / SIM, output pin
PMUVCC
P(O)
13
VBAT
+3.3V Power Supply
3.3V
P
14
VDD_IO
+1.8V or +3.3V for host IO reference voltage
1.8V/3.3V
P
15
MOD_GND
Module Ground
GND
P
SM-MSN09-C01 Datasheet
- 14 -
Revision 1.0 June 2014
4.2 I2C Address
SM-MSN09-C01 I2C 7bit address is defined to 0x28. To write data, this module is addressed
using 0x50, to read data, this module is addressed using 0x51.
Table 2 I2C Address
I2C address (R/W=0, write)
I2C address (R/W=1, read)
0x50
0x51
4.3 Temperature Maximum Ratings
Thermal specifications for this module have been modeled using a two-layer test board.
Table 3 Temperature Maximum Ratings
Symbol
Definition
Value
Units
Min
Max
T
Operating
Temperature
-20
80
℃
TS
Storage
Temperature
-40
100
℃
4.4 DC Electrical Parameters
DC Electrical specifications for this module have been modeled using a two-layer test board.
Table 4 DC Electrical Specification
Symbol
Definition
Value
Units
Min
Typ
Max
VBAT
Power
Supply
3.1
3.3
5.5
Volts
IVBAT
DC Current
170
mA
SM-MSN09-C01 Datasheet
- 15 -
Revision 1.0 June 2014
4.5 Antenna Specifications
Antenna specifications for this module have been modeled using a two-layer test board.
Table 5 Antenna Specifications
Item
Value
Unit
Note
Min
Typ
Max
DC
Resistance
0.5
1
2
Ω
AC
Impedance
50
Ω
Frequency
13.06
13.56
14.06
MHz
VSWR <2
Q factor
25
30
35
Antenna
Type
FPC Loop Coil
Add the Ferrite
sheet
Size
Normal: (40 ±0.5) X (50±0.5)
mm
4.6 Power Consumption
Table 6 Current Consumption
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
IHPD
Hard power down current
VBAT=3.6V,
VEN=0V
-
10.5
12
μA
ISTBY
Standby state current
VBAT=3.6V
-
-
20
μA
IACT
Active state current
VBAT=3.6V
-
6
-
mA
ITVDD
Transmitter supply current
VBAT=3.1V
-
30
100
mA
IPMUVCC
PMUVCC supply
Class B
-
1.5
3
μA
Class C
-
1
2
μA
SM-MSN09-C01 Datasheet
- 16 -
Revision 1.0 June 2014
4.7 Thermal Protection
Table 7 Thermal Protection
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
TOVERTEMP
Temperature
protection trigger
120
125
130
0C
4.8 System power modes
Table 8 System Power Modes Description
Mode
Description
Full power
mode
The battery supply (VBAT) as well as the pad supply (VDD_IO) is
available, all use cases can be executed
Low-power
mode
The pad supply (VDD_IO) is not available. Only the Card Emulation
mode use cases via SWP are allowed
Powered by the
Field
The battery supply (VBAT) and pad supply (VDD_IO) are not available.
The system is powered via PbF interface. Only Card Emulation use
cases via SWP are allowed.
Power Off mode
The system is not supplied from any source or the system is kept Hard
Power Down (HPD)
SM-MSN09-C01 Datasheet
- 17 -
Revision 1.0 June 2014
Table 9 Power Mode Configuration
VBAT
VDD_IO
VEN
Power mode
Off
Off
X
Power Off mode
On
X
Off
Power Off mode
On
Off
On
Low Power Mode
On
On
On
Full power mode
Note: X: Don’t care
4.9 Reset and download concept
To enter reset there are 2 ways:
- Pulling VEN low (Hard Power Down state)
- If VBAT monitor is enabled: lowering VBAT below the monitor threshold (monitor mode, if VEN
is kept above 1.1 V)This reset mode can be left if PbF is enabled when the field is high
enough (RF field detected) to enter PbF mode.
To get out of reset, there are 2 ways:
- Pulling VEN high with VBAT above VBAT monitor threshold if enabled
- Entering a field strong enough to power the IC
Figure 5 Reset via VEN pin
Table 10 Reset Timing
Symbol
Parameter
Condition
Min
Typ
Max
Unit
tRESETVEN
VEN pulse
width to reset
3
μ s
tBOOT
Boot time
10
ms
SM-MSN09-C01 Datasheet
- 18 -
Revision 1.0 June 2014
4.10 NFC Connection Recommendation
Figure 6 Connection Recommendation
4.11 Main Board Design Reference
Figure 7 Main Board Design W/O UICC Reference
SM-MSN09-C01 Datasheet
- 19 -
Revision 1.0 June 2014
5 Ordering Information
Table 11 Ordering Information Table
Order Number
Descriptions
SM-MSN09-C01
NFC Macaron Module (NXP NPC100) with Integrated Antenna
Dimension
Module: 40x50x1.5 mm
SM-MSN09-C01 Datasheet
- 20 -
Revision 1.0 June 2014
6 Reliability Verification
Table 12 Reliability Item Table
No.
Item
Condition
Benchmark
Result
Qty
1
Low Temperature
Storage Test
-40oC
IEC60068-2-1
Pass
5
2
High Temperature
Storage Test
80oC, Humidity:
95%
IEC60068-2-78
Pass
5
3
Low Temperature
Operation Test
-20oC
IEC60068-2-1
Pass
5
4
High Temperature
Operation Test
80oC
IEC60068-2-2
Pass
5
5
High Temperature
Operation Test
65oC, Humidity:
95%
IEC60068-2-78
Pass
5
6
Salt Test
PH: 3.0 ~ 3.2
,50℃, 72 hrs,
Density: 5%±1%
ASTM B368
Pass
5
7
RoHS
Normal
Compliance
Pass
5
8
HF
Normal
Compliance
Pass
5
SM-MSN09-C01 Datasheet
- 21 -
Revision 1.0 June 2014
7 NFC Module Outline
The following illustration shows the package drawing for SM-MSN09-C01 module. The drawing
contains the detail views, dimensions, tolerances, and notes.
Figure 8 Antenna Module Drawing
Pin 1
SM-MSN09-C01 Datasheet
- 22 -
Revision 1.0 June 2014
Figure 9 Module FPC Connection Footprint (Button Contact)
Figure 10 FPC Wire Dimension
