GIGA TMS UM800L UHF RFID Reader Module User Manual Visio UM800L MENU 20150511 vsd

GIGA-TMS INC. UHF RFID Reader Module Visio UM800L MENU 20150511 vsd

Users Manual

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must be
labeled in visible area with the following: “Contains FCC ID: __ WXAUM800L___”
”
End Product Manual Information
The user manual for end users must include the following information in a prominent location
“IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna
used for this transmitter must be installed to provide a separation distance of at least 20cm from all
persons and must not be colocated or operating in conjunction with any other antenna or
transmitter.” This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions (1) This device may not cause harmful interference and (2) This device
must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or colocation with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for reevaluating the end product (including the transmitter) and
obtaining a separate FCC authorization. This device is intended only for OEM integrators under
the following conditions: The antenna must be installed such that 20 cm is maintained between the
antenna and users. As long as a condition above is met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end product for any additional
compliance requirements required with this module installed (for example, digital device emissions,
PC peripheral requirements, etc.).
FEATURES
PIN DIAGRAMS
APPLICATIONS
Top View
34-PIN SMD
12
13
14
15
30
29
28
27
PIO3
PIO2
PIO1
PIO4
GND
GND
GND
ANT
GIGA-TMS
P R O M A G
UM800L
Embedded UHF RFID Read/Write Module
DESCRIPTION
Access Control System
Security System
RFID Printer
Mobile Phone
Point of Sale
Patrol System
UM800L is a compact and practical embedded UHF reader module which compliant with EPC
Global Class1 Gen2.
With small dimensions (30x20x3.6mm) and low power consumption ( 380mA, 27dBm for output)
make UM800L an ECO friendly choice for your system.
With adjustable frequency (840~960 Mhz), adjustable transmit output (10 to 27dBm), optional
interface (USB or UART TTL) and 14 GPIO enable you the flexibility for various applications under
different environments.
UHF is one of the best solutions for middle and long range RFID applications.
Such as access control, parking, logistic and vehicle tracking etc.
Using UM800L, you can extend the wonderful experience to portable or mobile devices.
GIGA-TMS makes what you need and customizes what you want.
Low cost ,Small Outline 30x20x3.6mm
Compliant with EPCglobal Class1 Gen2
(ISO18000-6C)
Operating Frequency 840 ~ 960 MHz
Adjustable Transmit Output Power from +10
to +27dBm
Operate voltage range 2.7~5.0 V
Low power consumption: 50mA@ standby,
380mA @27dBm Output
USB HID or UART TTL Interface
14 GPIO for Customize Application
No RF Connect and Cable request
Support In-System Programmable and Self
Firmware Update
Provides Development Kit - UM800LDK
Copyright 2012 by GIGA-TMS Corporation.
HTTP://WWW.GIGATMS.COM.TW
Preliminary
PIN #1
IDENTIFY
31
GND
11PIO5
9
10PIO6
PIO7
8PIO8
33
32 GND
VDD34
GND
UM800L
Portable Battery Device
1
2
3
4
5
6
7
16
17
24
23
22
21
20
19
18
25
26
RXD
TXD
D+
D-
/RST
C2D
C2CK
PIO11
GND
GND
PIO12
PIO13
PIO9
PIO10
VRF
PIO0 GND
GND
UM800L
Copyright 2012 by GIGA-TMS Corporation.
HTTP://WWW.GIGATMS.COM.TW
Preliminary
FUNCTION DESCRIPTION
PIN FUNCTIONS
Top View Bottom View
UART asynchronous input.
USB Differential Plus Line ( Option )
[ Note 1 ] I: Input , O: Output , I/O : Input or Output , P: Power , A: Antenna
UART asynchronous transmit.
D+
C2D
PIO2
PIO8
PIO7
PIO6
/RST
C2CK
PIO3
PIN
NAME
TXD
RXD
PIO4
PIO5
D-
GND
PIO1
I/O
I/O
I/O
I/O
I/O
I/O
P
I/O
I/O
I/O
O
I
I/O
I/O
I/O
I/O
I/O
1
PIN
USB Differential Minus Line ( Option )
Reset Pin
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
ISP
Power Ground
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
ISP
PIO0
GPIO , 5 V tolerant with high sink current
P
2
6
7
8
9
10
13
14
5
3
12
11
4
15
32~33
16
PVRF
PA Power Supply Input 3.0~5.0v +/- 5% ( 5V Full power for 27dBm )
17
PIO11
PIO10
I/O
I/O
I/O
GPIO , 5 V tolerant with high sink current
GPIO , 5 V tolerant with high sink current
PIO9
GPIO , 5 V tolerant with high sink current
18
19
20
PGND
Power Ground
23~30
ANT A
Connect To Antenna
31
VDD P
2.7V~3.6V power supply (For optimal power supply rejection and performance a supply
voltage of at least 3.3V is required.)
34
Pin1
PIO13
I/O
I/O
GPIO , 5 V tolerant with high sink current
PIO12
GPIO , 5 V tolerant with high sink current
21
22
GIGATEK
MODEL NO.:UM800L
PART NO.:UM800L-00
FCC ID : WXAUM800L
MFG. NO.:REV.X
XXXX XXX XXXX
made in Taiwan
UM800L
Copyright 2012 by GIGA-TMS Corporation.
HTTP://WWW.GIGATMS.COM.TW
Preliminary
APPLICATION CIRCUIT
Vbus
D-
D+
GND
USB
12
13
14
15
30
29
28
27
PIO3
PIO2
PIO1
PIO4
GND
GND
GND
ANT 31
GND
11 PIO5
9
10 PIO6
PIO7
8PIO8
33
32GND
VDD 34
GND
UM800L
1
2
3
4
5
6
7
16
17
24
23
22
21
20
19
18
25
26
RXD
TXD
D+
D-
/RST
C2D
C2CK
PIO11
GND
GND
GND
GND
PIO9
PIO10
VRF
PIO0 GND
GND
VRF
Vin
TXD
RXD
GND
UART TTL
VRF
Antenna
/RST
C2D
C2CK
GND
ISP
50 ohm RF track
1. VRF = 3.0~5.0V +/- 5% (5.0V Full Power Output)
[ Note ]
2. VDD = 2.7~3.6V +/- 5%
*Note1
*Note1
*Note1
Lp
VRF
VDD
VDD
VRF
Low-
Dropout
Regulator
VDD
*Note1
*Note 2
VDD

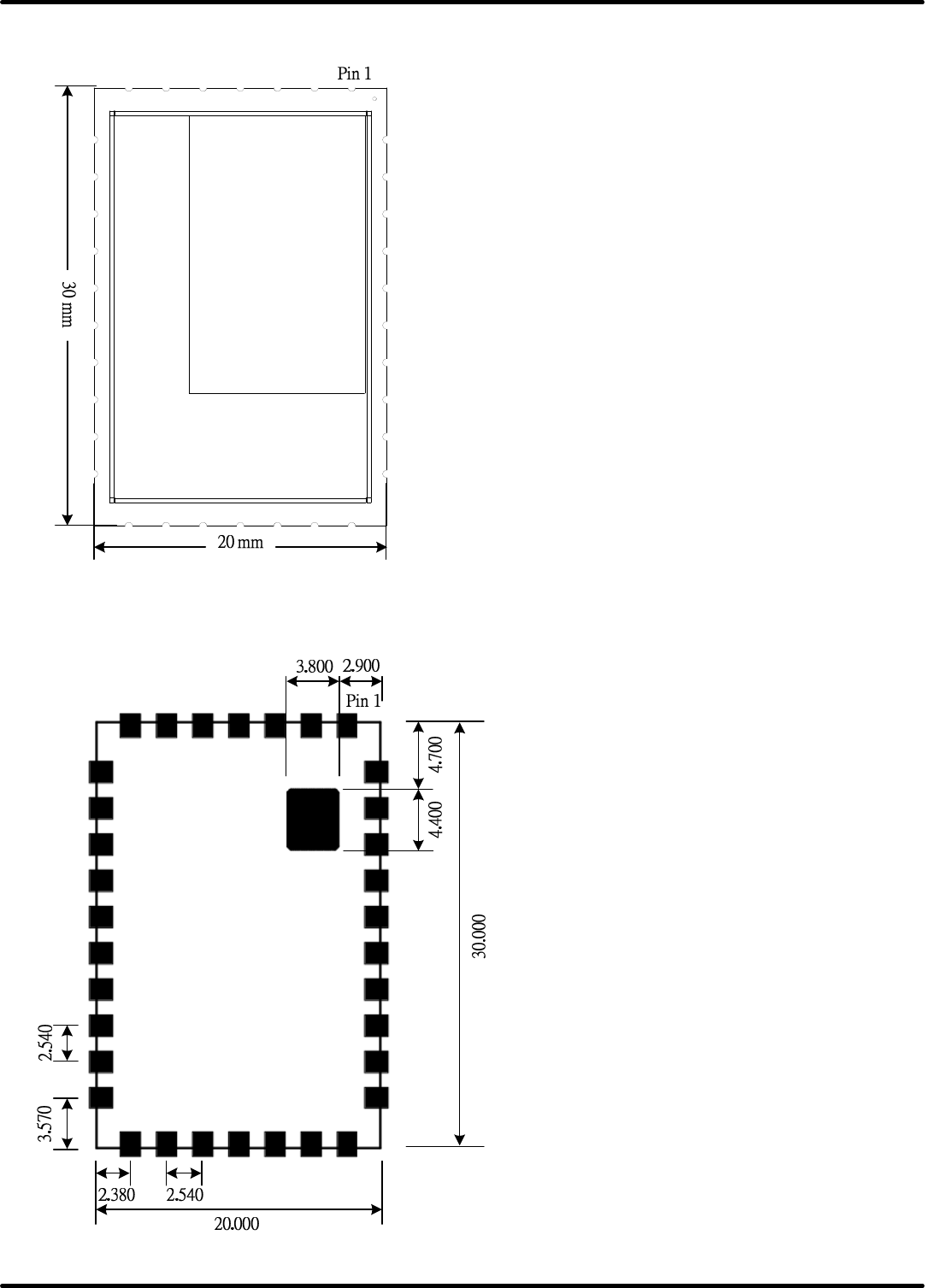

34-Pin SMD Package
Dimensions in Millimeters
UM800L
Copyright 2012 by GIGA-TMS Corporation.
HTTP://WWW.GIGATMS.COM.TW
Preliminary
PACKAGE DESCRIPTION
SPECIFICATIONS
POWER REQUIREMENTS 3.0V ~ 5.0V regulated for VRF. A linear regulator is recommended.
2.7V ~ 3.6V regulated for VDD.
CURRENT CONSUMPTION 380 mA @ 27dBm RF Power Output
HOST INTERFACE UART ( Default : 115200 Baud rate ) Programmable
USB HID
FREQUENCY 840 ~ 960MHz
DEMODULATION PRASK
CONFIGURE INTERFACE UART , 115200 bps, 8N1
DIMENSIONS 30 x 20 x 3.6 mm
WEIGHT < 10 gm
ENVIRONMENT Operating Temp : -0℃~ +60℃
Humidity : 10 ~ 90 % Non-condensing
SUPPORT EPC DRM Yes
RFID PROTOCOL SUPPORT EPC Class 1 Gen 2, ISO18000-6C
DATA ENCODING FM0 or Miller code
BIT RATE Supports uplink data rate of 40,160,320 Kbps
TX OUTPUT POWER 10 ~ 27 dBm
ANTENNA TYPE Mono-static
INPUT / OUTPUT PIN Programmable 12 Input / Output Pin by Customer
25
18
8
Top View
30
20
PIN1
2.54 T=0.8
3.2
UM800L
Copyright 2012 by GIGA-TMS Corporation.
HTTP://WWW.GIGATMS.COM.TW
Preliminary
Example Board Layout
Package Drawings and Markings
UM800
GIGATEK
MODEL NO.:UM800L
PART NO.:UM800L-00
FCC ID : WXAUM800L
MFG. NO.:REV.X
XXXX XXX XXXX
made in Taiwan

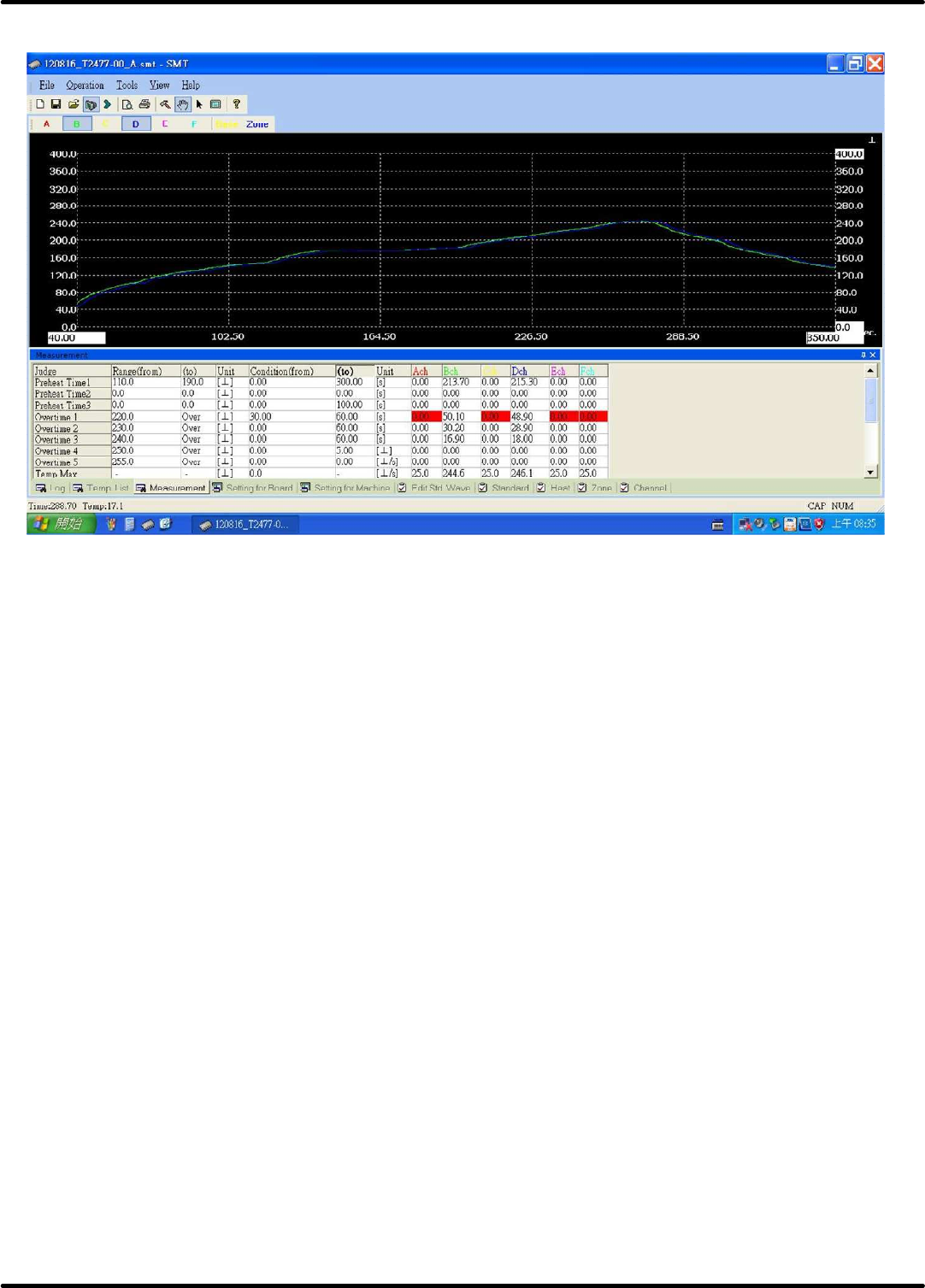

Reflow Profile
UM800L
Copyright 2012 by GIGA-TMS Corporation.
HTTP://WWW.GIGATMS.COM.TW
Preliminary
