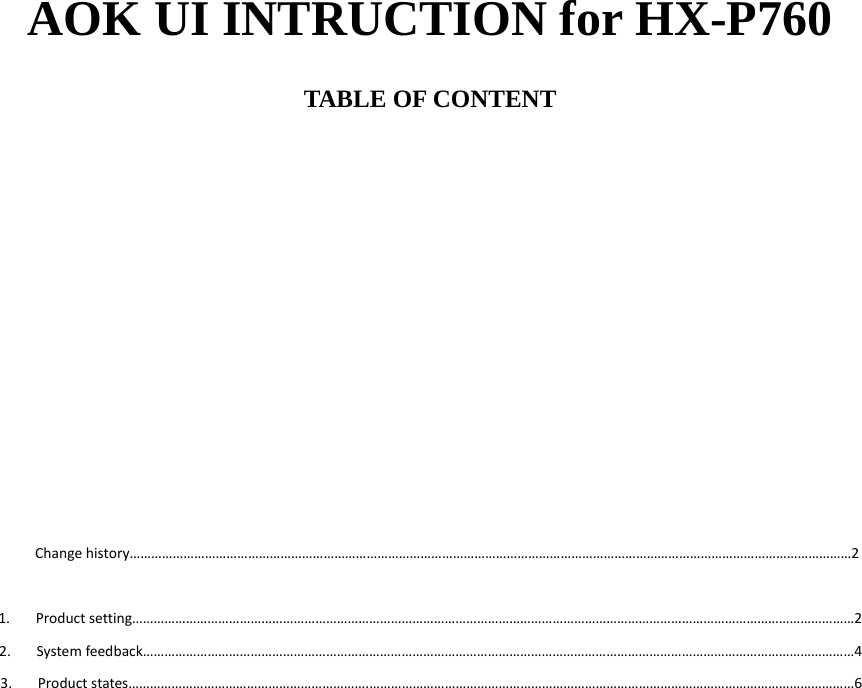

AOK UI INTRUCTION for HX-P760 TABLE OF CONTENT Changehistory…………………………………………………………………………………………………………………………………………………………………………………2 1. Productsetting…………………………………………………………………………………………………………………………………………………………………………………22. Systemfeedback………………………………………………………………………………………………………………………………………………………………………………43. Productstates………………………………………………………….………………………………………………………………………………………………………………………6

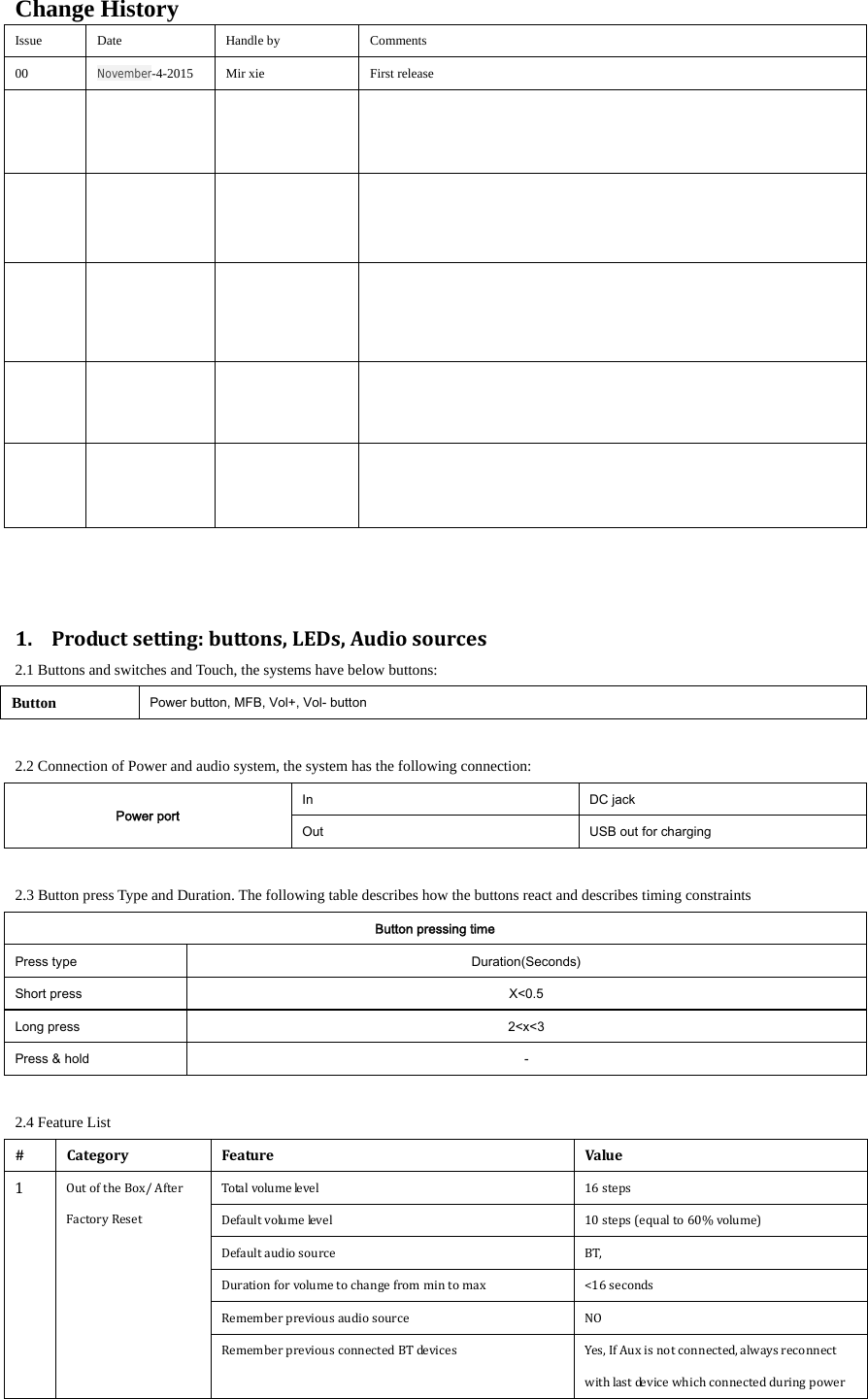

Change History Issue Date Handle by Comments 00 November-4-2015 Mir xie First release 1. Productsetting:buttons,LEDs,Audiosources2.1 Buttons and switches and Touch, the systems have below buttons: Button Power button, MFB, Vol+, Vol- button 2.2 Connection of Power and audio system, the system has the following connection: Power port In DC jack Out USB out for charging 2.3 Button press Type and Duration. The following table describes how the buttons react and describes timing constraints Button pressing time Press type Duration(Seconds) Short press X<0.5 Long press 2<x<3 Press & hold - 2.4 Feature List #CategoryFeatureValue1 OutoftheBox/AfterFactoryReset Totalvolumelevel  16steps  Defaultvolumelevel 10steps(equalto60%volume)Defaultaudiosource  BT,Durationforvolumetochangefrommintomax  <16secondsRememberpreviousaudiosource  NORememberpreviousconnectedBTdevices  Yes,IfAuxisnotconnected,alwaysreconnectwithlastdevicewhichconnectedduringpower
up Rememberpreviousvolumelevel  Yes(onlyifvolume<60%,usepreviousvolume,elseuse60%) Volumeat10‐70%memory,otherwisereverttothedefault60%2 Powermode SupportsBatteryMode? YesCharginghour  Within2hoursPlaybackhour  4hoursat70%volume AC Mode Input:100-240VAC, 50-60Hz output:12VDC/2A Externalchargingsourcing Yes(USB,Powerbank,etc.)3 Batterymode  Batterymanagement i.Healthy:X>10% ii.Low:5%<X≤10% ‐Lowbatteryindicationavailable(RedLEDflashingwarning)‐whenX>95%chargingRedLEDoffiii.Critical:X=5% ‐DUToff. 4 Connection  Audioinput  BTaudio Audiooutput No Physicalbuttonforaudioswitch  NospecialbuttonavailableAutoaudioswitchfeature  BTaudio. 5 ERP(Energy relatedproduct)compliance AutoStandby  YesAutoStandbyDuration  Without BT connection, after 2 minutes ,it will shut off . BT connection,but don't play, after 15 minutes,it will shut offPowerconsumptiontomeetERP <0.3W Autoshutoffwithoutpaired 2 minutes6 Reset FactoryReset  NotHardwareReset  Yes7 Bluetoothconnectivity Bluetoothnaming  JamLevityWirelessrange  10mSupportedaudiocodec  SBC Supportedprofiles  A2DP,AVRCPsoon#ofsupporteddeviceinpairinglist  1paireddevicerecordedSupportsDualdevices  NOVolumesync  Synchronize volume with iOSBT Pairing duration Within1minutesBT Reconnect duration Power up = 10sec Link lost = 10sec BT reconnect method (single device or all devices) Power up = attempt reconnect to same device. Link lost = attempt reconnect to same device

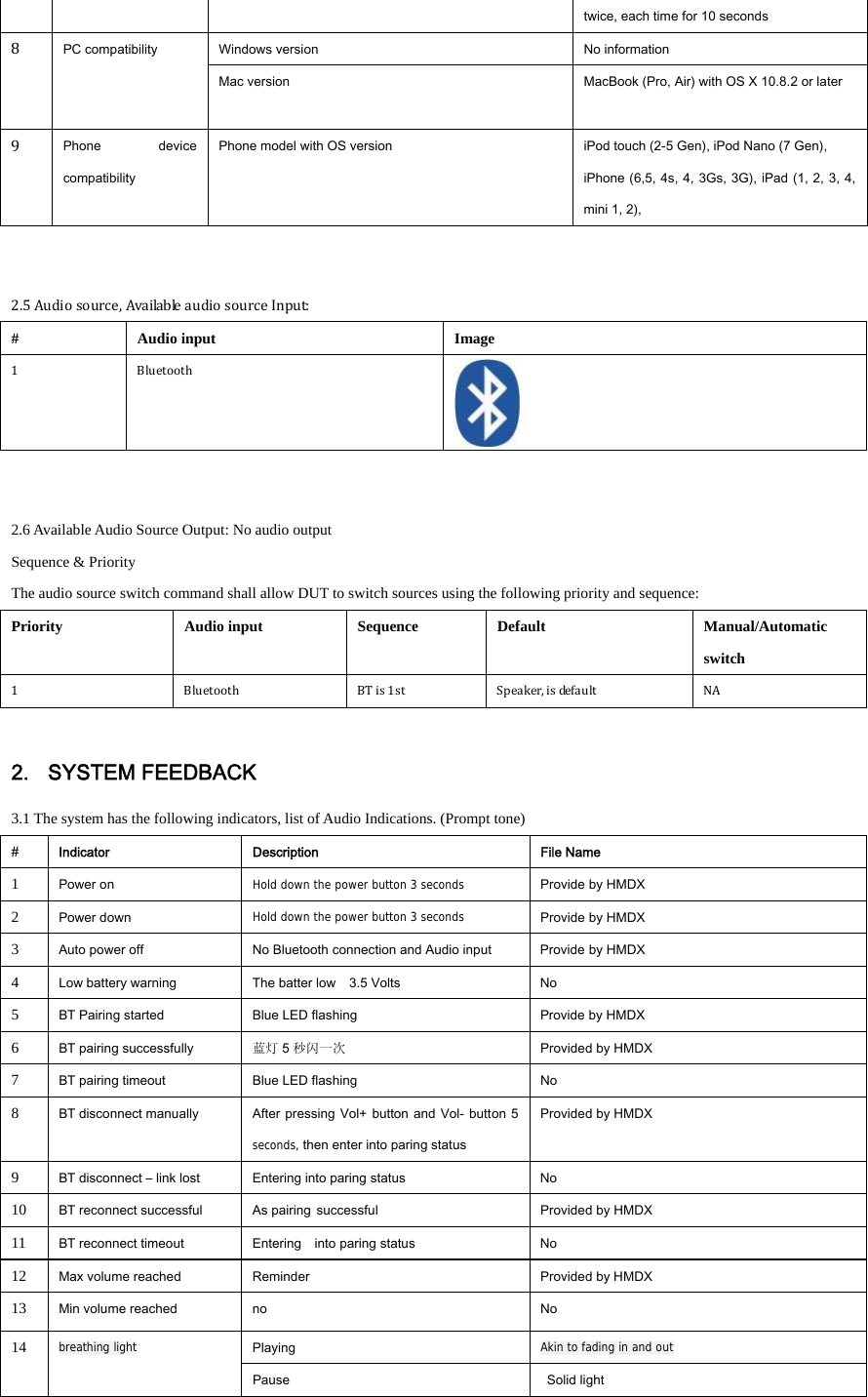

twice, each time for 10 seconds 8 PC compatibility Windows version No information Mac version MacBook (Pro, Air) with OS X 10.8.2 or later 9 Phone device compatibility Phone model with OS version iPod touch (2-5 Gen), iPod Nano (7 Gen), iPhone (6,5, 4s, 4, 3Gs, 3G), iPad (1, 2, 3, 4, mini 1, 2), 2.5Audiosource,AvailableaudiosourceInput:# Audio input Image 1 Bluetooth  2.6 Available Audio Source Output: No audio output Sequence & Priority The audio source switch command shall allow DUT to switch sources using the following priority and sequence: Priority Audio input Sequence Default Manual/Automatic switch 1 Bluetooth  BTis1stSpeaker,isdefault NA 2. SYSTEM FEEDBACK 3.1 The system has the following indicators, list of Audio Indications. (Prompt tone) # Indicator Description File Name 1 Power on Hold down the power button 3 seconds Provide by HMDX 2 Power down Hold down the power button 3 seconds Provide by HMDX 3 Auto power off No Bluetooth connection and Audio input Provide by HMDX 4 Low battery warning The batter low 3.5 Volts No 5 BT Pairing started Blue LED flashing Provide by HMDX 6 BT pairing successfully 蓝灯 5秒闪一次 Provided by HMDX 7 BT pairing timeout Blue LED flashing No 8 BT disconnect manually After pressing Vol+ button and Vol- button 5 seconds, then enter into paring status Provided by HMDX 9 BT disconnect – link lost Entering into paring status No 10 BT reconnect successful As pairing successful Provided by HMDX 11 BT reconnect timeout Entering into paring status No 12 Max volume reached Reminder Provided by HMDX 13 Min volume reached no No 14 breathing light Playing Akin to fading in and out Pause Solid light

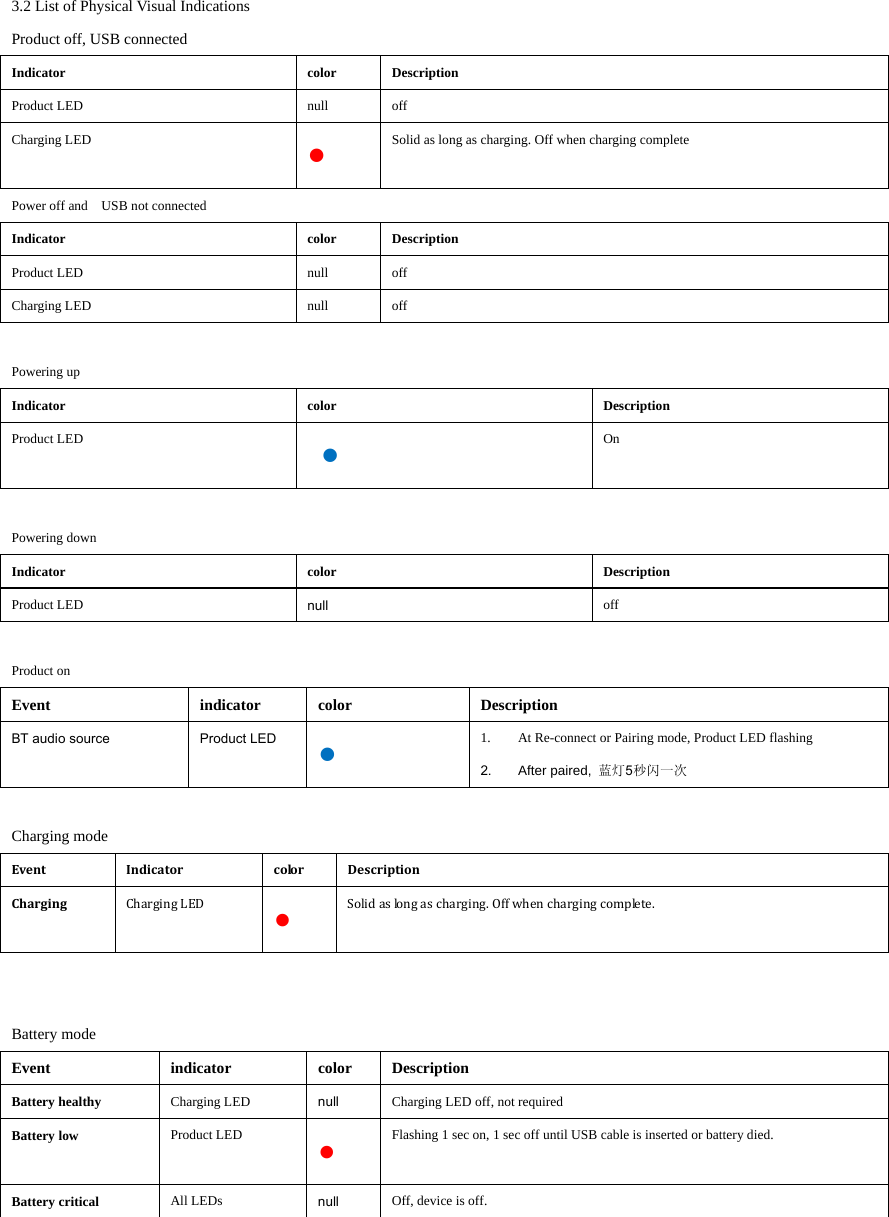

3.2 List of Physical Visual Indications Product off, USB connected Indicator color Description Product LED null off Charging LED ● Solid as long as charging. Off when charging complete Power off and USB not connected Indicator color Description Product LED null off Charging LED null off Powering up Indicator color Description Product LED ● On Powering down Indicator color Description Product LED null off Product on Event indicator color Description BT audio source Product LED ● 1. At Re-connect or Pairing mode, Product LED flashing 2. After paired, 蓝灯5秒闪一次 Charging mode EventIndicatorcolorDescription ChargingChargingLED ● Solidaslongascharging.Offwhenchargingcomplete. Battery mode Event indicator color Description Battery healthy Charging LED null Charging LED off, not required Battery low Product LED ● Flashing 1 sec on, 1 sec off until USB cable is inserted or battery died. Battery critical All LEDs null Off, device is off.

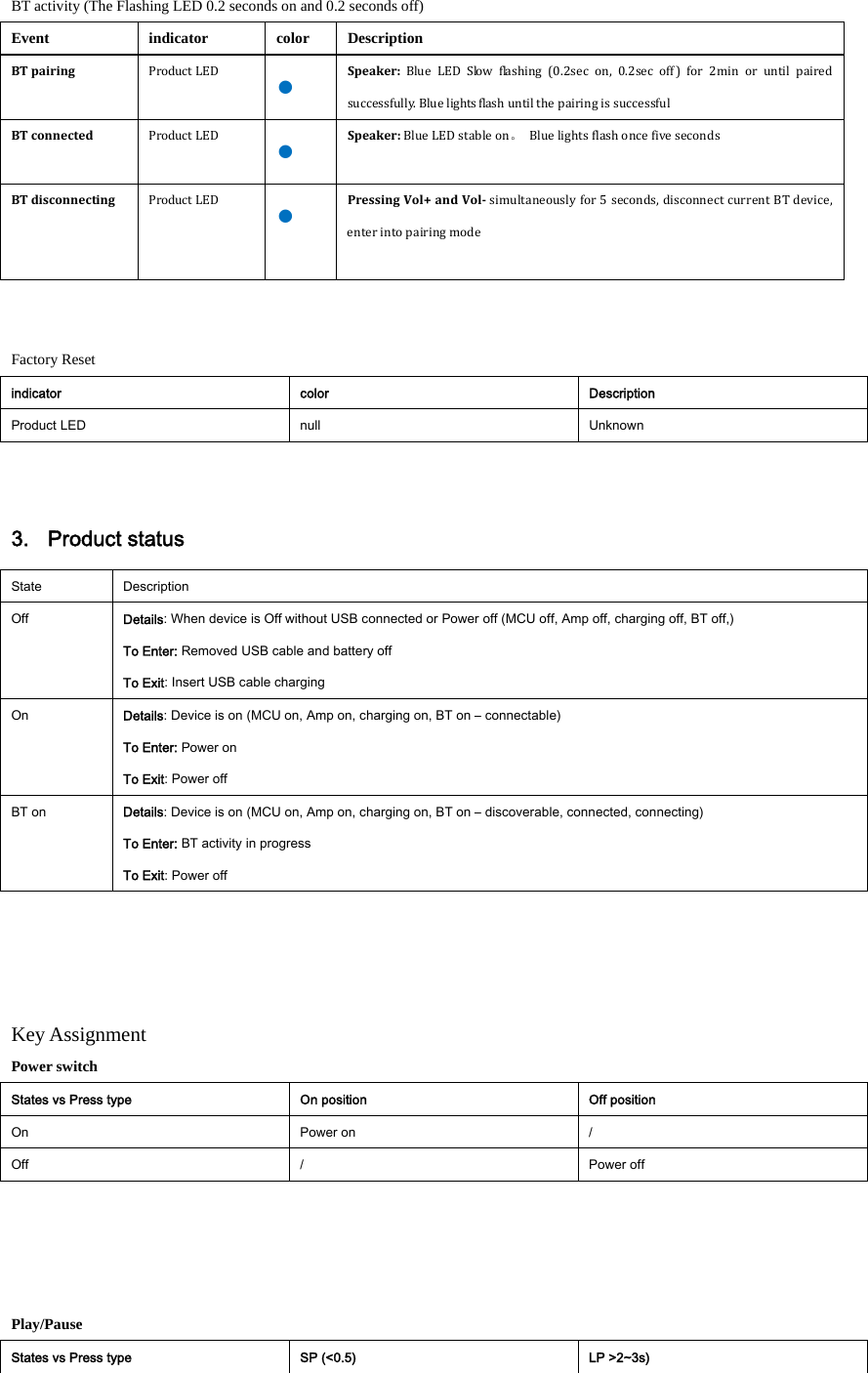

BT activity (The Flashing LED 0.2 seconds on and 0.2 seconds off) Event indicator color Description BTpairingProductLED ● Speaker:BlueLEDSlowflashing(0.2secon,0.2secoff)for2minoruntil pairedsuccessfully.BluelightsflashuntilthepairingissuccessfulBTconnectedProductLED ● Speaker:BlueLEDstableon。 BluelightsflashoncefivesecondsBTdisconnectingProductLED ● PressingVol+andVolsimultaneouslyfor5seconds,disconnectcurrentBTdevice,enterintopairingmode Factory Reset indicator color Description Product LED null Unknown 3. Product status State Description Off Details: When device is Off without USB connected or Power off (MCU off, Amp off, charging off, BT off,) To Enter: Removed USB cable and battery off To Exit: Insert USB cable charging On Details: Device is on (MCU on, Amp on, charging on, BT on – connectable) To Enter: Power on To Exit: Power off BT on Details: Device is on (MCU on, Amp on, charging on, BT on – discoverable, connected, connecting) To Enter: BT activity in progress To Exit: Power off Key Assignment Power switch States vs Press type On position Off position On Power on / Off / Power off Play/Pause States vs Press type SP (<0.5) LP >2~3s)

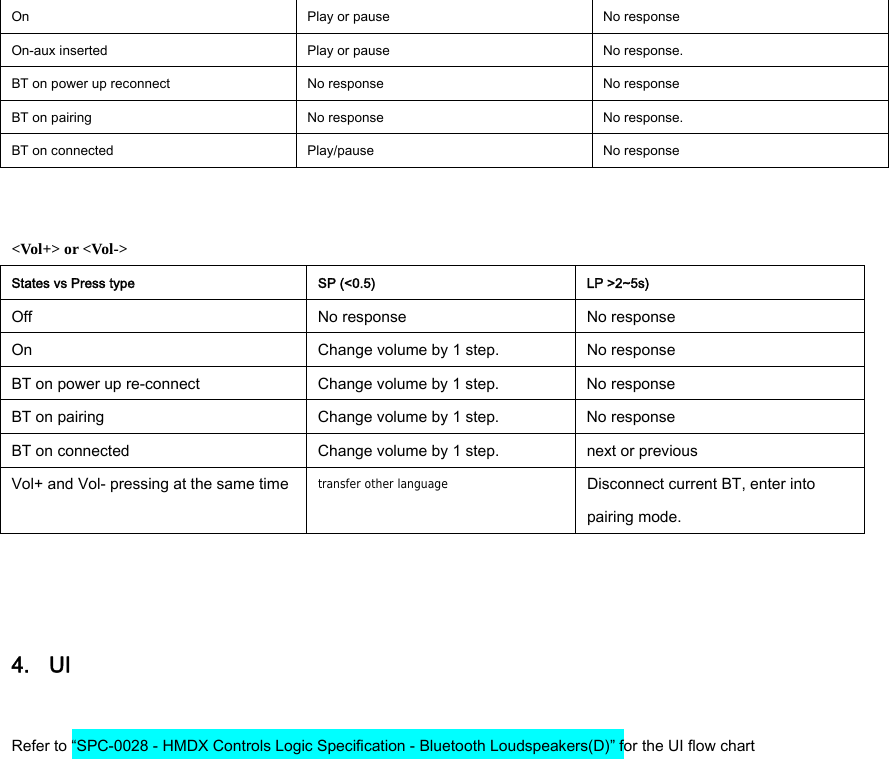

On Play or pause No response On-aux inserted Play or pause No response. BT on power up reconnect No response No response BT on pairing No response No response. BT on connected Play/pause No response <Vol+> or <Vol-> States vs Press type SP (<0.5) LP >2~5s) Off No response No response On Change volume by 1 step. No response BT on power up re-connect Change volume by 1 step. No response BT on pairing Change volume by 1 step. No response BT on connected Change volume by 1 step. next or previous Vol+ and Vol- pressing at the same time transfer other language Disconnect current BT, enter into pairing mode. 4. UI Refer to “SPC-0028 - HMDX Controls Logic Specification - Bluetooth Loudspeakers(D)” for the UI flow chart

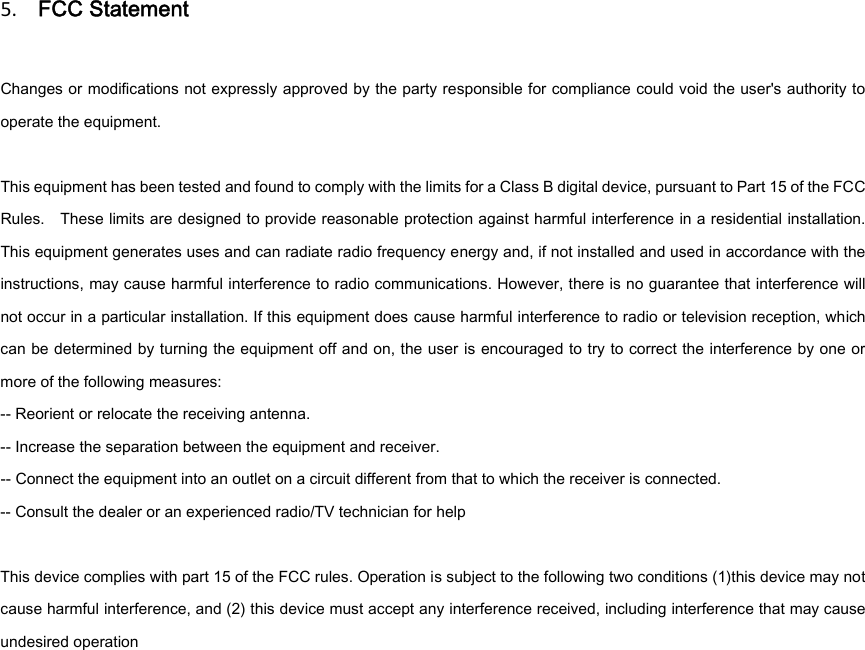

5. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation
