GP Electronics 07001 KEF Wireless 5000 Series User Manual KEF Wireless 5000 series

GP Electronics (HK) Limited. KEF Wireless 5000 Series KEF Wireless 5000 series

User Manual

5000 seriesWirelessENFrequency band: 2.4 - 2.4835GHz (ISM band) Sensitivity: 80dB typicalData rate: Up to 1.1Mbps Frequency range: 20Hz - 20kHzTransmission protocol: AAFHSS Peak audio output: 50W rmsRange: 25m (27.3 yds) Typical Maximum*Amplifier: 2 x 50W digital amplifierCrossovers: 800Hz and 5kHz Available Finishes: Matt Silver or High Gloss BlackTransmitter Module 147 x 79 x 79mm Receiver Module Additional 50mm (2in.)Dimensions (hxwxd): (5.8 x 3.1 x 3.1in.) Dimensions (hxwxd): (height on floorstand)Additional 122mm (4.8in.)(height on deskstand)www.kef.com 290202MLInstallation Manualwww.kef.comGP Acoustics (UK) Ltd., Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653GP Acoustics (US) Inc., 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Telephone: +(1) 732 683 2356 Fax: +(1) 732 683 2358GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP414, 37554 Saint Avertin CEDEX, France. Tel : +33(0)2 47 80 49 01 Fax : +33(0)2 47 27 89 64GP Acoustics (HK) Limited, 6F, Gold Peak Building, 30 Kwai Wing road, Kwai Chung, N.T., Hong Kong.Telephone: +85 (0) 2410 8188 Fax: +85 (0) 2401 0754KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.KEF reserve the right, in line with continuing research and development, to amend or change specifications.*Environmental factors such as building materials and construction may adversely affect wireless signal range.** KHT5005 speakers and stands are not included.GP Acoustics (UK) Ltd. reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E.Issue 1: February 2007Specifications**K7243_KEF Wireless 5000 series manual EN 9/2/07 11:09 Page 1

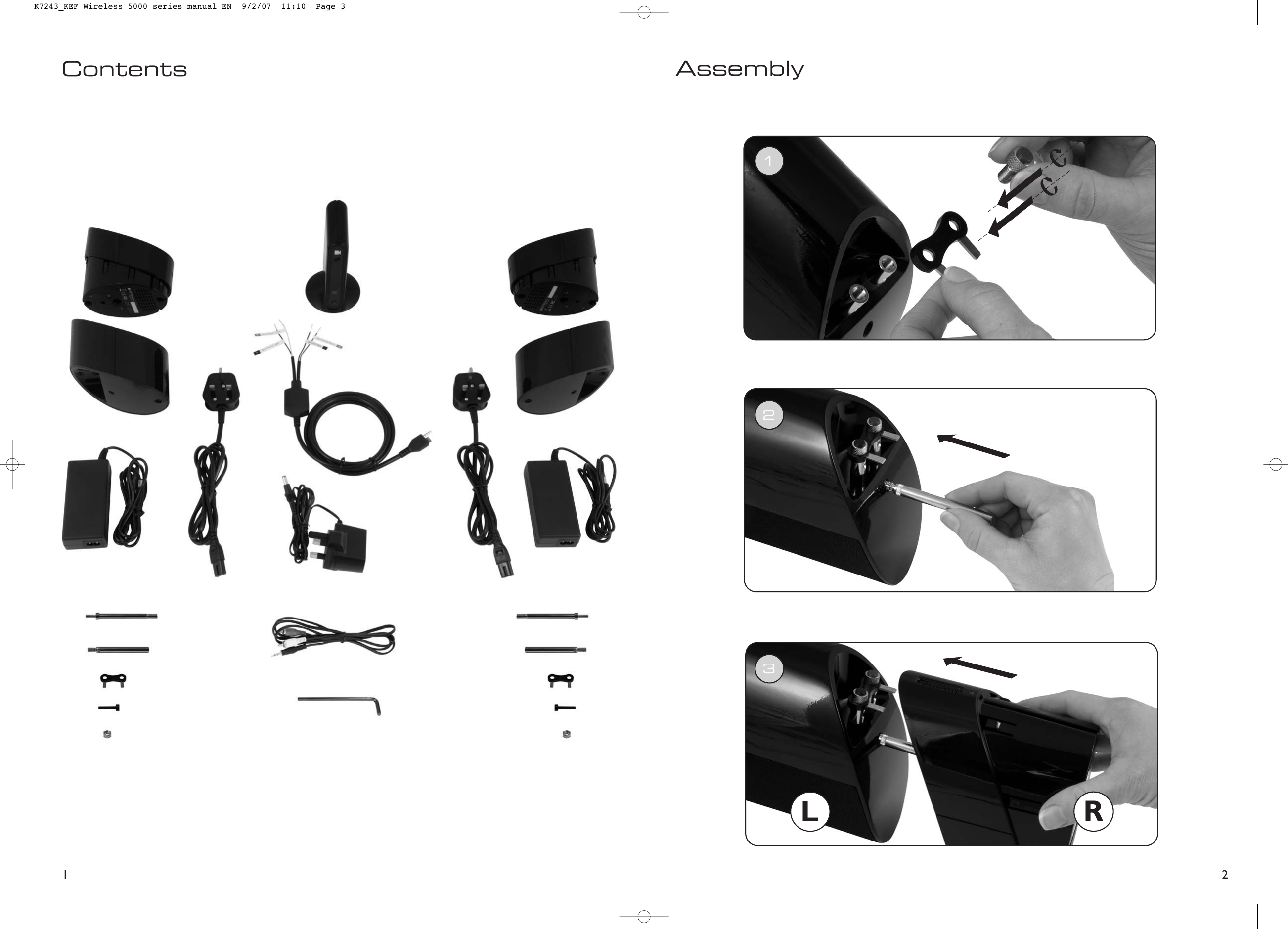

2Assembly1231ContentsLRK7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 3
4Deskstand3Floorstand4a5a6a4b 5b6b7b 8bK7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 5

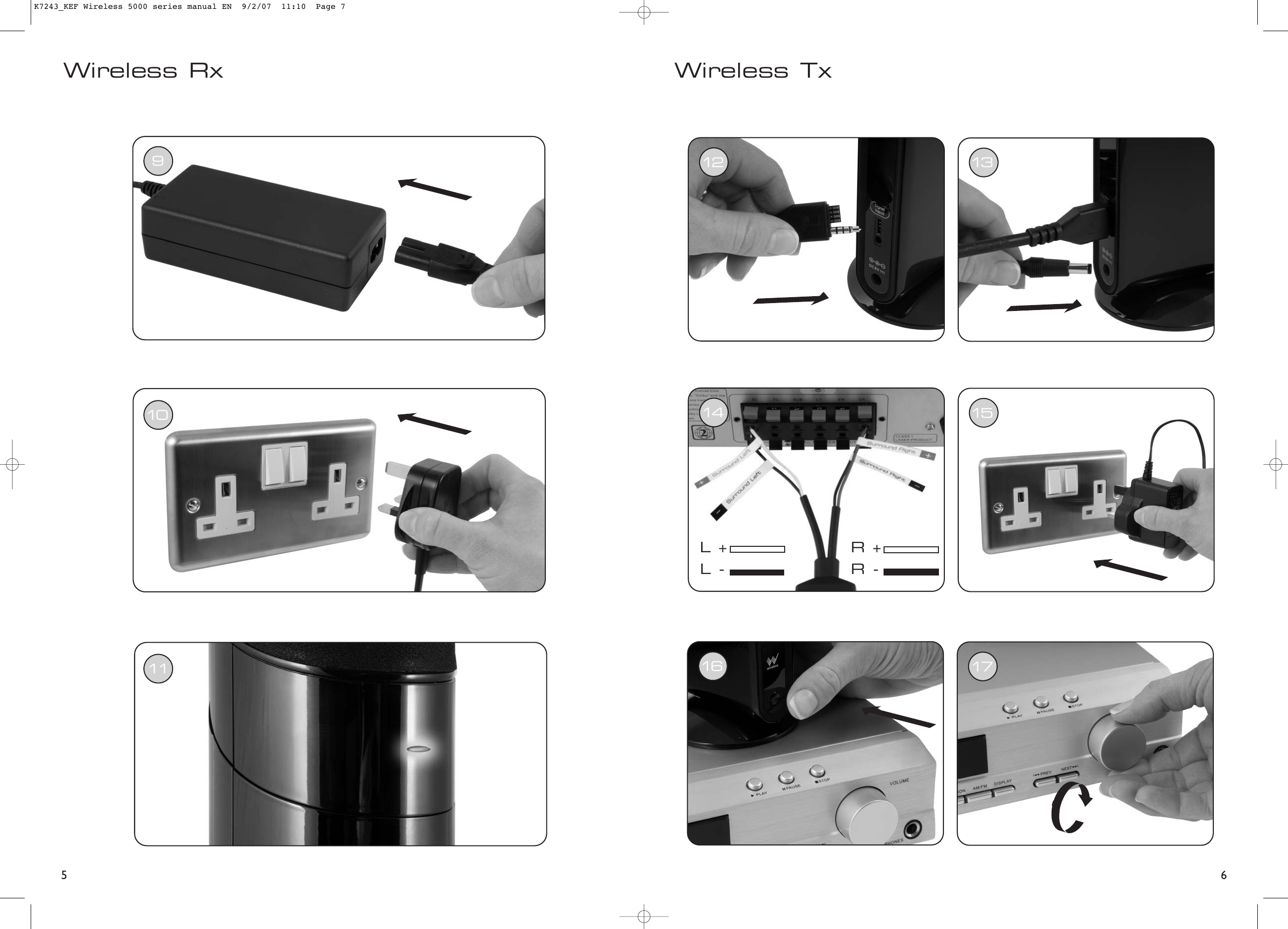

659101112 1314 1516 17L +L -R +R -Wireless TxWireless RxK7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 7

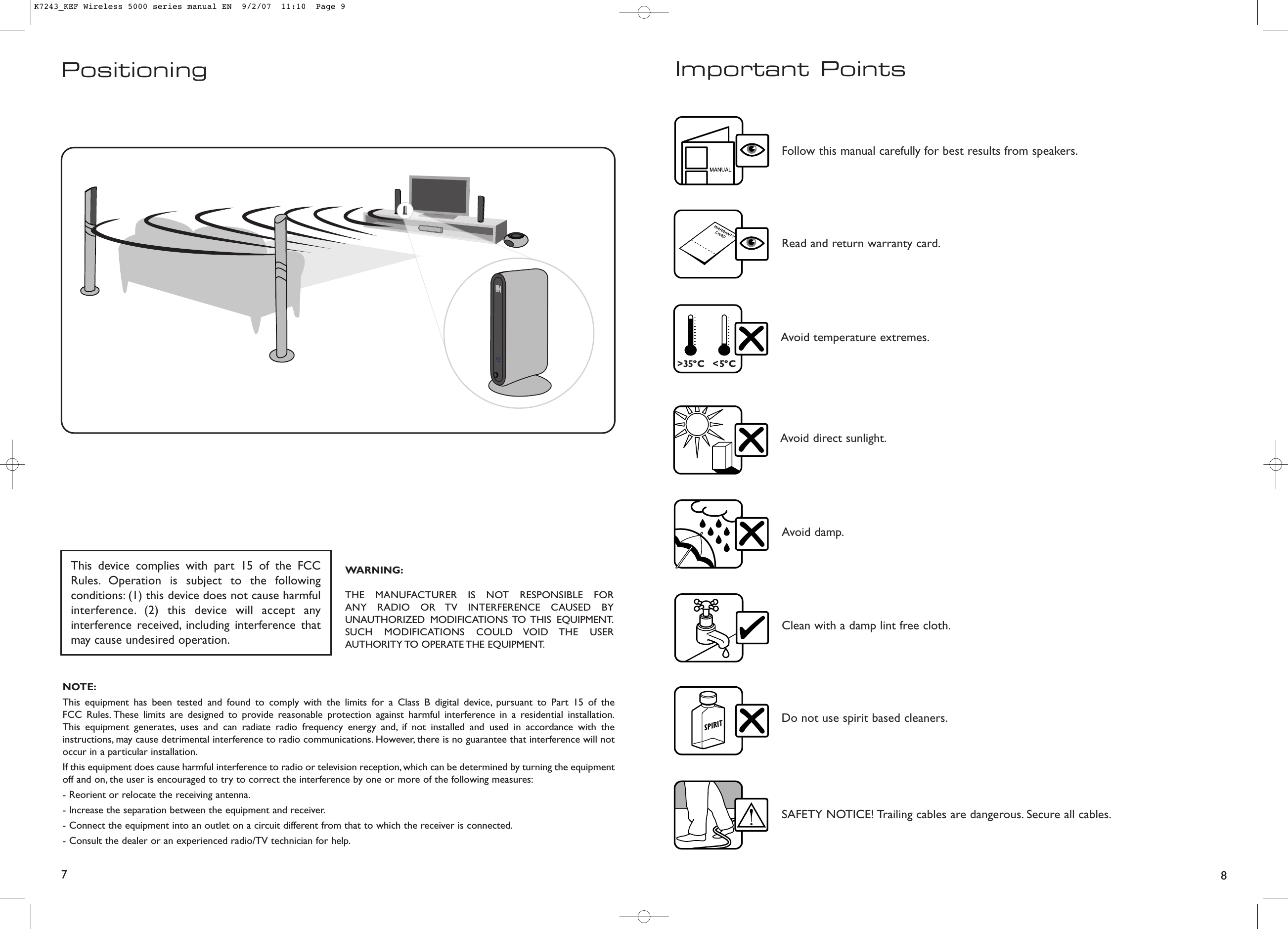

8Important PointsFollow this manual carefully for best results from speakers.Read and return warranty card.Clean with a damp lint free cloth.Do not use spirit based cleaners.Avoid direct sunlight.Avoid temperature extremes.SAFETY NOTICE! Trailing cables are dangerous. Secure all cables.Avoid damp.7PositioningThis device complies with part 15 of the FCCRules. Operation is subject to the followingconditions: (1) this device does not cause harmfulinterference. (2) this device will accept anyinterference received, including interference thatmay cause undesired operation.WARNING:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BYUNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USERAUTHORITY TO OPERATE THE EQUIPMENT.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause detrimental interference to radio communications. However, there is no guarantee that interference will notoccur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.K7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 9

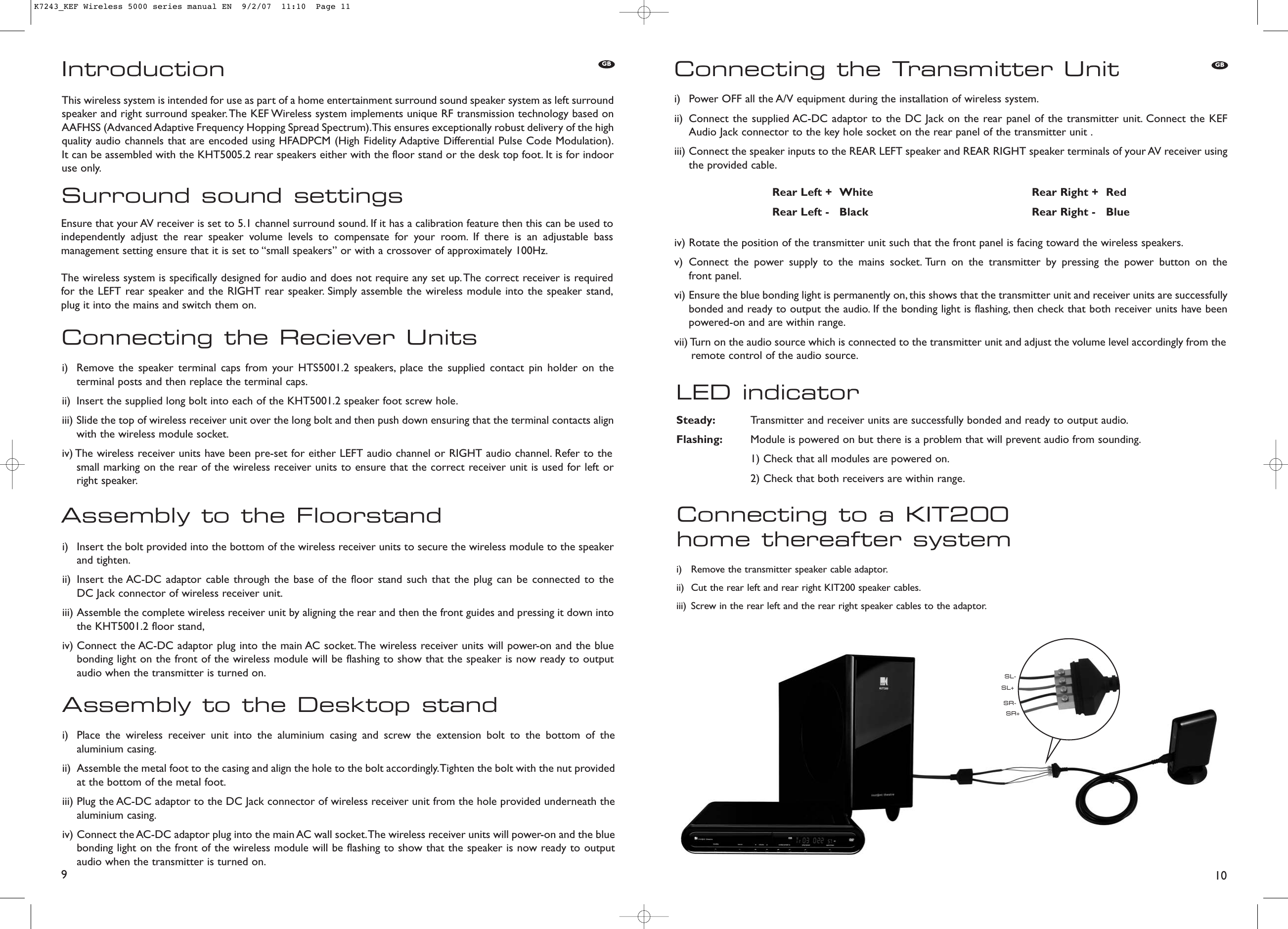

Connecting to a KIT200 home thereafter systemi) Remove the transmitter speaker cable adaptor.ii) Cut the rear left and rear right KIT200 speaker cables.iii) Screw in the rear left and the rear right speaker cables to the adaptor.LED indicatorConnecting the Transmitter Uniti) Power OFF all the A/V equipment during the installation of wireless system.ii) Connect the supplied AC-DC adaptor to the DC Jack on the rear panel of the transmitter unit. Connect the KEFAudio Jack connector to the key hole socket on the rear panel of the transmitter unit .iii) Connect the speaker inputs to the REAR LEFT speaker and REAR RIGHT speaker terminals of your AV receiver usingthe provided cable.iv) Rotate the position of the transmitter unit such that the front panel is facing toward the wireless speakers.v) Connect the power supply to the mains socket. Turn on the transmitter by pressing the power button on the front panel.vi) Ensure the blue bonding light is permanently on, this shows that the transmitter unit and receiver units are successfullybonded and ready to output the audio. If the bonding light is flashing, then check that both receiver units have beenpowered-on and are within range.vii) Turn on the audio source which is connected to the transmitter unit and adjust the volume level accordingly from theremote control of the audio source.10Connecting the Reciever UnitsAssembly to the Floorstandi) Remove the speaker terminal caps from your HTS5001.2 speakers, place the supplied contact pin holder on theterminal posts and then replace the terminal caps.ii) Insert the supplied long bolt into each of the KHT5001.2 speaker foot screw hole.iii) Slide the top of wireless receiver unit over the long bolt and then push down ensuring that the terminal contacts alignwith the wireless module socket.iv) The wireless receiver units have been pre-set for either LEFT audio channel or RIGHT audio channel. Refer to the small marking on the rear of the wireless receiver units to ensure that the correct receiver unit is used for left orright speaker.i) Insert the bolt provided into the bottom of the wireless receiver units to secure the wireless module to the speakerand tighten.ii) Insert the AC-DC adaptor cable through the base of the floor stand such that the plug can be connected to the DC Jack connector of wireless receiver unit.iii) Assemble the complete wireless receiver unit by aligning the rear and then the front guides and pressing it down intothe KHT5001.2 floor stand,iv) Connect the AC-DC adaptor plug into the main AC socket. The wireless receiver units will power-on and the bluebonding light on the front of the wireless module will be flashing to show that the speaker is now ready to outputaudio when the transmitter is turned on.Assembly to the Desktop standi) Place the wireless receiver unit into the aluminium casing and screw the extension bolt to the bottom of thealuminium casing.ii) Assemble the metal foot to the casing and align the hole to the bolt accordingly.Tighten the bolt with the nut providedat the bottom of the metal foot.iii) Plug the AC-DC adaptor to the DC Jack connector of wireless receiver unit from the hole provided underneath thealuminium casing.iv) Connect the AC-DC adaptor plug into the main AC wall socket.The wireless receiver units will power-on and the bluebonding light on the front of the wireless module will be flashing to show that the speaker is now ready to outputaudio when the transmitter is turned on.9IntroductionSurround sound settingsThis wireless system is intended for use as part of a home entertainment surround sound speaker system as left surroundspeaker and right surround speaker.The KEF Wireless system implements unique RF transmission technology based onAAFHSS (Advanced Adaptive Frequency Hopping Spread Spectrum).This ensures exceptionally robust delivery of the highquality audio channels that are encoded using HFADPCM (High Fidelity Adaptive Differential Pulse Code Modulation).It can be assembled with the KHT5005.2 rear speakers either with the floor stand or the desk top foot. It is for indooruse only.Ensure that your AV receiver is set to 5.1 channel surround sound. If it has a calibration feature then this can be used toindependently adjust the rear speaker volume levels to compensate for your room. If there is an adjustable bassmanagement setting ensure that it is set to “small speakers” or with a crossover of approximately 100Hz.The wireless system is specifically designed for audio and does not require any set up. The correct receiver is requiredfor the LEFT rear speaker and the RIGHT rear speaker. Simply assemble the wireless module into the speaker stand,plug it into the mains and switch them on.GBRear Left + White Rear Right + RedRear Left - Black Rear Right - BlueSteady: Transmitter and receiver units are successfully bonded and ready to output audio.Flashing: Module is powered on but there is a problem that will prevent audio from sounding.1) Check that all modules are powered on.2) Check that both receivers are within range.GBSL+SL-SR+SR-K7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 11
