User Manual
5000 series
Wireless
EN
Frequency band: 2.4 - 2.4835GHz (ISM band) Sensitivity: 80dB typical
Data rate: Up to 1.1Mbps Frequency range: 20Hz - 20kHz
Transmission protocol: AAFHSS Peak audio output: 50W rms
Range: 25m (27.3 yds) Typical Maximum*Amplifier: 2 x 50W digital amplifier
Crossovers: 800Hz and 5kHz Available Finishes: Matt Silver or High Gloss Black
Transmitter Module 147 x 79 x 79mm Receiver Module Additional 50mm (2in.)
Dimensions (hxwxd): (5.8 x 3.1 x 3.1in.) Dimensions (hxwxd): (height on floorstand)
Additional 122mm (4.8in.)
(height on deskstand)
www.kef.com 290202ML
Installation Manual
www.kef.com
GP Acoustics (UK) Ltd., Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653
GP Acoustics (US) Inc., 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Telephone: +(1) 732 683 2356 Fax: +(1) 732 683 2358
GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330
GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP414, 37554 Saint Avertin CEDEX, France. Tel : +33(0)2 47 80 49 01 Fax : +33(0)2 47 27 89 64
GP Acoustics (HK) Limited, 6F, Gold Peak Building, 30 Kwai Wing road, Kwai Chung, N.T., Hong Kong.Telephone: +85 (0) 2410 8188 Fax: +85 (0) 2401 0754
KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.
KEF reserve the right, in line with continuing research and development, to amend or change specifications.
*Environmental factors such as building materials and construction may adversely affect wireless signal range.
** KHT5005 speakers and stands are not included.
GP Acoustics (UK) Ltd. reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E.
Issue 1: February 2007
Specifications
**
K7243_KEF Wireless 5000 series manual EN 9/2/07 11:09 Page 1
2

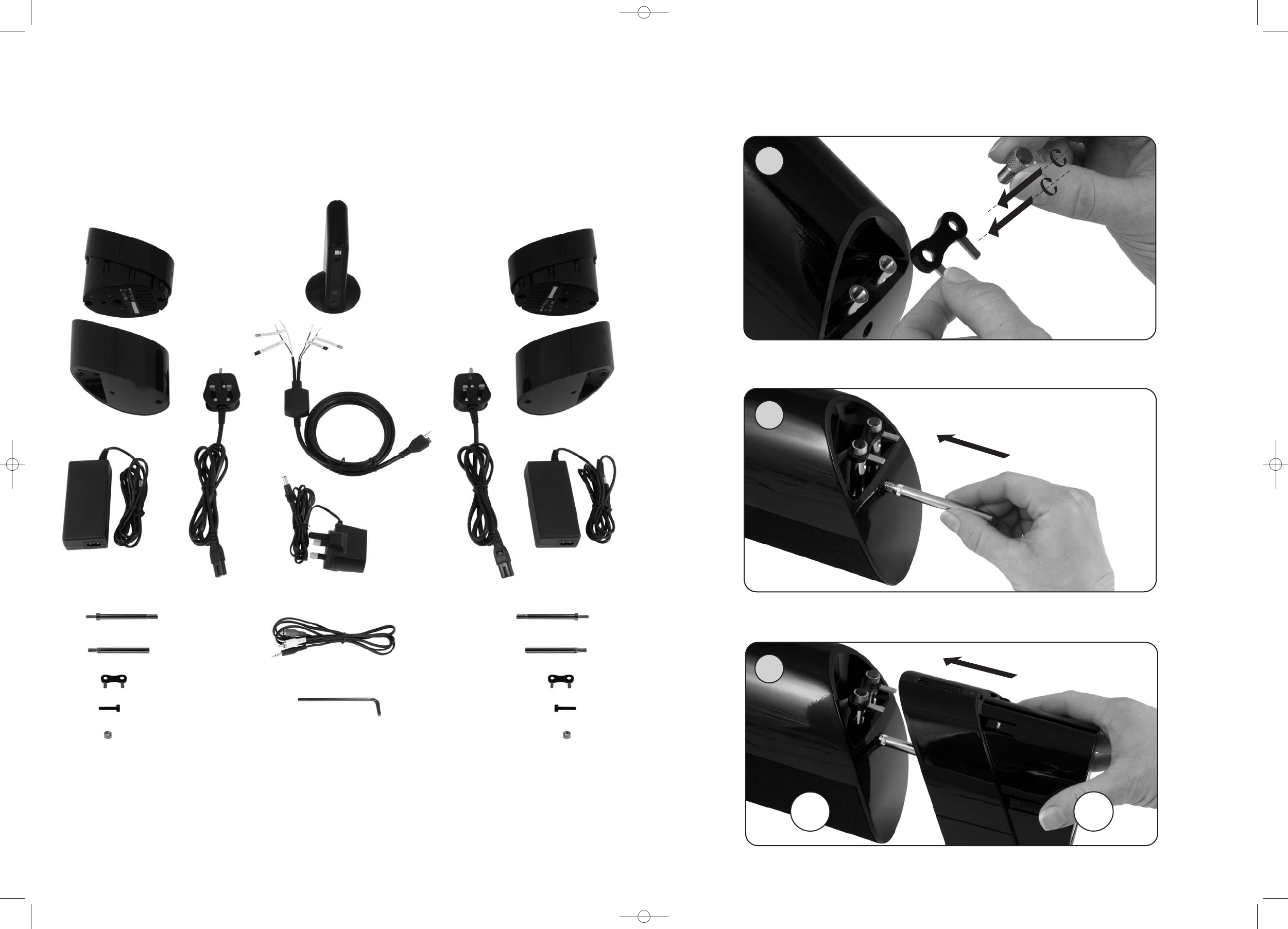

Assembly
1
2
3
1
Contents
LR
K7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 3
4
Deskstand
3
Floorstand
4a
5a6a
4b 5b
6b
7b 8b
K7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 5
65
9
10
11
12 13
14 15
16 17
L +
L -
R +
R -
Wireless Tx
Wireless Rx
K7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 7
8

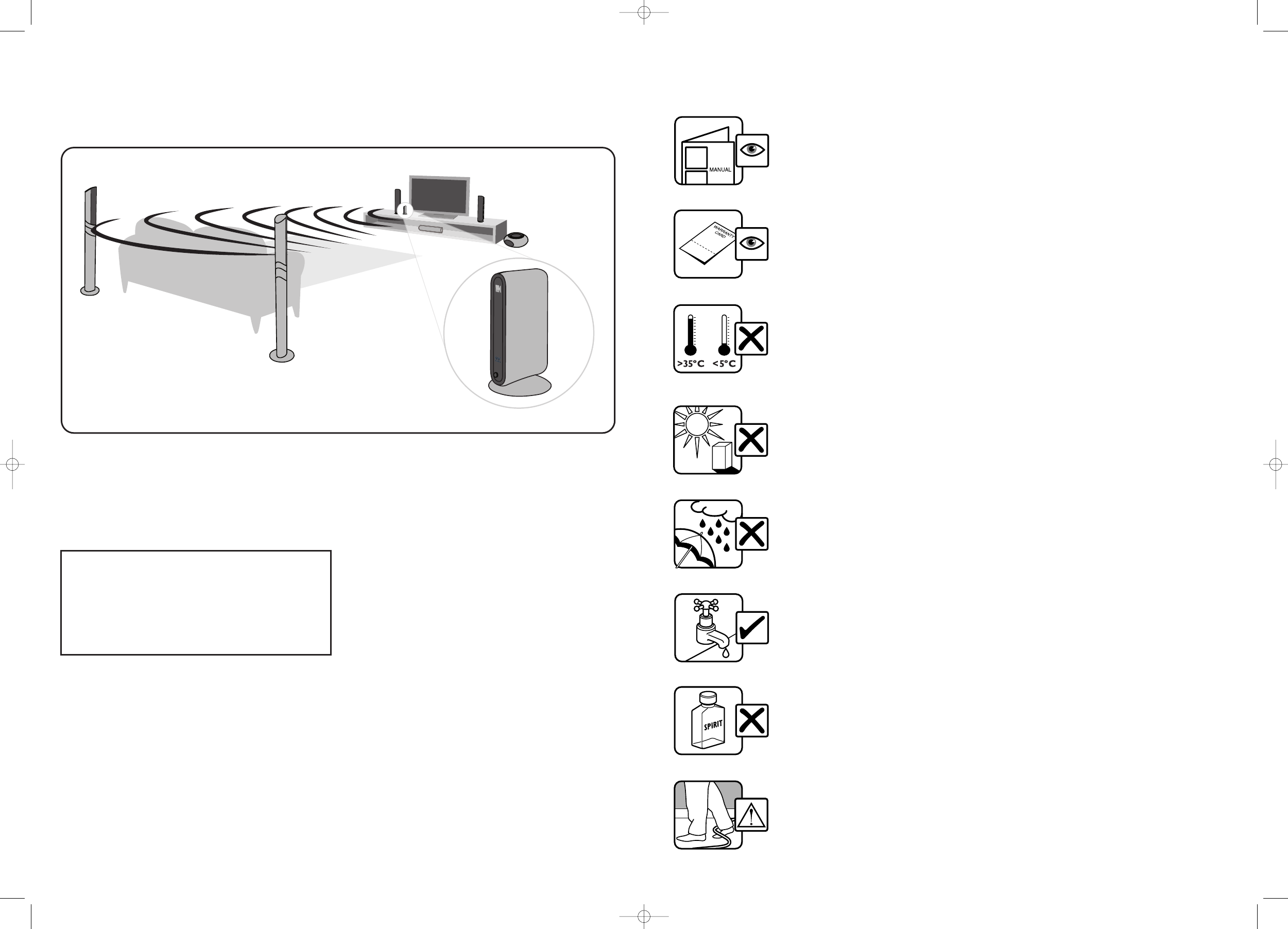

Important Points
Follow this manual carefully for best results from speakers.
Read and return warranty card.
Clean with a damp lint free cloth.
Do not use spirit based cleaners.
Avoid direct sunlight.
Avoid temperature extremes.
SAFETY NOTICE! Trailing cables are dangerous. Secure all cables.
Avoid damp.
7
Positioning
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
conditions: (1) this device does not cause harmful
interference. (2) this device will accept any
interference received, including interference that
may cause undesired operation.
WARNING:
THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER
AUTHORITY TO OPERATE THE EQUIPMENT.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause detrimental interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
K7243_KEF Wireless 5000 series manual EN 9/2/07 11:10 Page 9

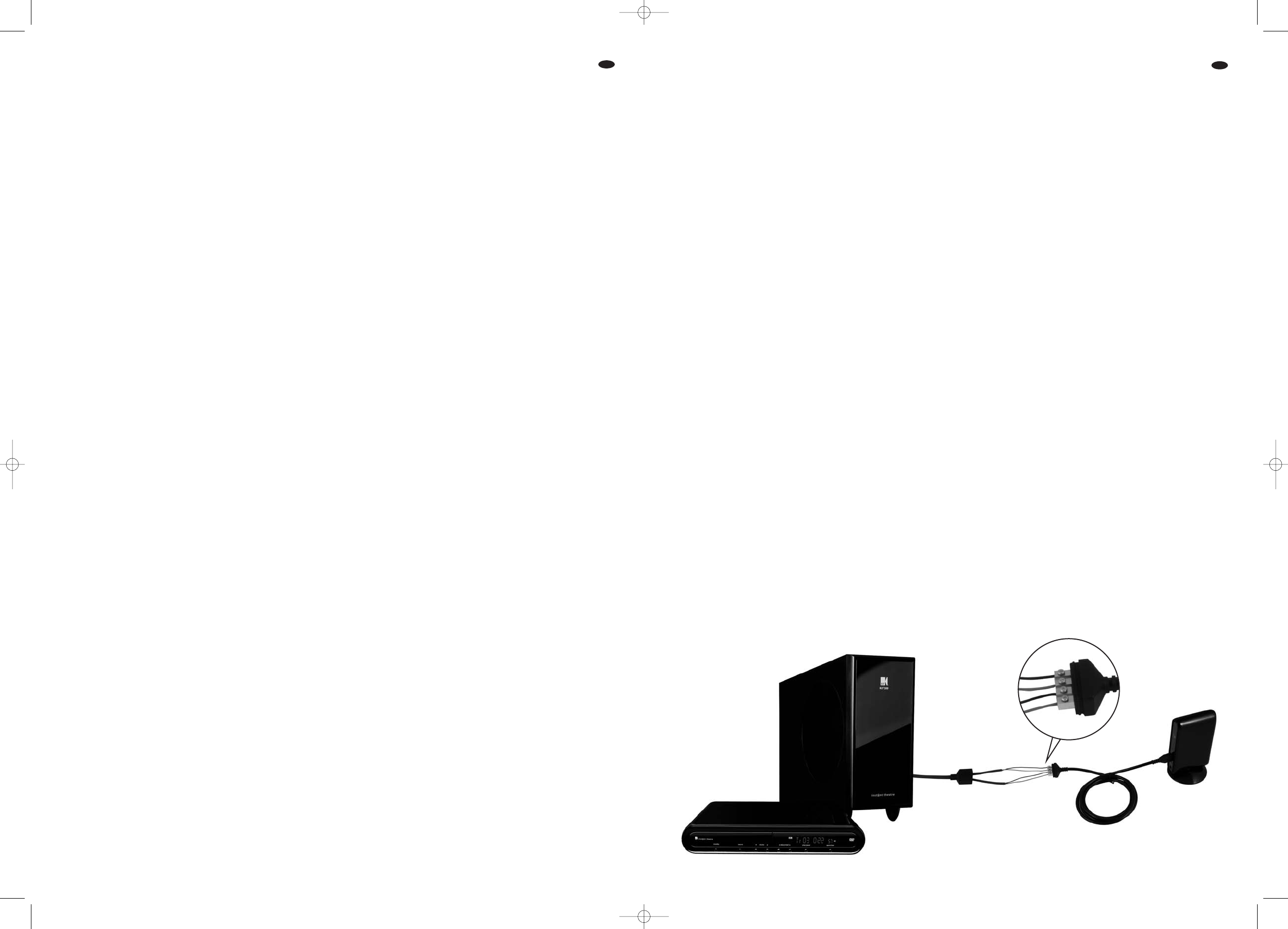

Connecting to a KIT200
home thereafter system
i) Remove the transmitter speaker cable adaptor.
ii) Cut the rear left and rear right KIT200 speaker cables.
iii) Screw in the rear left and the rear right speaker cables to the adaptor.
LED indicator

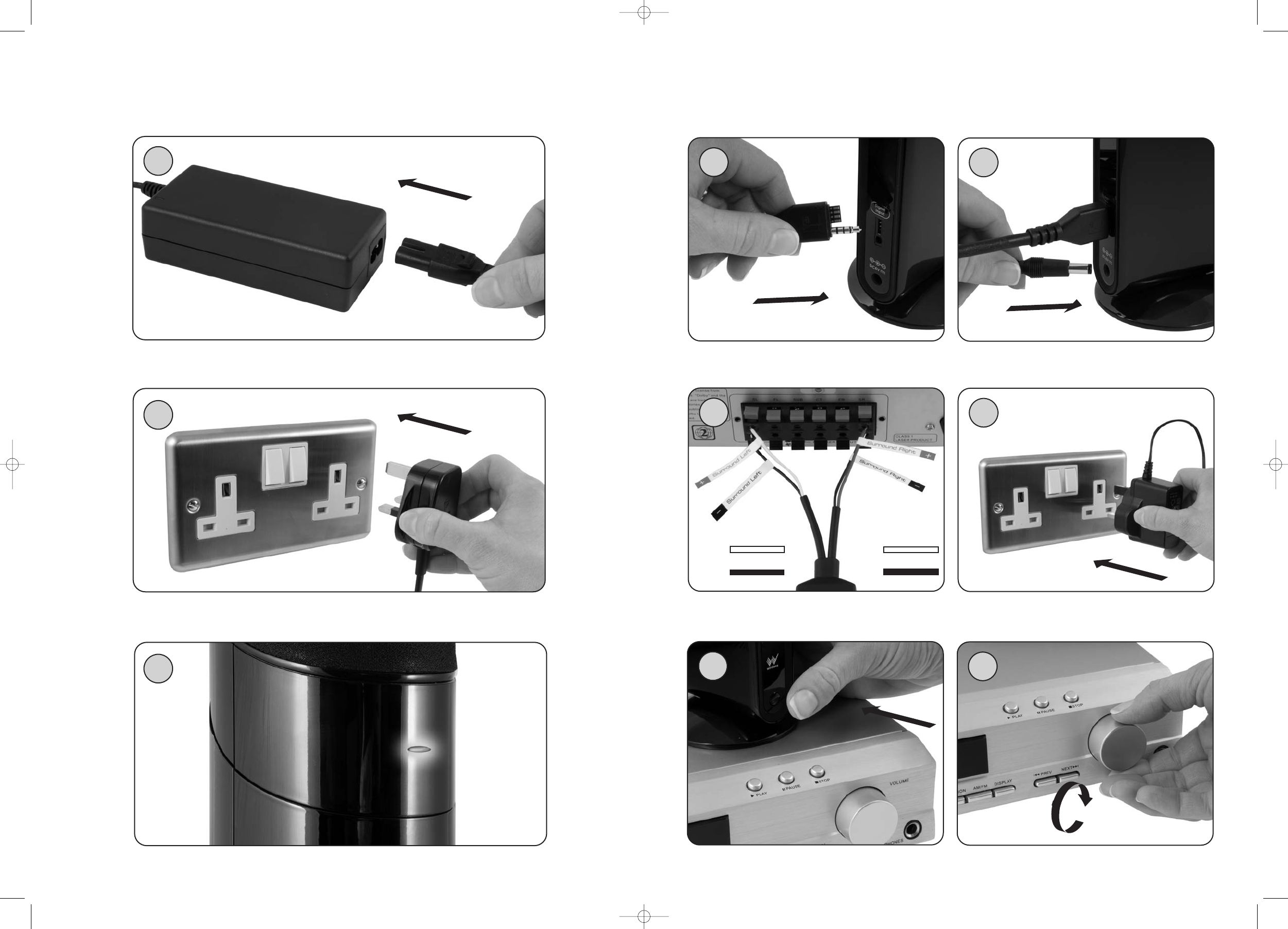

Connecting the Transmitter Unit
i) Power OFF all the A/V equipment during the installation of wireless system.
ii) Connect the supplied AC-DC adaptor to the DC Jack on the rear panel of the transmitter unit. Connect the KEF
Audio Jack connector to the key hole socket on the rear panel of the transmitter unit .
iii) Connect the speaker inputs to the REAR LEFT speaker and REAR RIGHT speaker terminals of your AV receiver using
the provided cable.
iv) Rotate the position of the transmitter unit such that the front panel is facing toward the wireless speakers.
v) Connect the power supply to the mains socket. Turn on the transmitter by pressing the power button on the
front panel.
vi) Ensure the blue bonding light is permanently on, this shows that the transmitter unit and receiver units are successfully
bonded and ready to output the audio. If the bonding light is flashing, then check that both receiver units have been
powered-on and are within range.
vii) Turn on the audio source which is connected to the transmitter unit and adjust the volume level accordingly from the
remote control of the audio source.
10
Connecting the Reciever Units

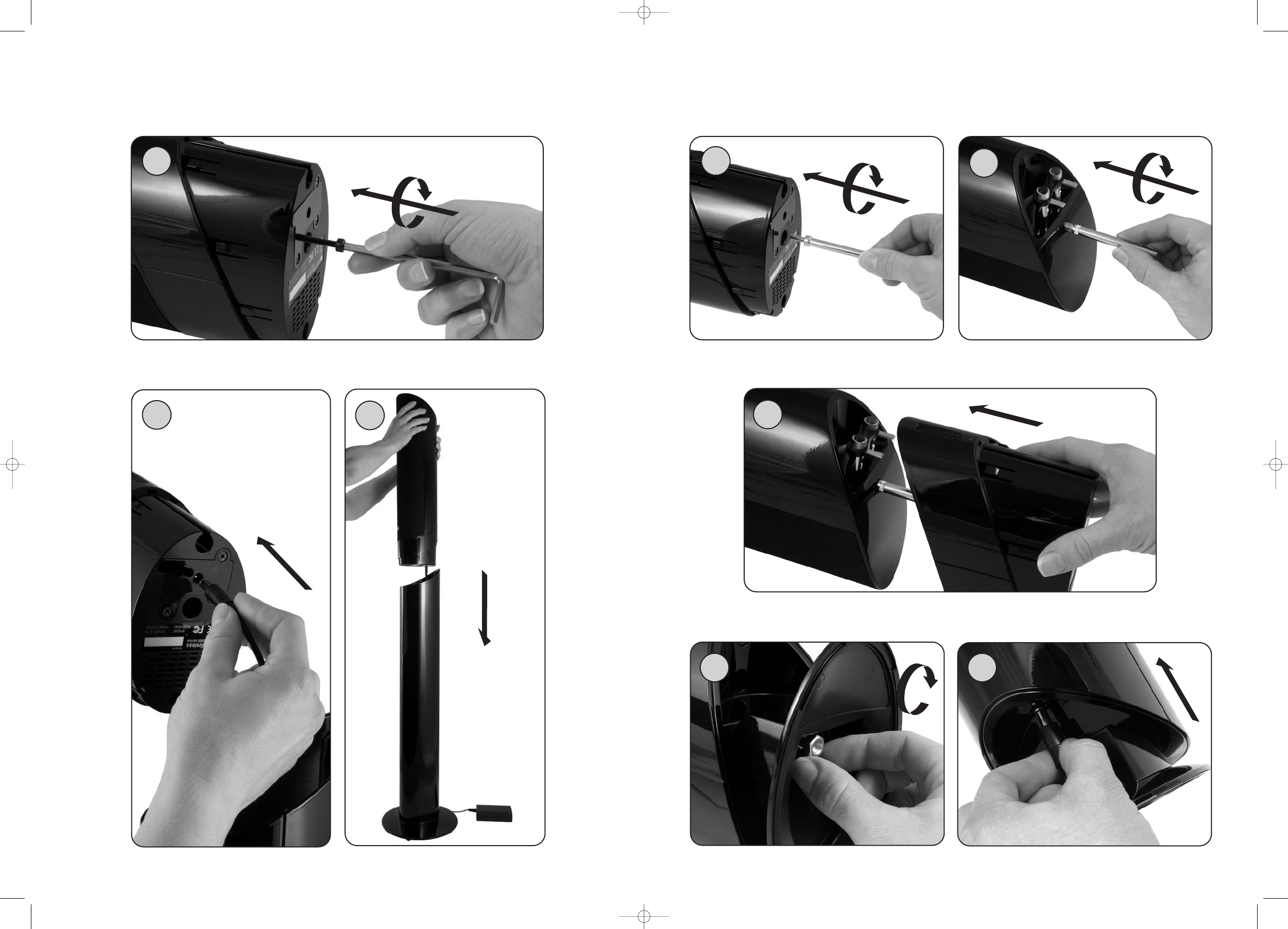

Assembly to the Floorstand
i) Remove the speaker terminal caps from your HTS5001.2 speakers, place the supplied contact pin holder on the
terminal posts and then replace the terminal caps.
ii) Insert the supplied long bolt into each of the KHT5001.2 speaker foot screw hole.
iii) Slide the top of wireless receiver unit over the long bolt and then push down ensuring that the terminal contacts align
with the wireless module socket.
iv) The wireless receiver units have been pre-set for either LEFT audio channel or RIGHT audio channel. Refer to the
small marking on the rear of the wireless receiver units to ensure that the correct receiver unit is used for left or
right speaker.
i) Insert the bolt provided into the bottom of the wireless receiver units to secure the wireless module to the speaker
and tighten.
ii) Insert the AC-DC adaptor cable through the base of the floor stand such that the plug can be connected to the
DC Jack connector of wireless receiver unit.
iii) Assemble the complete wireless receiver unit by aligning the rear and then the front guides and pressing it down into
the KHT5001.2 floor stand,
iv) Connect the AC-DC adaptor plug into the main AC socket. The wireless receiver units will power-on and the blue
bonding light on the front of the wireless module will be flashing to show that the speaker is now ready to output
audio when the transmitter is turned on.
Assembly to the Desktop stand
i) Place the wireless receiver unit into the aluminium casing and screw the extension bolt to the bottom of the
aluminium casing.
ii) Assemble the metal foot to the casing and align the hole to the bolt accordingly.Tighten the bolt with the nut provided
at the bottom of the metal foot.
iii) Plug the AC-DC adaptor to the DC Jack connector of wireless receiver unit from the hole provided underneath the
aluminium casing.
iv) Connect the AC-DC adaptor plug into the main AC wall socket.The wireless receiver units will power-on and the blue
bonding light on the front of the wireless module will be flashing to show that the speaker is now ready to output
audio when the transmitter is turned on.
9
Introduction
Surround sound settings
This wireless system is intended for use as part of a home entertainment surround sound speaker system as left surround
speaker and right surround speaker.The KEF Wireless system implements unique RF transmission technology based on
AAFHSS (Advanced Adaptive Frequency Hopping Spread Spectrum).This ensures exceptionally robust delivery of the high
quality audio channels that are encoded using HFADPCM (High Fidelity Adaptive Differential Pulse Code Modulation).
It can be assembled with the KHT5005.2 rear speakers either with the floor stand or the desk top foot. It is for indoor
use only.
Ensure that your AV receiver is set to 5.1 channel surround sound. If it has a calibration feature then this can be used to
independently adjust the rear speaker volume levels to compensate for your room. If there is an adjustable bass
management setting ensure that it is set to “small speakers” or with a crossover of approximately 100Hz.
The wireless system is specifically designed for audio and does not require any set up. The correct receiver is required
for the LEFT rear speaker and the RIGHT rear speaker. Simply assemble the wireless module into the speaker stand,
plug it into the mains and switch them on.
GB
Rear Left + White Rear Right + Red
Rear Left - Black Rear Right - Blue
Steady: Transmitter and receiver units are successfully bonded and ready to output audio.
Flashing: Module is powered on but there is a problem that will prevent audio from sounding.
1) Check that all modules are powered on.
2) Check that both receivers are within range.
GB
SL+
SL-
SR+
SR-
