Forerunner® 310XT
2 Quick Release Instructions
See the Important Safety and Product
Information guide in the product
box for product warnings and other
important information.
Quick Release Kit
Quick release bracket
Bike mount
Wristband
Cable ties (4)
Extra wrist mount and spring pins (2)
Spring pin tool
The Quick Release Kit is perfect for athletes
who use their Forerunner for both running and
biking. This kit also contains an extra wrist
mount that can be used for other activities or
with other compatible wristbands. When the
bracket and mounts are properly installed, you
can move your Forerunner quickly from your
handlebars to your wrist.
note: For more information, see the
Forerunner 310XT Owner’s Manual.
•
•
•
•
•
•
Quick Release Instructions A
Step 1: Remove the
Wristband
1. Insert the tip of the spring pin tool in the pin
access hole.
2. Push inward towards the wristband, and
then release the spring pin outward.
3. Repeat for the other spring pin. Be careful
not to lose the spring pins.
Spring pin tool
Pin access holes
Step 2: �nstall the Quick�nstall the Quick
Release Bracket
1. Verify that the arrow on the back of the
quick release bracket is pointing up and
your Garmin device is facing up.
2. Use the spring pin tool to install the bottom
spring pin back into the Forerunner.
3. Insert the top spring pin into the top slot of
the quick release bracket.
4 Quick Release Instructions
4. Slide the open end (bottom) of the quick
release bracket onto the bottom spring pin
of the Forerunner.
Quick release
bracket
5. Using the spring pin tool, install the top
spring pin of the quick release bracket
into the top slot of the Forerunner. Your
Forerunner and the bracket are now one
movable unit.
Step 3: �nstall the Bike
Mount
You can install the bike mount on any part of
your handlebars or on the stem. Ensure that
the Garmin unit is facing up for the best GPS
reception.

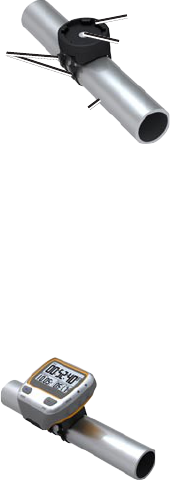

1. Place the bike mount on your handlebars or
stem.
2. Attach the bike mount securely using two
cable ties.
Quick Release Instructions A
cable ties
handlebar
center screw
bike mount
For vertical bars: remove the center screw,
turn the front plate 90 degrees, and replace
the center screw.
Now you can attach the Forerunner to the
bike mount.
3. Align the quick release bracket with the
front plate of the bike mount so that the unit
is vertical.
4. Press and turn the unit clockwise until the it
snaps into place horizontally.
6 Quick Release Instructions
Step 4: Move the
Forerunner From the Bike
Mount to the Wrist Mount
1. Turn the Forerunner 90 degrees
counterclockwise to separate it from the
bike mount.
2. Align the quick release bracket with the
front of the wrist mount so that the unit is
horizontal.
3. Press and turn the unit 90 degrees
clockwise until the it snaps into place
vertically.
Quick Release Instructions A
Limited Warranty
Garmin’s standard limited waranty applies to
this accessory. For more information, see the
Important Safety and Product Information in
the Garmin product box.
For the latest free software updates
(excluding map data) throughout the life
of your Garmin products, visit the Garmin
Web site at www.garmin.com.
© 2009 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062,
USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park,
Southampton, Hampshire, SO40 9RB UK
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County,
Taiwan
www.garmin.com
February 2009
Part Number 190-01060-91 Rev. A
Printed in Taiwan
