Data Sheet
Page 1 of 5
Cisco VEN401 plus VEN402 Wireless Bridge Solution
Optimized for Video
Highlights
• Adds Wireless-N network connectivity between any Game Consoles, Digital
Video Recorders (DVRs), and Digital Media Adapters (DMAs) and the
customers Broadband Residential Gateway
• Complies with IEEE 802.11n draft 2.0 (5 GHz) standards
• Wi-Fi certified to ensure interoperability
• Industrial-strength wireless encryption WPA2™ to ensure security
• Easy-to-use Wi-Fi Protected Setup (WPS) for fast, simple and secured setup
• The VEN401 Access Point provides multiple SSIDs to VLAN pairings so that
parents can control the content that a TV has access to
• Equipped with one 10/100 Base-T auto-crossover (MDI/MDI-X) port
• Works without drivers on Windows®-, Macintosh®-, Linux®-based
devices— it just needs an Ethernet port to connect with!
• The VEN401 (Access Point) plus VEN402 (Client) are available as a pre-
configured bundle and packaged together
Optimized for Video
Cisco’s VEN401 plus VEN402 Wireless Video Bridge solution is optimized for
connecting Video devices within the Connected Home without the need for wires.
Users are now free to place their Televisions and video devices most anywhere in
the home that compliments their lifestyle and living environment. The small form
factor and unique design of the VEN401 plus VEN402 provides a stylish solution
without the need to pull wires through walls or along the floor board. By pairing
the two devices in the 5GHz band, the video stream is able to pass between the
two devices at a frequency that is minimally used by any other devices. It’s also
ideal for wirelessly sharing music, photos, movies, and other files around the
home.
Since the Wireless Video Bridge solution is based on IEEE802.11n standards-
based Wi-Fi technology, it can pair with other video products that support the
same Wi-Fi standard. Additionally, the VEN401 plus VEN402 pair can also be
used to connect digital video recorders, set-top boxes or computers to your
Wireless-N network. One can replace their wired-Ethernet connections for
printers, scanners, cameras, storage devices, notebooks or desktop computers to
wireless connections or add the devices wirelessly to their existing network.
Cisco’s VEN401 plus VEN402 Wireless Video Bridge solution works with any
platform and under any operating system. Through use of the Wi-Fi Protected
Data Sheet
Page 2 of 5
Setup™ secure connections are created with a simple push of a button.
Additionally, the connection is protected with encrypted, industrial-strength Wi-Fi
Protected Access (WPA) security to ensure that ones personal content is protected
from unauthorized access methods. Each Wireless Video Bridge bundle is pre-
configured at the factory with a unique set of Wi-Fi Security settings including,
SSID, WPA2 Pre-Shared Key and WPS Pin. This unique framework provides a
positive, Zero-Touch, out-of –the-box experience for the customer and avoids the
need for manual configuration.
For the Service Provider, the VEN401 plus VEN402 Wireless Video Bridge
solution can be remotely managed, provisioned and have its in-service software
upgraded using TR-069 and TR-111. For mass deployments, provisioning with a
secure profile saves time and expense when globally updating configurations.
Cisco understands that security is fundamental for a solid, carrier-grade service.
The platform supports secure, methods for remote communication, provisioning
and servicing.
To facilitate in-home customization and troubleshooting the VEN401 plus
VEN402 Wireless Video Bridge solution includes a browser-based user interface.
The browser-based user interface allows customers to customize their WiFi
security and access other configurable features. In addition, the LED status
indicators on the front panel provide an informative and easy-to-understand
display that indicates status and real-time data transmission activity. The LED
indicators include:
• Power
• Ethernet
• Wireless
• WPS
Data Sheet

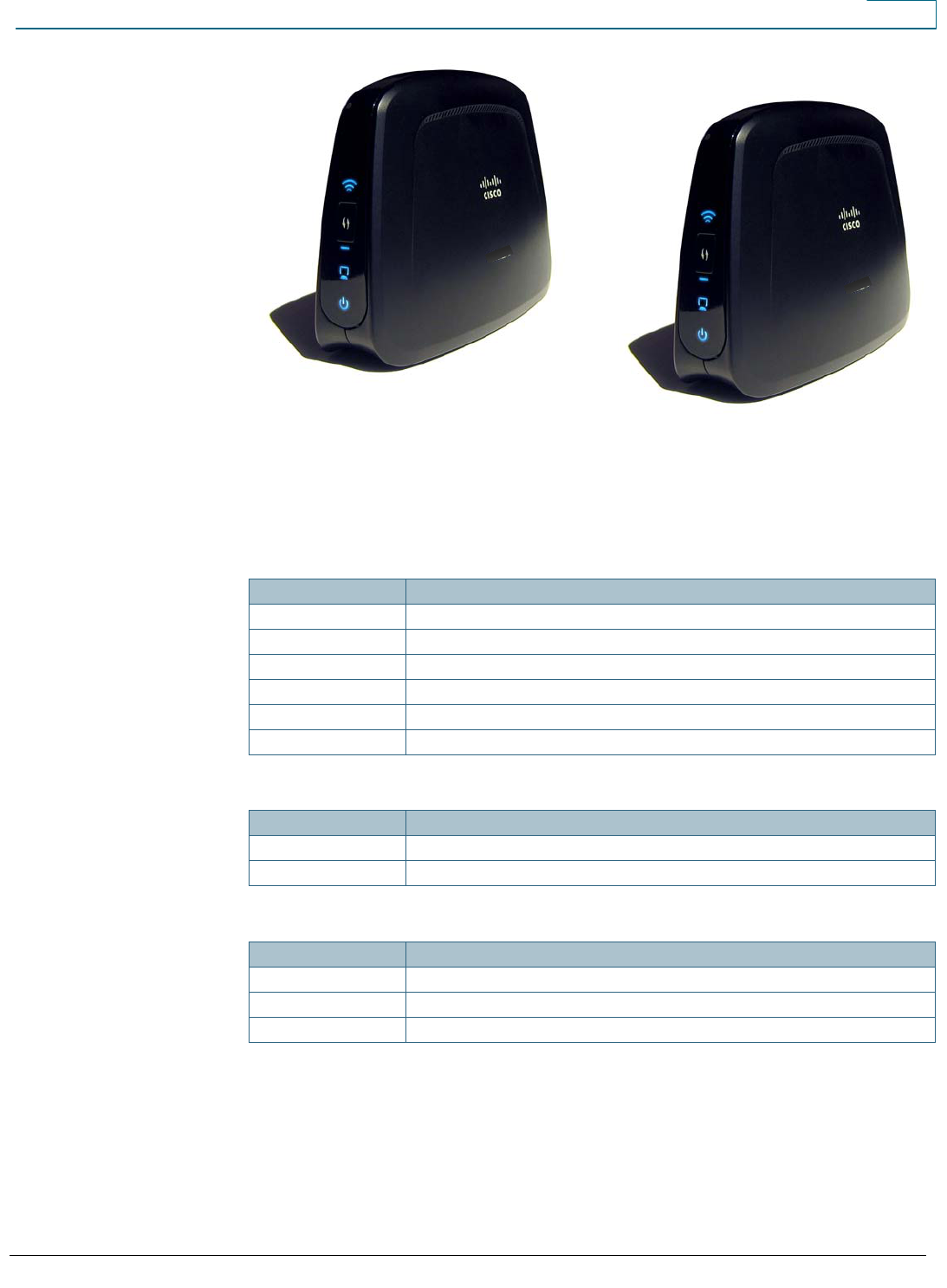

Figure 1. VEN401 Wireless Access Point
Figure 2. VEN402 Wireless Client VEN402 Wireless Client
Table 1. Hardware Features Table 1. Hardware Features
Feature Description
Processor Broadcom 4717 (enhanced)
Memory 8 Mb Flash, 32 Mb DRAM DDR2
Wi-Fi IEEE 802.11n 5GHz Draft 2.0
Wi-Fi Antenna 2x3 PiFa and Internal Omni Directional antenna’s
Ethernet Interfaces 1x 10/100 Base-T Ethernet
Industrial Design Custom ID with added option for Optical Interface and Fiber splice tray
Table 2. Front Panel Features
Feature Description
Controls WPS WiFi Security
Indicators Power, Ethernet, Wireless, WPS
Table 3. Back Panel Features
Feature Description
Power External 12 VDC Power Supply
Controls Power Switch (On/Off), Reset
Connectors RJ-45 for 10/100 Base-T Ethernet
Page 3 of 5
Data Sheet
Page 4 of 5
Product Specifications
Table 4. Product Specifications
Specification Value
Interfaces
Wi-Fi ● IEEE 802.11n 5GHz only, Draft 2.0
● 802.1x Authentication
● WPA/WPA2 Protected Access
● 64/128 Bits WEP Encryption
● AES and TKIP Encryption
● Wi-Fi Multimedia Support: WMM and WMM-PS
● Multiple SSIDs Profiles
● MAC Address Filtering Integrated
● WPS (Pushbutton and PIN entry)
● Modulations: OFDM/BPSK, QPSK, 16-QAM, 64-QAM
● RF Power (EIRP): 100 mWatt (20 dBm) to each transmit antenna
● Receive Sensitivity: -72dBm (typical) @ MCS15/5.0GHz
● Antenna Gain: 1 dBi
Networking
Bridging ● Transparent Bridging between LAN Devices
● Virtual LAN Bridging (VLAN): 802.1P, 802.1Q
● MAC Filtering
● IGMPv3 Snooping
● IP Multicast forwarding
● DHCP Client
QoS ● IEEE 802.1p—Priority Bits
● IEEE 802.1q—VLAN Tagging
● 802.11e Wireless QoS
Management ● 802.1ag Connection Fault Management (CFM)
● DSL Forum TR-069 plus TR-111 Remote Management
● Supports TR-098 Data Model and Cisco Extension
● HTTPS for remote access to Statistics
● Integrated Gateway-based Diagnostics
● DNS/IP Ping and Traceroute
● Web-UI Configuration and Diagnostics
● Statistic reporting
Bridging Routing ● IPv4, UDP, TCP
● UPnP-based Auto-Configuration and Port Forwarding
Security ● WEP, WPA, WPA2 and MAC Filtering Security Features
● MAC Filtering Black List
Device Characteristics
Power 110-240 VAC 50/60 Hz Switching Power Supply; 12 VDC, 1 A Output
Mounting Desktop and Wall Mount
Dimensions (H x W x D) Target : 5.71 in. x 4.7 in. x 2.05 in. (145mm x 106mm x 52mm) maximum
Weight Target : 5.61 oz. (159 g)
Safety and Emissions
Certification FCC Part 68, Part 15, Class B &C and European EMC and Immunity, UL 1950, CSA C22.2 no.
234 and EN 60950-1- 2006 CE, RoHS, WEEE and GrunePunkte
Operating Conditions
Operating Temperature 32o to 104oF (0o to 40oC)
Storage Temperature -4o to 140oF (-20o to 60oC)
Operating Humidity 10 to 90% Non-condensing
Storage Humidity 10 to 90% Non-condensing
Data Sheet
Table 5. Packaging Contents
• Wireless Video Bridge Access Point (Connects to a RGW)
• Wireless Video Bridge Client (Connects to a STB, DVR, etc.)
• Qty. 2 Power adaptors
• Qty. 2 Ethernet network cables
• Printed FAQ
• Printed Quick Install Guide
• CD: User Manual, OS/GPL and Software license declarations and DOC
Table 6. Minimum Installation Requirements
• Wireless A Residential Gateway device with a spare Ethernet Port
• Wireless Set Top Box, DVR, etc. with an Ethernet Port
• Internet Explorer 6 or Firefox 2 or higher for browser-based configuration
ThemaximumperformanceforwirelessisderivedfromIEEEStandard802.11specifications.Actualperformancecanvary,includinglowerwireless
networkcapacity,datathroughputrate,rangeandcoverage.Performancedependsonmanyfactors,conditionsandvariables,includingdistancefromthe
accesspoint,volumeofnetworktraffic,buildingmaterialsandconstruction,operatingsystemused,mixofwirelessproductsused,interferenceandother
adverseconditions.
Cisco, Cisco Systems, the Cisco logo and the Cisco Systems logo are registered trademarks or trademarks of
Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries.
All other trademarks mentioned in this document are the property of their respective owners.
Specifications and product availability are subject to change without notice.
© 2009 Cisco Systems, Inc. All rights reserved.
Service Provider Video Technology Group
1-800-722-2009 or 678-277-1120
www.cisco.com November 2009
Page 5 of 5
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are
firmware programmed at the factory to match the intended destination. The firmware setting is not accessible
by the end user.
VEN401-AT and VEN401-NA with PIFA antenna and max. antenna gain is 3.9 dBi in 2.4G and 4.5dBi in 5G.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution:
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to
co-channel mobile satellite systems.
The maximum antenna gain permitted (for devices in the bands 5250-5725 MHz (4.3 dBi) to comply with the
e.i.r.p. limit; and
The maximum antenna gain permitted (for devices in the band 5725-5825 MHz (4.5dBi)) to comply with the
e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate, as stated in section
A9.2(3).
High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
IMPORTANT NOTE:
Canada Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Note: The VEN401-AT and VEN401-NA have disabled the 5600-5650M band by S/W to avoid 5600-5650M
band for IC certification.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of the
R&TTE Directive 1999/5/EC:
- EN60950-1: (2006)
Safety of Information Technology Equipment
- EN50385 : (2002-08)
- Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for
wireless telecommunication systems with the basic restrictions or the reference levels related to human
exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public
- EN 300 328 V1.7.1: (2006-10)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data
transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
- EN 301 893 V1.5.1: (2008-12)
- Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering
the essential requirements of article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1: (2008-04)
- Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 1: Common technical requirements
- EN 301 489-17 V2.1.1 (2009-05)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment; Part 17: Specific conditions for Broadband Data Transmission Systems
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states
and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed
information the end-user should contact the national spectrum authority in France.
0560
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung
mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus
ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Navigation menu
