Genbyte Technology ZBT1WF-CC3200 2.4 GHz Wi-Fi Module User Manual ZBT1WF 1501S100 WIFI

Genbyte Technology Inc. 2.4 GHz Wi-Fi Module ZBT1WF 1501S100 WIFI

Users Manual

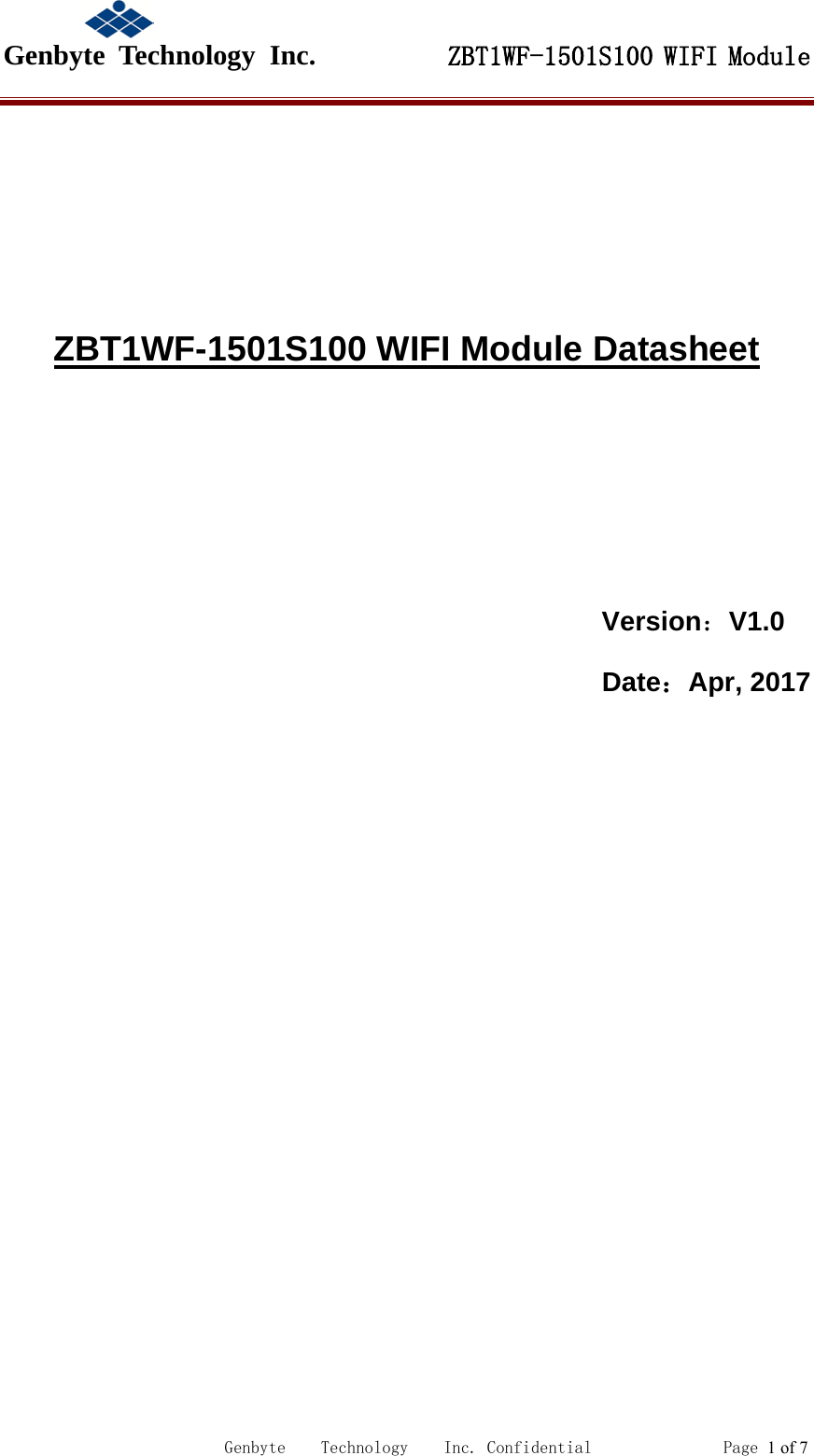

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 1 of 7 ZBT1WF-1501S100 WIFI Module Datasheet Version：V1.0 Date：Apr, 2017

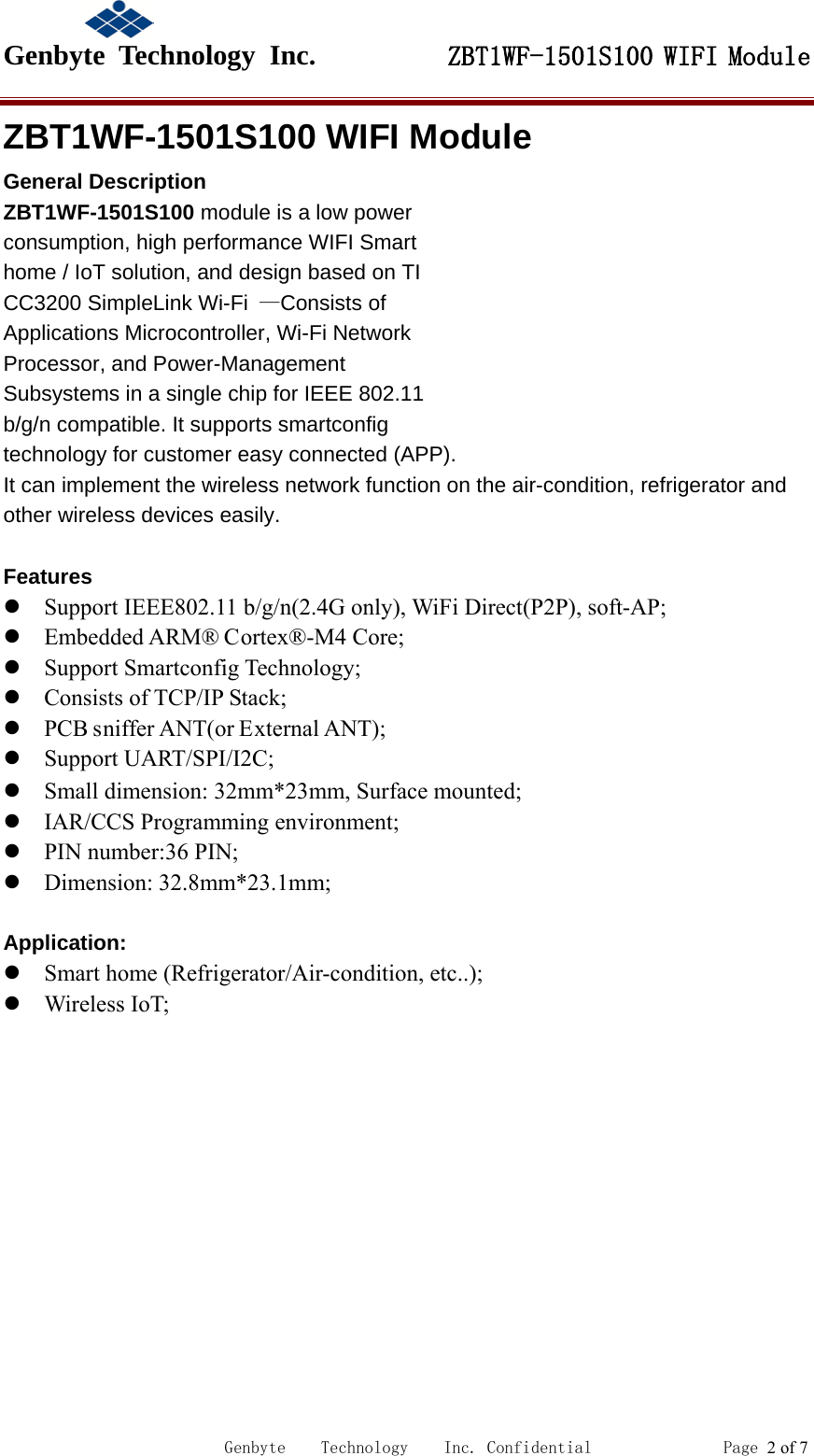

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 2 of 7 ZBT1WF-1501S100 WIFI Module General Description ZBT1WF-1501S100 module is a low power consumption, high performance WIFI Smart home / IoT solution, and design based on TI CC3200 SimpleLink Wi-Fi —Consists of Applications Microcontroller, Wi-Fi Network Processor, and Power-Management Subsystems in a single chip for IEEE 802.11 b/g/n compatible. It supports smartconfig technology for customer easy connected (APP). It can implement the wireless network function on the air-condition, refrigerator and other wireless devices easily. Features  Support IEEE802.11 b/g/n(2.4G only), WiFi Direct(P2P), soft-AP;  Embedded ARM® Cortex®-M4 Core;  Support Smartconfig Technology;  Consists of TCP/IP Stack;  PCB sniffer ANT(or External ANT);  Support UART/SPI/I2C;  Small dimension: 32mm*23mm, Surface mounted;  IAR/CCS Programming environment;  PIN number:36 PIN;  Dimension: 32.8mm*23.1mm; Application:  Smart home (Refrigerator/Air-condition, etc..);  Wireless IoT;

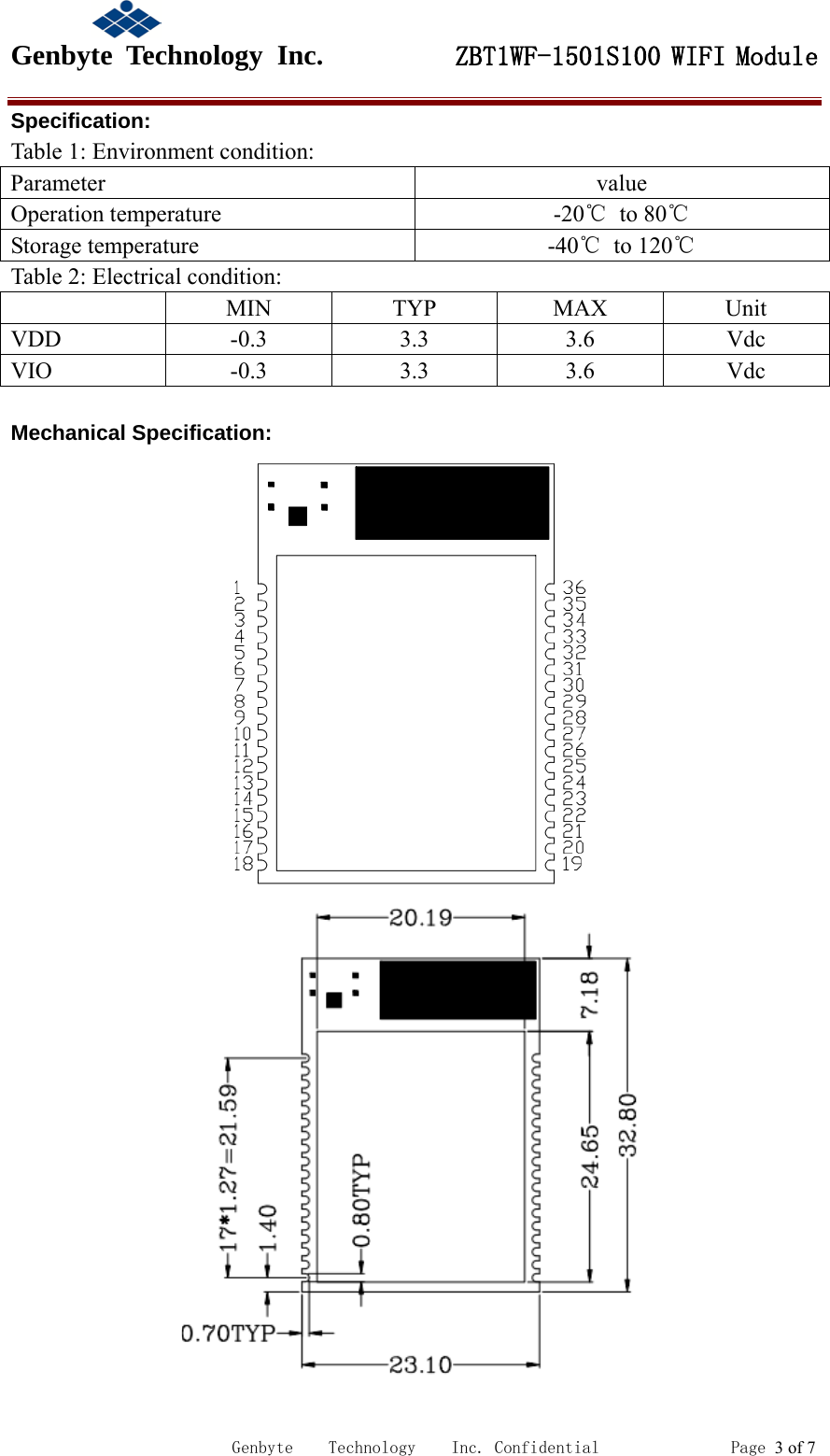

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 3 of 7 Specification: Table 1: Environment condition: Parameter value Operation temperature -20℃ to 80℃ Storage temperature -40℃ to 120℃ Table 2: Electrical condition: MIN TYP MAX Unit VDD -0.3 3.3 3.6 Vdc VIO -0.3 3.3 3.6 Vdc Mechanical Specification:

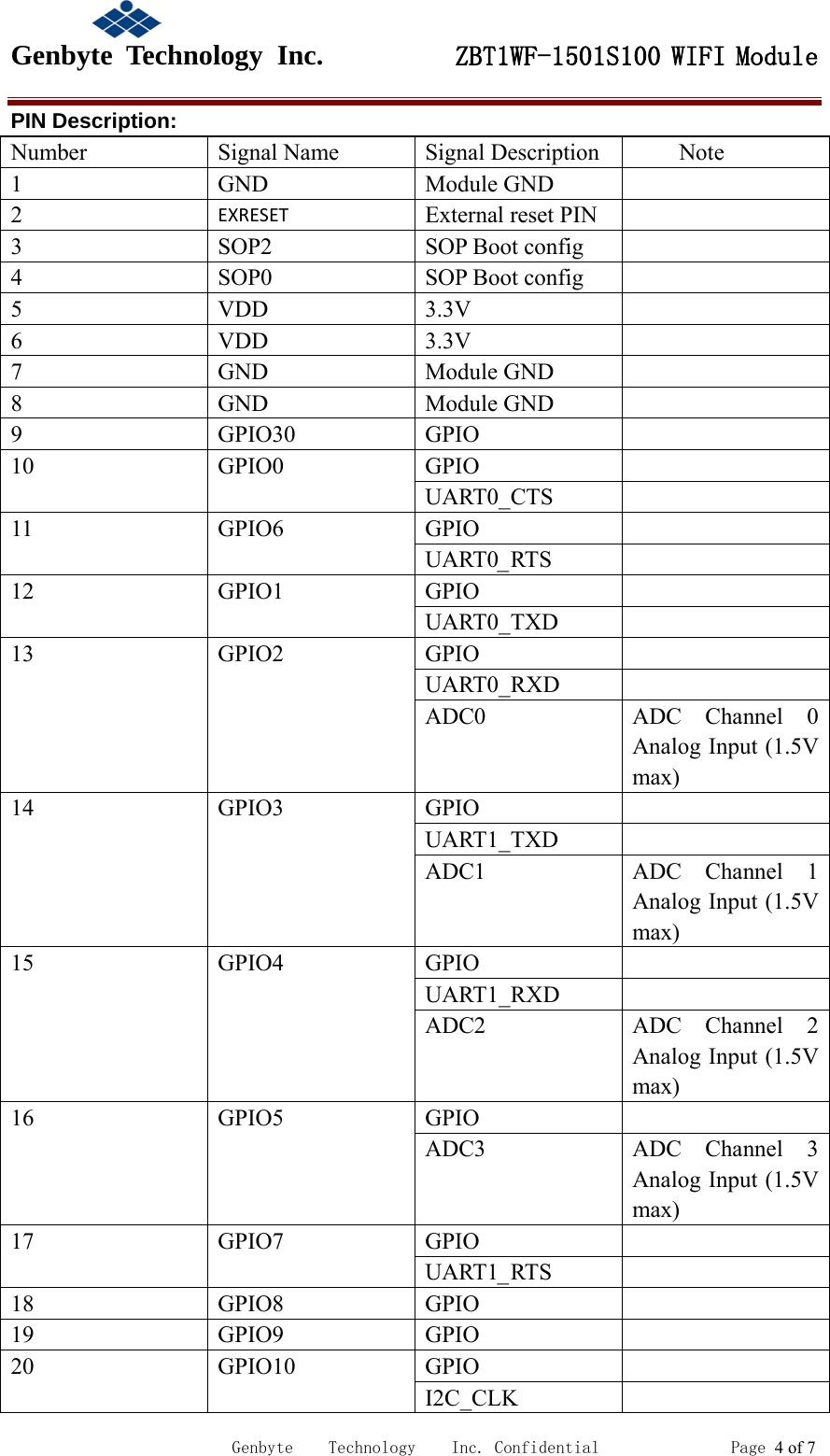

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 4 of 7 PIN Description: Number Signal Name Signal Description Note 1 GND Module GND 2 EXRESET External reset PIN 3 SOP2 SOP Boot config 4 SOP0 SOP Boot config 5 VDD 3.3V 6 VDD 3.3V 7 GND Module GND 8 GND Module GND 9 GPIO30 GPIO 10 GPIO0 GPIO UART0_CTS 11 GPIO6 GPIO UART0_ RTS 12 GPIO1 GPIO UART0_TXD 13 GPIO2 GPIO UART0_RXD ADC0 ADC Channel 0 Analog Input (1.5V max) 14 GPIO3 GPIO UART1_TXD ADC1 ADC Channel 1 Analog Input (1.5V max) 15 GPIO4 GPIO UART1_RXD ADC2 ADC Channel 2 Analog Input (1.5V max) 16 GPIO5 GPIO ADC3 ADC Channel 3 Analog Input (1.5V max) 17 GPIO7 GPIO UART1_ RTS 18 GPIO8 GPIO 19 GPIO9 GPIO 20 GPIO10 GPIO I2C_CLK

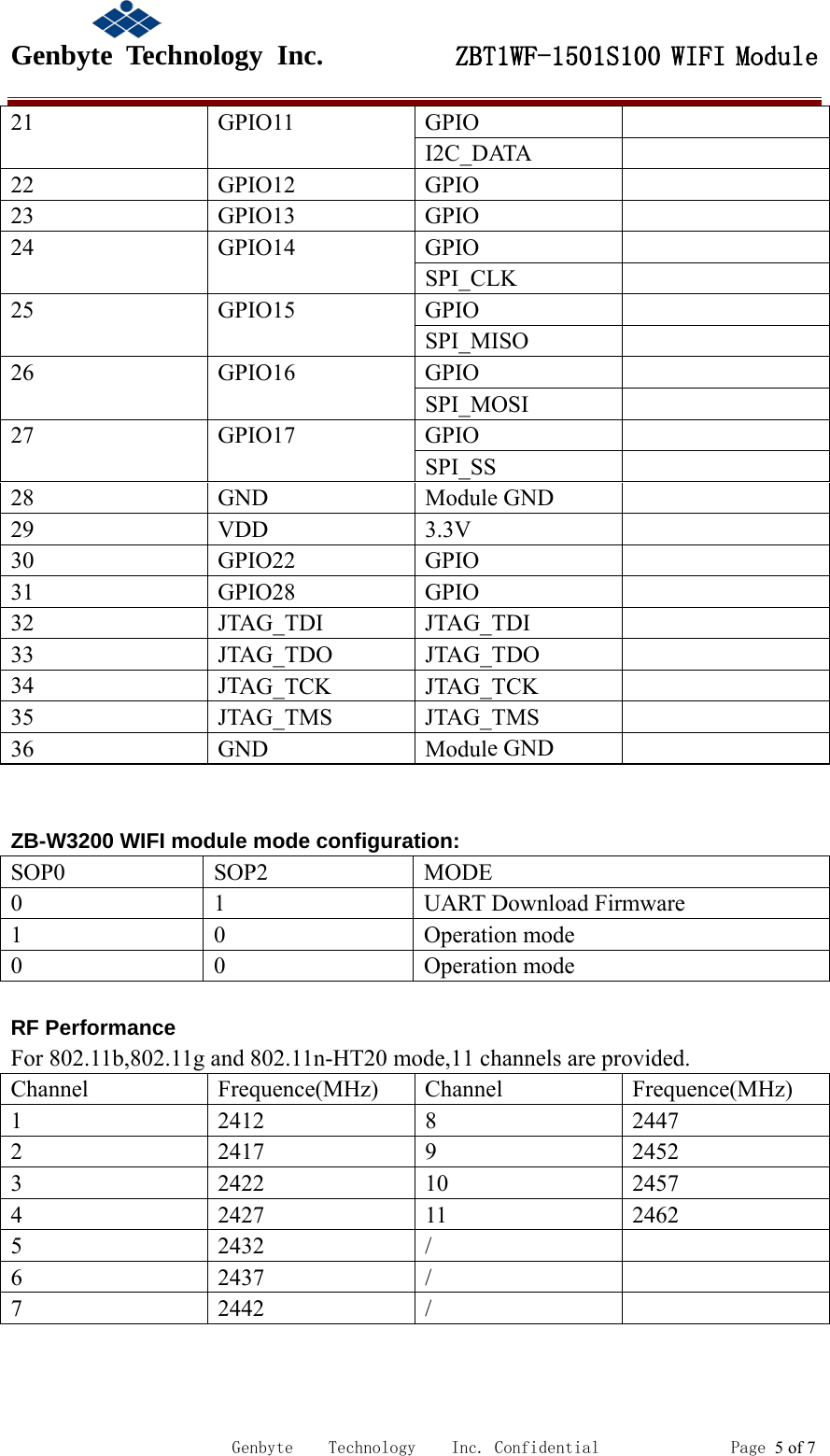

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 5 of 7 21 GPIO11 GPIO I2C_DATA 22 GPIO12 GPIO 23 GPIO13 GPIO 24 GPIO14 GPIO SPI_CLK 25 GPIO15 GPIO SPI_MISO 26 GPIO16 GPIO SPI_MOSI 27 GPIO17 GPIO SPI_SS 28 GND Module GND 29 VDD 3.3V 30 GPIO22 GPIO 31 GPIO28 GPIO 32 JTAG_TDI JTAG_TDI 33 JTAG_TDO JTAG_TDO 34 JTAG_TCK JTAG_TCK 35 JTAG_TMS JTAG_TMS 36 GND Module GND ZB-W3200 WIFI module mode configuration: SOP0 SOP2 MODE 0 1 UART Download Firmware 1 0 Operation mode 0 0 Operation mode RF Performance For 802.11b,802.11g and 802.11n-HT20 mode,11 channels are provided. Channel Frequence(MHz) Channel Frequence(MHz) 1 2412 8 2447 2 2417 9 2452 3 2422 10 2457 4 2427 11 2462 5 2432 6 2437 7 2442 / / /

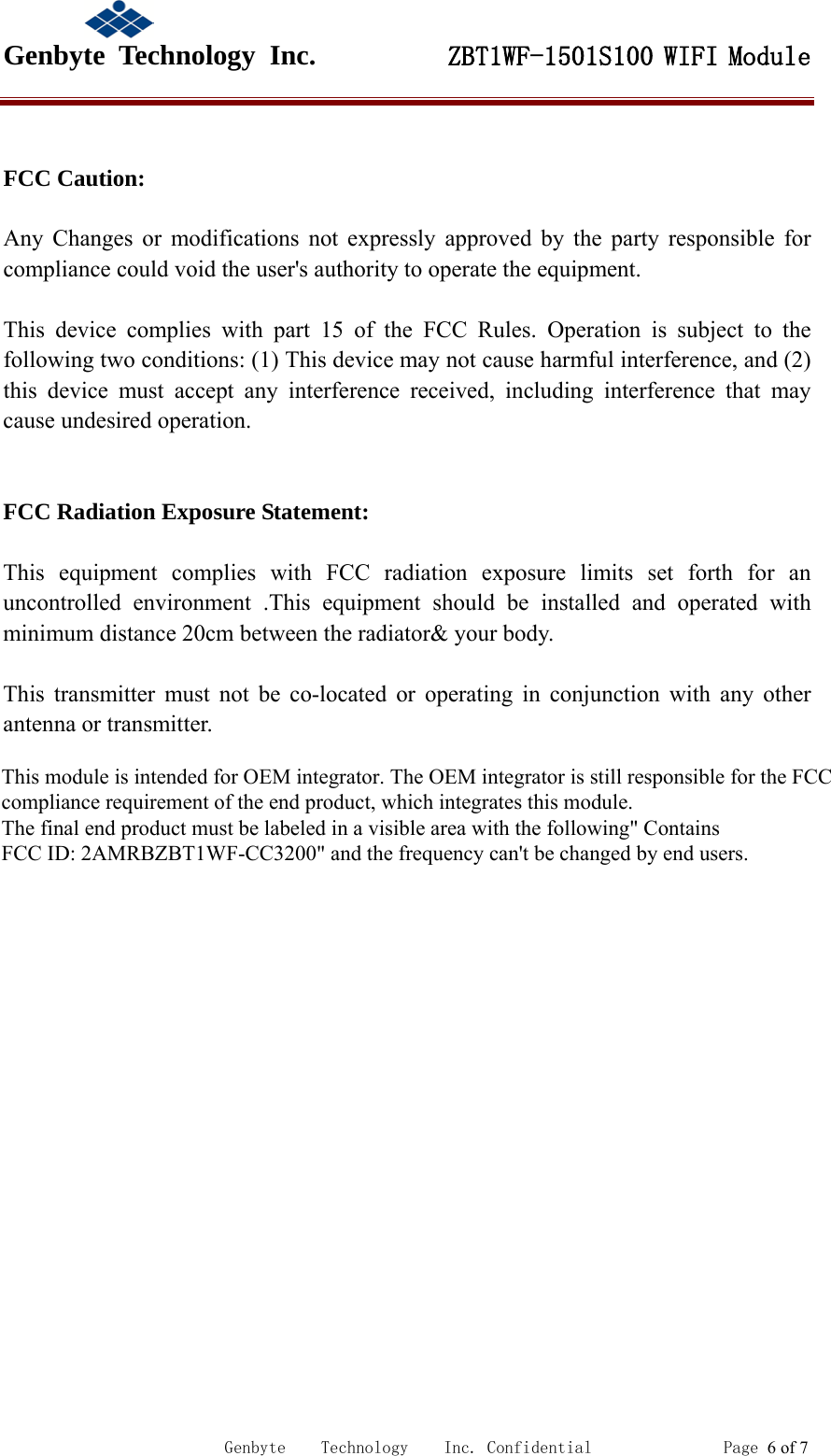

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 6 of 7 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCCcompliance requirement of the end product, which integrates this module.The final end product must be labeled in a visible area with the following" ContainsFCC ID: 2AMRBZBT1WF-CC3200" and the frequency can't be changed by end users.

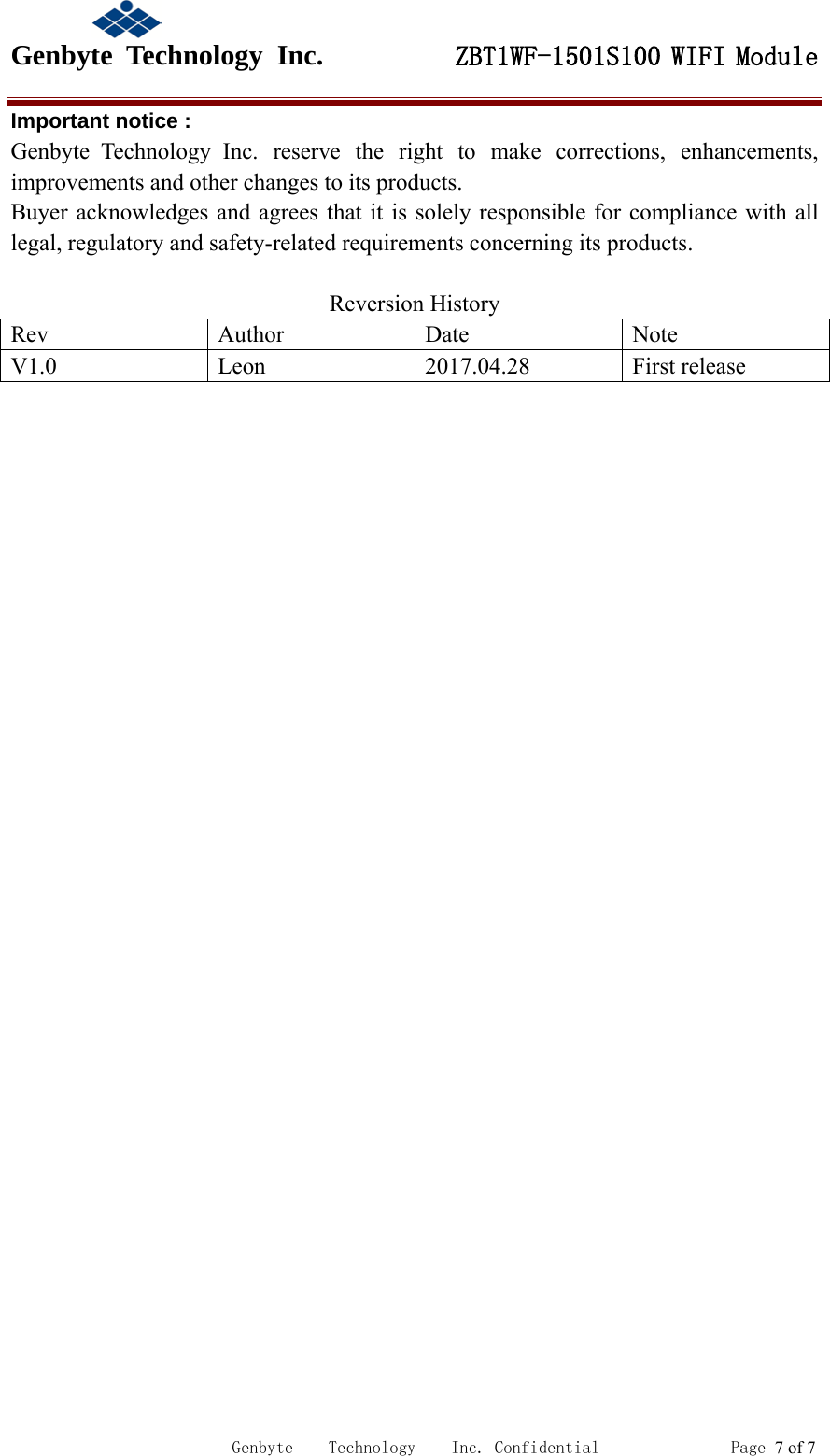

Genbyte Technology Inc. ZBT1WF-1501S100 WIFI Module Genbyte Technology Inc. Confidential Page 7 of 7 Important notice : Genbyte Technology Inc. reserve the right to make corrections, enhancements, improvements and other changes to its products. Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products. Reversion History Rev Author Date Note V1.0 Leon 2017.04.28 First release
