GD8000 User Guide

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Table of Contents

Notices, Compliance and Safety .........................5

Disclaimer ............................................................. 5

Trademark and Patent Notice ............................ 5

Compliance Statements ..................................... 5

Compliance Statement for Canada ................... 6

Fax Branding ........................................................ 6

Warnings and Cautions ...................................... 6

Safety .................................................................... 7

Service and Upgrade Safety and Precautions .................... 7

Battery Pack Safety and Precautions ................................. 8

Getting Started..........................................................9

Standard Features ............................................... 9

Optional Features ................................................ 9

Operating System Information .......................... 9

Tips for New Owners .......................................... 9

Turning Off the Computer .................................. 9

Getting Familiar With Your Computer ..............10

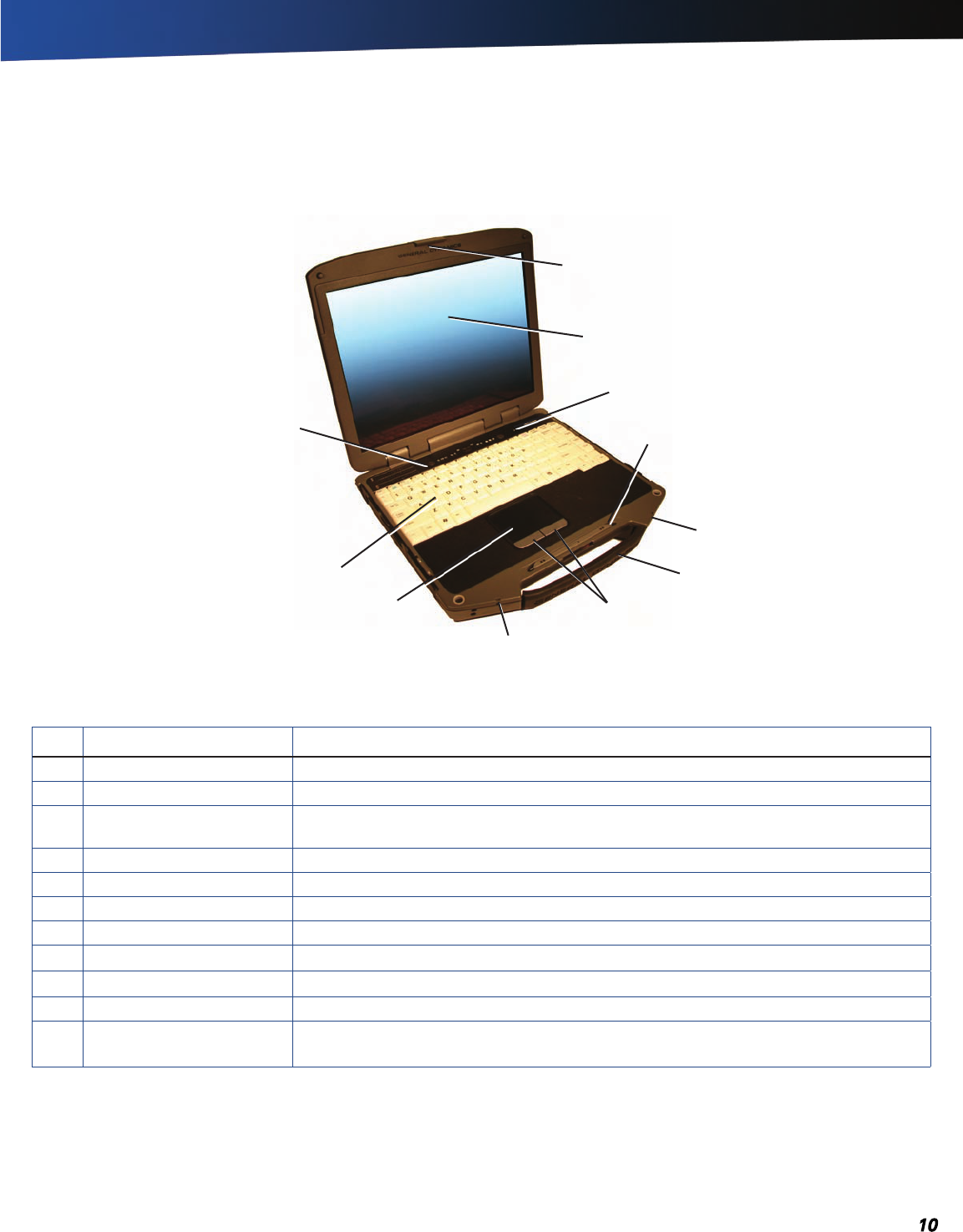

Front View .......................................................... 10

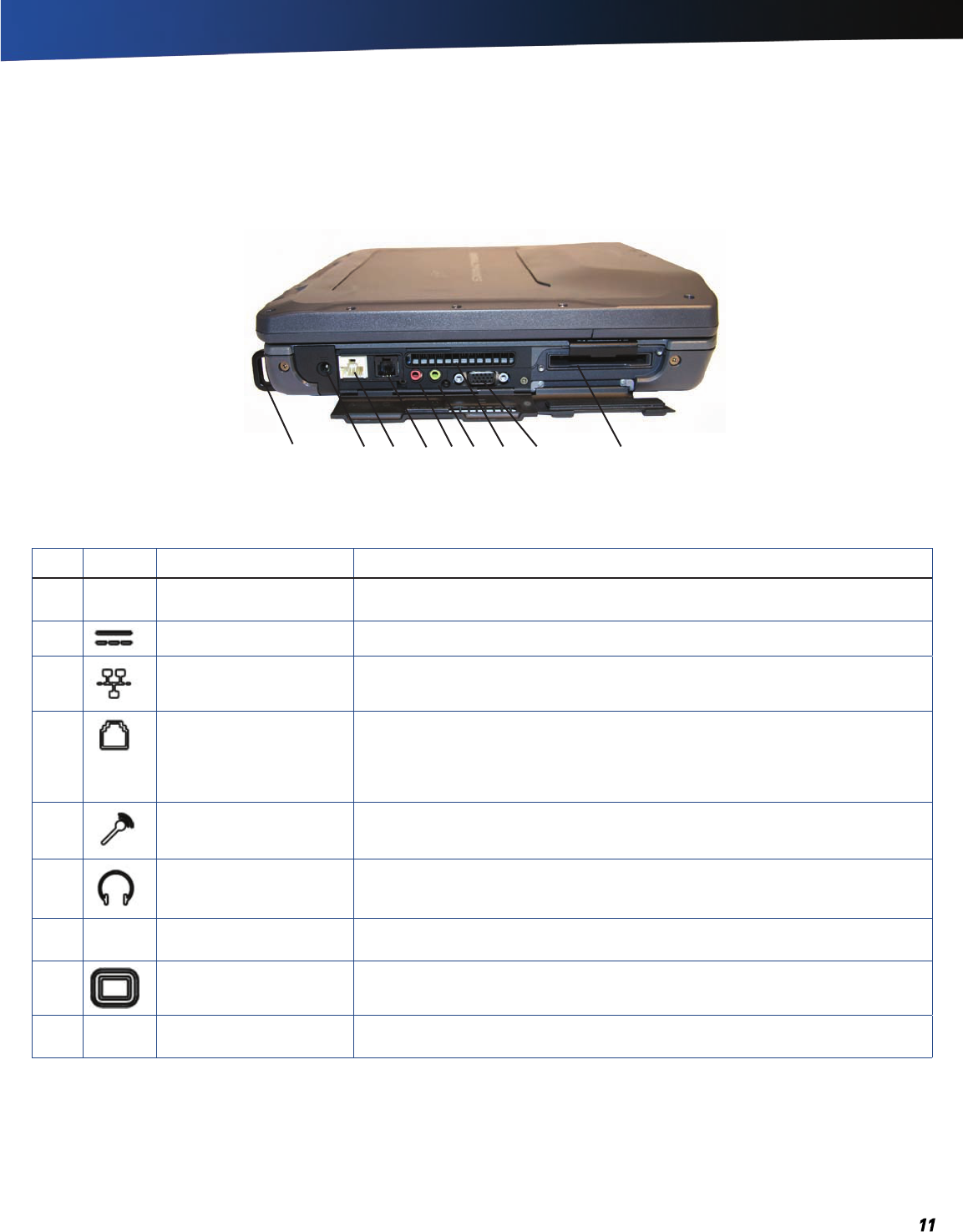

Left Side View .................................................... 11

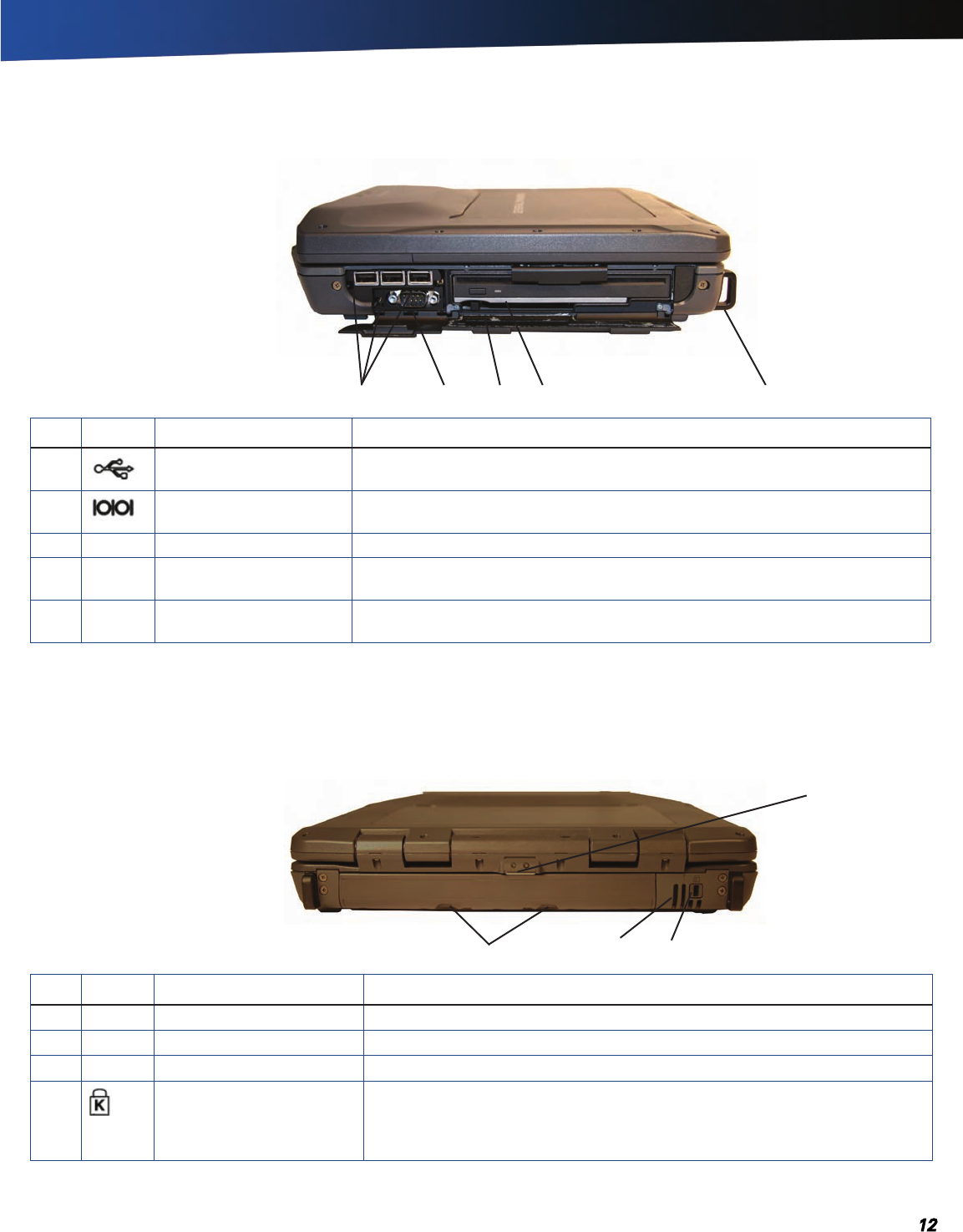

Right Side View .................................................. 12

Back Edge View ................................................. 12

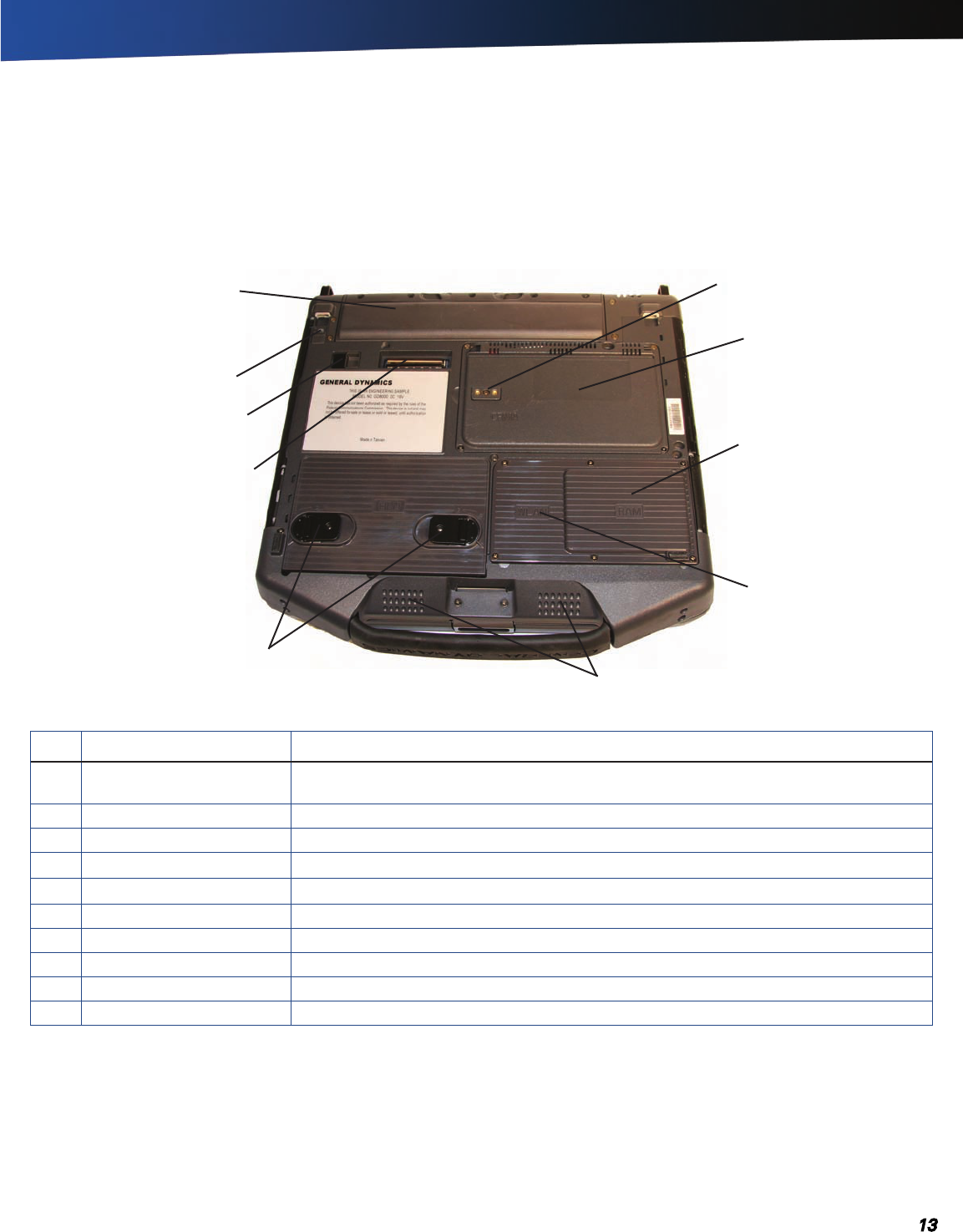

Bottom View ...................................................... 13

Keyboard Basics ................................................ 14

Primary Keys...................................................................... 14

Arrow Keys ........................................................................ 15

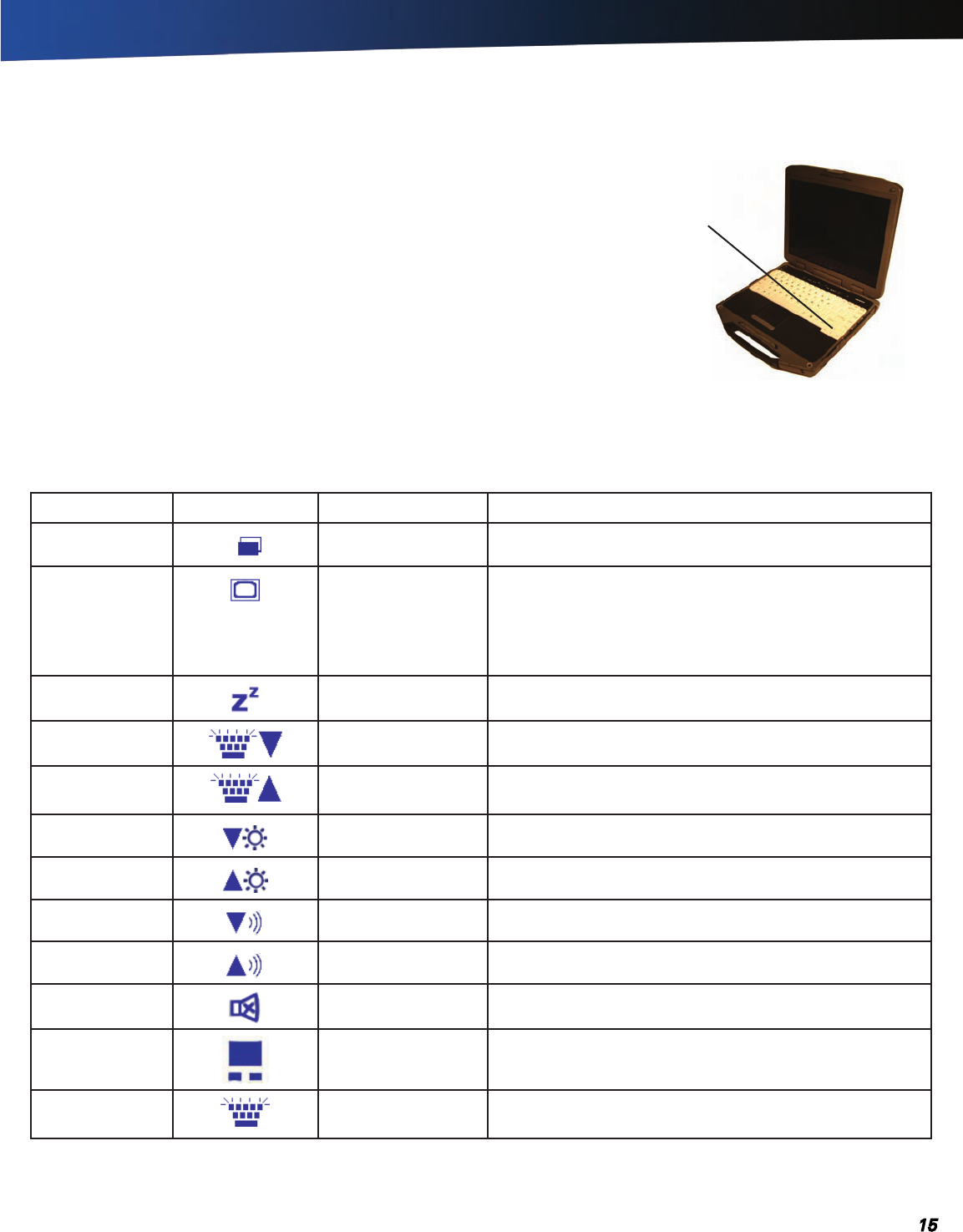

Function Keys and Key Combinations .............................. 15

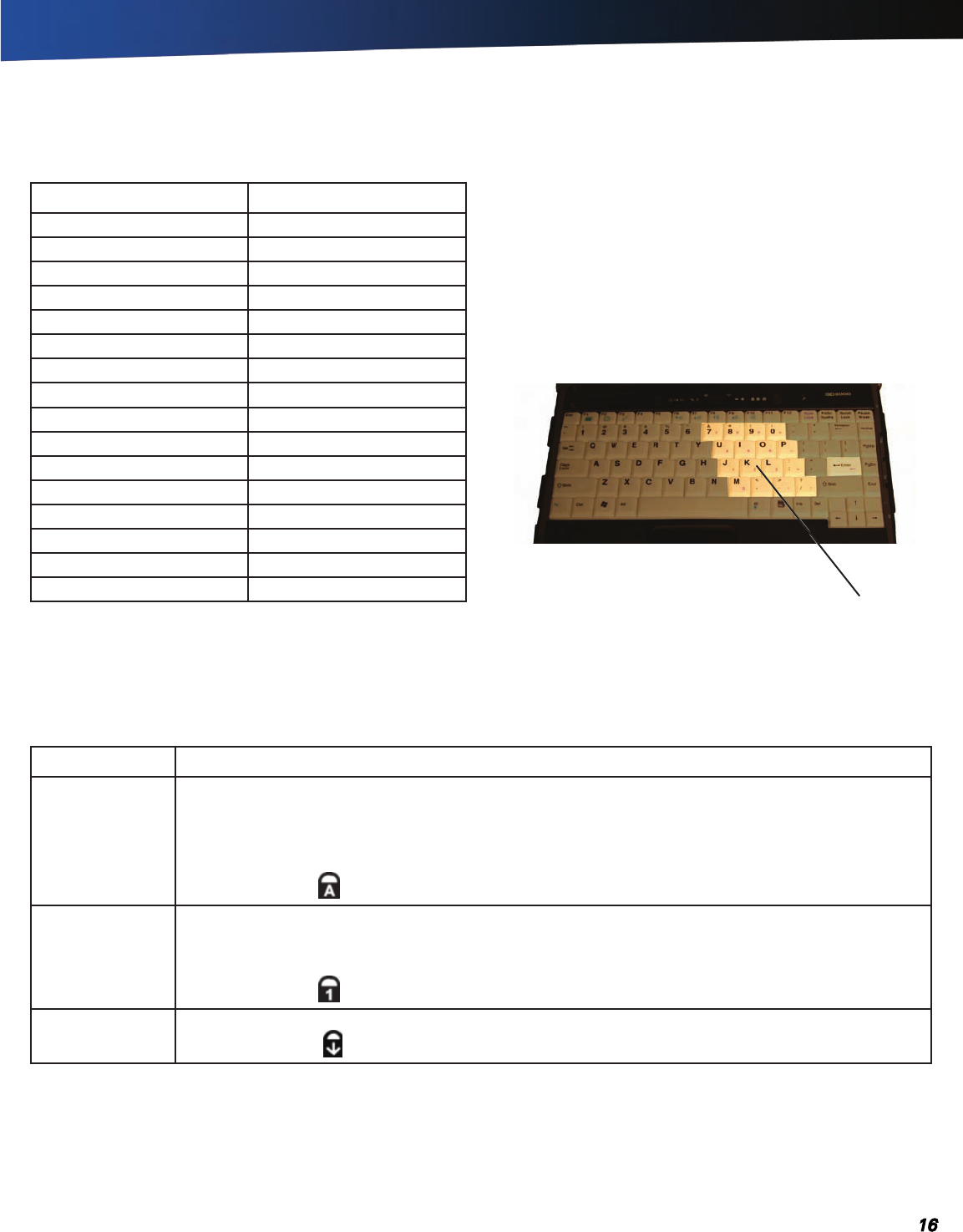

Numeric Keypad ................................................................ 16

Lock Keys .......................................................................... 16

Windows Keys ...................................................................17

Radio ON/OFF Switch (option) ......................... 17

To Turn all Radios on or off ........................................... 17

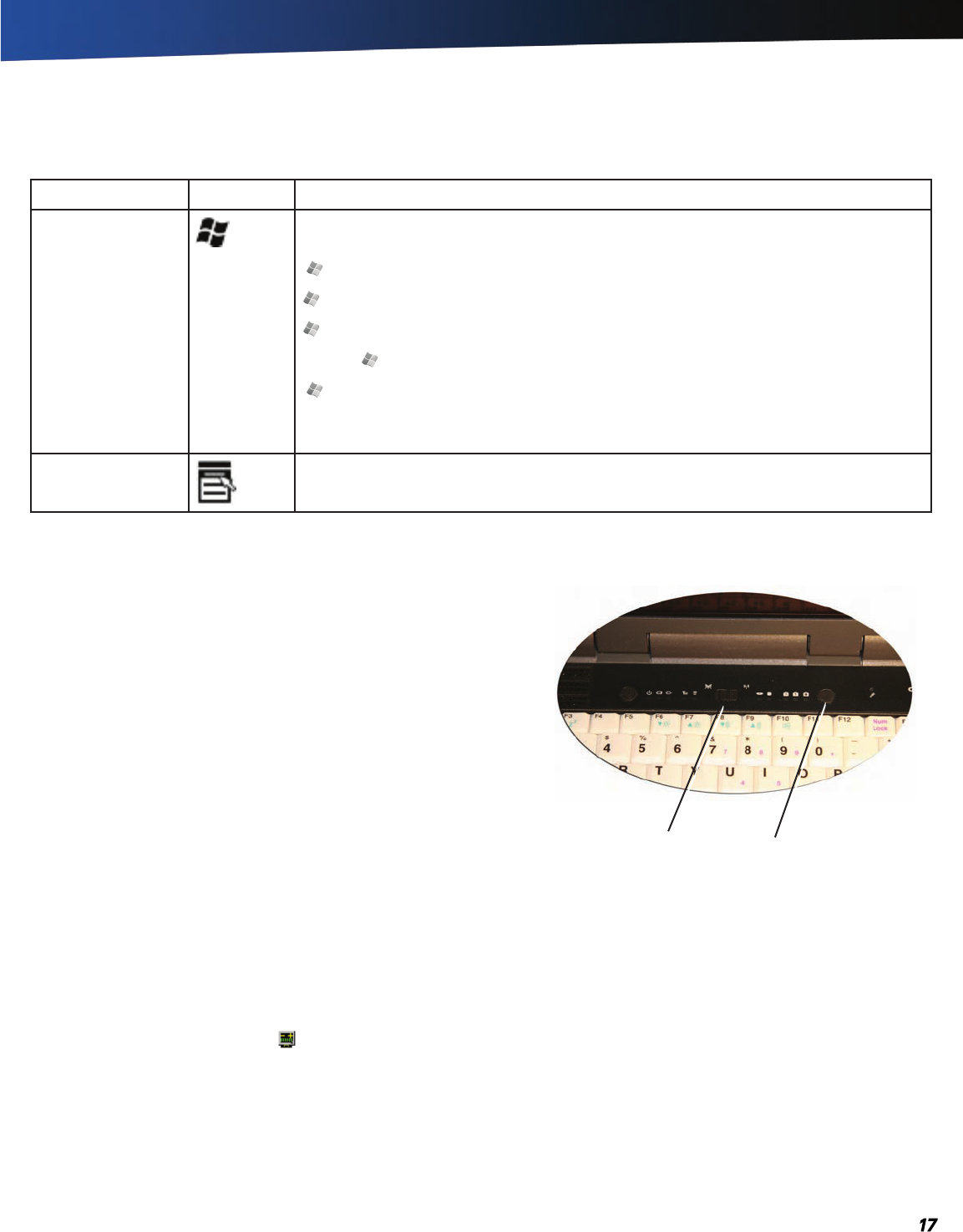

Application Launch Key .................................... 17

To Program the Application Launch Key .................... 17

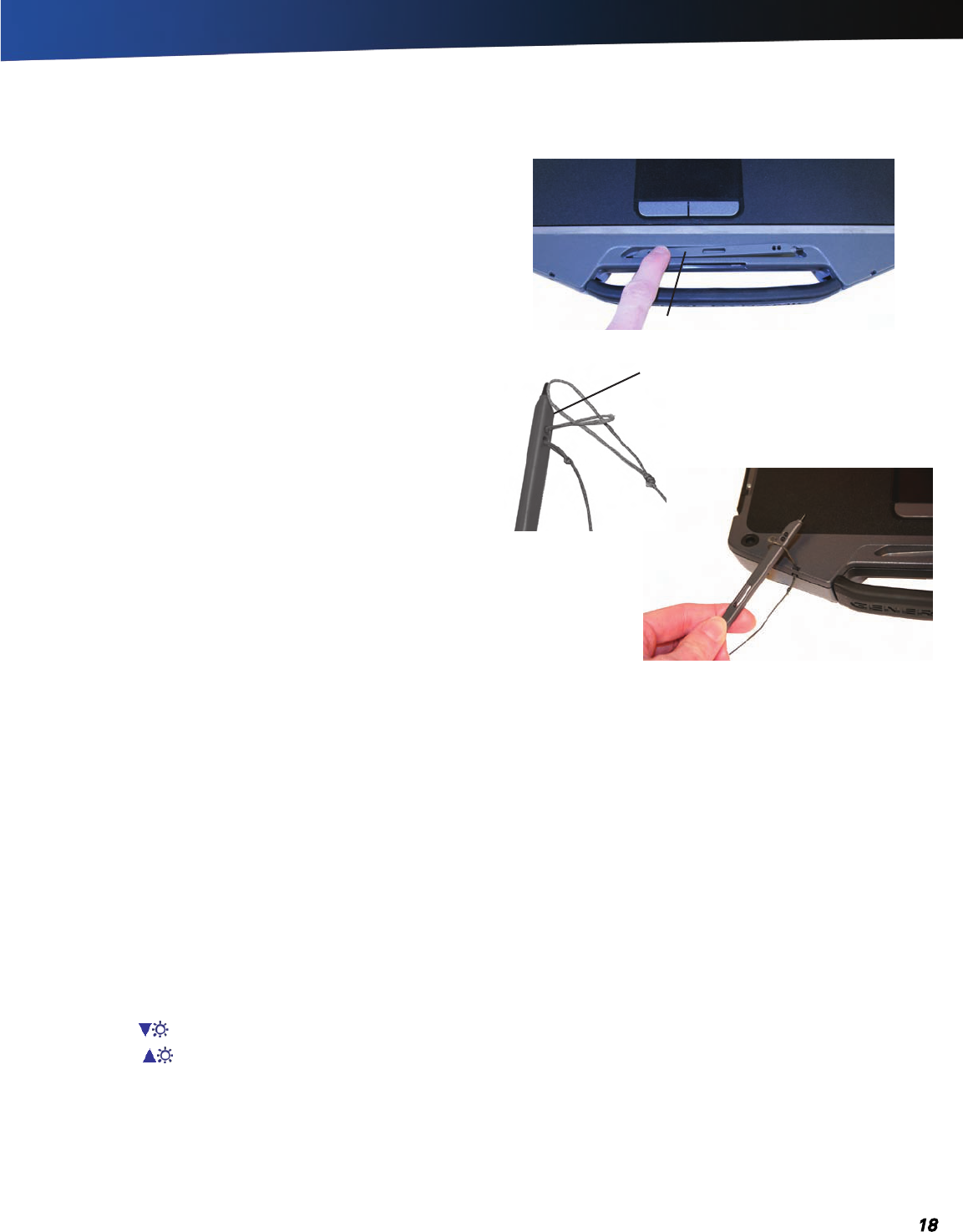

Touch Screen Display ....................................... 18

Install the Stylus Tether ..................................................... 18

Calibrate the Touch Screen ............................................... 18

Adjusting Display Brightness ............................................ 18

Adjusting Display Resolution ............................................ 18

Auto Dim Feature .............................................................. 19

Simultaneous or Extended Display .................................. 19

LCD Heater ........................................................................ 19

Cursor Visibility ................................................................. 19

Lid Switch ........................................................... 19

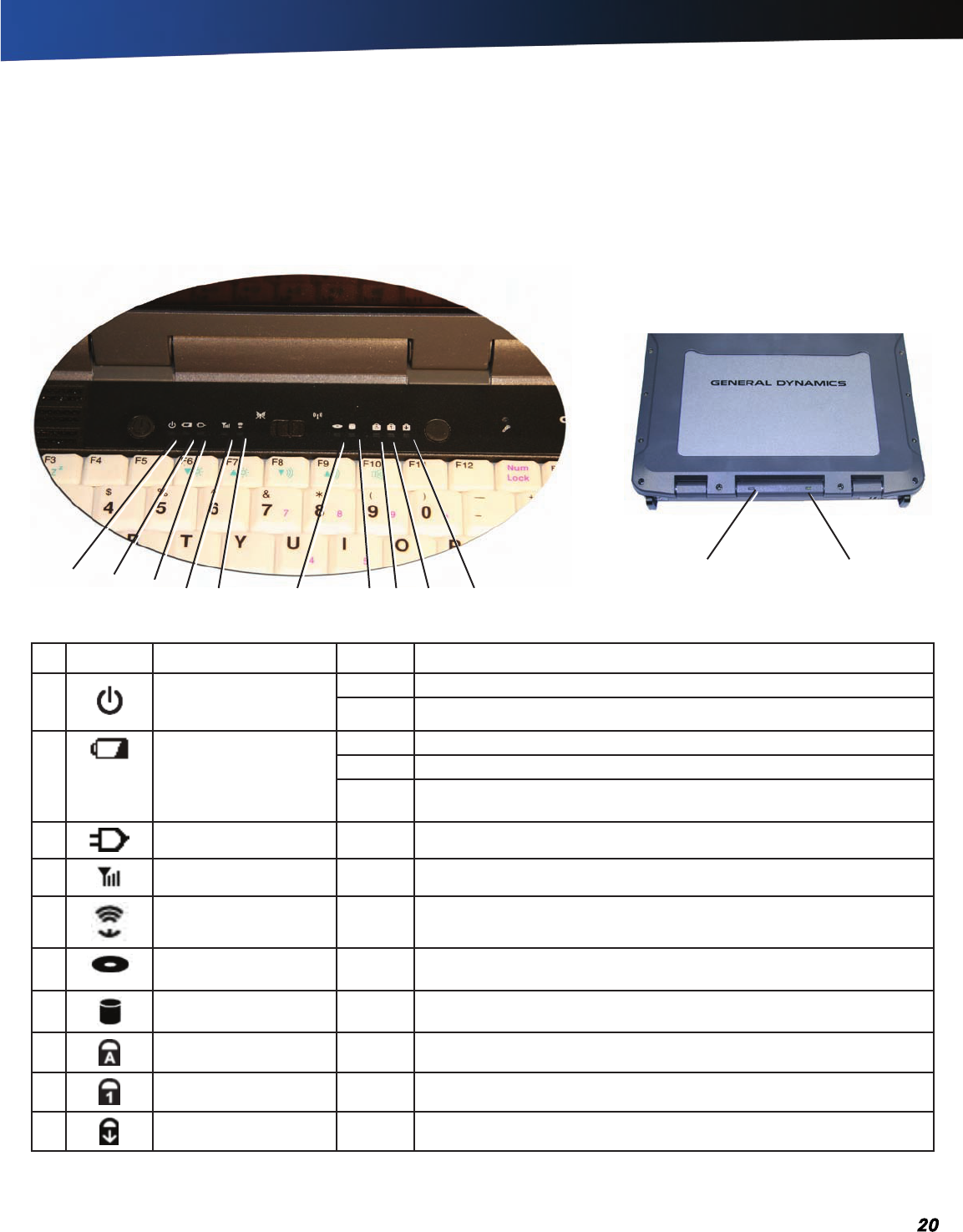

LED Status Indicators ........................................20

Audio ................................................................... 21

To Adjust the Volume ........................................................ 21

Inserting the Card .............................................................. 21

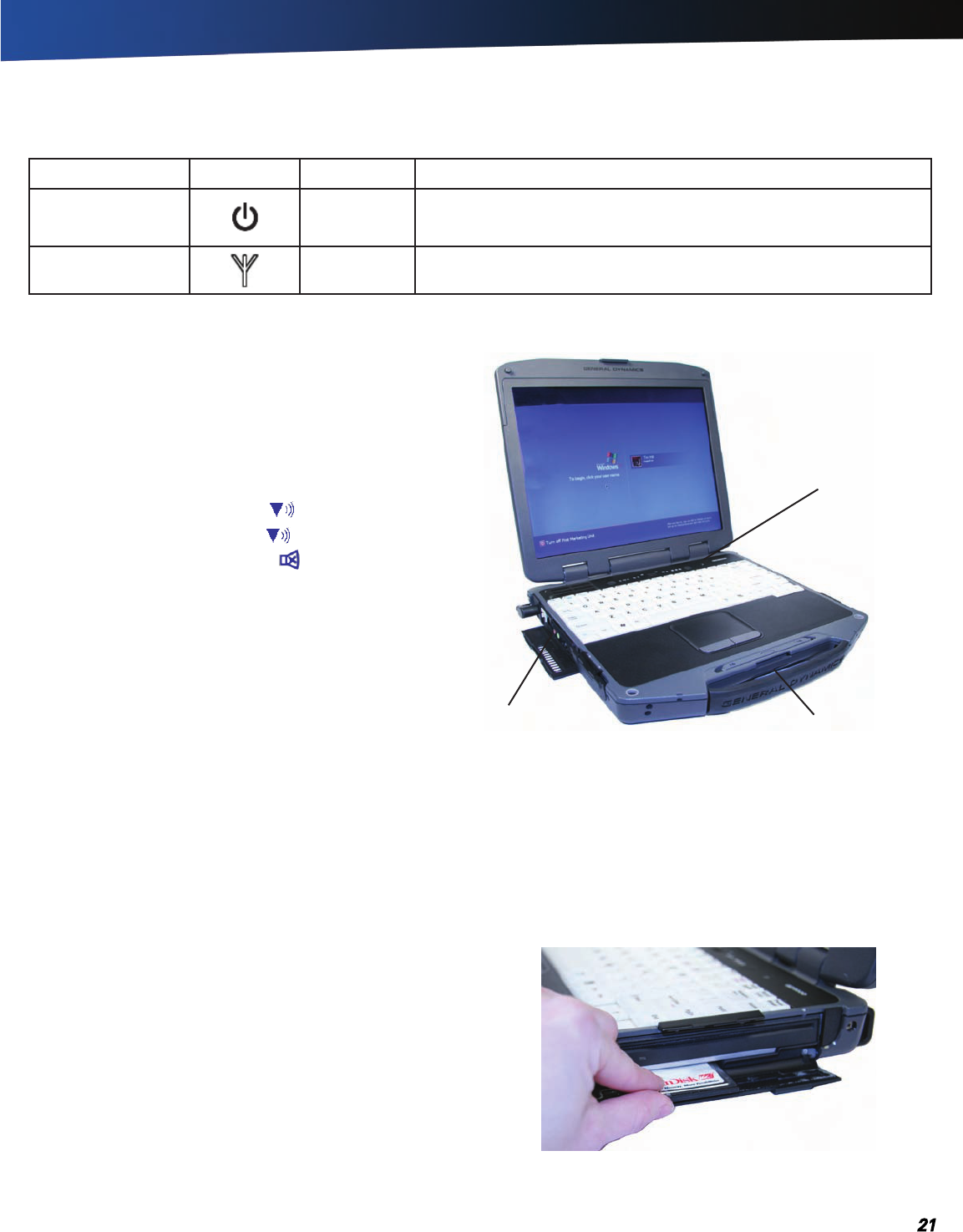

The PC Card Slot ................................................ 21

Ejecting a Card .................................................................. 22

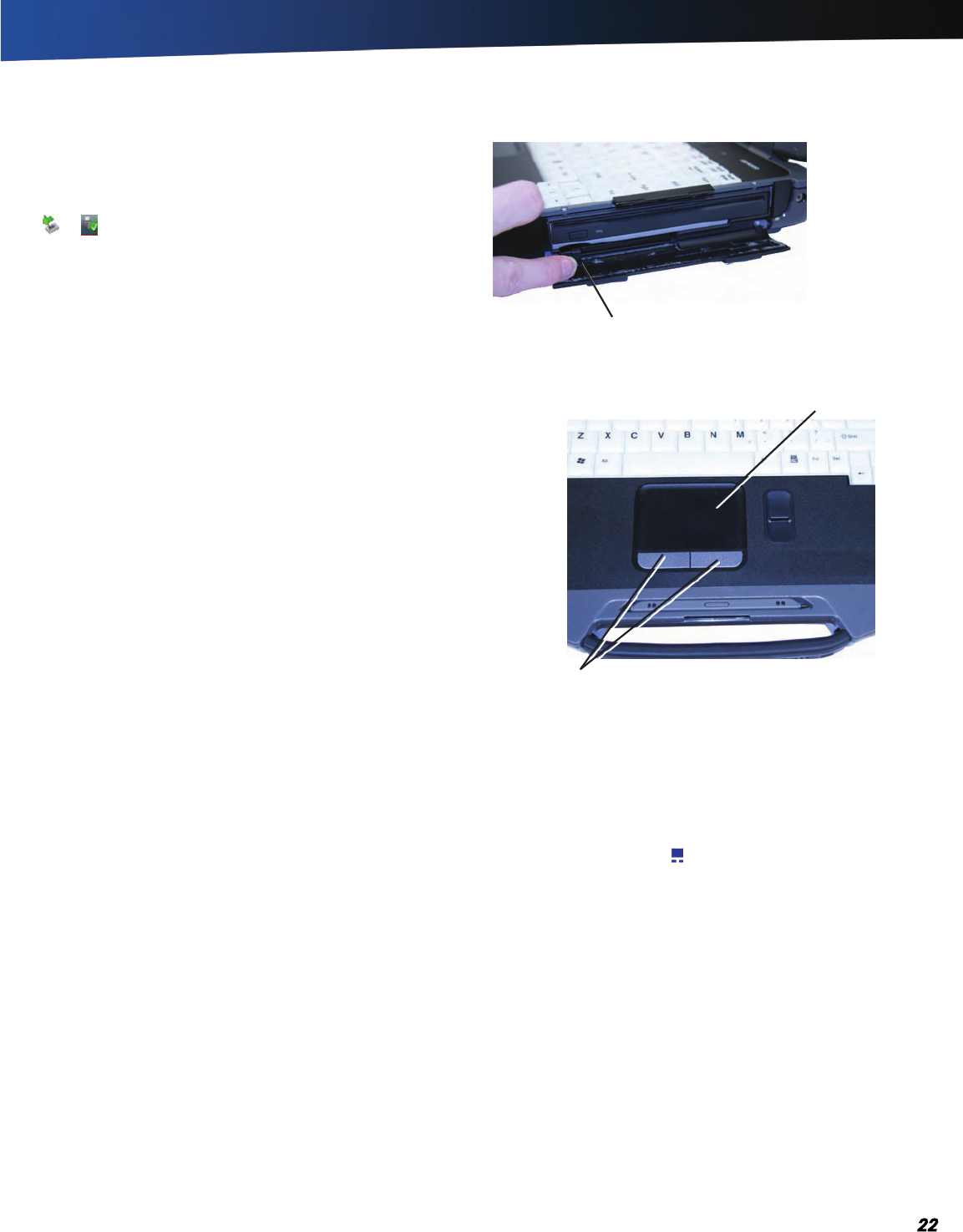

Touchpad ............................................................22

To Select Objects .............................................................. 22

To Drag .............................................................................. 22

Adjusting the Touchpad Settings ..................................... 22

Touchpad Precautions ....................................................... 22

Smart Card or EXPRESS Card Slot (option) ..23

To Insert a Card ................................................................. 23

To Remove a Card ............................................................. 23

The Hard Disk Drive (HDD) ...............................23

Replacing the hard disk drive ............................................ 23

Hard Disk Drive Heater ..................................................... 24

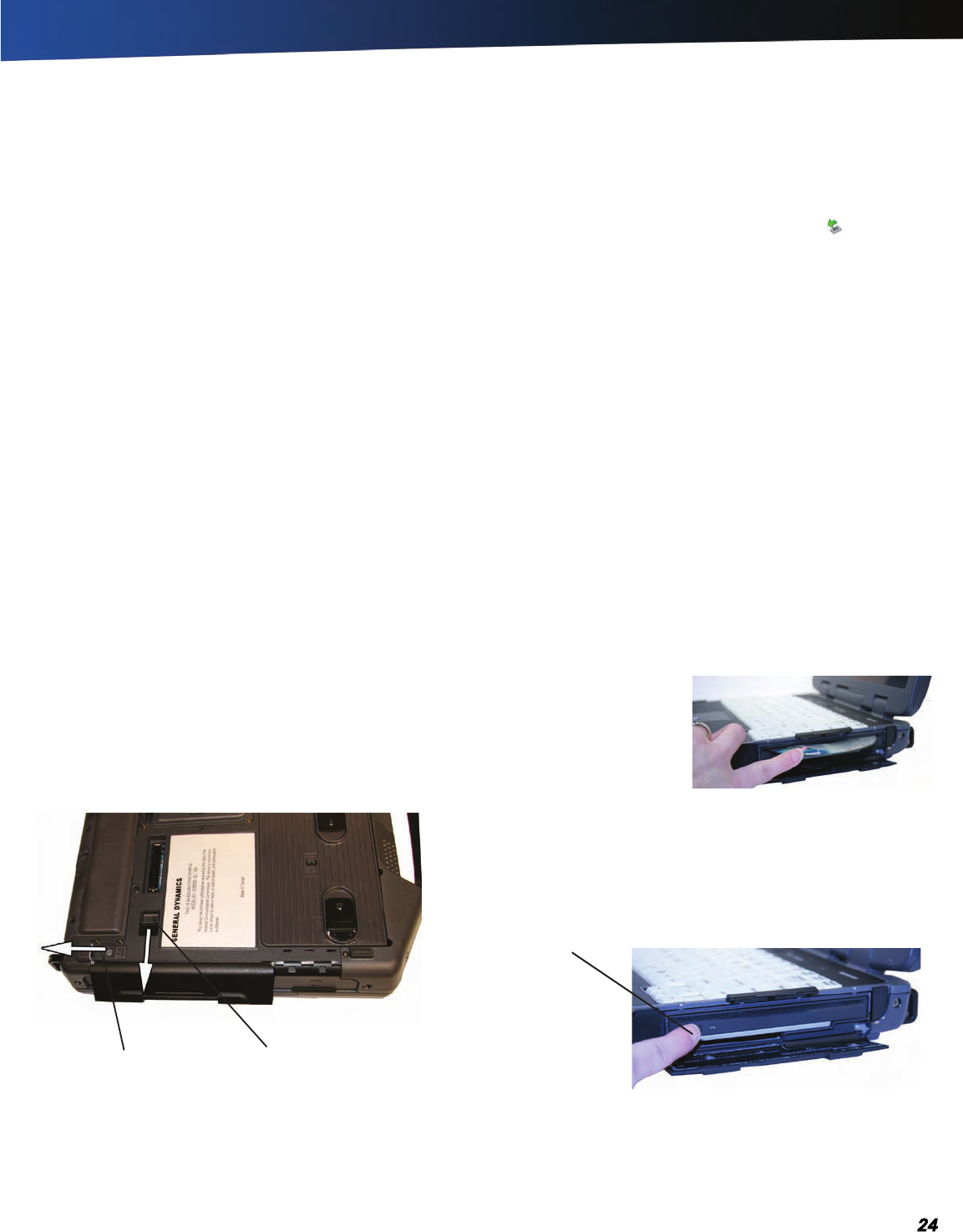

The Media Bay ................................................... 24

To Change Swappable Media Bay Device ....................... 24

To Insert a Disk ................................................................. 24

To Remove a DVD or CD .................................................. 24

Precautions for Handling DVDs and CDs ......................... 25

Computer Security ............................................ 25

Security Slot ...................................................................... 25

BIOS Level Passwords ..................................................... 25

Smart Card Reader (Option) ............................................. 25

Fingerprint Scanner (Option) ............................................. 25

Stealth Mode ..................................................................... 25

Trusted Platform Module (TPM) ....................................... 25

Ports and Connectors ....................................... 26

ENERGY STAR® ..........................................................................................26

Making Connections .............................................27

Attaching Power ................................................27

To Attach AC Power .......................................................... 27

To Use the Vehicle Adapter (optional) ............27

USB Devices ....................................................... 27

External keyboard or pointing device................................ 27

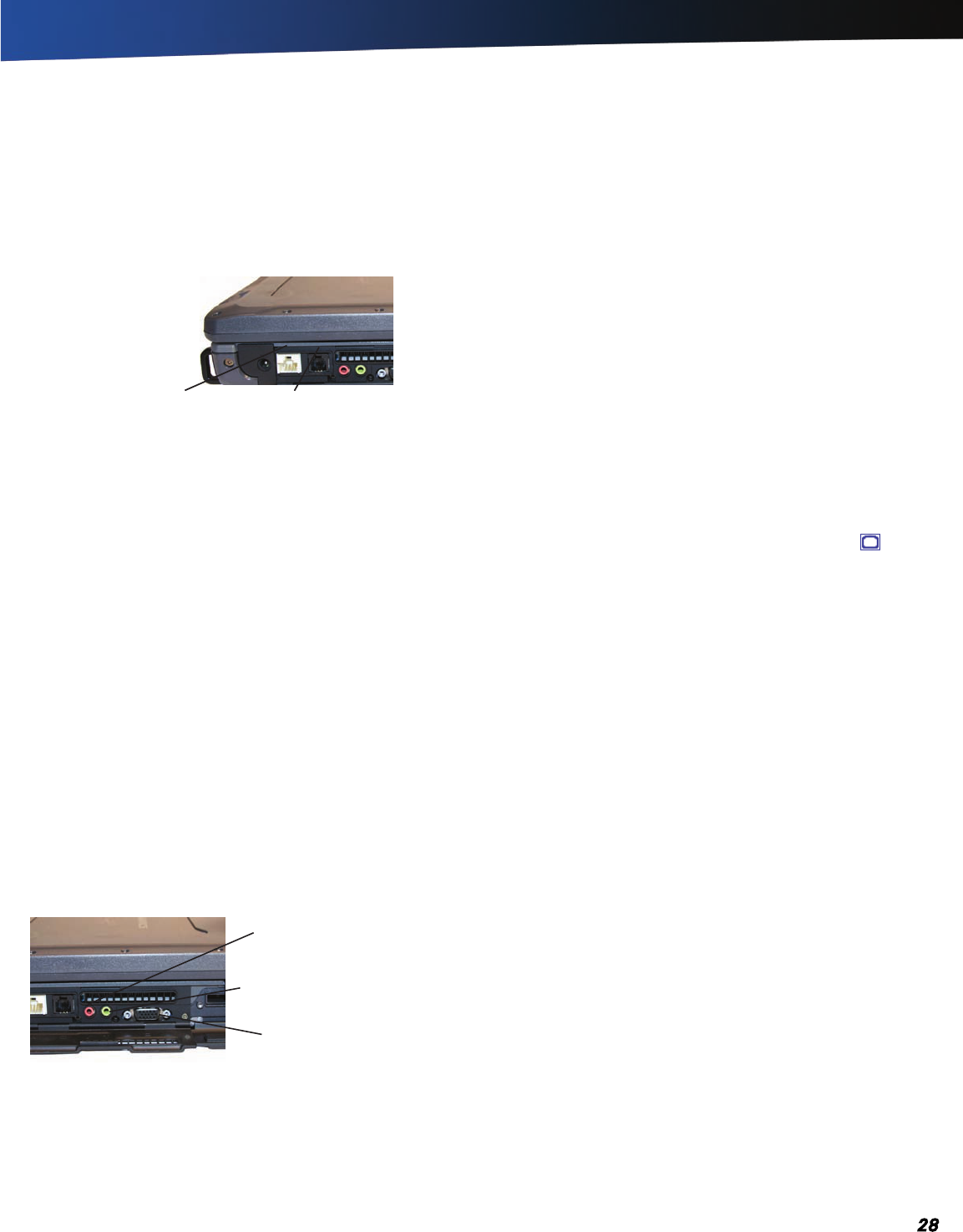

Fax/data modem................................................28

External Monitor or Video Device ................... 28

Using Simultaneous Display ............................................. 28

Using Extended Display .................................................... 28

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Table of Contents

Wireless Communication ....................................29

WLAN radio option ...........................................29

About WLAN ..................................................................... 29

CRMA Express WWAN (option) ......................29

HSPA ................................................................................. 29

EDGE/GPRS/GSM Network ............................................. 29

UMTS/GPRS/GSM Network ............................................ 29

EV-DO Rev A - EV-DO Rev 0/1xRTT/CDMA .................... 29

EVDO Rev. A ..................................................................... 30

EV-DO/1xEV-DO/CDMA Network .................................... 30

GPS (option) .......................................................30

Bluetooth (option) ..............................................30

Antennas .............................................................30

Improving Radio Coverage .............................. 31

On the Street ..................................................................... 31

Inside a Building ................................................................ 31

When to use Landline Communication .......... 31

Operating with Battery Power ...........................32

Frequently Asked Battery Questions ..............32

The Battery .........................................................32

Using a battery for the ﬁrst time ....................................... 32

Battery and Temperature .................................................. 32

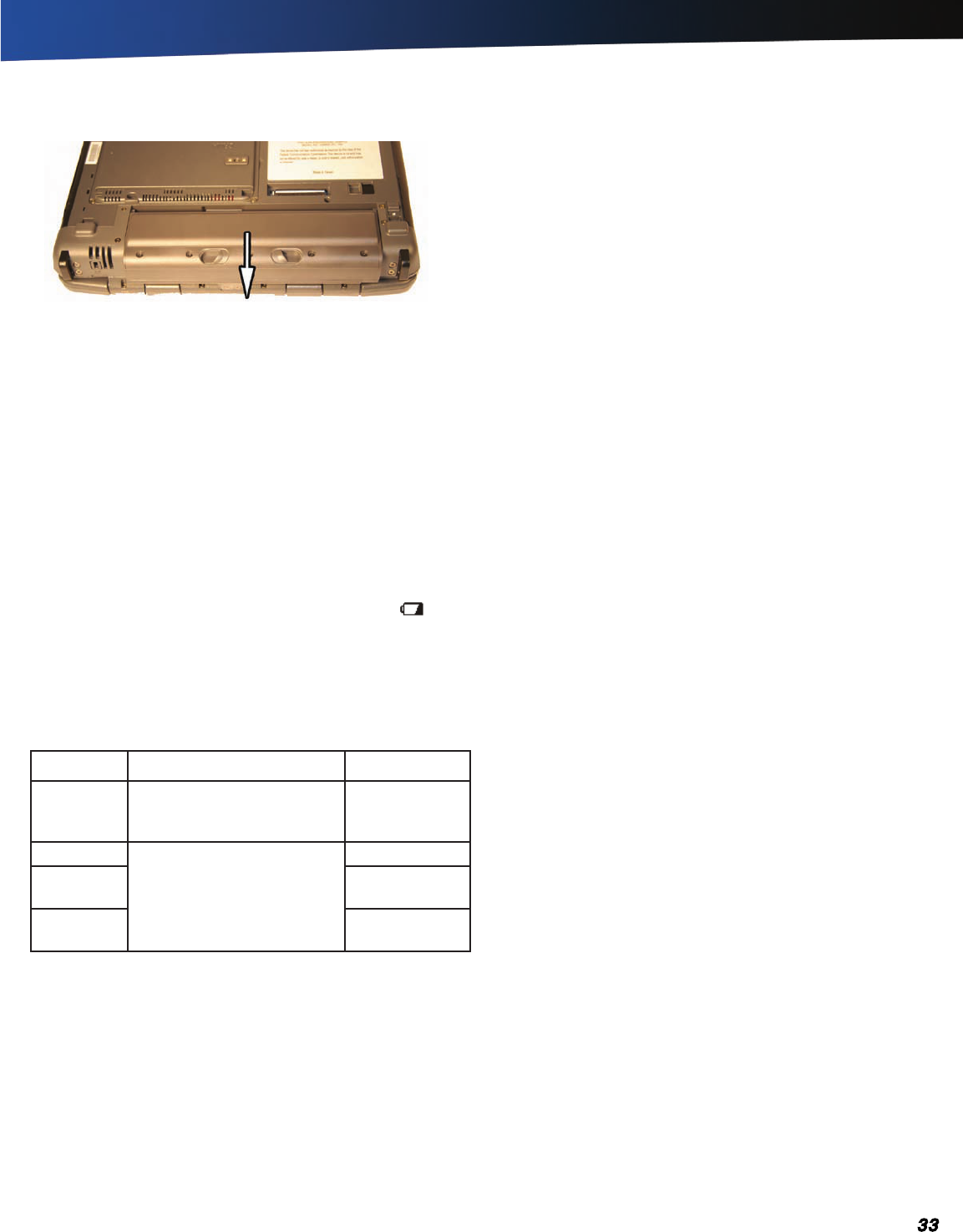

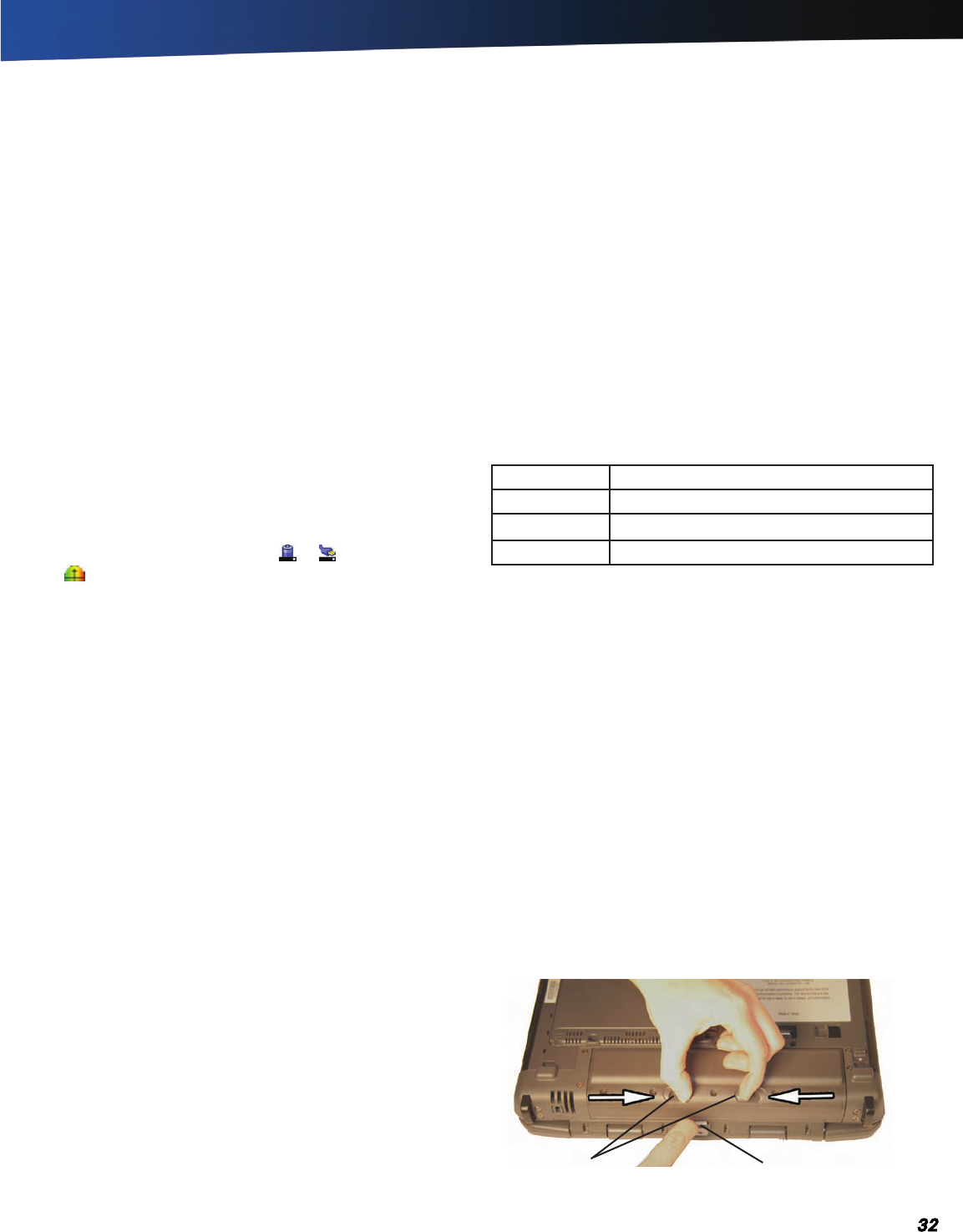

Replacing the Battery........................................32

Charging .............................................................33

Discharging ........................................................33

Battery Charging ...............................................33

When to Replace the Battery ........................................... 33

Heat Considerations .......................................................... 33

Battery Calibration ............................................33

When to calibrate the battery: .......................................... 33

About Battery Calibration .................................................. 34

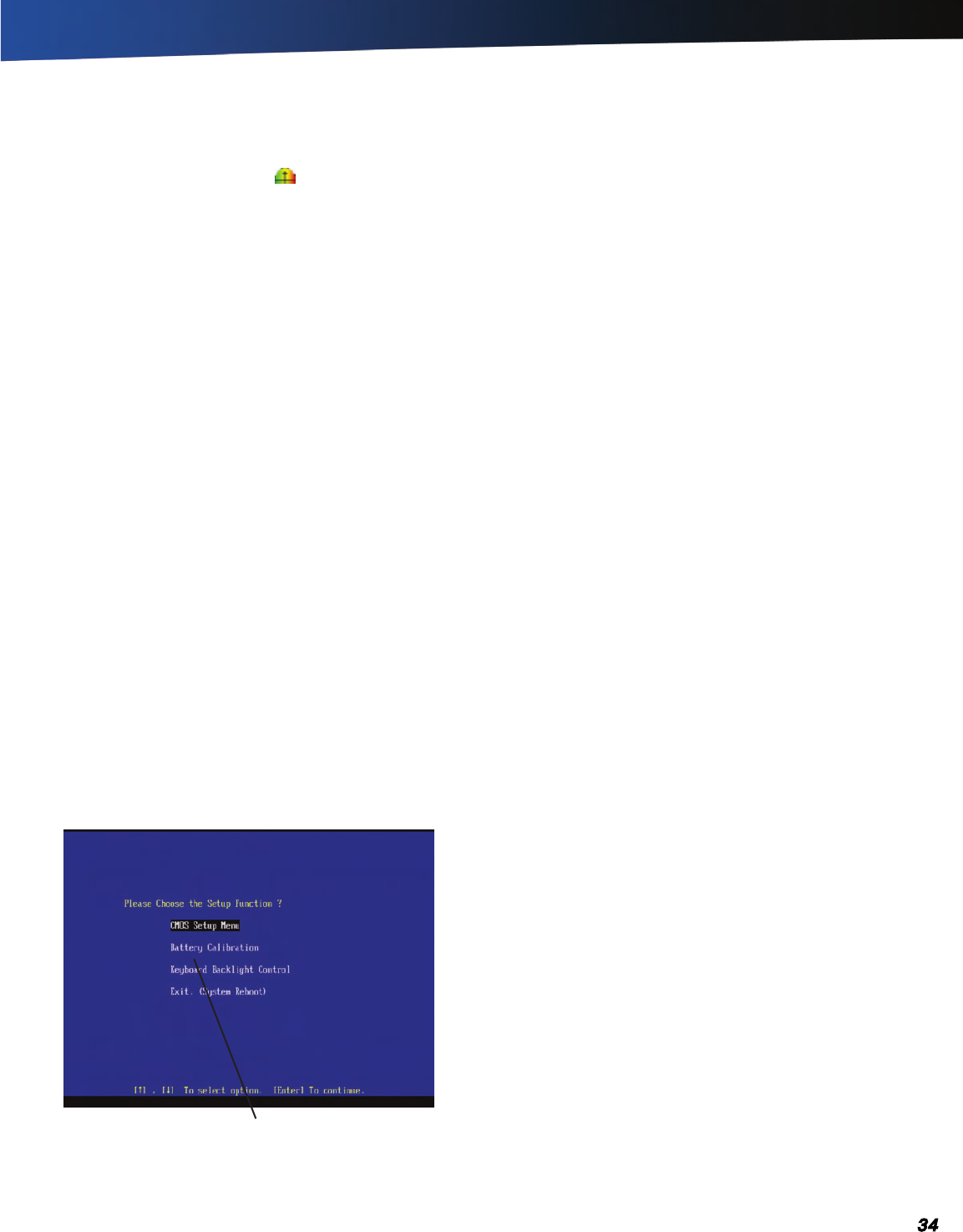

BIOS Level Battery Calibration ......................................... 34

Monitoring Battery Power ................................34

Low Battery Alarms .......................................................... 34

Managing Power................................................34

Low-Power States ............................................................ 34

Battery Tips ........................................................35

Tip 1. Avoid excessive heat and cold................................ 35

Tip 2. Prevent wasted power ............................................ 35

Tip 3. Calibrate your battery .............................................. 36

Tip 4. Get a good charge ..................................................36

Tip 5. Prevent data loss ..................................................... 36

Tip 6. Clean terminals ....................................................... 36

Tip 7. Storing batteries ...................................................... 36

Customizing Your BIOS ........................................37

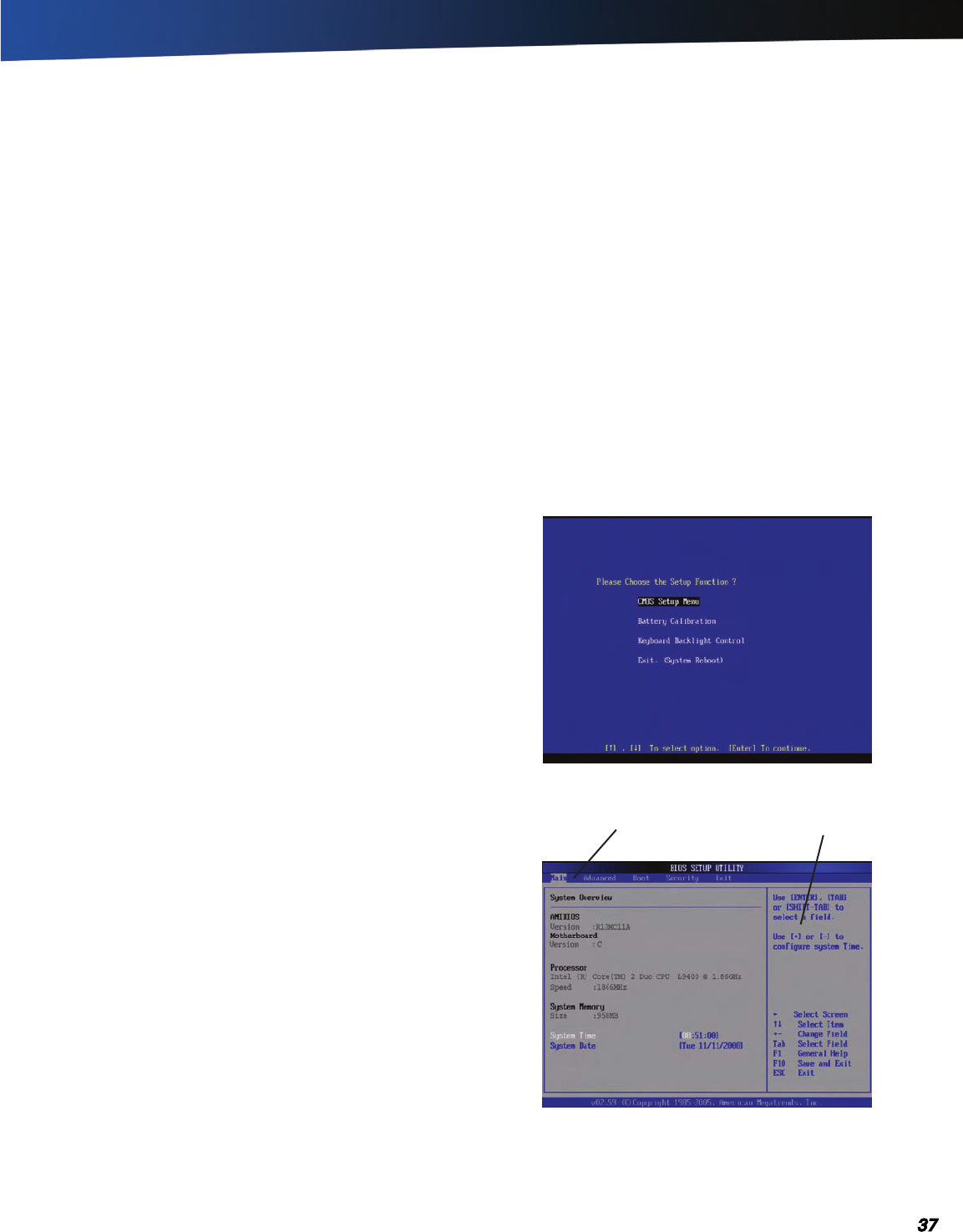

Starting the Setup Utility ..................................37

Navigation and Help..........................................37

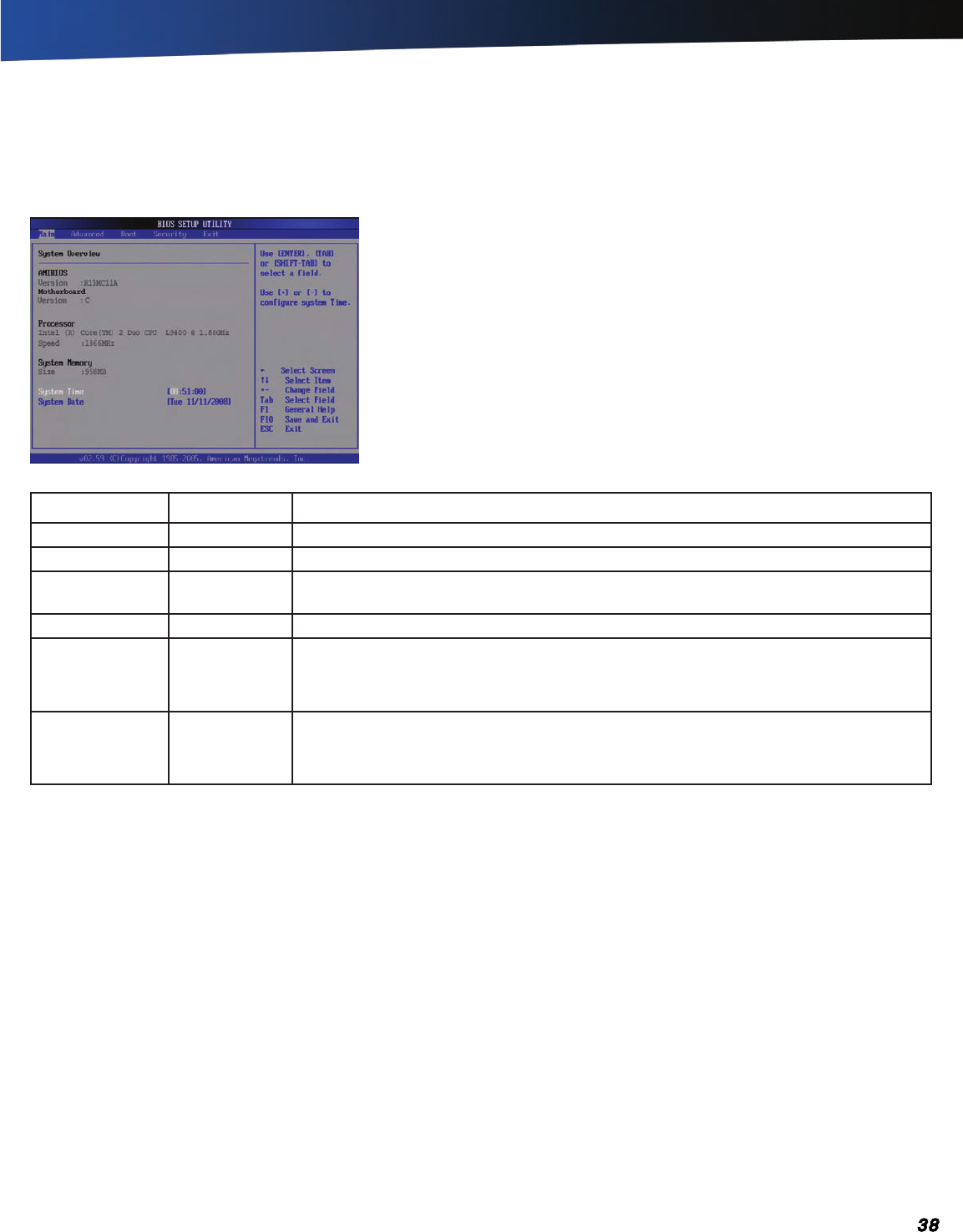

The Main Menu ..................................................38

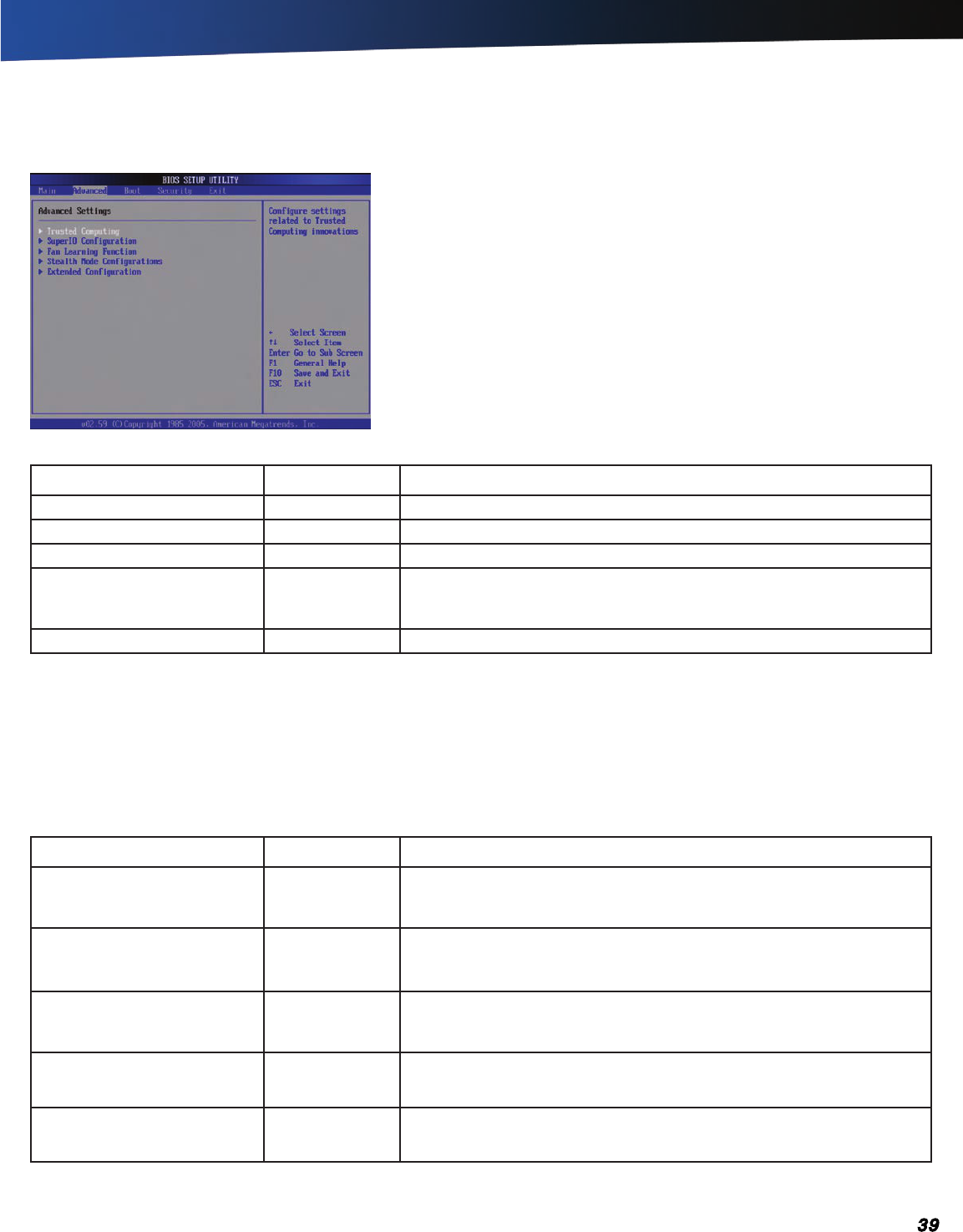

The Advanced Menu .........................................39

Trusted Computing ........................................................... 39

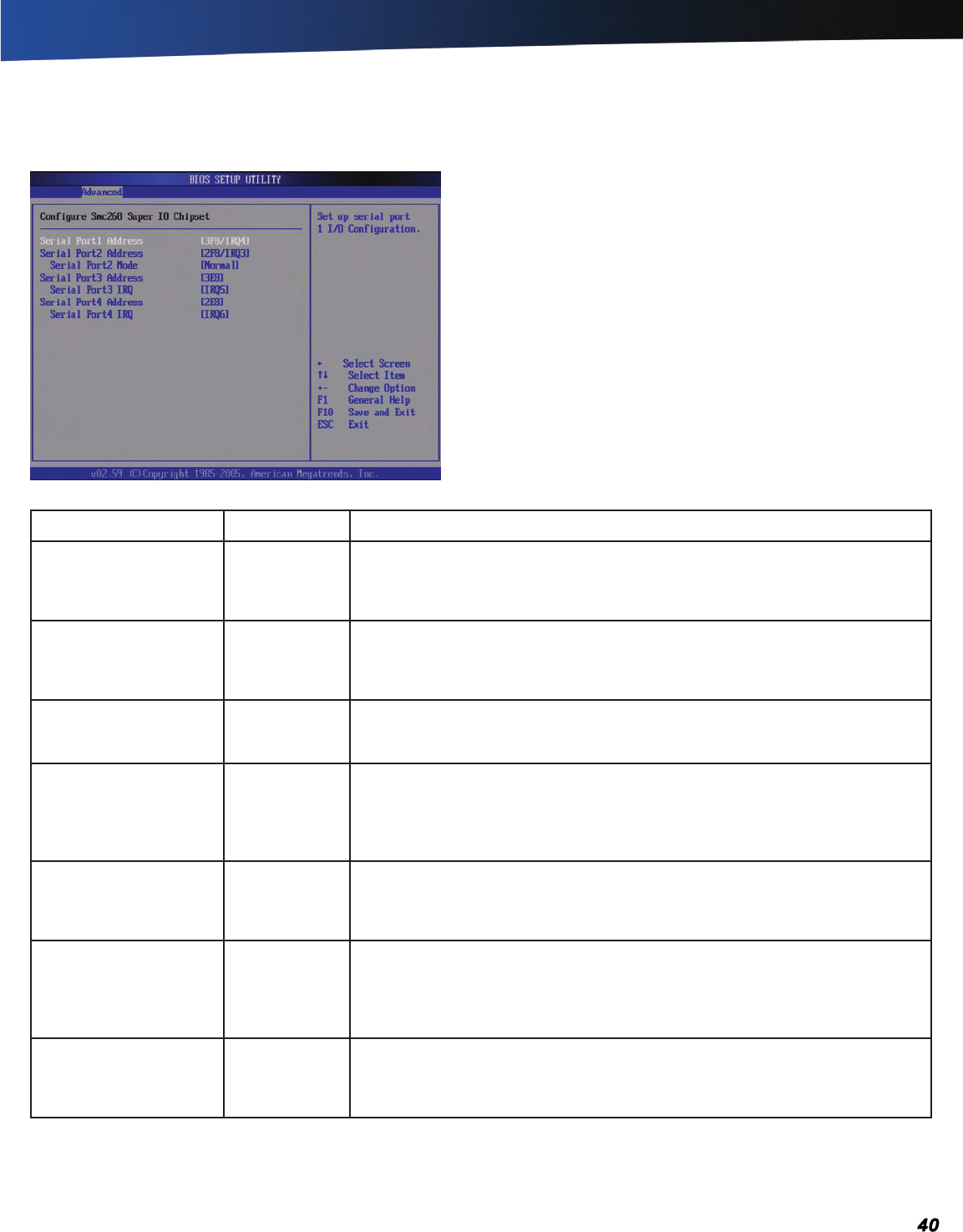

Super I/O Conﬁguration .................................................... 40

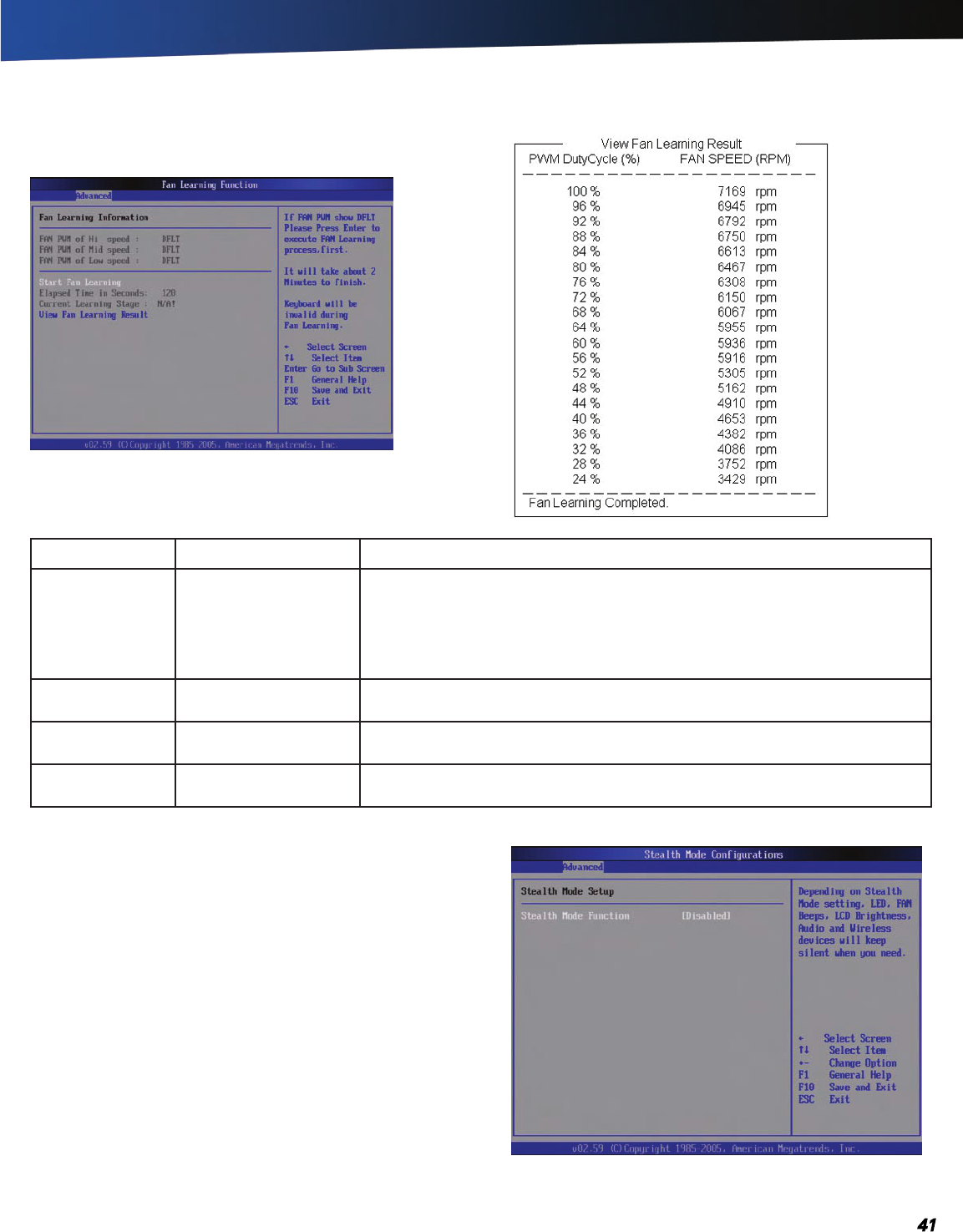

Fan Learning Function ....................................................... 41

Stealth Mode Conﬁguration .............................................. 41

Extended Conﬁguration .................................................... 42

The Boot Menu ..................................................44

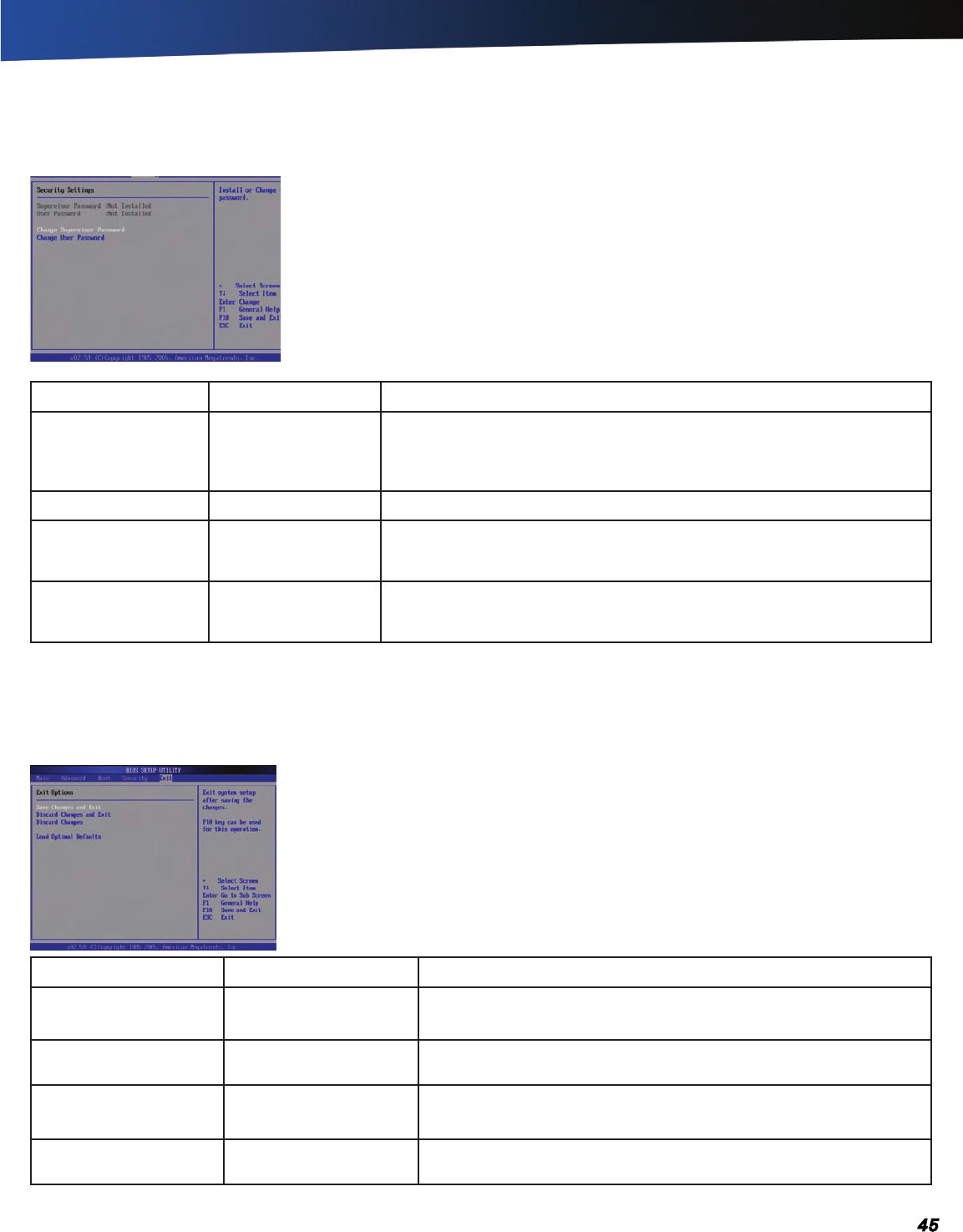

The Security Menu ............................................45

The Exit Menu ....................................................45

Optional Equipment and Accessories ..............46

Surge Protection ................................................46

Vehicle Adapter ..................................................46

Temperature .......................................................46

Charging Activity ...............................................46

To connect the vehicle adapter ........................................ 46

Vehicle Dock .......................................................46

To charge a battery installed in the computer .................. 46

Communicating with Other Devices ............................... 47

External Antennas ............................................................. 47

Memory Upgrade .............................................. 47

Maintenance and Storage ...................................48

Taking care of your AC adapter .......................48

Servicing Your Computer .................................48

Storing Your Computer .....................................48

Taking Care of Your Batteries ..........................48

Taking Care of Your Hard Drive .......................49

For Internal Hard Drives .................................................... 49

For External PC Cards .......................................49

Cleaning Your Computer ..................................49

Cleaning the Outside Case ............................................... 49

Cleaning the Display ......................................................... 49

Cleaning the External Power Connector ....................... 49

Cleaning the RJ-11/ RJ-45 / USB Connectors ................ 49

Data Backup .......................................................50

Saving Important System Information ............................. 50

Data Recovery ....................................................50

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Table of Contents

Option 1: Restoring System Information ........................ 50

Option 2 : Restoring a Backup ......................................... 50

Option 3: Restoring Drive C: ............................................. 50

Client Care Center (CCC) ................................... 51

Services Expertise ........................................................... 51

Product Support - Downloads ......................... 51

Service and Support ..............................................51

Troubleshooting .....................................................52

Application Troubleshooting ..........................52

My application locks up, acts strangely, or produces a Gen-

eral Protection Fault (GPF) error or blue screen ............... 52

Battery Troubleshooting ................................... 52

The battery does not charge ............................................. 52

The batteries take much longer than seven hours to charge

The batteries don’t last very long ..................................... 52

The gas gauge isn’t full after charging the battery ........... 53

The gas gauge reads “full,” but the charging LED is still lit 53

My battery seems to have less and less capacity ........... 53

Display / Touch Screen .....................................53

The display performance is slow ...................................... 53

I can’t read the display ...................................................... 53

The underlined, inverse, and hypertext characters are difﬁcult

to read on the screen ........................................................ 53

I can’t see the cursor while using the DOS editor ........... 53

I changed my display resolution, but I see no difference on

the screen .......................................................................... 53

Nothing happens when I try to use the stylus on my touch

screen ................................................................................ 53

The touch screen doesn’t respond after a suspend ........ 53

Hard Disk ............................................................53

The hard disk will not spin up so the computer can’t boot up

Keyboard and Mouse Troubleshooting ..........54

Something unexpected happens when I press a key ..... 54

Incorrect characters appear on the screen when I press

certain keys ....................................................................... 54

I have difﬁculty double-clicking the mouse fast enough . 54

Modem Troubleshooting ..................................54

The modem doesn’t work ................................................ 54

The modem doesn’t dial a number .................................. 54

The modem dials and receives an answer but does not

establish a connection ...................................................... 54

PC Cards ...........................................................54

I can’t remove the PC card................................................ 54

Read Error .......................................................................... 54

The computer locks up when I remove the PC card ....... 54

Miscellaneous Troubleshooting ......................54

The computer shuts off unexpectedly ............................. 54

The speaker volume is too high or too low ...................... 54

The computer won’t turn on ............................................. 54

The computer won’t turn off............................................. 54

The computer enters suspend mode too quickly ............ 55

The computer doesn’t automatically suspend ................. 55

The system date and time are incorrect ........................... 55

I receive an “out of memory” error message .................. 55

Holding down the Power button to reset the computer

doesn’t always work ......................................................... 55

The computer doesn’t make any sounds, even during boot-

up ....................................................................................... 55

The fan stopped running ................................................... 55

Can I improve the startup speed of my programs by cleaning

up and rearranging ﬁles on the hard drive? ...................... 55

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Notices, Compliance and Safety

Identiﬁcation: GD8000 User Guide

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into

any other language or computer language in whole or in

part, in any form or by any means, whether it be electronic,

mechanical, magnetic, optical, manual, or otherwise, without

the prior written consent of General Dynamics Itronix

Corporation, 12825 E. Mirabeau Parkway, Spokane Valley, WA

99216.

Disclaimer

General Dynamics Itronix reserves the right to revise the

manual and make periodic changes to the content without

a direct or inferred obligation to notify any person of such

revision or changes. General Dynamics Itronix Corporation

does not assume responsibility for the use of this manual, nor

for any patent infringements or other rights or third parties

who may use the manual.

This document contains proprietary information of General

Dynamics Itronix Corporation.

This product is available for purchase under General Dynamics

Itronix’s standard terms and conditions of sale. Hardware

products may be reconditioned, or be manufactured from

parts and components that may be new, used, rebuilt, or

recycled and in some cases, the hardware product may not

be new and may have been previously installed. In any event,

General Dynamics Itronix warranty terms apply.

Trademark and Patent Notice

Itronix is a registered trademark of General Dynamics Itronix

Corporation.

Microsoft, MS, Windows, and MS-DOS are registered

trademarks of Microsoft Corporation.

The following United States Patent Numbers apply to any

unit which incorporates a DVD drive - 5,434,678; 5,589,945;

5,913,013; 6,151,444; and 6,208,805.

This product incorporates copyright protection technology

that is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be

authorized by Macrovision, and is intended for home and

other limited viewing uses only unless otherwise authorized

by Macrovision. Reverse engineering or disassembly is

prohibited.

ENERGY STAR® is a registered trademark of the U.S.

Environmental Protection Agency. As an ENERGY STAR

partner, General Dynamics Itronix has determined this

computer meets ENERGY STAR program requirements for

computers.

Compliance Statements

The GD8000 computer has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.



Consult the dealer or an experienced radio/TV technician for

help.

The GD8000 computer complies with Part 68 of the FCC Rules.

On the bottom of this equipment is a label that contains,

among other information, the FCC registration number

and ringer equivalence number (REN) for this equipment. If

requested, this information must be provided to the telephone

company.

The REN is used to determine the quantity of devices which

may be connected to the telephone line. Excessive RENs on the

telephone line may result in the devices not ringing in response

to an incoming call. In most, but not all areas, the sum of the

RENs should not exceed ﬁve (5.0). To be certain of the number

of devices that may be connected to the line, as determined by

the total RENs, contact the telephone company to determine

the maximum REN for the calling area.

The GD8000 computer may be connected to the telephone

network using the RJ-11 jack provided.

If this equipment causes harm to the telephone network, the

telephone company will notify you in advance that temporary

discontinuance of service may be required. If advance notice

isn’t practical, the telephone company will notify the customer

as soon as possible. Also, you will be advised of your right to

ﬁle a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities,

equipment, operations, or procedures that could affect the

operation of the equipment. If this happens, the telephone

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Notices, Compliance and Safety

company will provide advance notice in order for you to make

the necessary modiﬁcations in order to maintain uninterrupted

service.

If trouble is experienced with this equipment, please contact

the equipment manufacturer for repair and/or warranty

information. Do not attempt repairs of this equipment

yourself without obtaining manufacturer authorized parts and

documentation. If the trouble is causing harm to the telephone

network, the telephone company may request you remove the

equipment from the network until the problem is resolved.

Compliance Statement for Canada

NOTICE The Industry Canada label identiﬁes certiﬁed

equipment. This certiﬁcation means that the equipment meets

certain telecommunications network protective, operational

and safety requirements as prescribed in the appropriate

Terminal Equipment Technical Requirements document(s). The

Department does not guarantee the equipment will operate to

the user’s satisfaction.

Before installing this equipment, users should ensure that

it is permissible to be connected to the facilities of the local

telecommunications company. The equipment must also

be installed using an acceptable method of connection. The

customer should be aware that compliance with the above

conditions may not prevent degradation of service in some

situations.

Repairs to certiﬁed equipment should be made by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical

ground connections of the power utility, telephone lines, and

internal metallic water pipe system, if present, are connected

together. This precaution may be particularly important in rural

areas.

CAUTION Users should not attempt to make such

connections themselves, but should contact the appropriate

electric inspection authority, or electrician, as appropriate.

The Ringer Equivalence Numbers (REN) are:

GD8000 non-radio: 0.5B

NOTICE The Ringer Equivalence Number (REN) assigned to

each terminal device provides an indication of the maximum

number of terminals allowed to be connected to a telephone

interface. The termination on an interface may consist of any

combination of devices subject only to the requirement that the

sum of the Ringer Equivalence Numbers of all the devices does

not exceed 5.

The GD8000 computer may be connected to the telephone

network using the RJ-11 jack provided.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it

unlawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine

unless such message clearly contains in a margin at the top

or bottom of each transmitted page or on the ﬁrst page of the

transmission, the date and time it is sent and an identiﬁcation

of the business or other entity, or other individual sending the

message and the telephone number of the sending machine or

such business, other entity, or individual.

In order to program this information into your fax machine, you

should complete the following:

This information is entered through the FAX application

software you have installed. Consult your FAX software

documentation for instructions about entering this information.

Warnings and Cautions

WARNING It is important that only authorized personnel

service and attempt repairs on the equipment. Unauthorized

service or repair may void the warranty and any maintenance

contract in effect for the equipment. Unauthorized service

personnel might be subject to shock hazard on some

equipment if removal of protective covers is attempted.

There is danger of explosion if the battery is incorrectly

replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

The product you have purchased is powered by a rechargeable

battery. The battery is recyclable and, under various state and

local laws, it may be illegal to dispose of this battery into the

municipal waste stream. Do not crush the battery or place it in

a ﬁre. Check with your local solid-waste ofﬁcials for details on

recycling options or proper disposal.

CAUTION Internal components of the GD8000 computer will

be damaged if exposed to contaminants. When dust covers,

the PC card door, or the bottom access panel are open on the

computer, shield the unit from all contaminants such as liquids,

rain, snow, and dust.

This device may contain a WLAN radio transmitter, a WPAN

radio transmitter, and a WAN radio transmitter.

Each internal radio may or may not have an individual FCC

Identiﬁer label. That FCC Identiﬁer label is not applicable to this

conﬁguration. Only the external FCC ID label is applicable.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Notices, Compliance and Safety

detergents are not recommended cleaning solutions and

may void your warranty. For system decontamination

recommendations please contact your service technician.



Slots and openings in the computer case are for ventilation

purposes. Do not block or cover these openings or the system

could overheat.



Do not place the product on a soft surface such as a bed, sofa, or

rug where the ventilation slots and openings may be blocked.



Do not place this product near or over a radiator or heat register.



Do not place this product in a built-in installation unless proper

ventilation is provided.



Do not operate the computer at temperatures above 140°F (60°C)

or below -10°F (-23C).



Do not store the computer at temperatures above 167°F (75°C) or

below -67°F (-55°C).



Do not step on or place anything on the power cord.



Do not slam the display lid when you close it.



Do not place any object on top of the computer.



If you use the computer with an extension cord, ensure that the

total ampere ratings of all the devices sharing the extension do

not exceed the rating of the extension cord or the rating of the

wall outlet.



Do not push foreign objects into the computer through any of the

slots or openings. Dangerous voltages are present, which could

cause electric shock, ﬁre, or damage sensitive components.



The computer is designed to withstand spills. If a spill occurs,

immediately power off the computer and wipe it down.



For best results, use a power strip with a built-in surge protector.

Do not use inferior extension cords as this may result in damage

to your computer.



FAA regulations require that all transmit/receive devices be

turned off during ﬂight. If you have radios in your computer

(including GPS) and your computer is equipped with a Radio

ON/OFF Switch, please use it to turn your radios off during

ﬂight. If you have radios and you do not have a switch to turn

the radios off, either leave your computer off during ﬂight or

contact your help desk for assistance.

Service and Upgrade Safety and Precautions

Do not service this product yourself. Opening or removing

covers may expose you to dangerous voltage points or

other risks and may void your warranty. Damage caused by

servicing that is not authorized may void your warranty. If your

computer needs service, remove power and turn it off, then

contact authorized service personnel.

Refer all servicing to authorized service personnel under the follow-

ing conditions:



When the power cord or plug is damaged or frayed.



If the product does not operate normally when the operating

Only the antenna with which an intentional radiator is

authorized may be used with the intentional radiator.

The WAN embedded antenna location is in the upper center

edge of the display screen and is not to be modiﬁed.

The WPAN embedded antenna location is near the lower left

edge of the Keyboard and is not to be modiﬁed.

The WLAN embedded dual antennas are located internally in

the upper right and left edges of the display screen and are not

to be modiﬁed.

To comply with FCC RF exposure requirements when using the

WAN radio transmitter, a minimum separation distance of 20

cm must be maintained between the upper center edge of the

display screen antenna and all users/bystanders.

When using the WLAN transmitter, a minimum separation

distance of 20 cm must be maintained between the upper right

and left edges of the display screen and all users/bystanders.,

The WAN transmitter, WLAN transmitter and WPAN

transmitter should be turned off before carrying the laptop PC

in order to comply with

FCC RF exposure requirements.

The equipment has been approved to [Commission Decision

“CTR21”] for pan-European single terminal connection to the

Public Switched Telephone Network (PSTN). However, due to

differences between individual PSTNs provided in different

countries the approval does not, of itself, give an unconditional

assurance of successful operation on every PSTN network

termination point.

In the event of problems, you should contact your equipment

supplier in the ﬁrst instance.

Safety

Do not proceed beyond a WARNING or CAUTION until the

indicated conditions are fully understood and met.

Read these instructions carefully. Following these guidelines

will help prevent damage to your computer and help protect

your personal safety.



Read and follow all WARNINGS, CAUTIONS and instructions

marked on the product and noted in this documentation.



Before using your computer, read the Power Management

section to familiarize yourself with basic battery information and

ensure optimum performance.



CAUTION To reduce the risk of ﬁre, only use a No. 26 AWG or

larger telecommunication line cord.



CAUTION This notebook computer is designed to be used

with the provided dedicated AC Adapter or Vehicle Adapter.



Unplug the computer from the power outlet before cleaning.

Use a damp cloth for cleaning. Aerosols, solvents, or strong

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Notices, Compliance and Safety

instructions are followed. Adjust only those controls that are

covered by the instructions in this manual.



If the product exhibits a distinct change in performance,

indicating a need for service.

Before performing any manufacturer authorized service or upgrade,

ﬁrst follow these instructions:



Prevent damage from static electricity by following ESD

precautions.



Place the computer on a clean, ﬂat surface.



Turn off the computer and disconnect the power supply.



Undock the computer if it is in an ofﬁce dock or vehicle dock.



Disconnect any attached peripherals.



Disconnect any attached network, telephone or

telecommunication line.



Remove any PC Cards, EXPRESS Cards, Smart Cards, CDs, DVDs

or any other media in your computer’s slots or bays.



Remove the battery (See Battery Removal).



Remove the hard drive (See Hard Disk Drive Removal).

Battery Pack Safety and Precautions



WARNING! There is danger of explosion if the battery is

incorrectly replaced. Replace only with a manufacturer approved

battery.



WARNING! Dispose of used batteries promptly and

according to the manufacturer’s instructions



WARNING! Batteries may explode if not handled properly.

Do not disassemble, open, puncture or dispose of battery packs

in a ﬁre. The battery pack could burst or explode releasing

hazardous chemicals.



WARNING! Keep battery packs away from children.



Follow the safety instructions printed on the battery.



Only use approved manufacturer approved battery packs with

your computer.



Do not abuse, deliberately pierce, or subject the battery pack to

excessive impact.



Immediately discontinue use of the battery if it appears damaged

or abnormal in any way and consult your local provider for

advice.



Do not immerse the battery pack in liquid.



Do not short together the battery connections. Do not store the

battery pack with metallic objects due to the risk of short circuit.



Battery chemical leakage is harmful. In the unlikely event of

battery leakage; DO NOT TOUCH. In case of accidental contact

with the eyes or skin, immediately wash with running water and

seek medical advice. In the case of accidental ingestion, seek

immediate medical attention.



Follow Battery Tips for use and storage.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Standard Features



DynaVue® Touch Screen Display



Shock-mounted, ruggedized, removable Hard Disk Drive with

heater



Fully-rugged magnesium case



Full-size keyboard with embedded numeric keypad and 12

function keys



Capacitive Touchpad



Internal 56K V.92 Fax/Modem



Lid Switch: The lid switch can be conﬁgured to suspend your

computer when the lid is closed and to resume when the lid is

opened.



Application Launch Key and user programmable button



Internal Gigabit Ethernet LAN



Three USB 2.0 Ports



Type II PC Card Slot



Audio Jacks for external speakers and microphone and internal

speakers and microphone



Stealth Mode: This feature allows you to use the computer in

an environment where sound and light could be dangerous or

disruptive



Microsoft Windows XP SP3 or Microsoft Windows Vista operating

system



Three-year limited warranty

Optional Features

Below is a list of some of the optional features supported by

your computer. Contact your authorized dealer if you decide to

perform a key component upgrade.



Fingerprint Scanner



Radio ON/OFF Switch



Smart Card or EXPRESS Card/54 slot



CRMA Express radio technology: Flexible, upgradeable radio

module for signiﬁcant cost savings



Integrated Wireless LAN Communications: 802.11a/b/g Wireless

LAN with Mini-PCI wireless card support



Bluetooth



GPS



Media Bay Device: DVD multi drive or media bay battery



Backlit Keyboard



Hazloc



Memory



Extra Hard Disk Drive (HDD)

Operating System Information

For information and help with Windows XP, select Start, Help

and Support. Under Pick a Help Topic, select Windows Basics

to open The Windows XP Help and Support Center, an online

orientation of the Windows XP Operating System.

For information and help with Windows Vista, select Start,

Welcome Center. Under Get Started with Windows, select

Show all 13 items.

Tips for New Owners



Back up ﬁles often. Users who need to manage large amounts of

data may wish to use backup devices.



Create a set of recovery CDs or DVDs to recover your hard disk

in case it becomes corrupted. To do this, use the Recovery CD

Wizard by selecting Start, Programs, Mobile Computer Tools.



Don’t leave passwords anywhere on your notebook or carrying

case.



Install antivirus software and keep it updated.



For added security, consider using a computer lock with the com-

puter’s Security Slot.



Develop ergonomic work habits to help prevent related health

issues. The science of ergonomics studies the relationship

between health and a suitable work environment. For more

information on ergonomics, contact your nearest computer

bookstore, local library, reputable website.

Turning Off the Computer

To turn off your computer select Start, Shut Down, Shut Down

and follow the instructions on the screen.

If you are going to be away from the computer for a short

period, you can conserve power without shutting down the

system. See Managing Power and Battery Tips for details.

NOTE If you are unable to shut down your computer

normally, follow the instructions in Troubleshooting.

CAUTION Shutting off the computer improperly may result

in data loss.

Getting Started

# Feature Description

1 Display Latch The display latch holds the display when closed

2 Display 13.3-inch DynaVue® XGA, outdoor-viewable, color display with an integrated touch screen

3 Internal Microphone Integrated, weatherized microphone can be used with various software applications that

require audio input

4 Pen / Stylus Slot Store the provided custom touch screen pen (stylus) in this slot below the touchpad

5 Right Tether Slot You can attach a stylus tether here

6 Handle Integrated handle for convenient carrying

7 Touchpad Buttons Use like the buttons on a mouse

8 Left Tether Slot You can attach a stylus tether here

9 Touchpad Use for navigation

10 Keyboard Standard keyboard with embedded numeric keypad

11 Button and LED strip Area above the keyboard with the power button, Radio ON/OFF Switch, Application

Launch Key and LED Status Indicators

Front View

GD8000 User Guide

General Dynamics Itronix | 72-0137-001

Getting Familiar With Your Computer

GD8000 User Guide

General Dynamics Itronix | 72-0137-001

# Icon Feature Description

1 Back Handle Mount The back handle mount, located on both sides of the computer is used with an

optional back handle

2DC-in Jack Connects to an AC power adapter

3Network Jack (RJ45/LAN) Connects to an Ethernet-based network. Connection speed is 10/100/1000 Mbps

4Modem Jack (RJ11) Connects a phone line to the internal fax/data modem. It can transmit data using

the 56 Kbps V.90 or V.92 protocol, and send and receive faxes at 14.4 Kbps.

NOTE In some countries, local regulations may not permit the use of the fax/

modem designed for this system. In this case, you may use a PCMCIA modem

5Microphone Jack Connect a microphone to this jack to record audio

6Audio Out Jack Connect external speakers or a stereo headset to this jack to listen to multimedia

7 Cooling Fan Exhaust Cooling Fan exhaust area. Do Not Block. This area may become hot as air vents

from the computer

8External Monitor Port Connects to a display monitor (up to 2048x1536 resolution)

9 Smart Card Reader or

Express Card Slot option

Depending on your conﬁguration, use with a Smart Card or EXPRESS Card

123 4 5 6 7 8 9

Getting Familiar With Your Computer

Left Side View

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

# Feature Description

1 Battery Release Lock Press this in (toward the display) to unlock the battery

2 Battery Release Latches Slide these toward the center of the unit to release the battery

3 Cooling Fan Intake Air intake for fan. Do NOT block this area

4Security Slot The security slot can be used with a standard laptop-locking device, such as a

Kensington lock. You can connect the computer to a large object with the lock

to prevent theft. See the documentation that comes with your lock for more

information.

# Icon Feature Description

1 Three USB 2.0 Ports Connects to USB devices (e.g., USB digital camera)

2Serial Port Connects your computer to serial devices such a fax/modem or a serial mouse.

This port is identiﬁed as COM1

3 PC Card Slot Use this slot for Type II PC Card devices

4 Media Bay Combo DVD-ROM/CD-RW, DVD Multi-Drive (DVD-RAM/DVD-ROM/DVD-RW/CD-R/

CD-ROM/CD-RW), or second battery module

5 Back Handle Mount The back handle mount located on both sides of the computer is used with an

optional back handle

1 2 3 4 5

23 4

Right Side View

Getting Familiar With Your Computer

Back Edge View

GD8000 User Guide

General Dynamics Itronix | 72-0137-001

# Feature Description

1 Dual External Antenna

Connector (DEAC)

The DEAC gives you the ability to switch the internal WLAN and WWAN to an external

antenna to gain better performance when you are in a vehicle.

2 CRMA Express Module Upgradeable WWAN radio module (optional)

3 Memory compartment User expandable memory slot

4 WLAN compartment Integrated wireless LAN radio

5 Speakers Integrated stereo speakers for audio output

6 Hard Disk Drive Locks Open and turn these to lock or unlock the removable hard disk drive

7 Docking Connector 84-pin cradle connector that mates with the Vehicle Dock, or Ofﬁce Dock

8 Media Bay Release After unlocking the media drive, slide this to release the media drive.

9 Media Bay Lock Slide Slide this to unlock the media drive before releasing it.

10 Battery Pack Smart Lithium-Ion battery

Getting Familiar With Your Computer

Bottom View

GD8000 User Guide

Keyboard Basics

General Dynamics Itronix | 72-0137-001

The GD8000 features:



Full size, glow-in-the-dark (GID) keys on a 85-key keyboard



Twelve function keys



Embedded numeric keypad



Application Launch Key (programmable button)



Radio ON/OFF Switch (option)



Ergonomically designed wide palm rest located below the keyboard.

Key Description

ALT The ALT (alternate) key is used with other keys to perform special tasks. On some operating systems

pressing CTRL+ALT+DEL twice soft reboots the computer.

BACKSPACE The BACKSPACE key, sometimes represented on the keyboard as a left arrow, moves the cursor one posi-

tion to the left. The character to the left of the cursor is erased.

CAPS LOCK Pressing the CAPS LOCK key one time locks keys A through Z in the UPPER CASE position. Pressing the

CAPS LOCK key again returns the letters to lower case. While in the upper case mode, pressing the SHIFT

key results in lowercase characters when entered. You still have to use the SHIFT key to display characters

located on the upper portion of the keyboard. For example, press SHIFT+8 to type an asterisk (*), even

when the CAPS LOCK key is activated.

The Caps Lock LED lights when the keyboard is in Caps Lock mode.

CTRL The CTRL (control) key works with other keys to perform a variety of functions.

ENTER The ENTER key signals the computer that you have completed your entry. This is your way of telling the

computer to process the information that you have entered.

ESC The ESC (escape) key allows you to exit a pop-up window or message box.

PRTSC In Windows, pressing the PRTSC (print screen) key or ALT+PRTSC key copies the current screen or window

to the clipboard so you can paste it into documents.

SHIFT The SHIFT key changes the keys A through Z to the UPPER CASE position. When you press an alphabetic

key, the character appears as a capital letter. When you press SHIFT with other keys, the characters on the

upper part of the keys appear. For example, pressing SHIFT+7 displays an ampersand (&).

FN Some special FN (function) keys have been established to perform important tasks when pressed in

combination with the FN key. These keys are described later in this document. The FN key legend is color

keyed to other special keys on the keyboard.

SPACEBAR Use the SPACEBAR to enter a space and move the cursor one character to the right.

TAB The TAB key moves the cursor to the next tab stop or ﬁeld. Tab stops are deﬁned by your operating system

or application program. Press the TAB key to move from one ﬁeld or text box to another.

Primary Keys

Getting Familiar With Your Computer

GD8000 User Guide

Arrow Keys

General Dynamics Itronix | 72-0137-001

The arrow keys are deﬁned by the software application.

UP ARROW: usually moves the cursor up one line. In some cases, you can use

the up arrow to make selections from menus and scrollable list boxes.

DOWN ARROW: usually moves the cursor down one line. In Windows, you can

use the down arrow to make selections from menus and scrollable list boxes.

RIGHT ARROW: usually moves the cursor one character position to the right.

LEFT ARROW: usually moves the cursor one character position to the left.

Function Key Icon Function Description

FN+F1 Screen blank Turns off the display screen backlight. Press it again to turn

the light back on.

FN+F2 Display toggle Switches the display output between the display screen,

external monitor (if connected) and both the display screen

and external monitor

NOTE When a DVD or VCD is playing display toggle is

disabled.

FN+F3 Standby Puts the computer in standby mode.

FN+F4 Keyboard Backlight

Brightness Down

Decreases the keyboard backlight brightness if you have the

optional EL keyboard.

FN+F5 Keyboard Backlight

Brightness Up

Increases the keyboard backlight brightness if you have the

optional EL keyboard.

FN+F6 Display Brightness

Down

Decreases the screen brightness

FN+F7 Display Brightness Up Increases the screen brightness

FN+F8 Audio Volume Down Decreases the audio volume

FN+F9 Audio Volume Up Increases the audio volume

FN+F10 Speaker on/off Turns the speakers on and off; mutes the sound

FN+RIGHT ALT Touchpad on/off Toggles the touchpad on and off

FN+ LEFT SHIFT Keyboard backlight Toggles the keyboard backlight (option) on and off

Function Keys and Key Combinations

When using function keys, press and hold the FN key before pressing the other key in the key combination.

Arrow Keys

Getting Familiar With Your Computer

GD8000 User Guide

Numeric Keypad

General Dynamics Itronix | 72-0137-001

The embedded numeric keypad consists of sixteen keys

that make number intensive input more convenient. It is

indicated by small characters located on the lower right

corner of the key. Press NUMLK to enable or disable the

numeric keypad.

Lock Key Description

CAPS LOCK Pressing the CAPS LOCK key one time locks keys A through Z in the UPPER CASE position. Pressing the

CAPS LOCK key again returns the letters to lower case. While in the upper case mode, pressing the SHIFT

key results in lowercase characters when entered. You still have to use the SHIFT key to display characters

located on the upper portion of the keyboard. For example, press SHIFT+8 to type an asterisk (*), even

when the CAPS LOCK key is activated.

The Caps Lock LED lights when the keyboard is in Caps Lock mode.

NUM LOCK When NUM LOCK is on, the embedded keypad is in numeric mode. The keys function as a calculator (with

the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry.

Alternately, connect an external keypad. See External keyboard.

The Num Lock LED lights when the keyboard is in Num Lock mode.

SCROLL LOCK Enters Scroll Lock mode. Scroll Lock varies between applications. It does not work with some applications.

The Scroll Lock LED lights when the keyboard is in Scroll Lock mode.

Lock Keys

The keyboard has three lock keys you can toggle on and off.

Standard Key Key with Numlock On

P-

ENTER Carriage Return

Getting Familiar With Your Computer

Numeric Keypad

GD8000 User Guide

Windows Keys

The keyboard has two keys that perform Windows-speciﬁc functions.

General Dynamics Itronix | 72-0137-001

Key Icon Description

Windows Logo Key Start button. Combinations with this key perform special functions. Below are a few

examples:

+ TAB (Activates next Taskbar button)

+ E (Opens My Computer in Windows Explorer)

+ M (Minimizes all Windows)

SHIFT + + M (Restores Minimized Windows)

+ R (Displays Run dialog box)

Refer to Keyboard Shortcuts in Windows Help and Support for a complete list of

Windows key combinations.

Application Key Opens the application’s context menu (same as right-click)

Radio ON/OFF Switch (option)

The keyboard has two keys that perform Windows-speciﬁc functions.

CAUTION FAA regulations require that all transmit/receive devices be

turned off during ﬂight. If you have radios in your computer (including

GPS) and your computer is equipped with a Radio ON/OFF Switch,

please use it to turn your radios off during ﬂight. If you have radios

and you do not have a switch to turn the radios off, either leave your

computer off during ﬂight or contact your help desk for assistance.

The wireless Radio ON/OFF Switch is the middle button above the

keyboard. This switch toggles the power on and off to all radio devices.

Radio devices include GPS, Bluetooth, WLAN, and WWAN radios.

To Turn all Radios on or off

Slide the radio switch to the left to power off all radio devices (airplane mode).

Slide the radio switch to the right to turn radio power on.

Application Launch Key

The application launch key is the right button above the keyboard.

To Program the Application Launch Key

Click the Launch Key Control icon in the taskbar to open the launch key settings dialogue box.

Select the application you want to open by right clicking on the icon (Windows Explorer, Internet Explorer, Email Application or Cus-

tom Application):

If you choose Custom Application, type the name of the Application in the text ﬁeld with either an .exe, .com or .bat extension, then

click on Open. You can also use this button to browse to the application of your choice

Select the check mark button to save and close or select the X at the top of the window to cancel and close.

Getting Familiar With Your Computer

Radio On/Off

Switch

Application

Launch Key

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Touch Screen Display

The GD8000 features a 13.3-inch, XGA, outdoor-viewable,

color display with an integrated touch screen. You can start

programs and input data on the touch screen using an

approved pen (stylus) that comes with the computer. The

Colorvue™ Transmissive display technology uses a built-in

backlight for easy reading in most ambient light conditions.

DynaVue® display technology provides improved outdoor

visibility and even works well in sunlight.

CAUTION To avoid damaging the display, do not slam it

when you close it. Also, do not place any object on top of the

computer when the display is closed.

Install the Stylus Tether

Insert one tether loop through one of the holes on the end of the

stylus, then pull it back through the adjacent hole.

NOTE The holes in the stylus are notched on one side and

smooth on the other. Feed the tether through the smooth side

ﬁrst, so that it lies inside the notch when ﬁnished.

Insert the free end of the tether through the loop and pull the

slack back through the loop to secure the stylus.

Repeat these steps with the other end of the tether to attach it to

one of the tether slots on the front on your computer.

Calibrate the Touch Screen

Press down on one side of the stylus to remove it from its slot

below the touchpad.

From the Start menu select All Programs, eGalaxTouch, Con-

ﬁgure Utility.

On the eGalaxTouch dialogue box, select the Tools tab and then

click the Linearization Button. This will initiate 9 pt calibration.

Use an approved stylus and follow the instructions provided to

complete touch screen calibration.

Click OK to save the new settings and click OK again to begin

using your computer.

Adjusting Display Brightness

Windows XP:



Press FN + F6 to decrease display brightness



Press FN + F7 to increase display brightness

Windows Vista:

Click Start, Control Panel and open the Mobile PC menu.

Under Windows Mobility Center, click Adjust Screen Bright-

ness. Under Display Brightness, use the slide bar to adjust

display brightness.

Press down to remove stylus

Getting Familiar With Your Computer

Adjusting Display Resolution

Windows XP:

Right click on the desktop.

Select Properties and then select the Settings tab. The dialog

box indicates the monitor screen resolution.

Use the slide bar to adjust the resolution. Normally, you should

use the resolution suggested for the display or monitor.

Windows Vista:

Click Start, Control Panel and select Appearance and Person-

alization.

Click Adjust Screen Resolution.

Use the slide bar to adjust the resolution.

NOTE Using a lower resolution than the screen was designed

for will reduce the area of the display. You can stretch low

resolution displays to full screen size by enabling Screen

Expansion on the Main Menu of the BIOS Setup Utility.

However, the stretching may cause distortion, especially to

fonts. Higher resolution modes may be used as long as the

monitor supports them.

smooth side

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Auto Dim Feature

To save the battery power, your computer automatically dims

the display when the computer is not attached to external

power.

NOTE You may still use the display brightness function keys

(FN+F6 and FN+F7) to adjust display brightness.

See Managing Power for more information on power

management features.

Simultaneous or Extended Display

This computer supports simultaneous LCD and external

display output via the external monitor port located on the

back edge of the computer. You can also connect other

output display devices such as LCD projection panels for large

audience presentations. See Attaching an External Monitor or

Video Device for more information.

FEATURE When using an external monitor you can extend

your desktop. This allows you to open and view one program

on the external monitor while viewing a different program on

your laptop’s display.

To Extend Your Desktop onto the External Monitor:

Right click on the desktop.

Select Properties to open the Display Properties dialogue box.

Select the Settings tab.

Click on the “2” in the Monitors section.

Check “Extend my Windows desktop onto this monitor”.

Select Apply and OK to save and exit. Now you can drag the

programs you want to view onto the external monitor.

LCD Heater

The GD8000 has a CCFL heater to improve display brightness

in a cold environment. The heater includes a ﬁlm and heater

strip that is bonded over the CCFL area of the display. It is

designed to turn on when the temperature is cold enough

to impact display brightness and does not require user

intervention.

Cursor Visibility

To improve the visibility of the mouse cursor, you should:



Enable the “Pointer Trails” feature to add trailing cursors



Use a slow or medium speed/sensitivity level

You can combine a higher level of acceleration with a slow

or medium speed/sensitivity level. This allows you to move

the mouse cursor quickly by increasing your ﬁnger pressure,

while still providing a ﬁner degree of control when you apply

minimum pressure.

NOTE To change the speed of the mouse, do the following:

For Windows XP:

Select Start, Settings, Control Panel, and then choose Mouse

to make adjustments.

For Windows Vista:

Select Start, Control Panel, and under Hardware and Sound,

choose Mouse.

Lid Switch

Your computer has a lid switch that can automatically suspend

and resume your computer when you close and open the

display. To change the power management settings for the lid

switch, perform the following:

For Windows XP:

On the System Tray area of the Taskbar, right-click the Power

Saver icon ( or ).

From the menu, select Conﬁgure Power Settings.

Select the Advanced button.

Select what you want to happen when you open or close the

display lid.

For Windows Vista:

On the System Tray area of the Taskbar, right-click the DynaPow-

er icon .

At the top of the grid, select the appropriate Power plan.

Select the desired action settings for both battery or AC power.

In the Power buttons and lid section, select the Lid Open Ac-

tion and Lid Close Action.

Select Save Changes and repeat steps 2 through 4 until all

power plan settings you wish to modify.

NOTE The Lid Close Action default is Standby for Windows XP and

Sleep for Window Vista. The default Lid Open Action is Do Nothing.

Getting Familiar With Your Computer

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

LED Status Indicators

The activity indicators, located above the keyboard, light up

when a particular function of the computer is active. Each

indicator is marked with an icon.

# Icon Function LED Description

1 Power Lit Power is ON

Flashing Suspend to RAM

2Battery Lit Battery charging

Flashing Low Battery

LED off No battery / battery fully charged (will always be OFF without external

power connected to the unit)

3External Power Lit External power is connected to the unit

4WWAN Communication Lit WWAN radio is on

5WLAN Communication Lit Wireless LAN, Bluetooth, and/or GPS radio(s) are on

6Media Bay Lit The computer is equipped with a DVD/CDRW Combo, CD-ROM,

or DVD-ROM

7Disk Status (HW) Lit The hard disk drive is being accessed

8Caps Lock Lit The keyboard is in Caps Lock mode

9Number Lock Lit The keyboard is in Num Lock mode

10 Scroll Lock Lit The keyboard is in Scroll Lock mode

1234 5 6 7 8 9 10

Power LED

Wireless Modem LED

Display Hinge LEDs -

visible when the display lid is closed

Getting Familiar With Your Computer

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Audio

Your computer includes 24-bit high-ﬁdelity stereo audio

output and an integrated microphone. You can also attach

external audio devices via the audio in and out jacks on the

left side of the computer.

To Adjust the Volume



To decrease volume, press FN+F8



To increase volume, press FN+F9



To mute the volume, press FN+F10

You can also adjust the volume with the Windows volume

control applet located on the taskbar. However, the volume

control function keys override the Windows volume control

applet. If your volume is too low or too high after setting

the volume in the applet, adjust the volume with the

function keys.

Inserting the Card

The top side of a PC Card is usually identiﬁed with a label. Insert

the card into the slot with the top up and the edge with pinhole

contacts or arrow, going in ﬁrst. You will feel some resistance as

the card slides into the back of the slot.

PC Cards require drivers, or a program that allows the operating

system to use a speciﬁc device. Many drivers are included with

Windows so the PC Card will be automatically recognized; but if

not, you will be prompted to install the driver included with your

card.

The PC Card becomes a removable disk drive and is assigned a

letter drive.

NOTE Please read the instructions included with individual PC

Cards. Some cards may be inserted with power on, while others

require that the computer be turned off.

Speakers

Audio Jacks

Microphone

LED Icon LED Description

Power Lit

Flashing

Power is ON

Suspend to RAM

Wireless Modem Lit

LED off

One or more installed radios are ON

All installed radios are OFF

Getting Familiar With Your Computer

The PC Card Slot

Use the PC card slot, located on the right side of the computer under the media bay, as an interface between your computer and

a variety of communications devices, such as network adapters, SCSI adapters, and fax/modems, or to provide additional data

storage capacity. Your computer’s PC Card slot supports single Type I or II PC Cards, 32-bit CardBus cards, and Zoomed Video

cards.

CAUTION Do not remove or change any hardware while your computer is hibernating or in a Sleep/Standby state.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Ejecting a Card

First, exit the application using the card.

On the taskbar, left-click on the Safely Remove Hardware icon

or .

Press the slot eject button once to pop it out; then press it again

to eject the PC Card.

Getting Familiar With Your Computer

PC Card Eject Button

Touchpad

The integrated touchpad is a pointing device that senses

movement on its surface so the cursor responds as you move

your ﬁnger over of the touchpad. The buttons located directly

below the touchpad have the same function as a two-button

mouse. Press these buttons to make selections, drag objects,

or perform a variety of other functions depending on the soft-

ware.

To Use the Touchpad

First, place your ﬁngers on the keyboard in the normal typing

position. The touchpad is easily accessible by moving either your

left or right thumb off the space bar and onto the touchpad.

Gently move your thumb across the touchpad in the direction

you want the cursor to move.

To Select Objects

First, move the pointer over the object that you want to select.

Double-tap the touchpad or double-click the left touchpad button.

The touchpad will respond like a mouse.

To Drag

Place the cursor over the desired object.

Press and hold the left button or tap the touchpad two times as if

you were double-clicking but do not remove your ﬁnger after the

second tap.

Move the cursor to the desired location and release the button or

lift your ﬁnger to ﬁnish dragging.

Adjusting the Touchpad Settings

These settings allow you to change the orientation from right-

handed to left-handed, and ﬁne-tune the pointer movement

and timing of clicks.

For Windows XP:

Select Start, Settings, Control Panel, Mouse, Buttons.

For Windows Vista:

Select Start, Control Panel, Hardware and Sound, Mouse to

open the Mouse Properties window.

Select the Device Settings tab and click on the Synaptics PS/2

Port Touchpad. Then choose settings to conﬁgure the proper-

ties for the touchpad. You can also open Synaptics PS/2 Port

Touchpad from the icon in the system tray.

Touchpad Precautions

The touchpad is a sensitive device. If not properly cared for,

it can be easily damaged. Please take note of the following

precautions:



Make sure the touchpad does not into come into contact with

dirt, liquids or grease.



Keep the touchpad area dry and clean.



Do not touch the touchpad if your ﬁngers are dirty



Do not rest heavy objects on the touchpad or touchpad buttons



Keep your ﬁngers dry and clean when using the touchpad.



Avoid tapping too hard. The touchpad is sensitive to ﬁnger

movements and responds best to light touches.

Touchpad

Touchpad Buttons

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

The Hard Disk Drive (HDD)

Your computer features a removable, shock-mounted hard disk to provide high-capacity storage and fast access. The operating

system and most programs are stored here. Your computer identiﬁes the hard disk drive as drive C. You can do a one-time

conﬁguration of your hard disk space through the HDD Space Setup Wizard. The Wizard can run when it is convenient for you;

however, should be run after ﬁrst start-up.

See the BIOS Setup Utility to password protect your removable hard disk drive.

Remove screws Turn toward inside Remove by the ribbon

Getting Familiar With Your Computer

Replacing the hard disk drive

You should print these instructions

before continuing. They will not be

available after you shut down the

computer in step two.

Shut down the computer and remove

power.

Remove the battery

(see Battery Removal)

Smart Card or EXPRESS Card Slot (option)

Your computer comes with a Smart Card Reader or ExpressCard slot (option) that supports ExpressCard/34 and

ExpressCard/54. This slot is located on the left side of the computer.

To Insert a Card

Insert the compatible card with the label side up into the slot

until it clicks into place. The card will appear as a removable

storage device that you can copy ﬁles to and from.

To Remove a Card

Make sure no operation is using the card (such as ﬁle copying or

deletion).

Press the card further into the slot to release the card. You will

hear a click.

Remove the card

CAUTION Do not remove or change any

hardware while your computer is hibernating

or in a Sleep/Standby state.

Turn the computer over so you are

looking at the bottom.

If installed, use a Phillips screwdriver to

remove the two optional screws in the

hard disk drive cover.

Flip open the HDD locks and turn

both of them toward the center of the

computer.

Lift the HDD cover off of the computer.

Using the ribbon, remove the HDD

from the computer.

Line up the connectors and insert the

HDD in the computer.

Replace the door and turn the HDD locks

toward the outside of the computer to

lock it.

If desired, install the optional HDD screws.

10.

11.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Hard Disk Drive Heater

The hard disk drive heater warms the HDD before spinning

up in temperatures below 5°C, the minimum safe operating

temperature for the HDD. The heater is integrated and

operates as needed when the computer is on. If the

temperature is below 5°C when booting or resuming you will

see the message “Warming internal hard drive. Please wait...”.

The unit will continue booting when it detects the HDD is warm

enough to operate safely.

NOTE If you are using the computer in a cold temperature

environment and the battery level is too low for the heater to

operate, you will see the error message “Battery too low to

warm the hard drive. Shutting down...” and the computer will

shut down. Apply external power and reboot.

The Media Bay

Depending on your conﬁguration, your computer may have

an optional DVD multi-drive (DVD-RAM/DVD-ROM/DVD-RW/

CD-R/CD-ROM/CD-RW) or media bay battery. The multi-drive

allows you to read data from DVDs and CDs, including audio

or video CDs, and enables you to burn your data onto a CD or

DVD recordable disc. Please refer to the recording software

online help for more information.

If you have the media bay battery, it extends your unplugged

runtime.

Your notebook identiﬁes the drive with the letter following the

hard drive and/or recovery partition letter. If your hard drive is

C, then the media bay will be E if you have a recovery partition.

It will be D if you do not have a recovery partition.

To Change Swappable Media Bay Device

Make sure the computer is not accessing the media bay drive.

Open the media bay door cover.

Double-click the Safely Remove Hardware icon on the Win-

dows tray taskbar.

Select the Media Bay device, then select Stop.

Wait for the “safe to remove hardware” message, then click

OK.

Turn your computer over so you are looking at the bottom.

If installed, remove the screw in the media bay lock.

Slide the media bay lock toward the back of the computer and

hold.

While holding the media lock in the unlocked position, slide the

media bay release toward the outside of the computer. The me-

dia bay should come part way out of the computer.

10.

Grasp the media bay device by the edges and pull straight out

until it is clear from the slot.

11.

Re-insert the next media bay device by ﬁrmly pushing it back into

the slot until it clicks into place.

CAUTION Do not remove or change any hardware while

your computer is hibernating or in a Sleep/Standby state.

To Insert a Disk

Open the media bay door

cover.

Insert the disk into the

media bay slot.

To Remove a DVD or CD

Make sure the computer is not accessing the DVD drive.

Press the eject button. The disk will automatically eject.

Pick up the disk by the edges and remove it from the slot.

CAUTION When the computer is reading from a DVD or

CD, the Optical Disk Drive LED will ﬂash on. Do not attempt to

Media Bay

Screw and Lock

Media Bay

Release

Getting Familiar With Your Computer

Multi Drive Eject Button

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

remove a disk while this light is active.

Precautions for Handling DVDs and CDs

Keep these precautions in mind when handling DVDs and CDs:



Always hold the disk by the edges; avoid touching the surface of

the disk



Use a clean, dry, cloth to remove dust, smudges, or ﬁngerprints.

Wipe from the center outward



Do not write on the surface of the disk



Extremes in temperature may damage disks. Store disks in a

cool dry place



Do not use benzene, thinners, or cleaners with detergent. Only

use cleaning kits designed for DVDs or CDs



Do not bend or drop the disks



Do not place objects on top of disks

Computer Security

Your computer includes several security features to help

prevent theft and protect data. These include a security slot,

multiple levels of password protection, an optional ﬁngerprint

scanner, an optional Smart Card slot, stealth mode and Trusted

Platform Module (TPM).

Security Slot

The security slot located on the back edge of the computer

lets you connect a Kensington compatible computer security

lock so you can connect the computer to an immovable object

to prevent theft. Insert the lock into the notch and turn the key

to secure the lock. Some keyless models are also available.

See the documentation that comes with your lock for more

information.

BIOS Level Passwords

Passwords protect your computer from unauthorized access.

When set, no one can access the computer without entering

the correct password.

There are two types of passwords you can set:



Supervisor Password secures your computer against

unauthorized entry to critical parameters in the BIOS Utility



User Password secures your computer against unauthorized use,

and allows limited access to the BIOS Utility

NOTE Do not forget to set your password! If you forget

your password, please get in touch with your dealer or an

authorized service center.

Smart Card Reader (Option)

If your computer has the Smart Card Reader option, you can

use smart card technology for added security.

Fingerprint Scanner (Option)

The optional swipe style ﬁngerprint scanner can be used for

all standard security uses. The optional ﬁngerprint scanner

provides a greater level of security and convenience for your

GD8000 and your private data. Use the ﬁngerprint scanner

instead of passwords for the following:



during computer login



during login at secure websites



when opening password protected applications



to provide encryption security for individual ﬁles

Fingerprint Scanner Software

Before using the ﬁngerprint scanner, you must ﬁrst install

compatible software. If the optional ﬁngerprint scanner was

present during initial user setup, you should have the “Install

Finger Print Software” link on your desktop. Click this link and

follow the instructions to install the software. A wizard may

guide you through the process.

CAUTION Before installing any third party software, ensure

it is approved for use with this computer.

When accessing some secure websites, you may need

to specify you are using the ﬁngerprint scanner instead

of a password. Refer to the ﬁngerprint scanner software

documentation for setup information.

Stealth Mode

The stealth mode feature enables you to use the computer

where light or sound could be dangerous or disruptive, such as

a military or public safety environment. Enabling stealth mode

allows you to disable sound and light features such as system

beeps, the fan, and the display backlight. Refer to the BIOS

Setup Utility section for information about how to conﬁgure

stealth mode.

Trusted Platform Module (TPM)

Enable or disable TPM in the System BIOS. TPM provides a

platform root of trust which uniquely identiﬁes a particular

platform and provides various crypto capabilities including

hardware-protected storage.

Fingerprint

scanner

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Ports and Connectors Icon Connection Location

RJ-11 Phone line/modem (internet and fax) Left Side

RJ-45 Ethernet Left Side

DC-in AC Adapter (power) Left Side

3 USB Universal Serial Bus

2.0

USB Peripherals such as a mouse, printer or optical disk

drive

Right Side

External Monitor External Monitor Left Side

Audio In Microphone Left Side

Audio Out Speakers or headphones Left Side

PC Card Slot Type II PC Cards Right Side

Smart Card Reader or

EXPRESS Card Slot

Smart Cards or EXPRESS Cards Left Side

Security Slot Computer lock such as a Kensington lock Back Edge

Multi I/O Docking Connector Compatible ofﬁce dock or vehicle dock Bottom

Serial Port IEEE 1394-compatible devices, such as digital cameras Right Edge

Getting Familiar With Your Computer

ENERGY STAR®

General Dynamics Itronix is committed to designing mobile computers with the environment in mind.

Not only do we design computers that withstand the environment – with rugged features that enable

you to use them in extreme operating conditions, we design computers that use less energy, reducing

environmental pollution.

That’s why our ENERGY STAR compliant mobile computers meet or exceed the stringent ENERGY STAR

standards set by the Environmental Protection Agency (EPA). According to the EPA, ENERGY STAR

qualiﬁed products use as much as 60% less energy than standard equipment. By lowering energy

consumption, our computers help customers save money while reducing greenhouse gas emissions.

For more information about ENERGY STAR (in English), go to www.energystar.gov.

To help you conserve energy on both AC and battery power, by default this computer:



turns off the display after 15 minutes of inactivity



enters standby, a low power mode, after 15 minutes of inactivity, compared to 30 minutes required for ENERGY STAR compliance

Press any key to wake the computer or turn the display back on after a period of inactivity.

This computer was also designed with other power saving features that go beyond ENERGY STAR requirements. See the

Managing Power section to make the most efﬁcient use of those features.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Making Connections

This section describes how to connect peripherals and

hardware options that help you maximize your computer’s

features.

Before connecting peripherals, ﬁrst read the manual included

with the peripheral for connection and operation instructions.

You can purchase most of these and other options directly

from authorized dealers.

If you are a mobile worker, you may want to purchase an

approved docking solution such as the Vehicle Dock or Ofﬁce

Dock. These docks provide drop-in convenience, port expan-

sion, and automatic battery recharging, enabling you to lever-

age your computer’s features without having to attach and

reattach cables and connectors when you move your computer

from ofﬁce to vehicle.

Attaching Power

Your computer can be powered by battery, by attaching an

AC Adapter or Vehicle Adapter to the DC power port, or by

connecting the computer to a powered Vehicle Dock or Ofﬁce

Dock.

NOTE When external power is properly applied, the External

Power LED lights.

CAUTION This notebook computer is designed to be used

with the provided dedicated AC Adapter or Vehicle Adapter.

To Attach AC Power

Connect the AC adapter

power cord to the AC

adapter.

Connect the AC adapter

to the DC power port

on the left side of your

computer.

Connect the AC adapter

power cord to a

properly grounded AC

outlet.

NOTE It is

recommended you

use a quality surge

protector.

To Use the Vehicle Adapter (optional)

Insert the vehicle adapter’s power cord into the DC-in jack on the

left side of the computer.

Insert the 12V (cigarette lighter) adapter into the vehicle’s 12V

socket, turning it slightly to make a good connection.

CAUTION The vehicle adapter is not intended to be used

continuously. It is intended to provide a convenient, tempo-

rary power source for powering and charging this computer

while in transit in a vehicle. For permanent installations, it

is recommended that the (fused) vehicle charger adapter be

wired directly to the vehicle power supply. For additional

information regarding permanent installation, contact your

sales representative.

The power LED illuminates to indicate that current is reaching

the vehicle adapter. When you connect the vehicle adapter,

it automatically begins charging the computer’s battery. At

moderate temperatures, around 20°C (68ºF), the battery should

charge from empty to 90% in less than three hours if the unit is

suspended or off. It should take less than four hours if the unit is

in use.

NOTE As the battery temperature approaches the ends of its

temperature range (5°C/ 41°F to 50°C/122°F), it may take longer

to charge the battery.

CAUTION Avoid exposing batteries to extremely hot or

cold temperatures for long periods. To prevent possible

damage to the battery, the GD8000 laptop does not allow the

battery to charge if the internal temperature of the battery

gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).

USB Devices

Your computer comes with three Universal Serial Bus (USB)

2.0 ports on the right side of the computer. This enables you to

attach various devices such as a keyboard, mouse, scanner, or

printer. USB devices can be chained together on a single cable.

External keyboard or pointing device

This computer has a keyboard with full-sized keys and an

embedded numeric keypad. If you feel more comfortable using

a desktop keyboard, you can connect a USB external keyboard

to one of the USB ports. You can also connect a USB mouse or

other pointing device to one of the USB ports.

USB Ports

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Ethernet Port RJ45) Modem Port (RJ11)

Making Connections

Ethernet (LAN)

With the built-in Ethernet LAN, you can make LAN connections

with 10/100/1000 Mbps connection speed. To use the network

feature, connect an Ethernet cable from the network jack on

the left side of the computer to a network jack or hub on your

network.

Fax/data modem

You can use the fax/modem to connect to the Internet to send

and receive data using the 56 Kbps V.92 protocol. When used

with fax software, it can be used as a fax at 14.4 Kbps. In some

countries, local regulations may not permit the use of the fax/

modem designed for this system. In this case, you may use a

PC Card modem. To use the fax/data modem port, connect

a phone cable from the modem port on the left side of the

computer to a telephone jack.

CAUTION Plug your modem into an analog telephone jack

only. Most homes use analog lines. Do not use digital lines,

such as the PBX and ISDN systems found in many ofﬁces.

Digital lines may damage your modem.

To reduce the risk of ﬁre, only use a No. 26 AWG or larger

telecommunication line cord.

Audio Devices

Audio devices are easy to connect with the audio ports

accessible from the left side of the computer. You can

plug an external microphone (or an audio line-in device)

into the line-in jack. Ampliﬁed speakers or headphones

connect to the line-out jack.

External Monitor or Video Device

You may use an external monitor simultaneously with your

notebook’s display, instead of your notebook’s display, or as

an extension of your notebook’s display. To attach an external

monitor, do the following:

Connect the video signal cable from the external monitor (or the

VGA adapter) to the external monitor port on the left side of your

computer.

Connect the power cable from the external monitor to a power

outlet and turn on the monitor.

Read the monitor manual for additional instructions.

Using Simultaneous Display

Your computer takes advantage of Windows dual-display

capability, allowing you to use your computer for presentation

purposes. To use simultaneous display, connect an external

display device to the external monitor port. You can then

toggle the display output location by pressing FN+F2 . It

will output to your computer’s display, the attached external

display, or both displays simultaneously. Keep pressing FN+F2

until you have the output option you want.

Using Extended Display

When using an external monitor you can extend your desktop.

This allows you to open and view one program on the external

monitor while viewing a different program on your laptop’s

display.

For Windows XP:

Right click on the desktop.

Select Properties to open the Display Properties dialogue box.

Select the Settings tab.

Click on the “2” in the Monitors section.

Check “Extend my Windows desktop onto this monitor”.

Select Apply and OK to save and exit. Now you can drag the

programs you want to view onto the external monitor.

For Windows Vista:

Right click on the desktop.

Select Personalize to open the Display Properties dialogue

box.

Select the Settings tab.

Click on the “2” in the Monitors section.

Check “Extend my Windows desktop onto this monitor.”

Select Apply and OK to save and exit. Now you can drag the

programs you want to view onto the external monitor.

Microphone Jack

Headphone / Speaker Jack

External Monitor Port

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Wireless Communication

Your GD8000 supports up to four integrated radios for superior

wireless communication (One radio per category listed below).



Wireless Local Area Network (WLAN)



Wireless Wide Area Network (WWAN) with CRMA Express



Global Positioning System (GPS)



Wireless Personal Area Network (WPAN) Bluetooth

Since each customer’s radio conﬁguration is unique, please

read the radio help installed on your desktop and refer to the

manufacturer documentation to setup and use your radio(s).

If you have the Radio ON/OFF option, slide the Radio ON/

OFF Switch to the left to power off all radio devices (airplane

mode).

CAUTION FAA regulations require that all transmit/receive

devices be turned off during ﬂight. If you have radios in your

computer (including GPS) and your computer is equipped with

a Radio ON/OFF Switch, please use it to turn your radios off

during ﬂight. If you have radios and you do not have a switch

to turn the radios off, either leave your computer off during

ﬂight or contact your help desk for assistance.

WLAN radio option

Your computer may include an integrated Wireless Local Area

Network (WLAN) capability. See the radio help ﬁle on your

desktop for more information.

About WLAN

WLAN provides all the features and beneﬁts of traditional

LAN technologies, such as Ethernet, without the limitations

of wires or cables. It enables mobility and ﬂexibility without

compromising connectivity for today’s mobile user.

CRMA Express WWAN (option)

If you ordered the CRMA Express module option, your

computer may support one or more of these Wireless Wide

Area Network (WWAN) radios:

HSPA

High-Speed Packet Access (HSPA) combines High-Speed

Download Packet Access (HSDPA) and High- Speed Uplaod

Packet Access (HSUPA). It is a 3G GSM Mobile protocol in

the HSPA family, which provides a roadmap for UMTS-based

networks to increase their data transfer speeds and capacity.

HSDPA deployments/cards/modules can support 1.8 Mbps,

3.6 Mbps, 7.2 Mbps and 14.4 Mbps in downlink mode and 2.0

Mbps and 5.6Mbps in the uplink mode.

EDGE/GPRS/GSM Network

The Enhanced Data Rates for Global Evolution (EDGE) network

allows users to transfer data with download speeds up to

200Kbps (70-130 Kbps typical). It is more than three times the

speed of GPRS. The EDGE network can help you perform at

higher levels of productivity by providing real-time wireless

access to critical business systems and applications.

UMTS/GPRS/GSM Network

Universal Mobile Telecommunications System (UMTS) - also

referred to as wideband code division multiple access (W–

CDMA), is one of the most signiﬁcant advances in the evolution

of telecommunications into 3G networks.

UMTS is a worldwide standard for wide-area wireless

data communication based on Global Systems for Mobile

communications (GSM™). UMTS provides broadband mobile

access to business systems and applications that can help

improve mobile users’ productivity.

UMTS provides broadband speeds with download speeds up

to 2Mbps (220-320 Kbps typical). It delivers four-to-six times

the speed of dial-up Internet access and eight times the speed

of GPRS wireless data service. UMTS allows mobile users to

respond to urgent email and access the Internet.

EV-DO Rev A - EV-DO Rev 0/1xRTT/CDMA

CRMA Express is upgradeable and when WWAN radio

technology changes, you can change with it. You can upgrade

your radio to the various supported CRMA Express modules

through General Dynamics Itronix service centers, giving you

greater wireless access when you need it. After initialization

the ﬁrst time the unit is booted, refer to the radio help found on

your desktop for information about setting up and using your

radio.

NOTE All WWAN radios are capable of backward

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

compatibility to support slower technologies when necessary

to provide the greatest possible coverage to the user.

EVDO Rev. A

EVDO Revision A (1x Evolution-Data Optimized) is a wireless

radio broadband data standard that offers download

speeds up to 3.1 Mbps (500 to 800 Kbps typical). Revision A

integrates faster data technology and improves latency. These

enhancements allow features such a VoIP and video calling.

EV-DO/1xEV-DO/CDMA Network

EV-DO Rev 0

Evolution Data Only or Evolution Data Optimized (EV-DO) is a

3G wireless technology with average user download speeds

up to 2.4 Mbps (400-700 kbps typical). When you spend a lot

of time away from your desk, the faster speeds from EV-DO

can lead to greater productivity. It’s more than just fast email

retrieval. Get fast and secure access to your information and

applications with EV-DO.

1XRTT - Single Carrier (1x) Radio Transmission Technology

1xRTT is a pre-3G wireless technology based on the CDMA

platform. It has the capability to provide ISDN like speeds that

offer up to 144 Kbps (50-70 Kbps typical). 1xRTT is also referred

to as CDMA2000.

GPS (option)

The Global Positioning System (GPS) is a worldwide radio-

navigation system formed from a constellation of satellites and

their ground stations. GPS uses these satellites as reference

points to calculate positions accurate within ﬁve meters.

Bluetooth (option)

Bluetooth is a short range, wireless technology. Bluetooth

systems create a Wireless personal-area network (WPAN).

When Bluetooth-capable devices come within range of one

another, an electronic conversation automatically takes place

to determine whether they have data to share or whether one

needs to control the other. Then, the devices hop frequencies

in unison so they stay in touch with one another and avoid

interference with other devices.

Bluetooth devices send out weak signals of 1 milliwatt. Class II

Bluetooth devices have a range of about ten meters while Class

I devices have a range up to 100 meters. The GD8000 Bluetooth

option is a Class I device with the greater range. Even with

the low power, the walls in your house won’t stop a Bluetooth

signal. This makes the standard useful for controlling several

devices in different rooms. However, obstructions such as walls

do degrade the signal and reduce its range.

Antennas

The GD8000 has several embedded antenna options to support

wireless communications. They require no user action.

CAUTION Use only the supplied or an approved antenna(s).

Use of unauthorized antennas, modiﬁcations, or attachments

may void your warranty and could impair call quality, damage

the radio, or result in violation of FCC regulations.

The GD8000 may contain the radio transmitters listed below.

The following statements are relevant when using these radios:

This device may contain a WLAN radio transmitter, a WPAN

radio transmitter, and a WAN radio transmitter.

Each internal radio may or may not have an individual FCC

Identiﬁer label. That FCC Identiﬁer label is not applicable to this

conﬁguration. Only the external FCC ID label is applicable.

Only the antenna with which an intentional radiator is

authorized may be used with the intentional radiator.

The WAN embedded antenna location is in the upper center

edge of the display screen and is not to be modiﬁed.

The WPAN embedded antenna location is near the lower left

edge of the Keyboard and is not to be modiﬁed.

The WLAN embedded dual antennas are located internally in

the upper right and left edges of the display screen and are not

to be modiﬁed.

To comply with FCC RF exposure requirements when using the

WAN radio transmitter, a minimum separation distance of 20

cm must be maintained between the upper center edge of the

display screen antenna and all users/bystanders.

When using the WLAN transmitter, a minimum separation

distance of 20 cm must be maintained between the upper right

and left edges of the display screen and all users/bystanders.,

The WAN transmitter, WLAN transmitter and WPAN

transmitter should be turned off before carrying the Laptop PC

in order to comply with

FCC RF exposure requirements.

Since each customer’s radio conﬁguration is unique, please

read the radio help installed on your desktop and refer to the

manufacturer documentation to setup and use your radio(s).

Wireless Communication

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Wireless Communication

Improving Radio Coverage

Radio connectivity between your computer and your wireless

network may vary at different times of the day and in different

types of weather. It may also be inﬂuence by terrain, buildings

or even a crowded room. Follow these tips to improve radio

coverage between your computer and your wireless network,

depending on your location.

On the Street



Try all sides of a building to see which side provides the

strongest radio signal.



Move from under trees. Pine needles absorb radio signals more

than leaves.



Move away from overhead electrical wires.



Move away from buildings. Radio signals reﬂect off other

buildings.



Try not to hold the unit. If possible, place it in vehicle, on a

cabinet or desk.



If holding the unit, turn the unit in 90-degree increments to avoid

shielding it with your body.



Move several feet in any direction if needed for a stronger signal

since the signal is 1-2 feet across.

Inside a Building



Move toward windows.



Move above ground. Signals do not penetrate the ground so

there will probably be no signal in basements.



Try the side of the building that is least likely to have coated

windows. Reﬂective coatings on windows reﬂect radio signals.



Open blinds. Closed metal blinds can reﬂect radio signals.



Try different rooms. Dropped ceilings sometimes hide an

accumulation of electrical cable.



Avoid sources of Electromagnetic Interference (EMI).

Electromagnetic Interference (EMI) is generated by switching

circuitry closets or Un-interruptable Power Source (UPS) systems

found near computer rooms and can block the radio signal.

When to use Landline Communication

If these tips do not improve radio signal strength, switch to

landline communication. Switching to landline communication

is faster than searching for and trying to improve the radio signal.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Operating with Battery Power

The computer operates on AC or battery power. This section

contains the information you need to know to operate the

computer on battery power and describes how your computer

manages and saves power. Effective use of power management

options can greatly conserve and extend your battery life.

Be sure to read the Battery Safety and Precautions section.

Frequently Asked Battery Questions

Does it harm the Li-Ion battery pack to frequently “top off” the bat-

teries?

No. Connect the computer to an approved charging source

whenever available.

What constitutes a charge cycle?

A full recharge of the battery to 100%.

Where can general battery charge state information be obtained?

To see how much power the battery has left, move the

cursor over the Power Saver icon ( or ) or DynaPower

icon in the System Tray area of the Taskbar. The status

will show as a pop-up.

What effect will temperature have on battery life and performance?

Using the computer at very low temperatures will reduce the

battery performance and may decrease how long the battery

lasts compared to operation at moderate temperatures. The

battery performance will recover when the computer returns

to a normal range, around 20°C (68°F). However, storing Li-Ion

batteries at low temperatures reduces Li-Ion aging effects.

The Battery



Employs current battery technology standards. The computer

uses a “smart” Lithium-Ion battery to consistently provide the

long battery life best suited for mobile users



Uses a temperature sensor and memory device to gather and

store information about the battery, such as how much charge is

left and how many times it has been recharged



Warns when the battery charge level is low by sounding an

alarm beep or displaying a warning on the screen. If you receive

a battery low warning you should save your work and recharge

the battery as soon as possible.



Use the AC adapter whenever possible and consider carrying an

extra fully-charged battery as backup.

Using a battery for the ﬁrst time

The ﬁrst time you use the battery, you should:



Connect the AC adapter to the computer and a power source.



Calibrate the battery to set the gas gauge to accurately reﬂect

battery capacity. You only need to do this once with a new

battery or with a battery that’s been stored without being used

for a long time. If the computer will be stored for more than two

weeks, it is recommended you remove the battery.

Battery and Temperature

The battery is most efﬁcient at room temperature. It operates

in a wide temperature range but the battery capacity is

affected by higher or lower temperatures.

WARNING Do not expose the battery to temperatures below

0ºC (32ºF) or above 46ºC (115ºF). This may adversely affect the

battery pack.

NOTE While the battery may not provide 100% capacity

at temperature extremes, its capacity is restored when the

battery temperature return to a normal range, around 20°C

(68°F).

Replacing the Battery

CAUTION Before removing the battery pack, make sure that

you have an AC adapter connected to the computer or a media

bay battery installed; otherwise, ﬁrst turn off the computer.

To Remove the Battery:

Plug in AC power or turn off the computer.

Turn over the computer so you are looking at the bottom.

Press and hold down the battery lock in the hinge to unlock the

battery.

Slide the battery release latches toward the inside of the com-

puter to release the battery.

Gently slide the battery out of the computer.

Temperature Approximate Available Capacity

0°C (32°F) 80%

20°C (68°F) 100%

45°C (113°F) 100%

Battery Release Latches Press down Battery Lock

General Dynamics ITRONIX | 72-0137-001

GD8000 User Guide

Operating with Battery Power

To Install the Battery:

Turn the computer over so you are looking at the bottom.

Line up the battery connector.

Press gently on the battery until it clicks into place.

NOTE When using a battery pack for the ﬁrst time, it is

recommended that you calibrate the battery so the gas gauge

accurately displays battery capacity.

Battery Charging

To charge the battery, install the battery pack and plug the AC

adapter into the computer and an electrical outlet. You can use

your computer while charging the battery. However, this will

increase the charging time.

While the battery is charging, the Battery Power LED will

be active after 6-12 seconds and stay lit until the battery is fully

charged. When the battery is fully charged, the LED turns off.

If your computer is off or suspended, a fully discharged battery

takes about 4 hours to recharge. If your computer is turned on

it may take four to six (4- 6) hours to recharge the battery.

NOTE A fully charged battery can power the computer for

approximately four to ﬁve (4-5) hours, depending on usage

patterns. If your computer also has the optional Media Bay

battery, it will power the computer for an additional two to

three (2-3) hours.

When to Replace the Battery

Over time, the battery’s capacity gradually decreases. We

recommend that you replace your battery if it no longer

provides 70% of its original rated capacity.

WARNING Only use approved batteries when replacing the

battery.

Heat Considerations

The computer’s processor has been specially designed to

consume as little power as possible. However, working in a

hot environment, or working for long periods may raise the

temperature. Your computer takes the following steps to lower

temperature:



The cooling fan turns on. You may hear the fan and feel air coming

from a vent on the left side of the computer when this happens.



If the temperature continues to rise, processor activity is

reduced. You may notice a slight loss of performance if this

happens.



To prevent damage, if the computer gets too hot, the processor

stops and the computer shuts down.

Battery Calibration

Over time, as the battery is repeatedly drained and recharged,

battery runtime may decrease. Calibrate the battery the

ﬁrst time you use it and then periodically for maximum

performance. The calibration process empties and charges the

battery. This allows the Windows battery gauge to accurately

monitor battery status.

Battery calibration will take from 6 to 12 hours, depending on

how much power the battery already contains. The unit will

not suspend while calibration is running. It is okay to use your

computer during battery calibration.

CAUTIONS



Do not disconnect AC power while battery calibration is running.



Do not remove the battery while battery calibration is running.

When to calibrate the battery:



The ﬁrst time you use it



After it has been in storage



If the gas gauge has become inaccurate



Every three months for optimum performance

Windows XP Battery Calibration

Select Start, All Programs, and Mobile Computer Tools.

Select Battery Calibration.

Charging Discharging

System On 3-6 hours depending on

temperature and processes

running

3.5 hours

System Off 3 hours -

Suspend

to RAM

72 hours

Suspend

to Disk

7 days

General Dynamics ITRONIX | 72-0137-001

GD8000 User Guide

Operating with Battery Power

Windows Vista Battery Calibration

Right click on the DynaPower icon in the Taskbar.

Select DynaPower Battery Calibration from the menu on the

left side of the screen. The Calibration window will pop up

asking if you’d like to start the calibration process.

NOTE The battery calibration process may take up to 8 hours

to complete.

Select Start to begin calibrating or Cancel to Exit.

About Battery Calibration

Battery calibration may take up to 12 hours to complete. After

starting calibration, the application requires no further input

from the user. During calibration it goes through three steps:

Charge - the battery is fully charged to 100 %.

Discharge and calibrate - the battery is discharged to zero, then

calibrated but not charged. You may stop the process after this

point and let the battery charge outside of the battery calibration

application.

Charge - if battery calibration continues running, the battery will

fully charge to 100%.

BIOS Level Battery Calibration

You can also calibrate the battery from within the BIOS Setup

Utility by following these steps:

Plug in the AC adapter.

Restart the computer. When the startup screen appears, just

prior to the Windows logo screen, press the DEL key to enter the

BIOS Setup Utility.

At the “Choose the setup function” screen, use your arrow

keys to select Battery Calibration and press ENTER.

NOTE Make sure the AC adapter and battery are present.

Choose Primary or Secondary battery and press ENTER.

Monitoring Battery Power

Low Battery Alarms

CAUTION When battery power is low, the alarm beeps or

displays a warning on your screen. Take immediate action,

such as saving ﬁles or connecting to the AC adapter or data

may be lost.

When the computer alerts you that the battery is low,

immediately do one of the following:



Connect the AC power adapter.



Save your work and then select Start, Shut Down.



Turn off the computer and replace the discharged battery with a

charged battery (see Battery Charging).

NOTE Do not restart the computer until you have connected

to an AC adapter or replaced the discharged battery with a

charged battery.

Refer to Battery Tips for more information about how you

can conserve battery power. Refer to Managing Power for

information about how you can setup your computer to

effectively manage power for your unique use patterns.

Managing Power

Your computer has power management capability so you can

reduce the amount of energy used, especially during periods

of inactivity. Effective use of power management options

can greatly conserve and extend your battery life. The power

management unit monitors system activity, such as hard drive,

keyboard, mouse, or any devices attached to a port. If it does

not detect activity for a period of time, the computer stops

some or all of these devices to conserve energy.

Your computer employs a power management scheme that

supports ACPI (Advanced Conﬁguration and Power Interface),

allowing for maximum power conservation and maximum

performance at the same time. Windows handles all power-

saving chores for your computer.

For more information search for Power Options in Microsoft®

Help and Support.

Low-Power States

Your computer can enter three different low-power states to

conserve power: Standby/Sleep, Hibernate and Power Off.

These states can be entered manually or after a period of

inactivity. From the Power Saver or DynaPower utilities, you

can conﬁgure the Power Button, Sleep Button (FN+F3) and Lid

Switch to initiate any of the low-power states.

Standby/Sleep

Most system devices are powered off, but the contents of

system memory are retained. Standby/Sleep is sometimes

Select Battery Calibration

General Dynamics ITRONIX | 72-0137-001

GD8000 User Guide

Operating with Battery Power

referred to as Suspend to RAM. When the computer returns

from Standby mode, the desktop appears with the same ﬁles

and programs open as when the computer was suspended.

Resume time is very quick.

For Windows Vista Select Start, Turn off computer, Stand by

to enter Standby/Sleep mode.

For Windows XP: Select Start, Shut Down, Stand by to enter

Standby/Sleep mode.

Hibernate

Hibernate, or Suspend to Disk, is similar to Standby except

the current state of the computer is copied to the hard disk in

a special ﬁle. Then, all devices in the computer are turned off.

When the computer returns from hibernation, the desktop

appears with the same ﬁles and programs open as when the

computer was suspended. Hibernation saves more power than

Standby, but takes slightly longer to resume.

For Windows XP: On the System tray area of the Taskbar,

right click the Power Saver icon , then select Conﬁgure Power

Settings and make your desired changes.

For Windows Vista: On the System tray area of the Taskbar,

right click the DynaPower icon, then select DynaPower Grid

and make your desired changes.

Power Off

All applications are closed and the system shuts down. To

power off the computer select Start, Shut Down, Shut down.

Then click OK.

Battery Tips

Tip 1. Avoid excessive heat and cold



Your battery will last longer during the day if it is used, charged

and stored between 50°F and 86°F (10°C and 30°C).



Charge the battery nightly where the temperature will remain

around 68°F (20°C). Your battery may not last as long through

the day if you charge it at higher or lower temperatures.



Allow unrestricted airﬂow while the computer is connected

to external power. Make sure that the fan inlet and outlet are

unobstructed.



Avoid exposure to extreme temperatures for long periods as this

can shorten battery charge life or damage the battery.

How your battery behaves in warm conditions



To prevent possible battery damage, the system may not allow a

charge if the battery temperature is above 122°F (50°C), such as

in a closed, unattended vehicle during the summer. In this case,

the Battery LED may indicate the computer has stopped

charging your battery; however, your battery may not be fully

charged.



If possible, turn off or suspend your computer while the battery

is charging in a warm environment to avoid over-heating.



In warmer temperatures, your battery may take much longer to

fully charge.

How your battery behaves in cold conditions



When using a battery in cold conditions, the battery capacity

may drain signiﬁcantly faster than normal.



To prevent possible battery damage, the system will not allow

a charge if the battery temperature is below 41°F (5°C), such as

in a closed, unattended vehicle during the winter. In this case,

the Battery LED may indicate the computer has stopped

charging your battery; however, your battery may not be fully

charged



In cooler temperatures, your battery can take much longer to

fully charge.

Tip 2. Prevent wasted power



Manually turn off or suspend your computer whenever you are

not using it.



Reduce the screen brightness. Decrease brightness by pushing

FN + F6. Increase it by pushing FN + F7.



Enable the display’s automatic dimming feature.



Use the AC adapter or vehicle adapter whenever possible.



Use the Power Saver utility (Windows XP) to help save power

or the DynaPower utility (Windows Vista).



When running on battery power, make sure your system

suspends automatically after a few minutes of inactivity. PC

Cards, radios, custom applications, or modiﬁed system settings

may affect this.



Remove PC Cards and unplug peripherals when you are not

using them. They may draw power from the system even when

not in use.



Avoid operating the fax/modem, or audio and video applications

when using battery power. Operating a fax/modem, video, or

audio equipment increases the computer’s power requirements



Don’t use screen savers as they draw excessive current,

especially “3D” screen savers.



Turn off the Wireless LAN when not using it. Turning on the

Wireless LAN increases the computer’s power requirements.



Avoid or minimize using applications that keep the CPU busy

a large percentage of the time. The following will help you

determine if your system is running such applications:

Identifying power wasting programs

To determine if applications or processes are keeping the CPU

busy:

Start the Task Manager utility. To open Windows Task

Manager, right-click an empty space on the taskbar, and then

click Task Manager.

General Dynamics ITRONIX | 72-0137-001

GD8000 User Guide

Operating with Battery Power

Select the Performance tab to view running applications, and

the Process tab to view running processes.

Watch the CPU Usage. It is okay if the processor usage is

occasionally 100 percent, but if it is 100 percent most of the time,

this may indicate a problem.

What to do if applications are keeping the CPU busy



If possible, close applications that keep the CPU busy when you

are not using them.



Turn off or suspend your computer whenever you are not using

it. This will help to conserve power.

Tip 3. Calibrate your battery

Over time the accuracy of the Windows battery gas gauge

may be affected by repeated charging and discharging of the

battery. Calibrating the battery every 3 or 4 months helps to

keep the gas gauge accurate. Refer to Battery Calibration for

more information.

Tip 4. Get a good charge



Your computer will charge more quickly if it is turned off or

suspended.



In warmer or cooler temperatures the battery can take much

longer to fully charge.



If your battery is charged in a cold (less than 41°F/5°C) or very

warm (greater than 122°F/50°C) environment, it is possible that

the Battery LED will indicate that the charge has stopped;

however, this does not necessarily mean that your battery is fully

charged.

Tip 5. Prevent data loss

Follow these guidelines to prevent data loss when removing

your battery or storing your computer:



You will lose data if you remove the battery while the computer

is operating or suspended and AC power is disconnected. To

prevent this, shutdown your computer or put it into hibernate

(suspend-to-disk) mode before removing your battery



If you plan to store your computer for more than a few days,

shutdown your computer or put it into hibernate mode. Remove

the battery before storing the computer.

Tip 6. Clean terminals

Dirty terminals can be a cause of charging problems. Clean

battery terminals with a cotton swab dipped in isopropyl

alcohol. Make sure that the alcohol has evaporated before

reinstalling the battery.

Tip 7. Storing batteries

Stored Li-Ion battery packs gradually deteriorate, particularly if

they are not stored in ideal conditions, and their life expectancy

decreases. When storing Li-Ion battery packs for extended

periods, consider these recommendations:



When storing batteries for extended periods store them between

3°C to 7°C (38°F to 45°F) to slow self-discharge and battery aging.

If you store batteries at normal ambient temperatures, use the

following charging policy to maintain battery pack condition:

Charge installed batteries every 21 days to maintain their charge

capacity

Charge uninstalled batteries every 6 months.



Unused or stored batteries can lose power over time. When you

install a battery that has not been used recently, connect external

power to the computer and fully charge your battery



Fully charged Li-Ion batteries deteriorate faster than partly

discharged ones. For ideal storage, charge the battery to 100%

and then discharge them to 50% charge before storing.



Do not allow stored Li-Ion batteries to discharge completely, as

this may permanently damage them. Stored batteries should be

recharged to 50% capacity every six months

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Customizing Your BIOS

When you turn your computer on, the system reads the BIOS

Settings to test and initialize components and make sure everything

runs properly when the system is operating. You can use the Setup

Utility to change your computer’s startup conﬁguration. For example,

you can change your system’s security routine.

The GD8000 is conﬁgured with a set of default values. The

default values may not be appropriate for your work environ-

ment. For example, you can set a boot password to protect

your system when booting.

CAUTION It is recommended that you use the default set-

tings. If you set incorrect system option settings, the system

may not run properly.

In this section the default ﬁeld values are shown in bold.

Starting the Setup Utility

You can only start the Setup Utility shortly after the computer

has been turned on or rebooted. To execute a controlled

reboot, select Start, Shut Down, Restart. Shortly after the

computer restarts, the following prompt appears at the bottom

of the screen:

“Press F10 for HDD Recovery. Press F11 to display Boot Menu.

Press DEL to enter Setup. Press TAB to show POST informa-

tion”

Press the DEL key when you see this prompt. The system will

start the Setup Utility. Select “CMOS Setup Menu” and press

ENTER.

Navigation and Help

The Setup Utility has ﬁve menu options in the Menu Bar at the

top of the window. Press the left or right arrow keys to cycle

through these menu screens:

MAIN: Displays basic system information and allows you to

set the date and time

AdvANCEd: Use to set the advanced features

BOOT: Use to select the sequence of boot devices that are

searched to load an operating system

SECURITy: Use to set user and supervisor passwords

ExIT: Use to exit the current Setup session

The Field Help Window is on the right side of each menu. It

displays the help text for the currently selected ﬁeld. This text

updates as you move the cursor from ﬁeld to ﬁeld.

The General Help Window describes the legend keys. You can

display it by pressing F1 on any menu.

Menu Bar Field Help Window

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Customizing Your BIOS

The Main Menu

You can change the system date and time on the main menu, and view processor and memory information.

Field Setting Description

AMIBIOS Version N/A Displays the AMIBIOS version detected during boot up. This is a display only ﬁeld.

Motherboard NA Displays the motherboard version detected during boot up. This is a display only ﬁeld.

Processor N/A Displays the processor type and speed detected during boot up. This is a display only

ﬁeld.

System Memory N/A Displays amount of memory detected during boot up. This is a display only ﬁeld.

System Time HH:MM:SS Use this ﬁeld to set the time. The time is displayed in 24 hour format. The value set takes

effect immediately.

NOTE Once you make a change, you must press ENTER to continue.

System Date MM/DD/YYYY Use this ﬁeld to set the date. The date can be set from January 1, 1980 to December 31,

2099. The value set takes effect immediately.

NOTE Once you make a change, you must press ENTER to continue.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

GD8000 User Guide

Customizing Your BIOS

General Dynamics Itronix | 72-0137-001

Field Setting Description

Trusted Computing sub-menu Conﬁgure settings related to Trusted Computing Security

SuperIO Conﬁguration sub-menu Conﬁgure SuperIO Chipset

Fan Learning Function sub-menu Fan calibration (learning) will take about two (2) minutes to ﬁnish.

Stealth Mode Conﬁguration sub-menu Conﬁguring the stealth mode feature enables you to turn off sound

and light in environments where sound and light could be dangerous or

disruptive

Extended Conﬁguration sub-menu Other special function settings including low battery beep, radio wakeup, etc.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

Trusted Computing

Trusted Platform Module (TPM) is a secure micro-controller with added cryptographic functions.

Field Setting Description

TCG/TPM Support NO

Yes

Enables Trusted Platform Module (TPM) support. When this item is set to

Yes new “Execute TPM Command” and “Clearing the TPM” items appear

on the BIOS Menu.

Execute TPM Command dON’T ChANGE

Disabled

Enabled

Enables or Disables the TPM module. TPM must be enabled before TPM

software installation in Windows will start.

Clearing the TPM Press Enter Clearing the TPM is the process of returning the TPM to factory defaults. It

is possible the platform owner will change when in the default state so be

sure this is what you wish to do before clearing the TPM.

TPM Enable/Disable Status Greyed out This ﬁeld shows the current status of the TPM module and is not

accessible to the user.

TPM Owner Status Greyed out This ﬁeld shows the current ownership status of the TPM module and is

not accessible to the user.

The Advanced Menu

GD8000 User Guide

Customizing Your BIOS

General Dynamics Itronix | 72-0137-001

Field Setting Description

Serial Port1 Address Disabled

3F8/IRQ4

3E8/IRQ4

2E8/IRQ3

Allows the BIOS to select Serial Port1 Base Addresses.

Serial Port2 Address Disabled

2F8/IRQ3

3E8/IRQ4

2E8/IRQ3

Allows the BIOS to select Serial Port2 Base Addresses.

Serial Port2 Mode NORMAL

IrDA

ASK IR

Allows the BIOS to select the mode for Serial Port2.

Serial Port3 Address Disabled

3F8

2F8

3E8

2E8

Allows the BIOS to select Serial Port3 Base Addresses (GPS)

Serial Port3 IRQ IRQ4

IRQ5

IRQ10

IRQ11

Allows the BIOS to select Serial Port3 IRQ.

Serial Port4 Address Disabled

3F8

2F8

3E8

2E8

Allows the BIOS to select Serial Port4 Addresses (Touch Panel).

Serial Port4 IRQ IRQ3

IRQ6

IRQ10

IRQ11

Allows the BIOS to select Serial Port4 IRQ.

Super I/O Conﬁguration

*BOLd is default setting

GD8000 User Guide

Customizing Your BIOS

General Dynamics Itronix | 72-0137-001

Field Setting Description

Start Fan Learning OK

Cancel

If FAN PWM shows DFLT the fan learning process has not been previously

performed. To begin the learning process press ENTER. It will take about 120

seconds to ﬁnish. The keyboard will not work during fan learning.

NOTE Fan learning is not required for fan function. It is a calibration process to

optimize fan speed control.

Elapsed Time in

Seconds

N/A Displays the amount of time fan learning has been running in seconds.

Current Learning

Stage

N/A Displays the current fan learning stage.

View Fan Learning

Result

see screen Lists information details for each step of fan learning. Use the up and down

arrow keys to scroll through the fan learning result.

Stealth Mode Conﬁguration

Stealth mode allows you to use the computer in an environment

where sound and light could be dangerous or disruptive. If stealth

mode is disabled, the LEDs, fan, system beeps, audio, and display

brightness operate normally.

NOTE An off setting indicates stealth mode is in effect for that

option. For example, if stealth mode is enabled and the LED option

is set to “off”, the LEDs will NOT illuminate to indicate activity.

Fan Learning Function

GD8000 User Guide

Customizing Your BIOS

General Dynamics Itronix | 72-0137-001

Field Setting Desription

Stealth Mode dISABLEd

Enabled

Enable or disable stealth mode. If disabled, the computer functions normally and the

options listed below are not accessible.

LED Off

Off: LEDs are disabled

On: LEDs function normally

Fan Off

The fan is disabled. Heat management is then controlled solely through throttling.

The fan functions normally

Audio Off

Off: Volume is set to 0 across suspend/resume and boot. Use the existing audio function

keys to adjust volume.

On: Audio is preserved across suspend/resume and boot. The default volume level is set

to mid-range.

System Beeps Off

Off: Beeps are disabled during the boot up or resume process

On: Beeps are heard during POST

Display Brightness Off

Off: Brightness is set to 0 across suspend, resume and boot. FN+F7 increases display

brightness gradually. FN+F6 decreases brightness gradually.

On: Display brightness is preserved across suspend/resume and boot. It is restored to

default when the brightness level is set at 0. The default level is mid-range.

Radio Off

Off: All wireless devices are set to off during a suspend/resume or boot. The Radio ON/

OFF Switch can be used to manually turn the radios on or off.

On: The radio on/off switch functions normally and radio device power states are held

though suspend/resume and boot.

Extended Conﬁguration

Field Setting Description

Core Multi-Processing Disabled

ENABLEd

When enabled the CPU cores function and process data independently for superior

performance. When disabled one of the CPU cores is disabled.

Virtualization Technology dISABLEd

Enabled

When enabled, a virtual machine monitor (VMM) can leverage the computer’s hard-

ware resources for multiple virtual machines (VM).

Battery Low Warning

Beep

Disabled

ENABLEd

The system will sound 3 beeps every 10 seconds when battery capacity drops below

7%.

Secure HDD Support dISABLEd

Enabled

If secure HDD is enabled the system will disable standby mode (S3) and will maintain

HDD power when the system is restarted.

Dock USB Port USB 2.0

USB 1.1

Set this to USB 1.1 if you are using a non-standard dock.

Bluetooth Wakeup dISABLEd

Enabled

If enabled, the Bluetooth radio will wake up the system.

GD8000 User Guide

Customizing Your BIOS

General Dynamics Itronix | 72-0137-001

Field Setting Description

LID Open Wakeup dISABLEd

Enabled

If enabled, opening the display lid will wake up the system.

LCD ON By Power Button dISABLEd

Enabled

If enabled, the power button will turn on the LCD if it is off.

Auto DIM dISABLEd

Enabled

Use this option to conserve battery life. When enabled, the display will dim automati-

cally when AC power is removed.

VGA Share Memory Size 32MB

64MB

128MB

Select the amount of system memory that will be used by the internal graphics

device.

Dynamic Video Memory 128MB

256MB

Maximum

DVMT

Select the maximum allocated system memory size for DVMT 5.0

Disk Conﬁgurations IDE

AChI

If set to IDE, the disk conﬁguration is IDE drive compatible. If set to AHCI, the disk

conﬁguration supports SATA drive advanced mode.

Resume on AC Power

Insertion

dISABLEd

Enabled

When enabled, the system wakes from standby, hibernate or off when AC power is

attached.

When disabled, the system does not wakeup when AC power is attached.

Boot Menu Disabled

ENABLEd

If enabled, the F11 hot key enters the boot menu. If disabled, the F11 hot key is deac-

tivated.

Radio Conﬁguration submenu Use the submenu to set whether individual radio devices are powered during a sys-

tem reboot.

GPS Disabled

ENABLEd

Turn the GPS radio on/off during a system reboot.

OSPM Performance

Counter

Sets which timer is used by the operating system power management:

1 - the ACPI power management timer.

0 - either the ACPI Management timer or the internal processor clock.

General Dynamics Itronix | 72-0137-001

GD8000 User GuideGD8000 User Guide

Customizing Your BIOS

Radio Conﬁguration sub-menu

Field Setting Description

Bluetooth Disabled

ENABLEd

Turn the Bluetooth radio on/off during a system reboot.

Wireless LAN Disabled

ENABLEd

Turn the WLAN port on the Mini PCI WLAN or MiniCard WLAN on/off during a sys-

tem reboot.

CRMA Express Disabled

ENABLEd

Turn the CRMA Express radio on/off during a system reboot.

The Boot Menu

Use these ﬁelds to set the devices from which the system should boot, in order

of priority, depending on your conﬁguration. The boot device ﬁelds are dynamic

and change depending on the devices installed on your GD8000 during that boot

sequence. For example, if you have a DVD/CDRW Combo drive or a USB ﬂoppy drive

installed, they appear as options in the boot device ﬁelds. If you only have a hard disk

drive, it will be the only option that displays.

When you select a device, it is disabled in the other boot device ﬁelds.

Field Setting Description

1st Boot Device hdd:P0-hITAChI hTS

CD/DVD:P1-Optiarc

Disabled

Select the device the computer should boot from ﬁrst.

A device enclosed in parenthesis has been disabled in the correspond-

ing type menu

2nd Boot Device HDD:P0-Hitachi HTS

Cd/dvd:P1-OPTIARC

Disabled

NOTE Only devices installed during boot up will show as boot device

options.

Network Boot (PXE) dISABLEd

Enabled

If enabled, booting from the network is possible.

Quiet Boot Disabled

ENABLEd

Enabled: displays OEM logo instead of POST messages

Disabled: displays normal POST messages

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

General Dynamics Itronix | 72-0137-001

GD8000 User GuideGD8000 User GuideGD8000 User Guide

Customizing Your BIOS

The Security Menu

Field Setting Description

Change Supervisor

Password

Enter New Password Install or Change the Supervisor password. This ﬁeld must be set before a

user level password can be set. You will be prompted to set and then verify a

new password. Type in six or fewer keystrokes. If you make an error, press

ESC to start over.

Change User Password Enter New Password Install or Change the User password.

Clear User Password Clear User Password?

Cancel

Immediately clears the User password. This option is only available when a

user password has been set.

Password Check Setup

Always

This option is only available when a password has been set.

Setup: requires a password when entering the setup utility.

Always: requires a password during boot and when entering the setup utility.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

The Exit Menu

You use the exit menu to leave the BIOS Setup Utility.

Field Setting Description

Save Changes and Exit OK

Cancel

Exit system setup after saving the changes. The F10 key can be used for

this operation.

Discard Changes and Exit OK

Cancel

Exit system setup without saving any changes. The ESC key can be

used for this operation.

Discard Changes OK

Cancel

Discards changes done so far to any of the setup questions. The F7 key

can be used for this operation.

Load Optimal Defaults OK

Cancel

Load Optimal Default values for all the setup questions. The F9 key can

be used for this operation.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide Optional Equipment and Accessories

The GD8000 computer has several equipment and accessory

options to further enhance your mobile computing experience

from an optional shoulder strap to docking solutions. Click here

for a current list of optional peripherals and accessories.

CAUTION Only purchase accessories that are approved for

use with your computer. Some accessories are proprietary

items and can be obtained through your system vendor. If you

use items that are not approved for use with this computer, you

may cause your computer to malfunction, or to emit or receive

electromagnetic radiation in excess of regulations. For non-

proprietary accessories such as PC Cards or printers, ensure

that the accessory functions properly with your computer

before making the purchase. Your system vendor may be able

to recommend reliable brands and models.

Surge Protection

A large number of computer and high technology equipment

damage is directly related to AC power and telephone line

problems. These problems can include surges, spikes, noise,

interference, and weather-related issue that may cause

glitches, hang-ups, crashes, performance slow downs, and

computer down time. It is recommended that you use a

quality surge protector with your computer and any attached

peripherals.

Vehicle Adapter

The vehicle adapter is an optional device that supplies power

from the vehicle battery to operate the computer and charge

the battery installed in the unit. It typically connects to the

vehicle battery using the cigarette lighter socket.

CAUTION The vehicle adapter is only designed for

temporary use. Use the optional vehicle dock to power

and secure the GD8000 for frequent or long term vehicle

installations.

To prevent possible damage to the battery, the system will

not allow the battery to charge at extreme temperatures. Be

aware of the following charging characteristics, especially if the

computer is left unattended in a closed vehicle.

Temperature Charging Activity

<5°C (<41°F) Battery will not charge

>50°C (<122°F) Battery will not charge

To connect the vehicle adapter

Insert the vehicle adapter power cord into the power port on the

computer.

Insert the cigarette lighter adapter into the vehicle’s cigarette

lighter socket (12V), turning it slightly to make a good connec-

tion.

The Power LED on the adapter lights to indicate current is

reaching it. When you connect the vehicle adapter, it auto-

matically begins charging the computer’s battery. At moder-

ate temperatures, around 20°C (68ºF), the battery will be fully

charged in approximately four to ﬁve hours. However, as the

battery temperature approaches the ends of its temperature

range (5°C/41°F to 50°C/122°F), it will take longer to charge the

battery.

CAUTION Avoid exposing batteries to extremely hot or cold

temperatures for long periods. To prevent possible damage to

the battery, the GD8000 laptop does not allow the battery to

charge if the internal temperature of the battery gets too low (<

5°C or < 41°F) or too high (> 50°C or > 122°F).

Vehicle Dock

The vehicle dock is designed to safely secure the computer in

a vehicle. It includes a key lock for security. You can use the

vehicle dock to:



Charge batteries with voltage from the vehicle battery



Communicate with other devices



Automatically connect to an external antenna

CAUTIONS



Do not open the vehicle dock case. It has no user-replaceable

parts. The vehicle dock is internally protected; it resets

automatically if there is a power fault.



Do not use the vehicle dock to charge the computer battery

overnight. Turn off the vehicle dock at the end of each work day

to prevent draining the voltage in your vehicle’s battery below

starting levels.

To charge a battery installed in the computer

Place the computer onto the vehicle dock, making sure it is

securely latched.

If charging is required it begins automatically. The Battery Power

LED lights.

When the battery is fully charged, the Battery Power LED turns

off.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Optional Equipment and Accessories

CAUTIONS



Refer to Battery Tips for recommended charging temperature

ranges and other recommendations



If you charge the battery daily rely on the gas gauge reading to

determine battery capacity. The gas gauge may show that the

battery is full while still charging. This happens because the

charging process is trying to put a little more capacity into the

battery. External power can be removed at this time since the

battery is virtually full.



If your battery is new or has not been used for several weeks,

rely on the indicator light to determine when the battery is fully

charged. The gas gauge is unreliable in these cases; it may read

100%, when the actual capacity is only 10%. Recalibrate the

battery to correct this issue.

Communicating with Other Devices

Connect external devices to the ports on the back of the dock,

and then place the GD8000 onto the vehicle dock. You can

install or remove the computer from the vehicle dock without

connecting or disconnecting the cables.

External Antennas

The vehicle dock integrates WLAN and WWAN antennas

with switching capability. You can also connect an external

RF antenna to the dock using the SMA RF connector on the

back of the vehicle dock. FCC regulations require that users of

vehicle-mounted antennas must use only antennas authorized

for use with the GD8000 in order to meet FCC RF exposure

limits. Please contact your organizations’s help desk for a list

of approved vehicle-mounted antennas. Before mounting an

external antenna, refer to the installation instructions provided

with the antenna.

Vehicle-mounted Antenna Placement

WARNING Improper installation and/or operating

conﬁgurations of permanent and magnetic vehicle-mounted

antennas may cause FCC RF exposure limits to be exceeded.

Vehicle-mounted antennas must be placed at least 20 cm from

operators and bystanders and at least 92cm (36 inches) from

any existing roof mounted antennas.

Measure and identify an area 20 cm (8 inches) in from the edges

of the vehicle roof.

Place the antenna within that area.

To maximize RF performance, position the antenna in the

center of the vehicle roof.

CAUTION Do not place any metal objects on top of the

dock that might make contact with the metal pins of the

contact connector. Doing so may cause an electrical short and

subsequent damage to the dock.

Memory Upgrade

Adding memory allows the computer to operate faster, handle

more tasks simultaneously, and work more smoothly with large

ﬁles. Users who increase memory demands - by adding additional

programs, for example - may notice a slowdown in operating

speed, and wish to increase memory. The GD8000 comes

with a user accessible memory sockets for memory upgrades.

Please consult your dealer if you need to add more memory.

CAUTIONS



First read and follow the guidelines in the Safety section.



Only use memory cards approved for use in your computer.

Failure to do so may void your warranty.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Maintenance and Storage

The GD8000 is rugged and weather resistant and you can

use it under a wide range of environmental conditions.

However, to ensure long use and continued high

performance, follow these tips and precautions:

Taking Care of Your Computer



Follow all warnings and instructions noted in this documentation

and in the operating system documentation.



Read the Safety and Battery Tips sections.



Unplug the computer from the power outlet before cleaning.

Use a damp cloth for cleaning. Aerosols, solvents, or strong

detergents are not recommended cleaning solutions and

may void your warranty. For system decontamination

recommendations please contact your support representative.



Do not block or cover slots and openings in the unit case. These

are for ventilation purposes and covering them could cause the

system to overheat.



Do not use or store the computer near a source of heat or dust.



If you use the computer with an extension cord, ensure that the

total ampere ratings of all the devices sharing the extension do

not exceed the rating of the extension cord or the rating of the

wall outlet.



Never insert objects into the computer through any of the slots

or openings. Dangerous voltages are present, which could cause

electric shock or ﬁre, or damage sensitive components.



For best results, use a power strip with a built-in surge protector.

Do not use inferior extension cords as this may result in damage

to your computer.



Set the computer on a ﬂat, stable surface. To prevent damage to

the computer’s hard disk drive, avoid using the computer where

it will be exposed to extreme vibration.



Do not operate the computer to temperatures below -23ºC

(-10ºF) or above 60ºC (140ºF). Operate the computer within the

recommended temperature ranges of -23°C to +60°C (-10°F to

+140°F).



Do not subject the computer to magnetic ﬁelds.



Do not intentionally spill liquid on the computer.



Do not subject the computer to extreme shock and vibration.



Do not place objects on top of the computer.



Do not place the computer on uneven surfaces.



Periodically inspect the computer and accessories for wear,

damage, loose or missing parts. Identifying and correcting

potential problems early can help reduce the need to return the

unit for service.



Periodically inspect the ports and connectors for damage and

contamination.



Turn off the computer when you are not using it.



Charge the batteries daily or whenever their capacity is low.

Taking care of your AC adapter



Do not connect the adapter to any other device.



Do not step on the power cord or place anything on top of it.

Carefully route the power cord and any cables away from all

potential trafﬁc.



When unplugging the power cord, do not pull on the cord itself

but pull on the plug.



The total ampere ratings of the equipment plugged in should

not exceed the ampere rating of the cord if you are using an

extension cord. Also, the total current rating of all equipment

plugged into a single wall outlet should not exceed the fuse

rating.

Servicing Your Computer

Contact your dealer or see your service technician if any of the

following occurs:



The computer has been dropped and the body has been

damaged.



Liquid has been spilled into the product.



The computer does not operate normally.

See the Service and Support section for more information.

Storing Your Computer

Save and backup ﬁles and data before storing the computer.

Remove any PC Cards, Smart Cards, or EXPRESS Cards from the

card slots.

Remove any media from the media bay.

Exit all applications.

Select Start, Shut down, OK to turn off the computer.

Remove the battery from the unit and store it in a dry place.

Store the computer within the recommended temperature

ranges of -55°C to +75°C (-67°F to +167°F).

If you use PC cards, refer to the manufacturer’s instructions you

received with the card for storage and care information.

Taking Care of Your Batteries



Read and follow all battery precautions in the Safety section.



Use only batteries of the same kind as replacements.



Turn the power off before removing or replacing batteries.



Do not tamper with the batteries.



Keep batteries away from children.



Before storing your battery, read and follow the

recommendations in the Battery Tips section.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Maintenance and Storage



Dispose of used batteries according to local regulations. Recycle

if at all possible.



Avoid exposing batteries to extremely hot or cold temperatures

for long periods. To prevent possible damage to the battery,

the GD8000 does not allow the battery to charge if the internal

temperature of the battery gets too low (< 5°C or < 41°F) or too

high (> 50°C or > 122°F).



Charge the battery nightly where the temperature will remain

around 20°C (68°F).



Recalibrate your battery when your battery performance

degrades.

Taking Care of Your Hard Drive

The GD8000 hard drive is a removable, shock-mounted drive.

You can reduce the risk of damage to the hard drive and

increase the reliability of the hard drive and data integrity by

following the recommendations below.

For Internal Hard Drives



Do not intentionally drop the computer. The unit is designed to

withstand the day to day rigors of the mobile environment and

provide years of reliable service. The useful life of the product

can be enhanced by not intentionally abusing it



Whenever possible, suspend the unit by pressing FN+F3 before

moving it from one location to another. This unloads the read/

write heads and spins down the disk, reducing exposure to high

operating shocks.



Maintain the environmental seal of the computer by keeping all

external access doors closed and latched.



Avoid exposing the unit to extreme temperatures or moisture

when the doors are open



Periodically backup or archive important ﬁles and data.

For External PC Cards

Each PC Card manufacturer provides speciﬁc guidelines for

the care and handling of the product. In addition, follow these

recommendations:



When the PC Card is not inserted in a PC Card socket, store the

PC Card in a protective carrying case. This will help protect it

from inadvertent shocks.



Always use care when handling PC Cards. Do not drop, bend,

ﬂex, or crush them.



Avoid exposing PC Cards to extreme moisture, heat, or sunlight.



Keep all debris out of the connector to ensure good electrical

connections.



There are no user repairable parts in the PC Card slot. Do not

attempt to disassemble any part of the device. The warranty

will be voided if drive seals are broken or screws have been

removed.



Periodically backup or archive important ﬁles and data.



If you have problems with your PC Card, contact the

manufacturer for more information and troubleshooting

information.

Cleaning Your Computer

Cleaning the Outside Case

Disconnect external power and turn off the computer.

Remove the battery.

Add a small amount of water to a soft cloth and clean the

computer case. Do not use paper products because they can

scratch the surface.

Wipe off any excess liquid with a soft cloth.

Reinstall the battery.

CAUTION Aerosols, solvents, or strong detergents are not

recommended cleaning solutions and may void your warranty.

For system decontamination recommendations please contact

your support representative.

Cleaning the Display

Use a soft, dry cloth. In some cases, you can use a small

amount of water to remove streaks or smears. For difﬁcult

display cleaning tasks, use a 50/50 mixture of isopropyl alcohol

and water. Do not use paper products because they can

scratch the screen.

Cleaning the External Power Connector

The external power connector may sometimes be exposed

to moisture and/or contamination causing an unreliable

connection to the external power source. Clean the connector

with a cotton swab dipped in electronics grade isopropyl

alcohol.

Cleaning the RJ-11/ RJ-45 / USB Connectors

If the connector pins get dirty, clean the connector with a

cotton swab dipped in electronics grade isopropyl alcohol.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Maintenance and Storage

Data Backup

Regularly backup your data to ensure the greatest data

integrity, provide the fastest recovery options, and minimize

downtime.

After you have installed all applications and have your

computer conﬁgured as desired, create a backup of drive C:

using the Hard Disk Backup and Recovery Utility. Then use

the Windows Backup Utility frequently to backup data. It is

recommended you set the backup utility to run automatically.

Saving Important System Information

By default your computer is set up to automatically save

certain critical information, such as the registry, on a regular

basis. This information is saved as a restore point. You can also

create restore points manually by using the System Restore

Utility. Select Start, All Programs, Accessories, System Tools,

System Restore. Then, follow the instructions in the Wizard.

Backing Up Files in Windows XP:

Select Start, All Programs, Accessories, System Tools, Backup.

You can schedule backups to run automatically on a regular

basis. To set this up, talk to your help desk or IT department.

Backing Up Files in Windows Vista:

Select Start, Control Panel and select Backup Your Computer

under System and Maintenance.

Backing Up Drive C:

You can make an exact copy of drive C: and save the backup

image on the Recovery Partition of your hard disk (usually drive

D:). In the future, you can restore drive C: to its previous state

if it becomes corrupted. To make a backup copy of drive C:,

use the Hard Disk Backup and Recovery Utility. Select Start,

All Programs, Mobile Computer Tools, Hard Disk Backup and

Recovery. You will be prompted for additional information.

NOTE The Hard Disk Backup and Recovery Utility is only

available on computers conﬁgured with a recovery partition.

Data Recovery

There are several methods to restore your data. Start with the

least destructive and fastest recovery options, listed below in

the order in which you should restore data.

Restore system information.

Restore a backup using the Windows Backup Utility.

Restore the entire contents of drive C:

Option 1: Restoring System Information

Windows XP:

If you have problems with your system, restore system infor-

mation to an earlier state, or Restore Point. Select Start, All

Programs, Accessories, System Tools, System Restore. Then,

follow the instructions in the Wizard.

Windows Vista:

Select Start, Control Panel, System and Maintenance, Backup

and Restore Center. On the Tasks menu on the left-hand side

of the screen select Repair Windows using System Restore.

Option 2 : Restoring a Backup

Windows XP:

Select Start, All Programs, Accessories, System Tools, Backup.

Then follow the instructions in the wizard to restore ﬁles and

settings.

Windows Vista:

Select Start, Control Panel, System and Maintenance. Then

select Backup Your Computer. This opens the Backup and

Restore Center where you can restore ﬁles and folders.

Option 3: Restoring Drive C:

If you used the Hard Disk Backup and Recovery Utility to create

a backup disk image you can use it to restore drive C:.

CAUTION Restoring a previously saved disk image

overwrites the entire contents of drive C:. Before running this

process, save your data to another location, such as a USB

ﬂash drive.

NOTE The Hard Disk Backup and Recovery Utility is only

available on computers conﬁgured with a recovery partition.

If it is not available, you will either need to contact your

company’s help desk about obtaining a recovery CD or return

your unit for service.

Windows XP:

Select Start, All Programs, Mobile Computer Tools, Hard Disk

Backup and Recovery and follow the prompts.

Windows Vista:

Select Start, Control Panel, System and Maintenance. Then

select Backup Your Computer. This will bring you to the

Backup and Restore Center where you can restore ﬁles and

folders. To restore your entire computer select Windows

Complete PC Backup and Restore Image. Click on Restore

Computer to begin the process.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Service and Support

We are committed to providing you world class support

services that ensure the lowest total cost of ownership

for your hardware investment. The icareServices program

will help you maximize end user productivity and decrease

overall system operating cost.

Client Care Center (CCC)

The General Dynamics Itronix Client Care Center provides

world class service with a single entry point of access to meet

all your needs including:



Troubleshooting and RMA origination



Dispatch of ﬁeld support staff



Wireless carrier service activation



Hardware performance information



RMA status checks on service unit and warranty/service parts

orders



New and refurbished platform, accessory, and add-on orders



Trial unit orders and status updates



Proof of delivery status updates for service and new unit orders



International new unit and accessory, peripheral and service

parts orders



Centralized access for all invoicing and ﬁnance related issues

Most of these services are available through the icareServeNet

web based system.

Go to the Support section of our website and select ServeNet

Services Expertise

The Technical Services and Client Services Account

Management staff provide support with expertise that

spans hardware platforms, industry applications and third

party solutions. They regularly visit customers to garner

feedback and input and provide training and post-installation

support. For more information on our comprehensive service

programs or current support phone numbers and email

addresses, click here.

Product Support - Downloads

It is easy to get the software updates you need to keep your

conﬁguration current and get the most from your product.

Go to the Support section of our website and select product

downloads.

NOTE Downloads are listed by model and/or product number

(GD8000).

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

This section is designed to help you determine and ﬁx

issues you might encounter while operating the GD8000

computer. Try the following things in order:



First look through the categories in this section for a solution.



If you are having a problem with a computer application, use the

Help that comes with the application to ﬁnd a solution.



If you are having a problem with the operating system, refer to

its Help and Support, found on the Start Menu.



If you still cannot resolve your problem, contact the help desk at

your organization.

Application Troubleshooting

My application locks up, acts strangely, or produces

a General Protection Fault (GPF) error or blue screen

For Windows XP:



You may need to restart your computer. Select Start,

Shut Down, Restart. If that does not work, try pressing

CTRL+ALT+DEL and select Shut Down.



If the computer does not restart, the keyboard may be locked up.

Press and hold the POWER BUTTON for ten seconds.

CAUTION This will result in a loss of all unsaved data.



The data on the hard disk could be corrupted. Run the

SCANDISK Utility.



The operating system may be out of memory or resources.

Close some open programs to free up more memory or exit and

restart by selecting Start, Shut Down, Restart.

For Windows Vista:



Click the Start button and point your cursor past the icon and

click on the arrow. This will bring up the Shut Down/Log Off

menu. Click Restart to reboot the computer.



If the computer does not restart, the keyboard may be locked up.

Press and hold the POWER BUTTON for ten seconds.

CAUTION This will result in a loss of all unsaved data.



The data on the hard disk could be corrupted. Run the CHKDSK

Utility.



The operating system may be out of memory or resources.

Close some open programs to free up more memory or exit and

restart by selecting Start, Shut Down, Restart.

Battery Troubleshooting

The battery does not charge



To prevent possible damage to the battery, the computer does

not allow the battery to charge if the internal temperature of

the battery gets too low (< 5°C or < 41°F) or too high (> 50°C

or > 122°F). If possible, charge the battery in a location with a

moderate temperature of around 20°C (68°F).



If possible, turn off the computer while the battery is charging.



If the battery is new or has been stored for a week or more,

follow this procedure:

1. Make sure the computer is turned off.

2. Remove the battery.

3. Connect the AC adapter to the computer and an AC wall

outlet, and then turn on the computer by pressing the

POWER BUTTON.

4. Let the computer complete the boot process. Then

reinstall the battery.



Allow the system to remain idle for one hour with the AC adapter

connected to the computer.



The Battery Power LED lights when the battery starts

charging.



If the battery still fails to start charging after an hour, remove the

battery, wait several seconds, and then install it again.



If the battery does not begin charging within several minutes,

return the unit for service.

The batteries take much longer than seven hours to

charge



Under moderate temperatures, about 20°C (68ºF), the computer’s

battery takes approximately 4 to 5 hours to completely charge.

NOTE As the battery temperature approaches the ends of its

temperature range (5°C/ 41°F to 50°C/122°F), it may take longer

to charge the battery.

The batteries don’t last very long



Calibrate the battery. If your battery is new or has not been

used for several weeks, calibrating the battery accurately sets the

gas gauge.



As your battery ages, its maximum capacity naturally decreases,

and even the best maintained batteries eventually need to be

retired. Consider replacing the battery if you are not getting the

usage you need from it.



To meet ENERGY STAR® requirements, Wake-on-LAN is

enabled by default. If running on battery power this may

decrease battery run-time. To change Wake-on-LAN settings,

go to the Device Manager, Network Adapters and select the

LAN device. Open the device Properties and select Power

Management. Then disable the Wake-on-LAN setting.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

The gas gauge isn’t full after charging the battery

This may indicate that the charging process terminated

prematurely.

The gas gauge reads “full,” but the charging LED is

still lit

If you charge your battery daily, rely on the gas gauge reading

to determine battery capacity. The charging process may

continue even if the gas gauge reads full. External power can

be removed because the battery is virtually full.

My battery seems to have less and less capacity



If your battery is new, or if your are using it for the ﬁrst time, you

will need to calibrate it prior to using it.



As your battery ages, the maximum capacity that it can hold

naturally decreases, and even the best maintained batteries

eventually need to be retired. Consider replacing the battery if

you are not getting the usage you need from it.

Display / Touch Screen

The display performance is slow

The temperature may be too cold. Move the computer to a

warmer operating environment.

I can’t read the display



Adjust the brightness level using FN+F6 and FN+F7.



The automatic power-saving mode may have shut off

(suspended) the computer. Press any key to resume.



If the display brightness is unreadable after a resume or reboot

but is easily adjusted with FN+F6 and FN+F7, you may have set

Stealth mode in the Setup Utility. If you disable Stealth mode,

the display and backlight will operate normally.

The underlined, inverse, and hypertext characters

are difﬁcult to read on the screen

For Windows XP:

Change the color scheme. Select Start, Control Panel, Display

and then select the Appearance tab to make changes to the

color scheme.

For Windows Vista:

Right click on the Windows Desktop, select Personalize,

Window Color and Appearance to change the color and style

of your Windows.

I can’t see the cursor while using the DOS editor

Press FN+INS to change from insert mode to overwrite mode

and enable a block cursor. When it defaults to insert mode, the

DOS editor uses an underline cursor which is less visible than

the block cursor for overwrite mode.

I changed my display resolution, but I see no differ-

ence on the screen

For Windows XP:

Try restarting your computer for the changes to take effect.

Select Start, Shutdown, Restart.

For Windows Vista:

Try restarting your computer for the changes to take effect.

Click the Start button and point your cursor past the icon and

click on the arrow. This will bring up the Shut Down/Log Off

menu. Click Restart to reboot the computer.

Nothing happens when I try to use the stylus on my

touch screen

If you cannot select objects accurately with the stylus, you may

need to calibrate the touch screen.

The touch screen doesn’t respond after a suspend

The touch screen needs a few seconds to work after a suspend.

Wait a moment and try again.

Hard Disk

The hard disk will not spin up so the computer can’t

boot up

This occurs if the unit is exposed to extreme low temperatures.

This is not a hardware failure associated with the hard disk.

The integrated hard disk drive heater will warm the drive to a

safe operating temperature.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

Keyboard and Mouse Troubleshooting

Something unexpected happens when I press a key

You may have pressed a key combination that performs a

Windows function. Make sure you are pressing the correct

keys for the application you are running.

Incorrect characters appear on the screen when I

press certain keys

You may be in Num Lock mode. Press NUM LOCK to toggle

Num Lock mode off. NUM LOCK is on the top row of buttons

on your keyboard next to the F12 key.

I have difﬁculty double-clicking the mouse fast

enough

For Windows XP:

Select Start, Control Panel, Mouse. The Buttons tab contains

the setting for the double-click speed.

For Windows Vista:

Select Start, Control Panel, Hardware and Sound. Then select

Mouse to conﬁgure double-clicking speed and other options.

Modem Troubleshooting

The modem doesn’t work



When you ﬁrst try to use HyperTerminal or similar application,

the system responds with a message asking if you want to install

the modem. Answer “Yes” to this question and follow the

instructions on the screen to install it.



Make sure the communication settings are correct in your

application. Refer to the online help for your application.

The modem doesn’t dial a number



If you are using an external modem, make sure the cables are

attached correctly.



Make sure your communications parameters are correct in your

application. Refer to the online help for your application.

The modem dials and receives an answer but does

not establish a connection



You may have incorrect parameters selected for your application

to talk with the remote modem. Refer to the online help for your

application.



You may need to adjust your modem’s baud rate or protocol

selection.

PC Cards

I can’t remove the PC card



Press the ejector button located inside the PC card door on the

side of the computer. The button will pop out. Press the ejector

button again to eject the PC card. Slide the card out.



If the ejector button malfunctions when you press it, release the

button and then press it again.

Read Error

If a memory card that is not properly formatted is installed in

the PC Card slot, it will cause this error.

The computer locks up when I remove the PC card

Before you remove the card, select the PC card icon ( or )

on the taskbar (in the tray area near the clock in the lower right

corner) and choose “Stop [card name] card.”

Miscellaneous Troubleshooting

The computer shuts off unexpectedly



The computer has entered suspend mode. Press any key to

resume from the standby state. Press the POWER button to

resume from the hibernate state.



The battery capacity may be low. Connect external power to

charge the battery, or replace the battery with a fully charged

one.

The speaker volume is too high or too low

Refer to the audio section for instructions on adjusting volume.

The computer won’t turn on



Make sure a fully charged battery is properly installed.



Connect external power to charge the battery if it is not charged.



If you are using the AC adapter check the electrical outlet you are

using to make sure it is working properly.



If the computer does not turn on, reset the computer by holding

down the POWER button for at least ten seconds, release it, then

press the POWER button again.

The computer won’t turn off

For Windows XP:

Select Start, Shut down, Shut down.

If that does not work, press CTRL+ALT+DEL and then select

Task Manager.

If any programs are open, use your arrow keys to highlight each

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

one and select End Task. Repeat this until all programs are

closed.

Select Start, Shut down, Shut down again.

If that still does not work, press CTRL+ALT+DEL and select Shut

Down.

If that still does not work, press and hold the POWER BUTTON

for approximately ten seconds and then release it.

For Windows Vista:



Click the Start button and point your cursor past the icon and

click on the arrow. This will bring up the Shut Down/Log Off

menu. Click Restart to reboot the computer.



If that does not work, press CTRL+ALT+DEL and then select

Start Task Manager.



If any programs are open, use your arrow keys to highlight each

one and select End Task. Repeat this until all programs are

closed.



If that still does not work, press and hold the POWER BUTTON

for approximately ten seconds and then release it.

The computer enters suspend mode too quickly

For Windows XP:

When there is no activity for a period of time, the computer

turns off or enters suspend mode. To extend this time, use the

Power Management program (Start, Settings, Control Panel,

Power Management) and increase the non-activity time to

enter suspend.

For Windows Vista:

Select Start, Control Panel, Hardware and Sound. Select

Power Options. For each plan displayed, select Change Plan

Settings and modify the Put Computer to Sleep option.

The computer doesn’t automatically suspend



Exit any application that uses COM ports.



Make sure external power is not connected. Depending on

power settings, some systems will not suspend automatically

when they are connected to external power.

The system date and time are incorrect

For Windows XP:

Reset the correct date and time by choosing the Date/Time

icon from the Control Panel and making the appropriate

changes.

For Windows Vista:

Select Start, Control Panel. Then select Clock, Language and

Region. Under Date and Time, make the appropriate changes.

I receive an “out of memory” error message



Restart the computer.



Too many applications may be running at the same time. Close

applications you don’t need.



Make sure you have enough space on your hard disk (at least

15% free).

Holding down the Power button to reset the com-

puter doesn’t always work



Try resetting the computer again. If this doesn’t work, remove all

power, including the battery pack, and allow the unit to remain

idle for ten minutes. After ten minutes, connect external power

and retry.



The LEDs, backlight, and/or keyboard backlight don’t illuminate.



You may have enabled Stealth mode in the Setup Utility.

Disable Stealth mode.

The computer doesn’t make any sounds, even dur-

ing boot-up

You may have enabled Stealth mode in the Setup Utility.

Disable Stealth mode.

The fan stopped running

You may have enabled Stealth mode in the Setup Utility.

Disable Stealth mode.

Can I improve the startup speed of my programs by

cleaning up and rearranging ﬁles on the hard drive?

Using the Windows utilities to defragment your drive may

improve the startup speed of programs.
