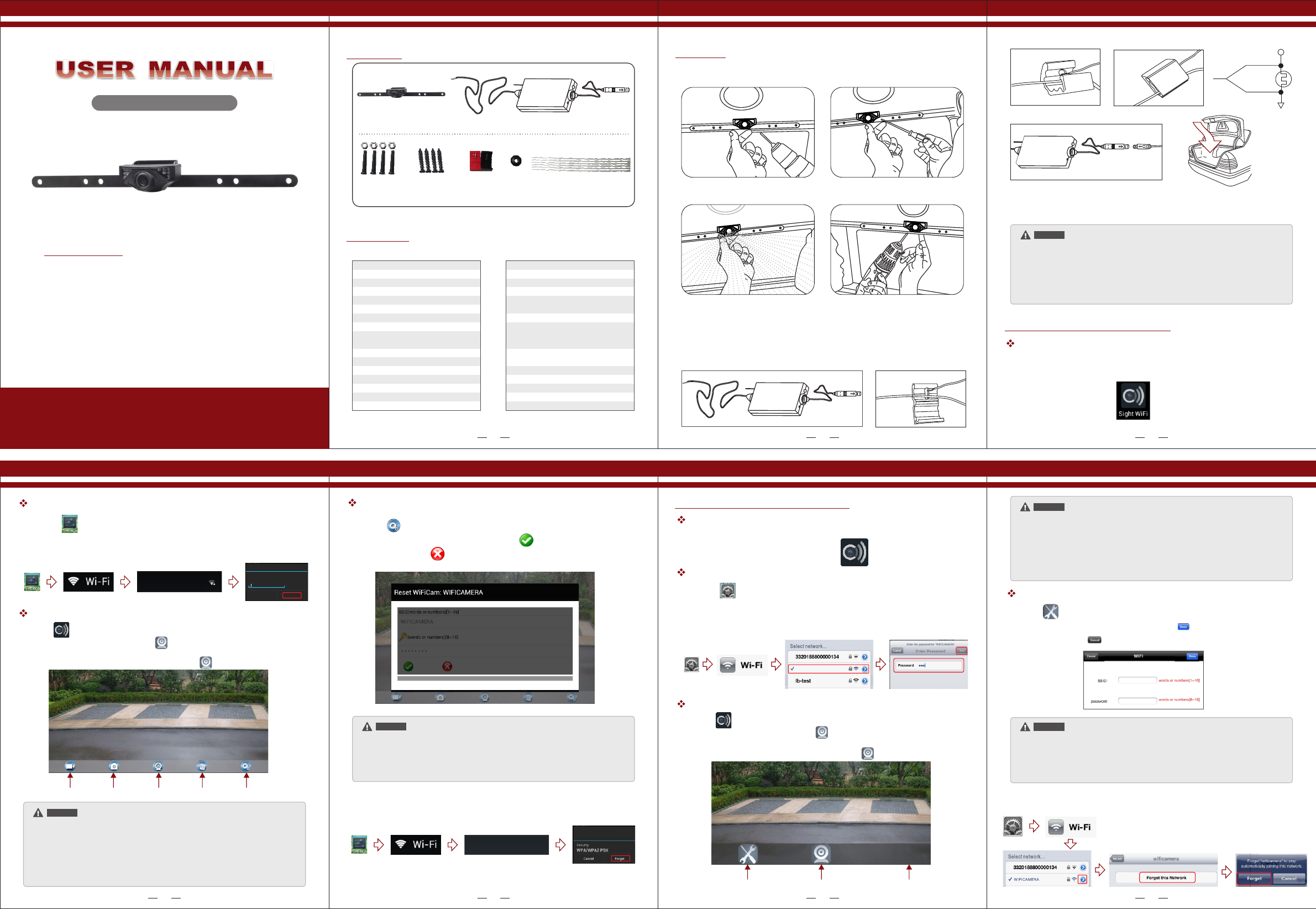

Gospell Smarthome Electronic 8912W WiFi car rear view camera User Manual 8912W manual
Shenzhen Gospell Smarthome Electronic Co., Ltd. WiFi car rear view camera 8912W manual
user manual
*
*
*
The positive and negative pole of the power cable of the emitter box are connected
to the positive and negative pole of the rear lamp of the car.
Never reverse the positive and negative pole. Otherwise the emitter box and the
camera can be damaged and cannot be used.
The antenna of the emitter box shall not be near any metal part of the car. Otherwise
the emitting distance and the image transmission effect can be influenced.
When the camera is fixed, put the lead-wire of the camera through the car trunk.
Notice
Packing List
License Plate
Nuts & Bolts
In-Line Wire
Connectors
Grommet
Camera Emitter
Cable Ties
WIFI transmitter box
Specifications
* All the specifications are subject to minor change without prior notice.
Product Features
● The device uses its WIFI module for wireless video
signal transmission.
● The client can use iOS and Android APP in the
intelligent mobile phone to view the real-time
camera video, so as to carry out real-time video
monitoring for the scenes of the rear view of the
car, and it is easy to install and use.
● The client terminal shall support Android 2.2 or
above, and iOS shall support Version 4.3 or above.
Model:8912W
Version 1.0
* The pictures are for reference only, please refer to real subjects.
Please read this user manual carefully before using this product.
Failure to understand operation procedures may result in injury.
Installation
Installati on instructi ons for the came ra:
Installati on instructi ons for the emit ter:
Operations for Android system client
1. Turn on the intelligent mobile device terminal and enter GOOGLE PLAY store.
2. Search "Sight WIFI" software, and download.
3. Install the APP software. as the following interface:
Red +
Black -
rear lamp
* User could press the RESET button of the emitter to renew the default factory
SSID and password.
* When the user changes the SSID and password, the user shall forget the network
in the "Settings" , and then reconnect the new network. Otherwise login error will
remain displayed.
Notice
The specific steps to clear network memory are as follows.
connection method to reconnect the new network.
and then follow the above WIFI
2 31
675
Wireless Protocol
Modulation Mode
Transmission Distance
With No Obstacle
Weight
Operation Voltage 12V DC
Operation Frequency 2400-2483.5MHz
IEEE 802.11b, IEEE 802.11g,
IEEE 802.n (1T1R Modes)
Operation Current 150mA(MAX)
Encryption Mode WPA2
802.11b：DSSS (CCK, DQPSK,
DBPSK)•802.11g/n：OFDM
(BPSK, QPSK, 16QAM, 64QAM)
≥10m
60±5g
Operation Temperature
Dimensions 71 X 35.5 X 12.3MM
Storage Temperature
Operation Humidity 20%~90%RH
Items GT4068
2. Click " Wi-Fi ", select your camera, and t the wifi of the intelligent mobile device terminal
of the device (Default password: 88888888). As shown below:
connec
O
-10~ C+50
O
-20~ C+60
Operations for iOS Apple system client
Installation APP software:
Settings:
WIFICAMERA
Not in rang e
* When set WIFI signal to connect the mobile phone, please close the WIFI signal
previously opened.
image display time is relate to the CPU memory, software version, working
software number of mobile phone.
* when the background is black or the image is still, please exit the APP, and check
whether the wifi connection is normal. then click again the APP icon to enter into
the software interface.
* ,
Notice
1. Click the " " icon in the main interface of the intelligent mobile device terminal.
Open the APP, and if the connection between the wifi of the tool and the intelligent
mobile device terminal is successful, the icon will be highlighted, and the images
transmitted from the wifi camera tool can be seen in the APP, as shown in the figure.
in the real-time monitoring mode, the user can press the icon to reverse the image.
Connection WiFi:
View the video:
WIFICAMERA
Secured w ith WP2
WIFICA ME RA
4
1. Turn on the intelligent mobile device terminal and enter APP Store.
2. Search "Sight WIFI" software, and download.
3. Install the APP software. as the following interface:
Installation APP software:
Connection WiFi:
1. Click the " " icon in the main interface of the intelligent mobile device terminal.
2. Click " Wi-Fi ", select your camera, and t the wifi of the intelligent mobile device terminal
of the device (Default password: 88888888). As shown below:
connec
WIFI CAMER A
View the video:
Open the APP, and if the connection between the wifi of the tool and the intelligent
mobile device terminal is successful, the icon will be highlighted, and the images
transmitted from the wifi camera tool can be seen in the APP, as shown in the figure.
in the real-time monitoring mode, the user can press the icon to reverse the image.
Settings Connecting camera
G
LOGO
Press this icon to enter into the settings menu. You can change the default factory
SSID and password of the wifi camera tool, and clicking will show whether the change
is successful, and clicking to cancel the new SSID set.
* User could press the RESET button of the emitter to renew the default factory
SSID and password.
* When the user changes the SSID and password, the user shall forget the network
in the "Settings" , and then reconnect the new network. Otherwise login error will
remain displayed.
Notice
The specific steps to clear network memory are as follows.
connection method to reconnect the new network.
and then follow the above WIFI
Settings:
Press this icon to enter into the settings menu. You can change the default factory
SSID and password of the wifi camera tool, and clicking will show whether the change
is successful, and clicking to cancel the new SSID set.
Settings Connecting
camera
* When set WIFI signal to connect the mobile phone, please close the WIFI signal
previously opened.
image display time is relate to the CPU memory, software version, working
software number of mobile phone.
* when the background is black
click again the APP icon to enter into
the software interface.
* ,
or the image is still, please exit the APP, and check
whether the wifi connection is normal. then
Notice
to the wifi of the tool. The initial SSID of the is WIFICAMERA . Then type in the device " " password
WIFICA ME RA
WP2 PSK
Pas sword
Sec ur ity
Connect Cancel
to the wifi of the tool. The initial SSID of the is WIFICAMERA . Then type in the device " " password
License Plate
Screws (Optional)
WIFI car rear view
Night Vision Range >3m
Power Supply 12V DC
Video output 0.9 .Vp-p 75Ω ~1 2
Consumption Current 150mA MAX
Image Sensor 1/4inch CMOS
Minimum illumination <5 Lux
Electronic Exposure Time 1/60s-12ns(NTSC) sec
1/50s-12.5ns(PAL) sec
Horizontal View Angle
Storage Temperature
Operation Humidity 15%~85%RH
Operation Temperature
Dimensions 370 X 55 X 35MM
Weight 140g
Items GL8912
640×480 pixels
Effective Pixels
Video Format NTSC/PAL
80O
O
-10~ C+50
O
-20~ C+60
4. After adjustment, second screw drill,
mount and tighten the screws, the camera
is installed.
3. Move the camera orientation to adjust
the display effect.
2. Use a screwdriver to the first screw is
screwed into the screw hole of the drilled.
1. In the proper position of rear license plate
drill a screw hole for mounting screw.
Video/
playback
Take a
Record
a video
FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz) band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure conditions.
The min separation distance is 20cm.
