Grand Mate TX143 Remote controller User Manual

Grand Mate Co., Ltd Remote controller

User Manual

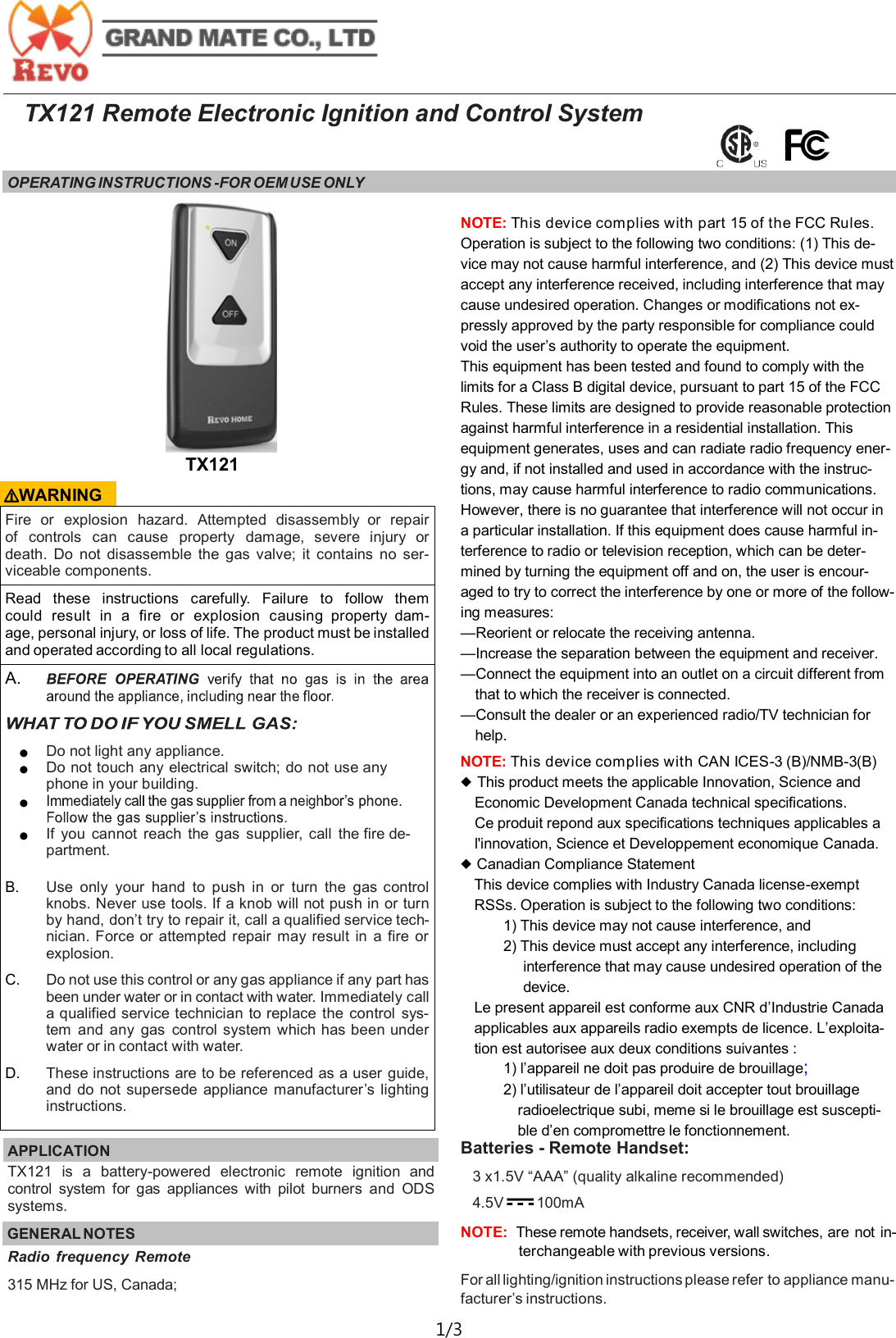

1/3 TX121 Remote Electronic Ignition and Control System OPERATING INSTRUCTIONS -FOR OEM USE ONLY Fire or explosion hazard. Attempted disassembly or repair of controls can cause property damage, severe injury or death. Do not disassemble the gas valve; it contains no ser-viceable components. Read these instructions carefully. Failure to follow them could result in a fire or explosion causing property dam-age, personal injury, or loss of life. The product must be installed and operated according to all local regulations. A. ● Do not light any appliance. ● Do not touch any electrical switch; do not use any phone in your building. ● ● If you cannot reach the gas supplier, call the fire de-partment. B. Use only your hand to push in or turn the gas control knobs. Never use tools. If a knob will not push in or turn by hand, don’t try to repair it, call a qualified service tech-nician. Force or attempted repair may result in a fire or explosion. C. Do not use this control or any gas appliance if any part has been under water or in contact with water. Immediately call a qualified service technician to replace the control sys-tem and any gas control system which has been under water or in contact with water. D. These instructions are to be referenced as a user guide, and do not supersede appliance manufacturer’s lighting instructions. APPLICATION TX121 is a battery-powered electronic remote ignition and control system for gas appliances with pilot burners and ODS systems. GENERAL NOTES TX121 Radio frequency Remote 315 MHz for US, Canada; ⚠WARNING NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This de-vice may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not ex-pressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency ener-gy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful in-terference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encour-aged to try to correct the interference by one or more of the follow-ing measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B) ◆ This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. Ce produit repond aux specifications techniques applicables a l'innovation, Science et Developpement economique Canada. ◆ Canadian Compliance Statement This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploita-tion est autorisee aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est suscepti-ble d’en compromettre le fonctionnement. Batteries - Remote Handset: 3 x1.5V “AAA” (quality alkaline recommended) 4.5V 100mA NOTE: These remote handsets, receiver, wall switches, are not in-terchangeable with previous versions. For all lighting/ignition instructions please refer to appliance manu-facturer’s instructions.
TX121—Operating Instructions D02 2/3 TX143 SERIES REMOTE HANDSET FEATURES Remote Controller Model 315MHz Unidirectional TX121 TX142 TX143 ON/ OFF ★ ★ ★ Childproof ★ ★ ★ Revo Home Compatible ★ ★ ★ Flame Height Adjustment ★ ★ Standing Pilot* ★ LCD Low Battery Indicator Second Burner Thermostat Timer Error Code Notification* Fan Speed ★ Light Dimmer AUX ON/ OFF Fan Delay ON/ OFF Clock Daily Program Thermostat 3 Independent Access Keys *Disabled for Europe TX121 TX142 TX143

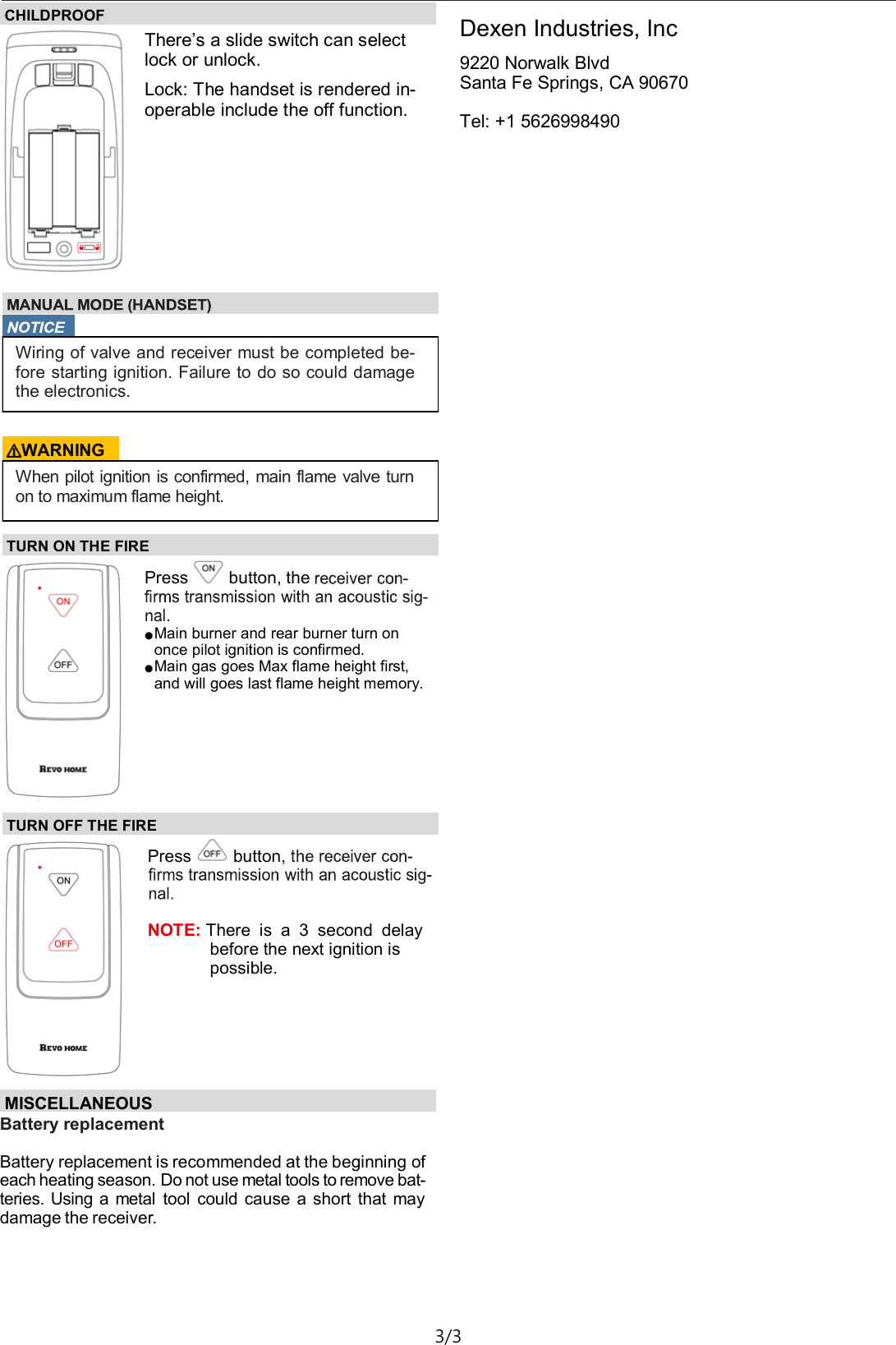

TX121—Operating Instructions D02 3/3 TURN ON THE FIRE Press button, the ● Main burner and rear burner turn on once pilot ignition is confirmed. ● Main gas goes Max flame height first, and will goes last flame height memory. TURN OFF THE FIRE Press button, NOTE: There is a 3 second delay before the next ignition is possible. CHILDPROOF There’s a slide switch can select lock or unlock. Lock: The handset is rendered in-operable include the off function. Wiring of valve and receiver must be completed be- fore starting ignition. Failure to do so could damage the electronics. ⚠WARNING When pilot ignition is confirmed, main flame valve turn on to maximum flame height. MISCELLANEOUS Battery replacement Battery replacement is recommended at the beginning of each heating season. Do not use metal tools to remove bat-teries. Using a metal tool could cause a short that may damage the receiver. Dexen Industries, Inc 9220 Norwalk Blvd Santa Fe Springs, CA 90670 Tel: +1 5626998490

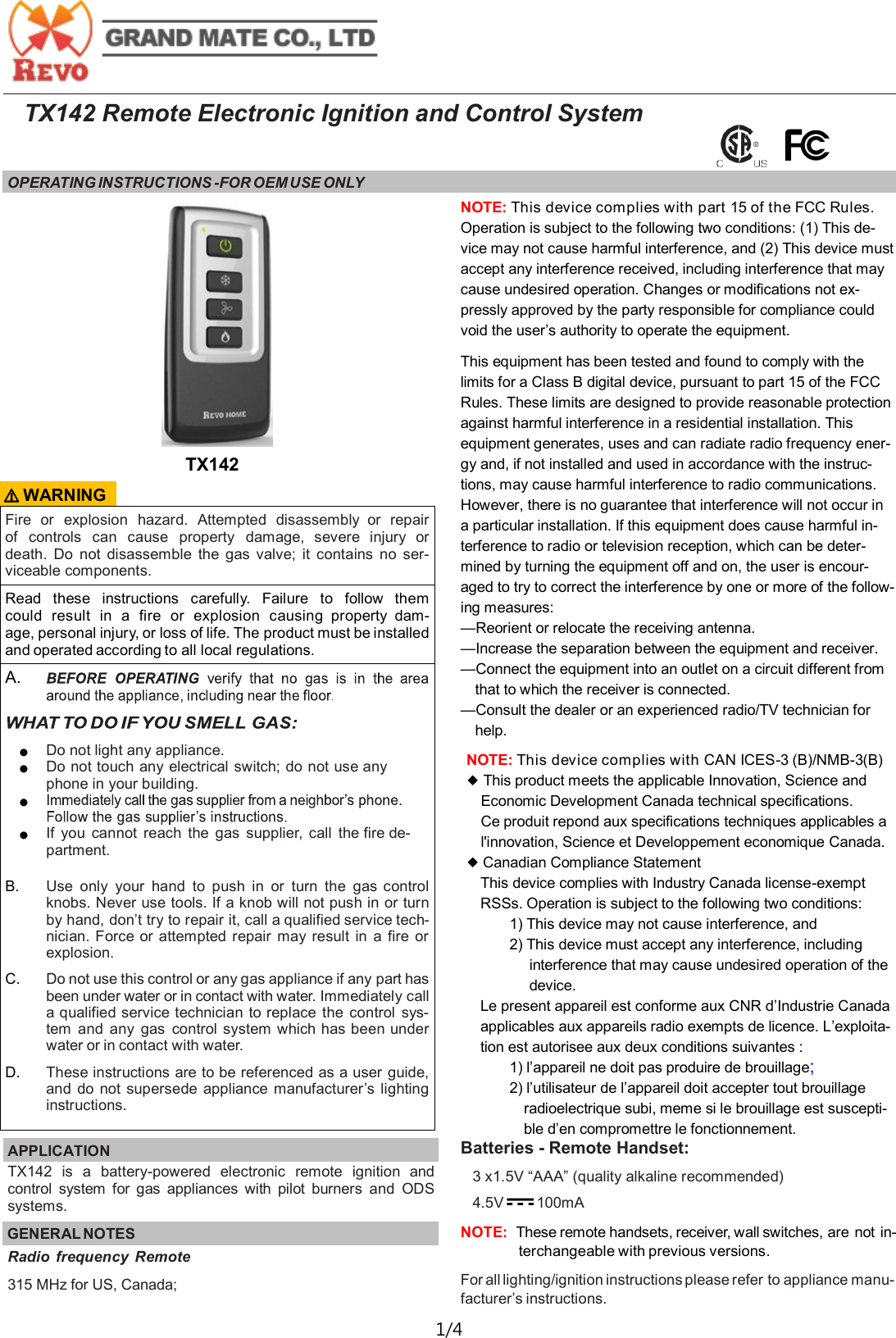

1/4 TX142 Remote Electronic Ignition and Control System OPERATING INSTRUCTIONS -FOR OEM USE ONLY Fire or explosion hazard. Attempted disassembly or repair of controls can cause property damage, severe injury or death. Do not disassemble the gas valve; it contains no ser-viceable components. Read these instructions carefully. Failure to follow them could result in a fire or explosion causing property dam-age, personal injury, or loss of life. The product must be installed and operated according to all local regulations. A. ● Do not light any appliance. ● Do not touch any electrical switch; do not use any phone in your building. ● ● If you cannot reach the gas supplier, call the fire de-partment. B. Use only your hand to push in or turn the gas control knobs. Never use tools. If a knob will not push in or turn by hand, don’t try to repair it, call a qualified service tech-nician. Force or attempted repair may result in a fire or explosion. C. Do not use this control or any gas appliance if any part has been under water or in contact with water. Immediately call a qualified service technician to replace the control sys-tem and any gas control system which has been under water or in contact with water. D. These instructions are to be referenced as a user guide, and do not supersede appliance manufacturer’s lighting instructions. APPLICATION TX142 is a battery-powered electronic remote ignition and control system for gas appliances with pilot burners and ODS systems. GENERAL NOTES TX142 Radio frequency Remote 315 MHz for US, Canada; ⚠ WARNING NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This de-vice may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not ex-pressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency ener-gy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful in-terference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encour-aged to try to correct the interference by one or more of the follow-ing measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B) ◆ This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. Ce produit repond aux specifications techniques applicables a l'innovation, Science et Developpement economique Canada. ◆ Canadian Compliance Statement This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploita-tion est autorisee aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est suscepti-ble d’en compromettre le fonctionnement. Batteries - Remote Handset: 3 x1.5V “AAA” (quality alkaline recommended) 4.5V 100mA NOTE: These remote handsets, receiver, wall switches, are not in-terchangeable with previous versions. For all lighting/ignition instructions please refer to appliance manu-facturer’s instructions.
TX142—Operating Instructions D03 2/3 TX143 SERIES REMOTE HANDSET FEATURES Remote Controller Model 315MHz Unidirectional TX121 TX142 TX143 ON/ OFF ★ ★ ★ Childproof ★ ★ ★ Revo Home Compatible ★ ★ ★ Flame Height Adjustment ★ ★ Standing Pilot* ★ LCD Low Battery Indicator Second Burner Thermostat Timer Error Code Notification* Fan Speed ★ Light Dimmer AUX ON/ OFF Fan Delay ON/ OFF Clock Daily Program Thermostat 3 Independent Access Keys *Disabled for Europe TX121 TX142 TX143

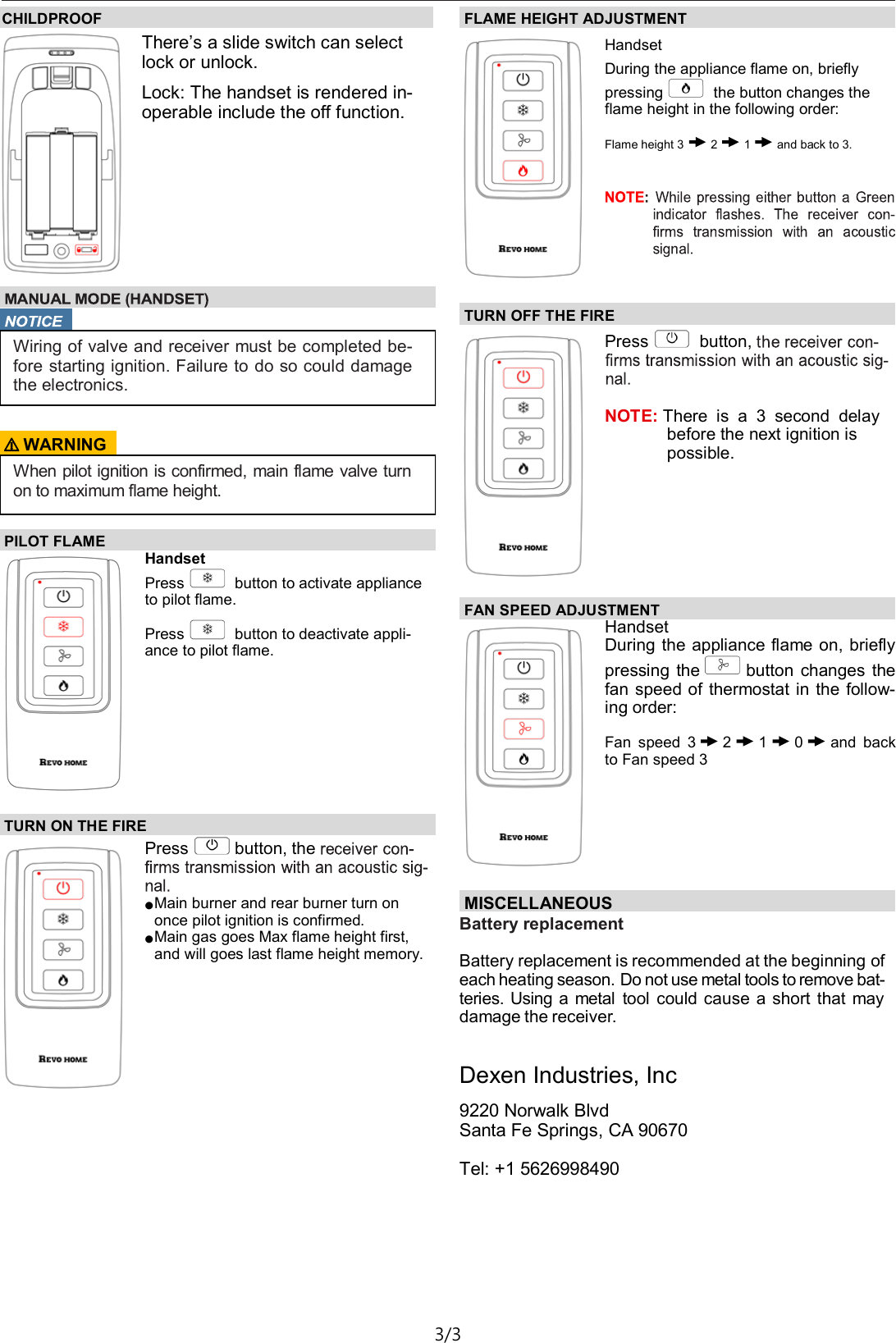

TX142—Operating Instructions D03 3/3 TURN ON THE FIRE Press button, the ● Main burner and rear burner turn on once pilot ignition is confirmed. ● Main gas goes Max flame height first, and will goes last flame height memory. FLAME HEIGHT ADJUSTMENT Handset During the appliance flame on, briefly pressing the button changes the flame height in the following order: Flame height 3 2 1 and back to 3. TURN OFF THE FIRE Press button, NOTE: There is a 3 second delay before the next ignition is possible. CHILDPROOF There’s a slide switch can select lock or unlock. Lock: The handset is rendered in-operable include the off function. Wiring of valve and receiver must be completed be- fore starting ignition. Failure to do so could damage the electronics. ⚠ WARNING When pilot ignition is confirmed, main flame valve turn on to maximum flame height. PILOT FLAME Handset Press button to activate appliance to pilot flame. Press button to deactivate appli-ance to pilot flame. FAN SPEED ADJUSTMENT Handset During the appliance flame on, briefly pressing the button changes the fan speed of thermostat in the follow-ing order: Fan speed 3 2 1 0 and back to Fan speed 3 MISCELLANEOUS Battery replacement Battery replacement is recommended at the beginning of each heating season. Do not use metal tools to remove bat-teries. Using a metal tool could cause a short that may damage the receiver. Dexen Industries, Inc 9220 Norwalk Blvd Santa Fe Springs, CA 90670 Tel: +1 5626998490

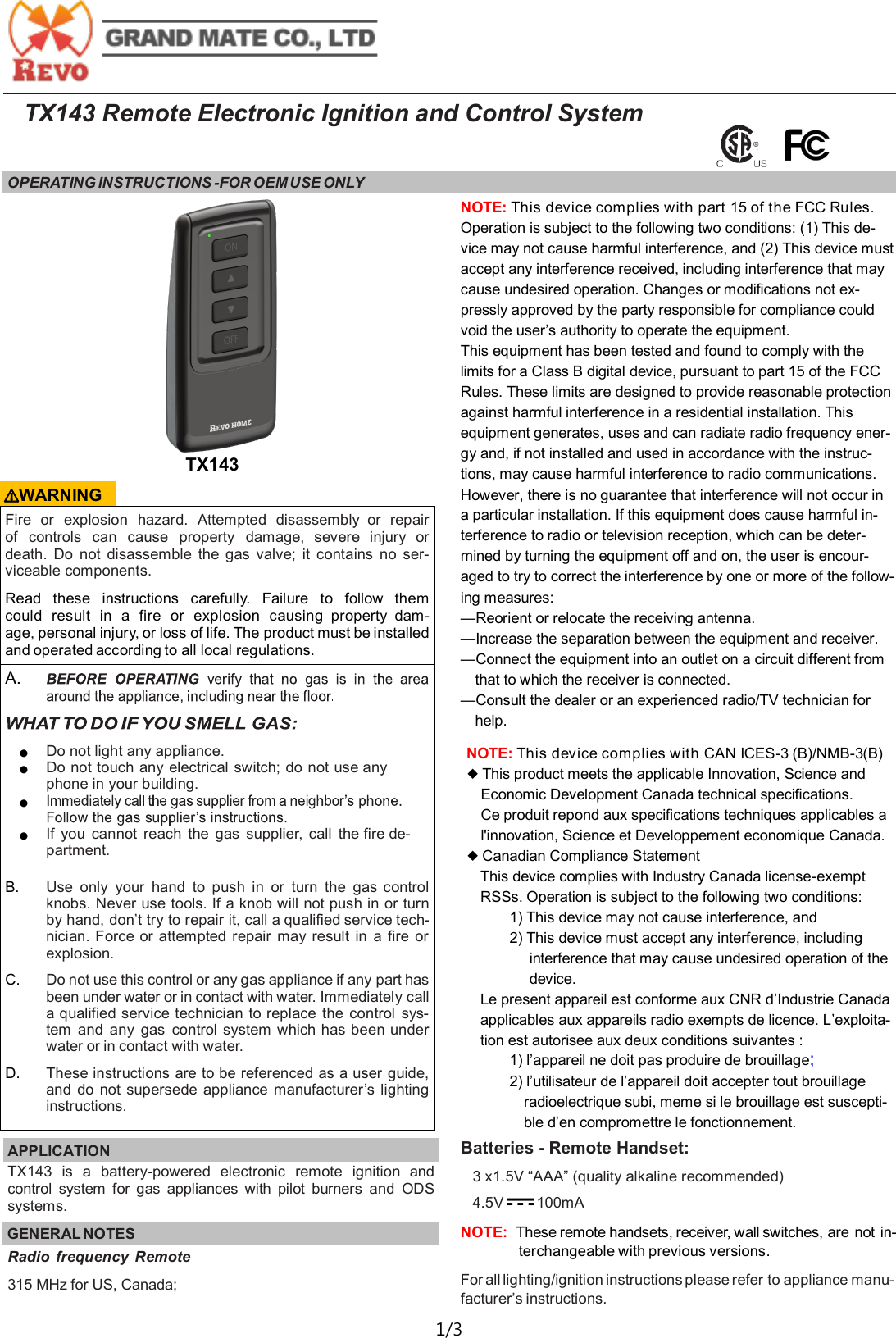

1/3 TX143 Remote Electronic Ignition and Control System OPERATING INSTRUCTIONS -FOR OEM USE ONLY Fire or explosion hazard. Attempted disassembly or repair of controls can cause property damage, severe injury or death. Do not disassemble the gas valve; it contains no ser-viceable components. Read these instructions carefully. Failure to follow them could result in a fire or explosion causing property dam-age, personal injury, or loss of life. The product must be installed and operated according to all local regulations. A. ● Do not light any appliance. ● Do not touch any electrical switch; do not use any phone in your building. ● ● If you cannot reach the gas supplier, call the fire de-partment. B. Use only your hand to push in or turn the gas control knobs. Never use tools. If a knob will not push in or turn by hand, don’t try to repair it, call a qualified service tech-nician. Force or attempted repair may result in a fire or explosion. C. Do not use this control or any gas appliance if any part has been under water or in contact with water. Immediately call a qualified service technician to replace the control sys-tem and any gas control system which has been under water or in contact with water. D. These instructions are to be referenced as a user guide, and do not supersede appliance manufacturer’s lighting instructions. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This de-vice may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not ex-pressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency ener-gy and, if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful in-terference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encour-aged to try to correct the interference by one or more of the follow-ing measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. APPLICATION TX143 is a battery-powered electronic remote ignition and control system for gas appliances with pilot burners and ODS systems. GENERAL NOTES TX143 Radio frequency Remote 315 MHz for US, Canada; ⚠WARNING NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B) ◆ This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. Ce produit repond aux specifications techniques applicables a l'innovation, Science et Developpement economique Canada. ◆ Canadian Compliance Statement This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploita-tion est autorisee aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est suscepti-ble d’en compromettre le fonctionnement. Batteries - Remote Handset: 3 x1.5V “AAA” (quality alkaline recommended) 4.5V 100mA NOTE: These remote handsets, receiver, wall switches, are not in-terchangeable with previous versions. For all lighting/ignition instructions please refer to appliance manu-facturer’s instructions.

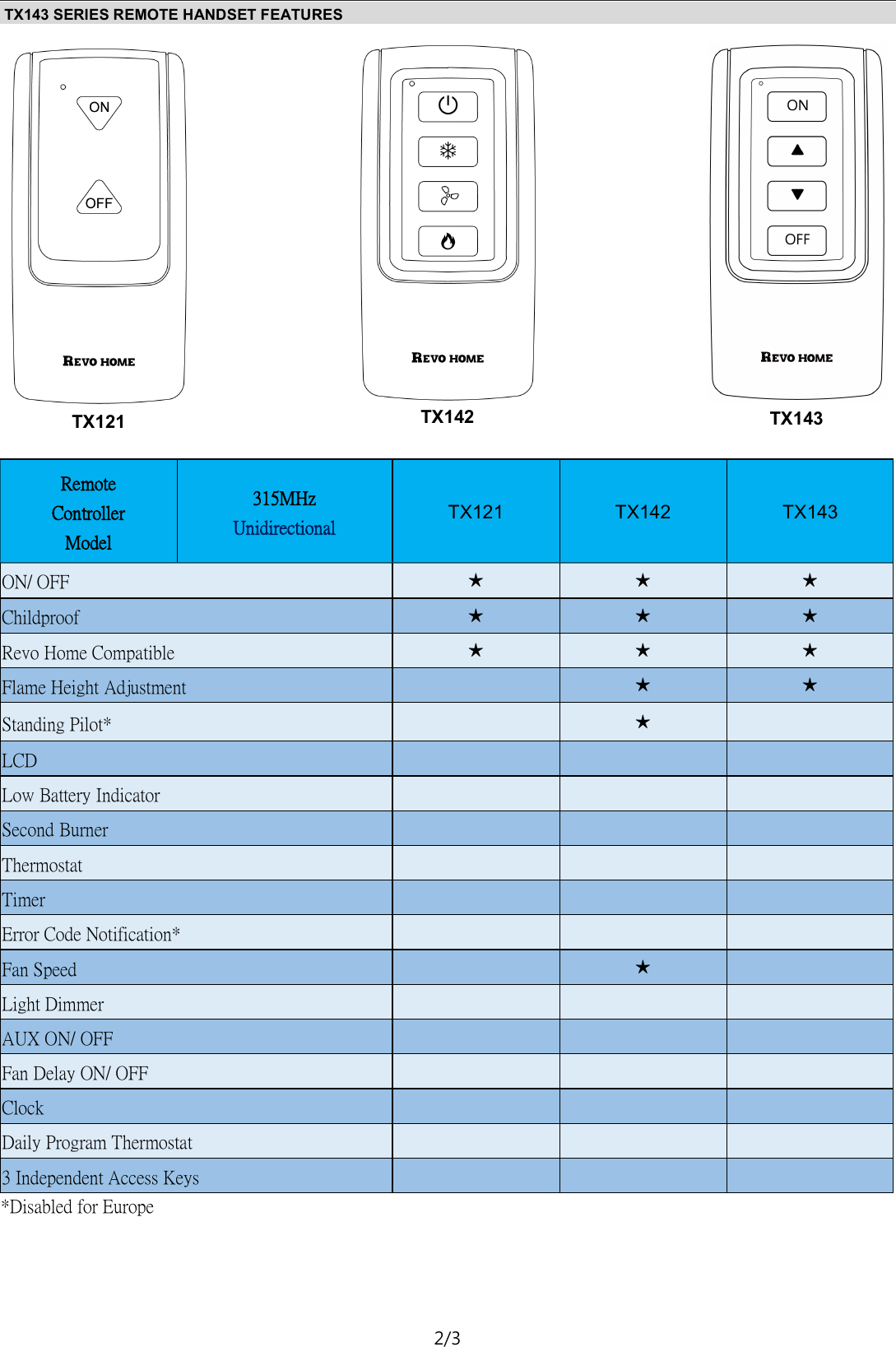

TX143—Operating Instructions D03 2/3 TX143 SERIES REMOTE HANDSET FEATURES Remote Controller Model 315MHz Unidirectional TX121 TX142 TX143 ON/ OFF ★ ★ ★ Childproof ★ ★ ★ Revo Home Compatible ★ ★ ★ Flame Height Adjustment ★ ★ Standing Pilot* ★ LCD Low Battery Indicator Second Burner Thermostat Timer Error Code Notification* Fan Speed ★ Light Dimmer AUX ON/ OFF Fan Delay ON/ OFF Clock Daily Program Thermostat 3 Independent Access Keys *Disabled for Europe TX121 TX142 TX143

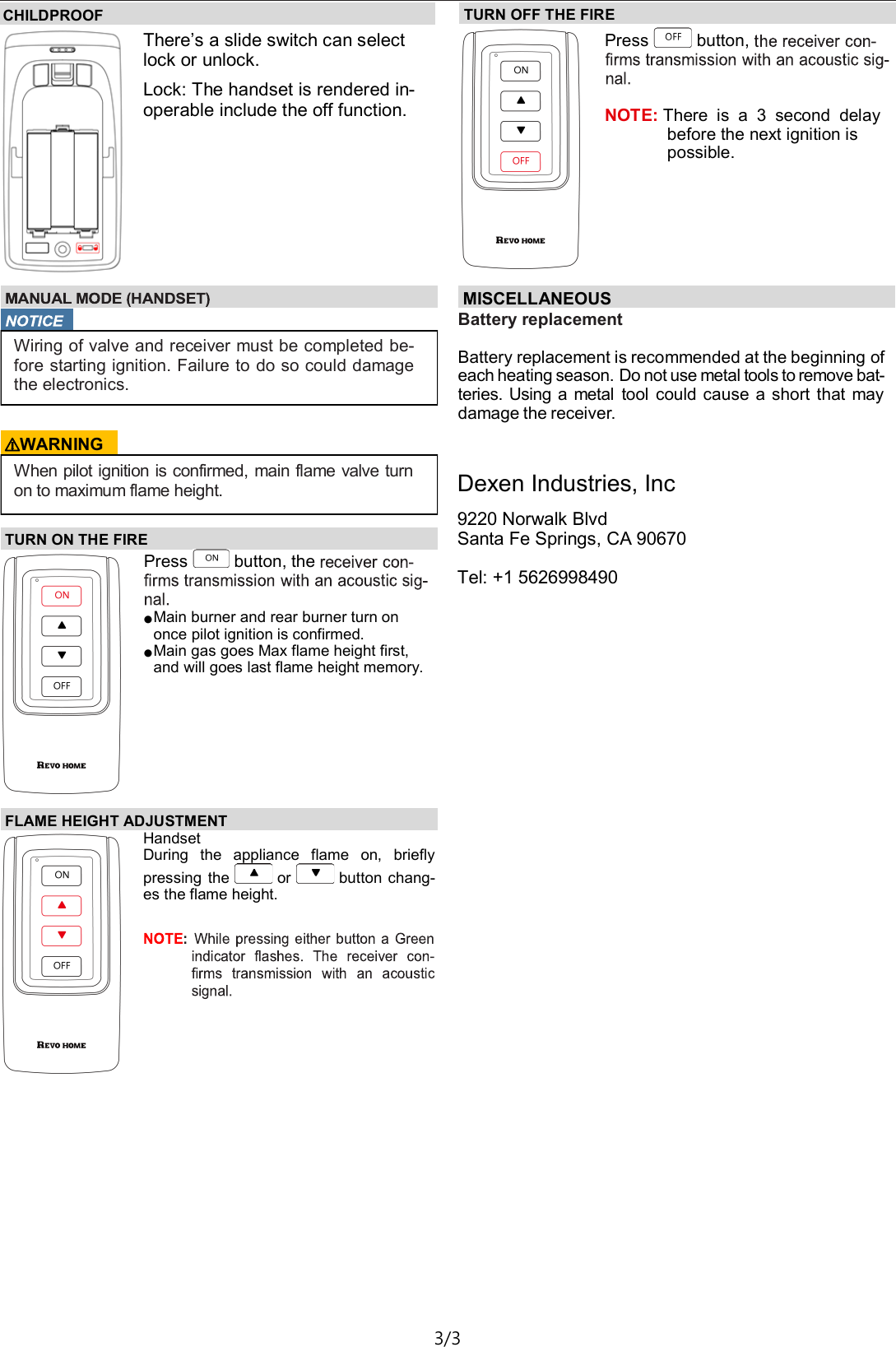

TX143—Operating Instructions D03 3/3 TURN ON THE FIRE Press button, the ● Main burner and rear burner turn on once pilot ignition is confirmed. ● Main gas goes Max flame height first, and will goes last flame height memory. FLAME HEIGHT ADJUSTMENT Handset During the appliance flame on, briefly pressing the or button chang-es the flame height. TURN OFF THE FIRE Press button, NOTE: There is a 3 second delay before the next ignition is possible. CHILDPROOF There’s a slide switch can select lock or unlock. Lock: The handset is rendered in-operable include the off function. Wiring of valve and receiver must be completed be- fore starting ignition. Failure to do so could damage the electronics. ⚠WARNING When pilot ignition is confirmed, main flame valve turn on to maximum flame height. MISCELLANEOUS Battery replacement Battery replacement is recommended at the beginning of each heating season. Do not use metal tools to remove bat-teries. Using a metal tool could cause a short that may damage the receiver. Dexen Industries, Inc 9220 Norwalk Blvd Santa Fe Springs, CA 90670 Tel: +1 5626998490
