T P C A R EOT P C A R EOGuangzhou Chiyuan Electronic Co., LtdAdd:  2/F., No. 1 Bldg., Boyi Industrial Garden, 4th Gongye Rd.          Zhicun, Dashi Street, Panyu Dis., Guangzhou, ChinaP.C.:511430Tel:   +86-20-34796226;34797226    Fax:  +86-20-34796116Website:  www.chiyuan.netE-mail:    gzchiyuan@126.comThank you for purchasing our‘T P C A R E’R/C system. Before using, read this manual carefully.O        PPM/FM Radio Control System       Introduction  Manual RADIO  CONTROL  SYSTEM N-4Q R/C

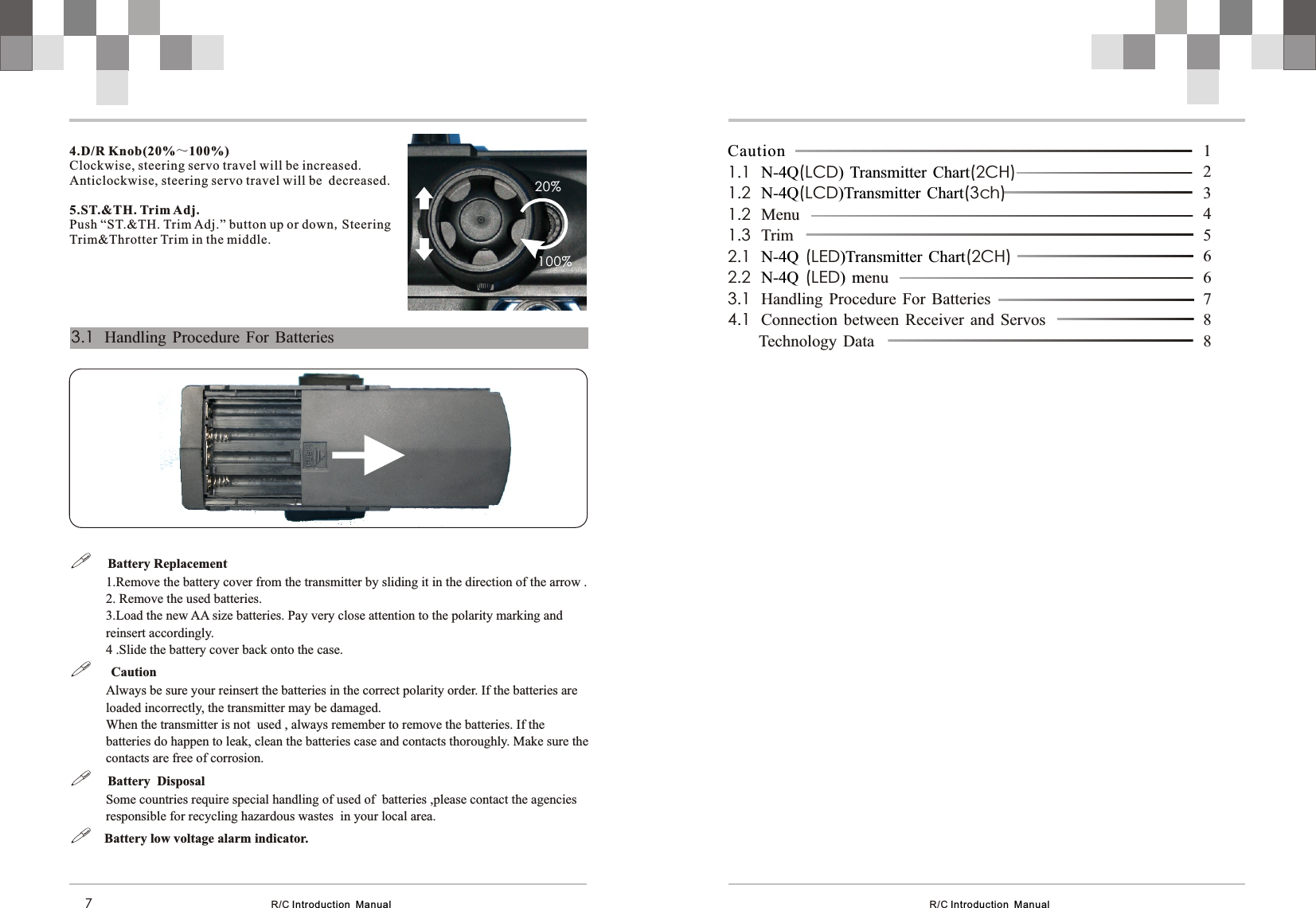

  R/C Introduction  Manual3.1   Handling  Procedure  For  Batteries7!     Battery Replacement 1.Remove the battery cover from the transmitter by sliding it in the direction of the arrow .2. Remove the used batteries.3.Load the new AA size batteries. Pay very close attention to the polarity marking and reinsert accordingly.4 .Slide the battery cover back onto the case.!      CautionAlways be sure your reinsert the batteries in the correct polarity order. If the batteries are loaded incorrectly, the transmitter may be damaged.When the transmitter is not  used , always remember to remove the batteries. If the batteries do happen to leak, clean the batteries case and contacts thoroughly. Make sure the contacts are free of corrosion.!     Battery  DisposalSome countries require special handling of used of  batteries ,please contact the agencies responsible for recycling hazardous wastes  in your local area.!    Battery low voltage alarm indicator.R/C Introduction  ManualCautionN-4Q ) Transmitter ChartN-4Q )Transmitter  ChartN-4Q  )Transmitter  ChartN-4Q  ) m1.1   (LCD (2CH)1.2   (LCD (3ch)1.2   Menu1.3   Trim2.1   (LED (2CH)2.2   (LED  enu3.1   Handling  Procedure  For  Batteries4.1   Connection  between  Receiver  and  Servos        Technology  Data12345667884.D/R Knob(20%~100%)Clockwise, steering servo travel will be increased. Anticlockwise, steering servo travel will be  decreased. 5.ST.&TH. Trim Adj.Push “ST.&TH. Trim Adj.” button up or down,Steering Trim&Throtter Trim in the middle. 20%100%

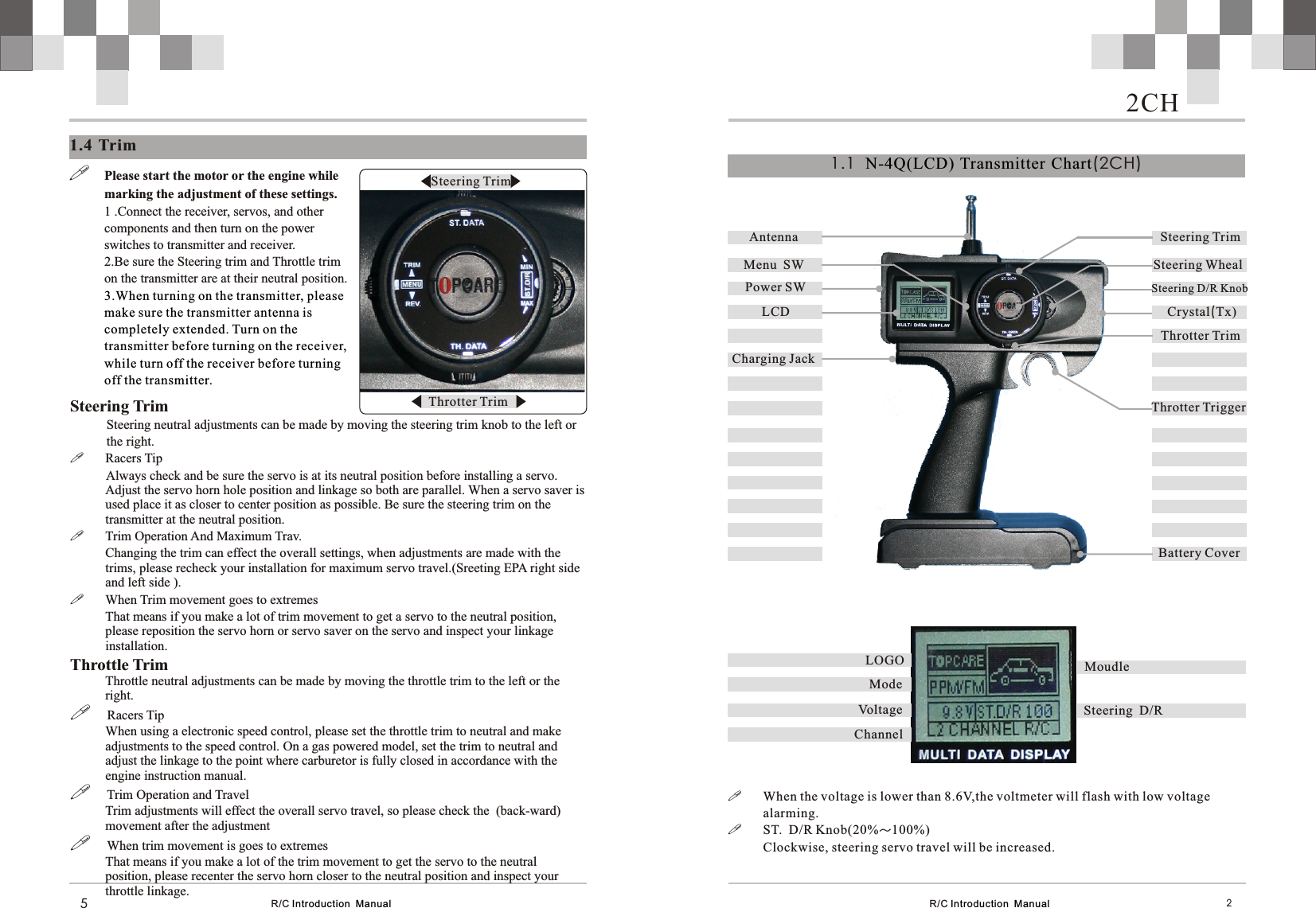

R/C Introduction  Manual1.4 Trim5!Please start the motor or the engine while marking the adjustment of these settings.1 .Connect the receiver, servos, and other components and then turn on the power switches to transmitter and receiver.2.Be sure the Steering trim and Throttle trim on the transmitter are at their neutral position.3.When turning on the transmitter, please make sure the transmitter antenna is completely extended. Turn on the transmitter before turning on the receiver, while turn off the receiver before turning off the transmitter. Steering Trim           Steering neutral adjustments can be made by moving the steering trim knob to the left or           the right.!Racers Tip           Always check and be sure the servo is at its neutral position before installing a servo. Adjust the servo horn hole position and linkage so both are parallel. When a servo saver is used place it as closer to center position as possible. Be sure the steering trim on the transmitter at the neutral position.!Trim Operation And Maximum Trav.Changing the trim can effect the overall settings, when adjustments are made with the trims, please recheck your installation for maximum servo travel.(Sreeting EPA right side and left side ).!When Trim movement goes to extremesThat means if you make a lot of trim movement to get a servo to the neutral position, please reposition the servo horn or servo saver on the servo and inspect your linkage installation.Throttle TrimThrottle neutral adjustments can be made by moving the throttle trim to the left or the right.!     Racers Tip When using a electronic speed control, please set the throttle trim to neutral and make adjustments to the speed control. On a gas powered model, set the trim to neutral and adjust the linkage to the point where carburetor is fully closed in accordance with the engine instruction manual.!     Trim Operation and Travel Trim adjustments will effect the overall servo travel, so please check the  (back-ward) movement after the adjustment!     When trim movement is goes to extremesThat means if you make a lot of the trim movement to get the servo to the neutral position, please recenter the servo horn closer to the neutral position and inspect your throttle linkage.  Steering TrimThrotter TrimR/C Introduction  Manual 2!When the voltage is lower than 8.6V,the voltmeter will flash with low voltage alarming.!ST.  D/R Knob(20%~100%)Clockwise, steering servo travel will be increased. Antenna Menu  SW   Steering WhealCrystal(Tx)Power SWThrotter TrimLCDSteering D/R KnobSteering TrimThrotter TriggerBattery CoverCharging Jack1.1   (2CH)N-4Q(LCD) Transmitter  ChartMoudleSteering  D/R油门微调显示Mode  LOGOChannelVoltage2CH

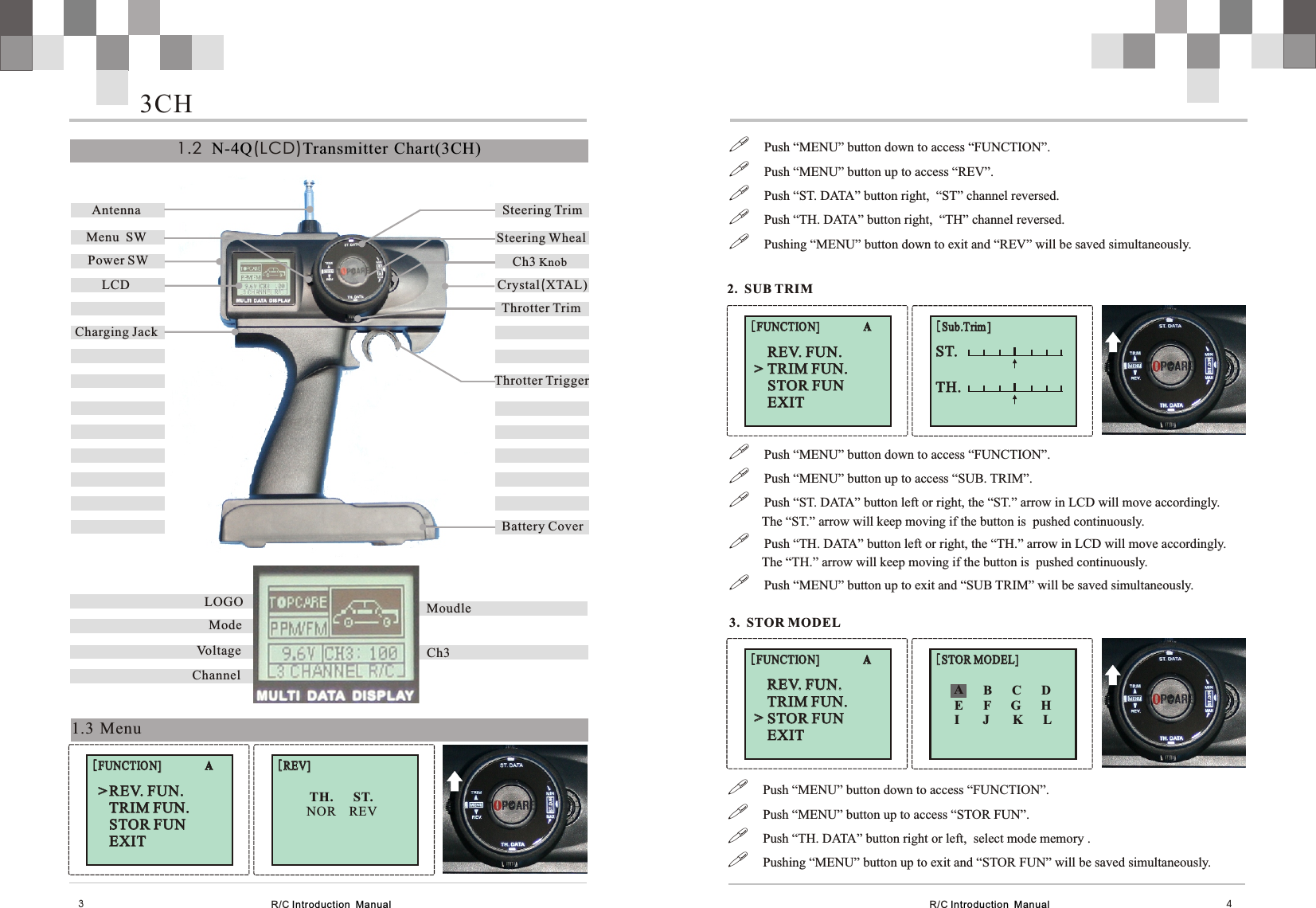

Antenna Menu  SW   Steering WhealCrystal(XTAL)Power SWThrotter TrimLCDCh3 KnobSteering TrimThrotter TriggerBattery CoverCharging JackR/C Introduction  Manual R/C Introduction  Manual 431.3 Menu!Push “MENU” button down to access “FUNCTION”.!Push “MENU” button up to access “SUB. TRIM”.!Push “ST. DATA” button left or right, the “ST.” arrow in LCD will move accordingly.          The “ST.” arrow will keep moving if the button is  pushed continuously.  !Push “TH. DATA” button left or right, the “TH.” arrow in LCD will move accordingly.          The “TH.” arrow will keep moving if the button is  pushed continuously.  !Push “MENU” button up to exit and “SUB TRIM” will be saved simultaneously.1.2   (LCD)N-4Q Transmitter Chart(3CH)MoudleCh3油门微调显示Mode  LOGOChannelVoltage3CH2.  SUB TRIMST.   ST.   TH.   TH.   [Sub.Trim ][Sub.Trim ]REV. FUN.TRIM FUN.STOR FUNEXIT   REV. FUN.TRIM FUN.STOR FUNEXIT   [FUNCTION]                A[FUNCTION]                A>>!Push “MENU” button down to access “FUNCTION”.!Push “MENU” button up to access “STOR FUN”.!Push “TH. DATA” button right or left,  select mode memory .!Pushing “MENU” button up to exit and “STOR FUN” will be saved simultaneously.3.  STOR MODEL[STOR MODEL][STOR MODEL]REV. FUN.TRIM FUN.STOR FUNEXIT   REV. FUN.TRIM FUN.STOR FUNEXIT   [FUNCTION]                A[FUNCTION]                A>>A      B      C      DE      F      G      HI       J       K      LA[REV][REV]REV. FUN.TRIM FUN.STOR FUNEXIT   REV. FUN.TRIM FUN.STOR FUNEXIT   [FUNCTION]                A[FUNCTION]                A>>    TH.      ST.         NOR    REV!Push “MENU” button down to access “FUNCTION”.!Push “MENU” button up to access “REV”.!Push “ST. DATA” button right,  “ST” channel reversed.!Push “TH. DATA” button right,  “TH” channel reversed.!Pushing “MENU” button down to exit and “REV” will be saved simultaneously.
R/C Introduction  Manual1!  To  work  your  R/C  with  your  models  correctly  and  safely,  read  this  manual carefully and  keep it in a safe way as a reference introduction in the future. !   Warning:        1. This product is only equipped for radio controlled models;        2.  The  usage  of  this  product  should  be  approved  by  local  relevant  law  or regulations;      3.  We  will  be  not  responsible  for  the  damages  caused  by  unauthorized   modification,adjustment or replacement of parts of this product;      4. The manual may be altered without prior notice. Please contact us if you have any corrections or clarifications that should be made in the manual.!   Because of disturbance, do not work your radio control system simultaneously with others at the same frequency. !    Before  starting  the  transmitter,  make  sure  the  transmitter  batteries  are  well loaded .The voltage of transmitter batteries never be lower than 8.6V. And please check and confirm that the servos are all well and properly connected.!    Please take off batteries from transmitter after flying and during the transportati-         on.!      Please  check  and  have  a  test  on  control  surfaces  to  confirm  the  transmitter handling of each part  prior to each takeoff. The frequencies of  the module and the receiver should be the same.!   Keep the radio system away from moist, high temperature and strong shake. Do not clean the product with solvent. !    Do  not  fly  your  models  near  airfields,  schools,  hospitals,  residences,  power transmission  network,  communication  facilities  and  other  places  that  are forbidden  for  starting  the  transmitter.  Please  stop  flying  your  models  with  the radio on rainy or windy days, or at night.!   Do not fly the models when you are tired, sick , intoxicated,or not in good spirit.!    The antenna do not touch anything else when power switch is turned on. Do not leave this product and its accessories within the reach of small children.!   Please use this product according to your local relevant law or regulation, we are not responsible for any incidents or damages.CautionR/C Introduction  Manual 62.1   (LED (2CH)N-4Q  )Transmitter  Chart2CHReverse SWAntennaSteering WhealCrystal(XTAL)Power SWThrotter TrimLEDSteering TrimThrotter TriggerBattery CoverCharging JackSteering D/R Knob2.2   (LED  enuN-4Q  ) m1.PowerWhen turn on power, the power light will be red.When the voltage is lower than 8.6V, the power light will be twinkling with audible alarm. Please use new batteries. 2.ReverseReverse switch is down, channels are in reversed mode.Reverse switch is up, channels are normal.3.TrimThe green light will be twinkling when “ST.” or “TH.” Trim is moved left or right.If the green light do NOT be twinkling when “ST.” or “TH.” Trim is moved left or right, the trim travel is beyond its scope. (the travel scope is 5° approximately ) ST.&TH. Trim Adj.
R/C Introduction  Manual 8  R/C Introduction  Manual4.1  Connection between Receiver and ServosSERVO3(CH3)SERVO1(TH.)SERVO2(ST.)BATT.( 4.8V)ESC!The receiver and the servos must be properly connected for your models. The “CH3” channel is useless for 2ch trigger transmitter.!If  ESC in the model can support power, connect it with “CH1” channel directly.+- 2-CH R/C               2-CH R/C            3-CH R/C       Type:             N-4Q                               N-4Q                               N-4QSpecification:              LCD                                LED                                 LCDCode format:           PPM/FM                         PPM/FM                        PPM/FM         Channels:                 2                                      2                                       3Frequency:        27/40/72/75M               27/40/72/75M             27/40/72/75M                                                                    DC:        9.6V,≤200mA              9.6V,≤200mA             9.6V,≤200mA                                  Measurement:      295*204*105mm          295*204*105mm         295*204*105mm                         Net weight:             530g                      530g                          530g(One type of them)                     (One type of them)                  (One type of them) Technology Data(packing meas.)         (packing meas.)          (Packing meas.)
