Guangzhou Havit Technology H33 Wireless Charger User Manual
Guangzhou Havit Technology Co.,LTD Wireless Charger
User Manual
User Manual
Product Introduction:
Thanks for your choosing our wireless charger, this is
wireless charger which supports quick charging for
iPhone8/8 Plus/X, Before you use this product, Please
read this manual carefully and save it.
Specification:
Product Name: Wireless Charger
Product Model: H33
Input: 5V 2A/9V 1.67A（Max）
Frequency: 111-205Khz
Conversation Efficiency: >70%（Min）
Charging distance: ≤8mm
Product size: 85mm*85mm*7.6mm

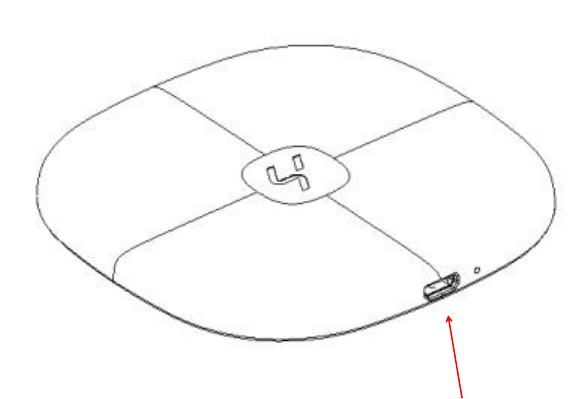

Mirco USB
Applicable: Mobile phone (mobile phone with wireless
charging function or built-in wireless charging ring)
PS: these above information is based on real sample testing, it
will be a little bit different for different products in different
conditions.
LED indication:
1. After plug this product into adaptor, white light will glitter
and last 0.5S, then get into standby mode.
2. Charging mode: white light is breathing.
3. Fully charged for iPhone, white light is always on.
4. FOD: white light flicker fast.
Caution:
1. To achieve best performance of this wireless charger, 5V 2A
or 9V 1.5A adapter is suggested to adapted.
2. In the process of charging, do not put any metal materials
like key, ring, metallic phone case etc.. on the back of phone
device or wireless charger directly

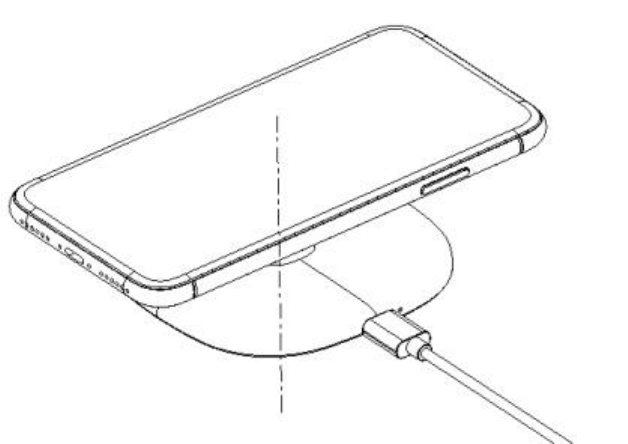

3. It may occur occasional intermittent charging or serious
heating due to the unjustified position of phone receiver coil
and wireless charging, please try to cold your phone, then
move your phone to carry out the alignment
4. This product has over current protection, it will be shut off
or reduce output if used in incorrect way, Please check
whether your device is abnormal or not.
5. Please use this product under temperature of -10 °c-40° c,
DO NOT Expose the product to water, fire, or overheated and
lower temperature environment, the product will be
unavailable, Do not let children to touch accessories.
6. Please use clean cloth to clear product surface, DO NOT use
chemistry material and soap to clean.
7. Manufacturer will not be responsible for those defects
which caused by users, Please kindly understand.
8. iPhone will NOT be quick charged in below three status:
9. The electricity power >60%
10. iPhone’s temperature: > 40°c
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body
