(REH-100) User Manual HahnTech, Co., Ltd.
REH-100
User Manual
2004 November 12
Hahntech. Co.,Ltd.
(REH-100) User Manual HahnTech, Co., Ltd.
Contents
1. PRODUCT DESCRIPTION......................................................................... 4
1.1. Introduction................................................................................................................4
1.2. Protocol Support .........................................................................................................4
1.2.1. ReFLEX™ Protocol ....................................................................................................4
1.2.2. Communications Link Protocol (CLP) ...........................................................................5
1.2.3. GOTAP Support........................................................................................................5
1.3. Console Interface........................................................................................................6
1.3.1. COM Port Connection................................................................................................6
1.3.2. to work with Console mode........................................................................................6
1.4. Messaging Behaviour...................................................................................................6
1.5. Module Configuration ..................................................................................................6
2. REH CONFIGURATOR SW OPERATION MANUAL ...................................... 7
2.1. Introduction................................................................................................................7
2.2. System Parameters .....................................................................................................8
2.3. Global Scan List Parameters........................................................................................9
2.4. Information Service Address List Parameters ...........................................................10
2.5. SPID Parameters.......................................................................................................11
3. CLP COMMUNICATOR SW OPER MANUAL (UAR TX) .............................. 12
3.1. Introduction..............................................................................................................12
3.2. Setting Connection ....................................................................................................12
3.3. Connect .....................................................................................................................13
3.4. Send Message............................................................................................................14
(REH-100) User Manual HahnTech, Co., Ltd.
APPENDIX ................................................................................................ 15
A.1. Supported CLP Commands List..................................................................................15
A.2. RF Specifications.....................................................................................................156
A.3. Hardware Characteristics..........................................................................................17
A.3.1. Environmental.......................................................................................................17
A.3.2. Electrical Interface..............................................................................................................................................17
(REH-100) User Manual HahnTech, Co., Ltd.
1. Product Description
1.1. Introduction
z Max Outbound (Receive) Message Size : 10,000 bytes
z Max Inbound (Transmit) Message Size : 2,000 bytes (possible to limit with PPS)
z Forward MSN Window Size : 12
z Reverse MSN Window Size : 8
1.2. Protocol Support
1.2.1. ReFLEX™ Protocol
z The module implements Motorola’s ReFLEX™ 25 protocol at Version 2.7.2
z Coasting: Radio coasts up to 32 frames.
z Number of Scan frequencies: 16 between 929-942 MHz
z Number of Scan ID’s (SCID): 5
z MSN management functions
z Transaction Status interactions
z Memory status transactions
z
z Reception of messages in the alphanumeric and binary vector formats.
z Transmission of short inbound messages and scheduled inbound messages
z One primary address, “personal” address, and 16 information addresses are provided.
(REH-100) User Manual HahnTech, Co., Ltd.
1.2.2. Communications Link Protocol (CLP)
z This is the protocol developed for the Motorola Creatalink, as defined in FLEXSuite™.
z It has been adapted for use with the WAM and provides all of the required messaging,
configuration and control functions.
z This interface has the following functions:
9 Messaging - Transmission
9 Messaging - Reception
9 Event signalling
9 Status and diagnostics information
9 Device configuration and control
z We insert additional CLP Commands (not include in FLEXSuite™)
9 Get-PPS : 0x90 - Get parameters of device.
9 Set-PPS : 0x91 - Set parameters of device.
9 UAR Message Transmission : 0x92 - Process UAR message
1.2.3. GOTAP Support
z The module recognizes the FLEXSuite™ GOTAP protocol for Over The Air (OTA)
configuration and control.
z Registration Not Required Command
z Program Without ACK Command
GOTAP Write
z HIX, IS Add, Delete, Modify
z Delete All IS
z SPID Add, Modify, Delete, Delete All
z GSL Add, Modify, Delete, Delete All
z Software Patch Version Number Command
z Enable or disable privacy option
GOTAP Write Special Access
z Password Change
z multi-byte write
GOTAP Read
z HIX
z IS
z SPID
z GSL
z Model
z Ver.
z Patch
z privacy flag
z multi-byte read
(REH-100) User Manual HahnTech, Co., Ltd.
1.3. Console Interface
1.3.1. COM Port Connection
z Baud Rate : 115200 bps
z Data Bits : 8
z Parity : None
z Stop Bits : 1
z Flow Control : None
1.3.2. to work with Console mode
z REH-100 have 2 types of mode, CLP mode and Console mode.
z CLP mode interface with CLP communicator through serial com port.
z Console mode can not support CLP protocol, and print debug message to serial com port.
z REH-100 works with CLP mode by default.
z To work with Console mode, you must connect COM port between REH-100 and PC.
z And after reset REH-100, you can find following message.
Press 'c' key to use console...
z If you press 'c', you can work REH-100 with Console mode.
z It must be happen in 3 seconds. After 3 seconds, this works with CLP mode.
1.4. Messaging Behaviour
z Messages are stored in NV (non-volatile) storage while they reside in the module.
z It is possible for a message to be received more than once with the same MSN.
z If automatic read ACKs are enabled, a read acknowledge is automatically transmitted to
the network when a message is downloaded.
z Memory full rules - Device manage all possible message size. It can not be happened
that device go to memory full state.
1.5. Module Configuration
z They are all stored in NV Store, are given default values at the factory, and may be
modified in the field using the appropriate Windows application.
z Field configuration shall be done using the provided “REH Configurator” application.
z A serial port is required on the PC to connect to the module’s configuration port.
(REH-100) User Manual HahnTech, Co., Ltd.

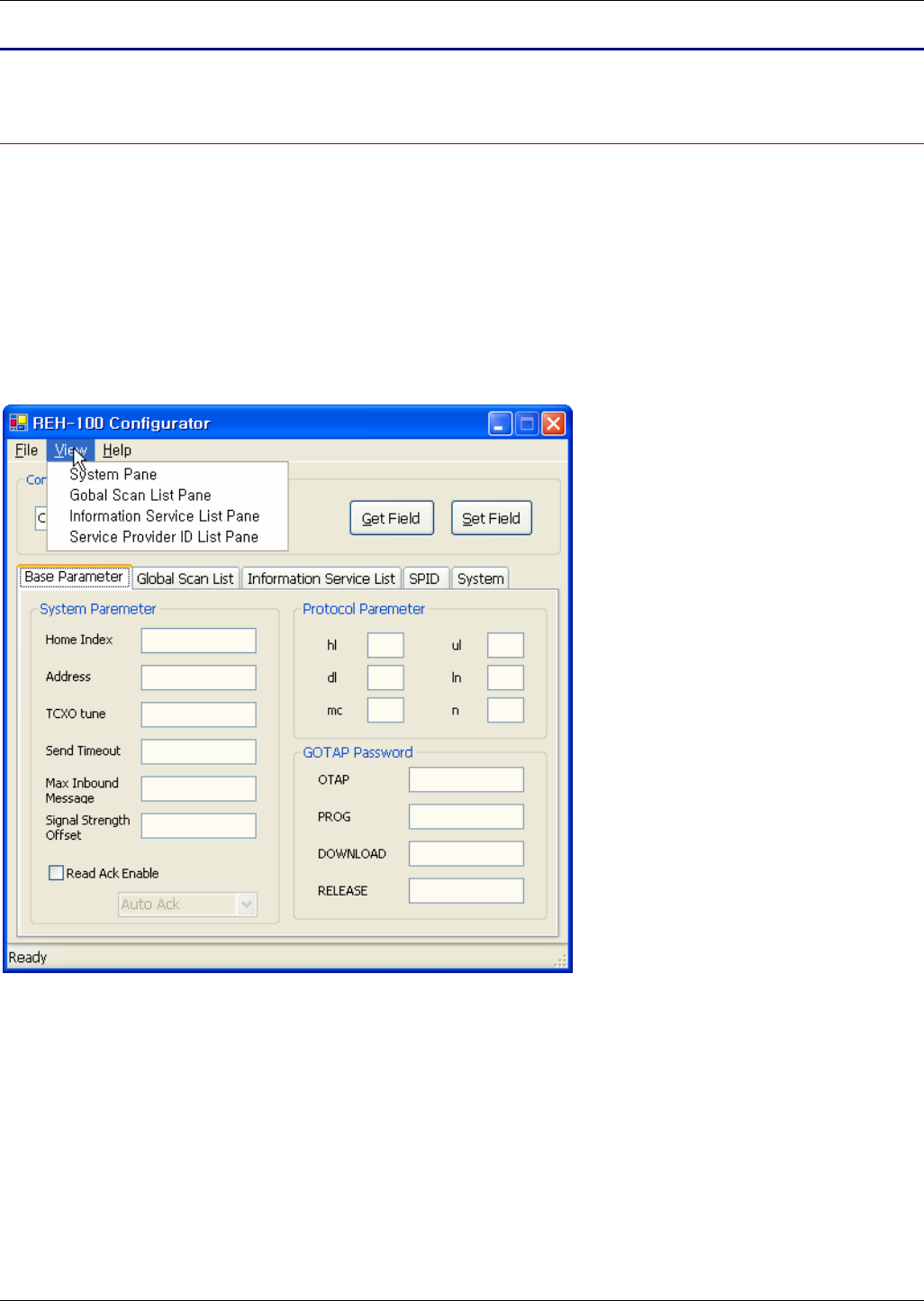

2. REH Configurator SW Operation Manual
2.1. Introduction
z REH Configurator have 4 parts of configuration parameter.
9 System parameters
9 Global Scan List Parameters
9 Information Service Address List Parameters
9 SPID Parameters
z It can be selected by “View” menu or “Service Pane” directly.
(REH-100) User Manual HahnTech, Co., Ltd.

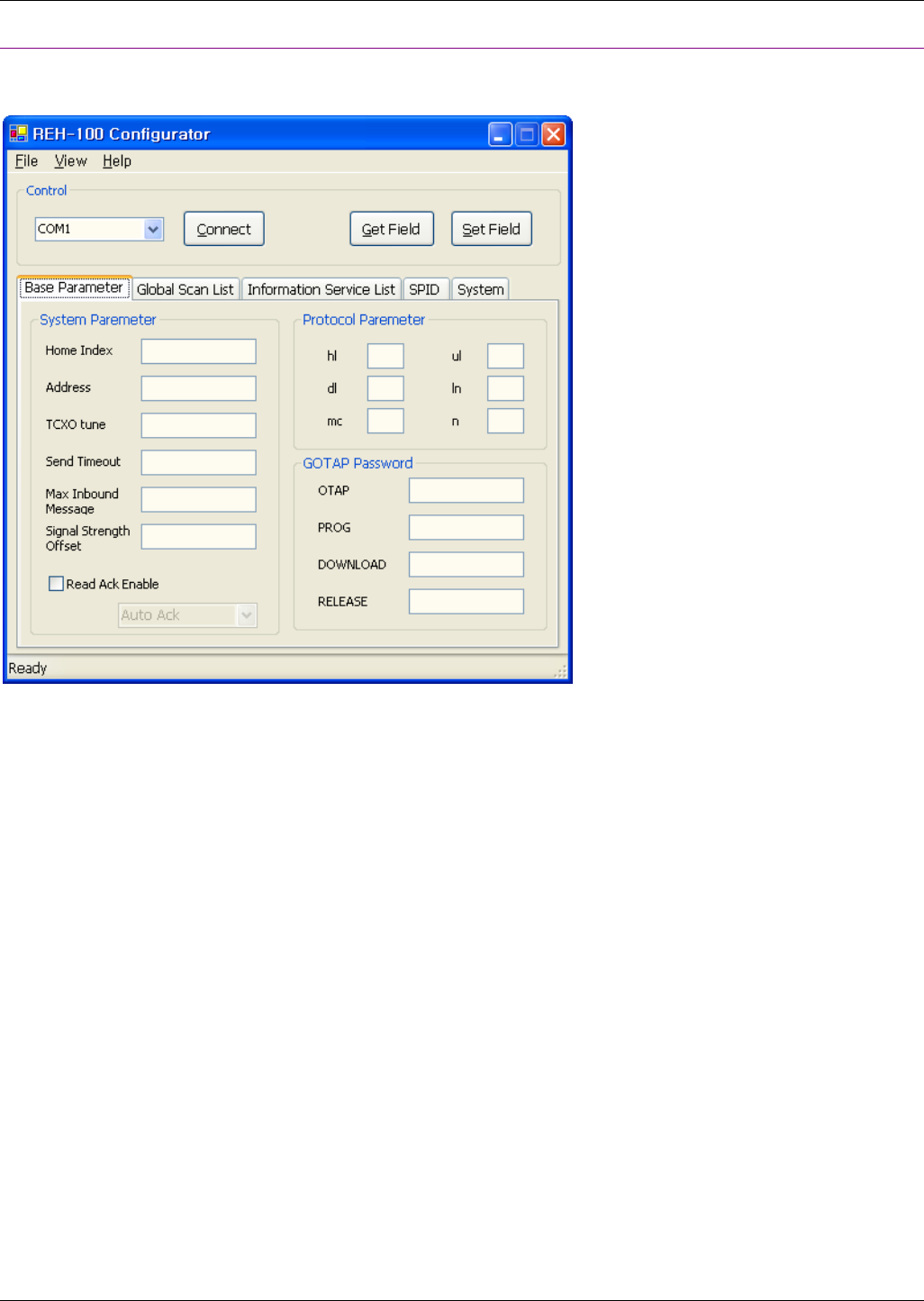

2.2. System Parameters
z System parameters consists of 3 parts
9 Main system parameters
9 Protocol parameters
9 GOTAP Passwords
z Home Index : HIX value
z Address : Personal device address
z TCXO tune : Independently, unique tuning value of devices
z Send Timeout : default 5 minutes
z Max Inbound Message : 2000 (max)
z Default Protocol Parameter
9 hl : 63
9 ul : 10
9 dl : 6
9 ln : 0
9 mc : 0
9 n : 8 - autocollapse value
(REH-100) User Manual HahnTech, Co., Ltd.

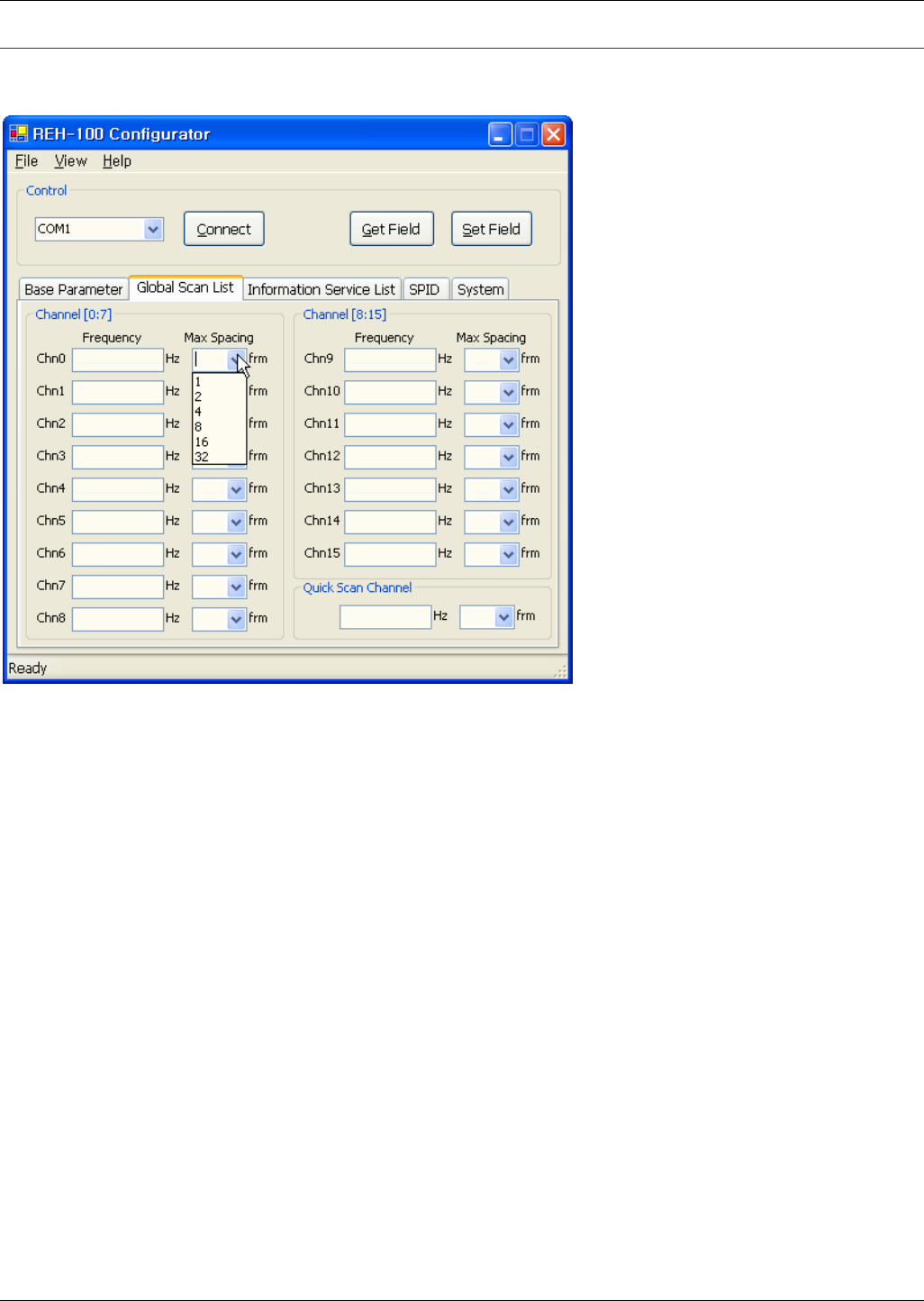

2.3. Global Scan List Parameters
z Device can have 16 GSLs.
z You can choose “Max Spacing” - This is max non-sync frames.
z Quick Scan Channel : First of all device try connection to this frequency when start.
(REH-100) User Manual HahnTech, Co., Ltd.

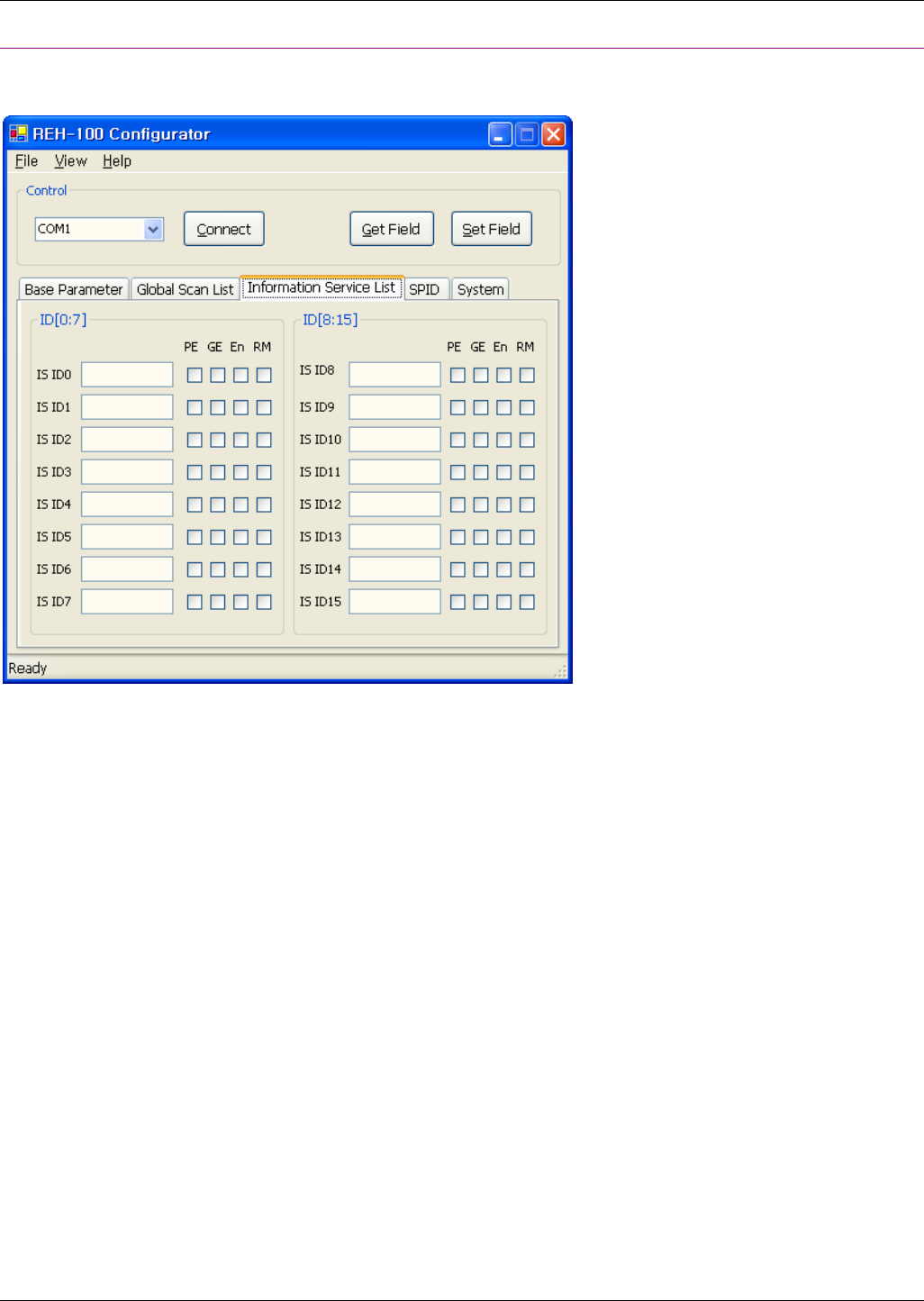

2.4. Information Service Address List Parameters
z Device can have 16 Information Service Addresses.
9 PE : Priority Enable
9 GE : GOTAP Enable
9 En : address Enable
9 RM : Restricted Modify Enable
(REH-100) User Manual HahnTech, Co., Ltd.

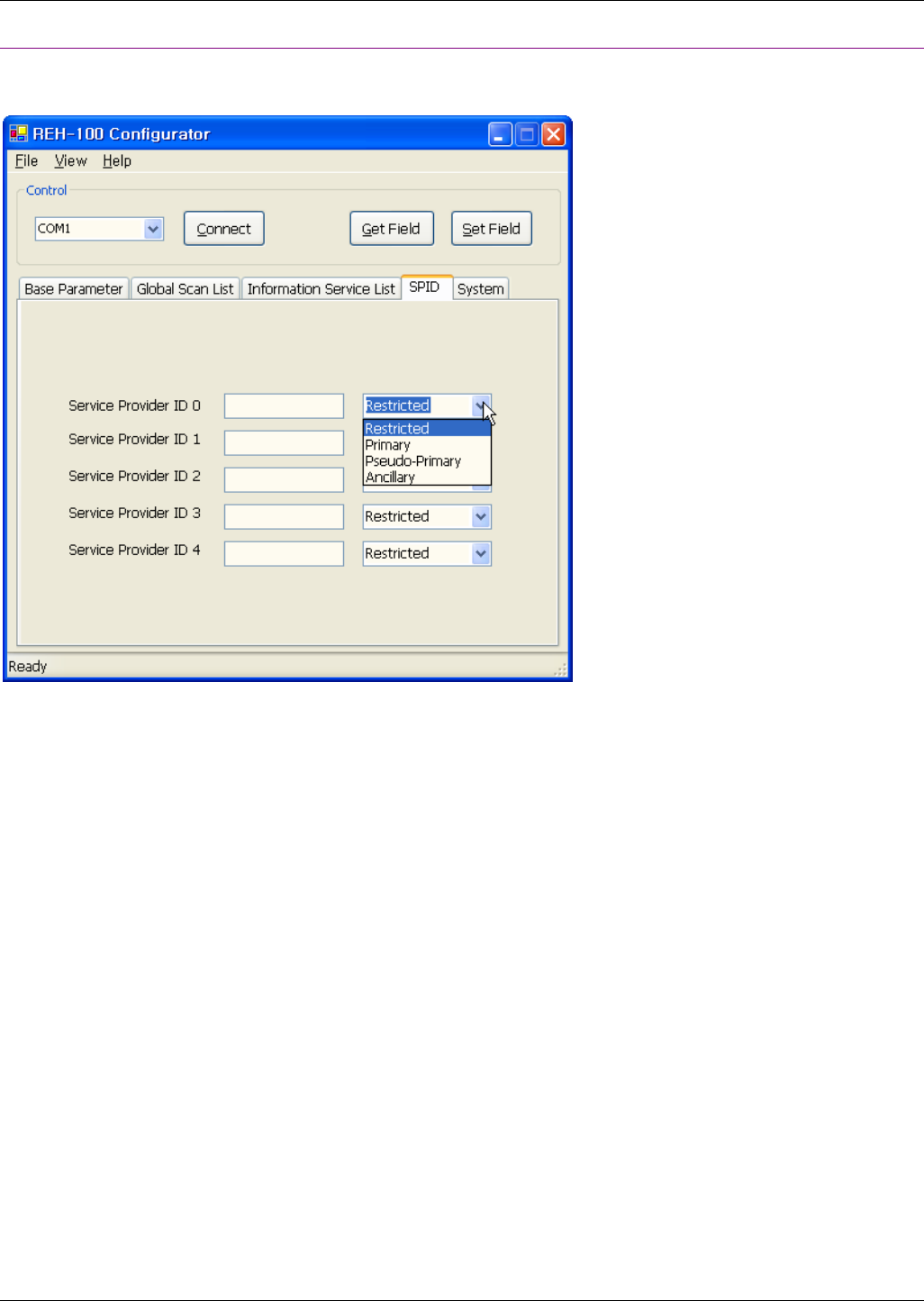

2.5. SPID Parameters
z Primary
z Pseudo-Primary
z Ancillary
(REH-100) User Manual HahnTech, Co., Ltd.
3. CLP Communicator SW Oper Manual (UAR Tx)
3.1. Introduction
z This program transmit message to device, with E-mail address.
z Now it supports only e-mail address (not wireless address).

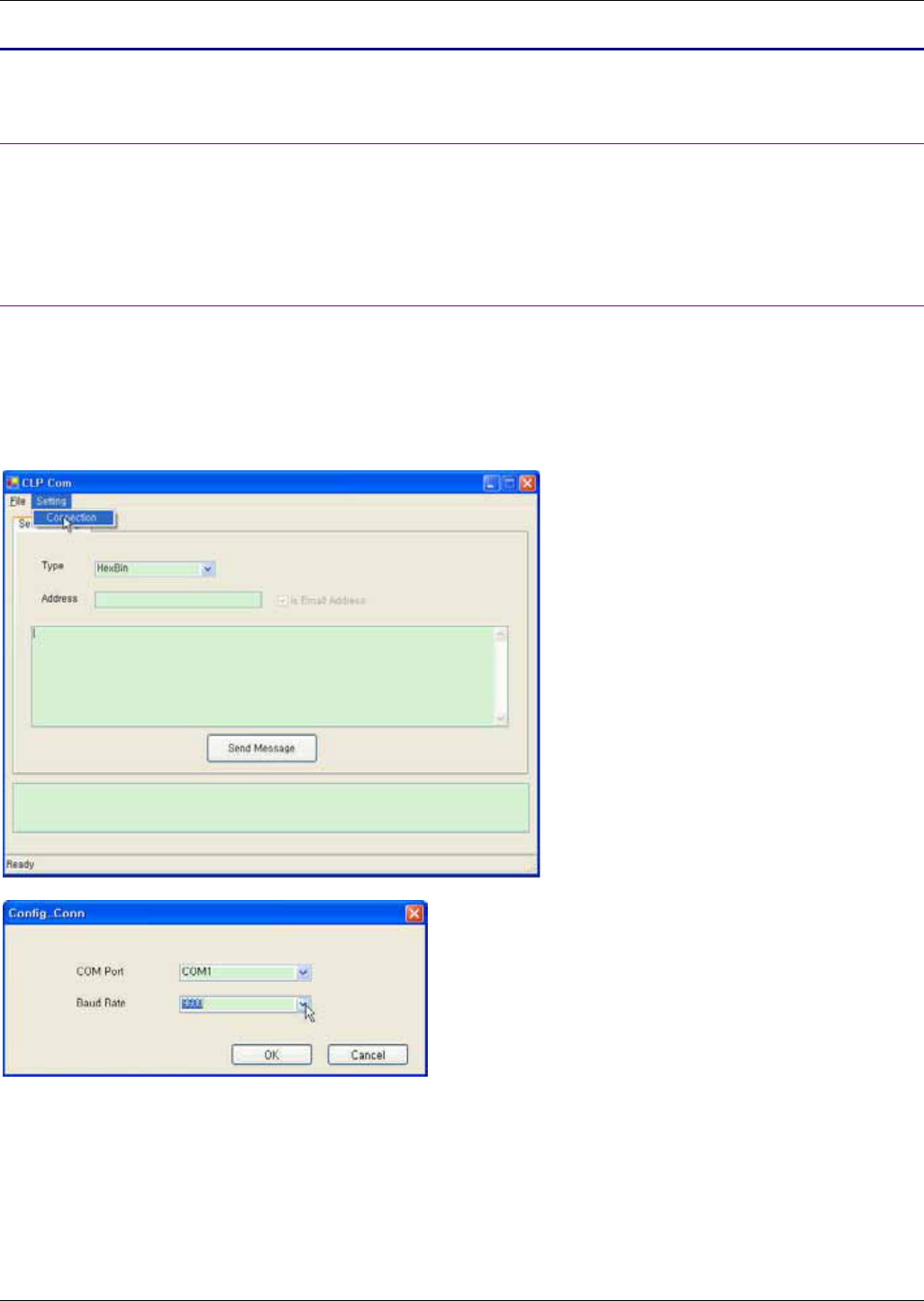

3.2. Setting Connection
z It connect to device through serial communication, 9600 bps.
z Menu “Setting”/”Connection”
z Default connection is COM1/9600 bps.
(REH-100) User Manual HahnTech, Co., Ltd.

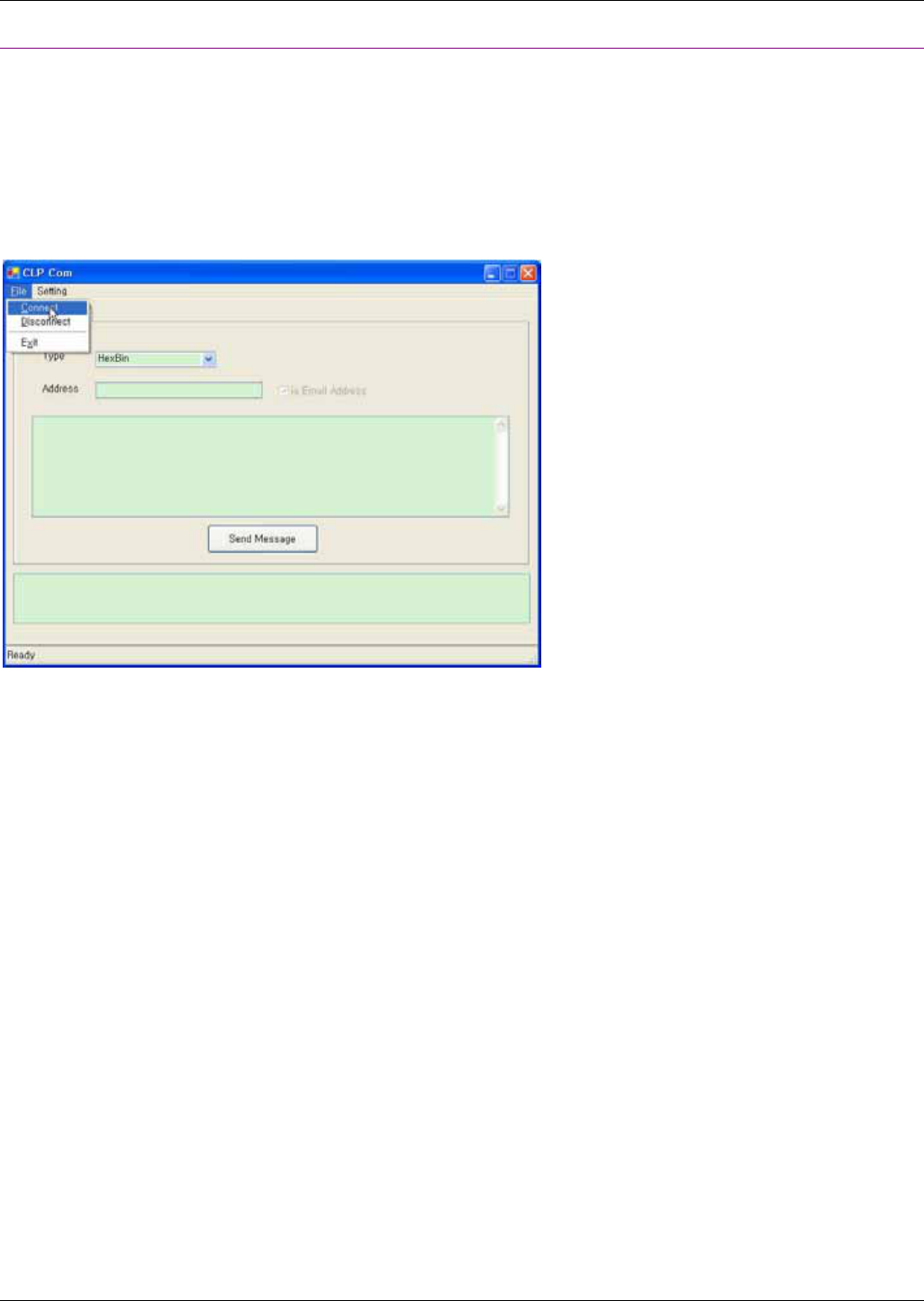

3.3. Connect
z Menu “File”/”Connect” : Connection
z Menu “File”/”Disconnect” : Connection close
z If you click menu “File”/”Connect”, you can see below message.
Connected – Port: COM1 BaudRate: 9600
(If you cannot find this message or see another message, connection fail)
(REH-100) User Manual HahnTech, Co., Ltd.

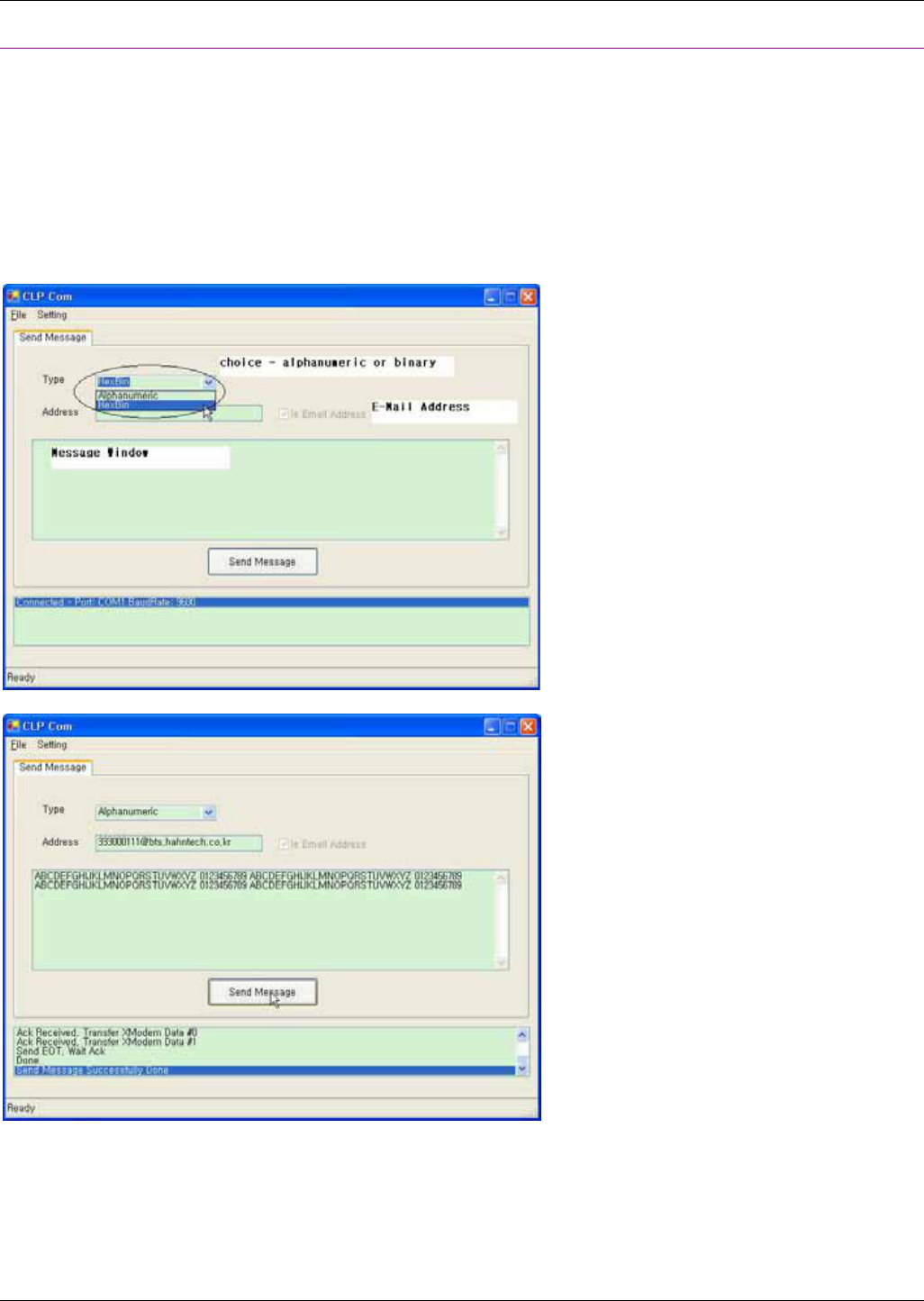

3.4. Send Message
z You first choice message type
9 Alphanumeric : Alpha-numeric message
9 HexBin : Binary message
z This communicator can support only e-mail address
z In binary message mode, characters must be numerics (0~9) and 12 characters (A~F,
a~f).
(REH-100) User Manual HahnTech, Co., Ltd.
Appendix

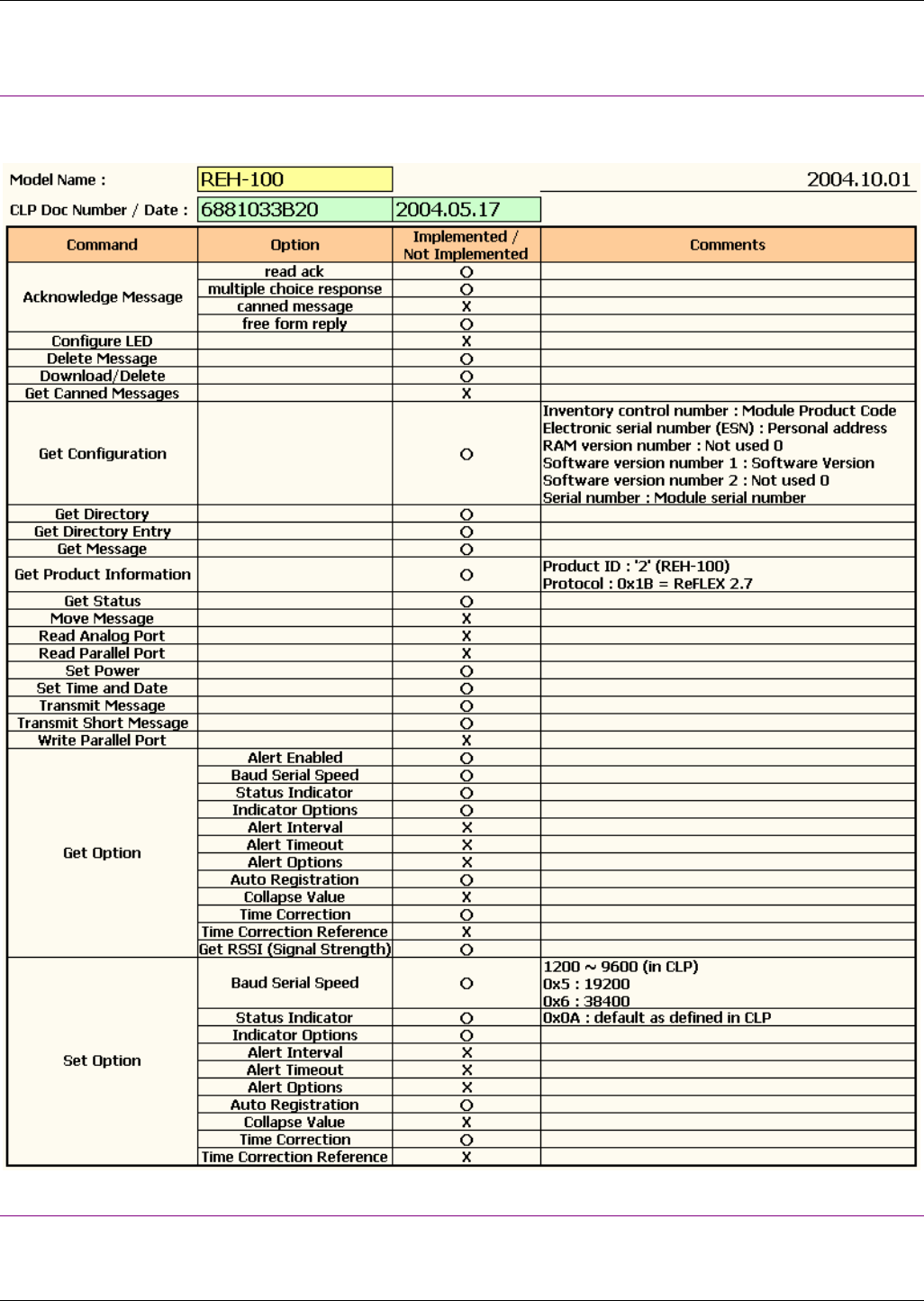

A.1. Supported CLP Commands List

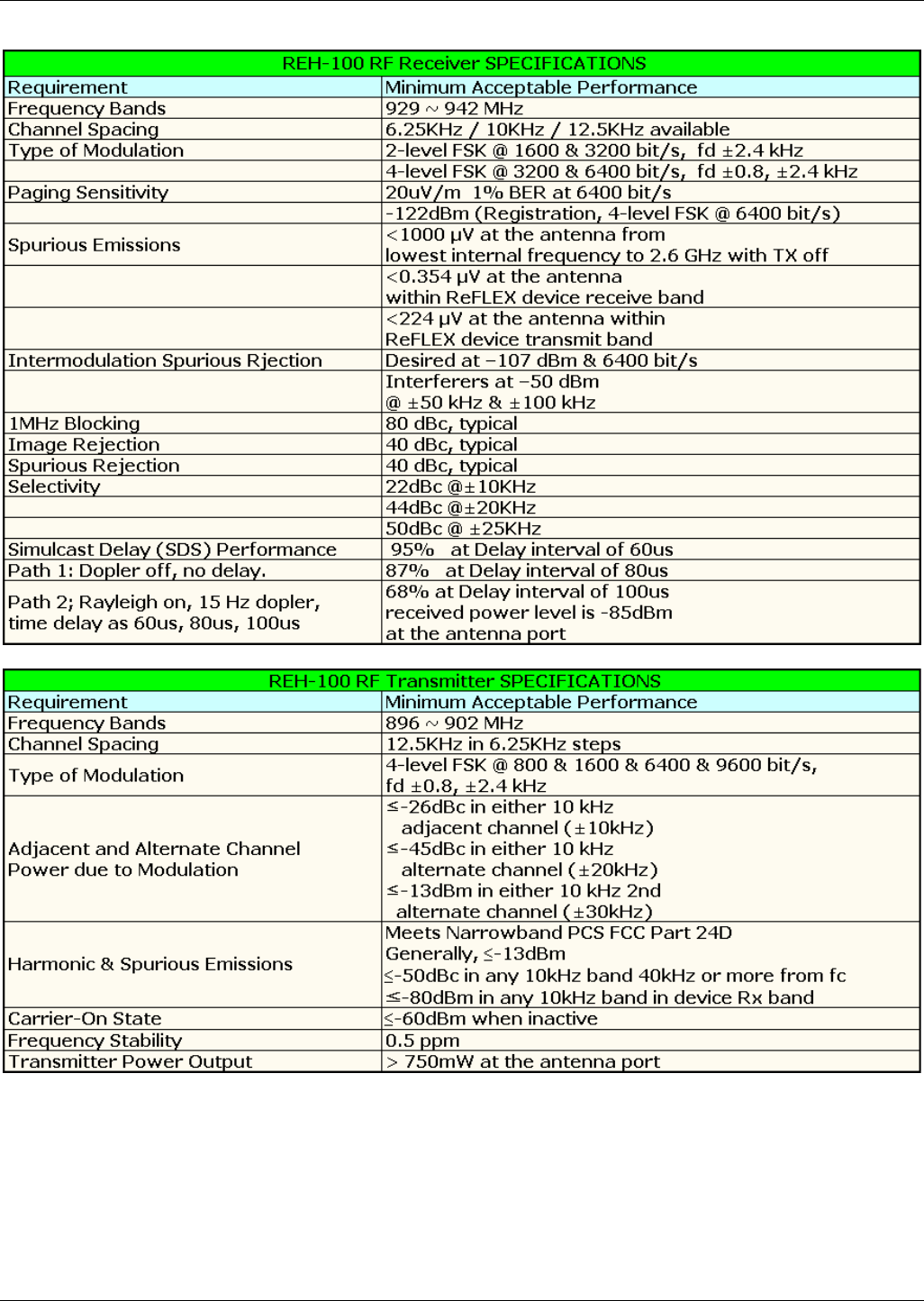

A.2. RF Specifications
(REH-100) User Manual HahnTech, Co., Ltd.
(REH-100) User Manual HahnTech, Co., Ltd.
A.3. Hardware Characteristics
A.3.1. Environmental
Operating Temperature Range -10 ~ +60 ℃
Storage Temperature Range -40 ~ +95 ℃
Relative Humidity 95% non-condensing
Vibration specification TIA/EIA 603 3.3.4
Shock specification TIA/EIA 603 3.3.5
A.3.2. Electrical Interface
Pin Number Signal Name Description
1 UART_TX Transmit Data
2 TEST0 Reserved
3 UART_RX Received Data
4 TEST1 Reserved
5 OPEN OPEN
6 OPEN OPEN
7 IO3 Input-Output Port3/Reserved
8 IO2 Input-Output Port2/Reserved
9 TEST2 Reserved
10 IO1 Input-Output Port1/Reserved
11 EN Enable Device
12 IO0 Input-Output Port0/Reserved
13 GND Ground
14 MRESET Module Reset
15 GND Ground
16 VEE_IN Power to the board
17 GND Ground
18 VEE_IN Power to the board
19 GND Ground
20 VEE_IN Power to the board
!!""#
$
#%
!!!
&!"
'()(* !!
"
&!
"
+
,"
,(#"
"
(
"'*-'##
("*"
