HARRIS TR-0035-E M7100 VHF Mobile, 8-50W User Manual MM102341V1RevC p2 FCC

HARRIS CORPORATION M7100 VHF Mobile, 8-50W MM102341V1RevC p2 FCC

Manual with additons

Operator’s Manual

MM102341V1

Rev. C, Feb-05

M7100IP Series

Mobile Radio

MANUAL REVISION HISTORY

REVISION DATE REASON FOR CHANGE

A February 2004 Initial release.

B April 2004 Add MPE and FCC information for VHF, UHF-L, UHF-H, and 800MHz M7100IP

radios.

C Feb. 2005 Add MPE, VHF maritime channel, and FCC information for 50W VHF mobile

radio.

M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this

document and suggestions on how the document could be improved. Submit your comments and

suggestions to:

Wireless Systems Business Unit or fax your comments to: (434) 455-6851

M/A-COM, Inc.

Technical Publications or e-mail us at: techpubs@tycoelectronics.com

221 Jefferson Ridge Parkway

Lynchburg, VA 24501

SUPPLEMENTARY INFORMATION:

At this time, the M7100IP mobile radio may not be operated while in a desktop station in the European Community since it does not

meet immunity requirements when operated in this mode. The M7100IP mobile radio can be used in both trunked and conventional

applications.

ACKNOWLEDGEMENTS

This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796;

5,271,017; 5,377,229; 4,716,407; 5,502,767; 5,146,497; 5,164,986; 5,185,795.

The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights,

and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile,

reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form.

EDACS is a registered trademark and ProGrammer, SCAT, Failsoft, ProSound, ProScan, Aegis, ProFile, ProVoice, and G-STAR are

trademarks of M/A-COM, Inc.

IMBE is a registered trademark of Digital Voice Systems, Inc.

All other brand and product names are trademarks, registered trademarks, or service marks of their respective holders.

NOTICE!

This manual covers M/A-COM products manufactured and sold by M/A-COM, Inc.

Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs,

alterations or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the

user’s authority to operate the equipment in addition to the manufacturer’s warranty.

The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of

the United States.

This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by

typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-

COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual

may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for

any purpose, without the express written permission of M/A-COM, Inc.

TABLE OF CONTENTS Page

1 SAFETY SYMBOL CONVENTIONS.......................................................................................... 5

2 RF ENERGY EXPOSURE INFORMATION.............................................................................. 6

2.1 RF ENERGY EXPOSURE REQUIREMENTS ........................................................ 6

2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS........................................... 7

3 OPERATION SAFETY RECOMMENDATIONS...................................................................... 9

3.1 TRANSMITTER HAZARDS..................................................................................... 9

3.2 SAFE DRIVING RECOMMENDATIONS ............................................................... 9

4 OPERATING RULES AND REGULATIONS.......................................................................... 10

4.1 OPERATING TIPS................................................................................................... 10

5 MARITIME CHANNELS............................................................................................................ 11

6 INTRODUCTION ........................................................................................................................ 12

7 USER INTERFACE ..................................................................................................................... 13

8 CONTROLS.................................................................................................................................. 14

8.1 POWER ON-OFF VOLUME KNOB....................................................................... 14

8.2 SYSTEM/GROUP CHANNEL KNOB.................................................................... 14

8.3 RAMP CONTROL ................................................................................................... 14

8.4 SCAN ON/OFF......................................................................................................... 14

8.5 SCAN ADD/DELETE.............................................................................................. 15

8.6 INDICATORS .......................................................................................................... 15

8.7 KEYPAD .................................................................................................................. 15

9 DISPLAY....................................................................................................................................... 19

9.1 RADIO STATUS ICONS......................................................................................... 19

9.2 MESSAGES.............................................................................................................. 20

10 ALERT TONES............................................................................................................................ 23

10.1 CALL ORIGINATE .................................................................................................23

10.2 AUTOKEY (TRUNKED MODE ONLY)................................................................ 23

10.3 CALL QUEUED (TRUNKED MODE ONLY) ....................................................... 23

10.4 SYSTEM BUSY (TRUNKED MODE ONLY)........................................................ 23

10.5 CALL DENIED (TRUNKED MODE ONLY)......................................................... 23

10.6 CARRIER CONTROL TIMER ................................................................................ 23

10.7 KEY PRESS ALERT................................................................................................ 23

10.8 DUAL CONTROL SWITCHING ............................................................................ 23

11 OPERATION ................................................................................................................................ 24

11.1 TURNING THE RADIO ON ................................................................................... 24

11.2 SELECTION MODE RULES................................................................................... 24

11.3 DIRECT ACCESS.................................................................................................... 25

11.4 MENU....................................................................................................................... 25

11.5 FEATURE ENCRYPTION DISPLAY..................................................................... 29

11.6 SYSTEM/GROUP/CHANNEL SELECTION ......................................................... 31

11.7 LAST SYSTEM/GROUP/CHANNEL RECALL..................................................... 32

TABLE OF CONTENTS Page

12 TRUNKED MODE OPERATION ..............................................................................................33

12.1 RECEIVING A CALL..............................................................................................33

12.2 SENDING A CALL..................................................................................................33

12.3 CONVENTIONAL FAILSOFT................................................................................33

12.4 EMERGENCY OPERATION ..................................................................................34

12.5 SYSTEM SCAN OPERATION................................................................................34

12.6 GROUP SCAN OPERATION..................................................................................36

12.7 INDIVIDUAL CALLS .............................................................................................38

12.8 SCAT OPERATION.................................................................................................39

12.9 TELEPHONE INTERCONNECT CALLS...............................................................40

12.10 MOBILE DATA .......................................................................................................41

12.11 STATUS/MESSAGE OPERATION.........................................................................44

12.12 EDACS CONVENTIONAL P1 SCAN ....................................................................45

12.13 DYNAMIC REGROUP OPERATION.....................................................................45

13 CONVENTIONAL MODE OPERATION.................................................................................46

13.1 RECEIVING A CALL..............................................................................................46

13.2 SENDING A CALL..................................................................................................46

13.3 EMERGENCY OPERATION ..................................................................................46

13.4 SCANNING CONVENTIONAL CHANNELS........................................................47

13.5 TURNING SCAN ON ..............................................................................................48

13.6 TURNING SCAN OFF.............................................................................................49

13.7 SQUELCH ADJUST.................................................................................................49

13.8 TYPE 99 DECODE...................................................................................................50

13.9 DIRECT MODE OPERATION ................................................................................51

13.10 LAST SCANNED CHANNEL RECALL.................................................................51

14 PROJECT 25 (P25) CONVENTIONAL OPERATION............................................................52

14.1 GROUP CALLS IN P25 MODE...............................................................................52

14.2 INDIVIDUAL CALLS IN P25 MODE ....................................................................52

14.3 EMERGENCY GROUP CALLS IN P25 MODE.....................................................53

15 TRUNKED OR CONVENTIONAL MODE OPERATION .....................................................54

15.1 SIREN/LIGHT OPERATION...................................................................................54

15.2 DIGITAL VOICE OPERATION..............................................................................54

15.3 DUAL CONTROL OPERATION ............................................................................59

15.4 MULTIPLE RADIO OPERATION..........................................................................60

15.5 MACRO KEY OPERATION ...................................................................................61

15.6 INTERCONNECT CALL (SYSTEM MODEL ONLY) ..........................................61

15.7 KEYPAD REMAPPING...........................................................................................62

GLOSSARY .........................................................................................................................................63

RADIO SETUP ....................................................................................................................................65

WARRANTY .......................................................................................................................................67

1 SAFETY SYMBOL CONVENTIONS

The following conventions are used throughout this manual to alert the user to general safety precautions

that must be observed during all phases of operation, service, and repair of this product. Failure to comply

with these precautions or with specific warnings elsewhere in this manual violates safety standards of

design, manufacture, and intended use of the product. M/A-COM, Inc. assumes no liability for the

customer’s failure to comply with these standards.

WARNING

The WARNING symbol calls attention to a procedure, practice, or the like, which, if not

correctly performed or adhered to, could result in personal injury. Do not proceed beyond

a WARNING symbol until the conditions identified are fully understood or met.

CAUTION

The CAUTION symbol calls attention to an operating procedure, practice, or the like,

which, if not performed correctly or adhered to, could result in damage to the equipment or

severely degrade the equipment performance.

NOTE

The NOTE symbol calls attention to supplemental information, which may improve

system performance or clarify a process or procedure.

The ESD symbol calls attention to procedures, practices, or the like, which could expose

equipment to the effects of Electro-Static Discharge. Proper precautions must be taken to

prevent ESD when handling circuit modules.

2 RF ENERGY EXPOSURE INFORMATION

2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL

INFORMATION, AND OPERATION INSTRUCTIONS FOR

FCC OCCUPATIONAL USE REQUIREMENTS

Before using your mobile two-way radio, read this important RF energy awareness and control

information and operational instructions to ensure compliance with the FCC’s RF exposure

guidelines.

NOTE

This radio is intended for use in occupational/controlled conditions, where users have full

knowledge of their exposure and can exercise control over their exposure to meet FCC

limits. This radio device is NOT authorized for general population, consumer, or any

other use.

CAUTION

Changes or modifications not expressly approved by M/A-COM, Inc. could void the user's

authority to operate the equipment.

This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide

communications between two or more users over a distance. It uses RF energy or radio waves to send and

receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited

to, electric power, sunlight, and x-rays. RF energy, however, should not be confused with these other

forms of electromagnetic energy, which, when used improperly, can cause biological damage. Very high

levels of x-rays, for example, can damage tissues and genetic material.

Experts in science, engineering, medicine, health, and industry work with organizations to develop

standards for exposure to RF energy. These standards provide recommended levels of RF exposure for

both workers and the general public. These recommended RF exposure levels include substantial margins

of protection. All two-way radios marketed in North America are designed, manufactured, and tested to

ensure they meet government established RF exposure levels. In addition, manufacturers also recommend

specific operating instructions to users of two-way radios. These instructions are important because they

inform users about RF energy exposure and provide simple procedures on how to control it. Please refer to

the following websites for more information on what RF energy exposure is and how to control your

exposure to assure compliance with established RF exposure limits.

http://www.fcc.gov/oet/rfsafety/rf-faqs.html

http://www.osha.gov./SLTC/radiofrequencyradiation/index.html

2.1.1 Federal Communications Commission Regulations

Your M/A-COM, Inc. M7100IP mobile two-way radio is designed and tested to comply with the

FCC RF energy exposure limits for mobile two-way radios before it can be marketed in the United

States. When two-way radios are used as a consequence of employment, the FCC requires users

to be fully aware of and able to control their exposure to meet occupational requirements.

Exposure awareness can be facilitated by the use of a label directing users to specific user

awareness information. Your M/A-COM, Inc. M7100IP two-way radio has an RF exposure

product label. Also, your M7100IP Installation and Operator’s Manuals include information and

operating instructions required to control your RF exposure and to satisfy compliance

requirements.

2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS

Your M/A-COM, Inc. M7100IP mobile two-way radio is designed and tested to comply with a number of

national and international standards and guidelines (listed below) regarding human exposure to RF

electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for

occupational/controlled RF exposure environment at duty factors of up to 50% talk-50% listen and is

authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the

FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting

(talking), not when it is receiving (listening) or in standby mode.

Your M/A-COM, Inc. M7100IP mobile two-way radio complies with the following RF energy exposure

standards and guidelines:

• United States Federal Communications Commission (FCC), Code of Federal Regulations; 47 CFR

§§ 2 sub-part J.

• American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers

(IEEE) C95.1-1992.

• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999.

CAUTION

Table 2-1 lists the recommended minimum lateral distance for a controlled environment

and for unaware bystanders in an uncontrolled environment, from transmitting types of

antennas (i.e., monopoles over a ground plane, or dipoles) at rated radio power for mobile

radios installed in a vehicle. Transmit only when unaware bystanders are at least the

uncontrolled recommended minimum lateral distance away from the transmitting antenna.

Table 2-1: Rated Power and Recommended Minimum Lateral Distance

RECOMMENDED MINIMUM LATERAL

DISTANCE FROM TRANSMITTING ANTENNA

MOBILE RADIO

FREQUENCY

SPLIT

RATED POWER OF VEHICLE-

INSTALLED MOBILE TWO-

WAY RADIO CONTROLLED UNCONTROLLED

VHF 110 Watts

(Antenna P/N: 19B209568P6) 92.87 cm 207.67 cm

VHF 50 Watts

(Antenna P/N: AN102800V1/V2) 63.52 cm 142.00 cm

UHF–L 50 Watts

(Antenna P/N: AN102800V1) 57.93 cm 129.50 cm

UHF-H 50 Watts

(Antenna P/N: AN102800V1) 46.64 cm 104.29 cm

800 MHz 35 Watts

(Antenna P/N: AN102800V1) 32.60 cm 72.90 cm

2.2.1 Mobile Antennas

Install the radio’s antenna (refer to Table 2-1 for applicable antenna part numbers) in the center of

the vehicle’s roof. These mobile antenna installation guidelines are limited to metal body motor

vehicles or vehicles with appropriate ground planes. The antenna installation should additionally

be in accordance with the following.

1. The requirements of the antenna manufacturer/supplier included with the antenna.

2. Instructions in the M7100IP Radio Installation Manual, including minimum antenna cable

lengths.

3. The installation manual providing specific information of how to install the antennas to

facilitate recommended operating distances to all potentially exposed persons.

Use only the M/A-COM approved/supplied antenna(s) or approved replacement antenna.

Unauthorized antennas, modifications, or attachments could damage the radio and may violate

FCC regulations.

2.2.2 Approved Accessories

This radio has been tested and meets the FCC RF guidelines when used with the M/A-COM

accessories supplied or designated for use with this product. Use of other accessories may not

ensure compliance with the FCC’s RF exposure guidelines, and may violate FCC regulations.

For a list of M/A-COM approved accessories refer to the product manuals, M/A-COM’s Products

and Services Catalog, or contact M/A-COM at 1-800-368-3277.

2.2.3 Contact Information

For additional information on exposure requirements or other information, contact M/A-COM,

Inc. at 1-800-528-7711 or at http://www.macom-wireless.com.

3 OPERATION SAFETY RECOMMENDATIONS

3.1 TRANSMITTER HAZARDS

WARNING

The operator of any mobile radio should be aware of certain hazards common to the

operation of vehicular radio transmitters. A list of several possible hazards is given:

• Explosive Atmospheres – Just as it is dangerous to fuel a vehicle with the motor running, similar

hazards exist when operating a mobile radio. Be sure to turn the radio off while fueling a vehicle. Do

not carry containers of fuel in the trunk of a vehicle if the radio is mounted in the trunk.

Areas with potentially explosive atmosphere are often, but not always, clearly marked. Turn OFF your

radio when in any area with a potentially explosive atmosphere. It is rare, but not impossible that the

radio or its accessories could generate sparks.

• Interference to Vehicular Electronics Systems – Electronic fuel injection systems, electronic anti-

skid braking systems, electronic cruise control systems, etc., are typical electronic systems that can

malfunction due to the lack of protection from radio frequency energy present when transmitting. If

the vehicle contains such equipment, consult the dealer and enlist their aid in determining the expected

performance of electronic circuits when the radio is transmitting.

• Electric Blasting Caps – To prevent accidental detonation of electric blasting caps, DO NOT use

two-way radios within 1000 feet of blasting operations. Always obey the “Turn Off Two-Way

Radios” signs posted where electric blasting caps are being used. (OSHA Standard: 1926-900)

• Liquefied Petroleum (LP) Gas Powered Vehicles – Mobile radio installations in vehicles powered

by liquefied petroleum gas with the LP gas container in the trunk or other sealed-off space within the

interior of the vehicle must conform to the National Fire Protection Association standard NFPA 58

requiring:

¾ The LP gas container and its fittings.

¾ Outside filling connections shall be used for the LP gas container.

¾ The LP gas container shall be vented to the outside of the vehicle.

3.2 SAFE DRIVING RECOMMENDATIONS

(Recommended by AAA)

• Read the literature on the safe operation of the radio.

• Keep both hands on the steering wheel and the microphone in its hanger whenever the vehicle is in

motion.

• Place calls only when the vehicle is stopped.

• When talking from a moving vehicle is unavoidable, drive in the slower lane. Keep conversations

brief.

• If a conversation requires taking notes or complex thought, stop the vehicle in a safe place and

continue the call.

• Whenever using a mobile radio, exercise caution.

4 OPERATING RULES AND REGULATIONS

Two-way FM radio systems must be operated in accordance with the rules and regulations of the local,

regional, or national government.

In the United States, the M7100IP Series mobile radio must be operated in accordance with the rules and

regulations of the Federal Communications Commission (FCC). As an operator of two-way radio

equipment, you must be thoroughly familiar with the rules that apply to your particular type of radio

operation. Following these rules helps eliminate confusion, assures the most efficient use of the existing

radio channels, and results in a smoothly functioning radio network.

When using your two-way radio, remember these rules:

• It is a violation of FCC rules to interrupt any distress or emergency message. As your radio operates

in much the same way as a telephone “party line,” always listen to make sure that the channel is clear

before transmitting. Emergency calls have priority over all other messages. If someone is sending an

emergency message – such as reporting a fire or asking for help in an accident – KEEP OFF THE

AIR!

• The use of profane or obscene language is prohibited by Federal law.

• It is against the law to send false call letters or false distress or emergency messages. The FCC

requires that you keep conversations brief and confine them to business. To save time, use coded

messages whenever possible.

• Using your radio to send personal messages (except in an emergency) is a violation of FCC rules. You

may send only those messages that are essential for the operation of your business.

• It is against Federal law to repeat or otherwise make known anything you overhear on your radio.

Conversations between others sharing your channel must be regarded as confidential.

• The FCC requires that you identify yourself at certain specific times by means of your call letters.

Refer to the rules that apply to your particular type of operation for the proper procedure.

• No changes or adjustments shall be made to the equipment except by an authorized or certified

electronics technician.

NOTE

Under U.S. law, operation of an unlicensed radio transmitter within the jurisdiction of the

United States may be punishable by a fine of up to $10,000, imprisonment for up to two

(2) years, or both.

4.1 OPERATING TIPS

The following conditions tend to reduce the effective range of two-way radios and should be avoided

whenever possible:

• Operating the radio in areas of low terrain, or while under power lines or bridges.

• Obstructions such as mountains and buildings.

• In areas where transmission or reception is poor, some improvement can be obtained by moving a few

yards in another direction or moving to a higher elevation.

5 MARITIME CHANNELS

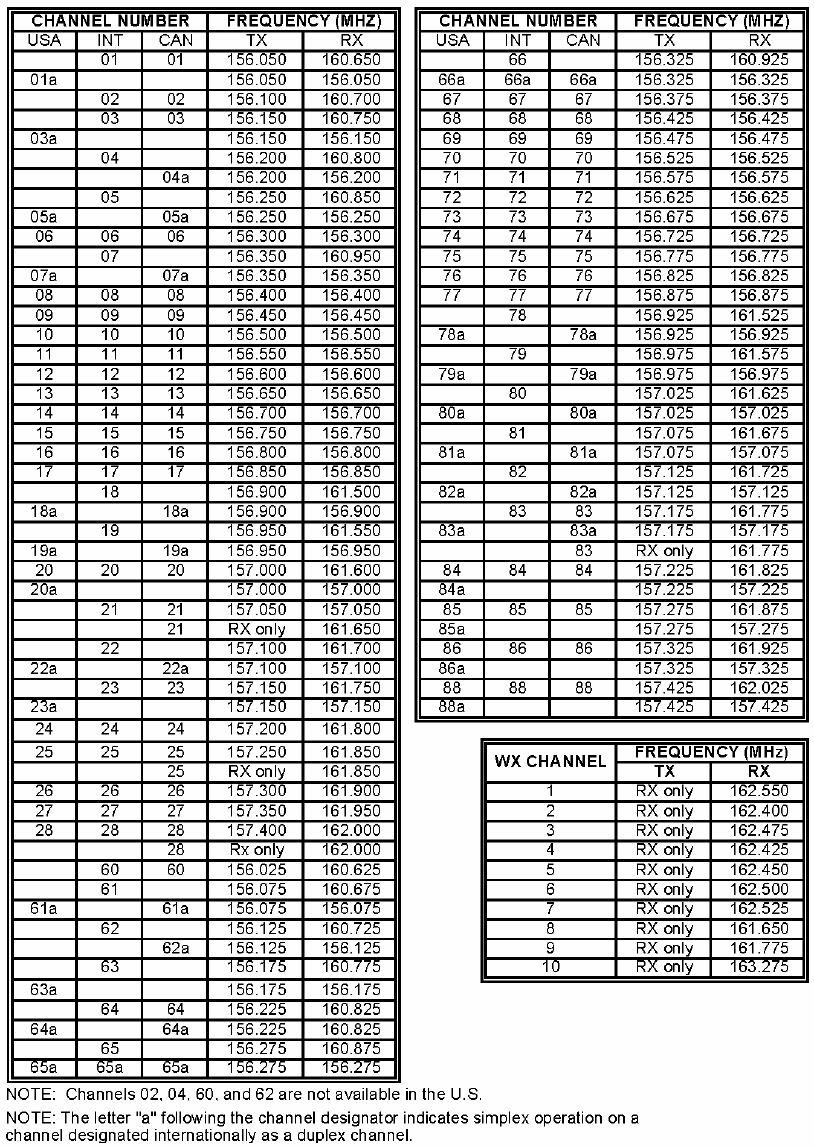

As part of FCC Equipment Authorization Part 80 licensing a maritime frequency usage plan has been

included in this manual for reference.

6 INTRODUCTION

This manual describes how to use the M7100IP Series Mobile Radio. The M7100IP is a synthesized,

microprocessor-based, high performance mobile FM radio providing reliable two-way communications in

both the Enhanced Digital Access Communications System (EDACS®) trunking environment and

conventional communication systems.

In the EDACS or trunked system mode, the user selects a communications system and group. In this mode,

channel selection is transparent to the user and is controlled via digital communication with the system

controller. This provides advanced programmable features and fast access to communication channels.

In the conventional mode, the user selects a channel and directly communicates on that channel. In this

mode, a system refers to a set of channels. A channel is a transmit/receive radio frequency pair.

The exact operation of the radio will depend on the operating mode, the radio's programming and the

particular radio system. Most features described in this manual can be enabled or disabled through

programming. Consult the system administrator for the particular features that are programmed into the

M7100IP.

7 USER INTERFACE

The M7100IP operating controls are located on the radio's front panel (see Figure 7-1and Figure 7-2). A

keypad, vacuum florescent display for radio status information and a microphone jack are on the front

panel. The front panel also provides a rotary SYSTEM/GROUP/CHANNEL knob, POWER ON-

OFF/VOLUME control, a ramp up/ramp down control, Scan add/delete control, and a SCAN ON-OFF

control for scan operation.

The keypad is used for manual number entry for individual calls, access to a telephone interconnect system

and activation of various EDACS or conventional features such as menu selection. Each key has an

associated LED for status indication.

The display has two lines with eight alphanumeric-characters used to show the operational mode of the

radio. There is one LED for indicating transmitter ON and one LED to indicate CHANNEL BUSY located

below the POWER ON-OFF/VOLUME Control.

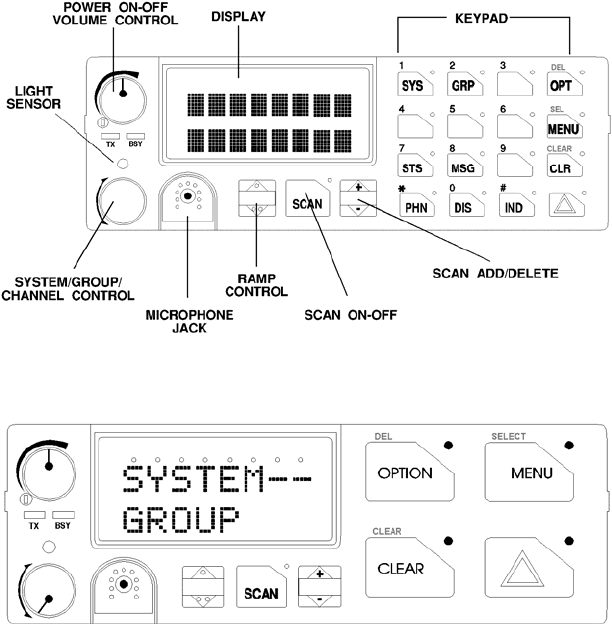

Figure 7-1: M7100IP Series Mobile Radio System Model Front Panel

Figure 7-2: M7100IP Series Mobile Radio Scan Model Front Panel

8 CONTROLS

This section describes the buttons, keys and rotary knobs used to control the M7100IP Series Mobile Scan

and System Model radios. All functions and controls of the Scan radio operate the same as the

corresponding functions and controls on the System radio. The Scan radio is equipped with a 4-button

keypad and the System radio is equipped with a 16-button keypad.

Many of the control buttons and keys have or can be programmed to have a primary function and a

secondary function. The SCAN button can be programmed (as a secondary function) to toggle the keypad

keys between their primary function and their secondary function.

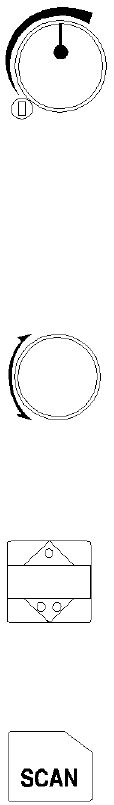

8.1 POWER ON-OFF VOLUME KNOB

This rotary knob applies power to the radio and adjusts the receiver volume. Rotating the

control clockwise out of detent applies power to the radio. A single alert tone sounds (i

enabled through programming) to indicate the radio is operational.

Rotating the control clockwise increases the volume level. Minimum volume levels can be programmed

into the radio to prevent missed calls due to a low volume setting. While adjusting the volume, the display

will briefly indicate the volume level (i.e. VOL = 31). The volume range is from a minimum level of zero

(displayed as OFF in the display) up to 31, which is the loudest level.

8.2 SYSTEM/GROUP CHANNEL KNOB

This rotary switch selects the systems or groups/channels, depending upon programming.

This 16-position rotary switch has no stop or detent. See SYSTEM/GROUP/CHANNEL

SELECTION section for more details.

8.3 RAMP CONTROL

The primary function of this rocker type button is to scroll through the System list or the

Group/Channel list depending upon programming. The secondary function is to increment o

decrement items within a list (phone list for example). Press ,to scroll in increasing orde

and press . to scroll in decreasing order. To auto-ramp, press and hold the button.

8.4 SCAN ON/OFF

The primary function of this button is to toggle scan operation ON and OFF. When the radio

is scanning, the SCAN LED is on and all groups or channels in the scan list of the currently

selected systems are scanned.

The secondary function of the SCAN button is to toggle the keypad buttons between their primary function

and their secondary function.

8.5 SCAN ADD/DELETE

This rocker type button is used to display the current SCAN status for a group/channel and

then either add or delete the group/channel from the system scan list.

Pressing the add/delete button twice while the radio is actively receiving or three times when

the radio is not receiving selects the last scanned channel (Last Scanned Channel Recall).

8.6 INDICATORS

Transmitter enabled - ON when the radio is transmitting.

BuSY - On indicates a carrier is being received (the channel is busy). Note that if the selected

channel is programmed for Channel Guard (CG), Digital Channel Guard (DCG) or Type 99

(T99) tone decode operation, the radio will not un-squelch if a valid tone or code is no

received; the BSY indicator will be on.

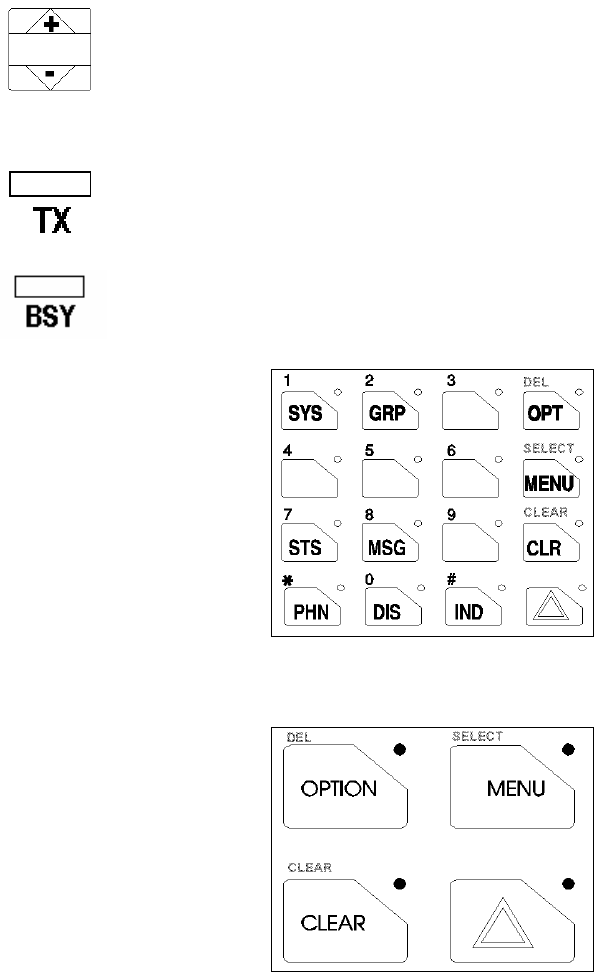

Figure 8-1: M7100IP System Model Keypad

Figure 8-2: M7100IP Scan Model Keypad

8.7 KEYPAD

The keypad is similar to a telephone keypad but with four (4) additional buttons on the side for a total of 16

keys. In addition to numbers (1-9, *, 0 and #), which is a secondary function, most of the keys have or can

be programmed to have a primary function. A symbol or abbreviated word describing its primary function

is labeled on the keycap. Each labeled keycap is associated with a radio feature (or primary function). The

radio must be programmed to operate with the Standard or the Optional keycap configuration.

A keylight (LED) is associated with each key or button. This can light when the associated function is

active. In some conditions, the keylight can blink to indicate an action status.

The keypad key functions can be remapped to any of the primary function keys using the PC programming

software. It is suggested that the blank keypad (located at the back of this manual) be completed if the

keypad key functions are changed.

8.7.1 Standard Keycap Configuration

The Standard keycap package for the System radio includes five (5) labeled keycaps (MODE,

HOME, CHN, AUX1 and AUX2) and six (6) blank keycaps, which can be placed on any of the

five key locations (numbers 3-6 and 9) shown in Figure 8-3. The keycap represents the primary

function programmed for that key location. See Secion 8.7.3 for a description of the primary

function associated with these five (5) keycaps.

The standard keycap package for the Scan radio includes five (5) labeled keycaps [MENU,

CLEAR, SELECT, EMERGENCY E or “E,” and OPTION] and five (5) blank keycaps,

which can be placed on any of the four (4) keypad keys. The keycap represents the primary

function programmed for that key location.

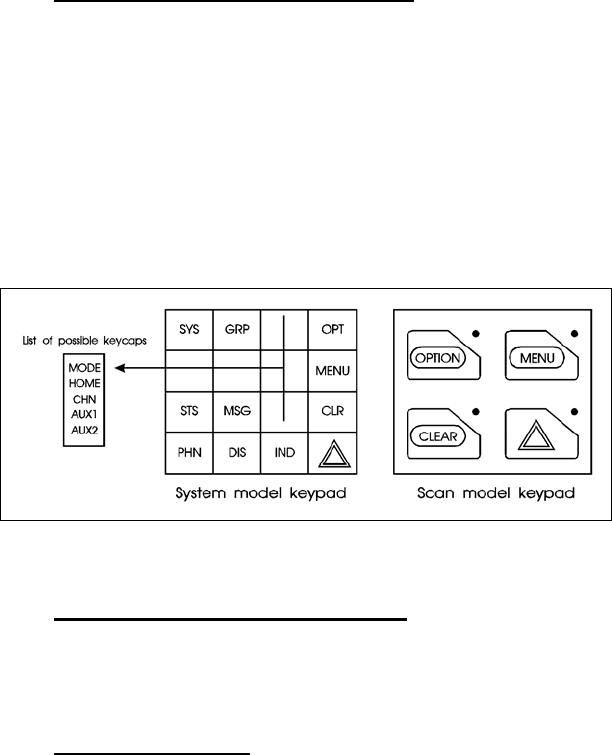

Figure 8-3: Standard M7100IP Keycaps Configuration

8.7.2 Optional Keycap Configuration

The optional keycap package for the System radio includes sixty (60) additional keycaps (shown

in Section 8.7.3), which can be placed on any key location desired. Keep in mind, the keycap

represents the primary function programmed for that key location.

8.7.3 Key Descriptions

MODE This key is used to enter the Conventional System selection mode.

HOME This key returns the radio to the Home System/Group where it is programmed.

CHN This key is used to enter the Channel select mode.

AUX1 & 2 These keys are used to control output 1 or 2. Their definition is PC programmable.

S This key is used to enter the System select mode.

g This key is used to enter the Group select mode.

The “OPT” or “OPTION” key is used to toggle a PC programmable feature ON

and OFF.

DEL Secondary function - used to delete a digit during numeric entry (see Section

11.2).

M Primary function - accesses the menu list. This is a list of additional features that

are not available directly from the keypad. See Section 11.4 for details.

SELECT Secondary function - activates a selected item within a list. After the menus list is

accessed, select a menu item from the list via RAMP controls, , or ., and

activate it with this key. Once activated, MENU continues its secondary function

for activating a selected parameter setting until the radio returns to its normal

receive state. This is similar to an enter key.

s The Status key permits the transmission of a pre-programmed status message to

an EDACS site.

n The Message key permits the transmission of a pre-programmed message to an

EDACS site.

Serves several purposes depending on the operating mode. In trunked mode, the

CLR button exits the current operation and removes all displays associated with it.

The radio and display then return to the group receive state. In Conventional

mode, pressing this button unmutes the receiver so activity on the selected channel

can be monitored. When pressed and held for approximately 3 seconds, this button

toggles conventional channel decoding (Channel Guard, Digital Channel Guard,

T99) ON and OFF if programmed for the selected channel.

p Used to place telephone calls through the radio by selecting the interconnect

special call function. See TELEPHONE INTERCONNECT CALLS for

details.

d Used to adjust the current display intensity and the keypad backlight level.

i Used to call an individual or make an all-call by selecting the individual call

function. See INDIVIDUAL CALLS for details.

The Emergency key is used to declare emergencies.

ALM This key toggles the external alarm ON/OFF. The external alarm is used to

indicate the radio is receiving an Individual Call. Press the key once to enable

external alarm and press again to disable external alarm.

SG1-SG5 This key corresponds to five (5) pre-programmed System/Groups. Pressing a key

programmed for SG1 would switch the radio to the pre-programmed

System/Group 1. Pressing a key programmed for SG2 would switch the radio to

the pre-programmed System/Group 2, etc.

WAIL, YLP,

RST, SL1-

SL8

The WAIL and YLP (Yelp) keys are designed to control an optional Siren

package. The SL1-SL8 (Siren/Light) keys are designed to control an optional

Siren/Light package. The RST (Reset) key is used to turn all sirens and lights

OFF.

SPK This key function is used to toggle the external speaker ON/OFF.

STO-ST9 The status 0-9 keys are used to send a pre-programmed status message to the

EDACS site.

PVT The PVT key enables or disables Private Mode for the System/Group displayed.

See the Private Operation section.

KEY Displays the Encrypted Keys. This selects the DISP KEY operation from the

menu functions.

G* This key function is used in Conventional Mode to send G-STAR emergency

signaling.

PA This key function enables and disables the Public Address feature.

# DTMF keypad function.

1 thru 9 Keypad numbers.

* DTMF Keypad function.

8.7.4 Primary Functions (Quick Access)

The secondary function of the k button is to toggle the keypad buttons between their primary

function and their secondary function. When the secondary keypad is active, i.e. entering phone

digits for an interconnect call, the k button can be used to toggle the keypad buttons back to

their primary function, perform a task (siren/light enable), and then toggle back to finish entering

the digits for the phone number. PRIMARY is displayed when the k button is used to

toggle the keypad keys back to their primary functions. This provides quick access to the primary

functions of the keypad. This is a programmable feature of the k button only. Careful

consideration should be given to possible operational conflicts before enabling this feature.

Several keys on the Scan version have a secondary function. The m key is the SELECT

secondary function with the C key remaining the same for the secondary function. On the

System version, the o has a secondary function for DELETE, m is SELECT, and c

retains its CLEAR function.

9 DISPLAY

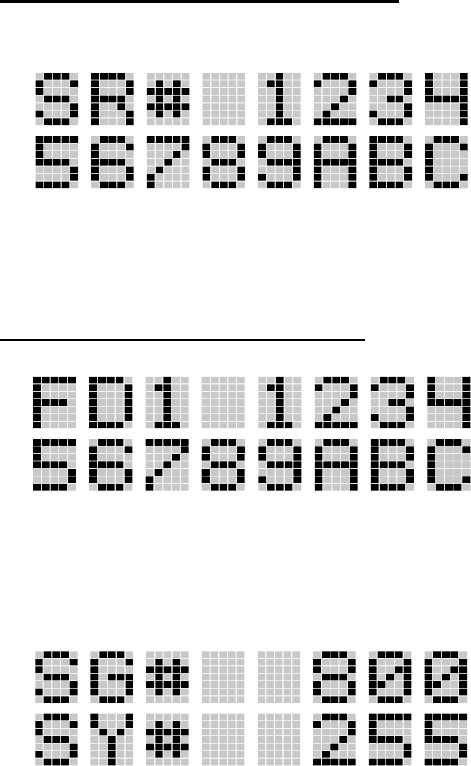

The radio's display is shown in Figure 9-1. The two character lines are used to display system, group and

channel names and also operational messages. Each line contains eight alphanumeric character blocks. See

Figure 7-2 for a typical display.

Figure 9-1: M7100IP Series Mobile Radio Display

9.1 RADIO STATUS ICONS

Status icons are indicators that show the various operating characteristics of the radio. The icons appear on

the first line of the display.

• indicates selected group or channel is in scan list.

• indicates selected group or channel is programmed as Priority 1 in scan list.

• indicates selected group or channel is programmed as Priority 2 in scan list.

• indicates conventional channel enabled with Channel Guard function.

• indicates the EDACS system is in Failsoft™ mode (if enabled through

programming).

• indicates Type 99 Decode is enabled on a conventional channel.

9.2 MESSAGES

During radio operation, various messages are displayed on either line 1 or line 2. Typical messages include

control channel status information, such as system busy or call denied, or messages associated with the

radio's operation, (i.e. volume adjust). These messages are described as follows:

Table 9-1: Display Messages

MESSAGE NAME DESCRIPTION

QUEUED Call Queued Trunked mode only. Indicates the system has placed the call in a request queue.

SYS BUSY System Busy Trunked mode only. Indicates the system is busy, no channels are currently

available, the queue is full or an individual call is being attempted to a radio that is

currently transmitting.

DENIED Call Denied Trunked mode only. Indicates the radio is not authorized to operate on the selected

system.

CC SCAN Control Channel Scan Trunked mode only. Indicates the control channel is lost and the radio has entered

the Control Channel Scan mode to search for the control channel.

WA SCAN Wide Area Scan Trunked mode only. Indicates the control channel is lost and the radio has entered

the Wide Area Scan mode to search for a new system (if enabled through

programming).

TALKARND Talk-around Conventional mode only. Indicates the radio is operating on conventional channels

in talk-around mode (no repeater).

*RXEMER* Receive Emergency Trunked mode only. Indicates an emergency call is being received. This message

will be flashing on line 2.

*TXEMER* Transmit Emergency Trunked mode only. Indicates an emergency call has been transmitted. This

message will be flashing on line 2.

VOL=31 Volume Level Indicates the current volume level. The volume level display ranges from OFF

(silent) to 31 (loudest).

UNKNOWN Caller's ID Not

Received Indicates that an individual call is being received, but the caller's ID was not

received.

TX DATA Transmit Data Trunked mode only. Indicates the radio is transmitting a data call.

RX DATA Receive Data Trunked mode only. Indicates the radio is receiving a data call. Displayed on line 2.

DATA OFF Data OFF Trunked mode only. Indicates the radio is in the data disabled state. Displayed on

line 1.

DATA ON Data ON Trunked mode only. Indicates the radio has been toggled to the data enable state.

Displayed for two seconds on line 1 when toggled to enable state.

SYSC ON System Scan Features

ON Trunked mode only. Indicates the System Scan features are enabled.

SYSC OFF System Scan Features

OFF Trunked mode only. Indicates the System Scan features are disabled.

T99 ON Type 99 Decode ON Conventional mode only. Indicates the Type 99 Decode feature is enabled.

T99 OFF Type 99 Decode OFF Conventional mode only. Indicates the Type 99 Decode feature is disabled.

PA ON Public Address ON Indicates that the public address function of the radio is enabled.

PA OFF Public Address OFF Momentary (2 seconds) indicates that public address function of the radio was

disabled.

ALRM ON External Alarm Enabled Indicates that the external alarm function of the radio is enabled.

ALRM OFF External Alarm

Disabled Momentary (2 seconds) indicates that the external alarm function of the radio was

disabled.

PVT DIS Private Mode Disabled Indicates that private mode is disabled or no encryption key has been programmed

for the selected group/channel or special call.

FRCD PVT Forced Private

Operation Indicates that forced private operation has been pre-programmed into radio.

MESSAGE NAME DESCRIPTION

NO KEY # Encryption Key Missing Flashing indicator indicates that no encryption key or an incorrect encryption key is

programmed into the radio.

BCKL=1-6 Backlight Indicates the display intensity and keypad backlight level.

GR Group ID Indicates that the call is a group call and is followed by the GID of the caller

(trunked mode only).

ID Individual ID Indicates the call is an individual call and the ID number of the caller, example "ID

2725" (trunked mode only).

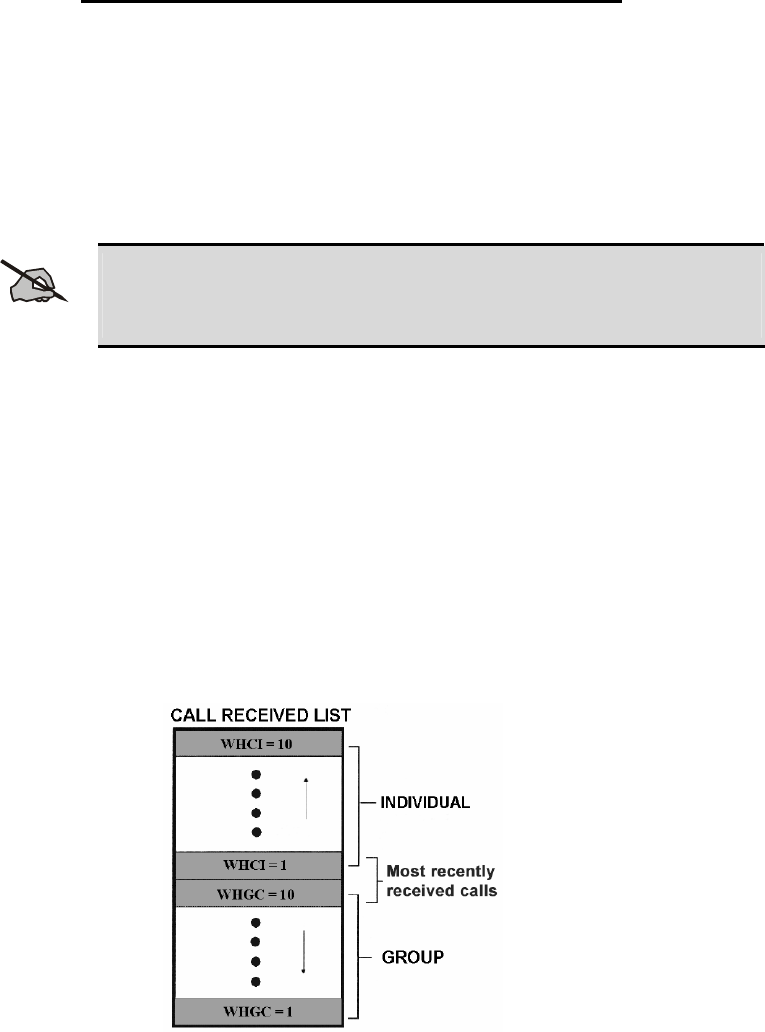

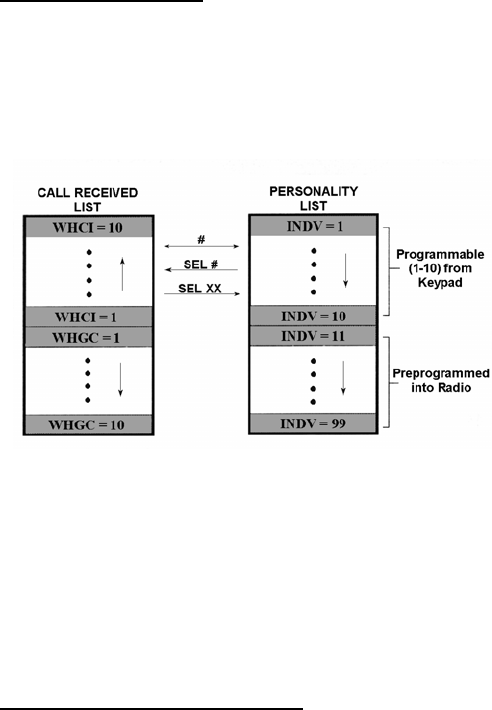

WHC=1 Who Has Called This display indicates the number from the Who Has Called list. Individual calls

received but not responded to are stored in a Who Has Called list. This list is

accessible by pressing the # key and then the INDV key after the Individual call has

timed out or the Clear button is pressed. This display is on line 2 and the LID of the

caller is displayed on the top line. Currently the list is not implemented and the

display will always be WHC=1.

PHONE Phone Call Displayed when a phone call is received from the site. It is displayed in line 1 of the

display. Line 2 of the display will contain the display *INDV* when line 1 contains

this message. The radio interprets a received phone call as an individual call.

CONV FS Conventional Failsoft Displayed when a failure of the EDACS system occurs. All communication will be

in conventional mode (trunked mode only).

MENU Displayed when the menu key is pressed and remains displayed in line 1 until a

menu item is selected.

SYS=1-64 System = 1 - 64 The system number for the current base station of the system displayed in line 1. It

is displayed in line 2 of the display. Press the system key to obtain this display.

GRP=1-64 Group = 1 - 64 The group number of the group displayed in line 2 of display. It is displayed in line

1 of the display. Press the group key to obtain this display. There are up to 48

groups available (i.e. 3 banks of 16). The maximum number of groups programmed

in a radio is determined by the personality.

INDV=1-99 Individual = 1 - 99 Indicates which item in the individual call list is being displayed. It is displayed in

line 2 of the display. The name or ID of the item in the list is displayed in line 1 of

the display.

PHN=1-99 Phone = 1 - 99 Indicates which item in the phone list is being displayed. It is displayed in line 2 of

the display. Line 1 of the display will be the last 3 characters of the list item

contents.

SEL PHN Select Phone After pressing the PHN key, selecting an entry from the phone list by typing the

entry number will display this message on Line 1.

SEL INDV Select Individual ID Displayed on line 1 when an entry from the individual ID list is selected after

pressing the INDV key. The entry is a number between 1 and 32 inclusive (trunked

mode only).

SYS ALL System All Call Displayed on line 1 to indicate a system all-call has been received (trunked mode

only).

Ggg-v.vv Code Group and

Revision Number This is code group and revision number that is displayed in line 2 when the menu

item “REVISION” is selected. The ‘gg’ is the group number of the software. The

first ‘v’ is the hardware version and ‘vv’ is the revision of the software.

*PHONE* Phone Call Displayed when an initiated phone call is in progress. This is displayed on line 2 of

the display.

DUAL Dual Control Operation Displayed on an idle control unit when configured as dual control operation.

NO ENTRY Indicates that there is no data stored in one of the programmable items in either the

phone list or individual call list. The user programmable items are items 1 through

10 in each list.

INV SYS Invalid System Displayed when the current system is an invalid type.

CHN=1-99 Channel = 1 - 99 Displayed on line 1 of the display. This is a conventional channel index displayed

when the group key is depressed.

FIX LIST Fixed List The Priority scan list is fixed and cannot be changed using the add or delete keys.

FIXED P1 Fixed Priority 1 The Priority 1 scan channel is fixed and cannot be changed using the add or delete

keys.

MESSAGE NAME DESCRIPTION

displaying different items under the menu when “REVISION” is selected by the

operator.

EM Emergency Indicates an emergency has been declared by the LID that follows the display,

“EM.” An example of this is “EM 01201.”

*INDV* Individual Call Displayed in line 2 of the display when an individual call is in progress (trunked

and T99 modes only).

*GROUP* Group Call Indicates a group call is in progress and is displayed on line 1 of the display

(trunked and T99 modes only).

SPKR ON External Speaker ON Displayed when the external speaker is enabled.

SPKR OFF External Speaker OFF Displayed when the external speaker is disabled.

BANK=1-8 The bank of keys that are going to be loaded when the keyloader loads encryption

keys. This is only valid for radios that support VGS, VGE, or DES encryption. It is

displayed on line 2 of the display when the encryption keyloader is connected.

REGR_0x Dynamic Regroup Indicates which group in the dynamic regroup operation has been enabled, where

“x” is a digit of 1 to 8 (trunked mode only).

KEY LOAD Displayed on line 1 of the display when the encryption keyloader is connected.

KEY ZERO Displayed on line 2 of the display when the reset and option buttons are pressed

simultaneously for approximately two seconds. The encryption keys are zeroed.

SYS KEY System Key Displayed on line 1 of the display in the display key mode of the menu. It is

followed in the second line with a key number “KEY = <1..7>”.

GRP KEY Group Key Displayed on line 1 of the display in the display key mode of the menu for trunked

systems only. It is followed in the second line with a key number “KEY = <1..7>.”

CHN KEY Channel Key Displayed on line 1 of the display in the display key mode of the menu for

conventional systems only. It is followed in the second line with a key number

“KEY = <1..7>.”

KEY=1-7 Displayed on line 2 of the display in the display key mode of the menu for

conventional systems when the “SYS KEY” or “CHN KEY” is displayed in line 1

and for trunked systems when the “SYS KEY” or “GRP KEY” is displayed in line

PRIMARY Displayed on line 1 of the display when the primary keys are enabled.

PRS NAME Personality Name Displayed on line 1 of the display under the revision selection of the menu. The

personality name is displayed on line 2 at the same time.

M/A-COM Displayed on line 1 of the display under the revision selection of the menu. The

10 ALERT TONES

The M7100IP Series mobile radio also provides audible alert tones or "beeps" to indicate the various

operating conditions. These alert tones can be enabled or disabled through programming.

10.1 CALL ORIGINATE

A short mid-pitched alert tone sounds after keying the radio (Push-To-Talk button is pressed). This tone

indicates the radio has been assigned a working channel or that the radio is transmitting on a conventional

channel and voice communication can begin immediately. In conventional mode, this tone may be delayed

after the PTT button is pressed due to G-STAR™ signaling (if enabled through programming).

10.2 AUTOKEY (TRUNKED MODE ONLY)

After being placed in a queue or releasing the PTT button prior to a working channel assignment, the site

calls the radio when a channel becomes available. At this point, the radio automatically keys the transmitter

(autokey) for a short period to hold the channel. The radio sounds a mid-pitched tone when it is clear to

talk. Immediately press the PTT button to keep the assigned channel.

10.3 CALL QUEUED (TRUNKED MODE ONLY)

A high-pitched tone after pressing the PTT button indicates the system has placed the call request in the

queue. The receiving unit(s) also hear(s) the tones to indicate they will receive a call shortly. If the PTT

button is released, the radio will autokey whenever a channel becomes available (see Autokey).

10.4 SYSTEM BUSY (TRUNKED MODE ONLY)

Three low-pitched beeps will be heard if the radio is keyed when the system is busy, if no channels are

available for sending the message, if the call queue is full, or if an individual call is being attempted to a

radio that is transmitting. Releasing the PTT button and re-keying initiates a new channel request.

10.5 CALL DENIED (TRUNKED MODE ONLY)

If the radio is keyed and a low-pitched tone is heard, the radio is not authorized on the system that has been

selected.

10.6 CARRIER CONTROL TIMER

If the programmed time for continuous transmission is exceeded, the radio will issue five short high-

pitched warning tones followed by a long low-pitched tone. The transmitter will shut down shortly after the

alert, interrupting communications. Release and re-key the PTT button to maintain communications. This

will reset the carrier control timer and turn the transmitter back on.

10.7 KEY PRESS ALERT

A short tone or "beep" will sound to indicate a key has been pressed. A short low-pitched tone indicates no

action was taken because the key is not active in the current mode.

10.8 DUAL CONTROL SWITCHING

When control is switched to a previously idle control unit, two short high-pitched tones will sound at the

control unit where the PTT was pressed (now the active controller).

11 OPERATION

The M7100IP Series mobile radio unit can be programmed to operate in a trunked system, a conventional

system, a Project 25 (P25) conventional system, or any combination of the three. Operating features and

functions have been grouped according to the type of system the radio is operating in. This section contains

general operating procedures (e.g., Turning the Radio On). Section 11.7, TRUNKED MODE

OPERATION, covers those operating procedures that are only used in a trunked system (e.g., Group

Scan). Section 13, CONVENTIONAL MODE OPERATION, covers those operating procedures that are

only used in a conventional system (e.g., Squelch Adjust). Section 13.10, PROJECT 25 (P25)

CONVENTIONAL OPERATION, covers those operating procedures that are only used in a P25

conventional system. Section 15, TRUNKED OR CONVENTIONAL MODE OPERATION, covers

those operating procedures that can be used in either a trunked or a conventional system (e.g., Multiple

Radio Operation).

11.1 TURNING THE RADIO ON

Rotate the POWER ON-OFF/VOLUME knob clockwise, out of detent to turn the radio on. A short beep

(if enabled through programming) indicates the radio is ready for operation. The display indicates, if

programmed, the last selected system name on line 1 and the last selected group or channel name on line 2.

In the EDACS trunked environment, if communication with the system's control channel cannot be

established, the CC SCAN message will be displayed. This can occur if, for example, the radio is out of

range of the trunking site. It may be necessary to move to another location or select another trunking

system to re-establish the control channel link for trunked mode operations.

11.2 SELECTION MODE RULES

Many operations require selection from a list such as system, group or phone number. This selection

process is handled in the same manner for all lists. The RAMP controls, , and ., SEL, 0-9, *, #, the

DEL button, and the c button are used during the selection process. The following example systems list

is used to explain the process:

NOTE

The hookswitch functions the same as the c key in I-Call, phone call, and menu modes.

SYSTEM

1 NORTH

2 SOUTH

3 EAST

4 WEST

After entering a selection mode, the following generic display format will appear:

X X X X X X X X

Y Y Y = Z Z Z

Line 1 shows the currently selected item name (XXXXXXXX) from the list. Line 2 indicates the list

(YYY) that the selection is to be made from and the number of the selected item (ZZZ) within the list. (In

some cases the information on lines 1 and 2 will be exchanged.) Enter the system selection mode by

pressing the S key. If SYSTEM 2 is the current selection, the display appears as follows:

S O U T H

S Y S = 2

Line 1 contains the current system name, SOUTH; and line 2, SYS = 2, indicates that selection is from the

system list and it is the second system within the list.

A new system from the list is selected by using the RAMP control, , or ., or by directly entering the

system number with the numeric keys. The RAMP controls, , or ., scroll through the list in increasing

and decreasing order. In the previous example, pressing the RAMP control , selects the EAST system as

shown in the next display.

E A S T

S Y S = 3

The radio can be programmed to wrap around from one end of a list to the other end or to stop at the ends.

11.3 DIRECT ACCESS

To directly access a selection, enter the corresponding number (e.g. 4) followed by SEL to activate the

selection. The entered number is displayed on line 2 as shown below. Line 1 shows the current list being

used for selection.

S E L S Y S

If a mistake is made while entering the number, press the DEL button to backspace once and correct the

entry. If an invalid number is entered, a short low-pitched tone sounds when SEL is pressed.

To exit the selection mode, press the c button or wait for the time-out. If the selection mode is cleared

while an entry is pending (i.e., numbers are entered on line 2, but SEL has not been pressed), the entry on

line 2 will be disregarded and the previous selection will remain active. If the time-out activates while an

entry is pending, the entry on line 2 will be selected if it is within the valid range; if it is out of range, the

entry on line 2 will be disregarded and the previous selection will remain active.

NOTE

While in system, group or channel selection mode, the radio continues to receive calls

normally and continues scanning, if it is enabled. If a call is received during the selection

mode process the radio will return to the normal receive mode display. Continuing with the

selection process will return the display to the same point in the selection process if the

selection mode time out has not yet expired. Any press of the PTT button during the selection

mode process will initiate transmission and exit the selection mode.

11.4 MENU

The menu function accesses features that are not available directly from the keypad. The order and specific

number of menu items available is configurable through programming. Upon radio power up, the menu

item at the beginning of the menu list will always be displayed first. Subsequent access to the menu

function will return the last menu item that was shown in the display. To enter the menu mode, press m.

The RAMP controls, , and ., the SEL and the c buttons are used during the selection process.

All of the selection mode rules previously detailed apply to the menu item selection process with the

exception of direct access. The radio will continue to receive and transmit normally while in the menu

function.

A new item is displayed by using the RAMP controls, , and ., to scroll through the list in increasing

and decreasing order. The displayed menu item is made active by pressing SEL.

After entering the menu selection mode, the following generic display format will appear.

M E N U

Y Y Y Y Y Y Y Y

Line 1 indicates the radio is in the menu selection mode. Line 2 indicates the menu item (YYYYYYYY)

that is to be viewed or changed (some menu items provide radio information and do not have changeable

parameters).

An example of the menu item selection process and menu item parameter change is detailed below for the

backlight menu item.

PRESS: m

The menu mode is entered.

PRESS: The RAMP controls, , or ., until the display shows:

M E N U

B C K L G H T

PRESS: SEL

The backlight menu item is activated and the display will be similar to the following:

B C K = X X X

Y Y Y Y Y Y Y Y

Line 1 shows the active menu item and its current parameter setting (XXX). Line 2 shows the currently

selected system or group name (YYYYYYYY).

The menu item's parameter setting shown in the display can now be changed by using the RAMP controls,

, and ., to scroll through the list of parameter values. Once the desired setting is reached press SEL

to store the value and return to the normal display. For menu items that display radio information, pressing

, and . will scroll through a list of informational displays. The menu items are listed in Table 11-1.

Table 11-1: Menu Item Information

FEATURE DISPLAY PARAMETER

SETTINGS COMMENT

Backlight Adjust Menu Item:

BCKLIGHT

Once selected:

BCKL=

OFF, 1, 2, 3, 4 Selects the light level for backlighting.

Radio Revision

Information Menu item:

REVISION Informational

displays only

(see radio); no user

selectable settings.

Selects the information display to view.

Phone Call Menu item:

PHN CALL

Once selected: See

Telephone Interconnect

Call Section

Allows access to the Phone Call Feature.

Individual Call

(Trunked Systems

Only)

Menu Item:

IND CALL

Once Selected: See

Individual Call Section

Allows access to the Individual Call Feature.

External Alarm Menu Item: EXTALARM

Once Selected:

EXTALARM

ON, OFF EXTALARM replaces the system name on the

display as long as the external alarm feature is

enabled.

Public

Address Menu item:

PUB ADDR

Once selected:

PA ON or

PA OFF

ON, OFF Public Address is toggled ON and OFF.

External Speaker Menu item:

EXT SPKR

Once selected:

SPKR ON or

SPKR OFF

ON, OFF External Speaker is toggled ON and OFF.

Encryption Key

Loading Menu item: KEYLOAD

Once selected:

KEY LOAD BANK = N

Up to 8 banks of 7 keys Enables the radio to accept the loading of encryption

keys.

Display Current

Encryption

Key(s)

Menu item: DISP KEY

Once selected:

SYS KEY, GRP KEY or

CHN KEY and KEY = N

Displays current encryption key number.

Front Panel

Squelch Adjust

(Conventional

Only)

Menu item:

SQUELCH

Once selected:

SQLCH=xx

1-16 Allows setting of squelch.

Scan Menu item: SCAN ON, OFF Toggles scan function ON or OFF.

Private Mode Menu Item: PRIVATE

Once selected: PVT or key

light.

ON, OFF Toggles private function ON or OFF.

Scan Add Menu item: SCAN ADD

Once selected: Proper scan

icon displayed .

S, 2 or 1 Adds group or channel to scan list.

Scan Delete Menu item: SCAN DEL

Once selected: Scan icon

goes out.

Deletes group or channel from scan list.

Scan Add/Delete Menu item: SCAN A/D

When selected: Toggles

through scan selections

Toggle sequence

S, 2, 1, S, ... Changes present group or channel to next scan

choice in scan list.

FEATURE DISPLAY PARAMETER

SETTINGS COMMENT

Last Scanned

Channel Recall Menu Item: SCAN ADD

Press twice when actively

receiving; three times when

not receiving. Scan icon

displayed.

Changes the selected channel to the last scanned

channel.

Home group or

channel selection Menu item: HOME

Once selected: Home group

or channel displayed.

Changes to the group or channel defined for Home

function.

System select Menu item: SYS SEL

Once selected: SYS = n 1-64 = (n)umber of desired

system Displays the system selected.

External alarm #2 Menu item: EXTALRM2 ON, OFF Toggles external alarm #2 feature ON or OFF.

System and group

selection Menu item: SYSGRP 1

Menu item: SYSGRP 2

Menu item: SYSGRP 3

Menu item: SYSGRP 4

Menu item: SYSGRP 5

Changes to the System & Group/Channel

programmed for SYSGRP 1-5.

Mute Menu item: MUTE ON, OFF Toggles the mute function ON or OFF to control the

audio output from the selected radio.

Mute #1 Menu item: MUTE 1 ON, OFF Toggles the mute 1 function ON or OFF on radio #1.

Mute #2 Menu item: MUTE 2 ON, OFF Toggles the mute 2 function ON or OFF on radio #2.

Multiple radio

operation Menu item: RADIO ON, OFF Toggles the currently selected radio.

Radio selection Menu item: RADIO 1 ON, OFF Changes to radio #1.

Menu item: RADIO 2 ON, OFF Changes to radio #2.

No Data (Trunked

System Only) Menu item: NO DATA ON, OFF Toggles data feature ON or OFF.

EDACS Convent-

ional Priority 1

Scan (Trunked

System Only)

Menu item: ECP1SCAN ON, OFF Toggles this feature ON or OFF.

Group selection

(Trunked System

Only)

Menu item: GRP SEL

Once selected: GRP = n 1-64 = (n)umber of desired

group Displays the group selected.

Status Condition

(Trunked System

Only)

Menu item: STATUS Once

selected: ST =n 0-9 = (n)umber of pre-

programmed status Transmits the pre-programmed status message.

Message

Condition

(Trunked System

Only)

Menu item: MESSAGE

Once selected: MSG =n 0-9 = (n)umber of pre-

programmed messages Transmits the pre-programmed message.

Talkaround

feature

(Conventional

System Only)

Menu item: TALKARND

Once selected:

TALKARND on line 1

ON, OFF Toggles talkaround ON or OFF. (transmit frequency

changed to receive frequency)

Channel selection

(Conventional

System Only)

Menu item: CHN SEL

Once selected: CHN = n 1-99 = (n)umber of desired

channel Displays the conventional channel selected.

Feature

Encryption

Display

Menu Item: FEATURES

Once selected:

See Feature Encryption

Display section

Informational displays only;

no user selectable settings Indicates current features program- med into the

radio as well as certain information required to add

features to the radio (refer to the Table of Contents

for Feature Encryption Display.

System Scan

Enable Menu Item: SYS SCAN

Once selected: SYSC ON

or SYSC OFF

ON, OFF System Scan features like ProScan are toggled ON

and OFF.

Type 99 Decode

Enable Menu Item: T99 ENAB

Once selected:

T99 ON or T99 OFF

ON, OFF Type 99 Decode is toggled ON and OFF.

11.5 FEATURE ENCRYPTION DISPLAY

Feature Encryption Display is available through the menu function and, if programmed, appears in the

menu as "FEATURES." This data indicates current features programmed into the radio as well as

information required to add features to the radio. This feature applies to 512K RAM radios only.

Once the feature has been accessed, all normal menu functions work. The user can scroll up or down

through all of the entries.

Feature Encryption Display provides the ability to view, in the order displayed, the following:

• Serial number ROM data - serial number of the ROM

• Feature encryption data stream - used to enable features

• Number Fields - defines limits

• Features enabled - displays bit fields of enabled features

11.5.1 Serial Number ROM (12 Hex Digits)

Example:

When the user wants to enable a feature in his radio, he will need to call M/A-COM, Inc. They

will ask for the ROM serial number. The serial number shown here is for example only.

11.5.2 Feature Encryption Data Stream

Example:

These data streams define the features the user has enabled in his radio and are required by M/A-

COM, Inc. to enable other features. The data streams shown here are for example only. Note:

There are three displays: FD1, FD2, FD3. All three are required.

Number Fields

Example:

These number fields show the set limits of the of the user's radio as:

• SG# XXX - Maximum number of system/groups combination available

• SY# XXX - EDACS maximum trunked system limit

• CH# XXX - Maximum number of conventional channels available

The user needs to know the limits of his radio before attempting to enable other features. The

numbers shown here are for example only.

11.5.3 Features Enabled

These numbers indicate which features are enabled.

Example:

Table 11-2 lists possible features available in the user's radio.

Table 11-2: Available Feature Numbers

FEATURE

NUMBER POSSIBLE FEATURES STANDARD OR

OPTIONAL

01 Conventional Priority Scan Standard

04 Group Scan (EDACS only) Standard

05 Priority System Scan (EDACS only) Optional

06 WAscan/ProSound™/ProScan (EDACS only) Optional

07 Dynamic Regroup (EDACS only) Optional

08 EDACS Emergency (EDACS only) Optional

09 Type 99 Encode Standard

10 Conventional Emergency Standard

12 Aegis™ Digital Voice Encryption Optional

14 DES Encryption Optional

16 Mobile Data EDACS – Standard

P25 Conventional – Optional

17 Status/Message (EDACS only) Optional

21 EDACS Security Key (ESK) Optional

22 ProFile™ (EDACS only) Optional

23 Narrowband Standard

29 ProVoice™ Optional

32 FIPS-140-2 Optional

33 P25 Common Air Interface Optional

34 Direct Frequency Entry Optional

11.6 SYSTEM/GROUP/CHANNEL SELECTION

In the following description of SYSTEM/GROUP/CHANNEL SELECTION, the term group is used for

both group and channel.

The M7100IP SYSTEM/GROUP/CHANNEL knob and the RAMP controls, , and ., are

programmable for maximum flexibility. If the SYSTEM/GROUP/CHANNEL knob is assigned to select

groups, then the RAMP controls, , and ., are assigned to select systems. If the

SYSTEM/GROUP/CHANNEL knob is assigned to select systems, then the RAMP controls, , and .,

are assigned to select groups. System, group, and channel selection is the primary function for these

controls.

Either systems or groups can also be selected by entering the select mode and following the selection mode

rules described earlier. The system select or group select modes are entered by pressing S or g,

respectively, from the standard receive mode. Using the RAMP controls, , or ., after entering a

particular selection mode in this manner is the secondary function of these keys.

11.6.1 System Selection

Several methods, some of which depend on programming, can be used to select a new system.

These procedures are presumed to be starting from the normal receive display.

METHOD 1 If system selection is programmed to the SYSTEM/GROUP/CHANNEL knob,

select a system by turning the SYSTEM/GROUP/CHANNEL knob to the desired

system position. The display registers the new system name on line 1. If the wrap

option is OFF and the knob is moved to a position greater than the number of

programmed systems, the highest programmed system will remain selected.

METHOD 2 If system selection is programmed as the primary function of the RAMP control

, and ., select a system by pressing , or .to scroll through the system

list. The display registers the new system name on line 1.

METHOD 3 Press S to enter the system select mode and follow the selection mode rules

detailed earlier. Press the RAMP controls, , or ., to scroll through the

systems.

11.6.2 Group and Channel Selection

Several methods, some of which depend on programming, can be used to select a new group or

channel. These procedures assume starting from the normal receive display.

METHOD 1 If group selection is programmed to the SYSTEM/GROUP/CHANNEL knob,

select a group by turning the SYSTEM/GROUP/CHANNEL knob to the desired

group. The display registers the new group name on line 2. If the wrap option is

OFF and the knob is moved to a position greater than the number of programmed

groups, the highest programmed group will remain selected.

METHOD 2 If group selection is programmed as the primary function of the RAMP controls,

, and ., select a group by pressing , or ., to scroll through the group

list. The display registers the new group name on line 2.

METHOD 3 Press g to enter the group select mode and follow the selection mode rules

detailed earlier. Pressing the RAMP controls will now scroll through different

groups.

11.7 LAST SYSTEM/GROUP/CHANNEL RECALL

This feature, enabled through ProGrammer, allows the user to recall the last selected system/group after an

EDACS emergency or home function, a conventional emergency or home function, or system/group key

function. For example, if the Home button (pre-programmed) is pressed, the radio will go to the

designated Home system/group or channel. If the Home button is pressed again, the radio returns to the

previous system/group or channel. At this time, the user can toggle between the Home system/group or

channel and the previous system/group or channel. The operation is the same for the SG1-SG5 buttons.

12 TRUNKED MODE OPERATION

Digital trunking provides fast communication access at all times, even during busy hours. In this mode, the

operator selects a communications system and group and the audio communication or working channel

(WC) is allocated through digital signaling with the site.

12.1 RECEIVING A CALL

1. Turn the radio on by rotating the POWER ON-OFF/VOLUME knob clockwise (out of detent). A

short alert signal (if enabled through programming) indicates the radio is ready to use.

2. The display shows the last selected or the power up (depending on programming) system and

group names. If the radio is unable to obtain a control channel, line 2 shows CC SCAN.

3. Adjust the POWER ON-OFF/VOLUME knob to the desired volume level.

4. Select the desired system and group. The display indicates the current system and group names.

5. The radio is now ready to receive calls.

6. When the radio receives a group call, it unmutes on the assigned working channel and the BSY

indicator comes on. Line 1 shows GR followed by the logical ID number (if received) of the unit

sending the message, or the associated name if the ID number is found in the individual call list.

12.2 SENDING A CALL

1. Turn the radio on and set the POWER ON-OFF/VOLUME knob to the desired volume level.

Select the desired system and group.

2. Press and hold the PTT button. The radio will display the system and group names and perform

the necessary signaling required to obtain a communication channel.

3. When the working channel is assigned, TX and BSY indicators are turned ON and a short beep is

sounded indicating communication can begin.

NOTE

If two or more tones, or a high-pitched tone is heard, the system may be busy and the call

request has been placed in queue or the request has been denied for some reason. Refer to

the Section 10 for more details.

4. Hold the microphone approximately three inches from the mouth and speak in a normal voice.

5. Release the PTT button when the transmission is complete and listen for a reply.

12.3 CONVENTIONAL FAILSOFT

In the unlikely event of a failure of the EDACS system, communications can take place in conventional

failsoft mode. The radio will be automatically directed to a communications channel set up for this

purpose. During this mode of operation, the control unit will display CONV FS in the alphanumeric

display. An increase in activity on the channel during conventional failsoft operation may be noticed, so

be careful not to transmit until the channel is clear.

Operation during conventional failsoft will be the same as operation on a conventional system, except that

it will not be possible to select a communications channel, or use emergency and special call. When

trunking is restored, the radio will automatically be returned to normal operation.

NOTE

Emergency and Special Call are not operational during conventional failsoft. In addition,

the g control will not operate.

12.4 EMERGENCY OPERATION

The radio's ability to declare an emergency, clear an emergency, remain locked on an emergency and

group, and the emergency audio and display freeze can each be enabled or disabled through programming.

When an emergency is declared scanning will stop and will restart only after the emergency has been

cleared.

12.4.1 Receiving an Emergency Call

When receiving an emergency call from the selected group and system, an alert beep is heard and

the BSY indicator lights. The message *RXEMER* flashes in the display on line 2 until the

emergency condition is cleared. Follow standard emergency procedures.

12.4.2 Declaring an Emergency

To send an emergency call to the selected system and group (or on an optionally pre-programmed

emergency group), proceed as follows:

1. Press and hold the red E or “E” emergency button for approximately one second. (This

time is programmable and therefore could be longer or shorter. Check with the system

administrator.) The radio will transmit an emergency call request with the radio ID until an

emergency channel assignment is received.

2. When the working channel assignment is received, the radio sounds a single beep (Autokey

alert tone) indicating it is ready for voice transmission. *TXEMER* flashes on line 2 in the

display until the emergency is cleared.

3. Press PTT and speak into the microphone in a normal voice.

4. Release PTT when the transmission is complete and listen for a reply.

5. The emergency can be cleared by pressing and holding the c button followed by pressing

the E or “E” emergency button then releasing both buttons.

12.5 SYSTEM SCAN OPERATION

The radio can be programmed with the following System Scan features. These features are automatically

enabled upon radio power up. A key or menu option is also defined to allow the System Scan features to be

toggled during radio operation. This is covered in the Menu Selection and Pre-Programmed Keypad Key

sections. The System Scan state will be maintained through system changes but will default to ON at power

up.

12.5.1 Wide Area System Scan

The M7100IP Series mobile radio can be programmed for wide area system scan operation for

multi-site applications. Upon the loss of the currently selected system's control channel, radios can

be programmed to automatically scan the control channels of other systems. If a new control

channel is found, the radio will switch to the new system and sound an alert tone.

12.5.2 ProScan

The radio can be programmed for ProScan™ system scan operation for multi-site applications

depending on the version of radio flash code. ProScan provides the radio with the ability to select

a new system for the radio to communicate on, when the selected system drops below a

predefined level. This is accomplished by enabling each radio to analyze the signal quality of its

current control channel and compare it with the signal quality of the control channel for each site

in its adjacency scan list. (The signal quality metric used for the ProScan algorithm is based on a

combination of both Received Signal Strength Indicator [RSSI] and Control Channel Verification

[CCV] measurements.) When the selected system’s signal quality level degrades below a pre-

programmed level, the radio will begin to look for a better control channel. Once a control

channel that exceeds the pre-programmed parameters is found, the radio will change to the new

system and emit a tone. If the control channel is completely lost the radio, will enter Wide Area

System Scanning and search the programmed adjacent systems until a suitable control channel is

found.

12.5.3 Priority System Scan

The radio can also be programmed for Priority System Scan. (To ensure that this feature operates

correctly, the control channel of the priority system must be located on channel one unless you are

using the ProScan algorithm.) The priority system is the desired or preferred system. While

receiving the control channel of the selected system, the radio will periodically leave the selected

system and search for the control channel of the priority system at a programmable rate. The

programmable rate is defined by the value in the Priority Scan Time control, (unless the

ProSound/ProScan algorithm is enabled as explained below). This priority scan timer is reset

each time the PTT button is pressed or when a call is received. If the priority system control

channel is found, or meets the predefined ProScan criteria, the radio will automatically switch to

the priority system.

12.5.4 When Wide Area System Scan Is Enabled

If the radio cannot find the control channel of the selected system and begins Wide Area System

Scan (WA Scan), the radio will only scan for the priority system control channel if the priority

system is in the WA Scan list.

12.5.5 When ProScan Is Enabled

The radio monitors the priority system and will switch to the priority system if the priority system

meets the criteria defined in the “ProSound/ProScan Options” dialog box. If ProScan is enabled,

the rate at which the radio will scan for the priority system is defined by the System Sample Time

control.

12.5.6 Menu Selection

Press M and then use the RAMP controls, , and ., to scroll through the selections until

SYS SCAN is displayed. Then press M to toggle the System Scan state. The SYSC ON or

SYSC OFF display message is displayed for two seconds to show the new state.

12.5.7 Pre-Programmed Keypad Key

Press the pre-programmed key and the SYSC ON or SYSC OFF display message is displayed

for two seconds to show the new state.

12.6 GROUP SCAN OPERATION

Only Groups that are part of the radio's scan list will be scanned. Groups are added to the scan list on a per

system basis through programming, the radio keypad, or both, dependent upon programming. This scan list

can be changed by the user from the keypad unless programmed otherwise. Each system's group scan list is

retained in memory when the radio is turned off. The M7100IP Series mobile radio can also be programmed

to provide Trunked Priority Group Scan capability, which operates similar to priority scan in Conventional

mode.

The following is a description of programmable scan features that should be helpful in understanding the

Group Scan Operation of the radio:

Scan Hang Time - the delay time the radio waits before resuming scan after the push-to-talk is released or

after the carrier has dropped a channel.

TX Select - the group the radio will transmit on while scanning. The radio is programmed to transmit on

either the scanned group or the selected group.

Scan List (privileges) - this feature allows or prohibits scan list changes by the user.

P1 Programming - priority group programming is accomplished by one (and only one) of three methods:

• From the keypad, where the Priority programming is not fixed and does not follow the selected

channel,

• Priority 1 group programming follows the selected channel, or

• Priority 1 group programming is fixed during PC programming and cannot be changed by the

user.

P1 Always Scan - determines if the Priority 1 Group will always be scanned, regardless of the scan state

set by the user.

12.6.1 Adding Groups to a Scan List

1. With scan operation turned off, select the desired group to add to the selected Trunked system

group scan list.

2. Press < or > on the SCAN add/delete control. The current priority status of the group

will be displayed in column 1 of line 1 for a time-out period. If the group is not part of the

scan list the status will be blank.

3. While the status is displayed, press < to add the group to the scan list. "S" is displayed in

column 1, line 1.

4. Press < a second time to set the group to Priority 2. A "2" is displayed in column 1, line 1.

5. Press < a third time to set the group to Priority 1. A "1" is displayed in column 1, line 1.

The priority level selection sequence only advances the group to next higher priority level and

stops at priority level 1. To select a lower priority level, the group must be deleted from the

scan list and then added back to the scan list. Each new group added to the scan list starts at

the lowest priority. If the Priority 1 and Priority 2 groups are already set and a new group is

assigned as Priority 1 or Priority 2, the previously assigned group will change to non-priority

scanning.

12.6.2 Deleting Groups from a Scan List

1. With scan operation turned off, select the desired group to delete from the selected trunked

system's group scan list.

2. Press < or > on the SCAN add/delete control. The current status of the group is

displayed for a time-out period.

3. Press > to delete the group from the scan list. "S", "2" or "1" turns off. Any group that is

not in a trunked system group scan list will show a "blank" for the time period when it is the

selected channel.

12.6.3 Nuisance Delete

A group can also be deleted from the scan list, if it is not the currently selected group, by pressing

> during scan operation while the radio is displaying the unwanted group. The group will be

deleted from the system's group scan list in the same manner as if done using the steps above.

Deletions performed in this manner will not remain deleted if the radio is turned off and then back

on.

12.6.4 Turning Scan On

1. Toggle scan operation by pressing k. The SCAN indicator will turn on when the radio is

scanning.

NOTE

The k key light will blink when temporarily disabled. Scanning will stop

while microphone is off-hook if the hookswitch feature is enabled through

programming.

2. When a group on the scan list receives a channel assignment, the radio unmutes on the

assigned channel, the BSY indicator comes on and the received scan group is displayed.

• The radio will continue scanning if a new group is selected when scan is on.

• Pressing the PTT button when scan is on will cause the radio to transmit on the displayed

group or on the currently selected group depending on programming.

• Pressing < when scan is on will cause the radio to recall the scanned group that was

last received. This group is recalled for a period equal to the scan hang time.

12.6.5 Priority Group Scanning

When scan is enabled and the Priority 1 and Priority 2 groups have been identified, the radio will

listen to calls on those groups and the selected group. While receiving a scanned group call, the

radio will continue to monitor the selected Priority 1 and Priority 2 groups and will drop the call if

the selected group or other higher priority call becomes active. During a Priority 2 call the radio

will continue to monitor for a Priority 1 group call.

The radio will monitor for Agency and Fleet calls that correspond to the Agency and Fleet

associated with the Priority 1 and Priority 2 groups. Priority Agency and Fleet calls will be

indicated by displaying AGENCY or FLEET on the System line of the display and associated

Priority 1 or 2 group on the Group line of the display.

12.6.6 Turning Scan Off

Toggle scan operation off by pressing k. The radio will resume operation on the selected

group.

12.7 INDIVIDUAL CALLS

12.7.1 Receiving and Responding to an Individual Call

When the radio receives an individual call (a call directed only to the user's radio), it unmutes on

the assigned working channel and turns on the BSY indicator. Line 1 shows “ID” followed by the

logical ID number of the radio sending the message, or the associated name if the ID number is

found in the individual call list. The individual call indicator will display *INDV* on line 2. The

radio can be programmed to ring when an individual call is received. If enabled, the ring begins

five seconds after the caller unkeys and will continue until the PTT button, the c button, or

i is pressed.

NOTE

Hookswitch functions the same as c key in I-CALL, phone call, and menu

modes.

If a response is made to the call prior to the programmed call-back time-out, the call will

automatically be directed to the originating unit. If a response is not made before the call-back

time-out, the radio will return to normal receive mode, but * WHC * will be displayed. If the

caller's ID is not received, UNKNOWN will display for the duration of the call and there will be

no call-back hangtime.

To respond after the call-back time-out, press the i key. The radio's display will show the

callers ID on the first line and WHCI=1 on the second line. Pressing the PTT button at this point

will initiate an individual call back to the original caller. (If the last call was a group call, the

display will show WHCG=1. Pressing the PTT button will place the call as an individual call.)

The radio stores the IDs of the last 10 callers in the Calls Received List as shown. Individual calls

are stored in the top half of the list (1-10) and group calls are stored in the bottom half of the list

(1-10). The most recent call is stored in position 1, the second most recent call is stored in position

2, etc.

To access the list, press the i key twice. Use the , or . keys to scroll through the list.

Pressing the m key will display the time elapsed since the call was received.

12.7.2 Call Storage Lists

There are two lists available for call storage in the radio, the calls received list (1-10) and the

personality list (1-99 as defined by the user). When the individual call mode is entered by pressing

i, the calls received list is available. The user can toggle to the personality list by selecting

any key other than d or toggle between the two lists by pressing the i key. If wrap is

enabled, the calls received list wraps on itself and not into the other list.

The saved call list shows all ten storage locations. if no calls have been received, the saved call list

will be empty and the pre-stored list will be available upon entering the individual call mode.

When in the saved call list, pressing m toggles the time stamp ON and OFF. The time stamp

indicates how long ago the call was received. The display indicates this information as

HH:MM:SS where HH = hours, MM = minutes and SS = seconds.

When in the pre-stored list, pressing m toggles the Logical IDentification (LID) ON and OFF.

12.7.3 Sending An Individual Call

The following procedures describe how to initiate and complete an individual call.

1. To select a previously stored individual, select the I-Call mode from the menu or press i

followed by the RAMP control , or . to scroll through the list of stored individuals.

The selection mode rules apply. While in the individual call list, the menu key will toggle the

display between the call name and the unit ID number. If the individual is not stored in this

list but the individual's unit ID is known, it can be entered directly from the keypad.

2. Press the PTT button; the radio performs the necessary signaling to obtain a communication

channel. When the signaling is complete and the radio is clear to transmit, TX indicator turns

ON and the channel access tone sounds. Line 1 shows the called individual's name if found in

the list of stored individuals or ID followed by the logical ID number of the unit being called.

The message *INDV* displays on line 2. Proceed with the message.

12.8 SCAT OPERATION

A SCAT™ (Single Channel Autonomous Trunking) System operates with the same set of features as a

standard EDACS system. The only significant user change relates to the BSY indicator. Since only one

channel, operating as both control and working channel, exists in a SCAT System, the BSY indicator will

be ON when the SCAT channel is in the working channel mode. When the transmission on the channel is

completed, the indicator turns OFF and indicates the return of SCAT control channel signaling.

12.9 TELEPHONE INTERCONNECT CALLS

12.9.1 Receiving a Telephone Interconnect Call (Trunked Mode

Only)

Receiving a telephone interconnect call is identical to receiving an individual call. See the DTMF

Overdial Operation section if access to services requiring "over-dial" is needed. Overdial

operations are available for any special call whether it is an individual call or a telephone

interconnect call.

12.9.2 Sending a Telephone Interconnect Call (Trunked Mode

Only)

Use the following procedures to initiate and complete a Telephone Interconnect call:

1. To select a previously stored phone number, select phone call mode from the menu, press

p and use the RAMP controls, , or ., to scroll through the list of stored phone

numbers. The selection mode rules apply. While in the phone call list, the m key will

toggle the display between the phone call name and the phone call number. If the phone

number is not stored in this list but the phone number is known, it can be entered directly

from the keypad. If necessary, a pause can be entered by pressing and holding 0-9, *, or #

until an underscore appears in the display.

2. Press and release the PTT button; the radio performs the necessary signaling to obtain a

communication channel. When the signaling is complete and the radio is clear to transmit, TX

indicator turns on and the channel access tone sounds. Line 1 shows the accompanying name

if selected from the list of stored numbers or the phone number if entered directly. The

message *PHONE* is displayed on line 2. The radio then automatically transmits the

programmed number stored in the special call queue.

3. Telephone ringing will be heard. When someone answers the phone, press the PTT button

and speak into the microphone. Release the PTT button to listen to the caller. Unsuccessful

interconnect signaling returns the radio to the normal receive mode and the number remains

displayed until the special call is cleared by pressing the c button or the time-out expires

or another group or system is selected.

4. To terminate the call, momentarily press the c button.

NOTE

The M7100IP Series mobile radio is capable of half-duplex conversation only. The

caller’s message can only be sent if the PTT button is pressed (the radio is

transmitting) and the caller can only be heard by the person being called when the

PTT is released (the radio is receiving).

12.9.3 DTMF Overdial/Conventional Mode Telephone Interconnect

Once the radio has established a connection to the public telephone system, it may be necessary to

"over-dial" more digits to access banking services, answering machines, credit card calls or other

types of systems that require DTMF (Dual-Tone Multi-Frequency) access digits. Overdial

operation can also be used to initiate a telephone interconnect call via DTMF signaling if a dial

tone has already been accessed on the system. This is the method that is used for making a

telephone interconnect call while operating in the conventional mode but will also function in

trunked mode if a dial tone is directly accessible. Telephone numbers and other number sequences

for overdialing can be stored in the phone list when programming the radio or stored by the

operator in the first ten phone list entries. These numbers are accessed by pressing p then

following the selection mode rules.

The following steps are required to dial these numbers:

1. Follow the procedure in Sending a Telephone Interconnect Call (Trunked Mode Only) to

establish a connection to the telephone system or consult the system administrator for the

procedure to access a dial tone on the trunked or conventional system.

2. Overdial numbers are transmitted using either method as follows:

METHOD 1: Press and hold PTT while entering the overdial number sequence from the

keypad. This method sends DTMF tones during individual, telephone

interconnect, trunked group, or conventional channel calls. Anytime the PTT

button is pressed and held, the keypad is enabled for DTMF entry.

METHOD 2: Press pto enter the overdial select/entry mode and follow the selection mode

rules to call up a stored number from the phone list or to directly enter the

overdial digits. Press PTT to send the overdial sequence once. If the number needs

to be transmitted again it must be selected or entered again (this prevents

unwanted numbers from being sent the next time the PTT button is pressed during

the call).

This overdial select/entry mode remains active until the call is dropped, cleared, or m is

pressed. The overdial select/entry mode can be re-entered if the call is still active by pressing

12.9.4 Programmable Entries

Individual call ID numbers, telephone numbers and other number sequences for overdialing are

stored in the special call lists when programming the radio. The first ten entry locations of these

lists can be changed by the radio operator. The keypad is used when adding, changing and storing

numbers in these entry locations.

Use the following procedure to store a number in one of the first ten entries of a special call list:

1. Press i or p to enter the individual call list or the phone call list. The selection mode

rules apply.

2. Scroll through the list using the RAMP controls, , or ., until one of the first ten entries

is reached. NO ENTRY is displayed if the location is empty.

3. Enter the desired number. If necessary, a pause can be entered by pressing and holding 0-9,

(*), or (#) until an underscore appears in the display. The individual call list entries will

accept up to 5 digits. The phone call list entries accept a combination of up to 31 digits and

pauses.

4. Press and hold m until the display changes indicating that the number has been stored.

5. Repeat the steps above if the number stored in an entry location needs to be changed.

12.10 MOBILE DATA

The M7100IP Series mobile radios, when operating in the EDACS configuration, permit either voice or

data calls to be transmitted or received. The radio can handle only one type of call at a time; however,

selection of either data or voice is selected transparently by the operator through normal usage of the radio.

Data communications is not supported in the conventional mode.

The mobile radios can be connected to Mobile Data Terminals (MDT) or to a host computer. Any RS-232

compatible device that supports the Radio Data Interface (RDI) protocol (Version 1.91 or greater) can be

connected to the mobile radio. Support for MDTs or host computers is a programmable option per radio.

Additionally, radios programmed for host computers can also be programmed for data only operation (no

voice calls transmitted or received).

NOTE

Turn power to the radio OFF before connecting or disconnecting any cables, including

the data cable. Also, turn power to the radio OFF when docking or undocking a

connected laptop computer. Failure to turn the power OFF can damage the radio,

requiring service by a M/A-COM approved service center.

12.10.1 Displays

The following will be displayed on the control unit during the various states of data mode of

operation.

TX DATA Displayed on bottom line of display when the radio is transmitting a data call.

RX DATA Displayed on bottom line of display when the radio is receiving a data call.

DATA OFF Displayed on top line of display when the radio is in the data disabled state.

DATA ON Displayed for two seconds on top line of display when the radio is toggled to the

data enabled state.

12.10.2 DATA OFF Operation

The radio can be placed in the data disable state by any of the following methods. When the data

state is disabled, the control unit displays "DATA OFF" on the top line. An ongoing data call is

allowed to complete except when an emergency is declared.

• Removing the microphone from the hookswitch (hookswitch option must be enabled by pre-

programming).

• Declaring an emergency (not to be used unless an actual emergency condition exists). Alert

tone will sound.

• Pressing the o button (System Model) or O(Scan Model) (pre-programmed). Alert

tone will sound.

• Selecting the function using the m button (pre-programmed).

• Pressing the ND button (System Model Only) (pre-programmed).

12.10.3 DATA ON Operation

The data state is enabled by one of the following (depending on how it was disabled). "DATA

ON" will be displayed top line of display for 2 seconds then the display returns to normal.

• Replacing the microphone into the hookswitch (going on-hook). Only valid if the “DATA

OFF” operation was entered by removing the microphone from the hookswitch (going off-

hook).

• Pressing the ND key toggles data state ON or OFF.

• Clearing an emergency, but valid only if an emergency caused “DATA OFF” operation.

12.10.4 Exiting Data Calls

Under normal conditions, the radio enters the scan lockout mode and returns to the control

channel after completion of a data call (transmit or receive). If, during a data call, one of the

following conditions occurs, the data call is immediately terminated and the radio performs the

desired function:

• The PTT is activated.

• The PTT is in Public Address mode.

• An emergency is declared by pressing the pre-programmed emergency button.

• A group or system change is made.

12.10.5 Scan Lockout Mode

Following the transmission or reception of a data call, if scan is enabled, scanning will stop

temporarily (duration pre-programmed). During this time the scan LED will flash to indicate that

scan is enabled but temporarily suspended. This mode is normally exited when the pre-

programmed time expires; however, the following actions will terminate the scan lockout mode

before the timeout is completed.

• The c (System Model) or C(Scan Model) button is pressed.

• The PTT is pressed.

• A group or system change is made.

• Enter phone call mode.

• Enter individual call mode.

• A new emergency assignment has been received.

• The PTT is pressed in Public Address Mode.

• An emergency is declared or cleared.

• Microphone is removed from hookswitch (OFF-hook).

• Receiving an individual or phone call.

• Receiving an Agency, Fleet or System All Call.

• Pressing the k button to turn scan ON or OFF.

12.10.6 Data Lockout Mode

The data lockout mode is a pre-programmed mode when the radio will not respond to any data

channel assignments and prevents receive data calls from interrupting voice calls. Transmit data

calls will still be initiated when needed by the operator. After a pre-programmed time, the radio

will respond to receive data calls; however, the following conditions will clear the data lockout

mode:

• The c (System Model) or C(Scan Model) button is pressed.

• Transmitting a data call.

• Changing a system.

• An emergency is declared.

• Pressing the PTT while in Public Address mode.

• Turning scan ON with the SCAN button.

12.11 STATUS/MESSAGE OPERATION

Status and message operation is possible with either the Scan or System version of the M7100IP Series

mobile radio unit. The following procedure is applicable for the System version. For operation with the

Scan version, the four primary keycaps must be reconfigured and pre-programmed for status/message

operation.

12.11.1 Status Operation

Status operation permits the transmission of a pre-programmed status condition to the EDACS

site.

To send a status condition, press the s button (keylight comes on) then press one of the

number buttons (0-9) to select the pre-programmed status. If no status has been programmed for

the selected number button, the radio will display NO ENTRY and the radio will sound a low

tone. A valid selection will permit the status text to appear in the display for a pre-programmed

time. After the time-out expires or the m button has been pressed (the m button will

override the time-out period), the status is selected and will be transmitted to the site or stored in

the radio memory where it can be polled by the site at a future time. If the site receives the status

properly, when transmitted or polled by the site, a high-pitched tone sounds and the keylight

associated with that status will remain lit. If the site does not receive the status properly, a low-

pitched tone sounds and the keylight associated with the status will blink.

If an incorrect status was selected or the incorrect number button was pressed, the status can be

changed during the pre-programmed time-out period by pressing another number button. The

status selection can also be cancelled by pressing the c button prior to the time-out period.

To view the currently selected status after it has been transmitted, press the s button. If the

status was not sent successfully to the site, the text associated with the status will flash in the

display.

The radio can also be pre-programmed to redesignate the keypad buttons for ST0 thru ST9 to

send status condition. In this configuration the radio status operation will operate as previously

described except the s button is not required. The keylight associated with ST0 thru ST9 will

indicate which status is selected.

12.11.2 Message Operation

Message operation permits the transmission of a pre-programmed message text to an EDACS site.

To send a message, press the n button (keylight comes on) then press one of the number

buttons (0-9) to select the pre-programmed message text. If no message text has been

programmed for the selected number button, the radio will display NO ENTRY and a low-pitched

tone sounds. A valid selection will permit the message text to appear in the display for a pre-

programmed time. After the time-out expires or the m button has been pressed (the m

button will override the time-out period), the message text is selected and will be transmitted to

the site. If the site receives the message properly when transmitted, a high pitched tone sounds and

the n keylight remains lit. If the site does not receive the message properly, a low-pitched tone

sounds and the n keylight will blink.

If an incorrect message text was selected or the incorrect number button was pressed, the message

text can be changed during the pre-programmed time-out period by pressing another number

button. The message text selection can also be cancelled by pressing the c button prior to the

time-out period.

To view the currently selected message text after it has been transmitted, press the n button

and then the c button prior to the time-out period. If the message text was not sent

successfully to the site, the text associated with the message will flash in the display.

12.12 EDACS CONVENTIONAL P1 SCAN

This feature permits the radio user to scan a pre-programmed conventional system and channel as a Priority

1 (P1) channel while the radio is selected for EDACS trunked system. If activity is detected on the

conventional P1 channel, the radio will unmute and remain on this conventional channel for the

programmable hang time.

The radio must be pre-programmed to designate a button for scan ON/OFF operation.

12.13 DYNAMIC REGROUP OPERATION

Dynamic regroup operation permits multiple talk groups (up to eight) to be added to a radio via the

Communications Systems Director (CSD). The radio must be pre-programmed to respond to regrouping.

Dynamic regrouping will not be activated in a radio until an activation message is sent by the system

manager. Each radio that receives and acknowledges regrouping instructions is successfully regrouped.

Pressing and holding the C (Scan Model) or c (System Model) button for 2.5 seconds toggles

the user into and out of the dynamic regroup group set. A double beep will sound for entry or exit. The

display will indicate REGR_0x where "x" is a digit of 1 to 8 indicating the group when dynamic regroup

has been enabled by the user. If the radio is in dynamic regroup and the user selects a group that has not

been regrouped, the display will show NO ENTRY. The radio will be prevented from transmitting and

receiving calls in this condition except for scanned groups.

12.13.1 Emergency Operation

If the pre-programmed group set on the currently selected system contains an EMER/HOME

group and the radio is in dynamic regroup, the radio will exit dynamic regroup and declare the

emergency on the HOME group. If no EMER/HOME group is present, the radio will declare the

emergency on the currently selected dynamic regroup group.

13 CONVENTIONAL MODE OPERATION

The radio functions in the conventional mode when using conventional communications channels (non-

trunked). Each channel consists of a preset frequency pair for transmit and receive during repeater

operation or a single frequency for both transmit and receive during talk-around (no repeater) operation. To

use this mode, the operator selects a conventional system that includes one or more conventional channels.

Each conventional channel may have one or more features, such as Channel Guard, programmed when the

channel is selected.

The c button unmutes the receiver so activity on the selected channel can be monitored. When pressed

and held for approximately 3 seconds this button toggles conventional channel decoding (Channel Guard,

Digital Channel Guard or T99) ON and OFF, if programmed for the selected channel.

13.1 RECEIVING A CALL

1. Turn the radio on by rotating the POWER ON-OFF/VOLUME knob clockwise (out of detent).

A short alert signal (if enabled through programming) indicates the radio is ready to use.

2. Adjust the POWER ON-OFF/VOLUME knob to the desired volume level.

3. Select the desired conventional system and channel. The display indicates the current

conventional system and channel names.

4. The radio is now ready to receive calls.

5. When the radio receives a call (and the correct encoding is decoded, if programmed and enabled),

it unmutes on the channel and the BSY indicator comes on.

13.2 SENDING A CALL

1. Turn ON the radio and set the POWER ON-OFF/VOLUME knob to the desired volume level.

Select the desired conventional system and channel.

2. Ensure that the channel is not busy by pressing the c button to briefly disable any channel

decoding and unmute the receiver or observe the unlit BSY indicator. If the Channel Busy

Lockout feature is programmed for the selected channel, the radio will not transmit when the

channel is busy.

3. Press and hold the PTT button. The TX indicator will turn on and a short beep sounds (if

programmed) indicating that communication can begin.

4. Hold the microphone approximately three inches from the mouth and speak in a normal voice.

5. Release the PTT button when the transmission is complete and listen for a reply.

13.3 EMERGENCY OPERATION

If enabled, G-STAR emergency signaling can be transmitted when operating in the conventional mode.

This G-STAR signaling will transmit 5 times with a delay between each transmission. To send an

emergency call on the selected conventional system and channel (or on an optionally pre-programmed

conventional emergency system and channel), proceed as follows:

Press and hold the red E or “E” button for approximately one second (this time is programmable and,

therefore, could be longer or shorter; check with the system administrator). The radio turns on the TX

indicator and proceeds to transmit the pre-programmed G-STAR emergency signaling sequence.

G-STAR is programmed to transmit in one of the following methods:

METHOD 1: G-STAR is transmitted on the selected channel. If the channel is changed the emergency

signaling will continue to be transmitted on the newly selected channel.

METHOD 2: Same as METHOD 1 but the radio will lock on to the currently selected channel. Any

attempts to change the system or channel will be disabled.

METHOD 3: G-STAR is transmitted on a pre-

rogrammed conventional emergency system and channel

regardless of the selected channel. In this case the selected channel is available for voice

transmission and the radio will periodically change to the pre-

rogrammed emergency

system and channel to send the emergency signaling and then change back to the selected

channel.

METHOD 4: Same as METHOD 3 but the radio will lock on to the pre-

rogrammed emergency syste

and channel. Any attempts to change the system or channel will be disabled.

The emergency state can be cleared by turning the radio OFF and then back ON.

13.3.1 Using 5-Tone Signaling to Declare an Emergency

If 5-Tone signaling is defined for emergency declaration in place of G-STAR emergency

signaling, a pre-programmed tone sequence will be transmitted instead of the G-STAR sequence.

This emergency declaration functions as the G-STAR emergency in all other respects.

13.3.2 Tone Encode Transmission

In conventional mode two keys can be defined to be tone encode triggers. If either one of the pre-

programmed tone encode triggers is pressed, a pre-programmed tone sequence will be transmitted

on the current system and channel. (See Section 13.3 if E or “E” key is used.) The TX

indicator will light during tone transmission and a beep will sound at the end of the transmission.

If enabled, audible side tones will be heard in the radio speaker as well. If PTT is pre-programmed

as one of the triggers, the microphone will become active for voice communication after the tone

sequence is complete.

Tone encode will be transmitted with Channel Guard if one is defined, and tones are always

transmitted in clear voice mode, even if the channel is set for digital or private (see VOICE

MODES). Digital or private voice transmission will resume normally after the tone transmission.

13.4 SCANNING CONVENTIONAL CHANNELS

Channels, which have been previously added to the scan list on a per system basis, can be scanned. The

selected channel is scanned (if enabled through programming) whether or not it is in the scan list. Each

conventional system's channel scan list is retained in memory when the radio is turned OFF.

The scan rate will vary depending upon the number of channels in the scan list and whether or not the radio

is programmed to scan for channels with decoding enabled. Fewer channels will result in a faster scan rate.

If programmed for dual-priority scan operation, the priority-one, priority-two and the remaining scan list

channels are scanned. Once a signal is detected and the correct encoded squelch signal is decoded (if

programmed), the radio receives the message and displays the received scan channel. At the same time,

scanning continues on the priority-one and priority-two channels. If a priority-one or priority-two channel

carrier, regardless of encoded squelch decoding, is detected while a non-priority channel is being received,

the display name is updated and the received channel is switched to the priority channel. Scanning of the

priority-one channel will continue if a message is being received on the priority-two channel.

While receiving a call on a non-priority or a priority two channel, the radio periodically checks the priority

one and two channels. If Scan with Channel Guard is enabled, the radio will use Channel Guard to decide

whether to unmute on a priority channel. The radio will stop, on squelch detection, on a priority channel. In

normal operation, the radio will unmute only on detecting the correct Channel Guard; otherwise, it will

remain muted until the priority channel call and hang time have ended. An optional feature allows the radio

to continue scanning upon the detection of the wrong Channel Guard on a priority channel. The user can

then select the rate at which this channel is scanned until the call ends.

13.4.1 Adding Channels To A Scan List

1. With scan operation turned OFF select the desired channel to add to the selected conventional

system channel scan list.

2. Press < or > on the SCAN add/delete control. The current status will be displayed in

column 1 of line 1 for a time-out period. Press < to add the channel to the scan list. S is

displayed on the line. This sets the selected channel for non-priority scanning. A second press

of < sets the channel for Priority 2 (P2) scanning and 2 is displayed on line 1. An

additional press of < sets the channel for Priority 1 (P1) scanning and 1 is displayed on line

1. If the P1 or P2 channels are already set and a new channel is then assigned as the P1 or P2

channel, the previously assigned priority channel will change to non-priority scanning. The

priority setting selection sequence is set and stops at P1, therefore the channel must be deleted

from the scan list by pressing > before the channel is set to a previous priority setting. Any

channel that is in a system's channel scan list will show S, 2, or 1 for the time-out period

when it is the selected channel.

13.4.2 Deleting Channels From A Scan List

1. With scan operation turned OFF select the desired channel to delete from the selected

conventional system's channel scan list.

2. Press < or > on the SCAN add/delete control. The current status is displayed for a time-

out period. Press > to delete the channel from the scan list. S, 2, or 1 will turn OFF. Any

channel that is not in a conventional system channel scan list will show a "blank" for the

time-out period when it is the selected channel.

13.4.3 Nuisance Delete

A channel can also be deleted from the scan list, if it is not the currently selected channel, by

pressing > during scan operation while the radio is displaying the unwanted channel. The

channel will be deleted from the conventional system's channel scan list in the same manner as if

done using the steps above. Deletions done in this manner will not remain deleted if the radio is

turned OFF and then back ON.

13.5 TURNING SCAN ON

1. Toggle the scan operation ON by pressing k. The SCAN indicator will turn ON when the

radio is scanning.

NOTE

Scanning will stop while the microphone is off-hook if the hookswitch feature is enabled

through programming.

2. When a channel on the scan list receives a channel assignment, the radio unmutes on the assigned

channel, BSY indicator comes ON and the received scan channel is displayed.

• The radio will continue scanning if a new channel is selected when scan is ON.

• Pressing the PTT button when scan is ON will cause the radio to transmit on the displayed

channel or to the currently selected channel depending on programming.

• Pressing < when scan is ON will cause the radio to recall the scanned channel that was last

received. This channel is recalled for a period equal to the scan hang time.

13.6 TURNING SCAN OFF

Toggle the scan operation OFF by pressing k. The radio will resume operation on the selected

channel.

13.7 SQUELCH ADJUST

In the conventional mode of operation, the squelch can be re-adjusted in the MENU selection mode or

from a front panel key on the keypad that has been pre-programmed using ProGrammer™ software. A

default value of 9, or any user level between 1 and 16, can be selected using ProGrammer software. The

user can change this setting either of two ways from the front panel keys.

NOTE

A value of 16 requires a strong signal to open squelch, a value of 2 requires a very weak

signal to open squelch, and a value of 1 is open squelch.

NOTE

When the squelch adjust feature is activated, Channel Guard, T99 decode, and Scan are

disabled. When the squelch adjust feature is exited, Channel Guard, T99 decode, and Scan

are restored to their previous states.

13.7.1 Menu Selection

1. Press the m key and then use the RAMP control , or . to scroll through the

selections until SQUELCH is displayed. Then press m (select) again.

2. The display will show SQLCH=xx, where "xx" is the value between 1 and 16.

3. Use the RAMP control , or . to scroll through the values. Then press the m (select)

key to save the new value after the display time-out (2 seconds). The displayed value will be

selected and saved.

4. If the m or c key is pressed before the time-out, the menu feature will exit and the

squelch level will not be updated. The original value will be restored.

13.7.2 Pre-Programmed Keypad Key

1. Press the pre-programmed key and the display will indicate SQLCH=xx, where "xx" is the

value between 1 and 16.

2. Use the RAMP control , or . to scroll through the values. Then press the m (select)

key to save the new value or wait for the display time-out (2 seconds). The displayed value

will be selected and saved.

3. If the c key is pressed before the time-out, the squelch level will not be updated and the

original value will be restored.

13.8 TYPE 99 DECODE

If the Type 99 Decode Option has been pre-programmed, individual selective calling is possible. The radio

can now decode individual, group or supergroup paging calls. Two sets of Type 99 paging codes must be

pre-programmed into the radio. When the radio decodes an appropriate Type 99 code sequence, an alert

tone and visual indicator is provided to the user. The receiver then operates as a noise squelched unit until

Type 99 is reset. Type 99 decode continues to operate during this noise squelched period. The appropriate

Type 99 alert tone will sound again if it detects a valid two-tone sequence.

Type 99 operation can be reset manually or automatically (pre-programmed). Manual reset is achieved by

briefly pressing c, if programmed. Automatic reset, if enabled, occurs after a 30 second interval

following the most recent decode of a Type 99 tone sequence. Hookswitch (pre-programmed) can also

enable or disable Type 99 decode. The pre-programmed key light will blink when Type 99 is disabled by

the hookswitch.

Type 99 decode will continue to be active while the radio's c button is pressed. This allows the user to

monitor calls and still be alerted when a call is directed to the user. While the user continues to press c,

the user will hear both calls and all Type 99 tone signals. If c is pressed for longer than two (2)

seconds, Type 99 decode will either be disabled or re-enabled depending upon its present state.

To check the Type 99 enable status, press the Scan Add/Delete < or >. The current status of Type 99

decode will be displayed for a time-out period. Type 99 is enabled when the letter T is displayed in the

third segment from right on the first line of the LCD.

If a Horn Alert Option is installed and enabled with the Type 99 Decode Option, the radio can beep the

vehicle horn when a Type 99 call is received. This option permits alerting persons out of the vehicle when

a call is received.

NOTE

Type 99 is automatically disabled when Scan is enabled.

13.8.1 Menu Selection

Press M and then use . or , controls to scroll through the selections until T99 ENAB

is displayed. Then press M to toggle the Type 99 decode state. The T99 ON or T99 OFF

display message is displayed for two seconds to show the new state.

13.8.2 Pre-Programmed Keypad Key

Press the pre-programmed key and the T99 ON or T99 OFF display message is displayed for two

seconds to show the new state.

13.9 DIRECT MODE OPERATION

The direct mode (or talk-around) provides short range, line of sight communications. One of the buttons

on the control unit must be pre-programmed for this feature to function.

1. Make sure the radio is ON and then select the desired conventional system and channel.

2. Press the pre-programmed button to toggle the talk-around function ON.

3. Ensure that the channel is not busy by pressing the c (System version) or C (Scan

version) to briefly disable any channel decoding and unmute the receiver or observe the unlit BSY

indicator. If the Channel Busy Lockout feature is programmed for the selected channel, the radio

will not transmit when the channel is busy.

4. Press and hold the PTT button. The TX indicator will light and a short beep sounds (if pre-

programmed) indicating that communication can begin.

5. Release the PTT button when the transmission is complete and listen for a reply.

6. When the communications is completed, press the pre-programmed button to toggle the talk-

around function OFF.

13.10 LAST SCANNED CHANNEL RECALL

The Last Scanned Channel Recall feature (Conventional and P25 Conventional only) can be used to recall

the last scanned channel from the scan list when it is not the currently selected channel. Pressing < twice

when the radio is actively receiving or three times when the radio is not receiving. The selected channel

will change to the last scanned channel from the conventional system’s scan list.

14 PROJECT 25 (P25)

CONVENTIONAL OPERATION

14.1 GROUP CALLS IN P25 MODE

14.1.1 Transmitting a Group Call

1. Select the desired P25 system. (P25 icon will appear in display.)

2. Select the Talk Group/Conventional Channel. (Selected simultaneously using either the

system/group/channel knob or the group key.)

3. Press and hold the PTT.

4. When a grant tone is received (if enabled through programming), speak into the microphone.

5. Release PTT and wait for response.

14.1.2 Receiving a Group Call

The radio will unmute according to the squelch mode defined in the radio personality (monitor,

normal, selective).

1. Select the desired P25 system and Talk Group/Channel or turn scan on and make sure the

desired channel is in the scan list.

2. When the radio receives a P25 call, the radio will unmute and the channel name will appear in

the display.

3. Press the PTT button to respond.

14.2 INDIVIDUAL CALLS IN P25 MODE

14.2.1 Transmitting an Individual Call

1. Select the desired P25 system. (The P25 icon will appear in the display.)

2. Select the radio unit to call (callee source ID) from the pre-programmed individual call list or

enter the ID number on the radio keypad.

3. Press and hold the PTT.

4. When grant tone is received (if enabled through programming) speak into the microphone.

5. Release the PTT.

14.2.2 Receiving an Individual Call

The radio will unmute according to the squelch mode defined in the radio personality (monitor,

normal, selective).

1. Select the desired P25 system and Talk Group/Channel or turn scan on and make sure the

desired channel is in the scan list.

2. When the radio receives a P25 call, the radio will unmute and the ID of the transmitting radio

will appear in the display.

3. Press the PTT button to respond.

Unanswered calls will appear in the Who Has Called (WHC) list.

14.3 EMERGENCY GROUP CALLS IN P25 MODE

NOTE

There is no method available for a system-wide Emergency clear. An emergency group

call must be cleared on each individual radio.

14.3.1 Declaring an Emergency Group Call

1. Select the desired P25 system and Talk Group/Channel.

2. Press the red emergency button on the top of the radio. The radio will broadcast a short

emergency transmission with the emergency bit set. “TXEMER” will appear in the display of

the transmitting radio.

3. To send a voice message, press the PTT and speak into the microphone.

4. To clear an emergency from the transmitting radio, perform one of the following steps:

a) Change systems.

b) Change channels (if not prohibited by programming).

c) Cycle power by turning radio off and then back on.

d) Press the Clear and Emergency buttons simultaneously, providing the Clear Emergency

option is enabled in the Supervisory Options in the personality.

14.3.2 Receiving an Emergency Group Call

1. Select the desired P25 System and Talk Group/Channel.

2. When the radio detects an incoming Emergency Group Call, the radio will sound an alert tone

and “RXEMER” will appear in the display.

3. Voice or emergency transmissions will be heard at the receiving radio.

4. To clear an emergency from the receiving radio, perform one of the following steps:

a) Change systems.

b) Change channels (if not prohibited by programming).

c) Cycle power by turning radio off and then back on.

d) Press the Clear and Emergency buttons simultaneously, providing the Clear Emergency

option is enabled in the Supervisory Options in the personality.

15 TRUNKED OR CONVENTIONAL MODE

OPERATION

15.1 SIREN/LIGHT OPERATION

Each siren/light key is designed to control an optional siren/light package. Pressing a siren/light key will

light the key indicator. Each siren/light key (except RESET) can be programmed for either CANCEL or

ADDITIVE operation. If programmed for CANCEL, then all other siren/light activity is cancelled except

for the activity associated with this key. If programmed for ADDITIVE, then a key press will add its

respective siren/light activity to the current siren/light activity. It is important to note that while the lights

are additive, only a single siren can be active at a time. The current siren will be determined from the

recently pressed key that contains a siren assignment.

Each siren/light key (except RESET) can be programmed for Toggle, Momentary, or Timed. In Toggle,

each key press will toggle the state of the key between ON and OFF. In Momentary, a key's respective

feature will only be active while the key is pressed and held. When programmed for Timed, the siren/light

key activity will only be active during the programmable time-out window. The duration of the time-out

window is programmable between from .5-127.5 seconds. During the time-out window the respective key

indicator will be ON. When the timer expires, the activity will be terminated and the indicator will turn

OFF. If an additional time-out key (programmed for ADDITIVE) is pressed during the time-out window,

then the time-out window is reset and both activities will terminate at the same time.

15.2 DIGITAL VOICE OPERATION

(ProVoice/Aegis/Voice Guard)

15.2.1 Voice Modes

Each system (trunked or conventional) in the radio is programmed for no digital voice operation (analog

only) or one of the two digital voice formats supported (ProVoice or Aegis). Aegis or ProVoice

programmed systems have three (3) different voice modes: clear (analog), digital, and private. The voice

modes are programmed on a per-group basis within each trunked system and on a per-channel basis within

each conventional system. A radio must be equipped with the encrypt/decrypt option before it will operate

in private mode.

NOTE

Current ProVoice Conventional operation is for talk-around mode only.

Table 15-1: Transmit/Receive Mode Compatibility for Aegis/ProVoice Operation

GROUP/CHANNEL

PROGRAMMING

(TRANSMIT)

CLEAR

RECEIVE DIGITAL

RECEIVE PRIVATE

RECEIVE

CLEAR Yes No No

DIGITAL Yes Yes No

PRIVATE Yes No Yes

NOTE

Conventional Aegis or encrypted channels require Channel Guard on the channel

to operate correctly.

15.2.2 Clear Modes

Aegis clear and ProVoice clear modes are identical voice modes in which the radio transmits and

receives only clear (analog) voice signals. These analog signals are non-digitized and non-

encrypted. Clear mode transmissions can easily be monitored by unauthorized persons. Groups or

channels programmed for clear operation cannot transmit or receive unencrypted digital or private

messages.

15.2.3 Aegis/ProVoice Digital Mode

Aegis/ProVoice digital mode allows the radio to transmit and receive digitized voice signals.

These digital signals provide improved weak signal performance and they cannot be easily

monitored with a standard receiver. Groups and channels programmed for Aegis or ProVoice

digital operation transmit only digital signals. Private calls cannot be received or transmitted when

the radio is in the Aegis or ProVoice digital mode because the radio does not know the

cryptographic key used.

Message trunked group calls and individual calls will be answered back in the mode they were

received, assuming the call or hang time is still active. Individual, phone, all and emergency calls

will be transmitted clear if digital mode is disabled or inoperative.

• If receiving an analog message trunked call, the radio will respond in analog mode during the

hang time on the working channel.

• If receiving an analog I-Call, the radio will respond in analog mode during the hang time.

• When using the "WHC" feature to respond to an I-Call (after the hang time has expired), the

call will be transmitted in the mode defined by the system mode as programmed for the

current system if the ID being called is not in the I-Call list. If the ID is in the I-Call list, then

the call will be transmitted as defined by the I-Call mode programmed in the list for that ID.

DTMF

The overdial and hot keypad features for transmitting DTMF tones are not available while in the

Aegis Digital Mode or ProVoice Digital Mode.

ERROR Messages

If any of the following error messages are displayed, the radio was either programmed incorrectly

or needs servicing:

DSP ERR

ERR=xxxx DSP ERR DIGV ERR

Power Up Only

If the Aegis or ProVoice circuit board is not responding, correctly, one of the following error

messages will be displayed and the radio needs servicing:

HARDWARE

ERR= 3X

3X will be a number between 30 and 38

15.2.4 Aegis Private, ProVoice Private, and Voice Guard1 Private

Modes

The Aegis and ProVoice private modes allow the radio to transmit encrypted messages and

receive clear or private transmissions. The radio will transmit private if the group/channel is

programmed for private operation and forced operation is pre-programmed.

If the radio was pre-programmed for auto-select, the radio will transmit in the following modes;

• If Private mode is enabled, transmissions are always in private mode.

• If Private mode is disabled and a private call is received, the Reply transmission will be in

Private mode if the transmission is made during the scan hangtime. If the reply transmission

occurs after the scan hangtime, the transmission will be in Clear mode.

Aegis or ProVoice transmissions cannot be received by any radio set to receive a Voice Guard®

transmission. Accordingly, Voice Guard or ProVoice transmissions cannot be received by a radio

set to receive an Aegis transmission and neither Aegis nor Voice Guard transmissions can be

received by a radio set to receive ProVoice. Since the M7100IP radios are not Voice Guard

compatible, the M7100IP cannot receive a Voice Guard transmission, nor can Aegis or ProVoice

transmissions from an M7100IP radio be heard by a radio set to receive Voice Guard

transmissions.

Cryptographic keys are transferred to the radio using a cryptographic Keyloader. Up to seven (7)

different cryptographic keys, numbered 1-7, can be transferred from a Keyloader and stored in the

radio. An individual key is automatically selected on a per-group/channel basis according to the

radio's programming. Groups and channels within Aegis or ProVoice systems can be

programmed for keys 1-7. Up to 8 banks of 7 keys can be stored for Aegis systems.

DES radios require a DES Keyloader (Option V4025 with software version 3.n or later).

When operating on a group or channel programmed for private mode, all transmissions will be

private transmissions and the radio will receive clear and private signals. The PVT keylight

(System Model) or OPTION keylight (Scan Model) turns ON when the private mode is enabled.

If the selected group or channel is programmed for auto-select capability, the mode can be toggled

between private and clear with the PVT button (System Model) or O button (Scan Model). Radios

programmed for forced private operation do not allow a change of the transmit mode; therefore,

the PVT button (System Model) or O button (Scan Model) has no effect.

15.2.4.1 Transferring Keys to the Radio

The following procedure outlines basic key transferring steps:

1. Turn the radio OFF.

2. Ensure that the PC programming cables and adapter box are disconnected from radio unit.

3. Plug the modular connector of the Keyloader cable into the Keyloader modular jack.

4. Connect the Keyloader cable to the keyloader level converter and then to the extended

options cable DB25 on the rear of the radio.

5. Press the PWR button on the Keyloader and wait for the Keyloader to display "MASTER

MODE."

6. Press the TRN button on the Keyloader. If necessary, select a different cryptographic key to

be transferred into the radio.

7. Turn the radio ON. Use the m button to access the menu options then the RAMP , or .

controls to select KEYLOAD.

1 Voice Guard encryption is not supported by M7100IP Series mobile radios.

8. Press m (select). Then use the RAMP , or . controls to select the bank location.

9. Press the EXE button on the Keyloader to transfer the key. The Keyloader will display

"GOOD 1.x TRANSFER" where "x" is the selected cryptographic key number.

10. Disconnect the cable from the extended option cable. Press the C (Scan Model) or

c (System Model) button to exit the keyload operation. The radio will change to the

selected group or channel as indicated in the display.

15.2.4.2 Displaying the Currently Used Cryptographic Key Number

To display the cryptographic key currently in use for either the system encryption key (for special

call such as individual, phone, all, agency or fleet) or the group/channel key (for group or

conventional calls), perform the following procedure:

1. Press the m button.

2. Use the , or . button (ramp control) to select DISP KEY. Then press the m (select)

button.

3. Then use the , or . buttons to toggle between displaying the system key or the

group/channel key.

Table 15-2: Current Cryptographic Key Display

ENCRYPTION KEY DISPLAYED MESSAGE DISPLAYED

System "SYS KEY"

"KEY = 1"

Group/Channel "GRP KEY"/"CHN KEY"

"KEY = 2"/KEY = 2"

15.2.4.3 Key Zero

All cryptographic keys can be zeroed (erased from radio memory) by pressing the c button

(System Model) or C (Scan Model) and while still pressing this button, press and hold the

o button (System Model) or O (Scan Model). Press both buttons for 2 seconds. A

series of warning beeps will begin at the start of this 2-second period and then switch to a solid

tone after the keys have been zeroed. The display will indicate KEY ZERO.

If the cryptographic key(s) are zeroed, one or more keys must be transferred from the Keyloader

into the radio before private communications can continue.

15.2.5 Private Operation

15.2.5.1 Receiving an Encrypted Call

When receiving, the radio automatically switches between clear or private operation. If the

transmission being received is an encrypted transmission, it will be decrypted, the PVT keylight

(System Model) or OPTION keylight (Scan Model) will flash, the receiver will unsquelch and the

message will be heard in the speaker. For this to occur the selected group or channel must be

programmed for private operation and the correct cryptographic key must be loaded into the radio.

15.2.5.2 Transmitting an Encrypted Call

1. Select the desired group or channel.

2. Place the radio in private mode by pressing the PVT button (System Model) or O

(Scan Model). When private mode is enabled, the PVT keylight (System Model) or O

keylight (Scan Model) will be ON.

If the last state of the radio was private mode, the private mode will be enabled on power up.

In addition, the private mode will be enabled if forced operation has been programmed in the

radio

If a group or channel is not programmed for private mode operation, PVT DIS will be

displayed if an attempt is made to enable private transmit mode. It is not possible to operate

on this group/channel in private mode.

If the radio is programmed for forced private transmit operation, FRCD PVT will be

displayed if an attempt is made to disable private transmit mode. It is not possible to transmit

on this group/channel in clear mode.

If the radio does not have the correct encryption key loaded, NO KEY # will be displayed

and the call will not be transmitted.

3. Continue with standard transmission procedures. A private mode access tone will be heard

when the PTT button is pressed.

15.2.5.3 Scanned Group Calls

Receiving a scanned group call is the same as receiving a selected group call. During the scan

hang time, if the radio was programmed for auto-select, it will transmit back in the same mode it

received the call. For example, if a clear group is entered in the scan list, it will only receive clear

calls. If the same group was available in private and entered in the scan list, it can receive clear

and private calls, provided auto-select was programmed in the radio. The user can select

transmitting on the scanned or selected group. If a group is entered in the scan list more than once

and in different modes (clear, digital, private), only the first occurrence of the group will be used.

15.2.6 Conventional Operation

15.2.6.1 Outside Address

The same outside address (works similar to Channel Guard operation) must be programmed in the

transmitting and receiving radios when Aegis or ProVoice digital or private operation is enabled.

If address is not correct, the radios will not communicate.

15.2.6.2 Channel Guard

Channel Guard encode is transmitted on analog clear channels only. Channel Guard decode will

operate on either a clear or private channel. The exception is when G-STAR signaling is used (see

G-STAR paragraph).

15.2.6.3 G-STAR

When G-STAR is programmed on a private channel, the radio will transmit G-STAR in clear

mode and then switch to private for the voice portion of the call. If G-STAR is sent with Channel

Guard, then both are sent in clear mode and the radio switches to private mode. Emergency G-

STAR data burst is transmitted in clear mode.

15.3 DUAL CONTROL OPERATION

The M7100IP Series mobile radio can be programmed to operate from two separate Control Units. This

permits radio operation from two separate locations in the vehicle. Dual control operation is available in

both trunked and conventional modes. Only one control unit can control the mobile radio unit at a time.

The control unit that controls the radio operation is called the active controller and the second unit is called

the idle controller.

15.3.1 Switching Control

Control can be switched to the idle controller by pressing the push-to-talk (PTT) on the

microphone associated with the idle controller. Once PTT is pressed, the radio will switch control

to the idle controller unless the active controller is currently transmitting (i.e., PTT pressed on

active controller), in which case the switch will not occur. When control is switched to the idle

controller, two short high-pitched tones will sound at the controller where PTT was pressed to

indicate that the idle controller is now the active controller and the previous active controller is

now the idle controller.

15.3.2 Control Switching Modes

The radio can be pre-programmed for two modes of dual operation, Slaved and Independent. In

the Slaved mode, the two controllers will use the same radio System and Group settings. The

Independent mode permits each controller to have its own saved System and Group settings.

15.3.2.1 Slaved Mode Operation

In Slaved mode, either controller can operate the radio with no change in System and Group

settings when control is switched. Both controllers display the current information. If a key is

pressed at the idle controller, other than PTT, E, “E,” or siren and light keys as noted in

following paragraphs, a low tone will sound and the display will temporarily show DUAL on line

1 of the idle controller.

When control is switched in a Slaved mode system, all of the radio settings and states will remain

in effect that have been selected on the active controller.

15.3.2.2 Independent Mode Operation

In Independent mode, the radio system operates as if there are two radio units each controlled by a

separate control unit. Each control unit maintains its own System and Group settings that are

restored when control is switched.

The idle controller will display DUAL on line 1 to indicate that it is idle. If a key is pressed at the

idle controller, other than PTT, E, “E,” or siren and light keys as noted in following

paragraphs, a low tone will sound at the idle controller.

When control is switched in Independent mode, the idle controller will restore its own System and

Group settings instead of using the settings of the previously active controller. Any pending

operations at the active controller, other than E, “E,” or siren and light, will be terminated.

15.3.3 Emergency Operation

Either control unit (active or idle controller) can declare an emergency, provided radio has been

pre-programmed to enable emergency declaration. If the idle controller declares an emergency,

control is switched to the idle controller and any current transmission from the previously active

controller is terminated.

15.3.4 Siren & Light Control

Siren & Light control is only available from the control unit that is pre-programmed for these

functions. Typically, the control unit at the driver's location would be programmed. The control

unit that has these functions programmed can activate them regardless of whether it is an active or

an idle controller.

15.3.5 Dual Control Audio

Audio output during dual control operation is a pre-programmed function. Default operation

routes audio only to the active controller.

15.4 MULTIPLE RADIO OPERATION

The M7100IP Series mobile radio can be configured to operate in multiple radio mode that permits more

than one radio to be controlled from a single control unit or control location. The radios could be different

frequency splits, trunked/conventional, etc.

In multiple radio operation, the radios continue to operate as individual radios except with a common

control unit. The control unit is used for display and control. The control unit display is shared by the

multiple radio units and, when selected, a radio can be controlled by the control unit.

For multiple radio operation, the control unit keypad must be pre-programmed for a variety of multiple

radio buttons such as radio selection and radio mute.

15.4.1 Changing Selected Radio

A radio unit can be selected by pressing the radio selection button (pre-programmed) on the

control unit. In addition, a button can be pre-programmed to rotate selection through the radio

units; e.g., (if radio #1 is selected, pressing the radio select button will select radio #2. Similarly,

radio #1 will be selected if the radio select button is pressed when radio #2 was selected.)

15.4.1.1 Shared Control Unit Display Modes

Radios in the multiple radio operation share the control unit display. Pre-programming the radios

determines what the control unit displays. There are two modes of display: alternating radio

display or first-come first-serve display. See also the following paragraph on Audio Modes.

15.4.1.1.1 Alternating Radio Display

In this mode, the control unit display will alternate between showing the call information for the

radios when more than one call is being received. This mode is available only if audio is summed

(see following paragraph on Audio Modes).

15.4.1.1.2 First-Come First-Serve Display

In this mode, the control unit display will show the call information of the radio that is providing

the audio. A call in process prevents audio from other radios from being heard for the duration of

the call. This mode corresponds with the first-come first-serve audio mode (see following

paragraph on Audio Modes).

15.4.1.2 Audio Modes

In multiple radio operation, the audio from the mobile radio units can be pre-programmed to be

summed or available on a first-come first-serve process.

15.4.1.2.1 Audio Summed

When audio is summed, the audio from all radios will be available whenever the radios receive a

call. If two radios receive a call simultaneously, both calls will be heard in the speaker.

15.4.1.2.2 Audio First-Come First-Serve

When audio is pre-programmed for first-come first-serve, the audio from the radio that receives a

call first will be heard from the speaker for the duration of the call. During this time, audio from

the other mobile radios will be muted.

15.4.1.3 Muting a Specified Radio

Pressing the control unit mute button associated with a particular radio will mute its audio for a

pre-programmed time period. The time period can be cleared by pressing the control unit mute

button or the radio selection button.

15.4.1.4 Multiple Radio and Siren & Light Operation

For siren and lights to function correctly, both the master and slave radios must be programmed

with the same siren and light information.

NOTE

Note that the PA and External Speaker functions operate only on the Master radio.

15.4.1.5 Multiple Radio and Data Operation

Only the master radio supports mobile data operation.

15.5 MACRO KEY OPERATION

Macro key operation permits the user to accomplish a series of keystrokes with a single "macro" keystroke.

Up to ten (10) macro keys can be defined, each capable of executing up to twenty (20) keystrokes, to any

pushbutton input (i.e., keypad keys, buttons, etc.). Each macro key can be pre-programmed to activate

when pressed or when released.

A macro key can also be pre-programmed to change the keystroke sequence the next time the macro key is

activated.

For detail operation and assignment of macro keys, contact your communications supervisor or

administrator.

15.6 INTERCONNECT CALL (SYSTEM MODEL ONLY)

To send a manually entered telephone interconnect call:

1. Select a channel in the radio system that has telephone interconnect capability. The radio should

be programmed for DTMF operation on this channel.

2. Press the k button to toggle the keypad to the DTMF function (secondary function).

3. Press and hold PTT to key the transmitter. While holding the PTT, press the * or # key (as

required by the radio system to obtain a telephone line). The radio will transmit the selected tone.

4. Release the PTT and listen for a dial tone. When the dial tone is heard, press and hold the PTT

while entering the desired telephone number. As each digit is entered and transmitted, the DTMF

side tone will be heard from the speaker, if programmed to do so through ProGrammer.

5. After all the digits have been entered and transmitted, release the PTT.

6. When the call is answered, press the PTT and speak directly into the microphone. Release the

PTT immediately to receive a reply.

7. When the call is finished, press and hold PTT and then press the * or # key (as required by radio

system) to terminate the interconnect call. Release the PTT.

8. To return to the primary function of the keypad, press k. To continue with another

interconnect call, repeat steps 3 through 8.

15.7 KEYPAD REMAPPING

If the keys have been remapped to provide new functions, fill in the following templates (Figure 15-1 and

Figure 15-2) for future reference.

Figure 15-1: M7100IP System Model Keypad

Figure 15-2: M7100IP Scan Model Keypad

GLOSSARY

Agency - An agency is composed of multiple fleets. Units can be programmed to initiate agency

calls to access multiple fleets (Trunked Mode Only).

Base/Unit

Operation - A programmed option used in some fleets so units can only hear and talk to a base

dispatch unit, not to other mobiles or personals in the group. In this mode of operation,

when a unit in a particular group is talking to the base dispatch unit, all other mobile

and personal radios in that group will receive a "System Busy" tone if they try to

access the system (Trunked Mode Only).

Control

Channel - A radio channel in a trunked system that is used to digitally communicate with the

radios operating on the system when they are not engaged in active voice

communications.

Conventional

Channel - A radio channel (transmit/receive frequency pair) that is allocated for conventional

(non-trunked) use and can be manually selected by the operator.

Conventional

Mode - Communicating on radio channels allocated for conventional use (i.e. conventional

system).

CCT - Carrier Controlled Timer - a programmable timer that will disable a transmission if the

length is exceeded.

CG - Channel Guard - a method of controlling speaker mute with a tone or digital code.

Fleet - A fleet of users consists of multiple groups (sub-fleets). Radios can be programmed to

make fleet calls to simultaneously access multiple user groups (Trunked Mode Only).

Group or

Sub-fleet - A group of users share the same program group identification number in their mobile

and portable radios. All units in the same group will receive a dispatch call placed by

any one unit in the group (Trunked Mode only).

Group Scan - Programming that allows the radio to monitor many groups simultaneously (multi-

group decode), permitting the user to both monitor and receive calls from these groups.

The radio can be programmed with a scan hang time which causes the radio to remain

on the scanned group for a pre-

rogrammed amount of time, responding only to calls

of a higher priority such as priority scan group calls, individual calls, fleet calls,

agency calls, etc. When activity on the scan group ends, and the pre-

rogrammed time

has expired, the radio returns to monitoring multiple groups (Trunked Mode Only).

Individual

Call - Every radio in the system is programmed with a unique individual identification code.

A mobile or portable unit can be programmed to call another particular unit by

selecting the individual by name or ID number (Trunked Mode Only).

Queueing - The process that occurs when all channels in a trunked system are busy and calls mus

be addressed on a priority basis.

Site

Controller - The computer controlled radio equipment at the repeater site that controls a trunking

system.

System

(area) - The terms "system" and "area" are used interchangeably to refer to the particular group

of station repeaters currently providing service to the radio.

System

Manager - A computer that performs the databasing and system monitoring for the site controller.

System

Scan - A programmed feature to scan (monitor activity on) separate trunked systems and

receive calls on any of these systems (Trunked Mode Only).

Talk-around

Mode - Also referred to as "direct mode," talk-around provides a direct unit-to-unit short-range

communications link. It is intended to maintain communications outside of the main

system coverage area.

Telephone

Inter-

Connect

- This feature allows the user to initiate or receive telephone calls through the radio i

the system is configured for this operation (Trunked Mode Only).

Trunked

Group - A radio communications path shared by two or more users.

Trunked

Operation - Trunked Operation refers to the use of a set of radio frequency channels by multiple

user groups. By using high-speed digital data, the radio goes to an unused channel

when a call is initiated and responds only to calls in the same user group. In this way,

conversation privacy between user groups is assured.

Trunked

Radio

System

- A radio system in which a limited number of radio channels are dynamically allocated

to groups of people for communication purposes.

Trunked

System - A set of one or more trunked groups.

T99 - Type 99 - a method of opening mute for selective page operations using sequential

tones.

Wide Area

Encode - A programmed option that ensures all system-scanning mobile and portable radios

have time to lock onto the call before the initiating unit is allowed to talk.

Working

Channel - A radio channel (transmit/receive frequency pair) that is automatically assigned by the

site controller for voice or data communications.

RADIO SETUP

RADIO TYPE:

FREQUENCY BAND:

OPERATOR'S NAME:

EMERGENCY GROUP:

SYSTEM

NUMBER

SYSTEM NAME

TRK/CNV GRP/CHN

NUMBER

GRP/CHN NAME

USE

SYSTEM

NUMBER

SYSTEM NAME

TRK/CNV GRP/CHN

NUMBER

GRP/CHN NAME

USE

WARRANTY

A. M/A-COM, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter

"Buyer") that Equipment manufactured by or for the Seller shall be free from defects in

material and workmanship, and shall conform to its published specifications. With respect to

all non-M/A-COM Equipment, Seller gives no warranty, and only the warranty, if any, given

by the manufacturer shall apply. Rechargeable batteries are excluded from this warranty

but are warranted under a separate Rechargeable Battery Warranty (ECR-7048).

B. Seller’s obligations set forth in Paragraph C below shall apply only to failures to meet the

above warranties occurring within the following periods of time from date of sale to the

Buyer and are conditioned on Buyer’s giving written notice to Seller within thirty (30) days of

such occurrence:

1. for fuses and non-rechargeable batteries, operable on arrival only.

2. for parts and accessories (except as noted in B.1) sold by Seller’s Service Parts

Operation, ninety (90) days.

3. for PANTHER™ Series handportable and mobile radios, two (2) years.

4. for all other equipment of Seller’s manufacture, one (1) year.

C. If any Equipment fails to meet the foregoing warranties, Seller shall correct the failure at its

option (i) by repairing any defective or damaged part or parts thereof, (ii) by making

available at Seller’s factory any necessary repaired or replacement parts, or (iii) by replacing

the failed Equipment with equivalent new or refurbished Equipment. Any repaired or

replacement part furnished hereunder shall be warranted for the remainder of the warranty

period of the Equipment in which it is installed. Where such failure cannot be corrected by

Seller’s reasonable efforts, the parties will negotiate an equitable adjustment in price. Labor

to perform warranty service will be provided at no charge during the warranty period only for

the Equipment covered under Paragraph B.3 and B.4. To be eligible for no-charge labor,

service must be performed at a M/A-COM factory, by an Authorized Service Center (ASC)

or other Servicer approved for these purposes either at its place of business during normal

business hours, for mobile or personal equipment, or at the Buyer’s location, for fixed

location equipment. Service on fixed location equipment more than thirty (30) miles from the

Service Center or other approved Servicer’s place of business will include a charge for

transportation.

D. Seller’s obligations under Paragraph C shall not apply to any Equipment, or part thereof,

which (i) has been modified or otherwise altered other than pursuant to Seller’s written

instructions or written approval or, (ii) is normally consumed in operation or, (iii) has a

normal life inherently shorter than the warranty periods specified in Paragraph B, or (iv) is

not properly stored, installed, used, maintained or repaired, or, (v) has been subjected to

any other kind of misuse or detrimental exposure, or has been involved in an accident.

E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in

or nonconformity of the Equipment, whether the claim is in contract, warranty, tort (including

negligence), strict liability or otherwise, and however instituted. Upon the expiration of the

warranty period, all such liability shall terminate. The foregoing warranties are exclusive and

in lieu of all other warranties, whether oral, written, expressed, implied or statutory. NO

IMPLIED OR STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR

PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT SHALL THE SELLER BE LIABLE

FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR EXEMPLARY

DAMAGES.

This warranty applies only within the United States.

M/A-COM, Inc. M/A-COM, Inc.

1011 Pawtucket Blvd. 221 Jefferson Ridge Parkway

Lowell, MA 01853 Lynchburg, VA 24501

1-877-OPENSKY 1-800-528-7711

ECR-7047C

M/A-COM Wireless Systems

221 Jefferson Ridge Parkway

Lynchburg, Virginia 24501

(Outside USA, 434-385-2400) Toll Free 800-528-7711

HARRIS TR-0035-E M7100 VHF Mobile, 8-50W User Manual MM102341V1RevC p2 FCC

HARRIS CORPORATION M7100 VHF Mobile, 8-50W MM102341V1RevC p2 FCC

Contents

Manual with additons

Navigation menu

Namespaces

Views

Navigation
