HBC-radiomatic GmbH Transceiver Module Integration Manual
Integration Manual
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 1 of 13
Revision: 0
User manual
Transceiver module TC643
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 2 of 13
Revision: 0
1 Table of Contents
1 Table of Contents.......................................................................................................................... 2
2 Information about the module...................................................................................................... 3
2.1 Intended use .......................................................................................................................... 3
2.2 Shielding provision of the RF part .......................................................................................... 3
2.3 Common installation guidelines ............................................................................................. 3
2.4 Specific installation instructions ............................................................................................. 3
2.5 FCC notes for the module ...................................................................................................... 4
2.5.1 Applied rules ................................................................................................................. 4
2.5.2 Modification of equipment ............................................................................................. 4
2.5.3 Dedicated antennas ...................................................................................................... 4
2.5.4 RF exposure information .............................................................................................. 5
2.6 Labelling of the module .......................................................................................................... 6
2.7 Technical data ....................................................................................................................... 7
3 Information for the end device ..................................................................................................... 8
3.1 Integration of the module ....................................................................................................... 8
3.2 Safety Instructions ................................................................................................................. 8
3.3 FCC notes for all host devices ............................................................................................... 9
3.3.1 Modification of equipment ............................................................................................. 9
3.3.2 Special accessories ...................................................................................................... 9
3.3.3 RF exposure evaluation ................................................................................................ 9
3.3.4 Simultaneous transmission ......................................................................................... 10
3.3.5 RF exposure statement .............................................................................................. 10
3.3.6 Labelling ..................................................................................................................... 11
3.4 FCC notes for a host subject to verification .......................................................................... 11
3.4.1 Modification of equipment ........................................................................................... 11
3.4.2 Information to the user ................................................................................................ 12
3.4.3 Special accessories .................................................................................................... 12
3.4.4 RF exposure evaluation .............................................................................................. 12
3.4.5 Simultaneous transmission ......................................................................................... 12
3.4.6 Labelling ..................................................................................................................... 12
3.5 FCC notes for a host subject to certification ......................................................................... 12
3.5.1 Modification of equipment ........................................................................................... 13
3.5.2 Special accessories .................................................................................................... 13
3.5.3 RF exposure evaluation .............................................................................................. 13
3.5.4 Simultaneous transmission ......................................................................................... 13
3.5.5 Labelling ..................................................................................................................... 13
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 3 of 13
Revision: 0
2 Information about the module
2.1 Intended use
The TC643 is a transceiver for data transfer with fast transmit-receive switchover. The frequency range
is 460.6500 to 461.5625 MHz, according to the hardware version for USA. This module is not sold
separately, but is used for systems of HBC-radiomatic GmbH exclusively.
2.2 Shielding provision of the RF part
The RF component has been designed in this way to comply with the requirements for modular
transmitters and to avoid easy access to the RF components. Efficient shielding of RF part is
achieved by means of metal shielding. The metal shielding is soldered up with the circuit board.
2.3 Common installation guidelines
Align module with connector and insert it with care.
Affix module with fixing screw.
Check proper installation.
2.4 Specific installation instructions
For details about the installation of the module in a specific host appropriate “Instructions for
modular transceiver installation” are supplied by HBC-radiomatic GmbH. Please refer to the
document appropriate for the host to be assembled with the transmitter module.
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 4 of 13
Revision: 0
2.5 FCC notes for the module
2.5.1 Applied rules
The TC643 transceiver module complies with the requirements of 47 CFR Part 90, §90.217. It
uses frequencies of the Industrial/Business Radio Pool and is subject to licensing.
2.5.2 Modification of equipment
Changes or modifications made to this equipment not expressly approved by HBC-radiomatic
GmbH may void the FCC authorization to operate this equipment.
2.5.3 Dedicated antennas
The TC643 transceiver module may only be used with antennas certified with the module or
antennas of the same type with antenna gain not exceeding the certified values for this type.
The list of antennas to be used with the TC643 transceiver module is shown below.

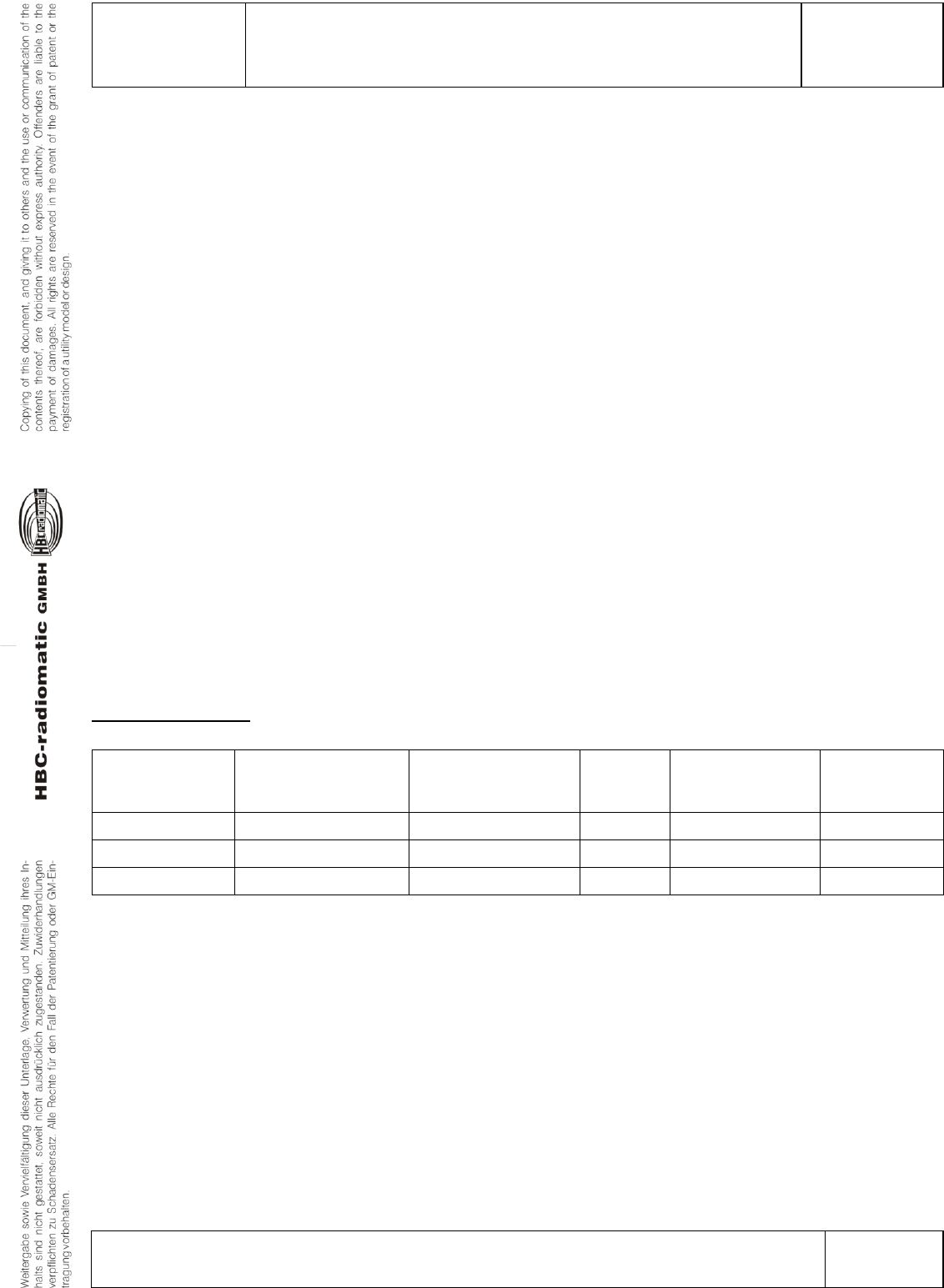

Internal antennas:
HBC part number
Antenna type
Frequency range
Gain [dBi]
Connector type
HBC-
radiomatic
datasheet
AA080004
λ/4 - antenna
405 – 480 MHz
2.15
MMCX male
x
AB047010
λ/4 - antenna
405 – 480 MHz
2.15
MMCX male
x
AB158010
short dipole antenna
405 – 480 MHz
2.15
MMCX male
x
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 5 of 13
Revision: 0

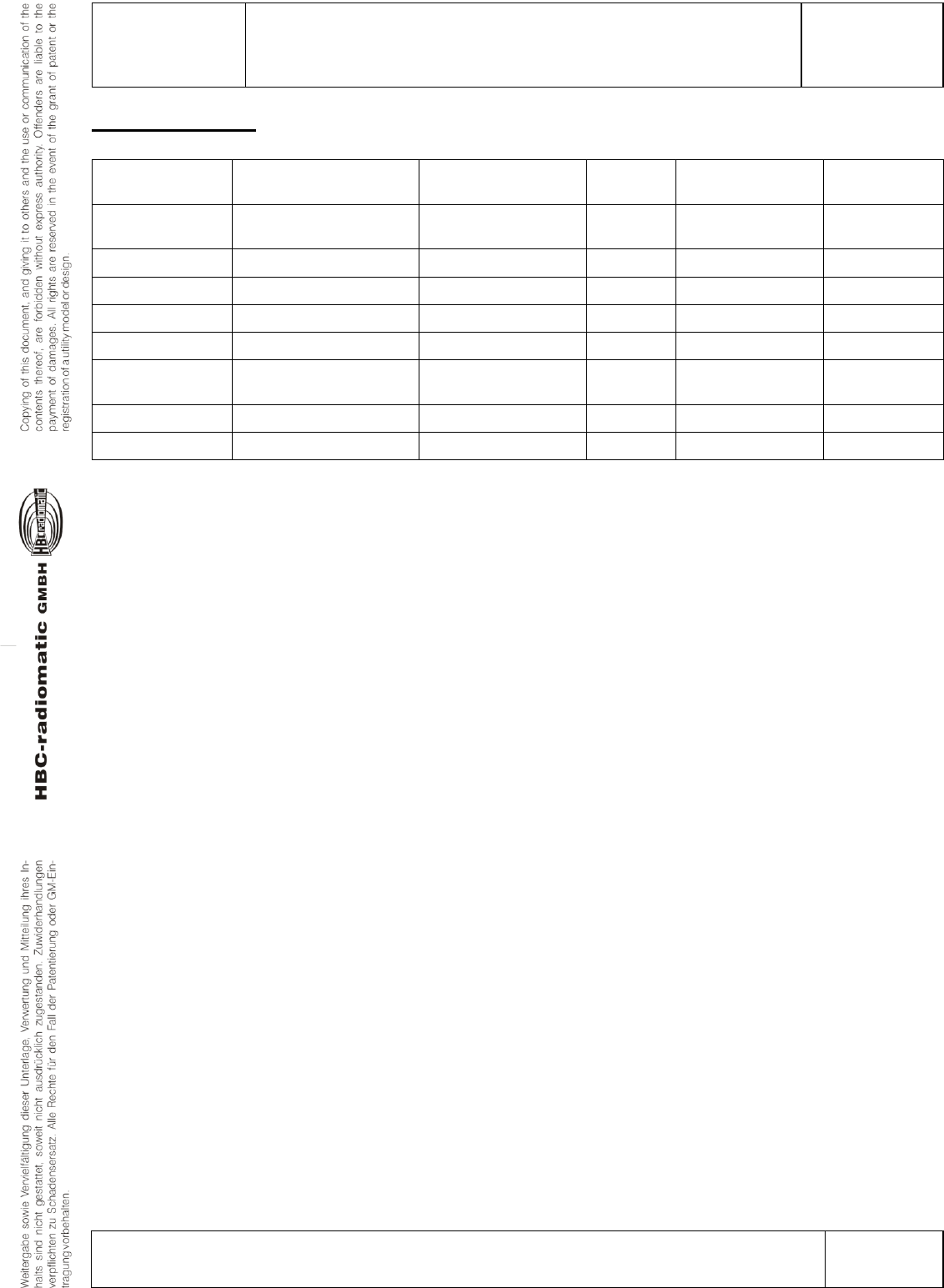

External antennas:
HBC part number
Antenna type
Frequency range
Gain [dBi]
Connector type
Manufacturer
datasheet
012-01-00007
shortened half-wave
antenna
440 – 470 MHz
6.15
BNC male
x
AA020002
whip antenna
400 – 460 MHz
2.15
BNC male
x
AA020031
λ/4 whip antenna
410 – 470 MHz
2.15
Mini-Crimp
x
AA050002
omnidirectional antenna
406 – 470 MHz
2
N female
x
AA060007
λ/4 mobile whip antenna
430 – 470 MHz
2.15
Mini-Crimp
x
AA060015
dual frequency whip
antenna
380 – 470 MHz
800 – 960 MHz
2.15
Mini-Crimp
x
AA060018
whip antenna
450 – 470 MHz
6.15
Mini-Crimp
x
AA060021
λ/4 mobile whip antenna
406 – 470 MHz
2.15
Mini-Crimp
x
2.5.4 RF exposure information
The TC643 transceiver module complies with the RF exposure standalone SAR test exclusion
requirements for portable devices with a test separation distance of 6 mm, i. e. a minimum
separation distance of at least 6 mm between the radiating part and the user or nearby persons
has to be assured.
For simultaneous transmission appropriate RF exposure evaluations have to be
performed.
Portable exposure host platform evaluation procedures can be applied only if all transmitters in
the host devices support portable exposure conditions. Transmitters and modules approved f or
use in the portable exposure host platform may be used for standalone operations in mobile
exposure host platforms, without further equipment approval, only when the same identical
transmitter and antenna required for portable device exposure conditions are used.
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 6 of 13
Revision: 0

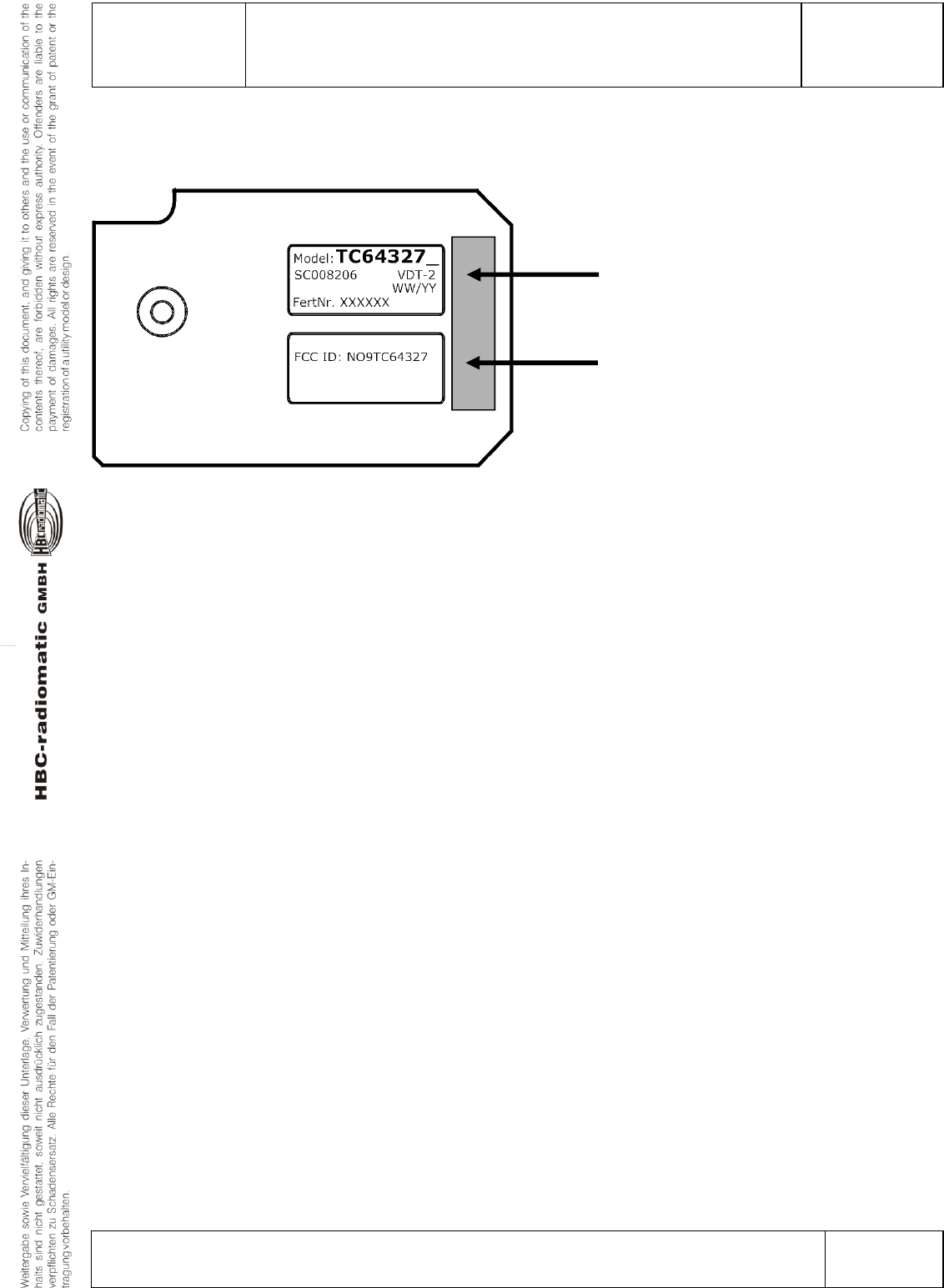

2.6 Labelling of the module
HBC label
FCC-label
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 7 of 13
Revision: 0

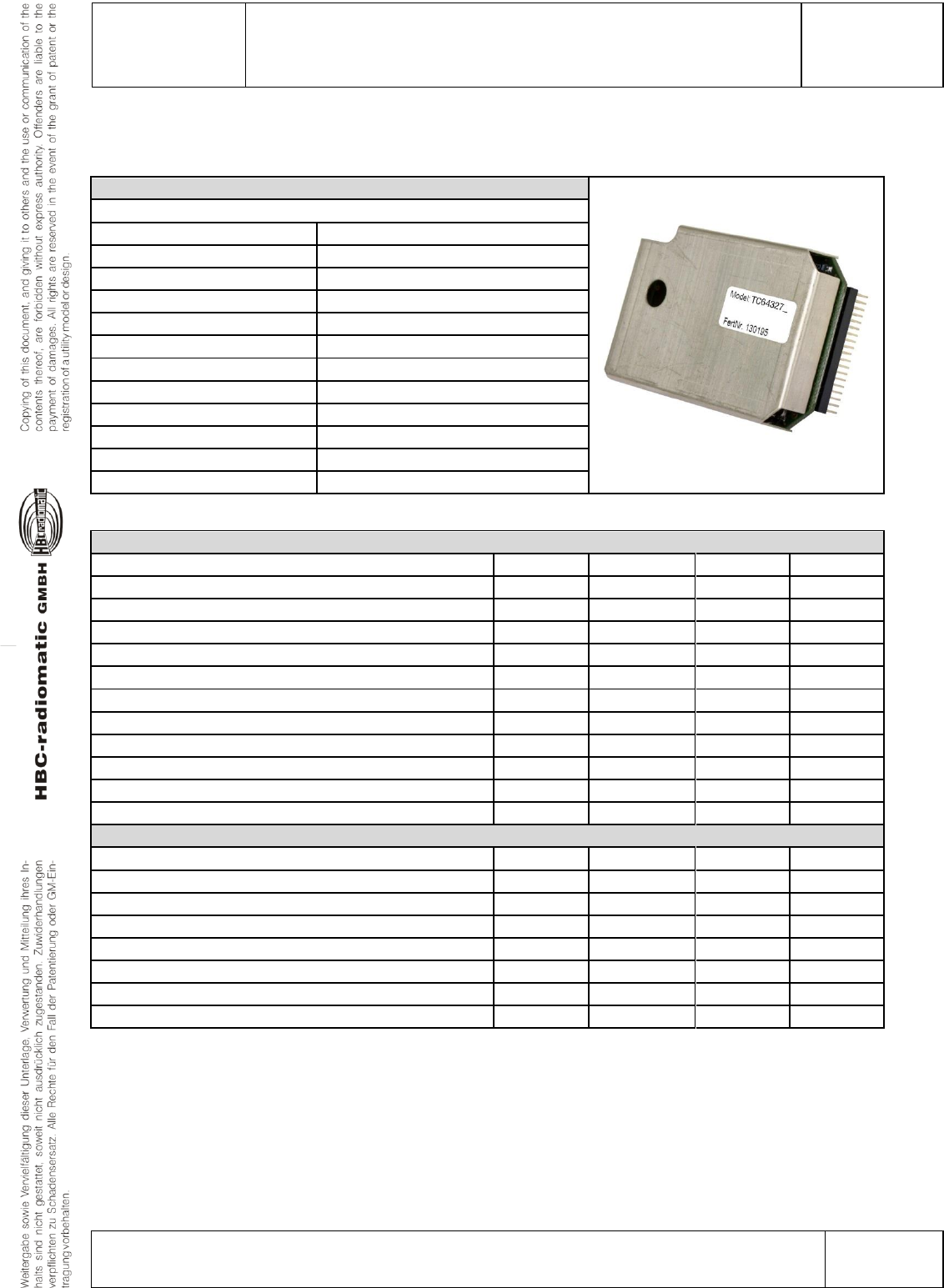

2.7 Technical data
Technical Specification
Common data
Module code
TC64327_
Antenna
MMCX socket
Number of RF channels
16
Frequency range
460.6500 – 461.5625 MHz
Channel spacing
12.5 kHz
Deviation
±2.5 kHz
Frequency stability
±2.5 ppm or less (-30 °C …+85 °C)
Operating temperature range
-30 °C … +80 °C
Modulation
9k12F2D
Switch-over time (RX – TX)
< 1 ms
Dimensions
(49 x 34 x 19) mm
Weight
26 g
Transmitter specific data
Parameter
Min.
Typ.
Max.
Unit
Supply voltage
3.3
4.2
4.6
V
Parameter
Min.
Typ.
Max.
Unit
Conducted output power
-
< 14
-
dBm
Adjacent channel power (25 kHz)
-
< -37
-
dBm
Spurious emission (80 MHz to1 GHz)
-
< -37
-
dBm
Spurious emission (47 MHz to 74 MHz)
-
< -57
-
dBm
Spurious emission (87.5 MHz to 118 MHz)
-
< -57
-
dBm
Spurious emission (174 MHz to 230 MHz)
-
< -57
-
dBm
Spurious emission (470 MHz to 862 MHz)
-
< -57
-
dBm
Spurious emission (> 1 GHz)
-
< -50
-
dBm
Supply current
110
115
120
mA
Receiver specific data
Parameter
Min.
Typ.
Max.
Unit
Supply voltage
3.3
4.2
4.6
V
Sensitivity @ 20 dB S/N and 8 kHz bandwidth
-107
-108
-111
dBm
Adjacent channel selectivity (12.5 kHz)
37
38
40
dB
Spurious radiation (all)
-
< -57
-
dBm
Blocking (±2 MHz)
85
86
87
dB
Blocking (±10 MHz)
95
96
97
dB
Supply current
50
55
60
mA
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 8 of 13
Revision: 0
3 Information for the end device
3.1 Integration of the module
As the TC643 transceiver module can be mounted in various hosts subject to different authorization
procedures only the most typical combinations are covered by this user manual. If the host device is
subject to other authorization procedures than described below the appropriate requirements of these
authorization procedures apply.
For details about the installation of the module in a specific host appropriate “Instructions for modular
transceiver installation” are supplied by HBC-radiomatic GmbH. Please refer to the document
appropriate for the host to be assembled with the module. This document also contains information
about labelling and notices to the user.
3.2 Safety Instructions
In customer related documents of the end product like instruction manuals, installation guides etc.
appropriate safety instructions have to be included. The supplier of the complete system is responsible
for these safety instructions.
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 9 of 13
Revision: 0
3.3 FCC notes for all host devices
The information in this section applies to all hosts irrespective of the authorization procedure applicable
to the host.
The integrator is responsible for the final compliance of the end product including this certified transmitter
module. Section §15.101 of 47 CFR Part 15 gives guidance in terms of applicable equipment
authorization procedures of different end devices. Typically compliance to subpart 15 B (§15.107 and
15.109) Class A or B (spurious emissions up to 5th harmonic of the maximum of the highest frequency
generated or used and the fundamental frequency of the module) including verification of the subpart
15 C compliance (field strength of fundamental and out-of-band emissions up to 10th harmonic of the
fundamental frequency of the module) of the transmitter parameters apply. For details about the
frequency range of radiated measurements see section §15.33.
As the module is used for systems of HBC-radiomatic GmbH exclusively, two different authorization
procedures for the end device are intended to be applied:
Verification (see section 3.4)
Certification (see section 3.5)
3.3.1 Modification of equipment
The instruction manual of the host shall include the following statement:
Changes or modifications made to this equipment not expressly approved by the party
responsible for compliance may void the FCC authorization to operate this equipment.
3.3.2 Special accessories
Where special accessories such as shielded cables and/or special connectors are required to
comply with the emission limits, the instruction manual shall include appropriate instructions on
the first page of the text describing the installation of the device.
3.3.3 RF exposure evaluation
The TC643 transceiver module complies with the RF exposure standalone SAR test exclusion
requirements for portable devices with a test separation distance of 6 mm, i. e. a minimum
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 10 of 13
Revision: 0
separation distance of at least 6 mm between the radiating part and the user or nearby persons
has to be assured.
For simultaneous transmission (e. g. if more than one module is assembled) appropriate
RF exposure evaluations have to be performed.
3.3.4 Simultaneous transmission
When the host product supports simultaneous-transmission operations the host manufacturer
needs to check if there are additional RF exposure filing requirements due to the simultaneous
transmissions. When additional application filing for RF exposure compliance demonstration is
not required (e. g. if the TC643 transceiver module in combination with all simultaneously
operating transmitters complies with the RF exposure simultaneous transmission SAR test
exclusion requirements), the host manufacturer may do his own evaluation without any filing,
using reasonable engineering judgment and testing for confirming compliance with out-of-band,
restricted band, and spurious emission requirements in the simultaneous-transmission operating
modes.
If additional filing is required please contact the person at HBC-radiomatic GmbH responsible for
certification of the TC643 transceiver module.
3.3.5 RF exposure statement
After having performed an RF exposure evaluation including a check for simultaneous transmission, if
applicable, the instruction manual of the host shall include the appropriate statement as noted below:
a) For portable host devices:
This device complies with the RF exposure SAR test exclusion requirements for portable devices
if a minimum separation distance of 6 mm to its antennas and radiating structures is kept. In
addition, the device shall be used in such a manner that the potential for human contact during
normal operation is minimized.
b) For mobile or fixed host devices:
This device complies with the RF exposure requirements for mobile or fixed host devices.
However, the device shall be used in such a manner that the potential for human contact during
normal operation is minimized.
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 11 of 13
Revision: 0
3.3.6 Labelling
The host device shall bear the following statement in a conspicuous location on the device:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
If the FCC identification number is not visible when the TC643 transceiver module is installed inside the
host, then the outside of the device into which the module is installed must also display a label referring
to the enclosed module:
Contains FCC ID: NO9TC64327
3.4 FCC notes for a host subject to verification
For a host device assembled with the TC643 transceiver module and subject to 47 CFR Part 15
verification of class A digital devices, the following statements have to be included in the user
manual and the host device has to be labelled as noted below. If the host device is subject to
other authorization procedures or parts the appropriate requirements of these authorization
procedures or parts apply.
3.4.1 Modification of equipment
See section 3.3.1.
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 12 of 13
Revision: 0
3.4.2 Information to the user
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
3.4.3 Special accessories
See section 3.3.2.
3.4.4 RF exposure evaluation
See section 3.3.3.
3.4.5 Simultaneous transmission
See section 3.3.4.
3.4.6 Labelling
See section 3.3.6.
3.5 FCC notes for a host subject to certification
If the host additionally has radio parts inside for its own it is subject to certification. For a host
device assembled with the TC643 transceiver module and subject to 47 CFR Part 15
certification, the following statements have to be included in the user manual and the host device
TC643
User manual
HBC
Issue date: 2017-02-17
Issued by: SEKH
Page 13 of 13
Revision: 0
has to be labelled as noted below. If the host device is subject to other authorization procedures
or parts the appropriate requirements of these authorization procedures or parts apply.
3.5.1 Modification of equipment
See section 3.3.1.
3.5.2 Special accessories
See section 3.3.2.
3.5.3 RF exposure evaluation
See section 3.3.3.
3.5.4 Simultaneous transmission
See section 3.3.4.
3.5.5 Labelling
In addition to the labelling requirements as described in section 3.3.6, the host device must also be
labelled with the FCC Identifier (FCC ID) of its own certification:
FCC ID XZZYYNNNNN
