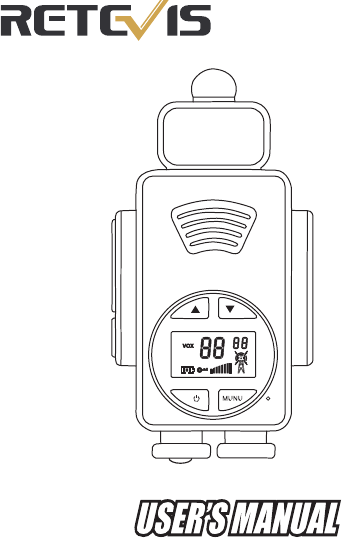

RT36
1.Antenna
12.PTT
13.Lamp Key
2.Volume Up
3.Volume Down
9.MENU
10.Power Button
11.Speaker
14.Vox
15.Power display
16.Lock
17.Lamp
4.Channel Display
5.CTCSS/DCS
6.TX/RX Icon
7.Volume
8.Microphone
Number
01
Instructions for use
Specific recommendations:
1.To avoid the risk of burns, do not use the device
if the antenna is damaged in any way.
2.Do not use the device in a potentially explosive
environment.
3.Switch off the device if on an airlane or in a
hospital.
4.Never use the device in close proximity to a
radio to avoid interference.
5.Remove the batteries if the device is not in use
for an extended period of time. Never mix used
and new batteries.
6.Put the transmitter and antenna at least 5 cm
from your face.
7.Clean the device with a damp cloth. Do not use
of cleaning agents and solvents.
8.Do not modify the device in any way. If the
device is damaged, Please make it checked by
a qualified professional.
9.The device cannot be used to contact the
emergency services.
02

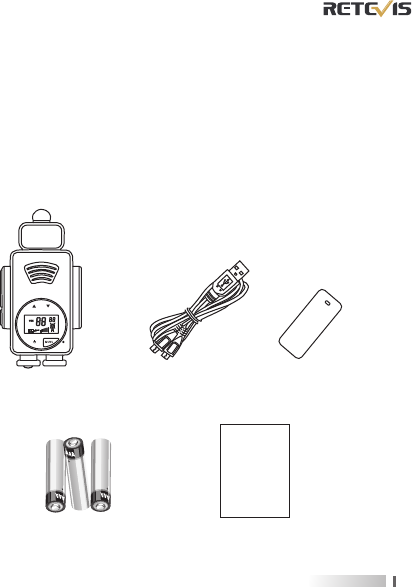

Unpacking and checking equipment
Welcome to use two-way radio. Carefully unpack
the radio. We recommend you check the listed in
the following table before discarding the package.
If any item is missing, please contact us
immediately.
2 x Belt clip
1 x Micro-USB
AAA
AAA
AAA
AAA
AAA
AAA
2 x two-way radio
User s Manual'
1 x User's Manual
Supplied accessories:
6 x (AAA) NiMH
rechargeable
03
AAA
AAA
AAA
AAA
AAA
AAA

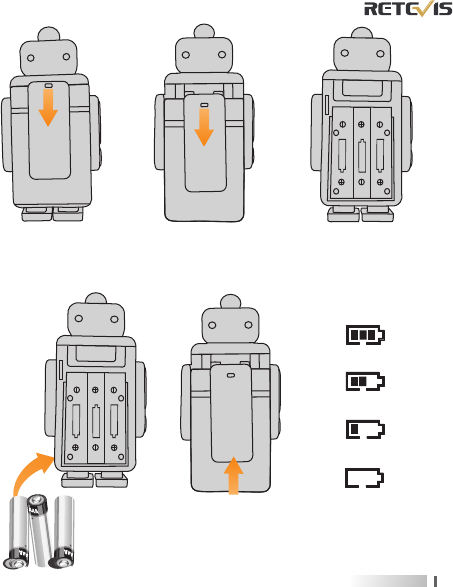

04
1.Requires 6 AAA batteries included. Batteries
are to be changed by an adult.
2.Non-rechargeable batteries must be removed
from toy before being recharged and
rechargeable batteries shoud be charged under
adult supervision.
3.Do not mix alkaline, standard(carbon zinc),or
rechargeable(nickel cadmium) batteries. Do not
mix used and new batteries together. Only
batteries of the recommended type or of a similar
type should be used.
4.Batteries must be inserted according to the
correct polarity.Remove batteries from toy when
storing for an extended period of time or if
batteries are exhausted.
5.The supply terminals must not be short-circuited.
1.Battery Precautions
05
2.Product description
1.
2. Automatic squelch
3. Call tone (10 sets of call sounds to select )
4. Keyboard lock (long press key to lock the
keyboard misuse)
5.LED flashlight
6.7 kinds of LCD display
7. Low battery alarm
8.DCS 14,14 channels, each channel a digital
coded squelch
9. Vox function
Civilian handheld license-free two-way radio.
.
.
.
.
.
.
.
3.Functional operation
3.1
To turn the devices on or off, press the on/off
button for 3 seconds, there will be a BEEP sound
to confirm.
Turning the device on/off
10. Memory and restore factory settings function
11.Communication distance, according to the
actual situation around the mountains, trees,
tall buildings and other judgments Intercom
communication distance.
06
3.3 Function option switch
After pressing the power button to enter the
menu settings:
1.Changing the channel: press the button once,
then change the channel with and . Press
PTT to confirm .The two devices must use the
same channel
2.VOX:Press for VOX (voice)
to select, close and 5 level options.
3.P
▲ ▼
.
the button twice,
ress the button three times, then choose
one of the ten call tones and press PTT to confirm.
4.Press the button three times, return to
standby.
3.4 Vox function
Press the button twice, for VOX (voice) to
select, close and 5 level options.
Note: The volume level (8) is displayed on the
screen.
3.2 Adjusting the volume
To increase the volume, press the Up adjustor
button
▲and press the Down▼button to
decrease volume.
07
Note: 1. There will be a slight delay between
starting speech and radio transmission.
2. PTT auto-off when the voice-activated launch
switch is turned on does not need to be pressed
by PTT
3. After the end of the speech two seconds after
the launch automatically.
.
5 = High sensitivity under low background noise.
4 = Medium High Sensitivity Under Low
Background Noise Use.
3 = Sensitivity for most applications
2 = Medium low sensitivity for high background
noise.
1 = low sensitivity for high background noise.
3.5 CALL tone selection
Press the button three times, then
choose one of the ten call tones and press PTT
to confirm. a total of 10 kinds of CALL music,
press the power button to launch.
3.6 Battery Charge Level
The battery charge level is indicated by the
number of square spresent inside the battery
icon on the LCD screen.
08
Battery Full
Battery 2/3 charged
Battery 1/3 charged
Battery empty
When the battery power is low, the battery icon
will flash and there will be a beep indicating that
the batteries need to be replaced or recharged
.
3.7 Memory function
There is a memory function (including the on /
off status) when the machine is turned off or off,
and there is no need to reset the channel
3.8 Restore factory settings
In the shutdown state, press the key and the
button at the same time, all settings are
restored to factory settings.
.
3.9 How to communicate with each other
Mutual communication must be set to the same
channel and sub-audio, the need to press the
PTT call key,Please keep the mouth and
distance of about 5 cm, two-way radio
09
Europe
4 Channel and frequency (MHz).DCS.
Channel Frequency DCS Number
1 446.00625 N114 53
2 446.01875 N131 57
3 446.03125 N132 58
4 446.04375 N165 65
5 446.05625 N226 70
6 446.06875 N306 79
7 446.08125 N371 88
8 446.09375 N503 99
immediately after the release of the PTT button
to release. Let the other party at any time call,
note the same frequency for the radio, so when
the letter can not write, Send no letter when the
letter, in the launch of the signal when they can
not hear each other to speak, the other side
speaking time can not talk with each other, if
forced to speak according to PTT, the other party
will say can not hear, they said the other side can
not hear.When the PTT is launched, the LCD has
a transmission indicator ; the LCD is signed at
reception.
10
America
Channel Frequency DCS Number
1 462.5625 N43 44
2 462.5875 N65 48
3 462.6125 N116 55
4 462.6375 N205 68
5 462.6625 N261 75
6 462.6875 N265 77
7 462.7125 N271 78
8 467.5625 N306 79
9 467.5875 N311 80
10 467.6125 N331 82
11 467.6375 N365 87
12 467.6625 N431 93
13 467.6875 N466 98
14 467.7125 N503 99
11
Note:

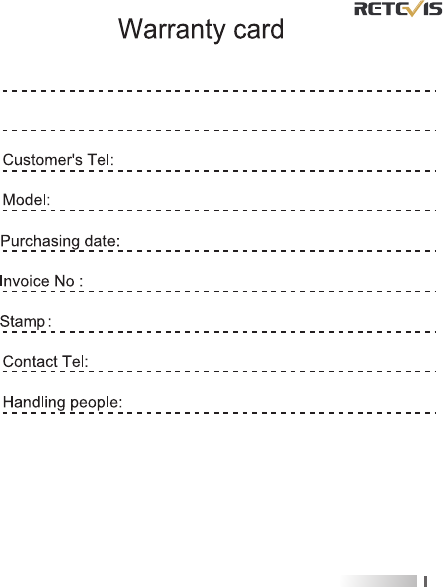

1.This warranty card is only applicable to two-way
radio of the above-listed model and serial number.
2.The warranty card is an important document for the
end-user to enjoy warranty service, please keep it well.
3.The warranty card shall be filled and chopped by the
dealer ,or it is invalid.
Name Gender
Add and postal code:
12
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
SAR tests are conducted using standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all tested frequency bands, although the SAR is
determined at the highest certified power level, the actual SAR level of the device while operating
can be well below the maximum value. Before a new model is a available for sale to the public, it
must be tested and certified to the FCC that it does not exceed the exposure limit established by
the FCC, Tests for each product are performed in positions and locations as required by the FCC.
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines
when used with an accessory designated for this product or when used with an accessory that
Contains no metal.
To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna
at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna
pointed up and away from the face.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to comply with the FCC RF exposure requirements, the antenna installation
must comply with following:
Users must be fully aware of the hazards of the exposure and able to exercise control over their
RF exposure to qualify for the higher exposure limits.
Your wireless hand-held portable transceiver contains a low power transmitter. This product sends
out radio frequency (RF) signals when the Push-to-Talk (PTT) button is pressed.
The device is authorized to operate at a duty factor not to exceed 50%.
